UTILIZACION DE LA RADIOGRAFIA EN ENDODONCIA
DR. JOSE FERNANDO AVILA G.
2
Historia del diagnóstico por imágenes
3
Historia del diagnóstico por imágenes
1895 Wilhem Conrad Roentgen.
4
Historia del diagnóstico por imágenes
5
Historia del diagnóstico por imágenes
7
Historia del diagnóstico por imágenes
1895 Dr. Otto Walkhoff
8
Historia del diagnóstico por imágenes
1896 NY W. J. Morton
9
Historia del diagnóstico por imágenes
Dr. Edmund Kells
10
Historia del diagnóstico por imágenes
11
Historia del diagnóstico por imágenes
12
Historia del diagnóstico por imágenes
William Coolidge 1,920
13
Historia del diagnóstico por imágenes
14
Historia del diagnóstico por imágenes
15
Historia del diagnóstico por imágenes
RADIOGRAFIA DIGITAL: a- DIRECTA b- INDIRECTA c- SCANNER
16
Historia del diagnóstico por imágenes
17
Historia del diagnóstico por imágenes
18
Historia del diagnóstico por imágenes
19
Historia del diagnóstico por imágenes
20
Historia del diagnóstico por imágenes
21
Historia del diagnóstico por imágenes
22
Historia del diagnóstico por imágenes
SCANER
23
Historia del diagnóstico por imágenes
25
Técnicas radiográficas
26

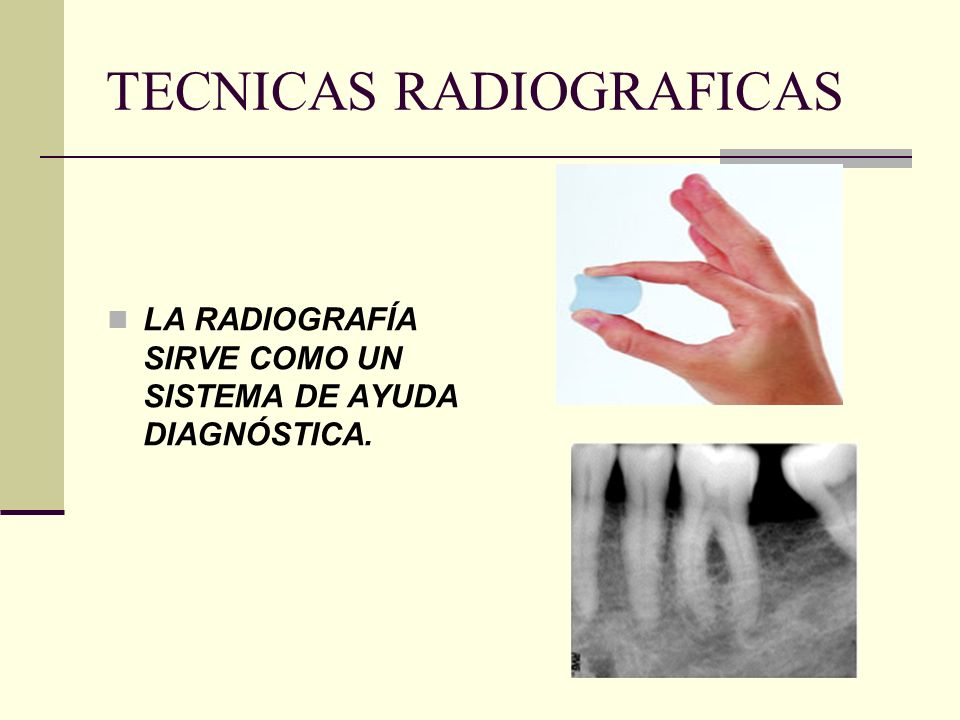

TECNICAS RADIOGRAFICAS
LA RADIOGRAFÍA SIRVE COMO UN SISTEMA DE AYUDA DIAGNÓSTICA.
27
TECNICAS RADIOGRAFICAS
28
TECNICAS RADIOGRAFICAS
TIENE CIERTAS LIMITACIONES AL UTILIZARLA, POR LO TANTO EL MANEJO DEBE SER SIEMPRE CON PRECAUCIÓN.
29
TECNICAS RADIOGRAFICAS
IMAGEN BIDIMENSIONAL DIMENSIONES SUJETAS A MANEJO DEL OPERADOR
30
TECNICAS RADIOGRAFICAS
PERIAPICAL PARALELISMO ALETA DE MORDIDA O BITE WING DE DESLIZAMIENTO (regla de Clark)
31
TECNICAS RADIOGRAFICAS
PERIAPICAL: TECNICA DE LA BISECTRIZ DEL ANGULO, TECNICA BISECTAL, TECNICA DE CONO CORTO
32
TECNICAS RADIOGRAFICAS
BISECTRIZ
33
TECNICAS RADIOGRAFICAS
BISECTRIZ: A- ANGULACION HORIZONTAL RAYO SE DIRIGE PERPENDICULAR A LA CURVATURA DE LA ARCADA Y A TRAVES DE LAS SUPERFICIES PROXIMALES
34
TECNICAS RADIOGRAFICAS
Angulación horizontal incorrecta: superficies proximales traslapadas.
35
TECNICAS RADIOGRAFICAS
ANGULACION VERTICAL RAYOS X PERPENDICULAR A LA BISECTRIZ Angulación vertical correcta: Imagen radiográfica de la misma longitud del diente.
36
TECNICAS RADIOGRAFICAS
Angulación vertical incorrecta: Imagen radiográfica de menor longitud que la real Distorsión vertical: escorzo
37
TECNICAS RADIOGRAFICAS
Angulación vertical incorrecta: Imagen radiográfica de mayor longitud que la real Distorsión vertical: elongación.
38
TECNICAS RADIOGRAFICAS
Líneas de referencia en maxilares para localización de ápice: Maxilar: Línea Tragus-ala de la nariz.
39
TECNICAS RADIOGRAFICAS

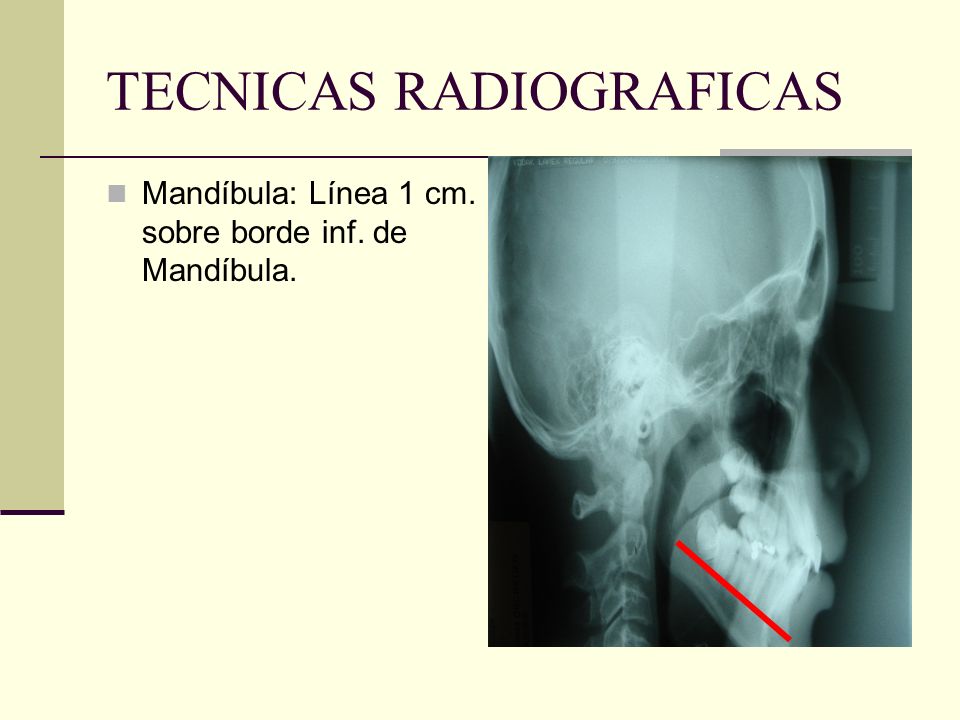

Mandíbula: Línea 1 cm. sobre borde inf. de Mandíbula.
40
TECNICAS RADIOGRAFICAS
Pieza en centro de la radiografía
41
TECNICAS RADIOGRAFICAS

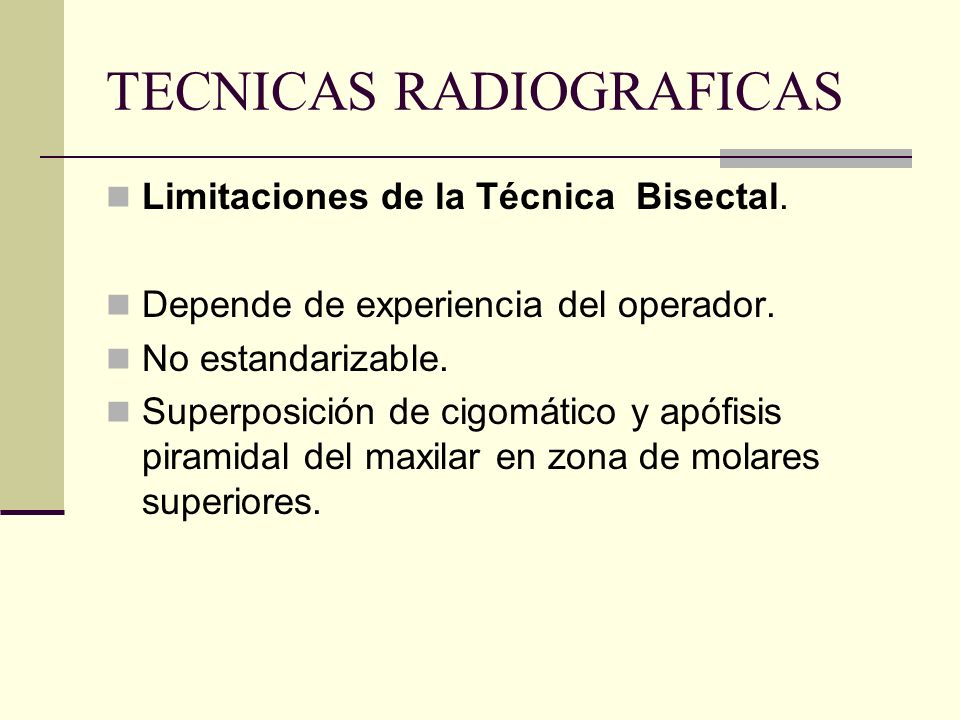

Limitaciones de la Técnica Bisectal. Depende de experiencia del operador. No estandarizable. Superposición de cigomático y apófisis piramidal del maxilar en zona de molares superiores.
42
TECNICAS RADIOGRAFICAS
2. Técnica de Paralelismo. Sinónimos: T. de extensión de cono paralelo, T. de ángulo recto, T. de cono largo.
43
TECNICAS RADIOGRAFICAS
Uso de dispositivo plástico. Estandarizable.
44
TECNICAS RADIOGRAFICAS
Paralelismo entre pieza dentaria y película. Cono de 40 cms. Ry. central se dirige perpendicular al eje mayor de la pieza dentaria. Evita distorsión por desplazamiento vertical
45

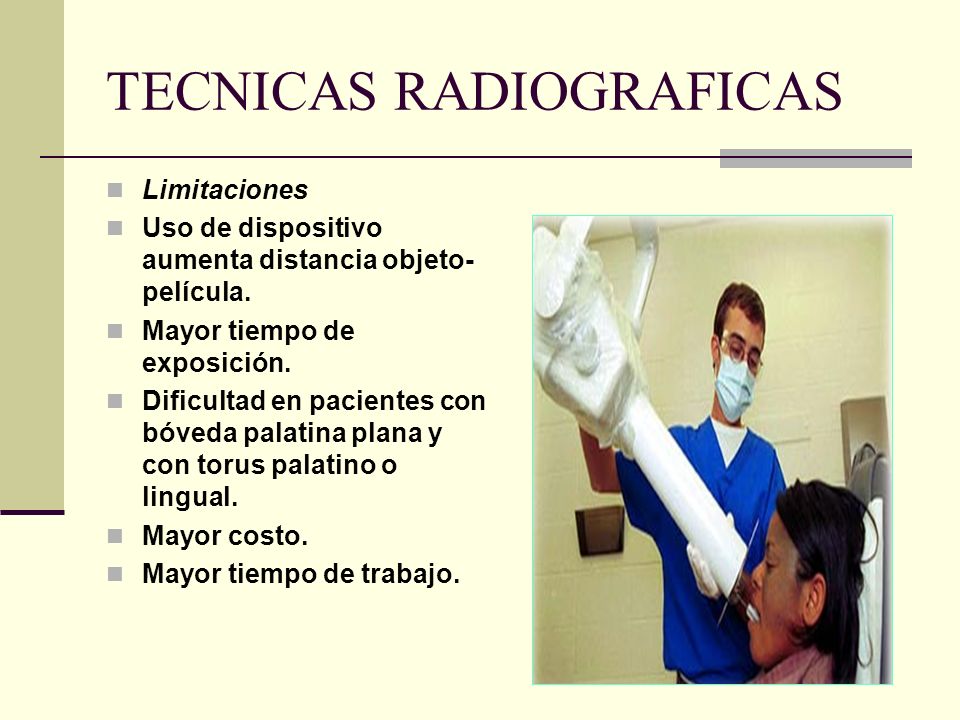

TECNICAS RADIOGRAFICAS
Limitaciones Uso de dispositivo aumenta distancia objeto-película. Mayor tiempo de exposición. Dificultad en pacientes con bóveda palatina plana y con torus palatino o lingual. Mayor costo. Mayor tiempo de trabajo.
46

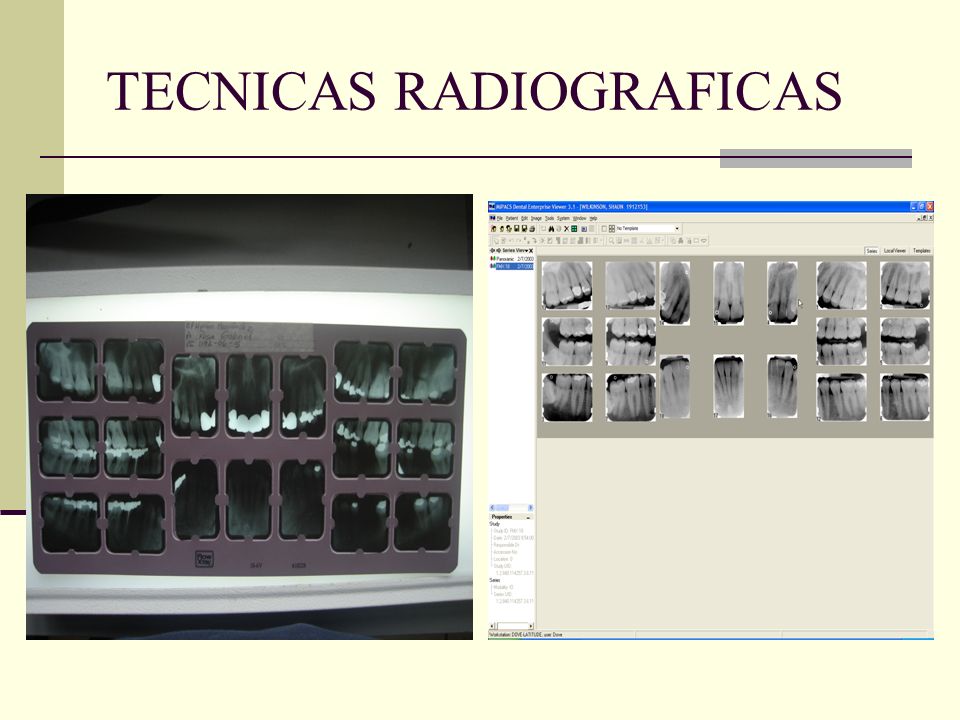

TECNICAS RADIOGRAFICAS
47
TECNICAS RADIOGRAFICAS
Técnica de Aleta Mordida. Sinónimos: T. Bite wing, T. interproximal. Angulación promedio: 0º-8º con respecto al plano oclusal. Rayo central orientado al plano oclusal.
48
TECNICAS RADIOGRAFICAS
Paralelismo entre película y pieza dentaria NOS AYUDA A VISUALIZAR LA relación de CARIES con CAMARA PULPAR
49
TECNICAS RADIOGRAFICAS
Uso de distorsión lateral para localización y evaluación de conductos en sentido vestíbulo-palatino. Se fija la angulación vertical y la angulación horizontal varía.
50
TECNICAS RADIOGRAFICAS
Se basa en el principio de Clark: El objeto más cercano a la película conserva su posición y el más alejado se mueve en dirección contraria al tubo de rayos. Mesializar el rayo Distalizar el rayo
51
TECNICAS RADIOGRAFICAS
Si el conducto se encuentra en la misma dirección del tubo es lingual o palatal Si el conducto se aleja a la dirección del tubo esta en bucal.
52
TECNICAS RADIOGRAFICAS
periapical
53
TECNICAS RADIOGRAFICAS
mesializar
54
TECNICAS RADIOGRAFICAS
55
TECNICAS RADIOGRAFICAS
distalizar
56
TECNICAS RADIOGRAFICAS
57
TECNICAS RADIOGRAFICAS
Modificacion en la angulación vertical: En una angulación positiva, las raíces vestibulares se alejan del cono o se acortan y las linguales o palatinas se acercan al rayo o se suben. Con esta técnica se puede desplazar las estructuras anatómicas como el seno maxilar.
58
TECNICAS RADIOGRAFICAS
La angulación negativa se utiliza en la toma de radiografías del maxilar inferior, y la positiva en el maxilar superior
59
TECNICAS RADIOGRAFICAS
PROTECCION
60
APORTES DE LA RX. EN ENDODONCIA
62
APORTES DE LA RX. EN ENDODONCIA
EXAMEN (RX. INICIAL) CARIES, VISUALIZACION DE LA CAMARA Y CONDUCTOS RADICULARES.
63
APORTES DE LA RX. EN ENDODONCIA
64
APORTES DE LA RX. EN ENDODONCIA
65
APORTES DE LA RX. EN ENDODONCIA
2. GUIA DURANTE EL CURSO DEL TRATAMIENTO RADICULAR. -Conductometría -Conometría -Obturación (penacho)
66
APORTES DE LA RX. EN ENDODONCIA
67
APORTES DE LA RX. EN ENDODONCIA
68
APORTES DE LA RX. EN ENDODONCIA
CONTROL DE RELLENO RADICULAR UNA VEZ FINALIZADO EL TRATAMIENTO Obturación (final)
69
APORTES DE LA RX. EN ENDODONCIA
71
APORTES DE LA RX. EN ENDODONCIA
72
APORTES DE LA RX. EN ENDODONCIA
73
MQ 2011 Muchas gracias
