Hechos y Realidades Arturo Grajeda N. Cel:

Hechos y Realidades Arturo Grajeda N. Cel: 5541433401

Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Desarrollo del sistema IDAS:
Concientes en las necesidades de hoy en dia ICOM y Kenwood en un acuerdo de intercambio de tecnologias han desarrollado un protocolo de comunicaciones digitales en 6.25 Khz llamado NXDN. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Desarrollo del Sistema IDAS
IDAS Ofrece tanto en desarrollo de Sistemas como en terminales digitales siendo asi mas competitivo en funciones y precio en el Mercado Latino Americano. ICOM lo llama IDAS(ICOM DIGITAL ADVANCED SYSTEM) y Kenwood lo llama Nexedge. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

La eficiencia del Sistema IDAS:
El sistema IDAS opera en modo Digital en 6.25kHz, brindando una gran eficiencia en el uso de Espectro. Operación en Digital, Analógico o Mezclado de 25kHz o kHz/6.25 KHz. Los Equipos del sistema cumplen con el plan de frecuencias comercial en la banda de VHF y UHF. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Especificaciones del Sistema IDAS:
Espaciamiento de Canal: 6.25 KHz Método de Acceso: FDMA (Frequency Division Multiple Access). Velocidad de Transmision: 4800 bps. Vocoder: AMBE+2 Codec Rate: 3600 (Voz 2,450 + Corrección de error 1,150 bps) Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Posicionamiento del Mercado de ICOM
Opera mediante un VOCODER AMBE+2 Ofrece una digitalización de la voz de Gran calidad, imitando a la perfección los tonos de voz generados. Brinda Alta Calidad de Voz con variaciones en la intensidad de Señal. Mayor Área de Cobertura Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Operacion digital Convencional:
Operacion del sistema IDAS con o sin Repetidor en todas sus funciones superior al de la competencia. Operacion Analogica / Digital y Mezclado en repetidores y terminales IDAS. Digital Analogico Analogico / Digital Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Encripcion: IDAS cuenta con muy ALTO nivel de Seguridad en todas sus comunicaciones, ya que integra en todos sus Equipos un Encriptor Digital de 15 Bits, con la capacidad de manejar desde 1 a códigos distintos de Encripcion compatible con sistemas NEXEDGE. ADICIONAL A ESTO UN CANDADO CONTRA ESCRITURA EN LA TERMINAL IDAS PARA ASEGURAR LA SEGURIDAD DEL RADIO. Voz Encriptada Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

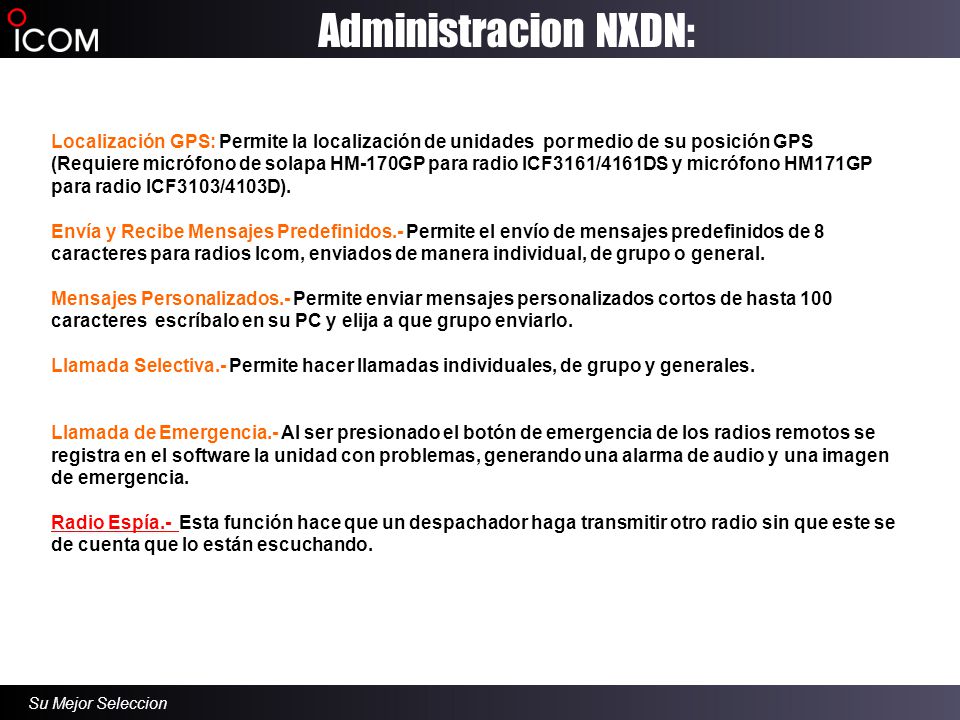

Administracion NXDN: Localización GPS: Permite la localización de unidades por medio de su posición GPS (Requiere micrófono de solapa HM-170GP para radio ICF3161/4161DS y micrófono HM171GP para radio ICF3103/4103D). Envía y Recibe Mensajes Predefinidos.- Permite el envío de mensajes predefinidos de 8 caracteres para radios Icom, enviados de manera individual, de grupo o general. Mensajes Personalizados.- Permite enviar mensajes personalizados cortos de hasta 100 caracteres escríbalo en su PC y elija a que grupo enviarlo. Llamada Selectiva.- Permite hacer llamadas individuales, de grupo y generales. Llamada de Emergencia.- Al ser presionado el botón de emergencia de los radios remotos se registra en el software la unidad con problemas, generando una alarma de audio y una imagen de emergencia. Radio Espía.- Esta función hace que un despachador haga transmitir otro radio sin que este se de cuenta que lo están escuchando. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Administracion NXDN: Radio Kill.- Nos permite bloquear la transmisión y/o la recepción de cualquier radio, también habilitarlos, y un reinicio de emergencia. Mensajes de Encendido y Apagado.- Los radios Kenwood y Icom tienen la capacidad de mandar un mensaje de estado al momento de ser encendidos y apagados; el software identifica y guarda este mensaje. PTT ID (ANI), control y registro de llamadas y actividades.- Nos permite tener un registro de fecha y hora de las llamadas y mensajes realizadas por nuestra flota (llamadas, mensajes, emergencias, etc.) almacenadas por hora en una pantalla de Historial, la cual se guarda automáticamente en el disco duro en un archivo de Excel por día. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

FLAV 3.0G GPS con radios IDAS:
El Sistema de GPS basado en la Tecnología IDAS es totalmente compatible con el software FLAV 3.0 ya que este utiliza la plataforma NXDN para su operacion. Adicional al sistema de localizacion Vehicular que cuenta el software Flav 3.0, este puede manejar despacho del sistema y manejar las funciones antes mencionadas desde una PC asi tambien controlar historiales de recorrido de los vehiculos, geocercas. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Integracion del Sistema GPS en radios ICOM:
Los radios con GPS para las unidades son: (Movil) F5123D/6123D( Req. arnes SOPC2078 antena GM158DBI) (Portatil) F3103D/4103D(Req. Microfono GPS modelo HM171 GP) (Portatil) F3161D/4161D(Req. Microfono GPS modelo HM170 GP) El radio base: F5061D/6061D ( Req. Cable DB25-DB9) Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

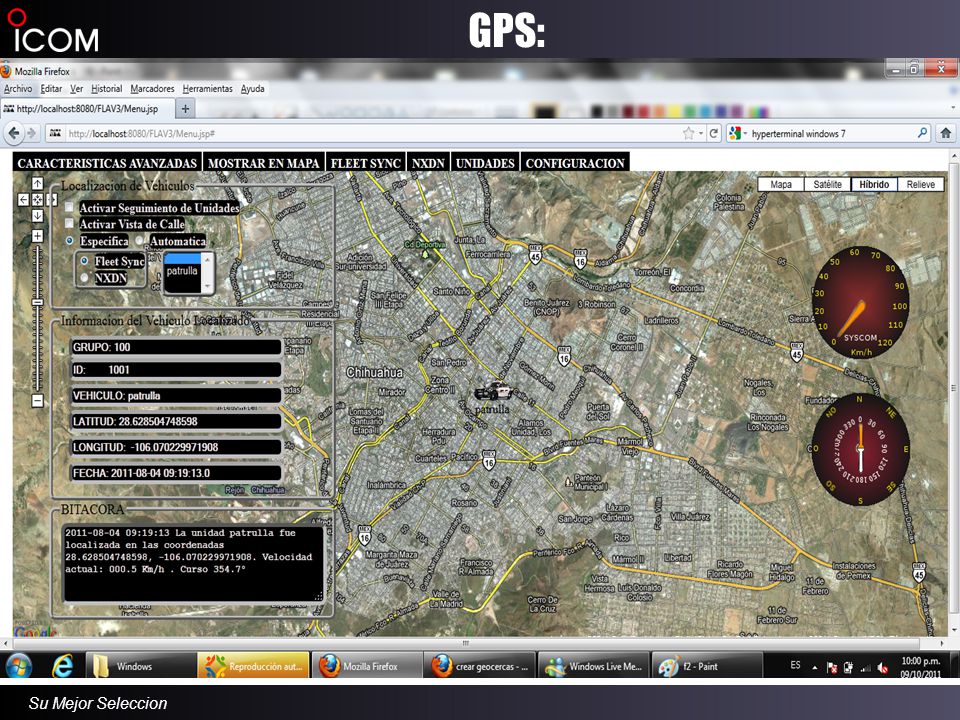

GPS: Wide Product Range
We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

GPS: Ventajas de utilizar FLAV 3.0G
-No existen pagos por la utilización de los mapas -Actualizaciones periódicas de los mapas y desarrollo de nuevos features sin ningún costo. -Manejo más versátil del software -Mayor dinamismo en el manejo de los historiales -Utiliza un motor de base de datos más potente (SQL Server Express) -Compatible con Windows 7, Vista y XP Requerimientos del sistema: -Se requiere de una conexión de banda ancha (1 Mbps) Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Linea de Radios Digitales ICOM:
Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Linea de Radios Digitales ICOM:
Serie IC-F3161D / 4161D Versión IS 6.25 digital, 12, & 25kHz. Analógico / Digital / Mezclado. Compatible con MDC 1200 Avanzado Amplificador BTL (audio alta y claro). IP54 y MIL-STD-810 F LTR® Incorporado. 512 Canales Explorador de canales (Scan) avanzado Encripcion de Alto Nivel códigos variables. Opera en sistemas Multisitio Convencional IP (Voting Scan), Trunking Monositio y sistemas MultiTrunk. • Opción de GPS con micrófono HM-170GPS. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Funciones con Senializacion NXDN:
PTT-ID. Identificación en Pantalla ID y Grupo. Llamada Selectiva. Llamada de Grupo. Enviar mensajes de Estatus. Enviar de Mensajes Cortos. Enviar llamada de Alerta. Enviar Radio Check. Enviar Stun. Enviar Revive. Enviar Radio Kill. Radio Espía. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Nuevo Serie Economica IDAS;
IC-F3103/4103D Operación Mezclado / Analógico / Digital. 6.25 digital, 12, & 25kHz Compatible con MDC-1200 y 5 tonos 800 mW de Potencia de Audio 16 Canales Encripcion de Alto Nivel códigos variables Explorador de canales (Scan) avanzado IP54 y MIL-STD-810 F Batería de Alta capacidad BP265 Li-Ion 1900mAh Opera en sistema Multisitio Convencional IP y Trunking Monositio Opción de GPS (Req. Micrófono HM171GP). Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Funciones con Senalizacion NXDN:
PTT-ID. Llamada Selectiva. Llamada de Grupo y General. Llamada de Alerta. Radio Check. Desactivación del Radio vía Aire(Radio Kill). Envió de Emergencia. Radio Espía. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Movil IDAS Multimodo: 6.25 digital, 12, & 25kHz.
Serie IC-F5061D / 6061D 6.25 digital, 12, & 25kHz. Analógico / Digital / Mezclado. Compatible con MDC 1200 Avanzado Amplificador BTL (audio alta y claro). IP54 y MIL-STD-810 F LTR® Incorporado. 512 Canales Explorador de canales (Scan) avanzado Encripcion de Alto Nivel códigos variables. Opera en sistemas Multisitio Convencional IP (Voting Scan), Trunking Monositio y sistemas MultiTrunk. • Opción de GPS con antena GM158 DB9. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Movil IDAS Multimodo: Serie IC-F5061D / 6061D PTT-ID.
Identificación en Pantalla ID y Grupo. Llamada Selectiva. Llamada de Grupo. Enviar mensajes de Estatus. Enviar de Mensajes Cortos. Enviar llamada de Alerta. Enviar Radio Check. Enviar Stun. Enviar Revive. Enviar Radio Kill. Radio Espía. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Movil IDAS Multimodo: Serie IC-F5123D / 6123D
Operación Mezclado / Analógico / Digital. 6.25 digital, 12, & 25kHz Compatible con MDC-1200 y 5 tonos 128 Canales Encripcion de Alto Nivel códigos variables Explorador de canales (Scan) avanzado IP54 y MIL-STD-810 F Opera en sistema Multisitio Convencional IP y Trunking Monositio Opción de GPS (Req. Micrófono HM171GP). Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Movil IDAS Multimodo: PTT-ID. Identificación en Pantalla.
Serie IC-F5061D / 6061D PTT-ID. Identificación en Pantalla. Llamada Selectiva. Llamada de Grupo y General. Llamada de Alerta. Radio Check. Desactivación del Radio vía Aire(Radio Kill). Envió de Emergencia. Radio Espía. Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Precio competitivo en terminales IDAS:
ICOM MOTOROLA HYT Modelo IC-F4103D DGP4150 PD-706V Canales 16 32 Potencia de Salida 4 W(UHF) / 5 W (VHF) Potencia de Audio 800 mW. 500 mW. ? Garantia Efectiva 3 años 2 años Modo de Acceso FDMA TDMA Operacion Mezclada Si No Opcion de GPS Si (req. HM170GP) Modelo Opcional Fabricado Japon Malaysia China Capacidad de Bateria 1900 mAh (Li-Ion) 1500 mAh(Li-Ion) 2000 mAh (Li-Ion) Encripcion Precio de Lista $669.00 $732.00 $773.00 Wide Product Range We have all the categories in two way radio needs, private mobile, marine, avionics, amateur and receiver. We are founded as amateur radio’s manufacturer. Since regulation of amateur radio is quite open, we challenge to improve our technology to develop amateur radio as high as possible. From such experience we successfully use DSP technology to use in SSB and we could develop 6.25kHz/FDMA digital radio in PMR. Moreover, we can integrate techniques from customer’s requested function to other categories. For example, waterproof function for marine radio is now used in Icom Private Mobile Radio. Icom is a real total two-way radio manufacturer and from this background we successfully developed such technology. Su Mejor Seleccion

Su Mejor Desicion Gracias
