TOBERAS DE LANZA / SPEAR NOZZLE

Publicada porしほこ つねざき Modificado hace 5 años

Presentaciones similares

Presentación del tema: "TOBERAS DE LANZA / SPEAR NOZZLE"— Transcripción de la presentación:

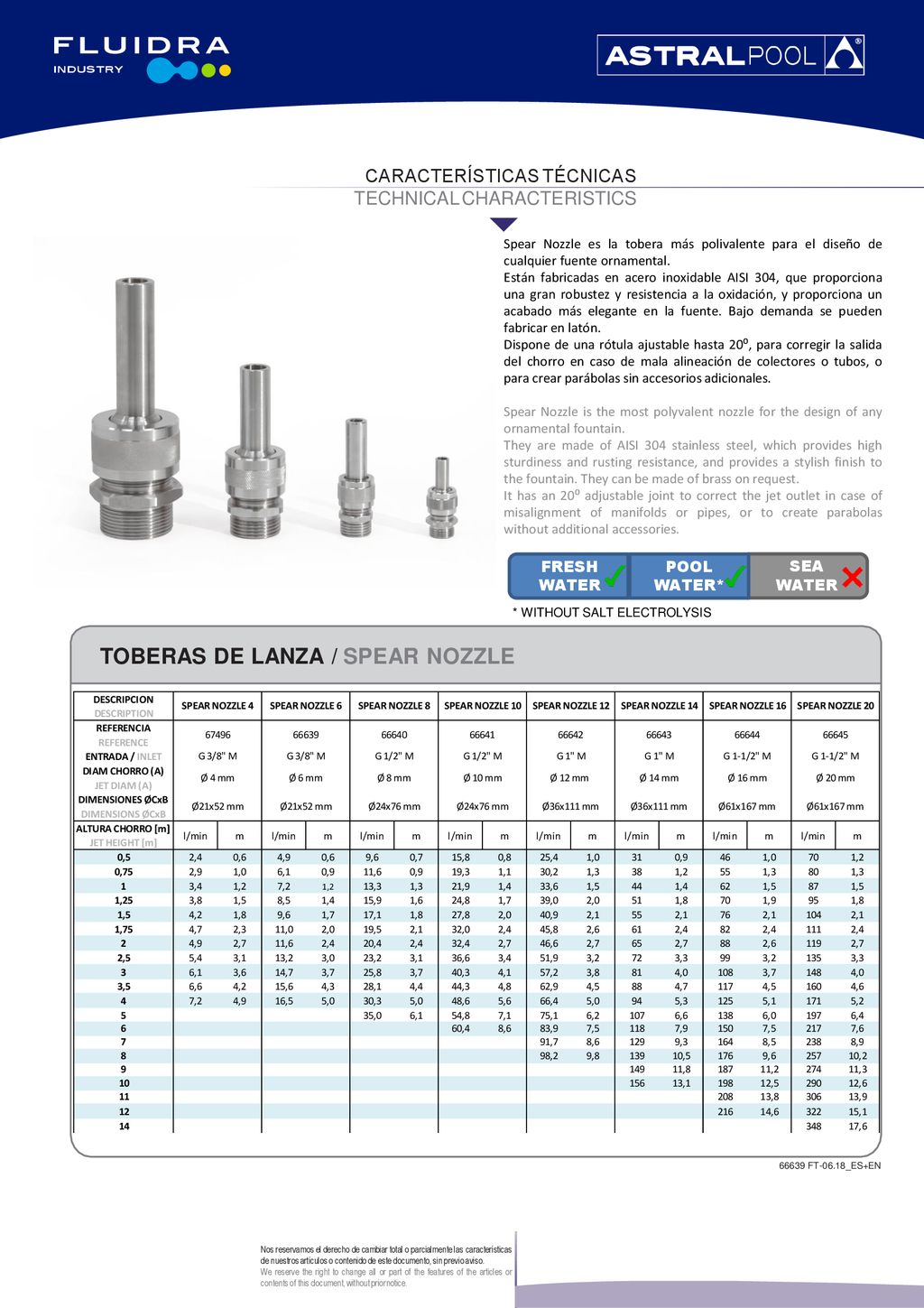

1 TOBERAS DE LANZA / SPEAR NOZZLE
CARACTERÍSTICAS TÉCNICAS TECHNICAL CHARACTERISTICS Spear Nozzle es la tobera más polivalente para el diseño de cualquier fuente ornamental. Están fabricadas en acero inoxidable AISI 304, que proporciona una gran robustez y resistencia a la oxidación, y proporciona un acabado más elegante en la fuente. Bajo demanda se pueden fabricar en latón. Dispone de una rótula ajustable hasta 20⁰, para corregir la salida del chorro en caso de mala alineación de colectores o tubos, o para crear parábolas sin accesorios adicionales. Spear Nozzle is the most polyvalent nozzle for the design of any ornamental fountain. They are made of AISI 304 stainless steel, which provides high sturdiness and rusting resistance, and provides a stylish finish to the fountain. They can be made of brass on request. It has an 20⁰ adjustable joint to correct the jet outlet in case of misalignment of manifolds or pipes, or to create parabolas without additional accessories. FRESH WATER SEA WATER POOL WATER* * WITHOUT SALT ELECTROLYSIS TOBERAS DE LANZA / SPEAR NOZZLE 66639 FT-06.18_ES+EN Nos reservamos el derecho de cambiar total o parcialmente las características de nuestros artículos o contenido de este documento, sin previo aviso. We reserve the right to change all or part of the features of the articles or contents of this document, without prior notice.

2 EJEMPLOS EXAMPLES CABLE INLET FITTING DIMENSIONES DIMENSIONS
Paseo Sanllehy, 25 · Polinyà · Barcelona (Spain) Tel.: · Fax:
