Presentación del tema: "| © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing."— Transcripción de la presentación:

1 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 1 ZVW2, 22.12.00 Department

2 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 2 ZVW2, 22.12.00 Ver. 2.02 y superiores Instalacion Panel de Incendio D7024

3 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 3 ZVW2, 22.12.00 Department

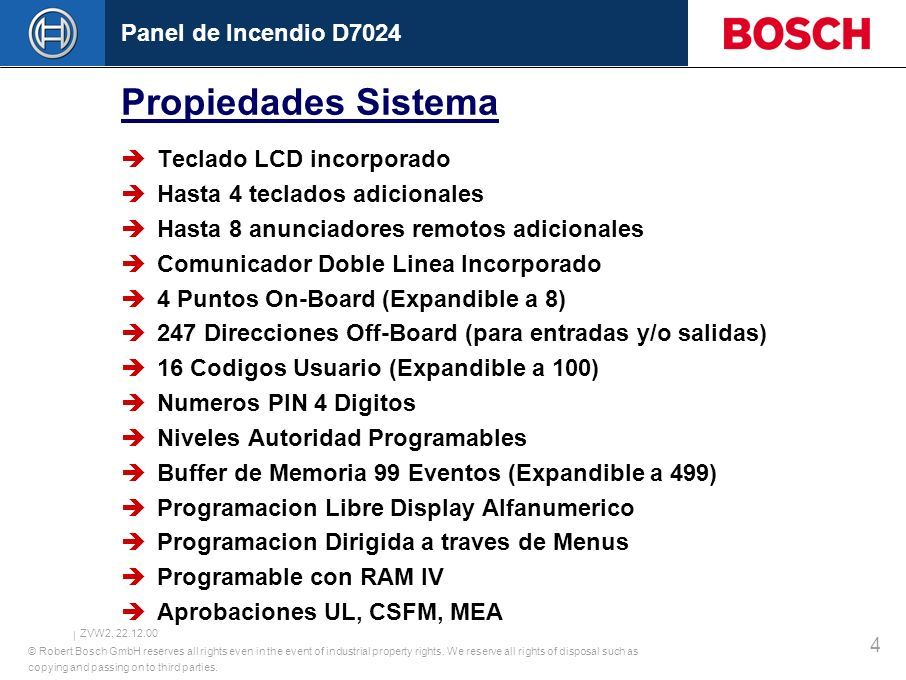

4 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 4 ZVW2, 22.12.00 Propiedades Sistema  Teclado LCD incorporado  Hasta 4 teclados adicionales  Hasta 8 anunciadores remotos adicionales  Comunicador Doble Linea Incorporado  4 Puntos On-Board (Expandible a 8)  247 Direcciones Off-Board (para entradas y/o salidas)  16 Codigos Usuario (Expandible a 100)  Numeros PIN 4 Digitos  Niveles Autoridad Programables  Buffer de Memoria 99 Eventos (Expandible a 499)  Programacion Libre Display Alfanumerico  Programacion Dirigida a traves de Menus  Programable con RAM IV  Aprobaciones UL, CSFM, MEA Panel de Incendio D7024

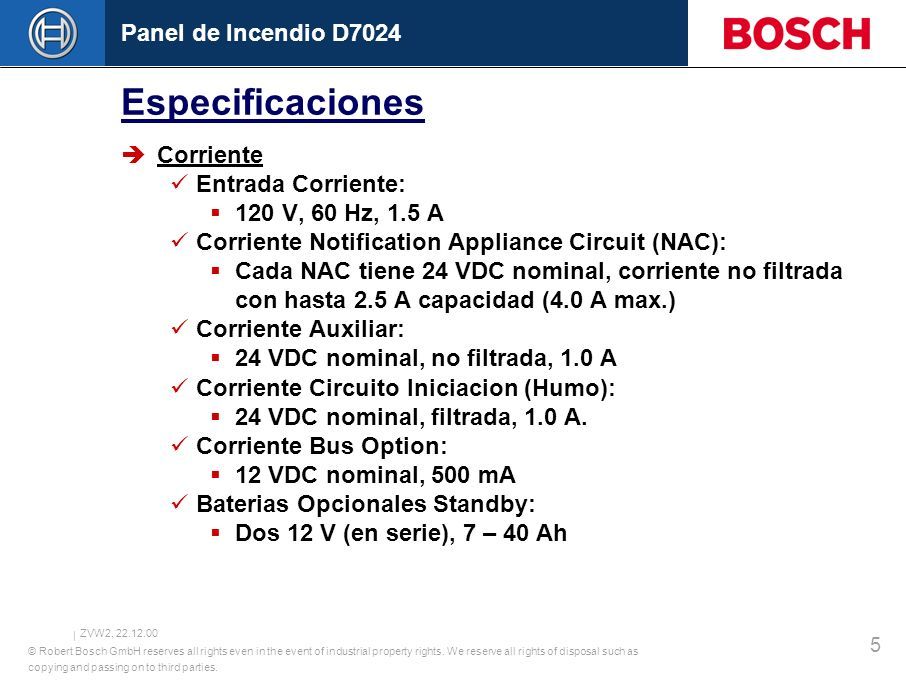

5 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 5 ZVW2, 22.12.00 Especificaciones  Corriente Entrada Corriente:  120 V, 60 Hz, 1.5 A Corriente Notification Appliance Circuit (NAC):  Cada NAC tiene 24 VDC nominal, corriente no filtrada con hasta 2.5 A capacidad (4.0 A max.) Corriente Auxiliar:  24 VDC nominal, no filtrada, 1.0 A Corriente Circuito Iniciacion (Humo):  24 VDC nominal, filtrada, 1.0 A. Corriente Bus Option:  12 VDC nominal, 500 mA Baterias Opcionales Standby:  Dos 12 V (en serie), 7 – 40 Ah Panel de Incendio D7024

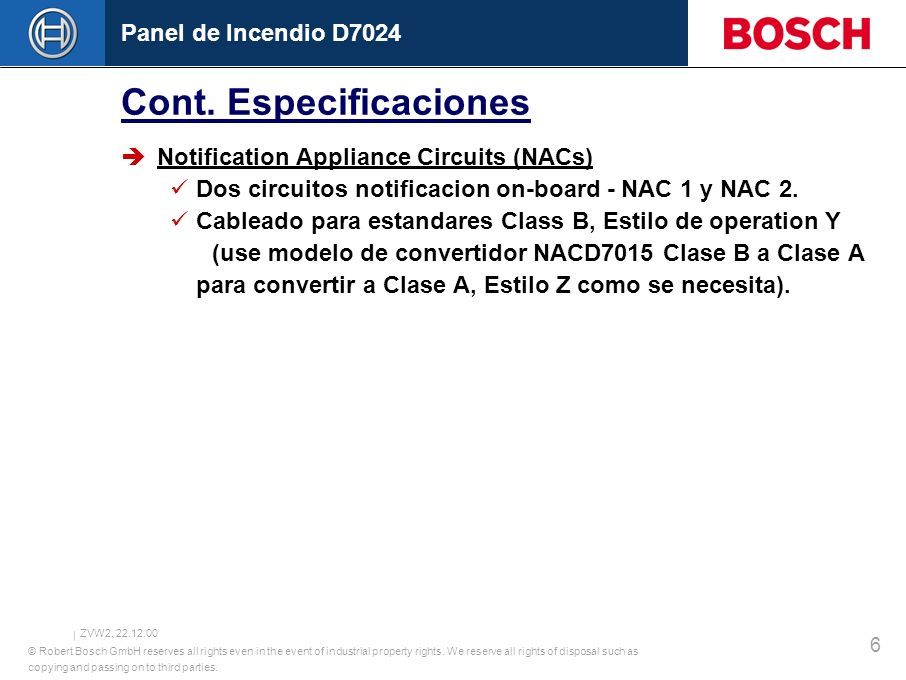

6 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 6 ZVW2, 22.12.00 Cont. Especificaciones  Notification Appliance Circuits (NACs) Dos circuitos notificacion on-board - NAC 1 y NAC 2. Cableado para estandares Class B, Estilo de operation Y (use modelo de convertidor NACD7015 Clase B a Clase A para convertir a Clase A, Estilo Z como se necesita). Panel de Incendio D7024

7 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 7 ZVW2, 22.12.00 Department

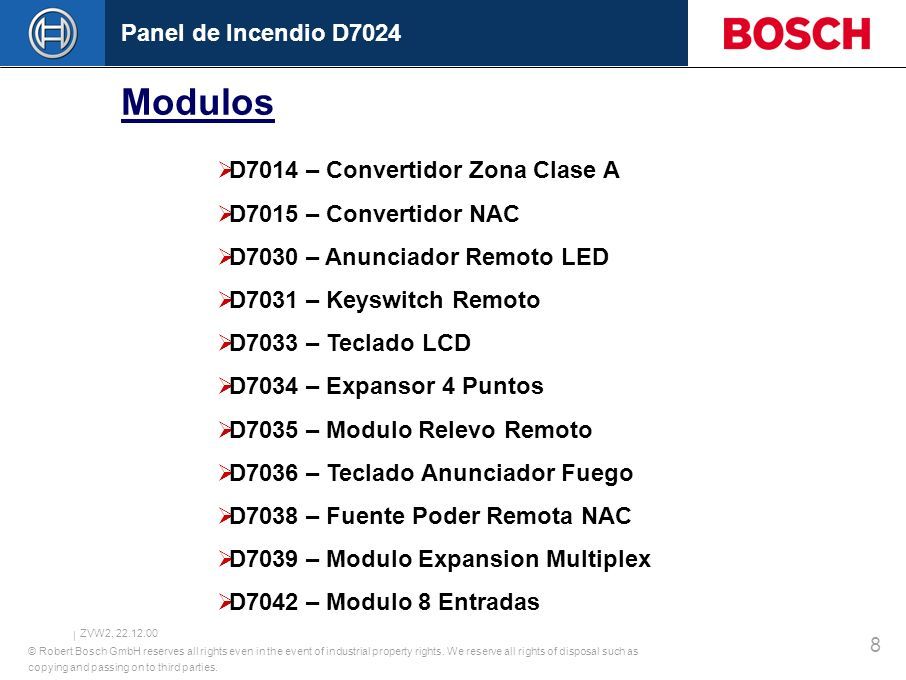

8 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 8 ZVW2, 22.12.00 Modulos Panel de Incendio D7024  D7014 – Convertidor Zona Clase A  D7015 – Convertidor NAC  D7030 – Anunciador Remoto LED  D7031 – Keyswitch Remoto  D7033 – Teclado LCD  D7034 – Expansor 4 Puntos  D7035 – Modulo Relevo Remoto  D7036 – Teclado Anunciador Fuego  D7038 – Fuente Poder Remota NAC  D7039 – Modulo Expansion Multiplex  D7042 – Modulo 8 Entradas

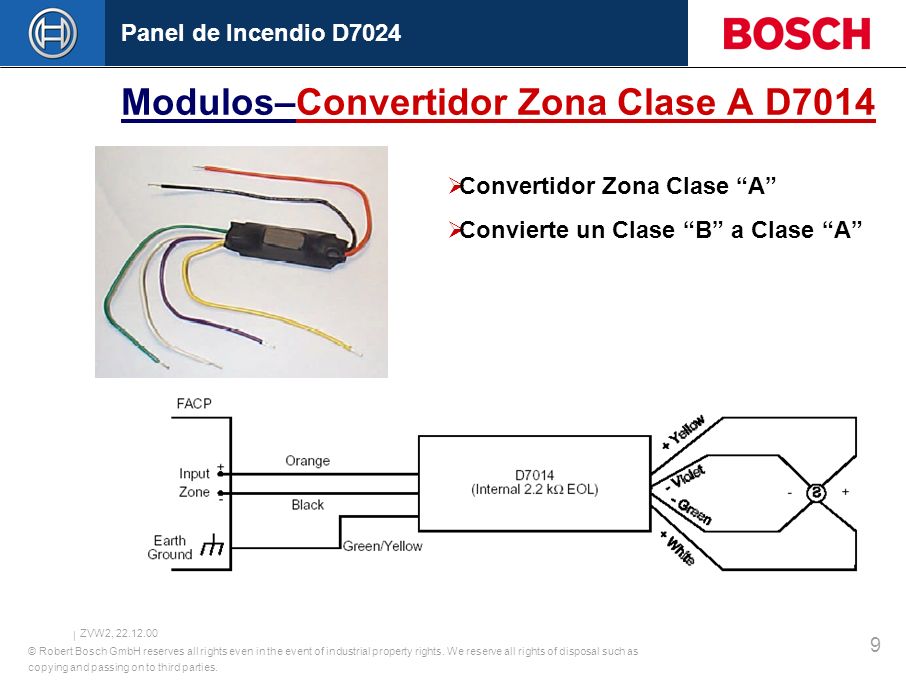

9 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 9 ZVW2, 22.12.00 Modulos–Convertidor Zona Clase A D7014 Panel de Incendio D7024  Convertidor Zona Clase “A”  Convierte un Clase “B” a Clase “A”

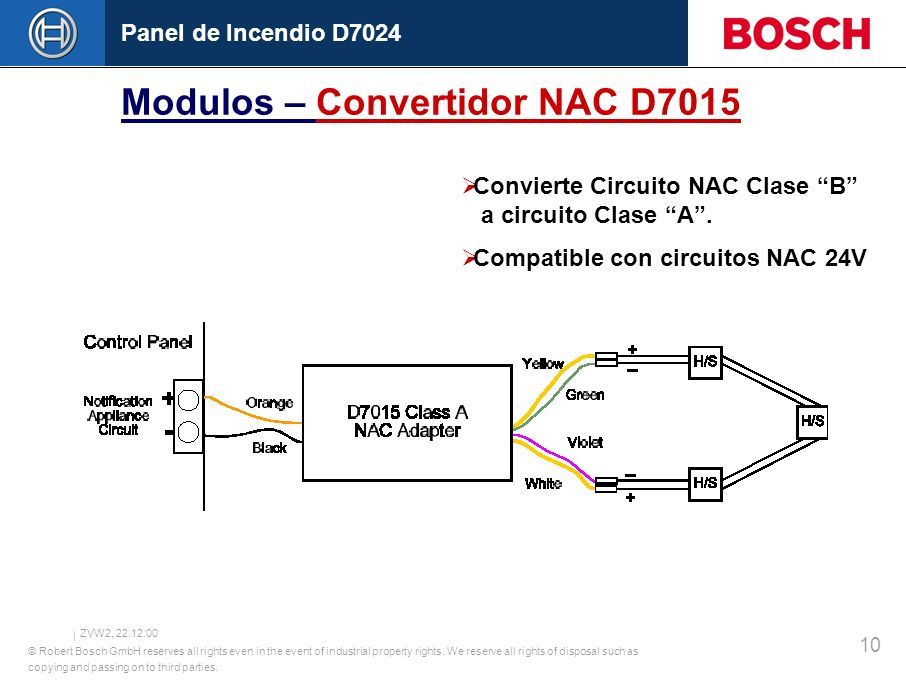

10 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 10 ZVW2, 22.12.00 Modulos – Convertidor NAC D7015 Panel de Incendio D7024  Convierte Circuito NAC Clase “B” a circuito Clase “A”.  Compatible con circuitos NAC 24V

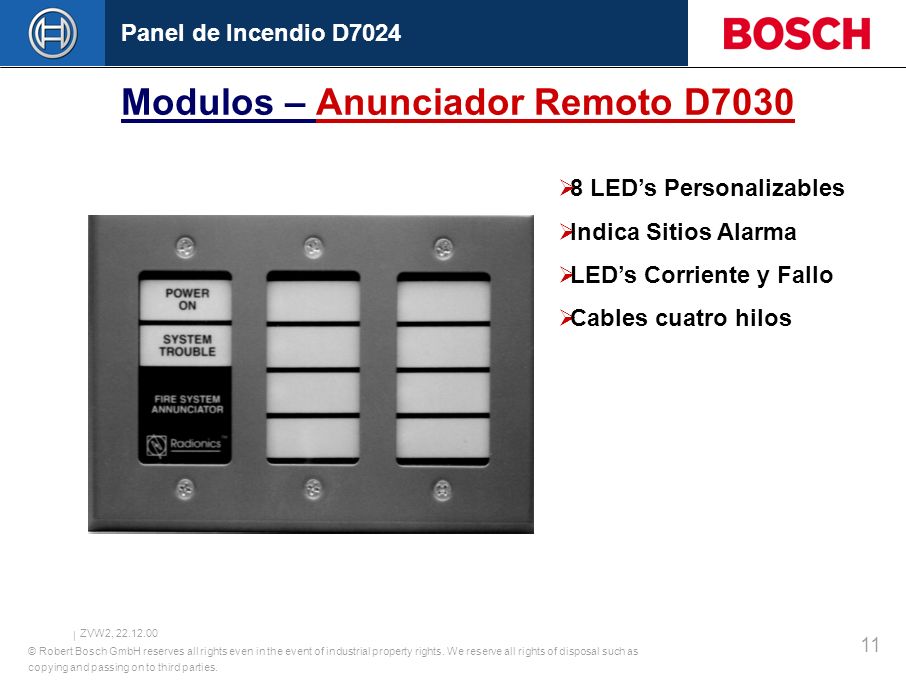

11 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 11 ZVW2, 22.12.00 Modulos – Anunciador Remoto D7030 Panel de Incendio D7024  8 LED’s Personalizables  Indica Sitios Alarma  LED’s Corriente y Fallo  Cables cuatro hilos

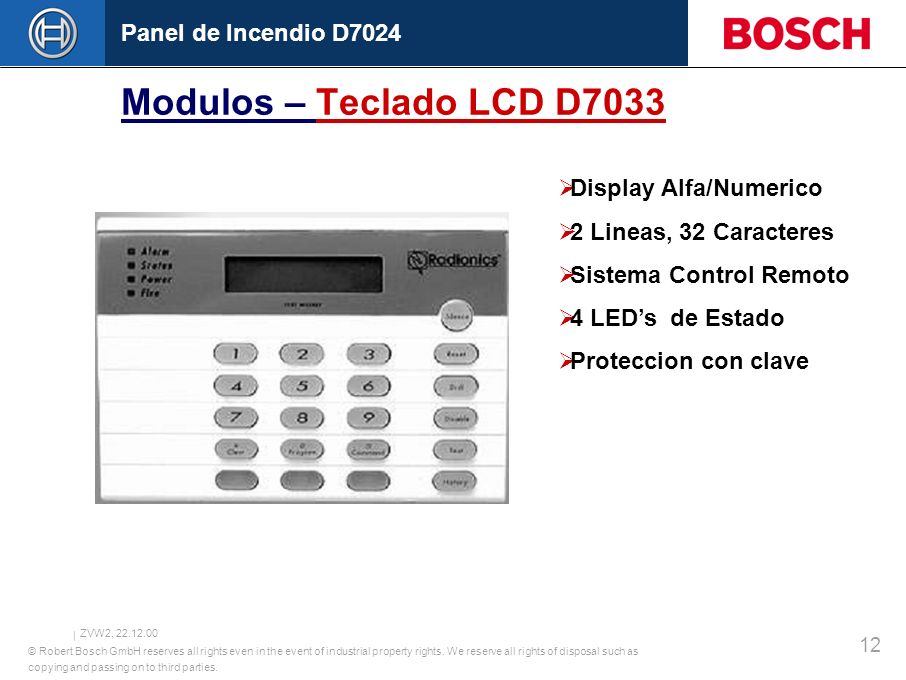

12 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 12 ZVW2, 22.12.00 Modulos – Teclado LCD D7033 Panel de Incendio D7024  Display Alfa/Numerico  2 Lineas, 32 Caracteres  Sistema Control Remoto  4 LED’s de Estado  Proteccion con clave

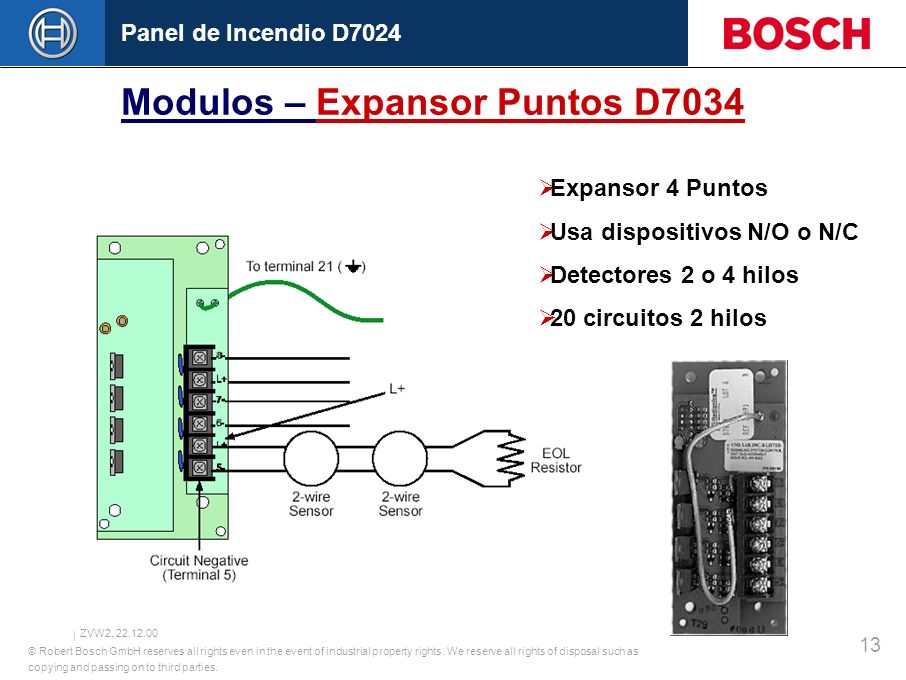

13 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 13 ZVW2, 22.12.00 Modulos – Expansor Puntos D7034 Panel de Incendio D7024  Expansor 4 Puntos  Usa dispositivos N/O o N/C  Detectores 2 o 4 hilos  20 circuitos 2 hilos

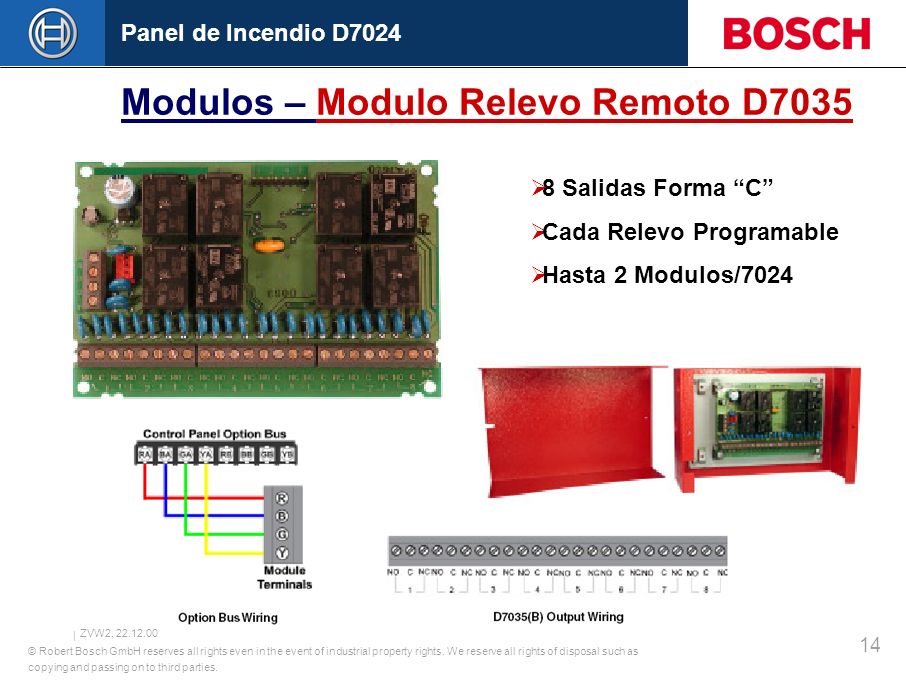

14 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 14 ZVW2, 22.12.00 Modulos – Modulo Relevo Remoto D7035 Panel de Incendio D7024  8 Salidas Forma “C”  Cada Relevo Programable  Hasta 2 Modulos/7024

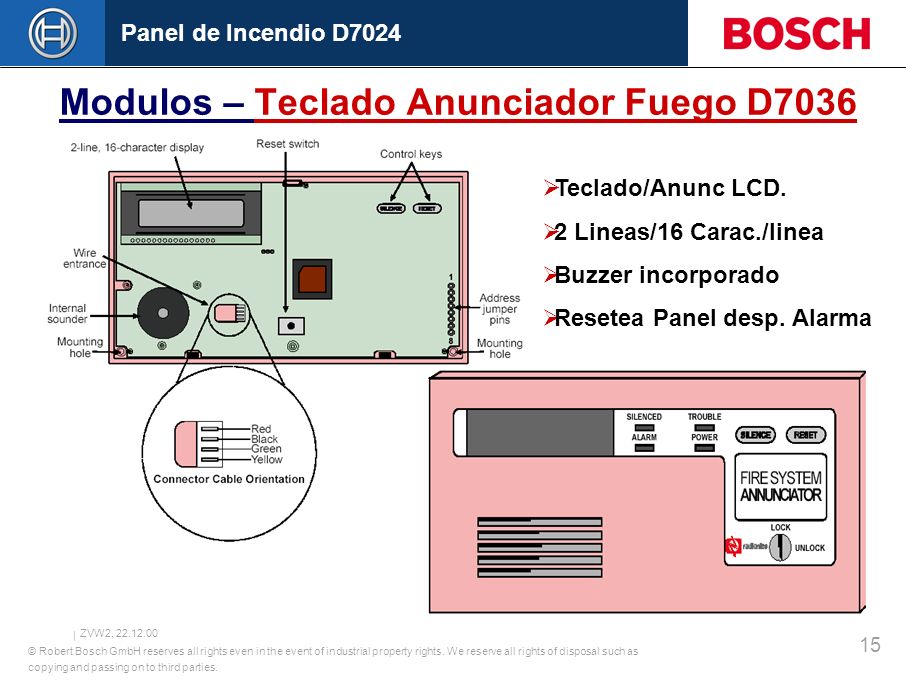

15 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 15 ZVW2, 22.12.00 Modulos – Teclado Anunciador Fuego D7036 Panel de Incendio D7024  Teclado/Anunc LCD.  2 Lineas/16 Carac./linea  Buzzer incorporado  Resetea Panel desp. Alarma

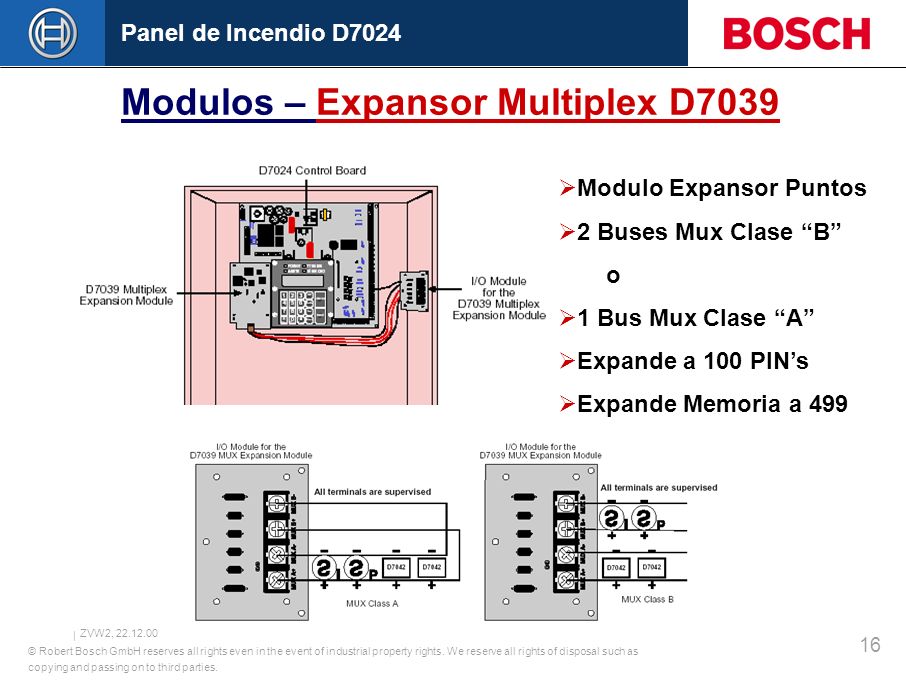

16 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 16 ZVW2, 22.12.00 Modulos – Expansor Multiplex D7039 Panel de Incendio D7024  Modulo Expansor Puntos  2 Buses Mux Clase “B” o  1 Bus Mux Clase “A”  Expande a 100 PIN’s  Expande Memoria a 499

17 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 17 ZVW2, 22.12.00 Dispositivos Puntos Off-Board  D7042 Modulo 8 Entradas  D7044(M)-Entrada Sencilla Direccionable /M = mini  D7050(TH)- Cabeza Humo Direccionable Photo-elect.  D7050B – Base 2 hilos 6’’ TH = 135f sensor seguro calor  D7045- Estacion Manual Direccionable  D7052- Entrada Doble Direccionable/Total 60  D7053- Entrada/Salida Direccionable [5a @ 28vdc] (Total 40 (20 en cada lazo aislado clase b SLC) (Relevo usa funciones programable sistema)  D243P- Cabeza Detectora Direccionable para Ductos con/D7050DH Total 70  D344-RT Plato Remoto Pruebas Total 40  D344-RL Anunciador Remoto LED Total 50 Primeros 10 puntos perdidos anuncian individualmente … si hay mas de 10 “Common Bus Failure” Panel de Incendio D7024

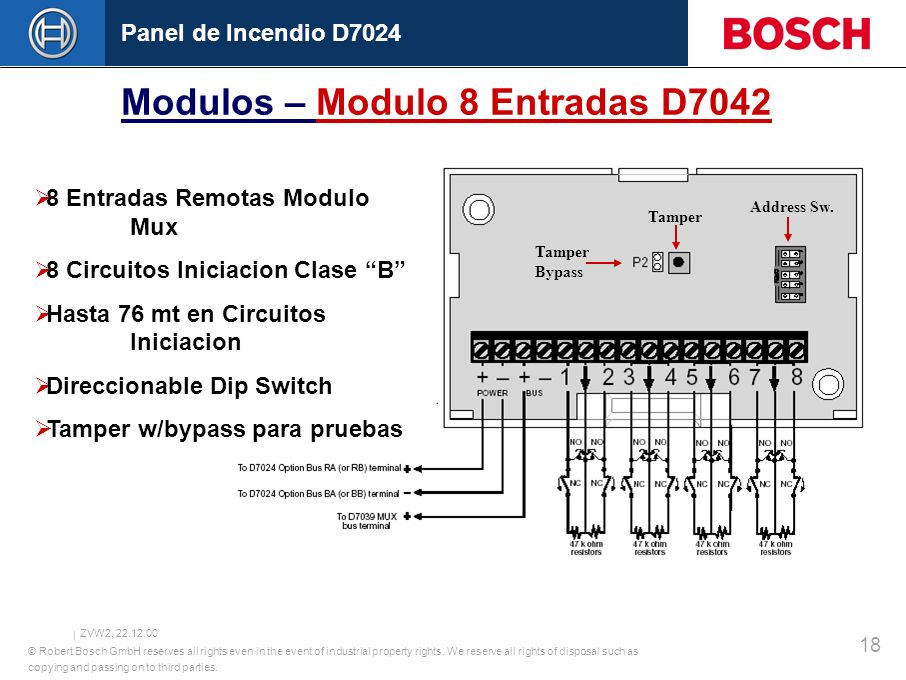

18 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 18 ZVW2, 22.12.00 Modulos – Modulo 8 Entradas D7042 Panel de Incendio D7024  8 Entradas Remotas Modulo Mux  8 Circuitos Iniciacion Clase “B”  Hasta 76 mt en Circuitos Iniciacion  Direccionable Dip Switch  Tamper w/bypass para pruebas Address Sw. Tamper Tamper Bypass

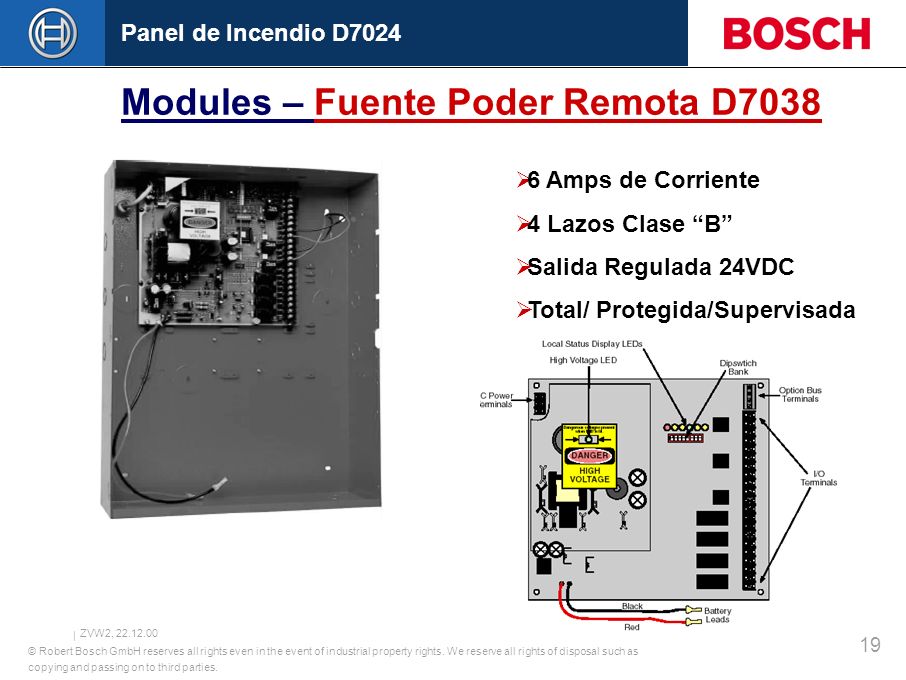

19 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 19 ZVW2, 22.12.00 Modules – Fuente Poder Remota D7038 Panel de Incendio D7024  6 Amps de Corriente  4 Lazos Clase “B”  Salida Regulada 24VDC  Total/ Protegida/Supervisada

20 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 20 ZVW2, 22.12.00 Department

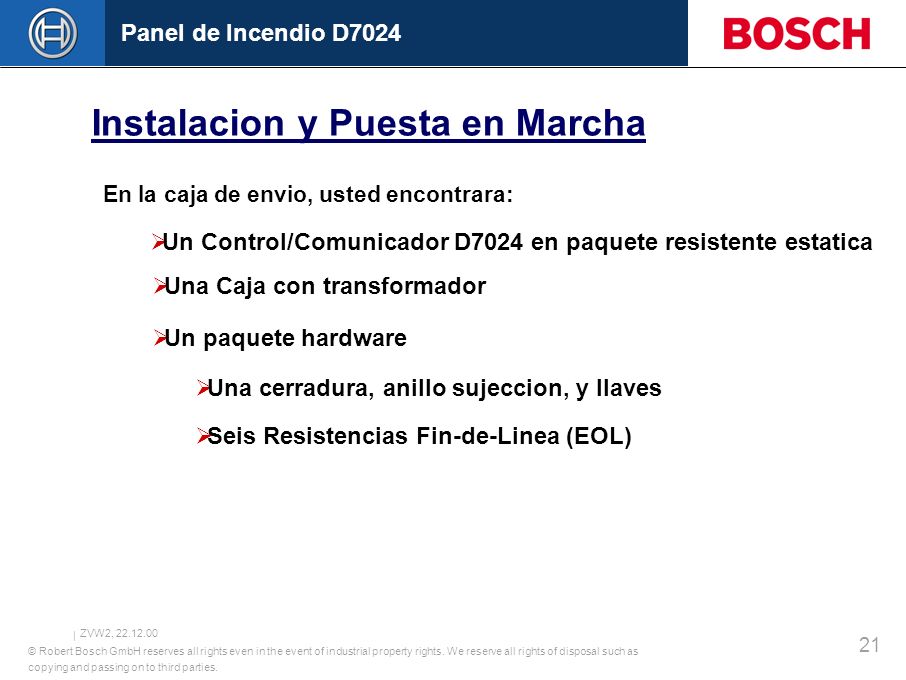

21 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 21 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Instalacion y Puesta en Marcha En la caja de envio, usted encontrara:  Un Control/Comunicador D7024 en paquete resistente estatica  Una Caja con transformador  Un paquete hardware  Una cerradura, anillo sujeccion, y llaves  Seis Resistencias Fin-de-Linea (EOL) Panel de Incendio D7024

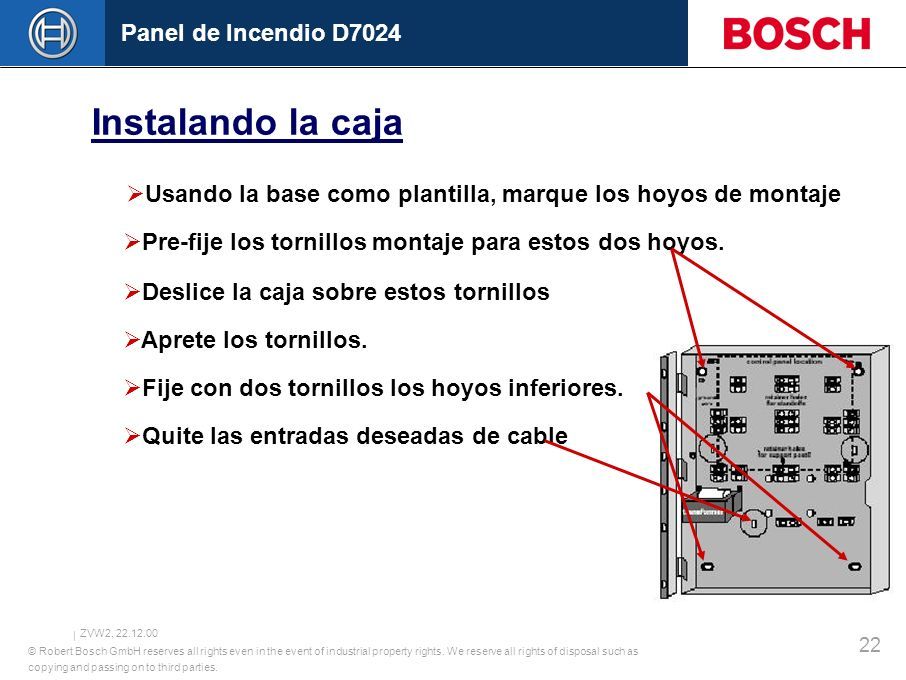

22 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 22 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator  Usando la base como plantilla, marque los hoyos de montaje  Pre-fije los tornillos montaje para estos dos hoyos.  Deslice la caja sobre estos tornillos  Aprete los tornillos.  Fije con dos tornillos los hoyos inferiores.  Quite las entradas deseadas de cable Panel de Incendio D7024 Instalando la caja

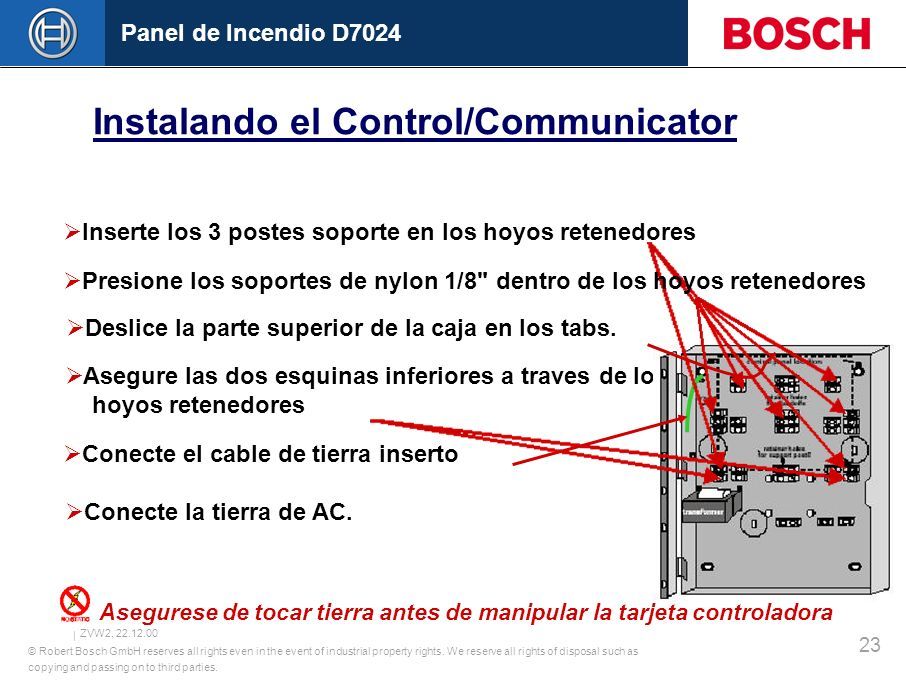

23 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 23 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Instalando el Control/Communicator  Inserte los 3 postes soporte en los hoyos retenedores  Deslice la parte superior de la caja en los tabs.  Asegure las dos esquinas inferiores a traves de los hoyos retenedores  Conecte el cable de tierra inserto Asegurese de tocar tierra antes de manipular la tarjeta controladora  Conecte la tierra de AC. Panel de Incendio D7024  Presione los soportes de nylon 1/8" dentro de los hoyos retenedores

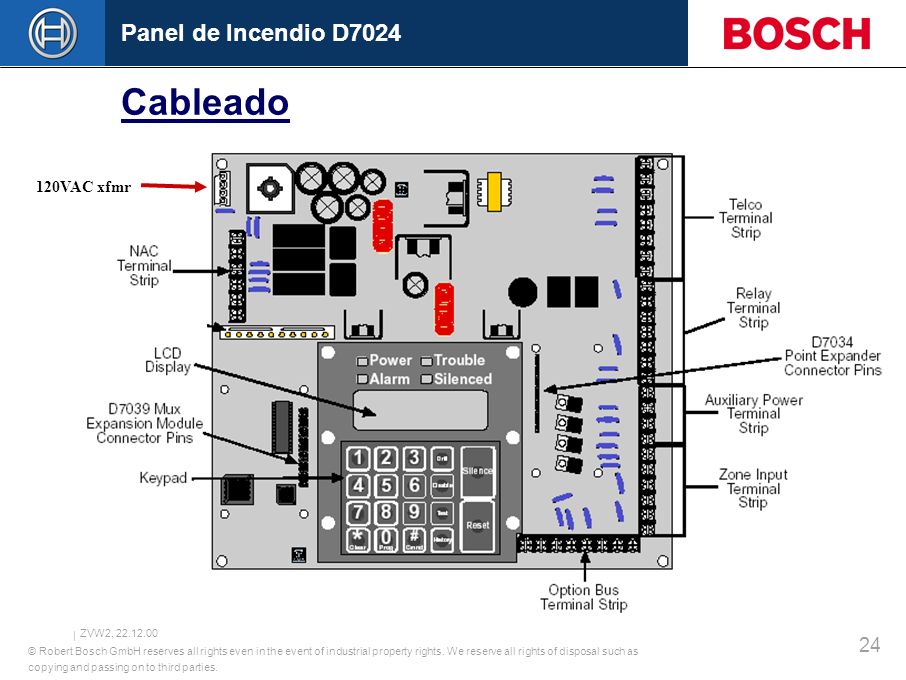

24 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 24 ZVW2, 22.12.00 Cableado Panel de Incendio D7024 120VAC xfmr

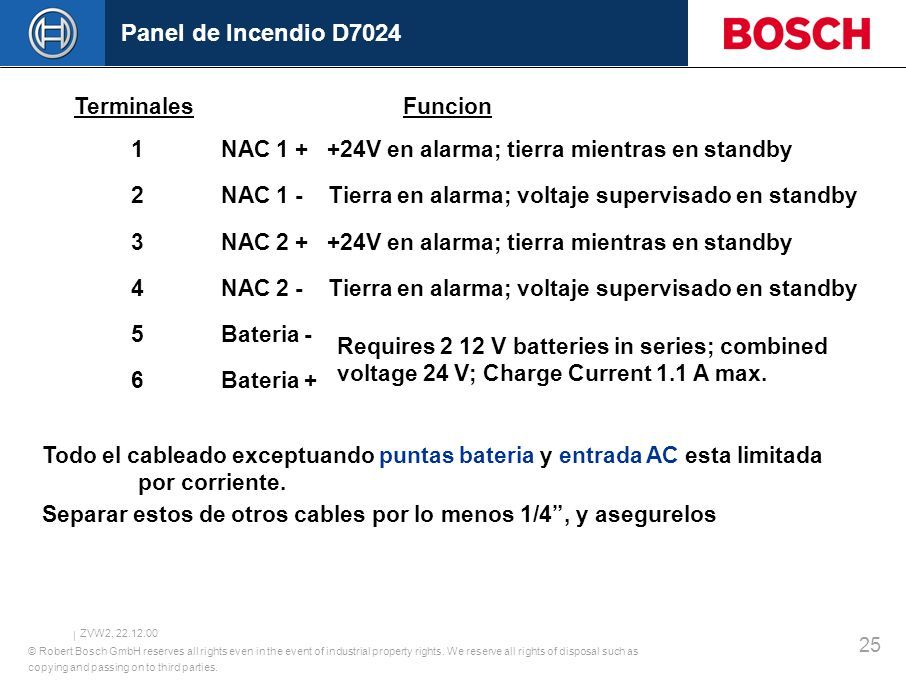

25 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 25 ZVW2, 22.12.00 Terminales Funcion 1NAC 1 + +24V en alarma; tierra mientras en standby 2NAC 1 - Tierra en alarma; voltaje supervisado en standby 3NAC 2 + +24V en alarma; tierra mientras en standby 4NAC 2 - Tierra en alarma; voltaje supervisado en standby 5Bateria - 6Bateria + Requires 2 12 V batteries in series; combined voltage 24 V; Charge Current 1.1 A max. Todo el cableado exceptuando puntas bateria y entrada AC esta limitada por corriente. Separar estos de otros cables por lo menos 1/4”, y asegurelos Panel de Incendio D7024

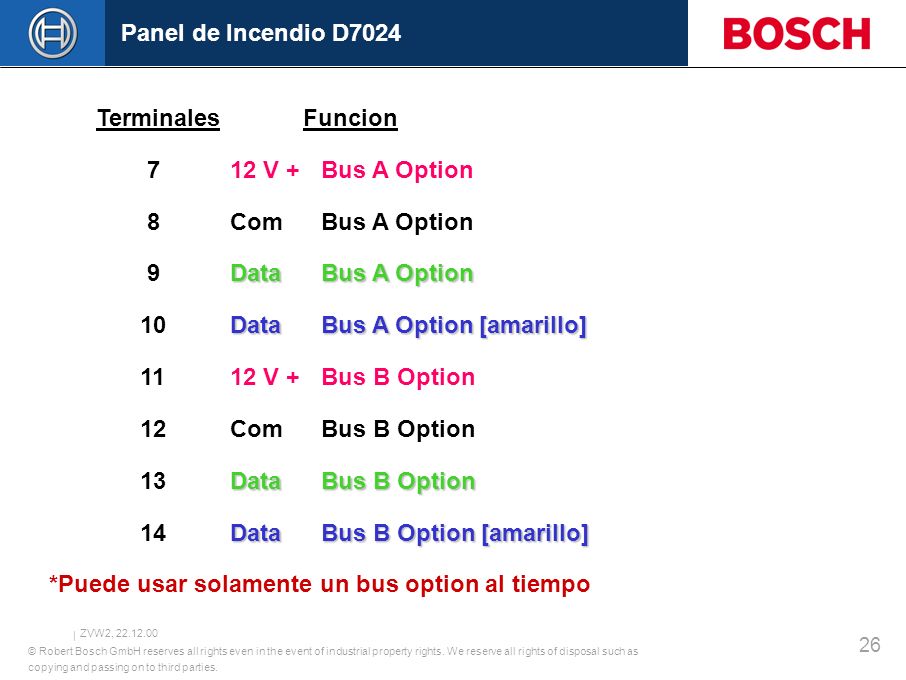

26 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 26 ZVW2, 22.12.00 Terminales Funcion 712 V +Bus A Option 8ComBus A Option Data Bus A Option 9Data Bus A Option Data Bus A Option [amarillo] 10Data Bus A Option [amarillo] 1112 V +Bus B Option 12ComBus B Option Data Bus B Option 13Data Bus B Option Data Bus B Option [amarillo] 14Data Bus B Option [amarillo] *Puede usar solamente un bus option al tiempo D7024 Installation Panel de Incendio D7024

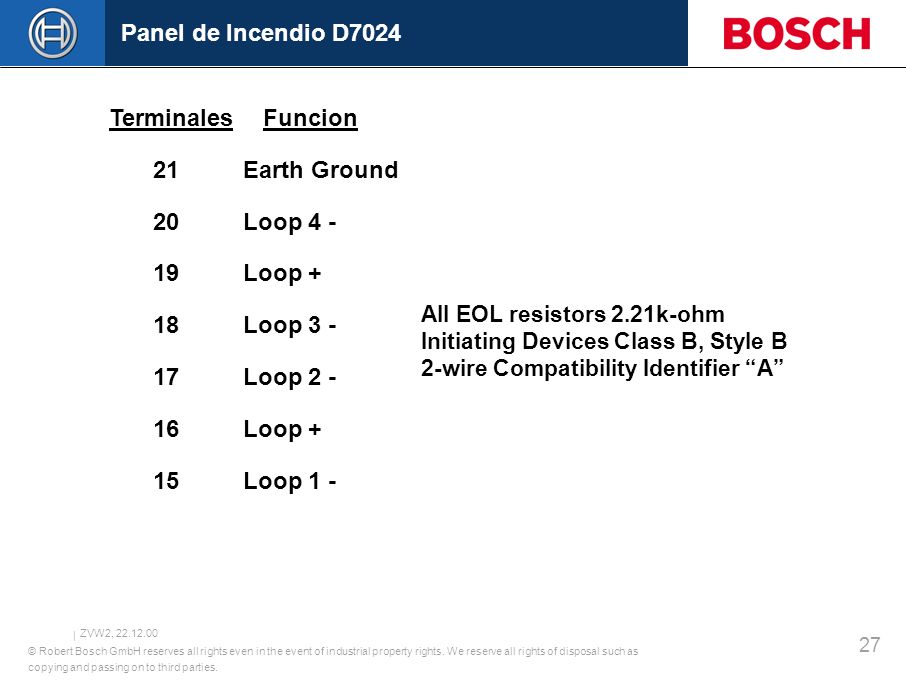

27 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 27 ZVW2, 22.12.00 Terminales Funcion 21Earth Ground 20Loop 4 - 19Loop + 18Loop 3 - 17Loop 2 - 16Loop + 15Loop 1 - D7024 Installation All EOL resistors 2.21k-ohm Initiating Devices Class B, Style B 2-wire Compatibility Identifier “A” Panel de Incendio D7024

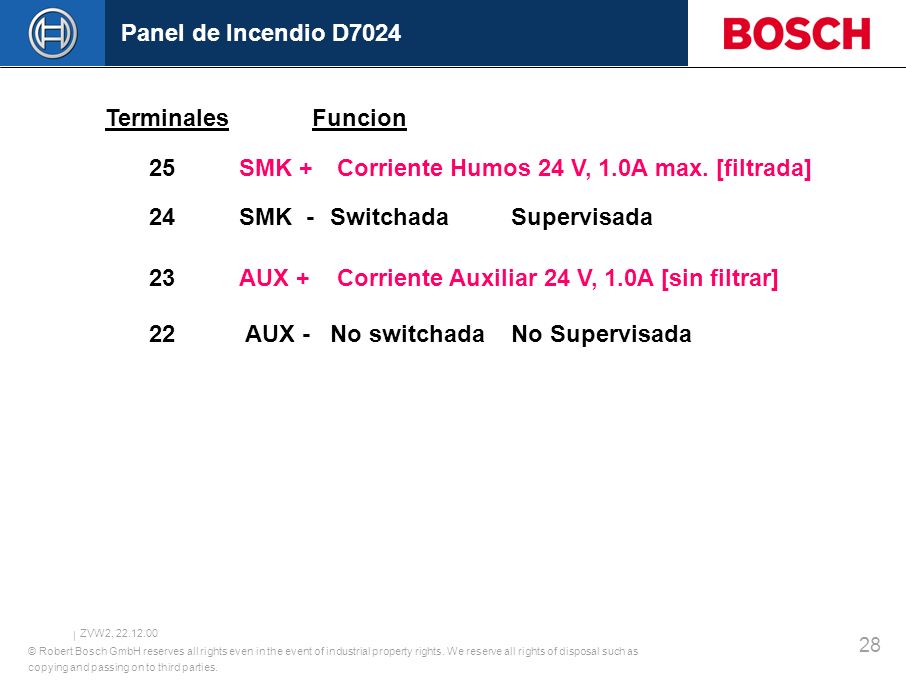

28 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 28 ZVW2, 22.12.00 Terminales Funcion 25SMK + Corriente Humos 24 V, 1.0A max. [filtrada] 24SMK -SwitchadaSupervisada 23AUX + Corriente Auxiliar 24 V, 1.0A [sin filtrar] 22 AUX - No switchadaNo Supervisada D7024 Installation Panel de Incendio D7024

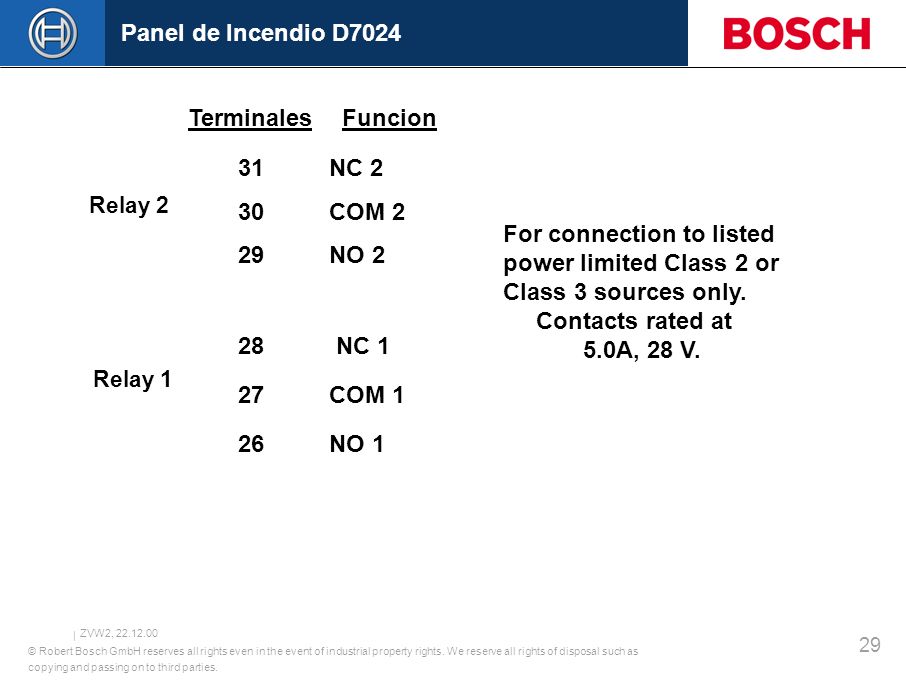

29 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 29 ZVW2, 22.12.00 Terminales Funcion 31NC 2 30COM 2 29NO 2 28 NC 1 27COM 1 26NO 1 D7024 Installation Relay 2 Relay 1 For connection to listed power limited Class 2 or Class 3 sources only. Contacts rated at 5.0A, 28 V. Panel de Incendio D7024

30 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 30 ZVW2, 22.12.00 Terminales Funcion 39 R 2 38HR 2 37HT 2 36 T 2 35 R 1 34HR 1 33HT 1 32 T 1 D7024 Installation Phone 2 Phone 1   Panel de Incendio D7024

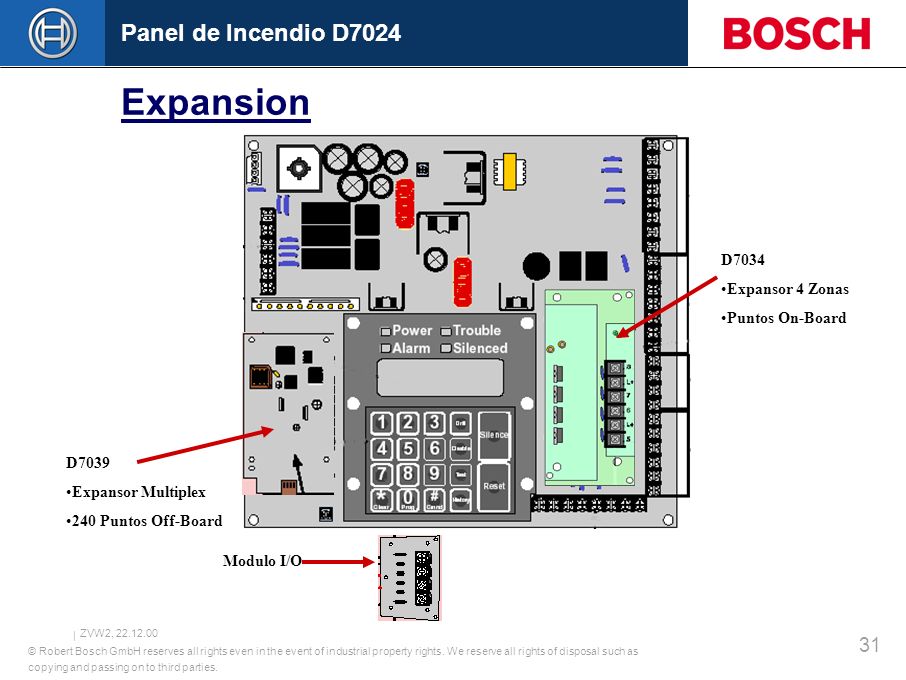

31 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 31 ZVW2, 22.12.00 Expansion Panel de Incendio D7024 D7034 Expansor 4 Zonas Puntos On-Board D7039 Expansor Multiplex 240 Puntos Off-Board Modulo I/O

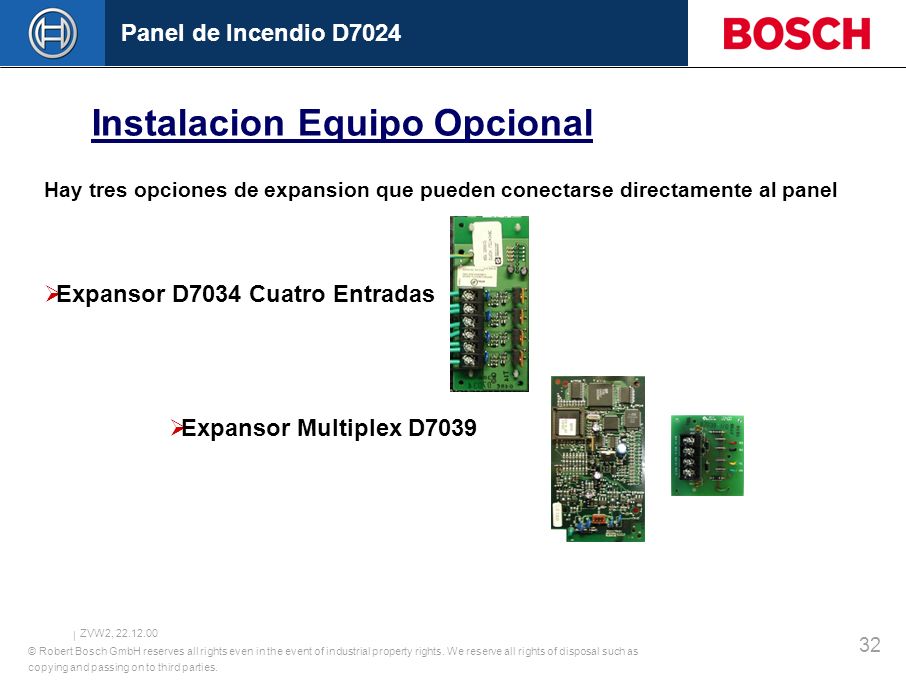

32 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 32 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Instalacion Equipo Opcional Hay tres opciones de expansion que pueden conectarse directamente al panel  Expansor D7034 Cuatro Entradas  Expansor Multiplex D7039 Panel de Incendio D7024

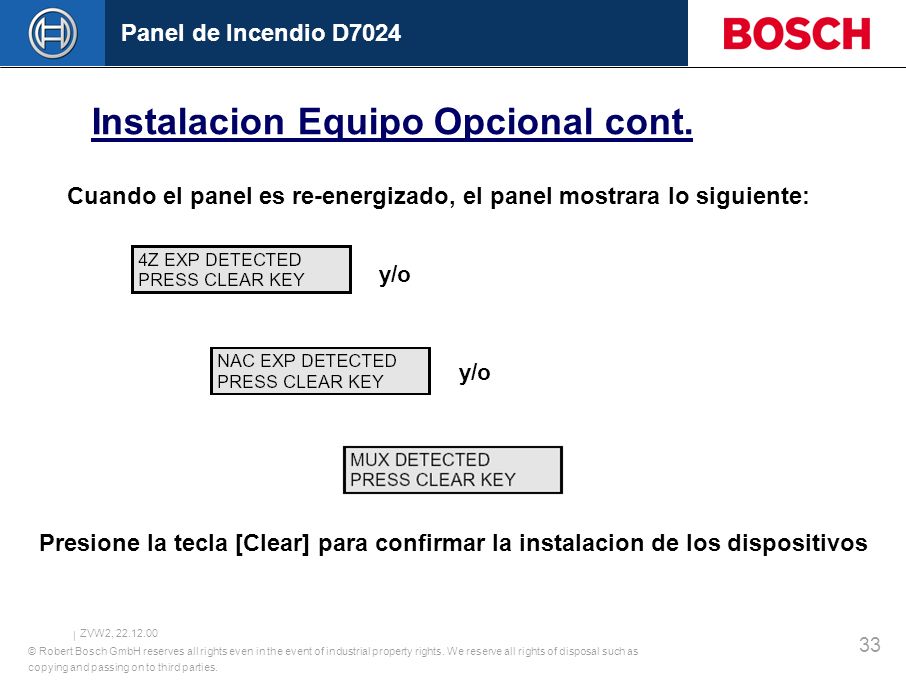

33 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 33 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Instalacion Equipo Opcional cont. Cuando el panel es re-energizado, el panel mostrara lo siguiente: y/o Presione la tecla [Clear] para confirmar la instalacion de los dispositivos Panel de Incendio D7024

34 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 34 ZVW2, 22.12.00 Department

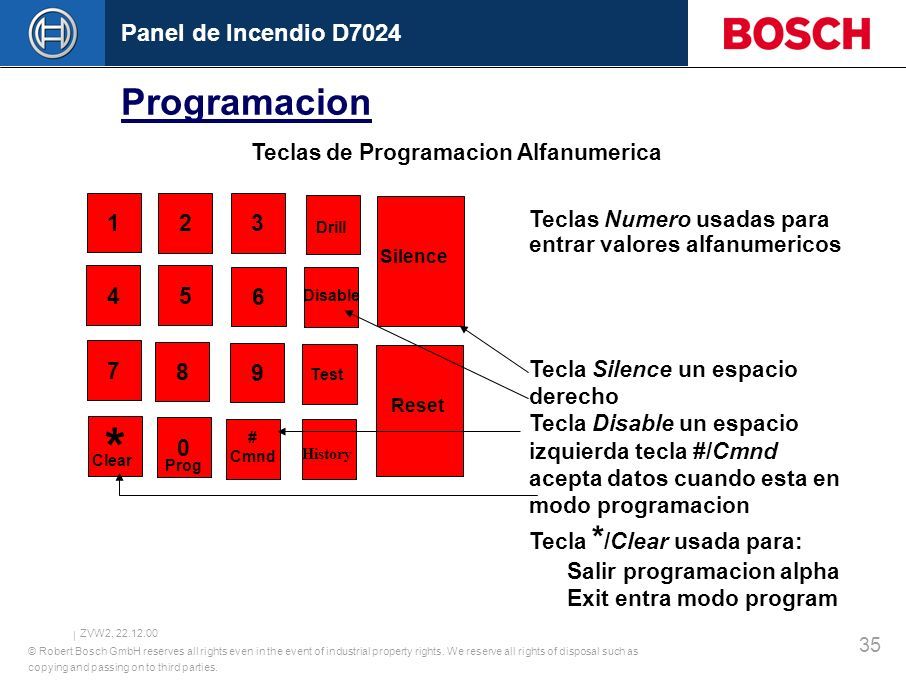

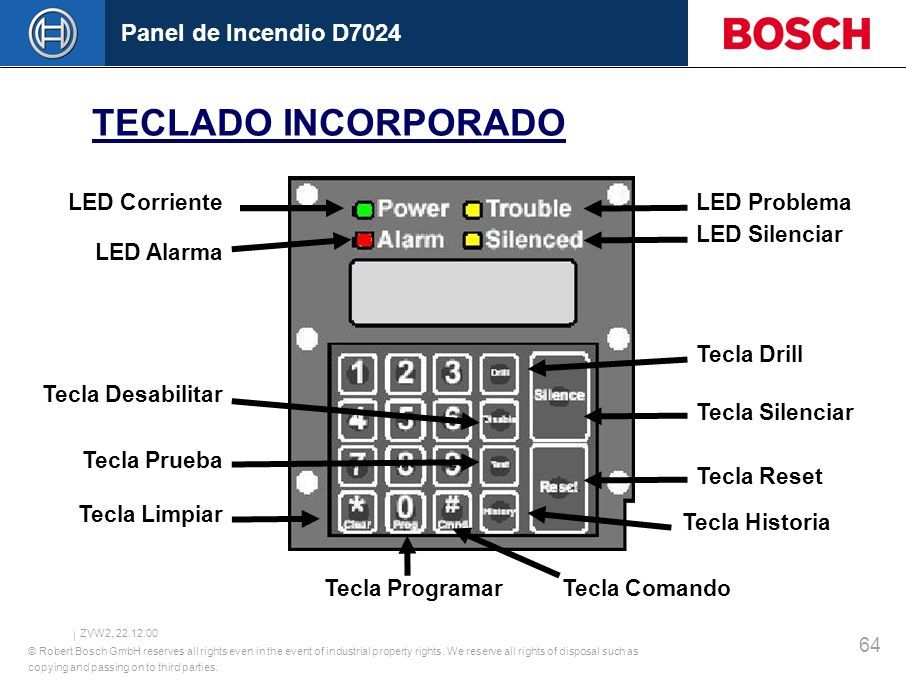

35 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 35 ZVW2, 22.12.00 1 23 45 6 7 * 8 0 9 # Clear Prog Drill Disable Test Teclas Numero usadas para entrar valores alfanumericos Tecla Silence un espacio derecho Tecla Disable un espacio izquierda tecla #/Cmnd acepta datos cuando esta en modo programacion Tecla * /Clear usada para: Salir programacion alpha Exit entra modo program History Teclas de Programacion Alfanumerica D7024 Programming Reset Silence Programacion Panel de Incendio D7024 # Cmnd

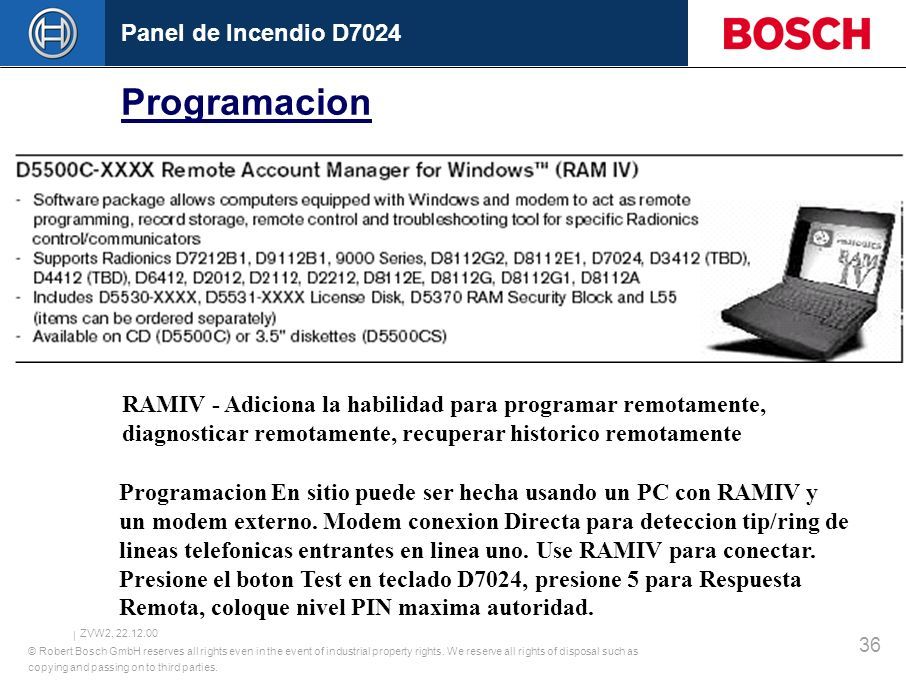

36 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 36 ZVW2, 22.12.00 RAMIV - Adiciona la habilidad para programar remotamente, diagnosticar remotamente, recuperar historico remotamente Programacion En sitio puede ser hecha usando un PC con RAMIV y un modem externo. Modem conexion Directa para deteccion tip/ring de lineas telefonicas entrantes en linea uno. Use RAMIV para conectar. Presione el boton Test en teclado D7024, presione 5 para Respuesta Remota, coloque nivel PIN maxima autoridad. Programacion Panel de Incendio D7024

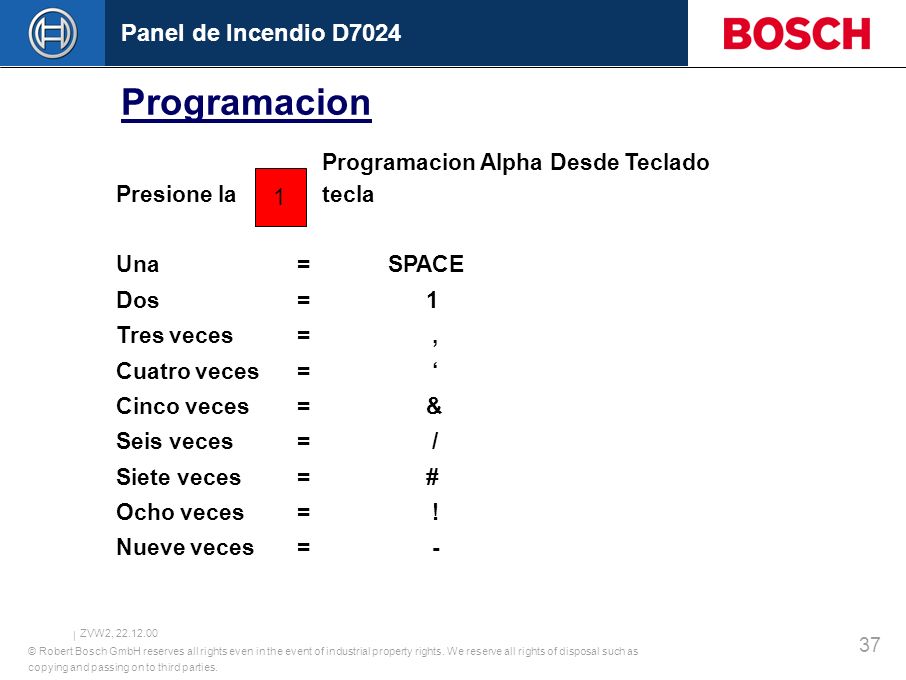

37 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 37 ZVW2, 22.12.00 Programacion Alpha Desde Teclado Presione la tecla Una= SPACE Dos= 1 Tres veces=, Cuatro veces= ‘ Cinco veces= & Seis veces= / Siete veces= # Ocho veces = ! Nueve veces= - D7024 Programming 1 Programacion Panel de Incendio D7024

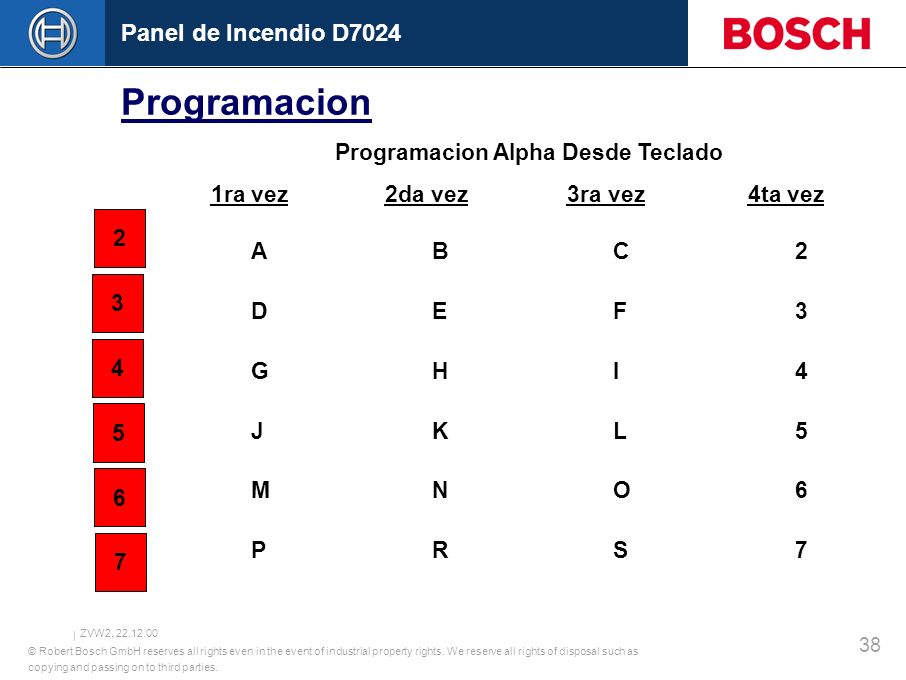

38 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 38 ZVW2, 22.12.00 Programacion Alpha Desde Teclado 1ra vez 2da vez 3ra vez 4ta vez ABC2 DEF3 GHI4 JKL5 MNO6 PRS7 D7024 Programming 2 3 4 5 6 7 Programacion Panel de Incendio D7024

39 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 39 ZVW2, 22.12.00 Programacion Alpha Desde Teclado 1ra vez 2da vez 3ra vez 4ta vez TUV8 WXY9 QZ0 Entra descripcion & returna a menu programacion. Returna a menu programacion sin hacer cambios. Mueve cursor un espacio izquierda. Mueve cursor un espacio derecha D7024 Programming 8 9 0 Prog Cmd * Clear Disable Silence # Programacion Panel de Incendio D7024

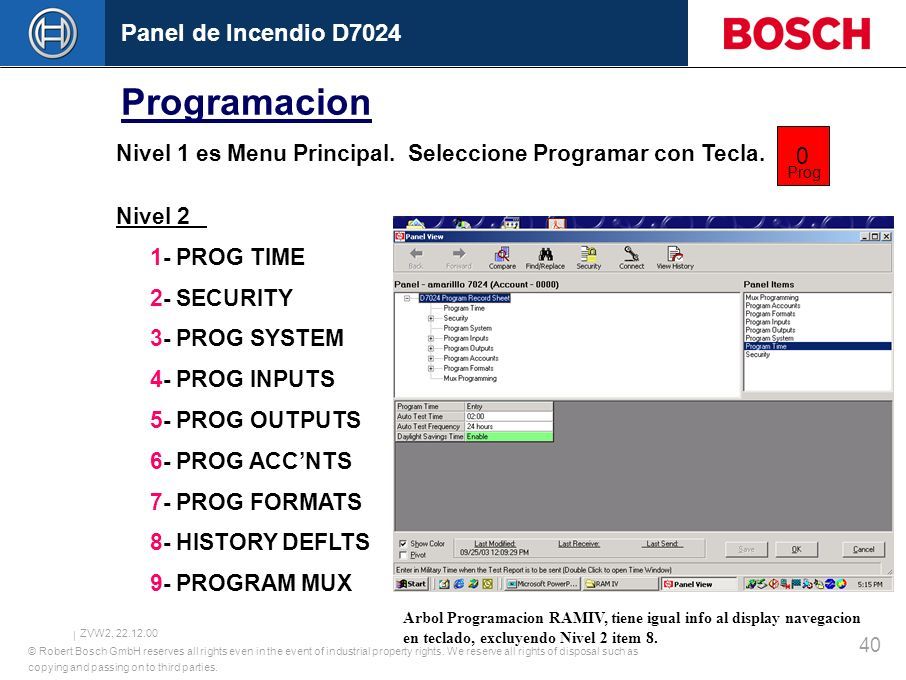

40 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 40 ZVW2, 22.12.00 Nivel 1 es Menu Principal. Seleccione Programar con Tecla. Nivel 2 1- PROG TIME 2- SECURITY 3- PROG SYSTEM 4- PROG INPUTS 5- PROG OUTPUTS 6- PROG ACC’NTS 7- PROG FORMATS 8- HISTORY DEFLTS 9- PROGRAM MUX D7024 Program Menu Tree 0 Prog Arbol Programacion RAMIV, tiene igual info al display navegacion en teclado, excluyendo Nivel 2 item 8. Programacion Panel de Incendio D7024

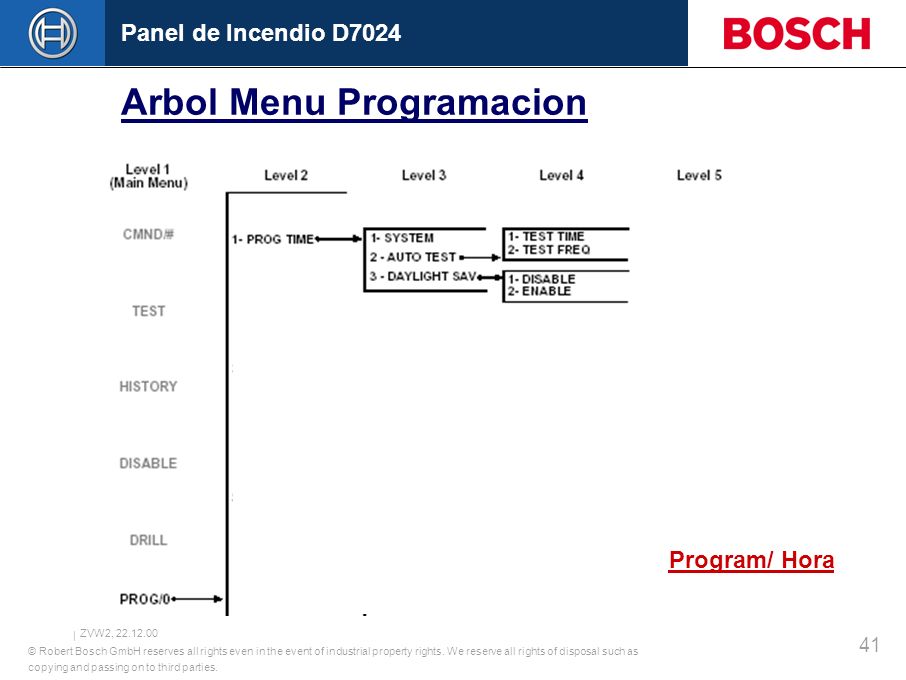

41 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 41 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Program/ Hora

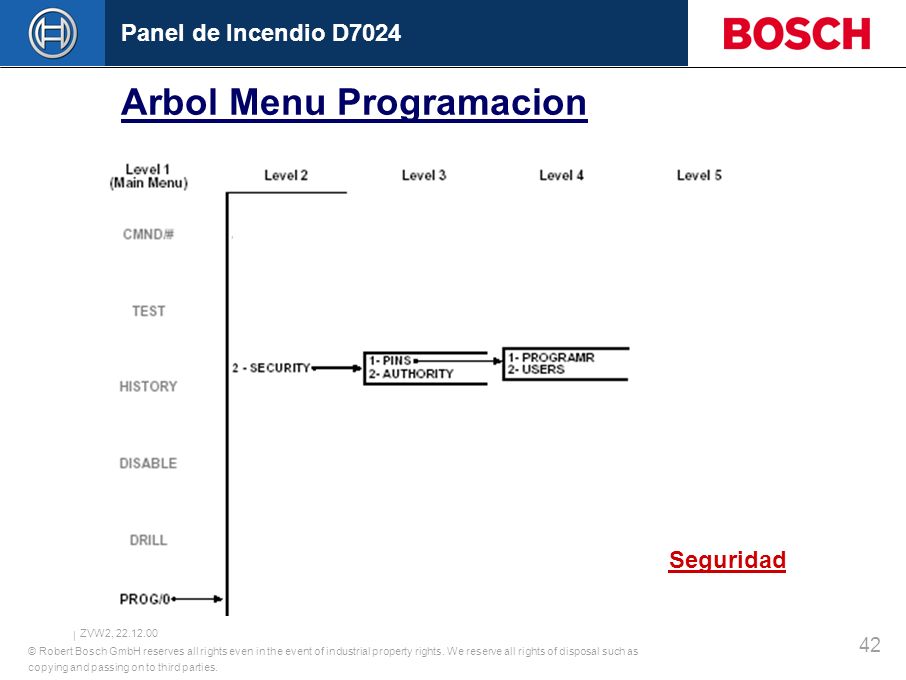

42 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 42 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Seguridad

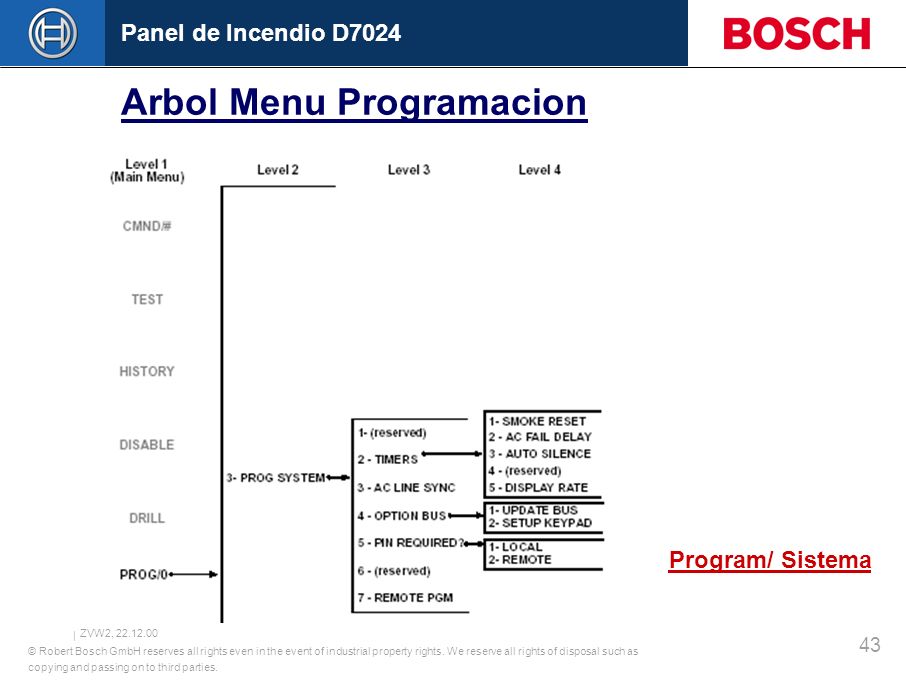

43 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 43 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Program/ Sistema

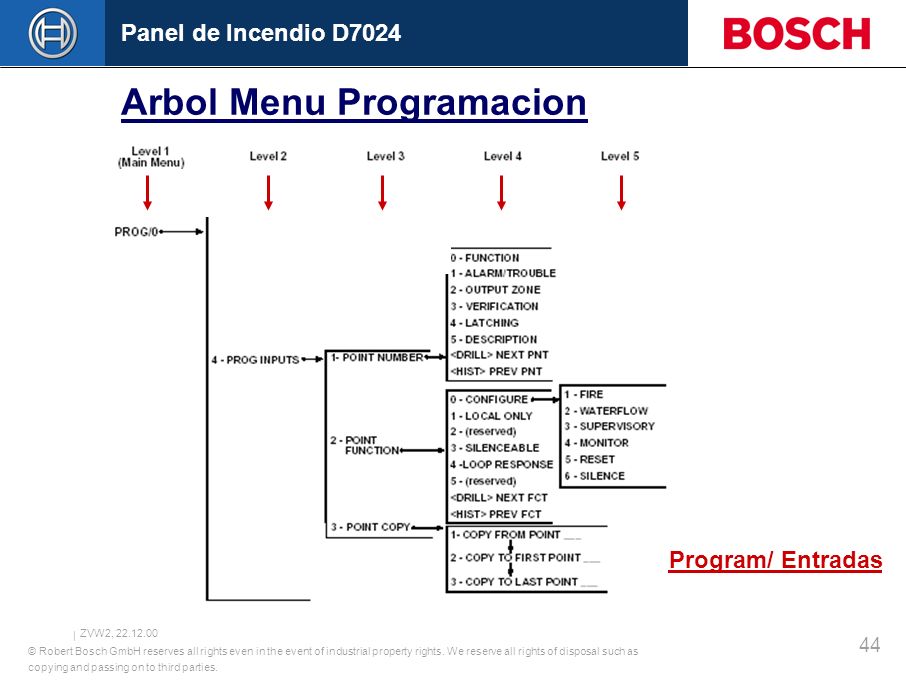

44 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 44 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Program/ Entradas

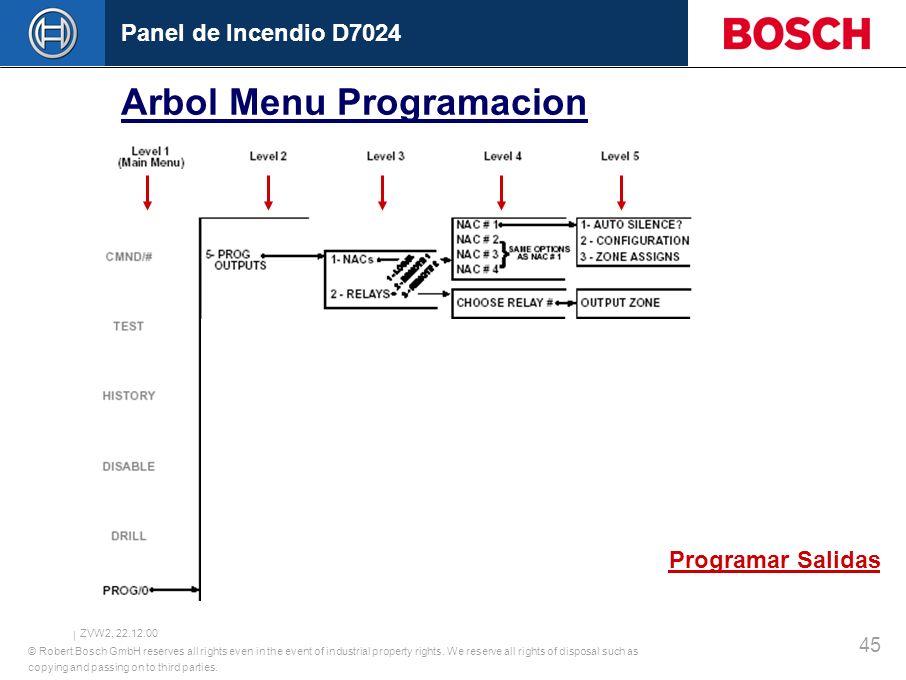

45 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 45 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Programar Salidas

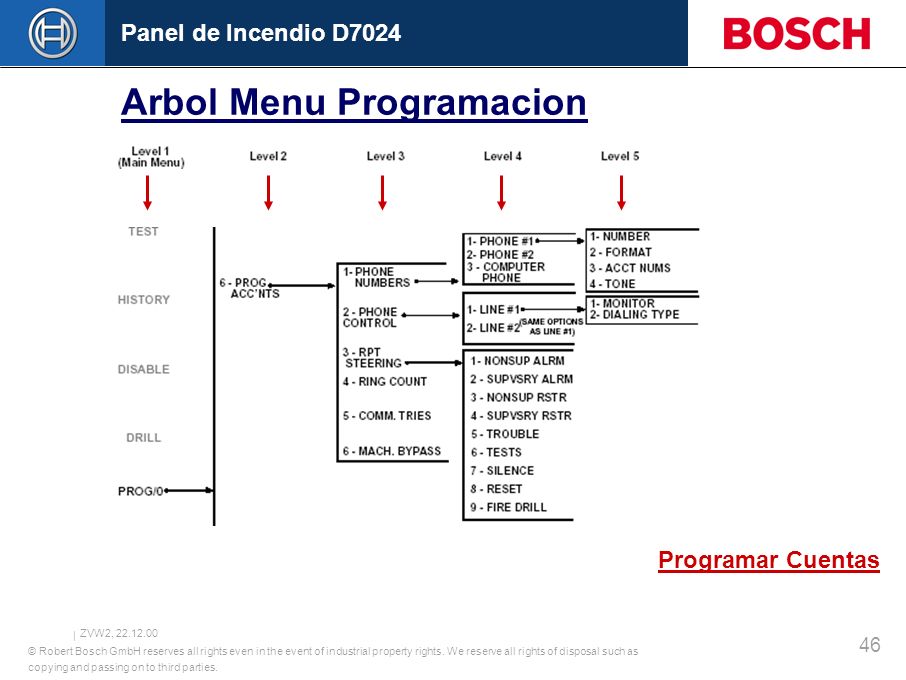

46 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 46 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Programar Cuentas

47 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 47 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Formatos Program/

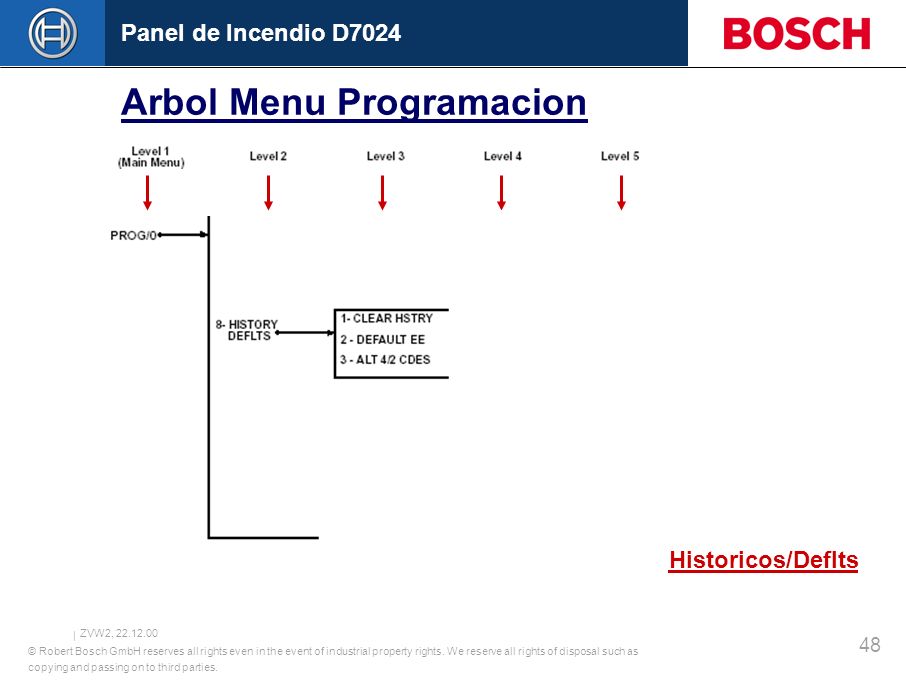

48 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 48 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Historicos/Deflts

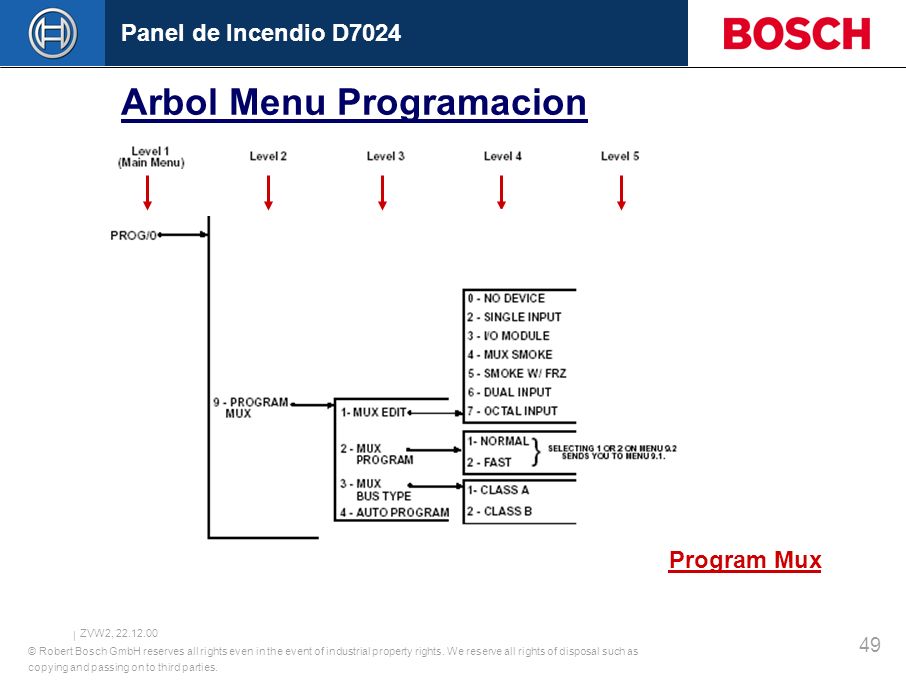

49 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 49 ZVW2, 22.12.00 D7024 Fire Alarm Control / Communicator Panel de Incendio D7024 Arbol Menu Programacion Program Mux

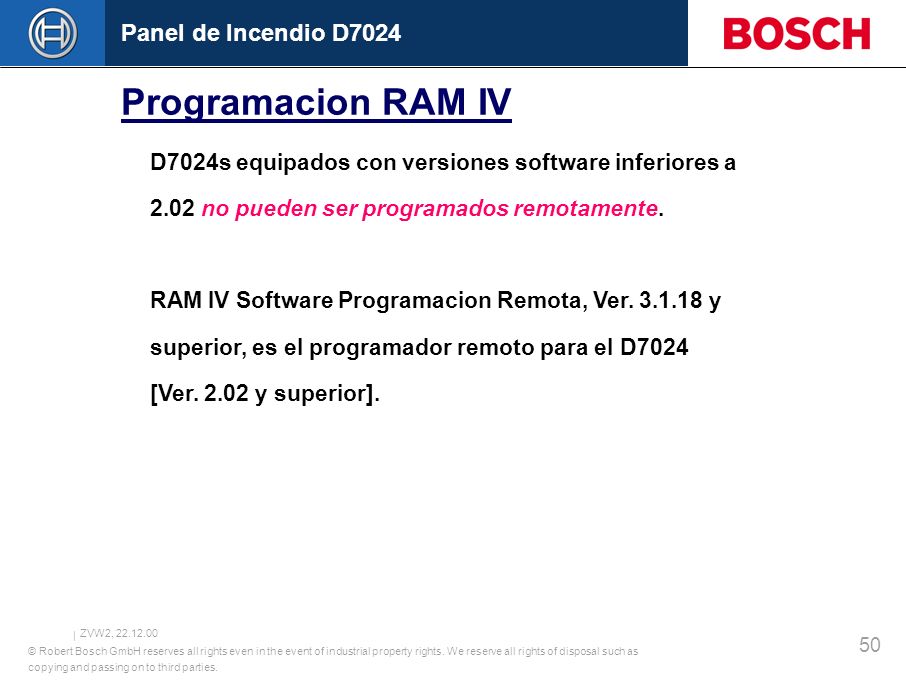

50 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 50 ZVW2, 22.12.00 D7024s equipados con versiones software inferiores a 2.02 no pueden ser programados remotamente. RAM IV Software Programacion Remota, Ver. 3.1.18 y superior, es el programador remoto para el D7024 [Ver. 2.02 y superior]. D7024 Programming Programacion RAM IV Panel de Incendio D7024

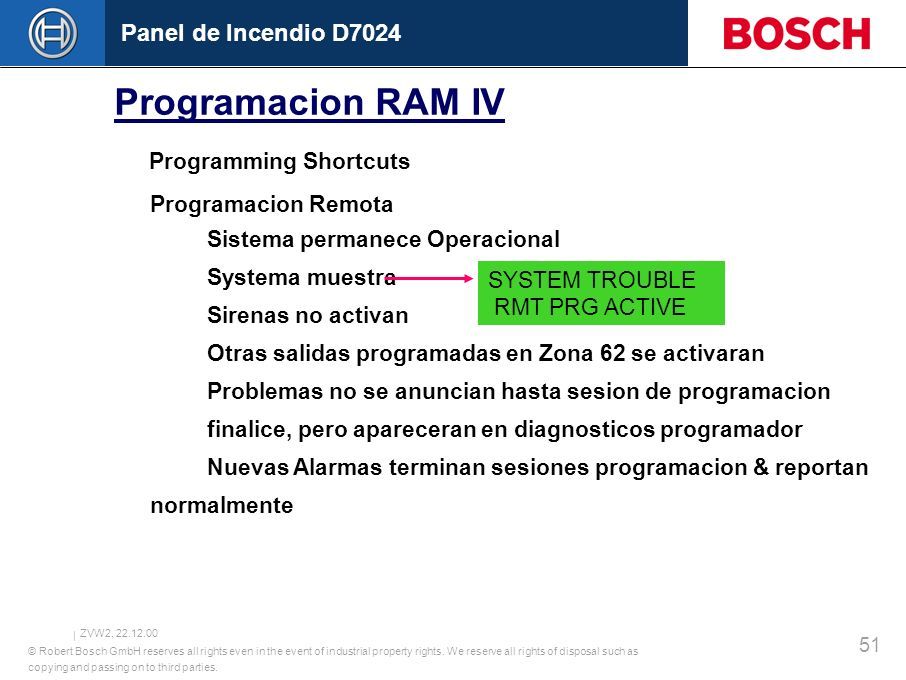

51 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 51 ZVW2, 22.12.00 Sistema permanece Operacional Systema muestra Sirenas no activan Otras salidas programadas en Zona 62 se activaran Problemas no se anuncian hasta sesion de programacion finalice, pero apareceran en diagnosticos programador Nuevas Alarmas terminan sesiones programacion & reportan normalmente D7024 Programming SYSTEM TROUBLE RMT PRG ACTIVE Programming Shortcuts Programacion Remota Programacion RAM IV Panel de Incendio D7024

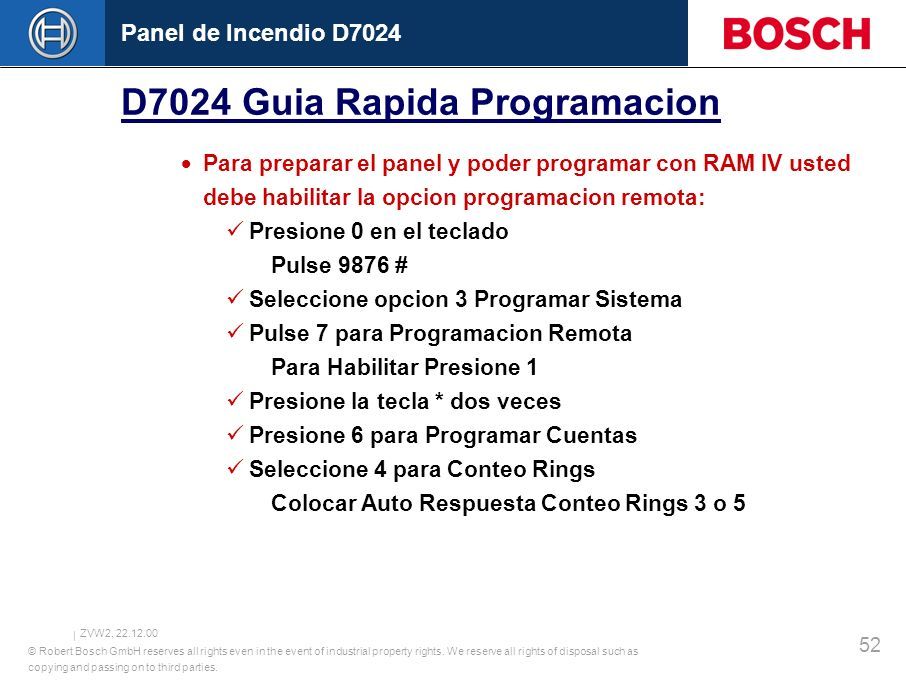

52 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 52 ZVW2, 22.12.00  Para preparar el panel y poder programar con RAM IV usted debe habilitar la opcion programacion remota: Presione 0 en el teclado Pulse 9876 # Seleccione opcion 3 Programar Sistema Pulse 7 para Programacion Remota Para Habilitar Presione 1 Presione la tecla * dos veces Presione 6 para Programar Cuentas Seleccione 4 para Conteo Rings Colocar Auto Respuesta Conteo Rings 3 o 5 D7024 Programming D7024 Guia Rapida Programacion Panel de Incendio D7024

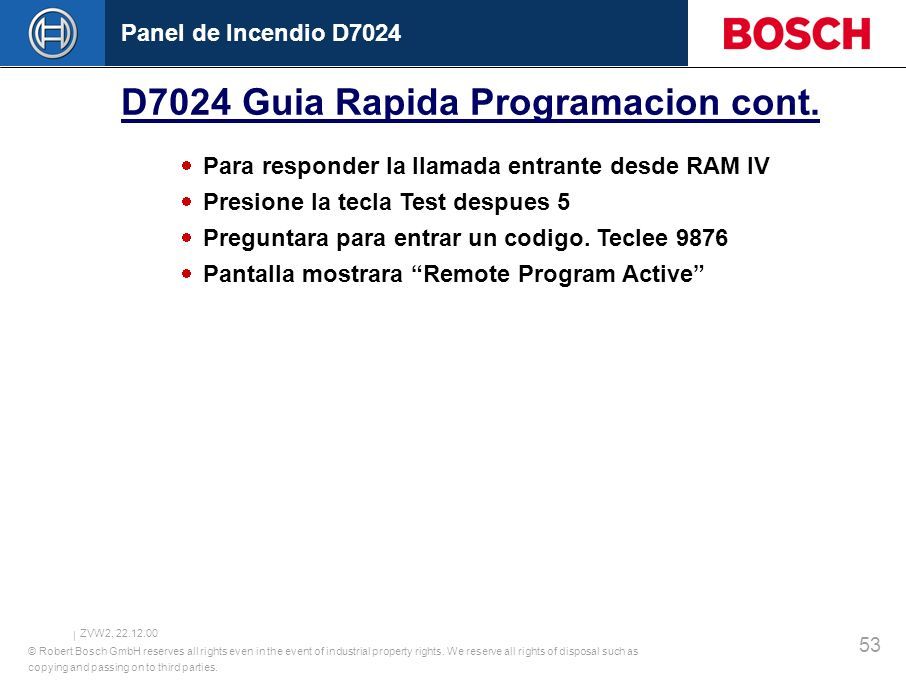

53 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 53 ZVW2, 22.12.00  Para responder la llamada entrante desde RAM IV  Presione la tecla Test despues 5  Preguntara para entrar un codigo. Teclee 9876  Pantalla mostrara “Remote Program Active” D7024 Programming D7024 Guia Rapida Programacion cont. Panel de Incendio D7024

54 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 54 ZVW2, 22.12.00 Department

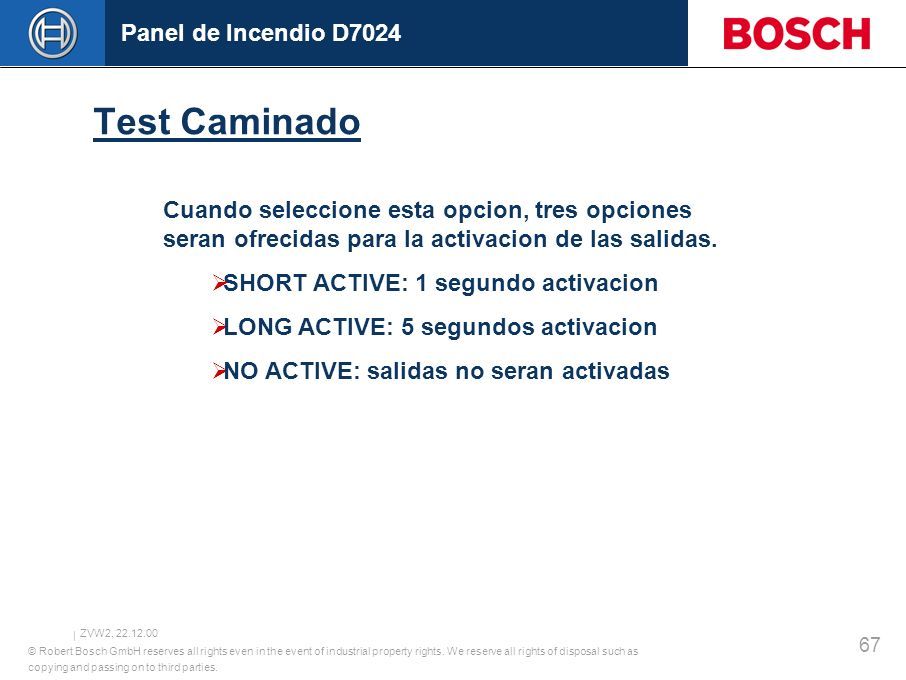

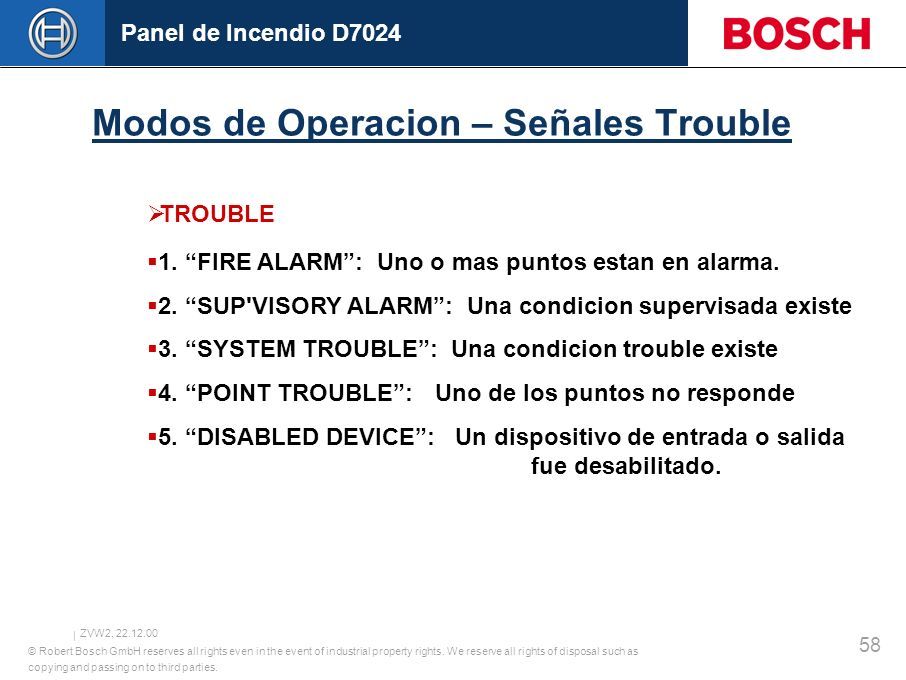

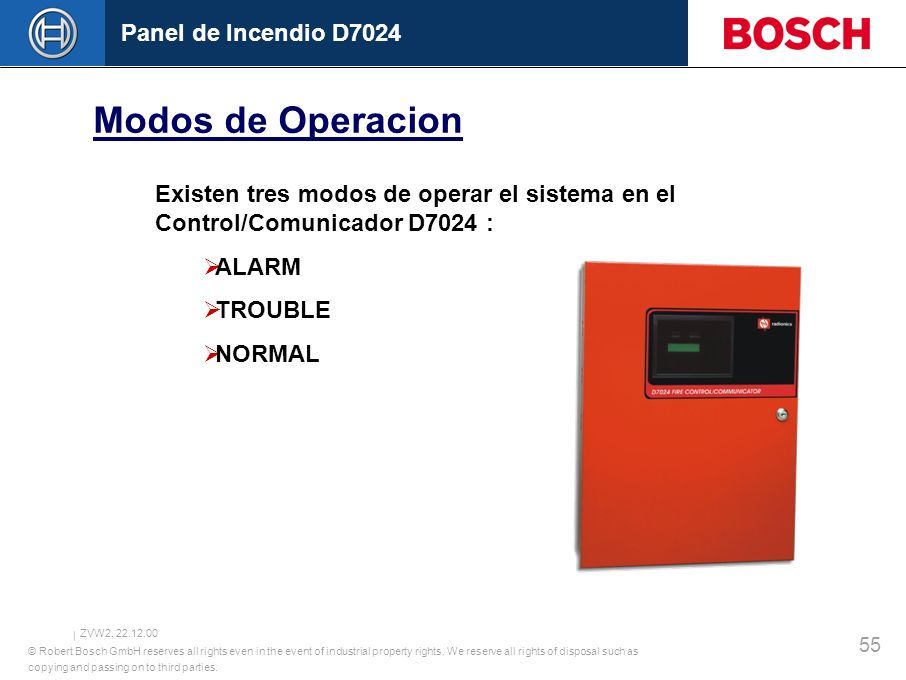

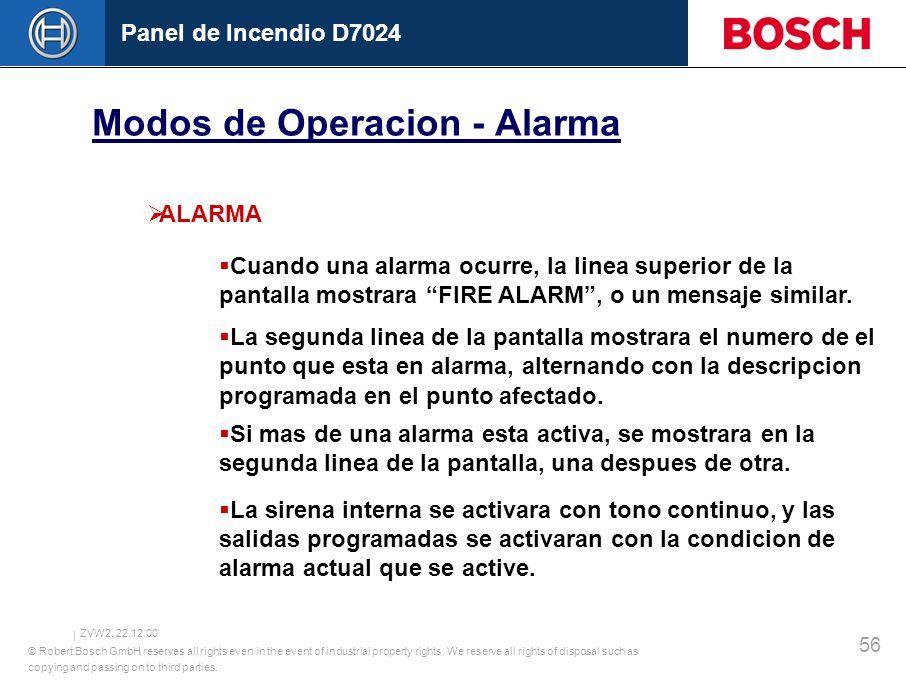

55 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 55 ZVW2, 22.12.00 Modos de Operacion D7024 Fire Alarm Control / Communicator Existen tres modos de operar el sistema en el Control/Comunicador D7024 :  ALARM  TROUBLE  NORMAL Panel de Incendio D7024
