1 © 2008 Cisco Systems, Inc. All rights reserved.Cisco ConfidentialPresentation_ID 1 Chapter 8: DHCP Routing and Switching Essentials v6.0

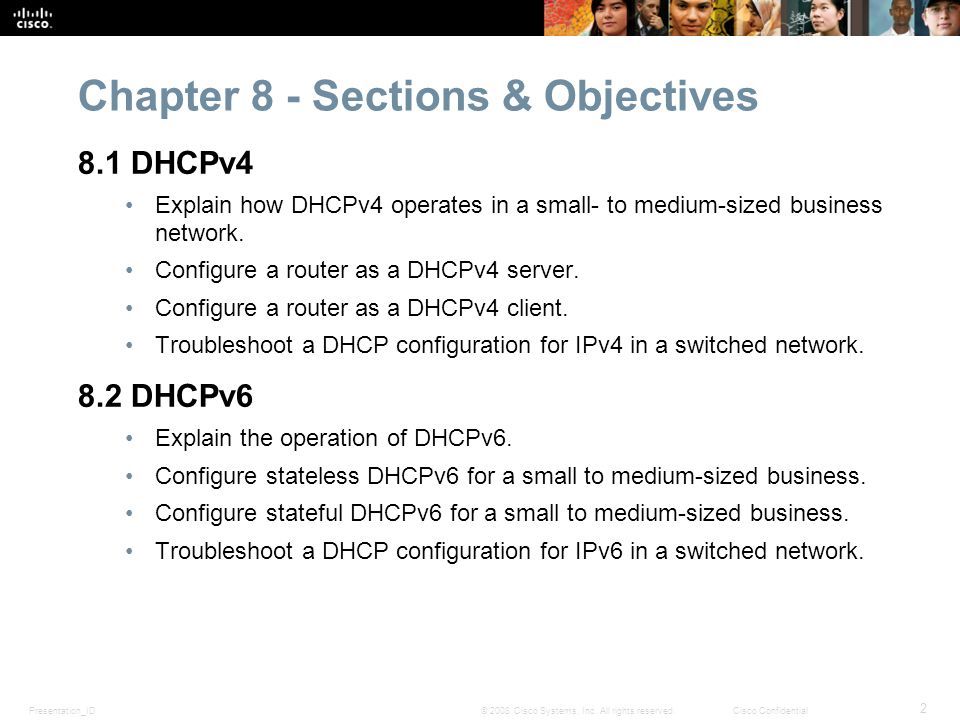

2 Presentation_ID 2 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Chapter 8 - Sections & Objectives 8.1 DHCPv4 Explain how DHCPv4 operates in a small- to medium-sized business network. Configure a router as a DHCPv4 server. Configure a router as a DHCPv4 client. Troubleshoot a DHCP configuration for IPv4 in a switched network. 8.2 DHCPv6 Explain the operation of DHCPv6. Configure stateless DHCPv6 for a small to medium-sized business. Configure stateful DHCPv6 for a small to medium-sized business. Troubleshoot a DHCP configuration for IPv6 in a switched network.

3 © 2008 Cisco Systems, Inc. All rights reserved.Cisco ConfidentialPresentation_ID 3 8.1 DHCPv4

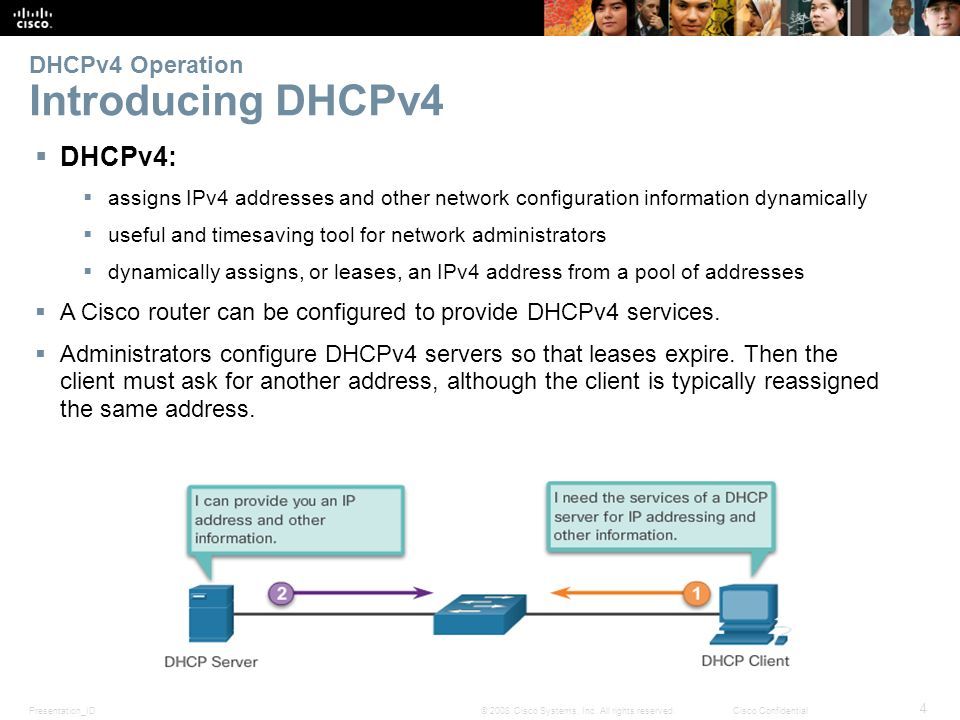

4 Presentation_ID 4 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation Introducing DHCPv4  DHCPv4:  assigns IPv4 addresses and other network configuration information dynamically  useful and timesaving tool for network administrators  dynamically assigns, or leases, an IPv4 address from a pool of addresses  A Cisco router can be configured to provide DHCPv4 services.  Administrators configure DHCPv4 servers so that leases expire. Then the client must ask for another address, although the client is typically reassigned the same address.

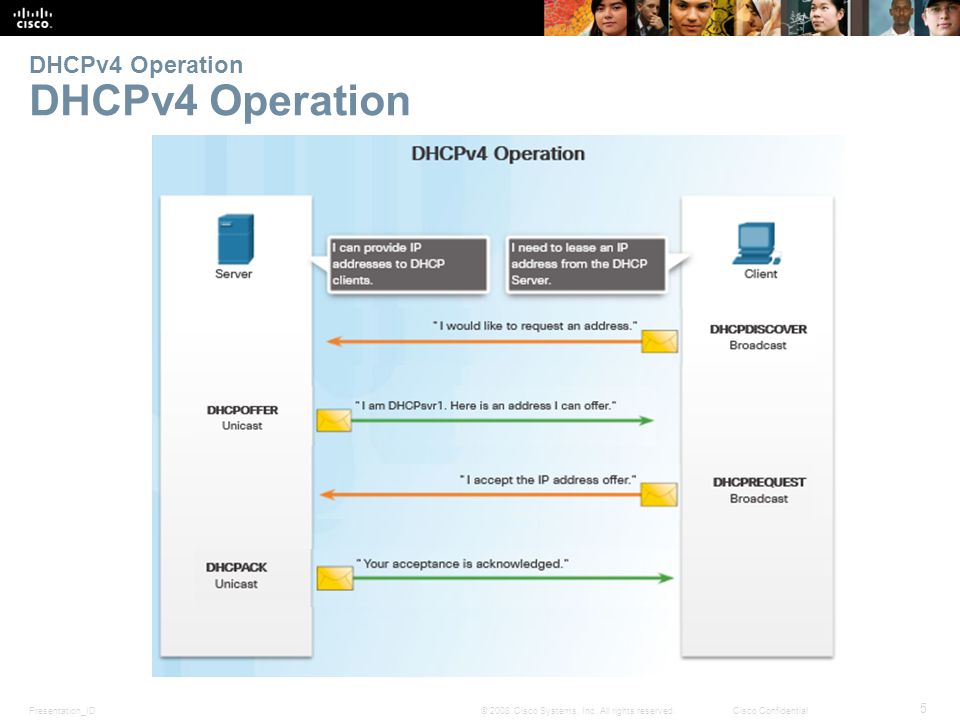

5 Presentation_ID 5 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation

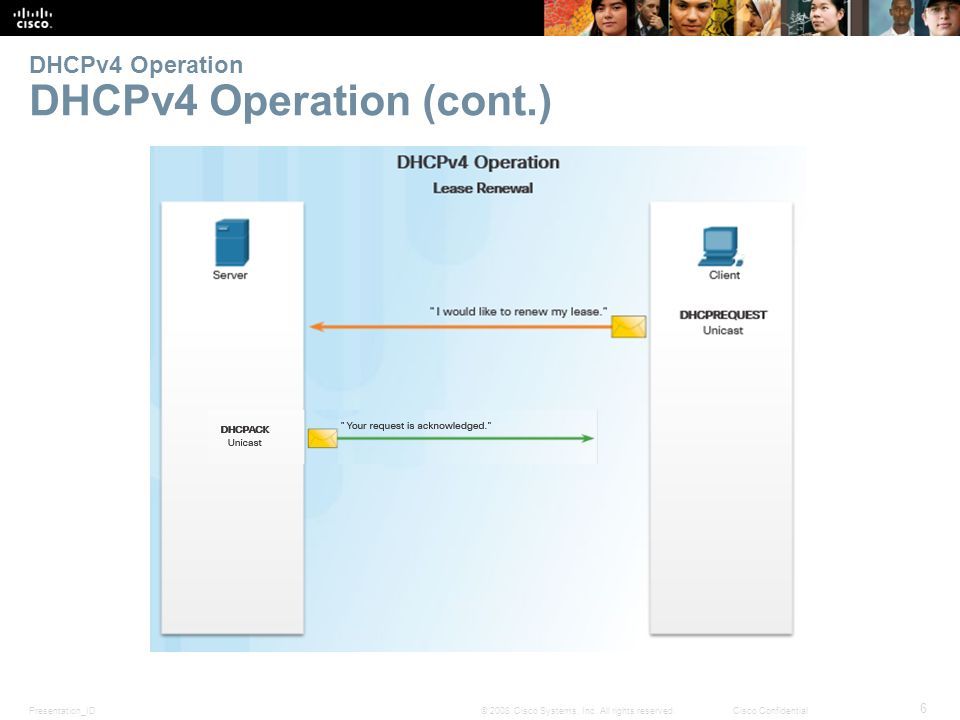

6 Presentation_ID 6 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation DHCPv4 Operation (cont.)

7 Presentation_ID 7 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation DHCPv4 Message Format The DHCPv4 message format is used for all DHCPv4 transactions. DHCPv4 messages are encapsulated within the UDP transport protocol. DHCPv4 messages sent from the client use UDP source port 68 and destination port 67. DHCPv4 messages sent from the server to the client use UDP source port 67 and destination port 68.

8 Presentation_ID 8 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation DHCPv4 Discover and Offer Messages

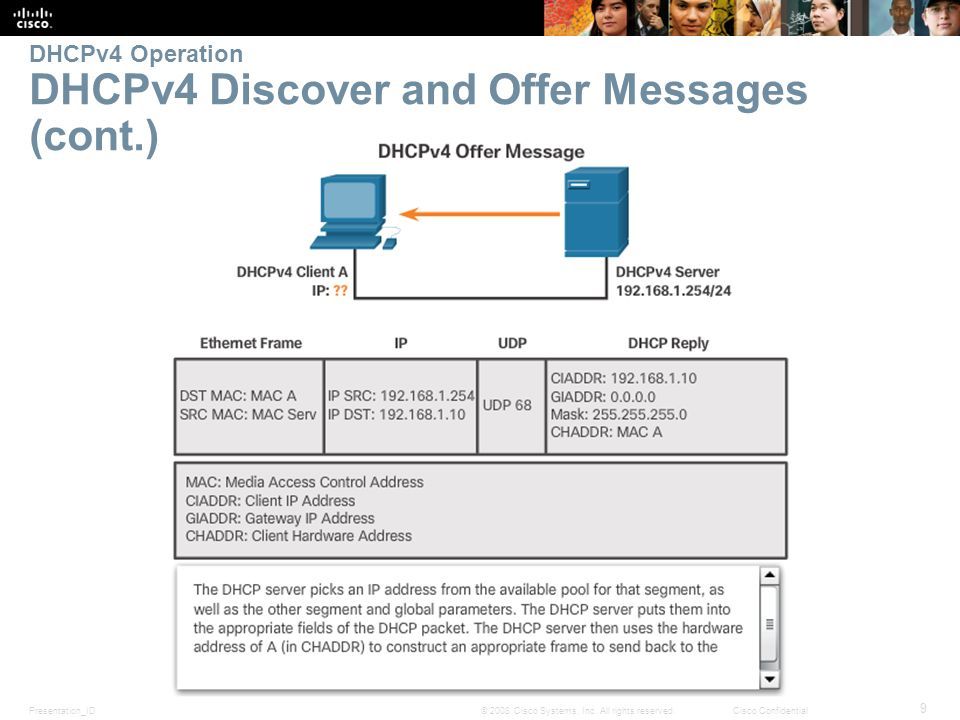

9 Presentation_ID 9 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential DHCPv4 Operation DHCPv4 Discover and Offer Messages (cont.)

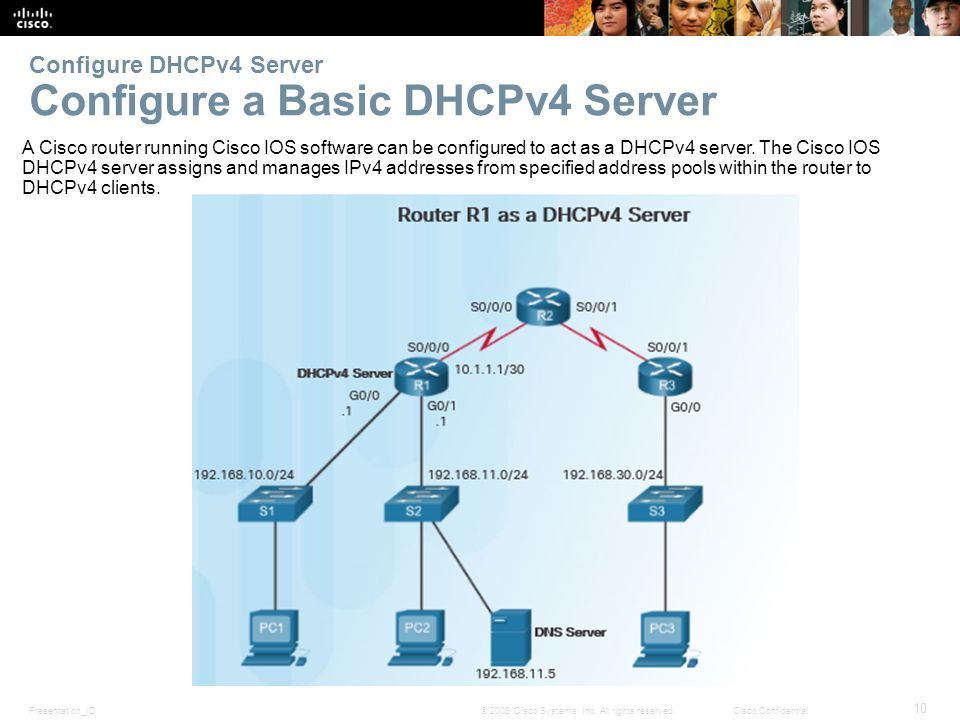

10 Presentation_ID 10 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Server Configure a Basic DHCPv4 Server A Cisco router running Cisco IOS software can be configured to act as a DHCPv4 server. The Cisco IOS DHCPv4 server assigns and manages IPv4 addresses from specified address pools within the router to DHCPv4 clients.

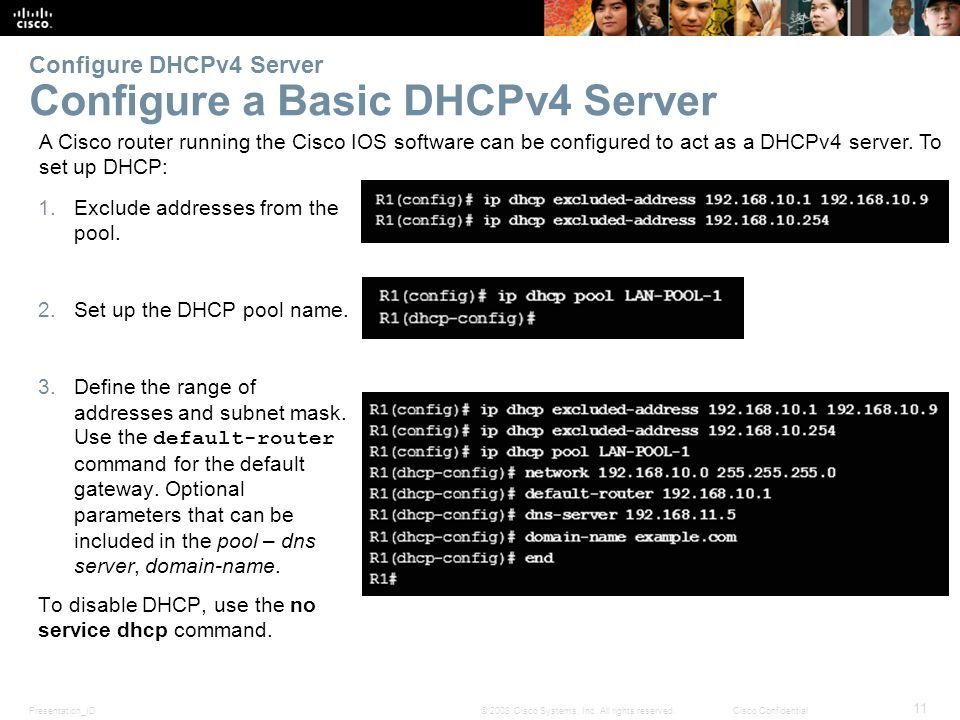

11 Presentation_ID 11 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Server Configure a Basic DHCPv4 Server 1.Exclude addresses from the pool. 2.Set up the DHCP pool name. 3.Define the range of addresses and subnet mask. Use the default-router command for the default gateway. Optional parameters that can be included in the pool – dns server, domain-name. To disable DHCP, use the no service dhcp command. A Cisco router running the Cisco IOS software can be configured to act as a DHCPv4 server. To set up DHCP:

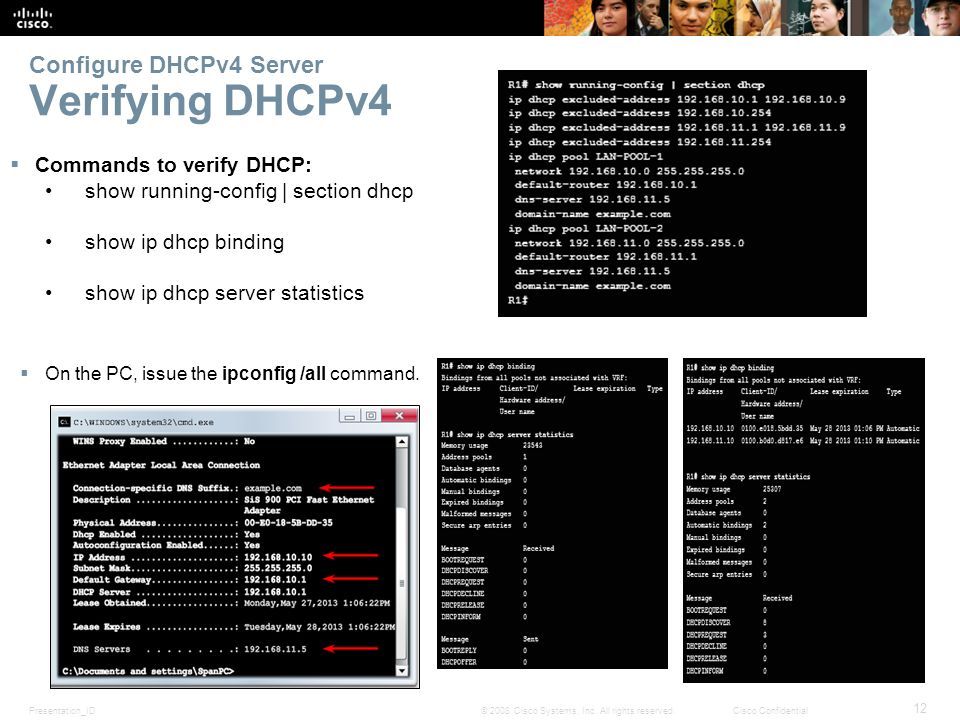

12 Presentation_ID 12 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Server Verifying DHCPv4  Commands to verify DHCP: show running-config | section dhcp show ip dhcp binding show ip dhcp server statistics  On the PC, issue the ipconfig /all command.

13 Presentation_ID 13 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Server DHCPv4 Relay

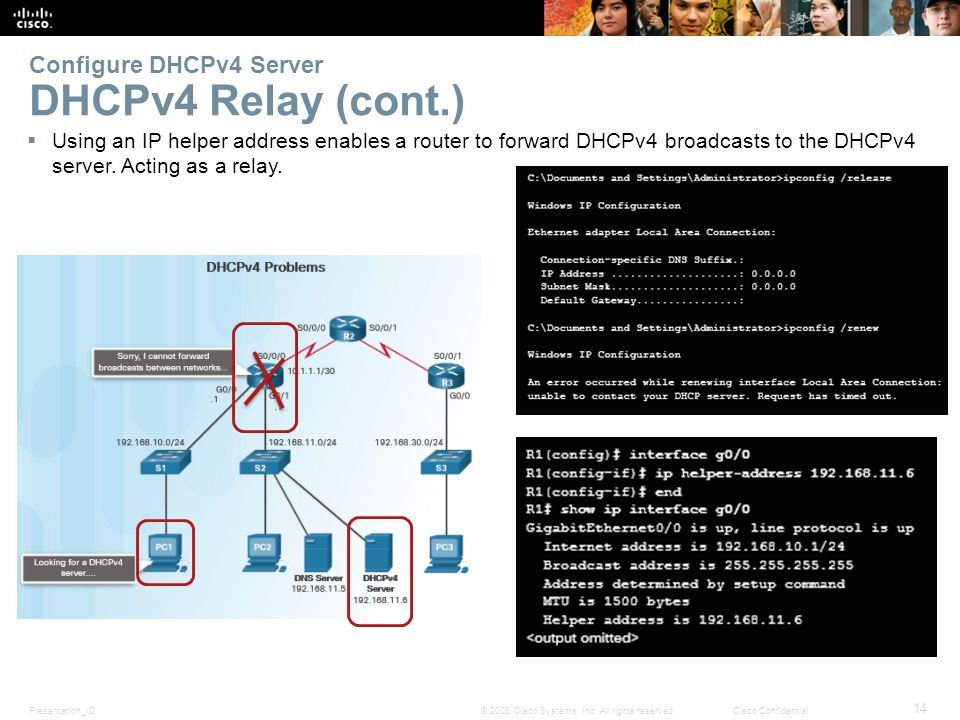

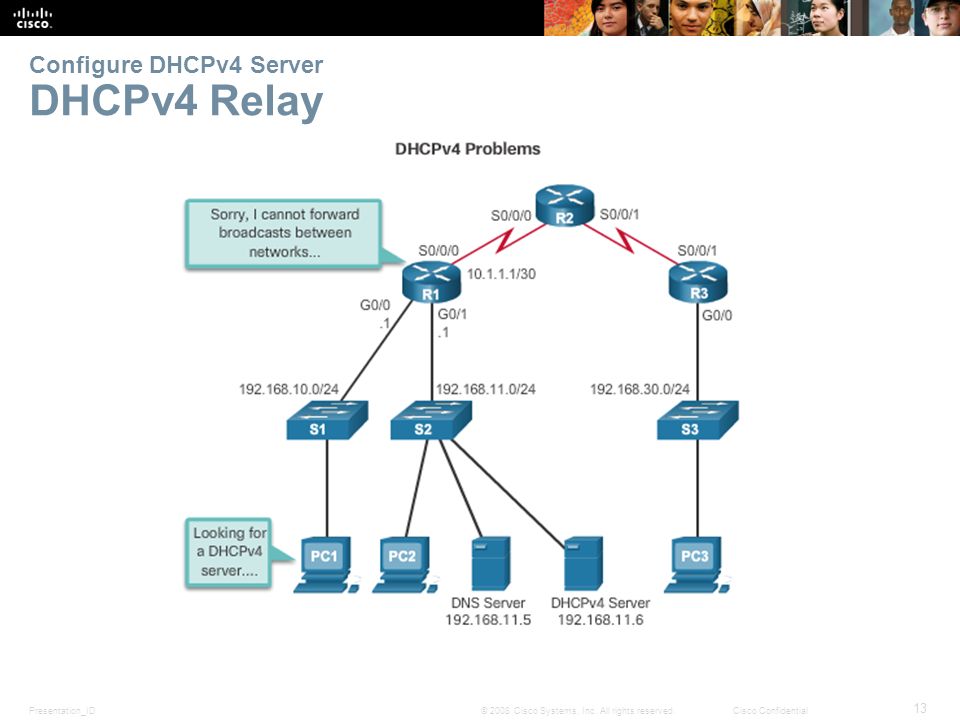

14 Presentation_ID 14 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Server DHCPv4 Relay (cont.)  Using an IP helper address enables a router to forward DHCPv4 broadcasts to the DHCPv4 server. Acting as a relay.

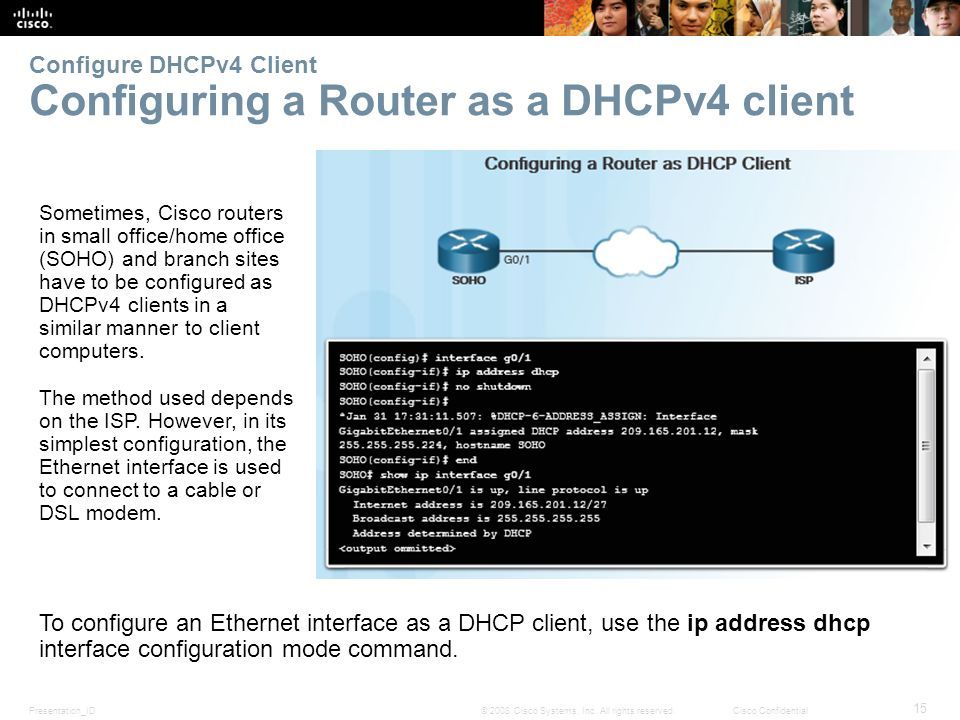

15 Presentation_ID 15 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Client Configuring a Router as a DHCPv4 client Sometimes, Cisco routers in small office/home office (SOHO) and branch sites have to be configured as DHCPv4 clients in a similar manner to client computers. The method used depends on the ISP. However, in its simplest configuration, the Ethernet interface is used to connect to a cable or DSL modem. To configure an Ethernet interface as a DHCP client, use the ip address dhcp interface configuration mode command.

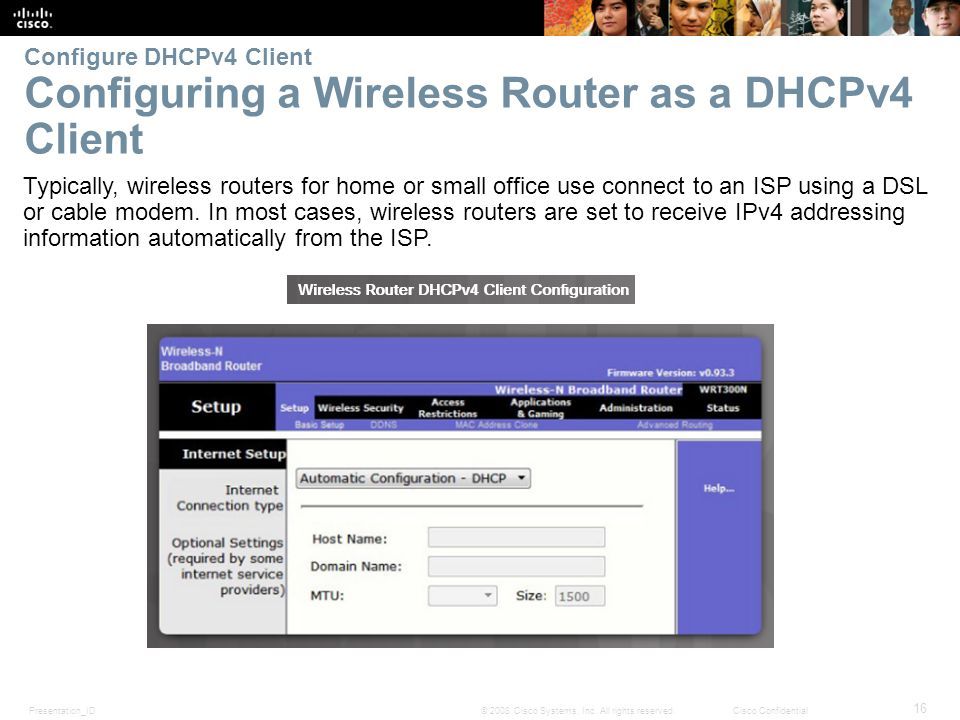

16 Presentation_ID 16 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Configure DHCPv4 Client Configuring a Wireless Router as a DHCPv4 Client Typically, wireless routers for home or small office use connect to an ISP using a DSL or cable modem. In most cases, wireless routers are set to receive IPv4 addressing information automatically from the ISP.

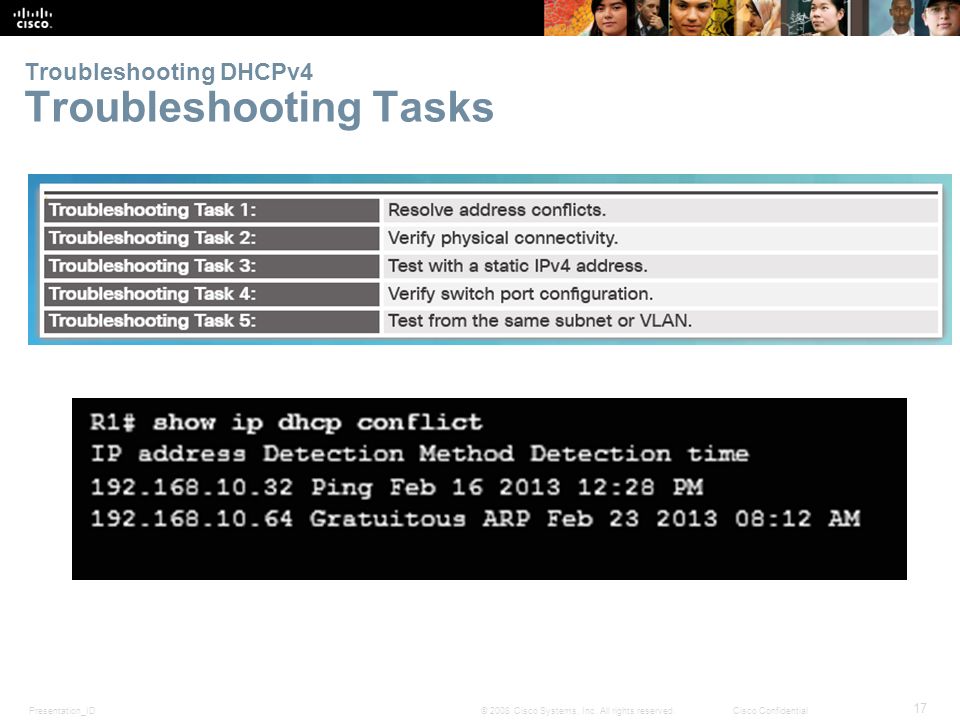

17 Presentation_ID 17 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv4 Troubleshooting Tasks

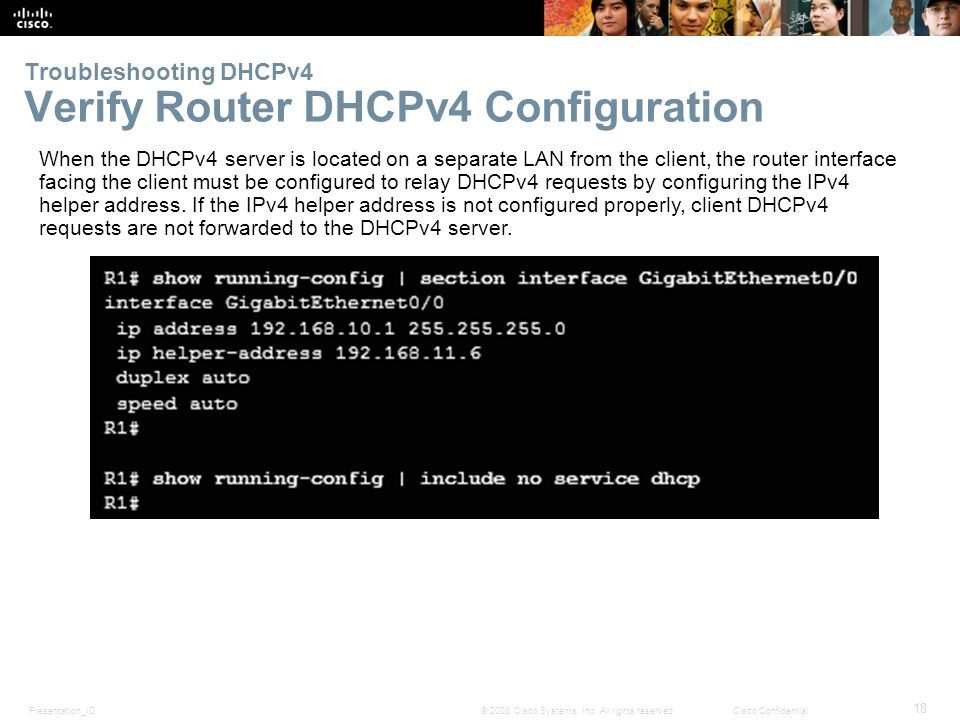

18 Presentation_ID 18 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv4 Verify Router DHCPv4 Configuration When the DHCPv4 server is located on a separate LAN from the client, the router interface facing the client must be configured to relay DHCPv4 requests by configuring the IPv4 helper address. If the IPv4 helper address is not configured properly, client DHCPv4 requests are not forwarded to the DHCPv4 server.

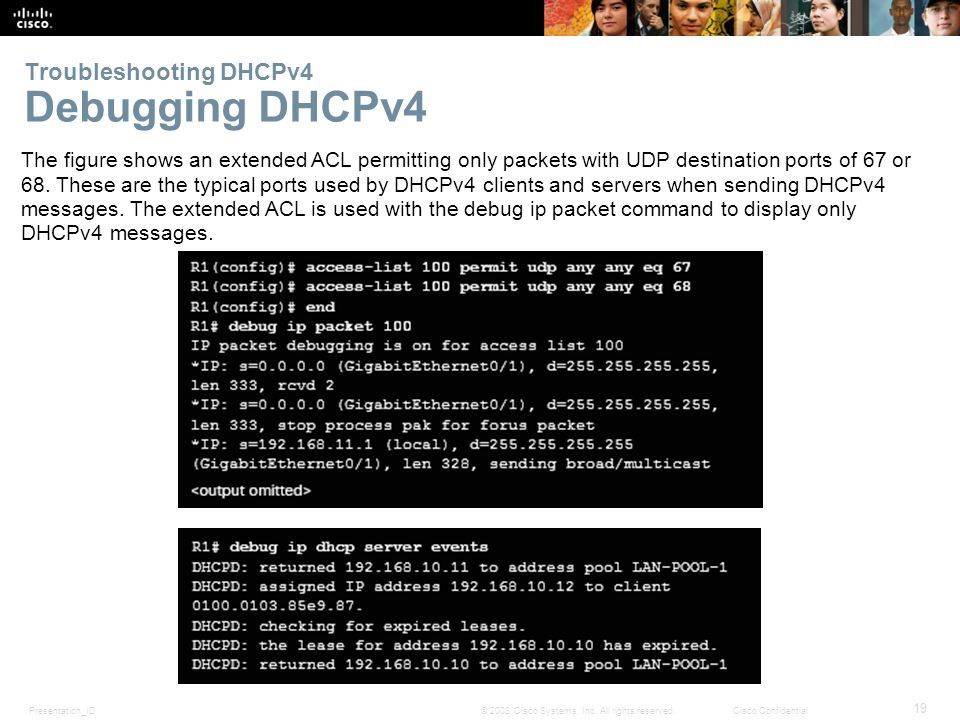

19 Presentation_ID 19 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv4 Debugging DHCPv4 The figure shows an extended ACL permitting only packets with UDP destination ports of 67 or 68. These are the typical ports used by DHCPv4 clients and servers when sending DHCPv4 messages. The extended ACL is used with the debug ip packet command to display only DHCPv4 messages.

20 © 2008 Cisco Systems, Inc. All rights reserved.Cisco ConfidentialPresentation_ID 20 8.2 DHCPv6

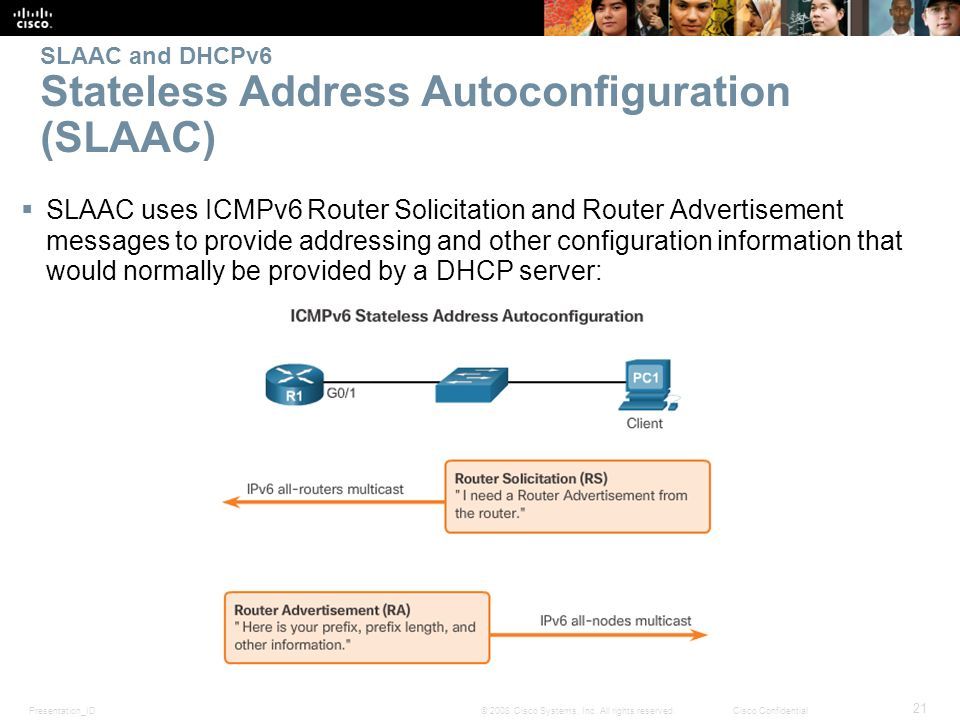

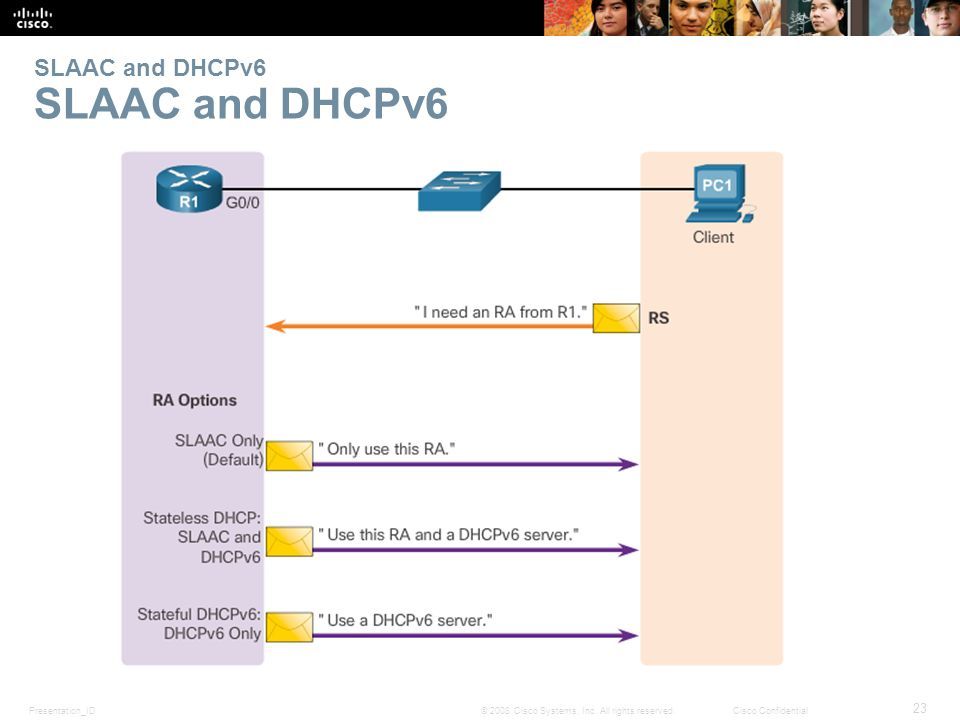

21 Presentation_ID 21 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 Stateless Address Autoconfiguration (SLAAC)  SLAAC uses ICMPv6 Router Solicitation and Router Advertisement messages to provide addressing and other configuration information that would normally be provided by a DHCP server:

22 Presentation_ID 22 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 SLAAC Operation  A router must have IPv6 routing enabled before it can send RA messages: Router(config)# ipv6 unicast-routing

23 Presentation_ID 23 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6

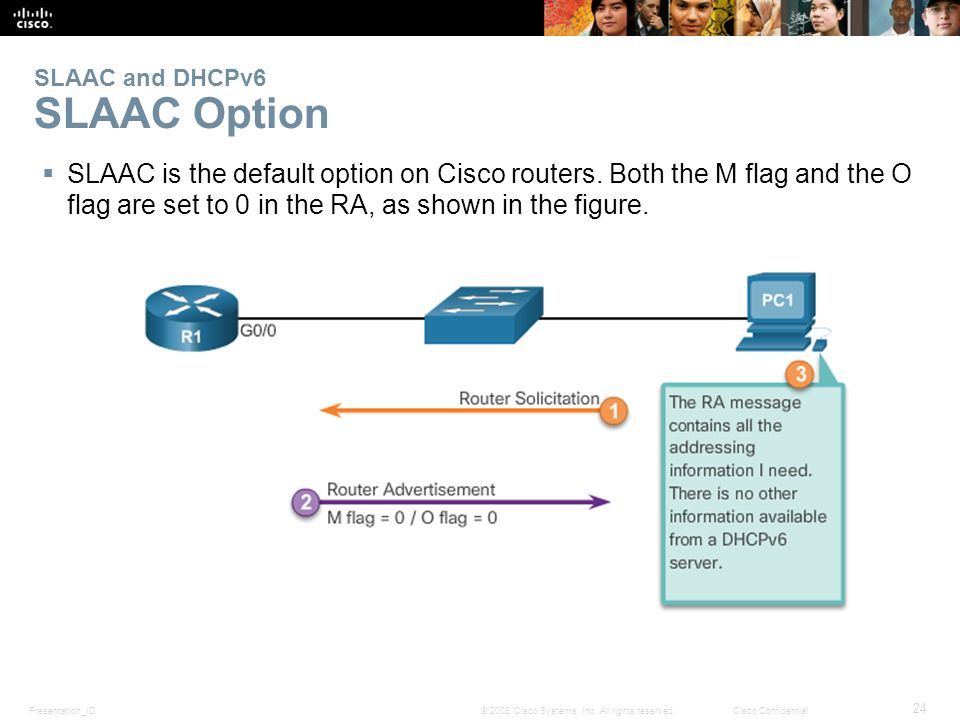

24 Presentation_ID 24 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 SLAAC Option  SLAAC is the default option on Cisco routers. Both the M flag and the O flag are set to 0 in the RA, as shown in the figure.

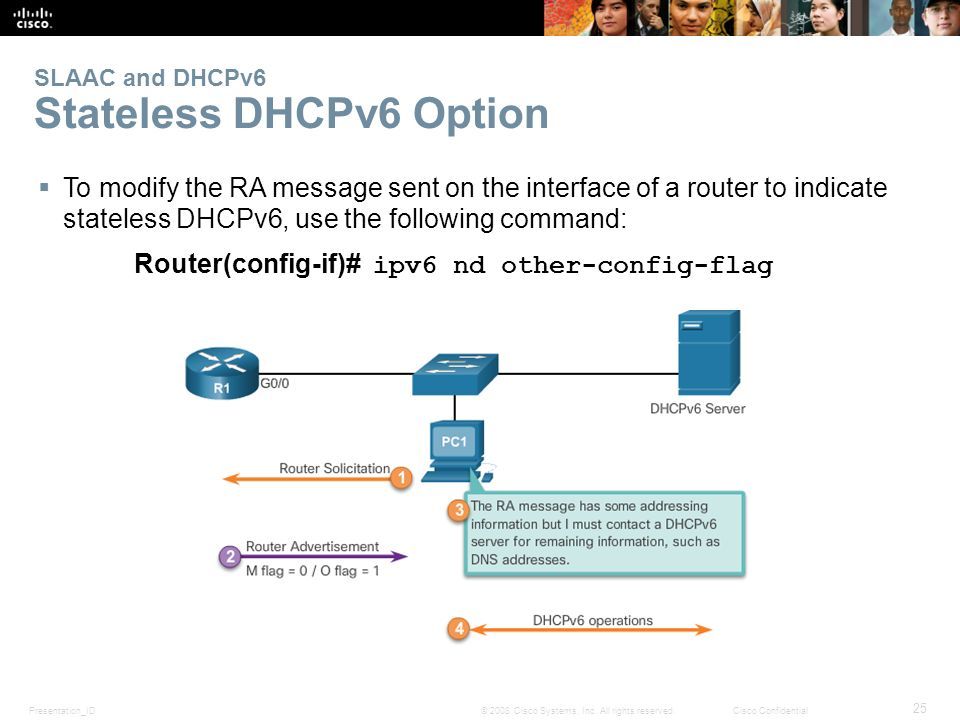

25 Presentation_ID 25 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 Stateless DHCPv6 Option  To modify the RA message sent on the interface of a router to indicate stateless DHCPv6, use the following command: Router(config-if)# ipv6 nd other-config-flag

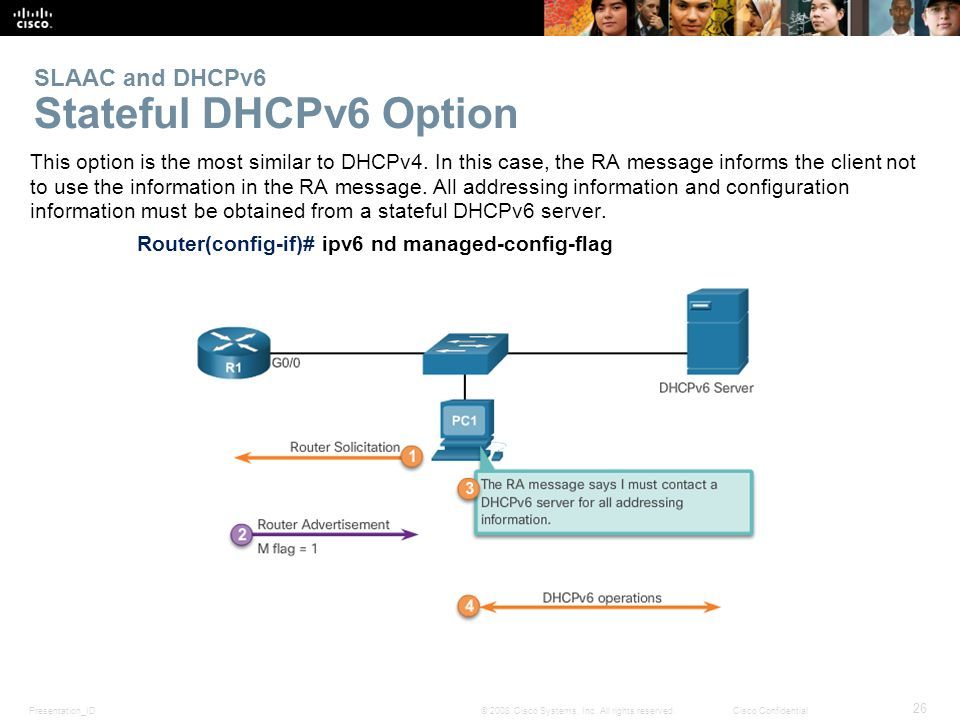

26 Presentation_ID 26 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 Stateful DHCPv6 Option This option is the most similar to DHCPv4. In this case, the RA message informs the client not to use the information in the RA message. All addressing information and configuration information must be obtained from a stateful DHCPv6 server. Router(config-if)# ipv6 nd managed-config-flag

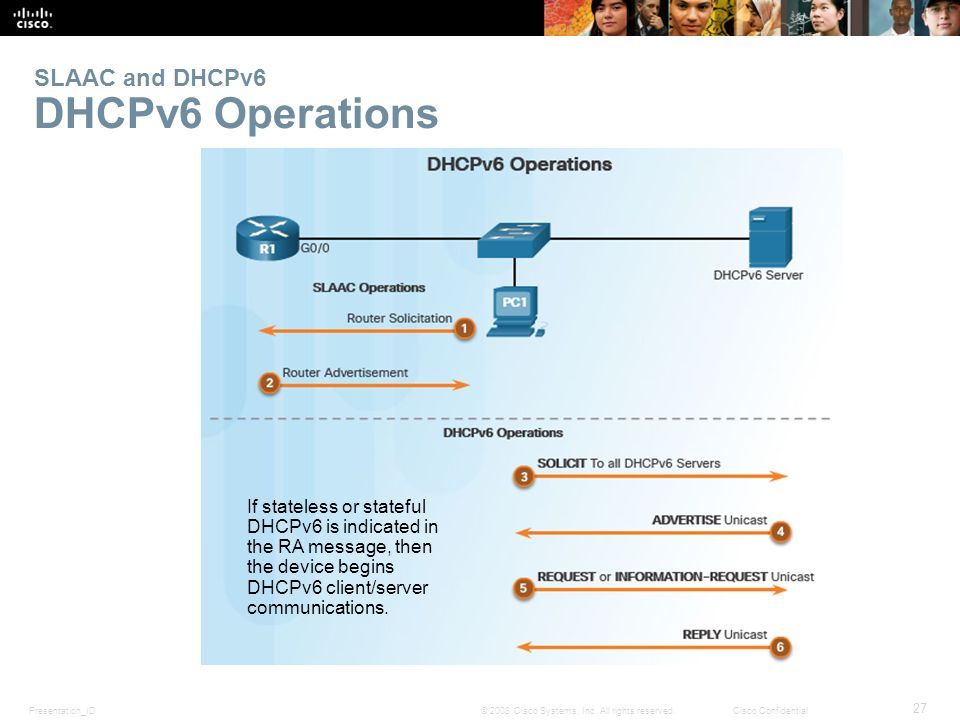

27 Presentation_ID 27 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential SLAAC and DHCPv6 DHCPv6 Operations If stateless or stateful DHCPv6 is indicated in the RA message, then the device begins DHCPv6 client/server communications.

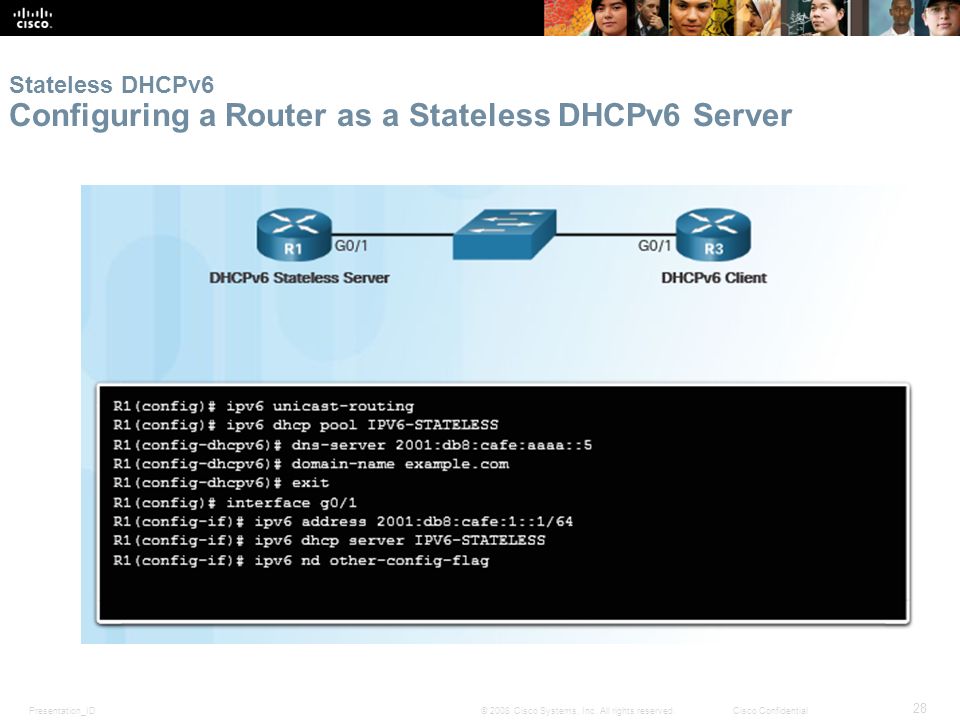

28 Presentation_ID 28 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateless DHCPv6 Configuring a Router as a Stateless DHCPv6 Server

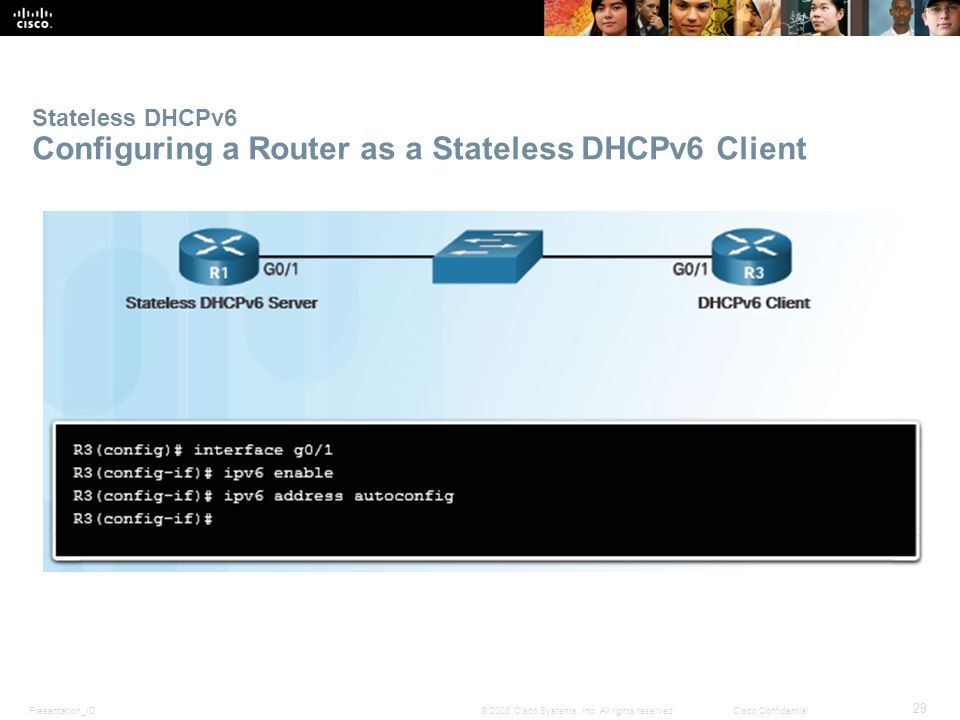

29 Presentation_ID 29 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateless DHCPv6 Configuring a Router as a Stateless DHCPv6 Client

30 Presentation_ID 30 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateless DHCPv6 Verifying Stateless DHCPv6 Verify the stateless DHCP client using the following commands: show ipv6 interface debug ipv6 dhcp detail

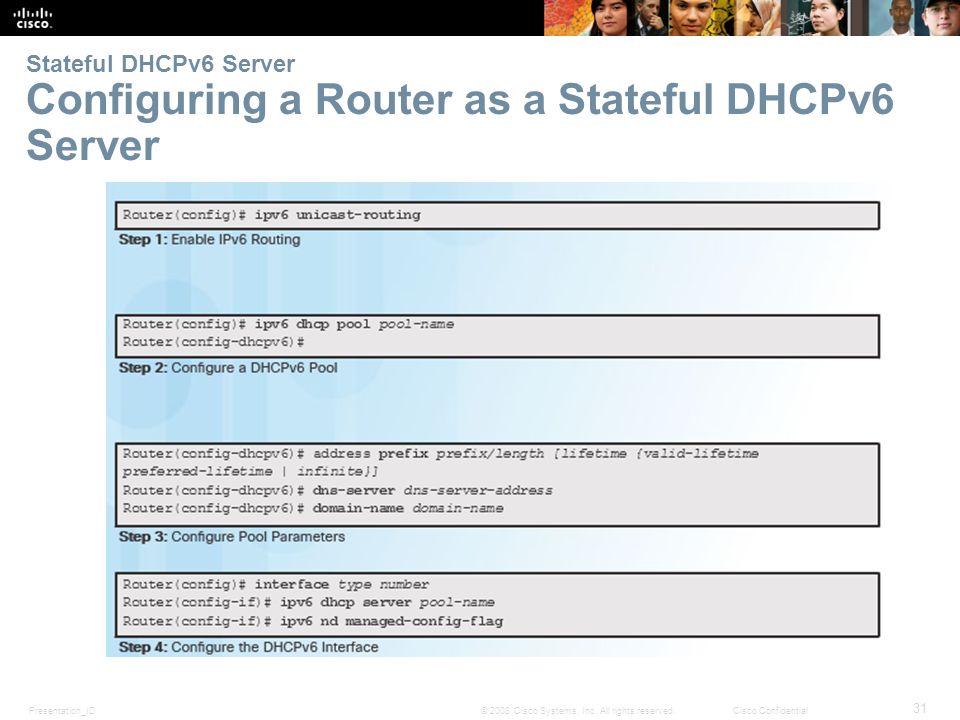

31 Presentation_ID 31 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Server Configuring a Router as a Stateful DHCPv6 Server

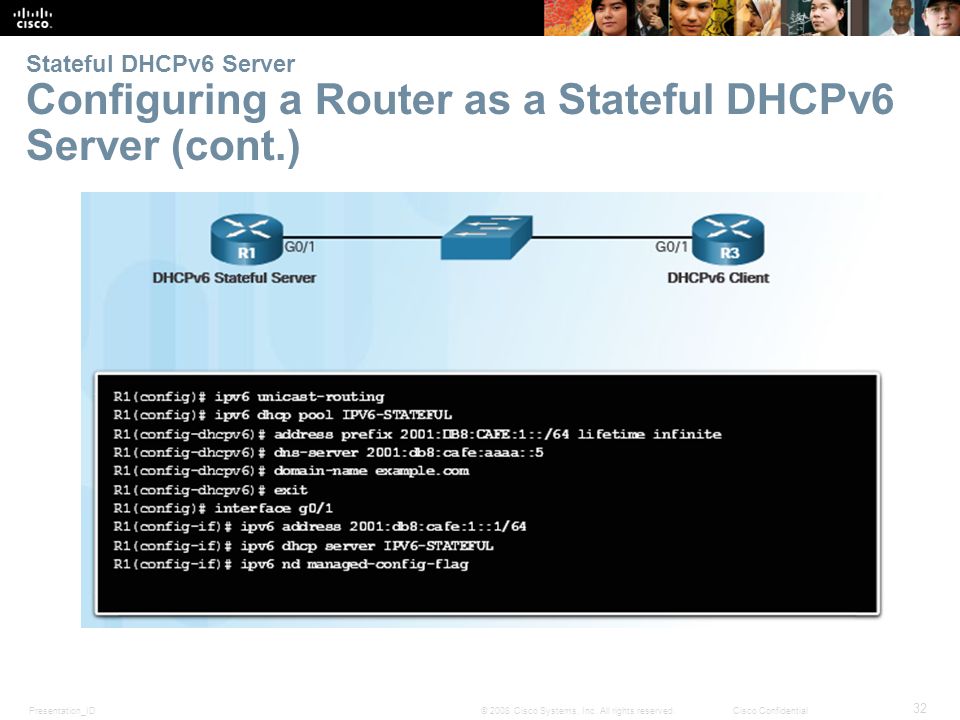

32 Presentation_ID 32 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Server Configuring a Router as a Stateful DHCPv6 Server (cont.)

33 Presentation_ID 33 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Server Configuring a Router as a Stateful DHCPv6 Client

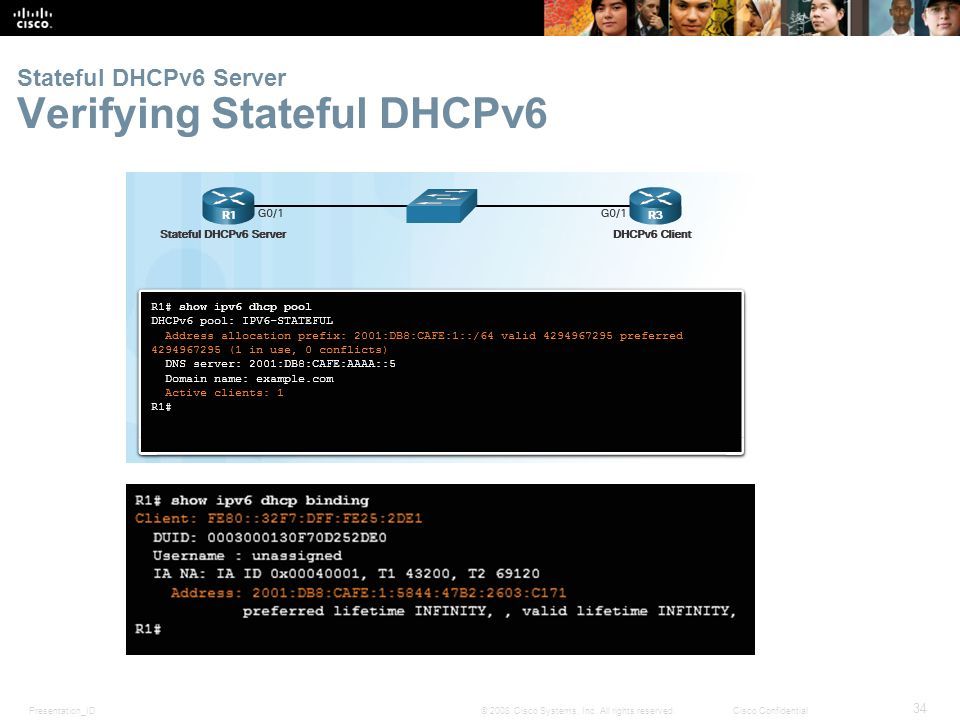

34 Presentation_ID 34 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Server Verifying Stateful DHCPv6

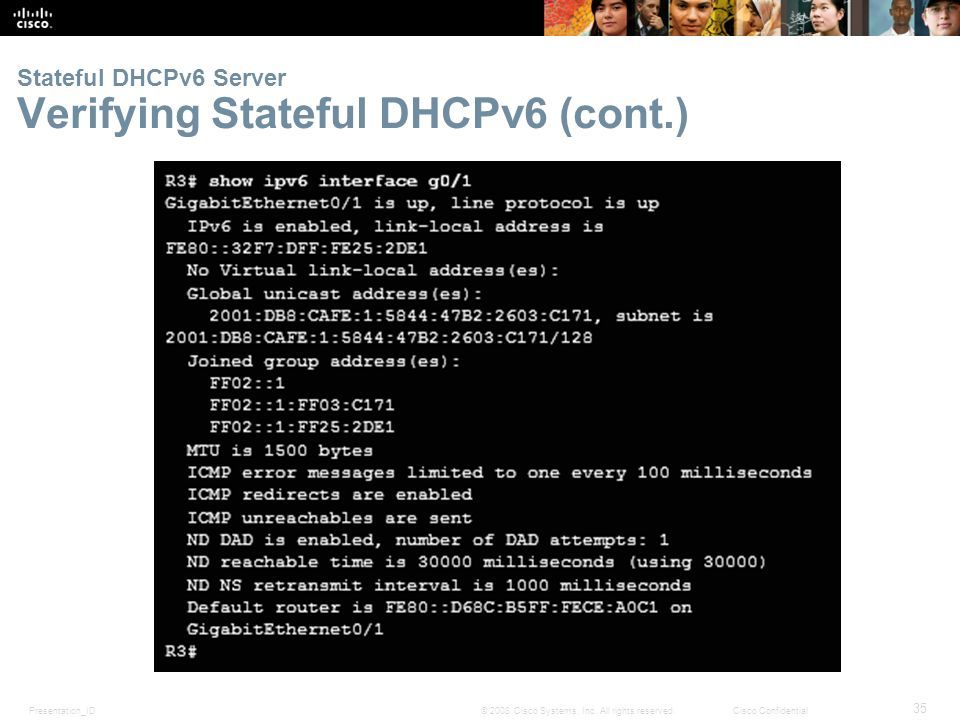

35 Presentation_ID 35 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Server Verifying Stateful DHCPv6 (cont.)

36 Presentation_ID 36 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Stateful DHCPv6 Configuring a Router as a DHCPv6 Relay Agent

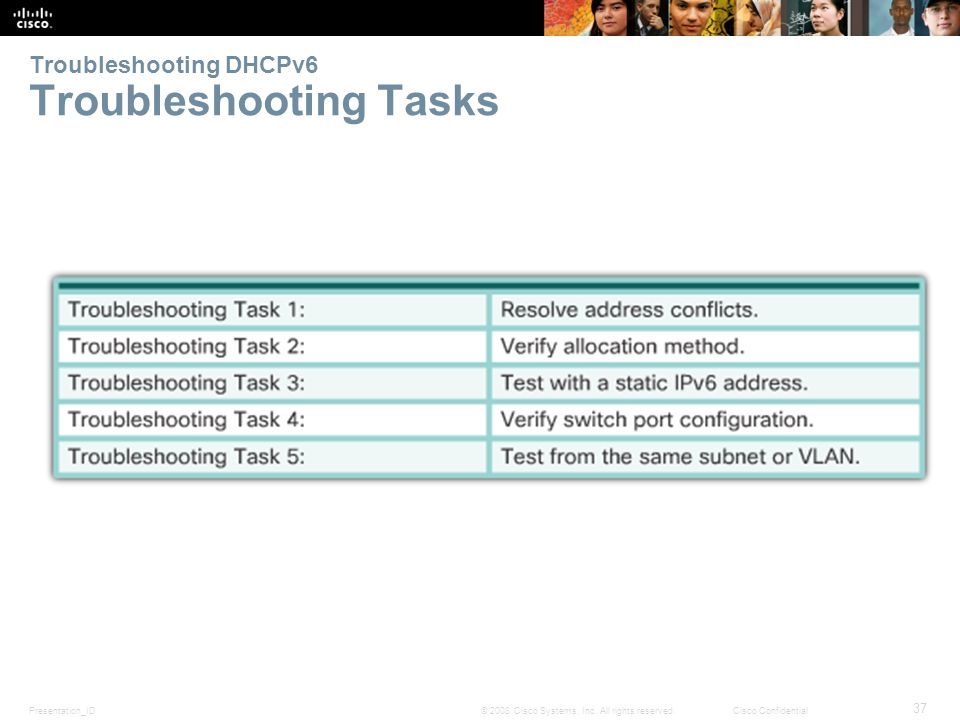

37 Presentation_ID 37 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv6 Troubleshooting Tasks

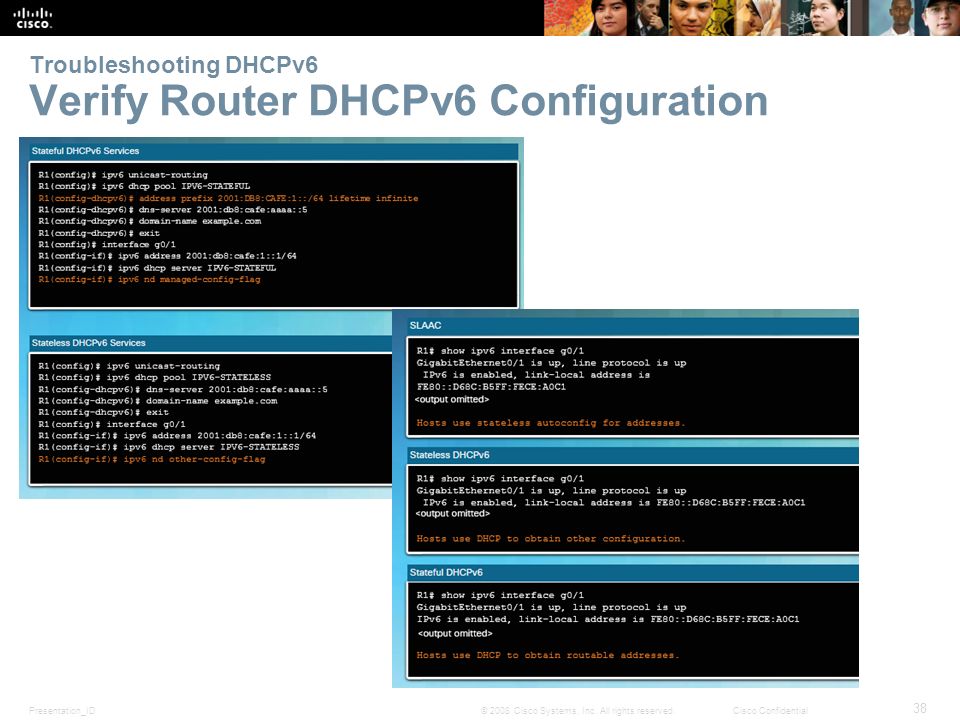

38 Presentation_ID 38 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv6 Verify Router DHCPv6 Configuration

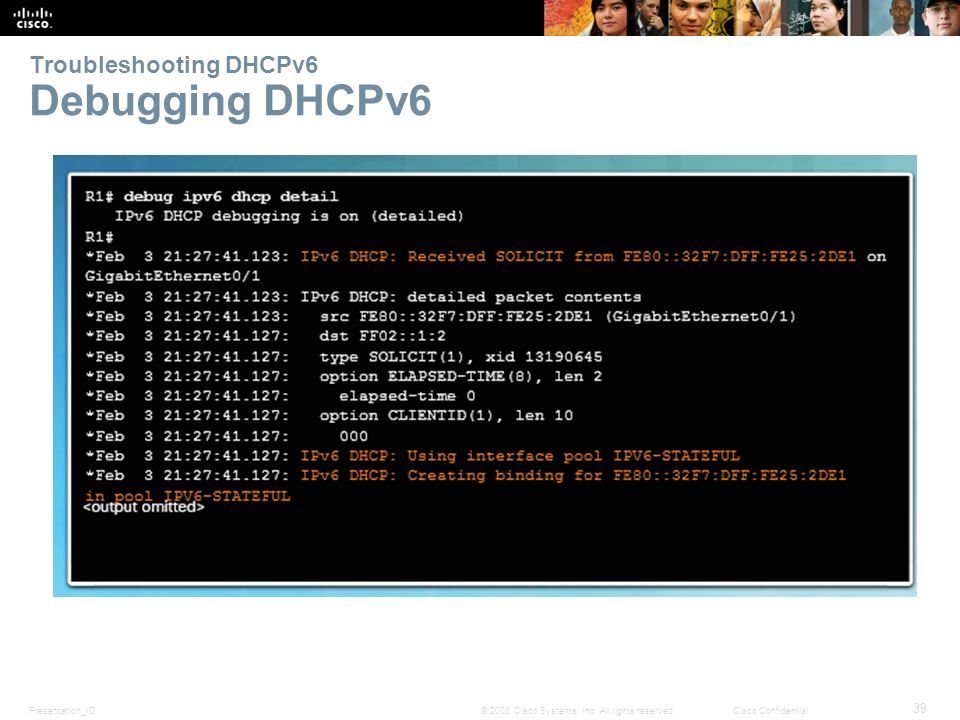

39 Presentation_ID 39 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Troubleshooting DHCPv6 Debugging DHCPv6

40 © 2008 Cisco Systems, Inc. All rights reserved.Cisco ConfidentialPresentation_ID 40 8.3 Summary

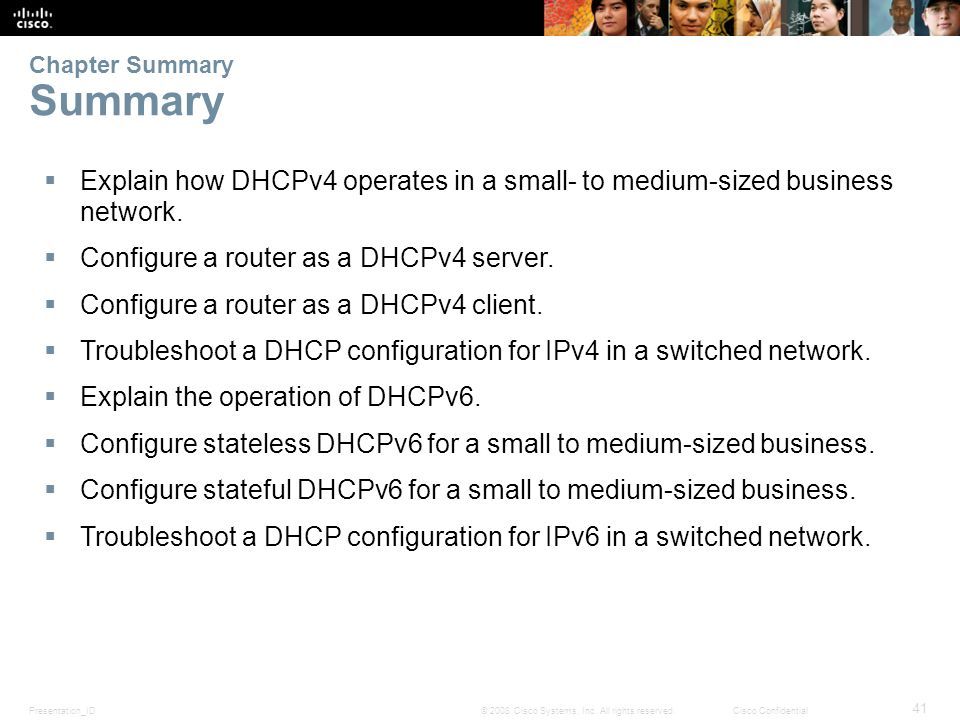

41 Presentation_ID 41 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential  Explain how DHCPv4 operates in a small- to medium-sized business network.  Configure a router as a DHCPv4 server.  Configure a router as a DHCPv4 client.  Troubleshoot a DHCP configuration for IPv4 in a switched network.  Explain the operation of DHCPv6.  Configure stateless DHCPv6 for a small to medium-sized business.  Configure stateful DHCPv6 for a small to medium-sized business.  Troubleshoot a DHCP configuration for IPv6 in a switched network. Chapter Summary Summary

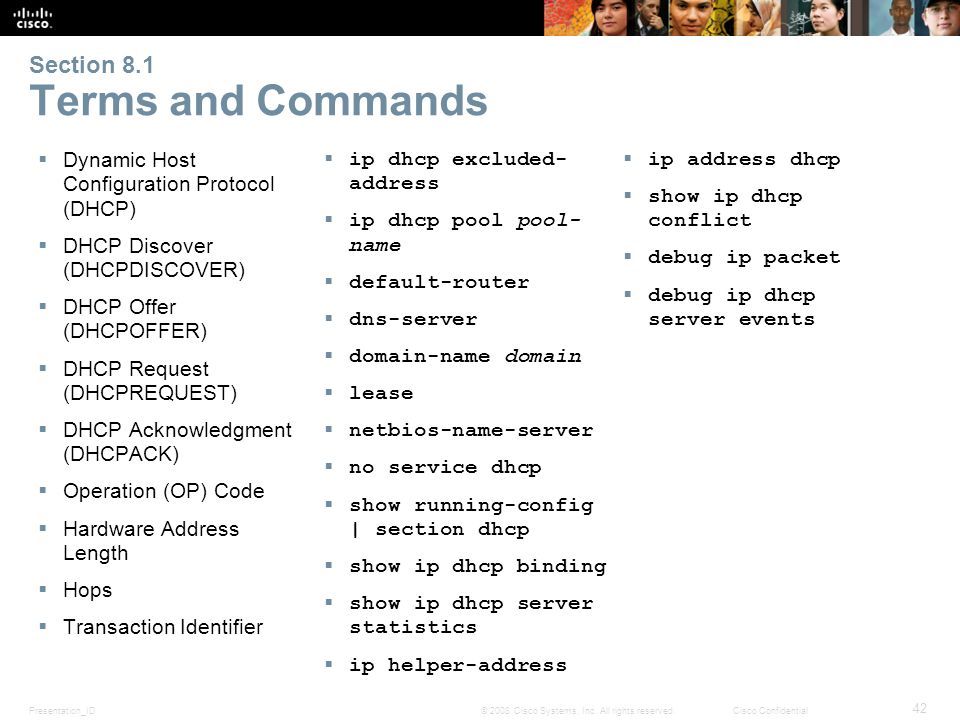

42 Presentation_ID 42 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Section 8.1 Terms and Commands  Dynamic Host Configuration Protocol (DHCP)  DHCP Discover (DHCPDISCOVER)  DHCP Offer (DHCPOFFER)  DHCP Request (DHCPREQUEST)  DHCP Acknowledgment (DHCPACK)  Operation (OP) Code  Hardware Address Length  Hops  Transaction Identifier  ip dhcp excluded- address  ip dhcp pool pool- name  default-router  dns-server  domain-name domain  lease  netbios-name-server  no service dhcp  show running-config | section dhcp  show ip dhcp binding  show ip dhcp server statistics  ip helper-address  ip address dhcp  show ip dhcp conflict  debug ip packet  debug ip dhcp server events

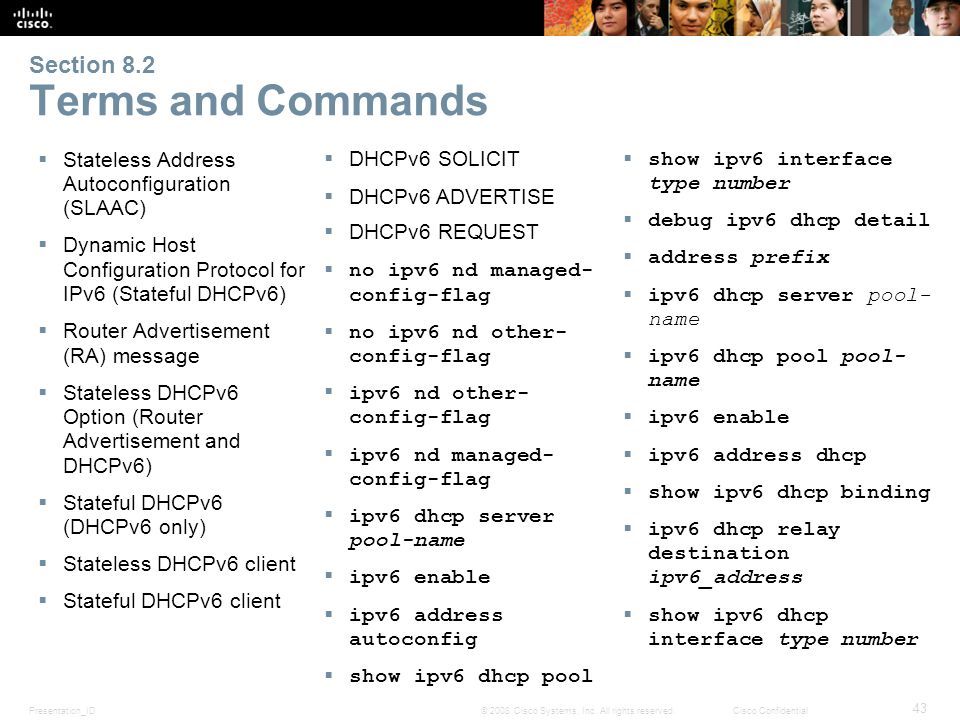

43 Presentation_ID 43 © 2008 Cisco Systems, Inc. All rights reserved.Cisco Confidential Section 8.2 Terms and Commands  Stateless Address Autoconfiguration (SLAAC)  Dynamic Host Configuration Protocol for IPv6 (Stateful DHCPv6)  Router Advertisement (RA) message  Stateless DHCPv6 Option (Router Advertisement and DHCPv6)  Stateful DHCPv6 (DHCPv6 only)  Stateless DHCPv6 client  Stateful DHCPv6 client  DHCPv6 SOLICIT  DHCPv6 ADVERTISE  DHCPv6 REQUEST  no ipv6 nd managed- config-flag  no ipv6 nd other- config-flag  ipv6 nd other- config-flag  ipv6 nd managed- config-flag  ipv6 dhcp server pool-name  ipv6 enable  ipv6 address autoconfig  show ipv6 dhcp pool  show ipv6 interface type number  debug ipv6 dhcp detail  address prefix  ipv6 dhcp server pool- name  ipv6 dhcp pool pool- name  ipv6 enable  ipv6 address dhcp  show ipv6 dhcp binding  ipv6 dhcp relay destination ipv6_address  show ipv6 dhcp interface type number
