Presentación del tema: "NOMENCLATURE OF INORGANIC CHEMISTRY. Binary compounds"— Transcripción de la presentación:

1 NOMENCLATURE OF INORGANIC CHEMISTRY. Binary compounds
Física y química 3º E.S.O. SECOND TERM UNIT 2 (SECOND PART): NOMENCLATURE OF INORGANIC CHEMISTRY. Binary compounds 2_II_8: SALTS

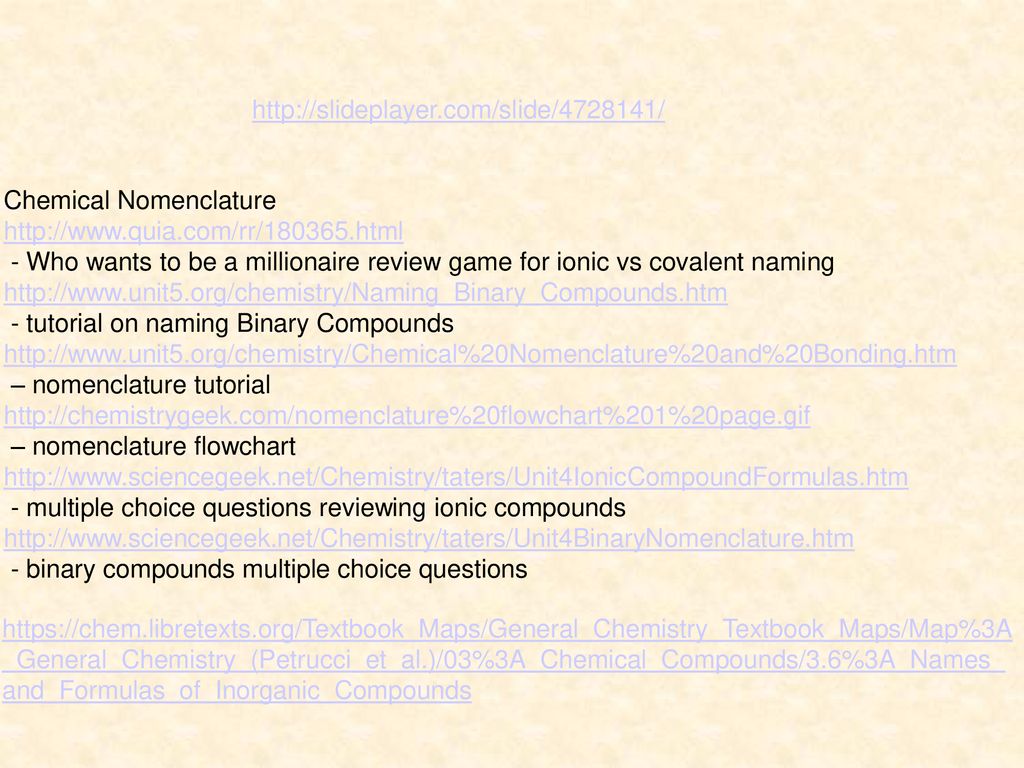

2 Chemical Nomenclature - Who wants to be a millionaire review game for ionic vs covalent naming - tutorial on naming Binary Compounds – nomenclature tutorial – nomenclature flowchart - multiple choice questions reviewing ionic compounds - binary compounds multiple choice questions

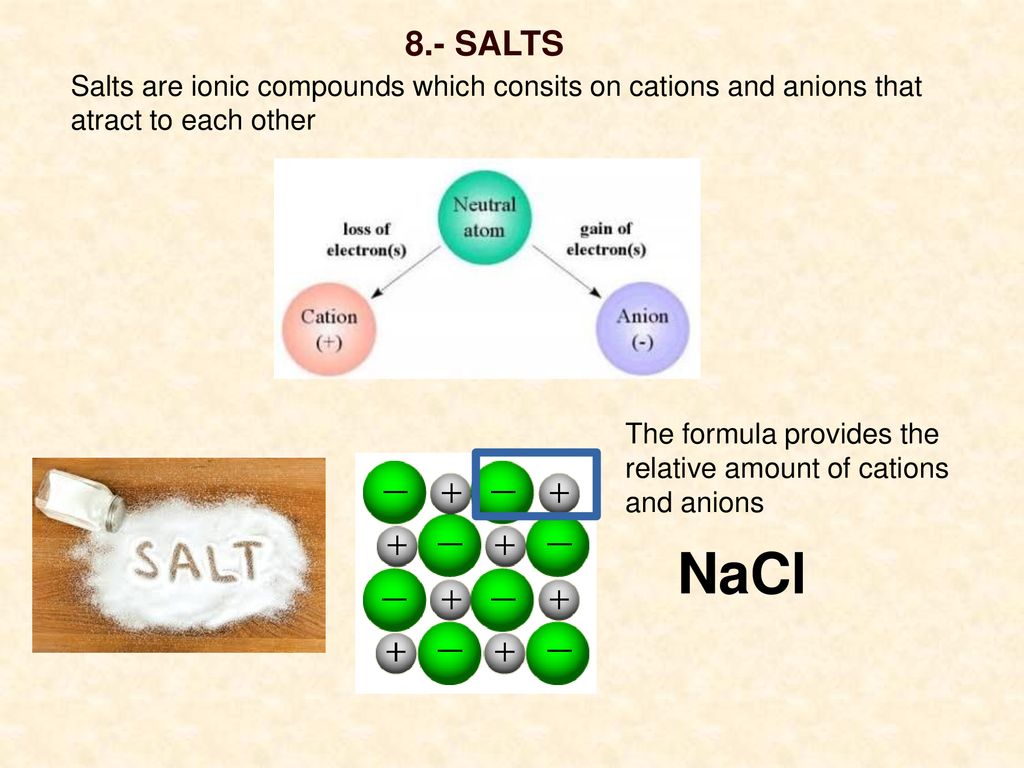

3 8.- SALTS Salts are ionic compounds which consits on cations and anions that atract to each other The formula provides the relative amount of cations and anions NaCl

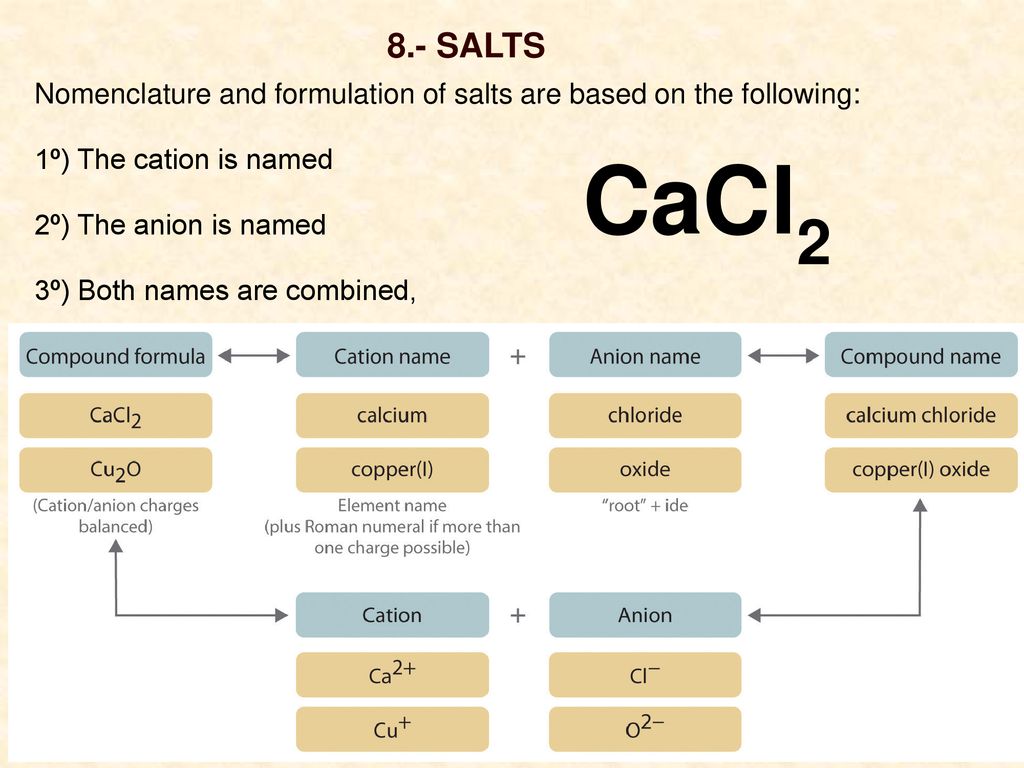

4 8.- SALTS Nomenclature and formulation of salts are based on the following: 1º) The cation is named 2º) The anion is named 3º) Both names are combined, CaCl2

5 8.- SALTS

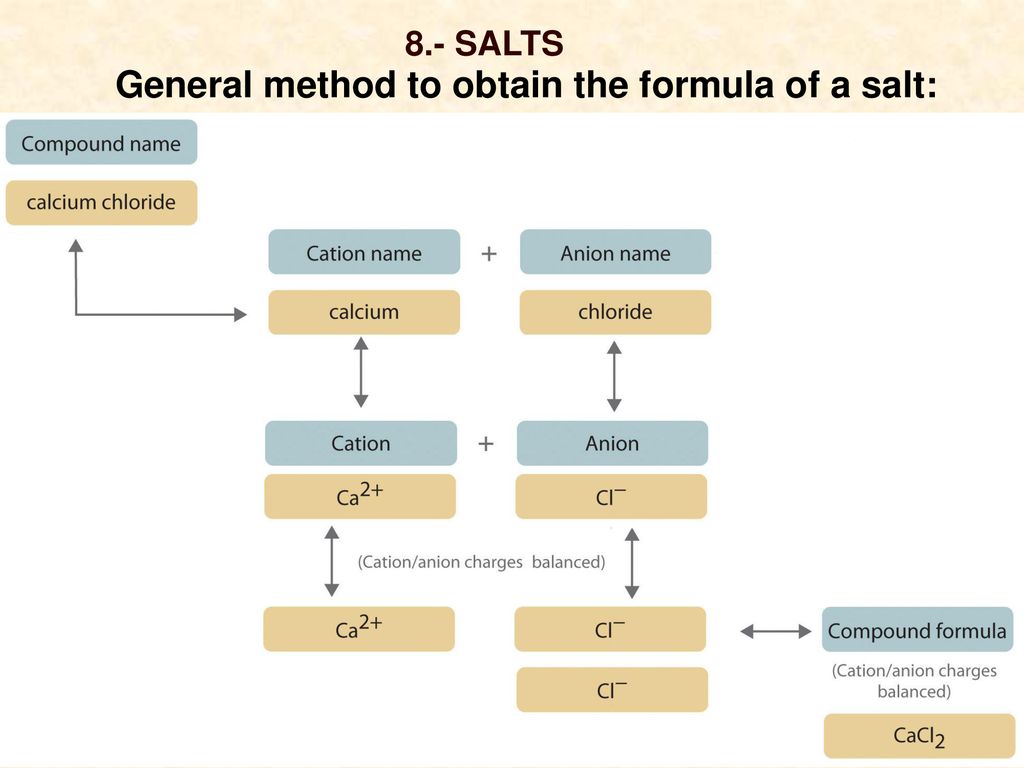

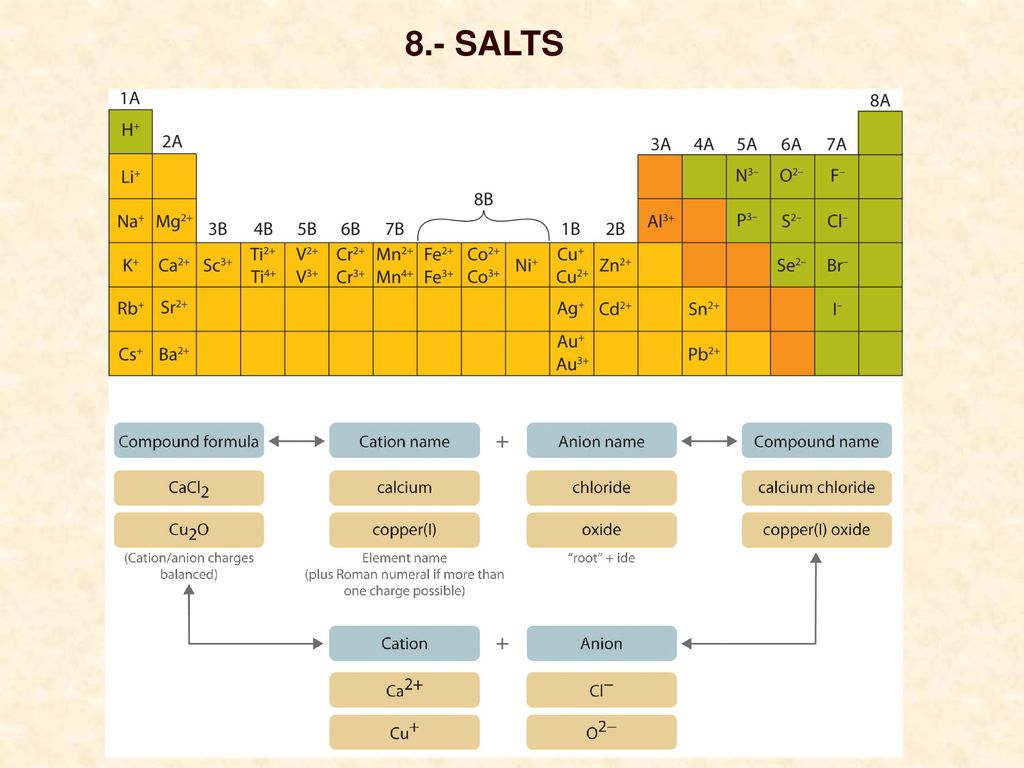

6 General method to obtain the formula of a salt:
8.- SALTS General method to obtain the formula of a salt:

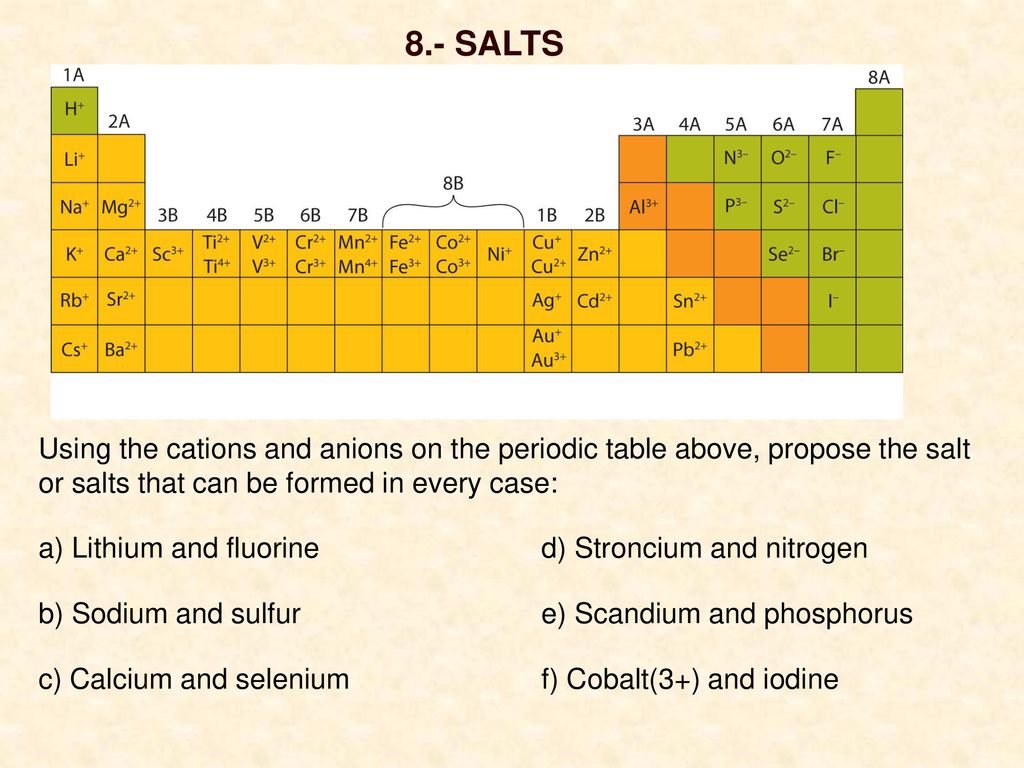

7 8.- SALTS Using the cations and anions on the periodic table above, propose the salt or salts that can be formed in every case: a) Lithium and fluorine d) Stroncium and nitrogen b) Sodium and sulfur e) Scandium and phosphorus c) Calcium and selenium f) Cobalt(3+) and iodine

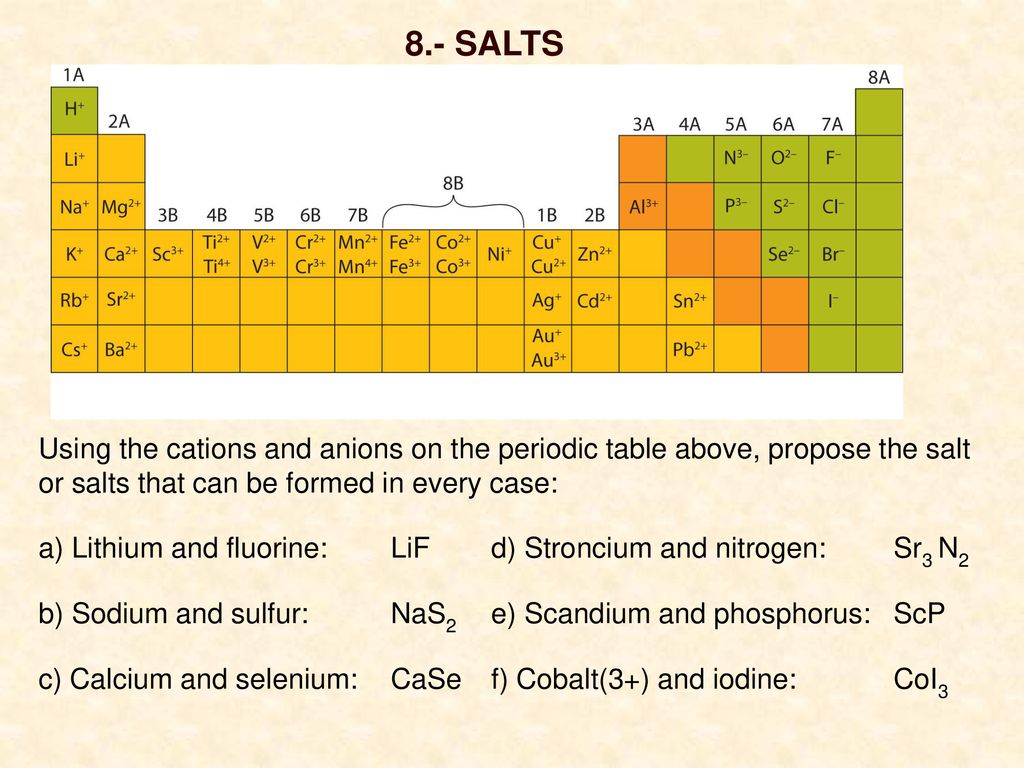

8 8.- SALTS Using the cations and anions on the periodic table above, propose the salt or salts that can be formed in every case: a) Lithium and fluorine: LiF d) Stroncium and nitrogen: Sr3 N2 b) Sodium and sulfur: NaS2 e) Scandium and phosphorus: ScP c) Calcium and selenium: CaSe f) Cobalt(3+) and iodine: CoI3

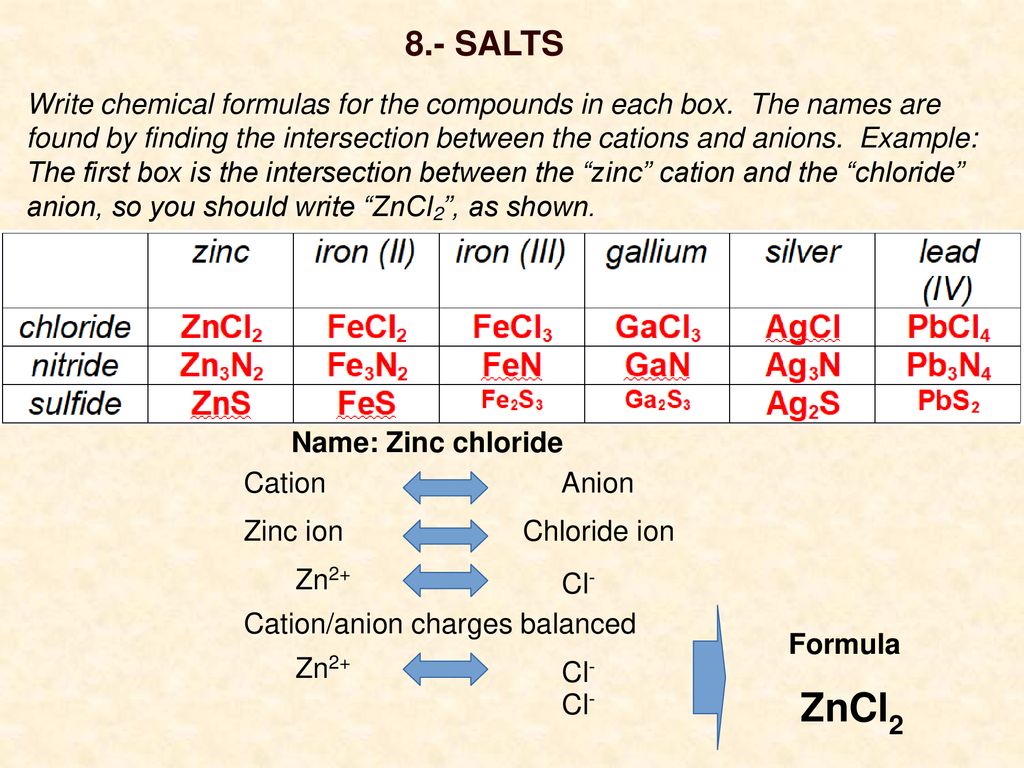

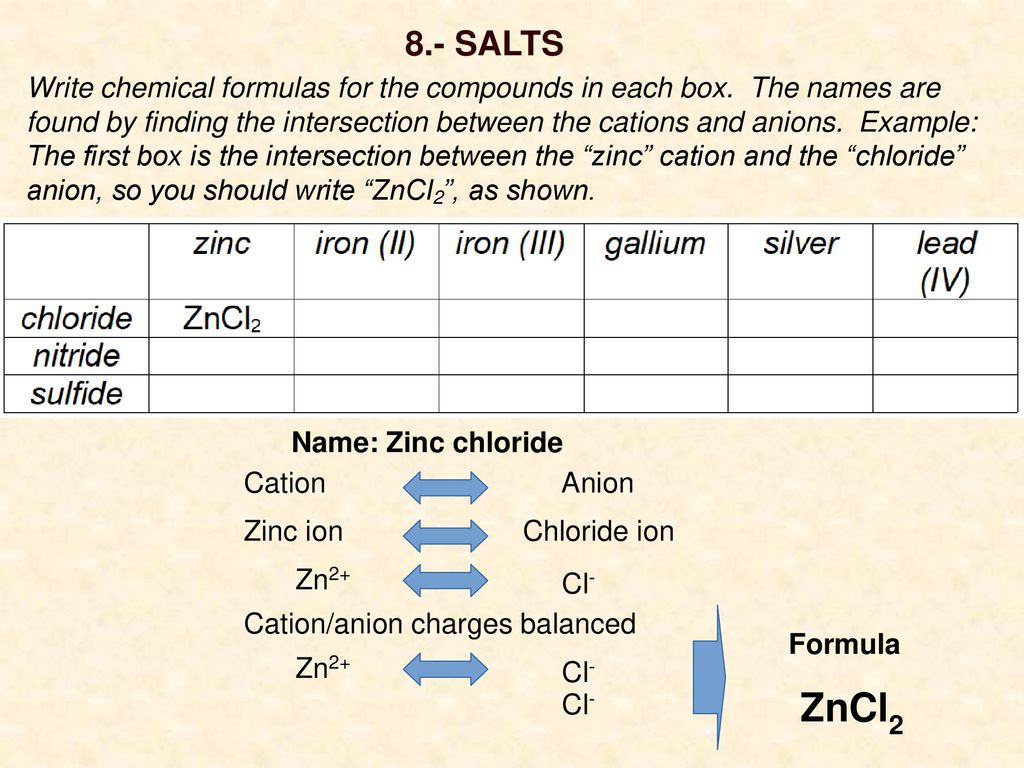

9 8.- SALTS Write chemical formulas for the compounds in each box. The names are found by finding the intersection between the cations and anions. Example: The first box is the intersection between the “zinc” cation and the “chloride” anion, so you should write “ZnCl2”, as shown. Name: Zinc chloride Cation Anion Zinc ion Chloride ion Zn2+ Cl- Cation/anion charges balanced Formula Zn2+ Cl- Cl- ZnCl2

10 8.- SALTS Write chemical formulas for the compounds in each box. The names are found by finding the intersection between the cations and anions. Example: The first box is the intersection between the “zinc” cation and the “chloride” anion, so you should write “ZnCl2”, as shown. Name: Zinc chloride Cation Anion Zinc ion Chloride ion Zn2+ Cl- Cation/anion charges balanced Formula Zn2+ Cl- Cl- ZnCl2

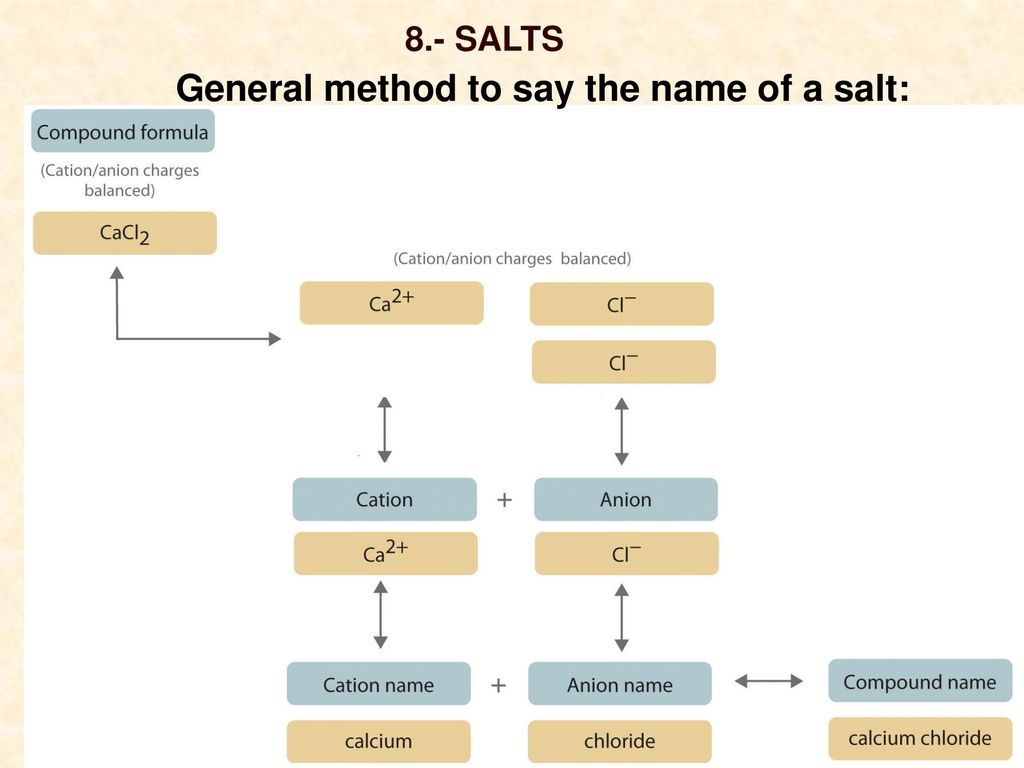

11 General method to say the name of a salt:
8.- SALTS General method to say the name of a salt:

12 Mep Nmn 8.- SALTS METAL NON_METAL-IDE

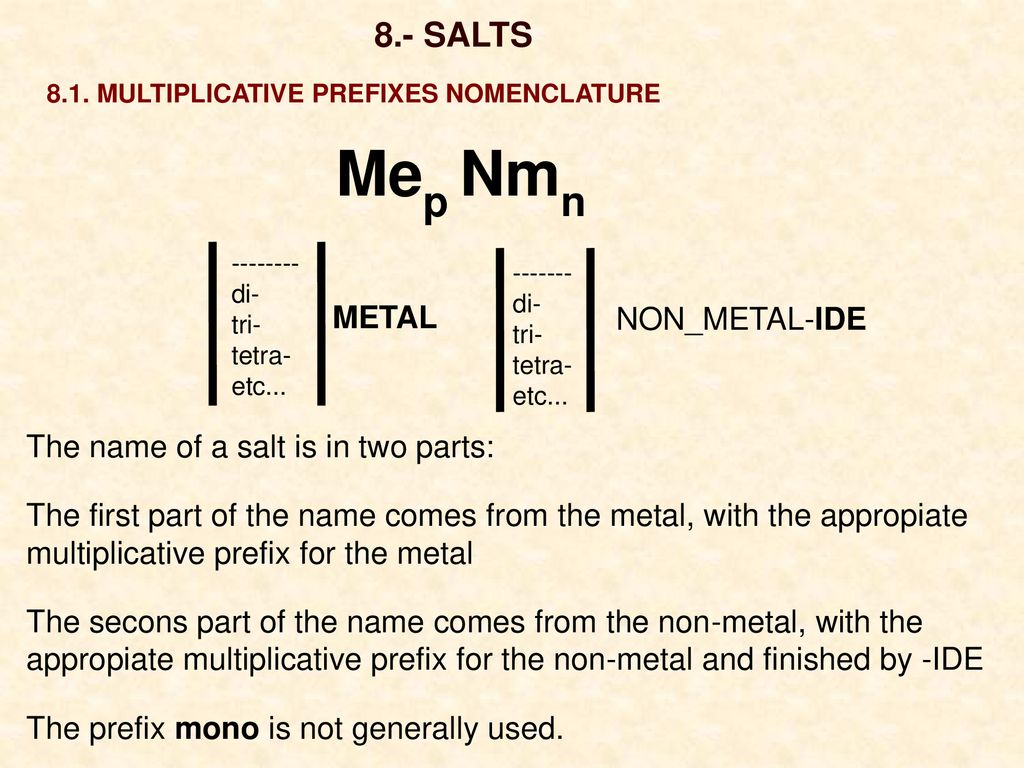

8.1. MULTIPLICATIVE PREFIXES NOMENCLATURE Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NON_METAL-IDE The name of a salt is in two parts: The first part of the name comes from the metal, with the appropiate multiplicative prefix for the metal The secons part of the name comes from the non-metal, with the appropiate multiplicative prefix for the non-metal and finished by -IDE The prefix mono is not generally used.

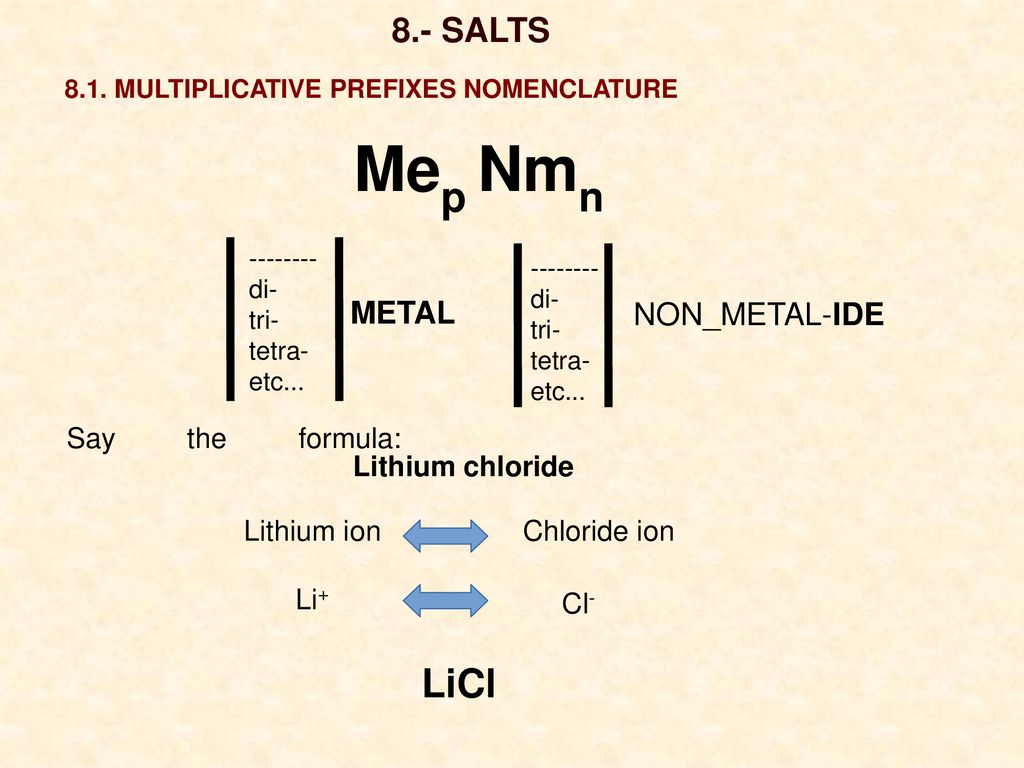

13 Mep Nmn LiCl 8.- SALTS METAL NON_METAL-IDE Say the formula:
8.1. MULTIPLICATIVE PREFIXES NOMENCLATURE Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NON_METAL-IDE Say the formula: Lithium chloride Lithium ion Chloride ion Li+ Cl- LiCl

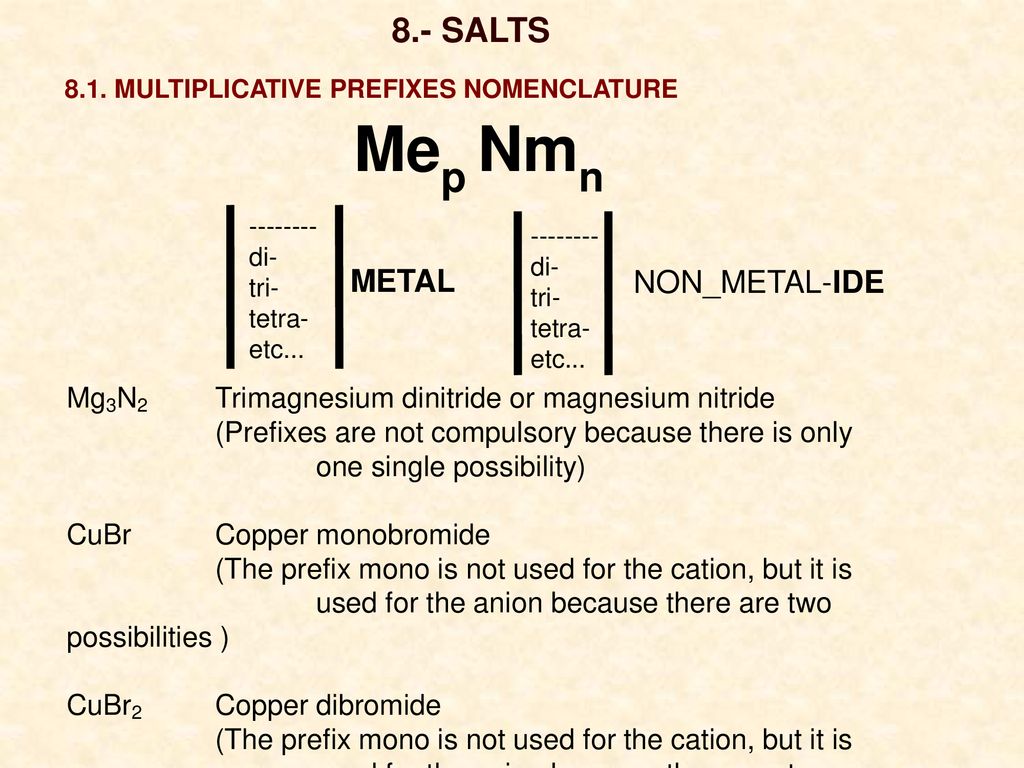

14 Mep Nmn 8.- SALTS METAL NON_METAL-IDE
8.1. MULTIPLICATIVE PREFIXES NOMENCLATURE Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NON_METAL-IDE Mg3N2 Trimagnesium dinitride or magnesium nitride (Prefixes are not compulsory because there is only one single possibility) CuBr Copper monobromide (The prefix mono is not used for the cation, but it is used for the anion because there are two possibilities ) CuBr2 Copper dibromide

15 Mep Nmn 8.- SALTS METAL NON_METAL-IDE Say the formula: Say the name

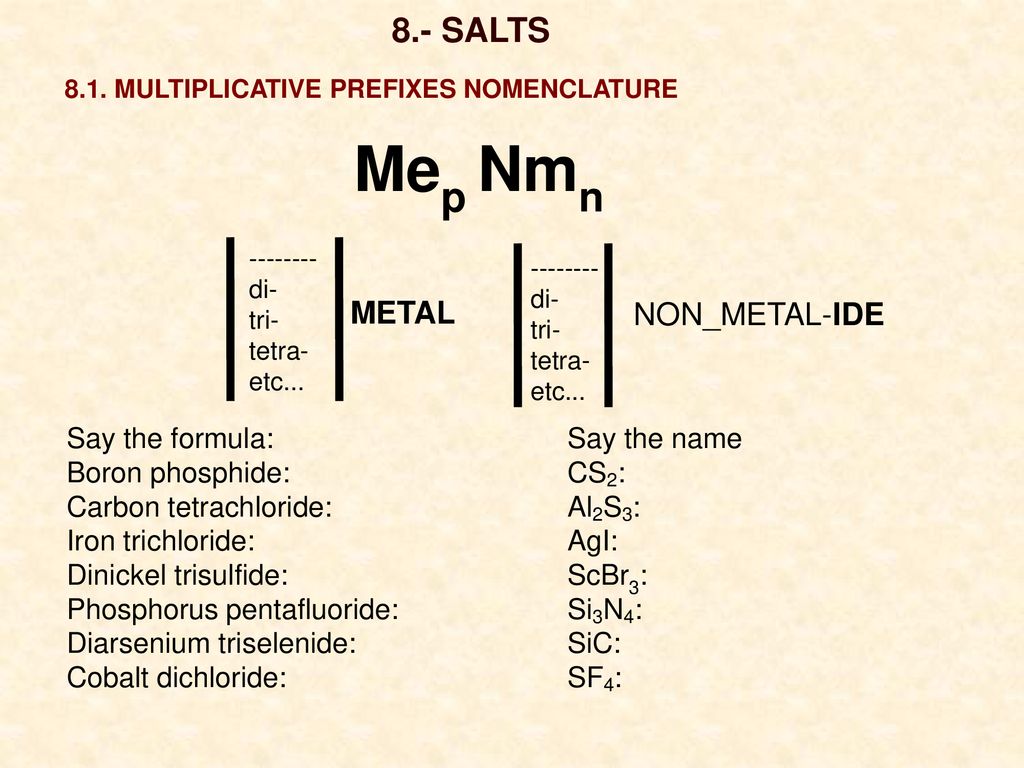

8.1. MULTIPLICATIVE PREFIXES NOMENCLATURE Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NON_METAL-IDE Say the formula: Say the name Boron phosphide: CS2: Carbon tetrachloride: Al2S3: Iron trichloride: AgI: Dinickel trisulfide: ScBr3: Phosphorus pentafluoride: Si3N4: Diarsenium triselenide: SiC: Cobalt dichloride: SF4:

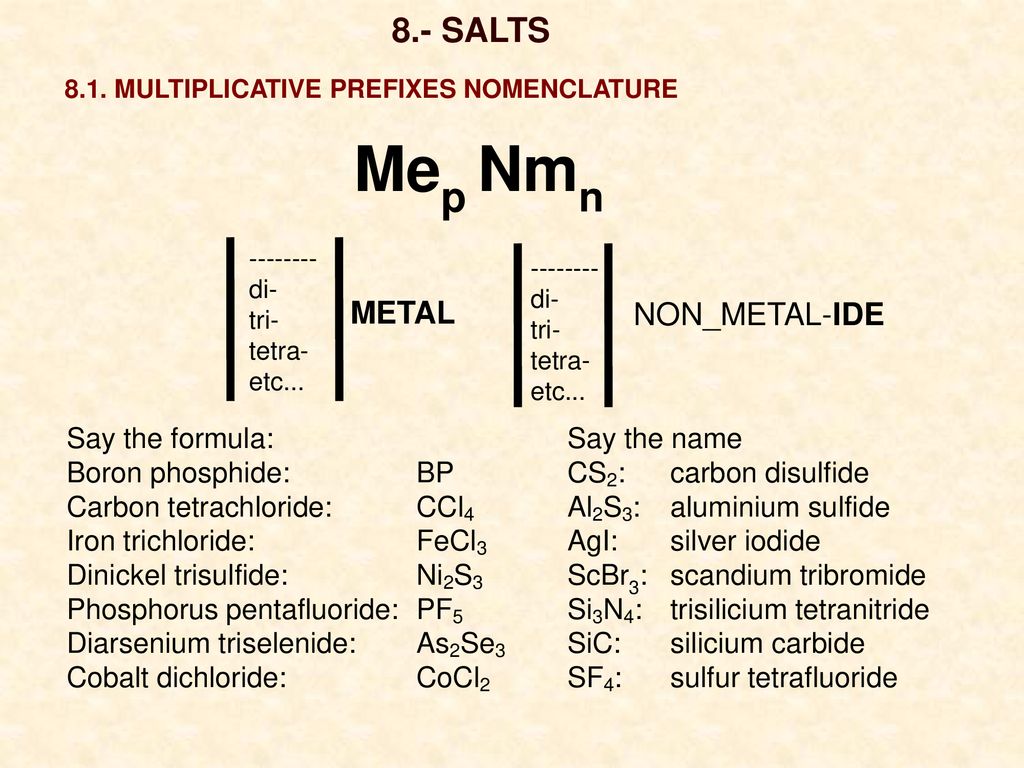

16 Mep Nmn 8.- SALTS METAL NON_METAL-IDE Say the formula: Say the name
8.1. MULTIPLICATIVE PREFIXES NOMENCLATURE Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NON_METAL-IDE Say the formula: Say the name Boron phosphide: BP CS2: carbon disulfide Carbon tetrachloride: CCl4 Al2S3: aluminium sulfide Iron trichloride: FeCl3 AgI: silver iodide Dinickel trisulfide: Ni2S3 ScBr3: scandium tribromide Phosphorus pentafluoride: PF5 Si3N4: trisilicium tetranitride Diarsenium triselenide: As2Se3 SiC: silicium carbide Cobalt dichloride: CoCl2 SF4: sulfur tetrafluoride

17 Mep Nmn 8.- SALES METAL NO_METAL-URO DE

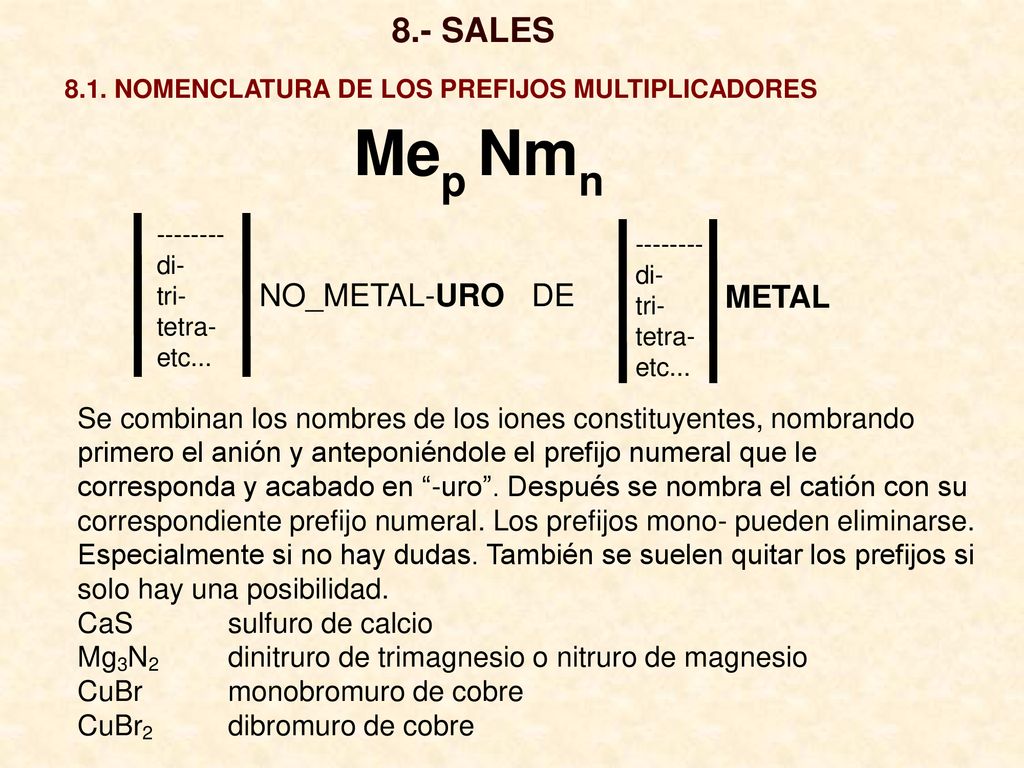

8.1. NOMENCLATURA DE LOS PREFIJOS MULTIPLICADORES Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NO_METAL-URO DE Se combinan los nombres de los iones constituyentes, nombrando primero el anión y anteponiéndole el prefijo numeral que le corresponda y acabado en “-uro”. Después se nombra el catión con su correspondiente prefijo numeral. Los prefijos mono- pueden eliminarse. Especialmente si no hay dudas. También se suelen quitar los prefijos si solo hay una posibilidad. CaS sulfuro de calcio Mg3N2 dinitruro de trimagnesio o nitruro de magnesio CuBr monobromuro de cobre CuBr2 dibromuro de cobre

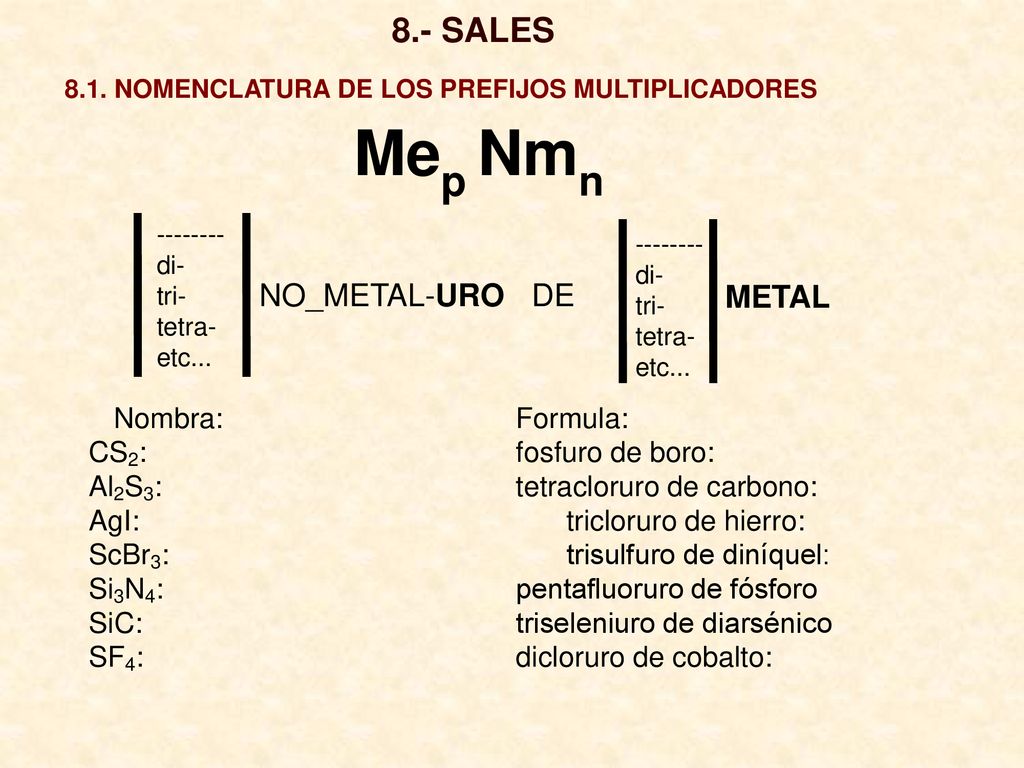

18 Mep Nmn 8.- SALES METAL NO_METAL-URO DE Nombra: Formula:
8.1. NOMENCLATURA DE LOS PREFIJOS MULTIPLICADORES Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NO_METAL-URO DE Nombra: Formula: CS2: fosfuro de boro: Al2S3: tetracloruro de carbono: AgI: tricloruro de hierro: ScBr3: trisulfuro de diníquel: Si3N4: pentafluoruro de fósforo SiC: triseleniuro de diarsénico SF4: dicloruro de cobalto:

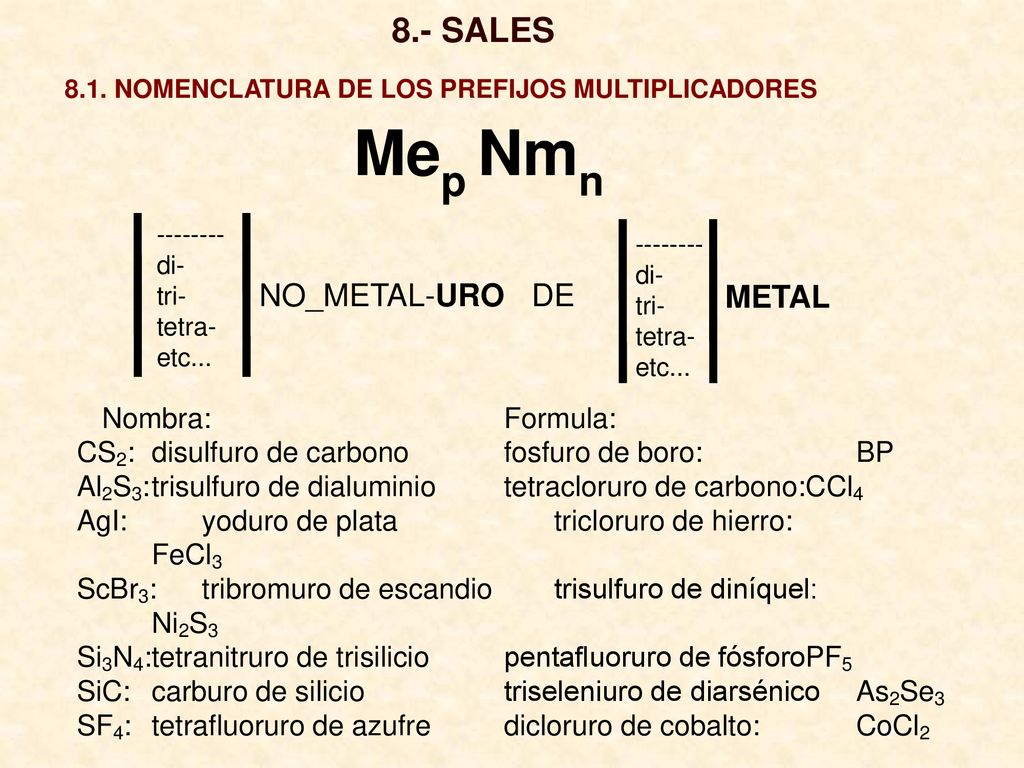

19 Mep Nmn 8.- SALES METAL NO_METAL-URO DE Nombra: Formula:
8.1. NOMENCLATURA DE LOS PREFIJOS MULTIPLICADORES Mep Nmn di- tri- tetra- etc... di- tri- tetra- etc... METAL NO_METAL-URO DE Nombra: Formula: CS2: disulfuro de carbono fosfuro de boro: BP Al2S3: trisulfuro de dialuminio tetracloruro de carbono: CCl4 AgI: yoduro de plata tricloruro de hierro: FeCl3 ScBr3: tribromuro de escandio trisulfuro de diníquel: Ni2S3 Si3N4: tetranitruro de trisilicio pentafluoruro de fósforo PF5 SiC: carburo de silicio triseleniuro de diarsénico As2Se3 SF4: tetrafluoruro de azufre dicloruro de cobalto: CoCl2

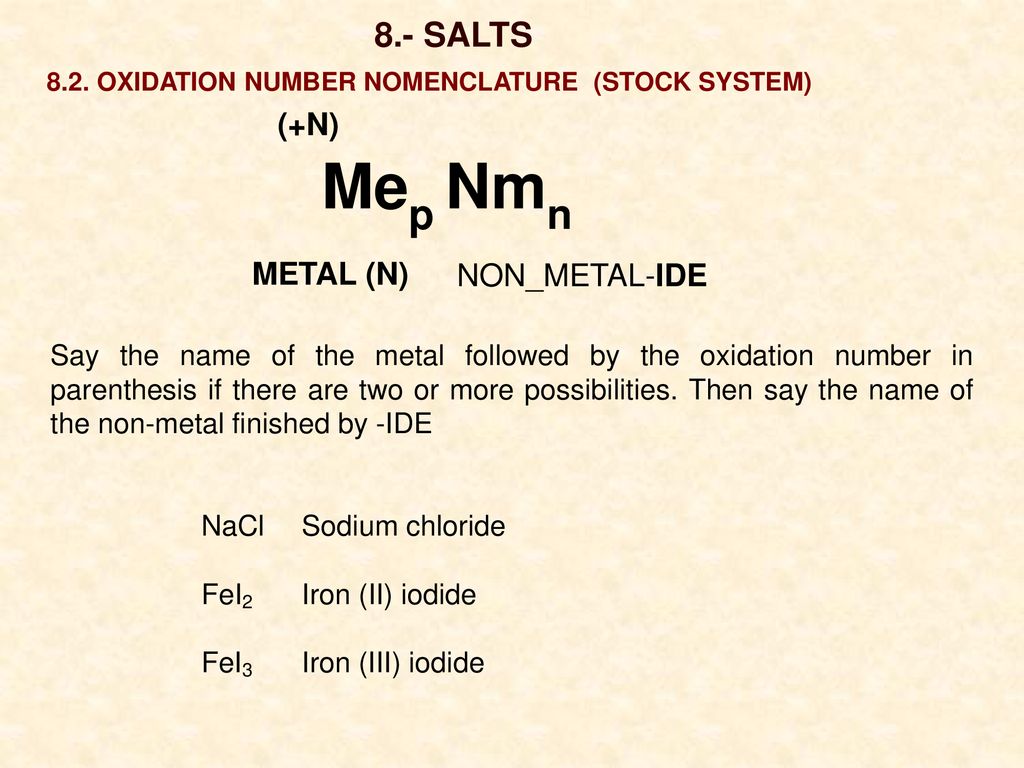

20 Mep Nmn 8.- SALTS (+N) METAL (N) NON_METAL-IDE
8.2. OXIDATION NUMBER NOMENCLATURE (STOCK SYSTEM) (+N) Mep Nmn METAL (N) NON_METAL-IDE Say the name of the metal followed by the oxidation number in parenthesis if there are two or more possibilities. Then say the name of the non-metal finished by -IDE NaCl Sodium chloride FeI2 Iron (II) iodide FeI3 Iron (III) iodide

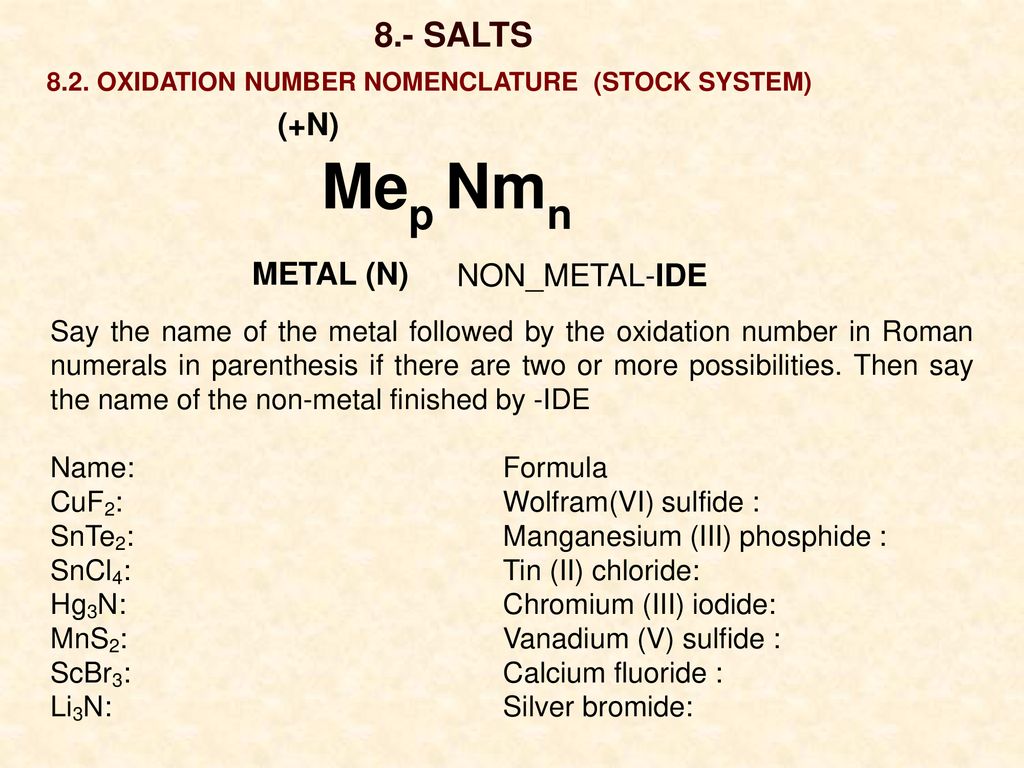

21 Mep Nmn 8.- SALTS (+N) METAL (N) NON_METAL-IDE
8.2. OXIDATION NUMBER NOMENCLATURE (STOCK SYSTEM) (+N) Mep Nmn METAL (N) NON_METAL-IDE Say the name of the metal followed by the oxidation number in Roman numerals in parenthesis if there are two or more possibilities. Then say the name of the non-metal finished by -IDE Name: Formula CuF2: Wolfram(VI) sulfide : SnTe2: Manganesium (III) phosphide : SnCl4: Tin (II) chloride: Hg3N: Chromium (III) iodide: MnS2: Vanadium (V) sulfide : ScBr3: Calcium fluoride : Li3N: Silver bromide:

22 Mep Nmn 8.- SALTS (+N) METAL (N) NON_METAL-IDE

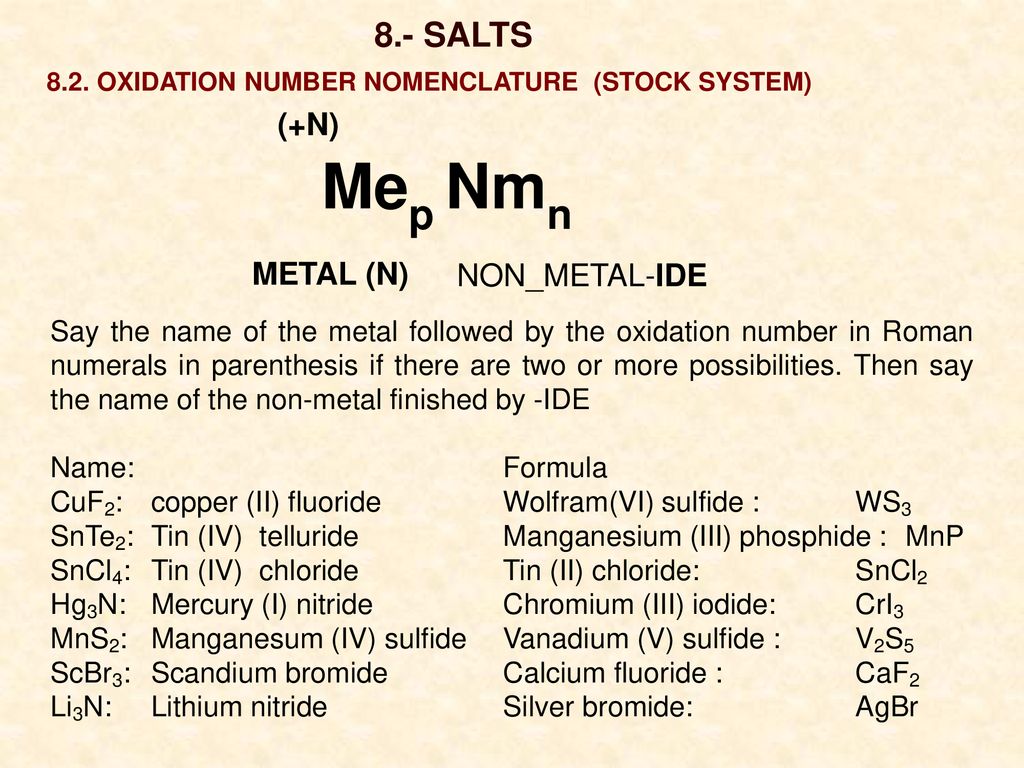

8.2. OXIDATION NUMBER NOMENCLATURE (STOCK SYSTEM) (+N) Mep Nmn METAL (N) NON_METAL-IDE Say the name of the metal followed by the oxidation number in Roman numerals in parenthesis if there are two or more possibilities. Then say the name of the non-metal finished by -IDE Name: Formula CuF2: copper (II) fluoride Wolfram(VI) sulfide : WS3 SnTe2: Tin (IV) telluride Manganesium (III) phosphide : MnP SnCl4: Tin (IV) chloride Tin (II) chloride: SnCl2 Hg3N: Mercury (I) nitride Chromium (III) iodide: CrI3 MnS2: Manganesum (IV) sulfide Vanadium (V) sulfide : V2S5 ScBr3: Scandium bromide Calcium fluoride : CaF2 Li3N: Lithium nitride Silver bromide: AgBr

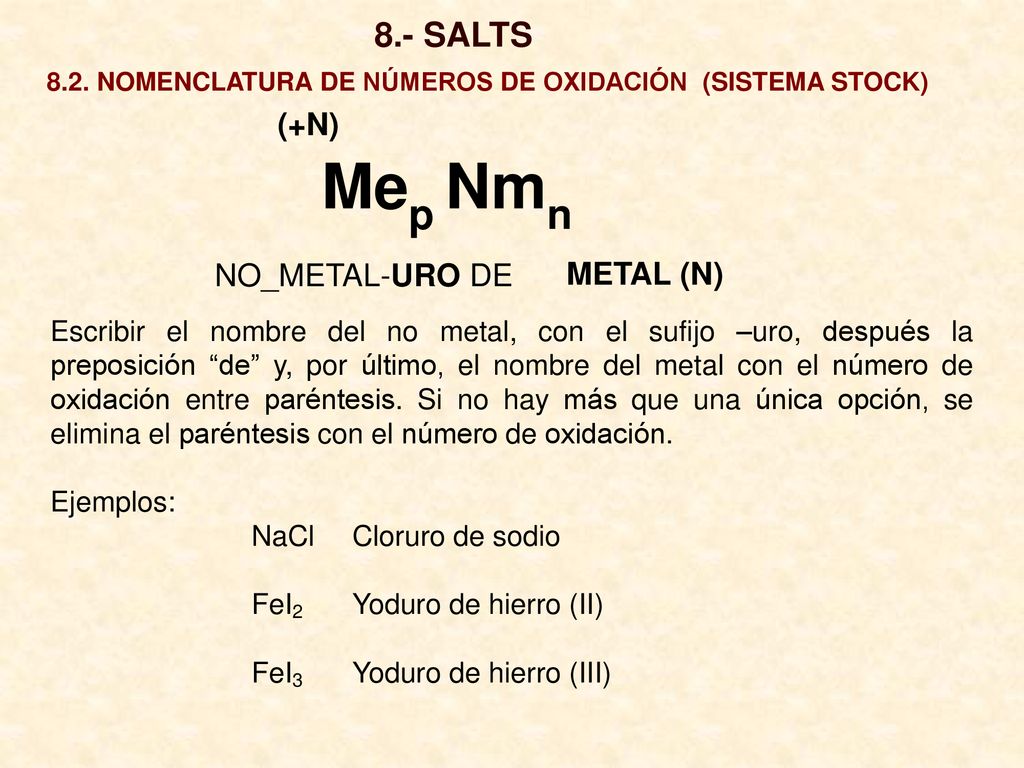

23 Mep Nmn 8.- SALTS (+N) METAL (N) NO_METAL-URO DE
8.2. NOMENCLATURA DE NÚMEROS DE OXIDACIÓN (SISTEMA STOCK) (+N) Mep Nmn METAL (N) NO_METAL-URO DE Escribir el nombre del no metal, con el sufijo –uro, después la preposición “de” y, por último, el nombre del metal con el número de oxidación entre paréntesis. Si no hay más que una única opción, se elimina el paréntesis con el número de oxidación. Ejemplos: NaCl Cloruro de sodio FeI2 Yoduro de hierro (II) FeI3 Yoduro de hierro (III)

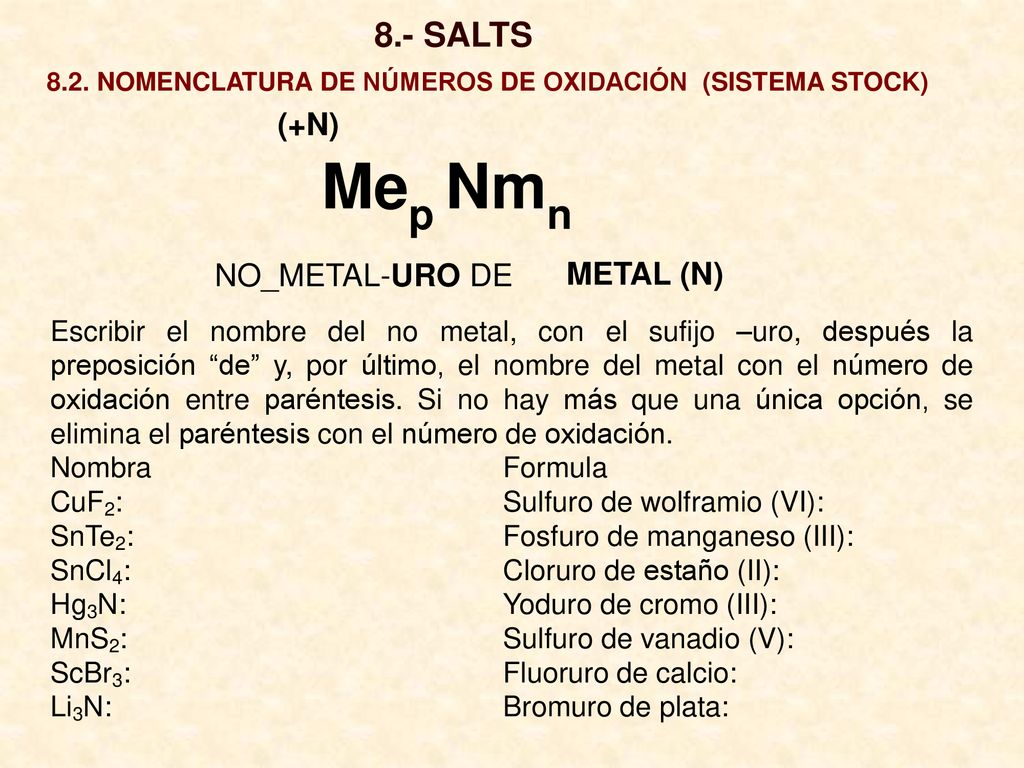

24 Mep Nmn 8.- SALTS (+N) METAL (N) NO_METAL-URO DE

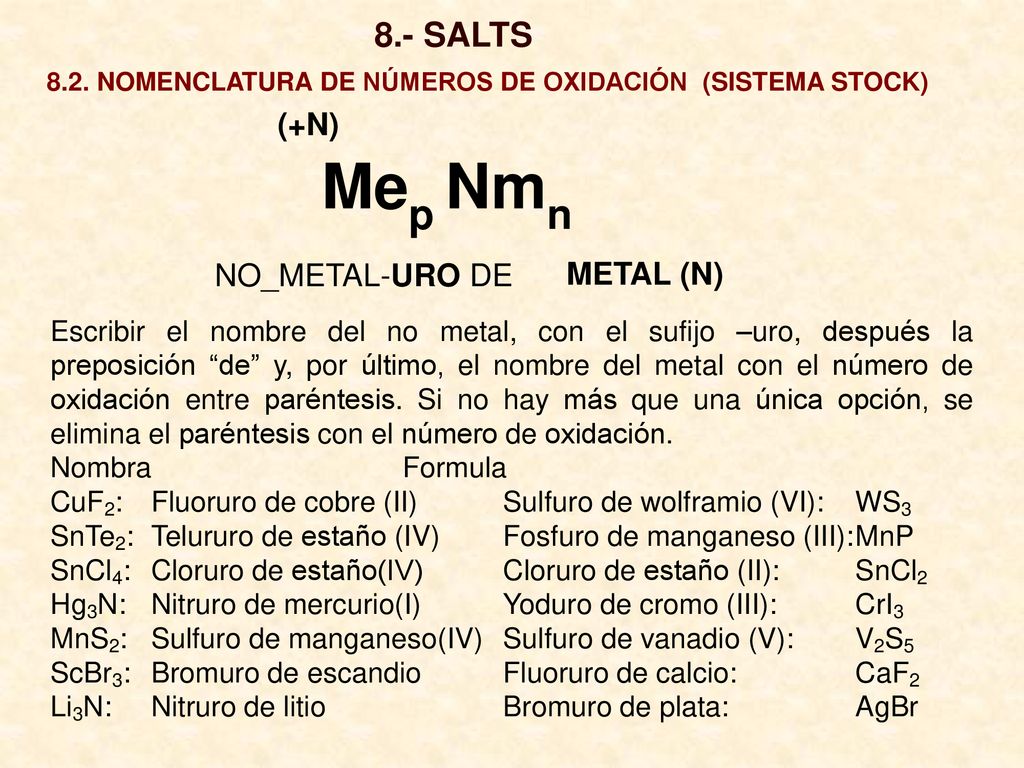

8.2. NOMENCLATURA DE NÚMEROS DE OXIDACIÓN (SISTEMA STOCK) (+N) Mep Nmn METAL (N) NO_METAL-URO DE Escribir el nombre del no metal, con el sufijo –uro, después la preposición “de” y, por último, el nombre del metal con el número de oxidación entre paréntesis. Si no hay más que una única opción, se elimina el paréntesis con el número de oxidación. Nombra Formula CuF2: Sulfuro de wolframio (VI): SnTe2: Fosfuro de manganeso (III): SnCl4: Cloruro de estaño (II): Hg3N: Yoduro de cromo (III): MnS2: Sulfuro de vanadio (V): ScBr3: Fluoruro de calcio: Li3N: Bromuro de plata:

25 Mep Nmn 8.- SALTS (+N) METAL (N) NO_METAL-URO DE
8.2. NOMENCLATURA DE NÚMEROS DE OXIDACIÓN (SISTEMA STOCK) (+N) Mep Nmn METAL (N) NO_METAL-URO DE Escribir el nombre del no metal, con el sufijo –uro, después la preposición “de” y, por último, el nombre del metal con el número de oxidación entre paréntesis. Si no hay más que una única opción, se elimina el paréntesis con el número de oxidación. Nombra Formula CuF2: Fluoruro de cobre (II) Sulfuro de wolframio (VI): WS3 SnTe2: Telururo de estaño (IV) Fosfuro de manganeso (III): MnP SnCl4: Cloruro de estaño(IV) Cloruro de estaño (II): SnCl2 Hg3N: Nitruro de mercurio(I) Yoduro de cromo (III): CrI3 MnS2: Sulfuro de manganeso(IV) Sulfuro de vanadio (V): V2S5 ScBr3: Bromuro de escandio Fluoruro de calcio: CaF2 Li3N: Nitruro de litio Bromuro de plata: AgBr

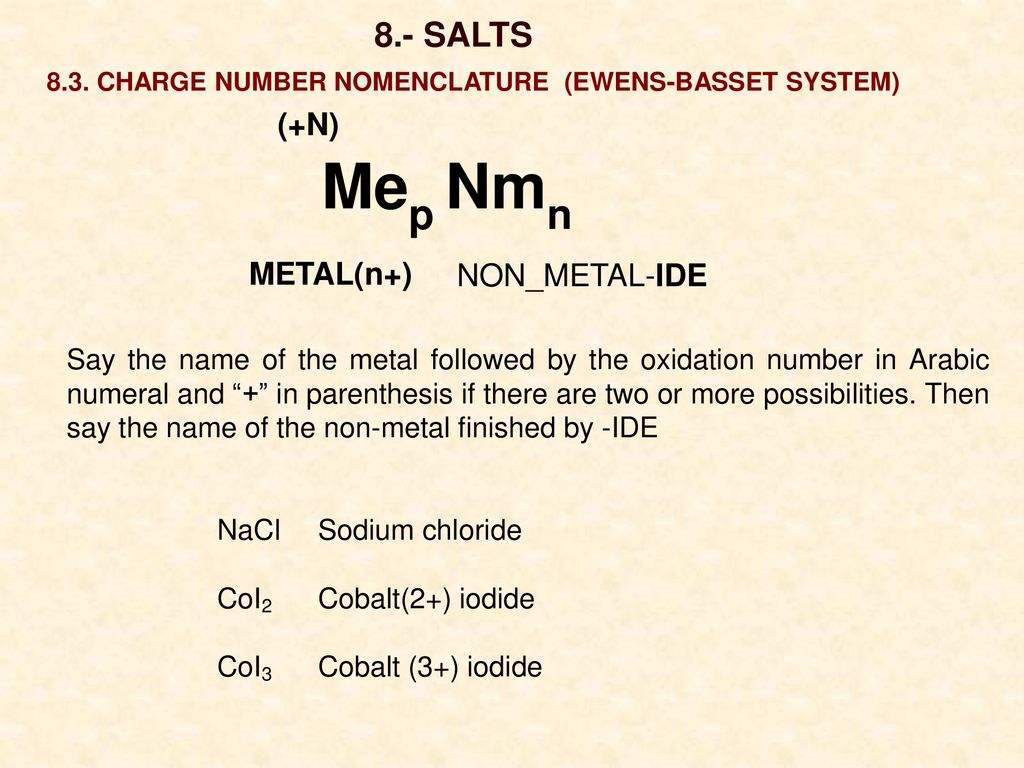

26 Mep Nmn 8.- SALTS (+N) METAL(n+) NON_METAL-IDE
8.3. CHARGE NUMBER NOMENCLATURE (EWENS-BASSET SYSTEM) (+N) Mep Nmn METAL(n+) NON_METAL-IDE Say the name of the metal followed by the oxidation number in Arabic numeral and “+” in parenthesis if there are two or more possibilities. Then say the name of the non-metal finished by -IDE NaCl Sodium chloride CoI2 Cobalt(2+) iodide CoI3 Cobalt (3+) iodide

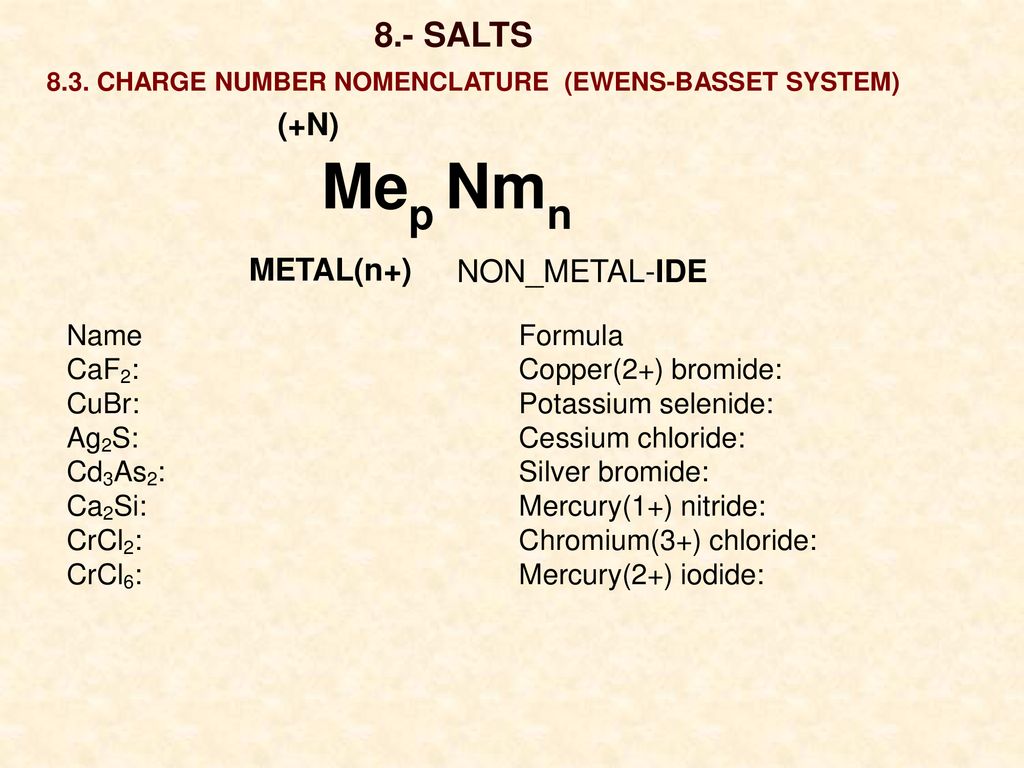

27 Mep Nmn 8.- SALTS (+N) METAL(n+) NON_METAL-IDE Name Formula
8.3. CHARGE NUMBER NOMENCLATURE (EWENS-BASSET SYSTEM) (+N) Mep Nmn METAL(n+) NON_METAL-IDE Name Formula CaF2: Copper(2+) bromide: CuBr: Potassium selenide: Ag2S: Cessium chloride: Cd3As2: Silver bromide: Ca2Si: Mercury(1+) nitride: CrCl2: Chromium(3+) chloride: CrCl6: Mercury(2+) iodide:

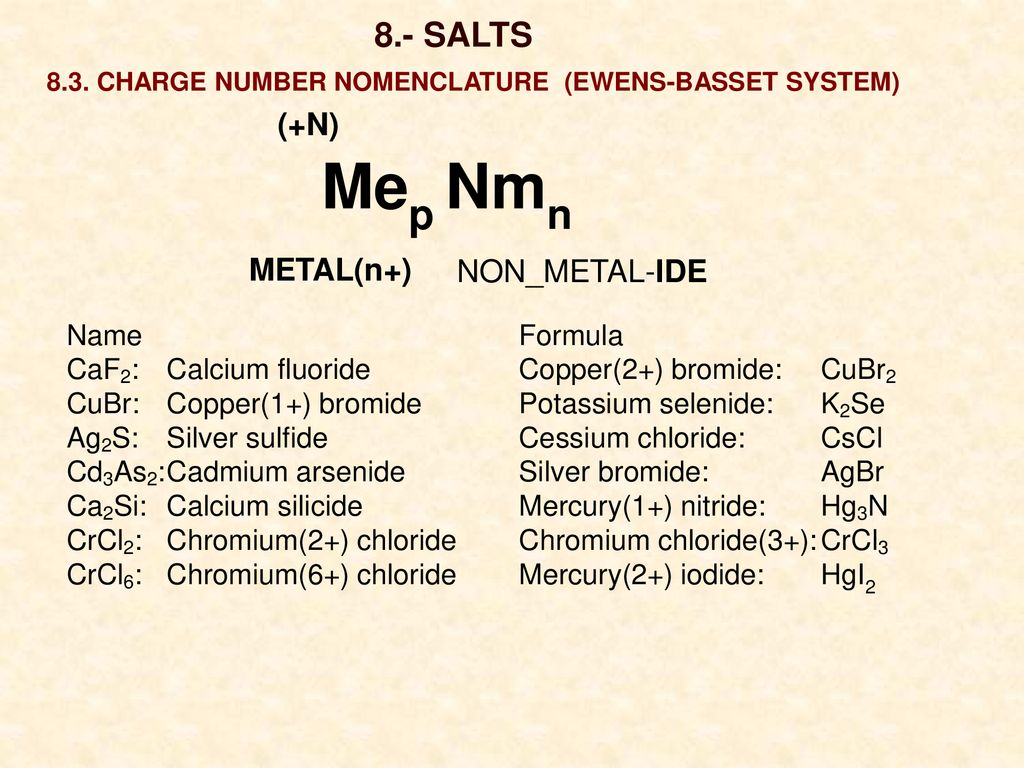

28 Mep Nmn 8.- SALTS (+N) METAL(n+) NON_METAL-IDE Name Formula
8.3. CHARGE NUMBER NOMENCLATURE (EWENS-BASSET SYSTEM) (+N) Mep Nmn METAL(n+) NON_METAL-IDE Name Formula CaF2: Calcium fluoride Copper(2+) bromide: CuBr2 CuBr: Copper(1+) bromide Potassium selenide: K2Se Ag2S: Silver sulfide Cessium chloride: CsCl Cd3As2: Cadmium arsenide Silver bromide: AgBr Ca2Si: Calcium silicide Mercury(1+) nitride: Hg3N CrCl2: Chromium(2+) chloride Chromium chloride(3+): CrCl3 CrCl6: Chromium(6+) chloride Mercury(2+) iodide: HgI2

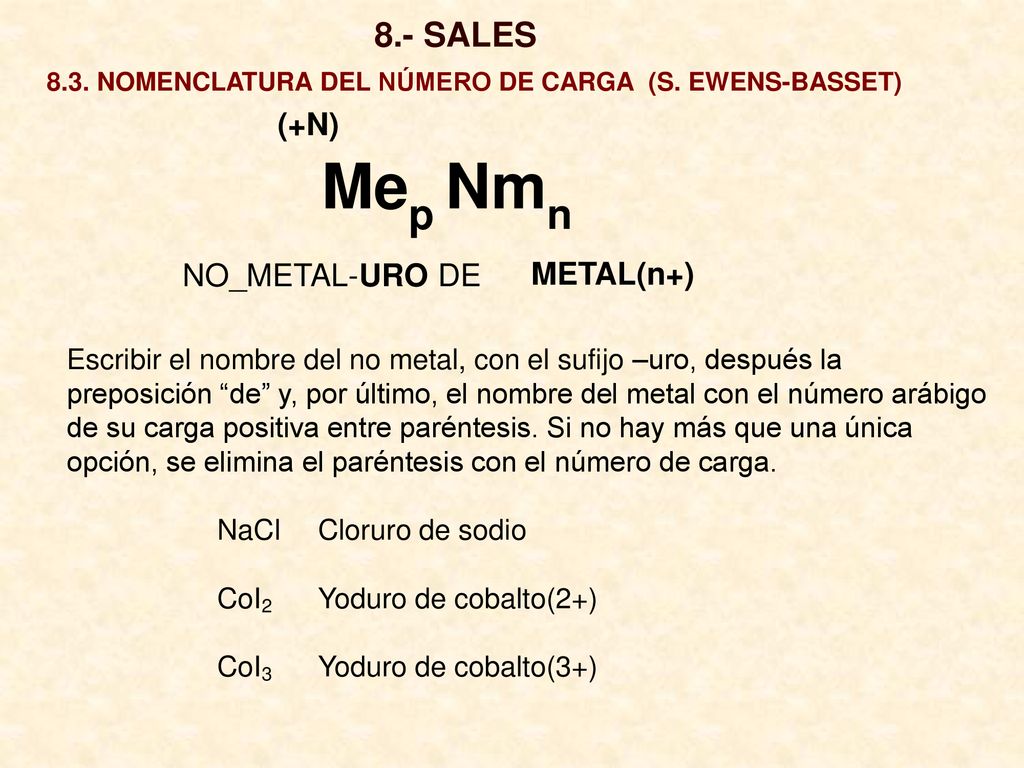

29 Mep Nmn 8.- SALES (+N) METAL(n+) NO_METAL-URO DE
8.3. NOMENCLATURA DEL NÚMERO DE CARGA (S. EWENS-BASSET) (+N) Mep Nmn METAL(n+) NO_METAL-URO DE Escribir el nombre del no metal, con el sufijo –uro, después la preposición “de” y, por último, el nombre del metal con el número arábigo de su carga positiva entre paréntesis. Si no hay más que una única opción, se elimina el paréntesis con el número de carga. NaCl Cloruro de sodio CoI2 Yoduro de cobalto(2+) CoI3 Yoduro de cobalto(3+)

30 Mep Nmn 8.- SALES (+N) METAL(n+) NO_METAL-URO DE Nombra Formula

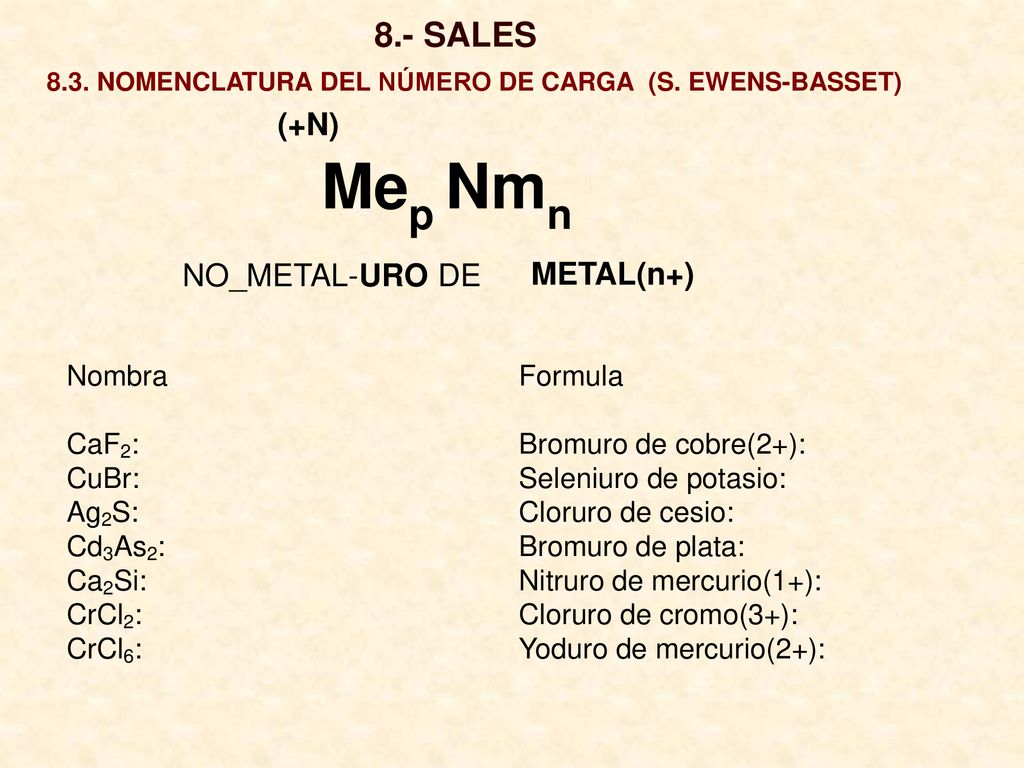

8.3. NOMENCLATURA DEL NÚMERO DE CARGA (S. EWENS-BASSET) (+N) Mep Nmn METAL(n+) NO_METAL-URO DE Nombra Formula CaF2: Bromuro de cobre(2+): CuBr: Seleniuro de potasio: Ag2S: Cloruro de cesio: Cd3As2: Bromuro de plata: Ca2Si: Nitruro de mercurio(1+): CrCl2: Cloruro de cromo(3+): CrCl6: Yoduro de mercurio(2+):

31 Mep Nmn 8.- SALES (+N) METAL(n+) NO_METAL-URO DE Nombra Formula
8.3. NOMENCLATURA DEL NÚMERO DE CARGA (S. EWENS-BASSET) (+N) Mep Nmn METAL(n+) NO_METAL-URO DE Nombra Formula CaF2: Fluoruro de calcio Bromuro de cobre(2+): CuBr2 CuBr: Bromuro de cobre(1+) Seleniuro de potasio: K2Se Ag2S: Sulfuro de plata Cloruro de cesio: CsCl Cd3As2: Arseniuro de cadmio Bromuro de plata: AgBr Ca2Si: Siliciuro de calcio Nitruro de mercurio(1+): Hg3N CrCl2: Cloruro de cromo(2+) Cloruro de cromo(3+): CrCl3 CrCl6: Cloruro de cromo(6+) Yoduro de mercurio(2+): HgI2

32
