1 Requisitos para Servidores y Clientes
10/10/2017 Requisitos para Servidores y Clientes SpeechAnywhere Aka supported hardware, software, ... CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

2 Tabla de Contenidos Hardware Network
Periféricos / Dispositivos de Grabación Software (OS,BBDD, ...) Virtualización

3 SpeechAnywhere Requisitos HW
10/10/2017 Core foundation of SM SpeechAnywhere Requisitos HW Hardware, Network, Recording Devices CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

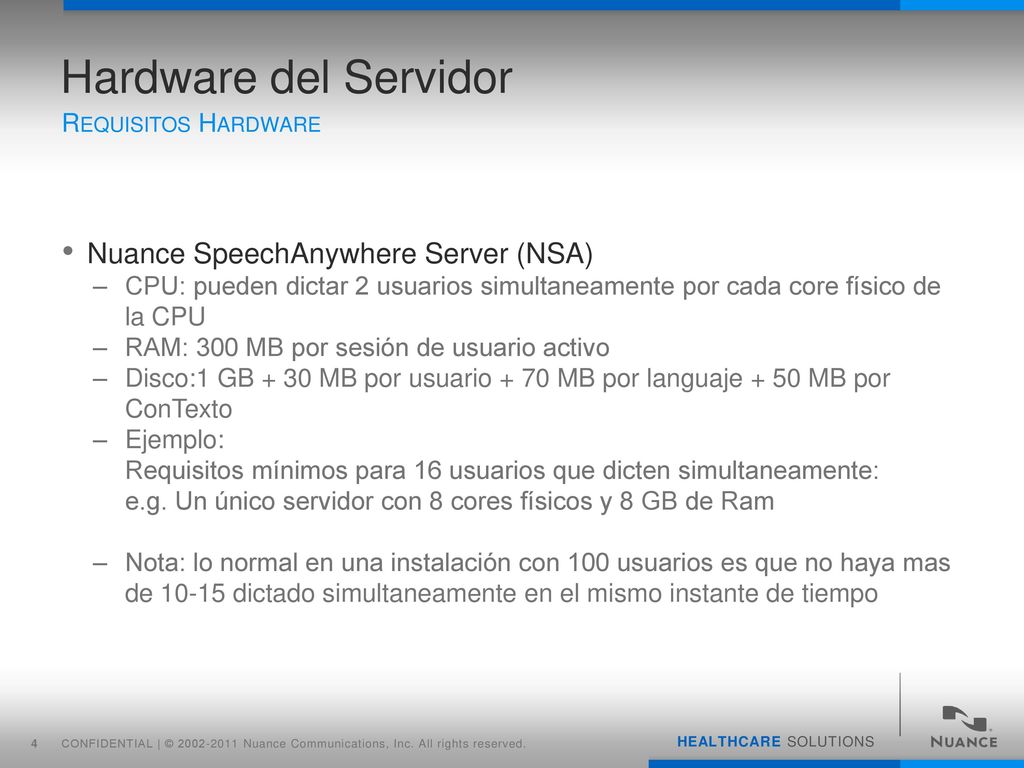

4 Hardware del Servidor Nuance SpeechAnywhere Server (NSA)
10/10/2017 Hardware del Servidor Requisitos Hardware Nuance SpeechAnywhere Server (NSA) CPU: pueden dictar 2 usuarios simultaneamente por cada core físico de la CPU RAM: 300 MB por sesión de usuario activo Disco:1 GB + 30 MB por usuario + 70 MB por languaje + 50 MB por ConTexto Ejemplo: Requisitos mínimos para 16 usuarios que dicten simultaneamente: e.g. Un único servidor con 8 cores físicos y 8 GB de Ram Nota: lo normal en una instalación con 100 usuarios es que no haya mas de dictado simultaneamente en el mismo instante de tiempo CPU: originally 3 users per CPU. Physical core: Quadcore with HT = E.g. Intel® Core™ i Processor has (only) 4 physical cores, but due to hyperthreading 8 threads Large scale tests not yet performed – e.g. Scaling behavior with 100 concurrent users not yet tested TODO Find out Nuance Management Server (NMS) requirements TODO „Nuance Management Server Admin Guide“ -> where? CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

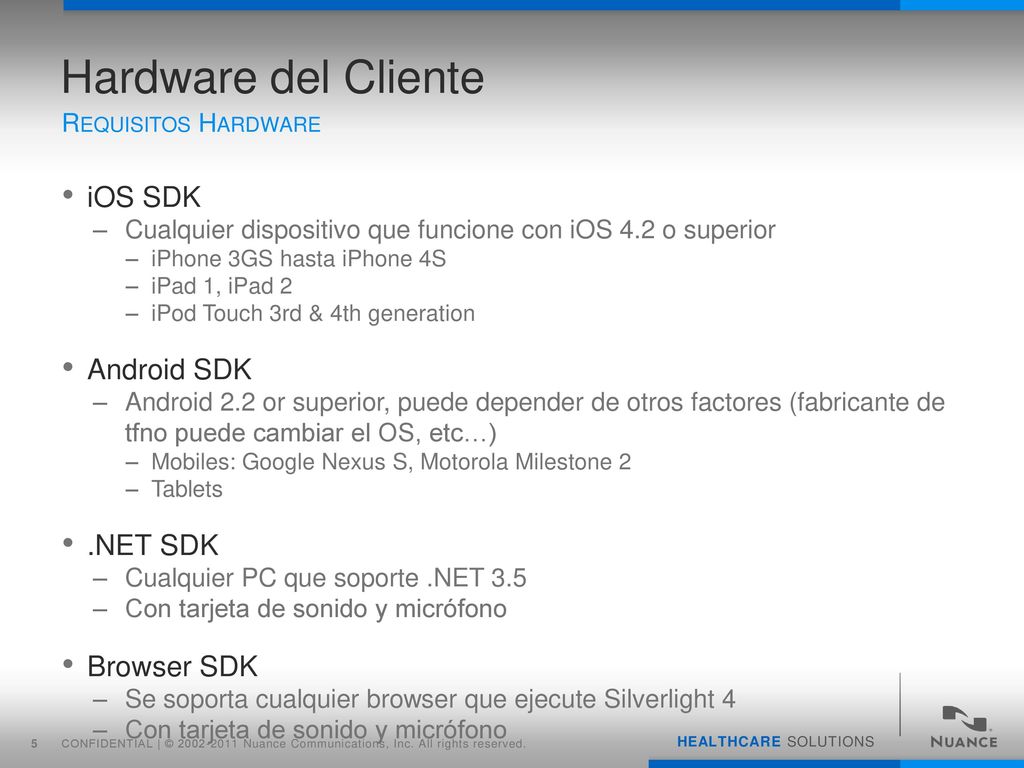

5 Hardware del Cliente iOS SDK Android SDK .NET SDK Browser SDK
10/10/2017 Hardware del Cliente Requisitos Hardware iOS SDK Cualquier dispositivo que funcione con iOS 4.2 o superior iPhone 3GS hasta iPhone 4S iPad 1, iPad 2 iPod Touch 3rd & 4th generation Android SDK Android 2.2 or superior, puede depender de otros factores (fabricante de tfno puede cambiar el OS, etc…) Mobiles: Google Nexus S, Motorola Milestone 2 Tablets .NET SDK Cualquier PC que soporte .NET 3.5 Con tarjeta de sonido y micrófono Browser SDK Se soporta cualquier browser que ejecute Silverlight 4 Android SDK Depends: On exact model, exact Android version, exact 2nd party OS extension, sometimes even provider specific changes to the OS TODO always see latest Test report for those devices that were used during last system test Supported Browsers Win: IE, Chrome, Firefox, Mac OS X: Safari, Firefox CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

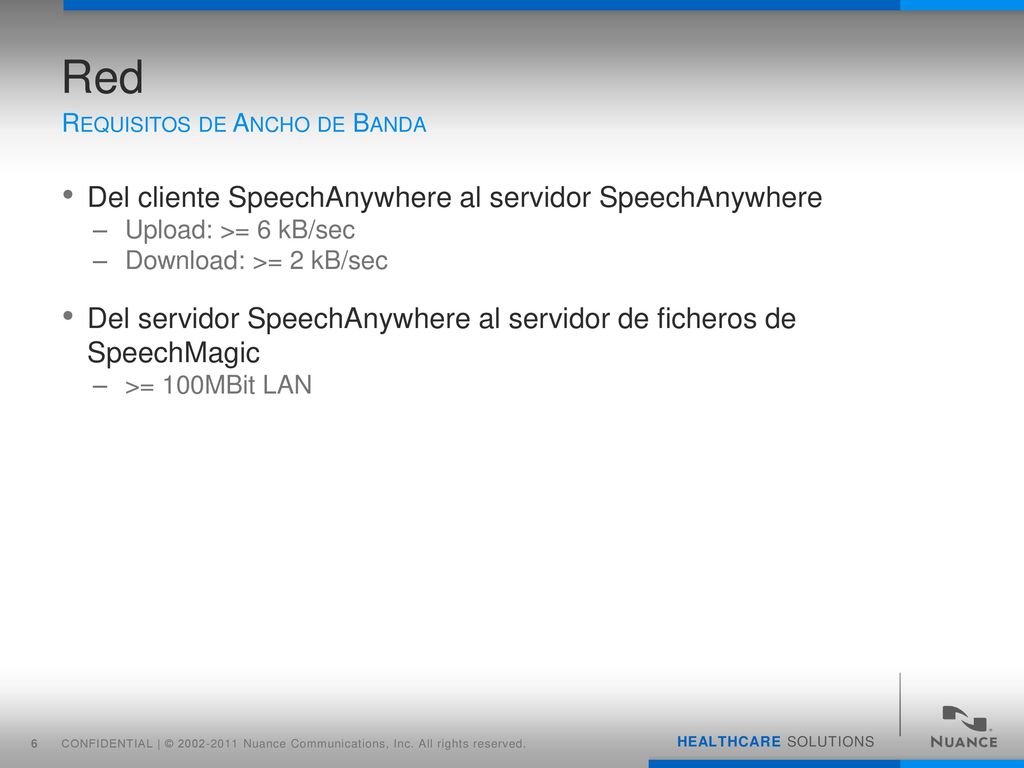

6 Red Del cliente SpeechAnywhere al servidor SpeechAnywhere
10/10/2017 Red Requisitos de Ancho de Banda Del cliente SpeechAnywhere al servidor SpeechAnywhere Upload: >= 6 kB/sec Download: >= 2 kB/sec Del servidor SpeechAnywhere al servidor de ficheros de SpeechMagic >= 100MBit LAN TODO check Sync requirements via >= xxMBit LAN (TODO 10 | 100 | 1000 – see req.s syncserver/MM?!) CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

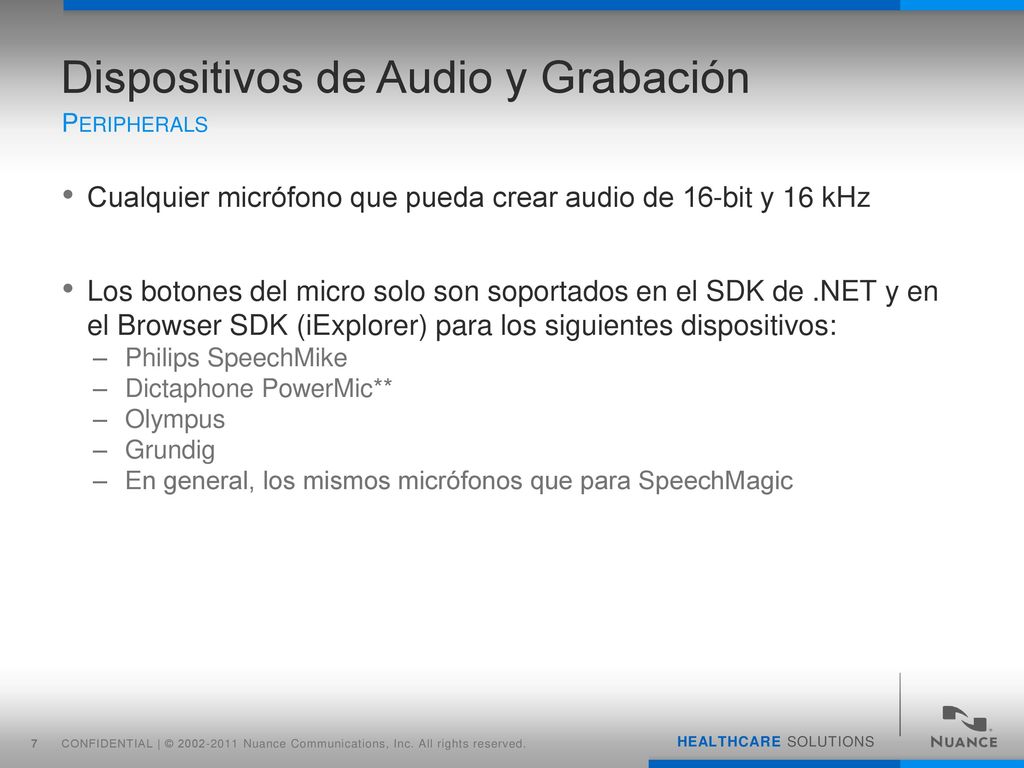

7 Dispositivos de Audio y Grabación
10/10/2017 Dispositivos de Audio y Grabación Peripherals Cualquier micrófono que pueda crear audio de 16-bit y 16 kHz Los botones del micro solo son soportados en el SDK de .NET y en el Browser SDK (iExplorer) para los siguientes dispositivos: Philips SpeechMike Dictaphone PowerMic** Olympus Grundig En general, los mismos micrófonos que para SpeechMagic See Browser SDK docu, applies also to other SDKs 16-bit/16kHz -> Microphone Input channel in SpeechMagic is used TODO Devices supported according to SM, lookup exact devices (e.g. SpeechMike 2&3? Slidermics? Should be), exact Olympus and Grundig devices. For microphone button support we support the same microphones as SpeechMagic does. CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

8 Virtualización (Citrix, VMWare...)
10/10/2017 Virtualización (Citrix, VMWare...) Requisitos Hardware Soportado totalmente en Fat Clients (Windows 7, etc...) Aún no testeado en Thin Clients, pero será soportado Se creará una lista de los thin clients soportados Advantage: Less Citrix licenses needed than with IA Virtualization only tested on Fat Clients TODO: which brands??? CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

9 SpeechAnywhere Requisitos SW
10/10/2017 Core foundation of SM SpeechAnywhere Requisitos SW Software, Virtualización CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

10 Componentes SpeechAnywhere
10/10/2017 Componentes SpeechAnywhere Requisitos Software SpeechAnywhere Installation NSA Server NMS WebServer Minimal installation (e.g. for testing) has all installation components on the same physical machine CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

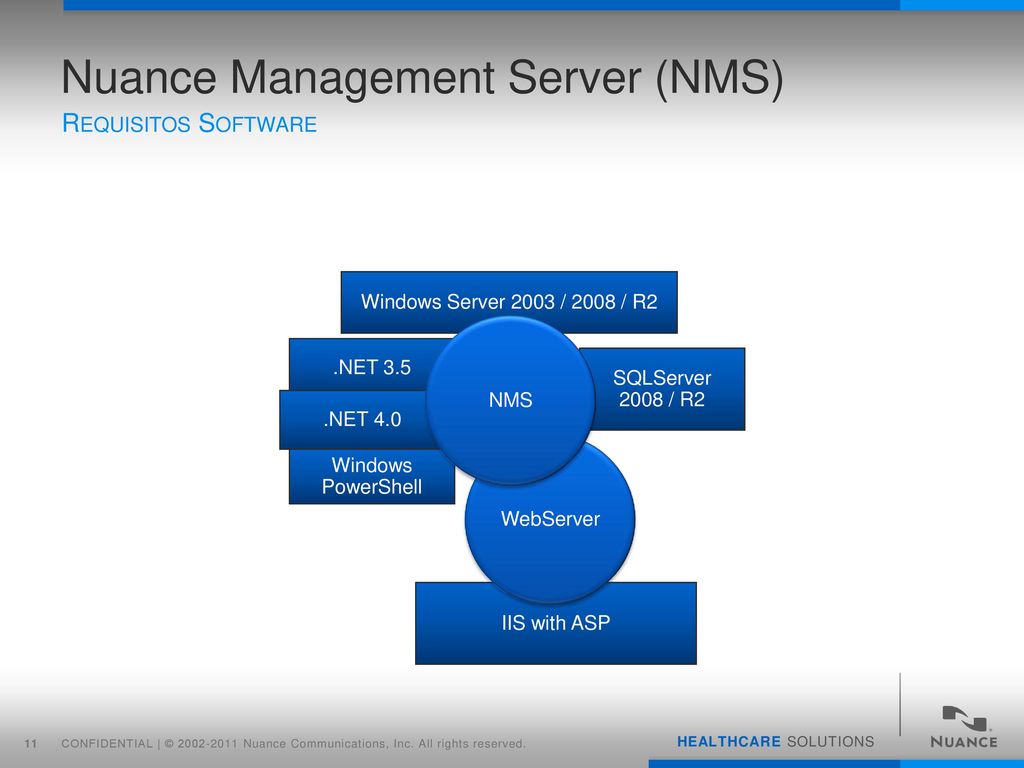

11 Nuance Management Server (NMS)
10/10/2017 Nuance Management Server (NMS) Requisitos Software Windows Server 2003 / 2008 / R2 NMS .NET 3.5 SQLServer 2008 / R2 .NET 4.0 WebServer Windows PowerShell Windows Server R2 Main Development & Test platform Windows Server 2008 SA does not use special R2 features Windows Server /64-bit IIS with ASP CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

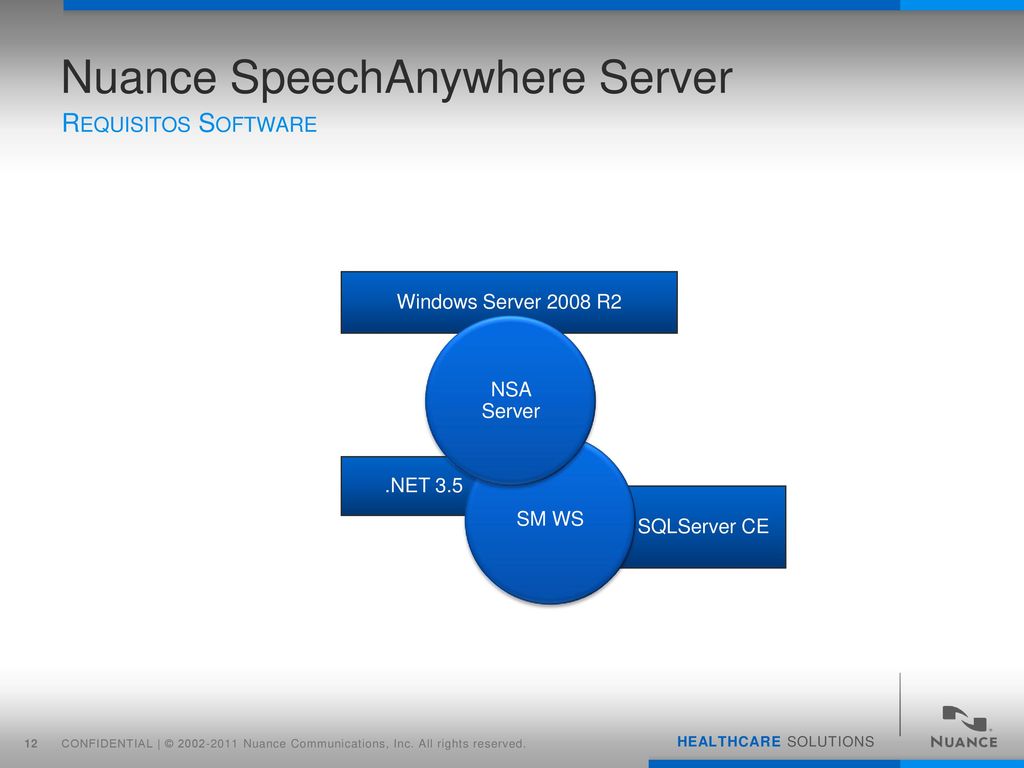

12 Nuance SpeechAnywhere Server
10/10/2017 Nuance SpeechAnywhere Server Requisitos Software Windows Server 2008 R2 NSA Server SM WS .NET 3.5 Windows Server 2003 is NOT supported for NSA Server (!) Both NSA Server & SM WS need .NET 3.5 to work SQLServer refers to the SQL Server Compact Edition (SQL CE) for the local cache of SM client SQLServer CE CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

13 Resumen Nuance Management Server (NMS)
10/10/2017 Resumen Requisitos Software Nuance Management Server (NMS) Windows Server 2003 / 2008 / R2 .NET 3.5 SP1 + .NET 4.0 Microsoft IIS with ASP support (and management tools) Microsoft Windows PowerShell SQL Server 2008 available Nuance SpeechAnywhere Server (NSA) .NET 3.5 SP1 SpeechMagic 7 R3 Workstation .NET 3.5 – not a seperate install, but server feature on 2008 R2 IIS: ASP, not only ASP.NET, which is installed by default CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

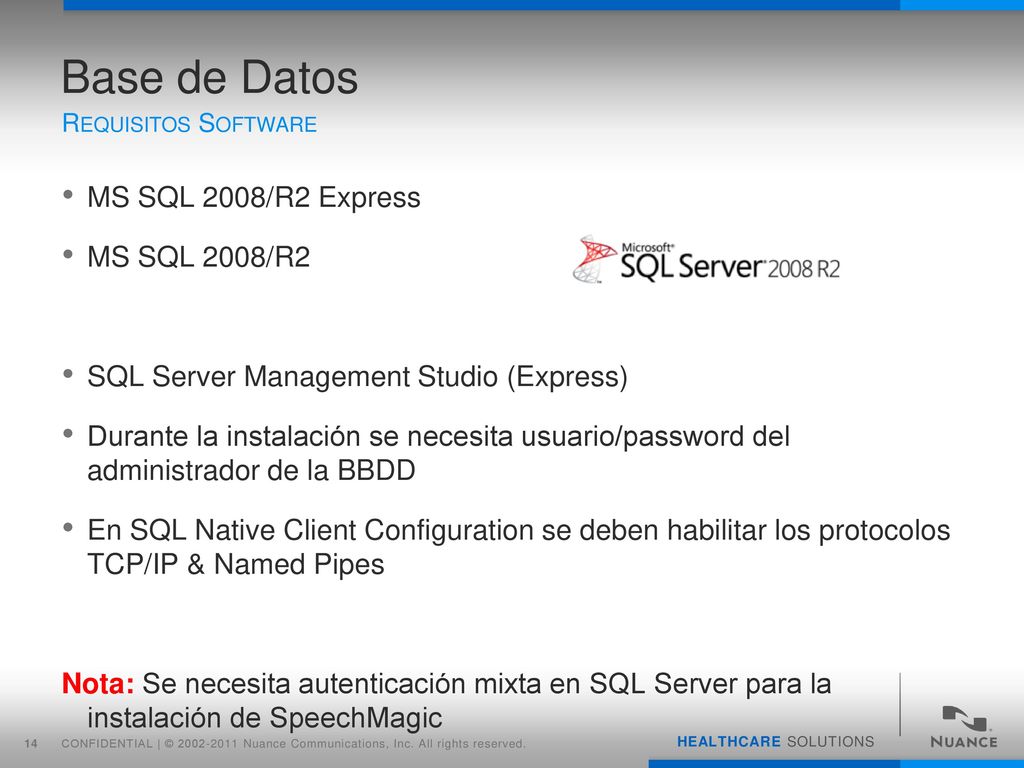

14 Base de Datos MS SQL 2008/R2 Express MS SQL 2008/R2
10/10/2017 Base de Datos Requisitos Software MS SQL 2008/R2 Express MS SQL 2008/R2 SQL Server Management Studio (Express) Durante la instalación se necesita usuario/password del administrador de la BBDD En SQL Native Client Configuration se deben habilitar los protocolos TCP/IP & Named Pipes Nota: Se necesita autenticación mixta en SQL Server para la instalación de SpeechMagic TODO Express good enough? Client protocols are disabled by default – but if disabled access from other machines is not possible Configuration of MS SQL Server from the SQL Client Protocols Enable TCP/IP Enable Named Pipes Restart the SQL Service (!) TODO: Verify if NMS also accepts Windows authentification on SQL Server TODO: Verify if SQL Client protocols must have TCP/IP & Named Pipes enabled CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

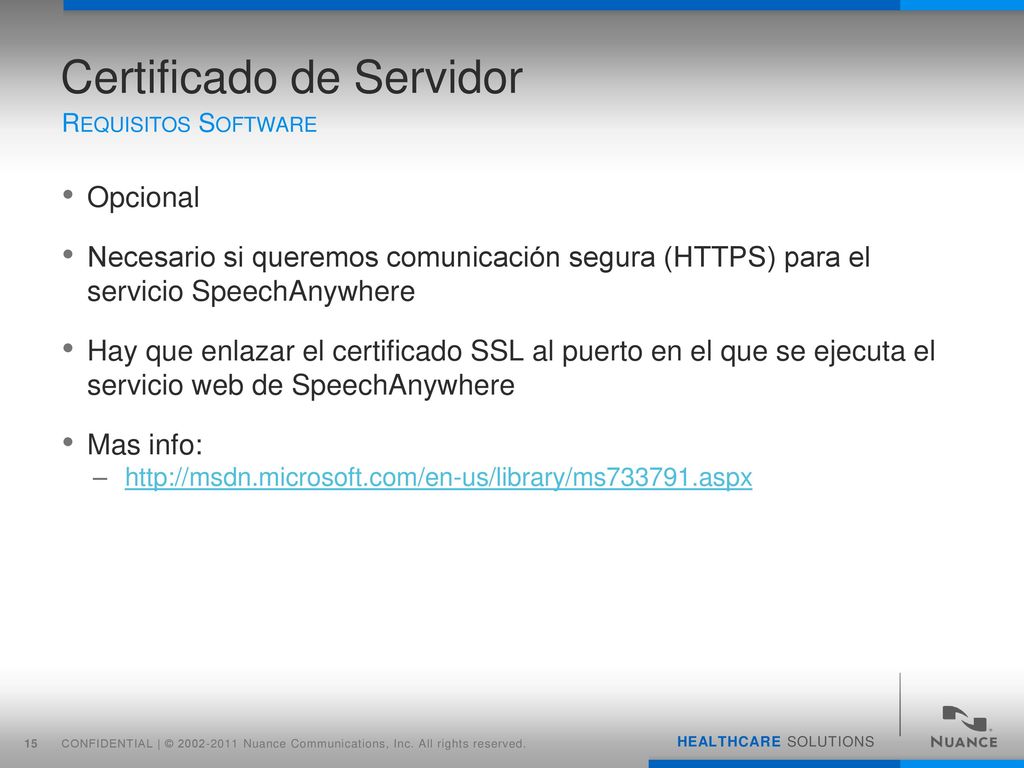

15 Certificado de Servidor
10/10/2017 Certificado de Servidor Requisitos Software Opcional Necesario si queremos comunicación segura (HTTPS) para el servicio SpeechAnywhere Hay que enlazar el certificado SSL al puerto en el que se ejecuta el servicio web de SpeechAnywhere Mas info: Otherwise over (unencrypted) HTTP CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

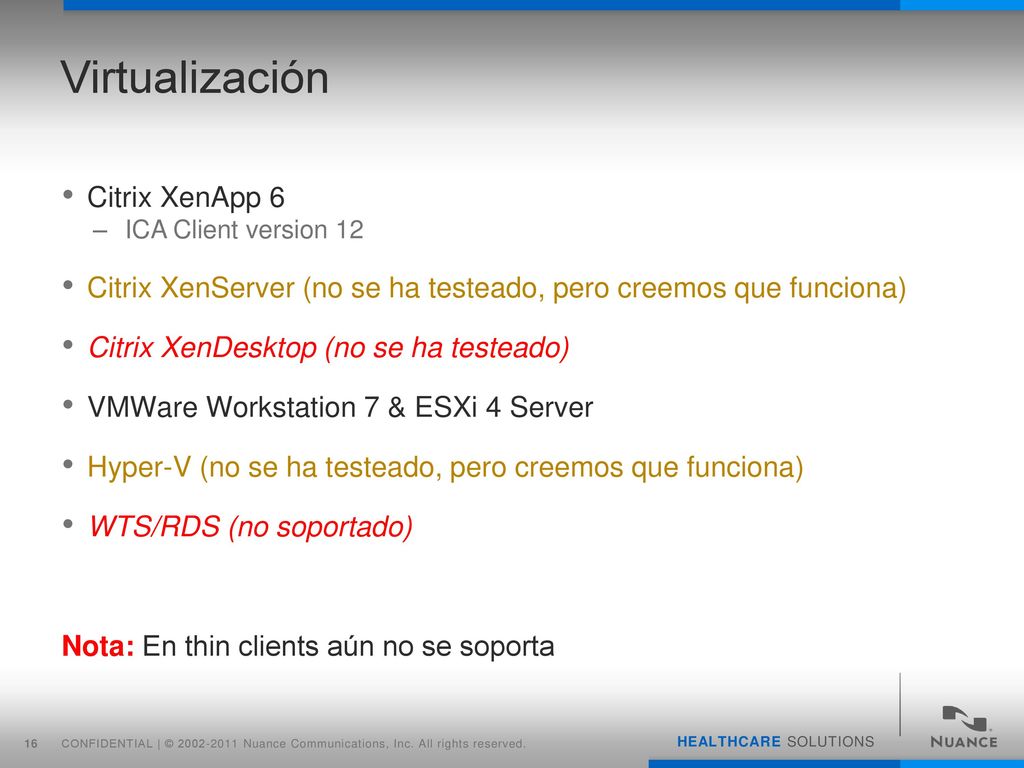

16 Virtualización Citrix XenApp 6
10/10/2017 Virtualización Citrix XenApp 6 ICA Client version 12 Citrix XenServer (no se ha testeado, pero creemos que funciona) Citrix XenDesktop (no se ha testeado) VMWare Workstation 7 & ESXi 4 Server Hyper-V (no se ha testeado, pero creemos que funciona) WTS/RDS (no soportado) Nota: En thin clients aún no se soporta Advantage: Less Citrix licenses needed than with IA CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

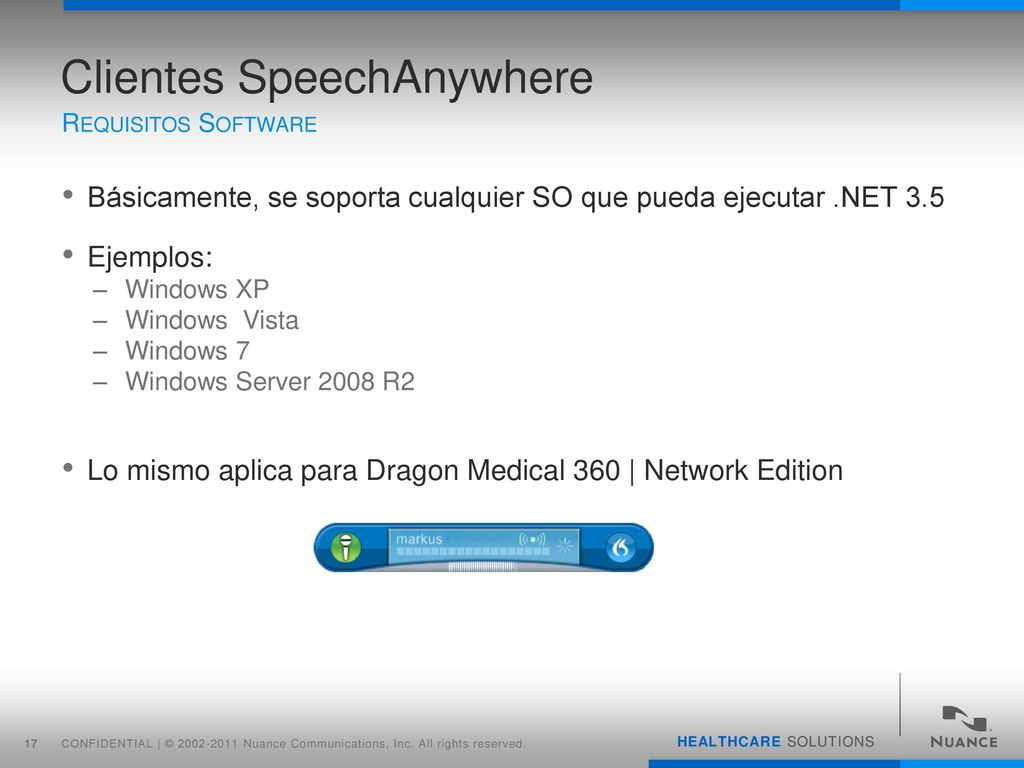

17 Clientes SpeechAnywhere
10/10/2017 Clientes SpeechAnywhere Requisitos Software Básicamente, se soporta cualquier SO que pueda ejecutar .NET 3.5 Ejemplos: Windows XP Windows Vista Windows 7 Windows Server 2008 R2 Lo mismo aplica para Dragon Medical 360 | Network Edition E.g. Windows XP SP 3 32-bit Windows Vista 32-/64-bit Windows 7 SP1 32-/64-bit Windows Server 2008 / R2 32-/64-bit CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

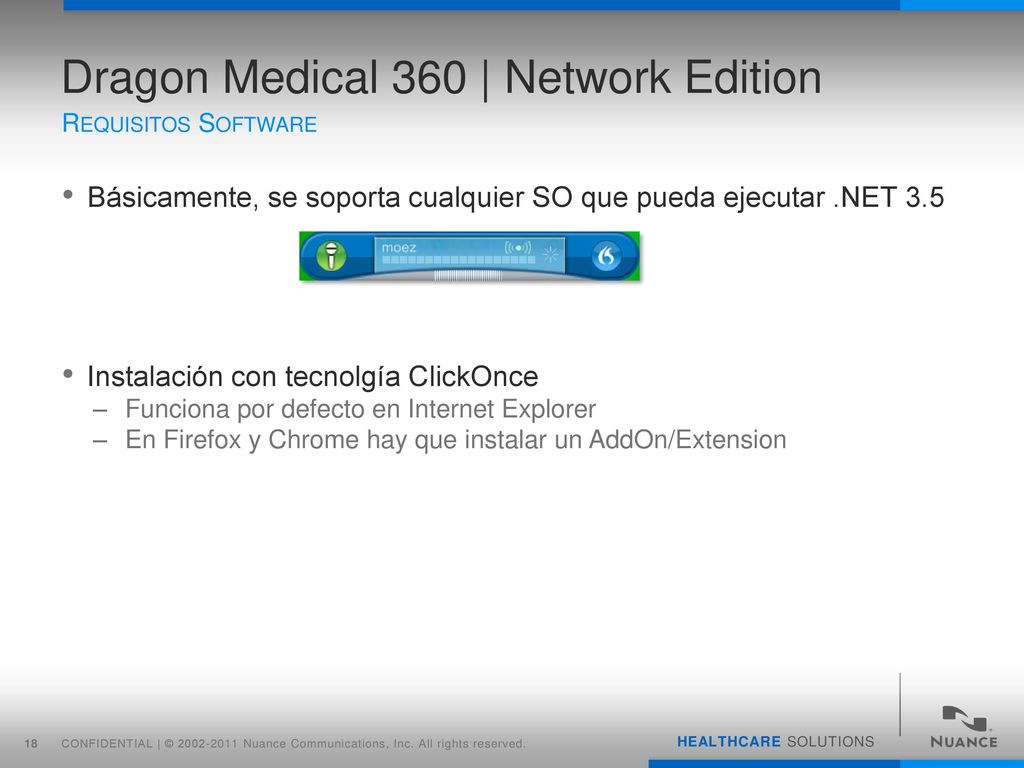

18 Dragon Medical 360 | Network Edition
10/10/2017 Dragon Medical 360 | Network Edition Requisitos Software Básicamente, se soporta cualquier SO que pueda ejecutar .NET 3.5 Instalación con tecnolgía ClickOnce Funciona por defecto en Internet Explorer En Firefox y Chrome hay que instalar un AddOn/Extension E.g. Windows XP SP 3 32-bit Windows Vista 32-/64-bit Windows 7 SP1 32-/64-bit Windows Server 2008 / R2 32-/64-bit Regarding ClickOnce Deployment on Firefox and Chrome, see page 6 in the NSA 1.2 Installation Guide: ClickOnce and Mozilla Firefox or Google Chrome To enable users to install ClickOnce packages using the Firefox browser, they need to install an add-on. For example, the Microsoft .NET Framework Assistant add-on: To enable users to install ClickOnce packages using the Chrome browser, they need to install an extension. For example, the ClickOnce for Google Chrome extension: CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

19 Sistemas Operativos de Clientes Ligeros (Thin Client)
10/10/2017 Software Requirements Not yet supported Thin Clients: Windows XP Embedded SP TODO Thin Clients: Linux Kernel TODO CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

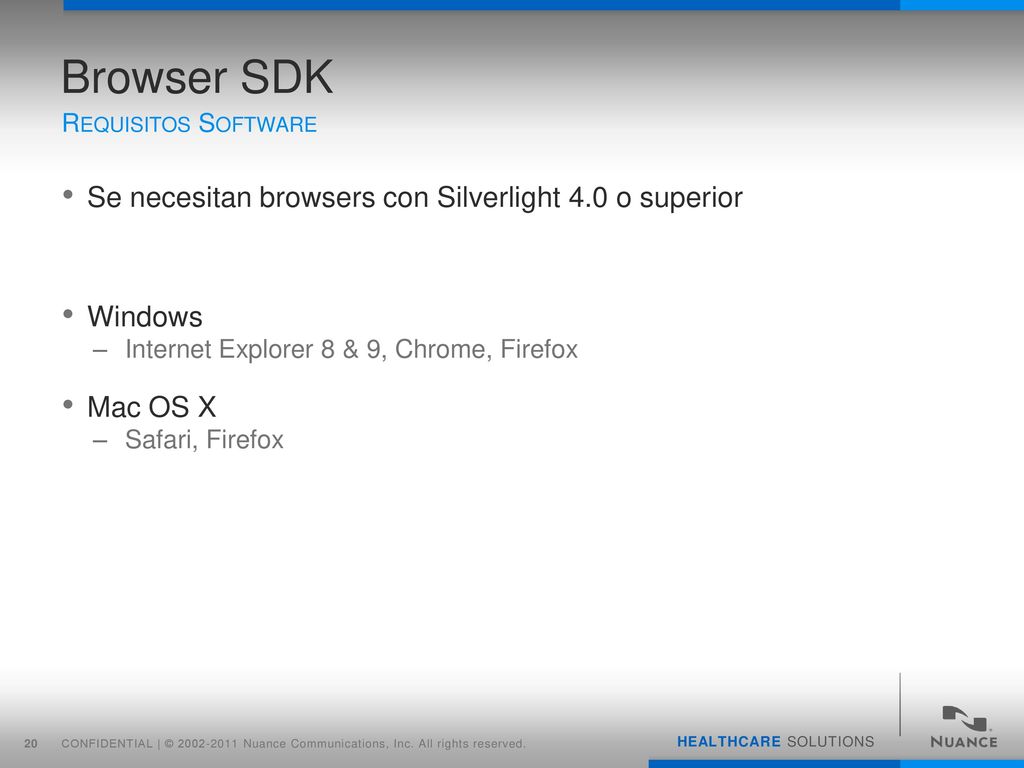

20 Browser SDK Se necesitan browsers con Silverlight 4.0 o superior
10/10/2017 Browser SDK Requisitos Software Se necesitan browsers con Silverlight 4.0 o superior Windows Internet Explorer 8 & 9, Chrome, Firefox Mac OS X Safari, Firefox CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

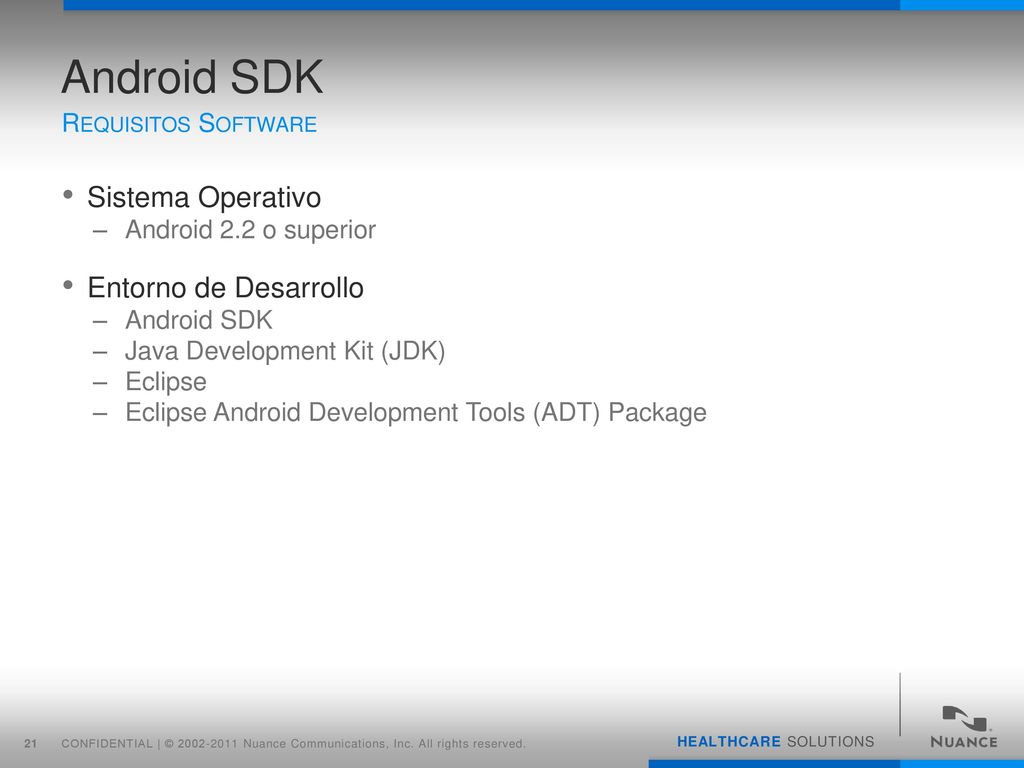

21 Android SDK Sistema Operativo Entorno de Desarrollo
10/10/2017 Android SDK Requisitos Software Sistema Operativo Android 2.2 o superior Entorno de Desarrollo Android SDK Java Development Kit (JDK) Eclipse Eclipse Android Development Tools (ADT) Package CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

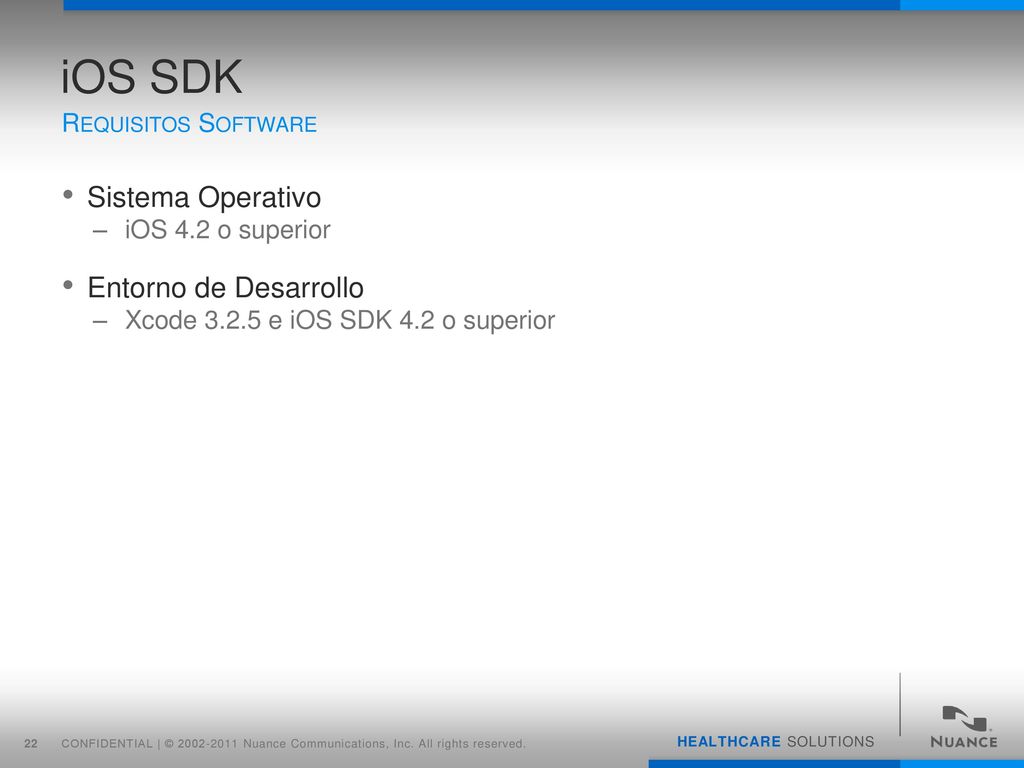

22 iOS SDK Sistema Operativo Entorno de Desarrollo Requisitos Software
10/10/2017 iOS SDK Requisitos Software Sistema Operativo iOS 4.2 o superior Entorno de Desarrollo Xcode e iOS SDK 4.2 o superior CONFIDENTIAL | © Nuance Communications, Inc. All rights reserved.

23 Q & A ! ? ?

24 Thank you. For further information please visit www.nuance.com
