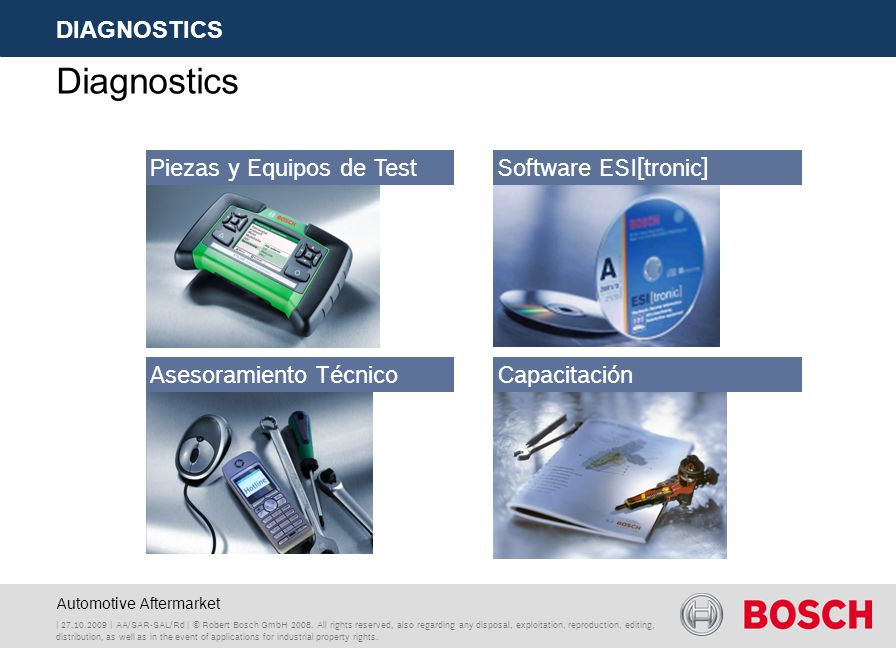

1 Automotive Aftermarket Diagnostics Piezas y Equipos de Test Asesoramiento Técnico Software ESI[tronic] Capacitación DIAGNOSTICS | 27.10.2009 | AA/SAR-SAL/Rd | © Robert Bosch GmbH 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

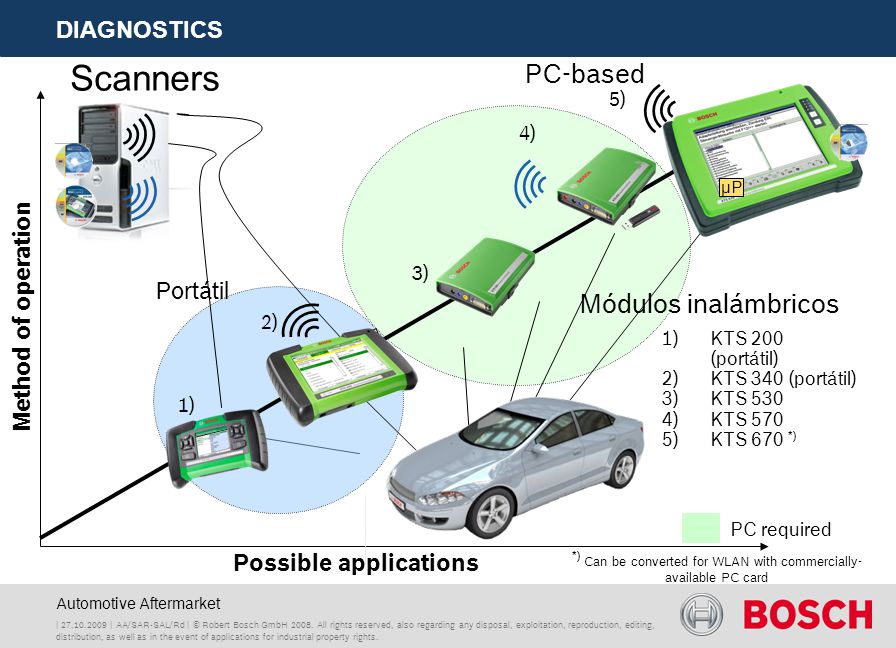

2 Automotive Aftermarket Possible applications Method of operation PC-based 4) 5) Módulos inalámbricos Scanners 1)KTS 200 (portátil) 2)KTS 340 (portátil) 3)KTS 530 4)KTS 570 5)KTS 670 *) 3) *) Can be converted for WLAN with commercially- available PC card 1) Portátil PC required μPμP 2) DIAGNOSTICS | 27.10.2009 | AA/SAR-SAL/Rd | © Robert Bosch GmbH 2008. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

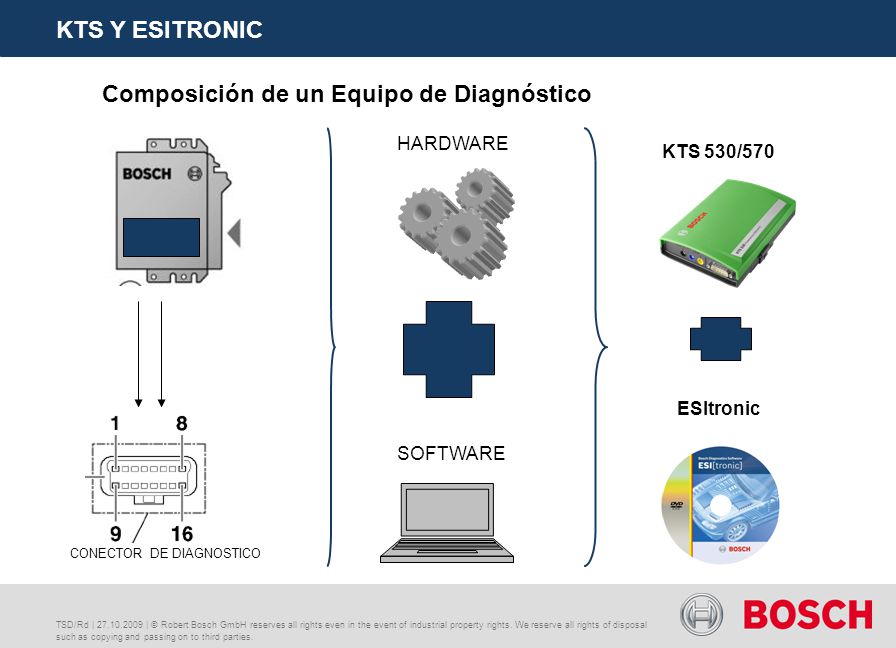

3 TSD/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. CONECTOR DE DIAGNOSTICO KTS Y ESITRONIC Composición de un Equipo de Diagnóstico HARDWARE SOFTWARE KTS 530/570 ESItronic

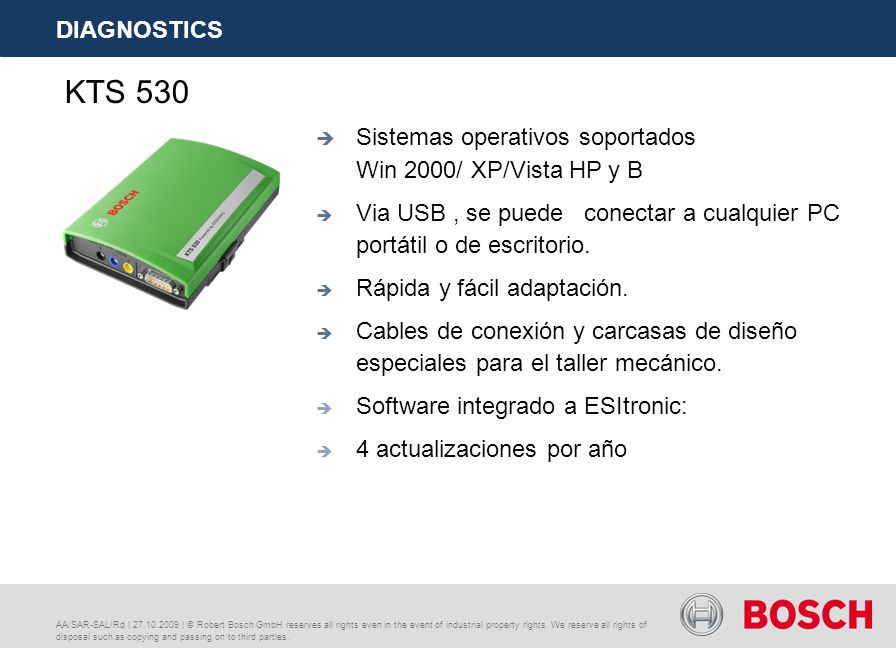

4 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 530  Sistemas operativos soportados Win 2000/ XP/Vista HP y B  Via USB, se puedeconectar a cualquier PC portátil o de escritorio.  Rápida y fácil adaptación.  Cables de conexión y carcasas de diseño especiales para el taller mecánico.  Software integrado a ESItronic:  4 actualizaciones por año DIAGNOSTICS

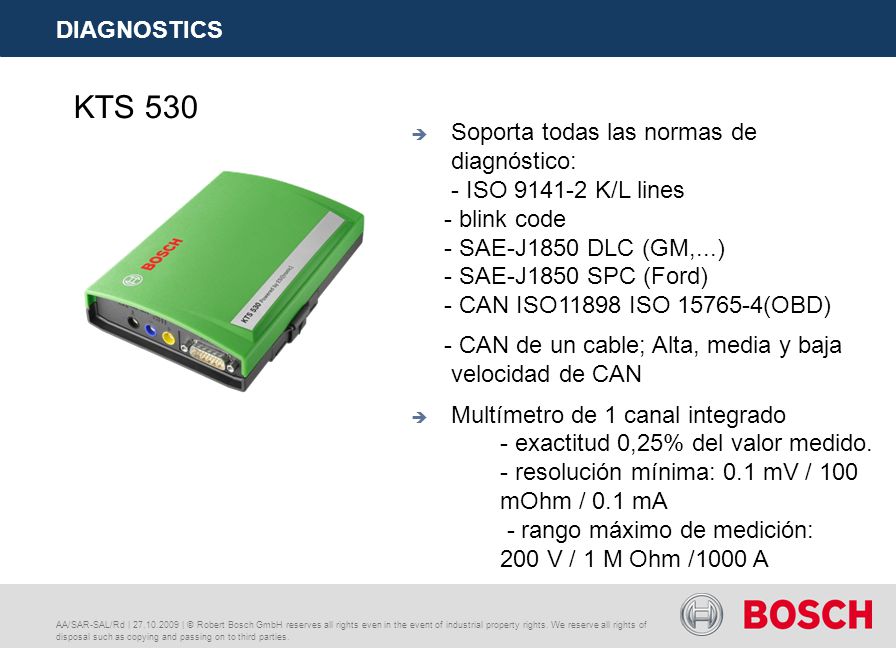

5 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 530  Soporta todas las normas de diagnóstico: - ISO 9141-2 K/L lines - blink code - SAE-J1850 DLC (GM,...) - SAE-J1850 SPC (Ford) - CAN ISO11898 ISO 15765-4(OBD) - CAN de un cable; Alta, media y baja velocidad de CAN  Multímetro de 1 canal integrado - exactitud 0,25% del valor medido. - resolución mínima: 0.1 mV / 100 mOhm / 0.1 mA - rango máximo de medición: 200 V / 1 M Ohm /1000 A DIAGNOSTICS

6 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 570  Sistemas operativos soportados Win 2000/ XP/ Vista HP y B  Via USB, se puedeconectar a cualquier PC portátil o de escritorio.  Rápida y fácil adaptación.  Cables de conexión y carcasas de diseño especiales para el taller mecánico.  Software integrado a ESItronic:  4 actualizaciones por año DIAGNOSTICS

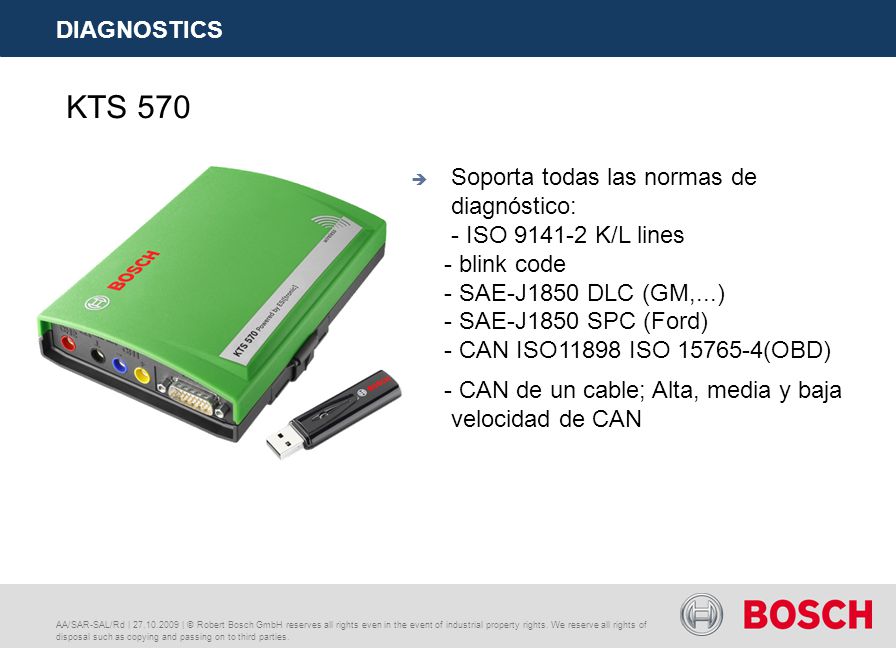

7 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 570  Soporta todas las normas de diagnóstico: - ISO 9141-2 K/L lines - blink code - SAE-J1850 DLC (GM,...) - SAE-J1850 SPC (Ford) - CAN ISO11898 ISO 15765-4(OBD) - CAN de un cable; Alta, media y baja velocidad de CAN DIAGNOSTICS

8 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 570  Multímetro de 2 canales integrado al equipo.  Osciloscopio de 2 canales  Evaluación simultánea de 2 componentes.  Un solo aparato para diagnóstico y mediciones. DIAGNOSTICS

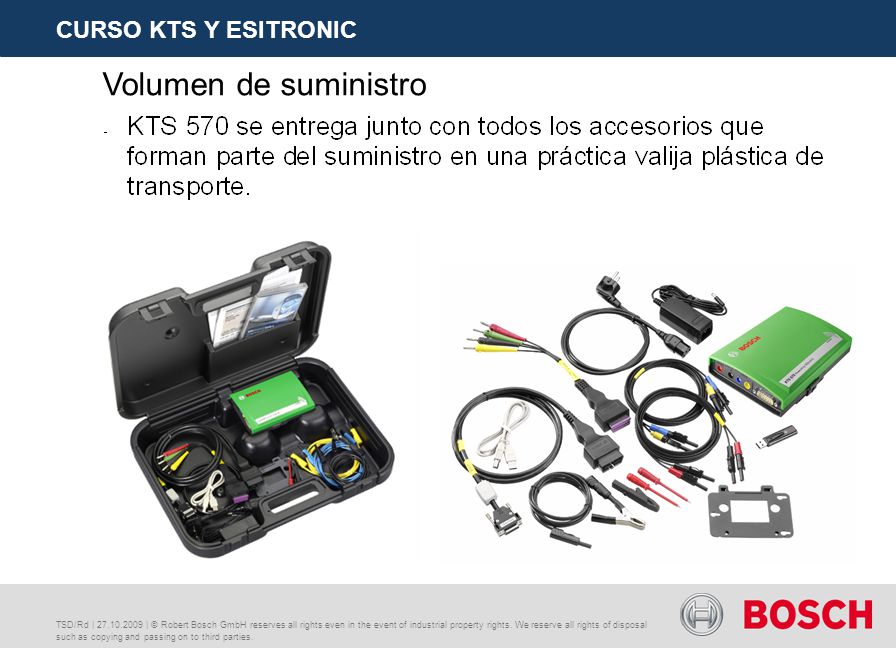

9 TSD/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Volumen de suministro CURSO KTS Y ESITRONIC

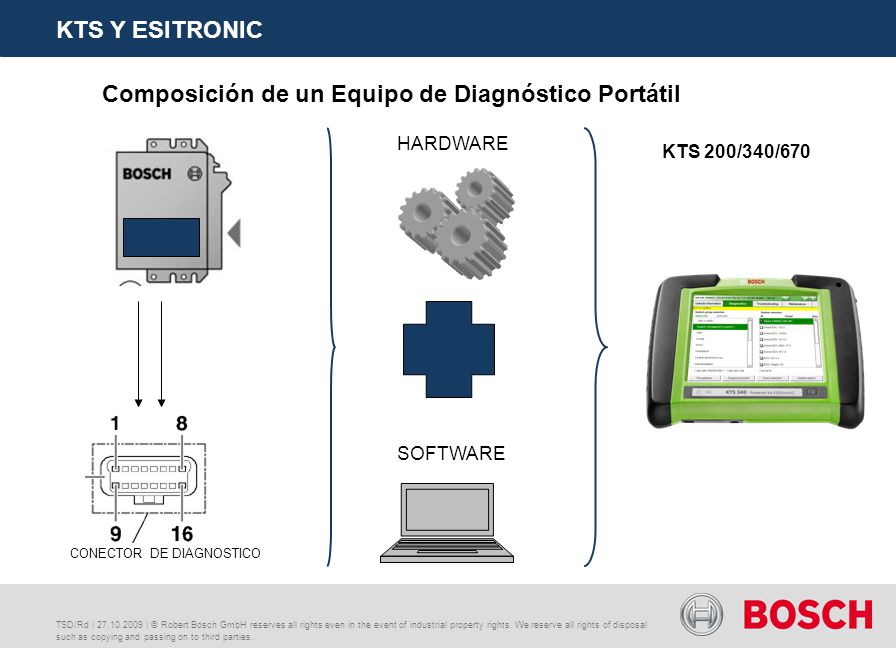

10 TSD/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. CONECTOR DE DIAGNOSTICO KTS Y ESITRONIC Composición de un Equipo de Diagnóstico Portátil HARDWARE SOFTWARE KTS 200/340/670

11 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 670  Sistema de diagnóstico portátil  Totalmente compatible para el uso en el taller.  Display brillante, con visibilidad desde cualquier ángulo.  KTS 570 integrado.  Network-compatible  Multimedia  Diagnostics y plataforma de información para ESI[tronic], con compatibilidad CAS[plus] DIAGNOSTICS

12 AA/SAR-SAL/Rd | 27.10.2009 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. KTS 670  Diagnóstico de ECU  Osciloscopio y multímetro de 2 canales  Dos puertos USB (por ej. Para impresora)  Conexión LAN integrada (10/100 Mbit)  Puerto PC card por ej., standard WLAN card o DVD drive  Salida de monitor VGA-analog  Audio (Micro-In, Line-Out, auriculares )  PS/2 (teclado / mouse ). DIAGNOSTICS
