1 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Chapter 1: Semiconductor Diodes

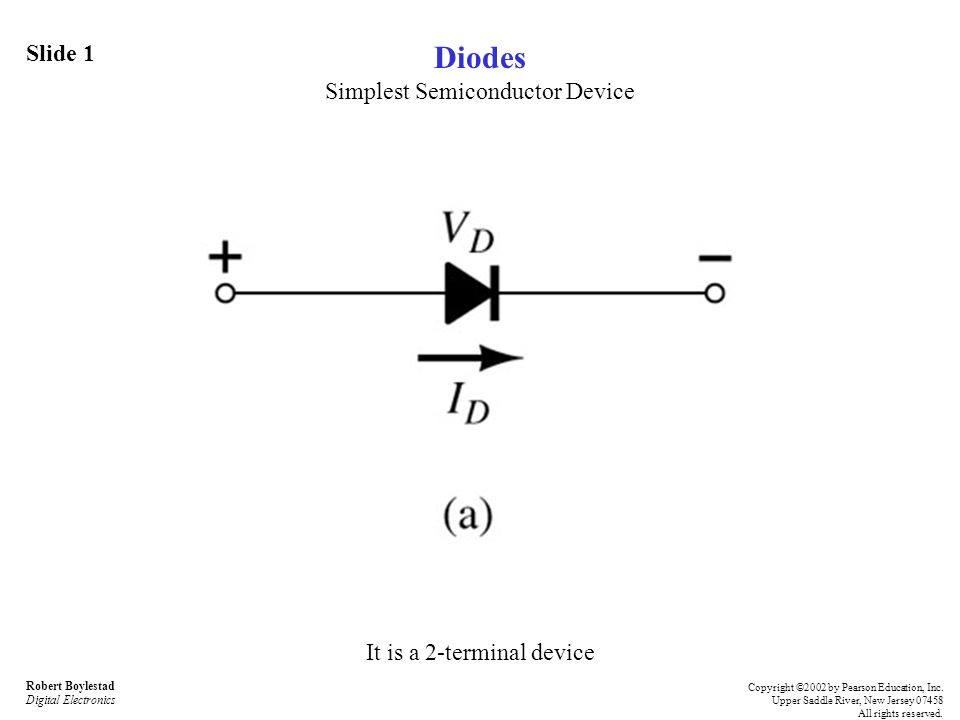

2 Slide 1 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Diodes Simplest Semiconductor Device It is a 2-terminal device

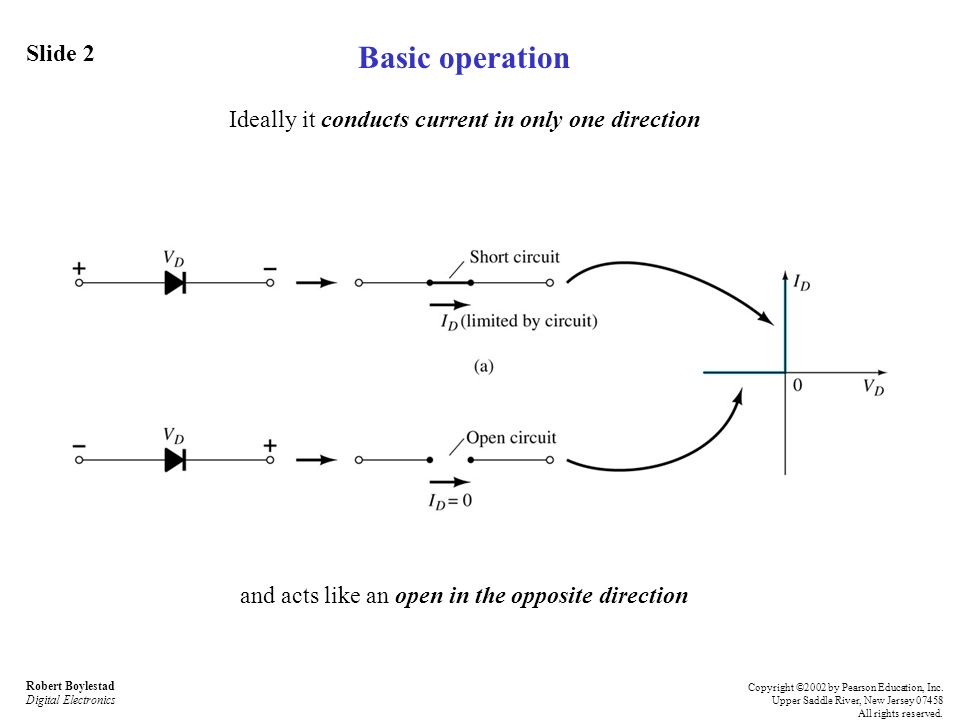

3 Slide 2 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Basic operation Ideally it conducts current in only one direction and acts like an open in the opposite direction

4 Slide 5 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Semiconductor Materials Common materials used in the development of semiconductor devices: Silicon (Si) Germanium (Ge)

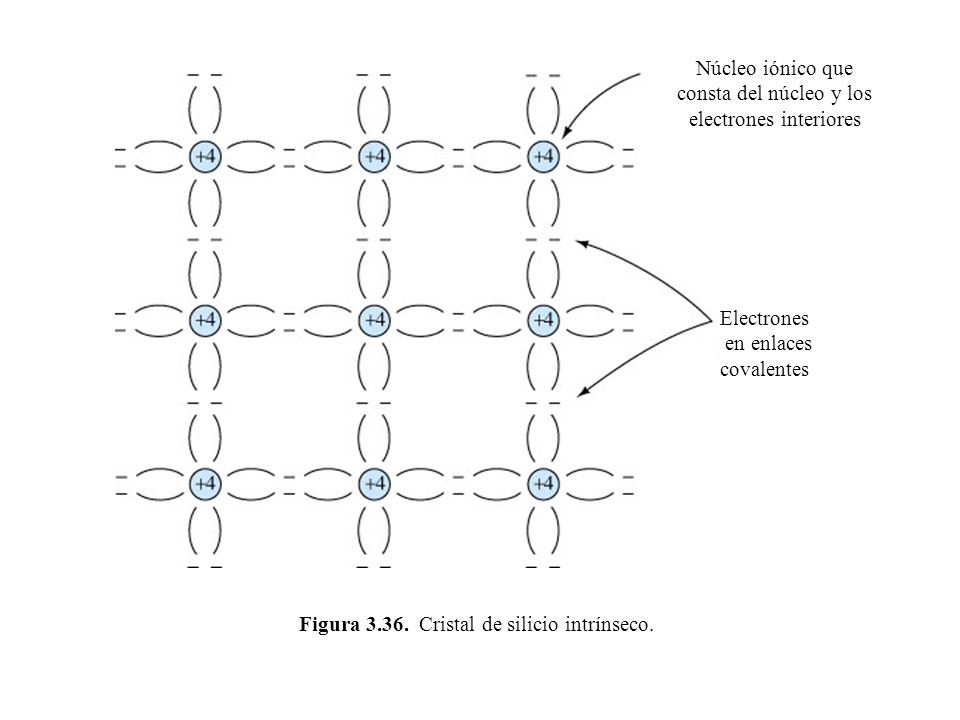

5 Figura Cristal de silicio intrínseco. Núcleo iónico que consta del núcleo y los electrones interiores Electrones en enlaces covalentes

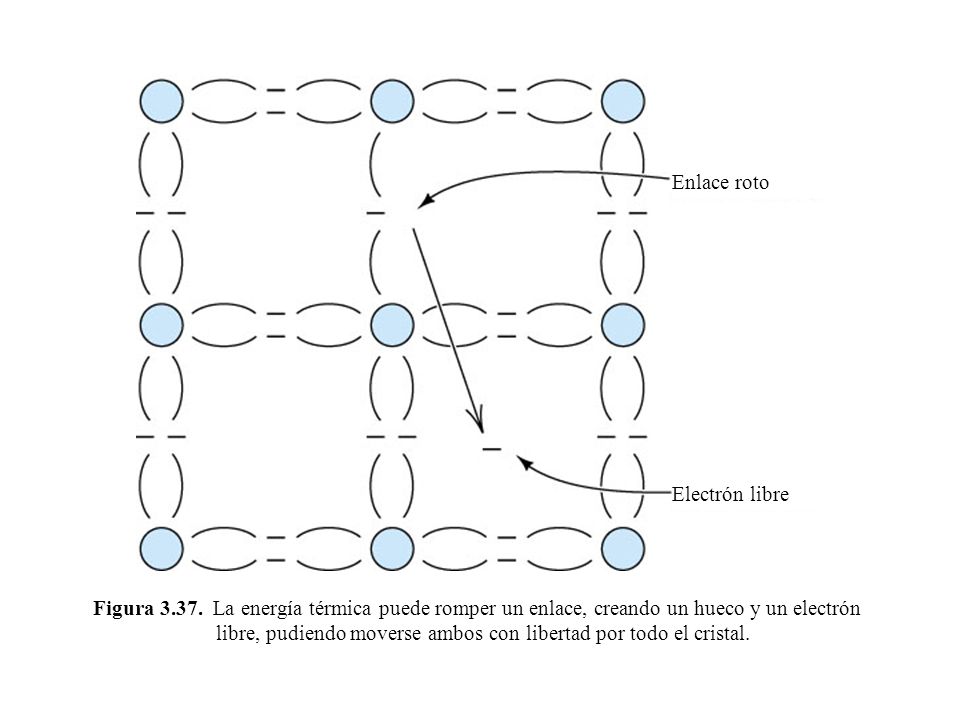

6 Figura La energía térmica puede romper un enlace, creando un hueco y un electrón libre, pudiendo moverse ambos con libertad por todo el cristal. Enlace roto Electrón libre

7 Figura A medida que los electrones se desplazan a la izquierda para llenar un hueco, el hueco se desplaza a la derecha. Estado vacío (hueco) Electrones en enlaces covalentes Incremento en el tiempo

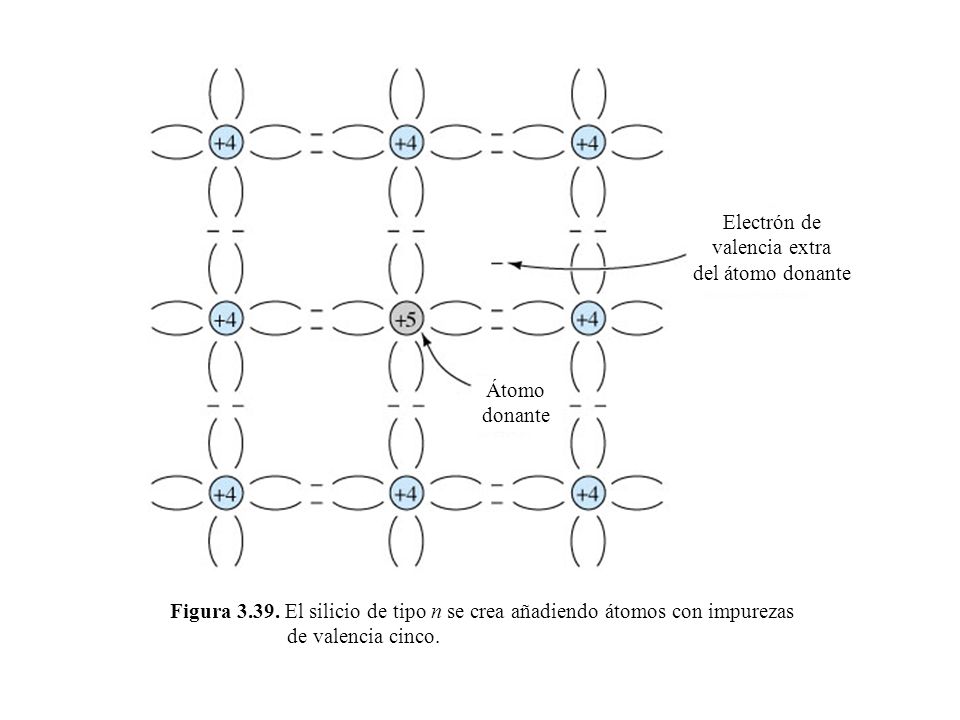

8 Figura El silicio de tipo n se crea añadiendo átomos con impurezas de valencia cinco. Electrón de valencia extra del átomo donante Átomo donante

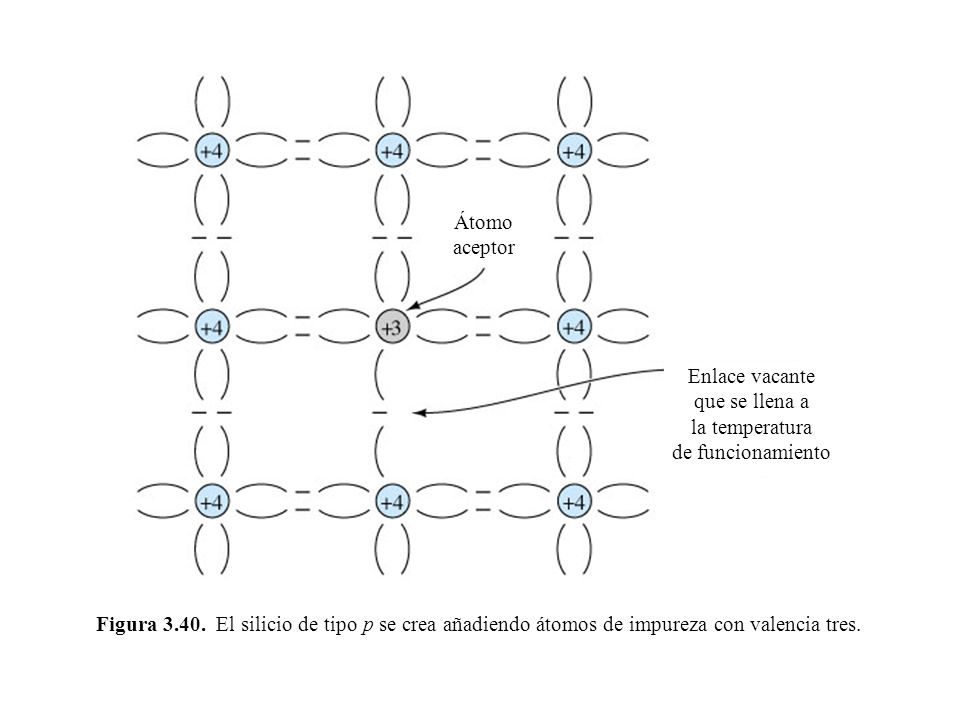

9 Figura El silicio de tipo p se crea añadiendo átomos de impureza con valencia tres. Átomo aceptor Enlace vacante que se llena a la temperatura de funcionamiento

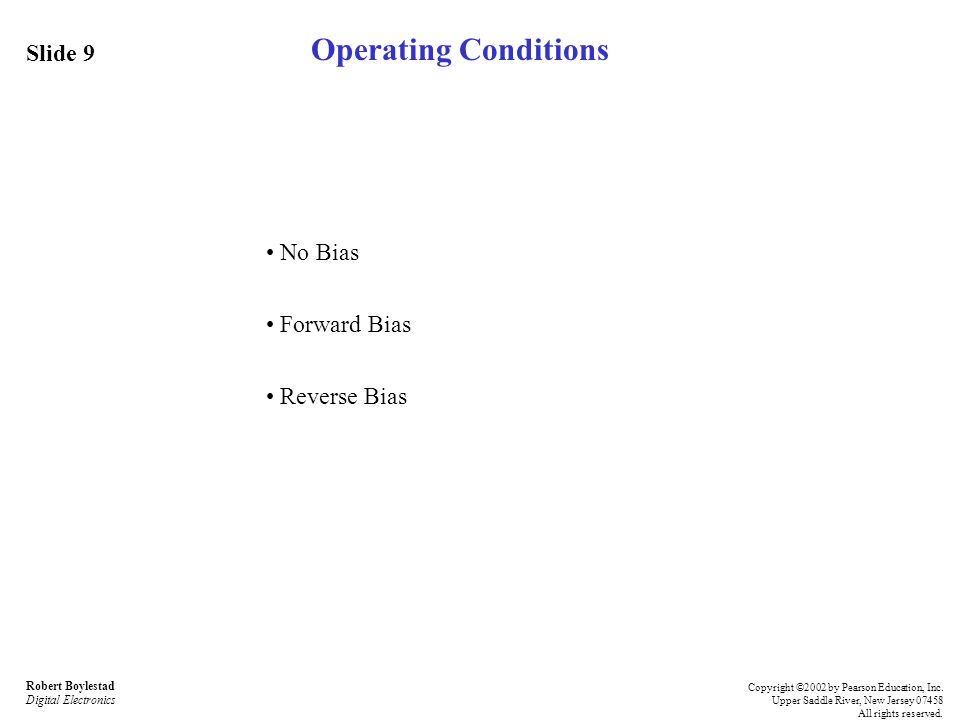

10 Slide 9 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Operating Conditions No Bias Forward Bias Reverse Bias

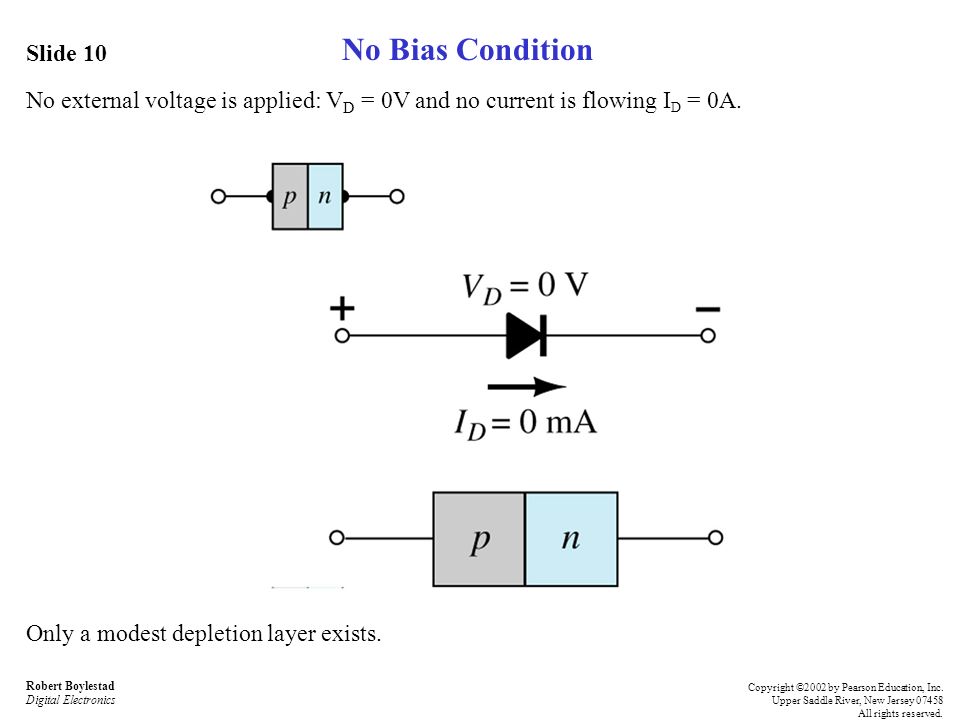

11 Slide 10 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. No external voltage is applied: V D = 0V and no current is flowing I D = 0A. Only a modest depletion layer exists. No Bias Condition

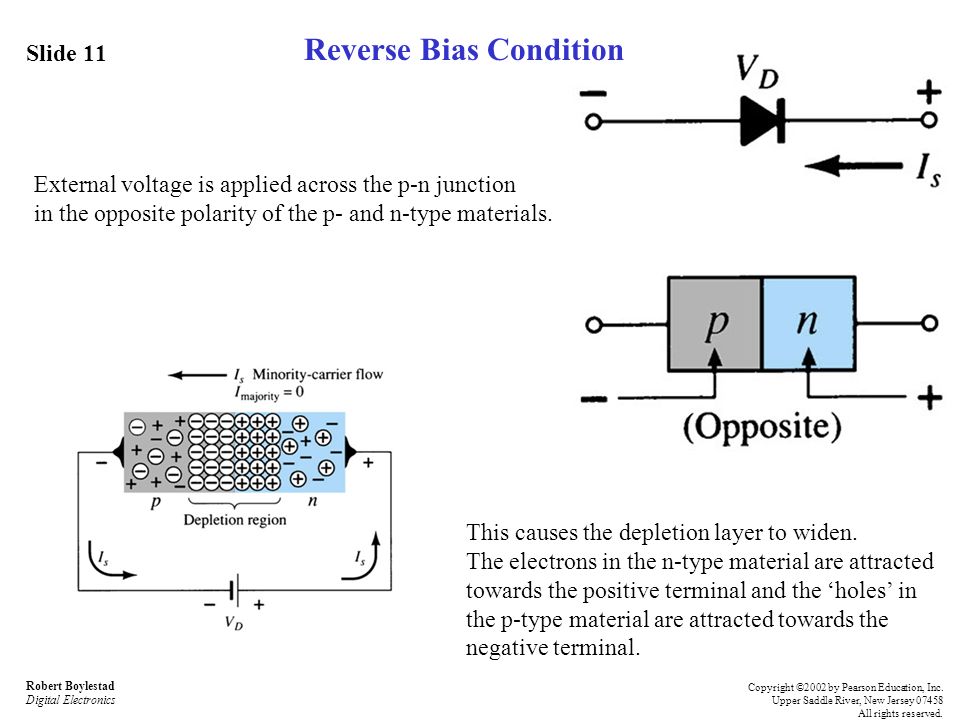

12 Slide 11 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Reverse Bias Condition External voltage is applied across the p-n junction in the opposite polarity of the p- and n-type materials. This causes the depletion layer to widen. The electrons in the n-type material are attracted towards the positive terminal and the holes in the p-type material are attracted towards the negative terminal.

13 Slide 12 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Forward Bias Condition External voltage is applied across the p-n junction in the same polarity of the p- and n-type materials. The depletion layer is narrow. The electrons from the n-type material and holes from the p-type material have sufficient energy to cross the junction.

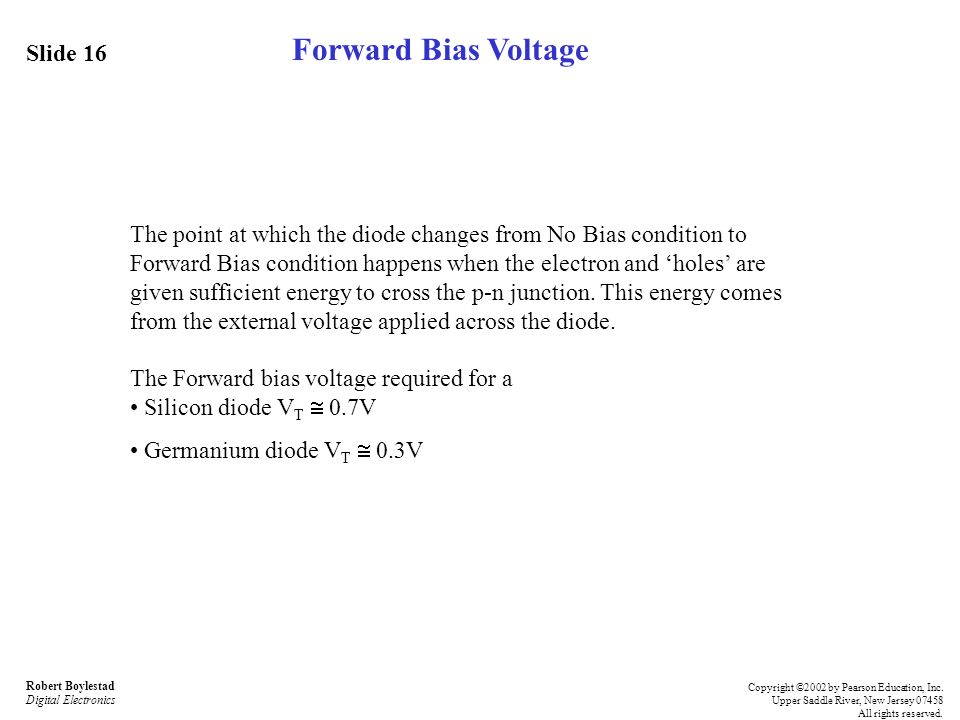

14 Slide 16 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. The point at which the diode changes from No Bias condition to Forward Bias condition happens when the electron and holes are given sufficient energy to cross the p-n junction. This energy comes from the external voltage applied across the diode. The Forward bias voltage required for a Silicon diode V T 0.7V Germanium diode V T 0.3V Forward Bias Voltage

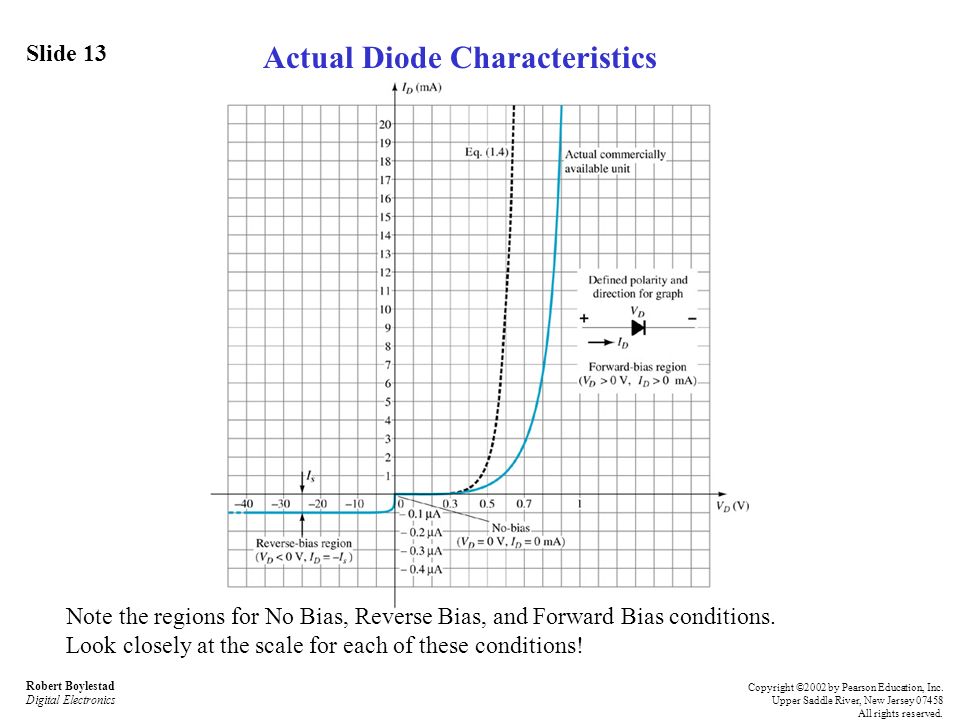

15 Slide 13 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Actual Diode Characteristics Note the regions for No Bias, Reverse Bias, and Forward Bias conditions. Look closely at the scale for each of these conditions!

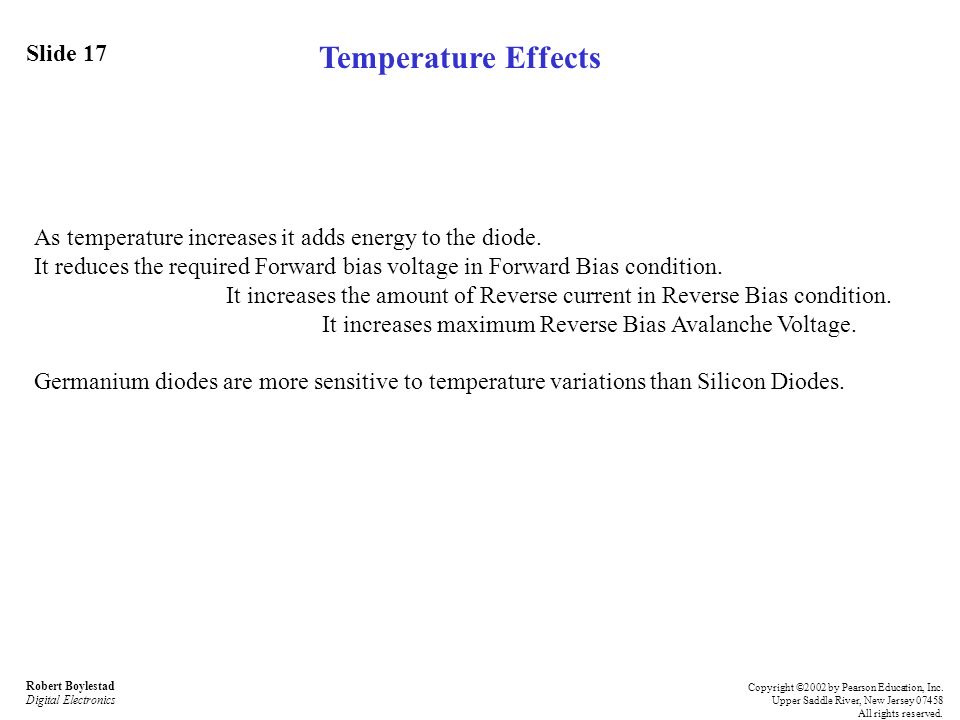

16 Slide 17 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. As temperature increases it adds energy to the diode. It reduces the required Forward bias voltage in Forward Bias condition. It increases the amount of Reverse current in Reverse Bias condition. It increases maximum Reverse Bias Avalanche Voltage. Germanium diodes are more sensitive to temperature variations than Silicon Diodes. Temperature Effects

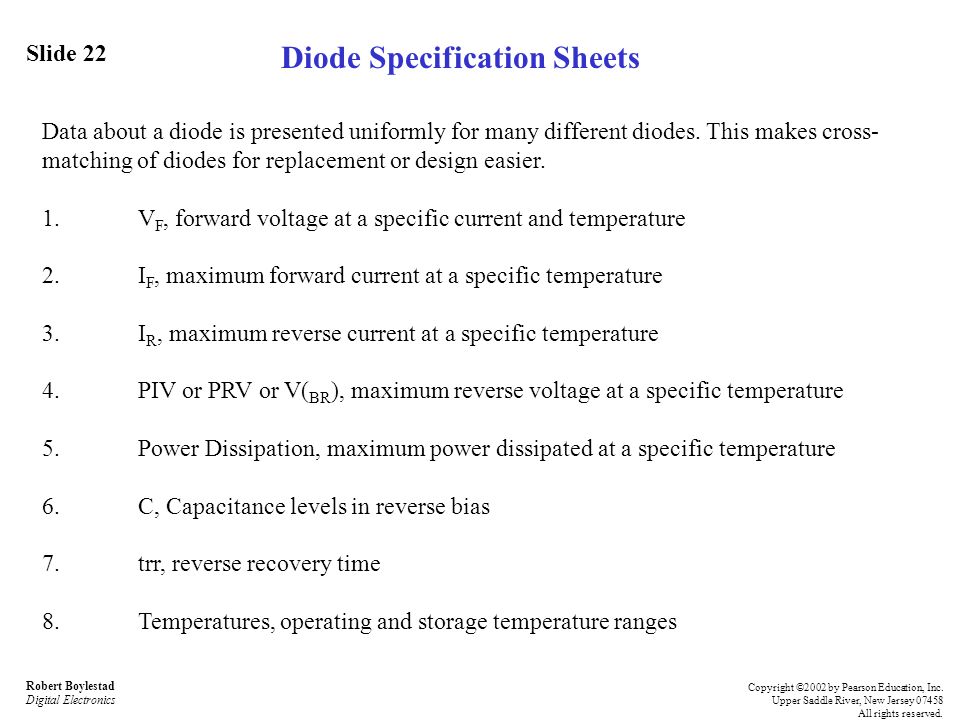

17 Slide 22 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Data about a diode is presented uniformly for many different diodes. This makes cross- matching of diodes for replacement or design easier. 1.V F, forward voltage at a specific current and temperature 2.I F, maximum forward current at a specific temperature 3.I R, maximum reverse current at a specific temperature 4.PIV or PRV or V( BR ), maximum reverse voltage at a specific temperature 5.Power Dissipation, maximum power dissipated at a specific temperature 6.C, Capacitance levels in reverse bias 7.trr, reverse recovery time 8.Temperatures, operating and storage temperature ranges Diode Specification Sheets

18 Principales características comerciales 1. Corriente máxima en directa, I Fmax o I FM (DC forward current): Es la corriente continua máxima que puede atravesar el diodo en directa sin que este sufra ningún daño. Tres límites: Corriente máxima continua (I FM ). Corriente de pico transitoria (Peak forward surge current), en la que se especifica también el tiempo que dura el pico. Corriente de pico repetitivo (Recurrent peak forward current), en la que se especifica la frecuencia máxima del pico. 2. Tensión de ruptura en polarización inversa (Breakdown Voltage, BV; Peak Inverse Voltage, PIV): Es la tensión a la que se produce el fenómeno de ruptura por avalancha. 3. Tensión máxima de trabajo en inversa (Maximun Working Inverse Voltage): Es la tensión que el fabricante recomienda no sobrepasar para una operación en inversa segura. 4. Corriente en inversa, I R (Reverse current): Es habitual que se exprese para diferentes valores de la tensión inversa 5. Caída de tensión en PD, V F (Forward Voltage): A veces no es 0.7 Volts.

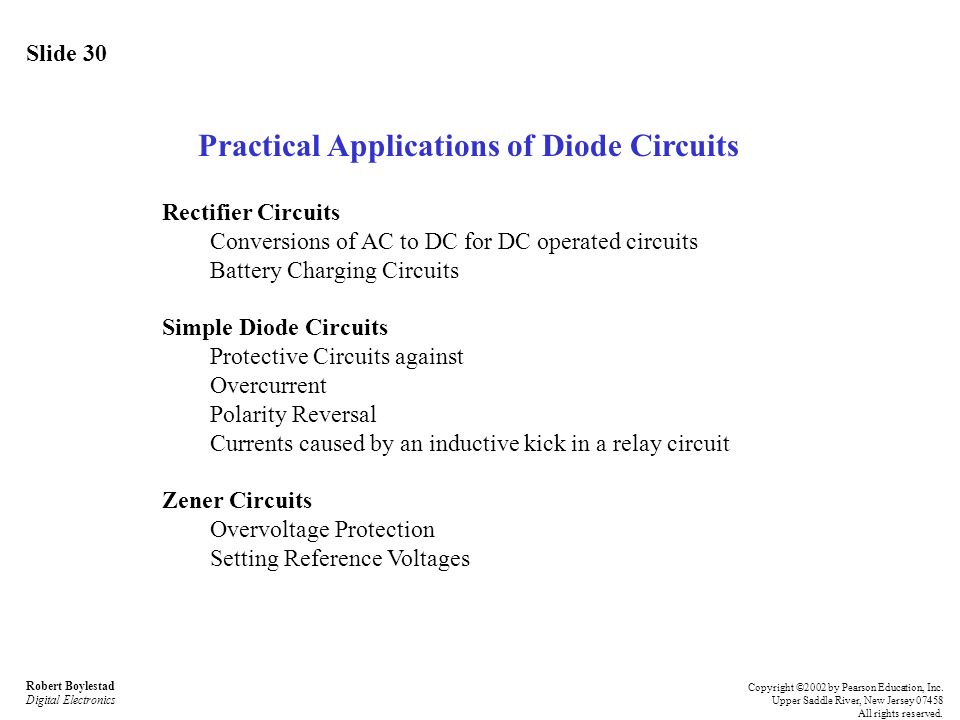

19 Slide 30 Robert Boylestad Digital Electronics Copyright ©2002 by Pearson Education, Inc. Upper Saddle River, New Jersey All rights reserved. Practical Applications of Diode Circuits Rectifier Circuits Conversions of AC to DC for DC operated circuits Battery Charging Circuits Simple Diode Circuits Protective Circuits against Overcurrent Polarity Reversal Currents caused by an inductive kick in a relay circuit Zener Circuits Overvoltage Protection Setting Reference Voltages
