1 RedCLARA Update Eriko Porto CLARA Network Engineering Group eporto@rnp.br

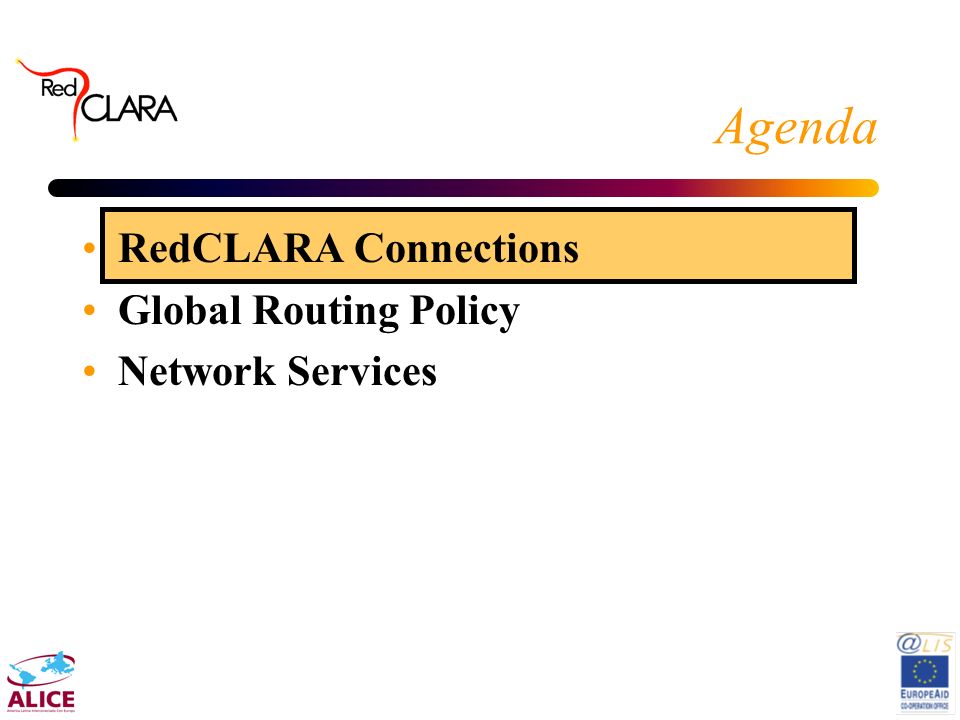

2 Agenda RedCLARA Connections Global Routing Policy Network Services

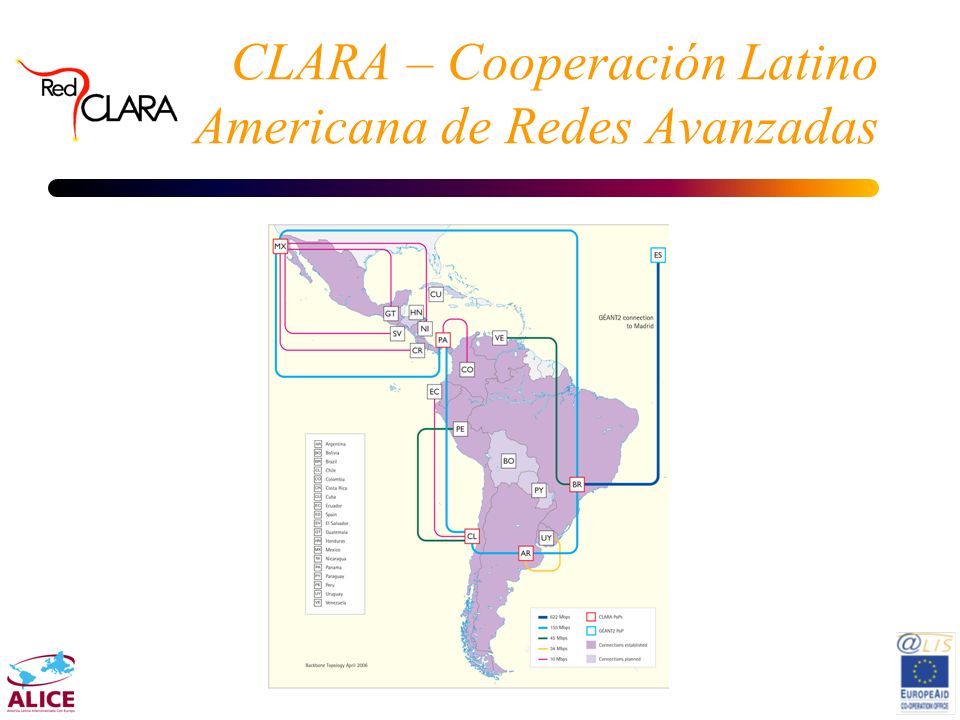

3 CLARA – Cooperación Latino Americana de Redes Avanzadas

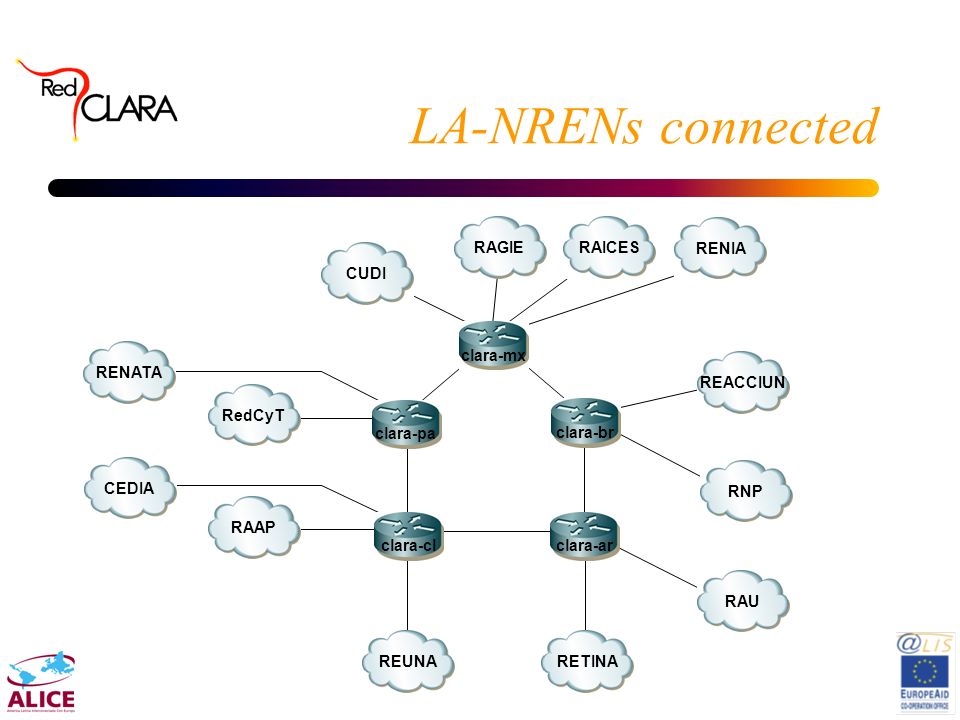

4 LA-NRENs connected clara-clclara-ar clara-br clara-pa clara-mx REUNA RNP CUDI REACCIUN RETINA RAAP RAU RedCyT CEDIA RAGIE RENATA RAICES RENIA

5 Topology of the Network

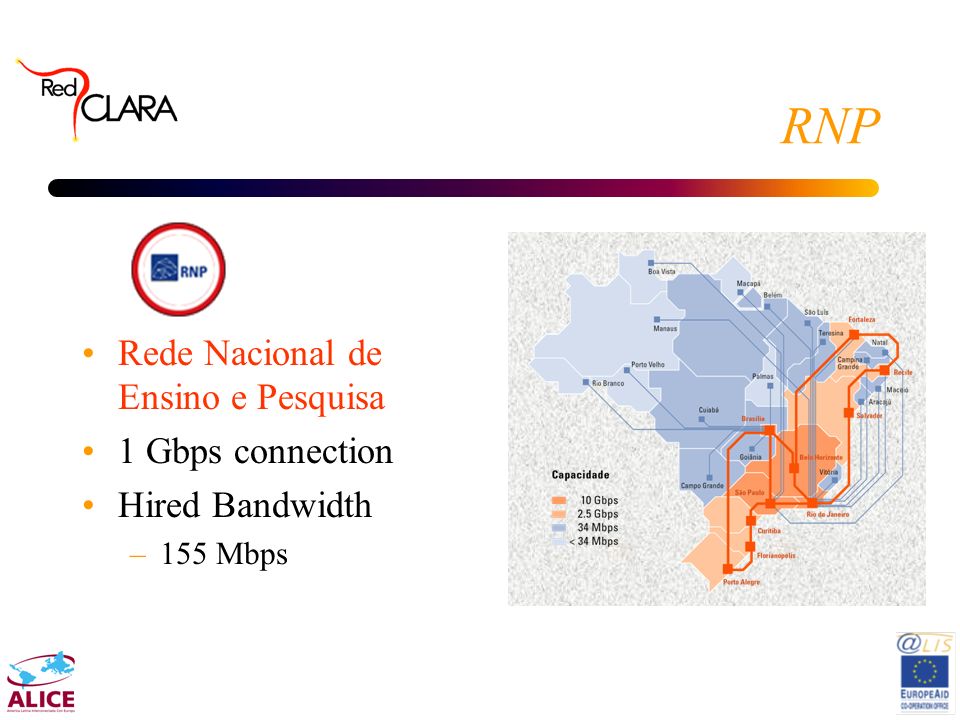

6 RNP Rede Nacional de Ensino e Pesquisa 1 Gbps connection Hired Bandwidth –155 Mbps

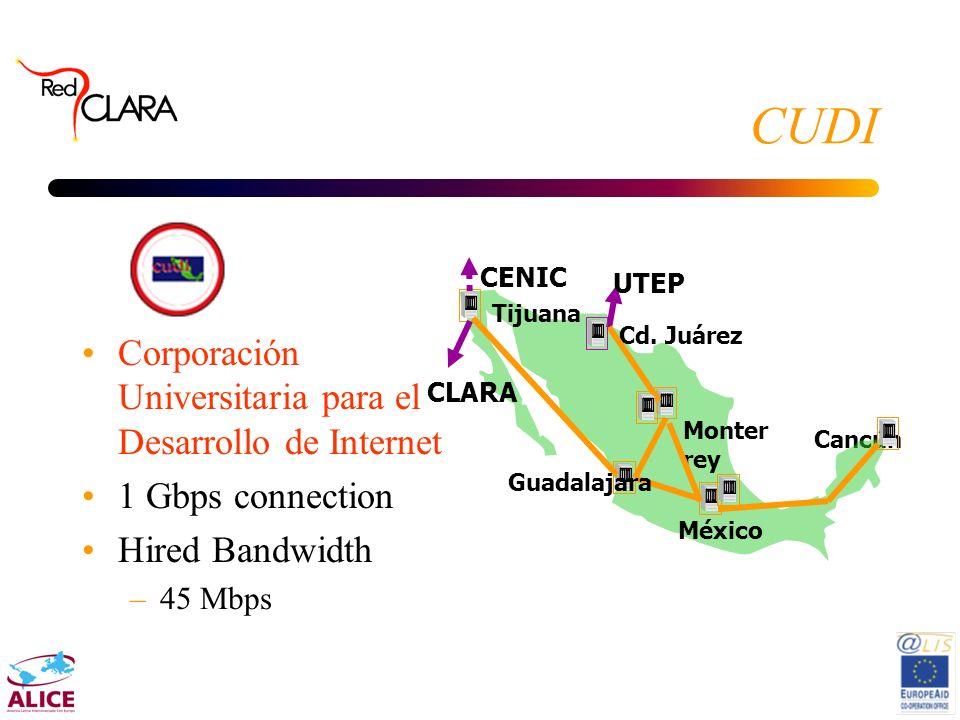

7 CUDI Corporación Universitaria para el Desarrollo de Internet 1 Gbps connection Hired Bandwidth –45 Mbps Cancún Tijuana CENIC Cd. Juárez México Guadalajara Monter rey CLARA UTEP

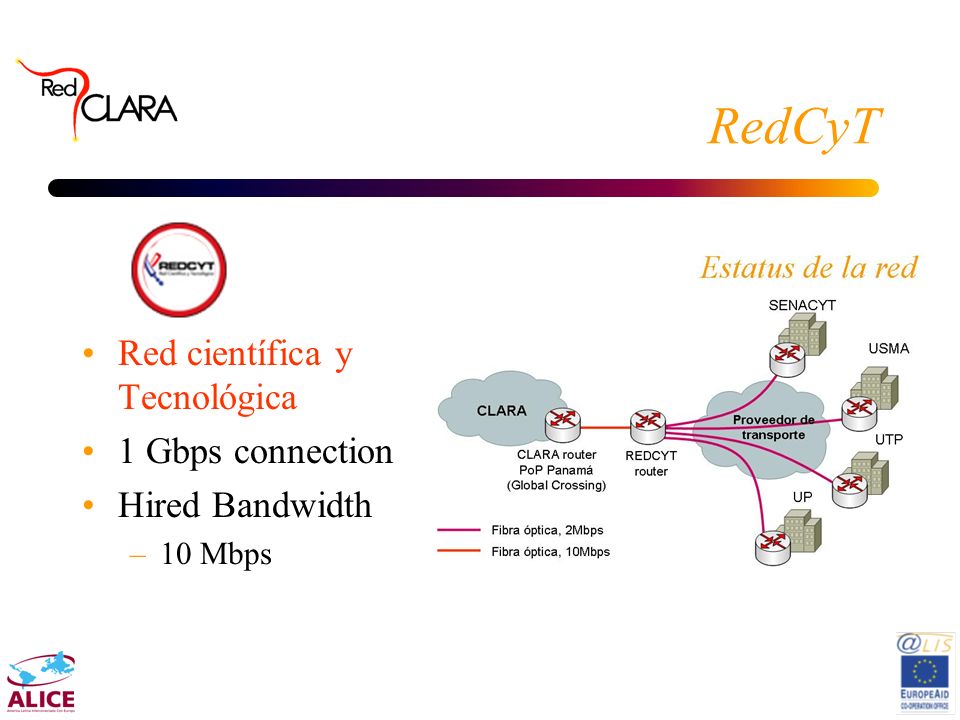

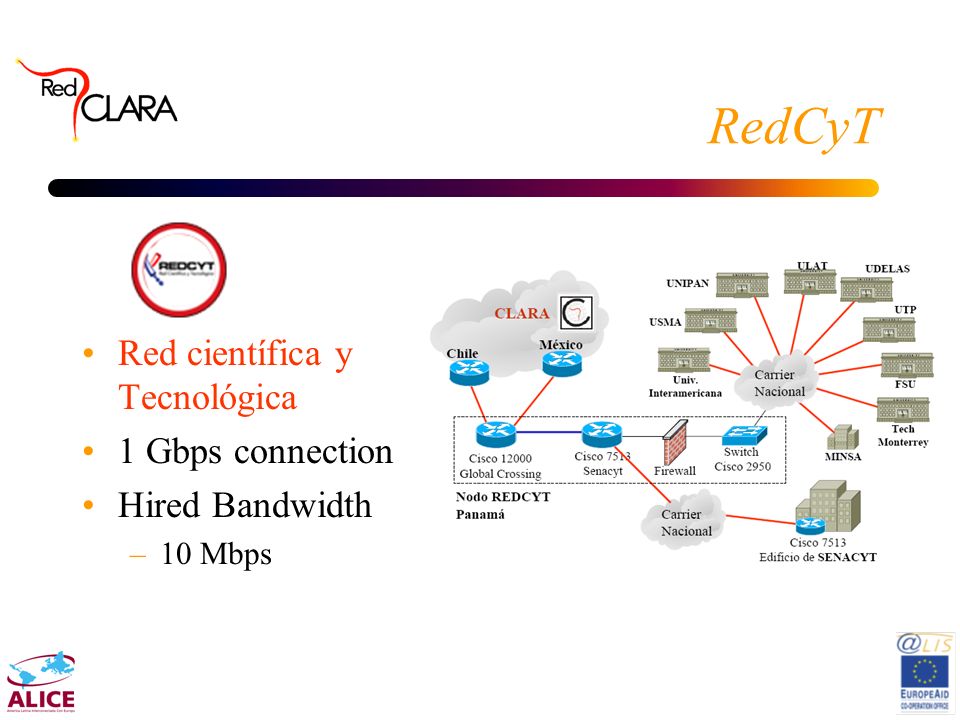

8 RedCyT Red científica y Tecnológica 1 Gbps connection Hired Bandwidth –10 Mbps

9 RedCyT Red científica y Tecnológica 1 Gbps connection Hired Bandwidth –10 Mbps

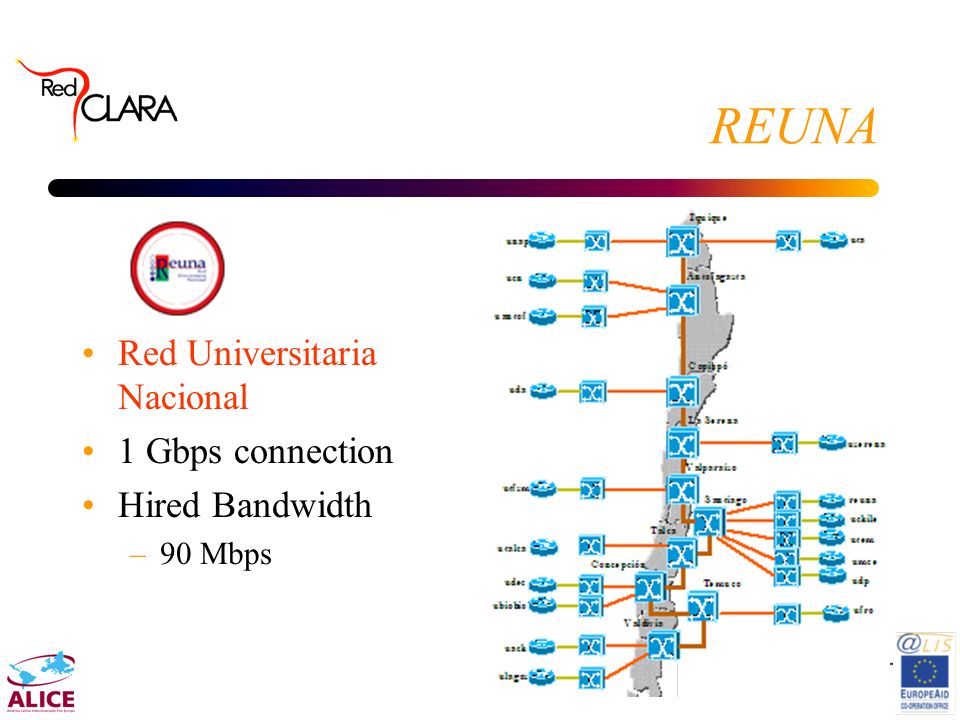

10 REUNA Red Universitaria Nacional 1 Gbps connection Hired Bandwidth –90 Mbps

11 RETINA Red TeleInformática Académica STM-1 connection Hired Bandwidth –90 Mbps (ATM)

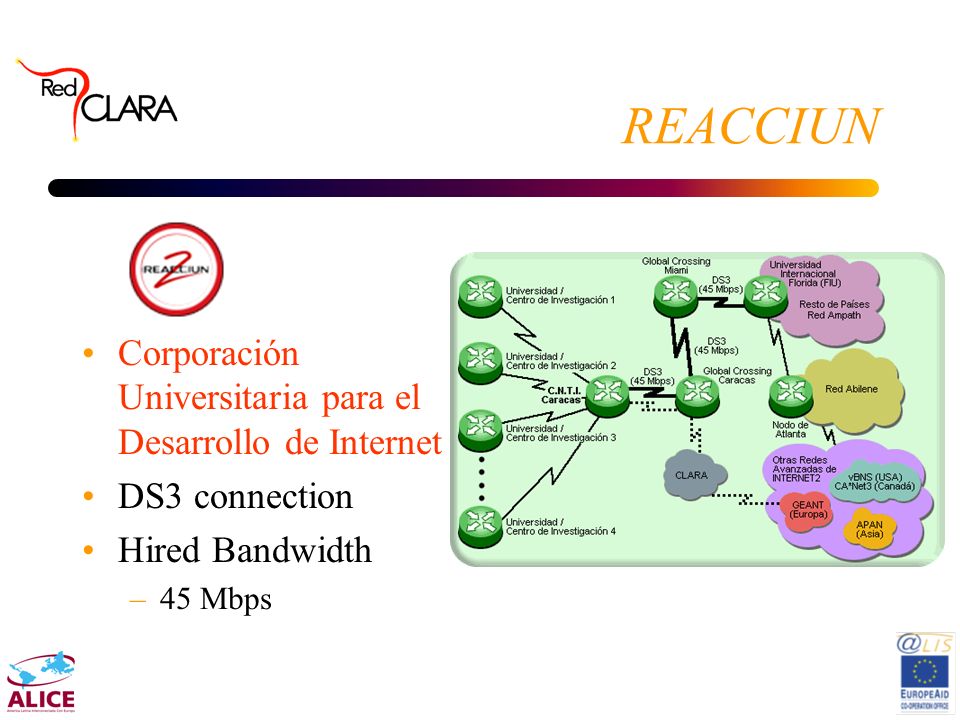

12 REACCIUN Corporación Universitaria para el Desarrollo de Internet DS3 connection Hired Bandwidth –45 Mbps

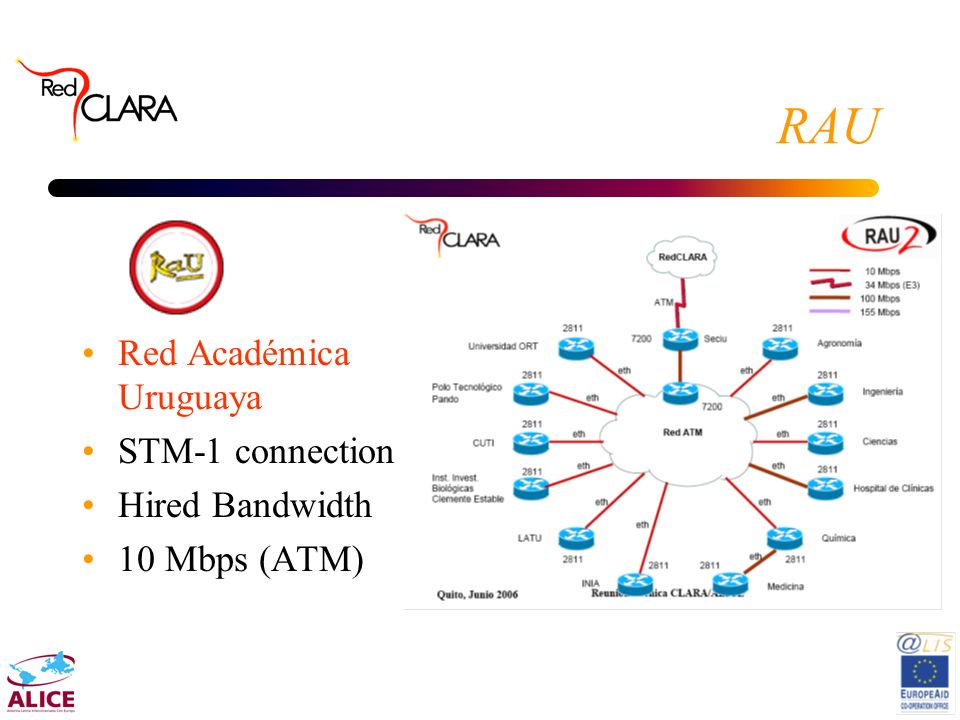

13 RAU Red Académica Uruguaya STM-1 connection Hired Bandwidth 10 Mbps (ATM)

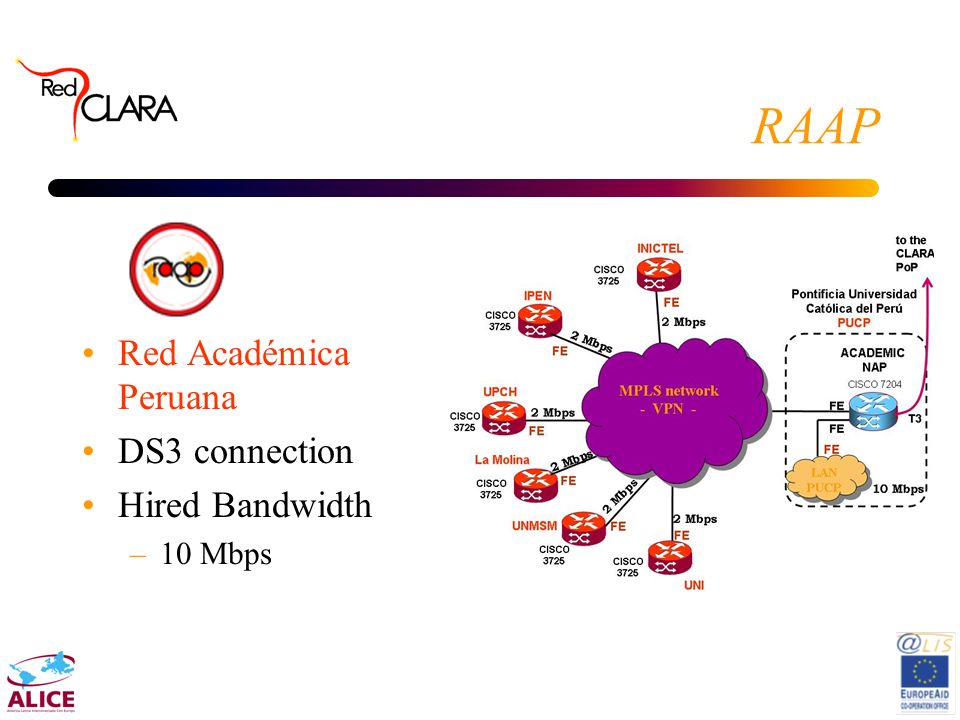

14 RAAP Red Académica Peruana DS3 connection Hired Bandwidth –10 Mbps

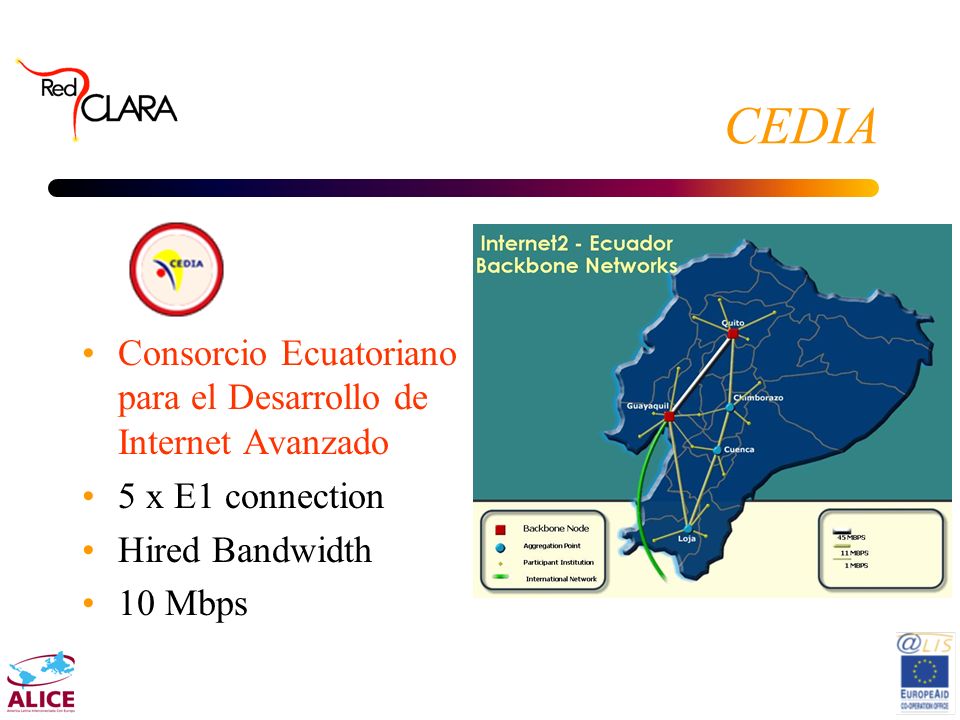

15 CEDIA Consorcio Ecuatoriano para el Desarrollo de Internet Avanzado 5 x E1 connection Hired Bandwidth 10 Mbps

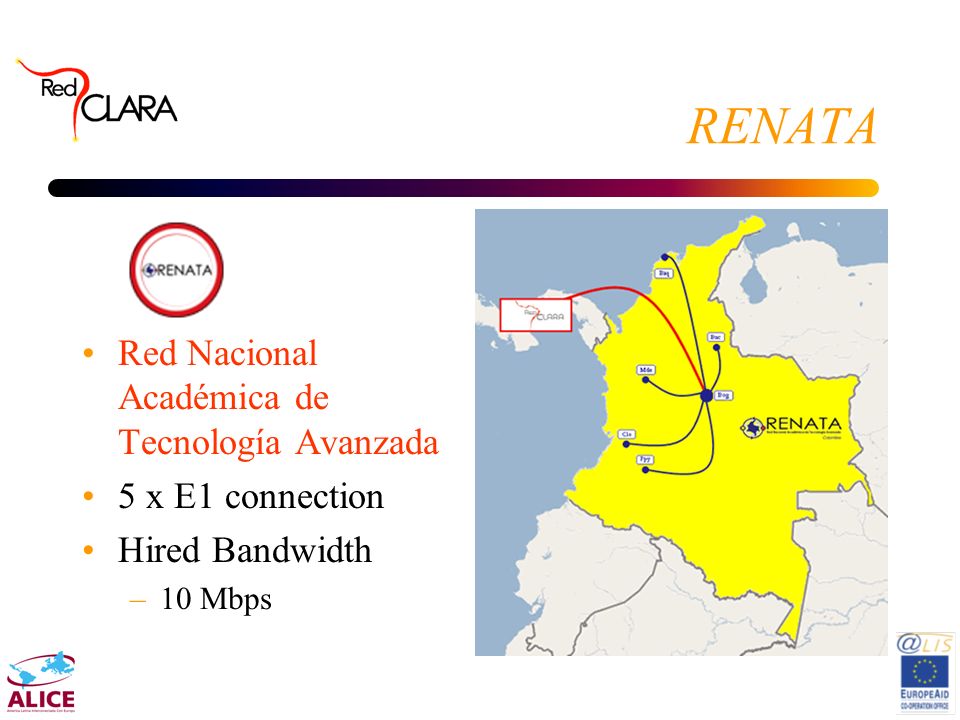

16 RENATA Red Nacional Académica de Tecnología Avanzada 5 x E1 connection Hired Bandwidth –10 Mbps

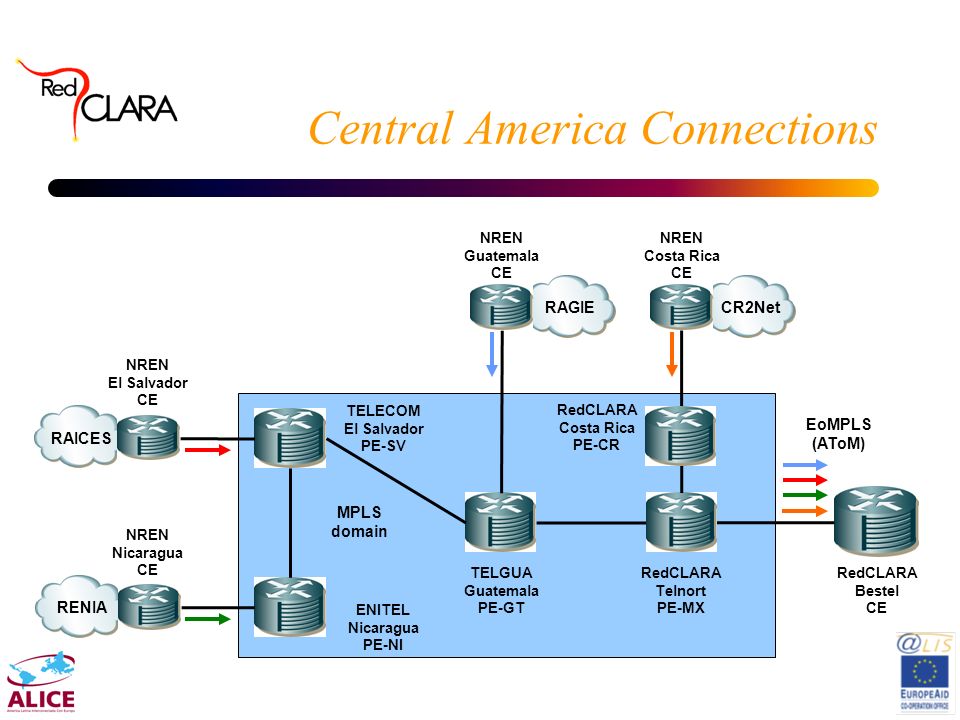

17 Central America Connections RedCLARA Telnort PE-MX RAICES RENIA RAGIE RedCLARA Bestel CE TELECOM El Salvador PE-SV NREN Guatemala CE NREN El Salvador CE NREN Nicaragua CE ENITEL Nicaragua PE-NI TELGUA Guatemala PE-GT MPLS domain EoMPLS (AToM) CR2Net NREN Costa Rica CE RedCLARA Costa Rica PE-CR

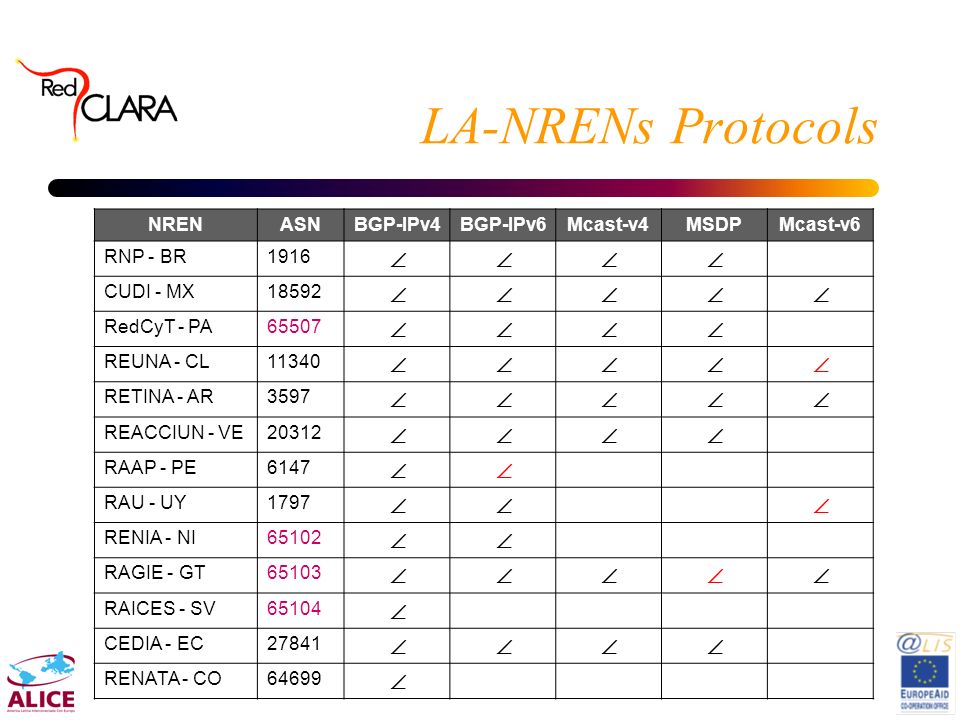

18 LA-NRENs Protocols NRENASNBGP-IPv4BGP-IPv6Mcast-v4MSDPMcast-v6 RNP - BR1916  CUDI - MX18592  RedCyT - PA65507  REUNA - CL11340  RETINA - AR3597  REACCIUN - VE20312  RAAP - PE6147  RAU - UY1797   RENIA - NI65102  RAGIE - GT65103  RAICES - SV65104  CEDIA - EC27841  RENATA - CO64699 

19 R&E Networks Connectivity GEANT 622 Mbps WHREN- LILA TEP 2.5 Gbps Pacific Wave 1.0 Gbps Abilene CalRen NLR AARNet ESnet PNWGP NISN TWAREN GEANT AMPATH Abilene

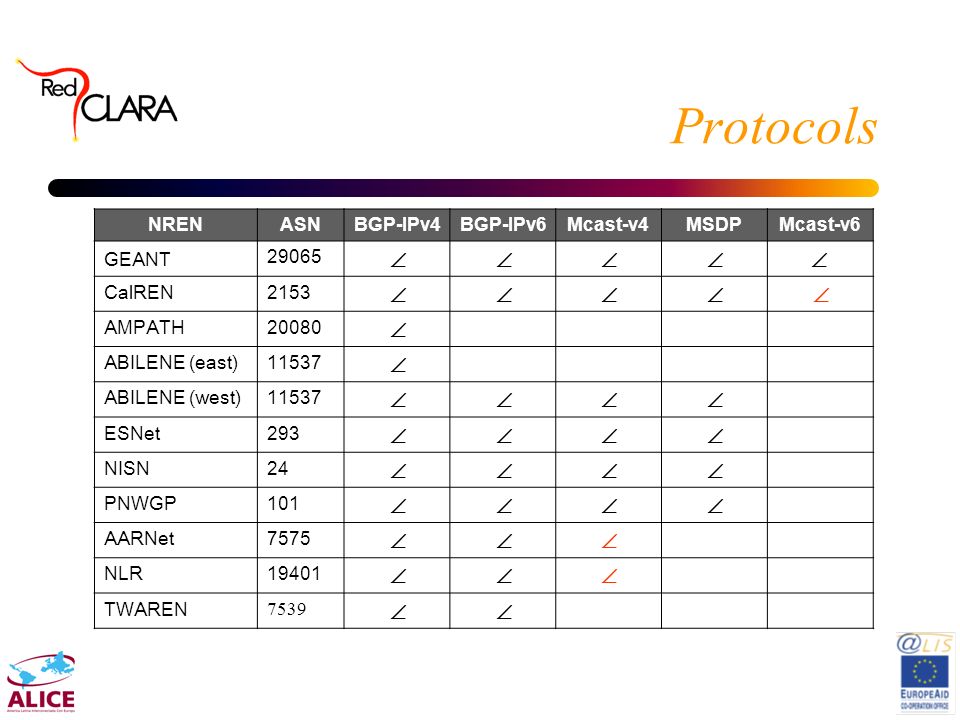

20 Protocols NRENASNBGP-IPv4BGP-IPv6 Mcast-v4 MSDPMcast-v6 GEANT 29065   CalREN2153  AMPATH20080  ABILENE (east)11537  ABILENE (west)11537  ESNet293  NISN24  PNWGP101  AARNet7575  NLR19401  TWAREN 7539 

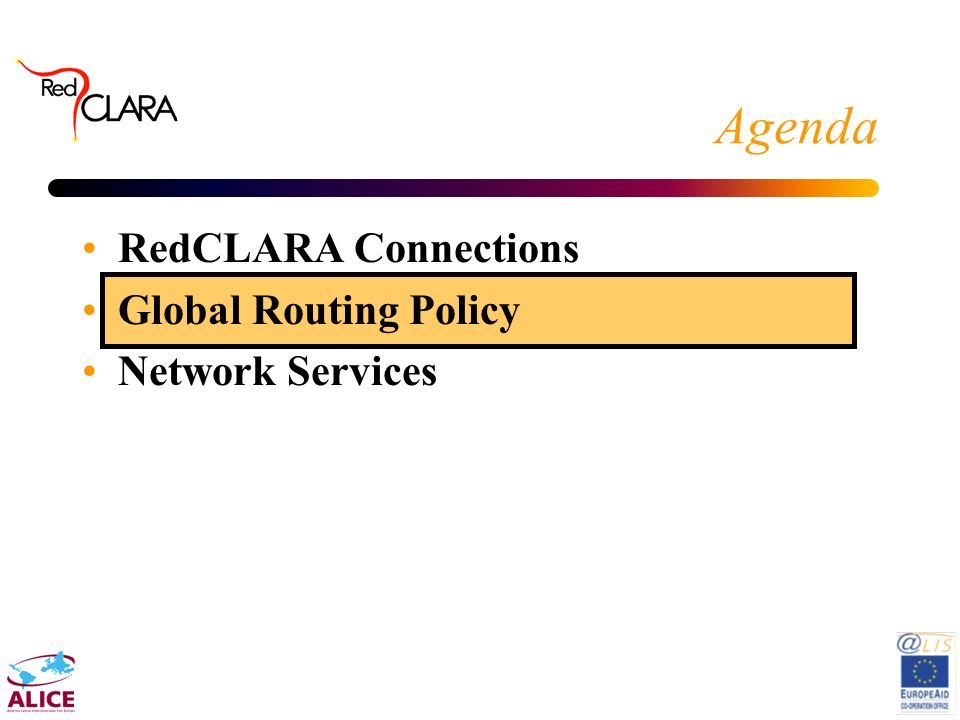

21 Agenda RedCLARA Connections Global Routing Policy Network Services

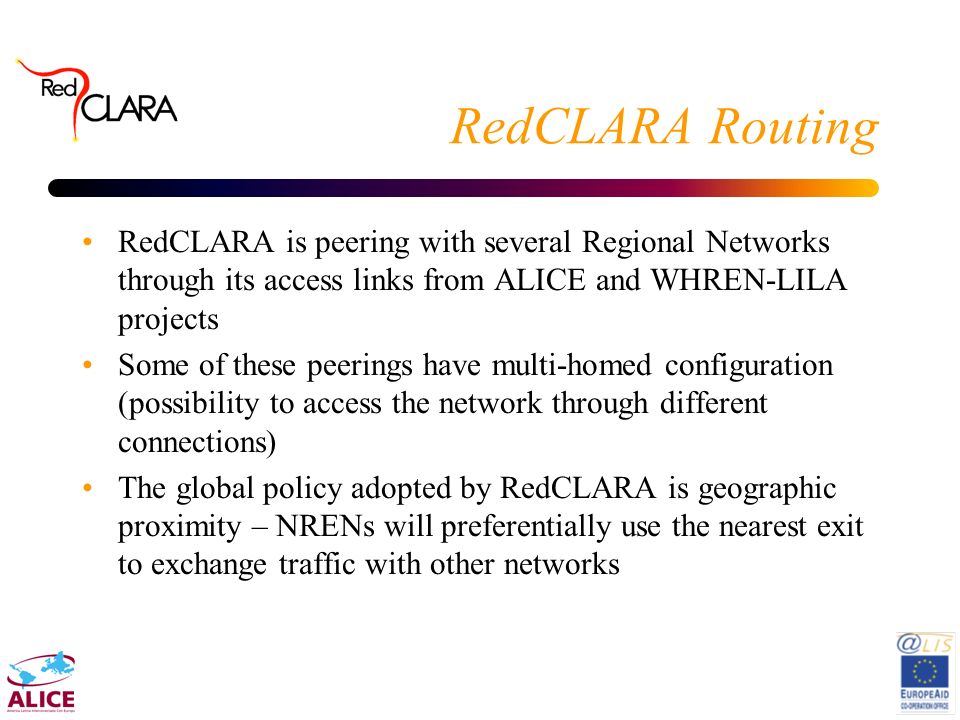

22 RedCLARA Routing RedCLARA is peering with several Regional Networks through its access links from ALICE and WHREN-LILA projects Some of these peerings have multi-homed configuration (possibility to access the network through different connections) The global policy adopted by RedCLARA is geographic proximity – NRENs will preferentially use the nearest exit to exchange traffic with other networks

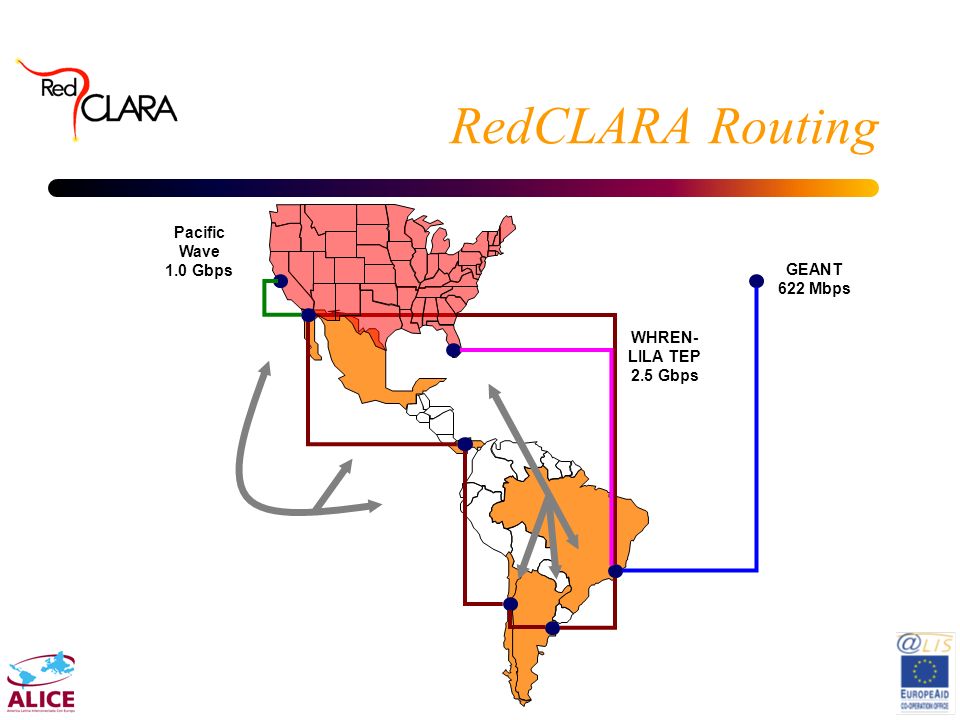

23 RedCLARA Routing GEANT 622 Mbps WHREN- LILA TEP 2.5 Gbps Pacific Wave 1.0 Gbps

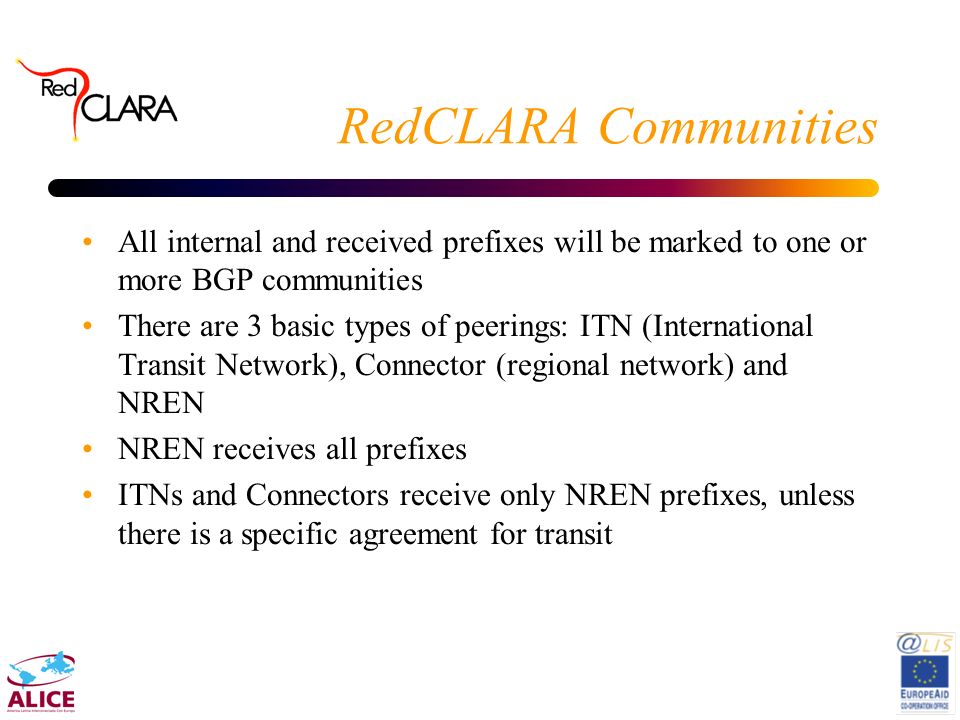

24 RedCLARA Communities All internal and received prefixes will be marked to one or more BGP communities There are 3 basic types of peerings: ITN (International Transit Network), Connector (regional network) and NREN NREN receives all prefixes ITNs and Connectors receive only NREN prefixes, unless there is a specific agreement for transit

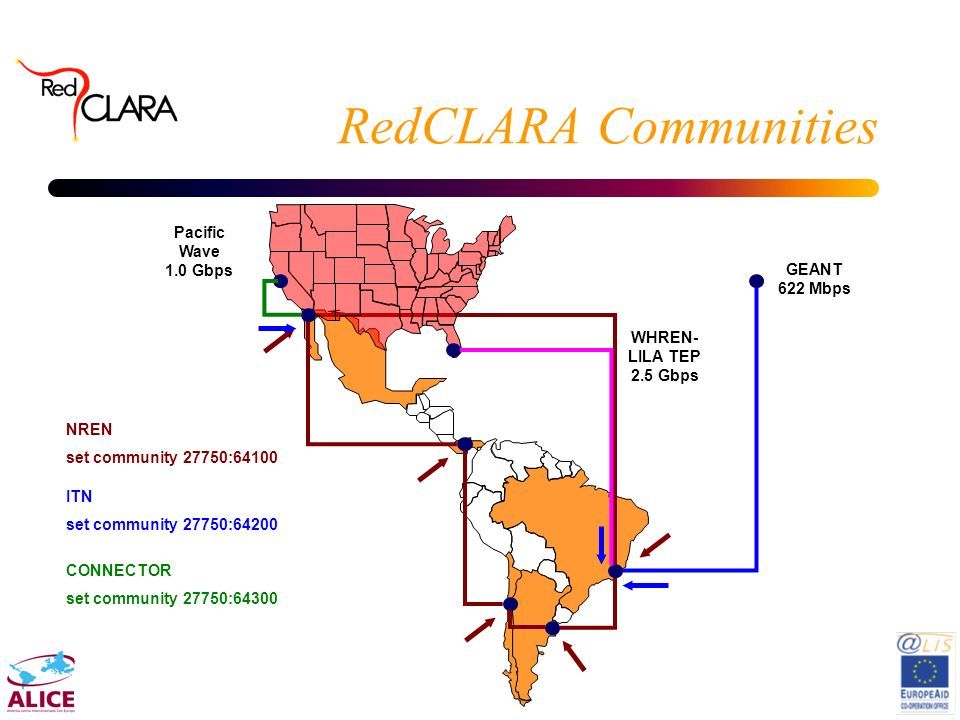

25 RedCLARA Communities GEANT 622 Mbps WHREN- LILA TEP 2.5 Gbps Pacific Wave 1.0 Gbps NREN set community 27750:64100 CONNECTOR set community 27750:64300 ITN set community 27750:64200

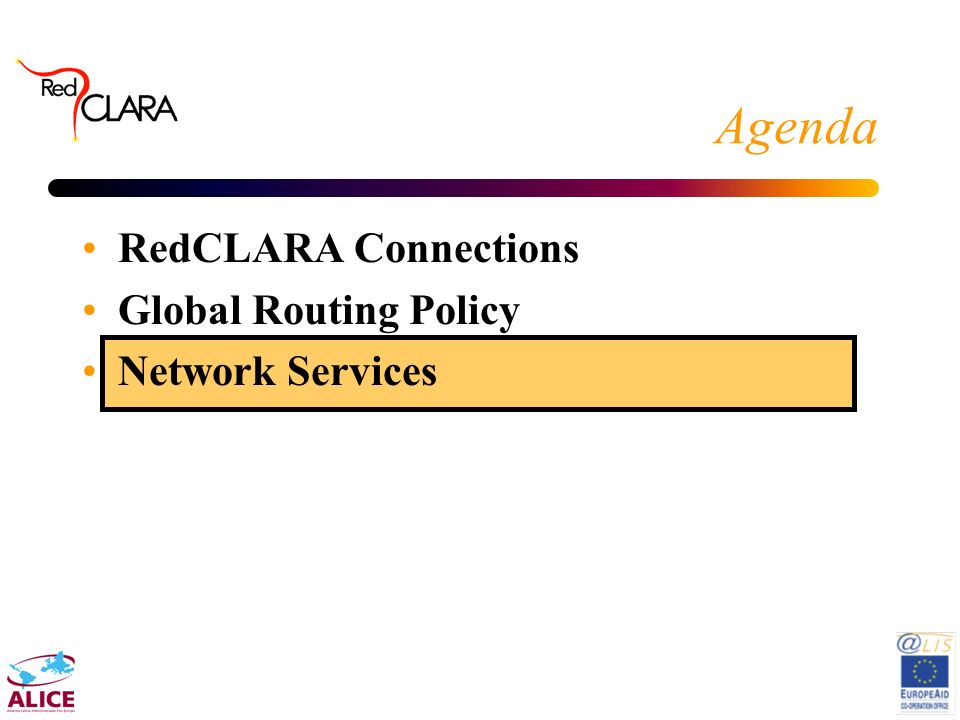

26 Agenda RedCLARA Connections Global Routing Policy Network Services

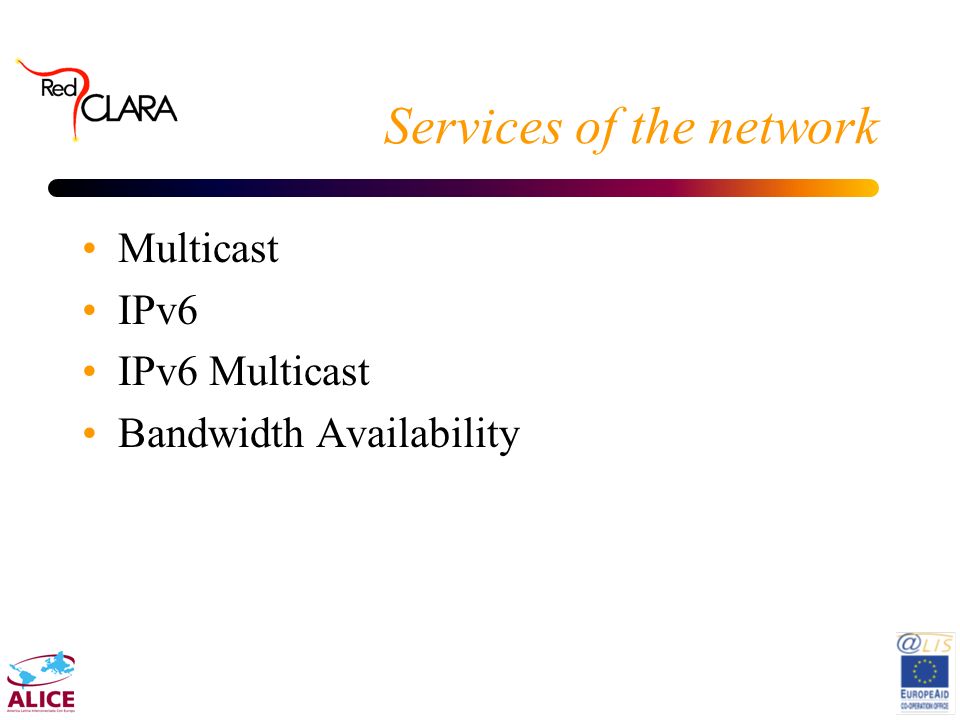

27 Services of the network Multicast IPv6 IPv6 Multicast Bandwidth Availability

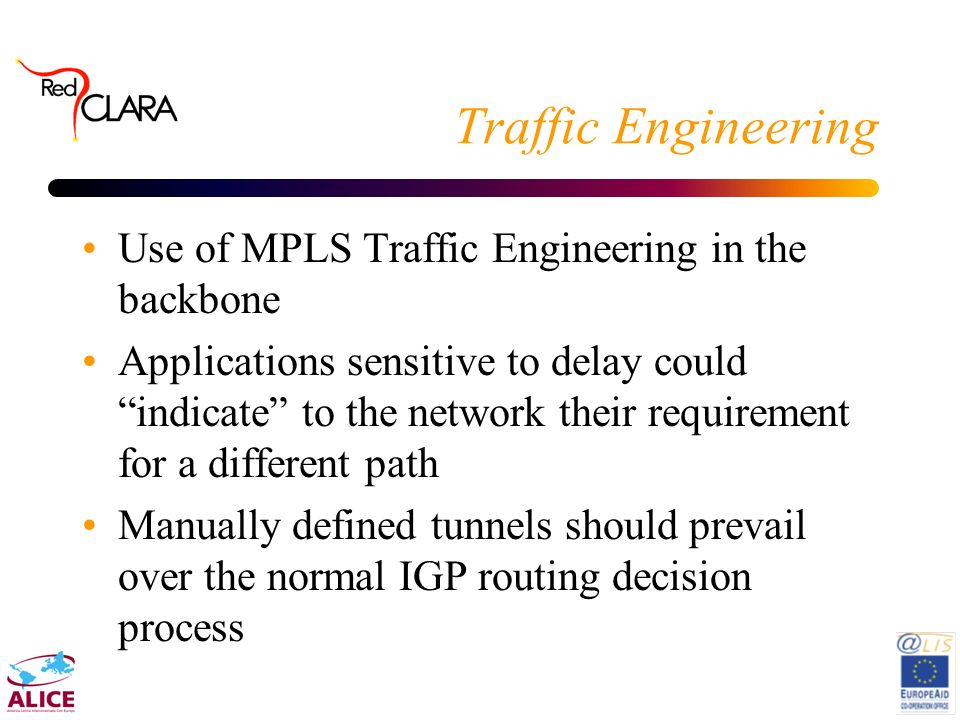

28 Traffic Engineering Use of MPLS Traffic Engineering in the backbone Applications sensitive to delay could “indicate” to the network their requirement for a different path Manually defined tunnels should prevail over the normal IGP routing decision process

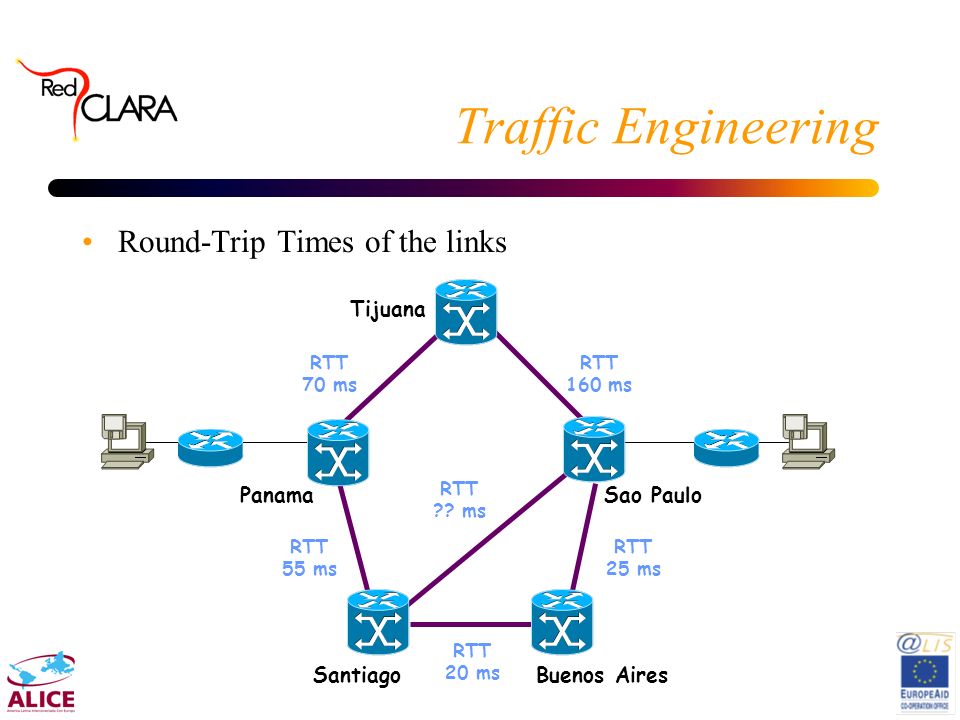

29 Traffic Engineering Round-Trip Times of the links Tijuana Sao Paulo Buenos AiresSantiago Panama RTT 70 ms RTT 160 ms RTT 55 ms RTT 25 ms RTT 20 ms RTT ?? ms

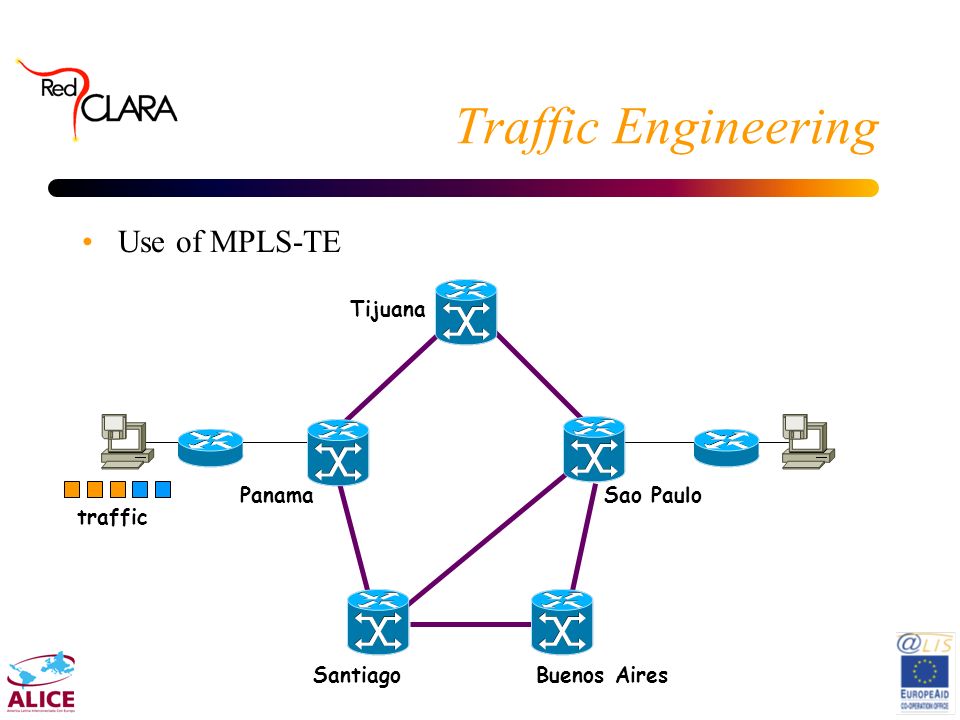

30 Traffic Engineering Use of MPLS-TE Tijuana Sao Paulo Buenos AiresSantiago Panama traffic

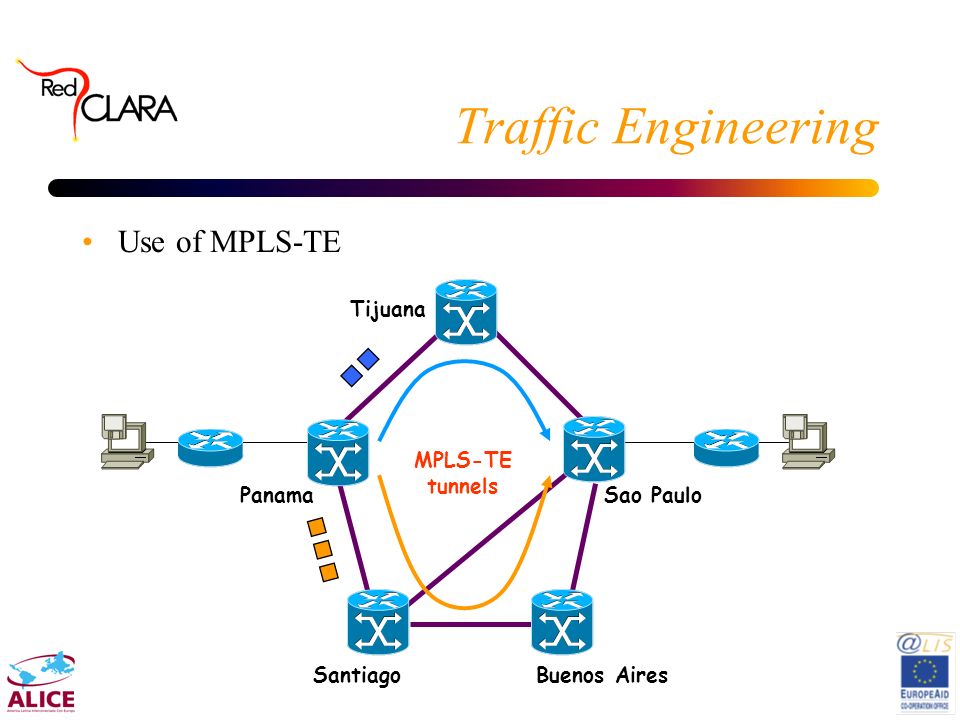

31 Traffic Engineering Use of MPLS-TE Tijuana Sao Paulo Buenos AiresSantiago Panama MPLS-TE tunnels

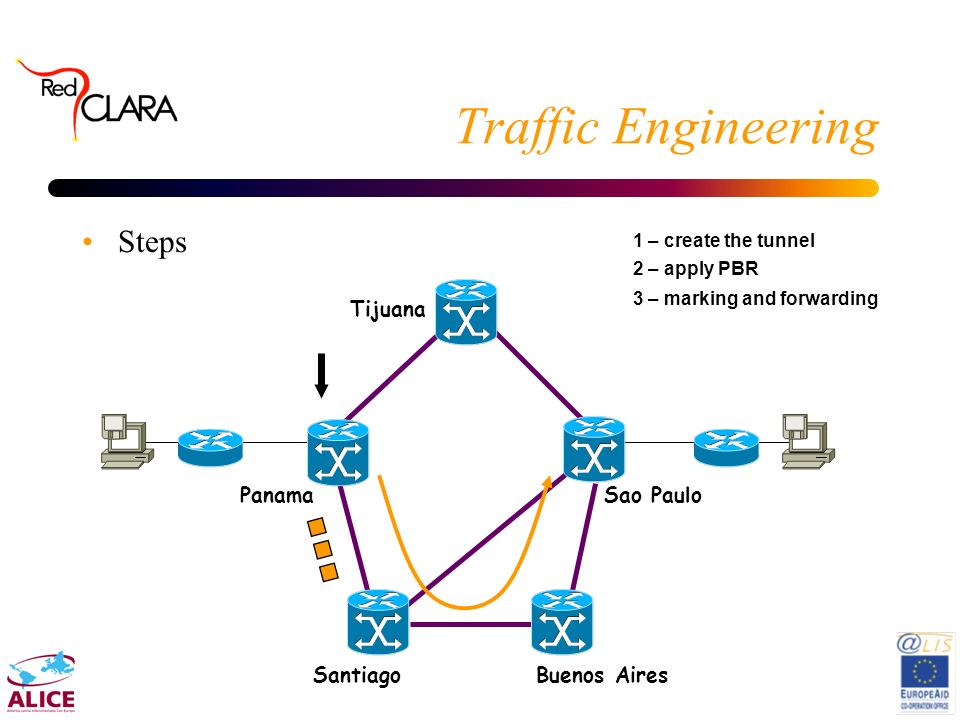

32 Traffic Engineering Steps Tijuana Sao Paulo Buenos AiresSantiago Panama 1 – create the tunnel 2 – apply PBR 3 – marking and forwarding

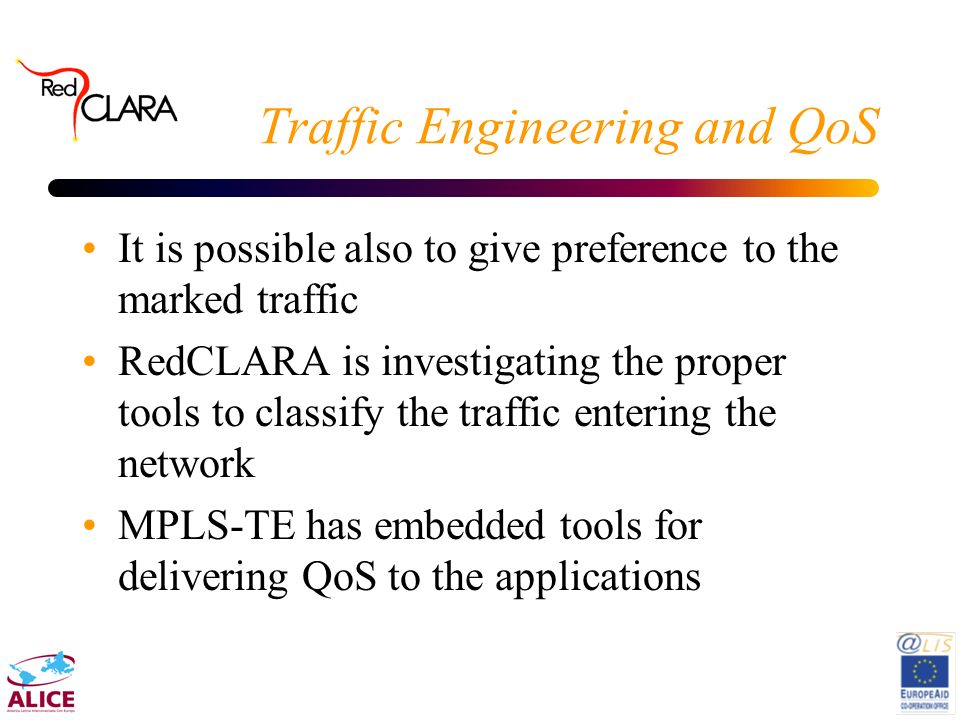

33 Traffic Engineering and QoS It is possible also to give preference to the marked traffic RedCLARA is investigating the proper tools to classify the traffic entering the network MPLS-TE has embedded tools for delivering QoS to the applications

34 RedCLARA CLARA – Cooperación LatinoAmericana de Redes Avanzadas

35 Thank you! Eriko Porto eporto@rnp.br
