Movimiento de Atracción Formación del Complejo

Presentación del tema: "Movimiento de Atracción Formación del Complejo"— Transcripción de la presentación:

1 Movimiento de Atracción Formación del Complejo
y Formación del Complejo

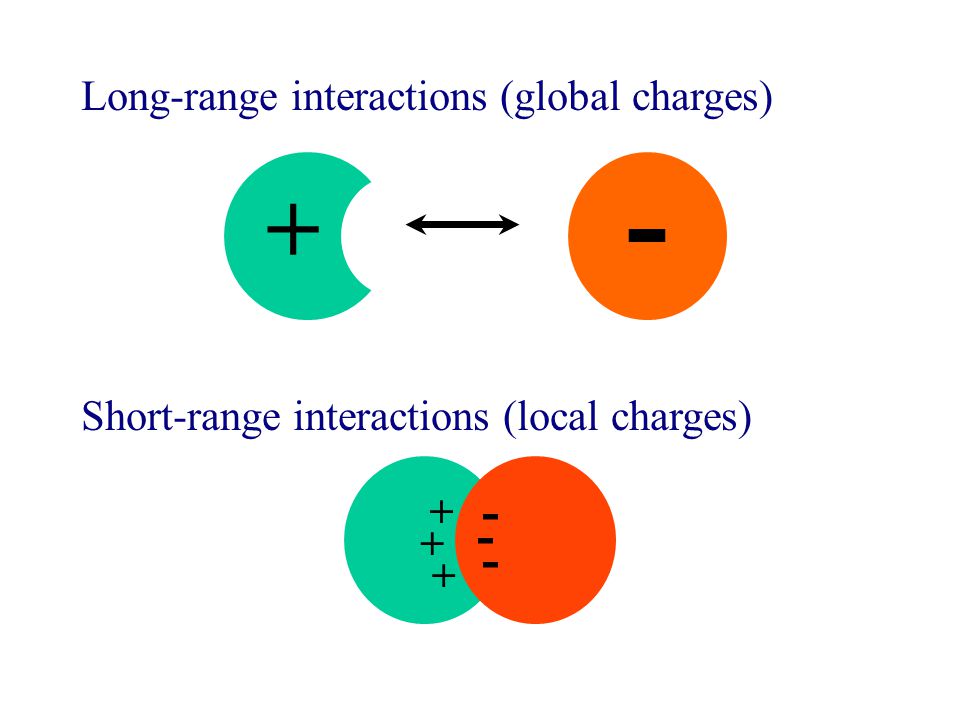

2 - + - Long-range interactions (global charges)
Short-range interactions (local charges)

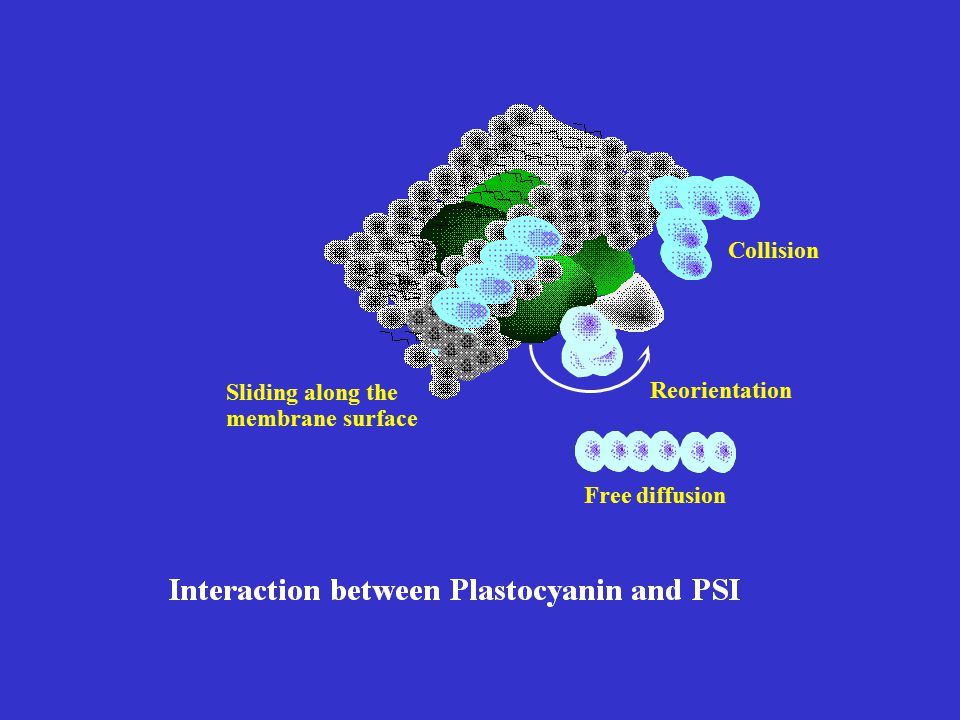

3 Collision Reorientation Sliding along the membrane surface Free diffusion

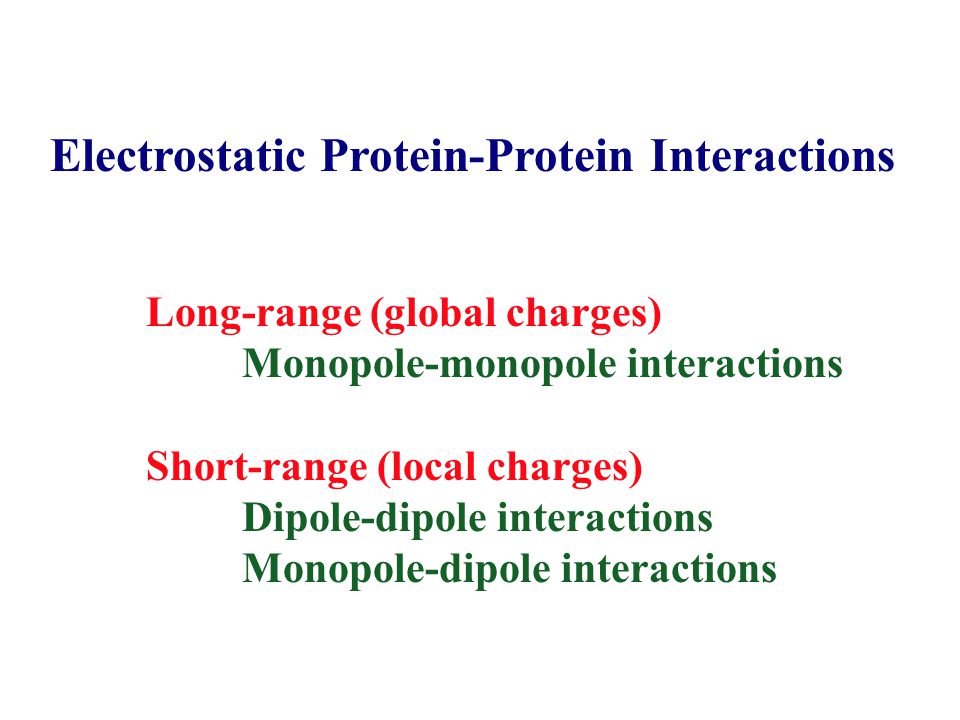

4 Electrostatic Protein-Protein Interactions
Long-range (global charges) Monopole-monopole interactions Short-range (local charges) Dipole-dipole interactions Monopole-dipole interactions

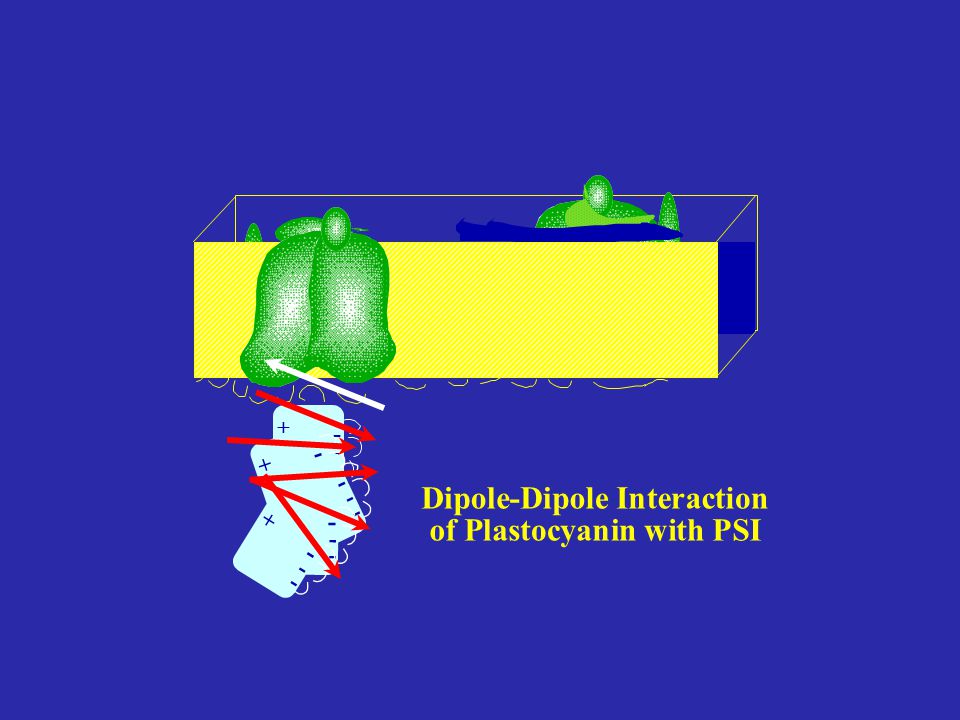

5 D i p o l e - I n t r a c f P s y w h S - + - + - + - + - +

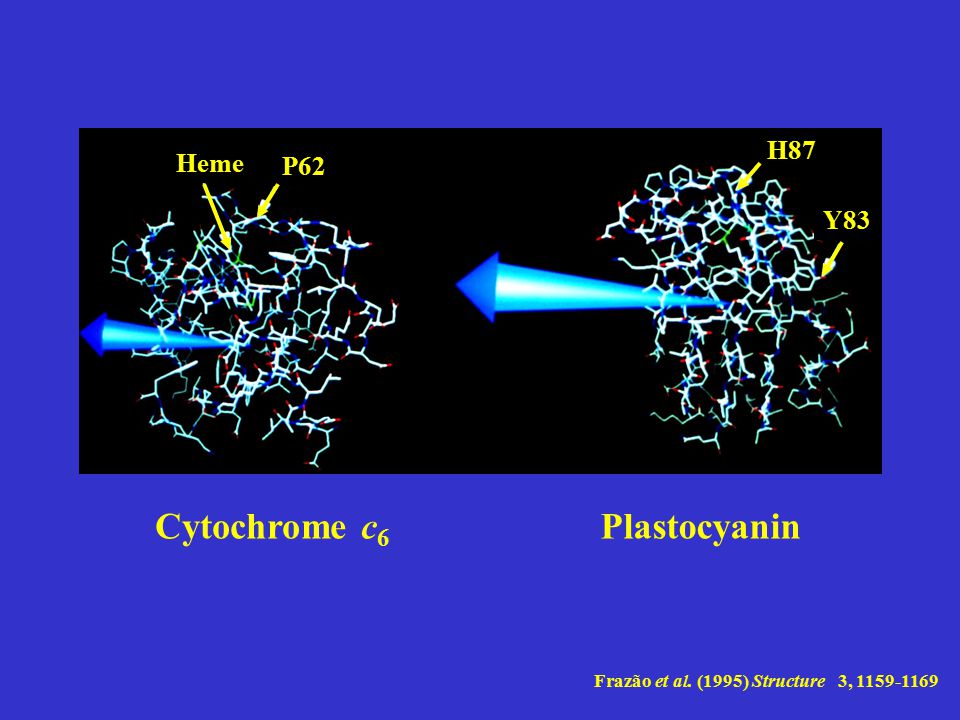

6 Cytochrome c6 Plastocyanin H87 Heme P62 Y83
Frazão et al. (1995) Structure 3,

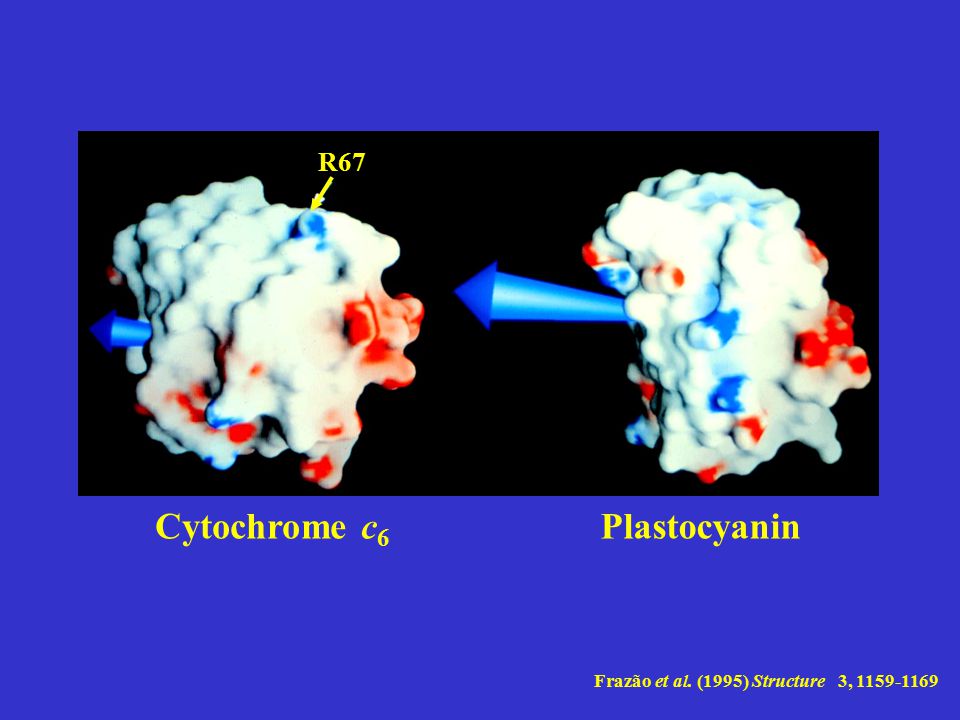

7 Cytochrome c6 Plastocyanin R67
Frazão et al. (1995) Structure 3,

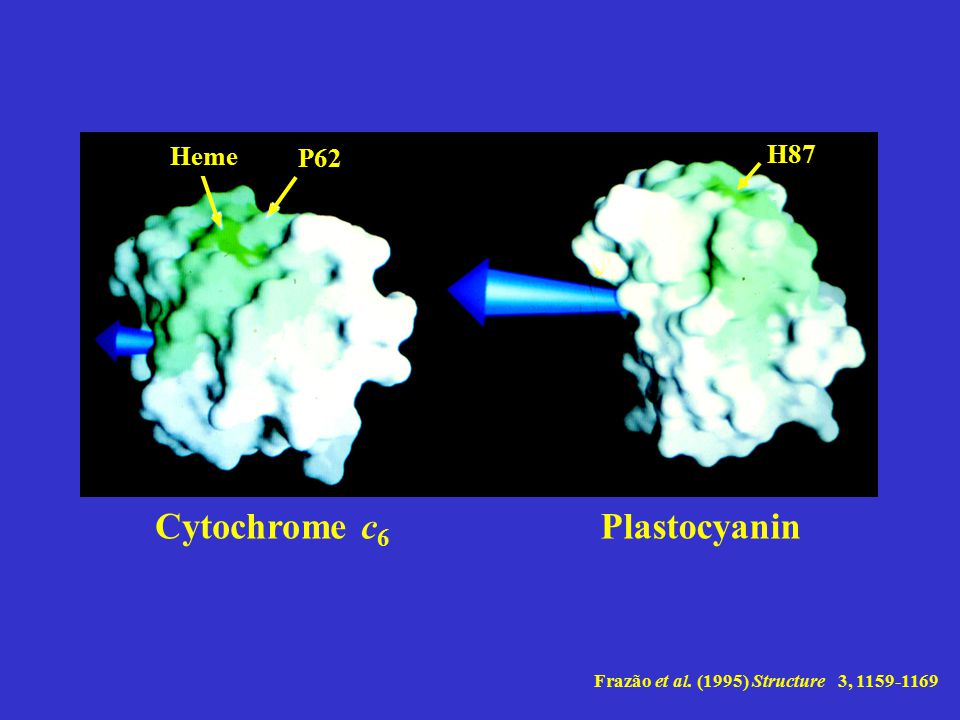

8 Cytochrome c6 Plastocyanin Heme H87 P62
Frazão et al. (1995) Structure 3,

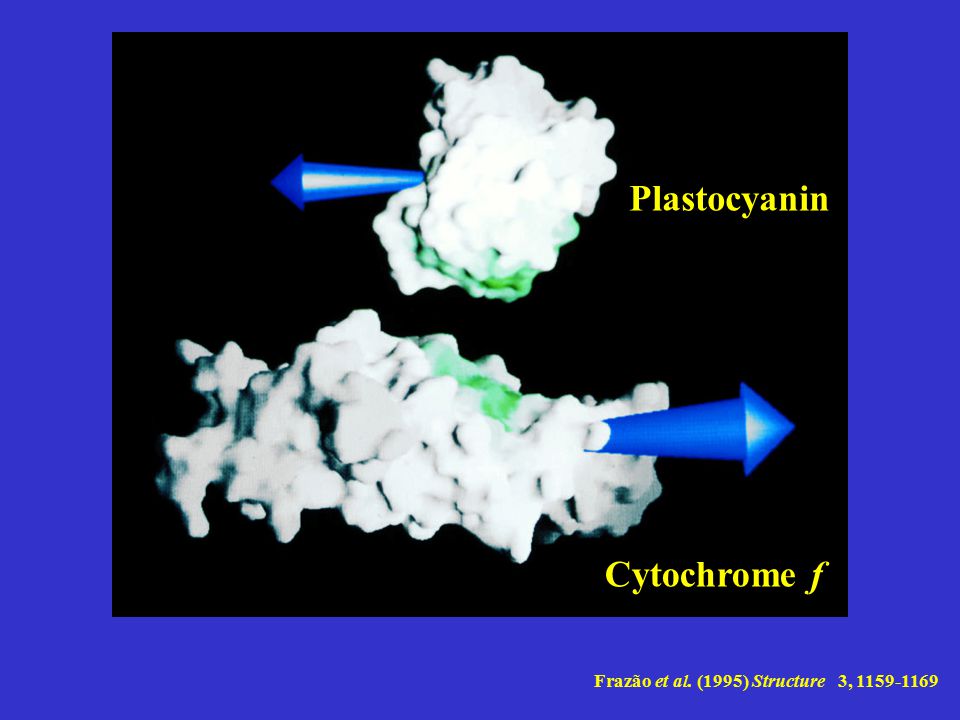

9 Plastocyanin Cytochrome f Frazão et al. (1995) Structure 3,

10 Análisis Funcional de las Interacciones entre Proteínas
Mutagénesis Dirigida Análisis Funcional de las Interacciones entre Proteínas

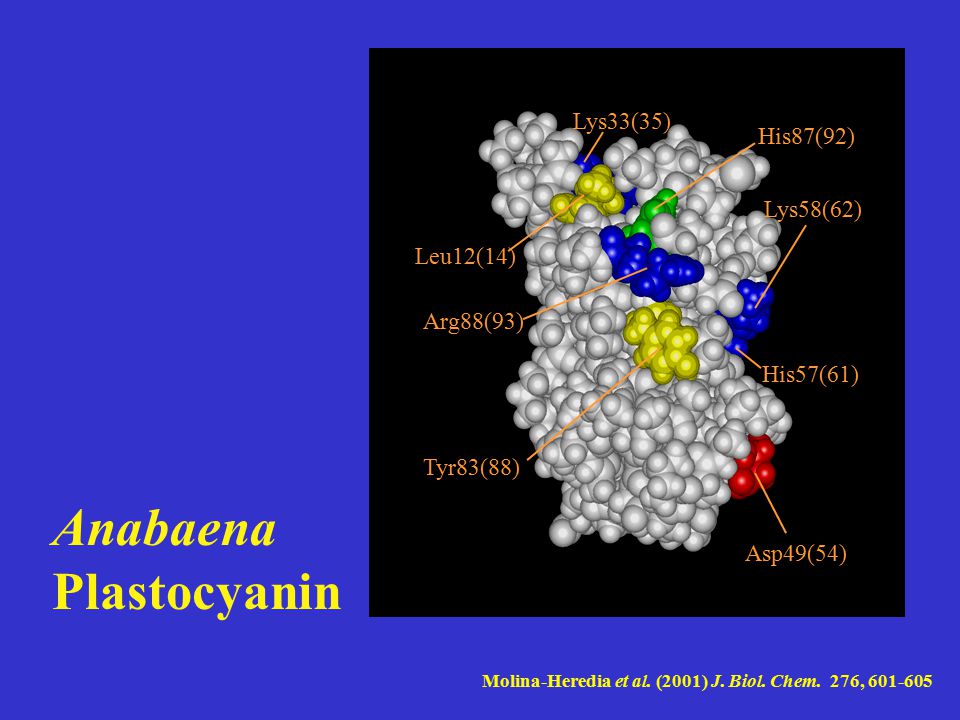

11 Anabaena Plastocyanin Lys33(35) His87(92) Lys58(62) Leu12(14)
Arg88(93) Tyr83(88) Lys58(62) His57(61) Asp49(54) Anabaena Plastocyanin Molina-Heredia et al. (2001) J. Biol. Chem. 276,

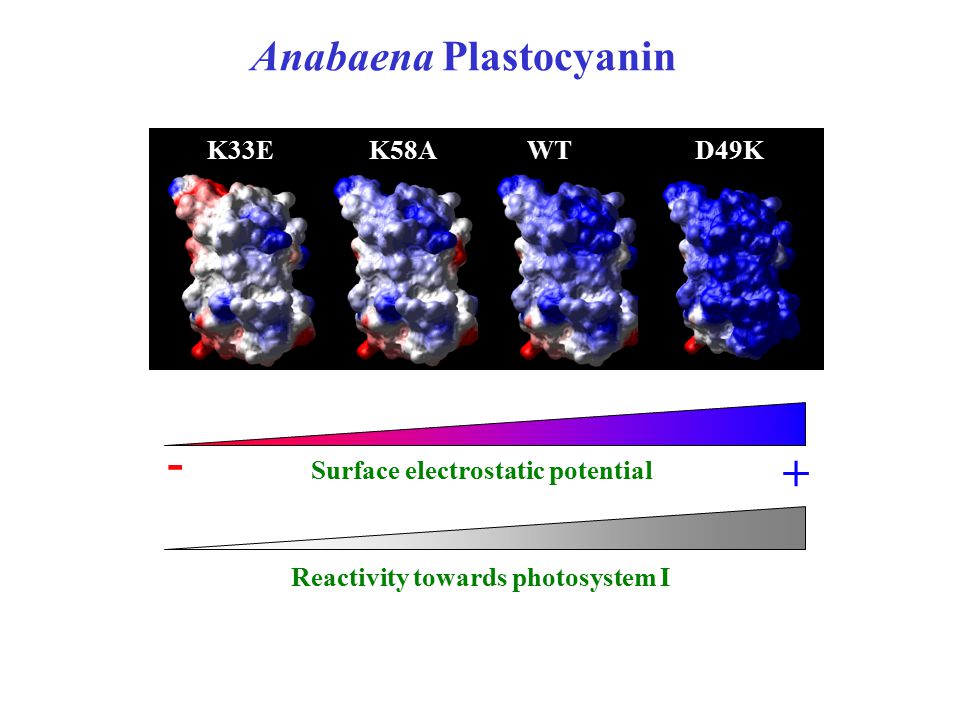

12 - + Anabaena Plastocyanin K33E K58A WT D49K
Surface electrostatic potential Reactivity towards photosystem I

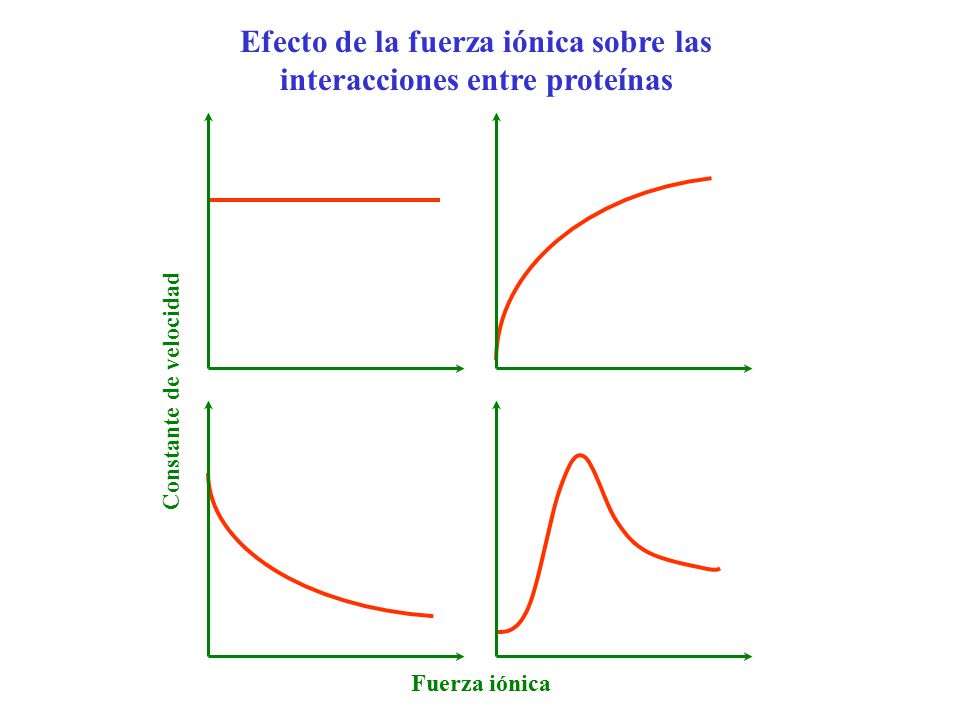

13 Efecto de la fuerza iónica sobre las interacciones entre proteínas
Constante de velocidad Fuerza iónica

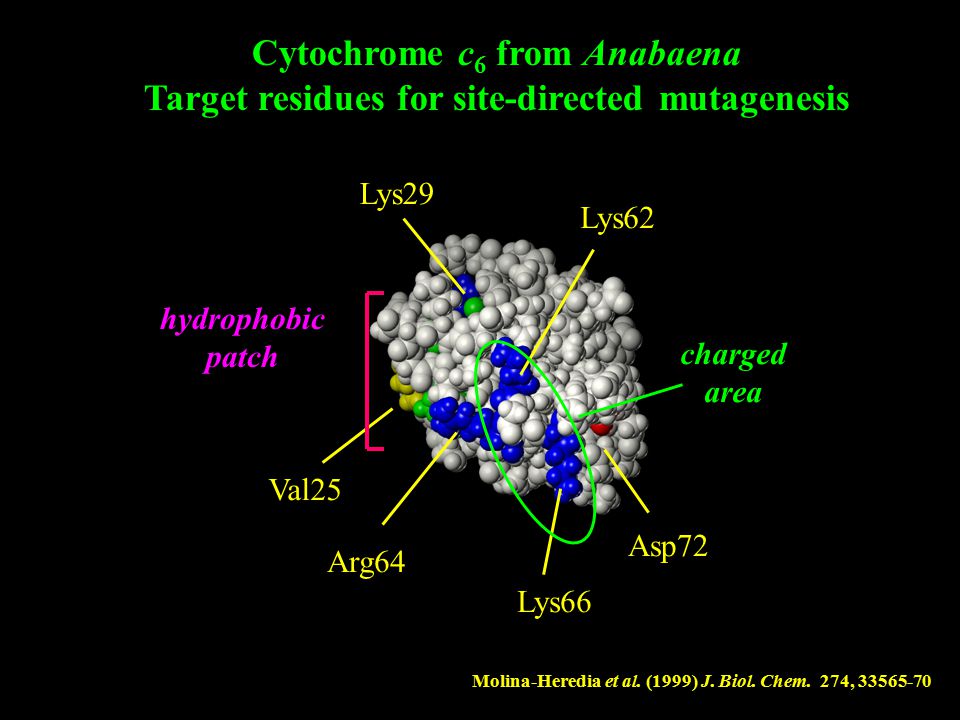

14 Cytochrome c6 from Anabaena
Target residues for site-directed mutagenesis Lys29 Lys62 hydrophobic patch charged area Val25 Asp72 Arg64 Lys66 Molina-Heredia et al. (1999) J. Biol. Chem. 274,

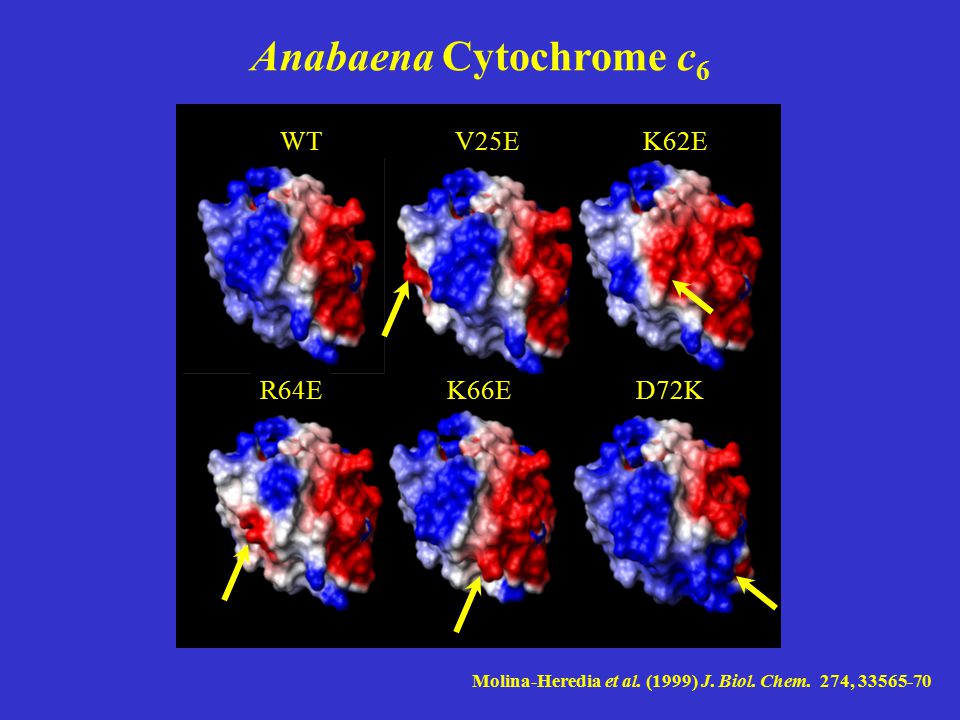

15 Anabaena Cytochrome c6 WT V25E K62E R64E K66E D72K
Molina-Heredia et al. (1999) J. Biol. Chem. 274,

16 Anabaena Plastocyanin
Molina-Heredia et al. (2001) J. Biol. Chem. 276,

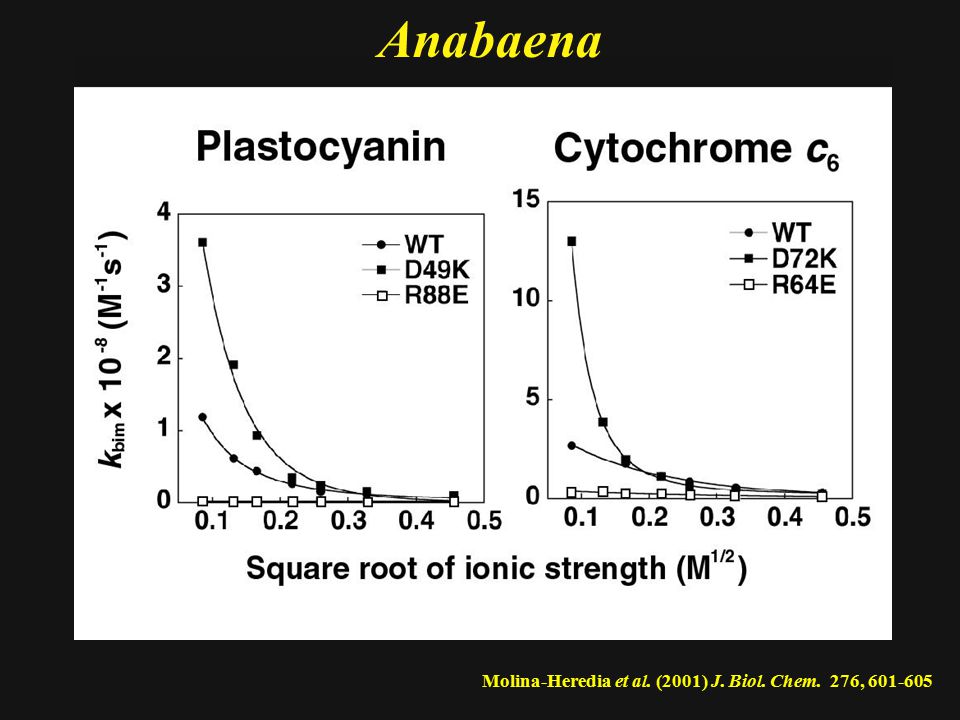

17 Anabaena Molina-Heredia et al. (2001) J. Biol. Chem. 276,

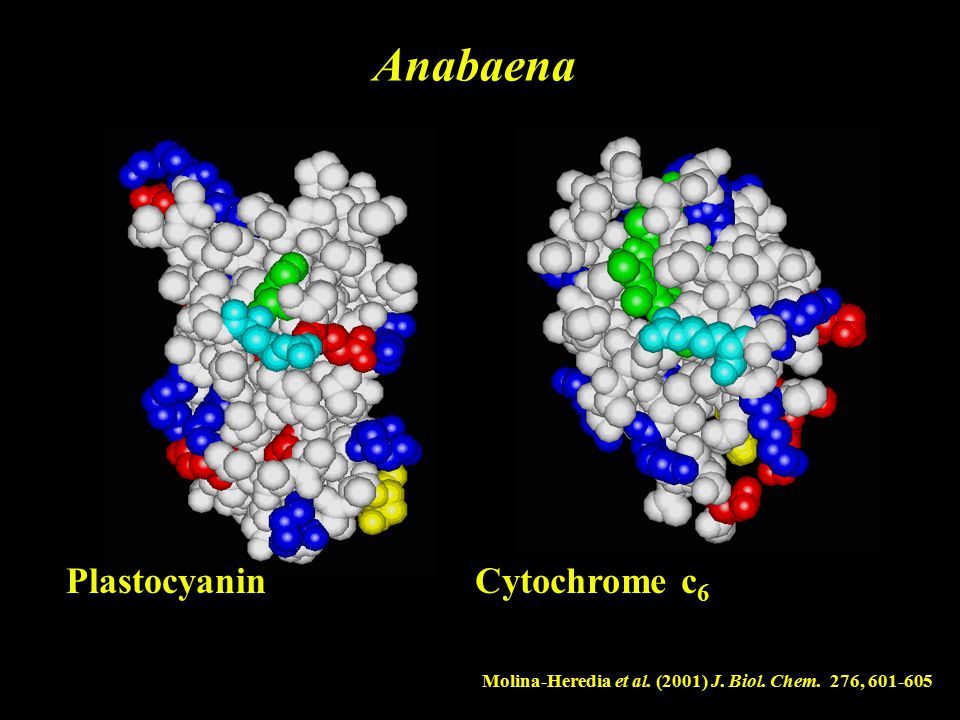

18 Anabaena Plastocyanin Cytochrome c6
Molina-Heredia et al. (2001) J. Biol. Chem. 276,

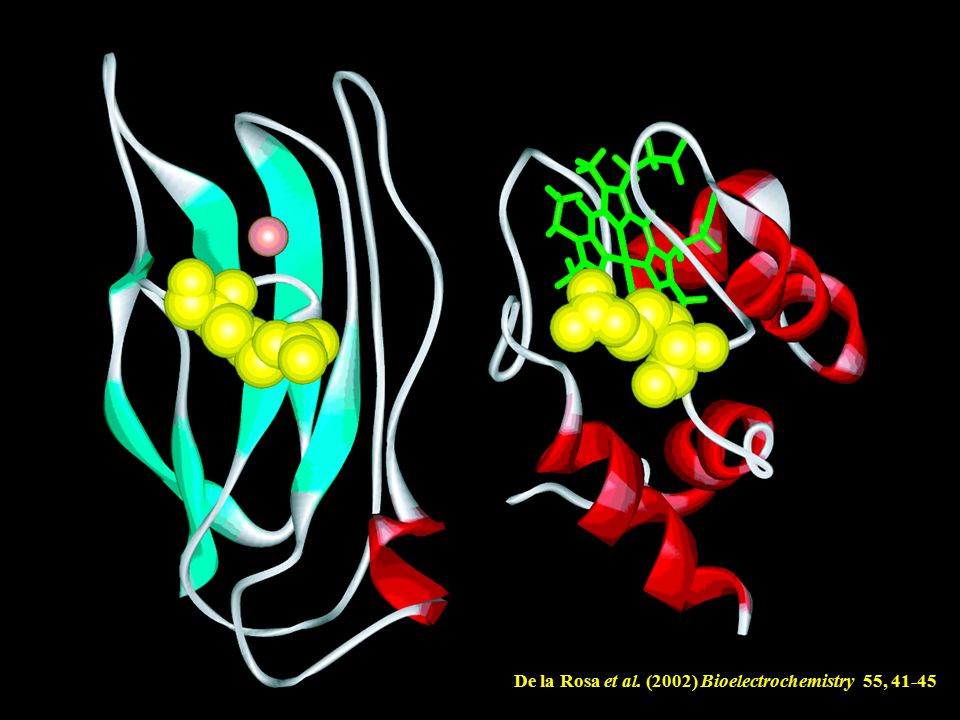

19 De la Rosa et al. (2002) Bioelectrochemistry 55, 41-45

20 Orientación de los Centros Redox Disociación del Complejo
y Disociación del Complejo

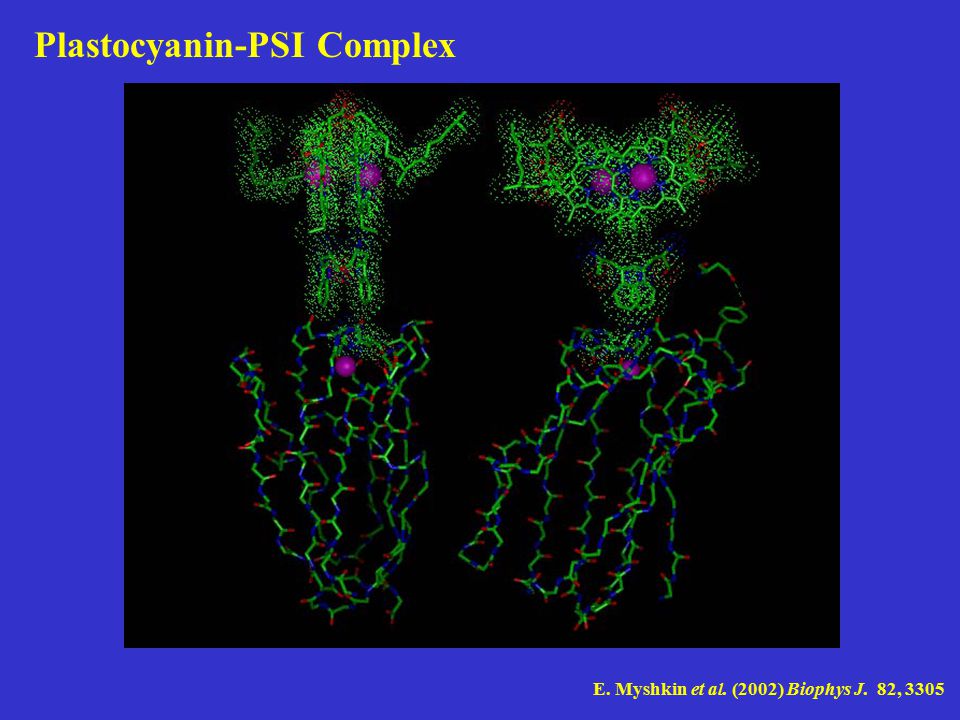

21 Plastocyanin-PSI Complex
E. Myshkin et al. (2002) Biophys J. 82, 3305

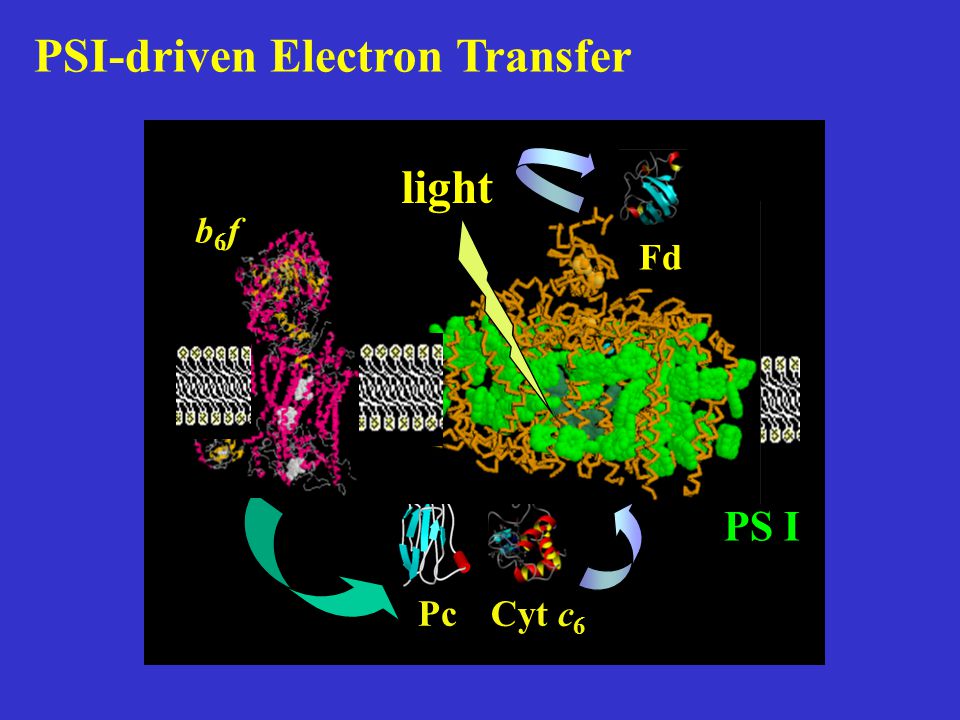

22 PSI-driven Electron Transfer
Fd light PS I b6f Cyt c6 Pc

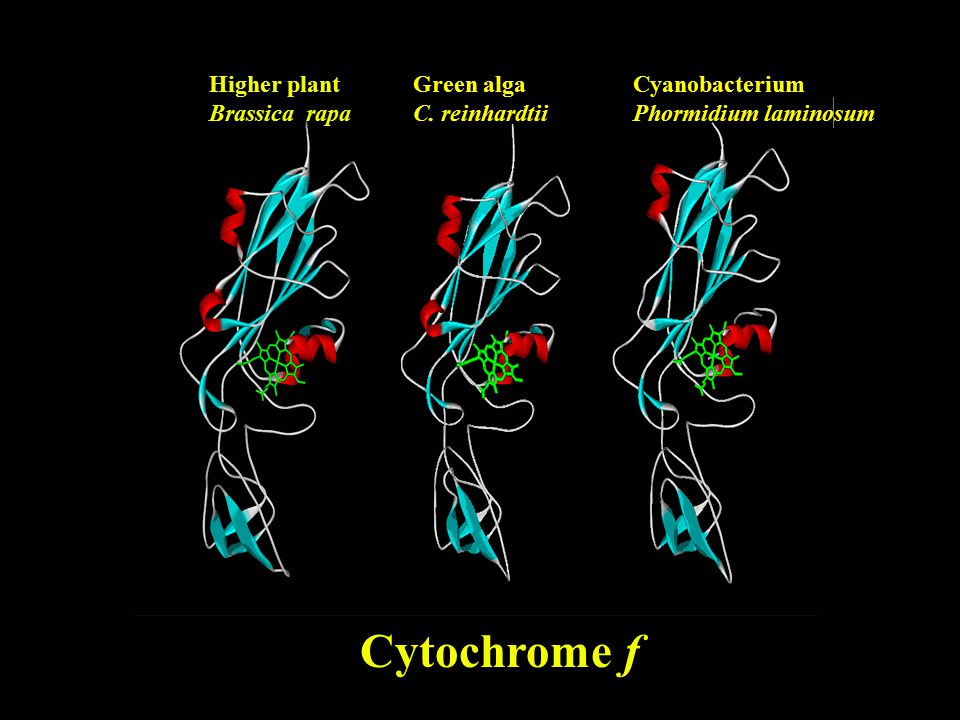

23 Cytochrome f Green alga C. reinhardtii Cyanobacterium
Phormidium laminosum Higher plant Brassica rapa Cytochrome f

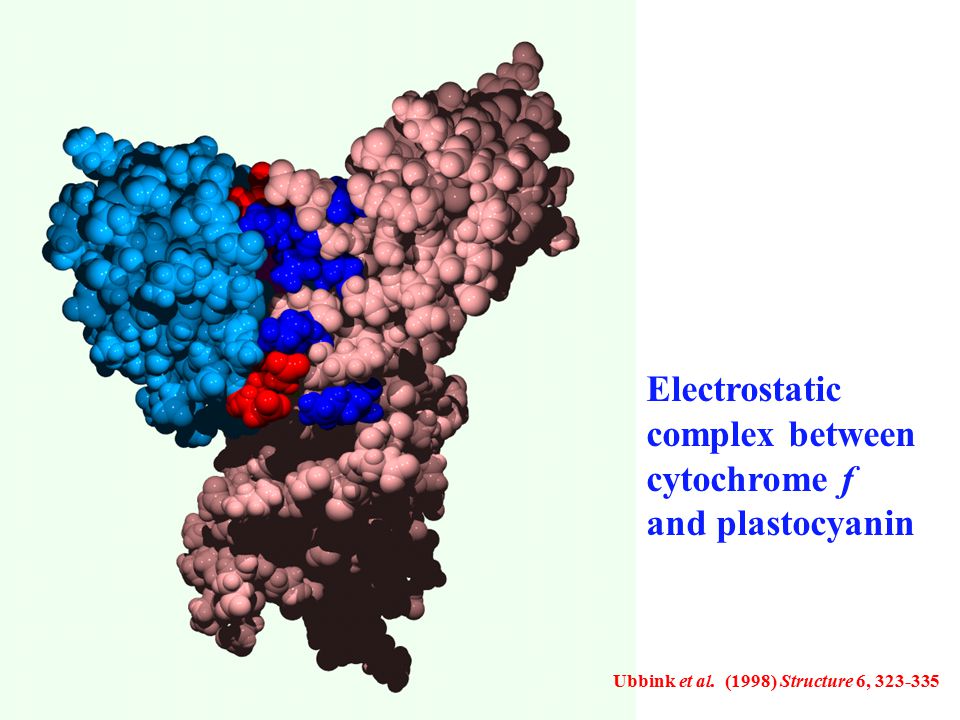

24 Electrostatic complex between cytochrome f and plastocyanin
Ubbink et al. (1998) Structure 6,

25 Electrostatic complex between cytochrome f and plastocyanin
Ubbink et al. (1998) Structure 6,

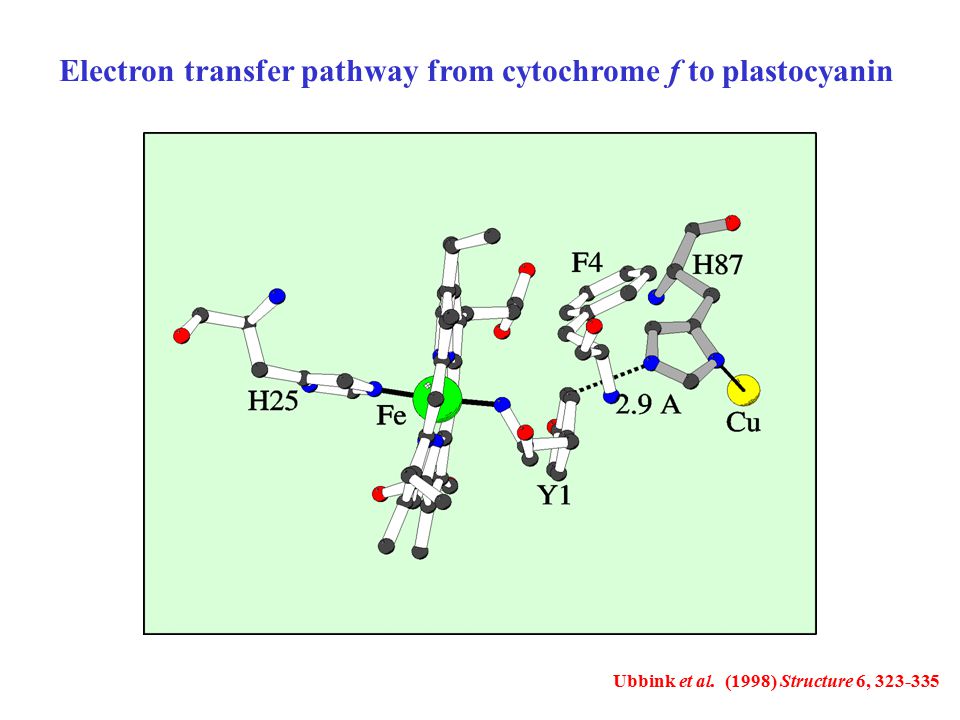

26 Electron transfer pathway from cytochrome f to plastocyanin
Ubbink et al. (1998) Structure 6,

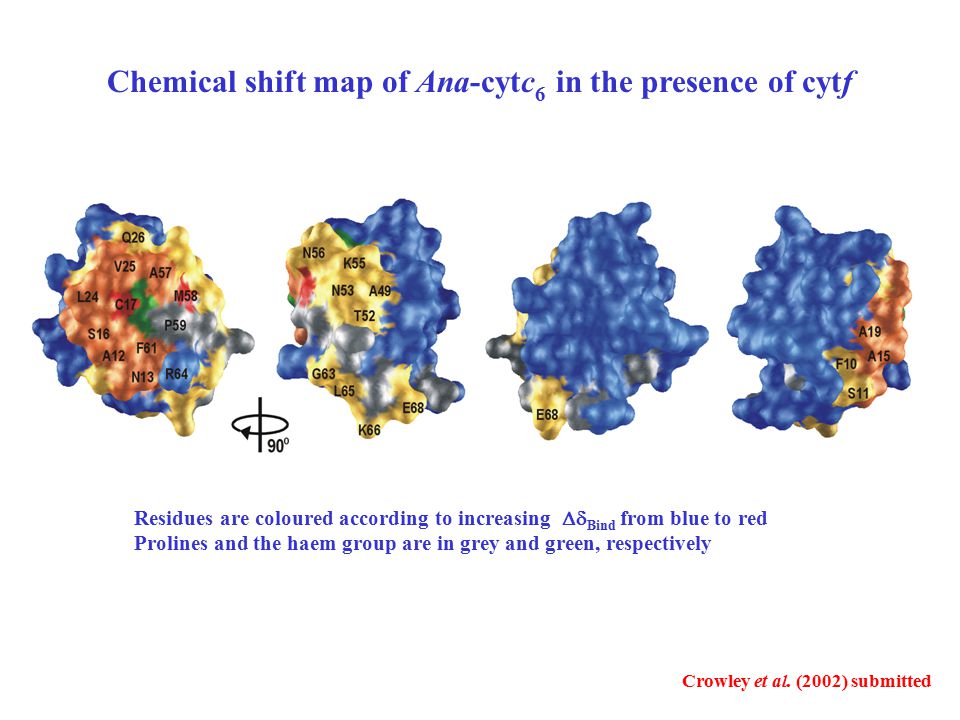

27 Chemical shift map of Ana-cytc6 in the presence of cytf
Residues are coloured according to increasing Bind from blue to red Prolines and the haem group are in grey and green, respectively Crowley et al. (2002) submitted

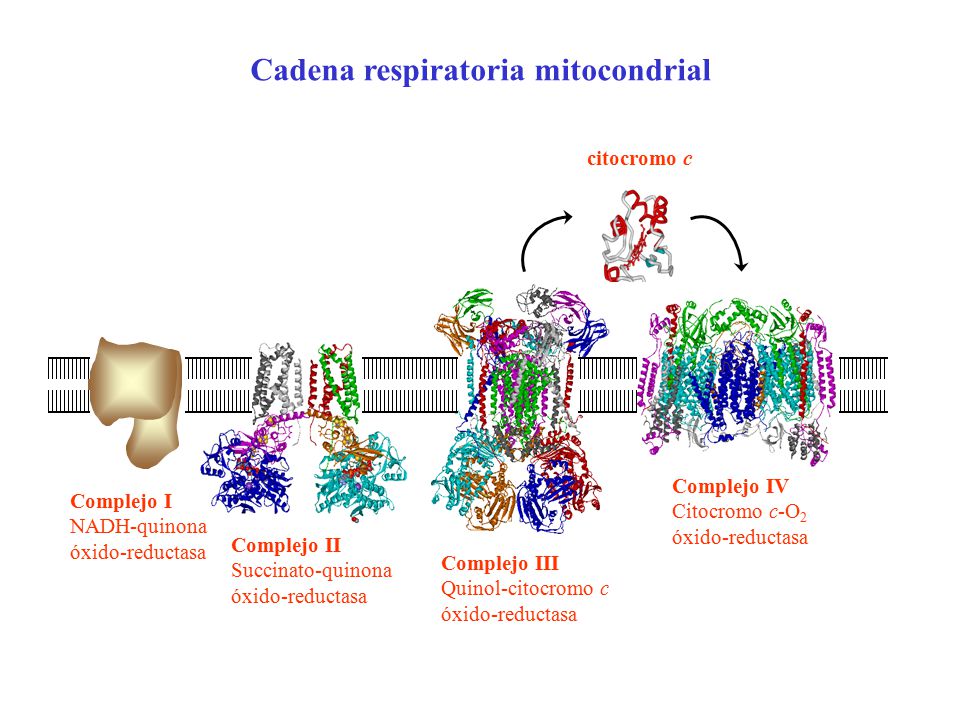

28 Cadena respiratoria mitocondrial
Complejo I NADH-quinona óxido-reductasa Complejo II Succinato-quinona Complejo III Quinol-citocromo c Complejo IV Citocromo c-O2 citocromo c

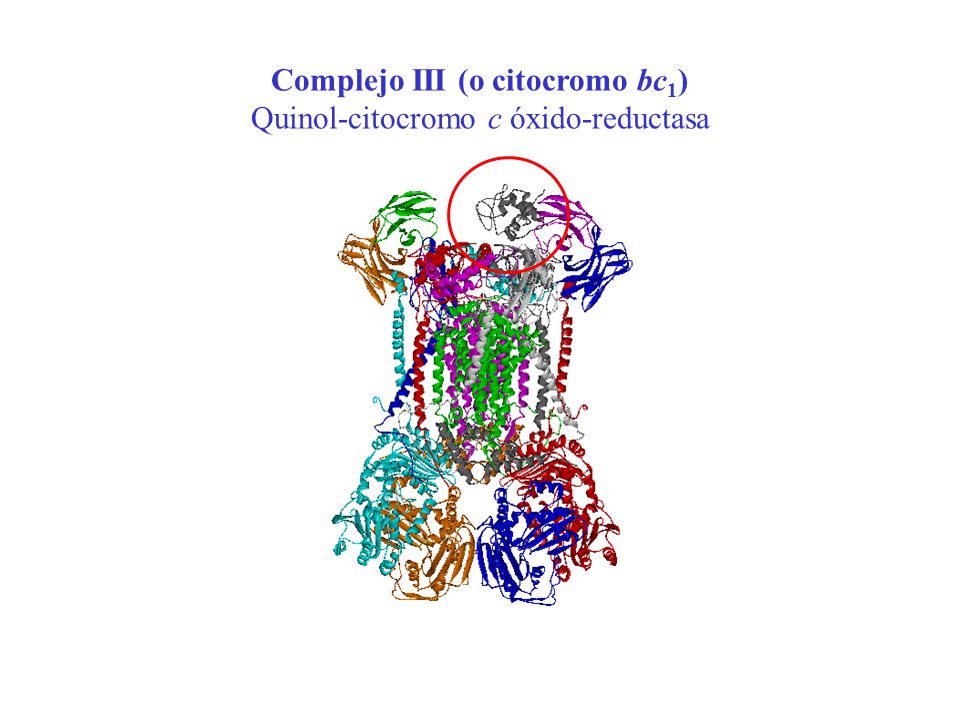

29 Complejo III (o citocromo bc1)
Quinol-citocromo c óxido-reductasa

30 Interacción entre el complejo bc1 (inmerso en la membrana) y el citocromo c (soluble)
Cyt c Cyt c1 Cyt c Cyt c1

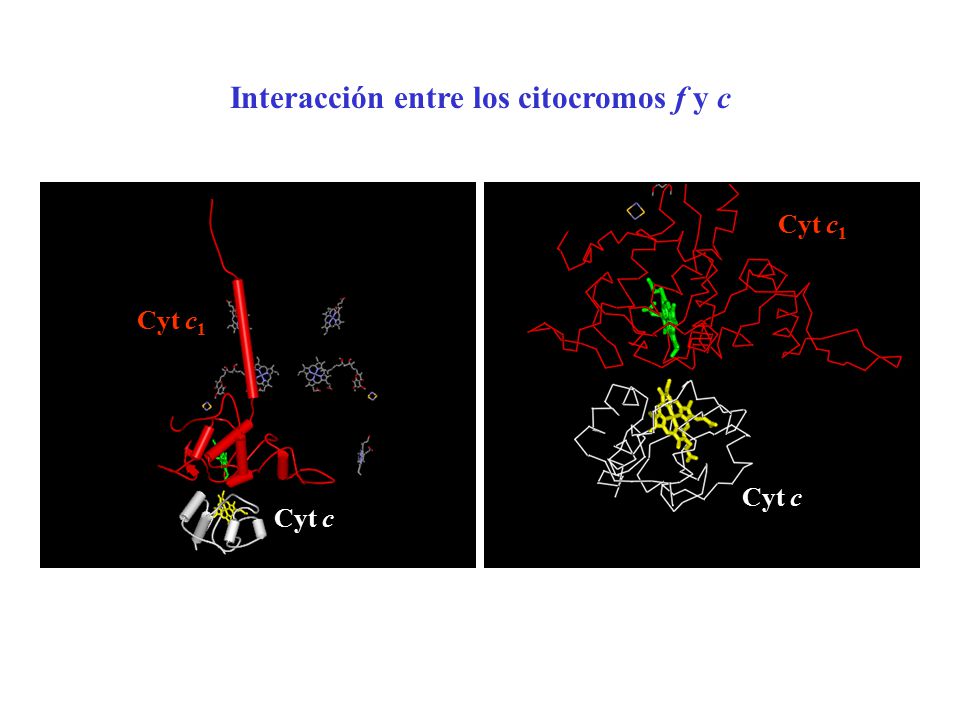

31 Interacción entre los citocromos f y c
Cyt c1 Cyt c

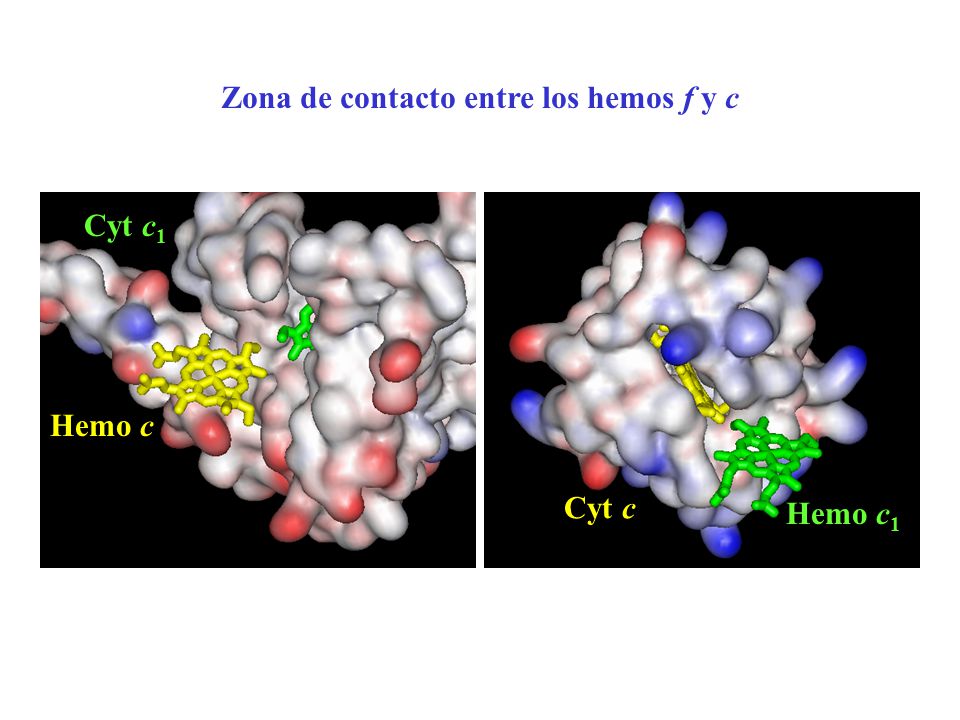

32 Zona de contacto entre los hemos f y c
Cyt c1 Hemo c Cyt c Hemo c1

33

34 Main conformational changes between the oxidized (red)
and reduced (blue) forms of Monoraphidium cytochrome c6 De la Rosa et al. (2002) Bioelectrochemistry 55, 41-45

35 Protein-Protein Interactions
Centro de Investigaciones Científicas Isla de la Cartuja Sevilla Universidad de Sevilla Workshop on Weak Protein-Protein Interactions Seville, Spain July 9-13, 2003

36

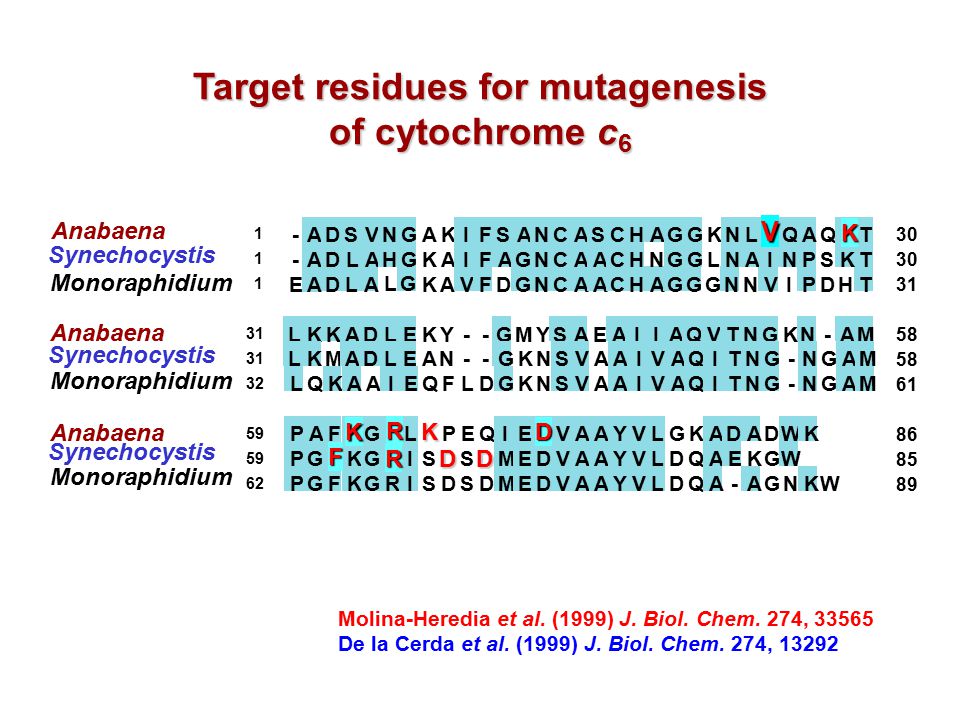

37 Target residues for mutagenesis of cytochrome c6
Anabaena 1 31 32 59 62 30 58 61 86 85 89 D L A G K V F N C H I P T E Y - M S Q W R Synechocystis Monoraphidium Anabaena Synechocystis Monoraphidium Anabaena Synechocystis Monoraphidium Molina-Heredia et al. (1999) J. Biol. Chem. 274, 33565 De la Cerda et al. (1999) J. Biol. Chem. 274, 13292

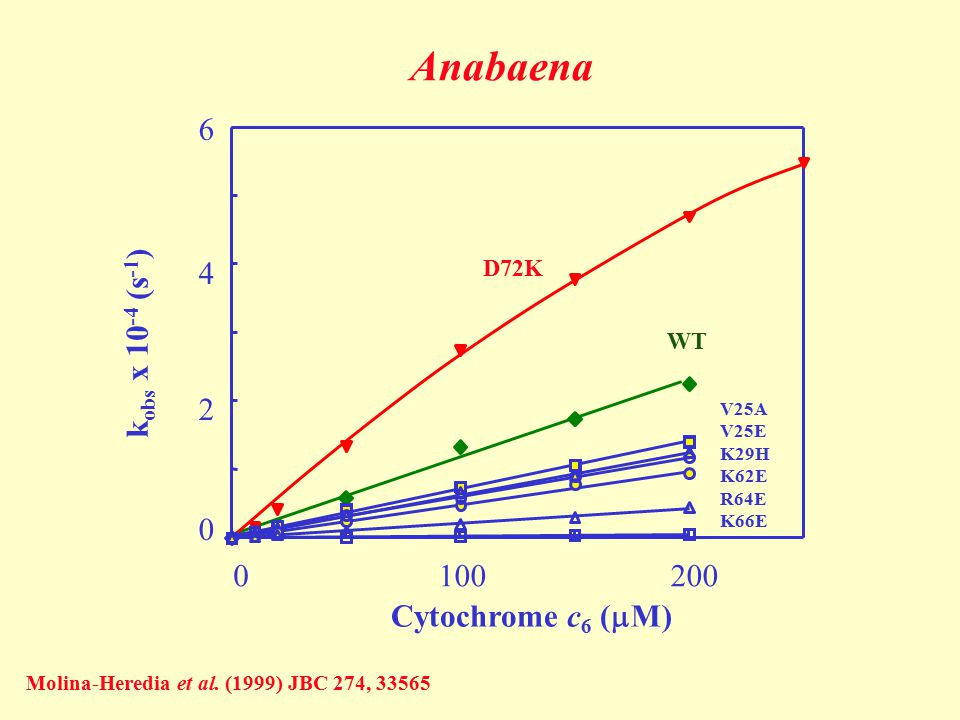

38 Anabaena 100 200 Cytochrome c6 (mM) kobs x 10-4 (s-1) 2 4 6 D72K WT
100 200 Cytochrome c6 (mM) kobs x 10-4 (s-1) 2 4 6 Anabaena Molina-Heredia et al. (1999) JBC 274, 33565 WT D72K V25A V25E K29H K62E R64E K66E

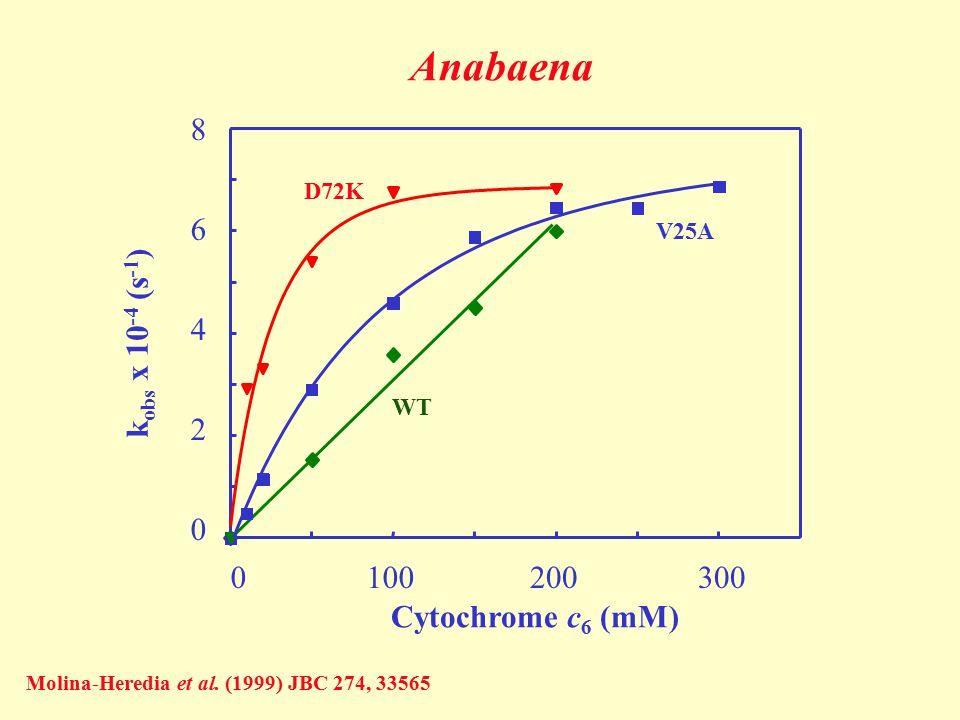

39 Anabaena 100 200 300 2 4 8 6 Cytochrome c6 (mM) kobs x 10-4 (s-1) D72K
WT 100 200 300 2 4 8 6 Cytochrome c6 (mM) kobs x 10-4 (s-1) Anabaena Molina-Heredia et al. (1999) JBC 274, 33565 D72K V25A

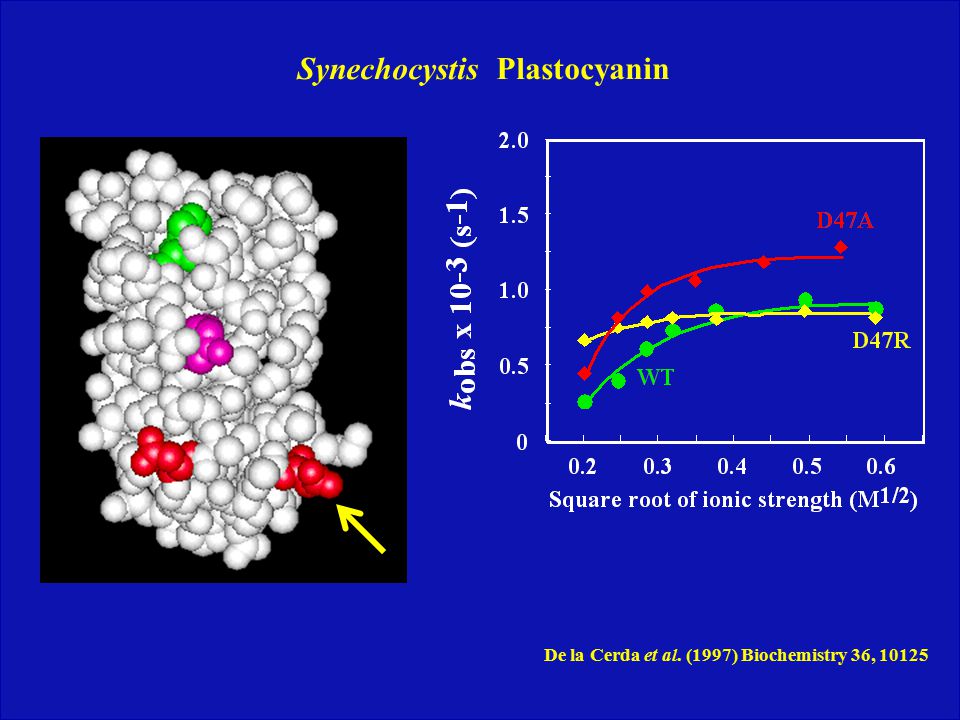

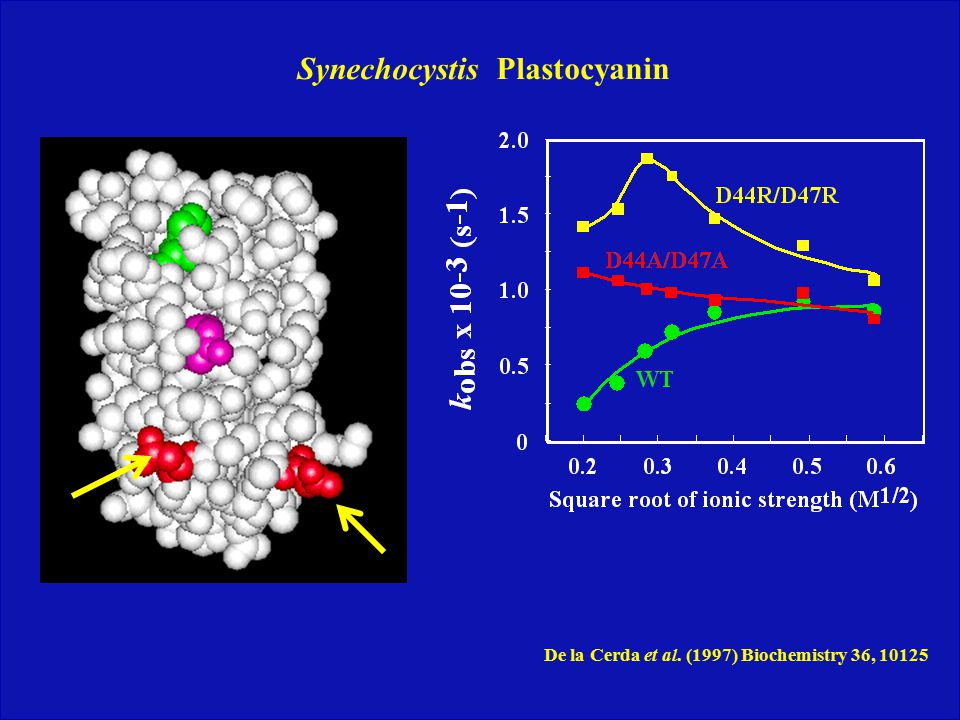

40 Synechocystis Plastocyanin De la Cerda et al
. (1997) Biochemistry 36, 10125

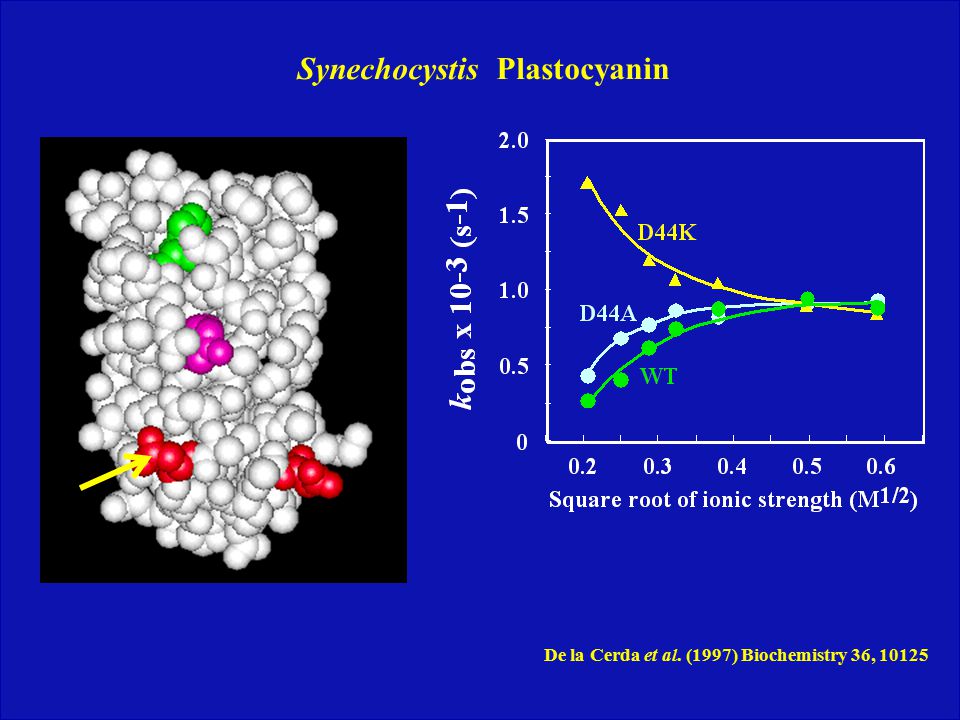

41 Synechocystis Plastocyanin De la Cerda et al
. (1997) Biochemistry 36, 10125

42 Synechocystis Plastocyanin De la Cerda et al
. (1997) Biochemistry 36, 10125

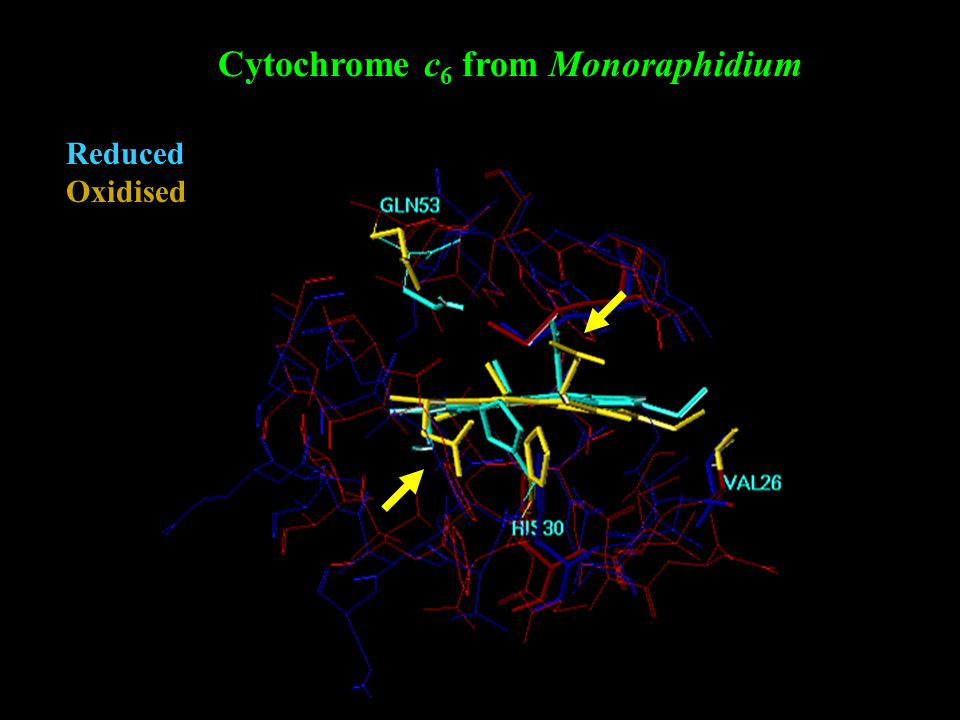

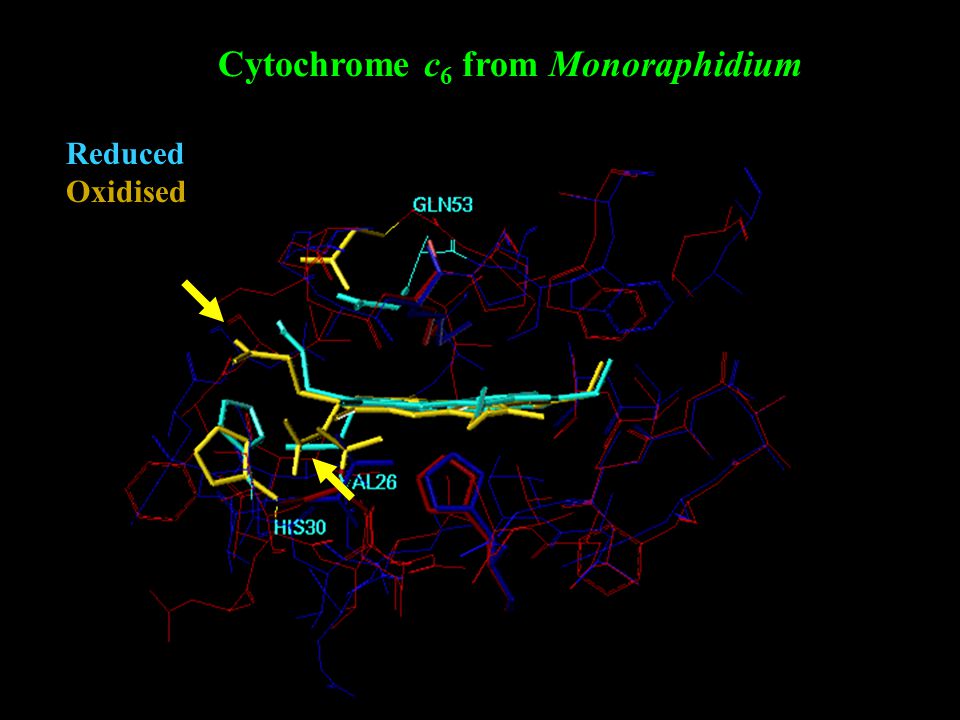

43 Cytochrome c6 from Monoraphidium
Reduced Oxidised

44 Cytochrome c6 from Monoraphidium
Reduced Oxidised

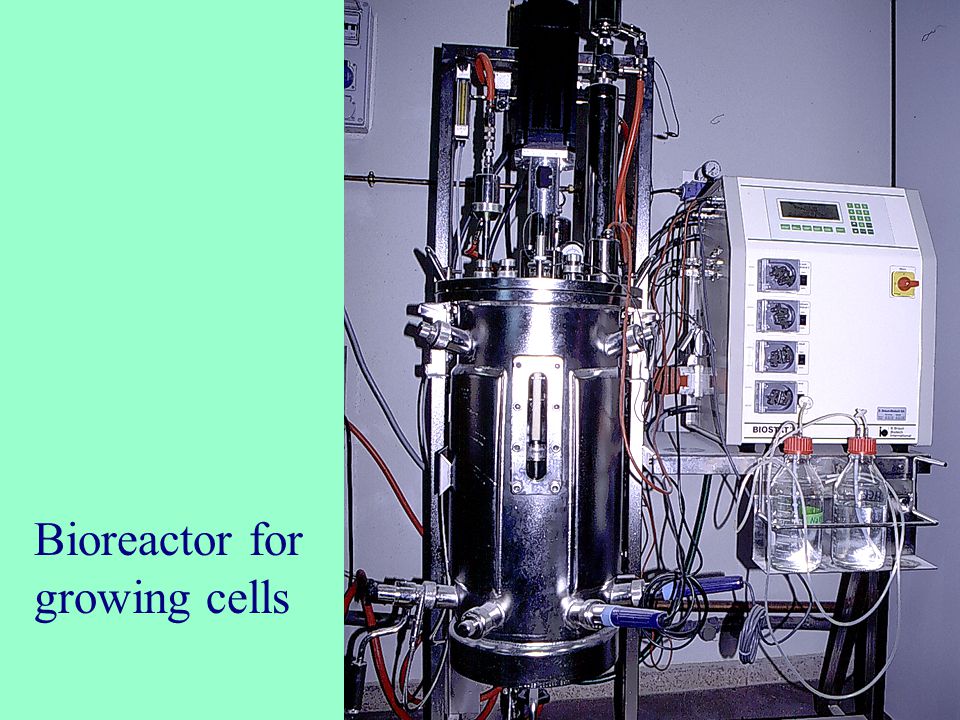

45 Bioreactor for growing cells
