1 PROCEDIMIENTO TACTICO PARA INCENDIOS COMANDANCIA 2010
Cuerpo de Bomberos de Coronel “José Miguel Carrera” PROCEDIMIENTO TACTICO PARA INCENDIOS COMANDANCIA 2010 For information on applying this template onto existing presentations, refer to the notes on slide 3 of this presentation. The Input area of the Beam can be customized to reflect the content of the presentation. The Input area is an AutoShape with a picture fill. To change this, ensure you have the image you wish to use (ideally a .jpg or a .png file) in an accessible folder. The image should have a ratio of 1:1 to ensure it does not appear distorted. Acceptable images for importing into the Input area of the Beam are the three approved graphics (lines), and black and white photography or illustrations which follow the principles laid out on The Branding Zone. Color images should never be imported into this area. Click on the Insert tab from the menu bar and select Master>Slide Master Right-click on the Input graphic and select Format AutoShape From the Fill menu, under the Color and Lines tab, click on the drop-down arrow next to Color and select the Fill Effects menu From the Picture tab, click on Select Picture. Navigate to the folder containing the image you wish to insert in the Input area. Highlight the image and tick the Lock picture aspect ratio box. Click on Insert. Click Ok. You can now preview the image before continuing. If you are happy with how it looks, click Ok to continue. Otherwise, repeat the process until you are happy with your selected image To exit from Master View, click on View>Normal. The change you made to the Input graphic should now be visible on the title slide

2 Fundamentos As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

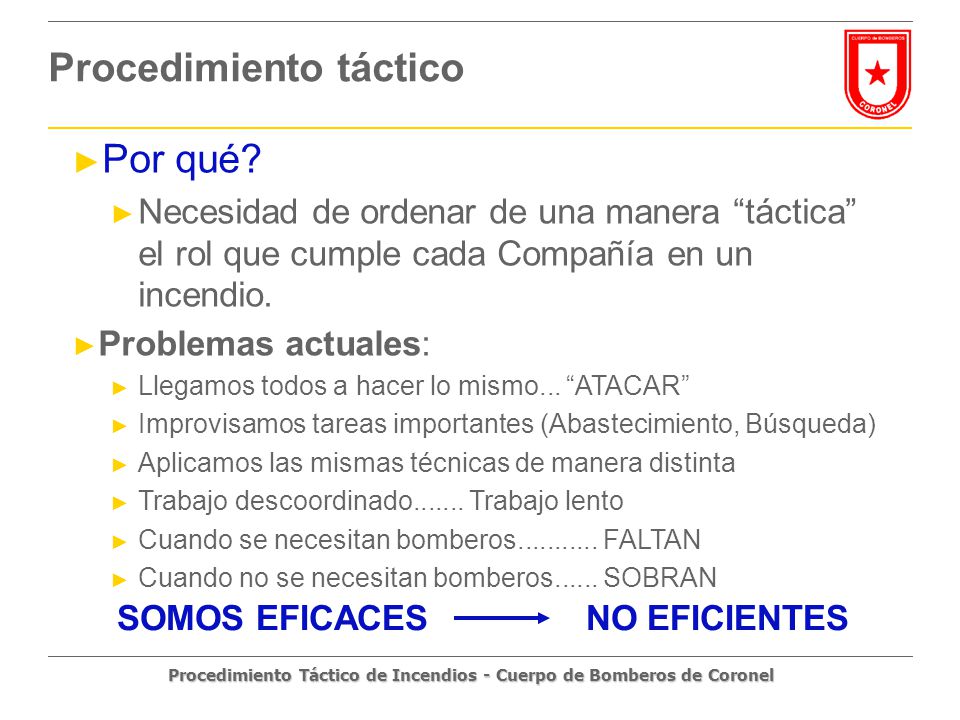

3 Procedimiento táctico
Por qué? Necesidad de ordenar de una manera “táctica” el rol que cumple cada Compañía en un incendio. Problemas actuales: Llegamos todos a hacer lo mismo... “ATACAR” Improvisamos tareas importantes (Abastecimiento, Búsqueda) Aplicamos las mismas técnicas de manera distinta Trabajo descoordinado Trabajo lento Cuando se necesitan bomberos FALTAN Cuando no se necesitan bomberos SOBRAN As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. SOMOS EFICACES NO EFICIENTES

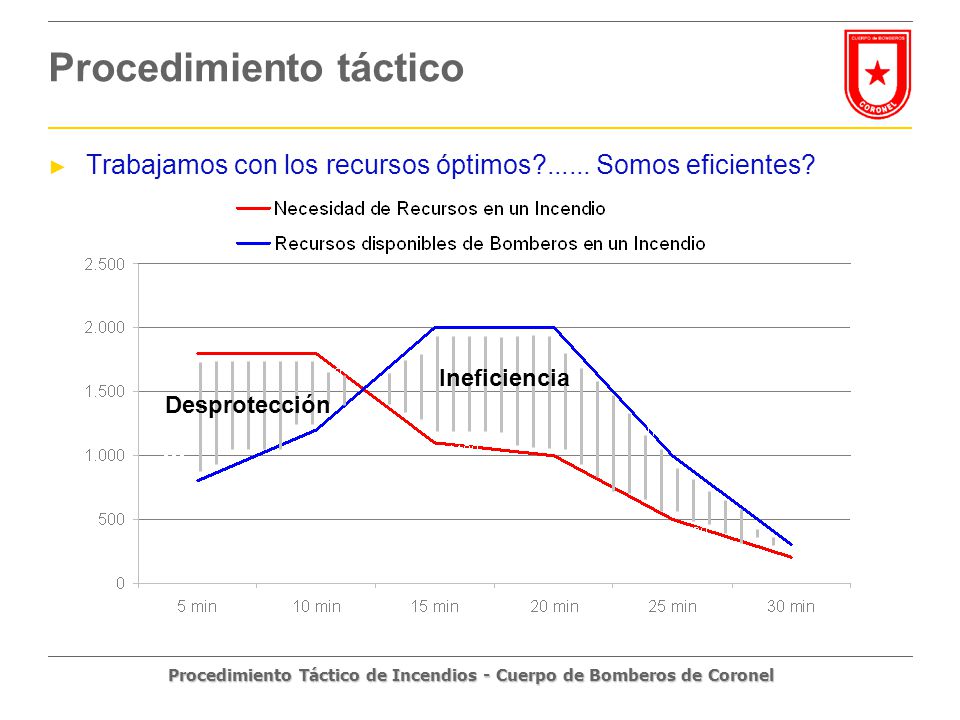

4 Procedimiento táctico
Trabajamos con los recursos óptimos? Somos eficientes? Ineficiencia Desprotección As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

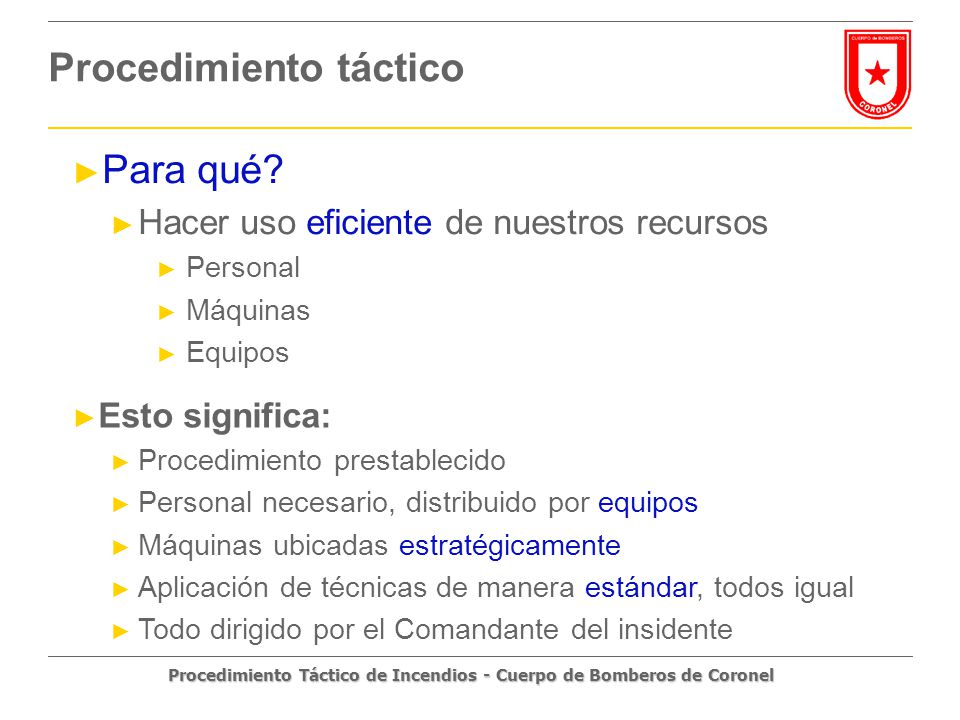

5 Procedimiento táctico
Para qué? Hacer uso eficiente de nuestros recursos Personal Máquinas Equipos Esto significa: Procedimiento prestablecido Personal necesario, distribuido por equipos Máquinas ubicadas estratégicamente Aplicación de técnicas de manera estándar, todos igual Todo dirigido por el Comandante del insidente As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

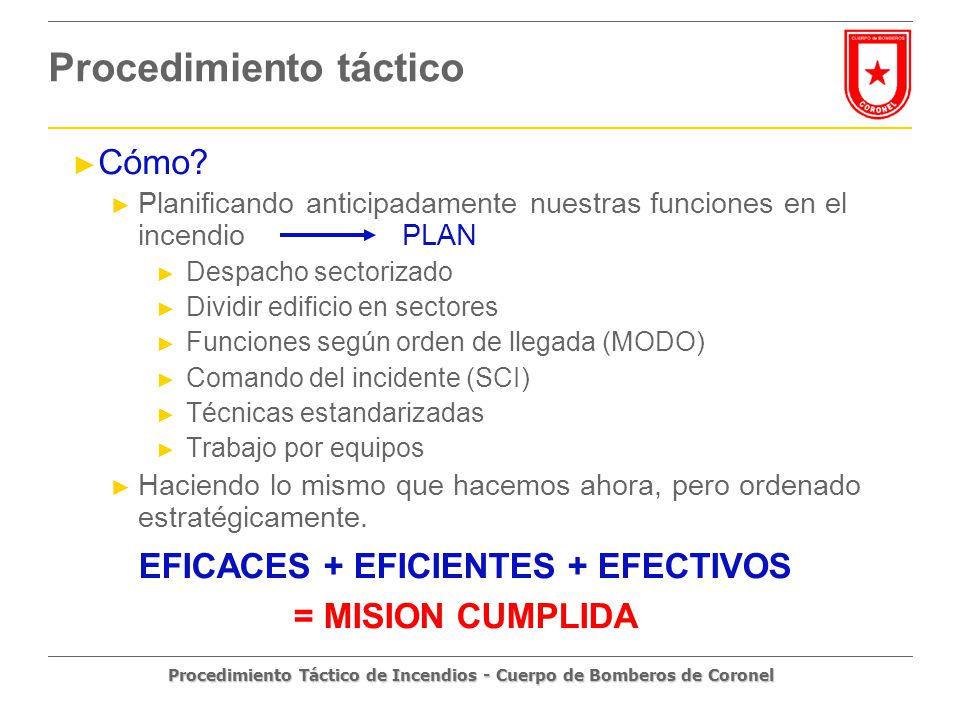

6 Procedimiento táctico
Cómo? Planificando anticipadamente nuestras funciones en el incendio PLAN Despacho sectorizado Dividir edificio en sectores Funciones según orden de llegada (MODO) Comando del incidente (SCI) Técnicas estandarizadas Trabajo por equipos Haciendo lo mismo que hacemos ahora, pero ordenado estratégicamente. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. EFICACES + EFICIENTES + EFECTIVOS = MISION CUMPLIDA

7 Procedimiento táctico
As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

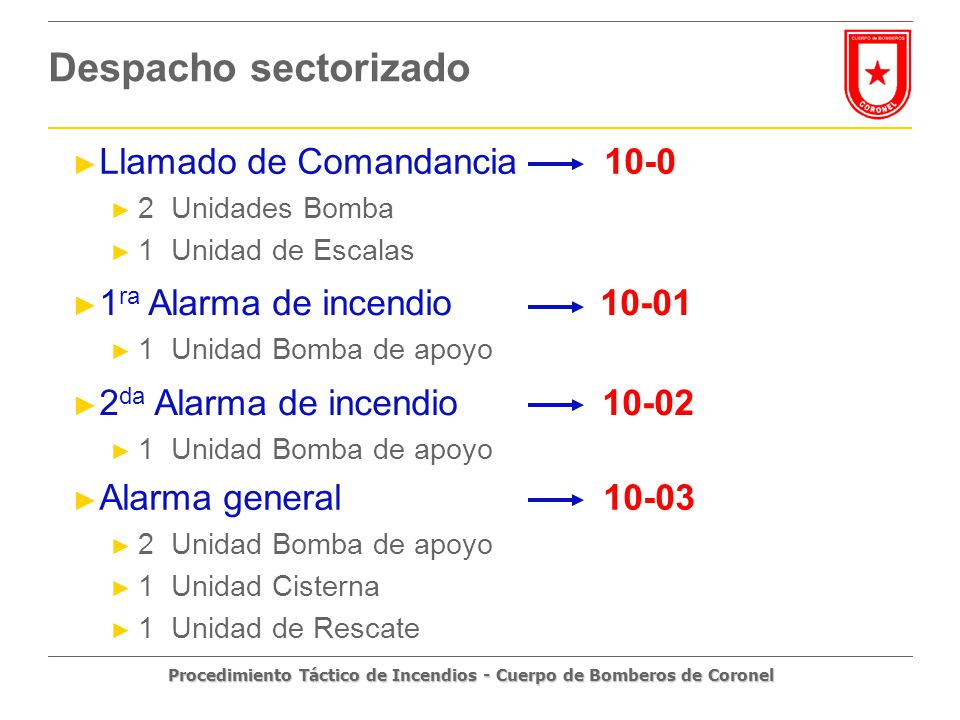

8 Despacho sectorizado Llamado de Comandancia 10-0
2 Unidades Bomba 1 Unidad de Escalas 1ra Alarma de incendio 1 Unidad Bomba de apoyo 2da Alarma de incendio 1 Unidad Bomba de apoyo Alarma general 2 Unidad Bomba de apoyo 1 Unidad Cisterna 1 Unidad de Rescate As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

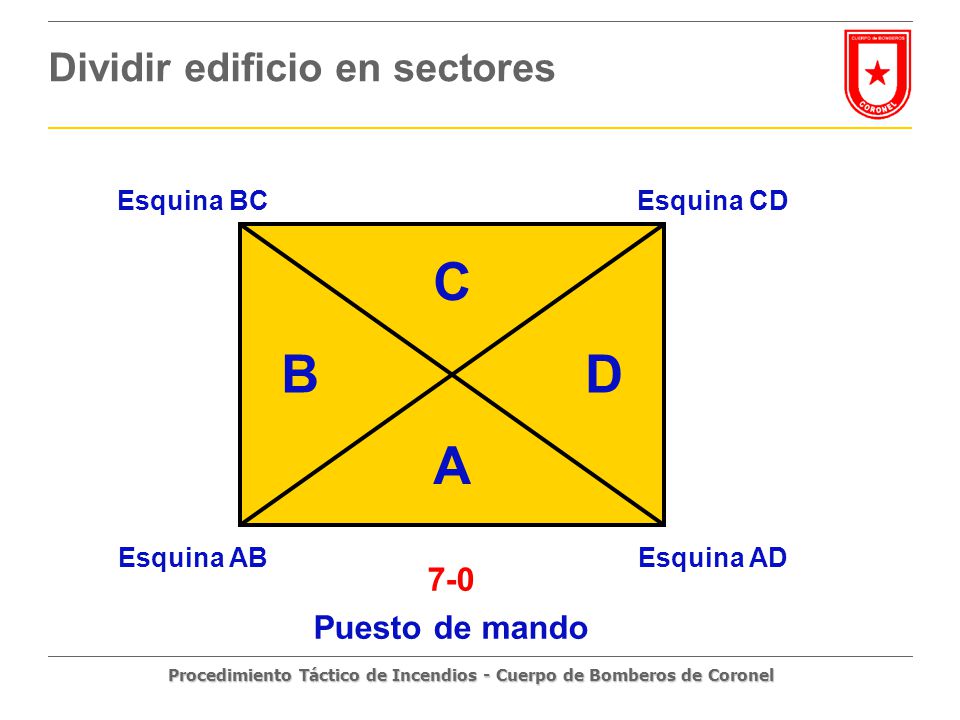

9 Dividir edificio en sectores
Esquina BC Esquina CD C B D A As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. Esquina AB Esquina AD 7-0 Puesto de mando

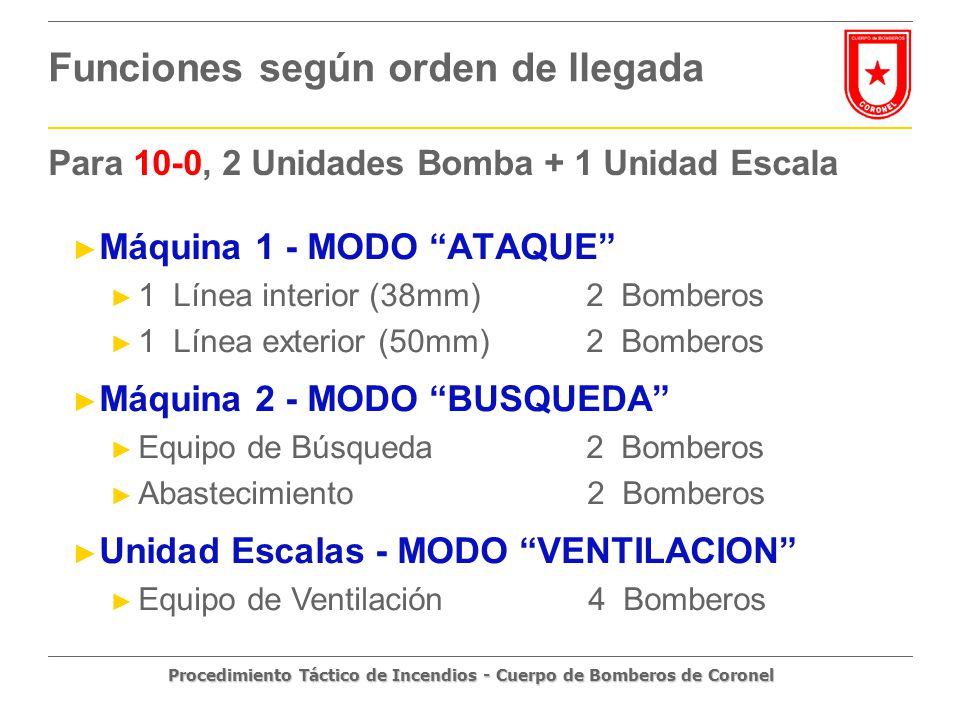

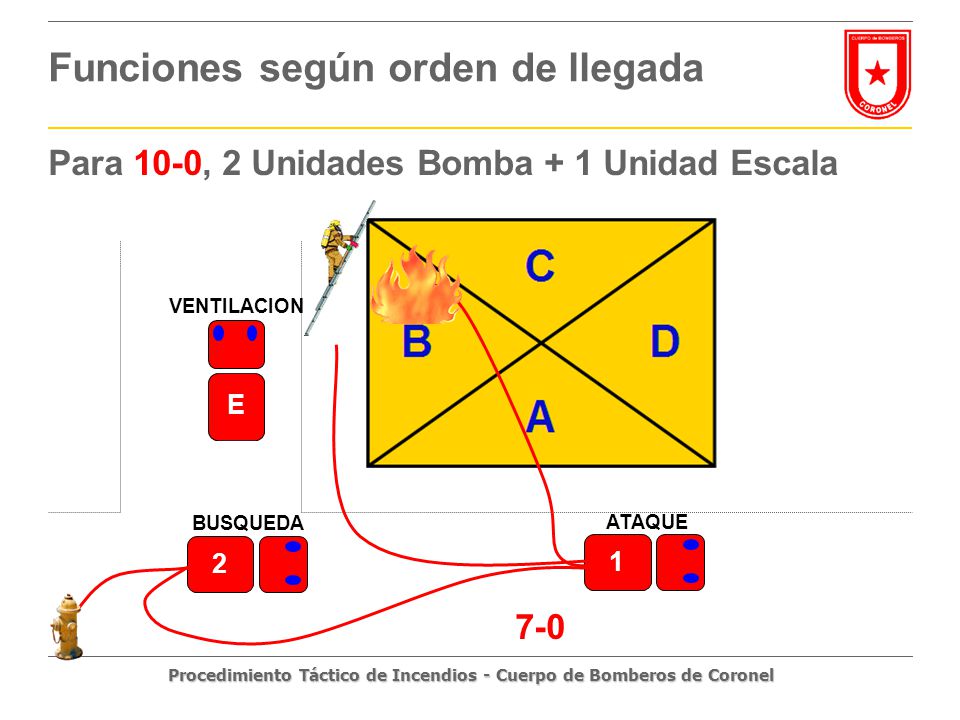

10 Funciones según orden de llegada
Para 10-0, 2 Unidades Bomba + 1 Unidad Escala Máquina 1 - MODO “ATAQUE” 1 Línea interior (38mm) Bomberos 1 Línea exterior (50mm) Bomberos Máquina 2 - MODO “BUSQUEDA” Equipo de Búsqueda Bomberos Abastecimiento Bomberos As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. Unidad Escalas - MODO “VENTILACION” Equipo de Ventilación Bomberos

11 Funciones según orden de llegada
Para 10-0, 2 Unidades Bomba + 1 Unidad Escala VENTILACION E As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. BUSQUEDA ATAQUE 2 1 7-0

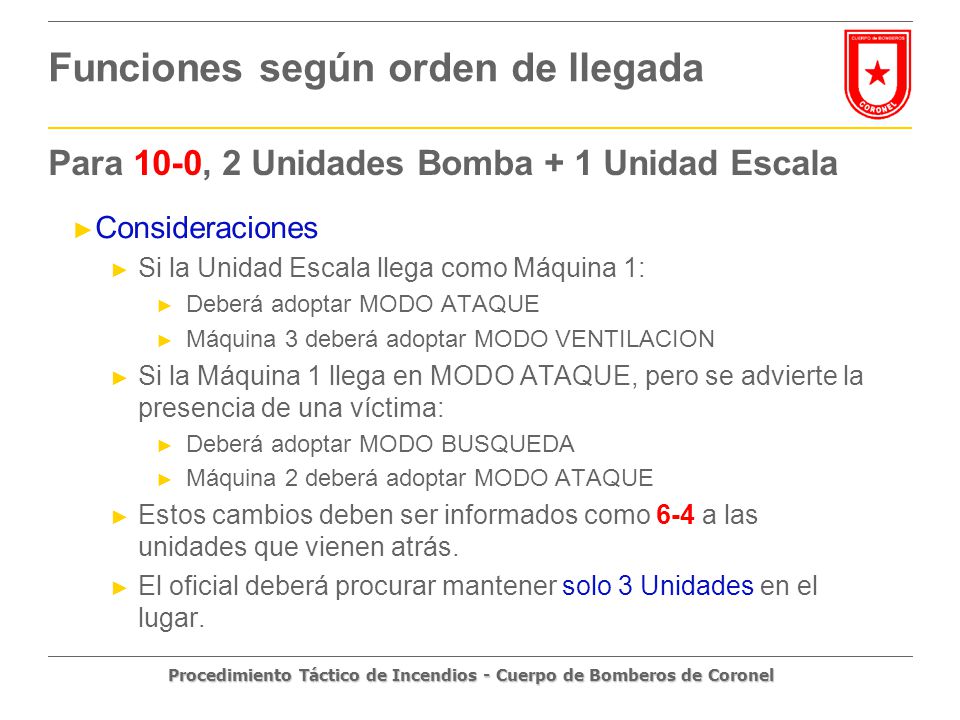

12 Funciones según orden de llegada
Para 10-0, 2 Unidades Bomba + 1 Unidad Escala Consideraciones Si la Unidad Escala llega como Máquina 1: Deberá adoptar MODO ATAQUE Máquina 3 deberá adoptar MODO VENTILACION Si la Máquina 1 llega en MODO ATAQUE, pero se advierte la presencia de una víctima: Deberá adoptar MODO BUSQUEDA Máquina 2 deberá adoptar MODO ATAQUE Estos cambios deben ser informados como 6-4 a las unidades que vienen atrás. El oficial deberá procurar mantener solo 3 Unidades en el lugar. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

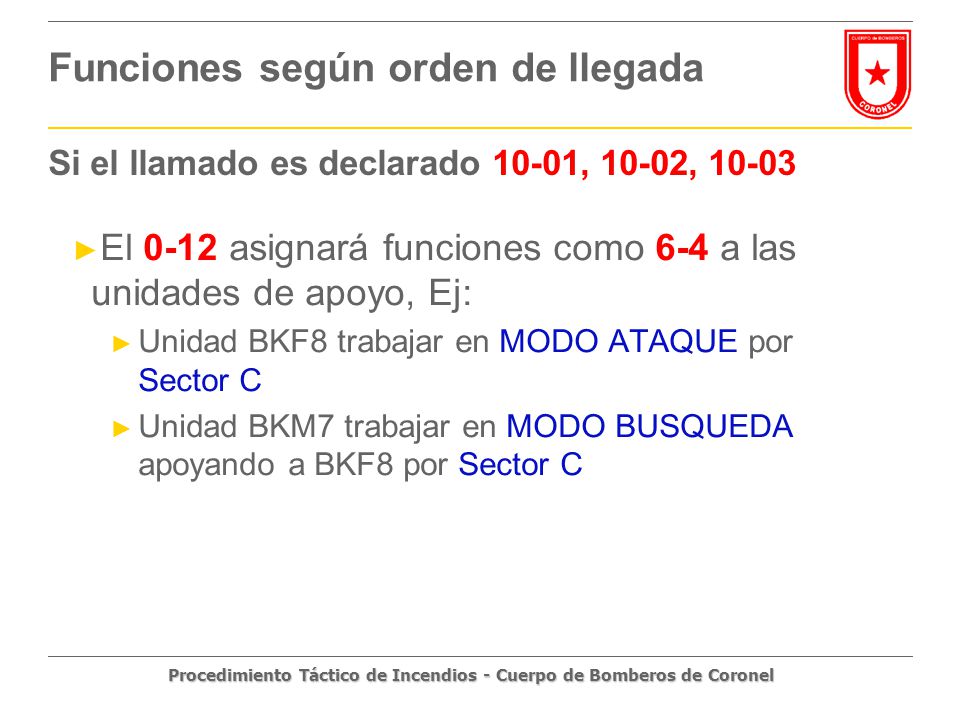

13 Funciones según orden de llegada
Si el llamado es declarado 10-01, 10-02, 10-03 El 0-12 asignará funciones como 6-4 a las unidades de apoyo, Ej: Unidad BKF8 trabajar en MODO ATAQUE por Sector C Unidad BKM7 trabajar en MODO BUSQUEDA apoyando a BKF8 por Sector C As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

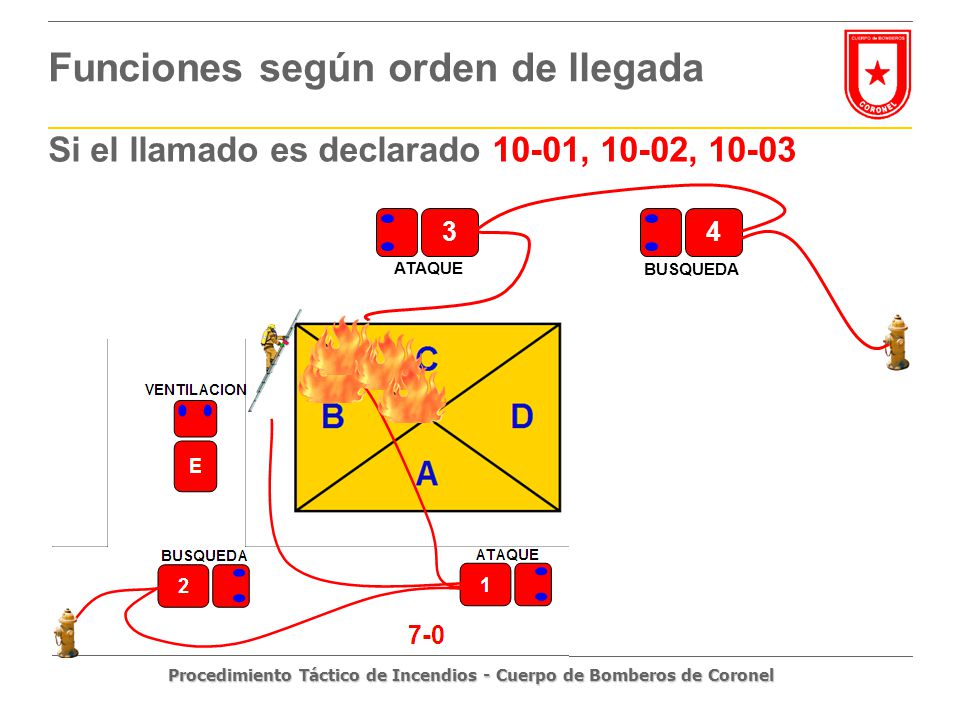

14 Funciones según orden de llegada
Si el llamado es declarado 10-01, 10-02, 10-03 3 4 ATAQUE BUSQUEDA As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

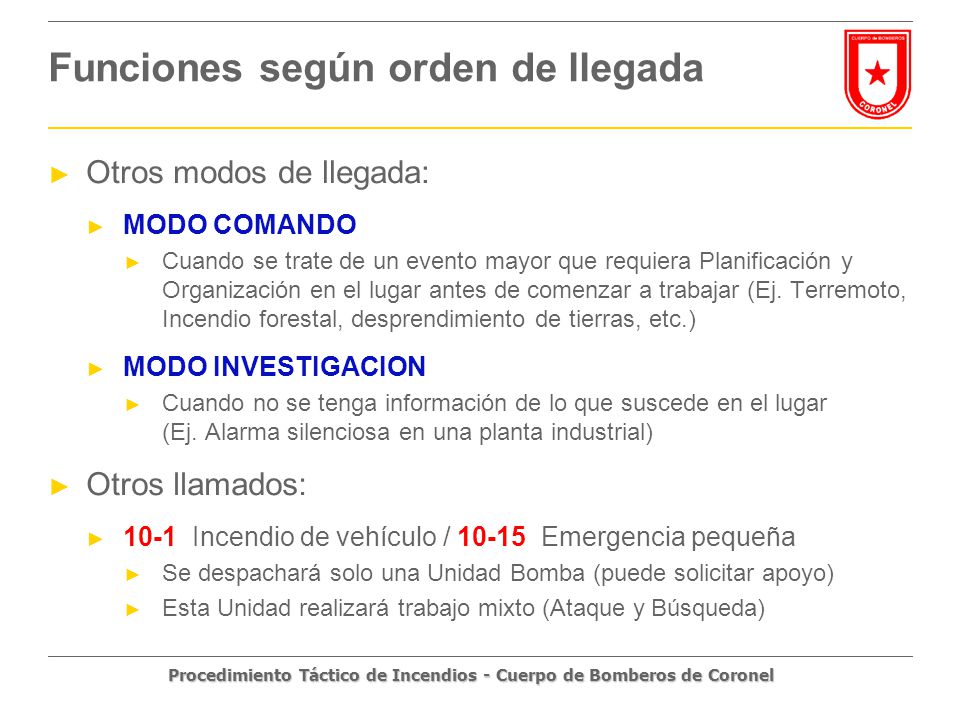

15 Funciones según orden de llegada
Otros modos de llegada: MODO COMANDO Cuando se trate de un evento mayor que requiera Planificación y Organización en el lugar antes de comenzar a trabajar (Ej. Terremoto, Incendio forestal, desprendimiento de tierras, etc.) MODO INVESTIGACION Cuando no se tenga información de lo que suscede en el lugar (Ej. Alarma silenciosa en una planta industrial) Otros llamados: 10-1 Incendio de vehículo / Emergencia pequeña Se despachará solo una Unidad Bomba (puede solicitar apoyo) Esta Unidad realizará trabajo mixto (Ataque y Búsqueda) As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

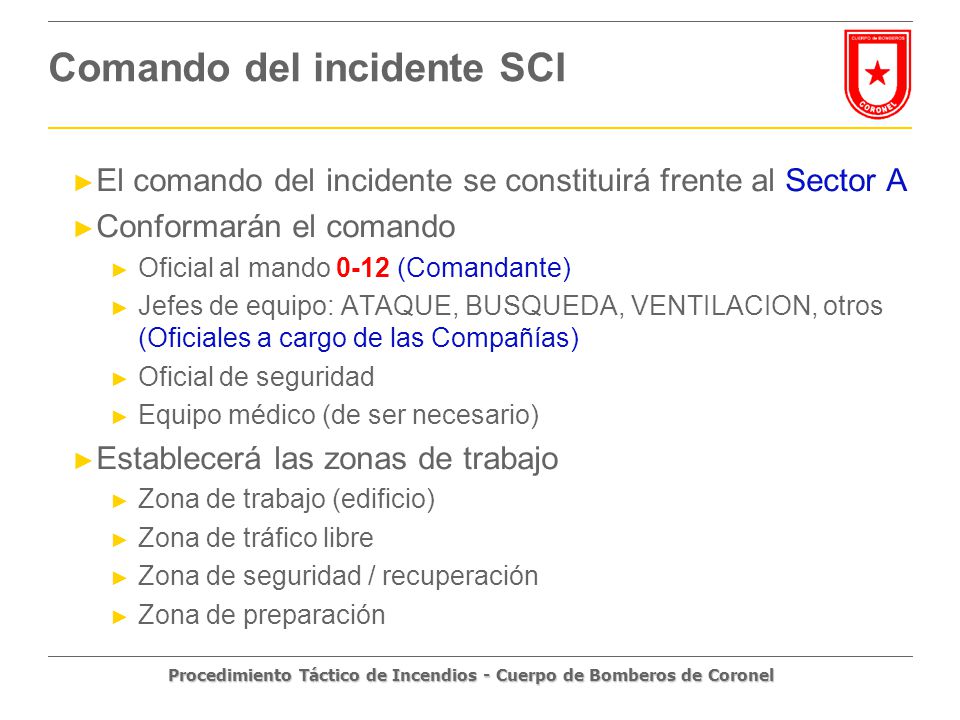

16 Comando del incidente SCI
El comando del incidente se constituirá frente al Sector A Conformarán el comando Oficial al mando 0-12 (Comandante) Jefes de equipo: ATAQUE, BUSQUEDA, VENTILACION, otros (Oficiales a cargo de las Compañías) Oficial de seguridad Equipo médico (de ser necesario) Establecerá las zonas de trabajo Zona de trabajo (edificio) Zona de tráfico libre Zona de seguridad / recuperación Zona de preparación As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

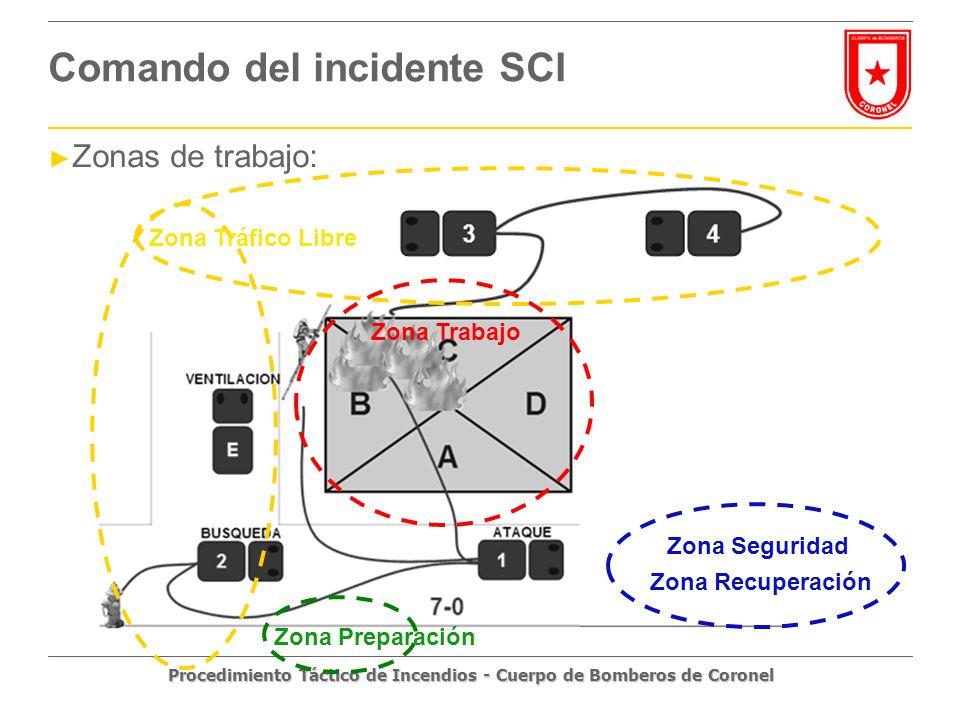

17 Comando del incidente SCI
Zonas de trabajo: Zona Tráfico Libre Zona Trabajo As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. Zona Seguridad Zona Recuperación Zona Preparación

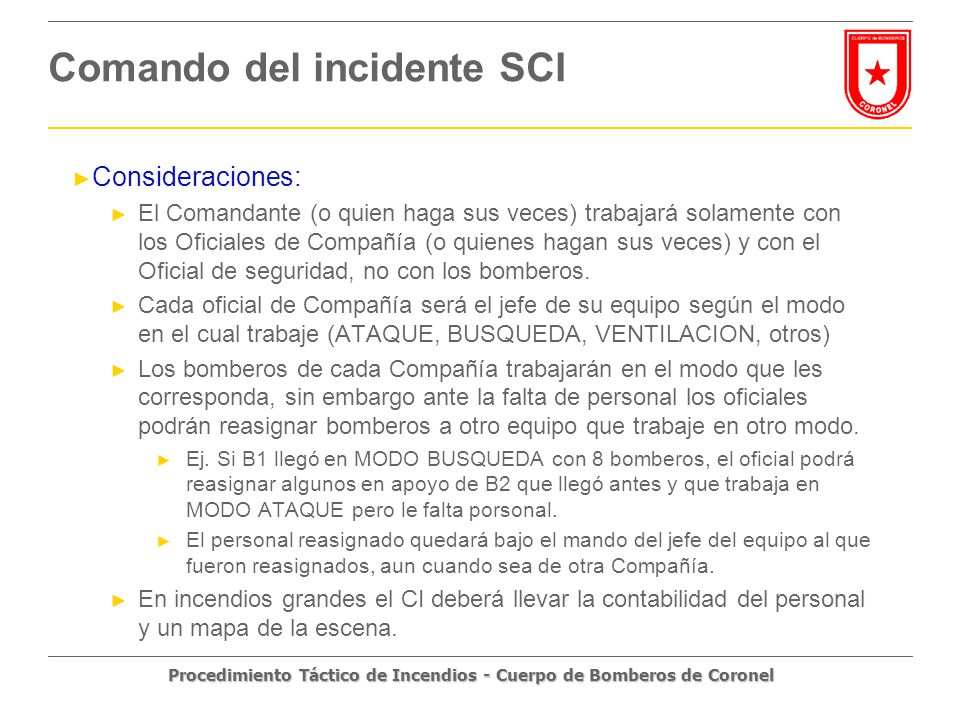

18 Comando del incidente SCI
Consideraciones: El Comandante (o quien haga sus veces) trabajará solamente con los Oficiales de Compañía (o quienes hagan sus veces) y con el Oficial de seguridad, no con los bomberos. Cada oficial de Compañía será el jefe de su equipo según el modo en el cual trabaje (ATAQUE, BUSQUEDA, VENTILACION, otros) Los bomberos de cada Compañía trabajarán en el modo que les corresponda, sin embargo ante la falta de personal los oficiales podrán reasignar bomberos a otro equipo que trabaje en otro modo. Ej. Si B1 llegó en MODO BUSQUEDA con 8 bomberos, el oficial podrá reasignar algunos en apoyo de B2 que llegó antes y que trabaja en MODO ATAQUE pero le falta porsonal. El personal reasignado quedará bajo el mando del jefe del equipo al que fueron reasignados, aun cuando sea de otra Compañía. En incendios grandes el CI deberá llevar la contabilidad del personal y un mapa de la escena. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

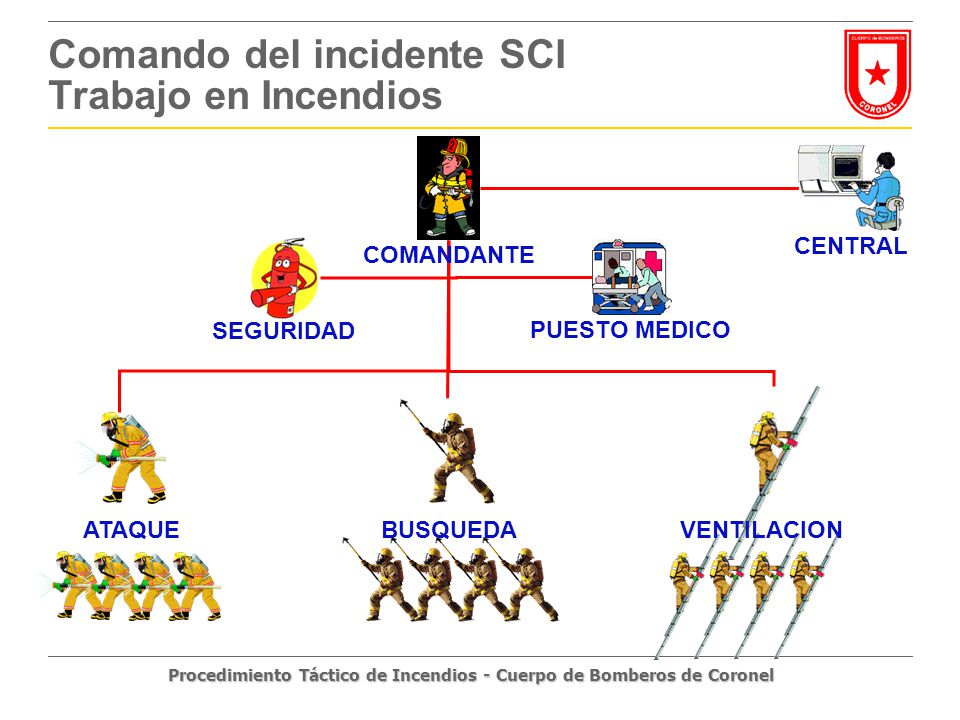

19 Comando del incidente SCI Trabajo en Incendios
CENTRAL COMANDANTE SEGURIDAD PUESTO MEDICO As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. ATAQUE BUSQUEDA VENTILACION

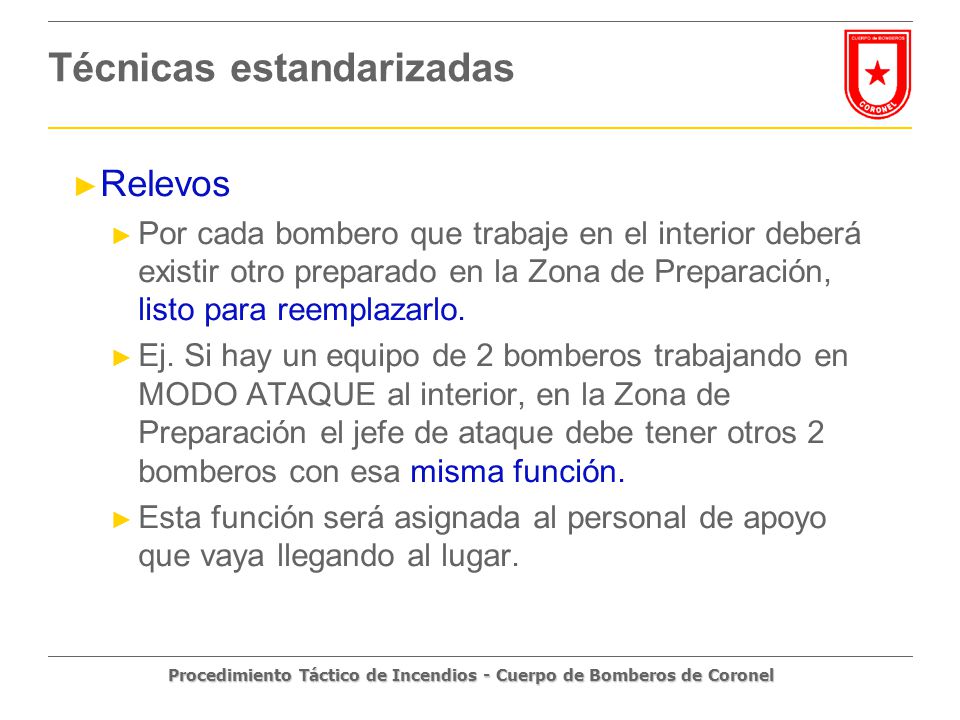

20 Técnicas estandarizadas
Relevos Por cada bombero que trabaje en el interior deberá existir otro preparado en la Zona de Preparación, listo para reemplazarlo. Ej. Si hay un equipo de 2 bomberos trabajando en MODO ATAQUE al interior, en la Zona de Preparación el jefe de ataque debe tener otros 2 bomberos con esa misma función. Esta función será asignada al personal de apoyo que vaya llegando al lugar. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

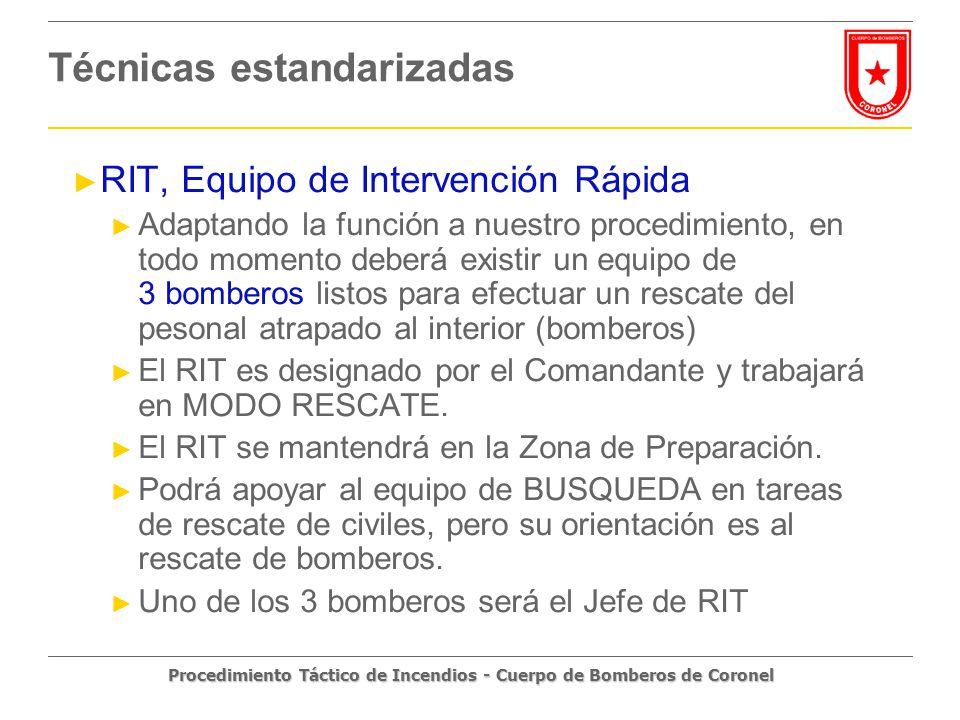

21 Técnicas estandarizadas
RIT, Equipo de Intervención Rápida Adaptando la función a nuestro procedimiento, en todo momento deberá existir un equipo de bomberos listos para efectuar un rescate del pesonal atrapado al interior (bomberos) El RIT es designado por el Comandante y trabajará en MODO RESCATE. El RIT se mantendrá en la Zona de Preparación. Podrá apoyar al equipo de BUSQUEDA en tareas de rescate de civiles, pero su orientación es al rescate de bomberos. Uno de los 3 bomberos será el Jefe de RIT As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

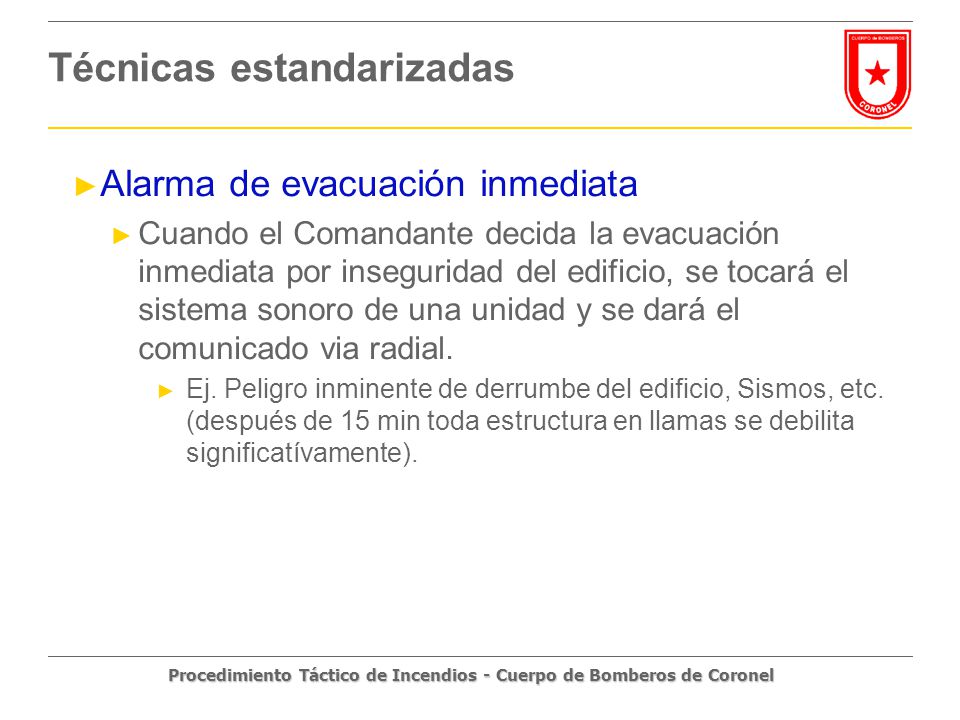

22 Técnicas estandarizadas
Alarma de evacuación inmediata Cuando el Comandante decida la evacuación inmediata por inseguridad del edificio, se tocará el sistema sonoro de una unidad y se dará el comunicado via radial. Ej. Peligro inminente de derrumbe del edificio, Sismos, etc. (después de 15 min toda estructura en llamas se debilita significatívamente). As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

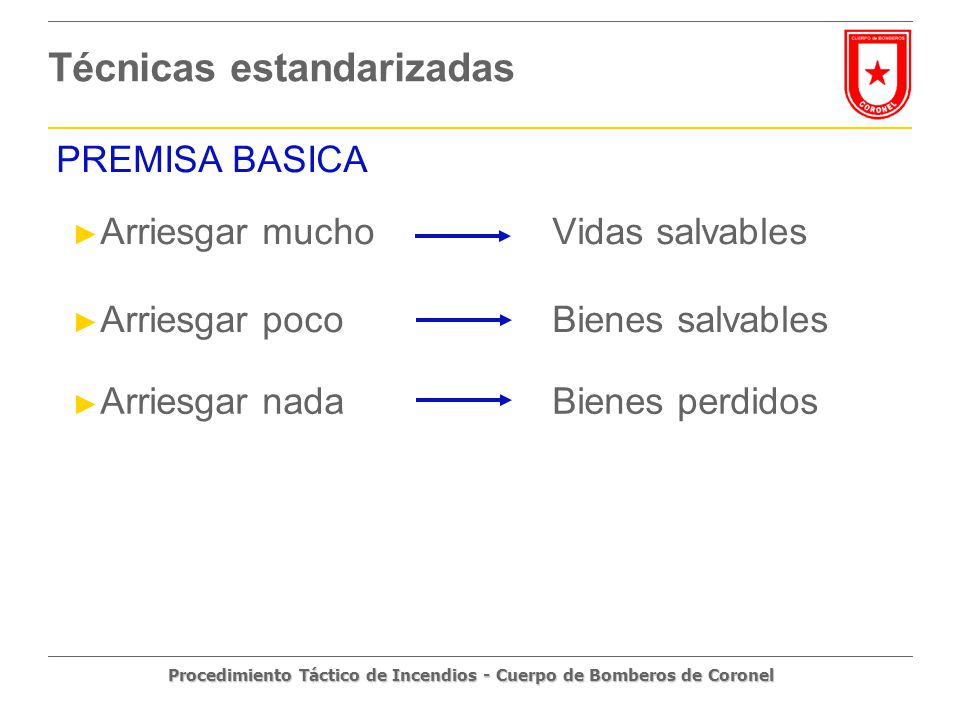

23 Técnicas estandarizadas
PREMISA BASICA Arriesgar mucho Vidas salvables Arriesgar poco Bienes salvables Arriesgar nada Bienes perdidos As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

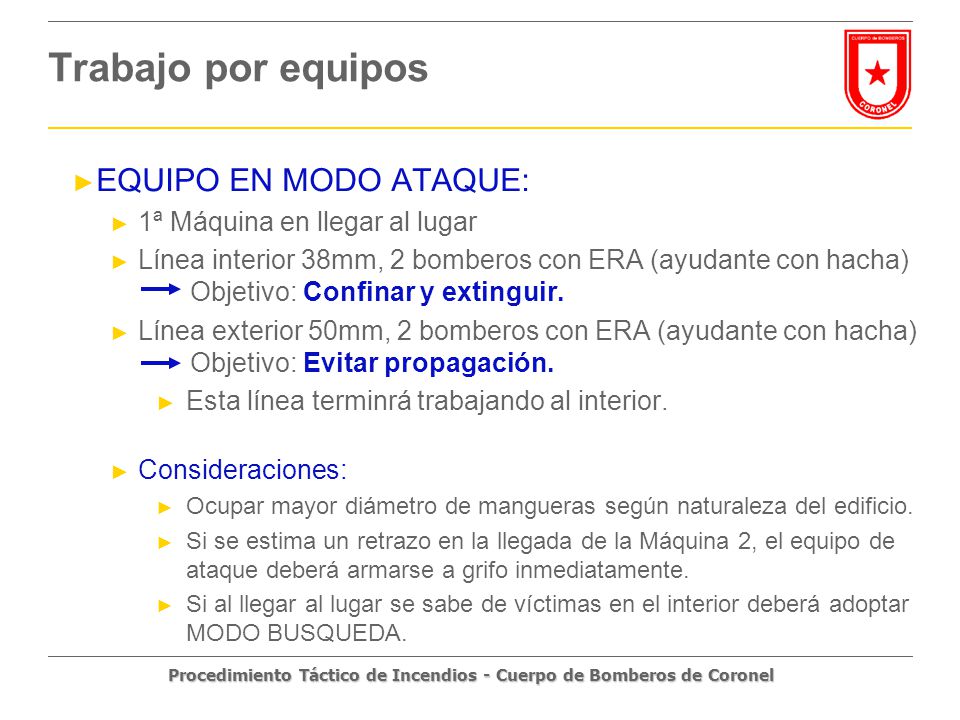

24 Trabajo por equipos EQUIPO EN MODO ATAQUE:
1ª Máquina en llegar al lugar Línea interior 38mm, 2 bomberos con ERA (ayudante con hacha) Objetivo: Confinar y extinguir. Línea exterior 50mm, 2 bomberos con ERA (ayudante con hacha) Objetivo: Evitar propagación. Esta línea terminrá trabajando al interior. Consideraciones: Ocupar mayor diámetro de mangueras según naturaleza del edificio. Si se estima un retrazo en la llegada de la Máquina 2, el equipo de ataque deberá armarse a grifo inmediatamente. Si al llegar al lugar se sabe de víctimas en el interior deberá adoptar MODO BUSQUEDA. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

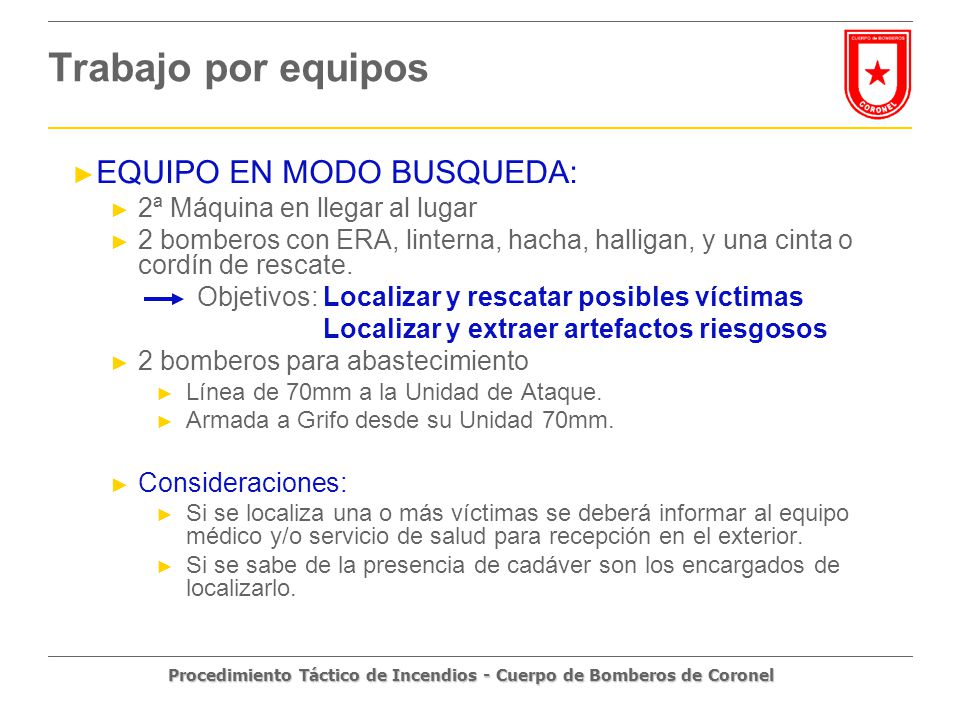

25 Trabajo por equipos EQUIPO EN MODO BUSQUEDA:
2ª Máquina en llegar al lugar 2 bomberos con ERA, linterna, hacha, halligan, y una cinta o cordín de rescate. Objetivos: Localizar y rescatar posibles víctimas Localizar y extraer artefactos riesgosos 2 bomberos para abastecimiento Línea de 70mm a la Unidad de Ataque. Armada a Grifo desde su Unidad 70mm. Consideraciones: Si se localiza una o más víctimas se deberá informar al equipo médico y/o servicio de salud para recepción en el exterior. Si se sabe de la presencia de cadáver son los encargados de localizarlo. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

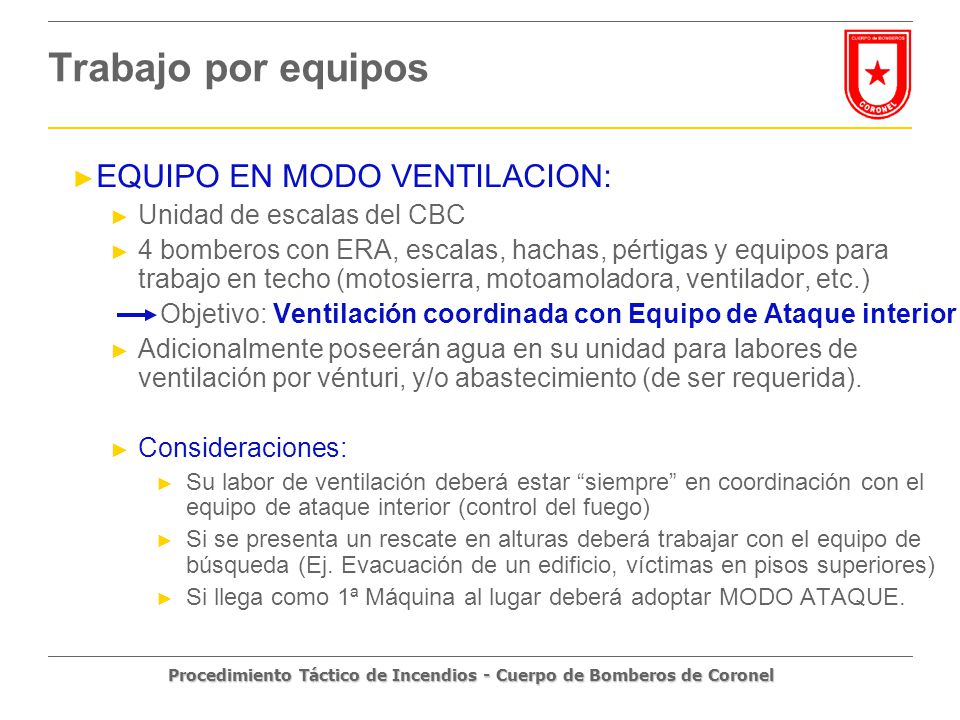

26 Trabajo por equipos EQUIPO EN MODO VENTILACION:
Unidad de escalas del CBC 4 bomberos con ERA, escalas, hachas, pértigas y equipos para trabajo en techo (motosierra, motoamoladora, ventilador, etc.) Objetivo: Ventilación coordinada con Equipo de Ataque interior Adicionalmente poseerán agua en su unidad para labores de ventilación por vénturi, y/o abastecimiento (de ser requerida). Consideraciones: Su labor de ventilación deberá estar “siempre” en coordinación con el equipo de ataque interior (control del fuego) Si se presenta un rescate en alturas deberá trabajar con el equipo de búsqueda (Ej. Evacuación de un edificio, víctimas en pisos superiores) Si llega como 1ª Máquina al lugar deberá adoptar MODO ATAQUE. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

27 Conclusiones As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

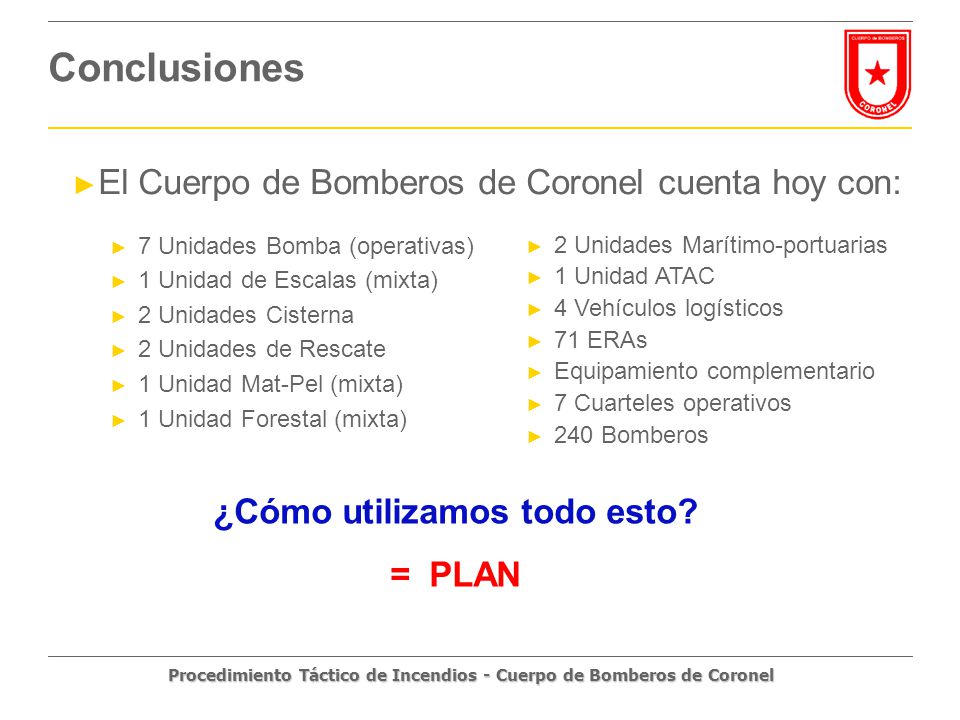

28 ¿Cómo utilizamos todo esto?
Conclusiones El Cuerpo de Bomberos de Coronel cuenta hoy con: 7 Unidades Bomba (operativas) 1 Unidad de Escalas (mixta) 2 Unidades Cisterna 2 Unidades de Rescate 1 Unidad Mat-Pel (mixta) 1 Unidad Forestal (mixta) 2 Unidades Marítimo-portuarias 1 Unidad ATAC 4 Vehículos logísticos 71 ERAs Equipamiento complementario 7 Cuarteles operativos 240 Bomberos As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset. ¿Cómo utilizamos todo esto? = PLAN

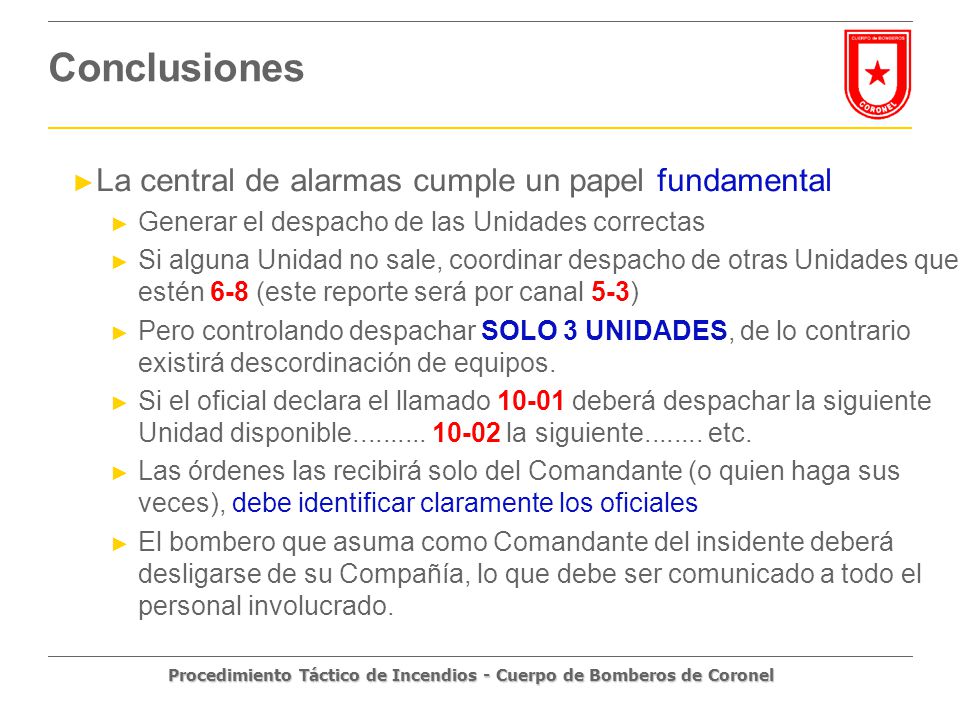

29 Conclusiones La central de alarmas cumple un papel fundamental
Generar el despacho de las Unidades correctas Si alguna Unidad no sale, coordinar despacho de otras Unidades que estén 6-8 (este reporte será por canal 5-3) Pero controlando despachar SOLO 3 UNIDADES, de lo contrario existirá descordinación de equipos. Si el oficial declara el llamado deberá despachar la siguiente Unidad disponible la siguiente etc. Las órdenes las recibirá solo del Comandante (o quien haga sus veces), debe identificar claramente los oficiales El bombero que asuma como Comandante del insidente deberá desligarse de su Compañía, lo que debe ser comunicado a todo el personal involucrado. As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

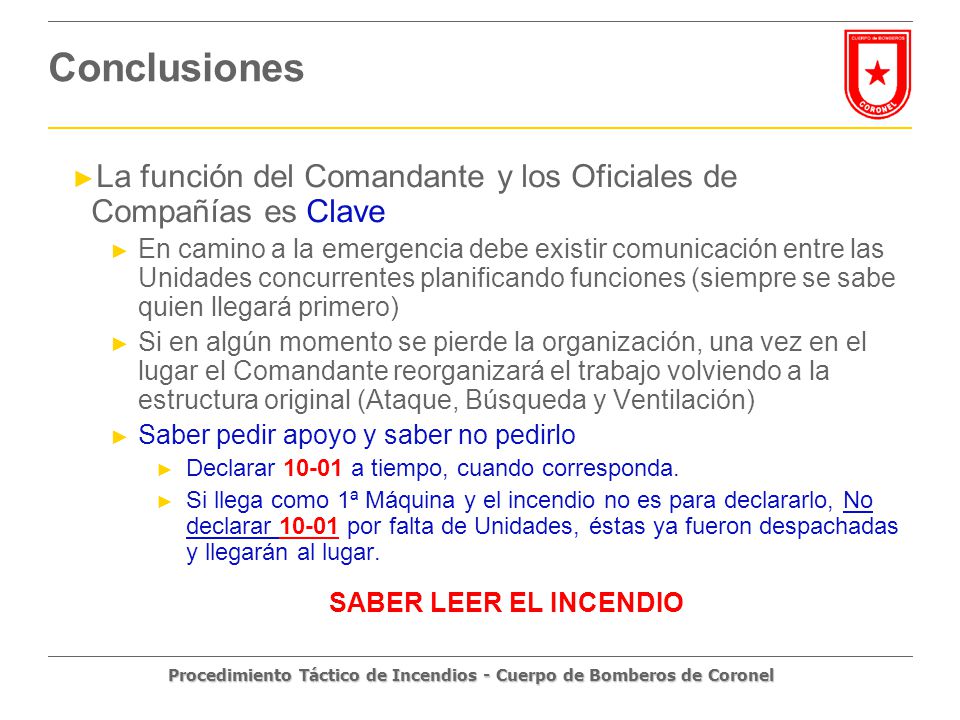

30 Conclusiones La función del Comandante y los Oficiales de Compañías es Clave En camino a la emergencia debe existir comunicación entre las Unidades concurrentes planificando funciones (siempre se sabe quien llegará primero) Si en algún momento se pierde la organización, una vez en el lugar el Comandante reorganizará el trabajo volviendo a la estructura original (Ataque, Búsqueda y Ventilación) Saber pedir apoyo y saber no pedirlo Declarar a tiempo, cuando corresponda. Si llega como 1ª Máquina y el incendio no es para declararlo, No declarar por falta de Unidades, éstas ya fueron despachadas y llegarán al lugar. SABER LEER EL INCENDIO As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

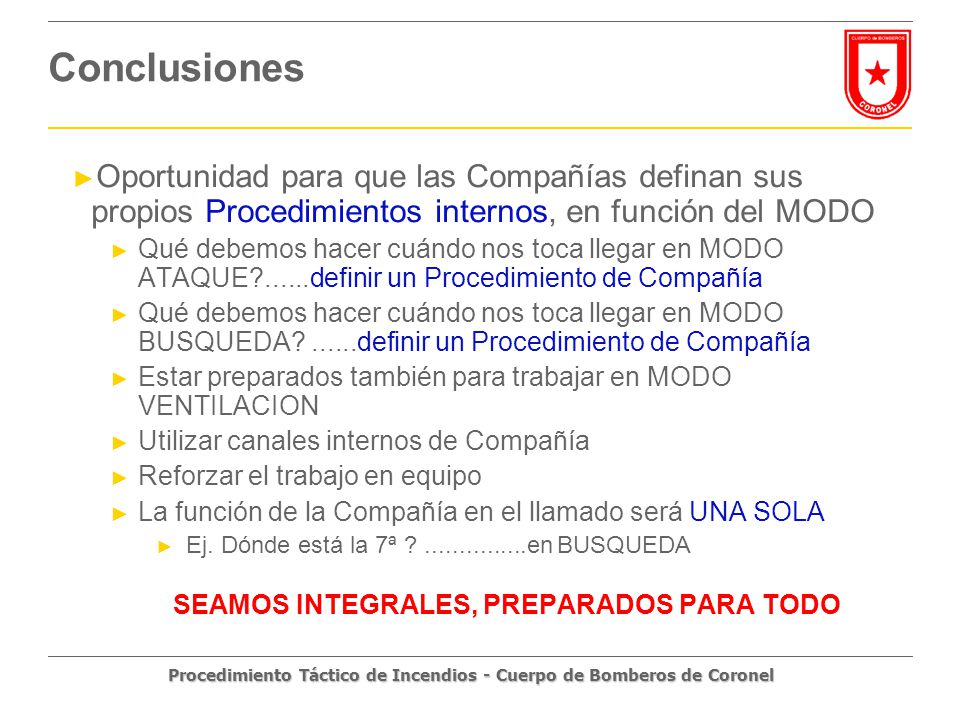

31 SEAMOS INTEGRALES, PREPARADOS PARA TODO
Conclusiones Oportunidad para que las Compañías definan sus propios Procedimientos internos, en función del MODO Qué debemos hacer cuándo nos toca llegar en MODO ATAQUE?......definir un Procedimiento de Compañía Qué debemos hacer cuándo nos toca llegar en MODO BUSQUEDA? definir un Procedimiento de Compañía Estar preparados también para trabajar en MODO VENTILACION Utilizar canales internos de Compañía Reforzar el trabajo en equipo La función de la Compañía en el llamado será UNA SOLA Ej. Dónde está la 7ª ? en BUSQUEDA SEAMOS INTEGRALES, PREPARADOS PARA TODO As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.

32 La gente espera más de nosotros...
Conclusiones “El peor plan, es cuando no hay plan” La gente espera más de nosotros... As this slide shows, the definition falls into several parts. An asset must be: Identifiable, which distinguishes it from goodwill. It needs to be have particular characteristics, whether based on separability or legal rights, that allow the nature of the asset to be identified and differentiated from the general goodwill that belongs to the business as a whole. Non-monetary, which distinguishes it from a financial asset. Its benefits stem from its use in the business, not just as a direct claim to cash. Without physical substance, which distinguishes it from a tangible asset. However, there are sometimes borderline decisions between the two, and judgement is required to classify the asset in these cases. For example, computer software (an intangible asset) will not become hardware (a tangible asset) simply because it is stored on a physical medium such as a disk; the value of the asset lies in the intellectual property, not the physical storage mechanism. However, specialist software that runs a computer-controlled machine tool is an integral part of the tool and would be accounted for as part of that tangible asset.
