1 Seminario Sistemas Troncalizados MPT1327

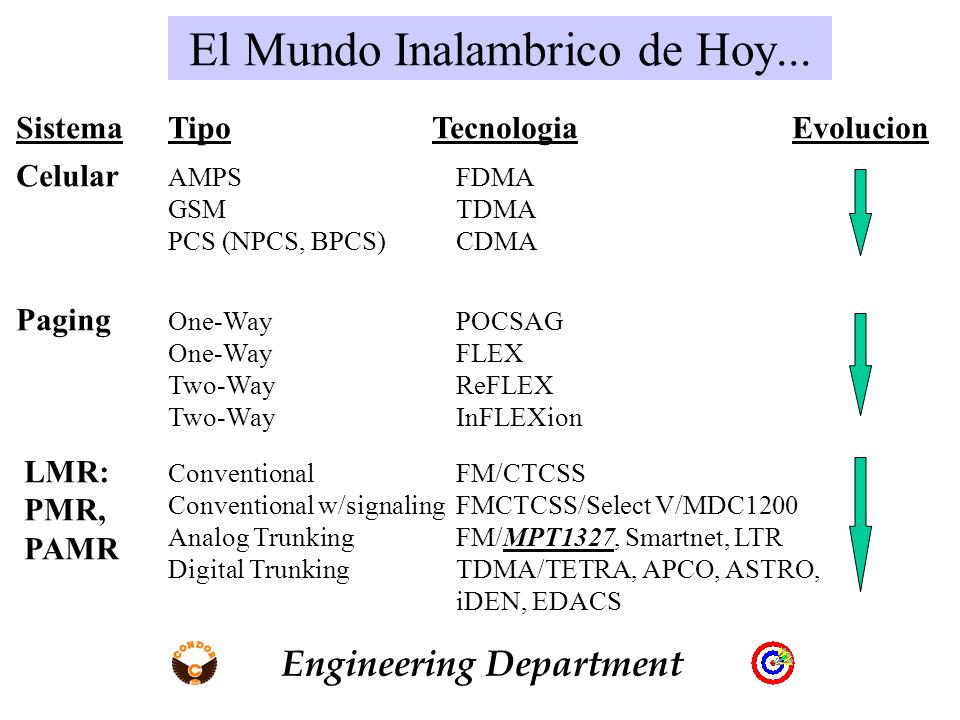

2 El Mundo Inalambrico de Hoy...
Sistema Tipo Tecnologia Evolucion Celular AMPS FDMA GSM TDMA PCS (NPCS, BPCS) CDMA Paging One-Way POCSAG One-Way FLEX Two-Way ReFLEX Two-Way InFLEXion LMR: PMR, PAMR Conventional FM/CTCSS Conventional w/signaling FMCTCSS/Select V/MDC1200 Analog Trunking FM/MPT1327, Smartnet, LTR Digital Trunking TDMA/TETRA, APCO, ASTRO, iDEN, EDACS Engineering Department

3 Requerimientos del Mercado
Talkgroups Telefono Talkaround Facil de Usar Robustez Construccion X X X X Seguridad X X X X X Manufactura X X X X Transportacion X X Taxis X X _________________________________________________________________________ Cellular No Excelente No Moderado Promedio iDEN Bueno Muy Bueno Limitado Moderado Bueno Trunking Analogico Excelente Bueno Si Simple Excelente Costo de Compra Costo mensual Costo Anual Cellular $ $ $1500 iDEN $ $ $912 MPT $ $ $300 Nota: los Radios Analogicos duran mas Engineering Department

4 La Troncalizacion surgio primero en la Telefonia
TRONCOS CENTRAL CENTRAL Taking the common telephone network service would be improved by providing a multi-line telephone trunk between exchanges so that your call would be connected when the network has other calls on it. These lines would be shared by the subscribers on both exchanges to make distant calls to each other. This type of trunk networking is the principle on which all telephone networks designed. The inter-trunk lines become a shared communication resource between all exchanges and these are accessed by the use of STD dialling. The trunks are carried over physical copper wires, multiplexed trunk carrier systems and lately over digital optical fibre routes which carry thousands of calls over a pair of optical fibres. By applying the trunking principle the lines are only used for your call and then returned to the resource pool when the call is terminated. All these principles of trunking are applied to a multi channel radio system. Engineering Department

5 Sistema Convencional de Radio
Logica Individual Moviles Repetidoras Tone Panel Canal 1 Bloqueados y Monitoreando IDLE Tone Panel Canal 2 Canal 3 Tone Panel Consider a conventional two way radio systems where generally radios are allocated a specific channel in talk groups or clusters of talk groups using private Line signalling (PL). The main problem with this type of operation is that if one talk group is using the channel then it will block access for use by other talk groups on the same frequency. Often interference occurs in this situation with the other groups breaking into conversations causing a breakdown of general order on the channel. Also where there are a number of channels being operated from the same site independently Bloqueados y Monitoreando Canal 4 Tone Panel Engineering Department

6 Evolucion de la Tecnologia Radio Movil Terrestre (LMR)
Smartnet Decada de los 80 Convencional Troncalizado LTR INEFICIENCIA MPT1327: Protocolo Publico LMR = PMR + PAMR

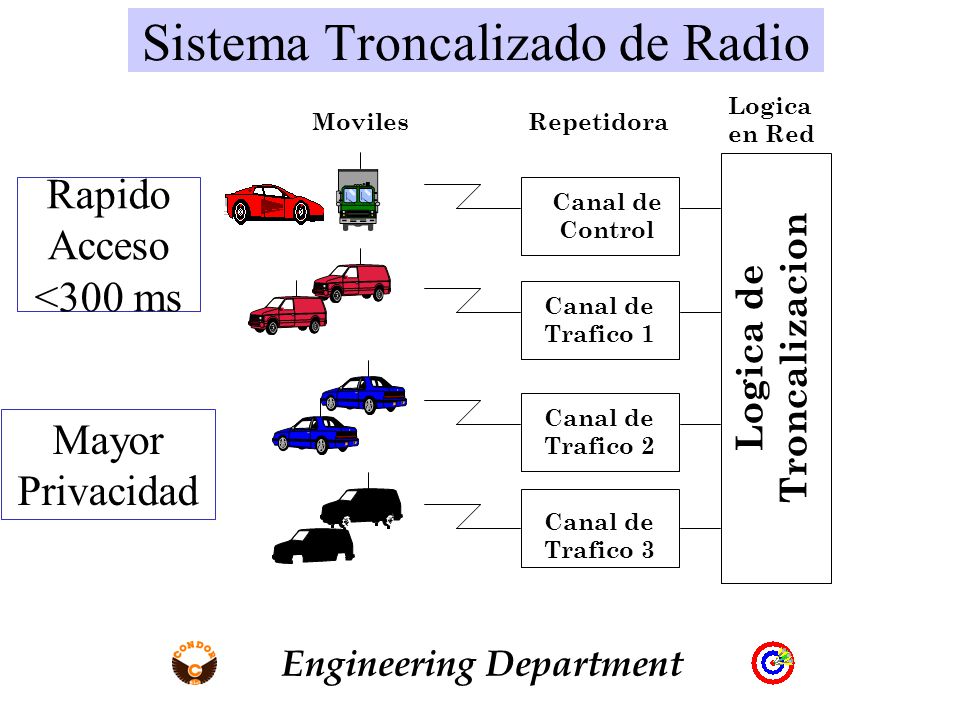

7 Sistema Troncalizado de Radio
Logica en Red Moviles Repetidora Rapido Acceso <300 ms Canal de Control Canal de Trafico 1 Troncalizacion Logica de Canal de Trafico 2 Mayor Privacidad Canal de Trafico 3 Two-Way radio is the dynamic and automatic sharing of a pool of RF frequencies. With the use of modern microprocessor technology which has fast operating speeds and reliability the design of advance switching controllers have become very cost effective. It is now standard manufacturing design to include one of these advanced type of processors in every trunked type of field radio. By application of clever software controls these controllers can perform a number of functions which not only will control the subscriber radio fleet but also provide automated system management functions as well. The radios can also switch channels in milliseconds under control of the controller which give the ability of a user to have almost instant access to a free channel. In the basic trunked system a controller is fitted with a number of base stations and a number of directly connected dispatcher telephones. By applying the similar scenario Engineering Department

8 Concepto de Troncalizacion
compartir un numero limitado de Troncos o Canales de Comunicacion entre un numero grande de Usuarios, donde cualquier Usuario tiene acceso a cualquier Tronco Principio Fundamental aumentar la eficiencia en el uso de los Canales y del Espectro Radioelectrico A trunk can be described in a number of ways and the road, cups connected by string and telephone lines are among the common means of communication experienced by people and children alike. Engineering Department

9 Los sistemas troncalizados analogicos ofrecen ventajas sobre...
los sistemas convencionales, en eficiencia los sistemas celulares, en organizacion de flotas y grupos y en costo los sistemas troncalizados digitales, en simplicidad y costo Engineering Department

10 La Capacidad del sistema crece con el numero de Canales
1 Canal No Troncalizado Radios 5 Canales Troncalizados 260 total (52 R/Can) 10 Canales Troncalizados total (70 RU/Can) 15 Canales Troncalizados total (85 R/Can) 20-Channel Trunked System 1900 total (95 R/Can) Engineering Department

11 Mensualidades promedio
Mensualidad Por Minuto Dispatch (Radio a Radio) $15-$30 Local c6-c20 Intersite c6-c20 Telefono $5-$8 Larga Distancia c6-c27 Average Monthly Revenue (PRNewswire) en los E.U.A. : Cellular $52.45 Trunking Dispatch $16.50 Trunking Interconnect $50.70 Engineering Department

12 Caracteristicas Generales del Protocolo MPT1327
Engineering Department

13 Historia del Protocolo MPT1327
Documentos de la familia MPT1327: MPT1317 Data Bearer Specification MPT1318 Engineering/Statistics MPT1327 Signalling Standard MPT1331 Code of practice for radio site engineering 1987 MPT Air Interface Specification MPT1347 Radio Interface Specification 1988 MPT1352 Performance/Test Specification 1991 Evolucion: 1985_U.K DTI allocates BANDIII ( MHz) to land mobile and mandates all sytems to be trunked and conform to MPT1327 1988_MPT1327 Specifications is published 1989_some european countries begin to adopt MPT1327 1991_Germany, Switzerland and Holland Systems go on-line 1993_over 110,000 subscribers in service Today_millions of MPT users all over the world Engineering Department

14 MPT1327 es un Protocolo Publico
Protocolo Privado: pocas opciones de fabricantes poca competencia, precios mas altos disponibilidad a traves de un solo suplidor poco acceso a la informacion tecnologica Hay mas de 20 fabricantes de Radios MPT1327: Motorola, Icom, Yaesu, Kenwood, Kavicomm, Nokia, Alcatel, Tait, OTE, Maxon, Teltronik, etc. Hay mas de 10 fabricantes de Infraestructura MPT1327: Fylde, Zetron, Nokia, R&S, Alcatel, Tait, OTE, Teltronik, etc. Engineering Department

15 Engineering Department
El Canal de Control digital permite el sincronismo entre el sistema y los radios Bits 23 16 PFX IDENT 1 1 CAT General Field Parity 64 Bits LET Preamble SYNC ADD 1 CCSC ADD 2 CCSC ADD 2 CCSC 64 Bits Preamble Parity Check SYS CCS Bits 16 16 16 SYS - System Identity Code. (Note any value of SYS that results in a similar value as the SYNC code is not permitted.) CCS - Codeword Completion Sequence, a value which is chosen to form the parity check bits Engineering Department MPT 1327 Control Channel Transmitted Sequence

16 La modulacion en el Canal de Control es FFSK (MSK)-1200bps
1200 Hz Binary bit 1 1800 Hz Binary bit 0 1200 Baud Data speed. Binary Binary Binary Binary Binary 1 1 1 Continuous Modulation. Engineering Department

17 Engineering Department
El Metodo de Contencion de ALOHA por intervalo de tiempo evita colisiones entre radios Control Channel Transmit Sequence ALOHA ALOHA ALOHA AHOY ALOHA GTC ALOHA ALOHA ALOHA ALOHA 1 1 1 2 1 1 1 1 1 1 Control Channel Receive Sequence RQS ACK 1 2 Traffic Speech Period CLEAR Channel TSC to Radios Message P 1 P 2 Engineering Department

18 los Sistemas Troncalizados MPT1327
Servicios que ofrecen los Sistemas Troncalizados MPT1327 Engineering Department

19 Engineering Department
Los sistemas MPT1327 ofrecen Servicios similares a los ofrecidos por sistemas mas sofisticados... llamadas de voz y de datos llamadas hacia/desde PSTN/PABX llamada selectiva, individual y de grupo roaming diferentes niveles de prioridad en las llamadas entrada tardia a llamadas de grupo reagrupamiento dinamico por aire mensajes cortos, numericos y alfanumericos transmision semiduplex de datos transferencia (desvio) de llamadas verificacion de Numero de Serie Electronico (ESN) rediscado de ultimo numero llamado llamada por directorio de usuarios en memoria llamada instantanea programable en boton del radio identificacion (“alias”) del radio o grupo llamador Engineering Department

20 Llamada Individual Engineering Department System 20 23 Grupo 91
“23#” Prioridad Normal “*8*23#” Prioridad Alta “*9*23#” Emergencia (con o sin Vaciamiento de canal) Grupo 91 23 When a call is made to a radio within the same fleet only the 2 or 3 digit individual ident is dialled. The end of the dialling sequence is ended with the ‘Hash’ button push. The radio software identifies only 2 or 3 digits were dialled and that this was a local call in the same fleet. The annunciation MPT System Engineering Department

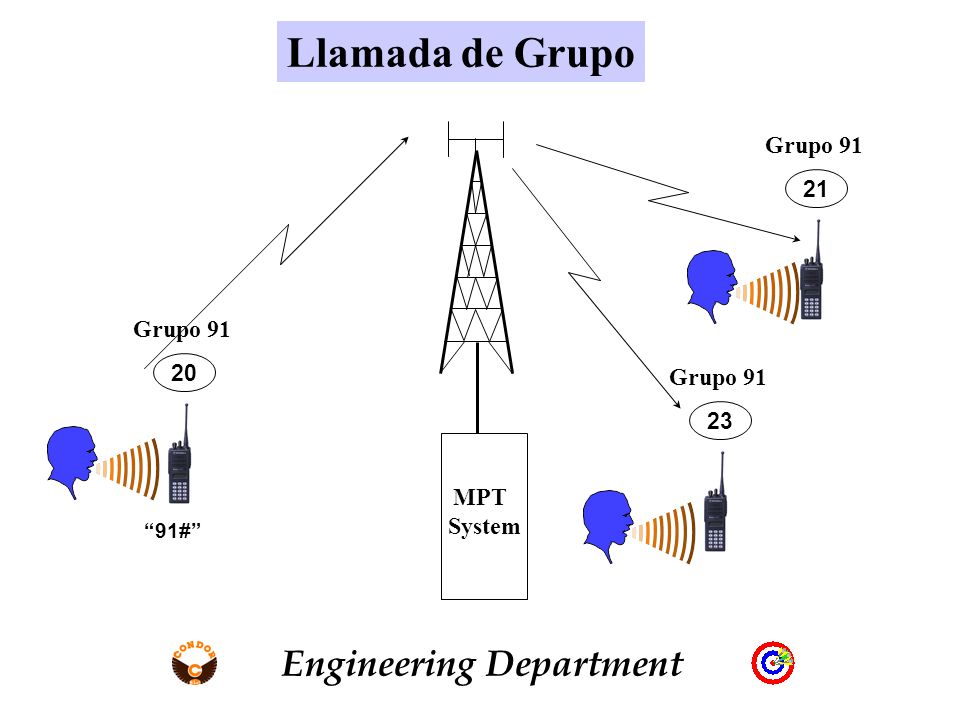

21 Llamada de Grupo Engineering Department System 21 20 23 Grupo 91
“91#” Grupo 91 23 For a local fleet group call only the 2 or 3 digits of the group number are required to be dialled. The end of the dialling sequence is ended with the ‘Hash’ button push. The radio software identifies only 2 or 3 digits were dialled and that this was a local group call in the same fleet. The annunciation MPT System Engineering Department

22 Llamada de Difusion o Aviso
Grupo 91 21 Grupo 91 Grupo 91 20 “91#” 23 MPT System Engineering Department

23 Reagrupamiento Dinamico
con CORDS, conexion MAP27 al movil, empleo de Mensajes Cortos en CC Antes Nota: CC= Canal de Control CT= Canal de Trafico Grupo 91 Grupo 92 23 27 31 33 Despues Grupo 93 (temporal) 23 27 31 33 MPT System CORDS (Condor) Engineering Department

24 Llamada Multisitio: individual y de grupo
20 “91#” “21#” 21 MPT Site MPT Site Engineering Department

25 Llamada a la red publica (PSTN)
20 When call to a PSTN connection is requested the caller dials in the PSTN number preceded by a ‘0’. This preceding ‘0’ identifies to the radio that the call request is to a PSTN number. This ‘0’ is removed by the radio encoding software and encoded as a RQS PSTNI type call request. The system controller checks for authorisation and if permitted recalls the caller and obtains the dialled digits in a set data type MPT1327 telegram. If outgoing calls from the PSTN connection are permitted by the network the PSTN caller is required to dial the whole prefix, fleet and indent of the called party. The system controller verifies the requested number is authentic and approved prior to AHOYing the user. “ ” MPT System PSTN Engineering Department

26 Llamada a la red privada (PABX)
20 4312 MPT System If the network is connected to a local PABX then the calling sequence is similar to a PSTN type call. The exception is that the call is preceded by an ‘8’ which identifies to the system that the call type is a PABX or PABXI. If the dialled digits excluding the preceding digit are 4 digits then a PABX type request is made which includes the 4 numerical digits in the telegram. If the dialled digits are 5 or more up to 9 digits the a PABXI call request id made with the digits being requested by the controller in a data type telegram after authorisation checks are made. PABX 4420 “84312” 4856 Engineering Department

27 Roaming: cambio de la zona de cobertura de un sitio a otro
Solapamiento 44 Engineering Department

28 Roaming: busqueda y decision Engineering Department
normal comprehensive background preferential home channel Roaming: busqueda y decision Zona de Solapamiento 44 Engineering Department

29 Instruccion “Vote Now”
A B C D E F G J Engineering Department

30 Verificacion individual de cada radio antes de establecer una llamada
20 Habilitado 23 No Habilitado Grupo 91 20 Grupo 91 23 MPT System “23#” Prioridad Normal “*8*23#” Prioridad Alta “*9*23#” Emergencia (con o sin Vaciamiento de canal) Engineering Department

31 Engineering Department
Verificacion del Numero de Serie Electronico (ESN) antes de permitir la Registracion de un radio 44 “002/07/072212” Zona de Solapamiento 44 “002/07/084492” Engineering Department

32 Llamada entre Flotas (entre grupos) Engineering Department System 20
Prefix No. 201 Fleet No. 3550 44 Prefix No. 201 Fleet No. 2001 20 “355044#” When an inter-fleet call is required the fleet number and ident of the called radio is dialled. This number, which can be either 6 or 7 digits depending upon the fleet size, is encoded by the radio and transmitted to the system controller. The controller then verifies that the caller is authorised to make inter-fleet calls and connects the caller to the called party if allowed. MPT System Engineering Department

33 Llamada entre Prefijos (entre tipos de usuario)
Prefix No. 203 Fleet No. 3550 44 Prefix No. 201 Fleet No. 2001 20 When an inter-prefix call is required the prefix, fleet number and ident of the called radio is dialled. This number, which can be either 9 or 10 digits depending upon the fleet size, is encoded by the radio and transmitted to the system controller. The controller then verifies that the caller is authorised to make inter-prefix calls and connects the caller to the called party if allowed. It may be possible that the fleet number and ident are similar as the calling part but this similarity is ended by the different prefix number. “ #” MPT System Engineering Department

34 Mensajes alfanumericos preprogramados
con teclado del radio, empleo de Mensajes Cortos Preprogramados (STATUS) en CC, tipicamente hasta 10 mensajes distintos Nota: CC= Canal de Control CT= Canal de Trafico 44 20 Status calls are only permitted between users in the same fleet. The call sequence is performed on the control channel without any need to switch to a voice traffic channel. The radio detects the operation of the ‘S’ status button and encodes the service request to the controller as a status call. The called ident and the status number is stored in the radio display with an audible repeated alert. The status message will remain until cleared by the called party. It is possible to store more than 1 status messages in a radio and the user can scroll through then clearing each message using a clear button. In the 1200 series radio it is possible to store text related status messages so that when a status message is decoded a specific related message is displayed. All numeric status messages can be interpreted by the called and caller if they both are utilising a common known directory. “44S03#” “Regresa al taller” MPT System Engineering Department

35 Mensajes alfanumericos preprogramados
con teclado externo conectado al movil, empleo de Mensajes Cortos Preprogramados (STATUS) en CC, hasta 31 mensajes distintos Nota: CC= Canal de Control CT= Canal de Trafico 44 20 Teclado 1 2 3 4 5 6 7 8 9 CMC “En zona de carga” S # MPT System “44S13#” Engineering Department

36 Mensajes numericos Engineering Department

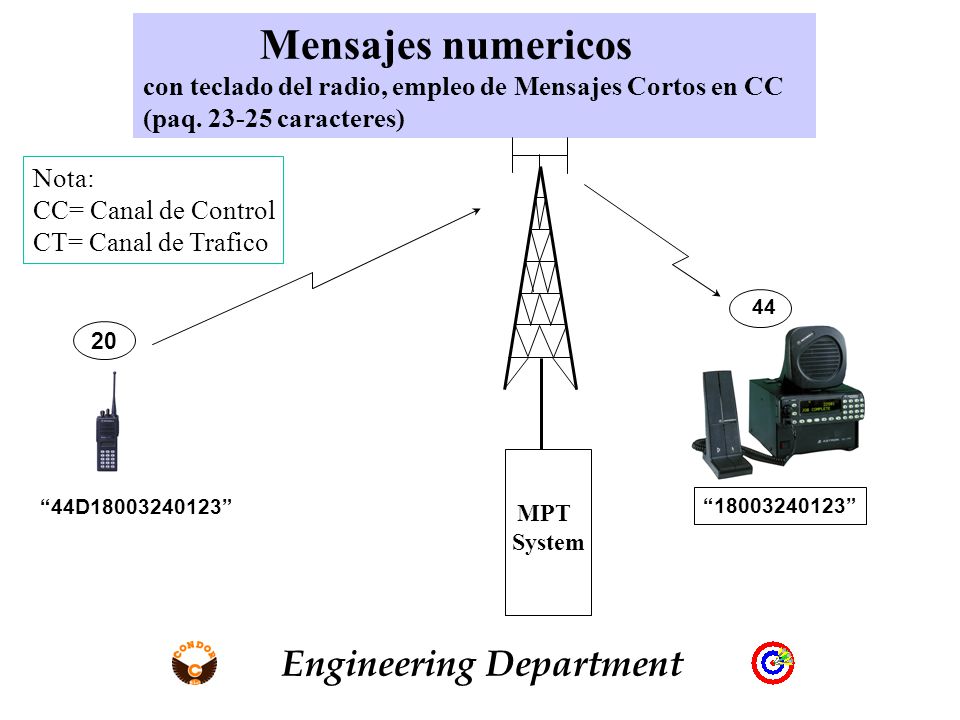

con teclado del radio, empleo de Mensajes Cortos en CC (paq caracteres) Nota: CC= Canal de Control CT= Canal de Trafico 44 20 “44D ” “ ” MPT System Engineering Department

37 Mensajes alfanumericos (texto)
con CORDS, conexion MAP27 al movil, empleo de Mensajes Cortos en CC (paq. de caraceteres) Nota: CC= Canal de Control CT= Canal de Trafico 44 20 “Reunion pospuesta para 2pm” “Reunion pospuesta para 2pm” MPT System CORDS (Condor) Engineering Department

38 Tranmision (semi-duplex) de Datos
con terminal y CMC, conexion MAP27 al movil, empleo de Datos en CT Nota: CC= Canal de Control CT= Canal de Trafico CMC= Modem MAP27 (Condor) 20 44 CMC CMC *31*44# ... Send file: users.dat MPT System Receive file: users.dat Speeds: bps Software tipo PCPLUS Engineering Department

39 Programabilidad de los Usuarios por hora y dia de la semana
Engineering Department

40 Engineering Department
Programabilidad de los Parametros de Control por hora y dia de la semana Engineering Department

41 Engineering Department
Programabilidadde los Parametros de Control por hora y dia de la semana…………cont Engineering Department

42 Registro de todos los Eventos
Engineering Department

43 Estadisticas de Trafico (Protocolo MPT1318)
Engineering Department

44 Programacion de la instruccion “Vote Now”
Engineering Department

45 Capacidad de Diagnostico y Monitoreo Remoto
Engineering Department

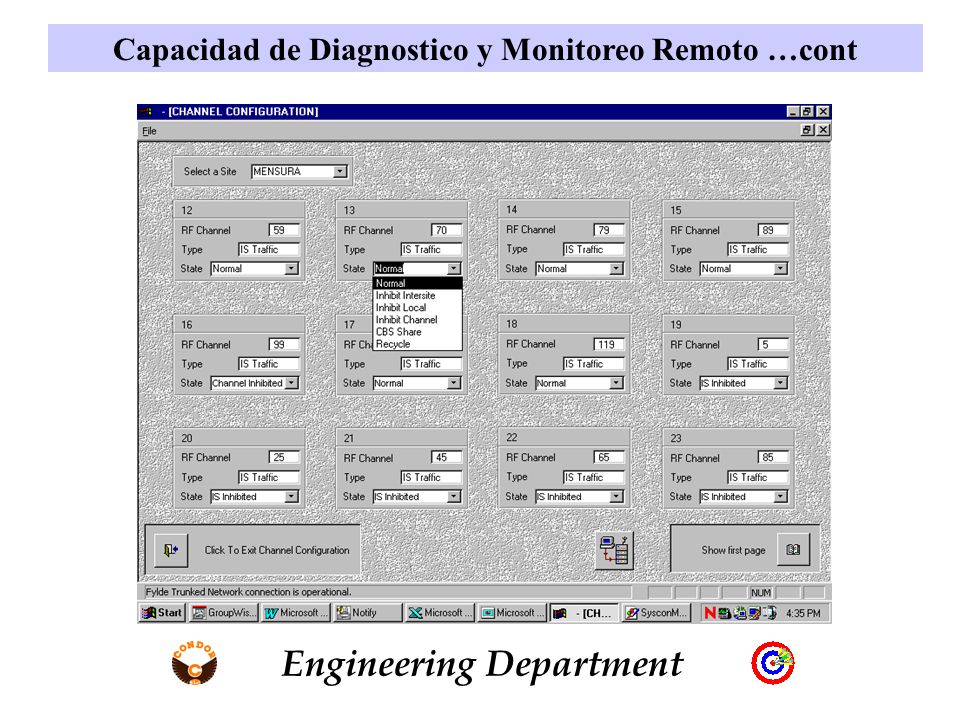

46 Capacidad de Diagnostico y Monitoreo Remoto ……cont
Engineering Department

47 Capacidad de Diagnostico y Monitoreo Remoto …cont
Engineering Department

48 Capacidad de Diagnostico y Monitoreo Remoto …cont
Engineering Department

49 Capacidad de Diagnostico y Monitoreo Remoto …cont
Engineering Department

50 Capacidad de Diagnostico y Monitoreo Remoto …cont
Engineering Department

51 Organizacion flexible de las Flotas de Radios
PREFIJO_201 USUARIO A PREFIJO_202 USUARIO B FLOTA 1 NRO 2001 FLOTA 2 NRO 2021 FLOTA 1 NRO 2001 GRUPO 90 SUBFLOTA: 20-29 GRUPO 91 SUBFLOTA: 30-39 GRUPO 90 SUBFLOTA: 20-29 GRUPO 90 SUBFLOTA: 20-29 UN 20 (20-39, 90,91) UN 21 (20-29, 90) . UN 29 (20-29, 90) UN 30 (20-39, 90,91) UN 31 (30-39, 91) . UN 39 (30-39, 91) UN 20 (20-39, 90,91) UN 21 (20-29, 90) . UN 29 (20-29, 90) UN 20 (20-39, 90,91) UN 21 (20-29, 90) . UN 29 (20-29, 90) Engineering Department

52 Consolas de Despacho por Radio
MPT System Modelo 4217 (Zetron) CORDS (Condor) Engineering Department

53 SCADA/Telemetria SCADA (Software) Engineering Department

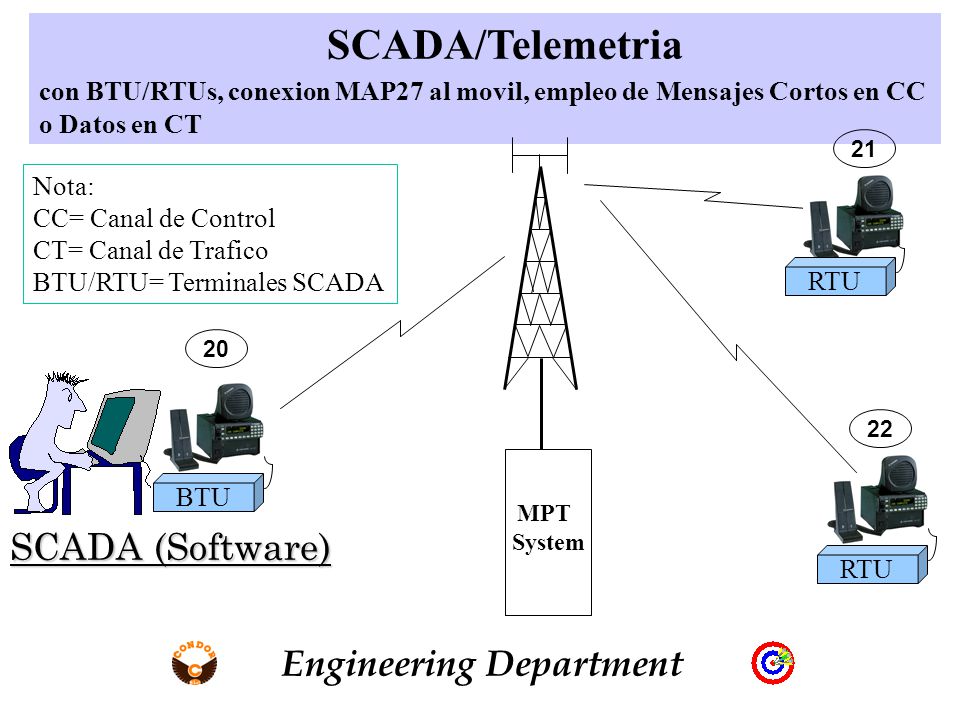

con BTU/RTUs, conexion MAP27 al movil, empleo de Mensajes Cortos en CC o Datos en CT 21 Nota: CC= Canal de Control CT= Canal de Trafico BTU/RTU= Terminales SCADA RTU 20 22 BTU MPT System SCADA (Software) RTU Engineering Department

54 SCADA/Telemetria SCADA (Software) Engineering Department

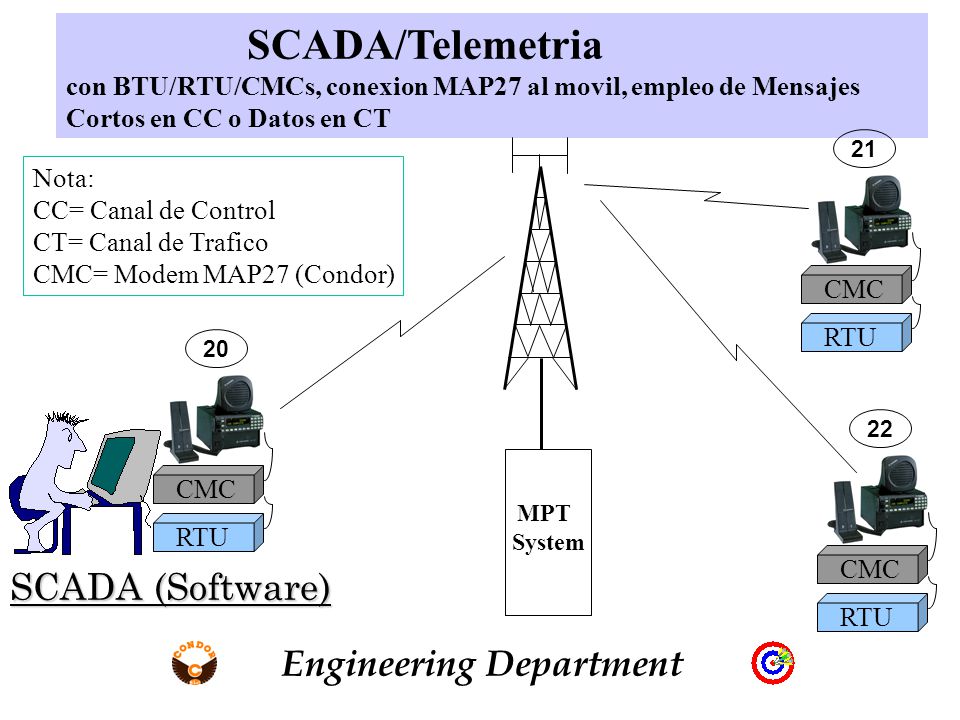

con BTU/RTU/CMCs, conexion MAP27 al movil, empleo de Mensajes Cortos en CC o Datos en CT 21 Nota: CC= Canal de Control CT= Canal de Trafico CMC= Modem MAP27 (Condor) CMC RTU 20 22 CMC MPT System RTU CMC SCADA (Software) RTU Engineering Department

55 SCADA/Telemetria CORDS (Software) Engineering Department
con CMCs, conexion MAP27 al movil, empleo de Mensajes Cortos en CC o Datos en CT 21 Nota: CC= Canal de Control CT= Canal de Trafico CMC= Modem MAP27 (Condor) CMC (Contactos ON/OFF) 20 22 CMC MPT System CMC CORDS (Software) (Contactos ON/OFF) Engineering Department

56 AVL/GPS (Solucion Completa)
con Vehicle Manager 98 y MCUs, empleo de Mensajes Cortos en CC Nota: CC= Canal de Control CT= Canal de Trafico MCU= Modem MAP27 (GMSI) 21 MCU-R 20 22 MPT System VM 98 (GMSI Inc.) MCU Engineering Department

57 AVL/GPS (Solucion Completa)
con Vehicle Manager 98 y MCUs, empleo de Datos en CT Nota: CC= Canal de Control CT= Canal de Trafico MCU= Modem MAP27 (GMSI) 21 MCU-R 20 22 MCU-B MPT System VM 98 (GMSI Inc.) MCU Engineering Department

58 AVL/GPS (Solucion Limitada)
con CORDS / CMCs y conexion MAP27 al movil, empleo de Mensajes Cortos en CC o Datos en CT Nota: CC= Canal de Control CT= Canal de Trafico CMC= Modem MAP27 (Condor) 21 CMC GPS 20 22 MPT System CMC CMC GPS CORDS (Condor) Engineering Department

59 Control Remoto de moviles con Modelo 380 (Zetron) y conexion MAP27 al movil
21 23 MPT System Engineering Department

60 Sistemas MPT1327 en America Latina
Se conoce de la existencia actualmente de sistemas MPT1327 en los siguientes paises de America Latina (y el caribe): PAIS INFRAESTRUCTURA RADIOS Brasil Nokia Nokia, Motorola Chile Nokia Nokia Colombia Fylde, Zetron, Alcatel Motorola Cuba Tait Tait El Salvador Fylde Motorola Guatemala Fylde Motorola Haiti Fylde, Zetron Motorola Honduras Fylde Motorola Mexico Nokia Nokia Venezuela Fylde, Nokia Motorola, Nokia Nota 1: casi todos estos sistemas han sido instalados a partir de 1996, lo que denota un crecimiento rapido en el uso del protocolo en la region Nota 2: esta informacion no pretende ser completa. Se conoce que existen mas sistemas y tipos de radios en la region pero se desconoce su ubicacion exacta Nota 3: la casi totalidad de los sistemas Fylde y Zetron en la region han sido y son integrados por Condor Communications en Miami, EUA Engineering Department

61 Especificaciones Tecnicas de los sistemas
MPT1327 integrados por Condor en Miami, EUA Radios: Infraestructura: Motorola Fylde, Zetron Repetidoras: MTR2000, R1225 MOTOROLA T800 TAIT RFT RF TECHNOLOGY Rangos de Frecuencia: Anchos de Banda: , , MHz , 25 kHz Consolas de Despacho por linea: Consolas de Despacho por radio: Fylde Zetron, Condor Microondas de enlace: California MW (MDS), MAS Technology, Intnal. MW Corp. Engineering Department

62 Especificaciones Tecnicas de los sistemas
MPT1327 integrados por Condor en Miami, EUA Combinador/Multiacoplador/Preselector/Duplexor/Antenas: Telewave, Sinclair Protecciones: Cables, Connectores, Accesorios: Poliphaser NEMAL, ANDREWS Cell Enhancers (Extensores de Cobertura): Aerial Facilties UPS: BEST UPS Gabinetes: PFT Detectores de Pulsos, Interfases DID: Hark Systems Engineering Department

63 Equipamiento tipico de un sistema MPT1327
integrado por Condor, en Miami Engineering Department

64 Engineering Department
Configuracion de un Sistema Multi-sitio con dos Sitios enlazados por MO TSC SITE 2 SCI Control RF Intersite Traffic R3 SITE 1 Control TSC RF MPT1327 Calls R1 R2 SCI Users Database Validation Calls registration for Billing VOICE DATA D A T MANAGEMENT (SYSCON) RS232 Traffic TSC RF TSC Intersite RF V O I C E Radio-Dispatcher Terminal: CORDS RCP Regional Controller PCM Interconnect Switch PSTN/ PABX Engineering Department
