1
ESTRUCTURAS DE CONTROL SELECTIVA LUIS OCTAVIO BUSTAMANTE Docente Colegio de la UPB
2

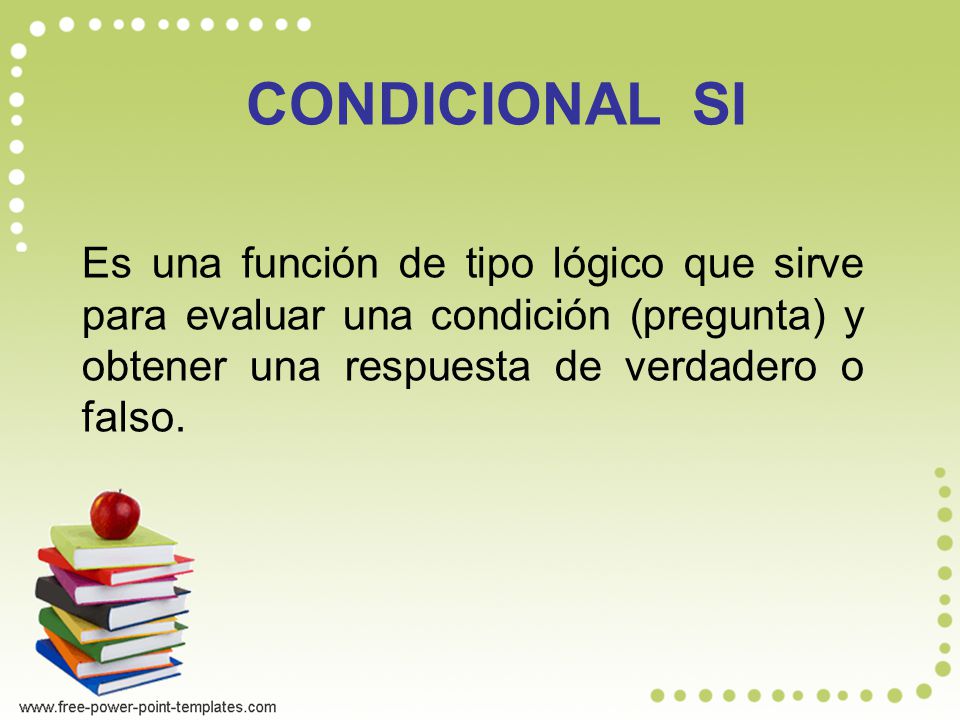

CONDICIONAL SI Es una función de tipo lógico que sirve para evaluar una condición (pregunta) y obtener una respuesta de verdadero o falso.
3

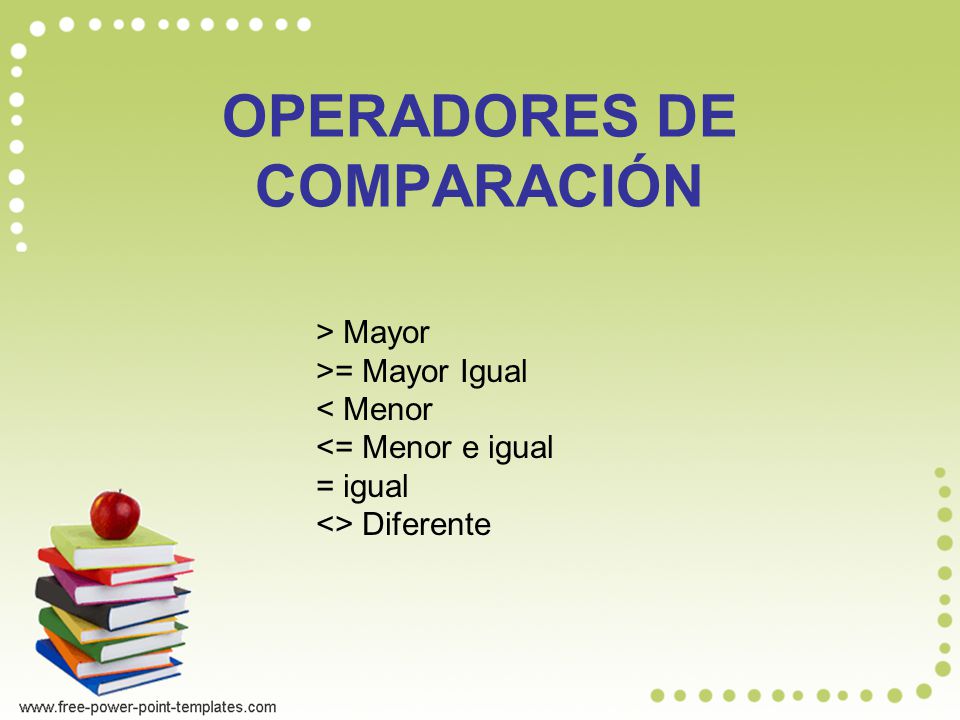

OPERADORES DE COMPARACIÓN > Mayor >= Mayor Igual < Menor <= Menor e igual = igual <> Diferente
4
SENTENCIA SIMPLE Sintaxis If (condición) then acciones End if Condición Acción SI
5

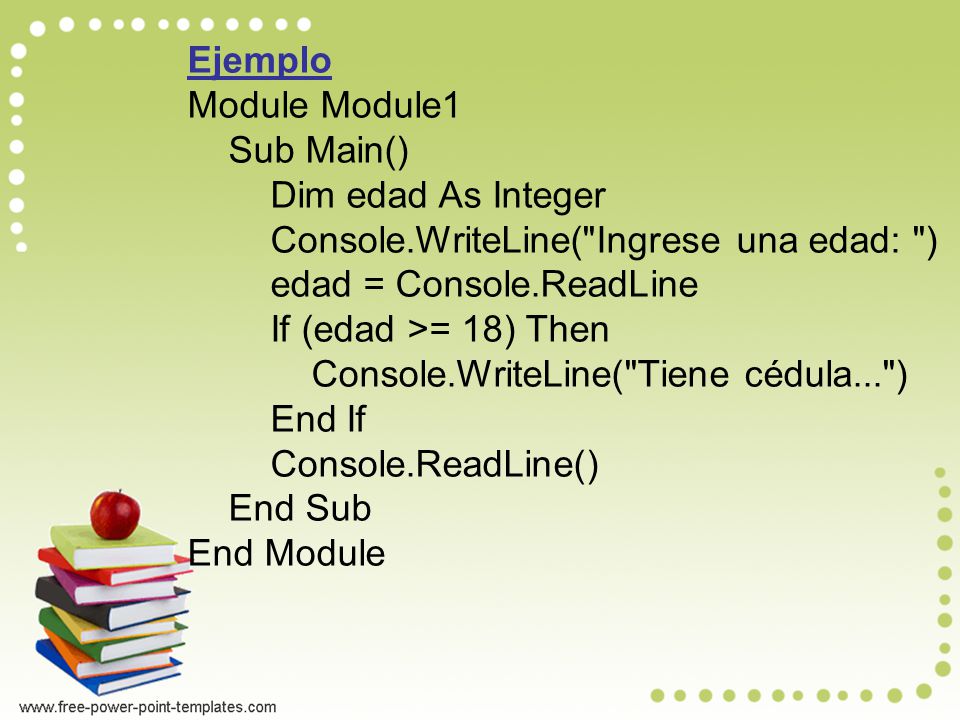

Ejemplo Module Module1 Sub Main() Dim edad As Integer Console.WriteLine("Ingrese una edad: ") edad = Console.ReadLine If (edad >= 18) Then Console.WriteLine("Tiene cédula...") End If Console.ReadLine() End Sub End Module
6

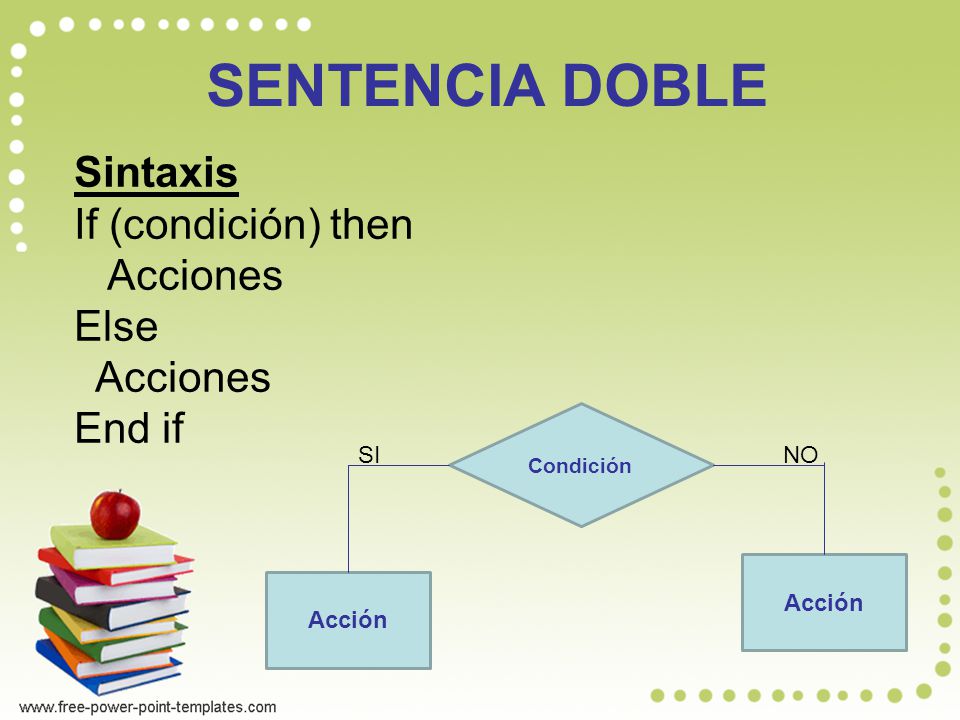

SENTENCIA DOBLE Sintaxis If (condición) then Acciones Else Acciones End if Condición Acción SI Acción NO
7
Module Module1 Sub Main() Dim valor As Single Console.WriteLine("Digite un número: ") valor = Console.ReadLine If valor > 0 Then Console.WriteLine("El número es POSITIVO") Else Console.WriteLine("El número es NEGATIVO") End If Console.ReadLine() End Sub End Module
8

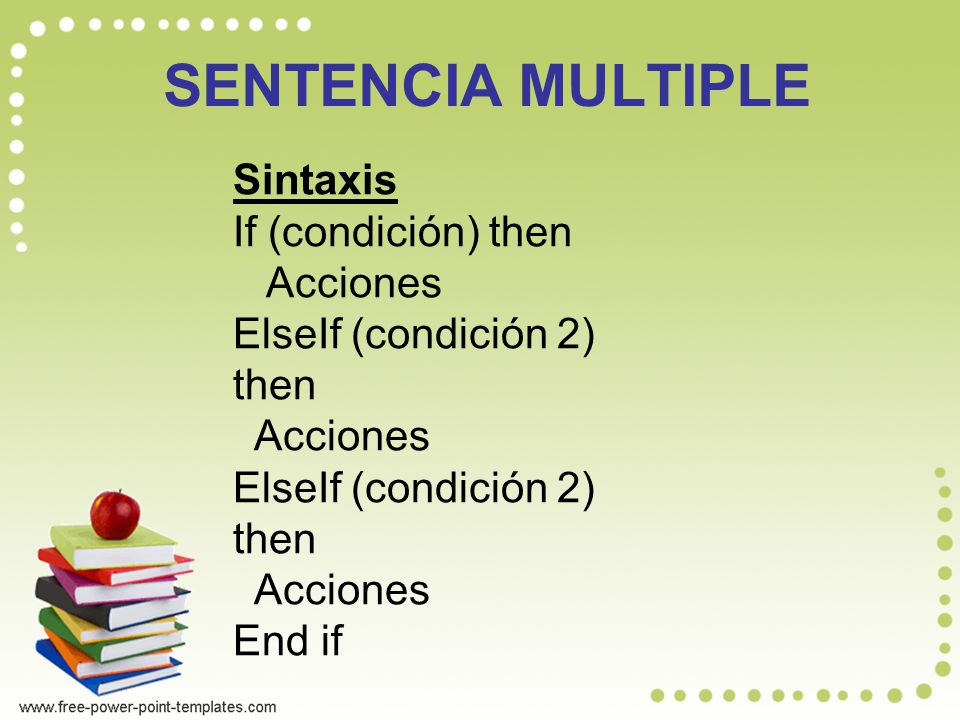

SENTENCIA MULTIPLE Sintaxis If (condición) then Acciones ElseIf (condición 2) then Acciones ElseIf (condición 2) then Acciones End if
9
Condición Acción SINO Condición Acción SINO Condición
10
Module Module1 Sub Main() Dim nota As Double Console.WriteLine("Digite la nota definitiva: ") nota = Console.ReadLine If (nota >= 3.5) Then Console.WriteLine(“Estudiante GANA") ElseIf (nota < 2) Then Console.WriteLine(“Estudiante PIERDE") Else Console.WriteLine(“Estudiante REFUERZA") End If Console.ReadLine() End Sub End Module
