1 Linac Project Planning

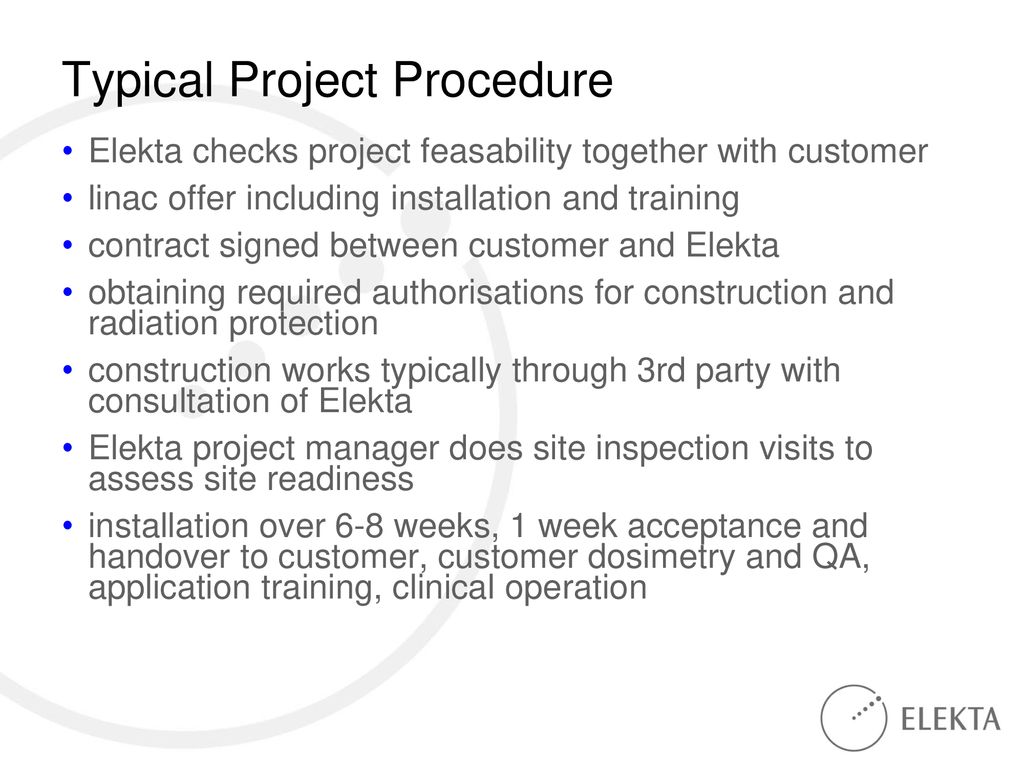

2 Typical Project Procedure
Elekta checks project feasability together with customer linac offer including installation and training contract signed between customer and Elekta obtaining required authorisations for construction and radiation protection construction works typically through 3rd party with consultation of Elekta Elekta project manager does site inspection visits to assess site readiness installation over 6-8 weeks, 1 week acceptance and handover to customer, customer dosimetry and QA, application training, clinical operation

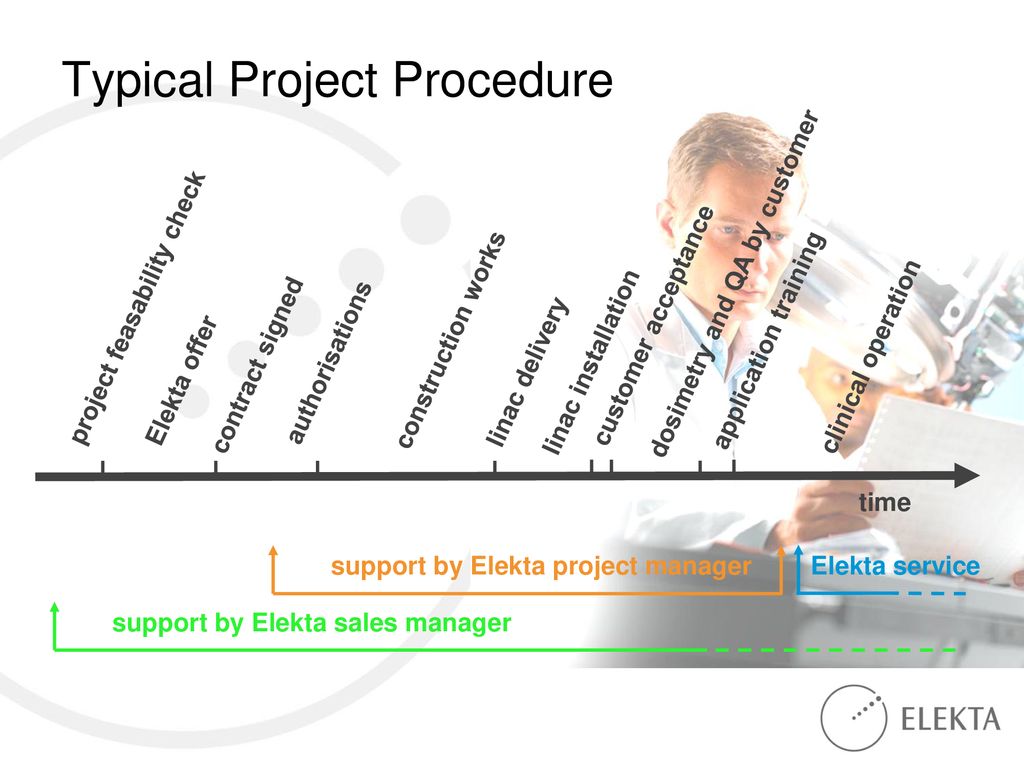

3 Typical Project Procedure
dosimetry and QA by customer project feasability check customer acceptance construction works application training contract signed authorisations linac installation clinical operation linac delivery Elekta offer time support by Elekta project manager Elekta service support by Elekta sales manager

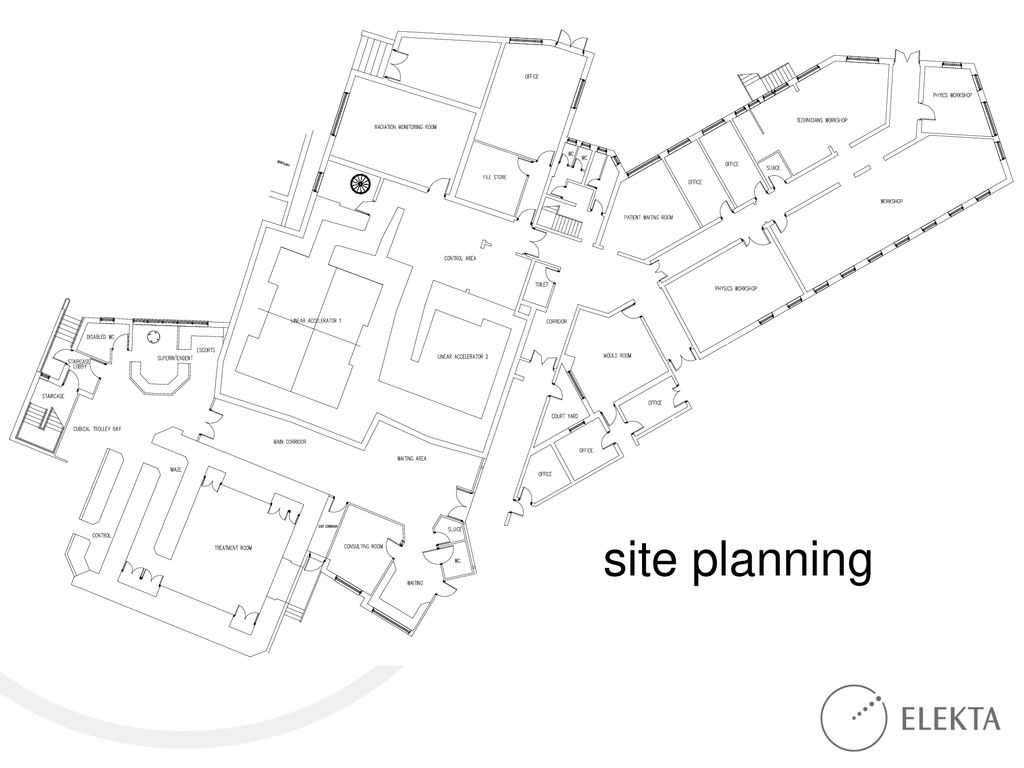

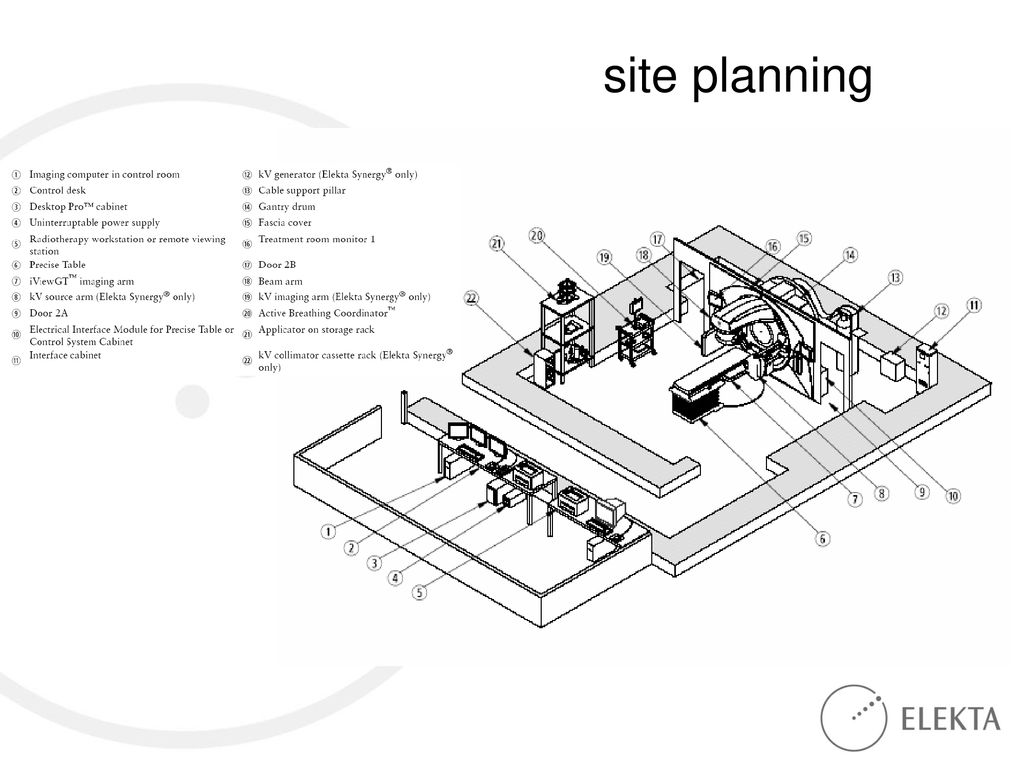

4 site planning

5 site planning

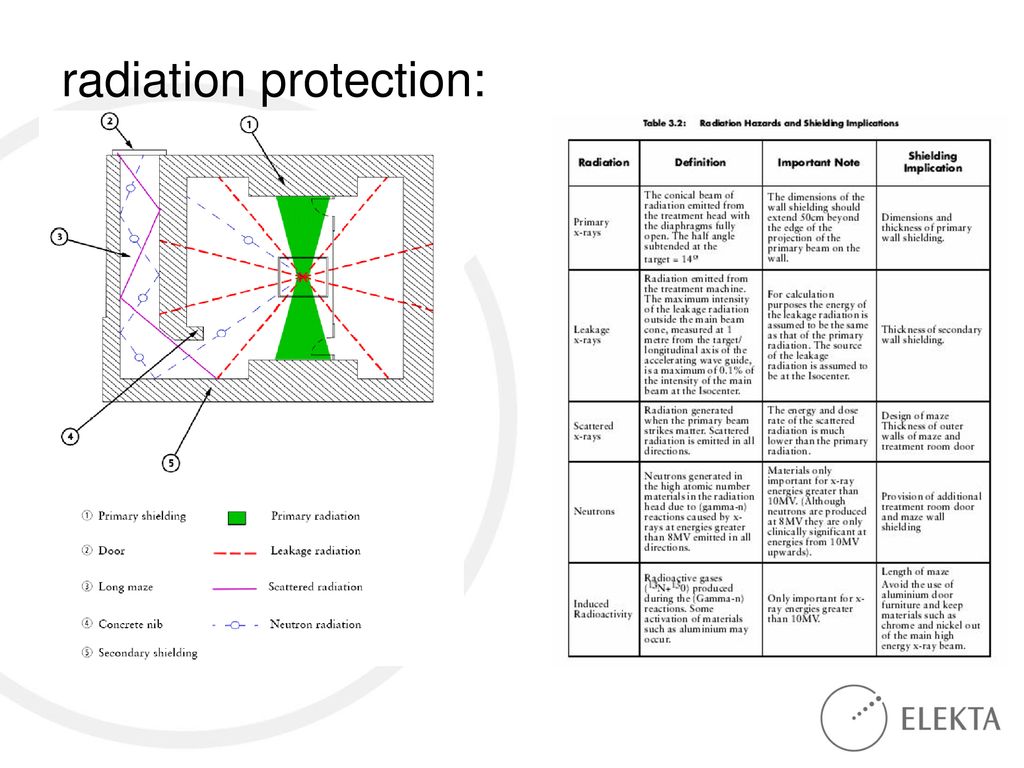

6 radiation protection:

7 radiation protection:
Elekta will advise the customer on the required radiation protection

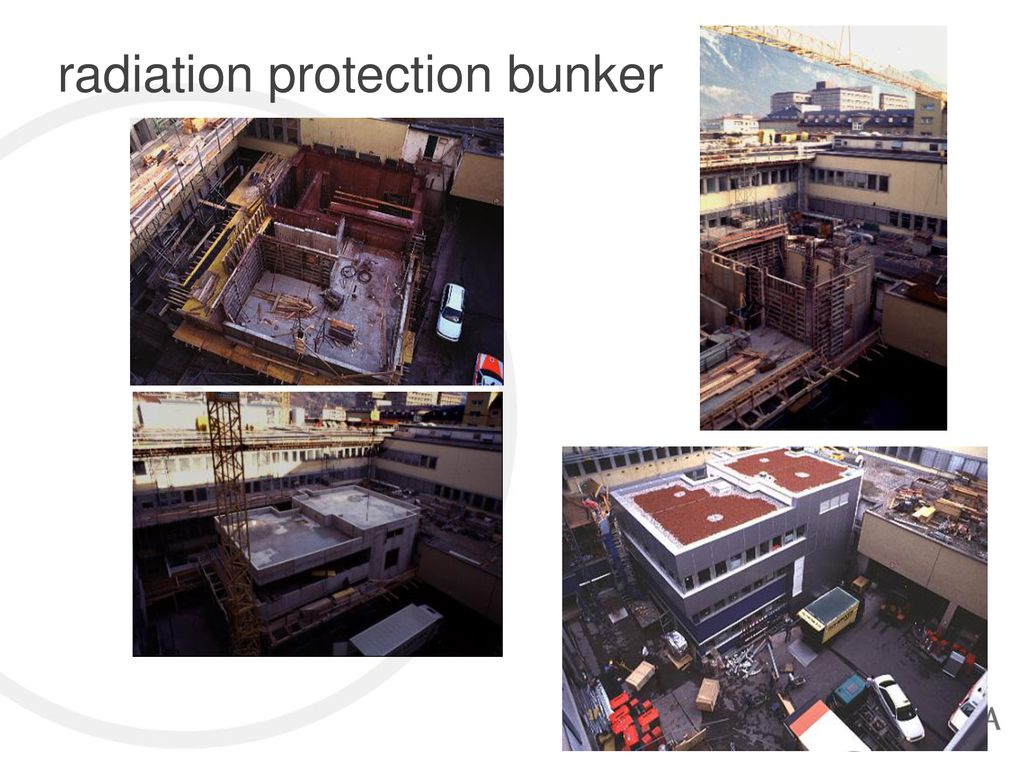

8 radiation protection bunker

9 radiation protection bunker

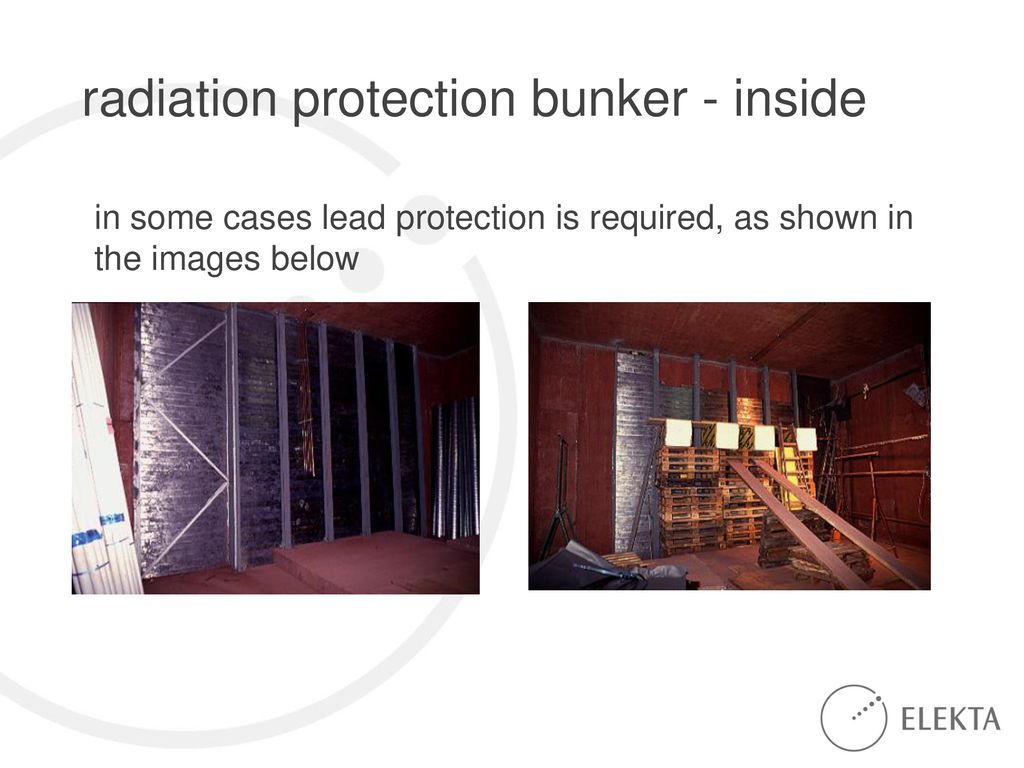

10 radiation protection bunker - inside
in some cases lead protection is required, as shown in the images below

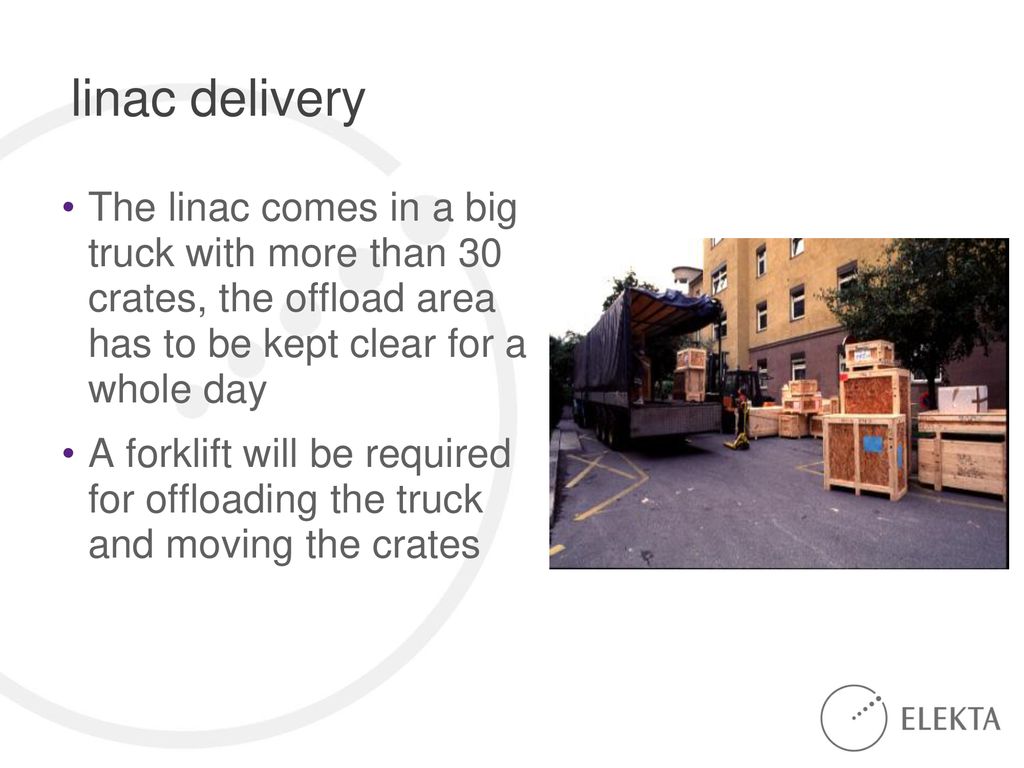

11 linac delivery The linac comes in a big truck with more than 30 crates, the offload area has to be kept clear for a whole day A forklift will be required for offloading the truck and moving the crates

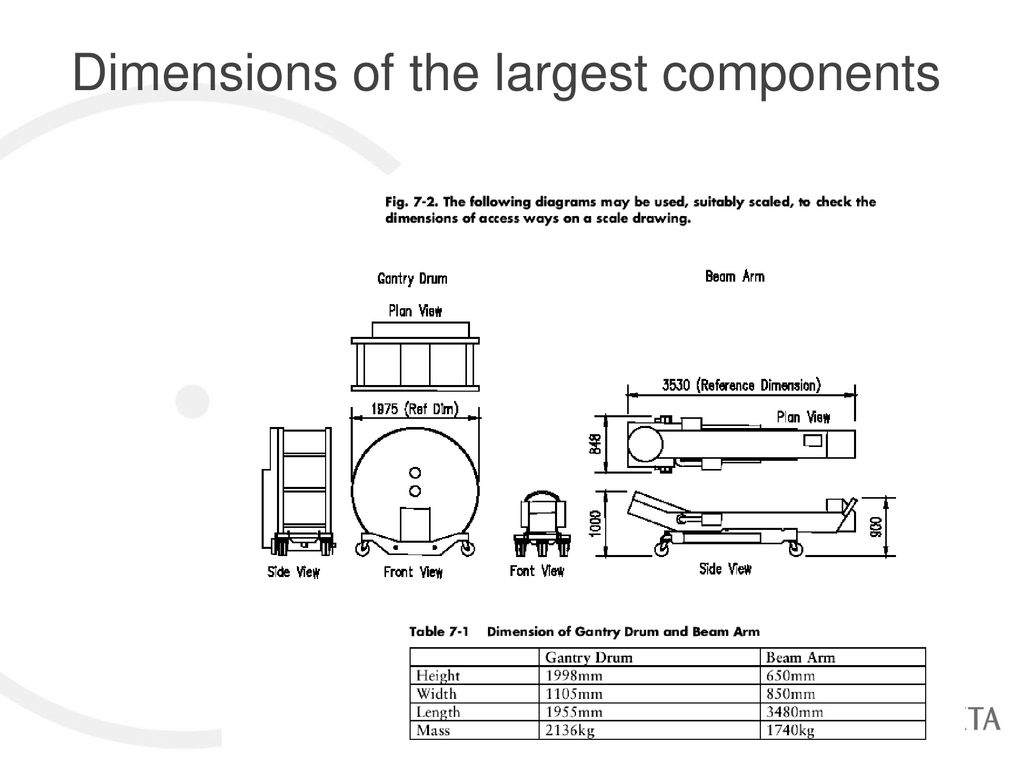

12 Dimensions of the largest components

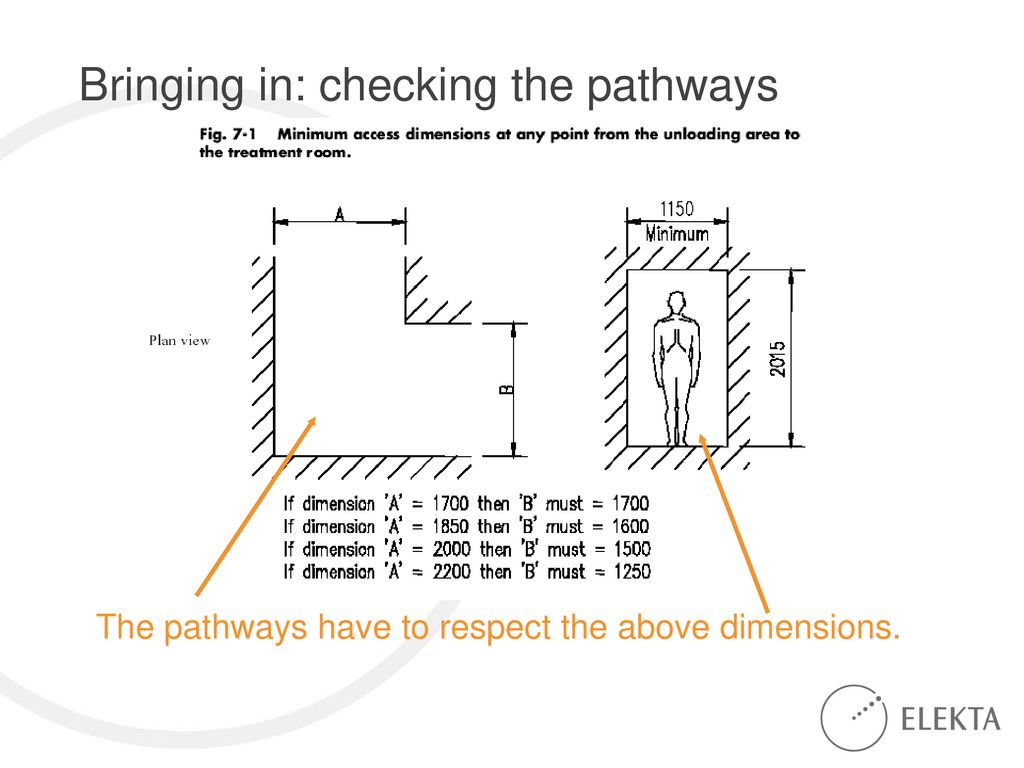

13 Bringing in: checking the pathways
The pathways have to respect the above dimensions.

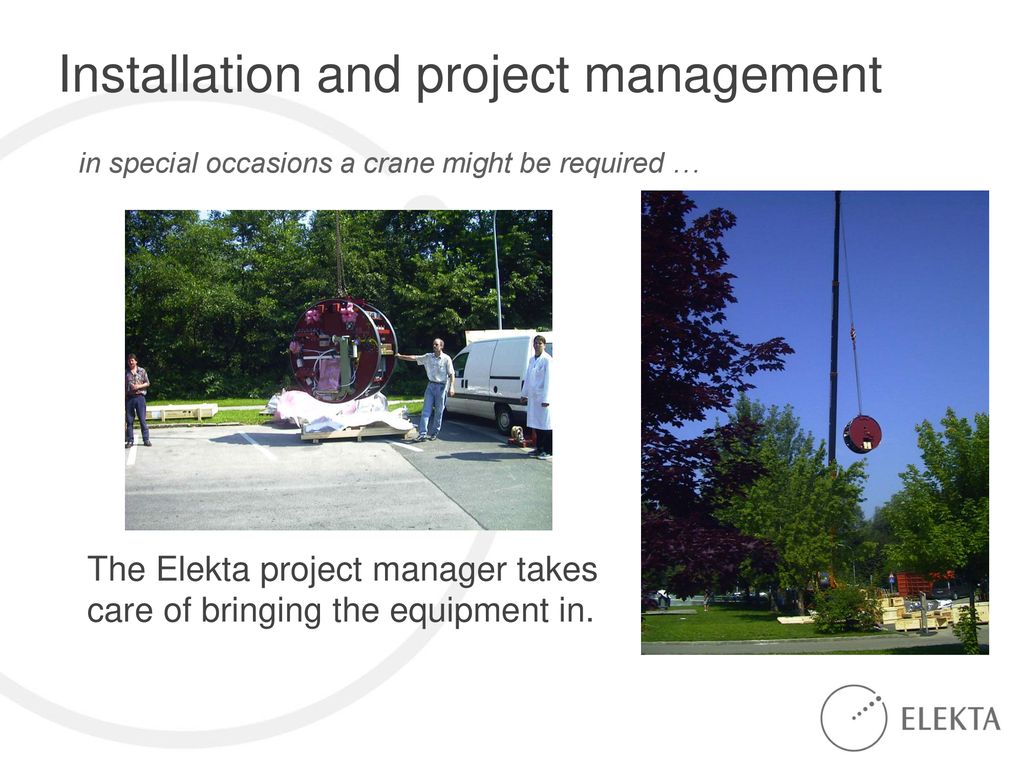

14 Installation and project management
in special occasions a crane might be required … The Elekta project manager takes care of bringing the equipment in.

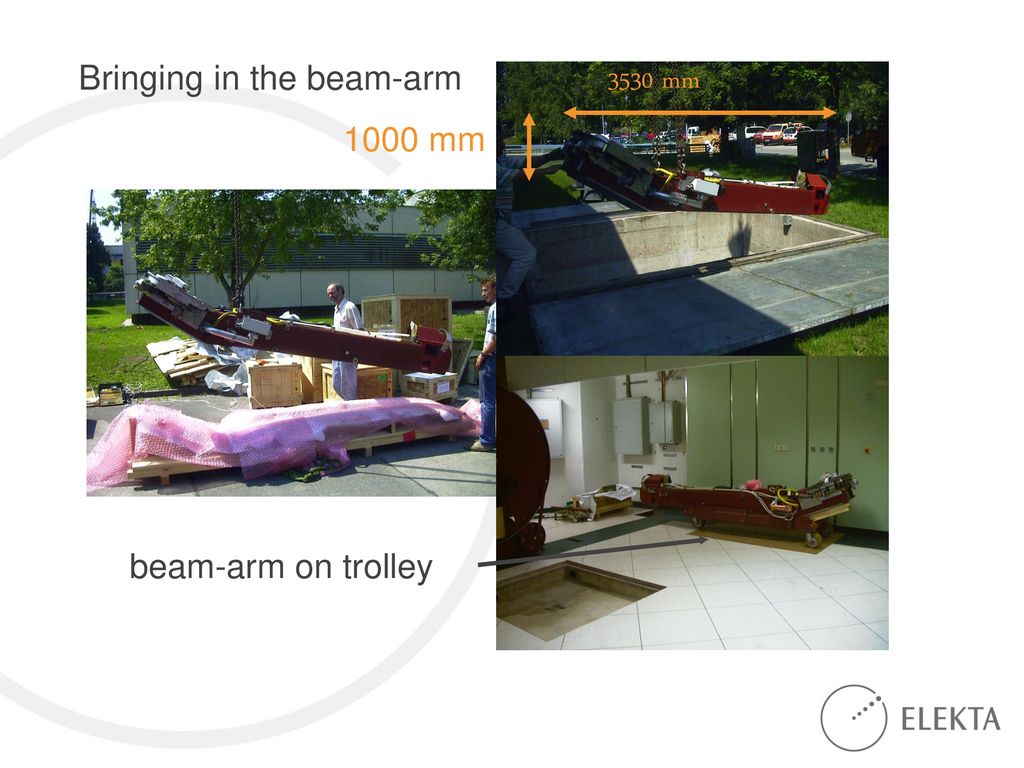

15 Bringing in the beam-arm
3530 mm 1000 mm beam-arm on trolley

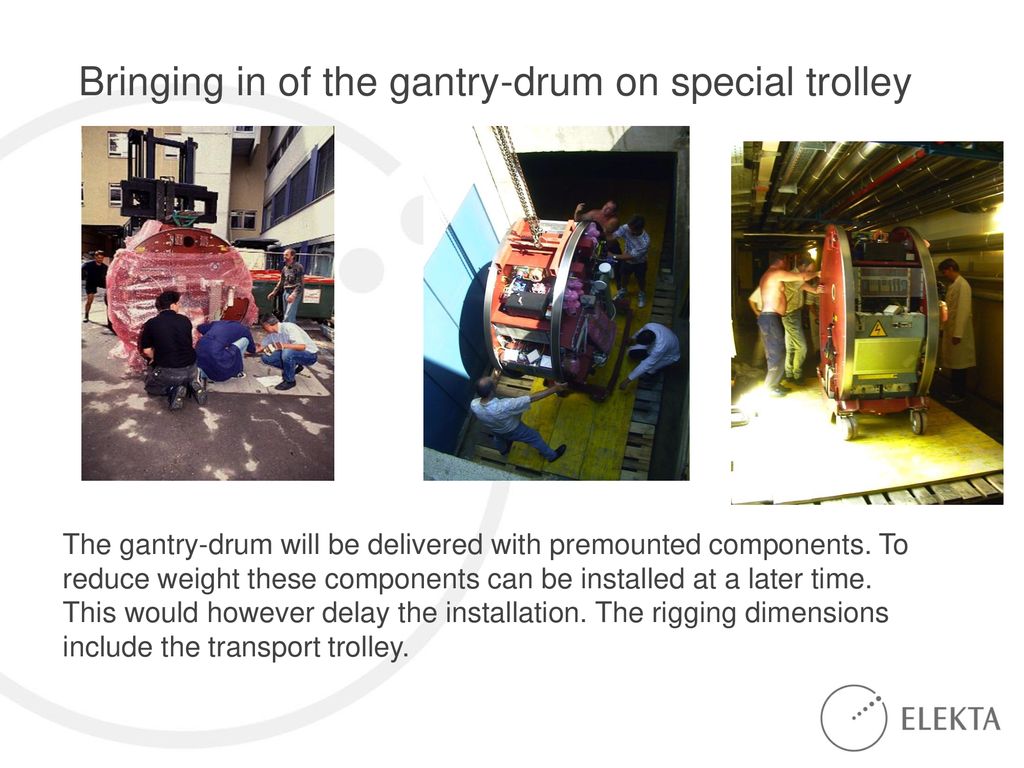

16 Bringing in of the gantry-drum on special trolley
The gantry-drum will be delivered with premounted components. To reduce weight these components can be installed at a later time. This would however delay the installation. The rigging dimensions include the transport trolley.

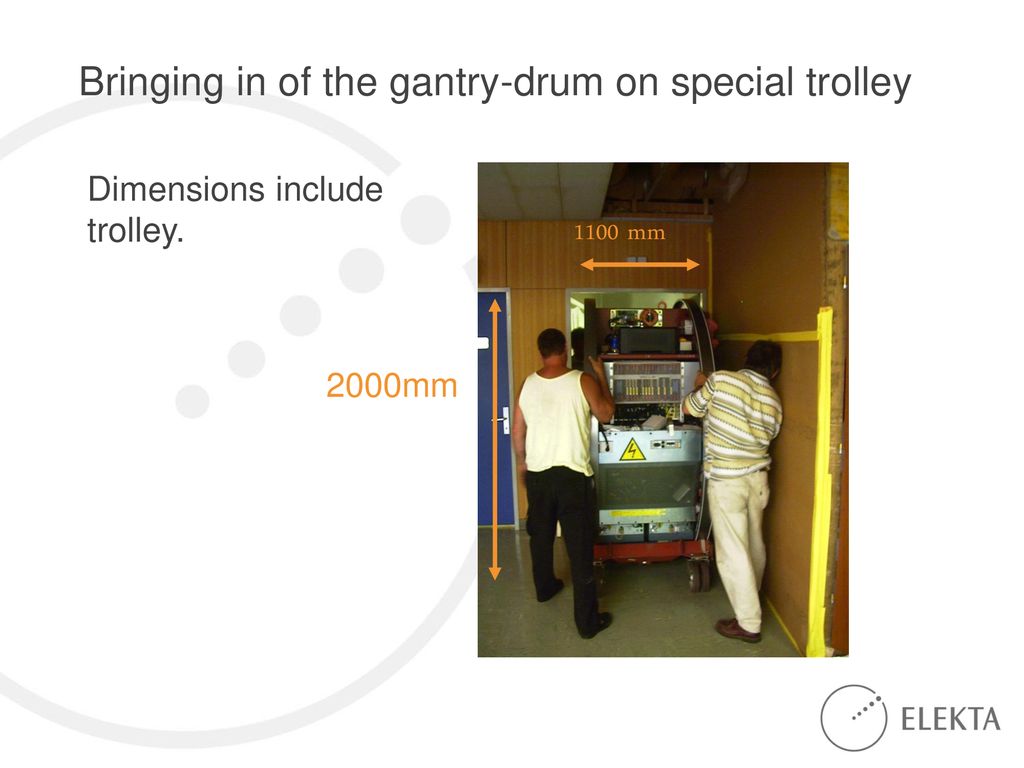

17 Bringing in of the gantry-drum on special trolley
Dimensions include trolley. 1100 mm 2000mm

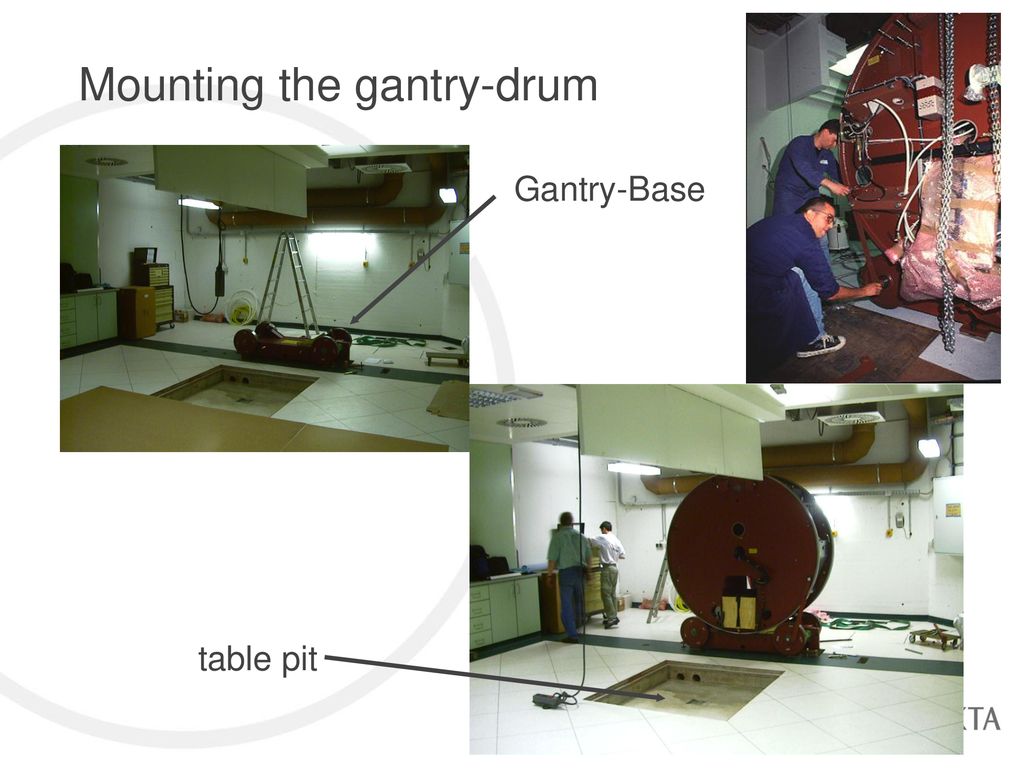

18 Mounting the gantry-drum
Gantry-Base table pit

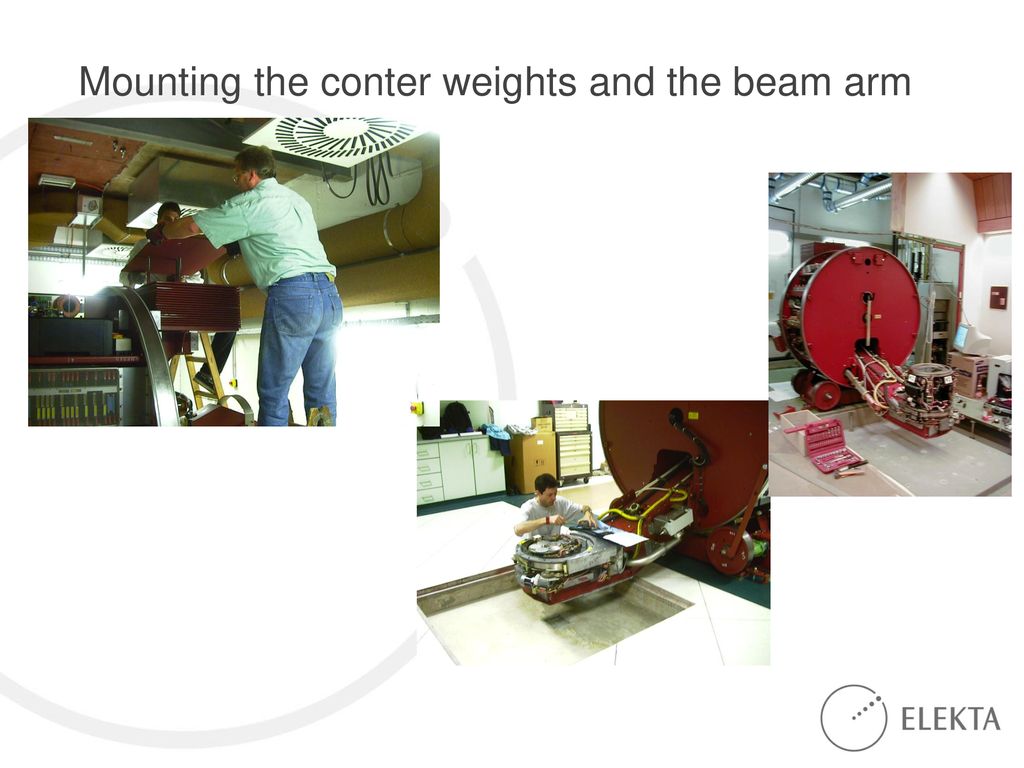

19 Mounting the conter weights and the beam arm

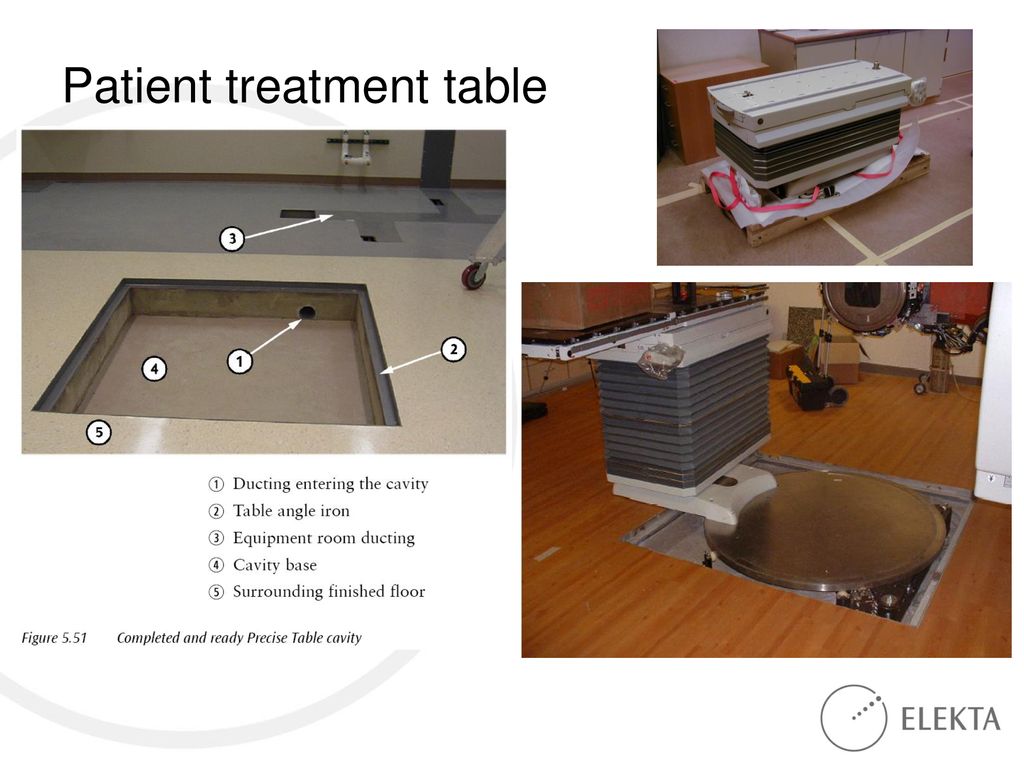

20 Patient treatment table

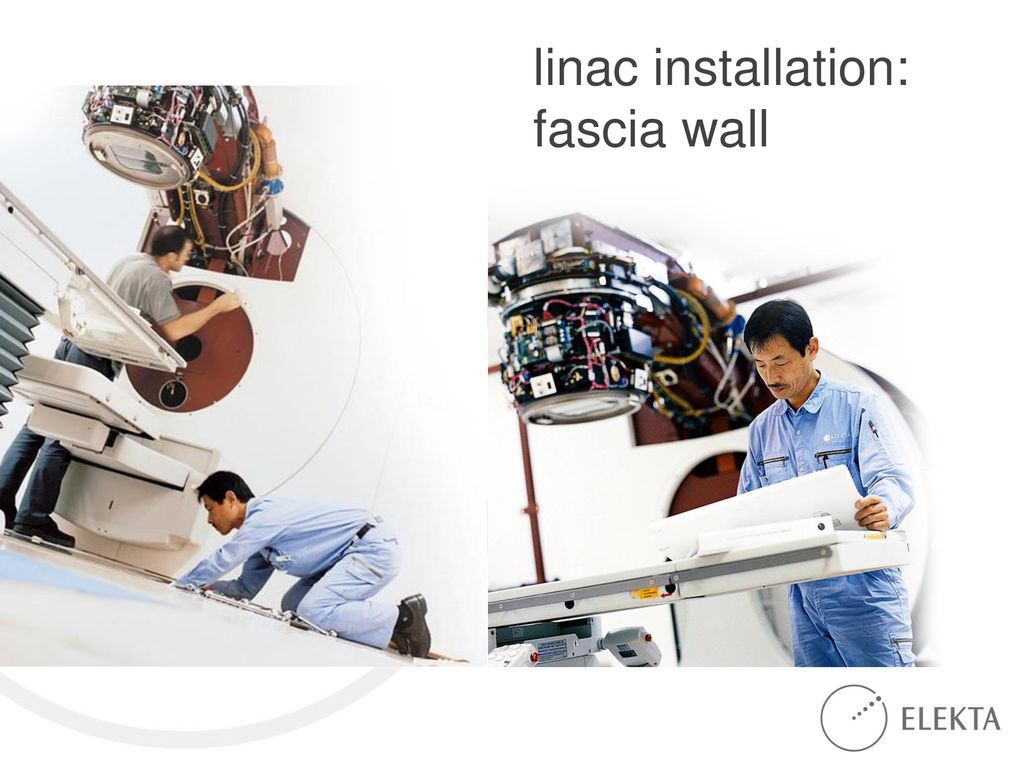

21 linac installation: fascia wall

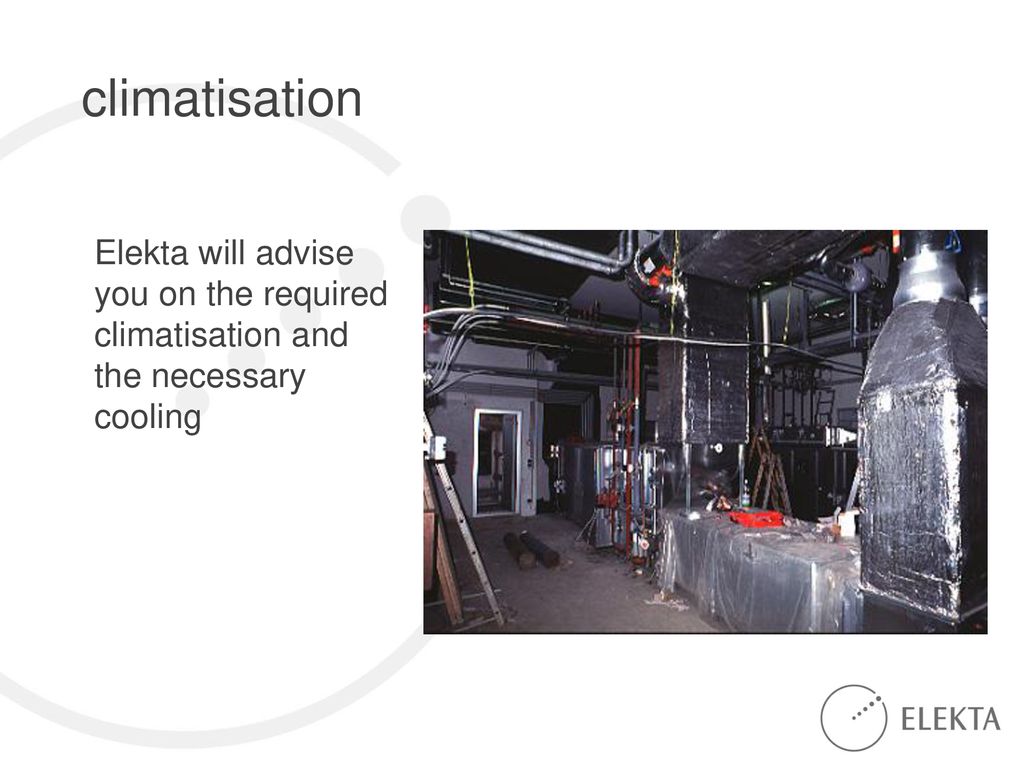

22 climatisation Elekta will advise you on the required climatisation and the necessary cooling

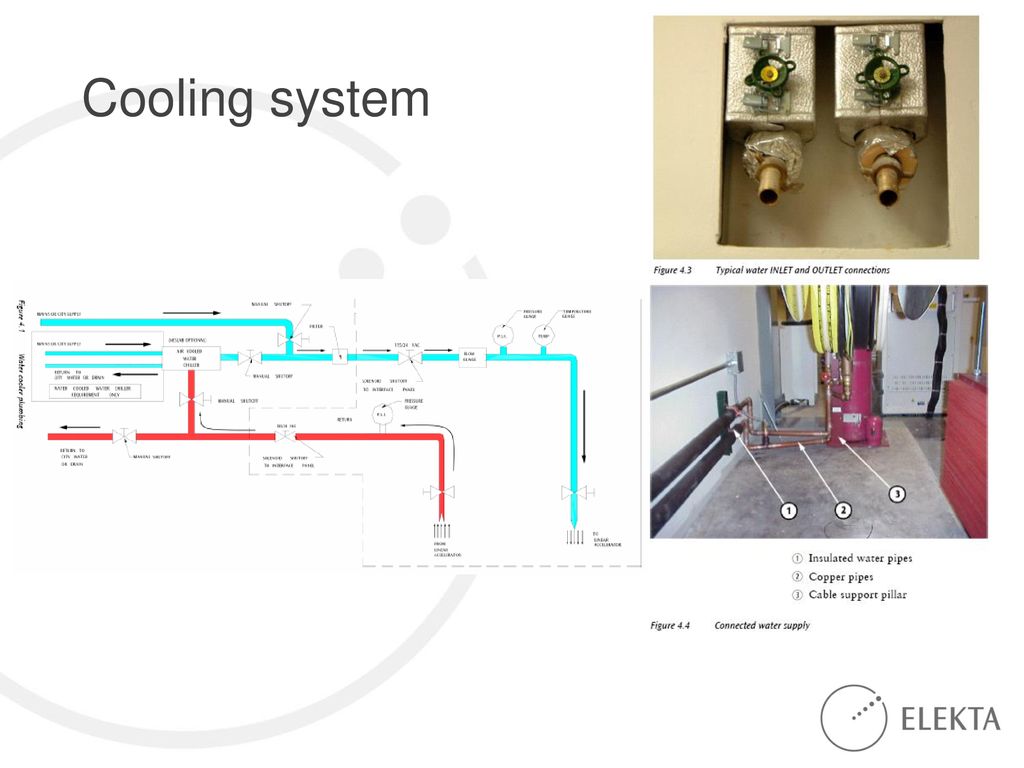

23 Cooling system

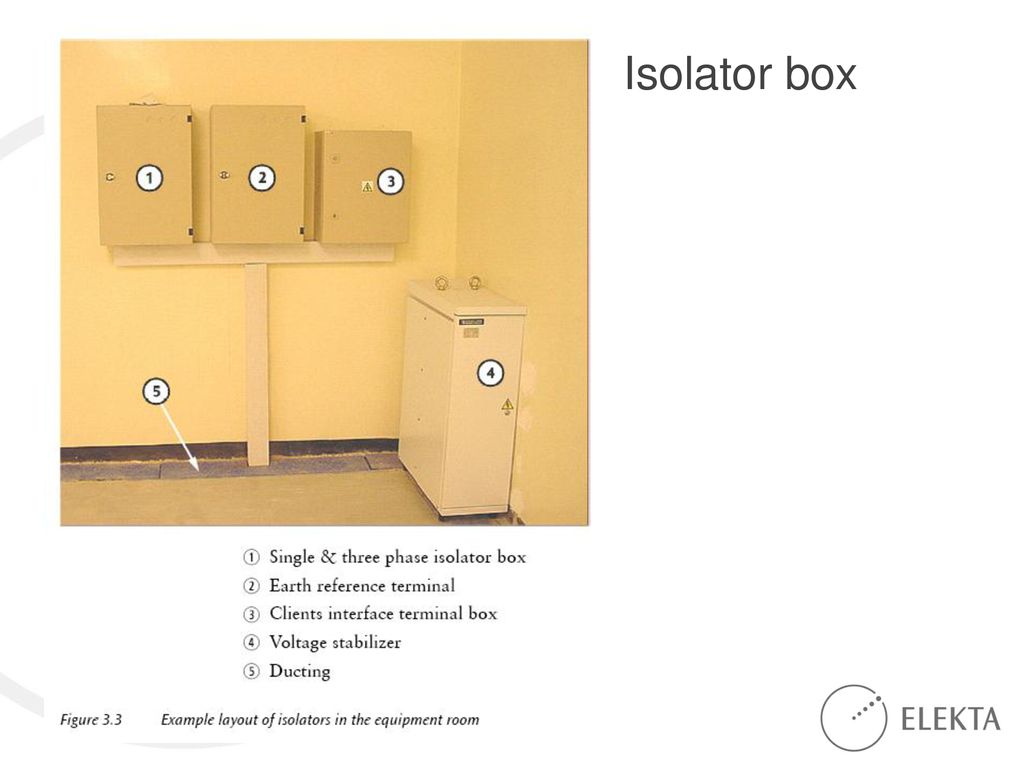

24 Isolator box

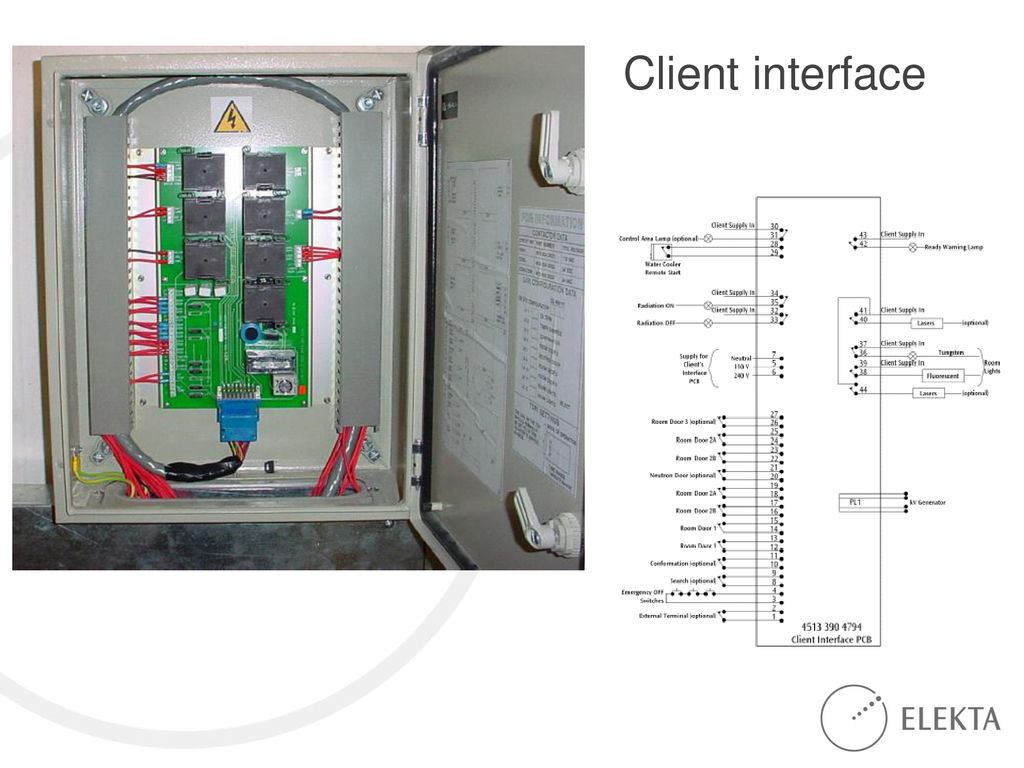

25 Client interface

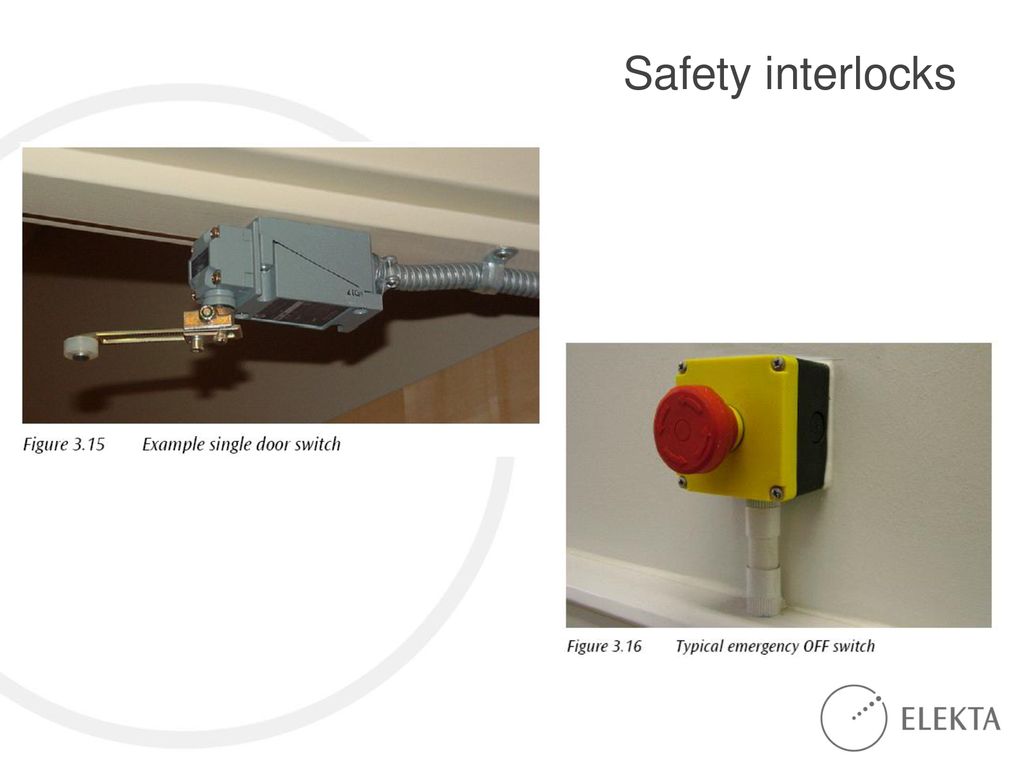

26 Safety interlocks

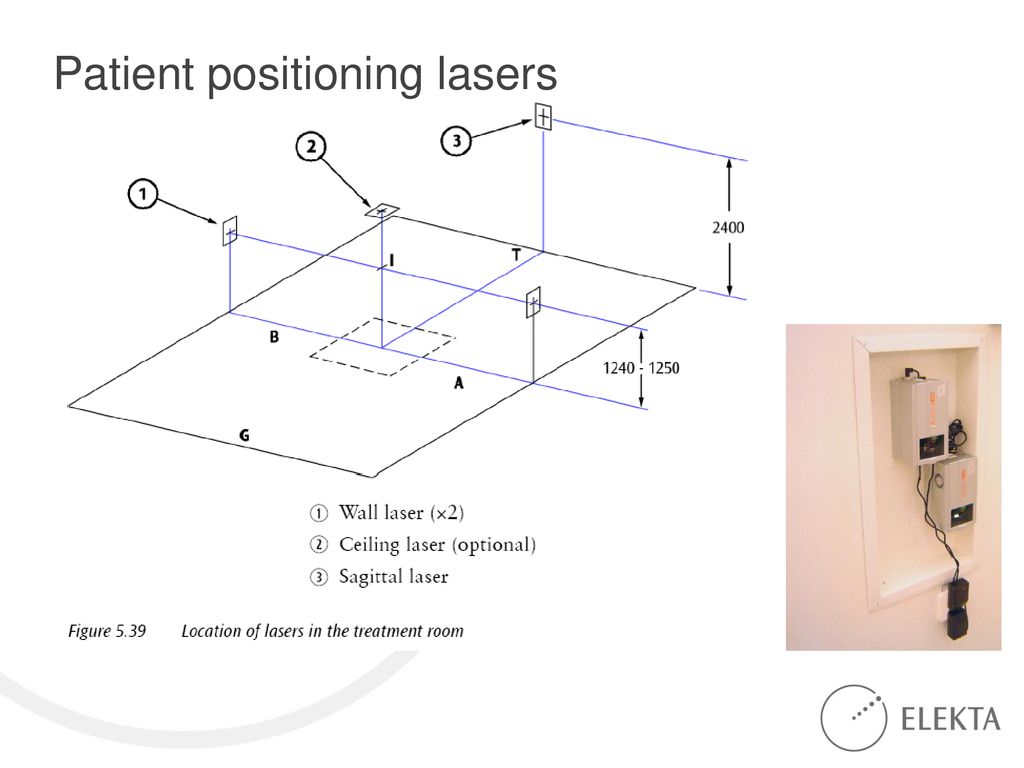

27 Patient positioning lasers

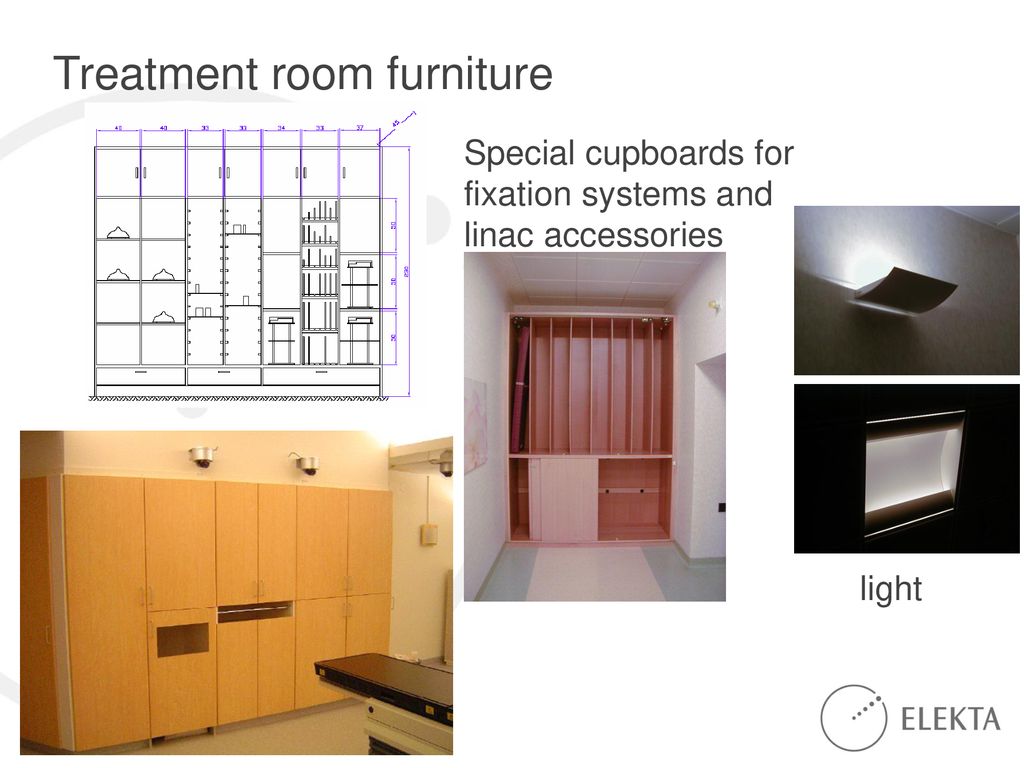

28 Treatment room furniture
Special cupboards for fixation systems and linac accessories light

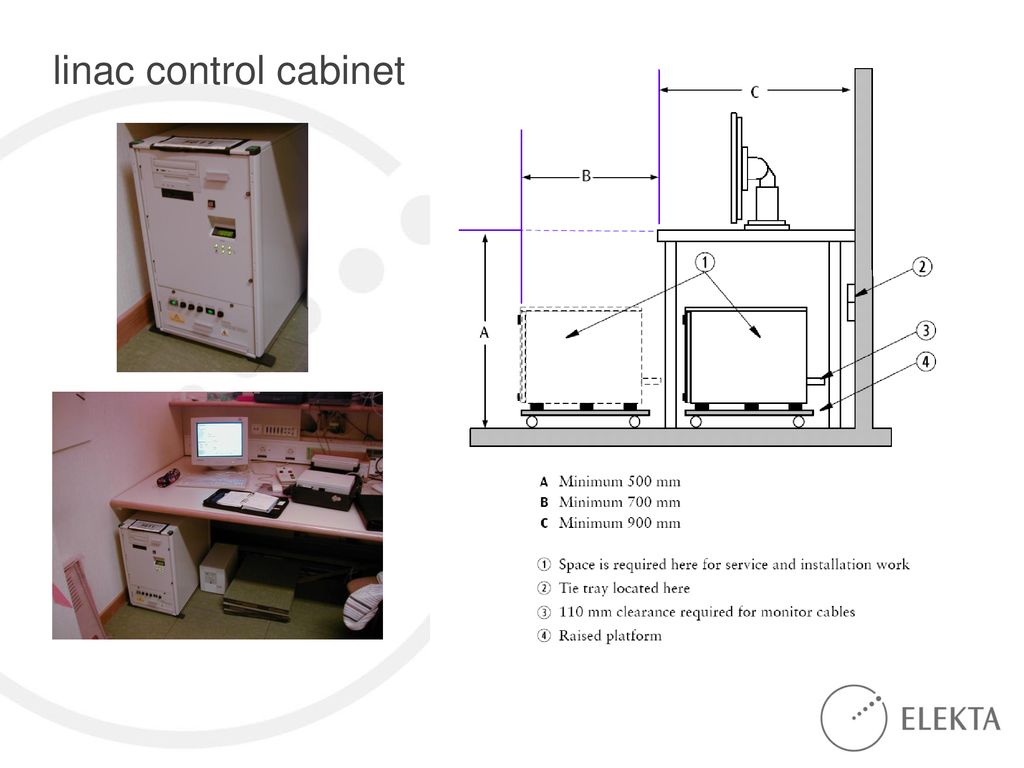

29 linac control cabinet

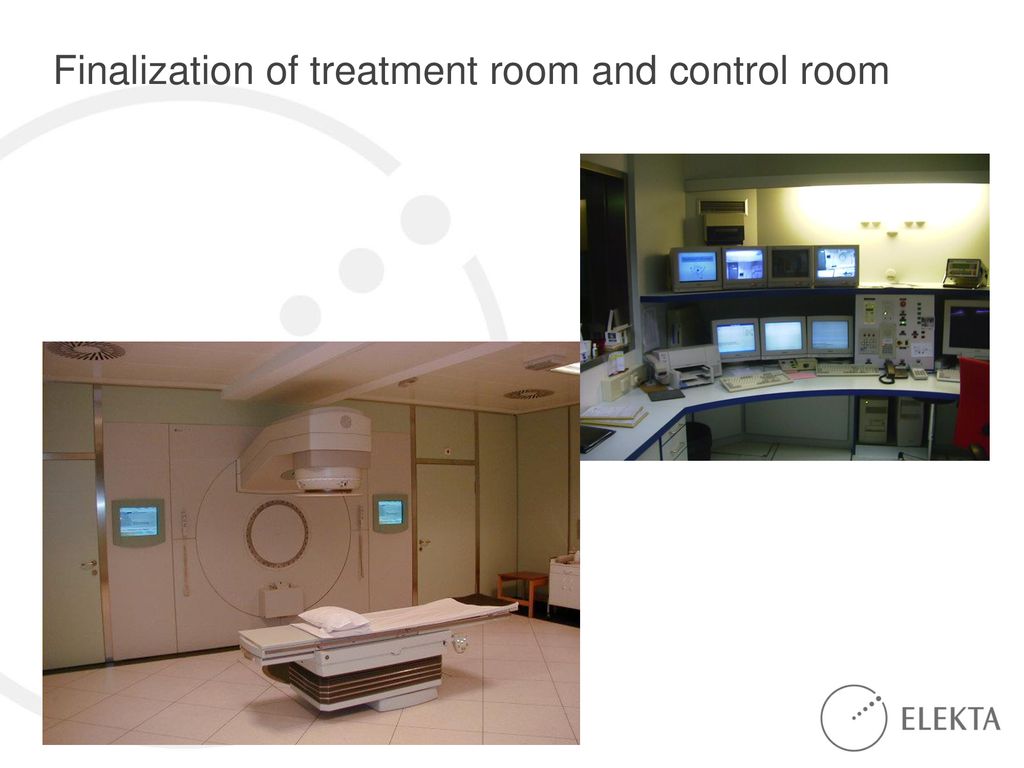

30 Finalization of treatment room and control room

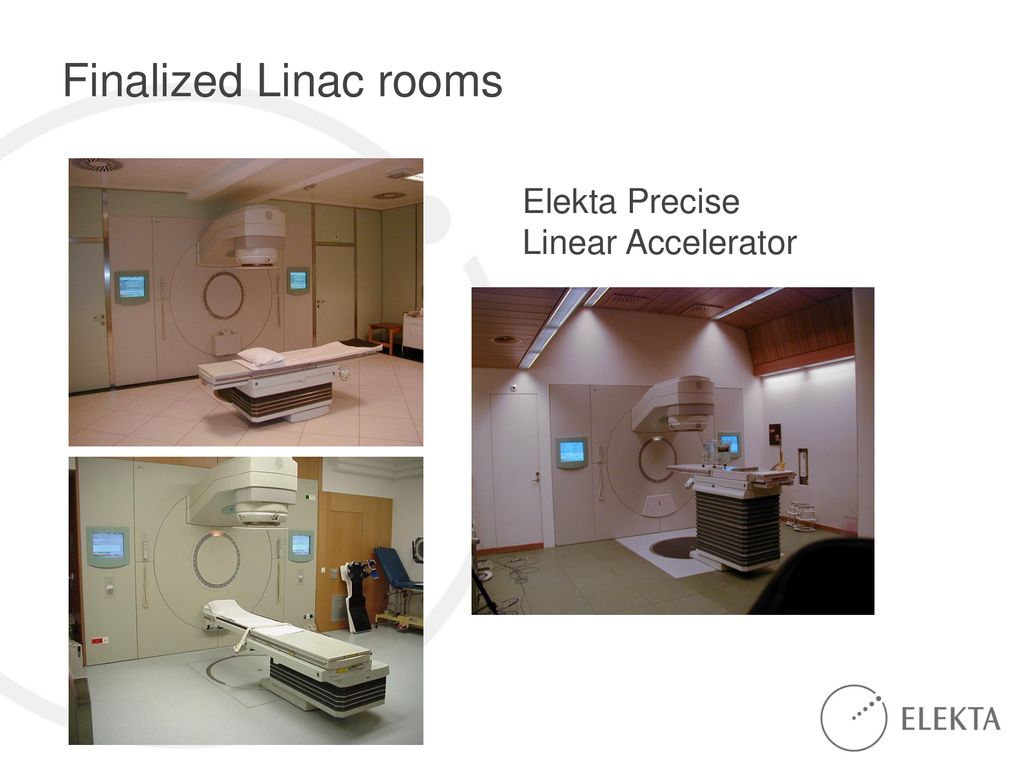

31 Finalized Linac rooms Elekta Precise Linear Accelerator

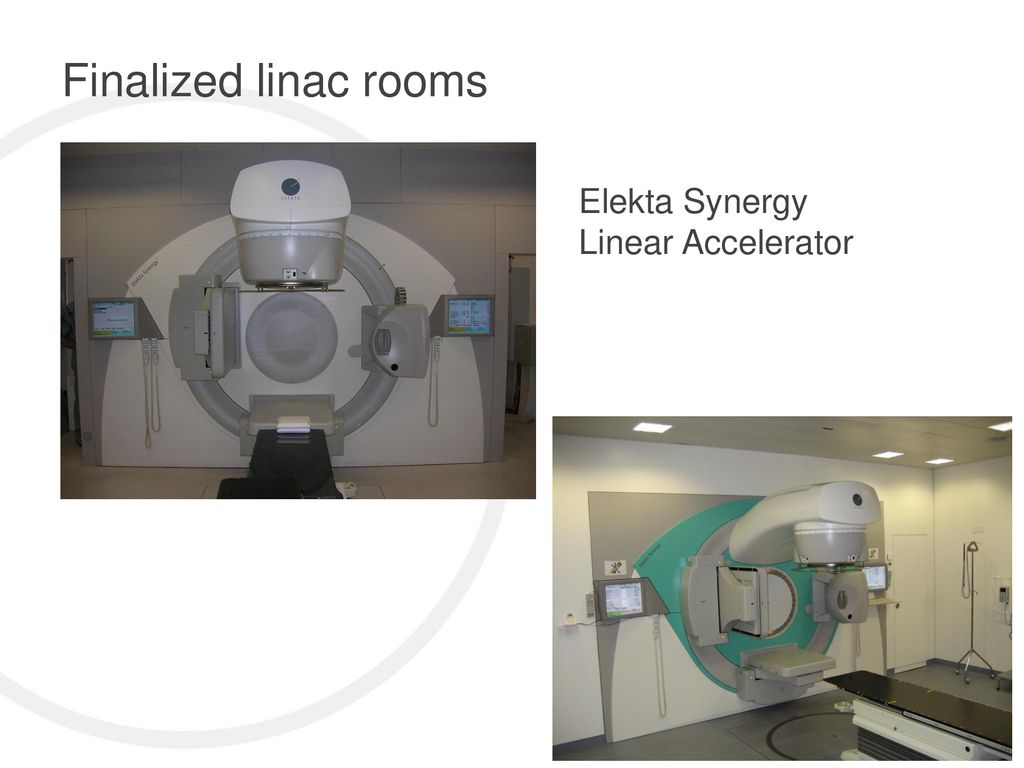

32 Finalized linac rooms Elekta Synergy Linear Accelerator

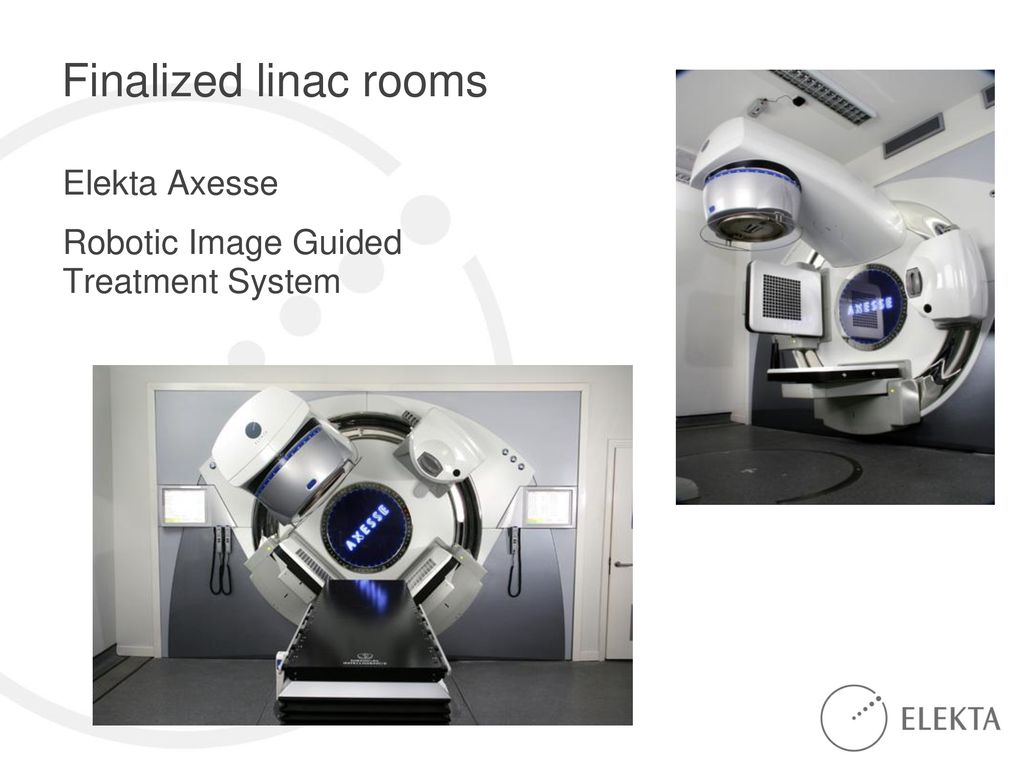

33 Finalized linac rooms Elekta Axesse
Robotic Image Guided Treatment System

34 Physics dosimetry and QA
When the linac has passed acceptance the work of the hospital physicist with dosimetry and QA starts Elekta can give support in this respect on demand

35 Education and Training
on site in a reference hospital in an Elekta training center RTTs physicists hospital engineers medical doctors …

36 Clinical Operation
