Portfolio de Sensores.

Presentación del tema: "Portfolio de Sensores."— Transcripción de la presentación:

1 Portfolio de Sensores

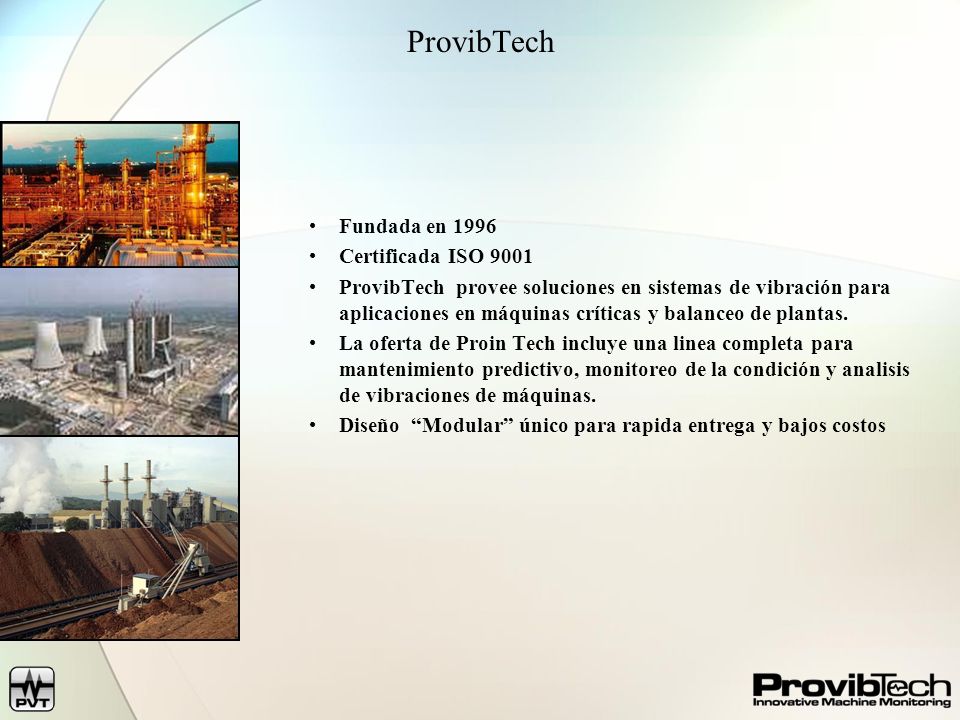

2 ProvibTech Fundada en 1996 Certificada ISO 9001
ProvibTech provee soluciones en sistemas de vibración para aplicaciones en máquinas críticas y balanceo de plantas. La oferta de Proin Tech incluye una linea completa para mantenimiento predictivo, monitoreo de la condición y analisis de vibraciones de máquinas. Diseño “Modular” único para rapida entrega y bajos costos PredicTech was founded in 1996 and is a company that provides vibration solutions for critical machines and balance of plant applications. PredicTech’s offerings include a full product line for predictive maintenance, condition monitoring and machinery vibration analysis. Our unique Modular designs allow for quick delivery and lower costs. So instead of having to keep numerous different products in stock, PredicTech products are digital and can be programmed for almost any configuration…… therefore, resulting in fewer parts to stock, quicker delivery, and commonality of parts for lower prices. -We put a lot of emphasis on R&D, developing innovative products and solutions, Predictech recently released 4 new products this year alone. -PredicTech’s grew over 40% last year. -Now, if you haven’t heard about us….. You will, our current focus is to capture market share in the US and to continue to expand globally. Just 4 months ago, PredicTech recently opened a manufacturing and sales office located here in Houston.

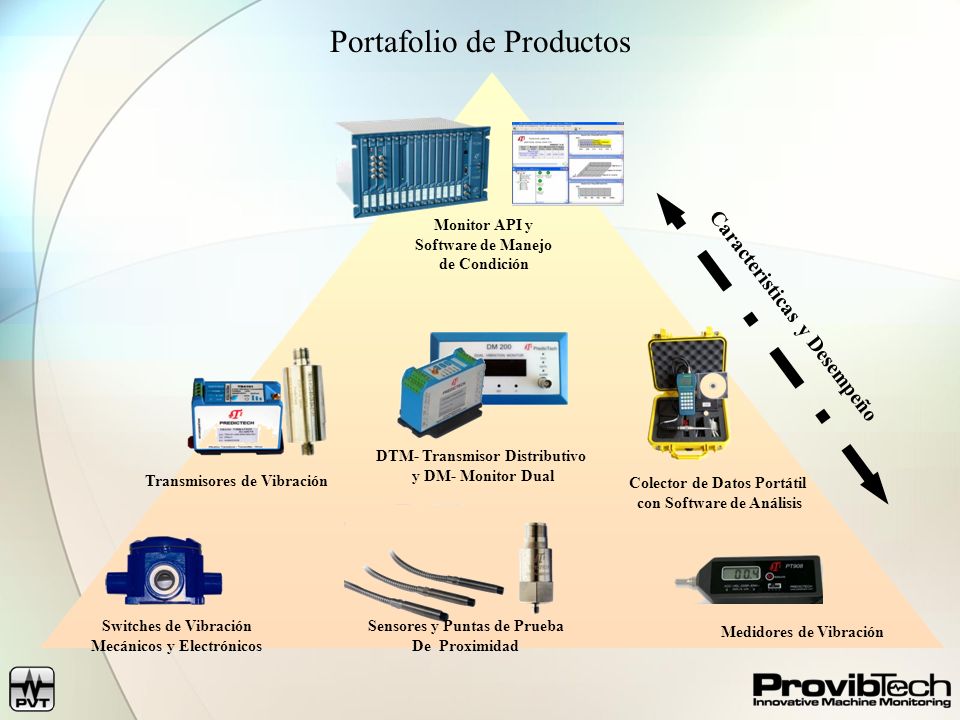

3 Portafolio de Productos
Monitor API y Software de Manejo de Condición Caracteristicas y Desempeño DTM- Transmisor Distributivo y DM- Monitor Dual PredicTech is one of few vibration companies that truly has a complete product line for vibration solutions. On the bottom end of the pyramid, PredicTech offers sensors- accelerometers, velocity transducers, and proximity probes, hand held vibration meters, and mechanical vibration switches. In the middle of complexity, Predictech offers electronic vibration switches and vibration transmitters (case mounted, and proximity transmitterrs) On the higher end, Predictech offers our new flagship product- the Digital Transmitter Monitor, the API 670 monitor, and vibration analyzers and software. From the very simple to the very complex--- We have you covered! Transmisores de Vibración Colector de Datos Portátil con Software de Análisis Switches de Vibración Mecánicos y Electrónicos Medidores de Vibración Sensores y Puntas de Prueba De Proximidad

4 Acelerómetros y Transductores de Velocidad
Mide la vibración de carcaza en aceleración o velocidad Acelerómetros TM0782A- 100mV/g, ,000 Hz TM0783A- con cable integrado TM0785A- Alta temperatura (150C en vez de 120C) TM0787A- Ultra Alta Temp (325 C) con cable de 10 metros Transductores de Velocidad TM0793V 4.0mV/mm/sec, ,000 Hz TM079VD- Baja frecuencia Velocidad/Desplazamiento – Hz TM0602- Transductor de Expansión de carcaza (LVDT) Here are the case mounted sensors Predictech offers to measure in acceleration or velocity Accelerometers The TM0782A is your standard accelerometer- 100mV/g, frequency response of ,000 Hz The TM0783A is similar to the 82 except with Integrated Cable The TM0785A is a Hi Temperature Accel with higher temperature range of (150C instead of the standard 120C) The TM0787A- Ultra Hi Temp (325 C) with 10 meter cable. The charge amplifier is mounted separated with 3,5 or 10 meter cable. The charge amplifier is rated for temperature up to (125 C) TM0793V Velocity Transducer- 4.0mV/mm/sec, ,000 Hz TM079VD- Low Frequency Velocity/Displacement – Hz The TM0602- measures Case Expansion Transducer used on Steam Turbines

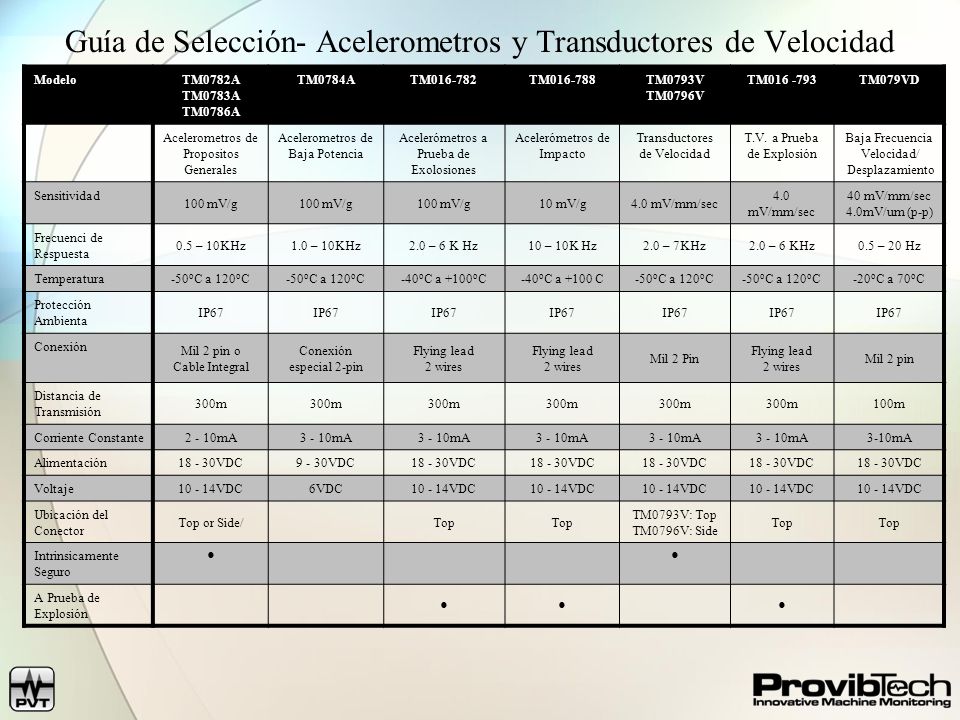

5 Guía de Selección- Acelerometros y Transductores de Velocidad
Modelo TM0782A TM0783A TM0786A TM0784A TM TM TM0793V TM0796V TM TM079VD Acelerometros de Propositos Generales Acelerometros de Baja Potencia Acelerómetros a Prueba de Exolosiones Acelerómetros de Impacto Transductores de Velocidad T.V. a Prueba de Explosión Baja Frecuencia Velocidad/ Desplazamiento Sensitividad 100 mV/g 10 mV/g 4.0 mV/mm/sec 40 mV/mm/sec 4.0mV/um (p-p) Frecuenci de Respuesta 0.5 – 10KHz 1.0 – 10KHz 2.0 – 6 K Hz 10 – 10K Hz 2.0 – 7KHz 2.0 – 6 KHz 0.5 – 20 Hz Temperatura -50oC a 120oC -40oC a +100oC -40oC a +100 C -20oC a 70oC Protección Ambienta IP67 Conexión Mil 2 pin o Cable Integral Conexión especial 2-pin Flying lead 2 wires Mil 2 Pin Mil 2 pin Distancia de Transmisión 300m 100m Corriente Constante 2 - 10mA 3 - 10mA 3-10mA Alimentación VDC 9 - 30VDC Voltaje VDC 6VDC Ubicación del Conector Top or Side/ Top TM0793V: Top TM0796V: Side Intrinsicamente Seguro ● A Prueba de Explosión Predictech offers complete line of proximity probes, extension cables and probe drivers. Designed to the API 670 standards and as direct replacements for the Bently series of probes (3000, 7200, RAM 990, and 3000 Series). Key Differentiators- Breadth of Proximity Probes Predictech makes. Many make some sort of proximity probe but as many as Predictech. Part of Predictech’s smart design for the proximity probe is using rugged cable jacket which is made out of Tefzel. Resistive to breaking, tearing and harsh chemicals. The other smart design on the proximity probes is all probes and extension cables come standard with protective rubber boot. This helps prevent ground loops, and faulty readings thru oil and dirt penetration.

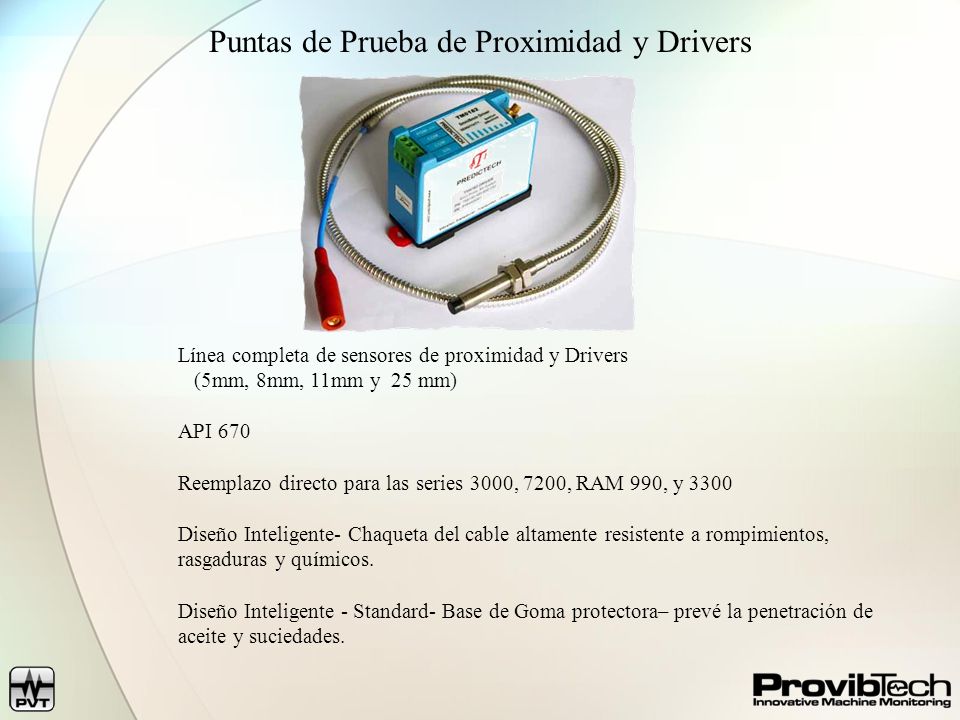

6 Puntas de Prueba de Proximidad y Drivers
Línea completa de sensores de proximidad y Drivers (5mm, 8mm, 11mm y 25 mm) API 670 Reemplazo directo para las series 3000, 7200, RAM 990, y 3300 Diseño Inteligente- Chaqueta del cable altamente resistente a rompimientos, rasgaduras y químicos. Diseño Inteligente - Standard- Base de Goma protectora– prevé la penetración de aceite y suciedades. Predictech offers complete line of proximity probes, extension cables and probe drivers. Designed to the API 670 standards and as direct replacements for the Bently series of probes (3000, 7200, RAM 990, and 3000 Series). Key Differentiators- Breadth of Proximity Probes Predictech makes. Many make some sort of proximity probe but as many as Predictech. Part of Predictech’s smart design for the proximity probe is using rugged cable jacket which is made out of Tefzel. Resistive to breaking, tearing and harsh chemicals. The other smart design on the proximity probes is all probes and extension cables come standard with protective rubber boot. This helps prevent ground loops, and faulty readings thru oil and dirt penetration.

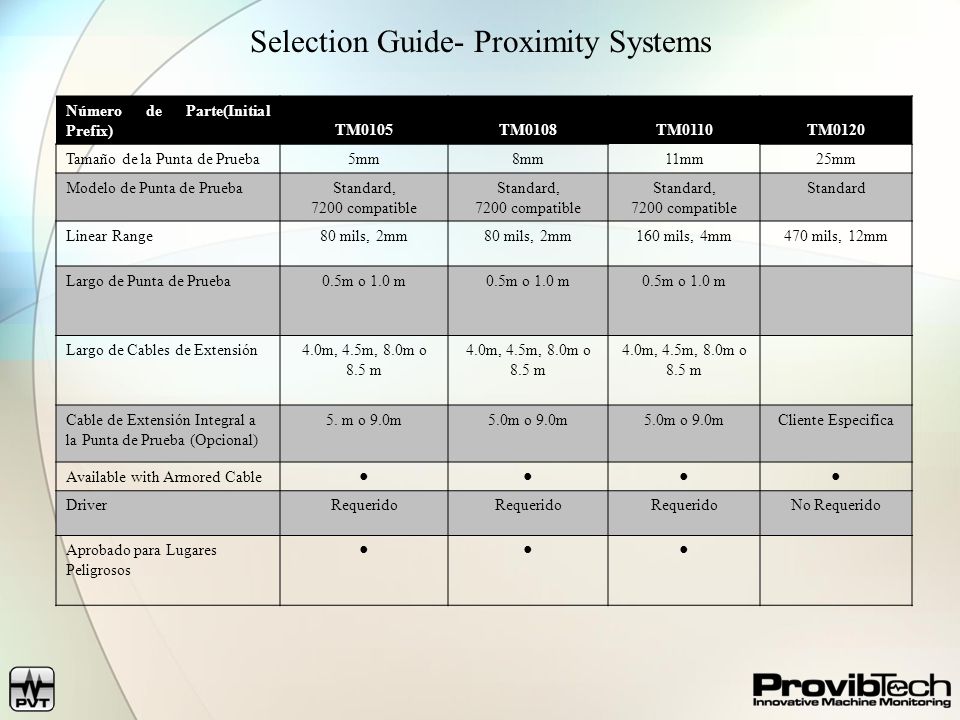

7 Selection Guide- Proximity Systems
Número de Parte(Initial Prefix) TM0105 TM0108 TM0110 TM0120 Tamaño de la Punta de Prueba 5mm 8mm 11mm 25mm Modelo de Punta de Prueba Standard, 7200 compatible Standard Linear Range 80 mils, 2mm 160 mils, 4mm 470 mils, 12mm Largo de Punta de Prueba 0.5m o 1.0 m Largo de Cables de Extensión 4.0m, 4.5m, 8.0m o 8.5 m Cable de Extensión Integral a la Punta de Prueba (Opcional) 5. m o 9.0m 5.0m o 9.0m Cliente Especifica Available with Armored Cable ● Driver Requerido No Requerido Aprobado para Lugares Peligrosos Predictech offers complete line of proximity probes, extension cables and probe drivers. Designed to the API 670 standards and as direct replacements for the Bently series of probes (3000, 7200, RAM 990, and 3000 Series). Key Differentiators- Breadth of Proximity Probes Predictech makes. Many make some sort of proximity probe but as many as Predictech. Part of Predictech’s smart design for the proximity probe is using rugged cable jacket which is made out of Tefzel. Resistive to breaking, tearing and harsh chemicals. The other smart design on the proximity probes is all probes and extension cables come standard with protective rubber boot. This helps prevent ground loops, and faulty readings thru oil and dirt penetration.

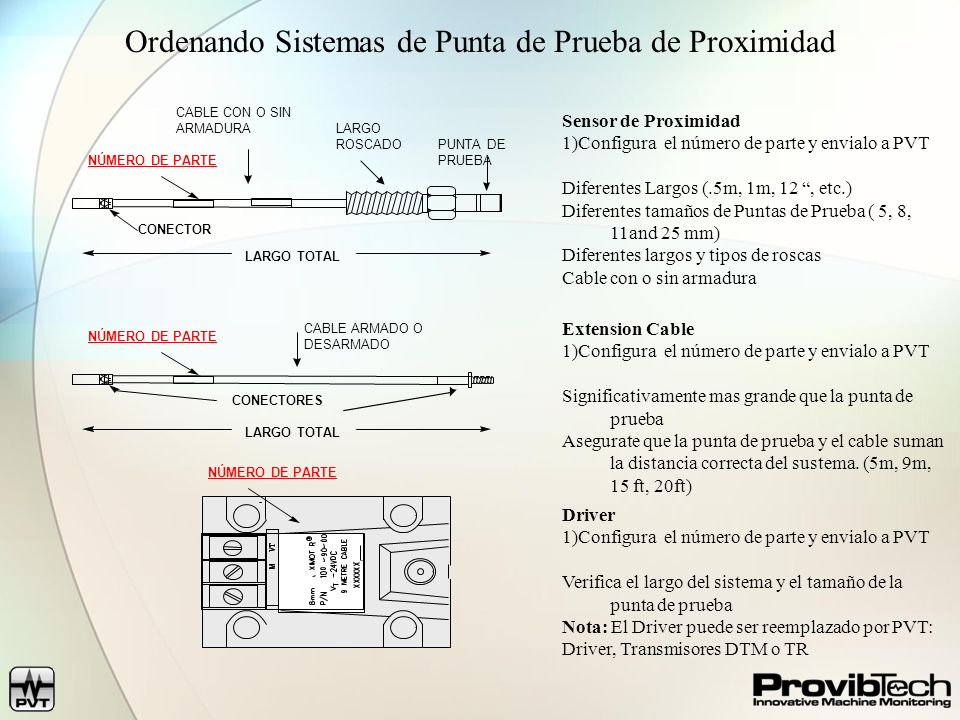

8 Ordenando Sistemas de Punta de Prueba de Proximidad
NÚMERO DE PARTE PUNTA DE PRUEBA CONECTOR LARGO ROSCADO LARGO TOTAL CABLE CON O SIN ARMADURA Sensor de Proximidad 1)Configura el número de parte y envialo a PVT Diferentes Largos (.5m, 1m, 12 “, etc.) Diferentes tamaños de Puntas de Prueba ( 5, 8, 11and 25 mm) Diferentes largos y tipos de roscas Cable con o sin armadura Extension Cable 1)Configura el número de parte y envialo a PVT Significativamente mas grande que la punta de prueba Asegurate que la punta de prueba y el cable suman la distancia correcta del sustema. (5m, 9m, 15 ft, 20ft) CABLE ARMADO O DESARMADO NÚMERO DE PARTE CONECTORES LARGO TOTAL Proximity Probe Systems can be tricky. The easiest thing is to get the correct part numbers to predictech for the probe, extension cable and probe driver and predictech can determine what system you have and need. The Proximity probe systems consist of 3 parts: probe, extension cable and Driver. 1) There are many variables to the probe. Different lengths, Different tip sizes (5,8,11 and 25 mm) Note: The bigger the tip size the farther the probe will read from an object. 25 mm tip reads greater distance than the 5mm. There are different threaded and unthreaded lengths (this determines how it fits into the machine, if you have ¼” 28UNF and your machine requires a Metrix Thread (M8 x 1)) your probe is not going to fit. You need to determine if you need armor or unarmored cable. 2) The extension cable connects the probe to the probe drive. The key selection criteria for extension cable, besides cable type- armored or unarmored is you need to have the probe and extension cable be at the correct system length- 15,20 ft or 5 or 9 meter. So, if you need an 9 meter system length and you have a 1 meter probe, you need an 8 meter extension cable. Note: Some of the older series probes (3000 series) you need to double length of the proximity probe. So if you have 6 inch probe (with 3000 series) it is really electrically 12” + 14 foot extension cable gives you a system length of 15 feet. 3) Last part of the proximity probe system is the probe driver. The probe driver provides power to the probe, conditions the signal and then amplifies the signal to the Vibration Monitor. The correct probe driver (5m, 9m 15ft or 20ft) needs to be matched with the correct system length. I have a 5 meter probe and extension cable, I must use this with probe driver that was designed for 5 meter system. You can also verify you are using the correct probe tip with the probe driver. Note: Probe Driver can be replaced with another Predictech probe driver, DTM or TR Series Transmitters. You only need probe driver if you are sending the signal to Vibration Monitor Rack (like PT2060). If your 3 parts (probe , extension cable and probe driver) do not match up, there will be huge problems because the system will not be linear. You will have bad data, resulting in spurious shutdowns- when your machinery is really ok, or you can have a fail dangerous situation. Your equipment is operating at high vibration level, and there is no indication of this problem. -the estimated number of proximity probe systems installed is over 20 million--- lots of pieces!! It is easy to get confused with all the different options, especially if you have a facility with equipment from different manufactures made at different times with different monitoring systems. -So this brings me to the next issue of what happens if you make a mistake and mismatch…..(go to next slide) NÚMERO DE PARTE Driver 1)Configura el número de parte y envialo a PVT Verifica el largo del sistema y el tamaño de la punta de prueba Nota: El Driver puede ser reemplazado por PVT: Driver, Transmisores DTM o TR

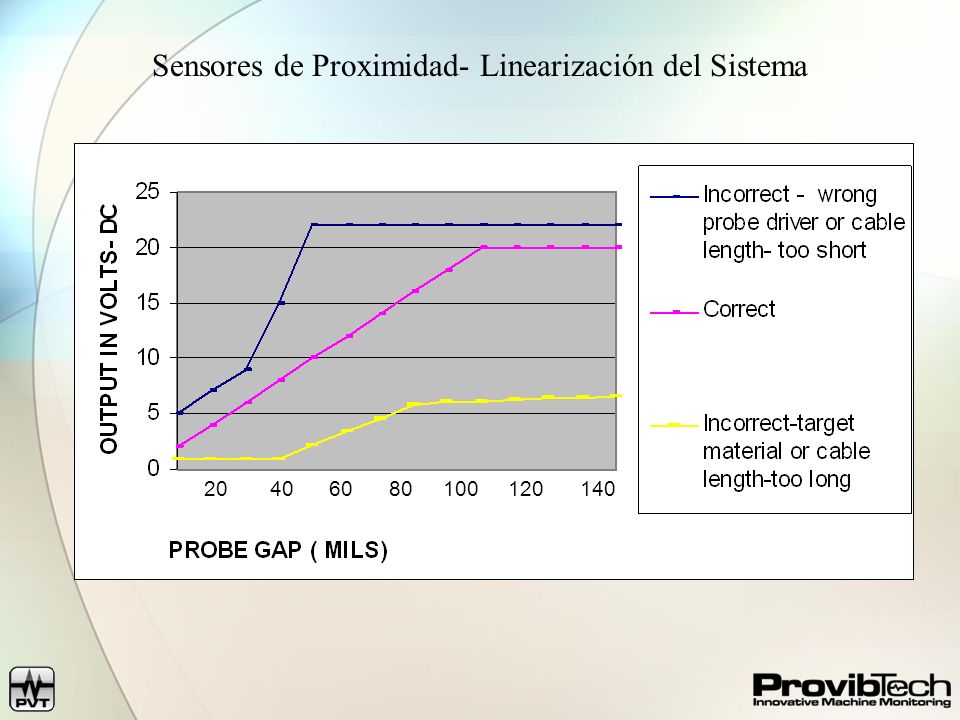

9 Sensores de Proximidad- Linearización del Sistema
If your probe, extension cable and probe driver do not match up correctly you will have linearization problems. Now which line looks like the Ideal line that you want to have? Well, it’s the pretty line in pink! Nice and straight. The other 2 lines show the results of having wrong probe driver, too short of cables and inaccurate target material and too long of cables. -When you have problems with accuracy of systems that leads to nuisance trips or lack of sufficient vibration protection. There was one customer at an air separation plant (motor application) and they had a situation that was close to this yellow line… The end user was getting significantly less then the 200mV/mil output that they expected (So instead of having the pink line they were operating on the yellow line). The output signal was indicating the motor was operating well within its vibration range (reading said 2 mils) but in reality they were well over their shutdown level (alarm was set for 3 mils and they were operating at 6 mils!!). So it is a very dangerous situation that was caused by a simple human error. IT IS ESTIMATED THAT UP TO 5% of proximity probe installations have installation errors!!!
