Glucólisis Carlos I. González, Ph.D. Catedrático Asociado

Presentación del tema: "Glucólisis Carlos I. González, Ph.D. Catedrático Asociado"— Transcripción de la presentación:

1 Glucólisis Carlos I. González, Ph.D. Catedrático Asociado
Departamento de Biología Universidad de Puerto Rico – Río Piedras Oficina: Julio García Díaz #106 Tel: ext. 2482 Hrs. Oficina: L y W 11:30am – 12:30pm

2 14| Glucose Utilization and Biosynthesis
© 2013 W. H. Freeman and Company

3 Central Importance of Glucose
Glucose is an excellent fuel Yields good amount of energy upon oxidation Can be efficiently stored in the polymeric form Many organisms and tissues can meet their energy needs on glucose only Glucose is a versatile biochemical precursor Bacteria can use glucose to build the carbon skeletons of: All the amino acids Membrane lipids Nucleotides in DNA and RNA Cofactors needed for the metabolism

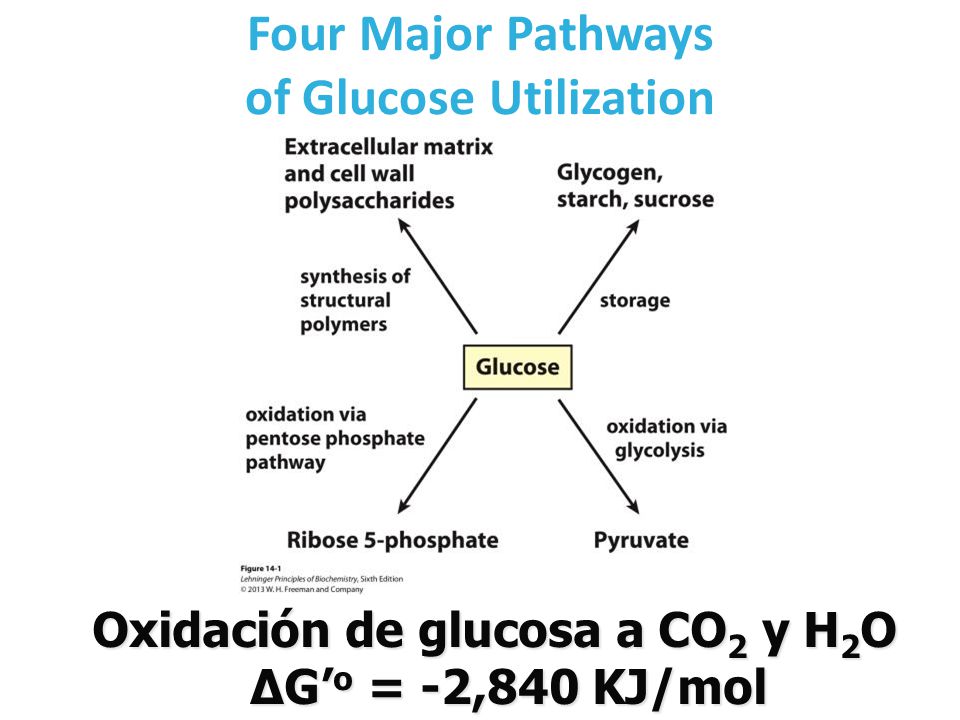

4 Four Major Pathways of Glucose Utilization
Oxidación de glucosa a CO2 y H2O ΔG’o = -2,840 KJ/mol

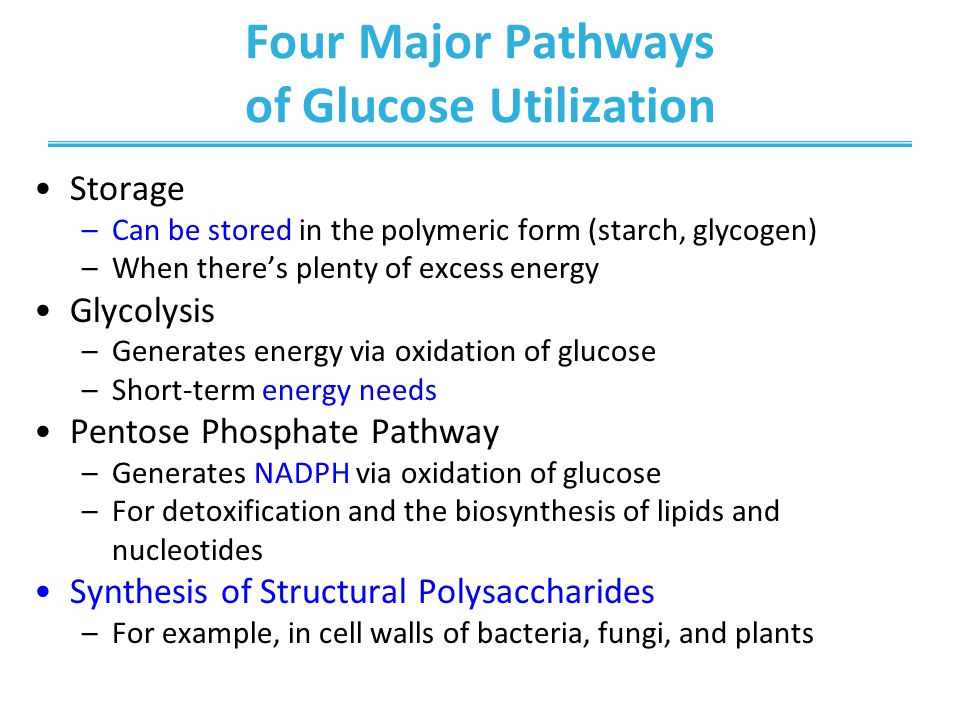

5 Four Major Pathways of Glucose Utilization
Storage Can be stored in the polymeric form (starch, glycogen) When there’s plenty of excess energy Glycolysis Generates energy via oxidation of glucose Short-term energy needs Pentose Phosphate Pathway Generates NADPH via oxidation of glucose For detoxification and the biosynthesis of lipids and nucleotides Synthesis of Structural Polysaccharides For example, in cell walls of bacteria, fungi, and plants

6 GLUCÓLISIS La oxidación de glucosa libera mucha energía y es un precursor excelente (a.a, ácidos grasos, nucleótidos, coenzimas.) C6H12O6 + 6O2 –> 6CO2 + 6H2O ΔG’o = kJ/mol

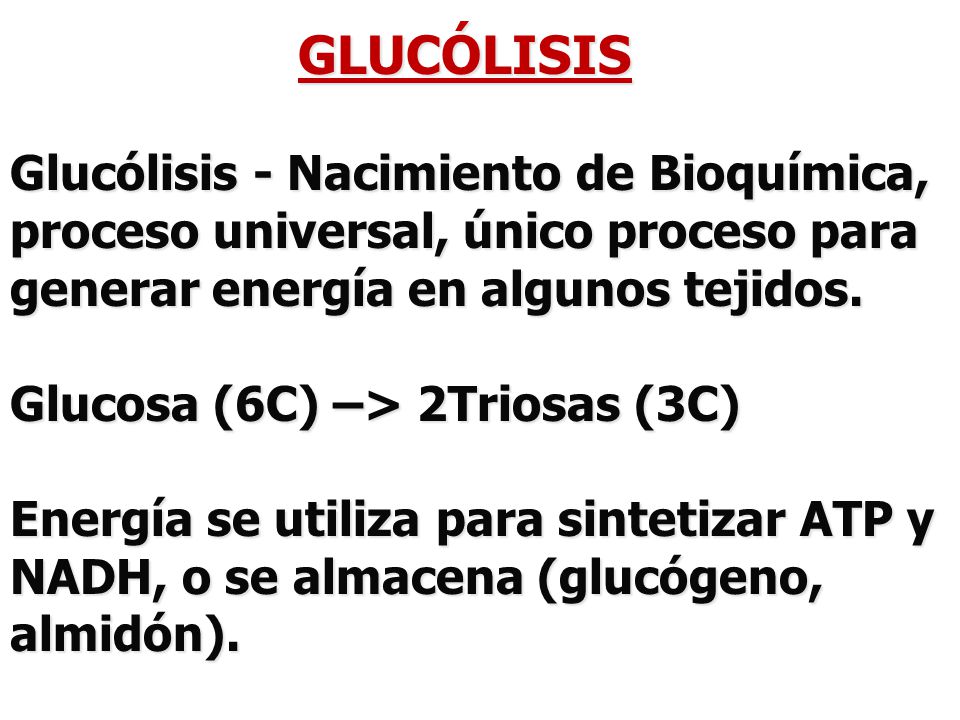

7 GLUCÓLISIS Glucólisis - Nacimiento de Bioquímica, proceso universal, único proceso para generar energía en algunos tejidos. Glucosa (6C) –> 2Triosas (3C) Energía se utiliza para sintetizar ATP y NADH, o se almacena (glucógeno, almidón).

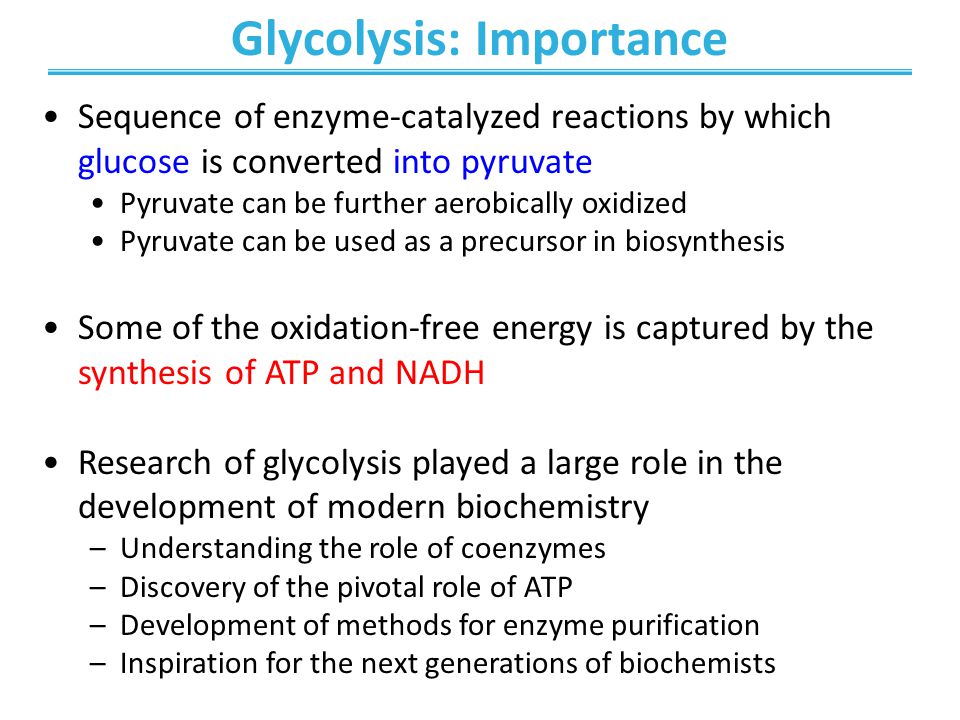

8 Glycolysis: Importance
Sequence of enzyme-catalyzed reactions by which glucose is converted into pyruvate Pyruvate can be further aerobically oxidized Pyruvate can be used as a precursor in biosynthesis Some of the oxidation-free energy is captured by the synthesis of ATP and NADH Research of glycolysis played a large role in the development of modern biochemistry Understanding the role of coenzymes Discovery of the pivotal role of ATP Development of methods for enzyme purification Inspiration for the next generations of biochemists

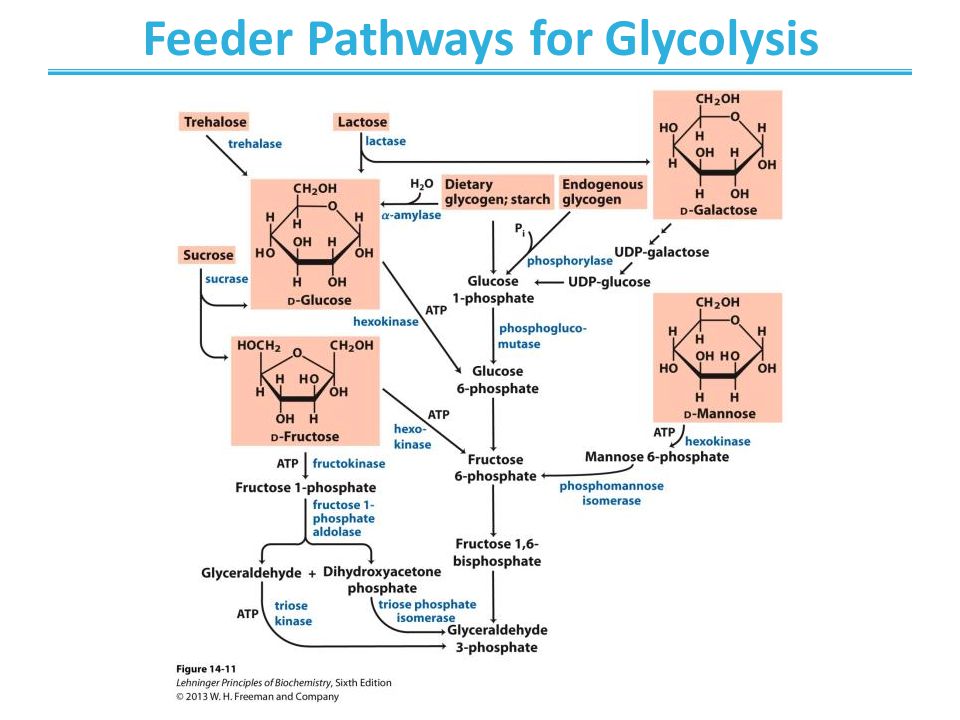

9 Feeder Pathways for Glycolysis
FIGURE 14–11 Entry of dietary glycogen, starch, disaccharides, and hexoses into the preparatory stage of glycolysis.

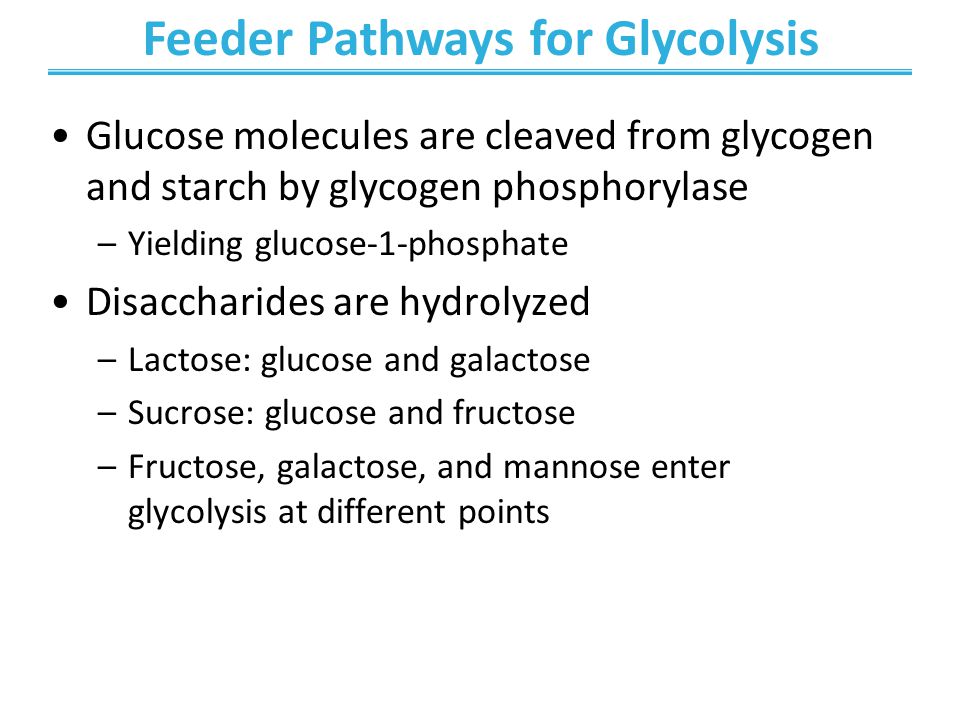

10 Feeder Pathways for Glycolysis
Glucose molecules are cleaved from glycogen and starch by glycogen phosphorylase Yielding glucose-1-phosphate Disaccharides are hydrolyzed Lactose: glucose and galactose Sucrose: glucose and fructose Fructose, galactose, and mannose enter glycolysis at different points FIGURE Entry of dietary glycogen, starch, disaccharides, and hexoses into the preparatory stage of glycolysis.

11 Glycolysis: Overview In the evolution of life, glycolysis probably was one of the earliest energy-yielding pathways It developed before photosynthesis, when the atmosphere was still anaerobic Thus, the task upon early organisms was: How to extract free energy from glucose anaerobically? The solution: First: Activate it by phosphorylation Second: Collect energy from the high-energy metabolites

12 GLUCÓLISIS 10 pasos - 2 etapas (todo citoplasma)
1) preparativa- rxns. endergónicas, se utilizan 2 ATP para activar glucosa (aumenta energía libre de reactante) y se degrada en 2 moléculas de 3C. P-C6 –> Fructosa 6P –> P-C1–> lísis en 2-3C–> dihidroxiacetona –> isomeriza a gliceraldehído 3P.

13 GLUCÓLISIS 2) “payoff” - rxns. exergónicas, se recobra ATP invertidos, produce 2 ATP, 4 e- se almacenan en 2 NADH, y se forman 2 moléculas de piruvato. 2 glyc.3P (oxida y fosforila por Pi, no ATP)–> 1,3 BiP-glyc. –> 2piruvato

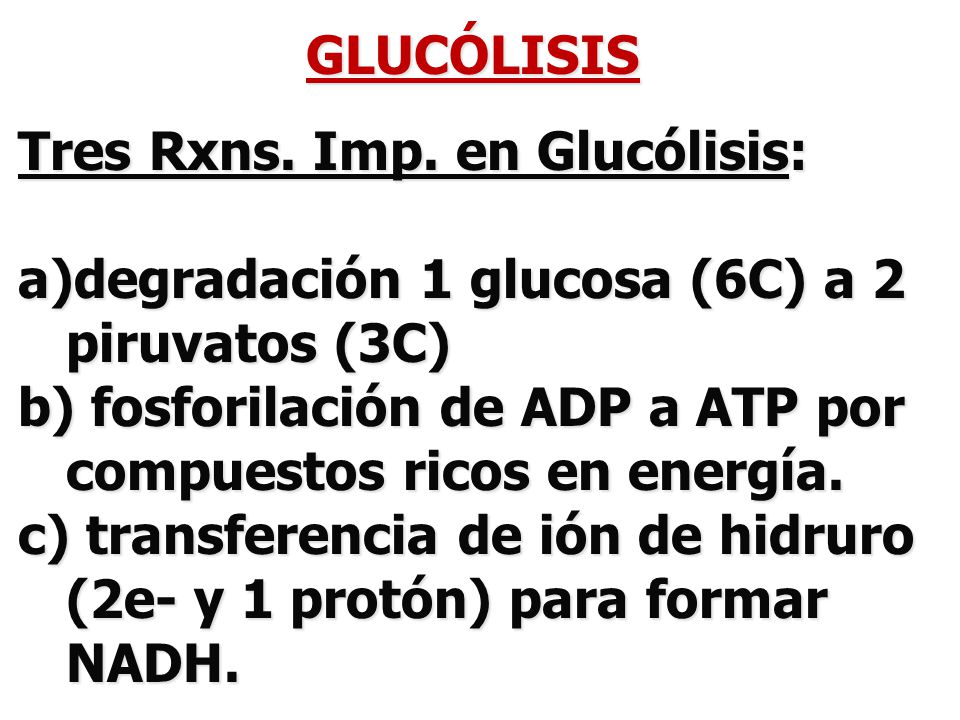

14 GLUCÓLISIS Tres Rxns. Imp. en Glucólisis: degradación 1 glucosa (6C) a 2 piruvatos (3C) b) fosforilación de ADP a ATP por compuestos ricos en energía. c) transferencia de ión de hidruro (2e- y 1 protón) para formar NADH.

15 Glycolysis: Overview FIGURE 14–2 The two phases of glycolysis. For each molecule of glucose that passes through the preparatory phase (a), two molecules of glyceraldehyde 3-phosphate are formed; both pass through the payoff phase (b). Pyruvate is the end product of the second phase of glycolysis. For each glucose molecule, two ATP are consumed in the preparatory phase and four ATP are produced in the payoff phase, giving a net yield of two ATP per molecule of glucose converted to pyruvate. The numbered reaction steps correspond to the numbered headings in the text discussion. Keep in mind that each phosphoryl group, represented here as P , has two negative charges (—PO32–).

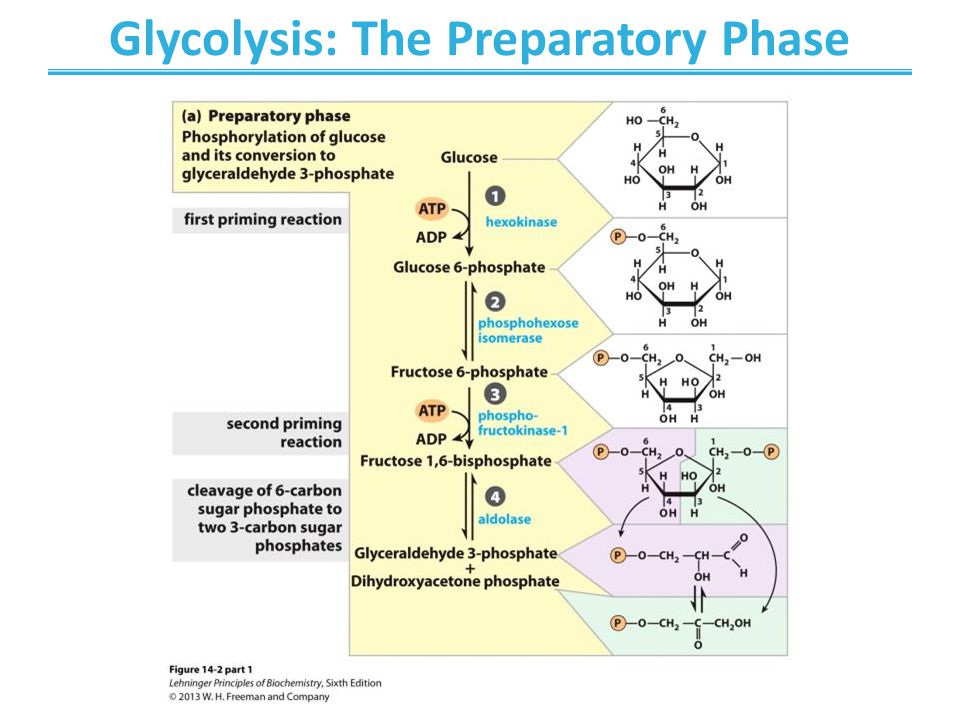

16 Glycolysis: The Preparatory Phase
FIGURE 14–2a The two phases of glycolysis. For each molecule of glucose that passes through the preparatory phase (a), two molecules of glyceraldehyde 3-phosphate are formed.

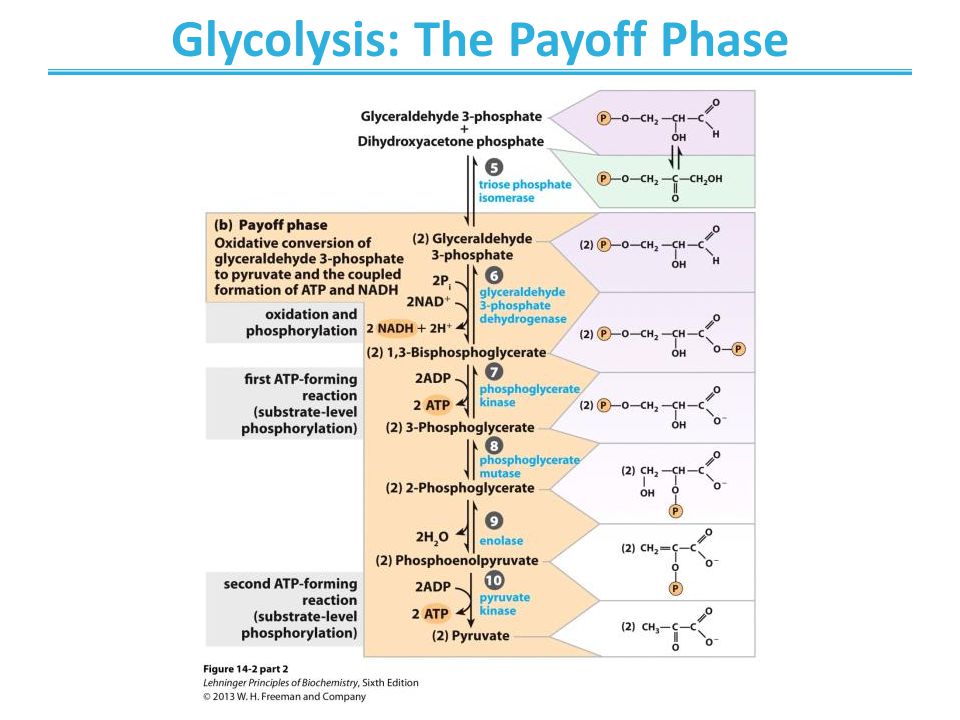

17 Glycolysis: The Payoff Phase
FIGURE 14–2b The two phases of glycolysis. For each molecule of glucose that passes through the preparatory phase (a), two molecules of glyceraldehyde 3-phosphate are formed; both pass through the payoff phase (b). Pyruvate is the end product of the second phase of glycolysis. For each glucose molecule, two ATP are consumed in the preparatory phase and four ATP are produced in the payoff phase, giving a net yield of two ATP per molecule of glucose converted to pyruvate. The numbered reaction steps correspond to the numbered headings in the text discussion. Keep in mind that each phosphoryl group, represented here as P , has two negative charges (—PO32–).

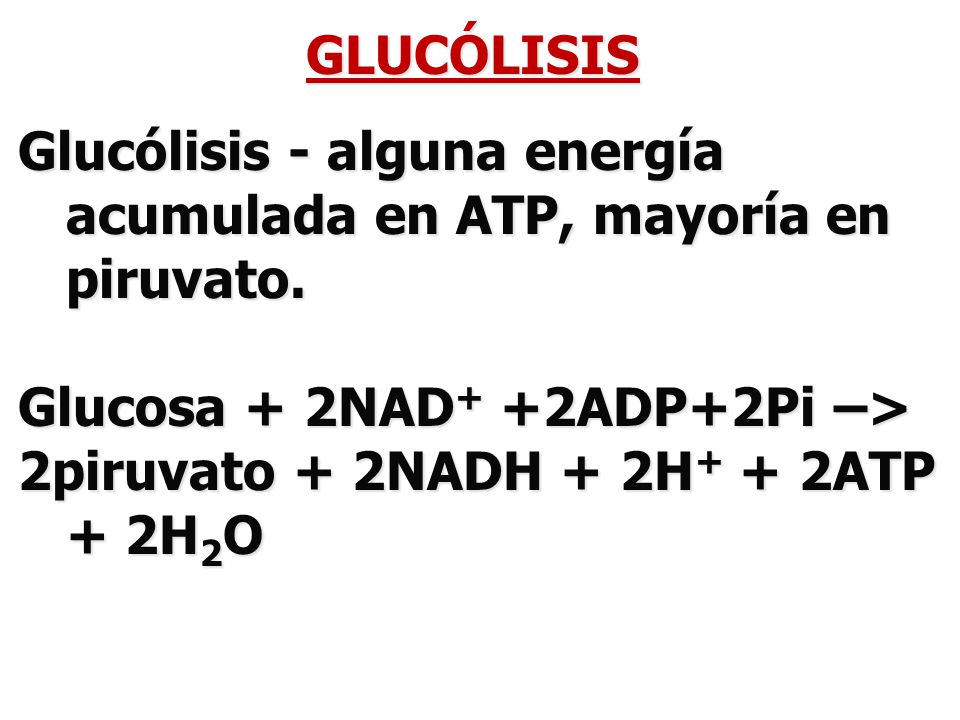

18 GLUCÓLISIS Glucólisis - alguna energía acumulada en ATP, mayoría en piruvato. Glucosa + 2NAD+ +2ADP+2Pi –> 2piruvato + 2NADH + 2H+ + 2ATP + 2H2O

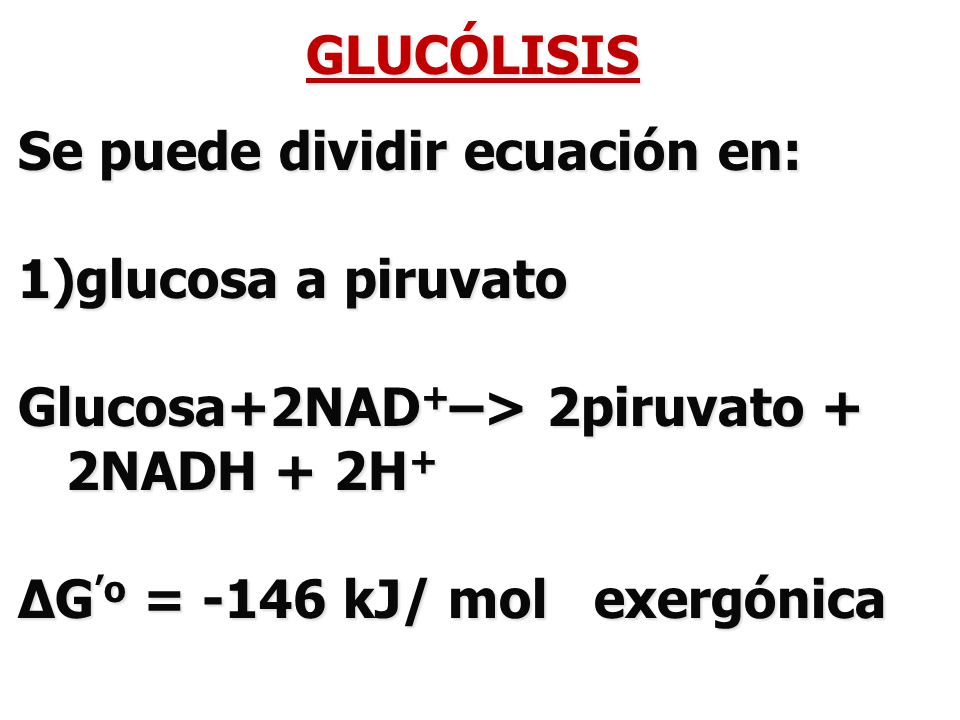

19 GLUCÓLISIS Se puede dividir ecuación en: glucosa a piruvato Glucosa+2NAD+–> 2piruvato + 2NADH + 2H+ ΔG’o = -146 kJ/ mol exergónica

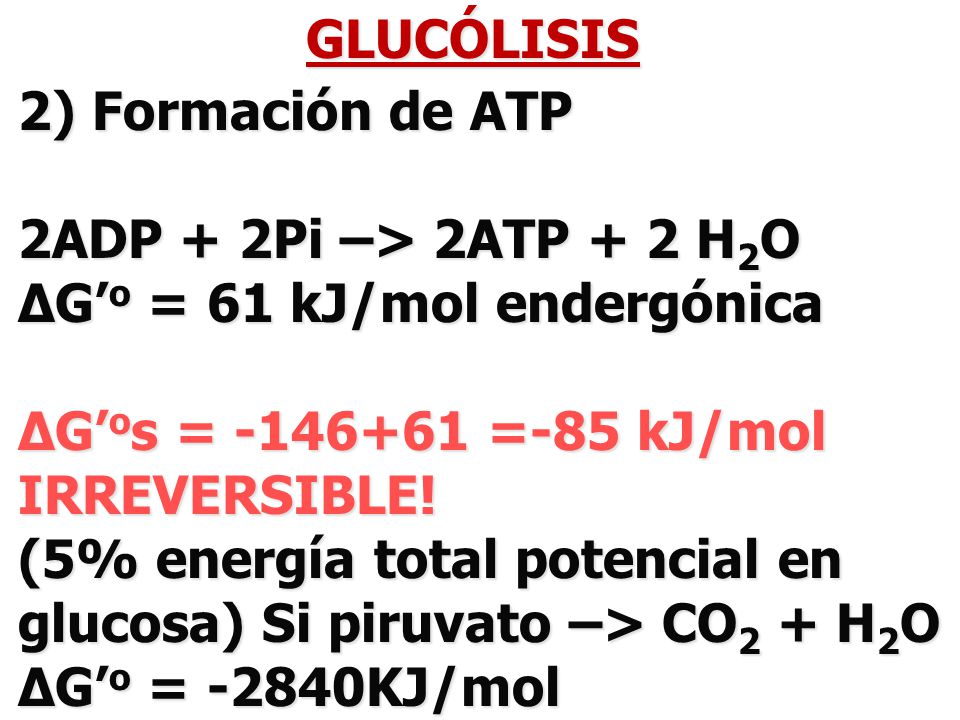

20 GLUCÓLISIS 2) Formación de ATP 2ADP + 2Pi –> 2ATP + 2 H2O ΔG’o = 61 kJ/mol endergónica ΔG’os = =-85 kJ/mol IRREVERSIBLE! (5% energía total potencial en glucosa) Si piruvato –> CO2 + H2O ΔG’o = -2840KJ/mol

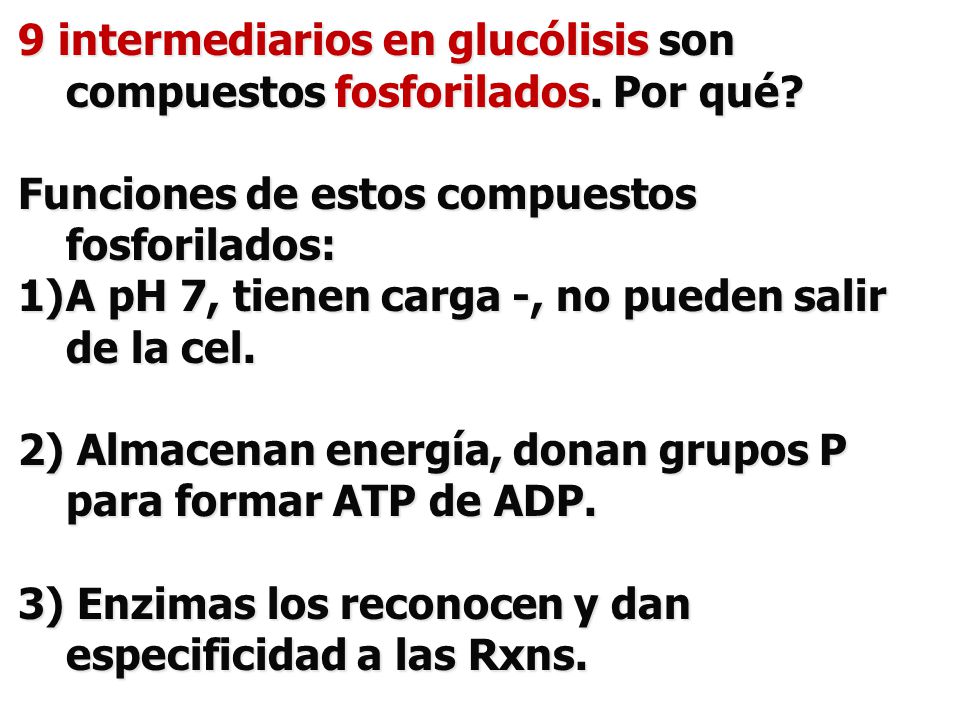

21 9 intermediarios en glucólisis son compuestos fosforilados. Por qué?
Funciones de estos compuestos fosforilados: A pH 7, tienen carga -, no pueden salir de la cel. 2) Almacenan energía, donan grupos P para formar ATP de ADP. 3) Enzimas los reconocen y dan especificidad a las Rxns.

22 Chemical Logic of Glycolysis
FIGURE 14–3 The chemical logic of the glycolytic pathway. In this simplified version of the pathway, each molecule is shown in a linear form, with carbon and hydrogen atoms not depicted, in order to highlight chemical transformations. Remember that glucose and fructose are present mostly in their cyclized forms in solution, although they are transiently present in linear form at the active sites of some of the enzymes in this pathway. The preparatory phase, steps 1 to 5, converts the six-carbon glucose into two three-carbon units, each of them phosphorylated. Oxidation of the three-carbon units is initiated in the payoff phase. To produce pyruvate, the chemical steps must occur in the order shown. Error libro-nueva ediciόn: Movimiento es de C-3 a C-2

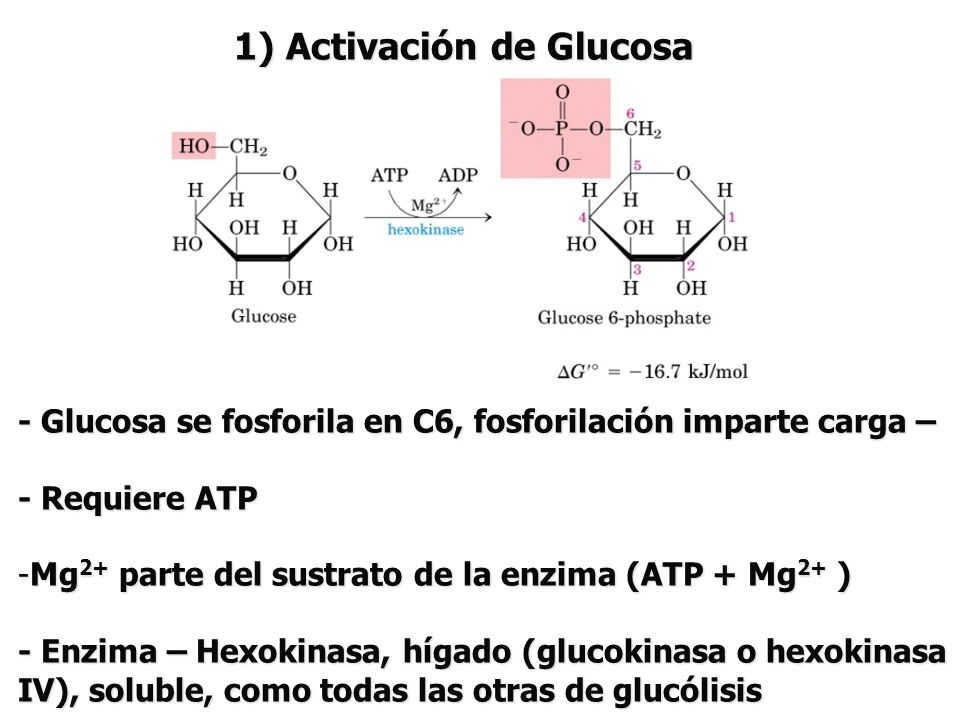

23 1) Activación de Glucosa
- Glucosa se fosforila en C6, fosforilación imparte carga – - Requiere ATP Mg2+ parte del sustrato de la enzima (ATP + Mg2+ ) - Enzima – Hexokinasa, hígado (glucokinasa o hexokinasa IV), soluble, como todas las otras de glucólisis

24 Step 1: Phosphorylation of Glucose

25 Step 1: Phosphorylation of Glucose
Rationale Traps glucose inside the cell Lowers intracellular glucose concentration to allow further uptake This process uses the energy of ATP Hexokinase in eukaryotes, and glucokinase in prokaryotes Nucleophilic oxygen at C6 of glucose attacks the last () phosphate of ATP ATP-bound Mg++ facilitates this process by shielding the negative charges on ATP Highly thermodynamically favorable/irreversible Regulated mainly by substrate inhibition

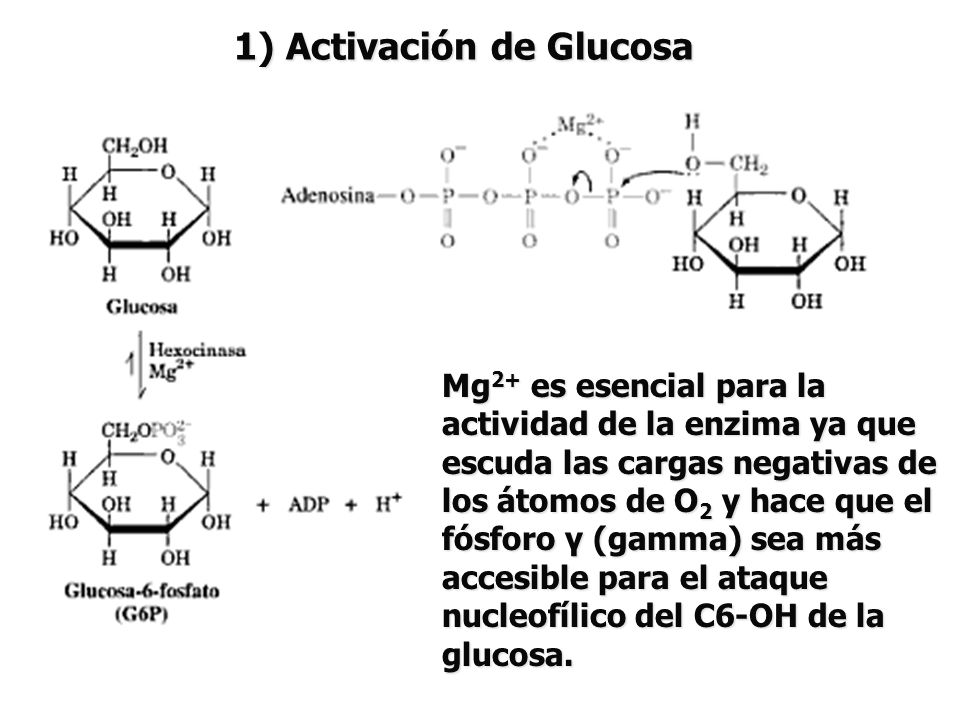

26 1) Activación de Glucosa
Mg2+ es esencial para la actividad de la enzima ya que escuda las cargas negativas de los átomos de O2 y hace que el fósforo γ (gamma) sea más accesible para el ataque nucleofílico del C6-OH de la glucosa.

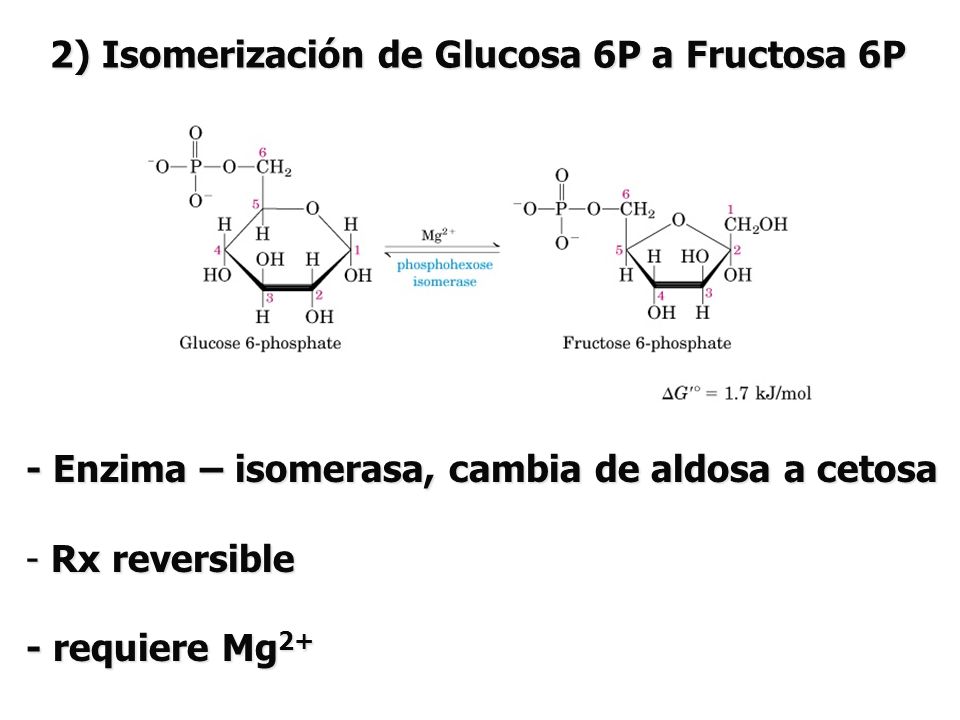

27 2) Isomerización de Glucosa 6P a Fructosa 6P
- Enzima – isomerasa, cambia de aldosa a cetosa Rx reversible - requiere Mg2+

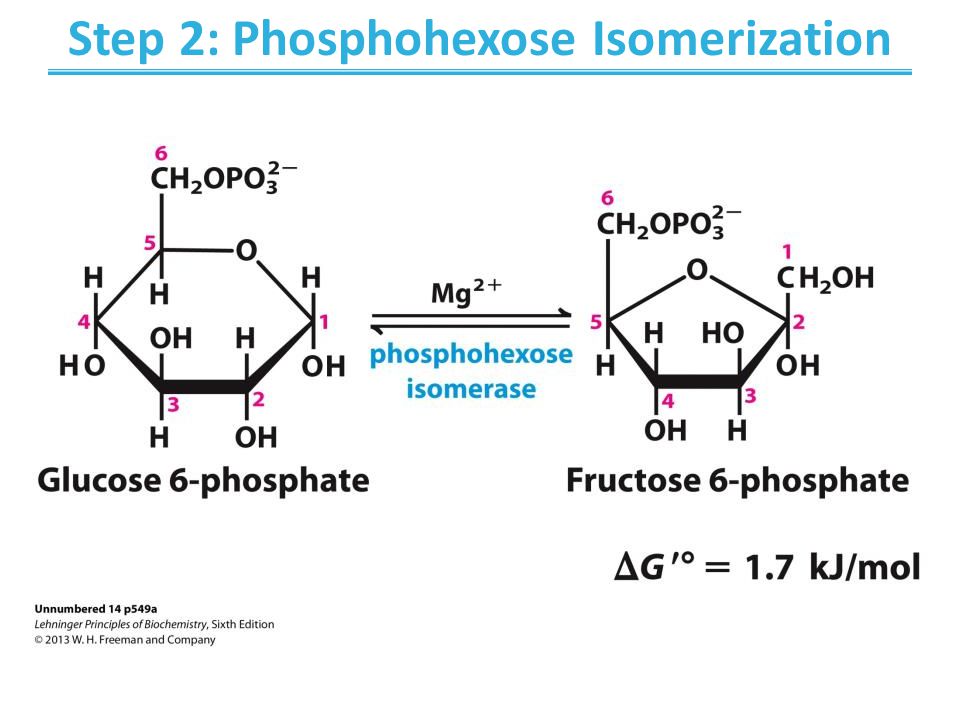

28 Step 2: Phosphohexose Isomerization

29 Step 2: Phosphohexose Isomerization
Rationale C1 of fructose is easier to phosphorylate by PFK Allows for symmetrical cleave by aldolase An aldose (glucose) can isomerize into a ketose (fructose) via an enediol intermediate The isomerization is catalyzed by the active-site glutamate, via general acid/base catalysis Slightly thermodynamically unfavorable/reversible Product concentration kept low to drive forward

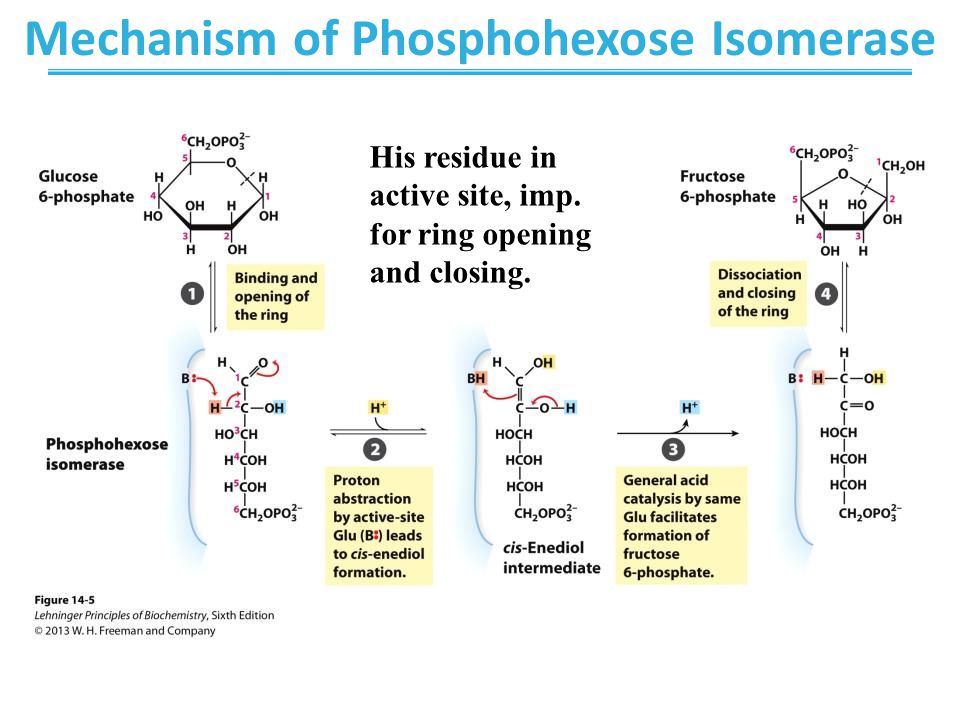

30 Mechanism of Phosphohexose Isomerase
His residue in active site, imp. for ring opening and closing. MECHANISM FIGURE 14–5 The phosphohexose isomerase reaction. The ring opening and closing reactions (steps 1 and 4) are catalyzed by an active-site His residue, by mechanisms omitted here for simplicity. The proton (light red) initially at C-2 is made more easily abstractable by electron withdrawal by the adjacent carbonyl and nearby hydroxyl groups. After its transfer from C-2 to the active-site Glu residue (a weak acid), the proton is freely exchanged with the surrounding solution; that is, the proton abstracted from C-2 in step 2 is not necessarily the same one that is added to C-1 in step 3.

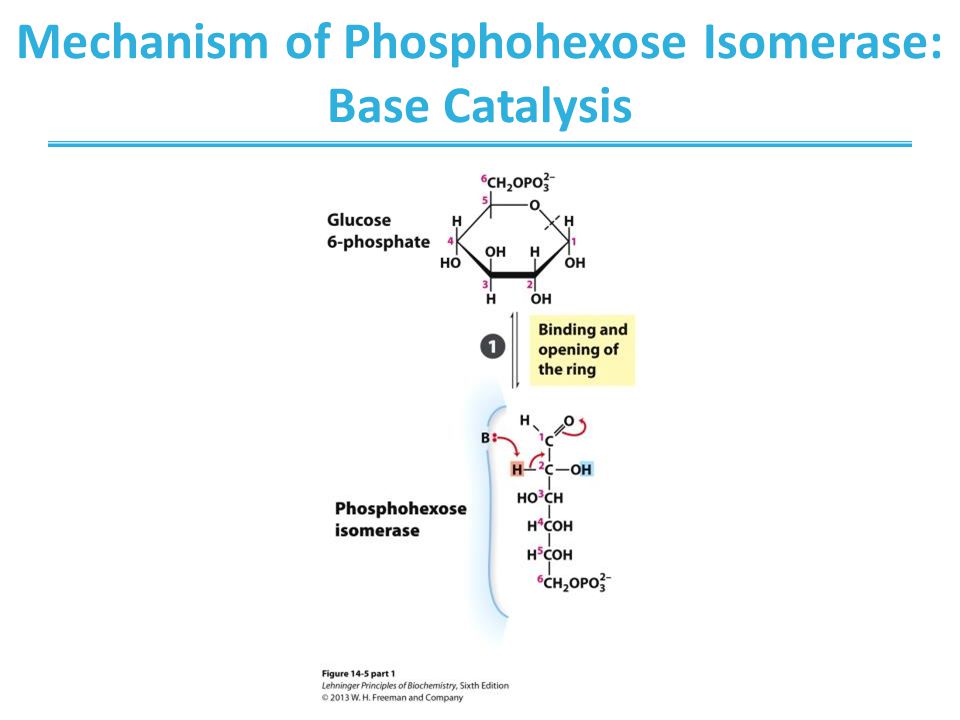

31 Mechanism of Phosphohexose Isomerase:
Base Catalysis MECHANISM FIGURE 14–5 (part 1) The phosphohexose isomerase reaction. The ring opening and closing reactions (steps 1 and 4) are catalyzed by an active-site His residue, by mechanisms omitted here for simplicity. The proton (light red) initially at C-2 is made more easily abstractable by electron withdrawal by the adjacent carbonyl and nearby hydroxyl groups. After its transfer from C-2 to the active-site Glu residue (a weak acid), the proton is freely exchanged with the surrounding solution; that is, the proton abstracted from C-2 in step 2 is not necessarily the same one that is added to C-1 in step 3.

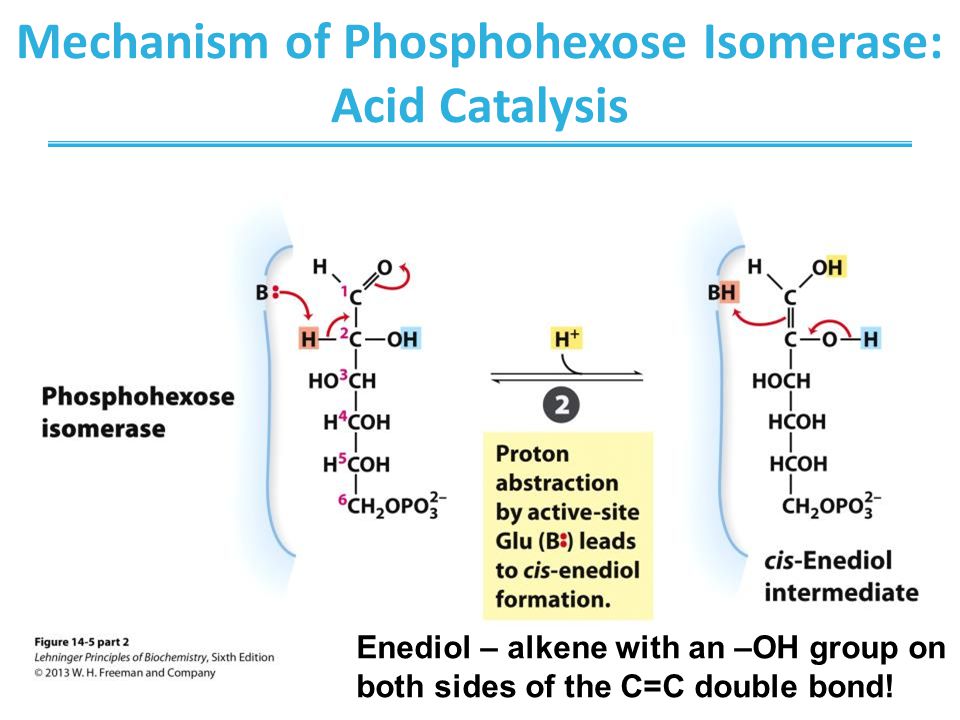

32 Mechanism of Phosphohexose Isomerase:
Acid Catalysis MECHANISM FIGURE 14–5 (part 2) The phosphohexose isomerase reaction. The ring opening and closing reactions (steps 1 and 4) are catalyzed by an active-site His residue, by mechanisms omitted here for simplicity. The proton (light red) initially at C-2 is made more easily abstractable by electron withdrawal by the adjacent carbonyl and nearby hydroxyl groups. After its transfer from C-2 to the active-site Glu residue (a weak acid), the proton is freely exchanged with the surrounding solution; that is, the proton abstracted from C-2 in step 2 is not necessarily the same one that is added to C-1 in step 3. Enediol – alkene with an –OH group on both sides of the C=C double bond!

33 Mechanism of Phosphohexose Isomerase
MECHANISM FIGURE 14–5 The phosphohexose isomerase reaction. The ring opening and closing reactions (steps 1 and 4) are catalyzed by an active-site His residue, by mechanisms omitted here for simplicity. The proton (light red) initially at C-2 is made more easily abstractable by electron withdrawal by the adjacent carbonyl and nearby hydroxyl groups. After its transfer from C-2 to the active-site Glu residue (a weak acid), the proton is freely exchanged with the surrounding solution; that is, the proton abstracted from C-2 in step 2 is not necessarily the same one that is added to C-1 in step 3.

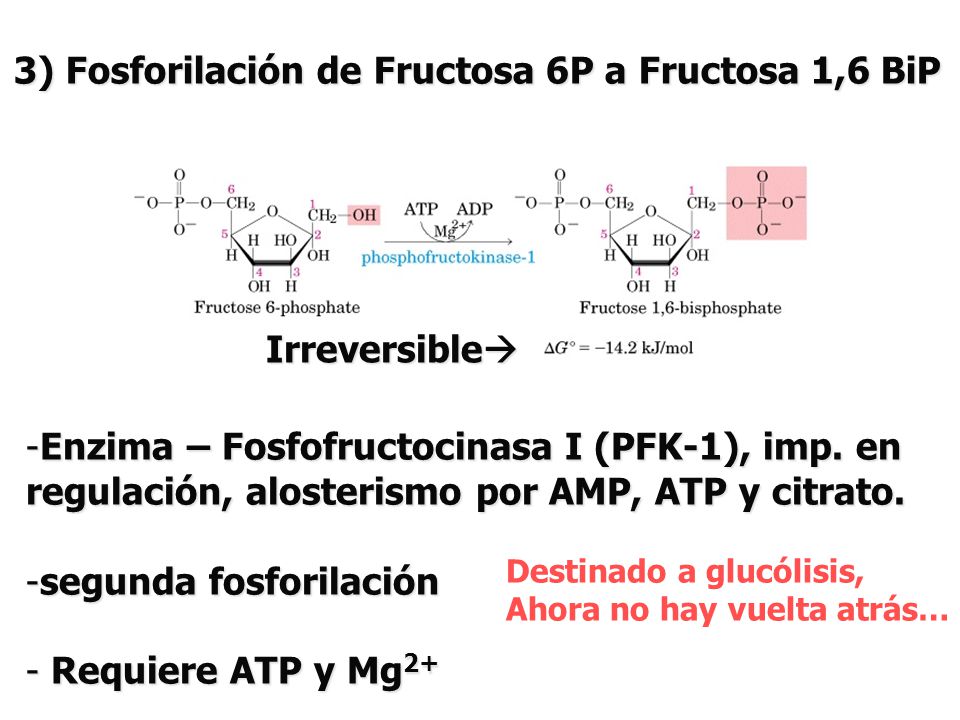

34 3) Fosforilación de Fructosa 6P a Fructosa 1,6 BiP
Irreversible Enzima – Fosfofructocinasa I (PFK-1), imp. en regulación, alosterismo por AMP, ATP y citrato. segunda fosforilación Requiere ATP y Mg2+ Destinado a glucólisis, Ahora no hay vuelta atrás…

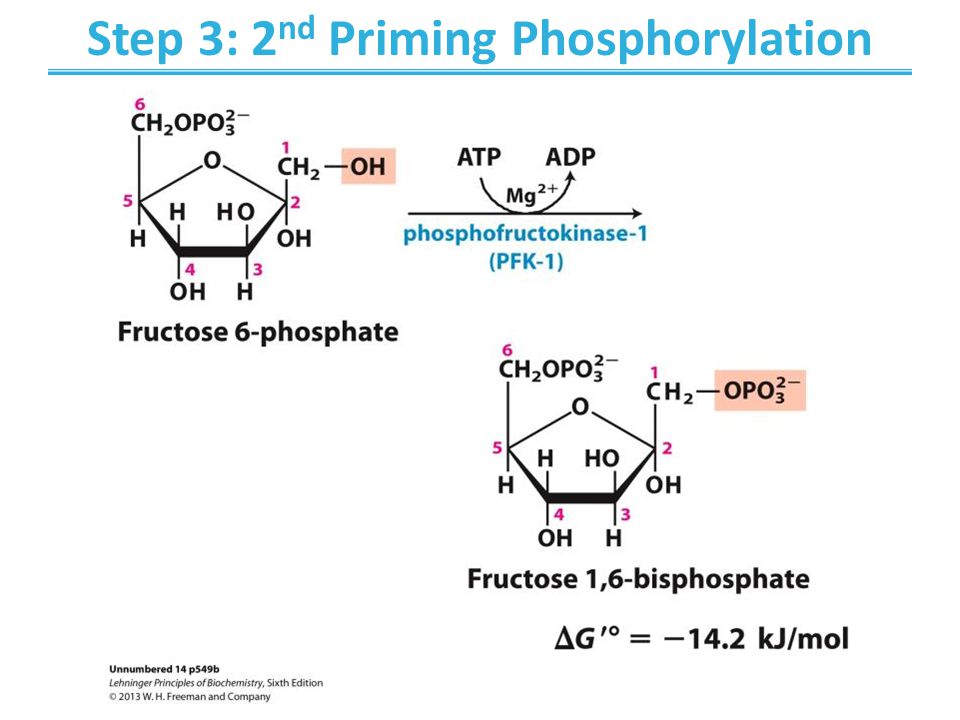

35 Step 3: 2nd Priming Phosphorylation

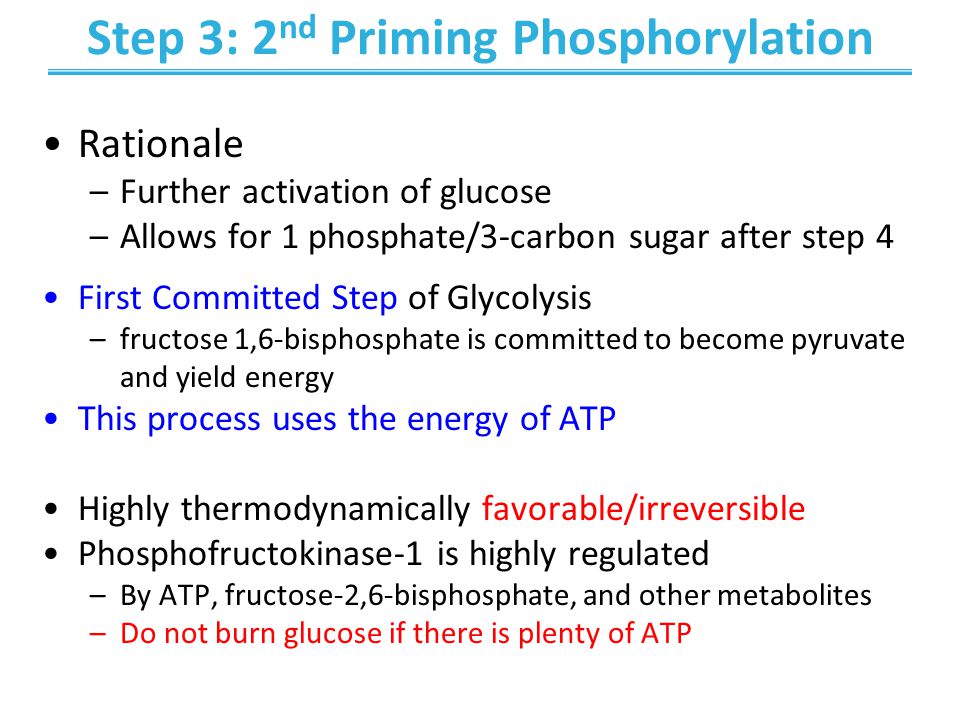

36 Step 3: 2nd Priming Phosphorylation
Rationale Further activation of glucose Allows for 1 phosphate/3-carbon sugar after step 4 First Committed Step of Glycolysis fructose 1,6-bisphosphate is committed to become pyruvate and yield energy This process uses the energy of ATP Highly thermodynamically favorable/irreversible Phosphofructokinase-1 is highly regulated By ATP, fructose-2,6-bisphosphate, and other metabolites Do not burn glucose if there is plenty of ATP

37 3) Fosforilación de Fructosa 6P a Fructosa 1,6 BiP
Mg2+ es esencial para la actividad de la enzima PFK. Escuda las cargas negativas de los átomos de O2 y hace que el fósforo γ (gamma) sea más accesible para el ataque nucleofílico del C1-OH de la F6P sobre el átomo de fósforo γ (gamma) del complejo Mg2+ -ATP.

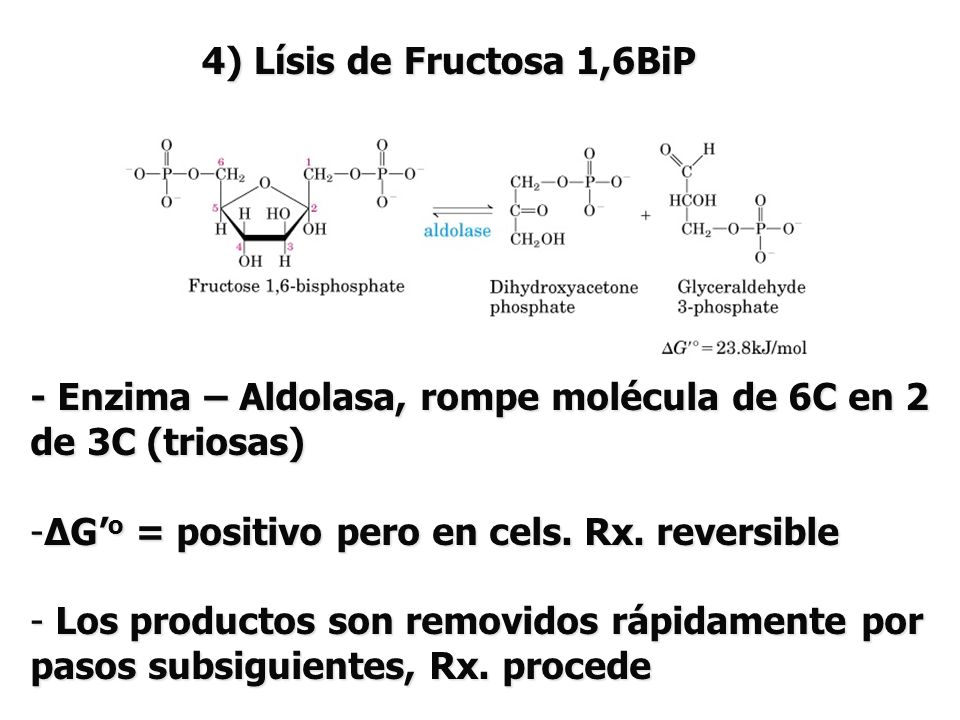

38 4) Lísis de Fructosa 1,6BiP - Enzima – Aldolasa, rompe molécula de 6C en 2 de 3C (triosas) ΔG’o = positivo pero en cels. Rx. reversible Los productos son removidos rápidamente por pasos subsiguientes, Rx. procede

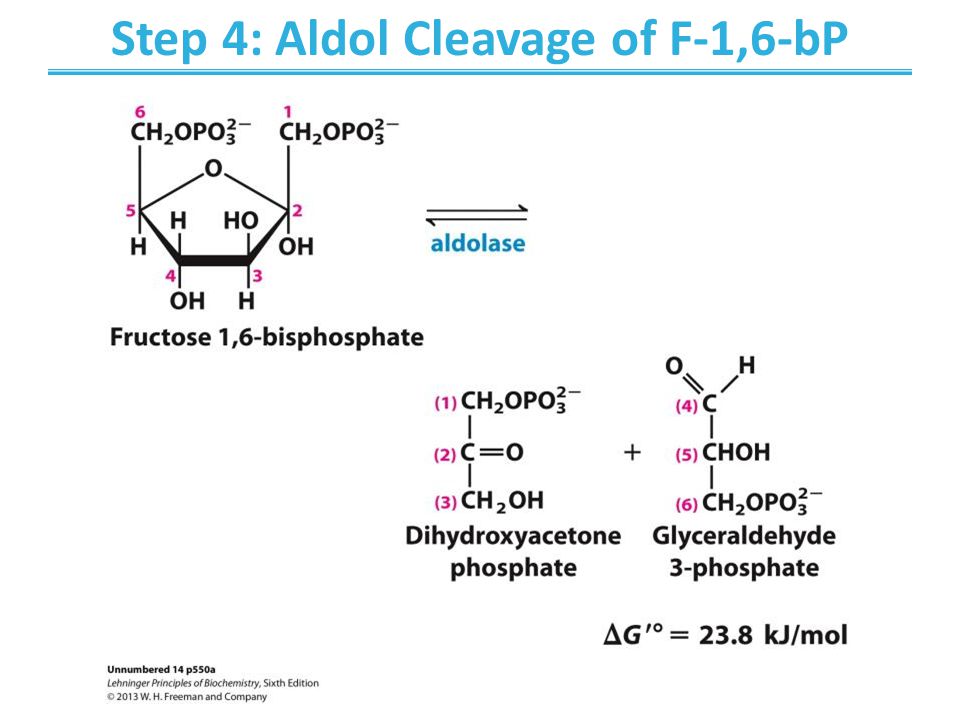

39 Step 4: Aldol Cleavage of F-1,6-bP

40 Step 4: Aldol Cleavage of F-1,6-bP
Rationale Cleavage of a six-carbon sugar into two three-carbon sugars High-energy phosphate sugars are three-carbon sugars The reverse process is the familiar aldol condensation Animal and plant aldolases employ covalent catalysis Fungal and bacterial aldolases employ metal ion catalysis Thermodynamically unfavorable/reversible GAP concentration kept low to pull reaction forward

41 Mechanism of Class I Aldolases
MECHANISM FIGURE 14–6 The class I aldolase reaction. The reaction shown here is the reverse of an aldol condensation. Note that cleavage between C-3 and C-4 depends on the presence of the carbonyl group at C-2, which is converted to an imine on the enzyme. A and B represent amino acid residues that serve as general acid (A) or base (B).

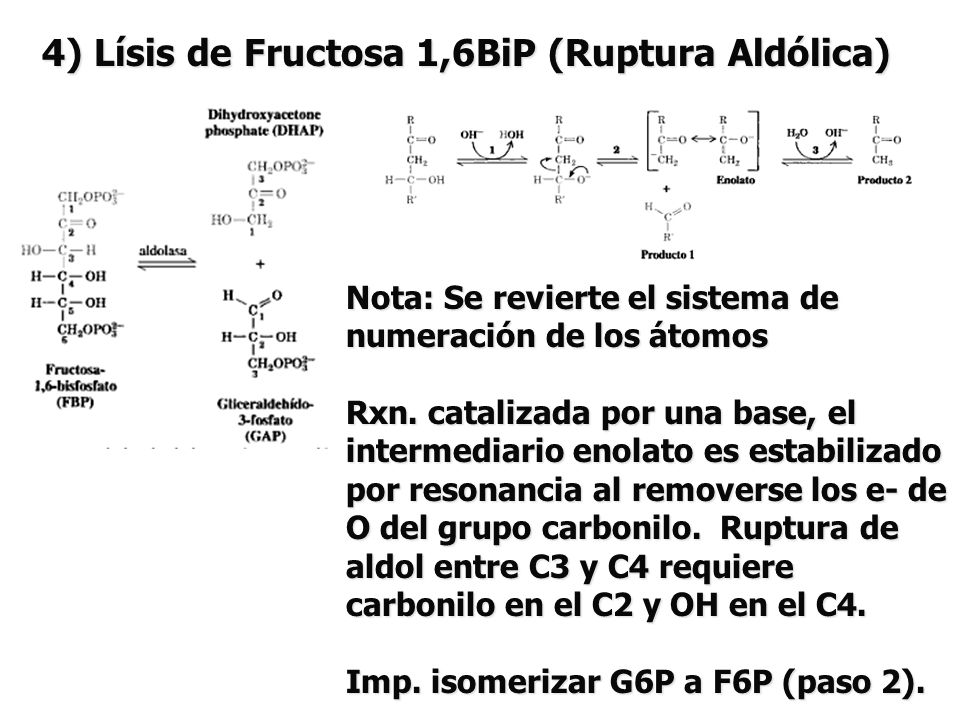

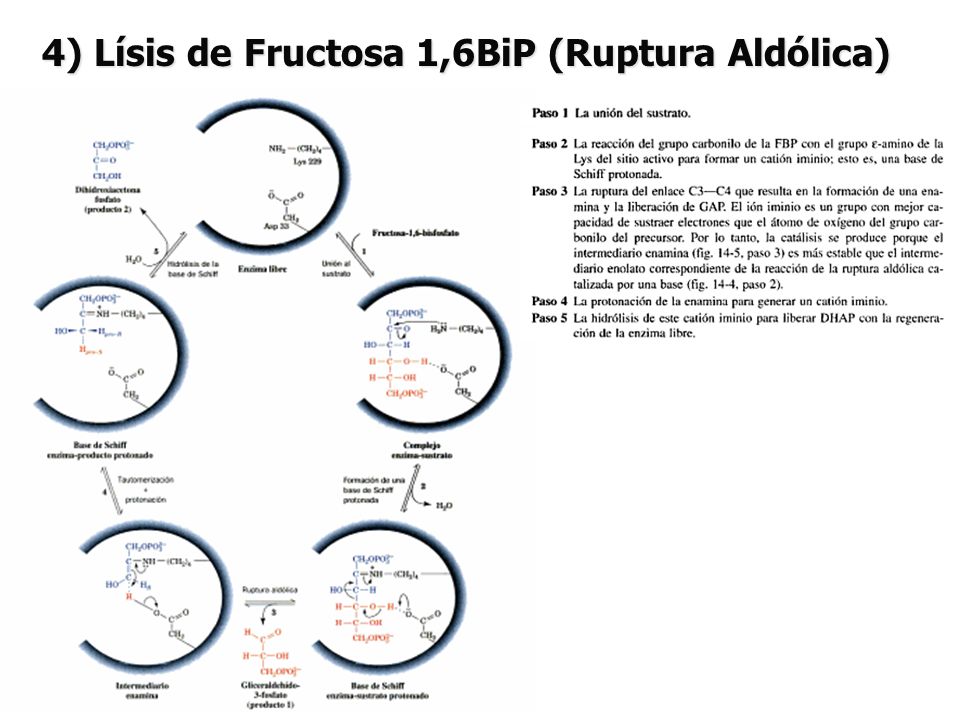

42 4) Lísis de Fructosa 1,6BiP (Ruptura Aldólica)
Nota: Se revierte el sistema de numeración de los átomos Rxn. catalizada por una base, el intermediario enolato es estabilizado por resonancia al removerse los e- de O del grupo carbonilo. Ruptura de aldol entre C3 y C4 requiere carbonilo en el C2 y OH en el C4. Imp. isomerizar G6P a F6P (paso 2).

43 4) Lísis de Fructosa 1,6BiP (Ruptura Aldólica)

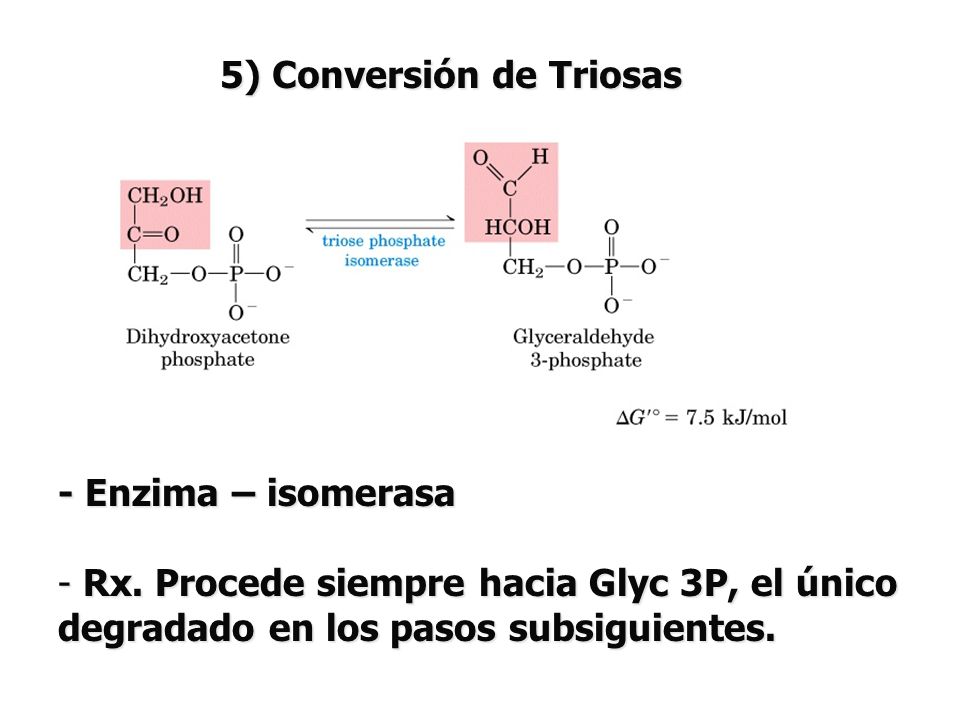

44 5) Conversión de Triosas
- Enzima – isomerasa Rx. Procede siempre hacia Glyc 3P, el único degradado en los pasos subsiguientes.

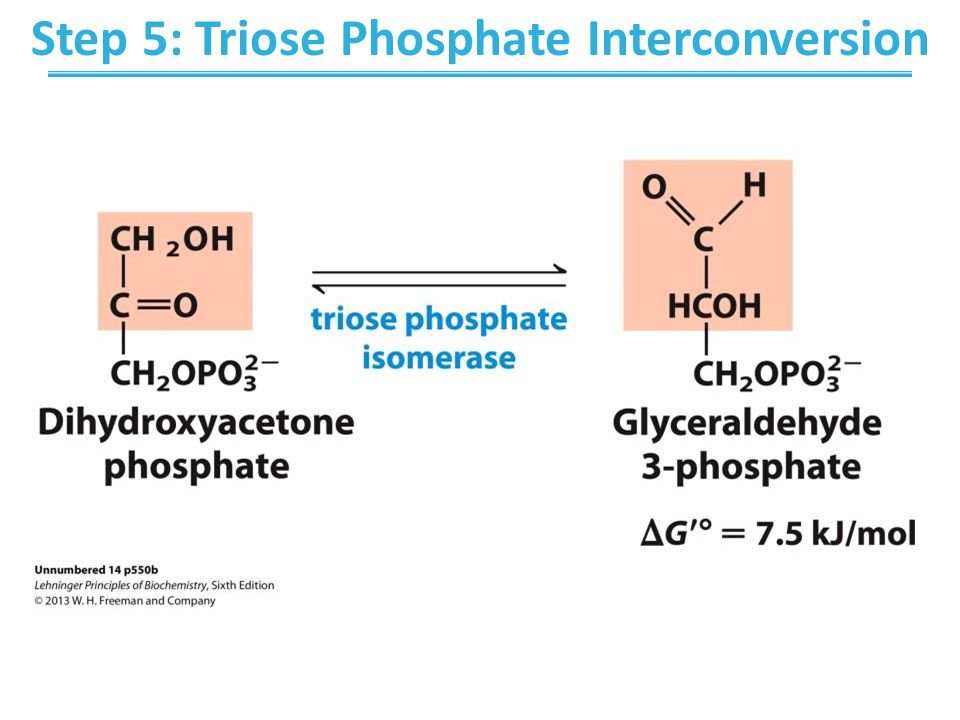

45 Step 5: Triose Phosphate Interconversion

46 Step 5: Triose Phosphate Interconversion
Rationale: Allows glycolysis to proceed by one pathway Aldolase creates two triose phosphates: Dihydroxyacetone Phosphate (DHAP) Glyceraldehyde-3-Phosphate (GAP) Only GAP is the substrate for the next enzyme DHAP must be converted to GAP Completes preparatory phase Thermodynamically unfavorable/reversible GAP concentration kept low to pull reaction forward

47 Isomerización a Gliceraldehído-3P

48 Similar al Paso 2 catalizado por…
Isomerización a Gliceraldehído-3P Similar al Paso 2 catalizado por…

49 6) Oxidación de Gliceraldehido-3P
Segunda Etapa 6) Oxidación de Gliceraldehido-3P - Enzima – dehidrogenasa de Glyc-3P - Se añade Pi a cada molécula de Glyc-3P y se remueve H+ por NAD+. Electrones son transportados a NAD+ como “hydride” ion (2 e- + 1 H+, el otro H+ va al medio). - Producto 1,3 Bifosfoglicerato (1er intermediario de glucólisis) que contiene mucha energía

50 Step 6: Oxidation of GAP

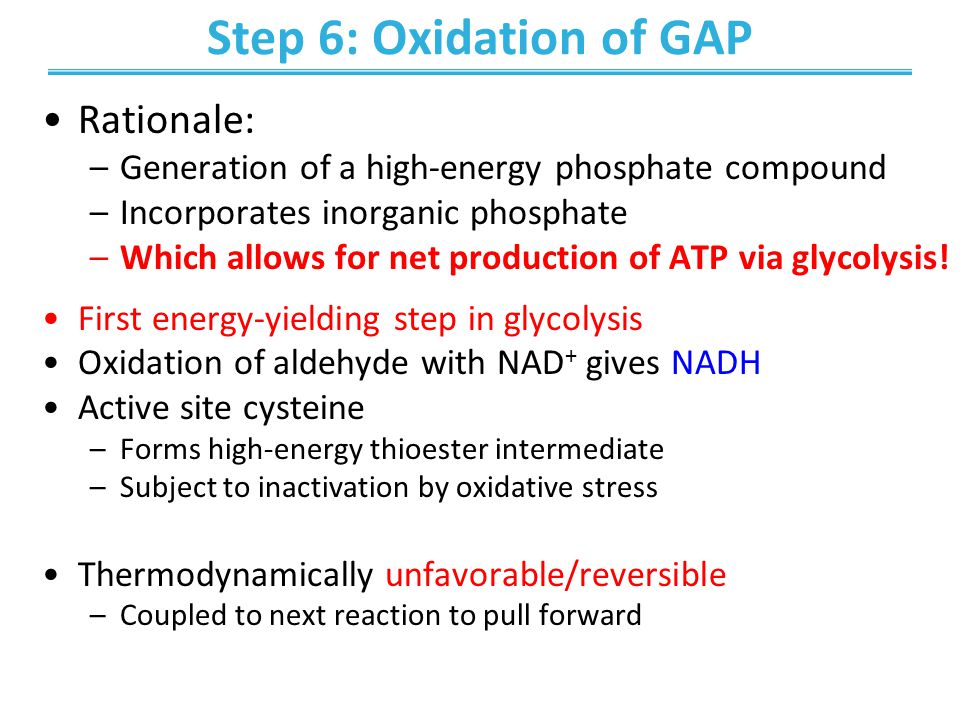

51 Step 6: Oxidation of GAP Rationale:
Generation of a high-energy phosphate compound Incorporates inorganic phosphate Which allows for net production of ATP via glycolysis! First energy-yielding step in glycolysis Oxidation of aldehyde with NAD+ gives NADH Active site cysteine Forms high-energy thioester intermediate Subject to inactivation by oxidative stress Thermodynamically unfavorable/reversible Coupled to next reaction to pull forward

52 Mechanism of GAPDH IMP. Regenerar NAD+
MECHANISM FIGURE 14–8 The glyceraldehyde 3-phosphate dehydrogenase reaction. IMP. Regenerar NAD+

53 Segunda Etapa 6) Oxidación de Gliceraldehido-3P

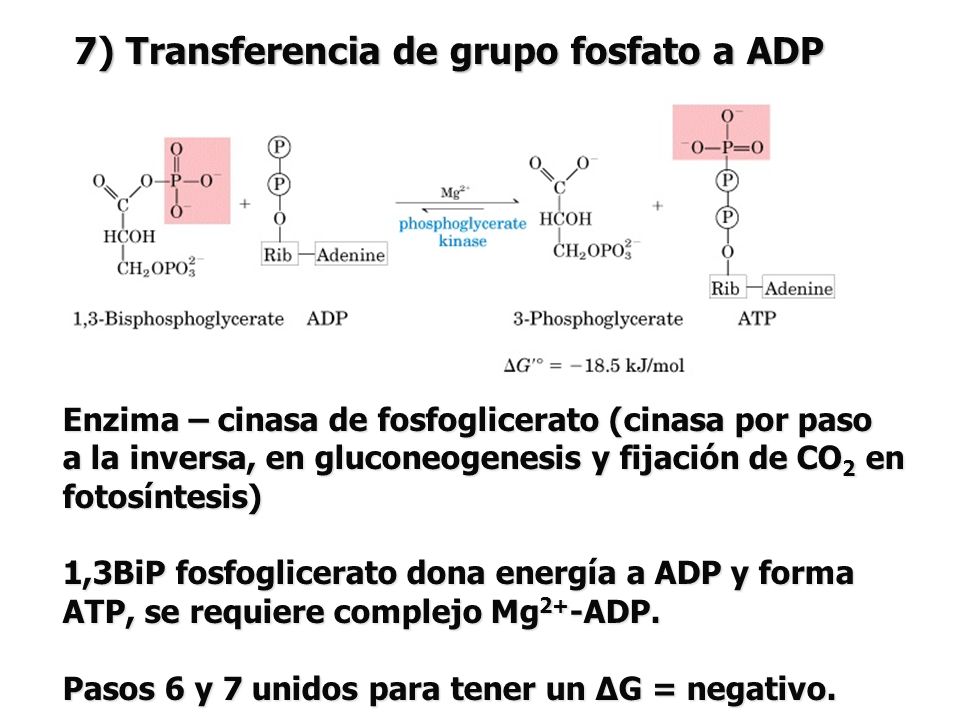

54 7) Transferencia de grupo fosfato a ADP
Enzima – cinasa de fosfoglicerato (cinasa por paso a la inversa, en gluconeogenesis y fijación de CO2 en fotosíntesis) 1,3BiP fosfoglicerato dona energía a ADP y forma ATP, se requiere complejo Mg2+-ADP. Pasos 6 y 7 unidos para tener un ΔG = negativo.

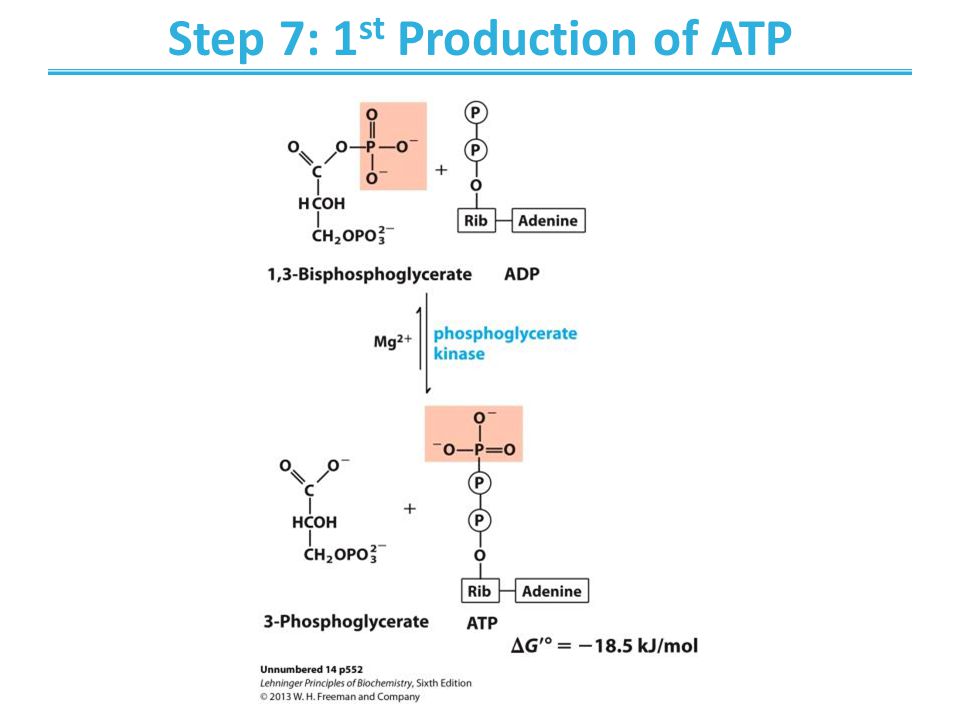

55 Step 7: 1st Production of ATP

56 Step 7: 1st Production of ATP
Rationale: Substrate-level phosphorylation to make ATP 1,3-bisphosphoglycerate is a high-energy compound can donate the phosphate group to ADP to make ATP Kinases are enzymes that transfer phosphate groups from ATP to various substrates Highly thermodynamically favorable/reversible Is reversible because of coupling to GAPDH reaction

57 6) Oxidación de Gliceraldehido-3P y
7) Transferencia de grupo fosfato a ADP

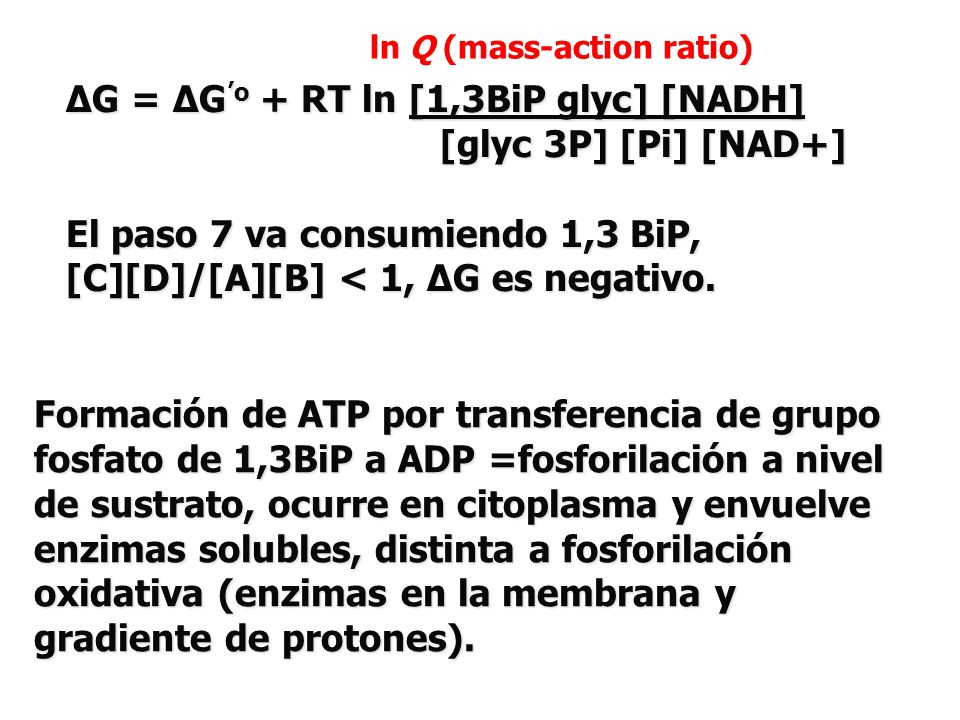

58 ΔG = ΔG’o + RT ln [1,3BiP glyc] [NADH] [glyc 3P] [Pi] [NAD+]
ln Q (mass-action ratio) ΔG = ΔG’o + RT ln [1,3BiP glyc] [NADH] [glyc 3P] [Pi] [NAD+] El paso 7 va consumiendo 1,3 BiP, [C][D]/[A][B] < 1, ΔG es negativo. Formación de ATP por transferencia de grupo fosfato de 1,3BiP a ADP =fosforilación a nivel de sustrato, ocurre en citoplasma y envuelve enzimas solubles, distinta a fosforilación oxidativa (enzimas en la membrana y gradiente de protones).

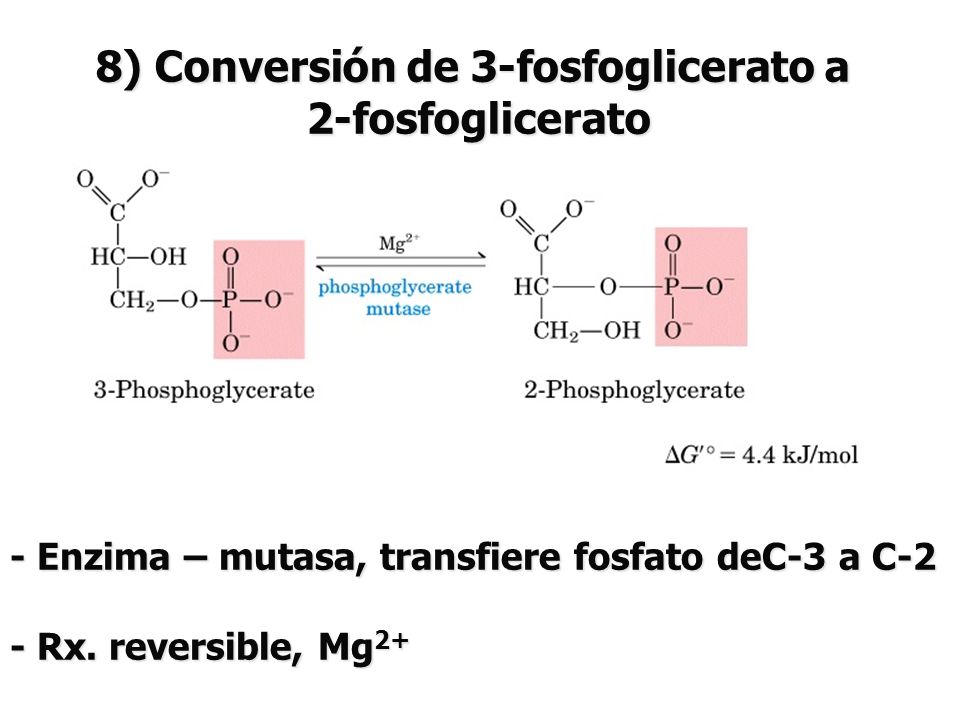

59 8) Conversión de 3-fosfoglicerato a
- Enzima – mutasa, transfiere fosfato deC-3 a C-2 - Rx. reversible, Mg2+

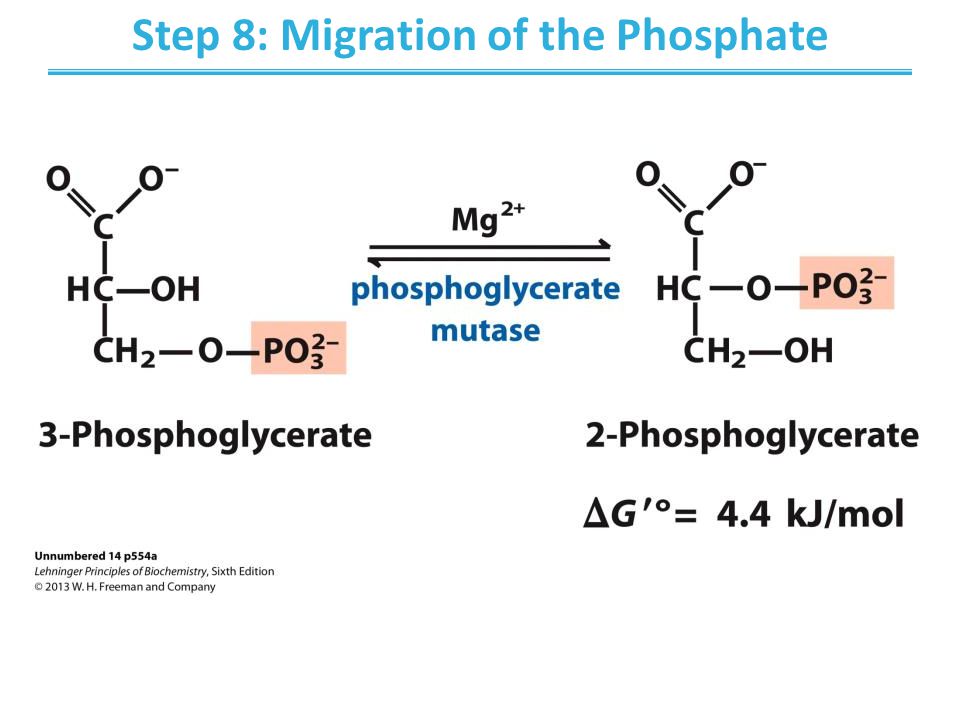

60 Step 8: Migration of the Phosphate

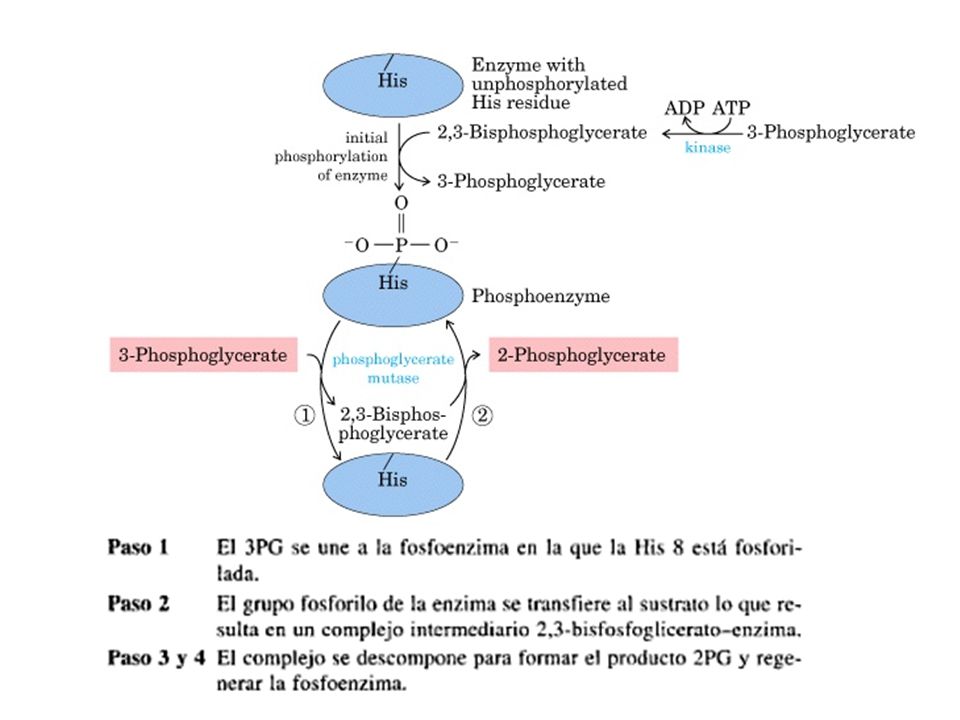

61

62 Step 8: Migration of the Phosphate
Rationale: Be able to form high-energy phosphate compound Mutases catalyze the (apparent) migration of functional groups One of the active site histidines is post-translationally modified to phosphohistidine Phosphohistidine donates its phosphate to O2 before retrieving another phosphate from O3 2,3-bisphosphoglycerate intermediate Note that the phosphate from the substrate ends up bound to the enzyme at the end of the reaction Thermodynamically unfavorable/reversible Reactant concentration kept high by PGK to push forward

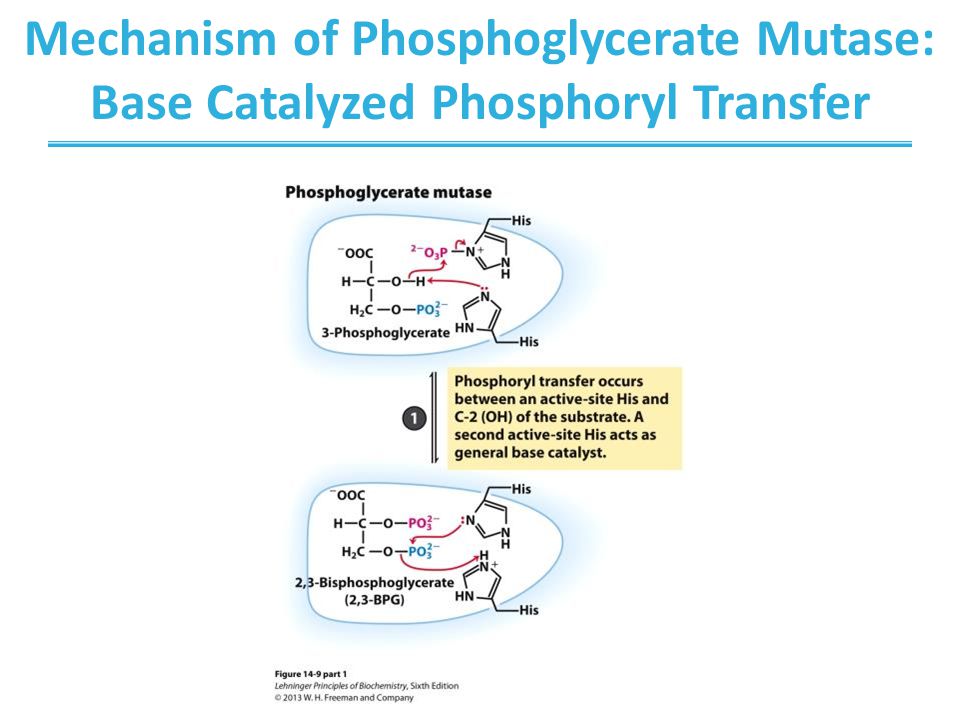

63 Mechanism of Phosphoglycerate Mutase:
Base Catalyzed Phosphoryl Transfer MECHANISM FIGURE 14-9 (part 1) The phosphoglycerate mutase reaction.

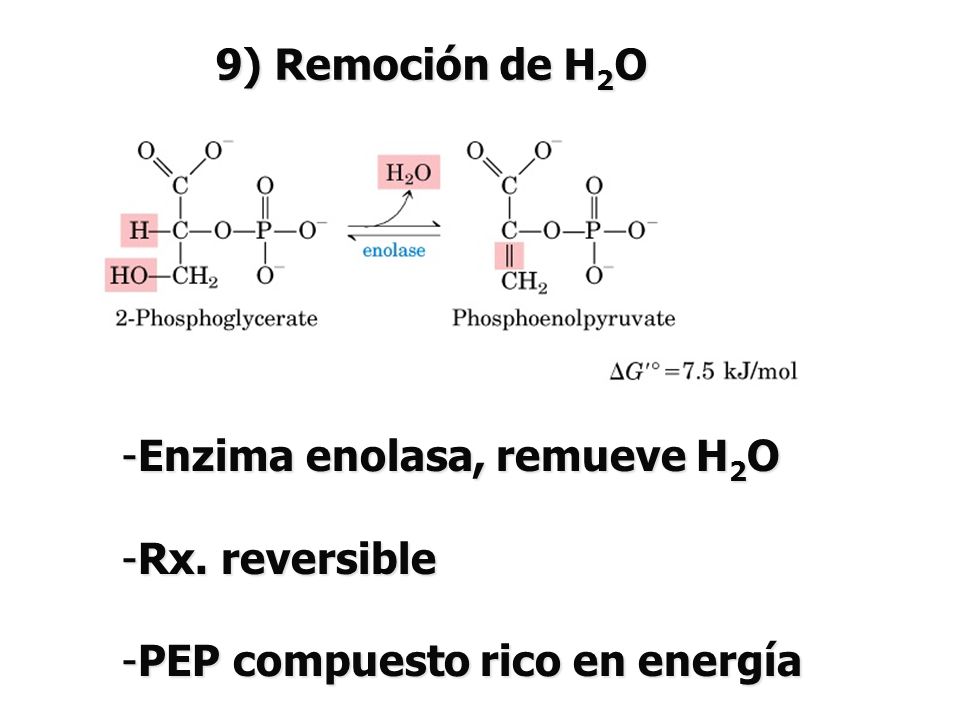

64 9) Remoción de H2O Enzima enolasa, remueve H2O Rx. reversible PEP compuesto rico en energía

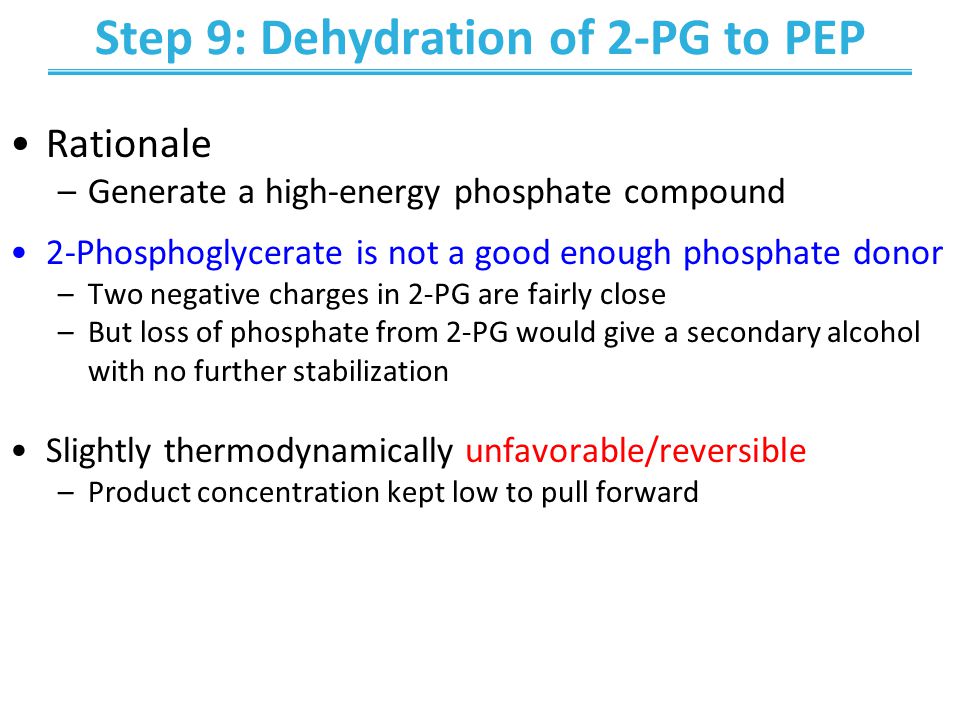

65 Step 9: Dehydration of 2-PG to PEP
Rationale Generate a high-energy phosphate compound 2-Phosphoglycerate is not a good enough phosphate donor Two negative charges in 2-PG are fairly close But loss of phosphate from 2-PG would give a secondary alcohol with no further stabilization Slightly thermodynamically unfavorable/reversible Product concentration kept low to pull forward

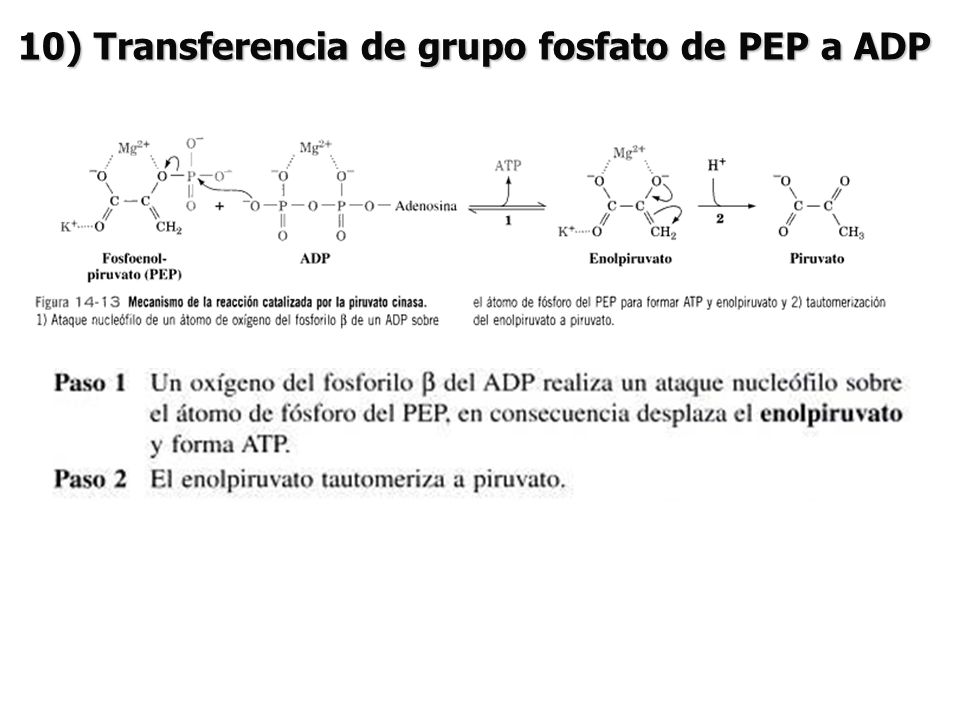

66 10) Transferencia de grupo fosfato de PEP a ADP
Enzima – cinasa de piruvato, requiere Mg2+ y K+ Imp. Regulación Formación de 2 ATP - Rx. Irreversible

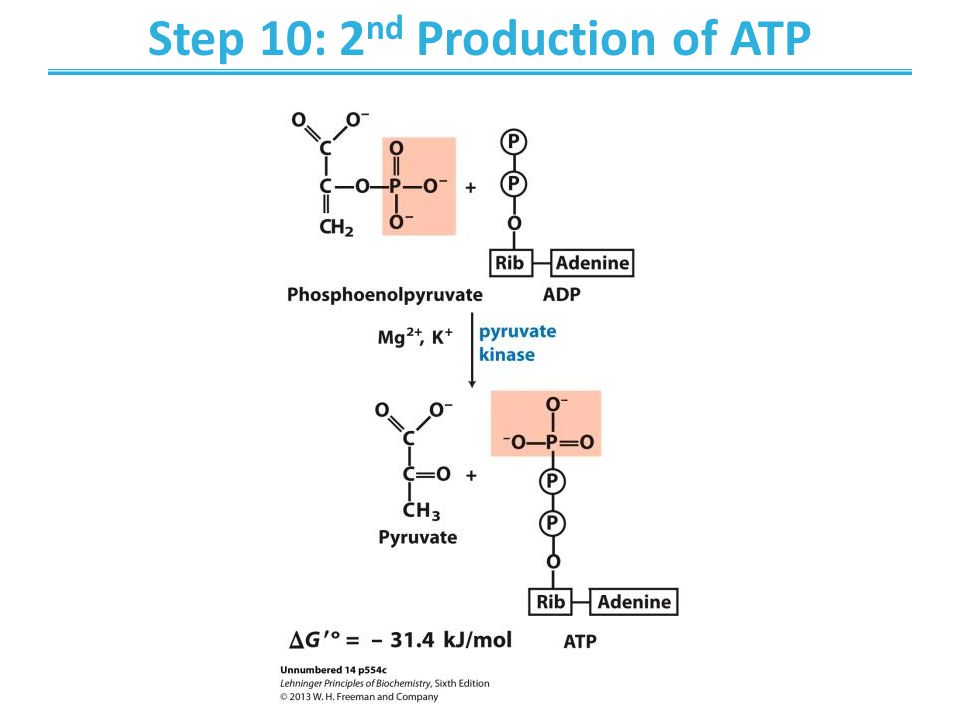

67 Step 10: 2nd Production of ATP

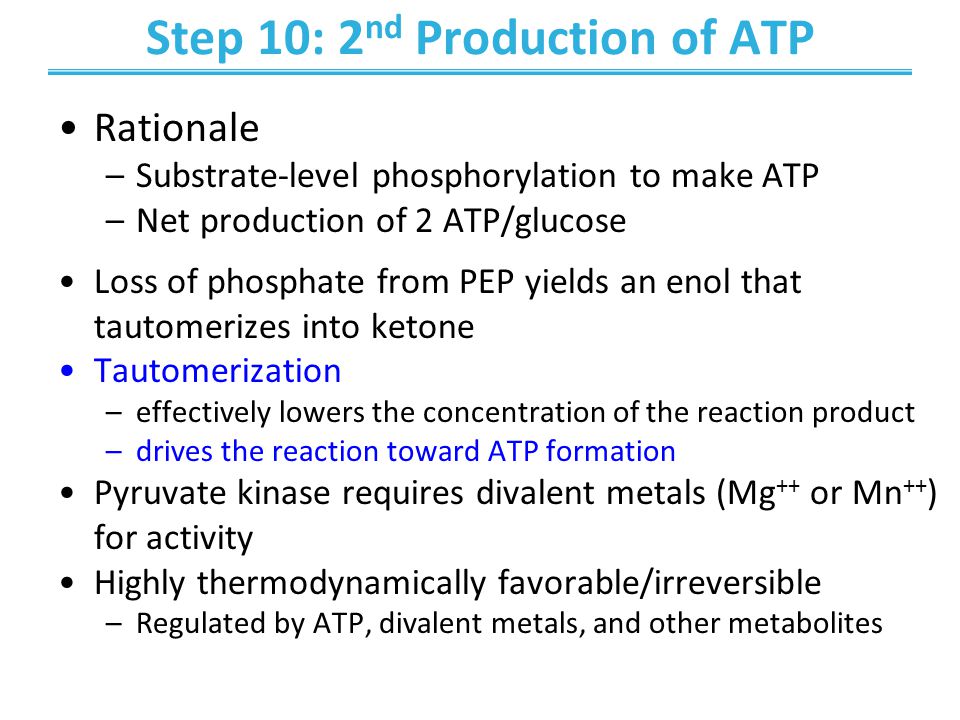

68 Step 10: 2nd Production of ATP
Rationale Substrate-level phosphorylation to make ATP Net production of 2 ATP/glucose Loss of phosphate from PEP yields an enol that tautomerizes into ketone Tautomerization effectively lowers the concentration of the reaction product drives the reaction toward ATP formation Pyruvate kinase requires divalent metals (Mg++ or Mn++) for activity Highly thermodynamically favorable/irreversible Regulated by ATP, divalent metals, and other metabolites

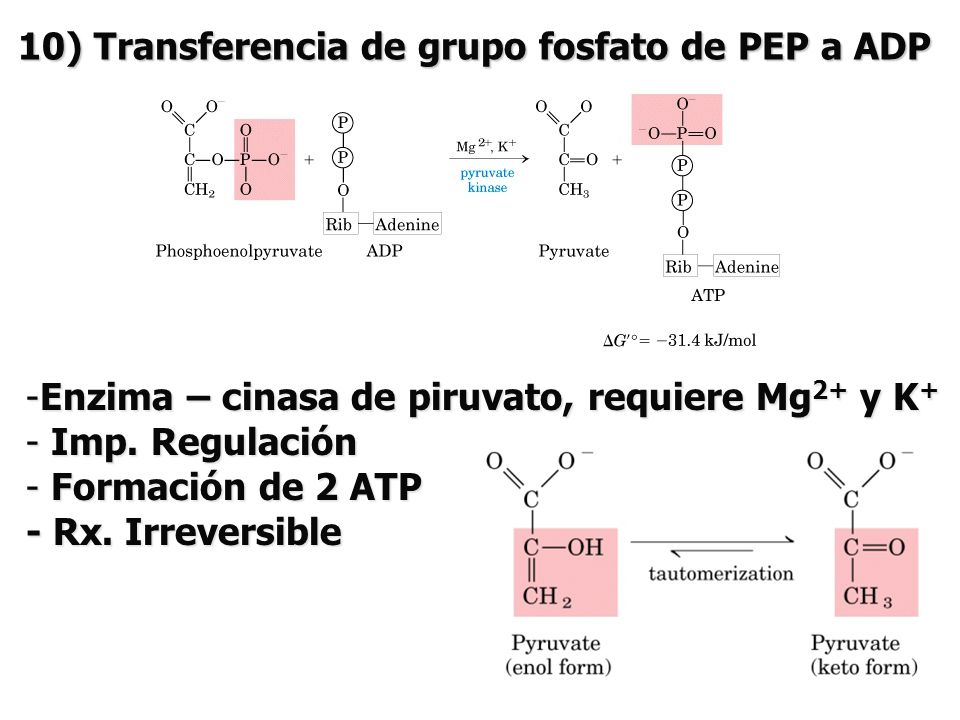

69 10) Transferencia de grupo fosfato de PEP a ADP

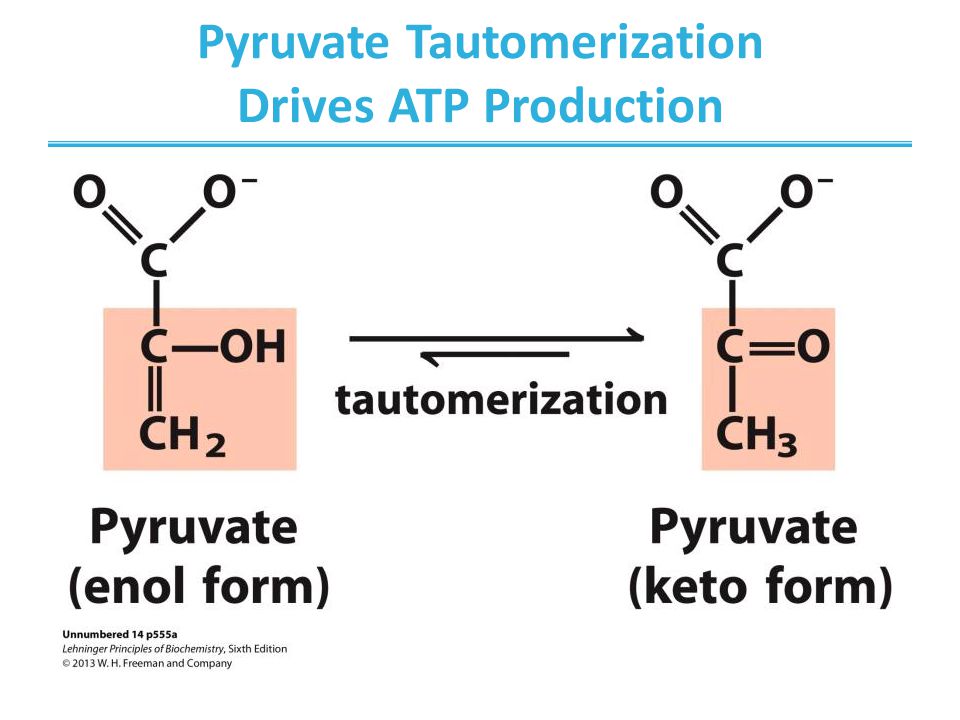

70 Pyruvate Tautomerization
Drives ATP Production

71 Glycolysis: The Preparatory Phase
FIGURE 14–2a The two phases of glycolysis. For each molecule of glucose that passes through the preparatory phase (a), two molecules of glyceraldehyde 3-phosphate are formed.

72 Glycolysis: The Payoff Phase
FIGURE 14–2b The two phases of glycolysis. For each molecule of glucose that passes through the preparatory phase (a), two molecules of glyceraldehyde 3-phosphate are formed; both pass through the payoff phase (b). Pyruvate is the end product of the second phase of glycolysis. For each glucose molecule, two ATP are consumed in the preparatory phase and four ATP are produced in the payoff phase, giving a net yield of two ATP per molecule of glucose converted to pyruvate. The numbered reaction steps correspond to the numbered headings in the text discussion. Keep in mind that each phosphoryl group, represented here as P , has two negative charges (—PO32–).

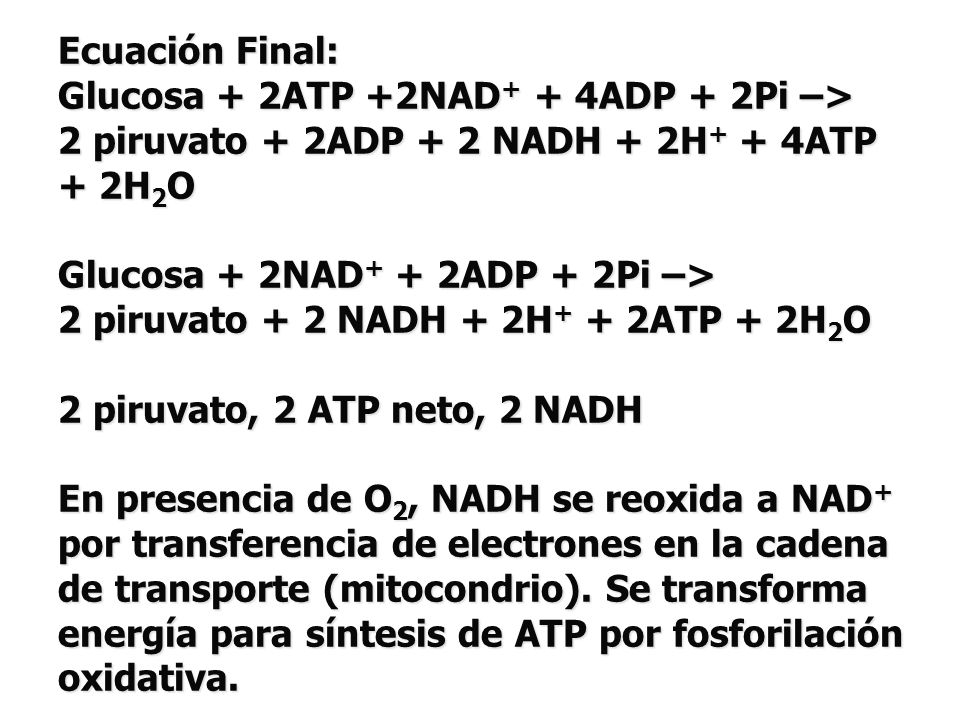

73 Ecuación Final: Glucosa + 2ATP +2NAD+ + 4ADP + 2Pi –> 2 piruvato + 2ADP + 2 NADH + 2H+ + 4ATP + 2H2O Glucosa + 2NAD+ + 2ADP + 2Pi –> 2 piruvato + 2 NADH + 2H+ + 2ATP + 2H2O 2 piruvato, 2 ATP neto, 2 NADH En presencia de O2, NADH se reoxida a NAD+ por transferencia de electrones en la cadena de transporte (mitocondrio). Se transforma energía para síntesis de ATP por fosforilación oxidativa.

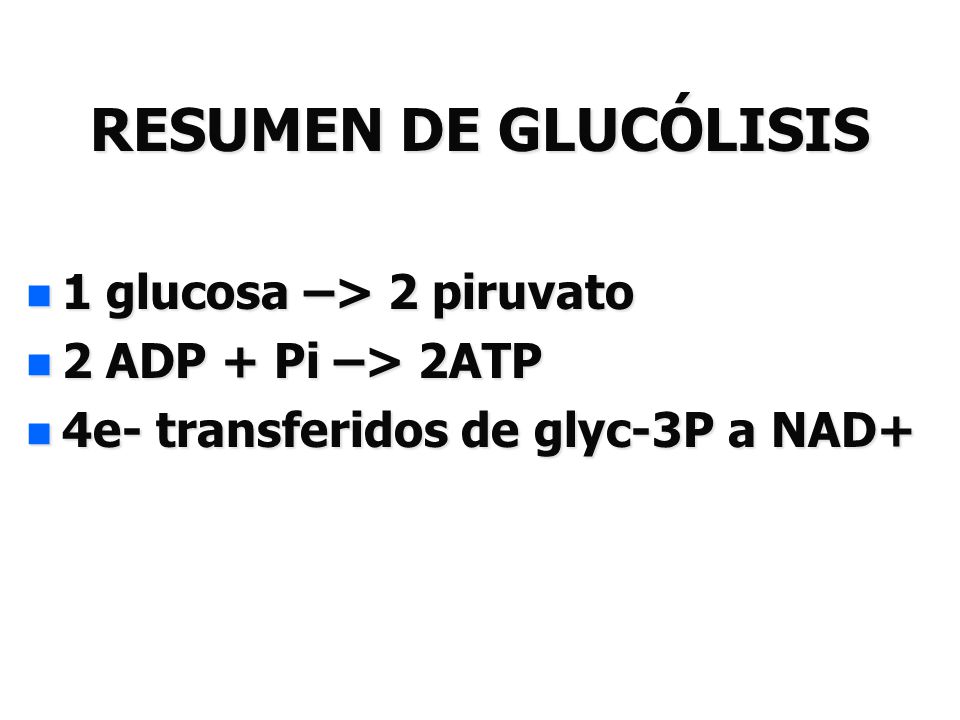

74 RESUMEN DE GLUCÓLISIS 1 glucosa –> 2 piruvato 2 ADP + Pi –> 2ATP
4e- transferidos de glyc-3P a NAD+

75 Enzimas de glucólisis - solubles pero forman complejos y los metabolitos son transferidos de una enzima a otra en una forma más eficiente. Algunas asociadas a filamentos de actina en “citoesqueleto”. (Channeling of intermediates)

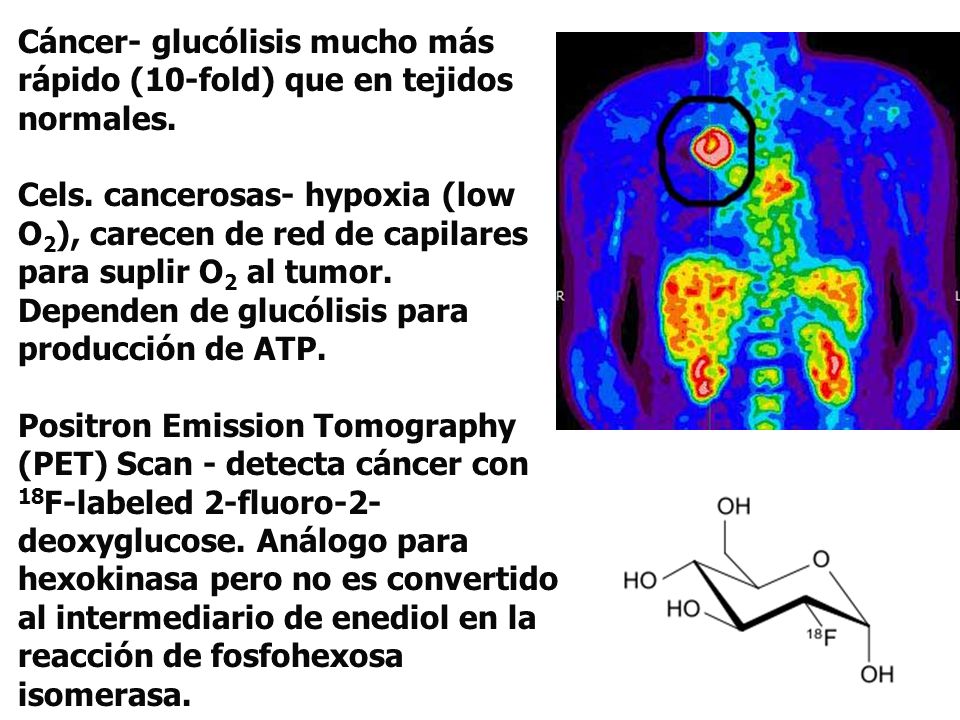

76 Cáncer- glucólisis mucho más rápido (10-fold) que en tejidos normales.
Cels. cancerosas- hypoxia (low O2), carecen de red de capilares para suplir O2 al tumor. Dependen de glucólisis para producción de ATP. Positron Emission Tomography (PET) Scan - detecta cáncer con 18F-labeled 2-fluoro-2-deoxyglucose. Análogo para hexokinasa pero no es convertido al intermediario de enediol en la reacción de fosfohexosa isomerasa.

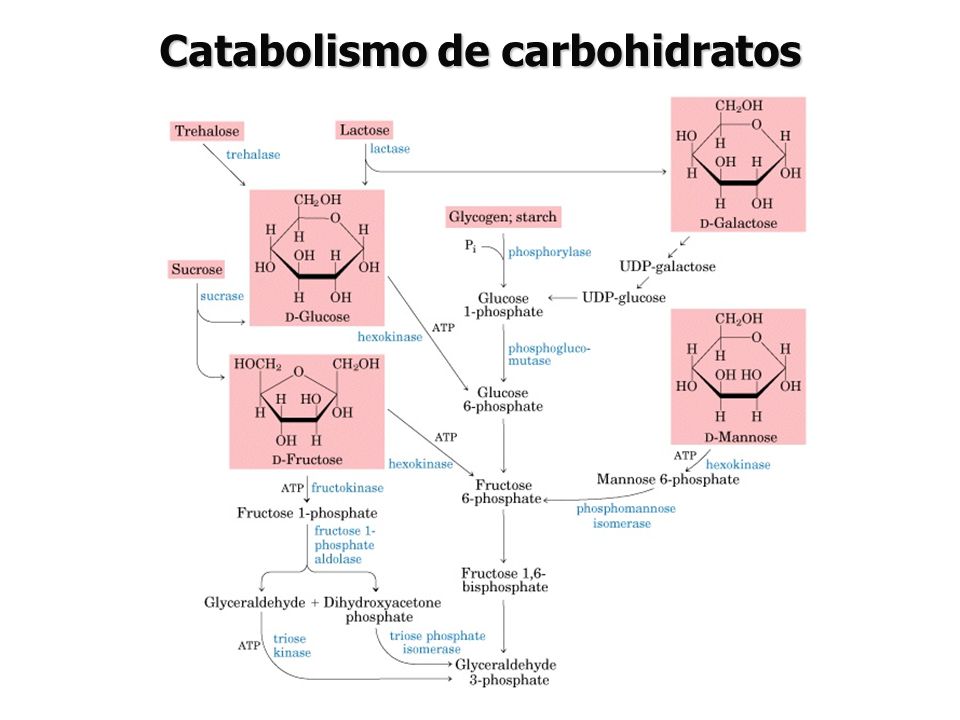

77 Catabolismo de carbohidratos

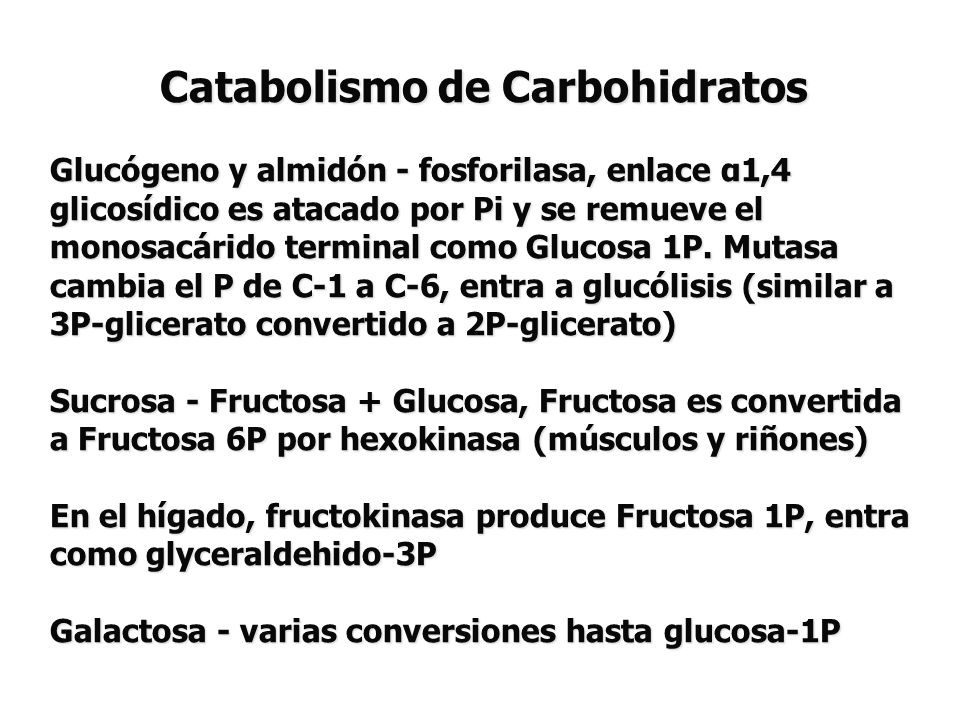

78 Catabolismo de Carbohidratos
Glucógeno y almidón - fosforilasa, enlace α1,4 glicosídico es atacado por Pi y se remueve el monosacárido terminal como Glucosa 1P. Mutasa cambia el P de C-1 a C-6, entra a glucólisis (similar a 3P-glicerato convertido a 2P-glicerato) Sucrosa - Fructosa + Glucosa, Fructosa es convertida a Fructosa 6P por hexokinasa (músculos y riñones) En el hígado, fructokinasa produce Fructosa 1P, entra como glyceraldehido-3P Galactosa - varias conversiones hasta glucosa-1P

79 Rutas metabólicas alternas del piruvato (2 anaeróbicas y 1 aeróbica)
No ATP por O2, no NAD+, piruvato se reduce a lactato, acepta e- de NADH y se regenera NAD+ para continuar glucólisis.

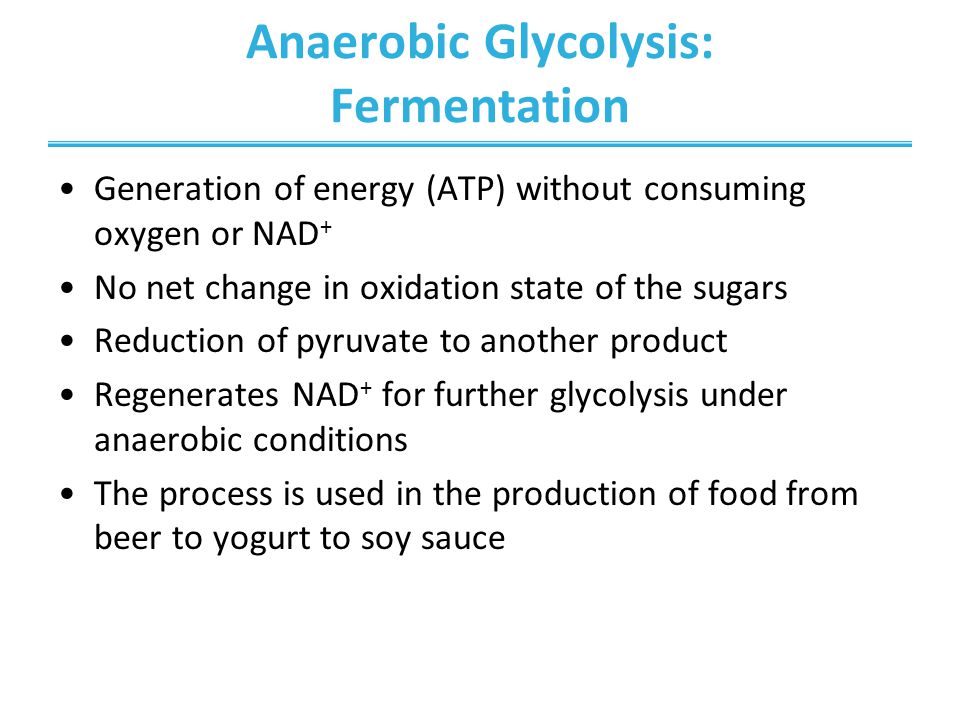

80 Anaerobic Glycolysis: Fermentation
Generation of energy (ATP) without consuming oxygen or NAD+ No net change in oxidation state of the sugars Reduction of pyruvate to another product Regenerates NAD+ for further glycolysis under anaerobic conditions The process is used in the production of food from beer to yogurt to soy sauce

81 Animals undergo lactic acid fermentation
Reduction of pyruvate to lactate, reversible During strenuous exercise, lactate builds up in the muscle Generally less than 1 minute The acidification of muscle prevents its continuous strenuous work The lactate can be transported to the liver and converted to glucose there Requires a recovery time High amount of oxygen consumption to fuel gluconeogenesis Restores muscle glycogen stores

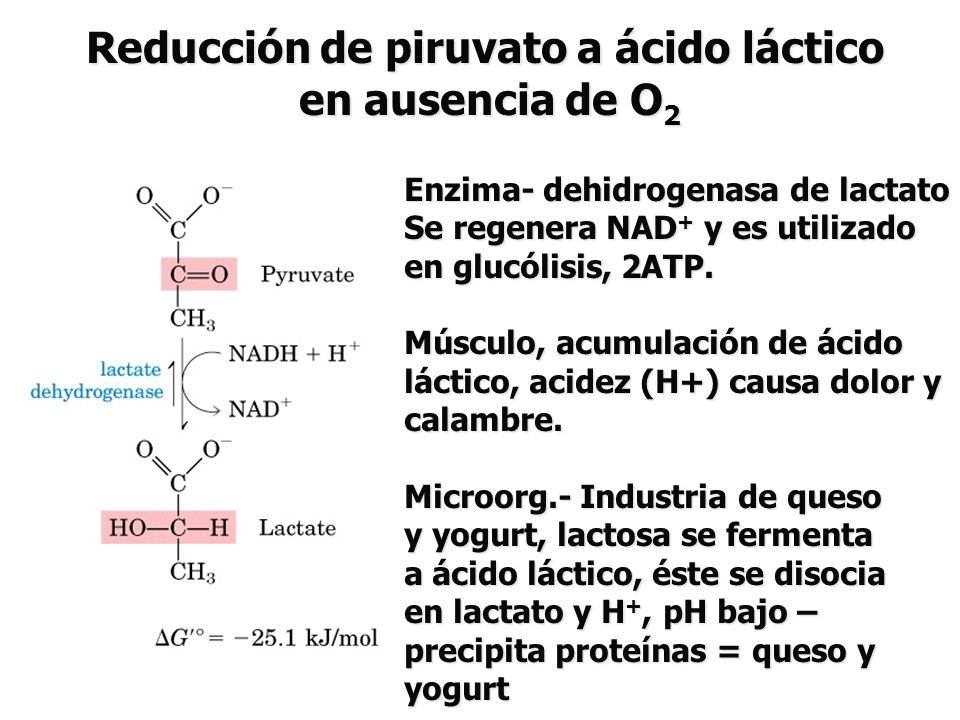

82 Reducción de piruvato a ácido láctico
en ausencia de O2 Enzima- dehidrogenasa de lactato Se regenera NAD+ y es utilizado en glucólisis, 2ATP. Músculo, acumulación de ácido láctico, acidez (H+) causa dolor y calambre. Microorg.- Industria de queso y yogurt, lactosa se fermenta a ácido láctico, éste se disocia en lactato y H+, pH bajo – precipita proteínas = queso y yogurt

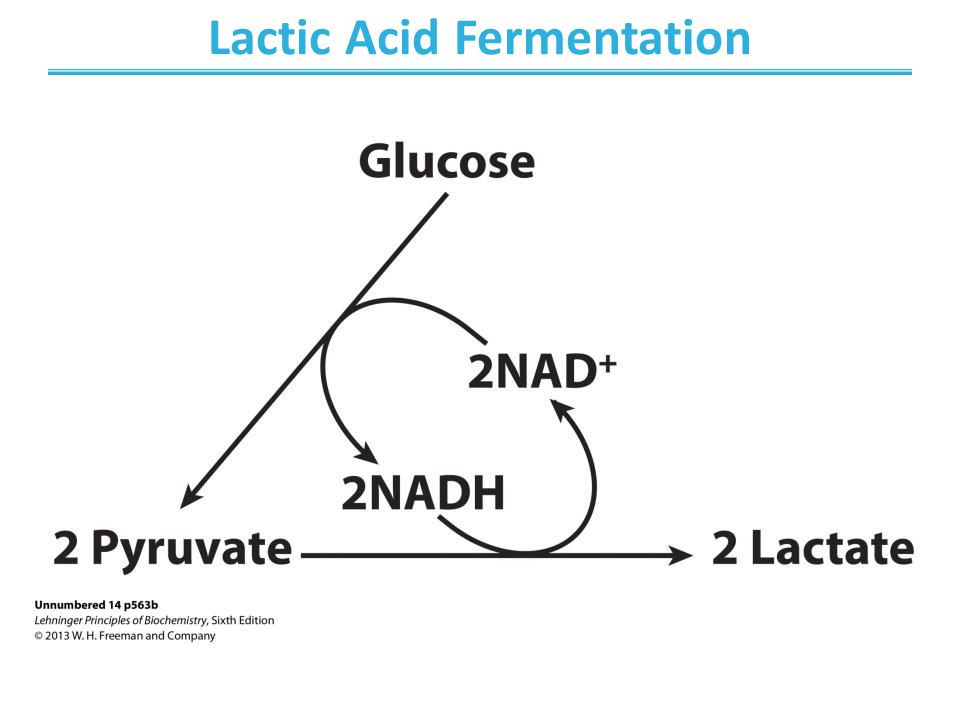

83 Lactic Acid Fermentation

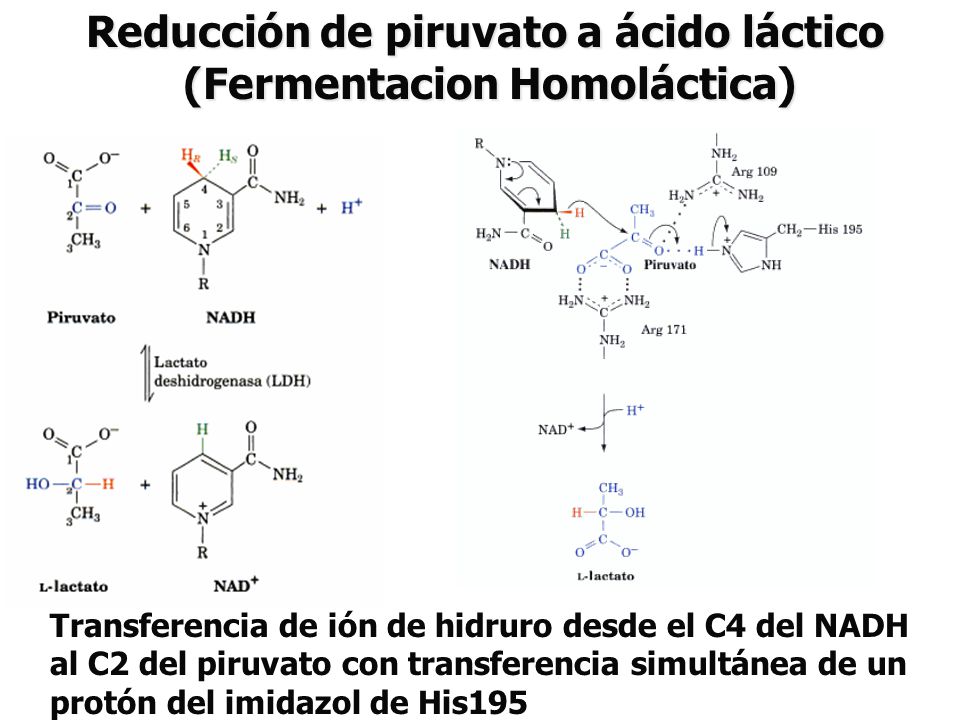

84 Reducción de piruvato a ácido láctico (Fermentacion Homoláctica)
Transferencia de ión de hidruro desde el C4 del NADH al C2 del piruvato con transferencia simultánea de un protón del imidazol de His195

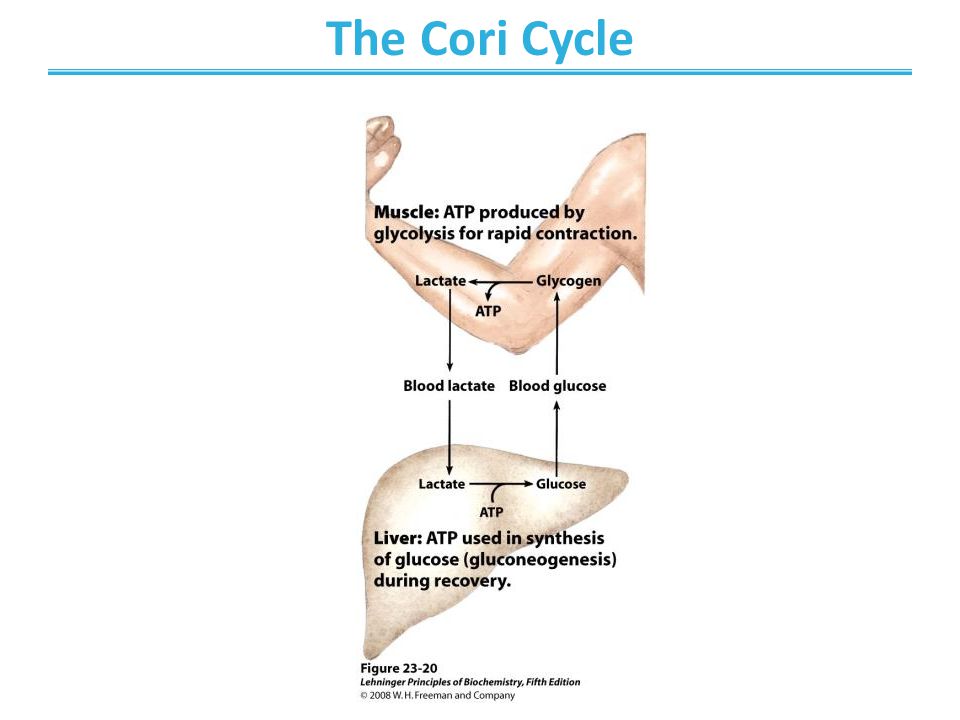

85 The Cori Cycle FIGURE Metabolic cooperation between skeletal muscle and the liver: the Cori cycle. Extremely active muscles use glycogen as energy source, generating lactate via glycolysis. During recovery, some of this lactate is transported to the liver and converted to glucose via gluconeogenesis. This glucose is released to the blood and returned to the muscles to replenish their glycogen stores. The overall pathway (glucose → lactate → glucose) constitutes the Cori cycle.

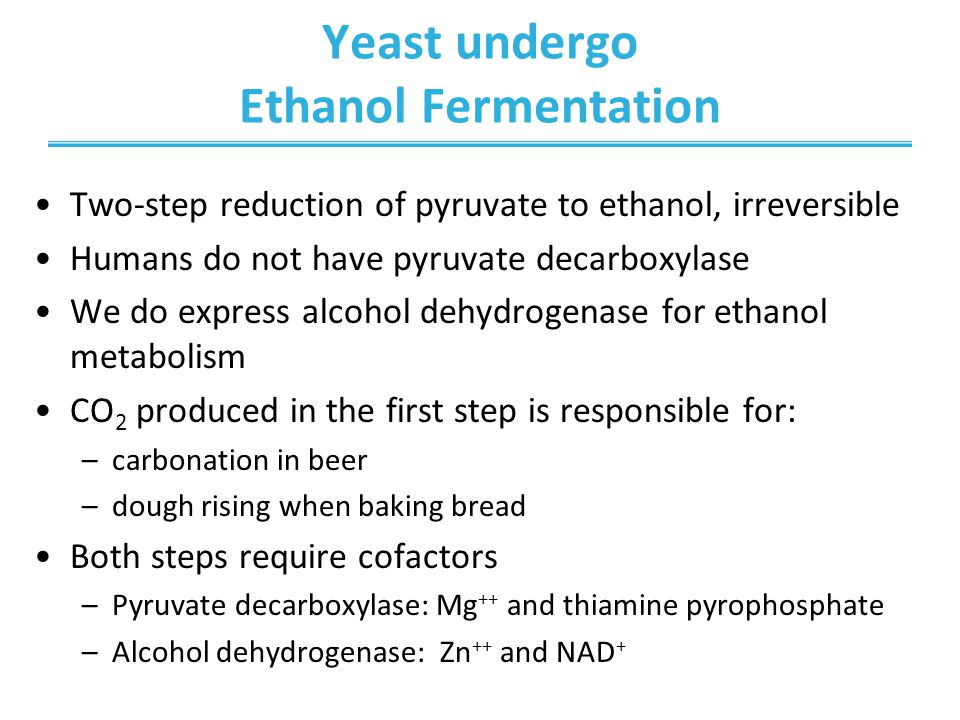

86 Yeast undergo Ethanol Fermentation
Two-step reduction of pyruvate to ethanol, irreversible Humans do not have pyruvate decarboxylase We do express alcohol dehydrogenase for ethanol metabolism CO2 produced in the first step is responsible for: carbonation in beer dough rising when baking bread Both steps require cofactors Pyruvate decarboxylase: Mg++ and thiamine pyrophosphate Alcohol dehydrogenase: Zn++ and NAD+

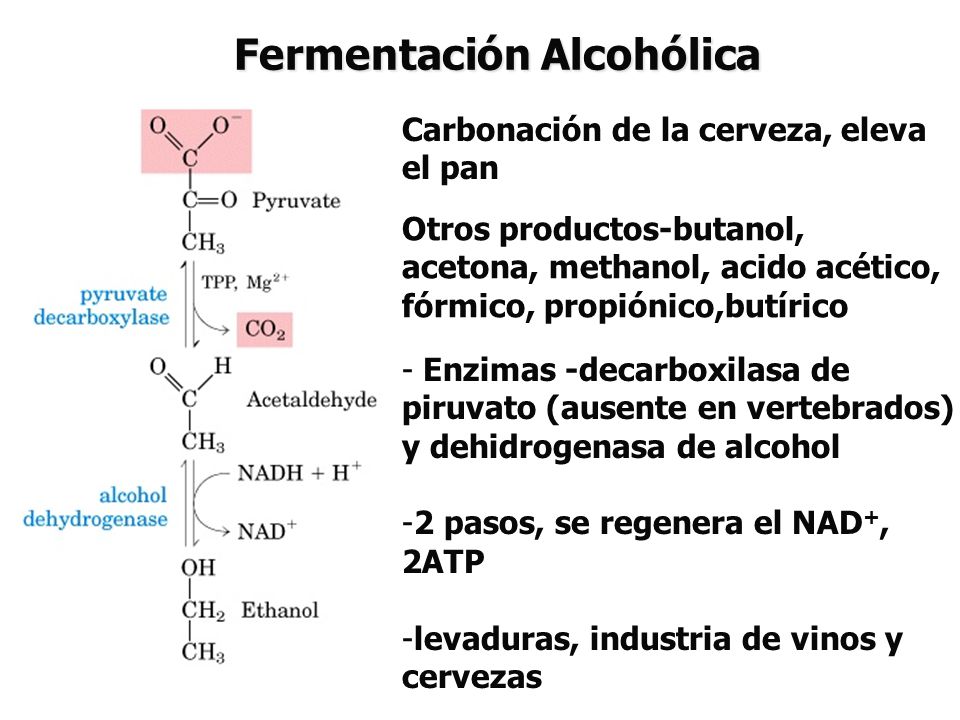

87 Fermentación Alcohólica
Carbonación de la cerveza, eleva el pan Otros productos-butanol, acetona, methanol, acido acético, fórmico, propiónico,butírico Enzimas -decarboxilasa de piruvato (ausente en vertebrados) y dehidrogenasa de alcohol 2 pasos, se regenera el NAD+, 2ATP levaduras, industria de vinos y cervezas

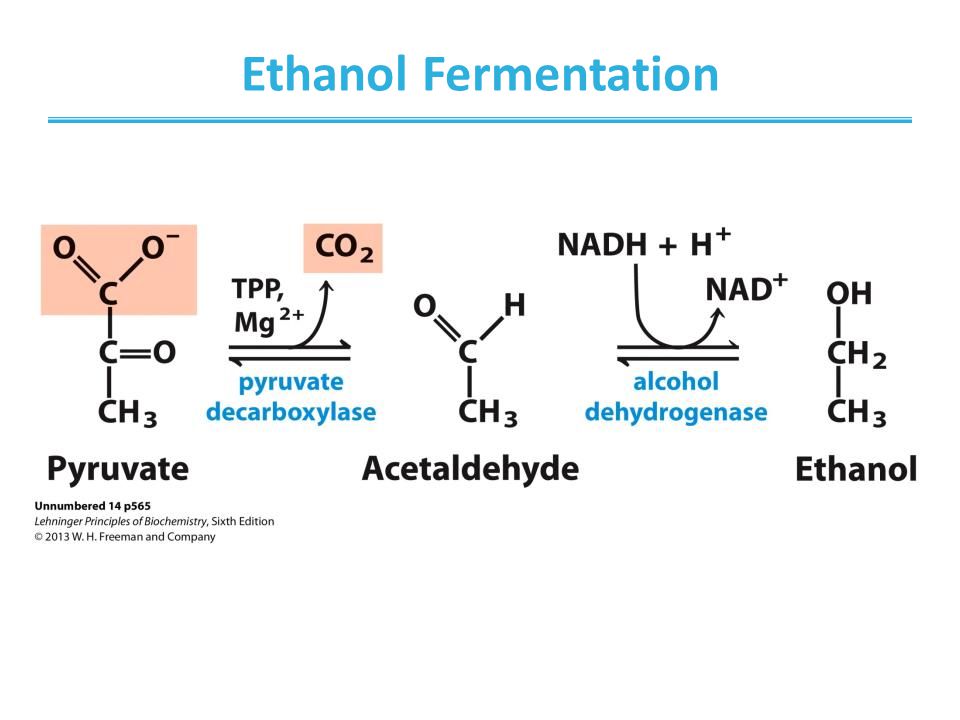

88 Ethanol Fermentation

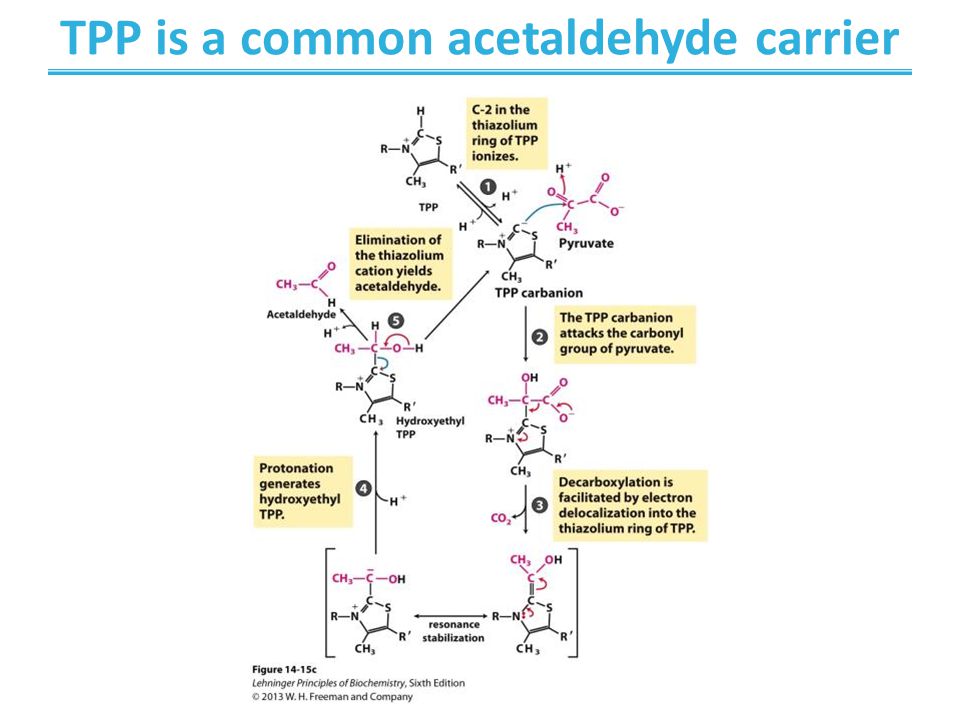

89 TPP is a common acetaldehyde carrier
MECHANISM FIGURE 14–15c Thiamine pyrophosphate (TPP) and its role in pyruvate decarboxylation. (c) The thiazolium ring of TPP stabilizes carbanion intermediates by providing an electrophilic (electrondeficient) structure into which the carbanion electrons can be delocalized by resonance. Structures with this property, often called “electron sinks,” play a role in many biochemical reactions—here, facilitating carbon–carbon bond cleavage.

90 TPP is a common acetaldehyde carrier
MECHANISM FIGURE 14–15a,b Thiamine pyrophosphate (TPP) and its role in pyruvate decarboxylation. (a) TPP is the coenzyme form of vitamin B1 (thiamine). The reactive carbon atom in the thiazolium ring of TPP is shown in red. In the reaction catalyzed by pyruvate decarboxylase, two of the three carbons of pyruvate are carried transiently on TPP in the form of a hydroxyethyl, or “active acetaldehyde,” group (b), which is subsequently released as acetaldehyde.

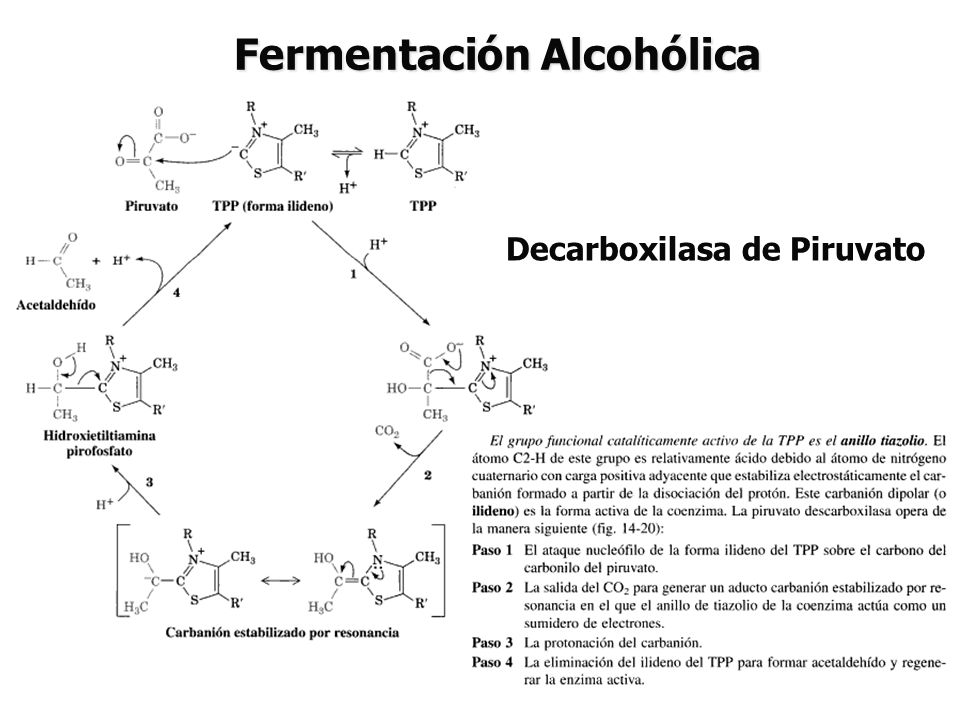

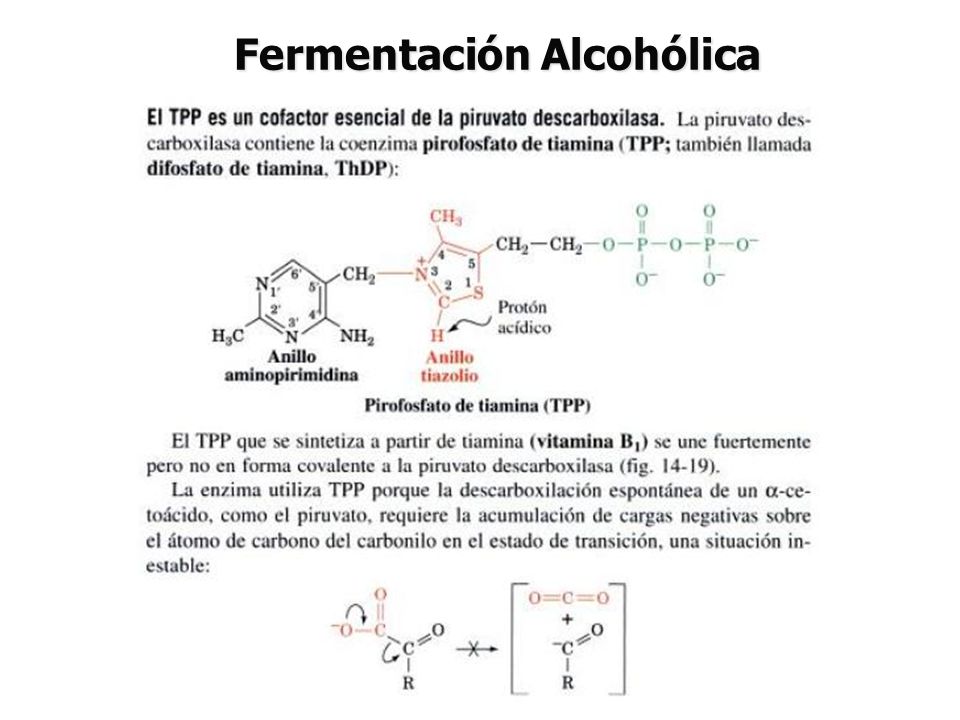

91 Fermentación Alcohólica

92 Fermentación Alcohólica
Decarboxilasa de Piruvato

93 Fermentación Alcohólica
Alcohol Deshidrogenasa Reducción de acetaldehído y regeneración de NAD

94 Ethanol Fermentation

95

96

97 SPLENDA® is the brand name for the ingredient sucralose
SPLENDA® is the brand name for the ingredient sucralose. It is made through a patented, multi-step process that starts with sugar and converts it to a no calorie, non-carbohydrate sweetener. The process selectively replaces three hydrogen-oxygen groups on the sugar molecule with three chlorine atoms. Chlorine is present naturally in many of the foods and beverages that we eat and drink every day ranging from lettuce, mushrooms and table salt. In the case of sucralose, its addition converts sucrose to sucralose, which is essentially inert. The result is an exceptionally stable sweetener that tastes like sugar, but without sugar's calories. After consumption, sucralose passes through the body without being broken down for energy, so it has no calories, and the body does not recognize it as a carbohydrate. It is 600 times sweeter than sucrose!!!

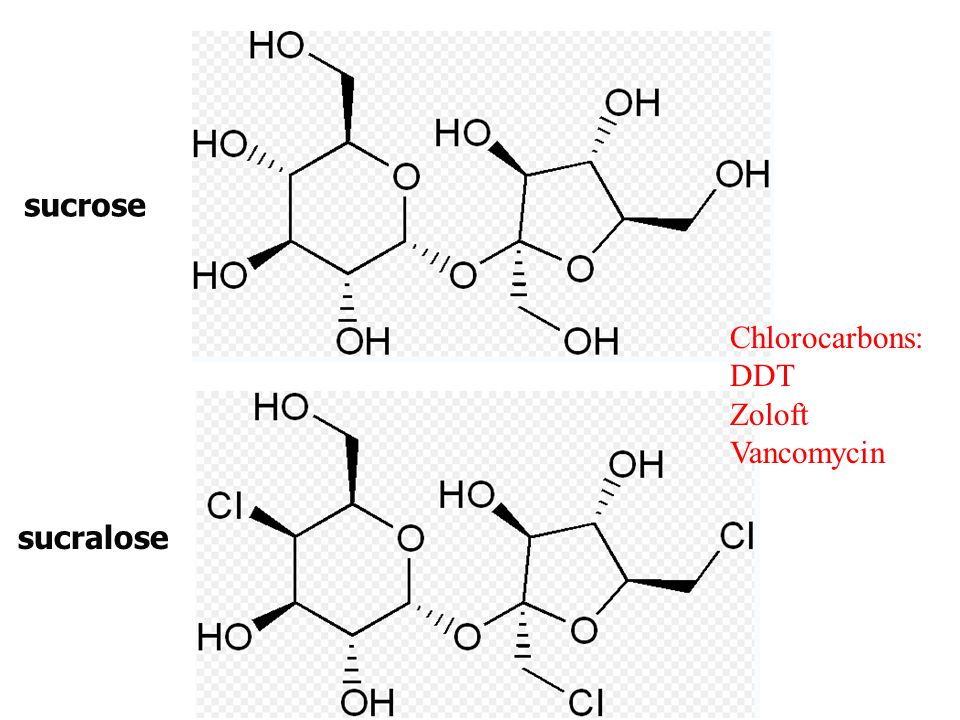

98 sucrose Chlorocarbons: DDT Zoloft Vancomycin sucralose

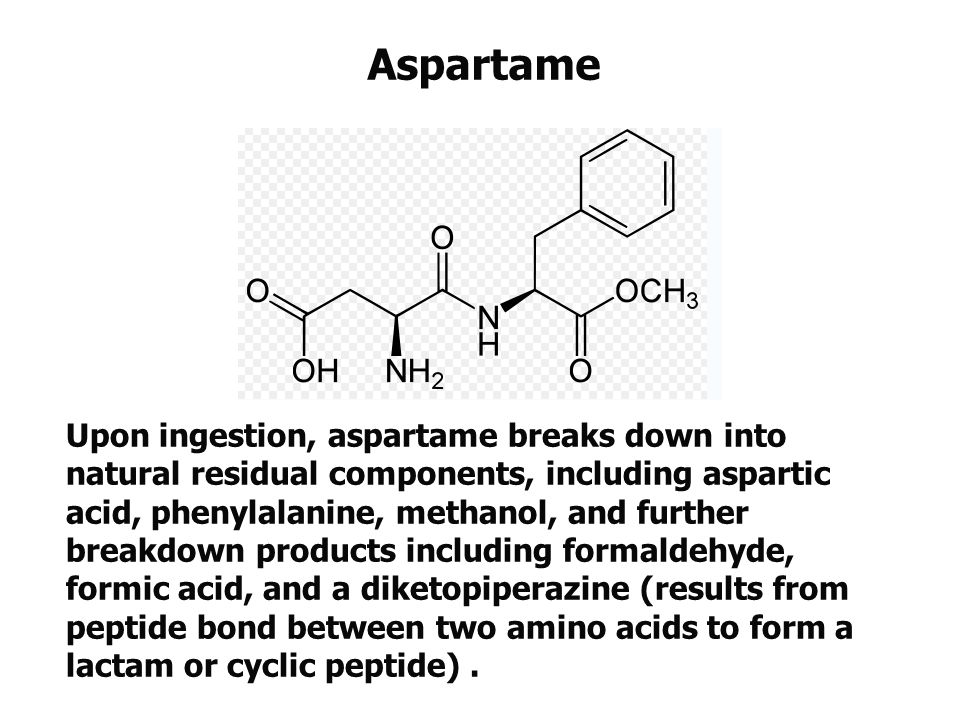

99 Aspartame Upon ingestion, aspartame breaks down into natural residual components, including aspartic acid, phenylalanine, methanol, and further breakdown products including formaldehyde, formic acid, and a diketopiperazine (results from peptide bond between two amino acids to form a lactam or cyclic peptide) .

100 Aspartame Aspartame is an artificial sweetener. It is 180 times sweeter than sugar in typical concentrations, without the high energy value of sugar. While aspartame, like other peptides, has a caloric value of 4 kilocalories (17 kilojoules) per gram, the quantity of aspartame needed to produce a sweet taste is so small that its caloric contribution is negligible.

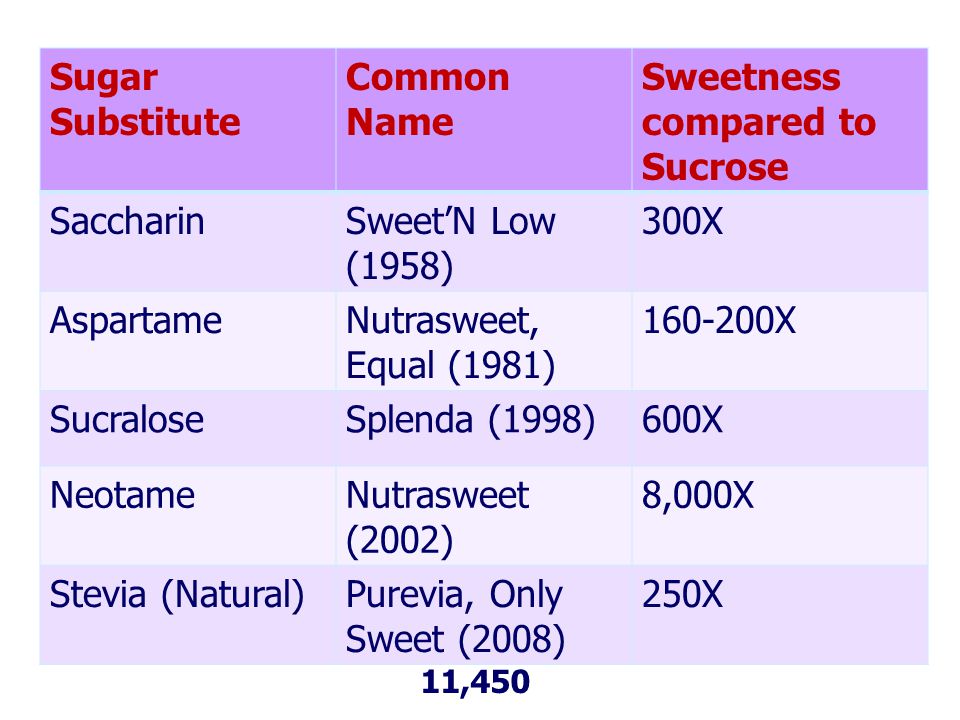

101 Sweetness compared to Sucrose
Sugar Substitute Common Name Sweetness compared to Sucrose Saccharin Sweet’N Low (1958) 300X Aspartame Nutrasweet, Equal (1981) X Sucralose Splenda (1998) 600X Neotame Nutrasweet (2002) 8,000X Stevia (Natural) Purevia, Only Sweet (2008) 250X 11,450

102 Regulación de Glucólisis
Produce ATP y precursores de Rxns. Anabólicas Enzimas claves en la vía son reguladas. La mayoría son reguladas a nivel de [sustrato]. (la actividad de la enzima siempre está alta) Por lo menos una enzima no responde a [sustrato], su actividad es baja, controlada de forma alostérica. Determina la velocidad del proceso. Normalmente son Rx. exergónicas ->proceden espontáneamente pero son reguladas por regulación alostérica (válvula).

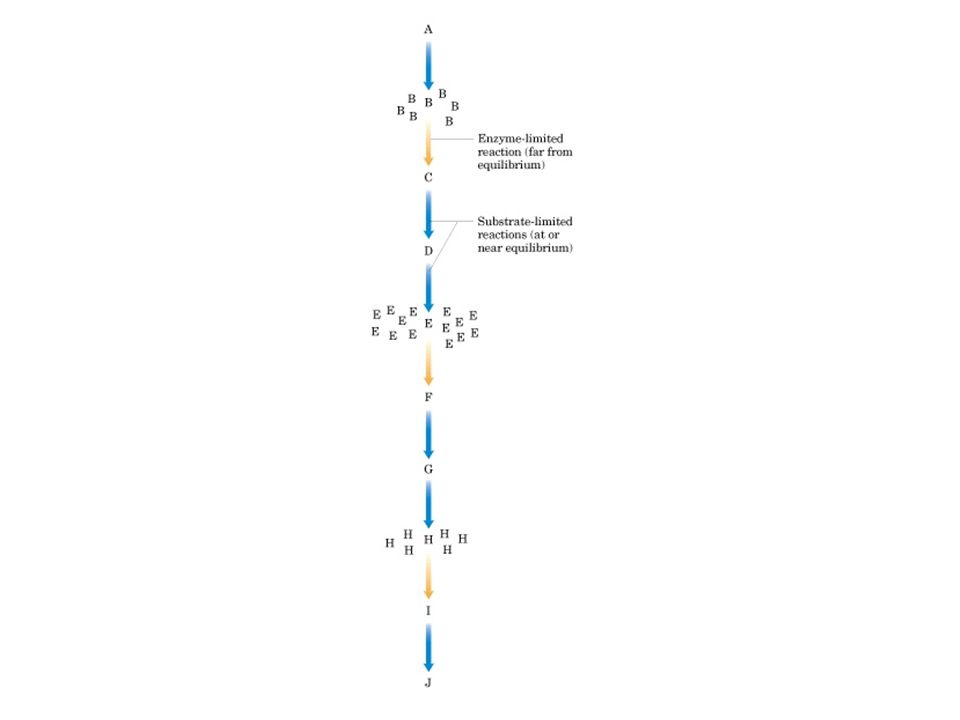

103

104 Glucólisis y Gluconeogénesis (piruvato -> glucosa)
Glucólisis y Gluconeogénesis (piruvato -> glucosa). Muchas enzimas compartidas (mutasa de fosfoglicerato), otras específicas. Previene pérdida de energía si ambos procesos ocurrieran al mismo tiempo. Gluconeogénesis - utiliza 7 enzimas de glucólisis 3 Rxns. Glucólisis - Irreversibles Gluconeogénesis- otras vías para la síntesis de estos precursores.

105 Gluconeogenesis

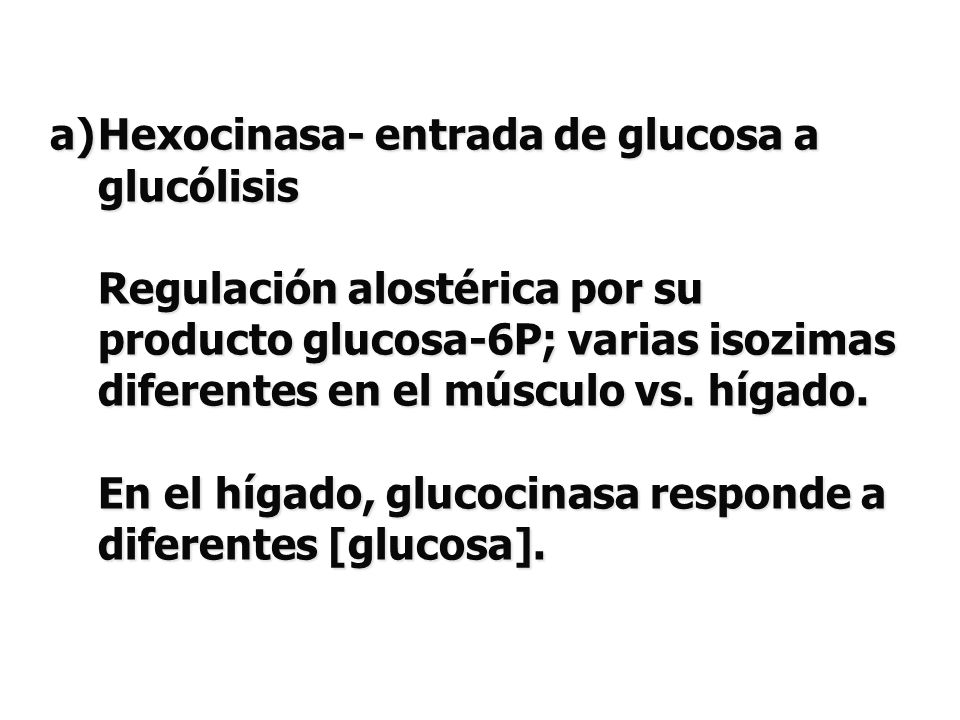

106 Hexocinasa- entrada de glucosa a glucólisis
Regulación alostérica por su producto glucosa-6P; varias isozimas diferentes en el músculo vs. hígado. En el hígado, glucocinasa responde a diferentes [glucosa].

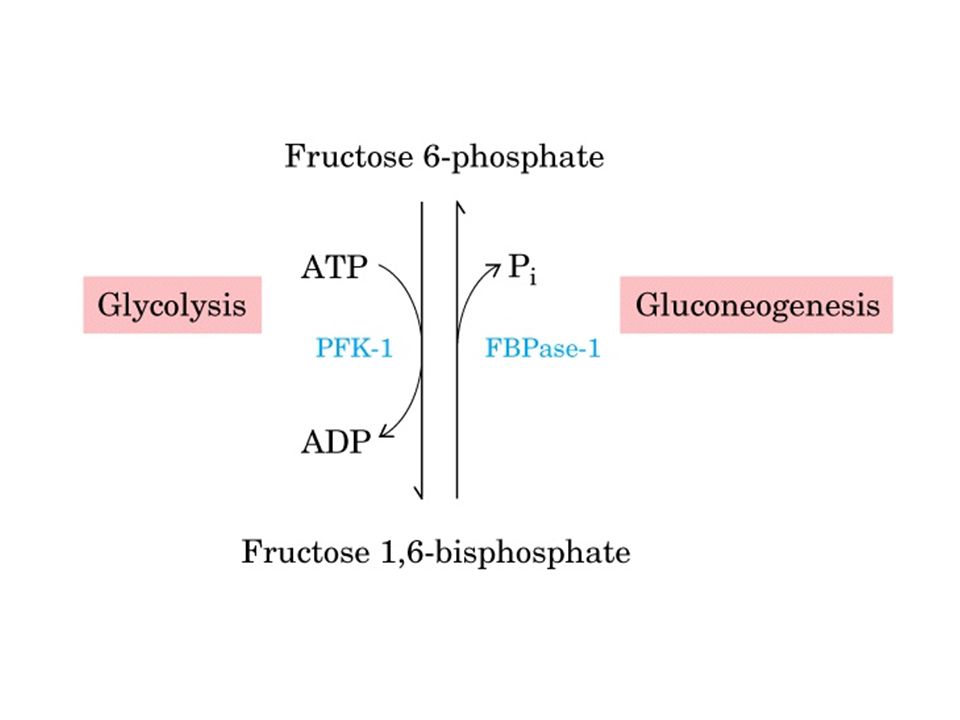

107

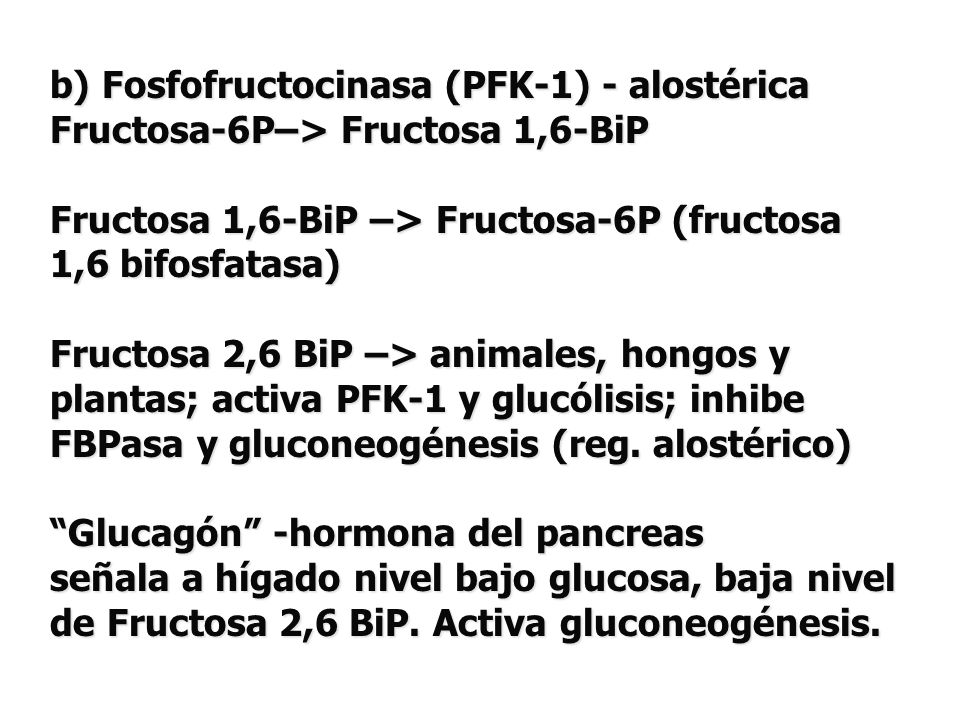

108 b) Fosfofructocinasa (PFK-1) - alostérica Fructosa-6P–> Fructosa 1,6-BiP Fructosa 1,6-BiP –> Fructosa-6P (fructosa 1,6 bifosfatasa) Fructosa 2,6 BiP –> animales, hongos y plantas; activa PFK-1 y glucólisis; inhibe FBPasa y gluconeogénesis (reg. alostérico) “Glucagón” -hormona del pancreas señala a hígado nivel bajo glucosa, baja nivel de Fructosa 2,6 BiP. Activa gluconeogénesis.

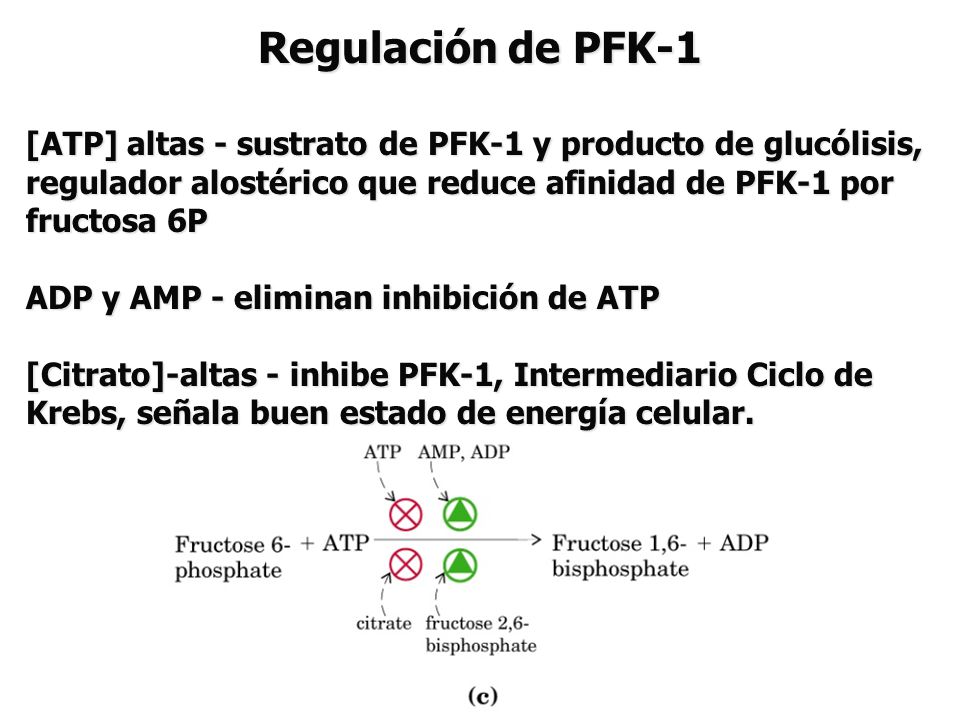

109 Regulación de PFK-1 [ATP] altas - sustrato de PFK-1 y producto de glucólisis, regulador alostérico que reduce afinidad de PFK-1 por fructosa 6P ADP y AMP - eliminan inhibición de ATP [Citrato]-altas - inhibe PFK-1, Intermediario Ciclo de Krebs, señala buen estado de energía celular.

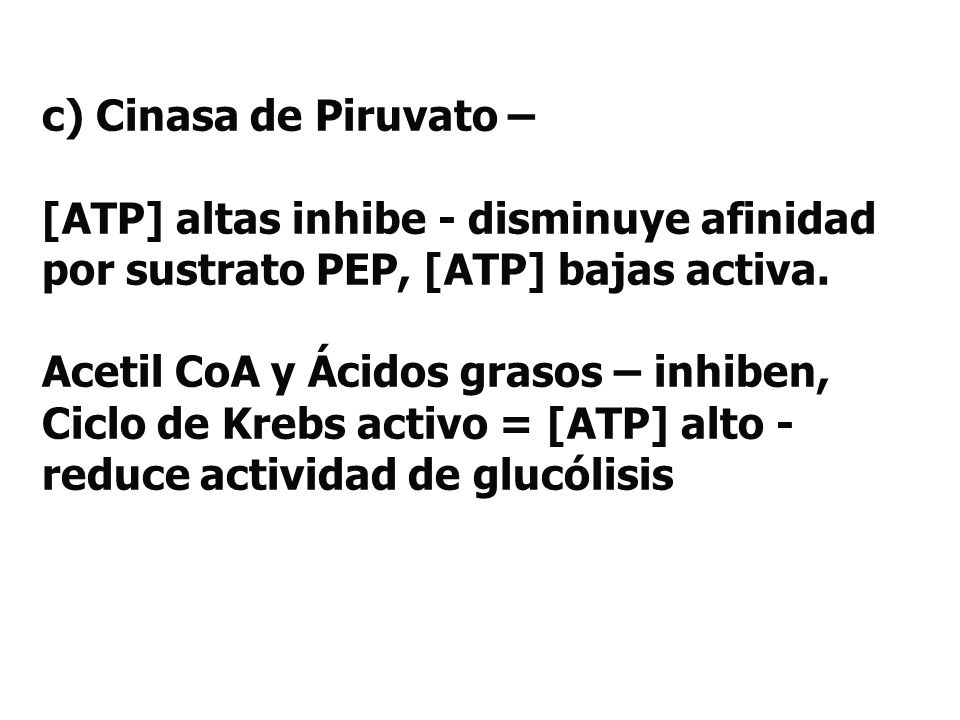

110 c) Cinasa de Piruvato – [ATP] altas inhibe - disminuye afinidad por sustrato PEP, [ATP] bajas activa. Acetil CoA y Ácidos grasos – inhiben, Ciclo de Krebs activo = [ATP] alto - reduce actividad de glucólisis

111 The flux of glucose through the glycolytic pathway
is regulated to maintain nearly constant ATP levels (as well as adequate supplies of glycolytic intermediates that serve biosynthetic roles). The required adjustment in the rate of glycolysis is achieved by a complex interplay among ATP consumption, NADH regeneration, and allosteric regulation of several glycolytic enzymes—including hexokinase, PFK-1, and pyruvate kinase—and by second-to-second fluctuations in the concentration of key metabolites that reflect the cellular balance between ATP production and consumption. On a slightly longer time scale, glycolysis is regulated by the hormones glucagon, epinephrine, and insulin, and by changes in the expression of the genes for several glycolytic enzymes.
