1 Implementacion de QoS Xavier Lleixa Sales Engineer Iberia 2010

2 Finding the Right Fit for your Small to Medium-Sized Business Switches –Unmanaged –Smart Switches (Web Managed) –Fully Managed VPN / Firewall Appliances –Wired or Wireless –VPN IPSec and SSL –Firewalls Wireless Solutions –Business Access Points –Wireless Controller ReadyNAS Storage –Business-class X-RAID Security –2- to 6-Bay –Scalable and Affordable Security –Both Web and Email all-in-one Solution –Patent Pending « Stream Scanning » –No License per user Enterprise technology tailored for the SMB with usability and affordability HOY : Implementacion de QoS

3 Agenda Introducción Sistemas de QoS Implementacion QoS Soluciones y Productos QoS

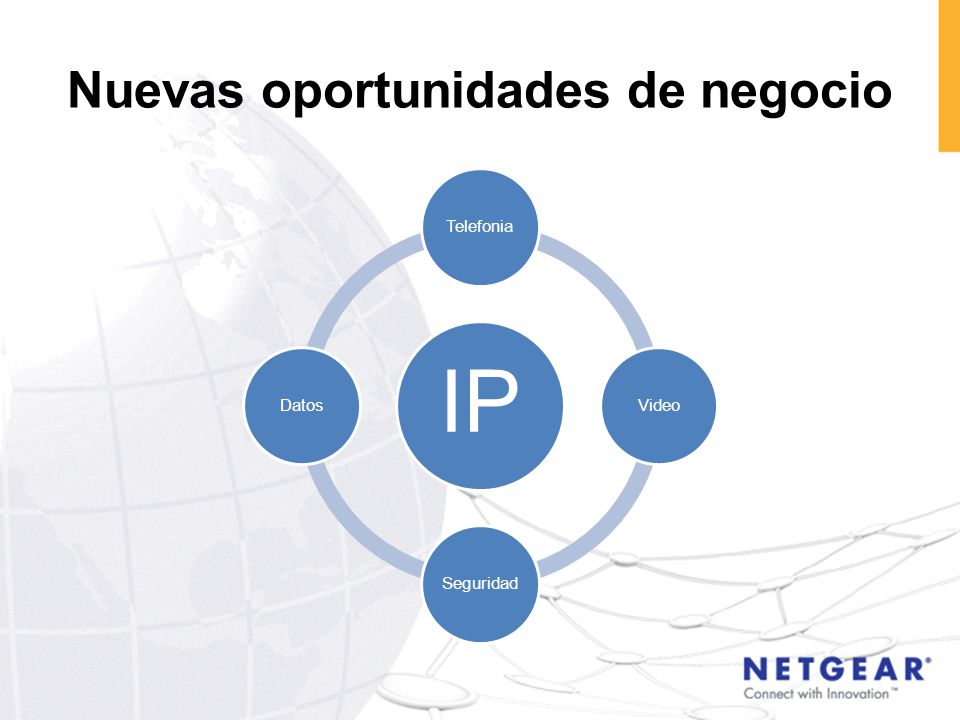

4 Nuevas oportunidades de negocio IP TelefoniaVideoSeguridadDatos

5 Problemática Actual Convergencia de redes : –Telefonia IP –Sistemas de Videovigilancia –Datos –Sistemas de Almacenamiento –Megafonia IP –Domótica

6 Problemas redes convergentes –Ancho de banda –Retardo –Variacion del retardo –Perdida de paquetes

7 Diferentes tipos de caracteristicas. Diferentes perfiles de trafico. Clasificacion en diferentes perfiles

8 QoS Traffic Requirements: Voice Latencia < 150 ms* Jitter < 30 ms* Perdidas< 1%* – Requirements: Voice

9 Soluciones DisponibilidadQoSVLAN

10

11

12 Situación ideal Debemos por tanto priorizar y segmentar la red Prioridad2/5 Mbps Prioridad 7 / 2 Mbps Prioridad1/1 Mbps Clientes Telefonía Red interna

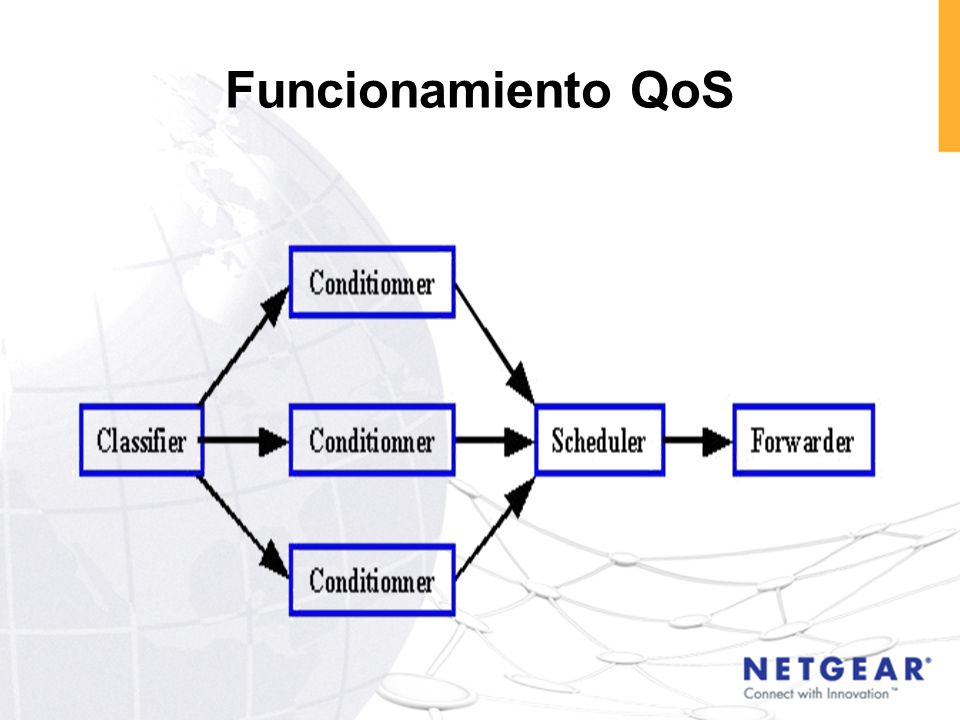

13 Funcionamiento QoS

14 Calidad de Servicio Clasificación de paquetes: –Nivel 1: Por puerto –Nivel 2: CoS –Nivel 3: DSCP Política de colas : –Estricta –Round Robin

15 802.1p CoS Marcación de tramas a nivel 2 El marcado de paquetes lo realiza el teléfono Se puede establecer la prioridad por puerto PriorityTraffic Type 7 (highest)Network management 6Voice 5Video 4Controlled load 3Excellent effort 0 (default)Best effort 2Undefined 1 (lowest)Background

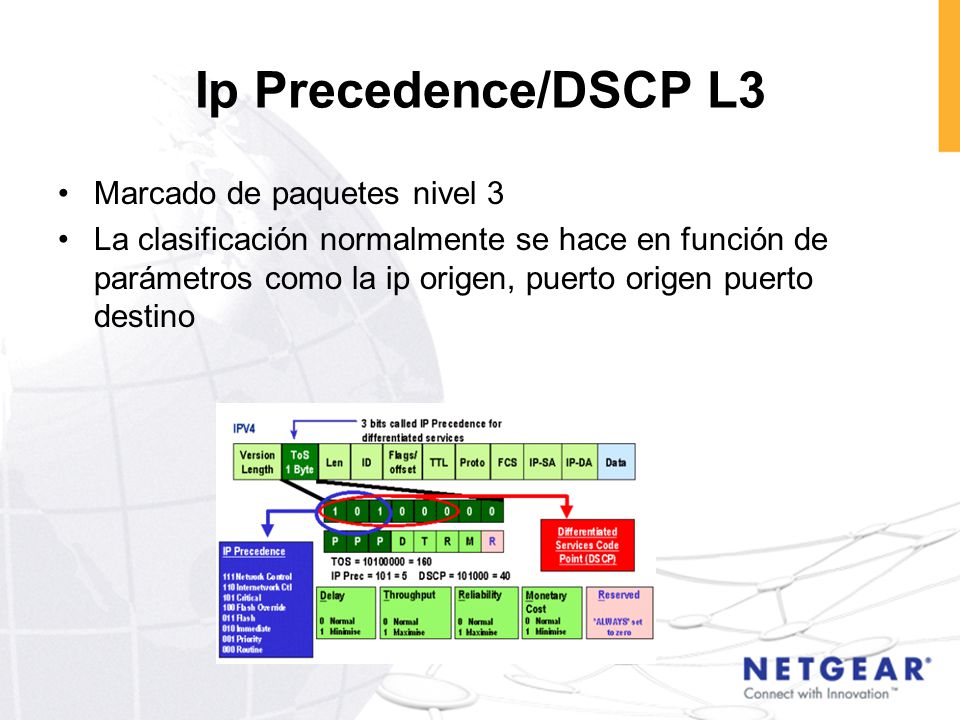

16 Ip Precedence/DSCP L3 Marcado de paquetes nivel 3 La clasificación normalmente se hace en función de parámetros como la ip origen, puerto origen puerto destino

17 17 Frame Baja prioridadAlta prioridad Weight = 1 Weight = 2 Weight = 3 Weight = 4 Weighted Round Robin Scheduler 10/100/1000 Mb/s Ethernet output port Colas de prioridad

18

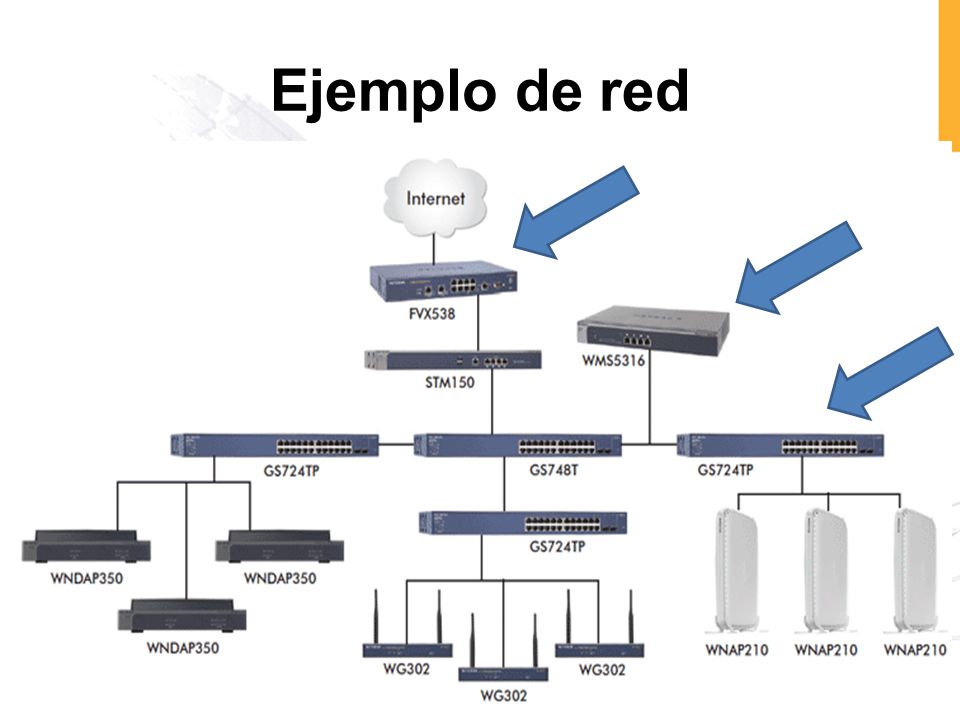

19 Ejemplo de red

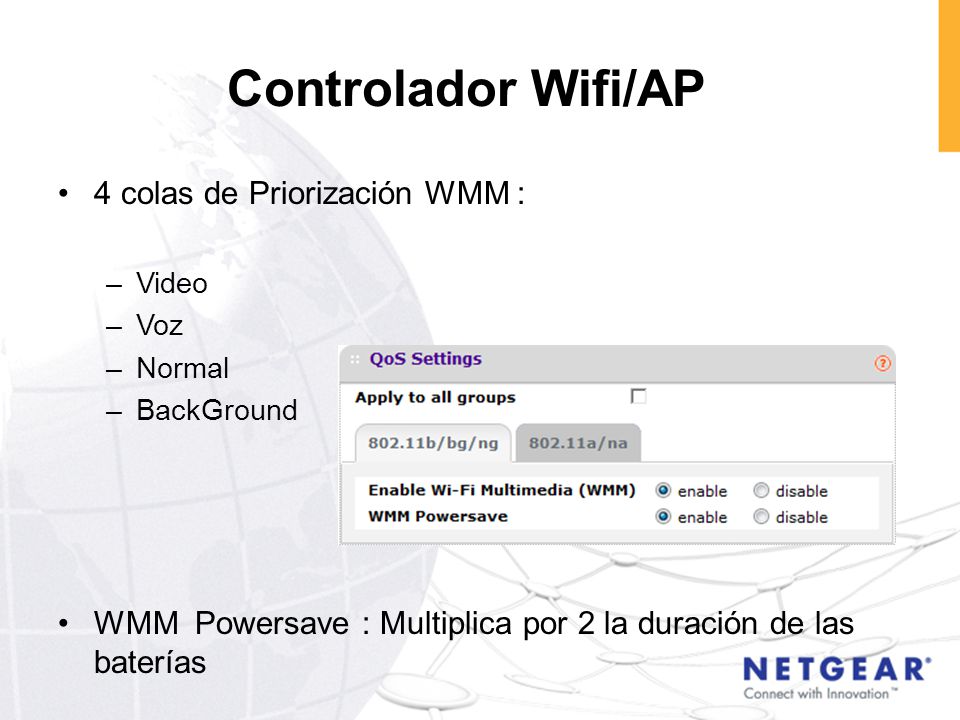

20 Controlador Wifi/AP 4 colas de Priorización WMM : –Video –Voz –Normal –BackGround WMM Powersave : Multiplica por 2 la duración de las baterías

21 Switch – Activar QoS

22 Switch - Mapear QoS

23

24 FW- Implementacion QoS

25

26

27 Catálogo de ProSafe Inalámbrico Professional Professional High-end Controller WFS709TP/ WMS5316 WG302WG102WAG102WNDAP350WNAP210 a/b/ga/b/g/n Controlador Profesional Avanzados Profesional Básicos WC7520/ WMS5316

28 Business Switching Solutions Plus SwitchesSmart Switches, Commodity Fully Managed L2, Edge Fully Managed L3, Core for up to 500 nodes 20 – 5050 - 200 200+ Features Savings vs HP/Cisco Economy Class of L2 Advanced Smart Plus: More VLAN, MAC, ACL addresses CLI Static Routing Console port Read/write config privilege Smart Switches Plus: Advanced Security ACL PnP VoIP Guest VLAN RSTP Green Features True stacking All ports PoE Managed L2 Plus: More VLANs, MAC addresses Dynamic routing 10G uplinks # of Users Limited VLAN Limited QoS Traffic Monitoring PC-based GUI Green Features Lifetime warranty Up sell from Unmanaged Unmanaged Switches Basic connectivity Green Features Lifetime warranty New Standards-based protocols for interoperability

29 ProSafe ® & ProSecure ® Security Solutions Small business(5 -75 users) SMB (75-200 users)Medium Enterprise ( ~500 users) *10GE is also supported as an option. ** 2x gigabit ports as option Performance number is based on none aggregated network link STM150 STM300 STM600 Coming Soon! - 2010 Feature / Performance UTM5 UTM10 UTM25 Desktop UTM FW w/ SSL & IPsec VPN Anti-Malware, URL Filtering, Anti-Spam Application Control, IPS, 2xWAN (UTM25) 90 – 127 Mbps UTM50/UTM150 UTM FW w/ SSL & IPsec VPN AD Integration, Anti-X, URL Filtering, App Control, IPS, Multi WAN 200 – 300 Mbps Content Security Appliances Web / Email Threat Mgmt AD Integration, Anti-X, URL Filtering, App Control, IPS, WAN Failthrough 1000 – 4000 concurrent HTTP connections 139K – 960K emails / hour FVS318G Desktop IPsec FW ROBO, 25Mbps FVS336G Desktop SSL & IPsec FW DMZ port / Dual WAN 60Mbps SRXN3205 Desktop FW SSL & IPsec Wireless N, 60Mbps SRX5308 SSL & IPsec FW Quad WAN 1 GB Throughput UTM and Content Security is Driving Our Growth

30

31

32 Gracias Xavier Lleixa 933443204 xlleixa@netgear.com
