2 Vista general Diseño de estaciones de trabajo modulares para: Ensamble
El nuevo sistema de elementos de banco de trabajo Bancos de trabajo para:   Ensamble,   Mantenimiento,   Reparaciones,   Sistemas de laboratorio y de prueba. Desde que el Sistema de Construcción MB se desarrolló por primera vez hace 30 años, Item ha diseñado entornos y bancos de trabajo a la medida. Los diseños de Item son basados en el «know-how»: - Amplio portafolio de elementos para bancos de trabajo   Cuatro tipos de mesa básicos   Varias superficies de trabajo en diferentes tamaños - Y toda una gama de accesorios compatibles - Enfoque a futuro « Bancos de trabajo a la medida hechos con componentes estandarizados de Item" - Soluciones rápidas con una excelente relación costo-beneficio Diseño de estaciones de trabajo modulares para: Ensamble Mantenimiento Reparaciones Sistemas de laboratorio y pruebas © Copyright 2010 – item Industrietechnik GmbH

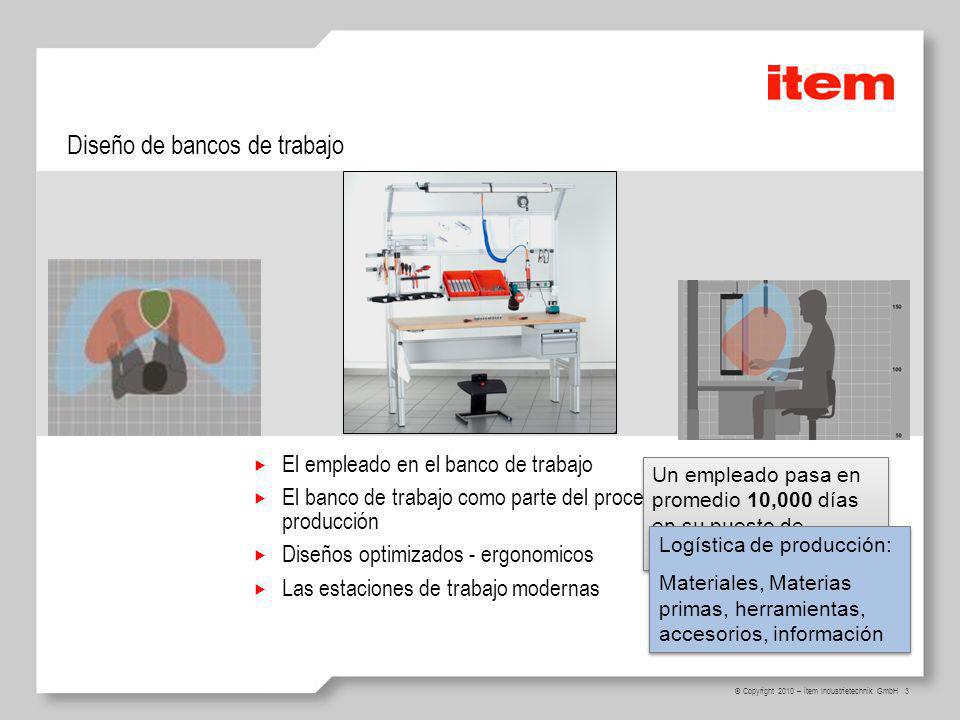

3 Diseño de bancos de trabajo
A lo largo de sus vidas, los empleados pasarán en promedio más de 10,000 días en su puesto de trabajo. Pero el número de veces que repetirán ciertos movimientos es todavía mayor. Como resultado, la postura, los movimientos y los procesos tienen enormes consecuencias. Si los procedimientos se pueden mejorar en tan solo un 10%, el resultado sería el ahorro de 1,000 días de trabajo (equivalente a 4 años). La estación de trabajo es una parte integral del proceso de producción. Lo que se hace en una estación de trabajo se relaciona de una u otra forma con las demás estaciones de trabajo, por lo que decimos que cada puesto de trabajo debe ser tratado como parte del proceso de producción. El término „logística de la estación de trabajo“ cubre las siguientes partes: Materiales, materias primas, herramientas, accesorios, información El material y la información fluyen a la estación de trabajo de fuentes exteriores. Basado en la información que recibe, el empleado usa su know-how, materiales y herramientas para procesar la pieza de trabajo de acuerdo a los requerimientos. Él necesita cierta cantidad de tiempo en orden de ejecutar su trabajo. En la planeación de trabajo moderna, el tiempo es el criterio más importante en la eficiencia de cualquier proceso productivo. Tiempos objetivos pueden ser planeados de antemano para todas las fases del proceso. Estos tiempos objetivos son estandarizados usando el MTM (methods-time measurement). Los movimientos estándar, sequencias de movimiento y alcance, sirven como la base para la medición de los tiempos objetivos. Ésta información es usada para planear la ubicación de los materiales, ayudas y herramientas. Hay una conexión directa entre los tiempos objetivos y el diseño de estaciones de trabajo ergonómicas: reglas de ergonomía y seguridad se deben tomar en cuenta a la hora de planear los procesos productivos. Es en este punto donde la disposición adecuada de materiales, piezas de trabajo y ayudas juegan un rol clave. The key to achieving the correct ergonomic layout of a work bench is to optimise the interface between the user and the logistics system. The work bench must be treated as a dynamic position that is manned by a moving human employee. Any form of ergonomic work bench planning has to start with the characteristics of this employee, the space within which he can move and the distances that he can reach. Changing working position (sometimes sitting, sometimes standing) and posture is also good for the health of employees, where the nature of the work permits this flexibility. Changes to products and/or volumes can mean that work needs to be re-planned and consequently work benches must offer a high degree of flexibility: On the one hand, in terms of the interlinking of work benches and, on the other hand, as regards changes to the actual working processes that are carried out at the benches. Cutting-edge work benches are not isolated islands but rather interconnected points in a networked production system. They need to be able to send and receive information as integral components in a production control and material flow system. The passing of information between work benches and a production control system is just as important to a work bench system as the provision of goods and materials.  El empleado en el banco de trabajo El banco de trabajo como parte del proceso de producción Diseños optimizados - ergonomicos Las estaciones de trabajo modernas Un empleado pasa en promedio 10,000 días en su puesto de trabajo. Logística de producción: Materiales, Materias primas, herramientas, accesorios, información © Copyright 2010 – item Industrietechnik GmbH

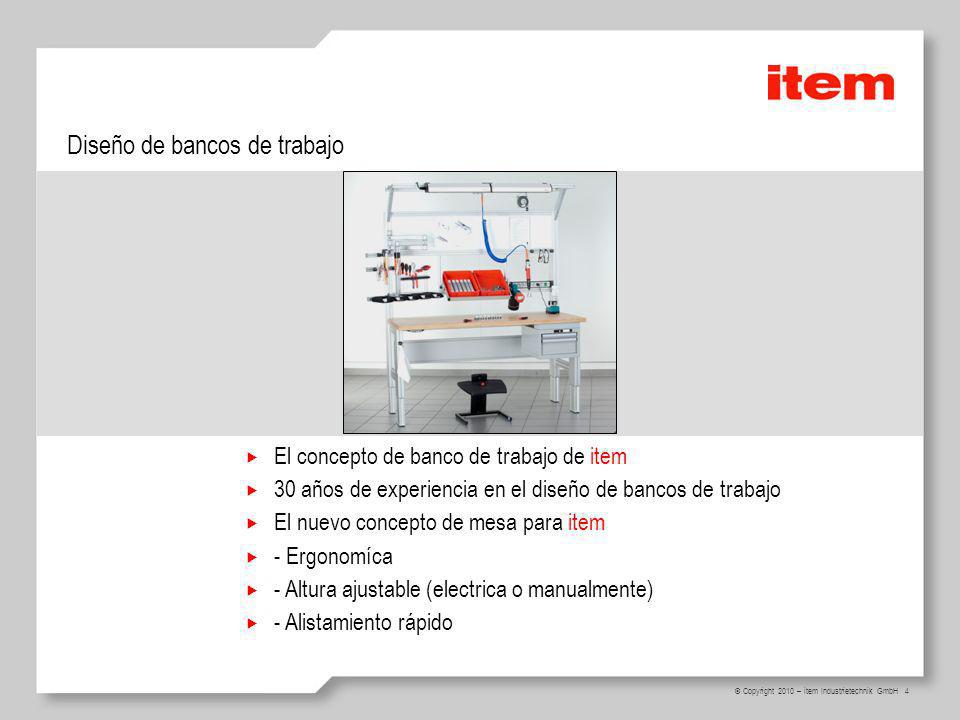

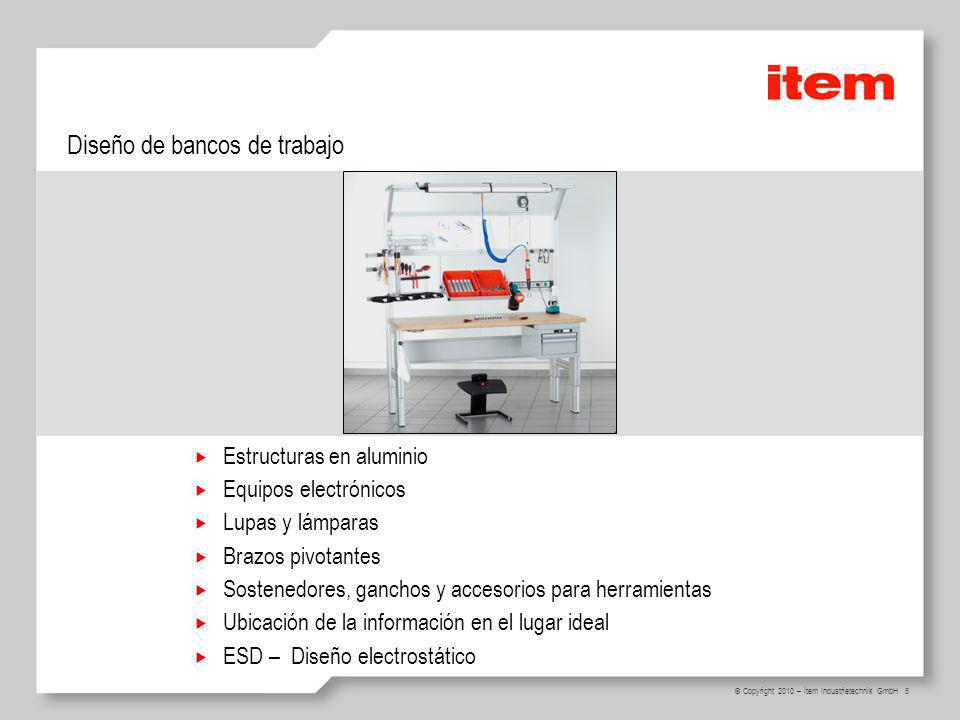

4 Diseño de bancos de trabajo
The item work bench concept 30 years of experience in customised working environments and work benches 1984: first table designed as a system work bench with standard item components incl. foot rests 1992: First TRIGO system – the optimum provision of materials was the core principle of this system 1994: TRIGO 272 delivers height adjustability across a maximum of 3 levels – a year of innovation (High-Train) 2000: yet more inspiration for work bench design in the form of Lifting Columns 200x170 and the electronically synchronised Lifting Column Pair 180x120 E The new item table concept for: assembly, maintenance, repair and labour Systematic ergonomics: - Rectangular and triangular tables - materials and tools are optimally positioned within the operator's reach Provision of light, information and media incorporated into the table concept Provision of materials - compatible with the MB Building Kit System Every table is height adjustable Electric height adjustment is available as an option. Tables in standard sizes are available at short notice Modular assemblies - wide range of work bench variations from the Building Kit System Freedom for customisation offered by the MB Building Kit System Flexibility, particularly as regards the integration of production processes, subsequent retrofitting options and goods provision "The customer receives a fully assembled table!" The benefits of modular design: Cost effective, Tried-and-tested standards, - Easy to calculate reliable prices thanks to modular design - Quick to configure and construct without the need for complex project engineering El concepto de banco de trabajo de item 30 años de experiencia en el diseño de bancos de trabajo El nuevo concepto de mesa para item - Ergonomíca - Altura ajustable (electrica o manualmente) - Alistamiento rápido © Copyright 2010 – item Industrietechnik GmbH

5 Diseño de bancos de trabajo
The products for work bench design: - Table frames with plenty of legroom - Full media supply system, including data transfer - Magnifiers and lights to help keep everything in sight - Pivot arms to keep everything within reach / view - Holders, hooks and tool balancers - Information at the right place - ESD – so you don't shock electronic parts Estructuras en aluminio Equipos electrónicos Lupas y lámparas Brazos pivotantes Sostenedores, ganchos y accesorios para herramientas Ubicación de la información en el lugar ideal ESD – Diseño electrostático © Copyright 2010 – item Industrietechnik GmbH

6 Mesa base tipo E Mesa tipo E Columnas motorizadas
Hecha en perfil 160x60 mm Motores sincronizados electrónicamente Pies en acero excepcionalmente estables Memoria de posiciones Table Frame E Exceptionally stable and electrically adjustable table concept with generous legroom NEW: motorised Table Columns Spindle drive integrated into a Profile 160x60 with Line 8 groove Play-free slide guide Each Table Column is adjusted individually Spring pre-tensioned sliders are adjusted to the inner and outer tube combination using special hardening filler which fixes them in place Electronic synchronisation Does not need to be programmed Control system for 2 columns in ready-to-use state (plug and play) Screening as part of the table design NEW: Profile 8 240x40 8N light Elegant and exceptionally stable steel foot Electrically conductive coating Operating panel with digital height readout Memory function 3 heights can be programmed Lifting speed: 25 mm/sec. When 2,000 N is distributed over two columns – no bending moment! © Copyright 2010 – item Industrietechnik GmbH

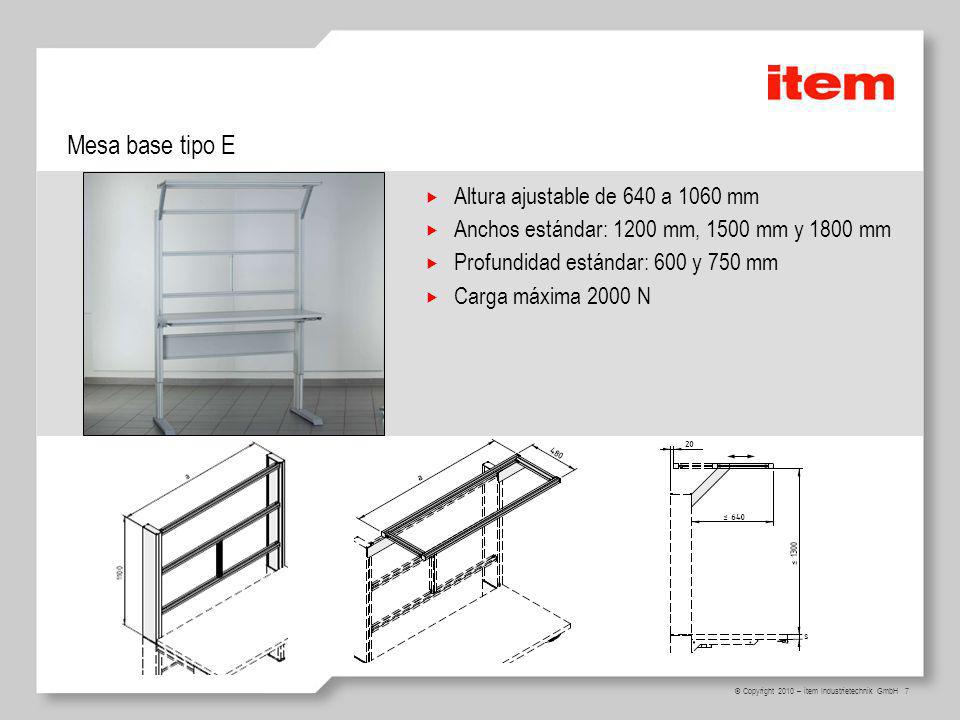

7 Mesa base tipo E Altura ajustable de 640 a 1060 mm
Anchos estándar: 1200 mm, 1500 mm y 1800 mm Profundidad estándar: 600 y 750 mm Carga máxima 2000 N Height adjustable from 640 to 1,060 mm (not including Table Top) Standard widths: 1,200 mm, 1,500 mm and 1,800 mm Maximum load: 2,000 N symmetrically distributed, no additional bending moment Permitted bending moment: Static – 550 Nm to a total height of 800 mm, 275 Nm above that height Dynamic – 120 Nm Frames and Table Top weight are to be taken into account. N.B.: In the long term, these new Table Columns will supersede the current Lifting Columns. The new Table Column is similar to Lifting Column Set E The control system is easier to operate No need to configure the electronics Plug and play Modular construction concept: Each table can be fitted with an Upright and an Overhang - Table Upright from the new Profile 8 160x60 and Profile 8 40x40 light and Table Upright with Table Overhang - 90° connection of the Table Overhang via coated steel elements Overhang is infinitely adjustable The Upright and Overhang are also parts of the pre-assembled table! © Copyright 2010 – item Industrietechnik GmbH

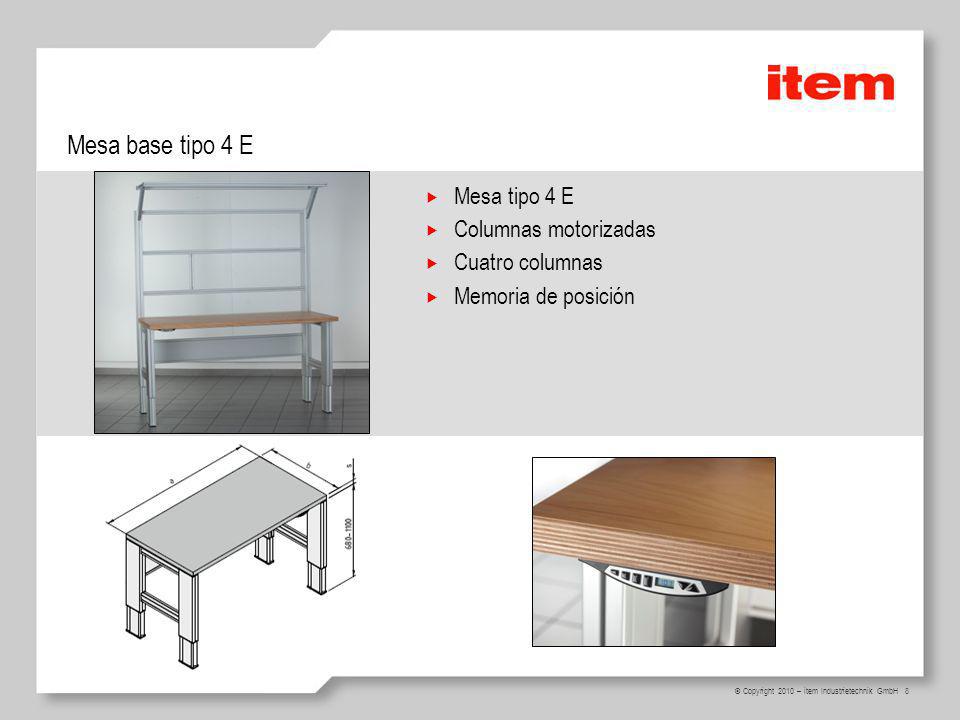

8 Mesa base tipo 4 E Mesa tipo 4 E Columnas motorizadas Cuatro columnas
Memoria de posición Table Frame 4 E: 4 E - for four supporting, motorised Table Columns Same motorised Table Columns as in the case of Table E, except there are four drives with corresponding synchronous control Operating panel with digital height readout Memory function 3 heights can be programmed Lifting speed: 25 mm/sec. At 4,000 N, load symmetrically distributed over 4 columns © Copyright 2010 – item Industrietechnik GmbH

9 Mesa base tipo 4 E Altura ajustable de 640 a 1060 mm
Anchos estándar: 1200 mm, 1500 mm y 1800 mm Profundidad estándar: 600 y 750 mm Carga máxima 4000 N Motorised adjustment: 680 to 1,100 mm (height not including Table Top) Standard widths: 1,200 mm, 1,500 mm and 1,800 mm Four synchronised Table Columns Not mechanically overdetermined, therefore no braces on the floor Maximum load: 4,000 N symmetrically distributed Frames and Table Top weight are to be taken into account. Modular concept: Each table can be fitted with an upright and an overhang - Table Upright from Profiles 160x60 and 40x40 light and: Table Upright with Table Overhang - 90° connection of the Table Overhang via coated steel elements - Overhang is infinitely adjustable © Copyright 2010 – item Industrietechnik GmbH

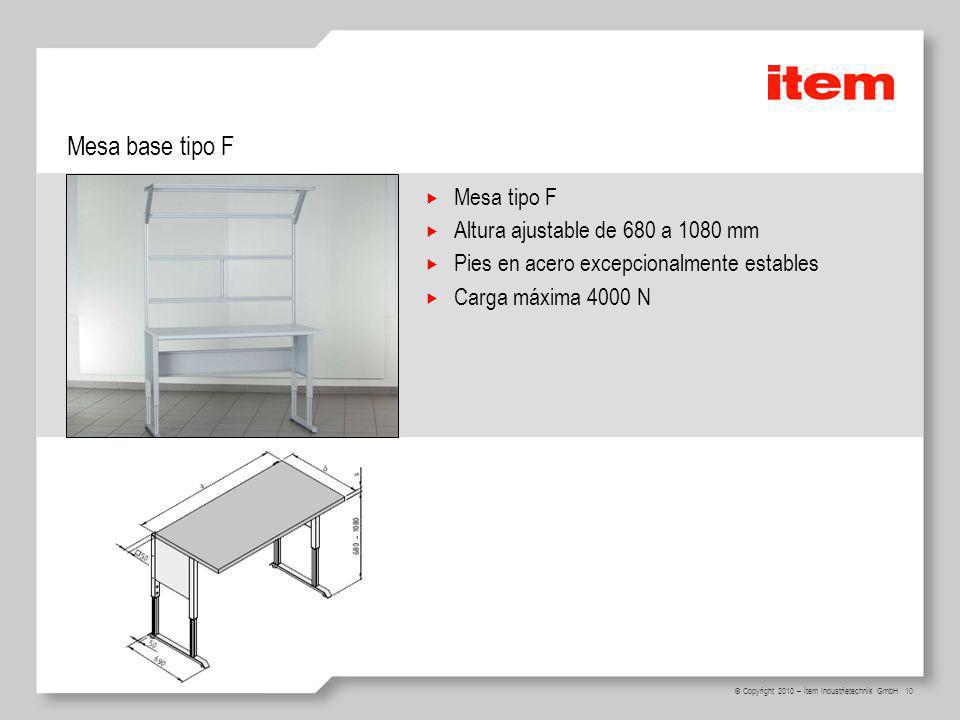

10 Mesa base tipo F Mesa tipo F Altura ajustable de 680 a 1080 mm
Pies en acero excepcionalmente estables Carga máxima 4000 N Table Frame F - modular concept: Side parts made from Profile Tubes and connected and stabilised with steel plate Horizontal cross connection made from new Profile x 40 8N light Height adjustable from 680 to 1,080 mm - not including Table Top Each elegant and exceptionally stable steel foot connects two feet made from Profile 8 40x40 light Maximum load 4,000 N © Copyright 2010 – item Industrietechnik GmbH

11 Mesa base tipo F Anchos estándar: 1200 mm, 1500 mm y 1800 mm
Profundidad estándar: 600 y 750 mm Standard widths: 1,200 mm, 1,500 mm and 1,800 mm Table Upright Each table can be fitted with an upright and an overhang Profile 40x40 light for Table Frame F Table Overhang 90° connection of the Table Overhang via coated steel element Overhang is infinitely adjustable. The Upright and Overhang are also parts of the pre-assembled table! © Copyright 2010 – item Industrietechnik GmbH

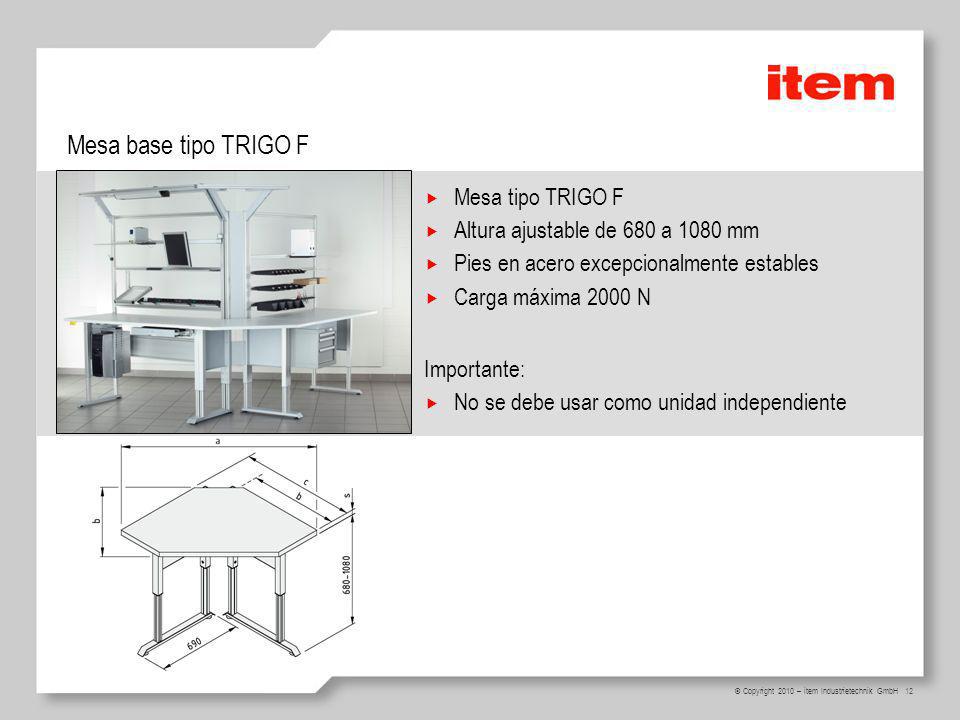

12 Mesa base tipo TRIGO F Mesa tipo TRIGO F
Altura ajustable de 680 a 1080 mm Pies en acero excepcionalmente estables Carga máxima 2000 N Table Frame TRIGO F - Module for production island or corner use Basic frame height adjustable from 680 to 1,080 mm Basic concept corresponds to Table Frame F Height measurements do not include Table Top Exceptionally stable and elegant steel foot Maximum load 2,000 N Important: The table is not to be used as a stand-alone unit It must be linked to other tables Or made stable in some other way Importante: No se debe usar como unidad independiente © Copyright 2010 – item Industrietechnik GmbH

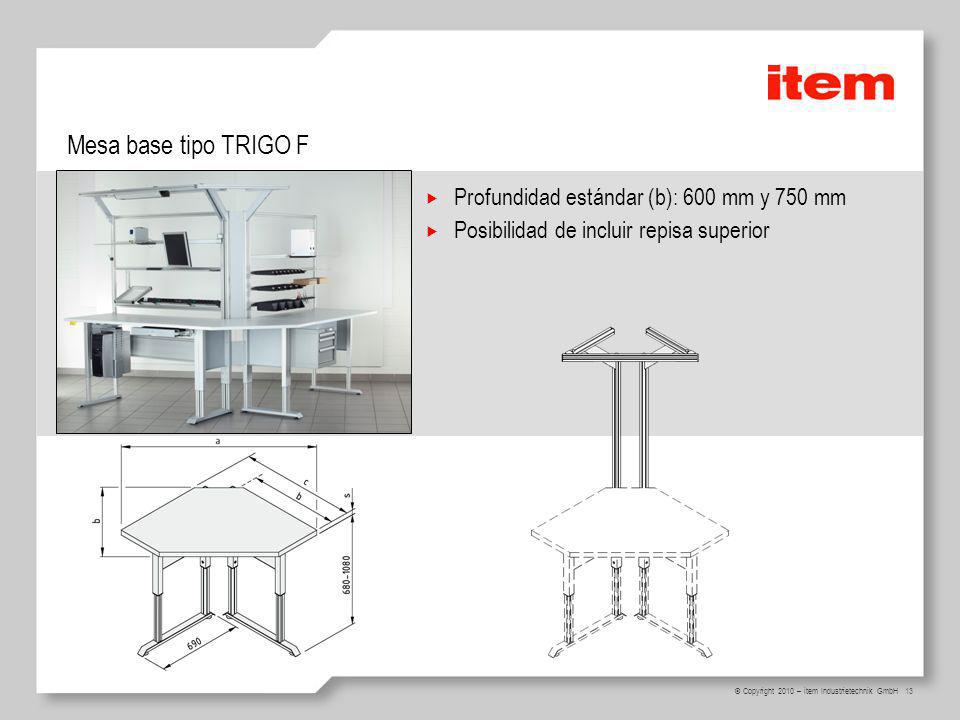

13 Mesa base tipo TRIGO F Profundidad estándar (b): 600 mm y 750 mm
Posibilidad de incluir repisa superior Standard depths mm and 750 mm Connection dimensions (b) match the right-angled tables Table Upright TRIGO F always as one part incl. Table Overhang © Copyright 2010 – item Industrietechnik GmbH

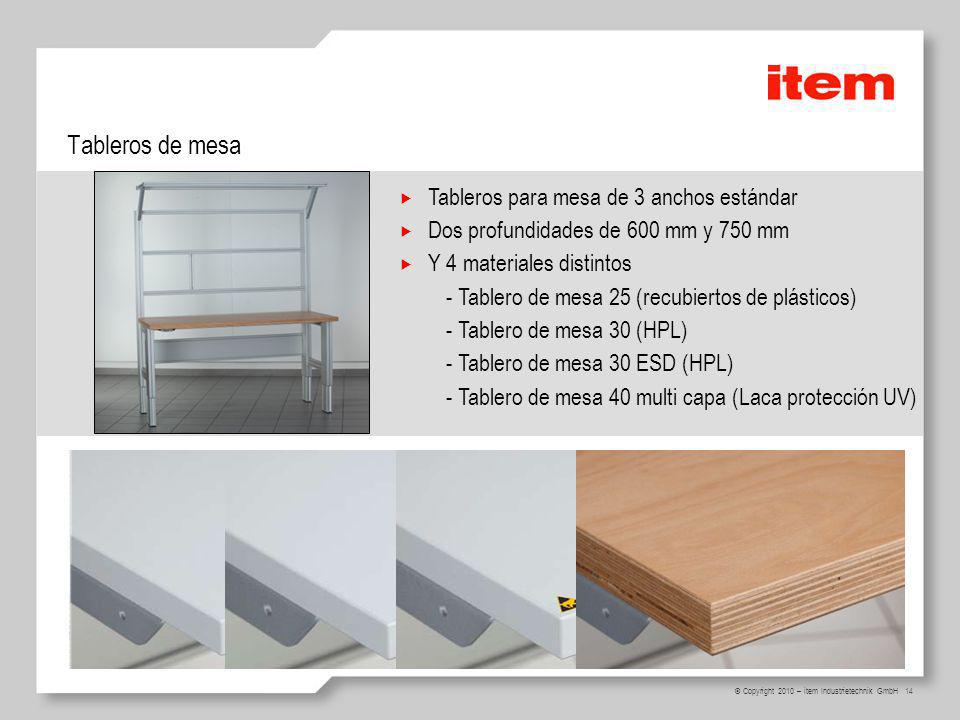

14 Tableros de mesa Tableros para mesa de 3 anchos estándar
Dos profundidades de 600 mm y 750 mm Y 4 materiales distintos - Tablero de mesa 25 (recubiertos de plásticos) - Tablero de mesa 30 (HPL) - Tablero de mesa 30 ESD (HPL) - Tablero de mesa 40 multi capa (Laca protección UV) Table Tops available in 2 depths (600 mm and 750 mm) and 3 widths and in 2 variants for the table versions presented (rectangular and TRIGO) 4 different Table Top materials/qualities as required Table Top 25, plastic-coated chipboard - simple and cost-effective Table Top 30 (HPL) - light and extremely hard-wearing (HPL = High Pressure Laminate) Table Top 30 ESD (HPL) - volume-conductive for sensitive electronics - discharge resistance 7.5x105 to 3.5x 107 ohms. Electrostatic charges are "gently" dissipated. Table Top 40 Beech Multi-Ply (UV lacquered) – robust and tough © Copyright 2010 – item Industrietechnik GmbH

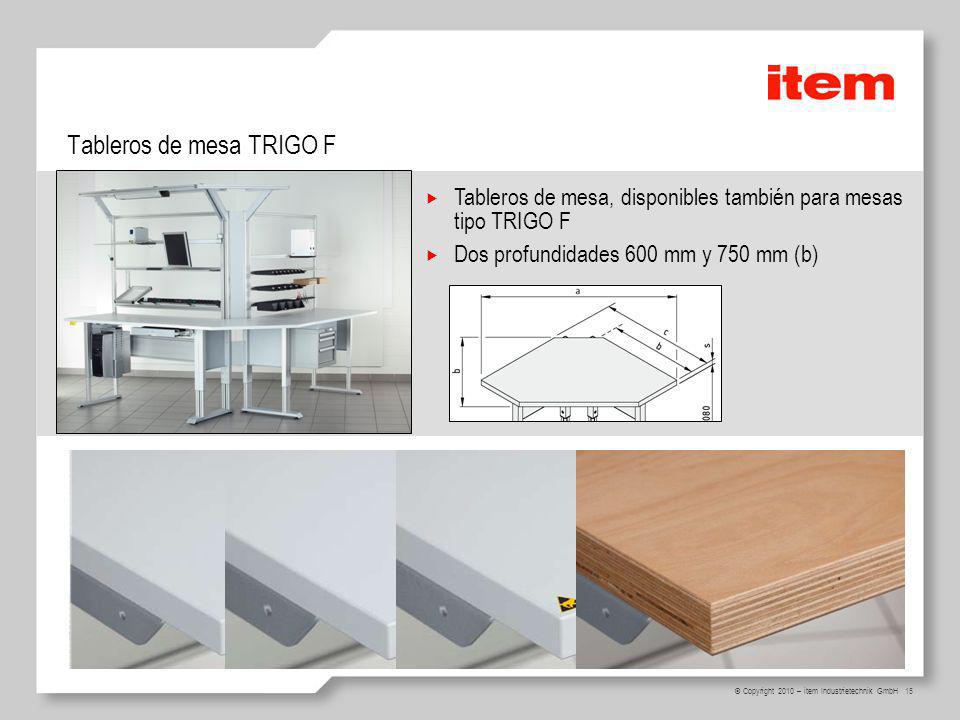

15 Tableros de mesa TRIGO F
Tableros de mesa, disponibles también para mesas tipo TRIGO F Dos profundidades 600 mm y 750 mm (b) Table Tops in standard dimensions, also for Table Frame TRIGO F Table Tops available in 2 depths – 600 mm and 750 mm and in 4 variants for the table versions presented © Copyright 2010 – item Industrietechnik GmbH

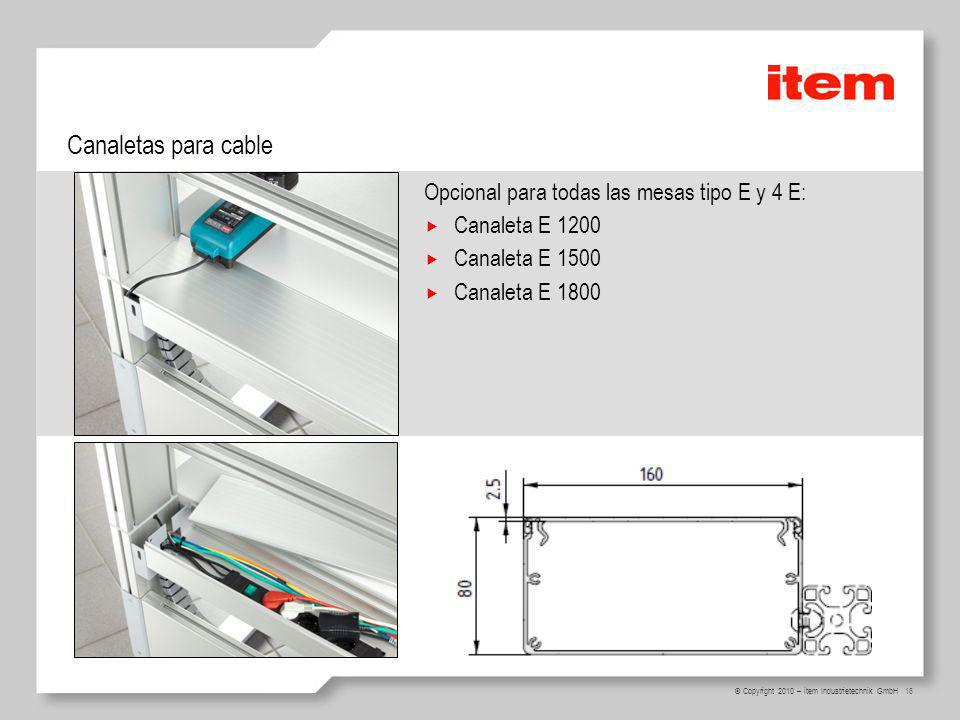

16 Canaletas para cable Opcional para todas las mesas tipo E y 4 E:
Canaleta E 1200 Canaleta E 1500 Canaleta E 1800 Cable Ducts for Table Frames E and 4 E only (not suitable for Table Frame F) Space for Table Column controls, socket strips, etc. Fastening points in the conduit for cable and hose strain relief systems Cable outlet to the rear and below Cross-section of Cable Conduit 160x80: Conduit Profile U 160x80 SE with Support Profile 160 as a cover The customer receives a fully assembled module Fitted to table if required © Copyright 2010 – item Industrietechnik GmbH

17 Canaletas para cable Conductos flexibles tipo E
En la imagen: Conducto flexible tipo E y la base Flexible Conduit E - length 1.1 m Flexible Conduit E + base plate The Flexible Conduit contains two cable conduits. Cables are inserted into the conduits from the side. The steel base plate represents the lower end of the Flexible Conduit and weighs the conduit down. © Copyright 2010 – item Industrietechnik GmbH

18 Suministro de energía y datos
Accessories as required: The diversity of the item work bench system Energy is required at work benches in various forms (electricity, compressed air, etc.). The type of energy required depends on the task that is being performed at the work bench. The energy supply must be part of the overall work bench planning process. Flexibility requirements: Depending on requirements, the energy supply can be fed in above or below working level. And if your plans change, it is easy to change over. Flexible information provision is required for flexible workflow planning. A PC with monitor is essential for complex production control systems. Energía - Potencia - Aire Información - Procedimientos de operación - Computador © Copyright 2010 – item Industrietechnik GmbH

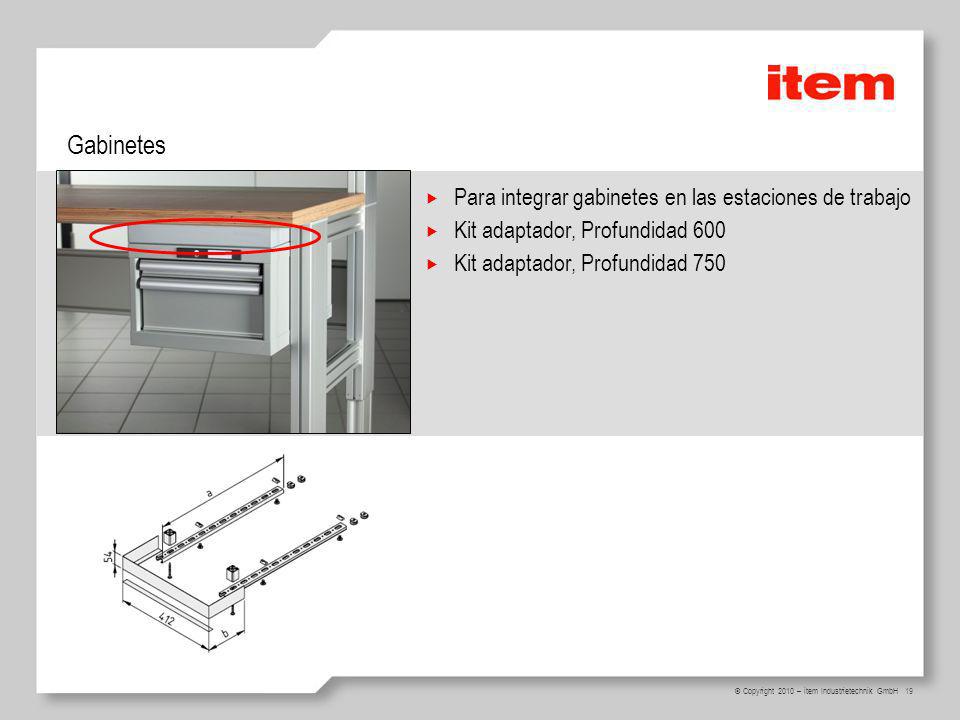

19 Gabinetes Para integrar gabinetes en las estaciones de trabajo
Kit adaptador, Profundidad 600 Kit adaptador, Profundidad 750 See Catalogue MB7, page 386 ff for the integration of existing Drawer Units Drawer Unit Adapter Set, Table Depth 600 and Drawer Unit Adapter Set, Table Depth 750 have different fastening materials and their facings are different lengths © Copyright 2010 – item Industrietechnik GmbH 19

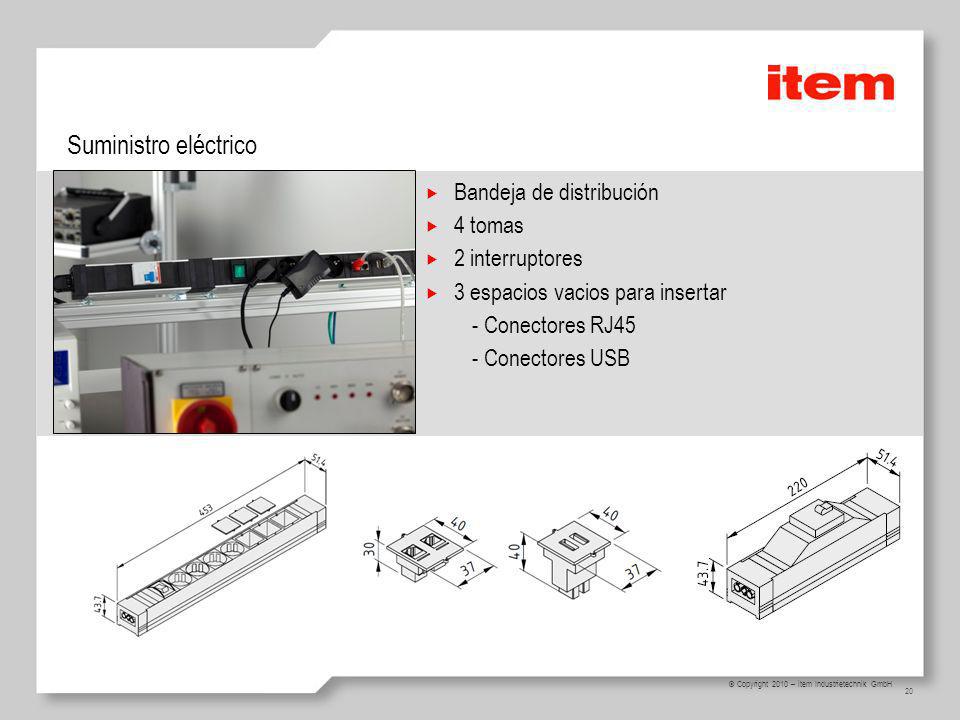

20 Suministro eléctrico Bandeja de distribución 4 tomas 2 interruptores
3 espacios vacios para insertar - Conectores RJ45 - Conectores USB Distribution Strip 4 sockets (German domestic standard) 2-pole switch 3 empty cavities for IT inserts Distribution strip inserts: Plug connection at front end - plug socket at rear end Caution: When planning how to fit the socket strip ensure that you allow sufficient space for the feed cables. Network Socket RJ45: RJ plug connections are interface connectors that have been standardised by the US Federal Communications Commission (FCC) for use in telecommunications cabling (Western plugs). The standards describe the shape of plugs and sockets and their pin assignments and are designated by the letters RJ – which stands for "Registered Jack" – followed by a number (e.g. RJ-45 - with or without the hyphen). Network Socket USB: The USB (Universal Serial Bus) is a serial data transfer system used to connect a computer with external devices. USB-capable devices or storage media can be interconnected when the unit is up and running. Distribution Strip Unit FI: Extremely small currents (30 mA), which can be generated by a defective electrical installation or damaged devices for example, can cause the power supply to be cut by the earth-leakage circuit-breaker. This protects the personal safety of employees by preventing electric shock. The second function of our FI unit is overload protection. The power supply is also cut (2-pole) when the current exceeds 20 A. © Copyright 2010 – item Industrietechnik GmbH

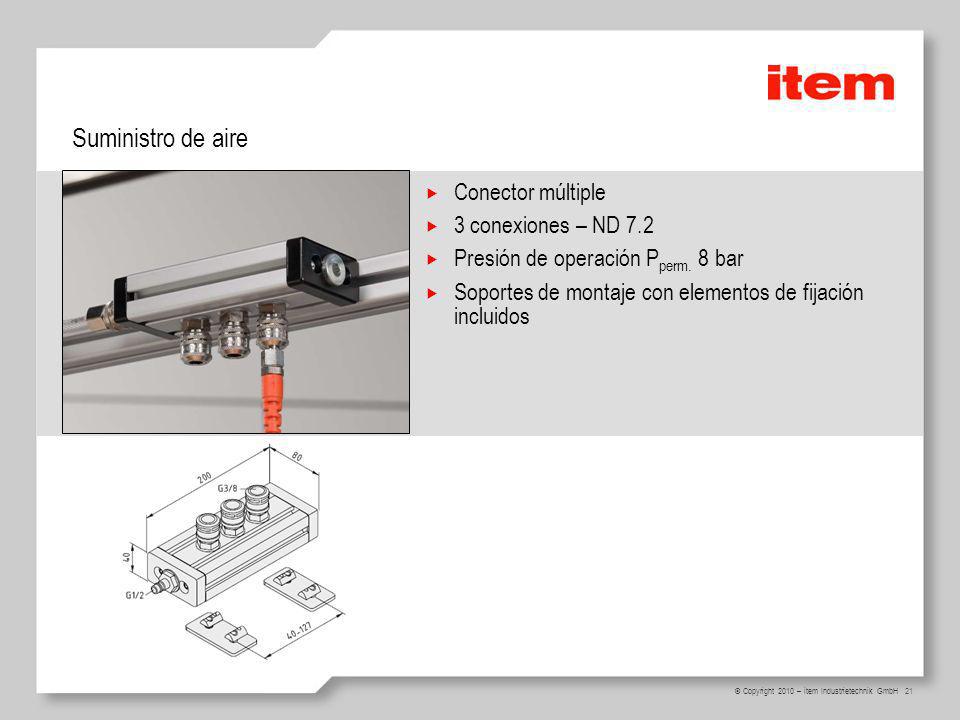

21 Suministro de aire Conector múltiple 3 conexiones – ND 7.2
Presión de operación Pperm. 8 bar Soportes de montaje con elementos de fijación incluidos Compressed Air Manifold 3 ND 7.2 vent couplings (ND = Nominal Diameter - dimension of the air outlet) Particularly when there is a high demand for compressed air, e.g. when using pneumatic wrenches, these can act as compressed air regulators and reduce the performance of the connected device Vent coupling (connected line is vented/depressurised when the unlocking device is actuated) Flat mounting brackets with fastening material as part of the set © Copyright 2010 – item Industrietechnik GmbH

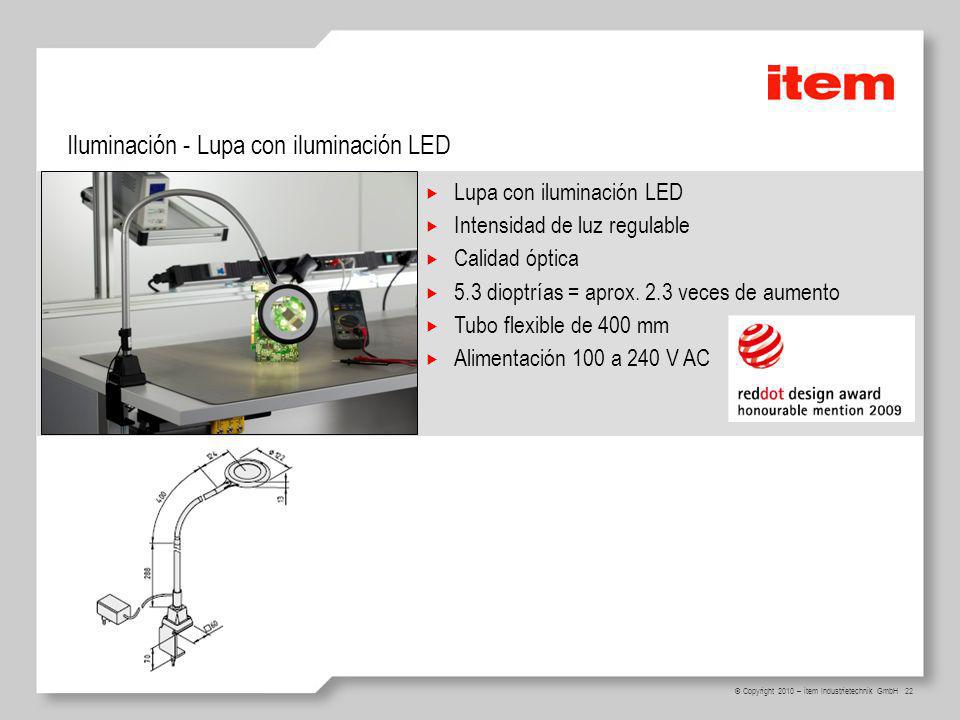

22 Iluminación - Lupa con iluminación LED
Intensidad de luz regulable Calidad óptica 5.3 dioptrías = aprox. 2.3 veces de aumento Tubo flexible de 400 mm Alimentación 100 a 240 V AC LED Illuminated Magnifier: 24 V DC with plug-in transformer (for all voltage ranges worldwide) Dimmable light intensity - integrated dimmer Four times more light per Watt for precise checking of workpieces in mechanical engineering and laboratory environments Long service life – 6 years of non-stop lighting High-tech optics focus the light on the surface being inspected Includes table clamp Quality optics: 5.3 diopter – 2.3 times magnification of the item being inspected Eschenbach plastic lens, hard coated, prevents scratches Stable 400 mm flexible tube For stable lens positioning The low weight of the plastic lens is also an advantage Power pack: Voltage range from 100 to 240 volts, 50/60 Hz. (100 to 240 V AC [AC = Alternating Current]) Plug adapter for the US included in scope of supply Adapters for other countries on request. reddot 2009 design award „Honourable Mention“ © Copyright 2010 – item Industrietechnik GmbH

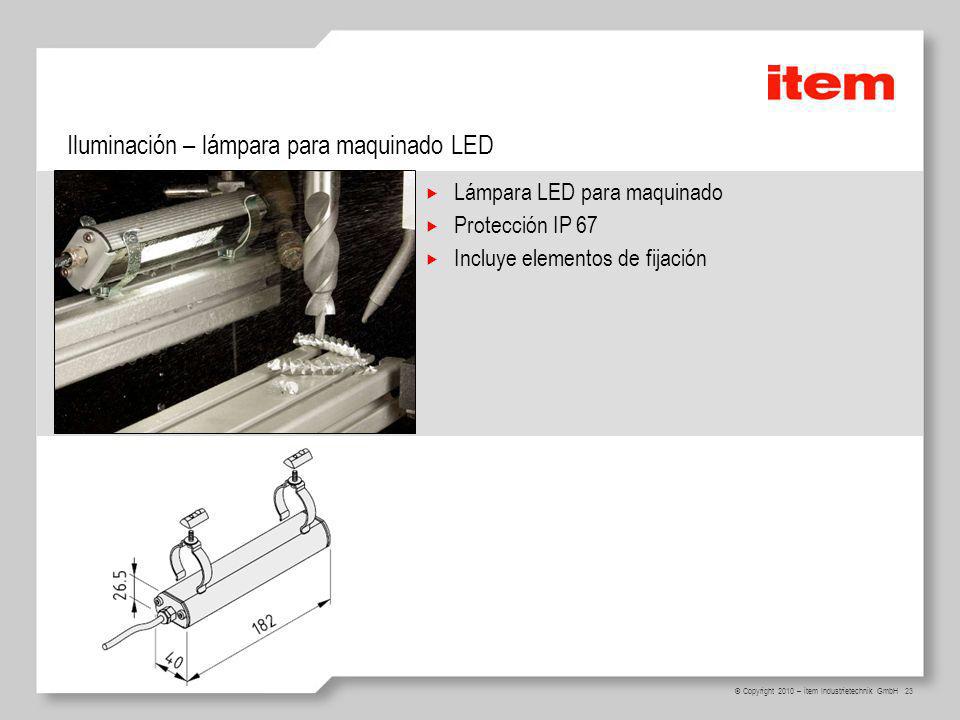

23 Iluminación – lámpara para maquinado LED
Lámpara LED para maquinado Protección IP 67 Incluye elementos de fijación LED Machine Light Fitting For lighting up a specific area within a machine Compact housing dimensions Clamping clips included in scope of supply Power supply 24 V DC (DC = Direct Current) Power consumption approx. 7 Watts External switch and power supply required Water-tight protective housing IP 67 6 = protection against large dust deposits 7 = protection against temporary submersion and strong water jets Protection class III (safety extra-low voltage below 50V AC and reinforced insulation) N.B.: A machine usually has a 24 V DC power supply for control systems, sensors, indicator lights, etc. As the LED Machine Light Fitting has a low power consumption it can be retrofitted easily, without overloading the internal power supply. © Copyright 2010 – item Industrietechnik GmbH

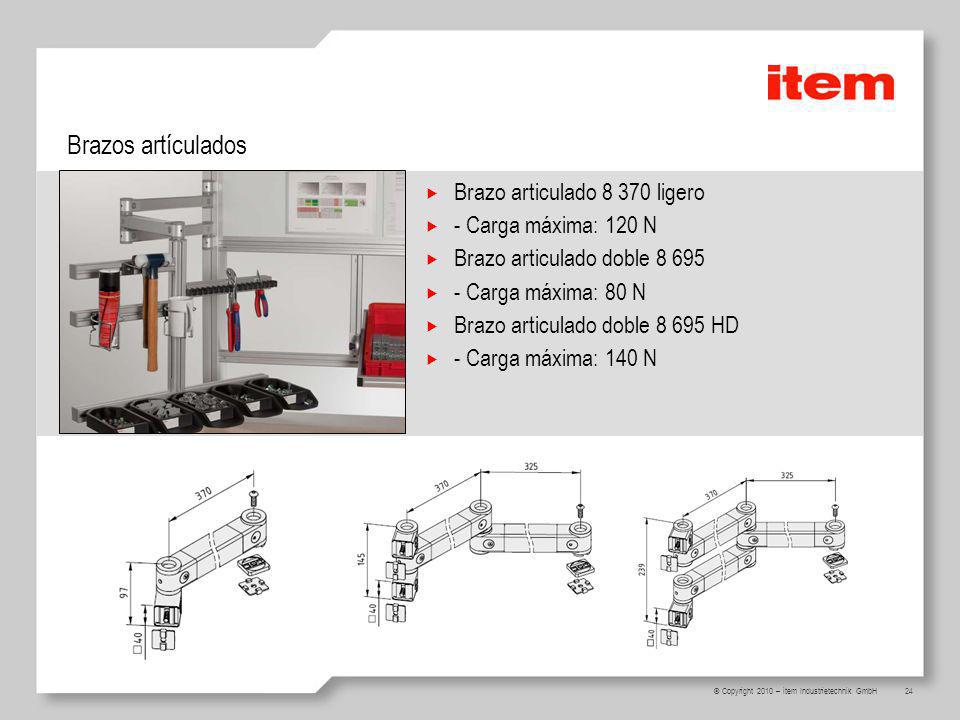

24 Brazos artículados Brazo articulado 8 370 ligero - Carga máxima: 120 N
Brazo articulado doble 8 695 - Carga máxima: 80 N Brazo articulado doble HD - Carga máxima: 140 N Pivot Arm light Fastens to Profile 8 horizontally or vertically, with special anti-torsion block Vertical fastening is preferable as this allows forces to be transferred more efficiently to the Profile (lever arm) Slide-bearing hinges Frictional force can be adjusted via brass clamping devices and the stainless steel tubular axle. Optimum material combination – no seizing even with strong clamping forces. - Supports up to 120 N Double Pivot Arm 8 695 - Supports up to 80 N Double Pivot Arm heavy-duty - Supports up to 140 N © Copyright 2010 – item Industrietechnik GmbH

25 Soportes, ganchos equilibradores
Ganchos 40x40, 80x20 and 40x20 Soporte 8 240x80 Soporte 8 D80 Soporte paño 8 Holders and hooks of various types Comprises: A plastic part – the wire mount – that holds in place the shaped wire holder and assembly material for fastening the device to a Profile 8 groove The products: Cloth Holder 8 Hooks 40x40, 80x20 and 40x20 Holder 8 D80 Holder 8 240x80 © Copyright 2010 – item Industrietechnik GmbH

26 Soportes, ganchos equilibradores
Soporte taza Soporte botella Soporte herramienta Bottle Holder Cup Holder Tool Holder (with shock-absorbent PU housing) © Copyright 2010 – item Industrietechnik GmbH

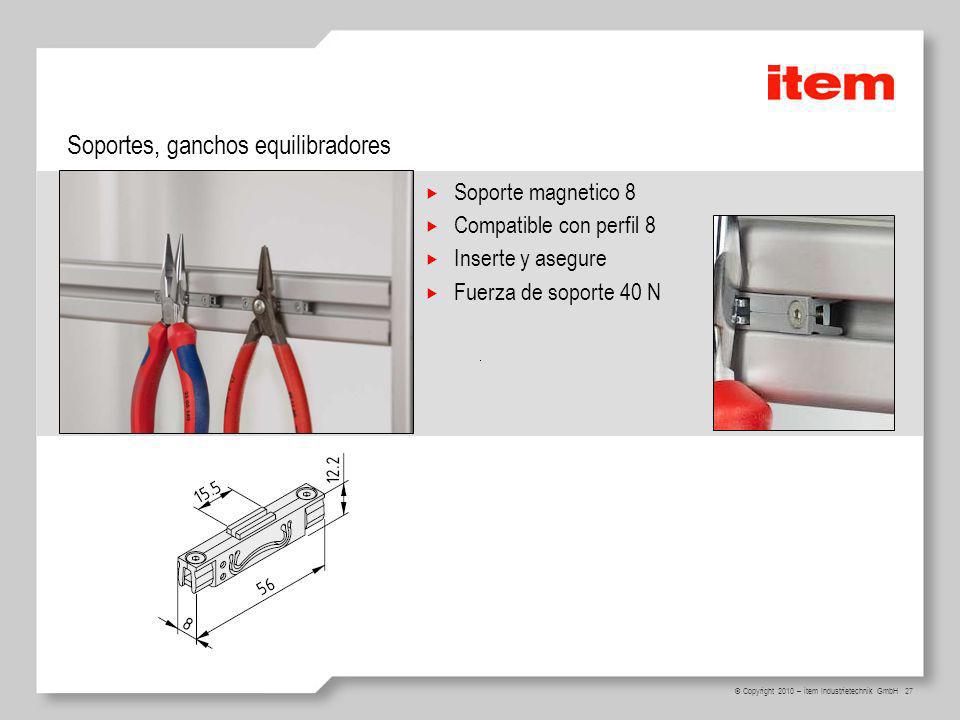

27 Soportes, ganchos equilibradores
Soporte magnetico 8 Compatible con perfil 8 Inserte y asegure Fuerza de soporte 40 N Magnetic Holder 8 Compatible with Profile 8 groove For securely stowing metallic objects on the non-magnetic aluminium Profile Easily inserted into the groove and fixed securely in place in the groove using a splaying mechanism © Copyright 2010 – item Industrietechnik GmbH

28 Soportes, ganchos equilibradores

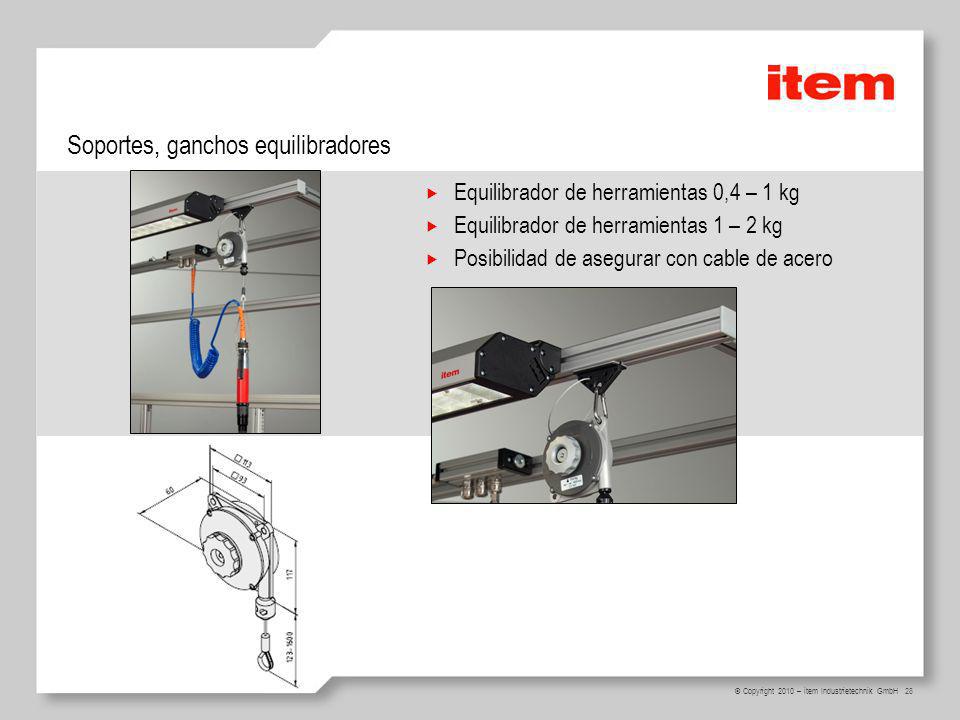

Equilibrador de herramientas 0,4 – 1 kg Equilibrador de herramientas 1 – 2 kg Posibilidad de asegurar con cable de acero Perfect equilibrium: Spring force is adjusted manually to the load being carried Two Tool Balancers are available for various tool weights: Tool Balancer 0.4 – 1 kg Tool Balancer 1 – 2 kg Recommendation: Additional securing by attaching supplied wire loop to Runner © Copyright 2010 – item Industrietechnik GmbH

29 Soportes, ganchos equilibradores
Base PC Fácil de ajustar - Ancho 80 – 240 mm - Altura 310 – 530 mm PC Mount can be adjusted for various housing dimensions Width 80 – 240 mm Height 310 – 530 mm Incredibly easy to use Release the mechanical fixing and adjust the computer housing in the mount Lock the fixing back into place Various fastening points; assembly materials for fitting the PC Mount to the underside of a Table Top are included. The features: Linear bearing for sliding the housing forwards and backwards Rotational bearing for rotating the PC All connections are easily accessible Cojinetes de deslizamiento lineales Cojinetes para movimientos rotacionales © Copyright 2010 – item Industrietechnik GmbH

30 Soportes, ganchos equilibradores

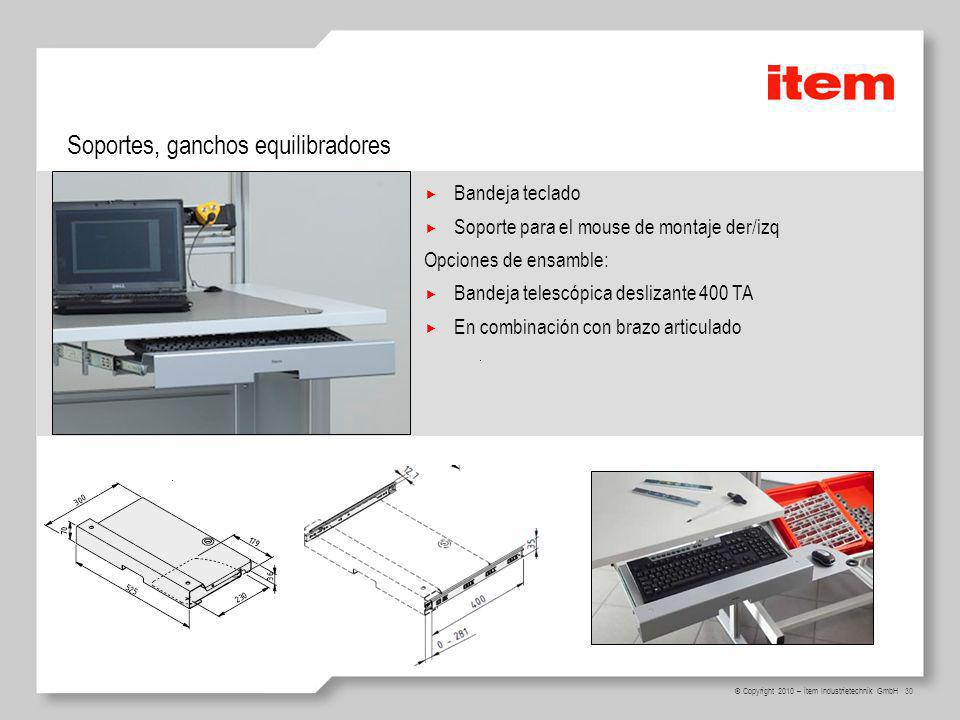

Bandeja teclado Soporte para el mouse de montaje der/izq Opciones de ensamble: Bandeja telescópica deslizante 400 TA En combinación con brazo articulado Keyboard Shelf with mouse rest Robust sheet metal design with fold-out mouse shelf The mouse rest can be fitted on the right or left The Keyboard Shelf is integrated into the work bench via a Pivot Arm or Telescopic Slide 400 TA (partial pull-out), specially adapted fastening set for rapid under-table fitting is still being developed. Note: The perceived stability of the keyboard pull-out depends on the mechanical fastening under the Table Top. © Copyright 2010 – item Industrietechnik GmbH

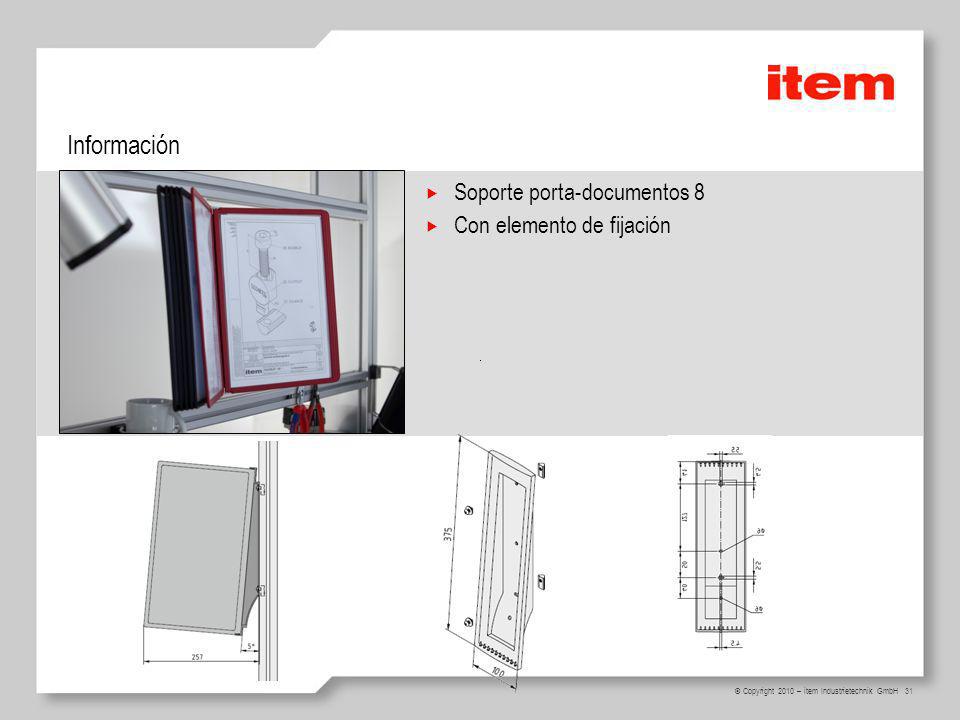

31 Información Soporte porta-documentos 8 Con elemento de fijación
Safety notices, working plans, production workflows, etc. are clearly presented in protective display panels. Two colour-coded categories can be used to differentiate display panels. Display Panel Holder 8 - Enclosed assembly material - screws, washers and T-Slot Nuts - for fastening to Profile 8 © Copyright 2010 – item Industrietechnik GmbH

32 Información Soporte porta-documentos 8 Portadocumentos PP, negro
Portadocumentos PP, rojo Display Panel PP, black Display Panel PP, red © Copyright 2010 – item Industrietechnik GmbH

33 Información Material compuesto St 2 mm (tablero magnetizable)
Ideal para escribir y ubicar porta-documentos Superficie blanca Compound Material St 2 mm (whiteboard - magnetizeable) 5-layer with steel inlay in order that magnets adhere to the surface Can be used as a whiteboard with appropriate whiteboard marker pens Also suitable for fitting information panels, flip charts, and so on. © Copyright 2010 – item Industrietechnik GmbH

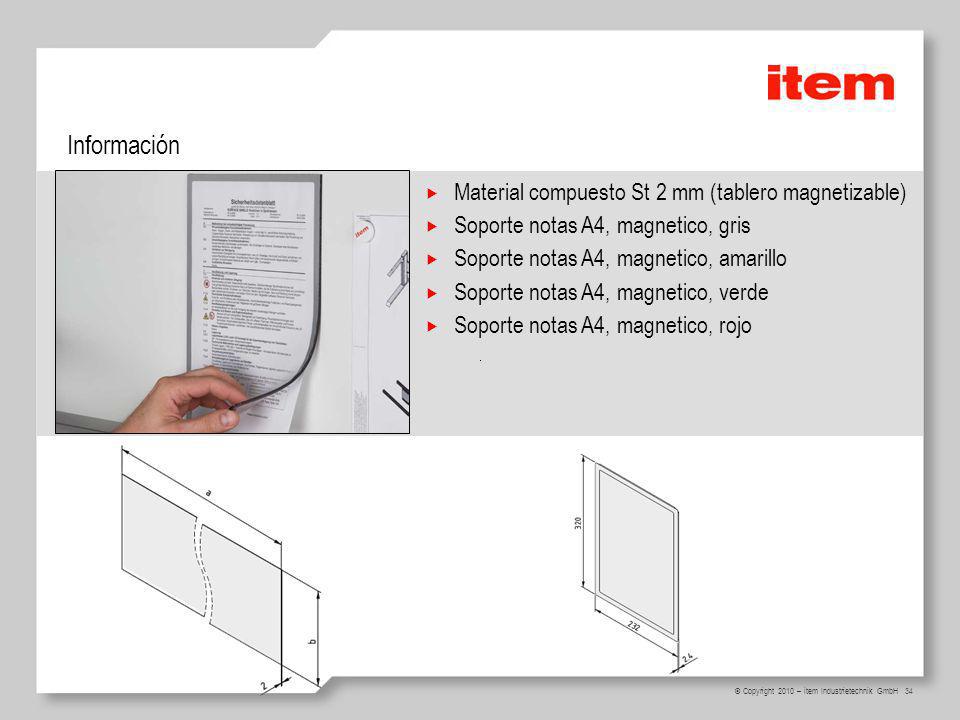

34 Información Material compuesto St 2 mm (tablero magnetizable)
Soporte notas A4, magnetico, gris Soporte notas A4, magnetico, amarillo Soporte notas A4, magnetico, verde Soporte notas A4, magnetico, rojo Additionally: Notice Holders A4 magnetic adhere magnetically to Compound Material St 2 mm In four colours: Grey Yellow Green Red © Copyright 2010 – item Industrietechnik GmbH

35 ESD ESD – un requerimiento importante
ESD – a crucial requirement The ability to dissipate electrostatic charges is a crucial requirement for any modern work bench. Measuring devices, production equipment and of course electronic workpiece components themselves – all of these can be damaged or destroyed by charges. A work bench concept must take into account all the components involved in a process, make all the corresponding accessories available to the operator and involve the employees themselves. Includes ESD: Dissipative components and tables for the protection of electronic components ESD – un requerimiento importante Esencial en los puestos de trabajo modernos © Copyright 2010 – item Industrietechnik GmbH

36 ESD Manilla ESD ESD Cable de conexión DK 10, embobinado
ESD Cable de conexión DK 10, recto ESD Wristband Nylon wristband with snap fastener DK 10 (DK 10 = snap fastener with diameter of 10 mm) Hypoallergenic Connected to ESD Earthing Terminal or Earthing Plug 3 x DK 10 via ESD Connection Cable ESD Connection Cable DK 10 – coiled cable with integrated discharge resistance of 1 Mohm ESD Connection Cable DK 10, straight © Copyright 2010 – item Industrietechnik GmbH

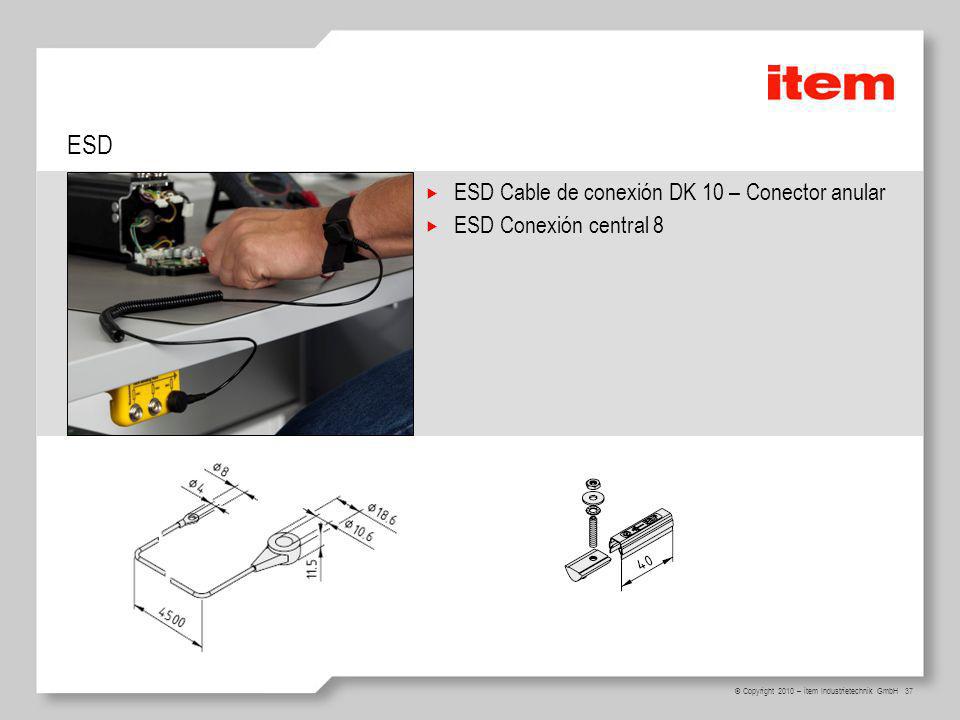

37 ESD ESD Cable de conexión DK 10 – Conector anular
ESD Conexión central 8 ESD Connection Cable DK 10 – Ring Terminal - e.g. for connecting to ESD Central Connection 8 ESD Central Connection 8 comprises: T-Slot Nut Grub screw Washers Nut Printed cover profile (labelling is mandatory) © Copyright 2010 – item Industrietechnik GmbH

38 ESD ESD Alfombrilla Terminal a tierra, 3 x DK10 mm
R = 1 MOhm en cada terminal ESD Table Mat comprises: Compound covering made from abrasion-resistant synthetic rubber Two snap fasteners DK10 for connecting a connection cable Earthing Terminal, 3 x 10 DK - For dissipating static charges via the central earthing system - Discharge resistance 1 Mohm for "gentle" dissipation. © Copyright 2010 – item Industrietechnik GmbH

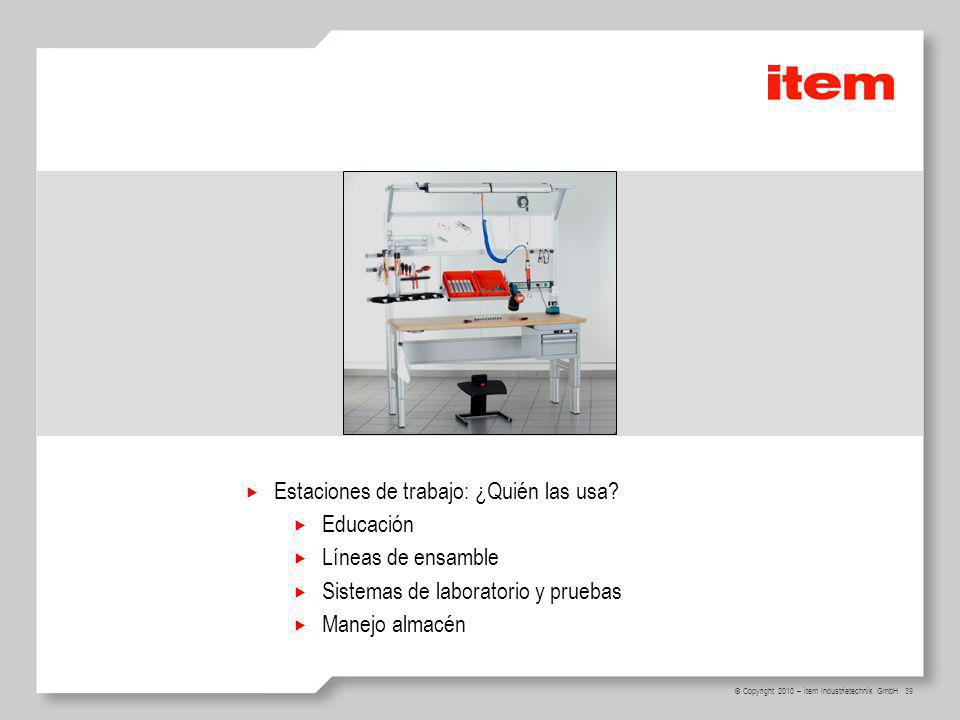

39 Estaciones de trabajo: ¿Quién las usa? Educación Líneas de ensamble
Sistemas de laboratorio y pruebas Manejo almacén © Copyright 2010 – item Industrietechnik GmbH

40 Solución Item ► ESTACIONES PARA TRABAJO NEUMÁTICO Entidades educativas
Empresas del sector automatización Solución Item ► © Copyright 2010 – item Industrietechnik GmbH

41 © Copyright 2010 – item Industrietechnik GmbH

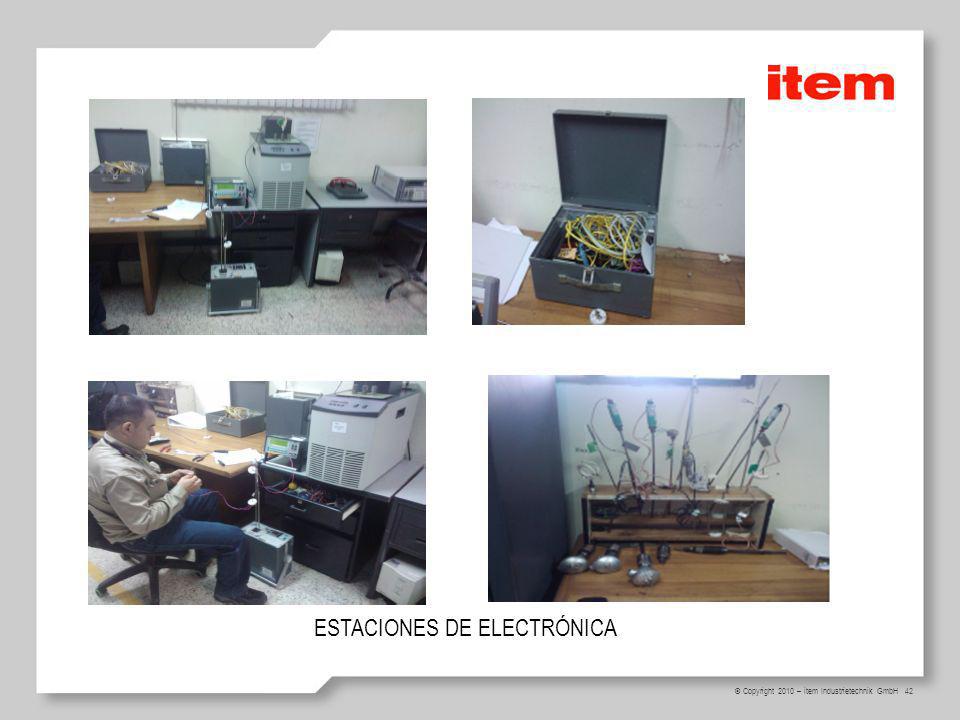

42 ESTACIONES DE ELECTRÓNICA
© Copyright 2010 – item Industrietechnik GmbH

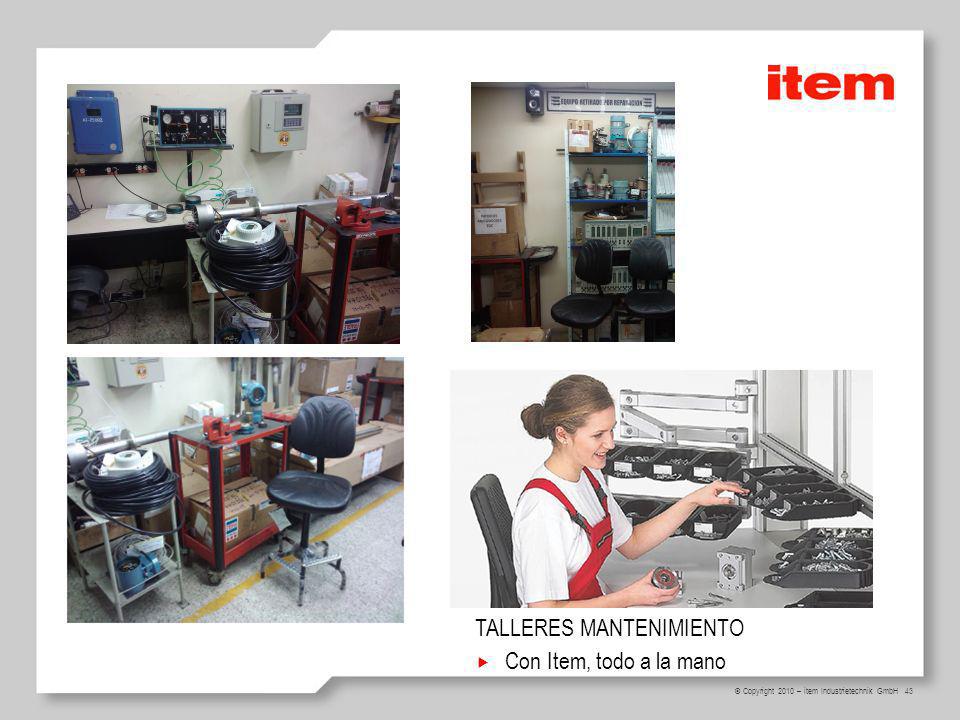

43 TALLERES MANTENIMIENTO Con Item, todo a la mano
© Copyright 2010 – item Industrietechnik GmbH

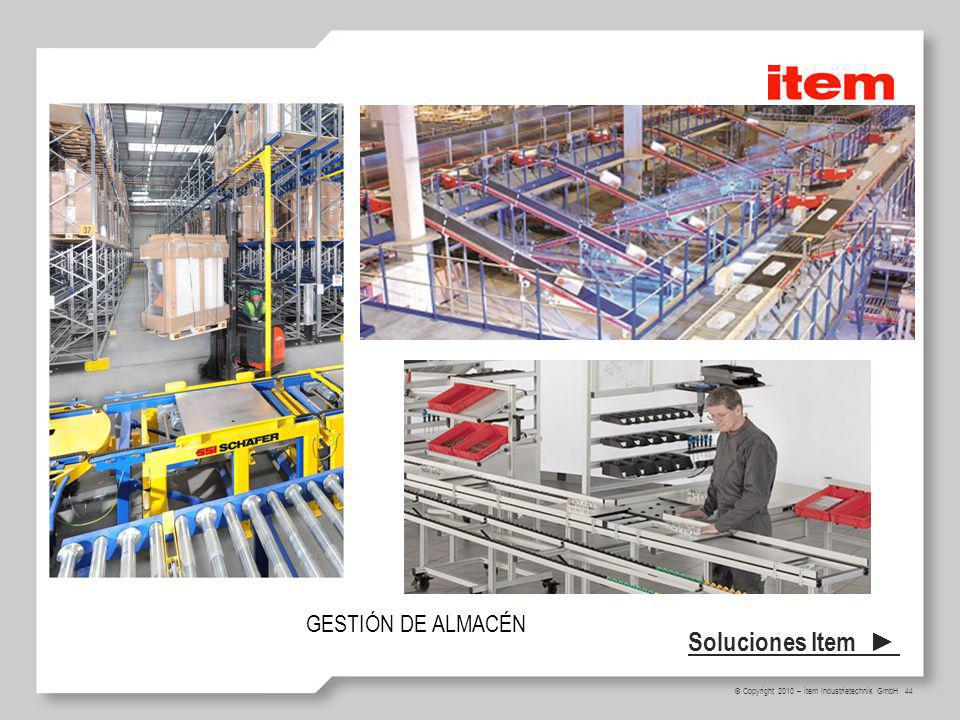

44 Soluciones Item ► GESTIÓN DE ALMACÉN
© Copyright 2010 – item Industrietechnik GmbH

45 Configurador en línea Simple, rápido y preciso
Configure the table of your choice Step-by-step online process Simple Fast And accurate Modular depiction can be transferred to design software. This means that details can be developed and work bench landscapes designed. Simple, rápido y preciso Posibilidad de generar CAD Configuración en línea – paso a paso © Copyright 2010 – item Industrietechnik GmbH 45
