Introduction to IC Design

Presentaciones similares


Presentación del tema: "Introduction to IC Design"— Transcripción de la presentación:

1 Introduction to IC Design
Tsung-Chu Huang (黃宗柱) Department of Electronic Eng. Chong Chou Institute of Tech. 2003/11/03

2 Outline CMOS Logic Gate Design Standard Cell Layout Gate Array Layout
Sea of Gates CMOS Layout Guideline Transmission Gate Layout MUX Layout CMOS Logic Structures Clocking Strategies I/O Structures Low-Power Design

3 To that nearest to output in the serial transistors

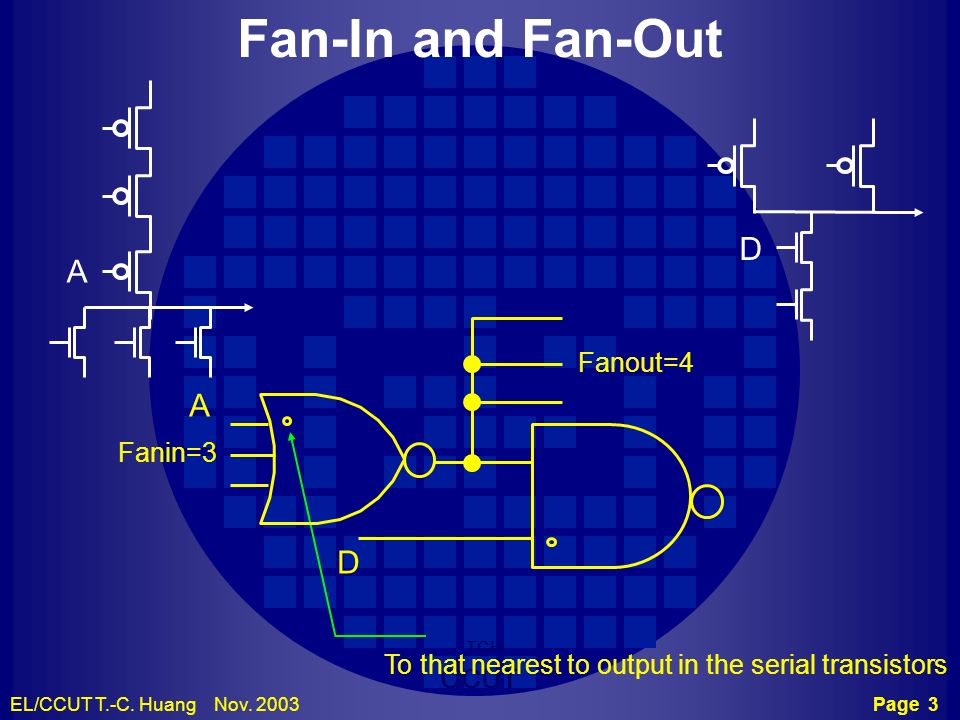

Fan-In and Fan-Out A D Fanin=3 Fanout=4 A D To that nearest to output in the serial transistors

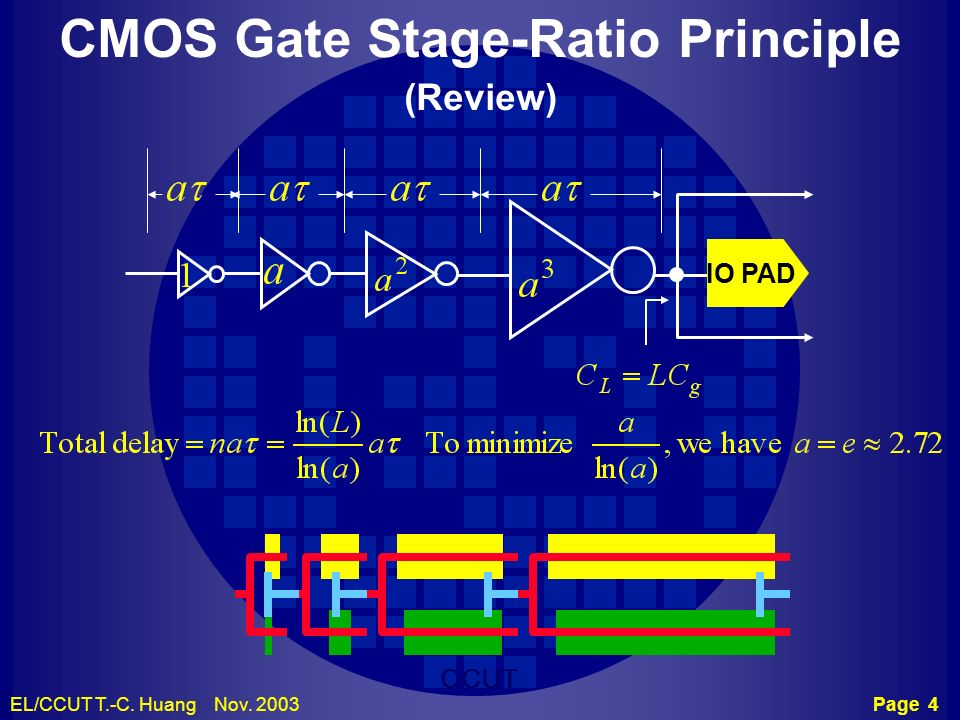

4 CMOS Gate Stage-Ratio Principle
(Review) IO PAD

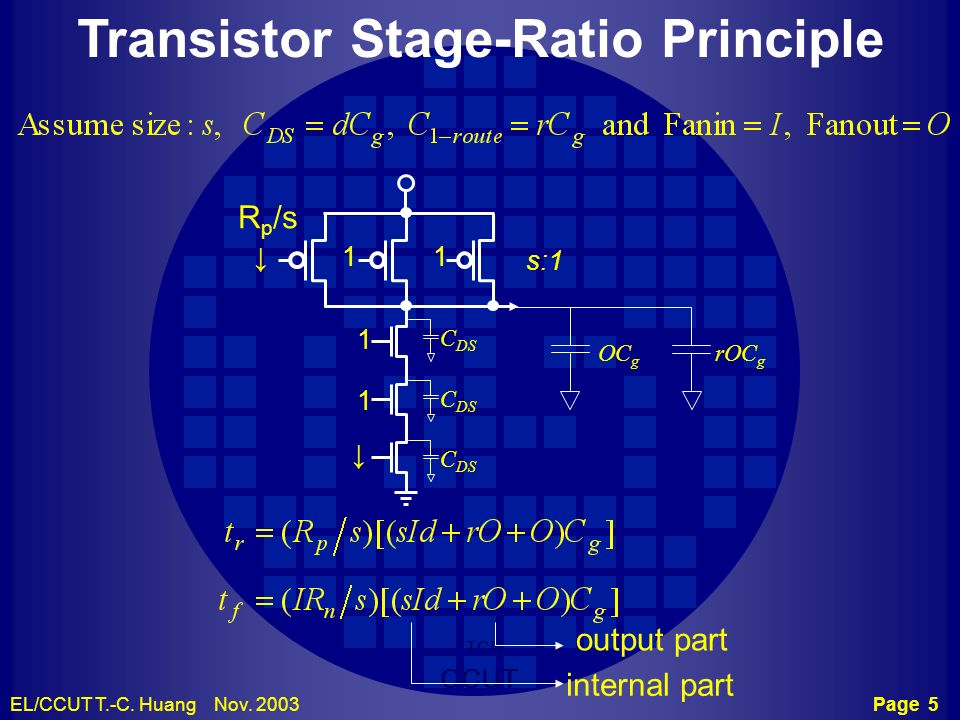

5 Transistor Stage-Ratio Principle
1 CDS OCg s:1 Rp/s rOCg output part internal part

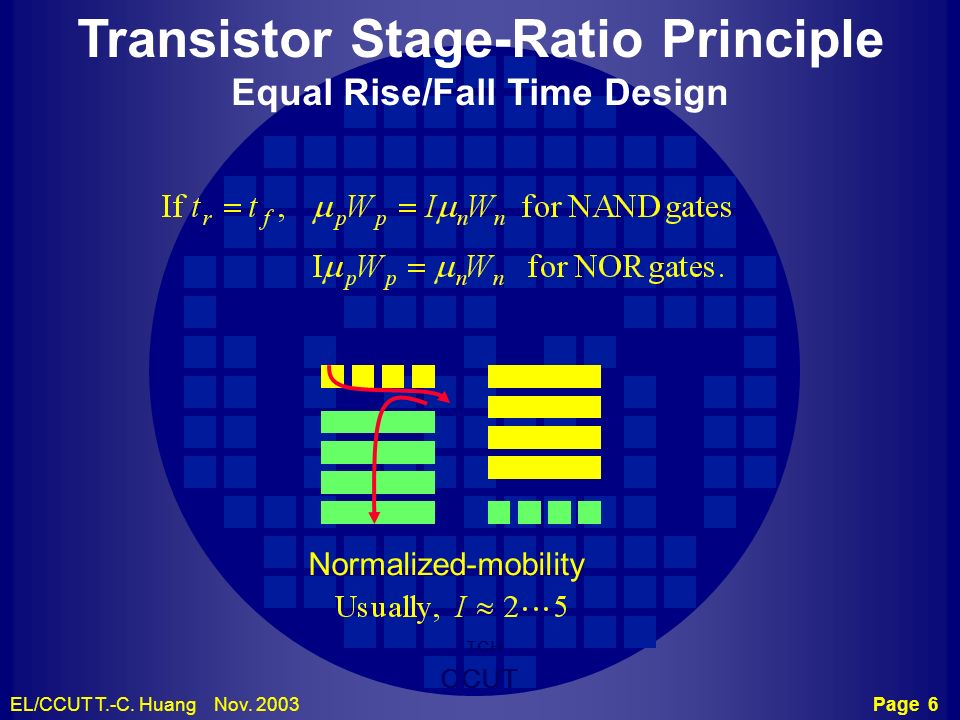

6 Transistor Stage-Ratio Principle Equal Rise/Fall Time Design
Normalized-mobility

7 Transistor Stage-Ratio Principle High-Speed Design Guideline
Use NAND instead of NOR gates Place inverters at high-fanout nodes Fanin < 5; Fanout < 10 Use min.-sized gates on high-fanout nodes; Keep Rise/Fall edges sharp

8 Complex Logic Gate Layout
Euler Path (Review)

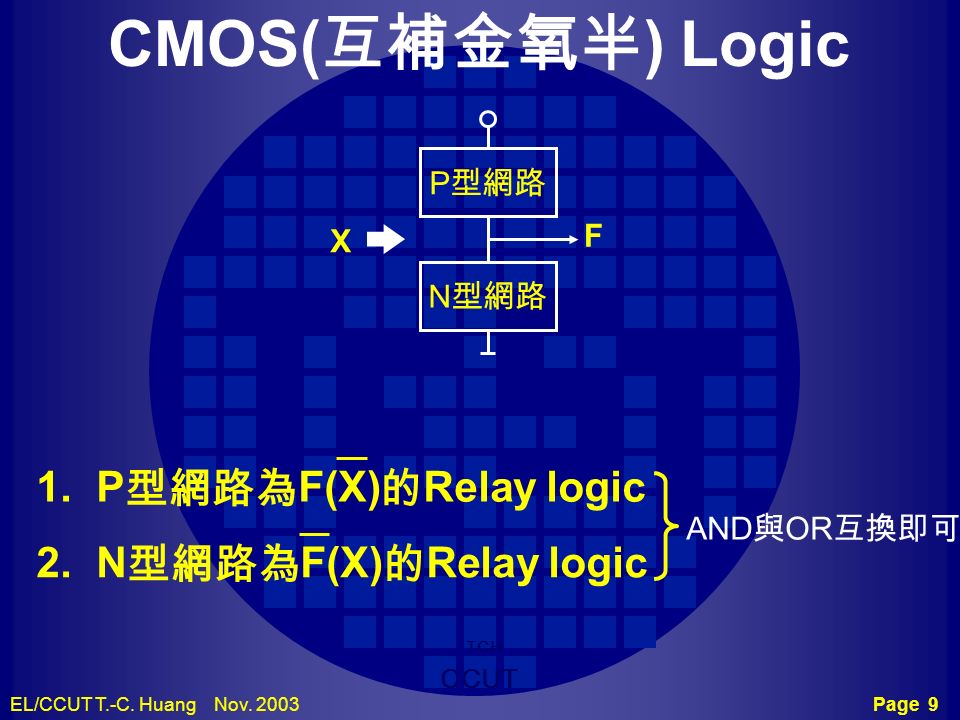

9 CMOS(互補金氧半) Logic P型網路為F(X)的Relay logic N型網路為F(X)的Relay logic P型網路 F X
AND與OR互換即可 N型網路為F(X)的Relay logic

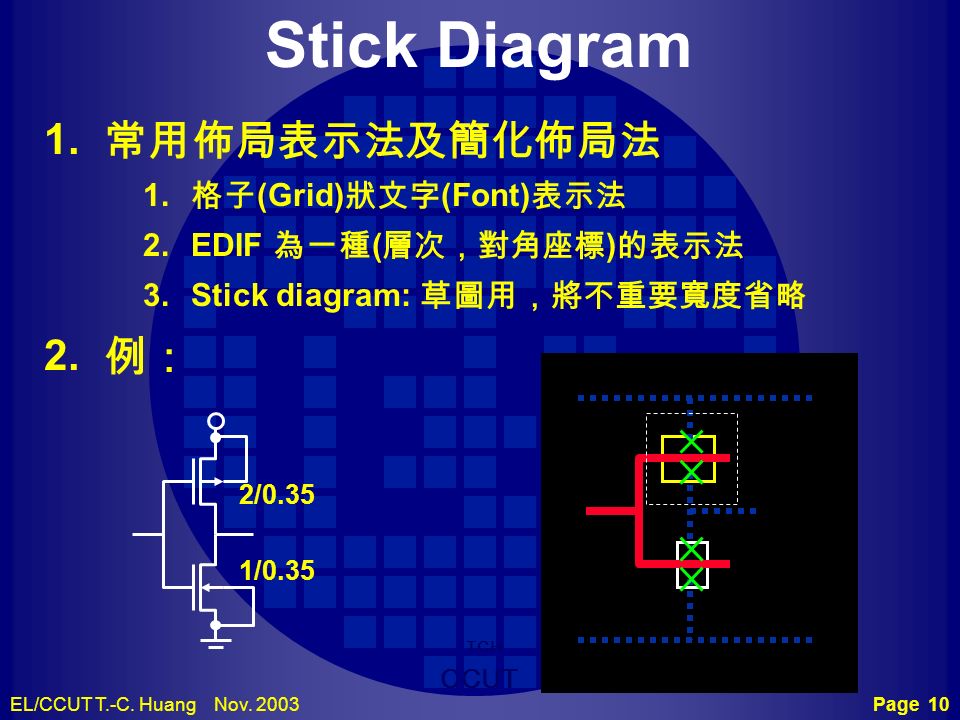

10 Stick Diagram 常用佈局表示法及簡化佈局法 例: 格子(Grid)狀文字(Font)表示法
EDIF 為一種(層次,對角座標)的表示法 Stick diagram: 草圖用,將不重要寬度省略 例: 2/0.35 1/0.35

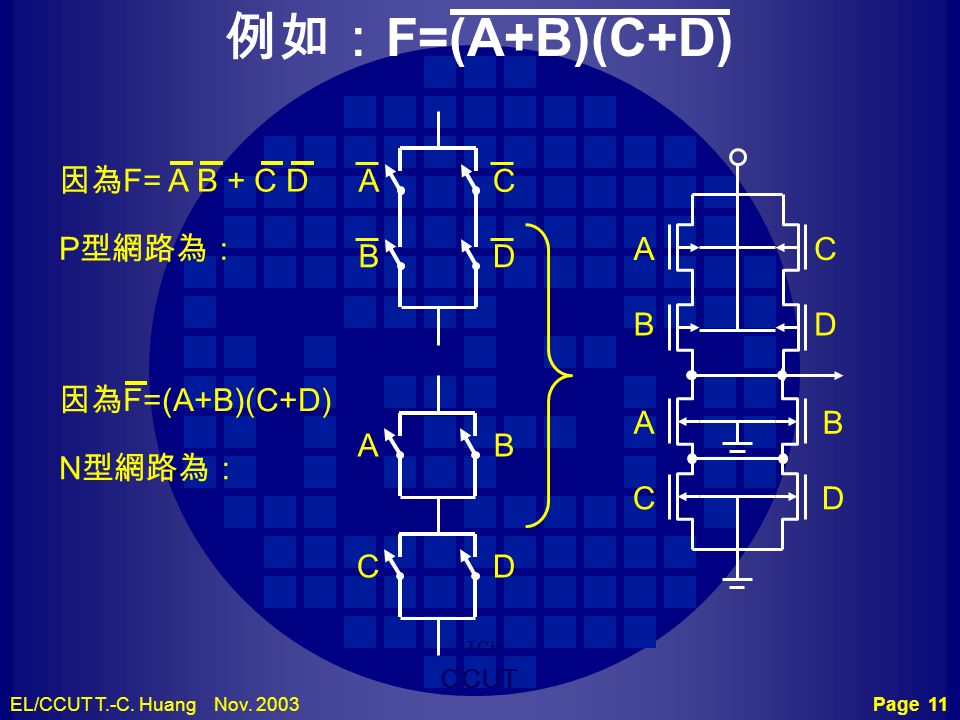

11 例如:F=(A+B)(C+D) A B C D A B C D 因為F= A B + C D P型網路為: 因為F=(A+B)(C+D) A
N型網路為:

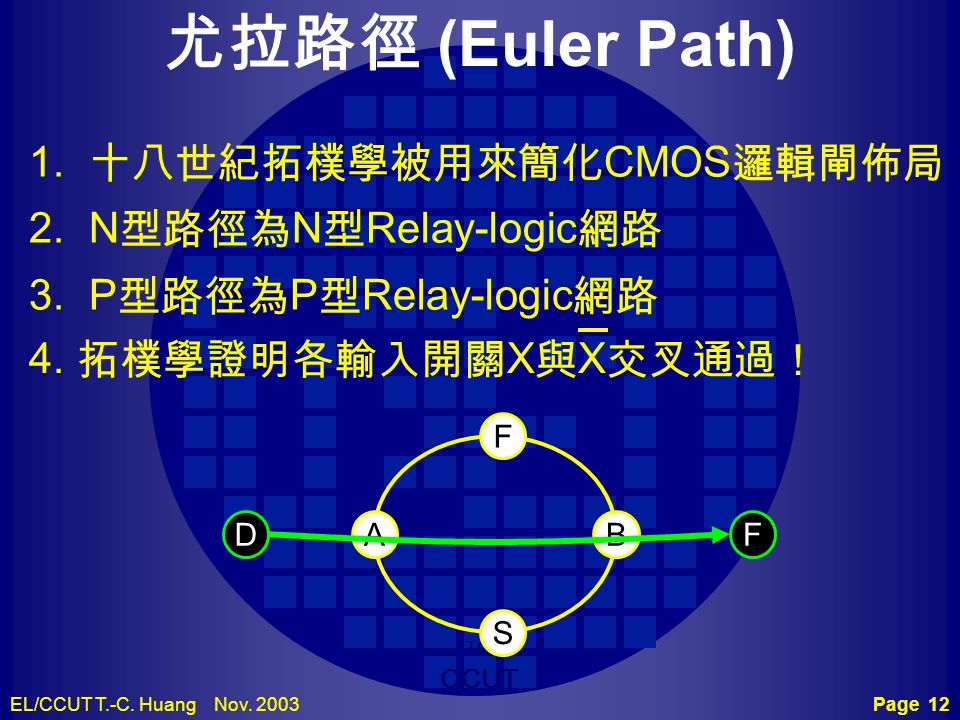

12 尤拉路徑 (Euler Path) 十八世紀拓樸學被用來簡化CMOS邏輯閘佈局 N型路徑為N型Relay-logic網路
P型路徑為P型Relay-logic網路 拓樸學證明各輸入開關X與X交叉通過! B A F S F D

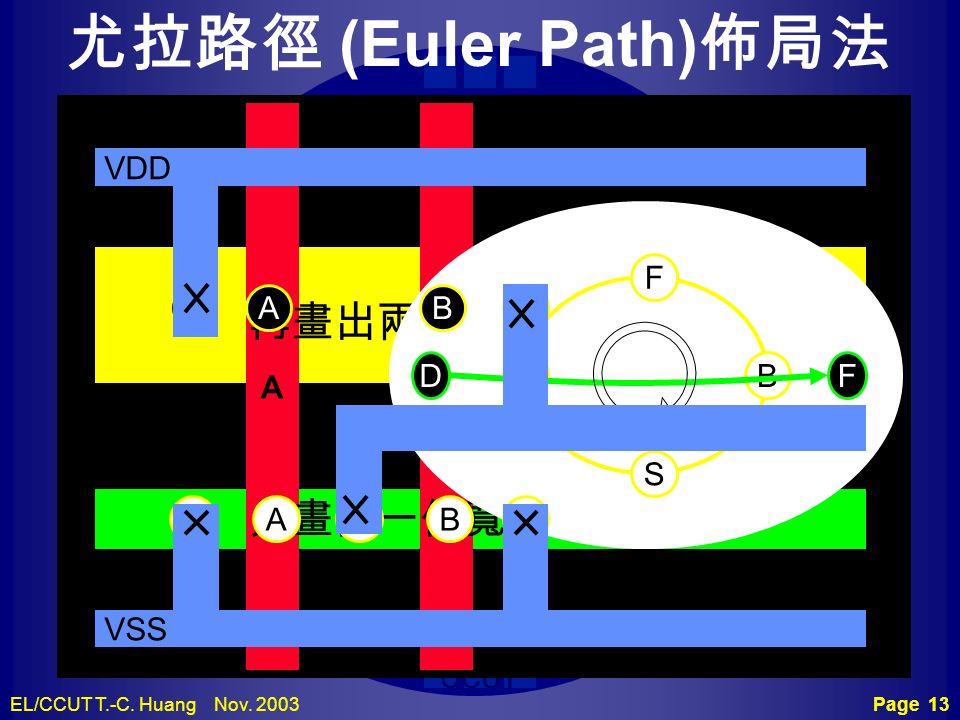

13 尤拉路徑 (Euler Path)佈局法 再畫出兩倍寬度的P+IMP 先畫出一倍寬度的N+IMP A B VDD B A F S D A B
VSS

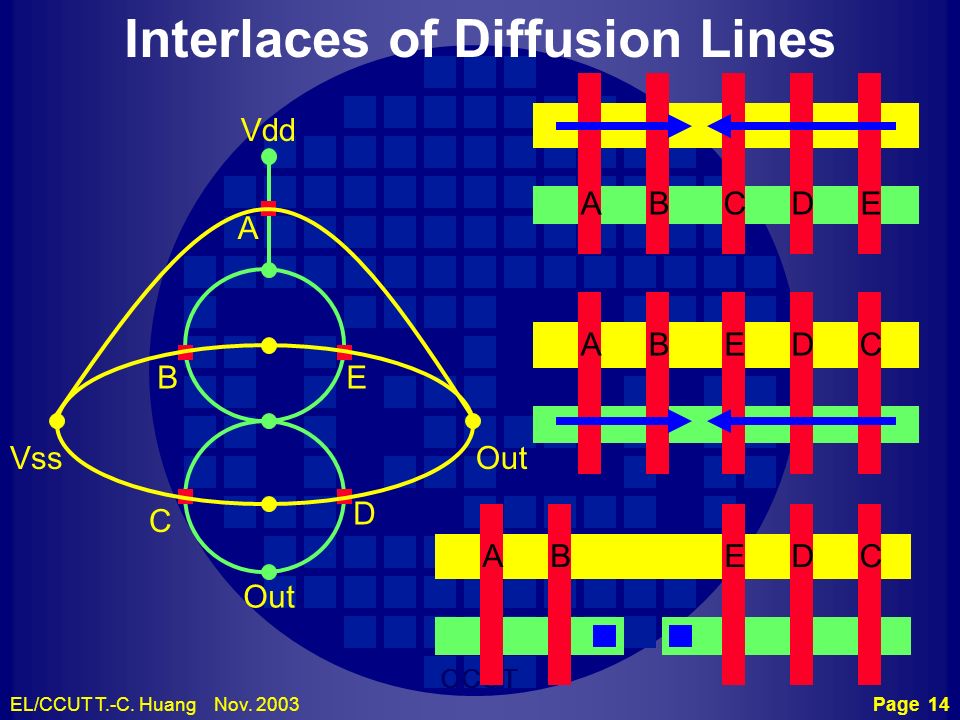

14 Interlaces of Diffusion Lines
B C D E A B C E D Vdd Out Vss Out A B E D C A B E D C

15 Minimum Interlace Algorithm

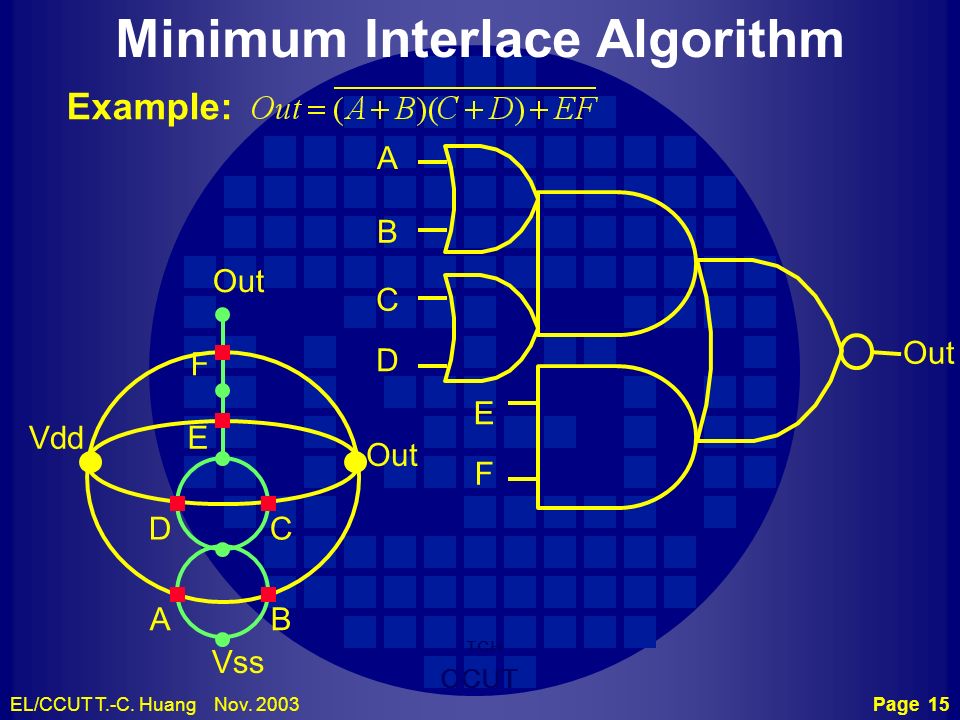

Example: A B C D E F Out Out Vss F E D C A B Out Vdd

16 Minimum Interlace Algorithm

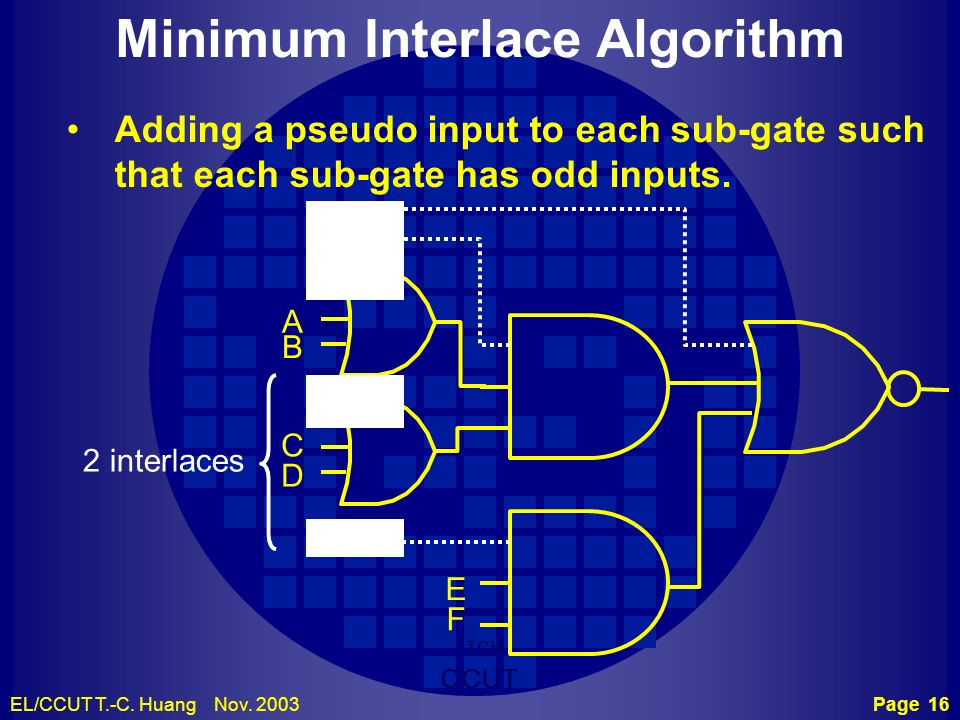

Adding a pseudo input to each sub-gate such that each sub-gate has odd inputs. A B C D E F 2 interlaces

17 Minimum Interlace Algorithm

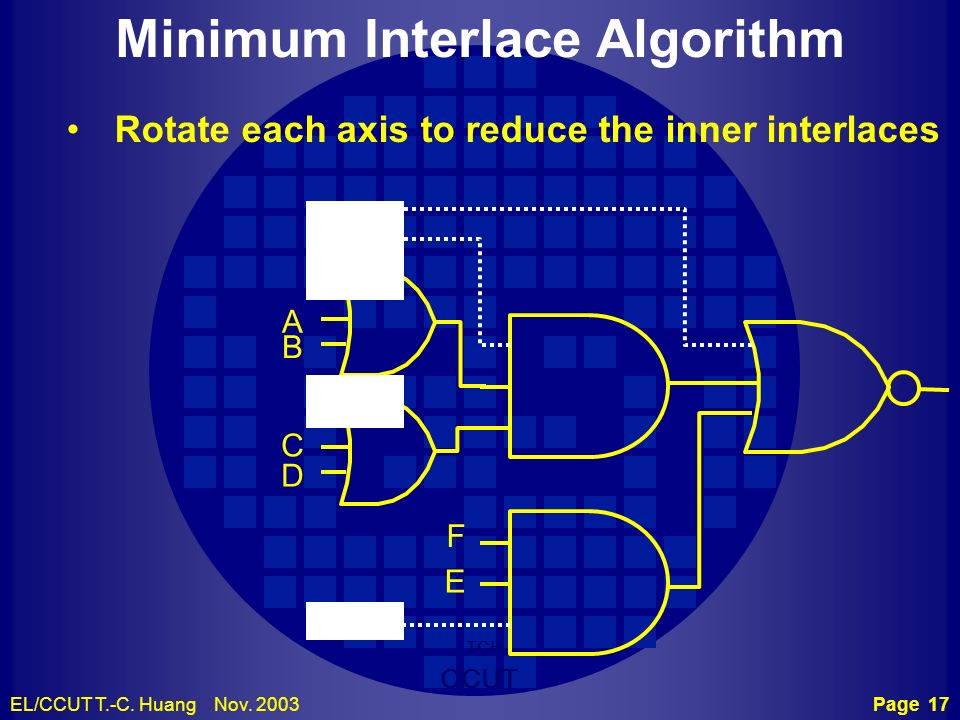

Rotate each axis to reduce the inner interlaces A B C D E F

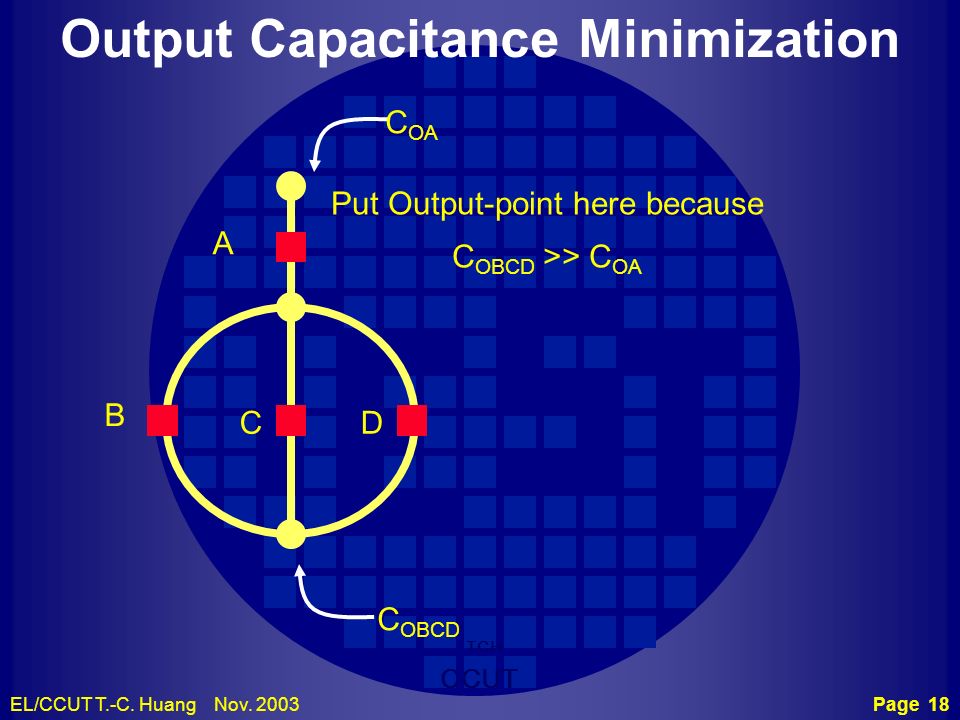

18 Output Capacitance Minimization
B C D COA COBCD COBCD >> COA Put Output-point here because

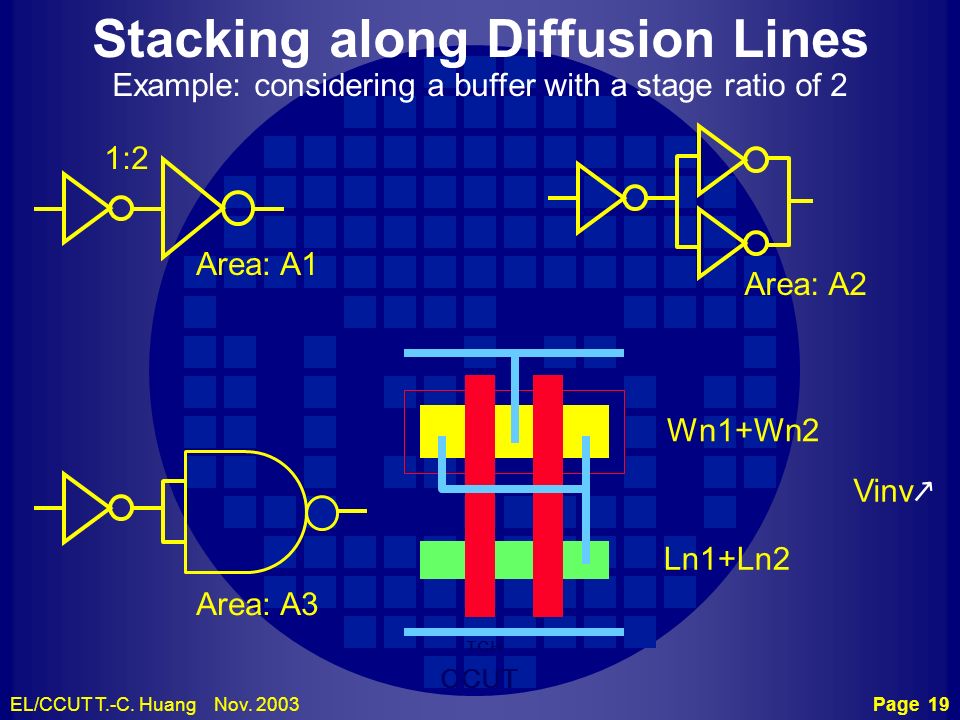

19 Stacking along Diffusion Lines
Example: considering a buffer with a stage ratio of 2 Area: A2 1:2 Area: A1 Ln1+Ln2 Wn1+Wn2 Area: A3 Vinv↗

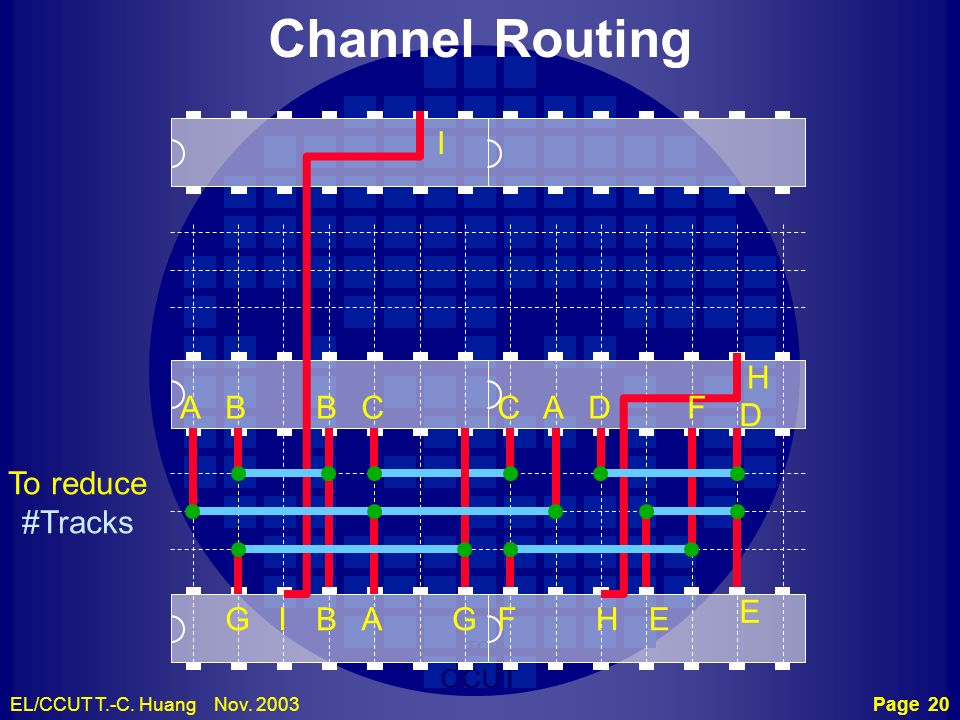

20 Channel Routing I H A B B C C A D F D To reduce #Tracks E G I B A G F

21 LEA: Left-Edge Algorithm

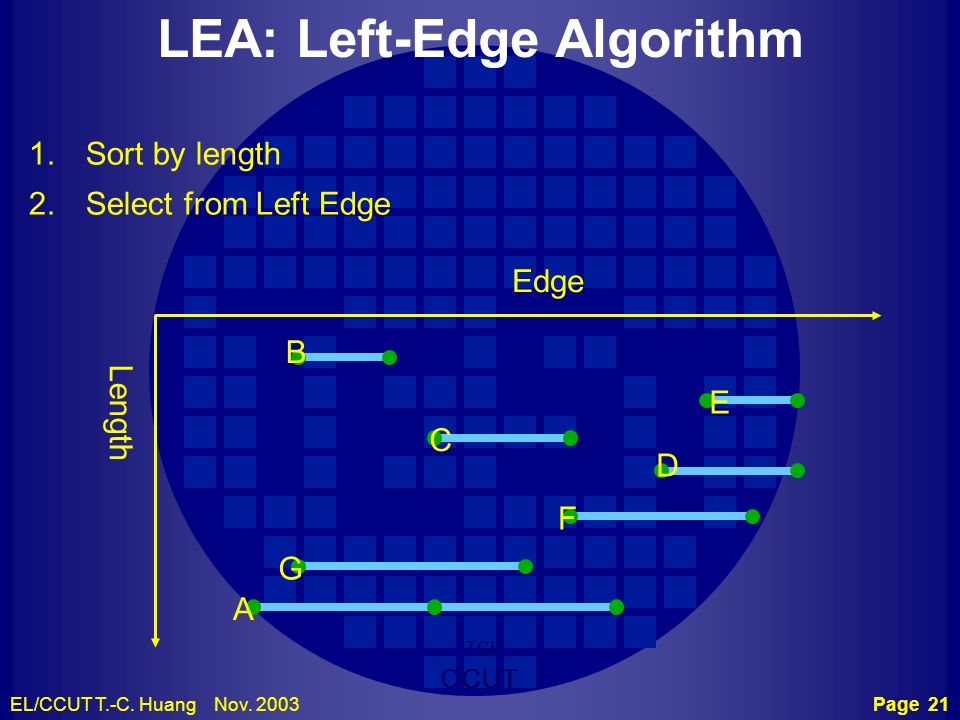

Sort by length Select from Left Edge A B C D F G E Length Edge

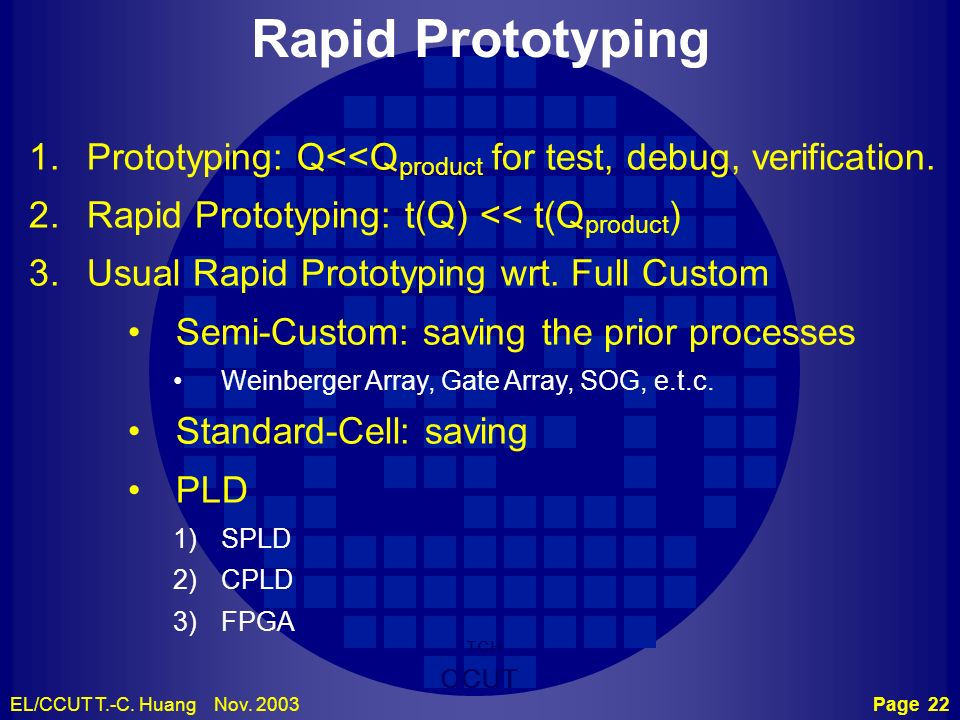

22 Rapid Prototyping Prototyping: Q<<Qproduct for test, debug, verification. Rapid Prototyping: t(Q) << t(Qproduct) Usual Rapid Prototyping wrt. Full Custom Semi-Custom: saving the prior processes Weinberger Array, Gate Array, SOG, e.t.c. Standard-Cell: saving PLD SPLD CPLD FPGA

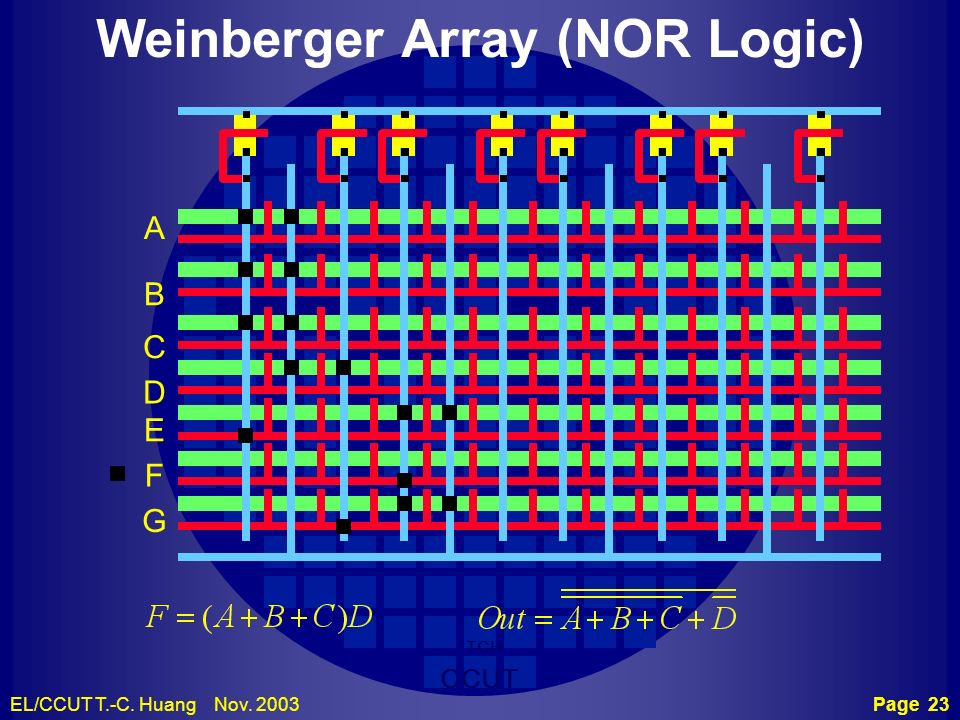

23 Weinberger Array (NOR Logic)
D E F G

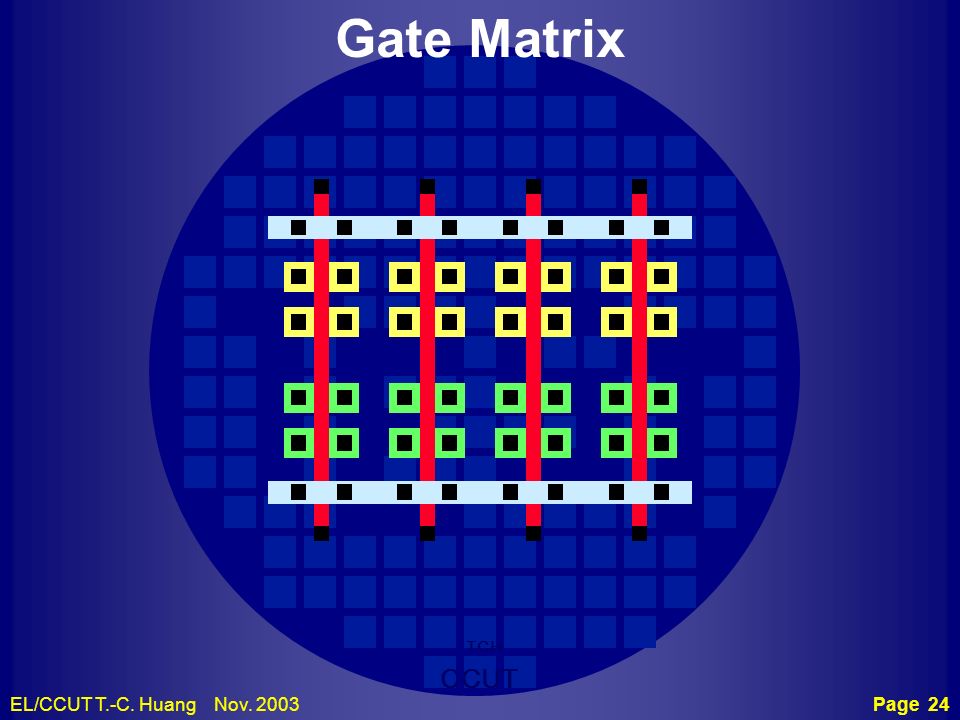

24 Gate Matrix

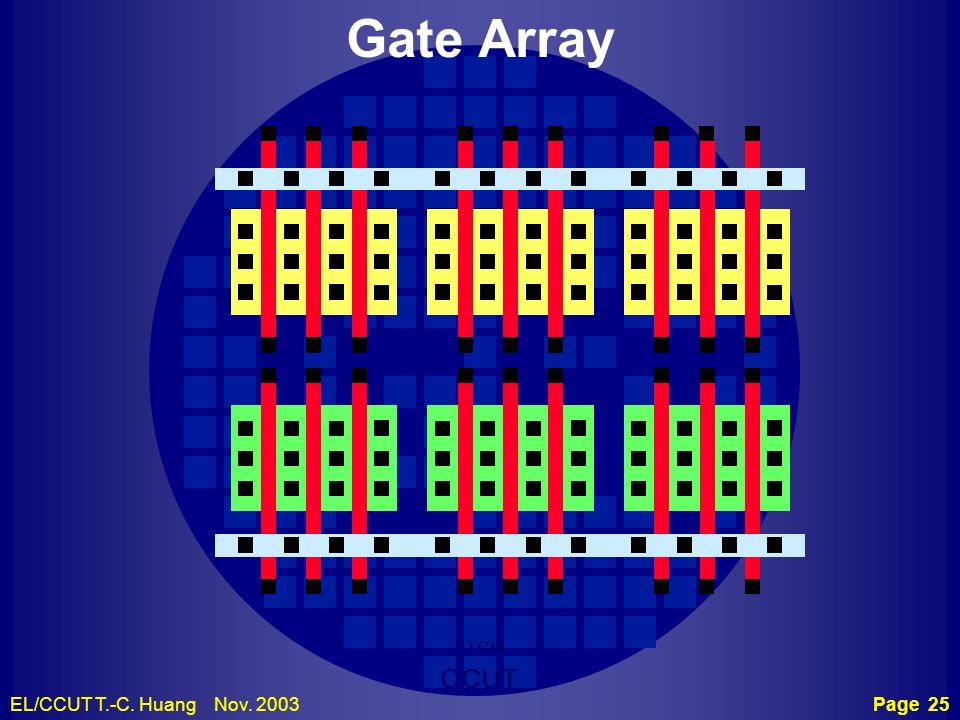

25 Gate Array

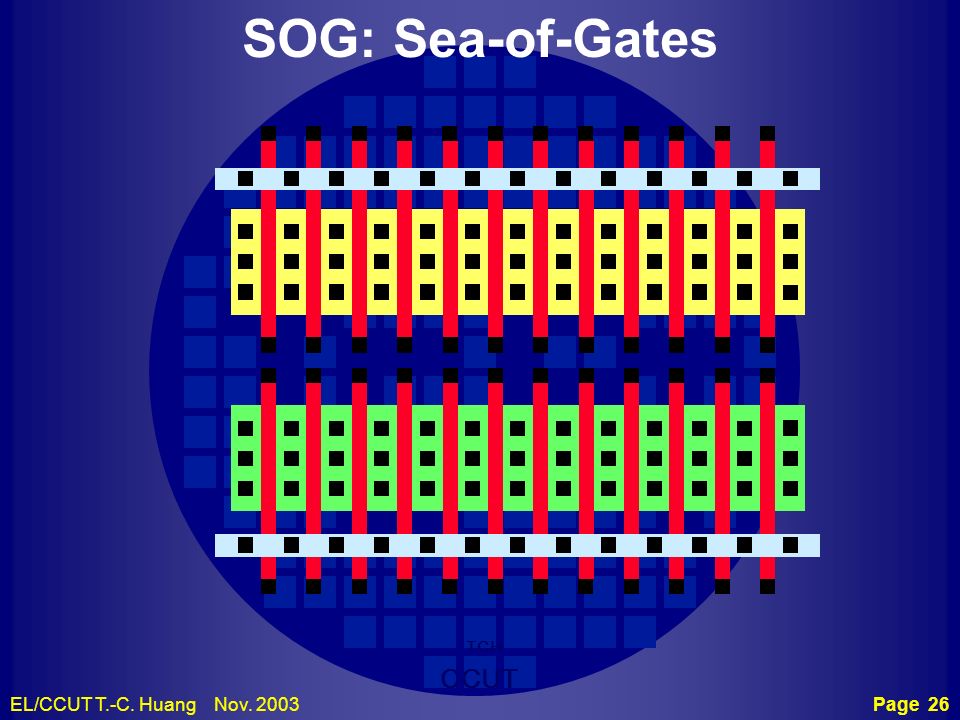

26 SOG: Sea-of-Gates

27 Physical Layout Skills

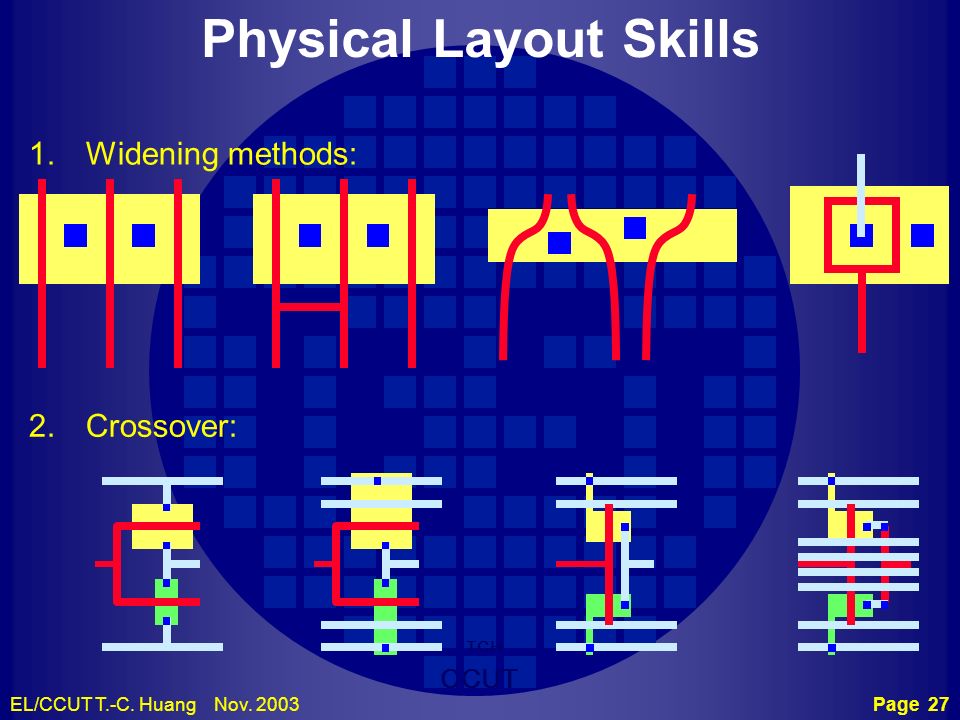

Widening methods: Crossover:

28 Physical Layout Skills

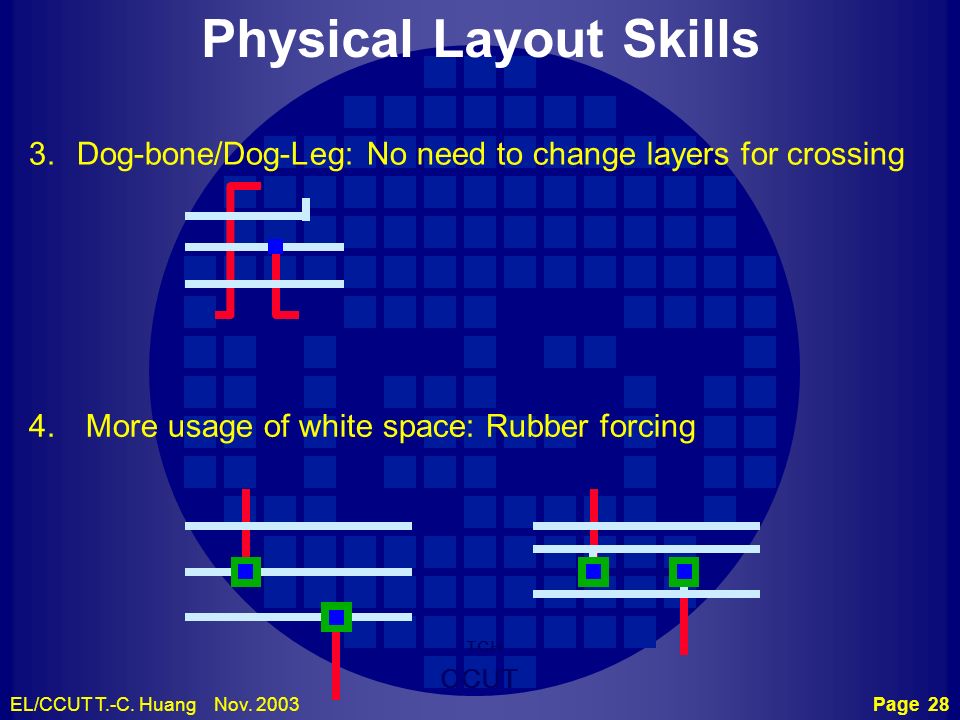

Dog-bone/Dog-Leg: No need to change layers for crossing More usage of white space: Rubber forcing

29 Folding Lines of Diffusion

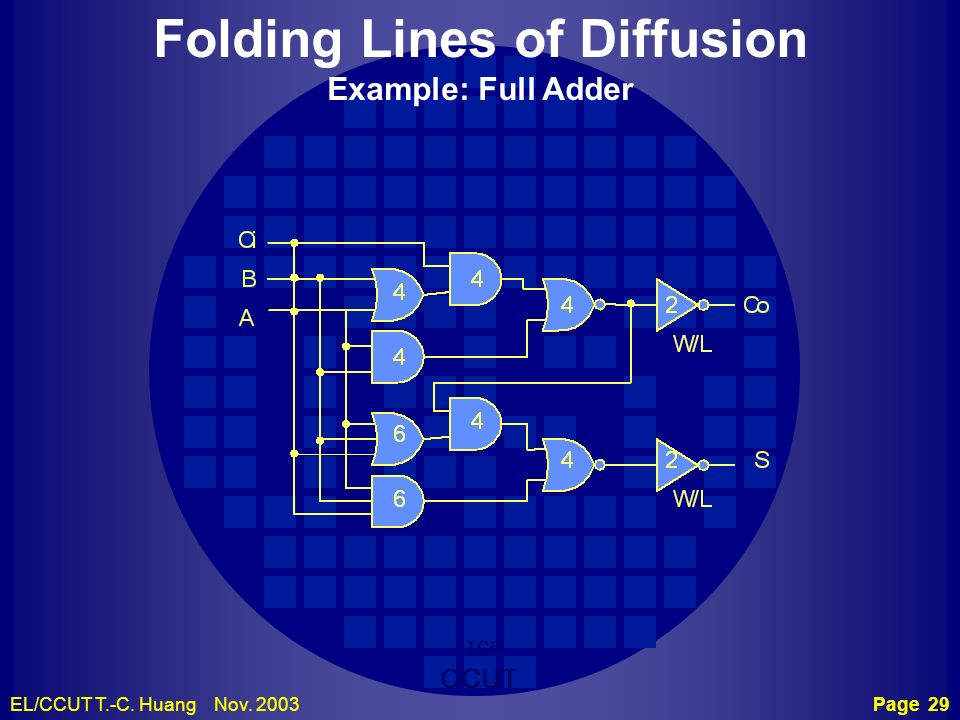

Example: Full Adder

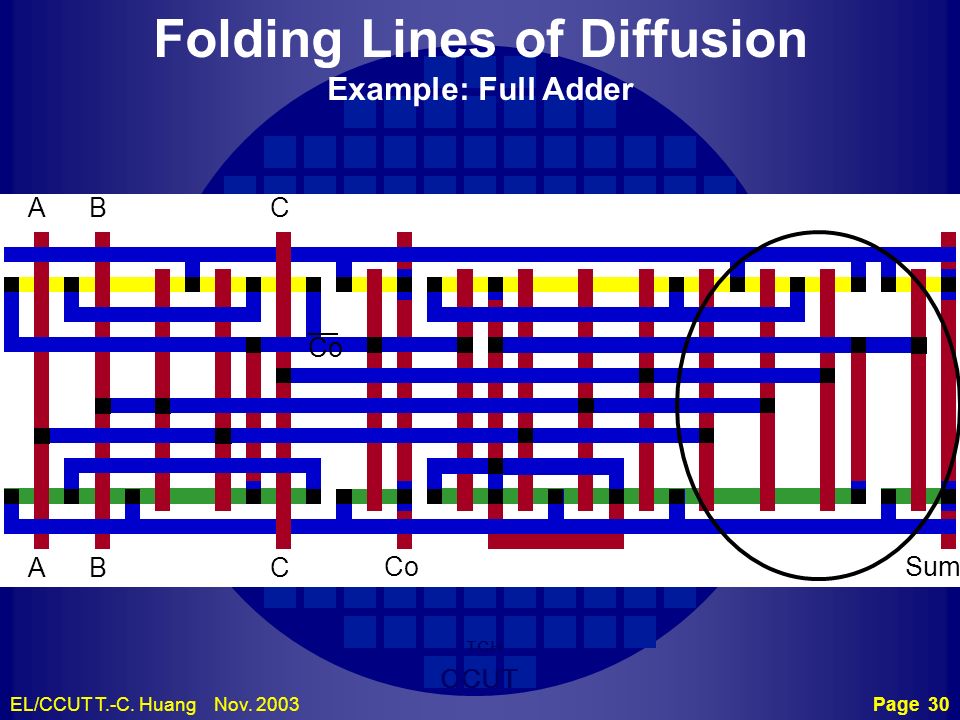

30 Folding Lines of Diffusion
Example: Full Adder A B C Co Co Sum

31 Folding Lines of Diffusion

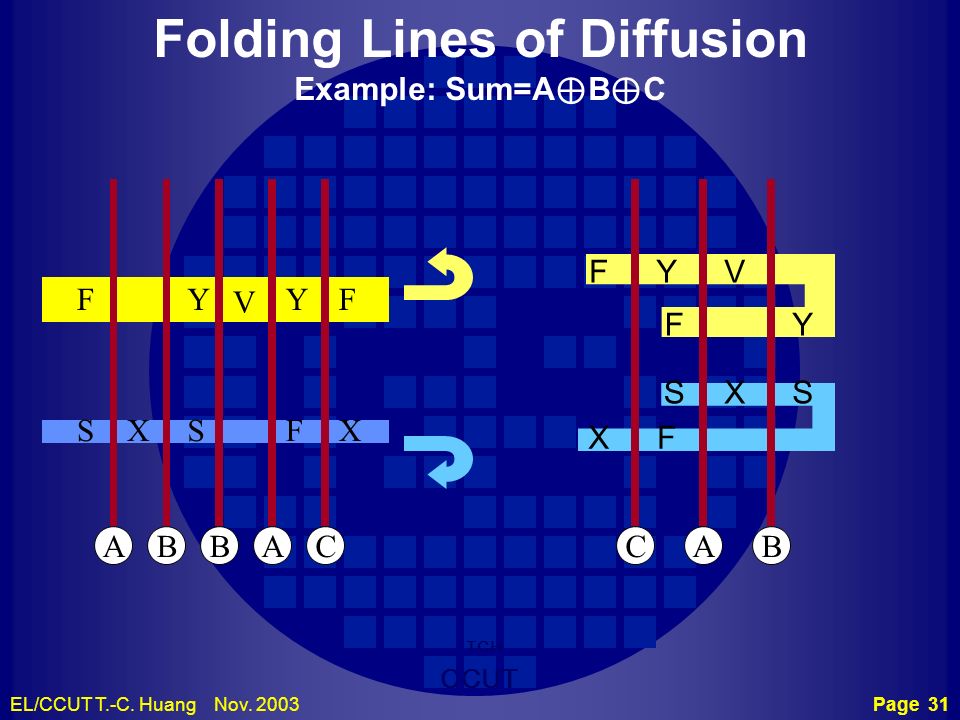

Example: Sum=A⊕B⊕C A B B A C C A B F Y V F Y V S X F S X F

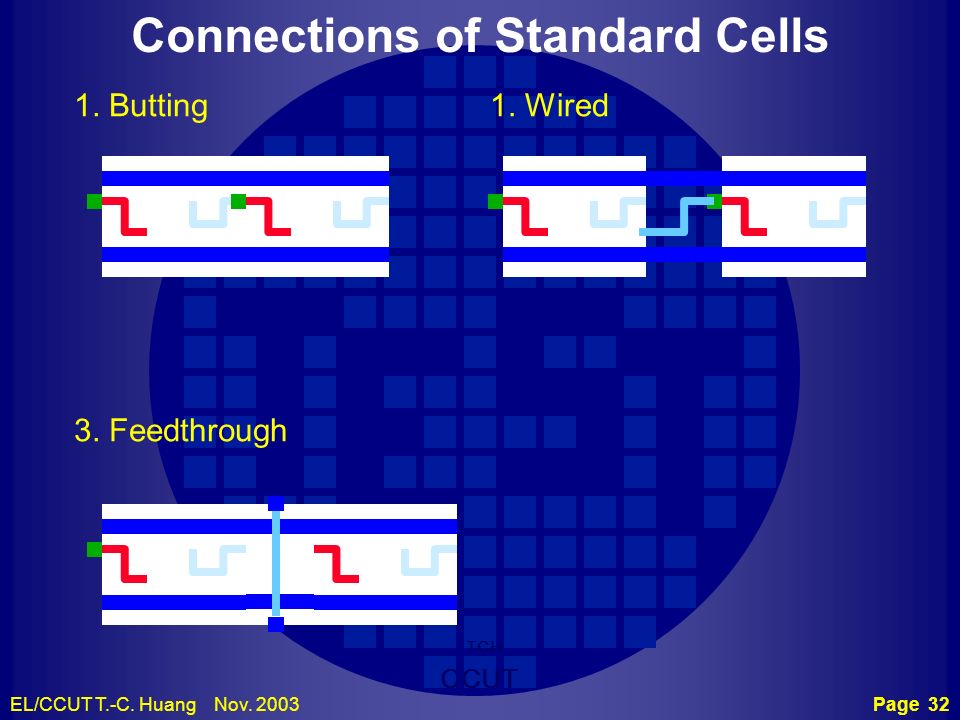

32 Connections of Standard Cells
1. Butting 1. Wired 3. Feedthrough

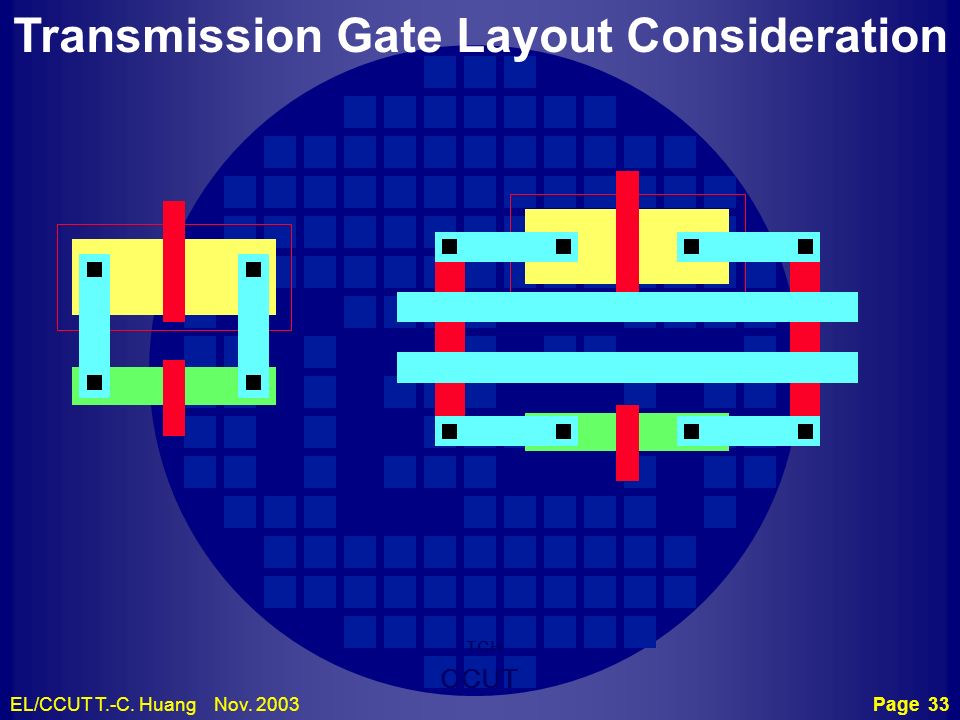

33 Transmission Gate Layout Consideration

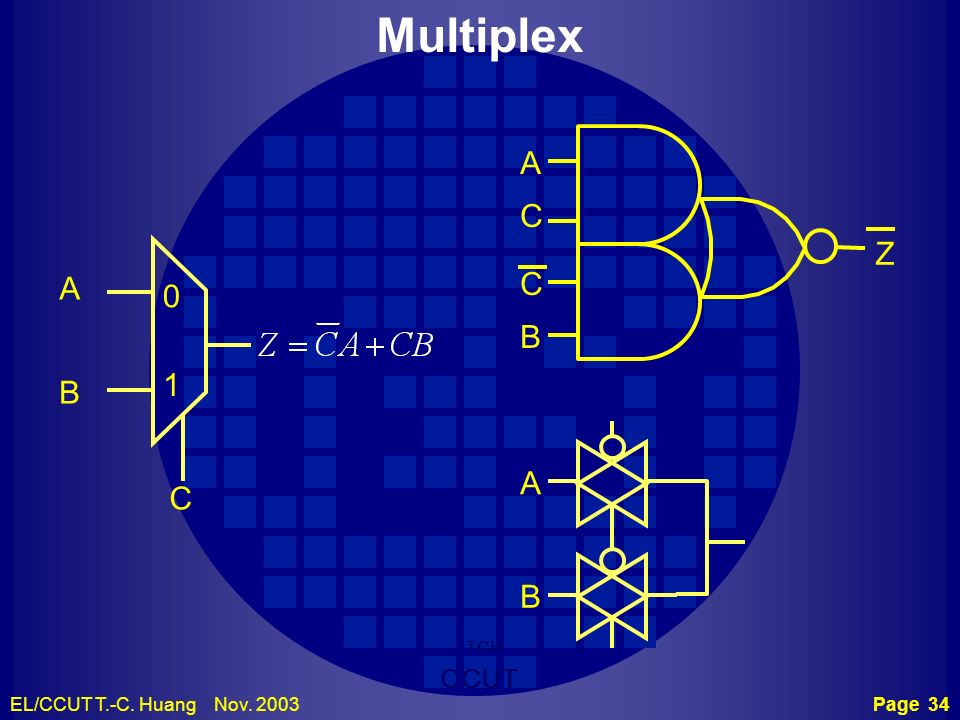

34 Multiplex A B C Z 1 A B C A B

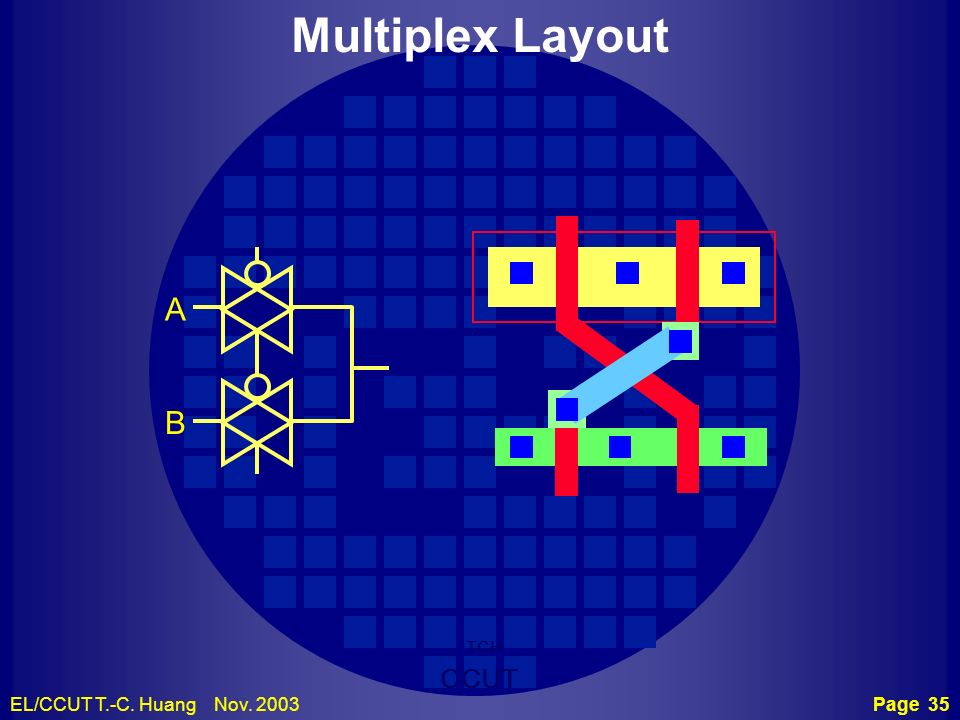

35 Multiplex Layout A B

36 Pass-Transistor and Transmission Gate

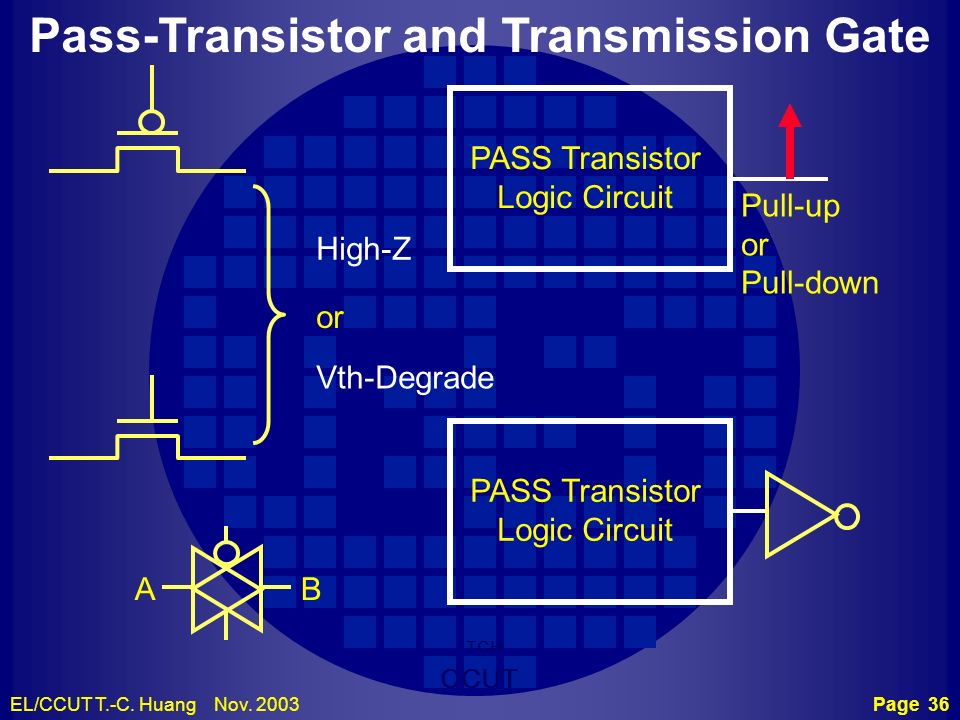

High-Z or Vth-Degrade PASS Transistor Logic Circuit Pull-up or Pull-down PASS Transistor Logic Circuit A B

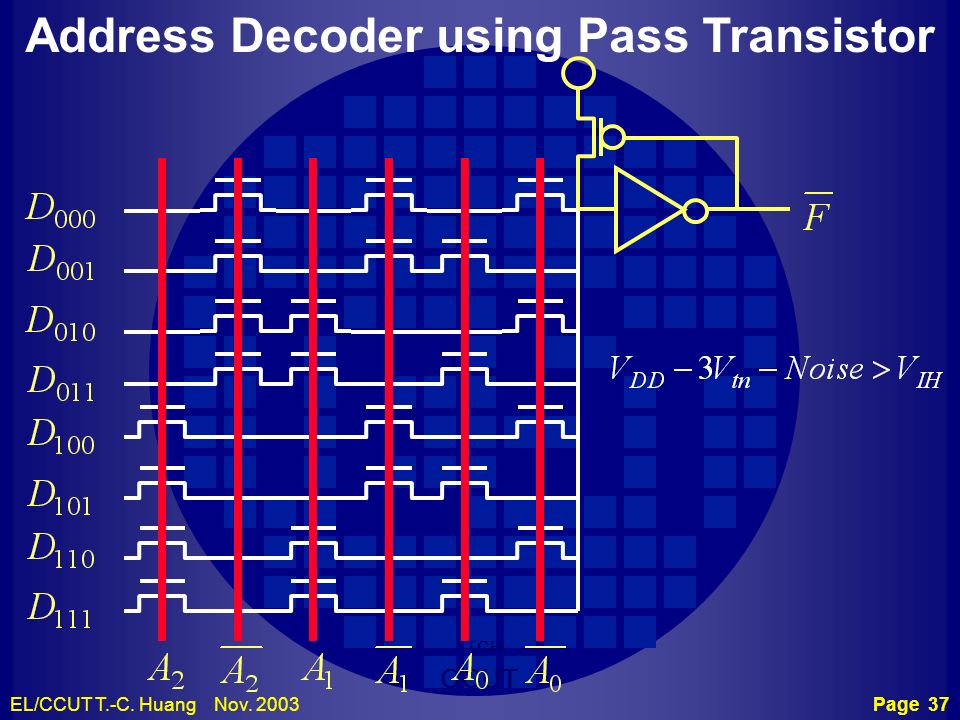

37 Address Decoder using Pass Transistor

38 4-Transistor XOR and XNOR

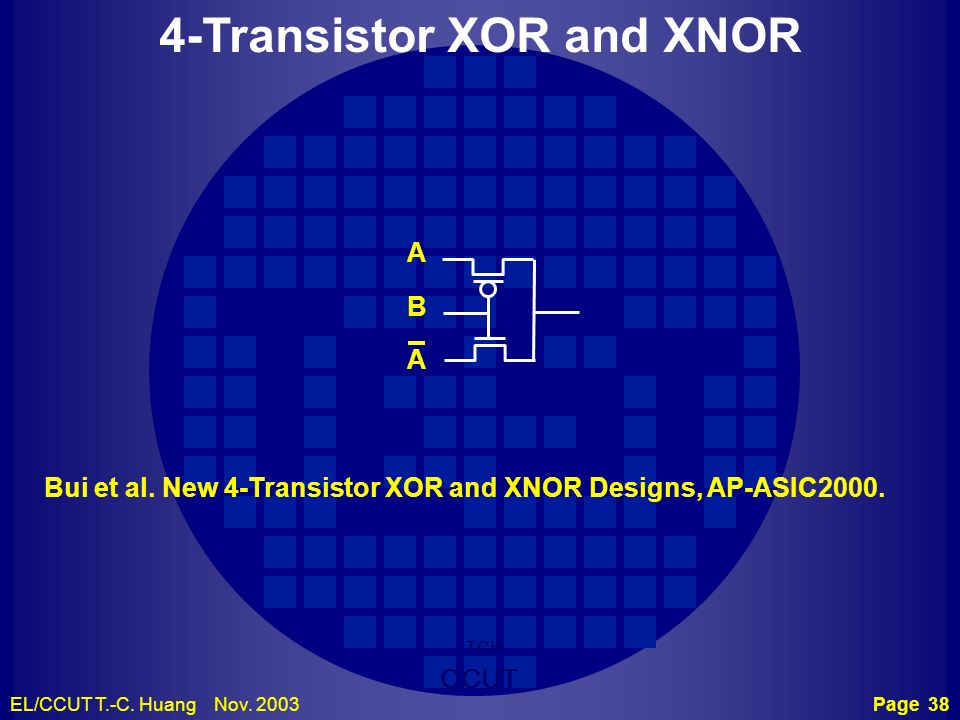

B Bui et al. New 4-Transistor XOR and XNOR Designs, AP-ASIC2000.

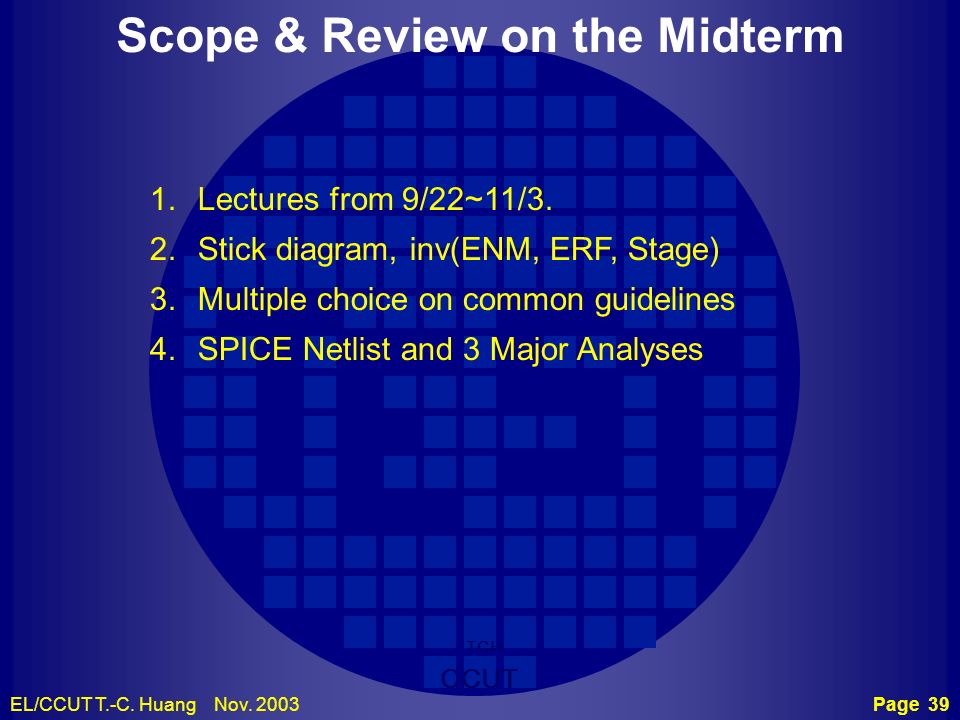

39 Scope & Review on the Midterm
Lectures from 9/22~11/3. Stick diagram, inv(ENM, ERF, Stage) Multiple choice on common guidelines SPICE Netlist and 3 Major Analyses
