Area de Fermentación Balanza analítica en mesa de granito Metro pH

Presentación del tema: "Area de Fermentación Balanza analítica en mesa de granito Metro pH"— Transcripción de la presentación:

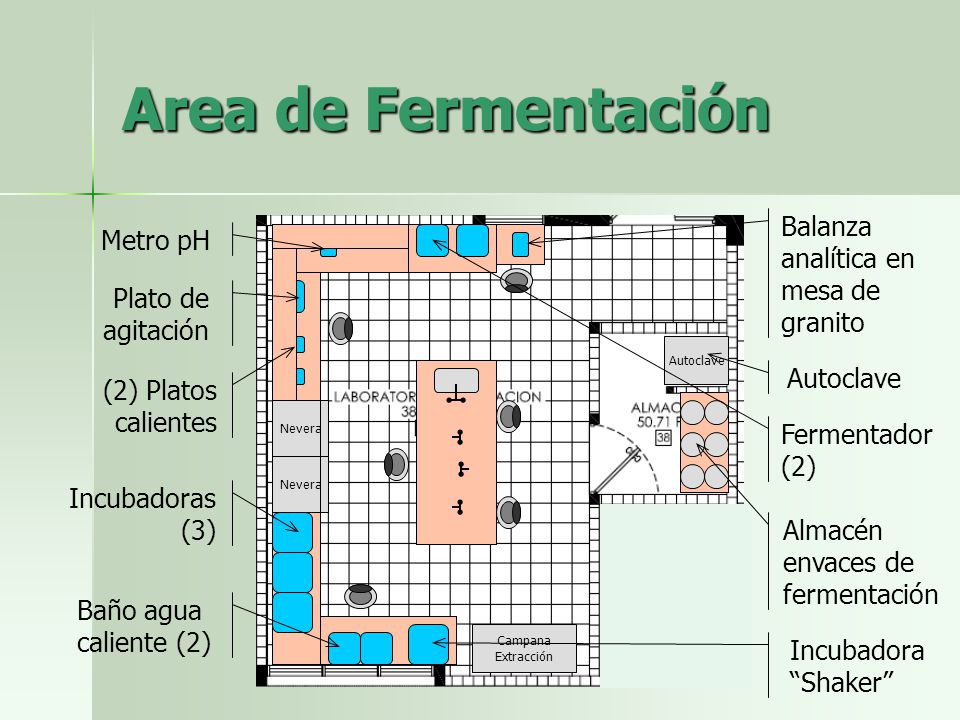

1 Area de Fermentación Balanza analítica en mesa de granito Metro pH
Autoclave Nevera Campana Extracción Metro pH Plato de agitación Autoclave (2) Platos calientes Fermentador (2) Incubadoras (3) Almacén envaces de fermentación Baño agua caliente (2) Incubadora “Shaker”

2 Inventario & Equipo Area de Fermentación
Descripción Cantidad Costo Unitario Total Mesa de granito (18” * 24”) 1 $2,000 Mesa de trabajo isla (9’ * 4’) $500/ft $9,000 Mesa de trabajo pared (2.5’) 33 $16,500 Gabinetes 14 pies $7,000 Tablillero (24” * 5’ * 6’) $1,500

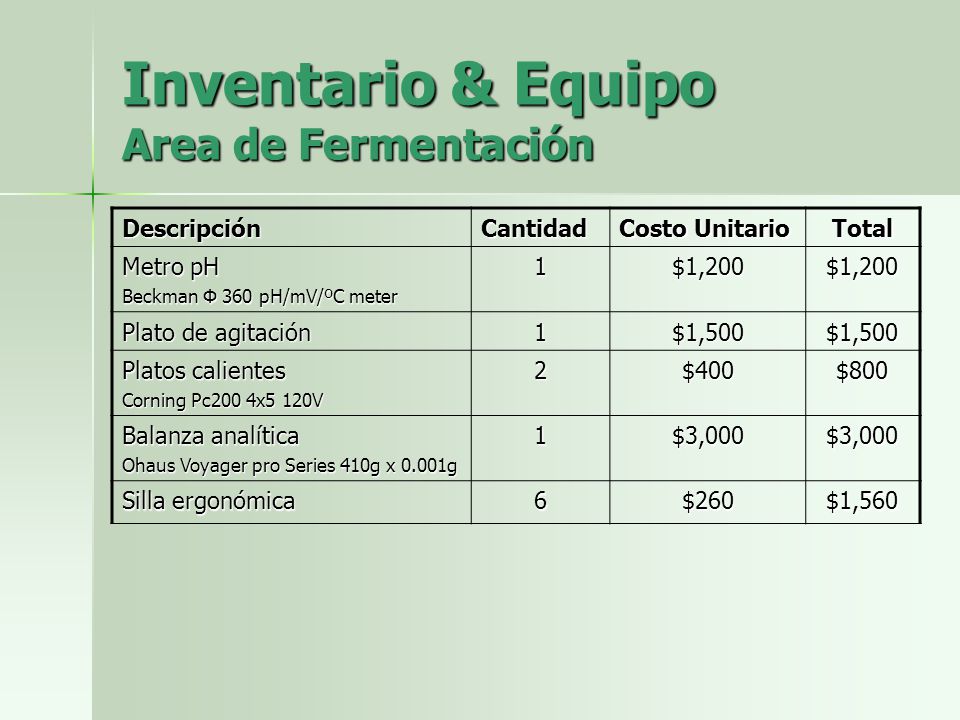

3 Inventario & Equipo Area de Fermentación
Descripción Cantidad Costo Unitario Total Metro pH Beckman Φ 360 pH/mV/ºC meter 1 $1,200 Plato de agitación $1,500 Platos calientes Corning Pc200 4x5 120V 2 $400 $800 Balanza analítica Ohaus Voyager pro Series 410g x 0.001g $3,000 Silla ergonómica 6 $260 $1,560

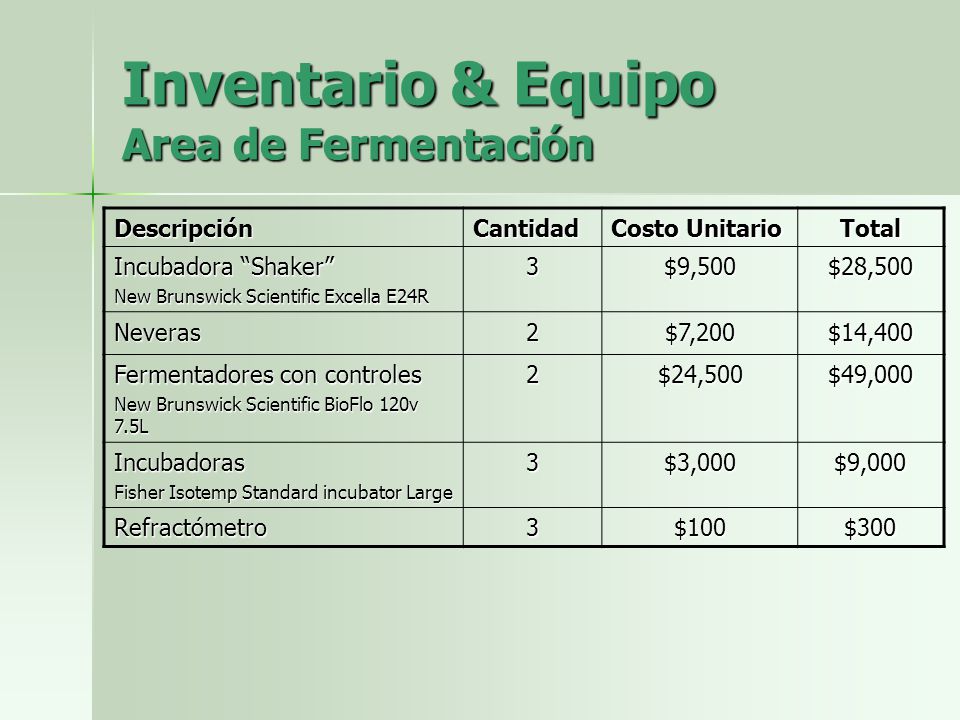

4 Inventario & Equipo Area de Fermentación
Descripción Cantidad Costo Unitario Total Incubadora “Shaker” New Brunswick Scientific Excella E24R 3 $9,500 $28,500 Neveras 2 $7,200 $14,400 Fermentadores con controles New Brunswick Scientific BioFlo 120v 7.5L $24,500 $49,000 Incubadoras Fisher Isotemp Standard incubator Large $3,000 $9,000 Refractómetro $100 $300

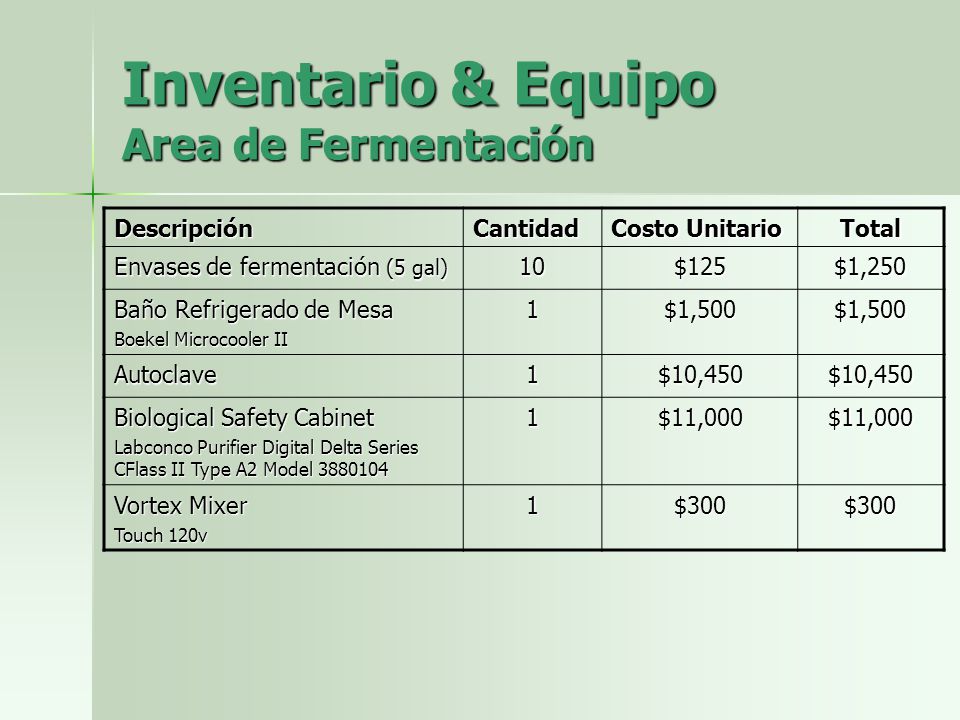

5 Inventario & Equipo Area de Fermentación
Descripción Cantidad Costo Unitario Total Envases de fermentación (5 gal) 10 $125 $1,250 Baño Refrigerado de Mesa Boekel Microcooler II 1 $1,500 Autoclave $10,450 Biological Safety Cabinet Labconco Purifier Digital Delta Series CFlass II Type A2 Model $11,000 Vortex Mixer Touch 120v $300

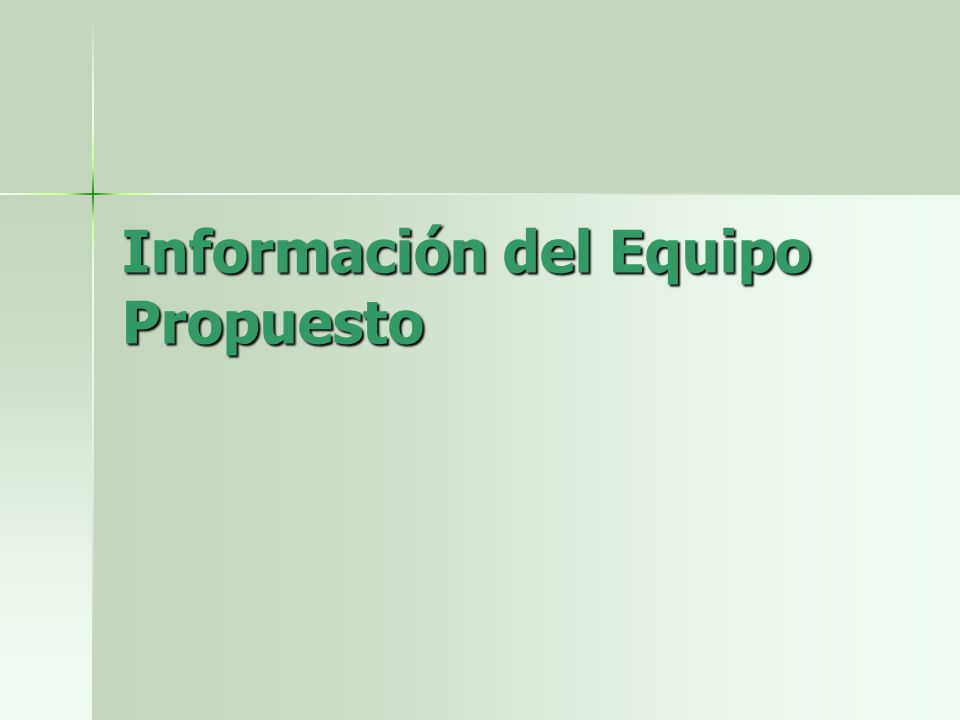

6 Información del Equipo Propuesto

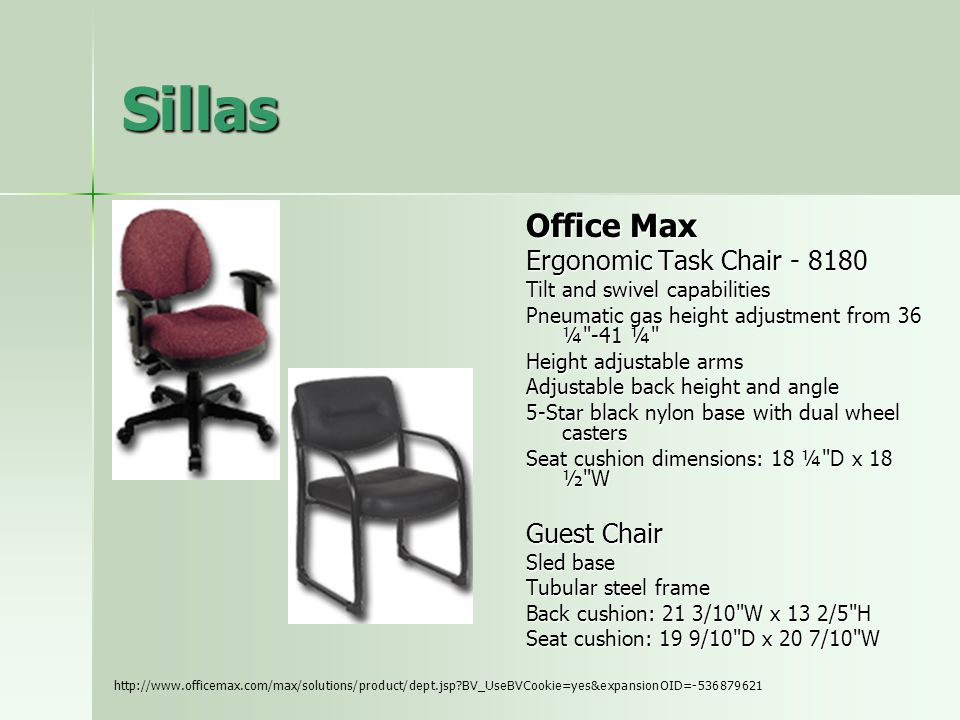

7 Sillas Office Max Ergonomic Task Chair - 8180 Guest Chair
Tilt and swivel capabilities Pneumatic gas height adjustment from 36 ¼"-41 ¼" Height adjustable arms Adjustable back height and angle 5-Star black nylon base with dual wheel casters Seat cushion dimensions: 18 ¼"D x 18 ½"W Guest Chair Sled base Tubular steel frame Back cushion: 21 3/10"W x 13 2/5"H Seat cushion: 19 9/10"D x 20 7/10"W

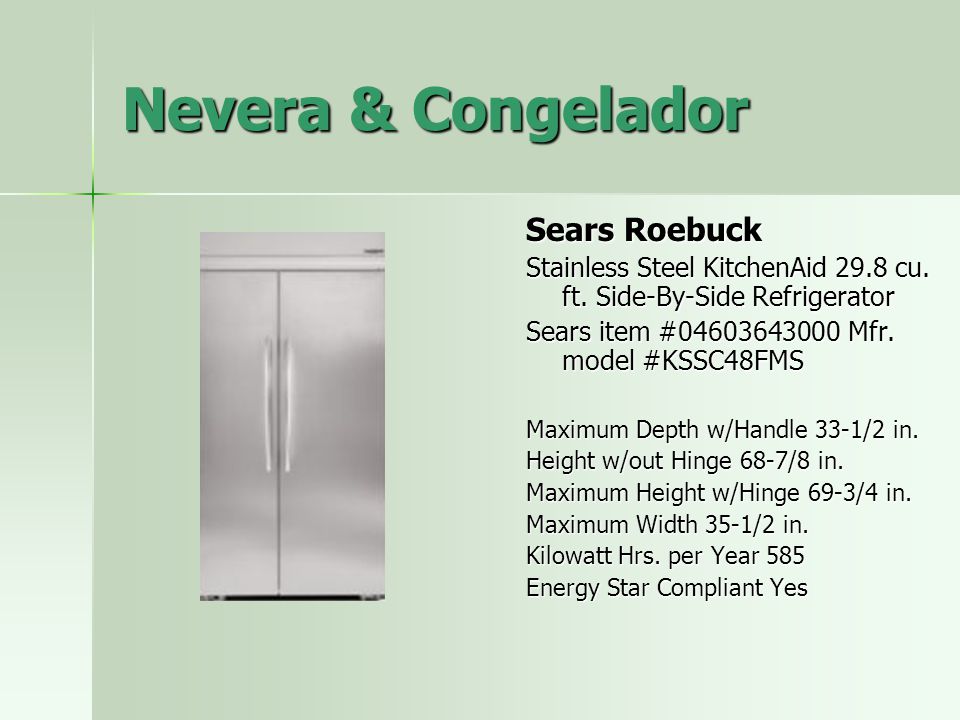

8 Nevera & Congelador Sears Roebuck
Stainless Steel KitchenAid 29.8 cu. ft. Side-By-Side Refrigerator Sears item # Mfr. model #KSSC48FMS Maximum Depth w/Handle 33-1/2 in. Height w/out Hinge 68-7/8 in. Maximum Height w/Hinge 69-3/4 in. Maximum Width 35-1/2 in. Kilowatt Hrs. per Year 585 Energy Star Compliant Yes

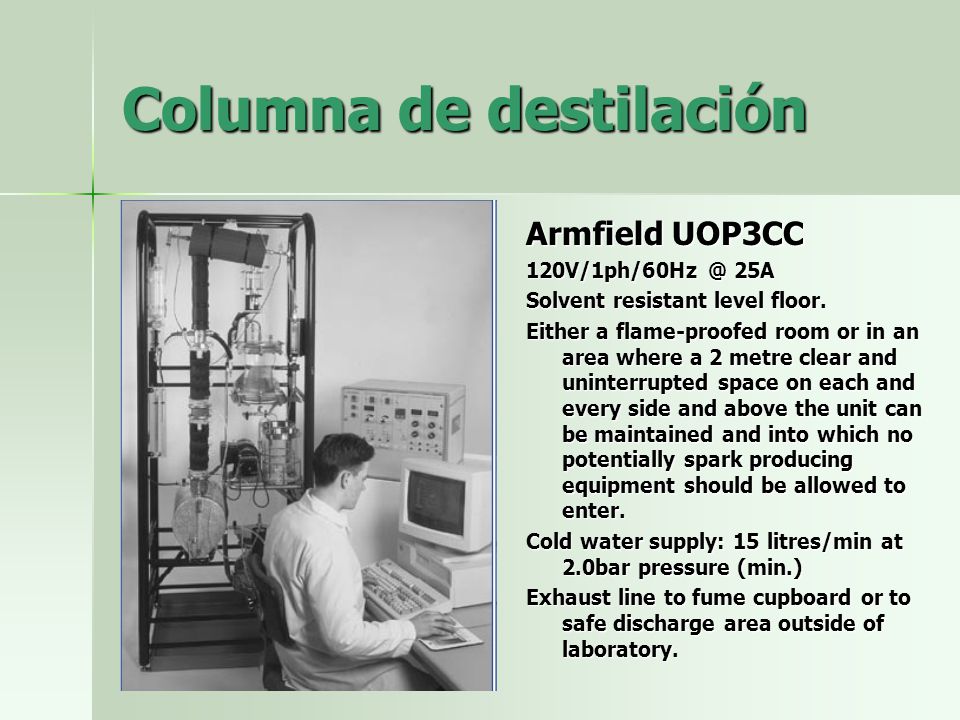

9 Columna de destilación
Armfield UOP3CC 25A Solvent resistant level floor. Either a flame-proofed room or in an area where a 2 metre clear and uninterrupted space on each and every side and above the unit can be maintained and into which no potentially spark producing equipment should be allowed to enter. Cold water supply: 15 litres/min at 2.0bar pressure (min.) Exhaust line to fume cupboard or to safe discharge area outside of laboratory.

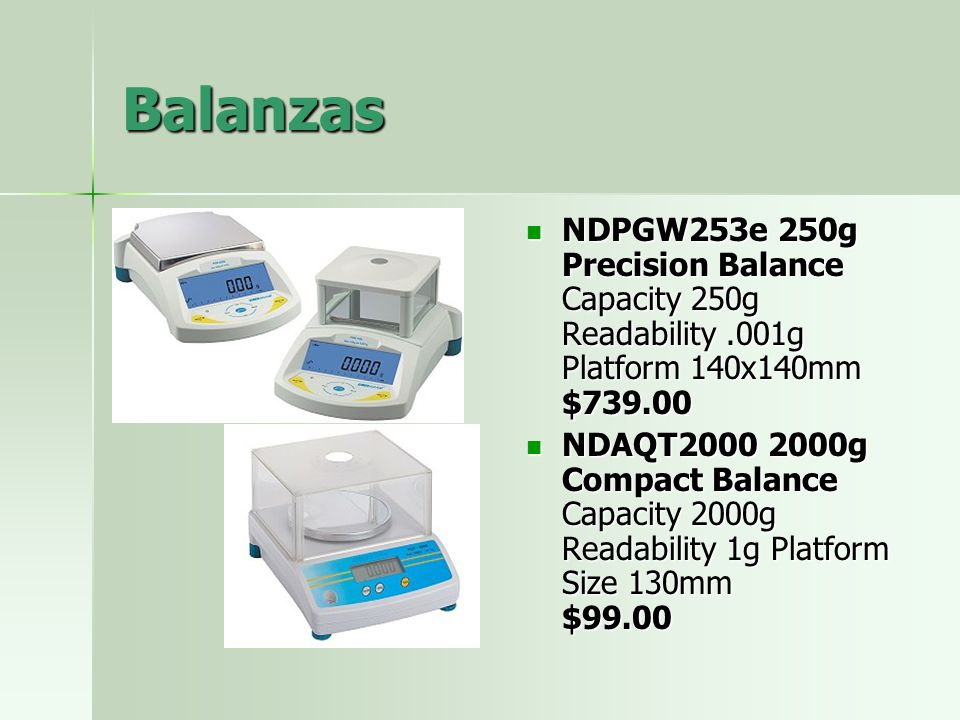

10 Balanzas NDPGW253e 250g Precision Balance Capacity 250g Readability .001g Platform 140x140mm $739.00  NDAQT g Compact Balance Capacity 2000g Readability 1g Platform Size 130mm $99.00

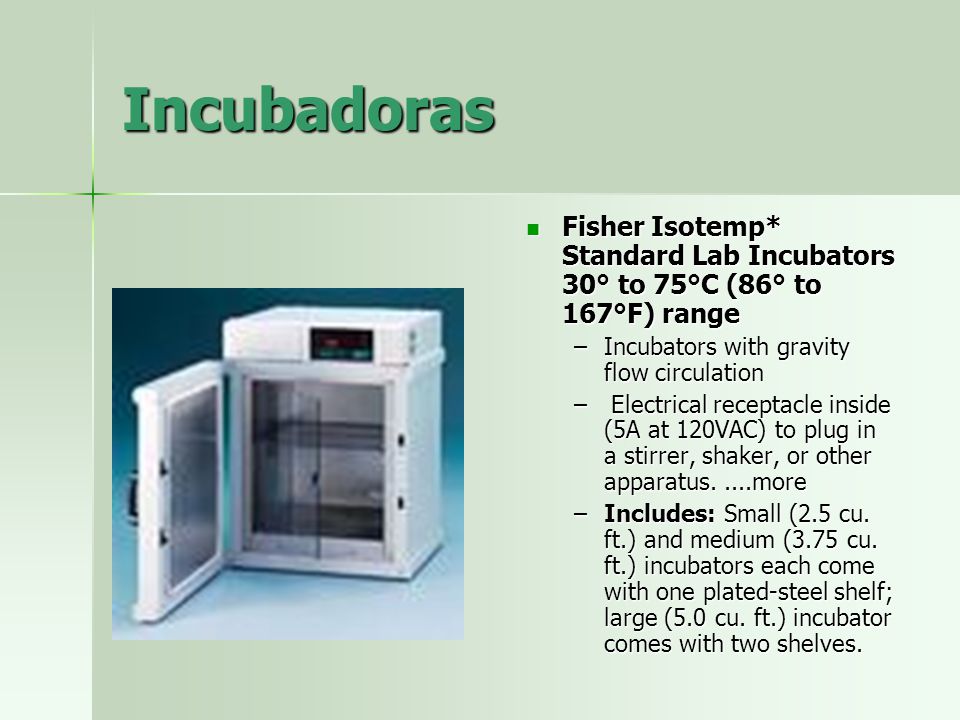

11 Incubadoras Fisher Isotemp* Standard Lab Incubators 30° to 75°C (86° to 167°F) range Incubators with gravity flow circulation Electrical receptacle inside (5A at 120VAC) to plug in a stirrer, shaker, or other apparatus. ....more Includes: Small (2.5 cu. ft.) and medium (3.75 cu. ft.) incubators each come with one plated-steel shelf; large (5.0 cu. ft.) incubator comes with two shelves.

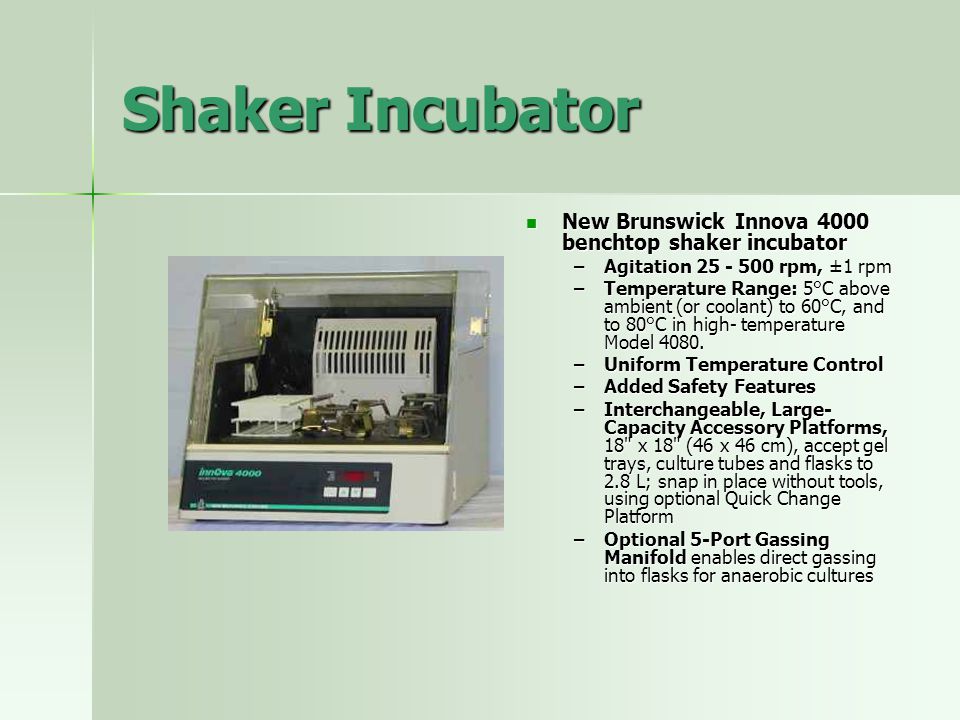

12 Shaker Incubator New Brunswick Innova 4000 benchtop shaker incubator
Agitation rpm, ±1 rpm Temperature Range: 5°C above ambient (or coolant) to 60°C, and to 80°C in high- temperature Model 4080. Uniform Temperature Control Added Safety Features Interchangeable, Large-Capacity Accessory Platforms, 18" x 18" (46 x 46 cm), accept gel trays, culture tubes and flasks to 2.8 L; snap in place without tools, using optional Quick Change Platform Optional 5-Port Gassing Manifold enables direct gassing into flasks for anaerobic cultures

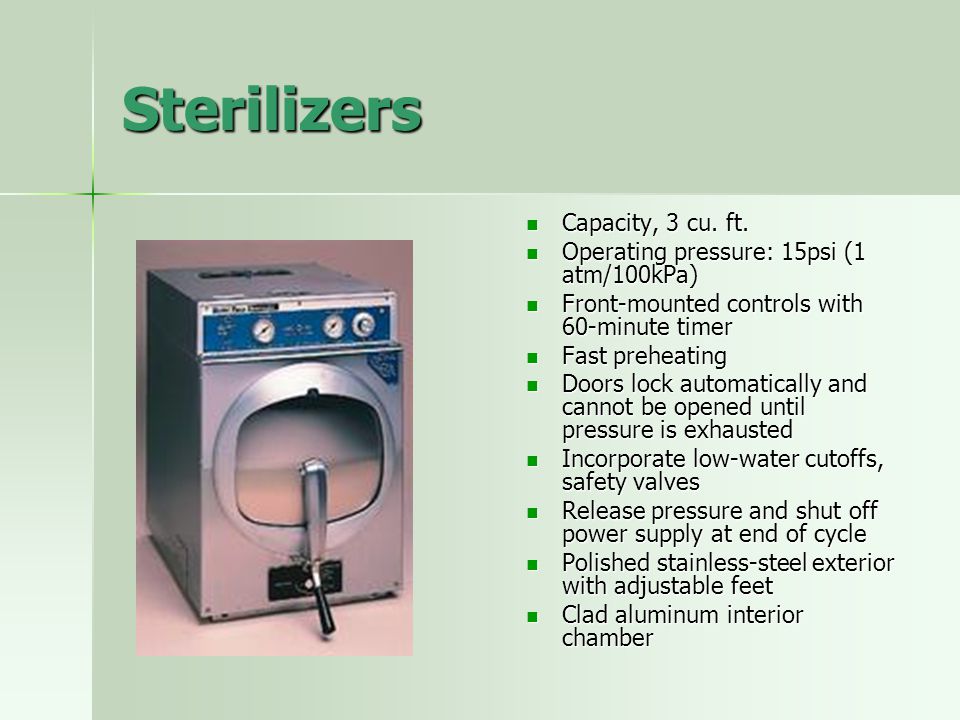

13 Sterilizers Capacity, 3 cu. ft.
Operating pressure: 15psi (1 atm/100kPa) Front-mounted controls with 60-minute timer Fast preheating Doors lock automatically and cannot be opened until pressure is exhausted Incorporate low-water cutoffs, safety valves Release pressure and shut off power supply at end of cycle Polished stainless-steel exterior with adjustable feet Clad aluminum interior chamber
