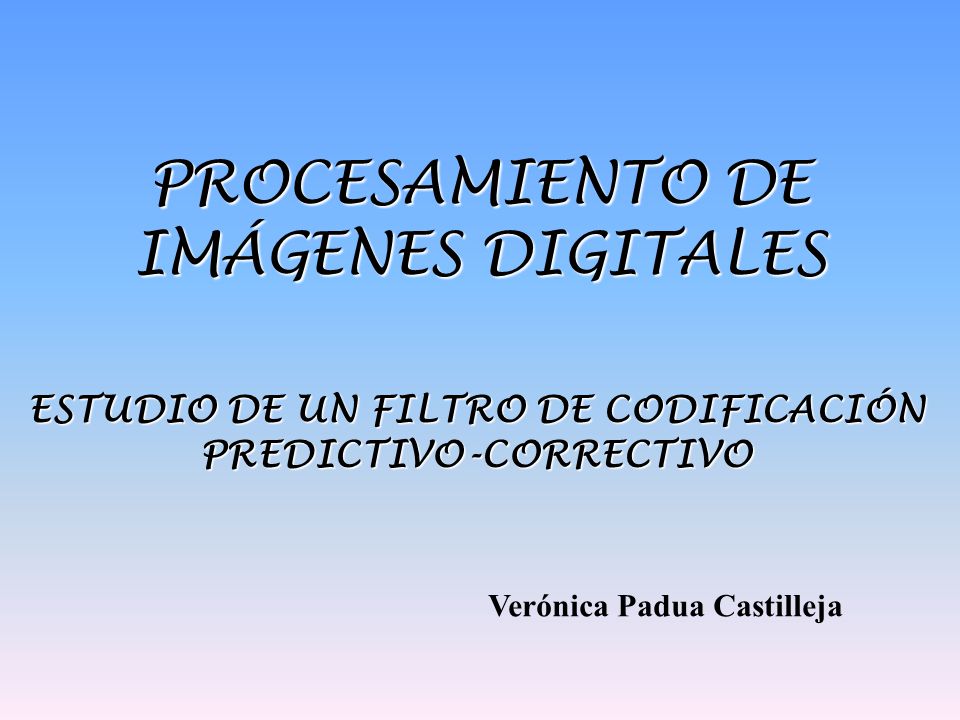

PROCESAMIENTO DE IMÁGENES DIGITALES Verónica Padua Castilleja ESTUDIO DE UN FILTRO DE CODIFICACIÓN PREDICTIVO-CORRECTIVO.

Presentación del tema: "PROCESAMIENTO DE IMÁGENES DIGITALES Verónica Padua Castilleja ESTUDIO DE UN FILTRO DE CODIFICACIÓN PREDICTIVO-CORRECTIVO."— Transcripción de la presentación:

1 PROCESAMIENTO DE IMÁGENES DIGITALES Verónica Padua Castilleja ESTUDIO DE UN FILTRO DE CODIFICACIÓN PREDICTIVO-CORRECTIVO

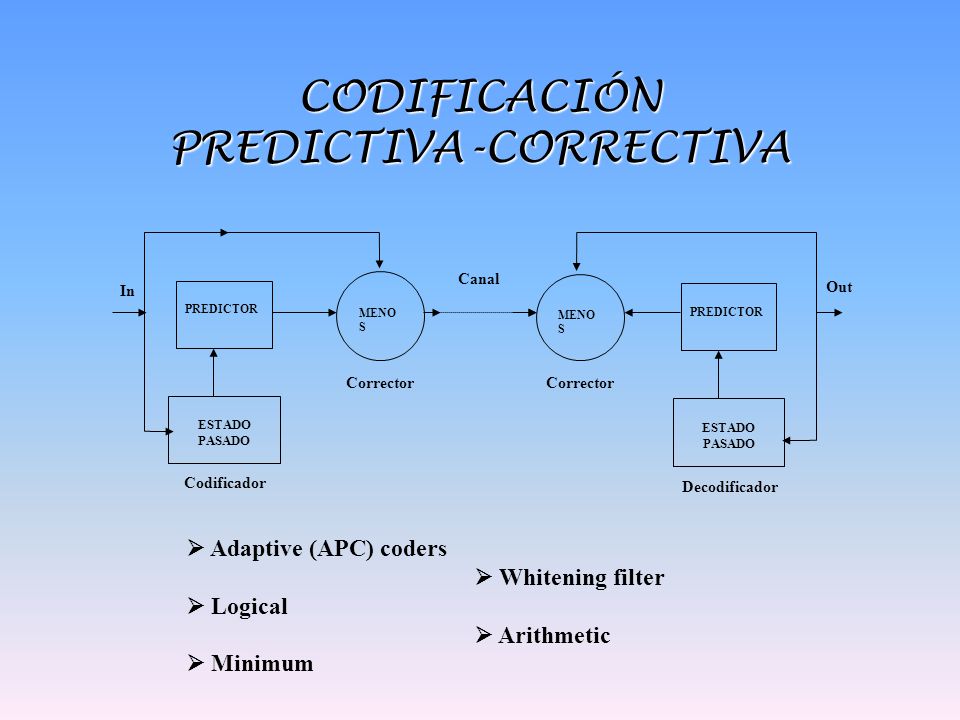

2 CODIFICACIÓN PREDICTIVA-CORRECTIVA PREDICTOR ESTADO PASADO MENO S PREDICTOR MENO S ESTADO PASADO In Out Codificador Decodificador Corrector Canal  Adaptive (APC) coders  Whitening filter  Logical  Arithmetic  Minimum

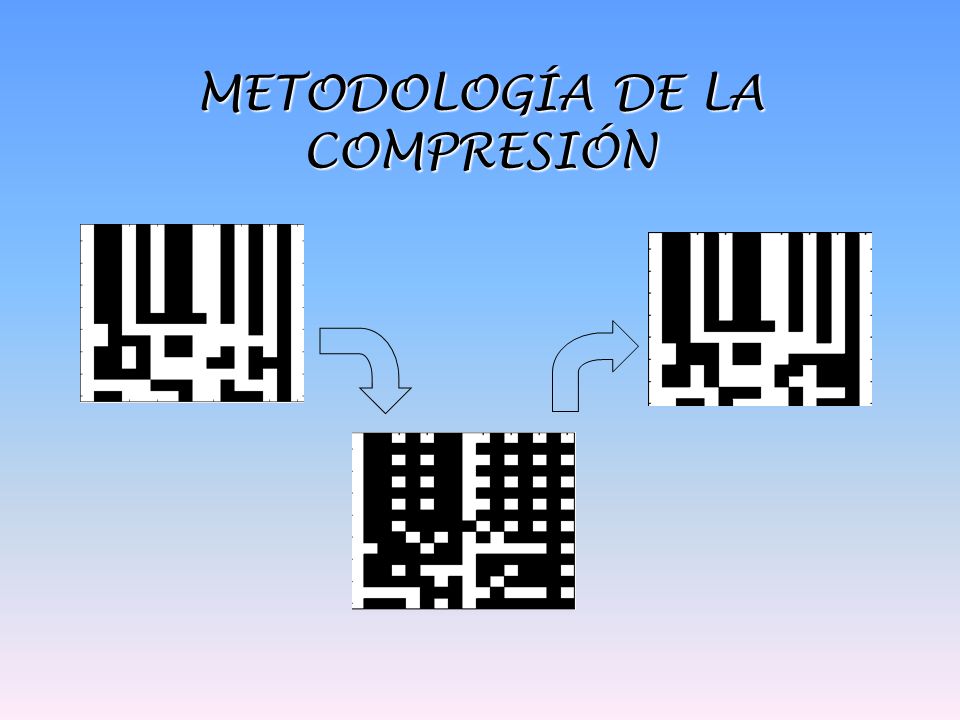

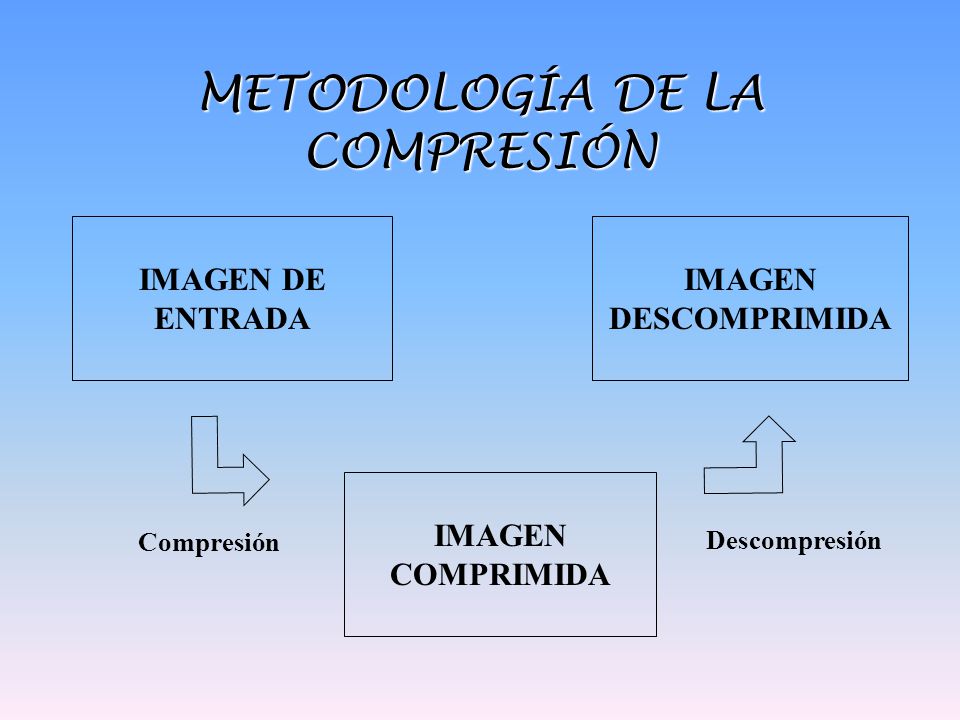

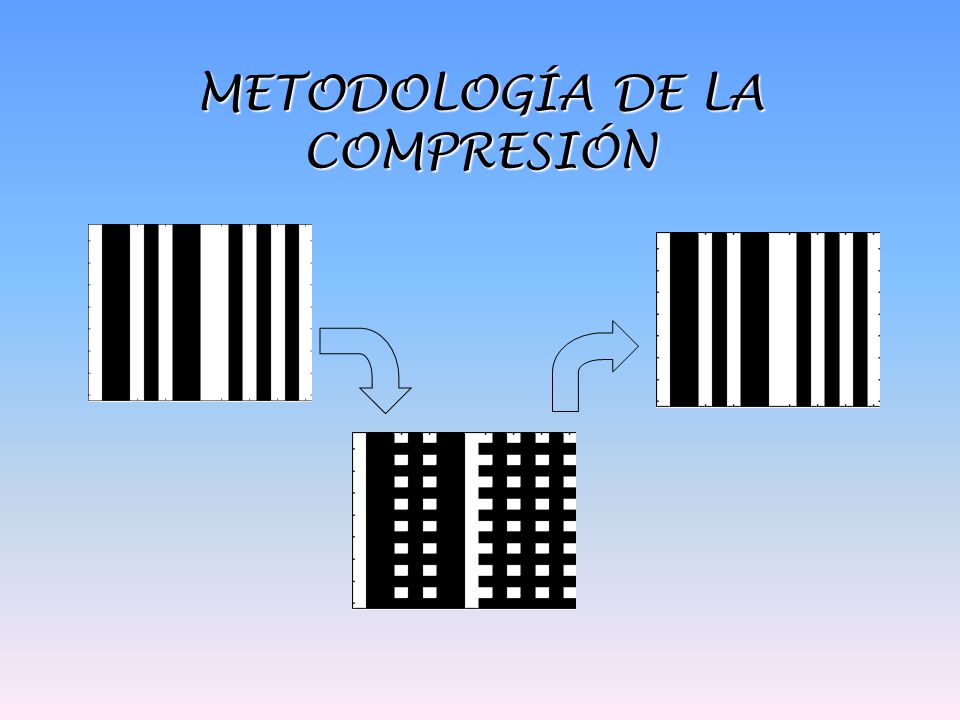

3 METODOLOGÍA DE LA COMPRESIÓN IMAGEN DE ENTRADA IMAGEN COMPRIMIDA IMAGEN DESCOMPRIMIDA Compresión Descompresión

4 METODOLOGÍA DE LA COMPRESIÓN

5

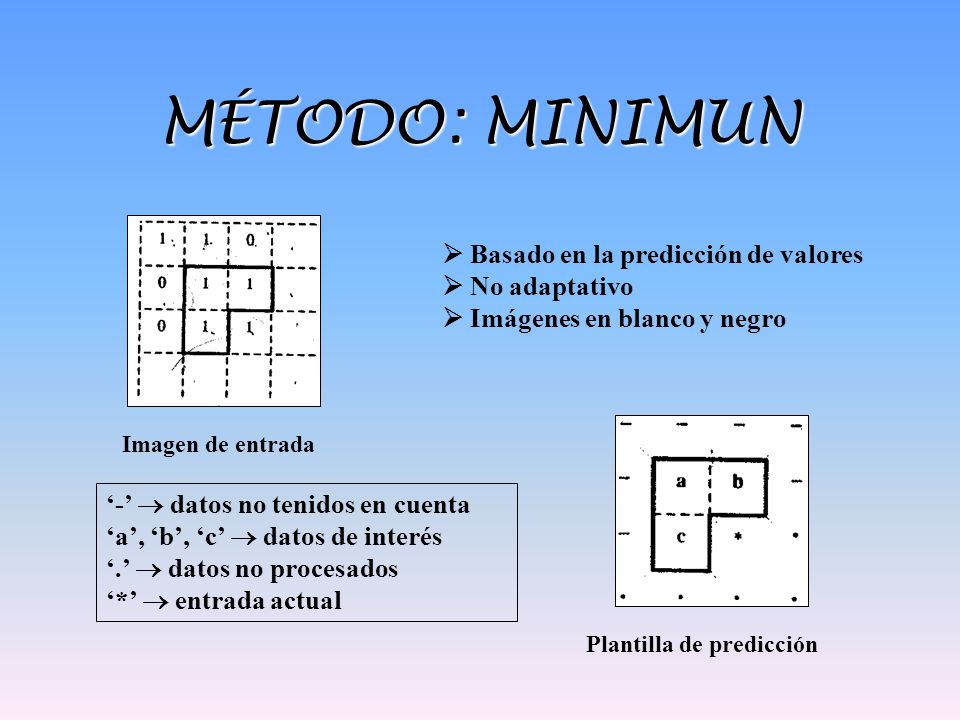

6 MÉTODO: MINIMUN Imagen de entrada Plantilla de predicción ‘-’  datos no tenidos en cuenta ‘a’, ‘b’, ‘c’  datos de interés ‘.’  datos no procesados ‘*’  entrada actual  Basado en la predicción de valores  No adaptativo  Imágenes en blanco y negro

7 MÉTODO: MINIMUN  P(a, b, c) predice  Cumple las siguientes propiedades:  P(a, a, a) = a  P(a, b, c) = P(a, c, b)  P(a, b, c)’= P(a’, b’, c’)  P(a, b, c) es elemento de {a, b, c} a b 0 0 0 1 0 0 0 1 1 0 1 1 1 0 1 1 c (*) 0 (0) 0 (1) 1 (1) 1 (1) 0 (0) 0 (0) 1 (0) 1 (1) 99% 66% 73% 71% 67% 90% 89% 98%

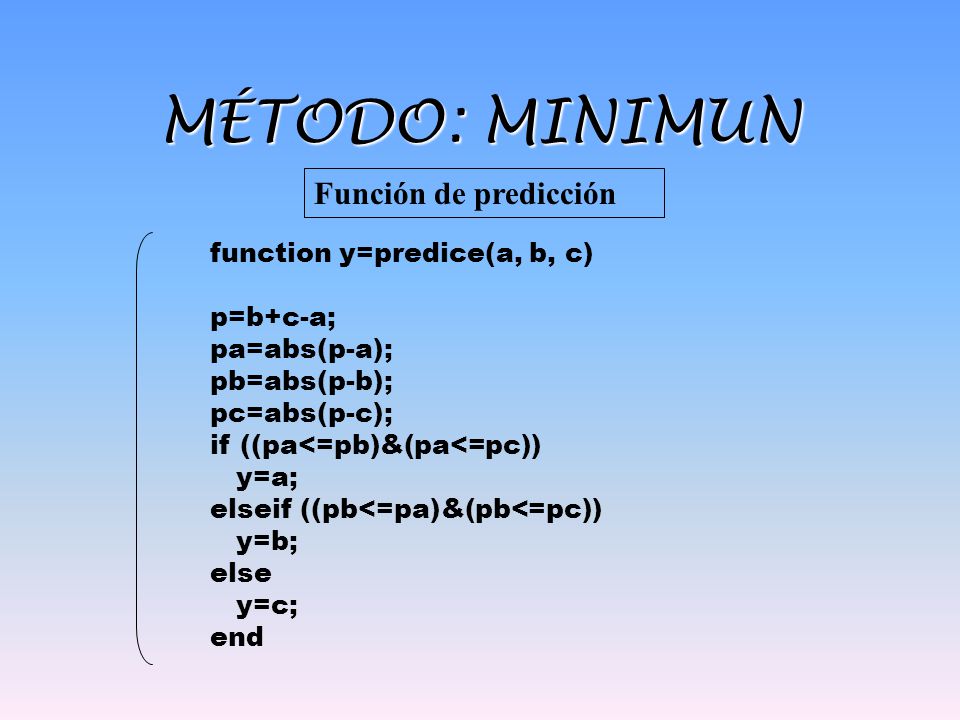

8 MÉTODO: MINIMUN Función de predicción function y=predice(a, b, c) p=b+c-a; pa=abs(p-a); pb=abs(p-b); pc=abs(p-c); if ((pa<=pb)&(pa<=pc)) y=a; elseif ((pb<=pa)&(pb<=pc)) y=b; else y=c; end

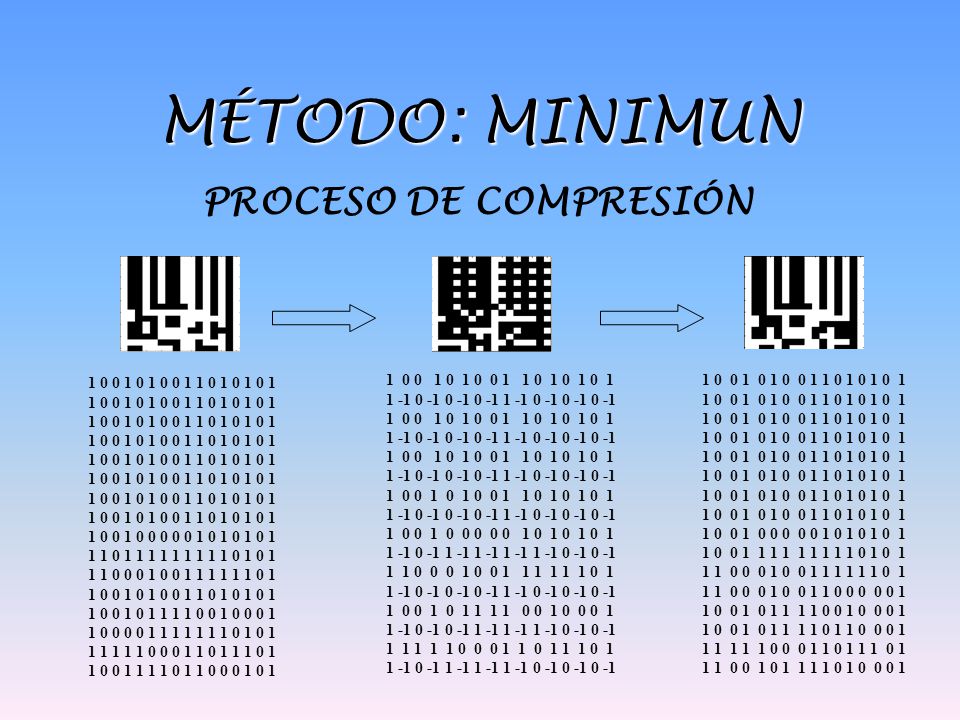

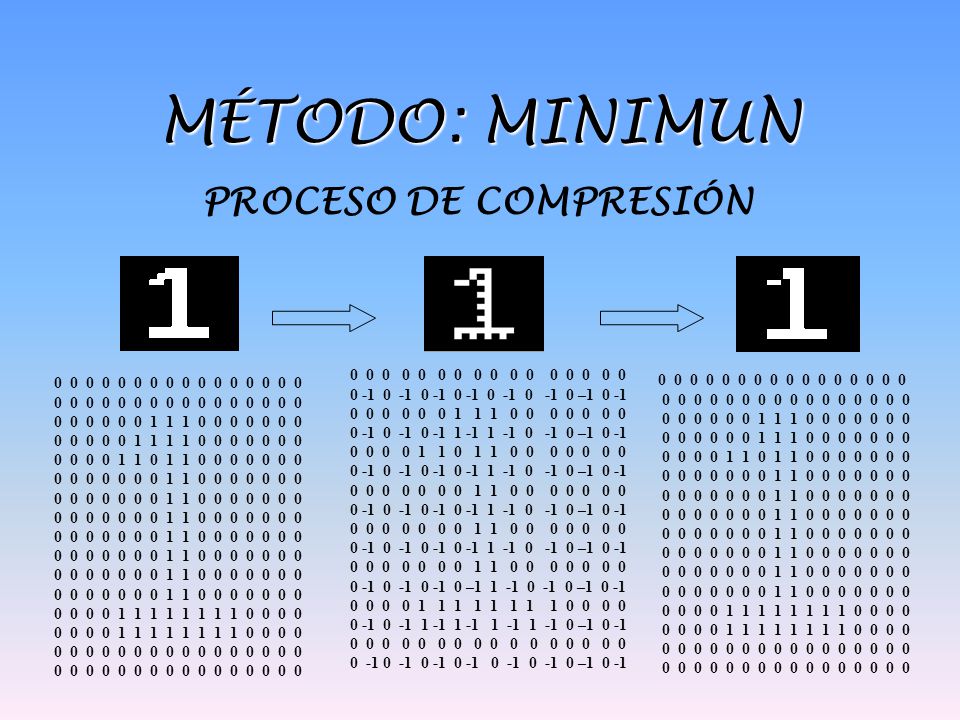

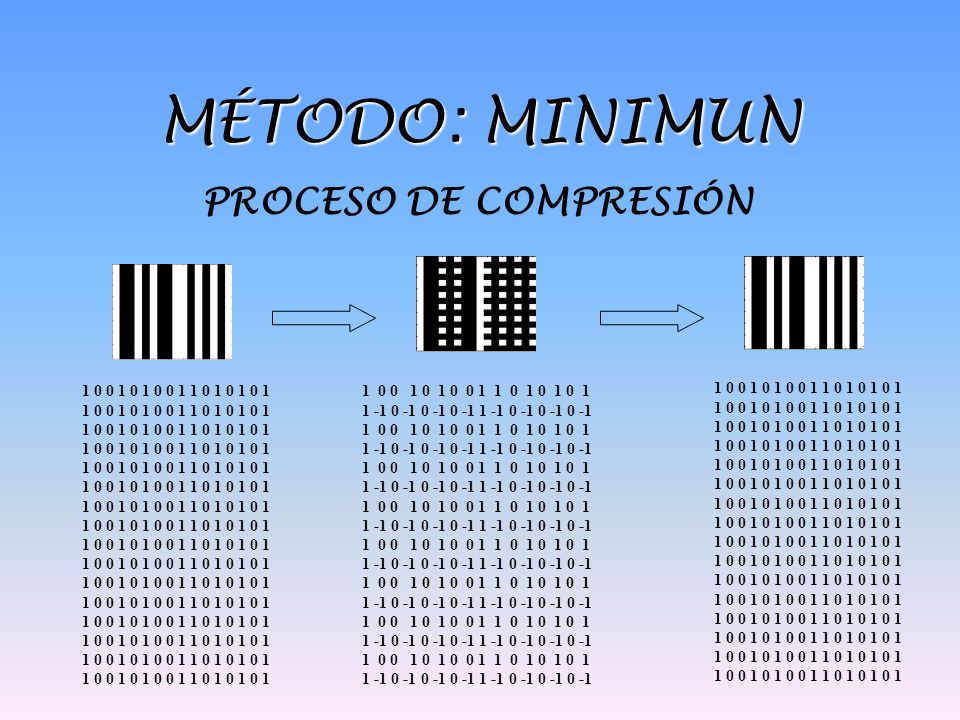

9 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1

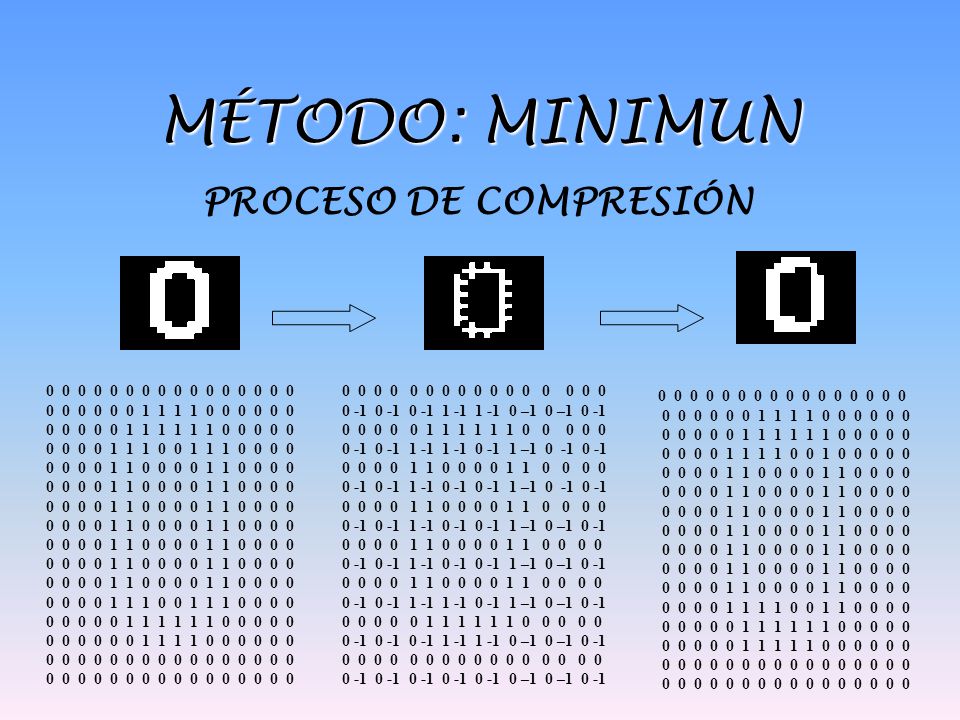

10 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 0 0 1 0 0 0 0 0 1 0 1 0 1 0 1 1 1 0 1 1 1 1 1 1 1 1 1 0 1 0 1 1 1 0 0 0 1 0 0 1 1 1 1 1 1 0 1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1 1 0 0 1 0 0 0 1 1 0 0 0 0 1 1 1 1 1 1 1 0 1 0 1 1 1 1 1 1 0 0 0 1 1 0 1 1 1 0 1 1 0 0 1 1 1 1 0 1 1 0 0 0 1 0 1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 0 0 0 0 1 0 1 0 1 0 1 1 -1 0 -1 1 -1 1 -1 1 -1 1 -1 0 -1 0 -1 1 1 0 0 0 1 0 0 1 1 1 1 1 1 0 1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 1 1 1 0 0 1 0 0 0 1 1 -1 0 -1 0 -1 1 -1 1 -1 1 -1 0 -1 0 -1 1 1 1 1 1 0 0 0 1 1 0 1 1 1 0 1 1 -1 0 -1 1 -1 1 -1 1 -1 0 -1 0 -1 0 -1 1 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 1 0 0 1 0 0 0 0 0 1 0 1 0 1 0 1 1 0 0 1 1 1 1 1 1 1 1 1 0 1 0 1 1 1 0 0 0 1 0 0 1 1 1 1 1 1 0 1 1 1 0 0 0 1 0 0 1 1 0 0 0 0 0 1 1 0 0 1 0 1 1 1 1 0 0 1 0 0 0 1 1 0 0 1 0 1 1 1 1 0 1 1 0 0 0 1 1 1 1 1 1 0 0 0 1 1 0 1 1 1 0 1 1 1 0 0 1 0 1 1 1 1 0 1 0 0 0 1

11 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 -1 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 1 -1 1 -1 0 -1 0 –1 0 -1 0 0 0 0 1 1 0 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 1 -1 0 -1 0 –1 0 -1 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 1 -1 0 -1 0 –1 0 -1 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 1 -1 0 -1 0 –1 0 -1 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 –1 1 -1 0 -1 0 –1 0 -1 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 -1 0 -1 1 -1 1 -1 1 -1 1 -1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

12 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 1 -1 1 -1 0 –1 0 –1 0 -1 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 -1 0 -1 1 -1 1 -1 0 -1 1 –1 0 -1 0 -1 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 -1 0 -1 1 -1 0 -1 0 -1 1 –1 0 -1 0 -1 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 -1 0 -1 1 -1 0 -1 0 -1 1 –1 0 –1 0 -1 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 -1 0 -1 1 -1 0 -1 0 -1 1 –1 0 –1 0 -1 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 -1 0 -1 1 -1 1 -1 0 -1 1 –1 0 –1 0 -1 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 -1 0 -1 0 -1 1 -1 1 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 1 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 1 1 1 1 0 0 1 1 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

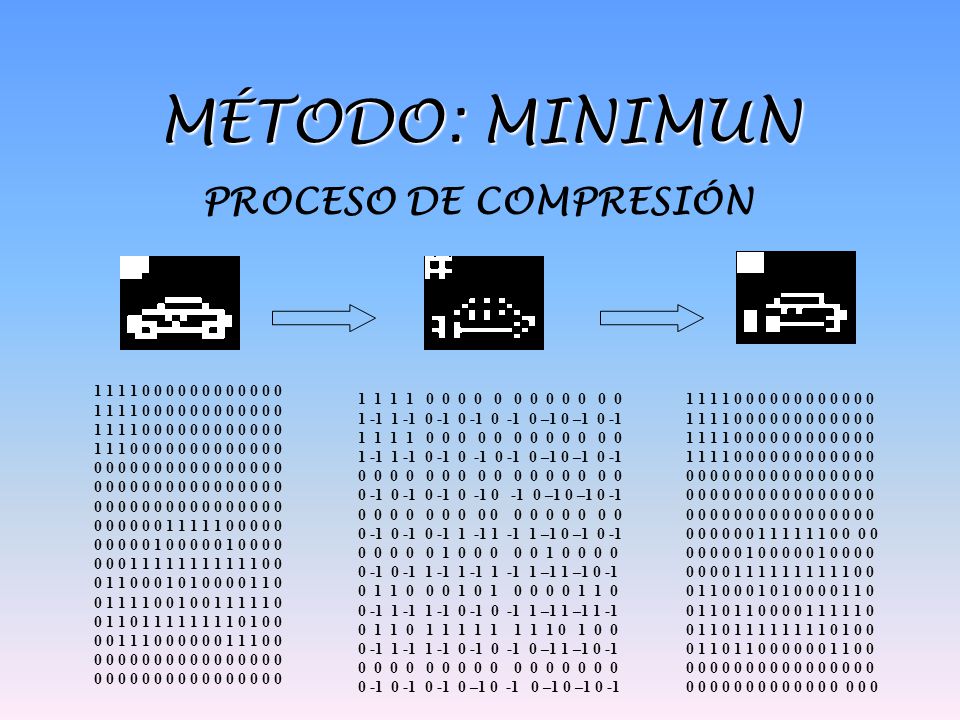

13 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 0 0 0 1 0 1 0 0 0 0 1 1 0 0 1 1 1 1 0 0 1 0 0 1 1 1 1 1 0 0 1 1 0 1 1 1 1 1 1 1 1 0 1 0 0 0 0 1 1 1 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 -1 1 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 -1 1 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 1 -1 1 -1 1 –1 0 –1 0 -1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 -1 0 -1 1 -1 1 -1 1 -1 1 –1 1 –1 0 -1 0 1 1 0 0 0 1 0 1 0 0 0 0 1 1 0 0 -1 1 -1 1 -1 0 -1 0 -1 1 –1 1 –1 1 -1 0 1 1 0 1 1 1 1 1 1 1 1 0 1 0 0 0 -1 1 -1 1 -1 0 -1 0 -1 0 –1 1 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 –1 0 -1 0 –1 0 –1 0 -1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 0 0 0 1 0 1 0 0 0 0 1 1 0 0 1 1 0 1 1 0 0 0 0 1 1 1 1 1 0 0 1 1 0 1 1 1 1 1 1 1 1 0 1 0 0 0 1 1 0 1 1 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

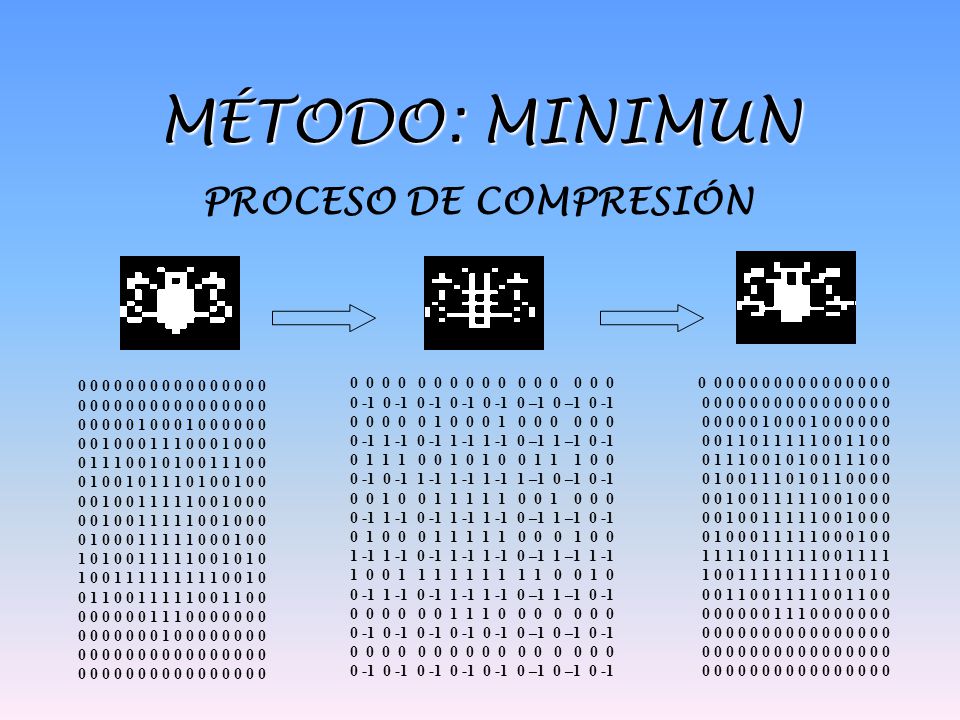

14 MÉTODO: MINIMUN PROCESO DE COMPRESIÓN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 1 1 1 0 0 0 1 0 0 0 0 1 1 1 0 0 1 0 1 0 0 1 1 1 0 0 0 1 0 0 1 0 1 1 1 0 1 0 0 1 0 0 0 0 1 0 0 1 1 1 1 1 0 0 1 0 0 0 0 1 0 0 0 1 1 1 1 1 0 0 0 1 0 0 1 0 1 0 0 1 1 1 1 1 0 0 1 0 1 0 1 0 0 1 1 1 1 1 1 1 1 1 0 0 1 0 0 1 1 0 0 1 1 1 1 1 0 0 1 1 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 -1 1 -1 0 -1 1 -1 1 -1 0 –1 1 –1 0 -1 0 1 1 1 0 0 1 0 1 0 0 1 1 1 0 0 0 -1 0 -1 1 -1 1 -1 1 -1 1 –1 0 –1 0 -1 0 0 1 0 0 1 1 1 1 1 0 0 1 0 0 0 0 -1 1 -1 0 -1 1 -1 1 -1 0 –1 1 –1 0 -1 0 1 0 0 0 1 1 1 1 1 0 0 0 1 0 0 1 -1 1 -1 0 -1 1 -1 1 -1 0 –1 1 –1 1 -1 1 0 0 1 1 1 1 1 1 1 1 1 0 0 1 0 0 -1 1 -1 0 -1 1 -1 1 -1 0 –1 1 –1 0 -1 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -1 0 -1 0 -1 0 -1 0 -1 0 –1 0 –1 0 -1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 0 1 1 0 1 1 1 1 1 0 0 1 1 0 0 0 1 1 1 0 0 1 0 1 0 0 1 1 1 0 0 0 1 0 0 1 1 1 0 1 0 1 1 0 0 0 0 0 0 1 0 0 1 1 1 1 1 0 0 1 0 0 0 0 1 0 0 0 1 1 1 1 1 0 0 0 1 0 0 1 1 1 1 0 1 1 1 1 1 0 0 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 0 0 1 0 0 0 1 1 0 0 1 1 1 1 0 0 1 1 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

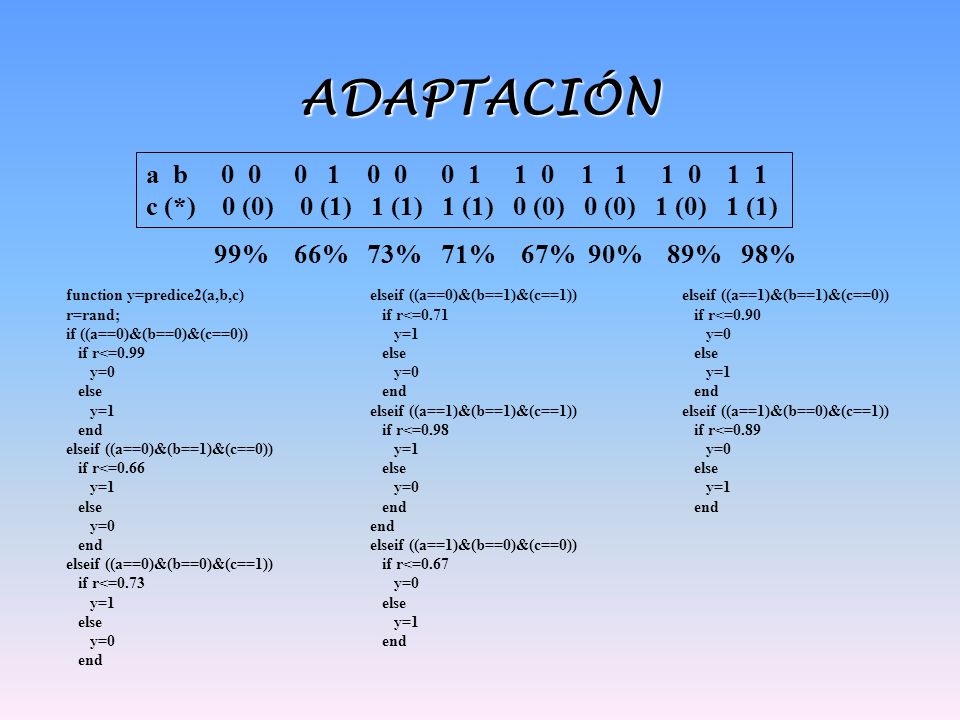

15 ADAPTACIÓN a b 0 0 0 1 0 0 0 1 1 0 1 1 1 0 1 1 c (*) 0 (0) 0 (1) 1 (1) 1 (1) 0 (0) 0 (0) 1 (0) 1 (1) 99% 66% 73% 71% 67% 90% 89% 98% function y=predice2(a,b,c) r=rand; if ((a==0)&(b==0)&(c==0)) if r<=0.99 y=0 else y=1 end elseif ((a==0)&(b==1)&(c==0)) if r<=0.66 y=1 else y=0 end elseif ((a==0)&(b==0)&(c==1)) if r<=0.73 y=1 else y=0 end elseif ((a==1)&(b==1)&(c==0)) if r<=0.90 y=0 else y=1 end elseif ((a==1)&(b==0)&(c==1)) if r<=0.89 y=0 else y=1 end elseif ((a==0)&(b==1)&(c==1)) if r<=0.71 y=1 else y=0 end elseif ((a==1)&(b==1)&(c==1)) if r<=0.98 y=1 else y=0 end elseif ((a==1)&(b==0)&(c==0)) if r<=0.67 y=0 else y=1 end

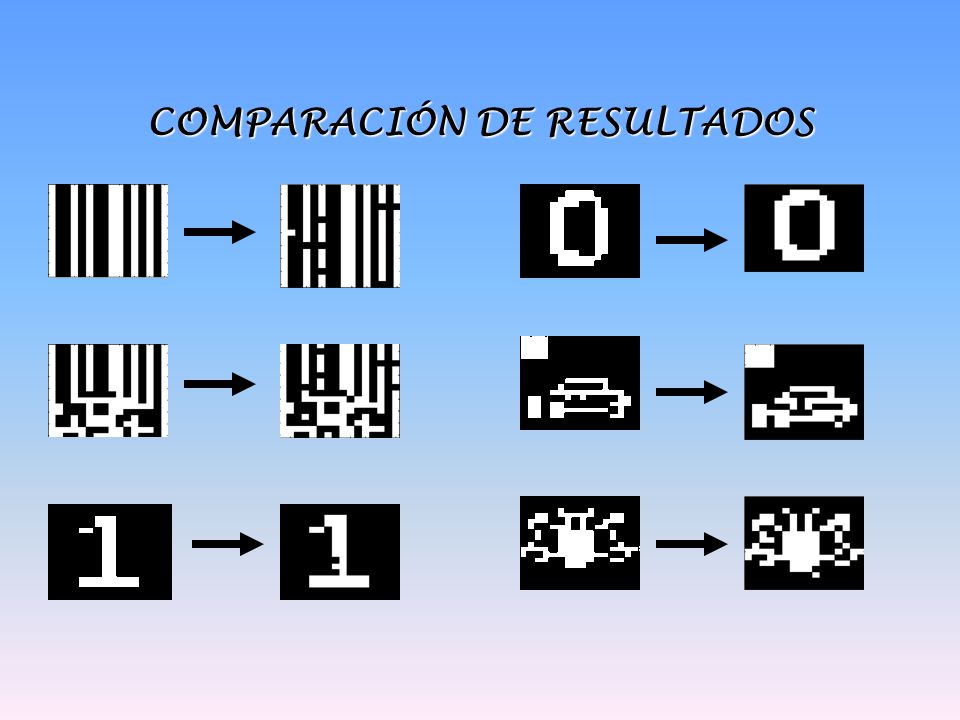

16 COMPARACIÓN DE RESULTADOS
