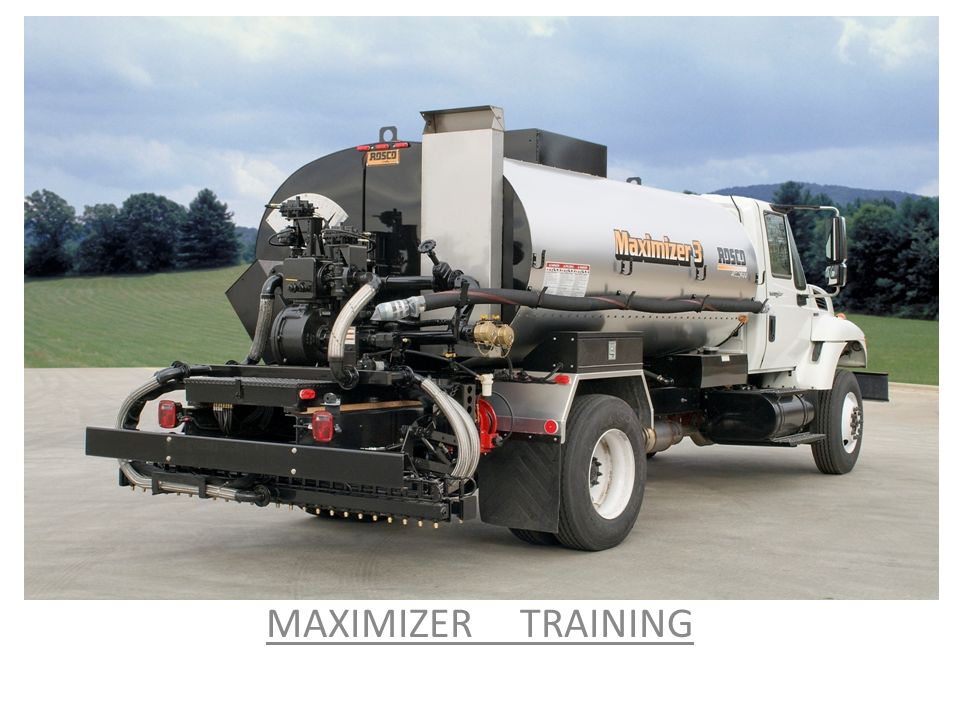

1 MAXIMIZER TRAINING

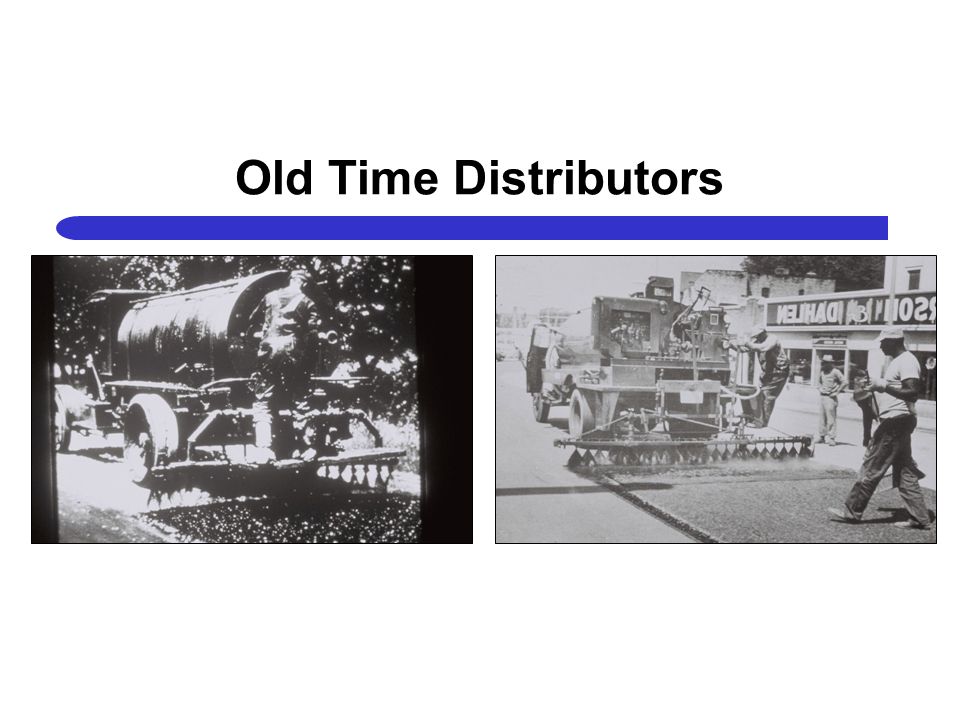

2 Old Time Distributors

3 Early Rosco Distributors

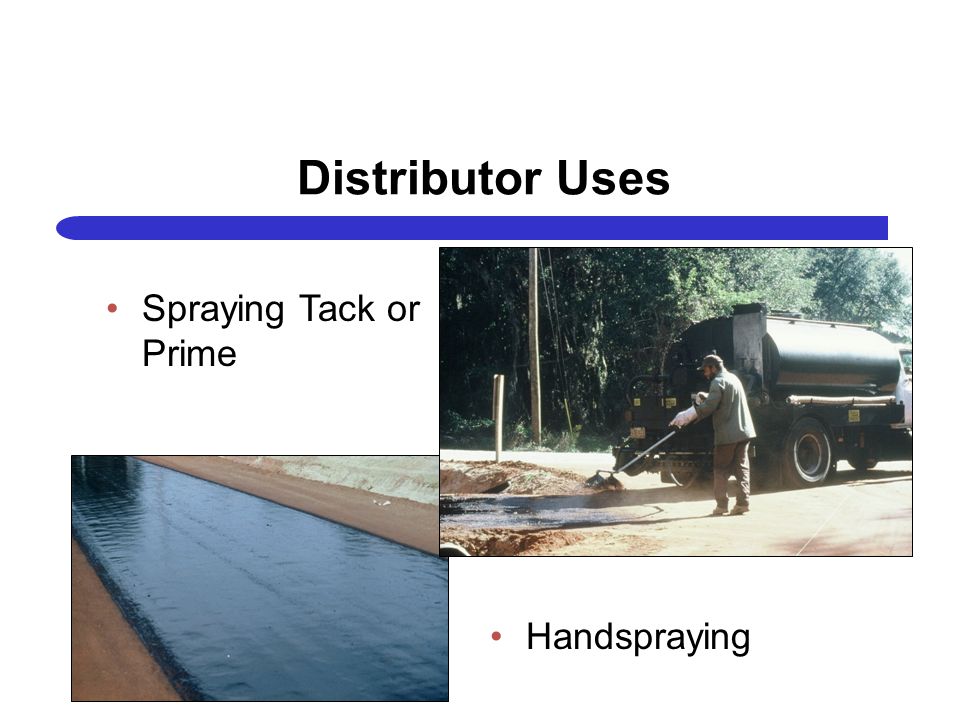

4 Distributor Uses Spraying Tack or Prime Handspraying

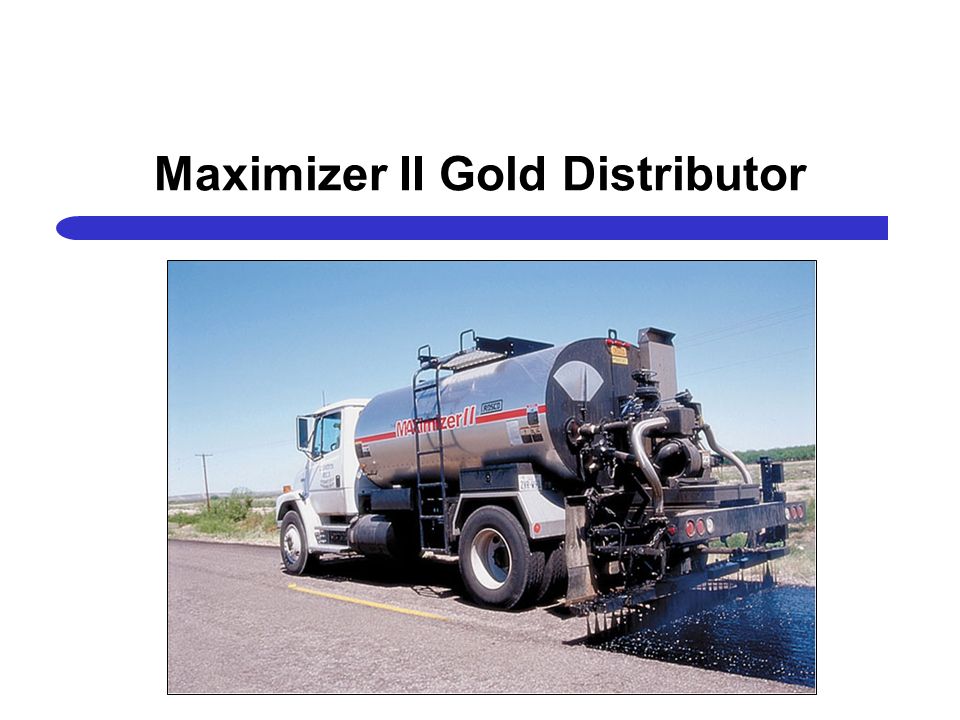

5 Maximizer II Gold Distributor

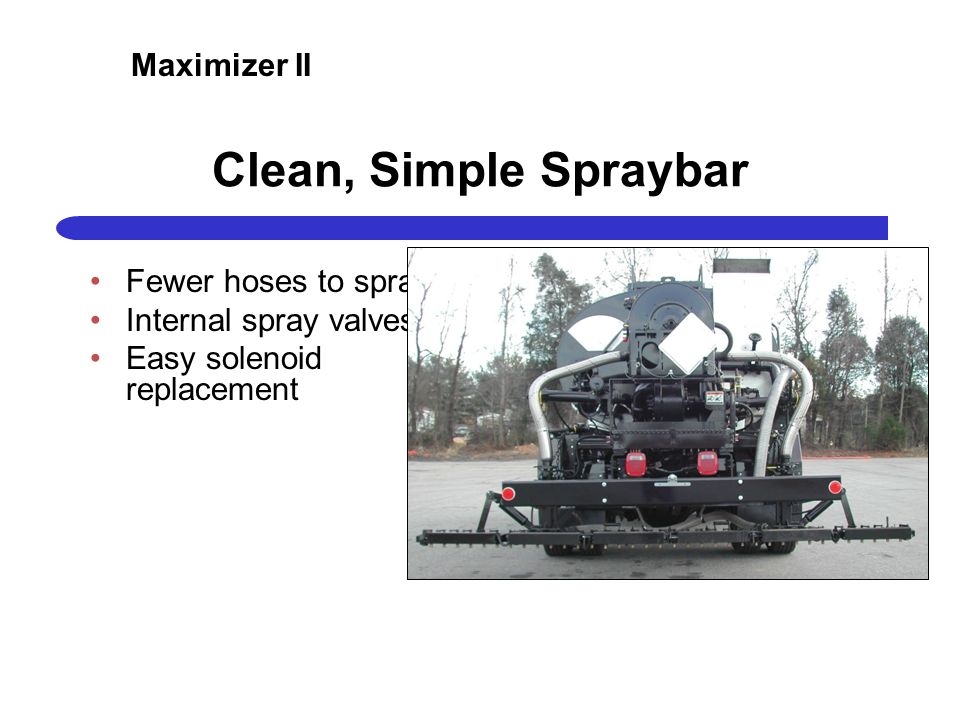

6 Clean, Simple Spraybar Fewer hoses to spraybar Internal spray valves Easy solenoid replacement Maximizer II

7 Clean, Simple Spraybar Fewer hoses to spraybar Internal spray valves Easy solenoid replacement Maximizer II

8 Spraybar 1-Foot Extensions Maximizer II

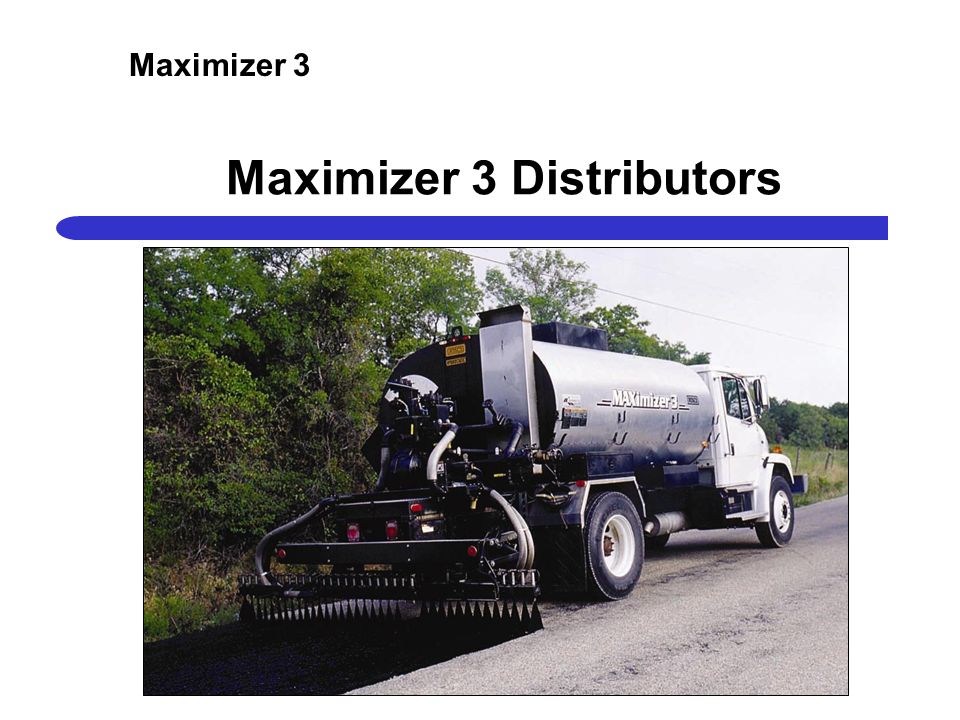

9 Maximizer 3 Maximizer 3 Distributors

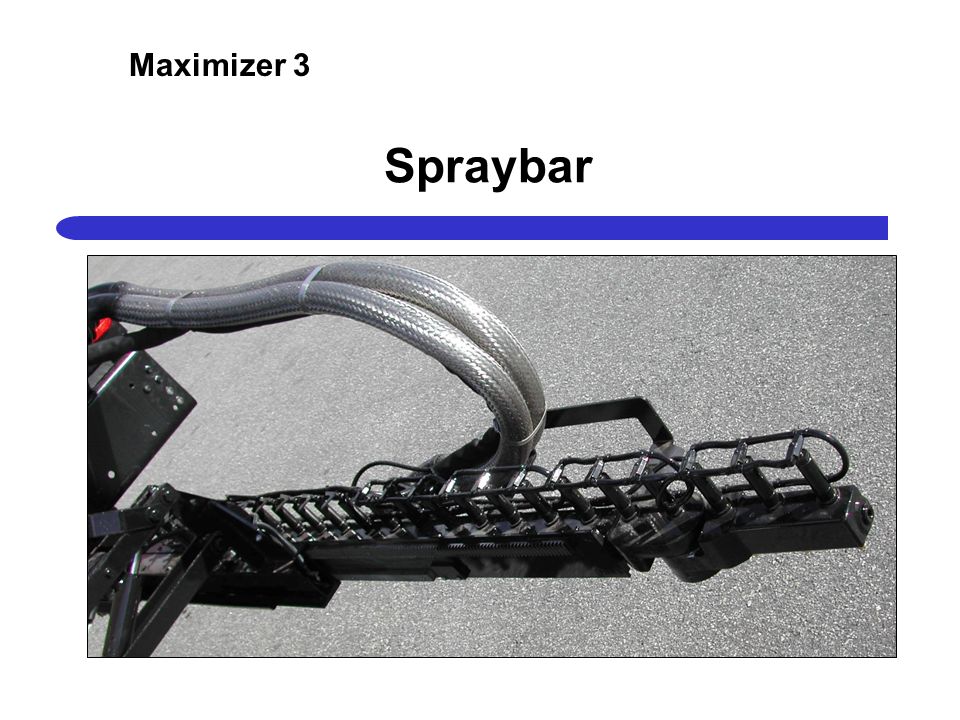

10 Spraybar Maximizer 3

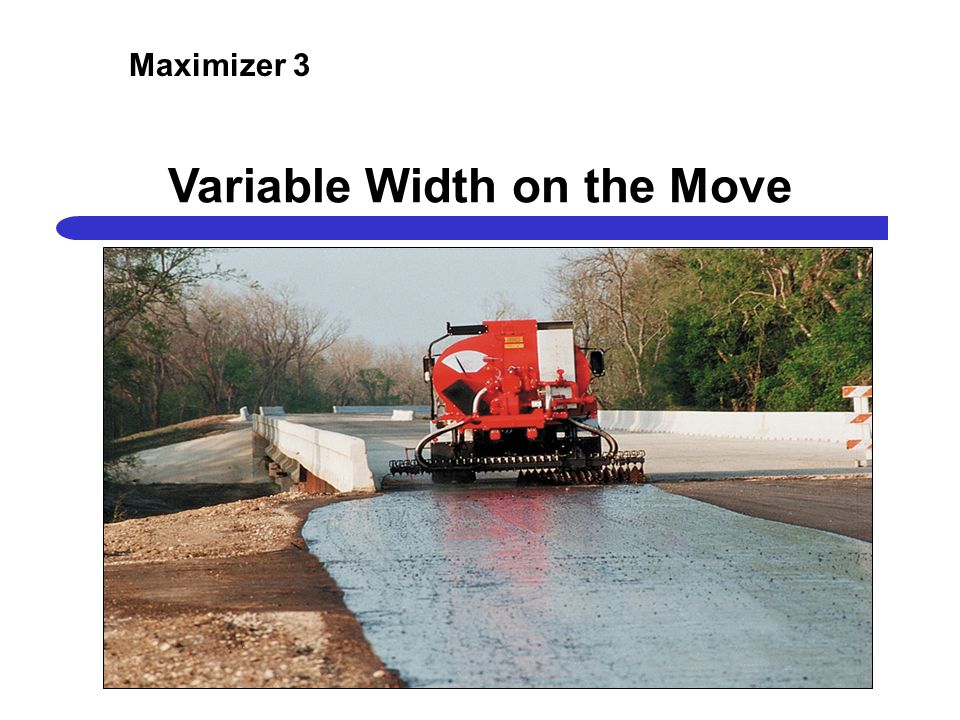

11 Variable Width on the Move Maximizer 3

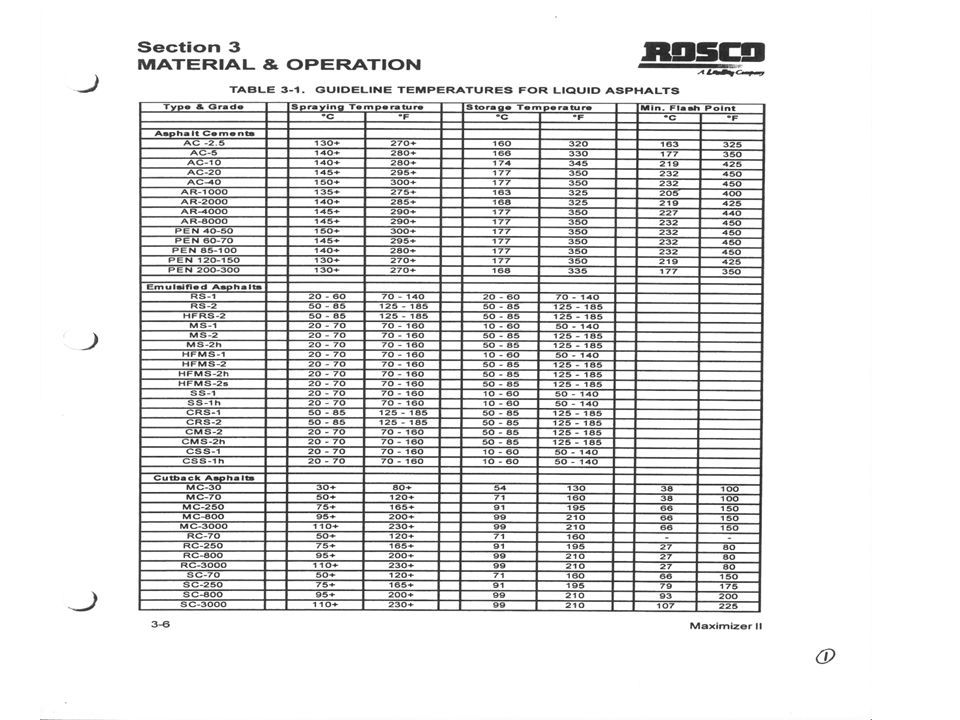

12

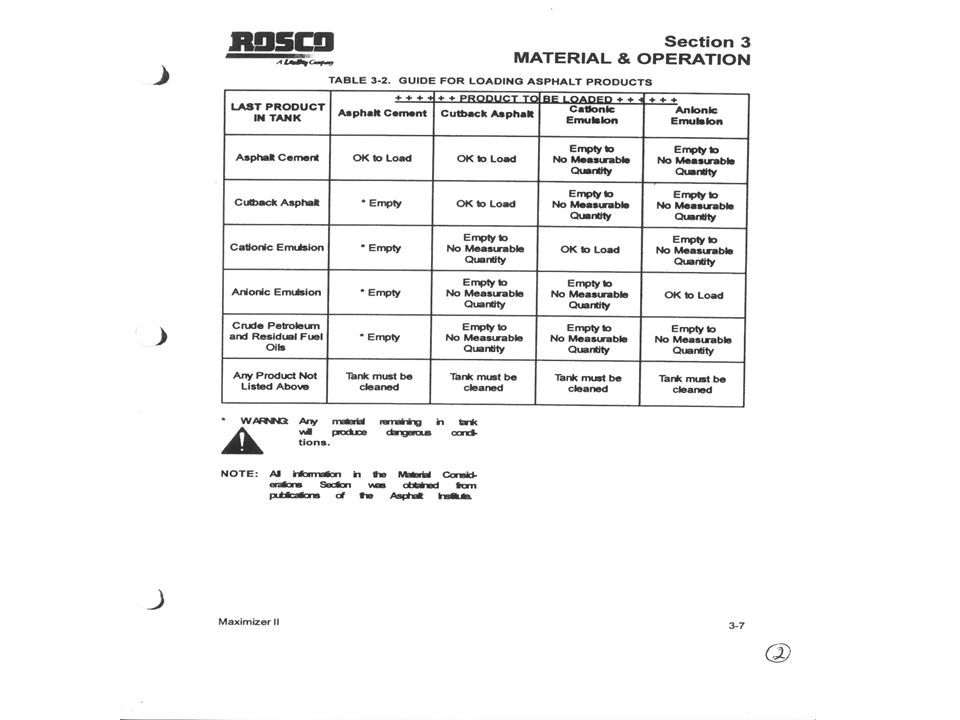

13

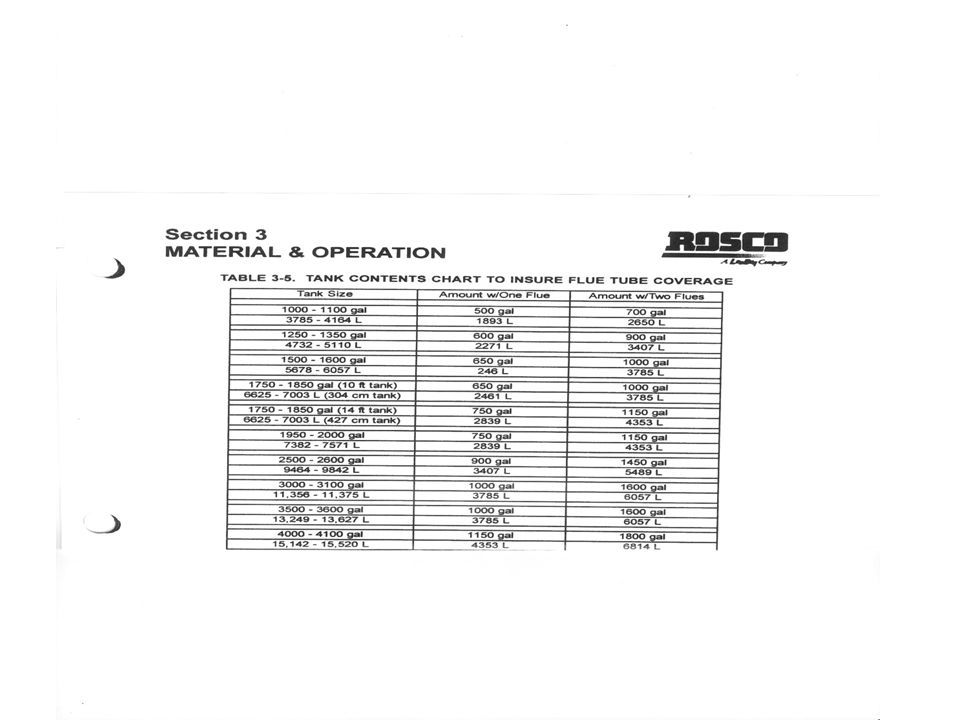

14

15

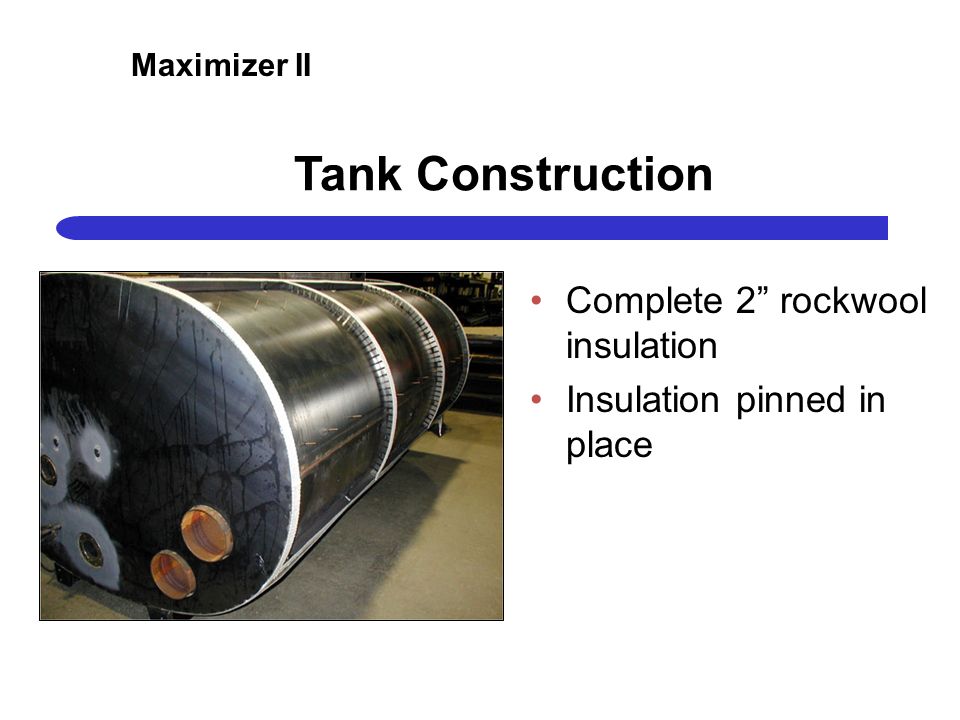

16 Tank Construction Complete 2” rockwool insulation Insulation pinned in place Maximizer II

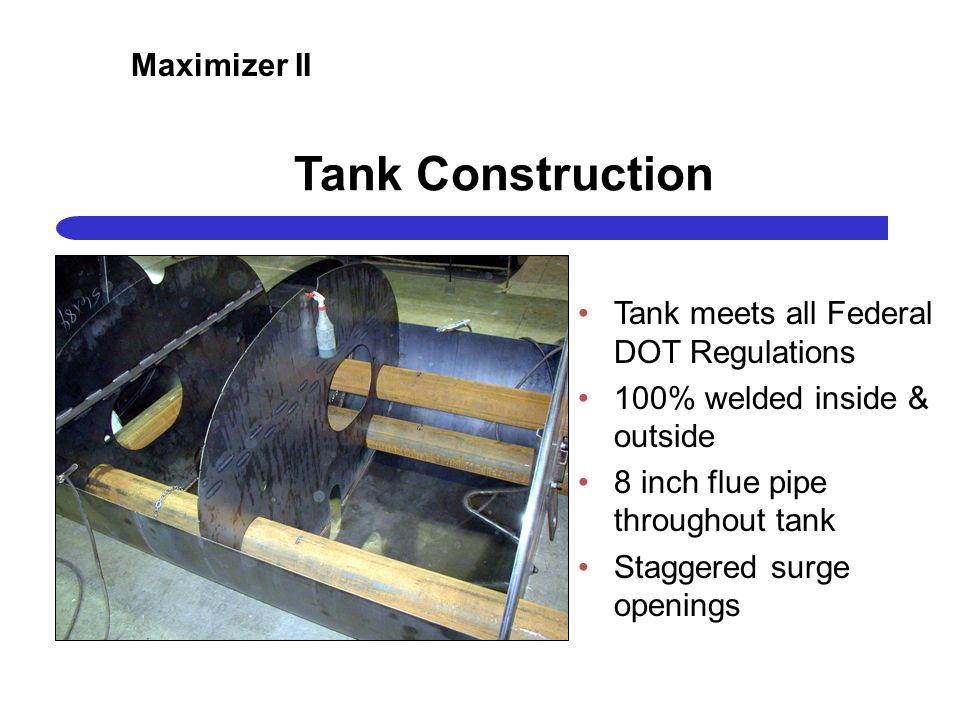

17 Tank Construction Tank meets all Federal DOT Regulations 100% welded inside & outside 8 inch flue pipe throughout tank Staggered surge openings Maximizer II

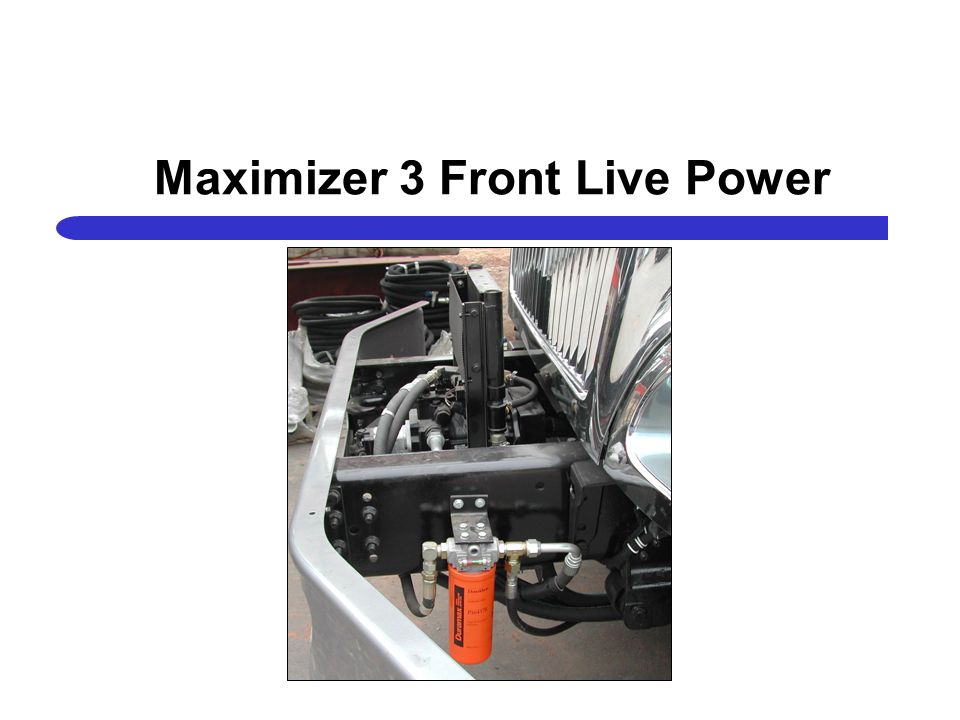

18 Maximizer 3 Front Live Power

19

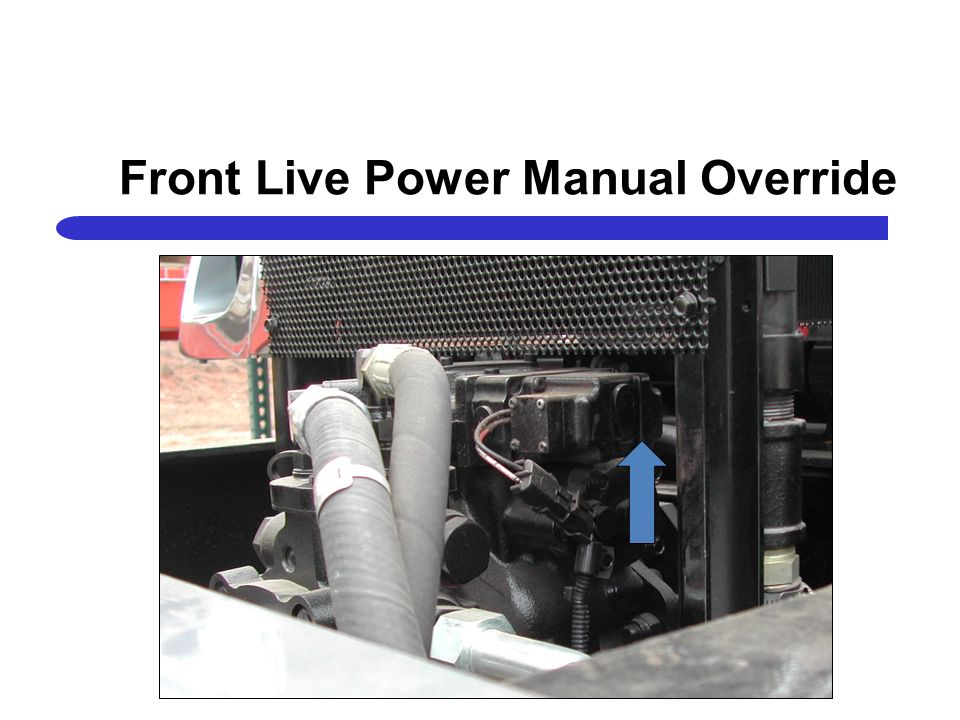

20 Front Live Power Manual Override

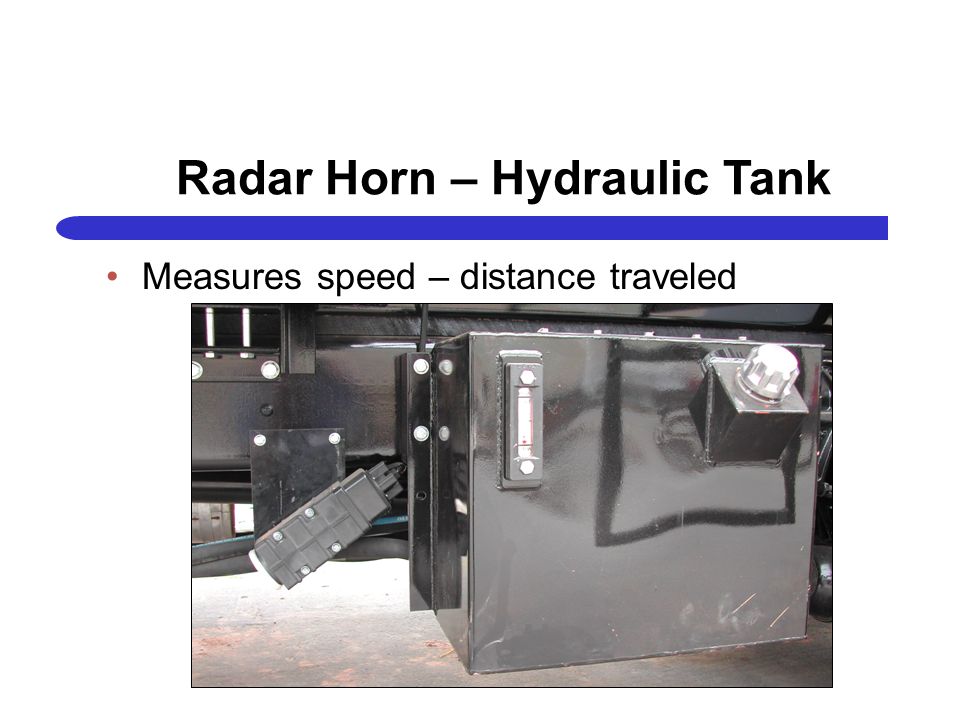

21 Radar Horn – Hydraulic Tank Measures speed – distance traveled

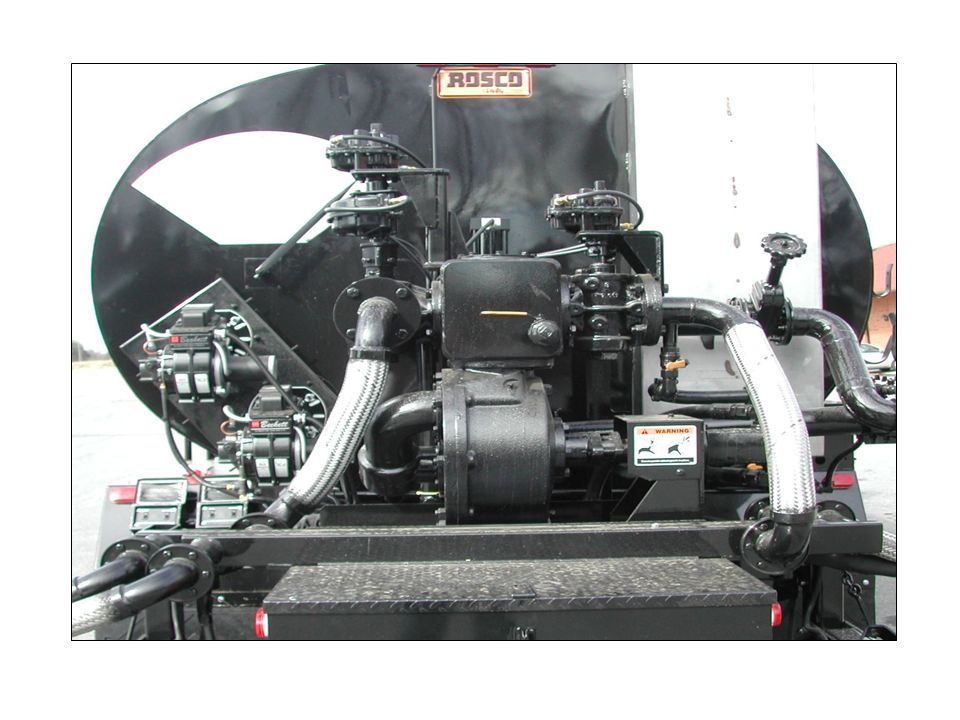

22

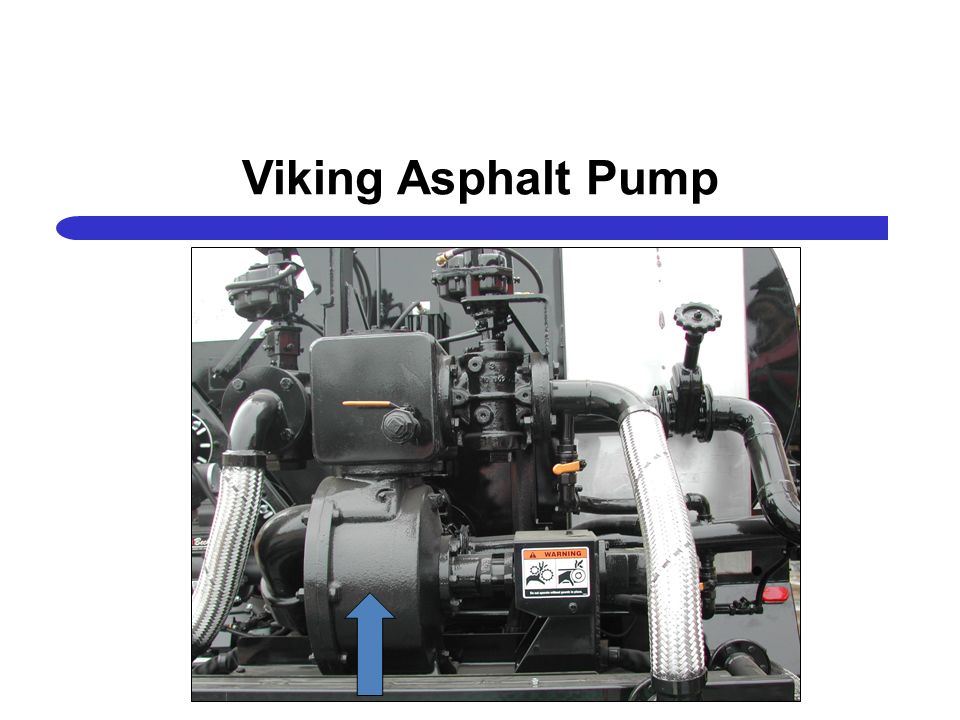

23 Viking Asphalt Pump

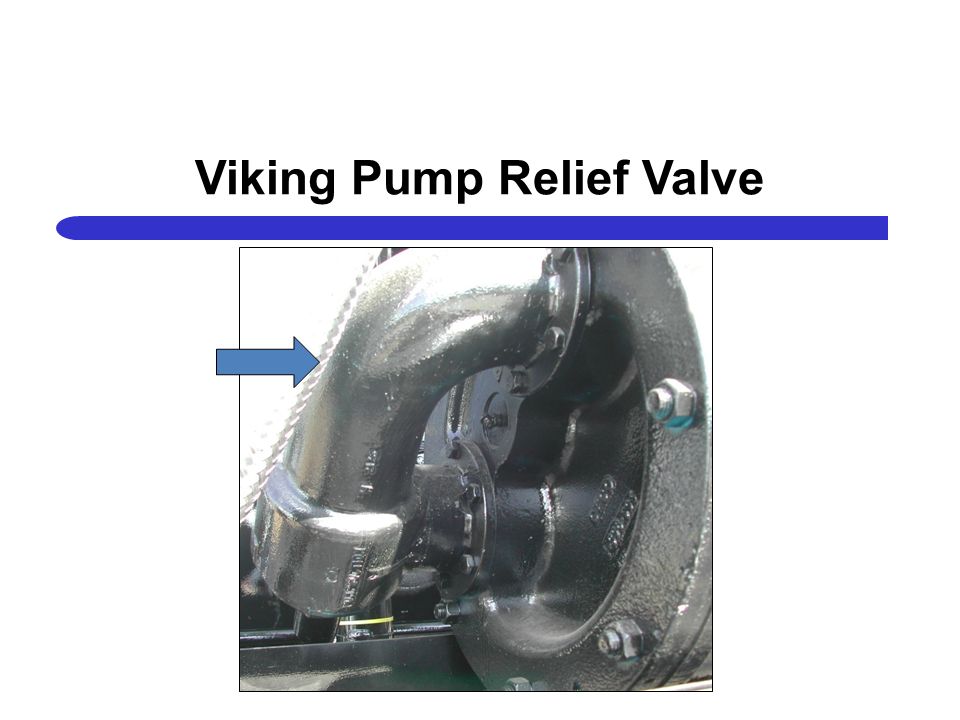

24 Viking Pump Relief Valve

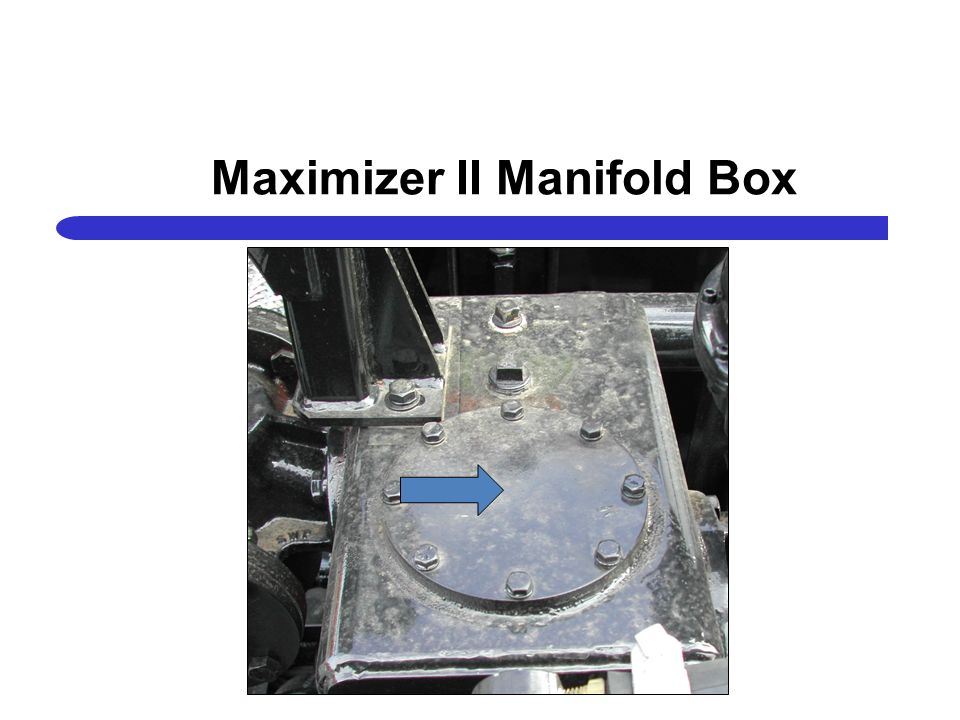

25 Maximizer II Manifold Box

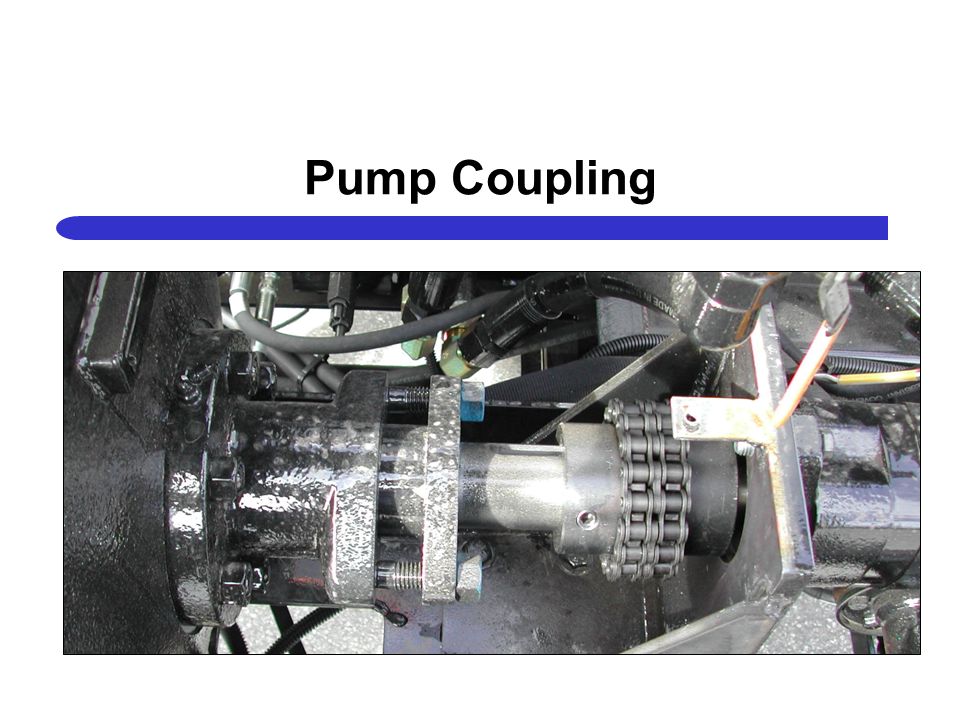

26 Pump Coupling

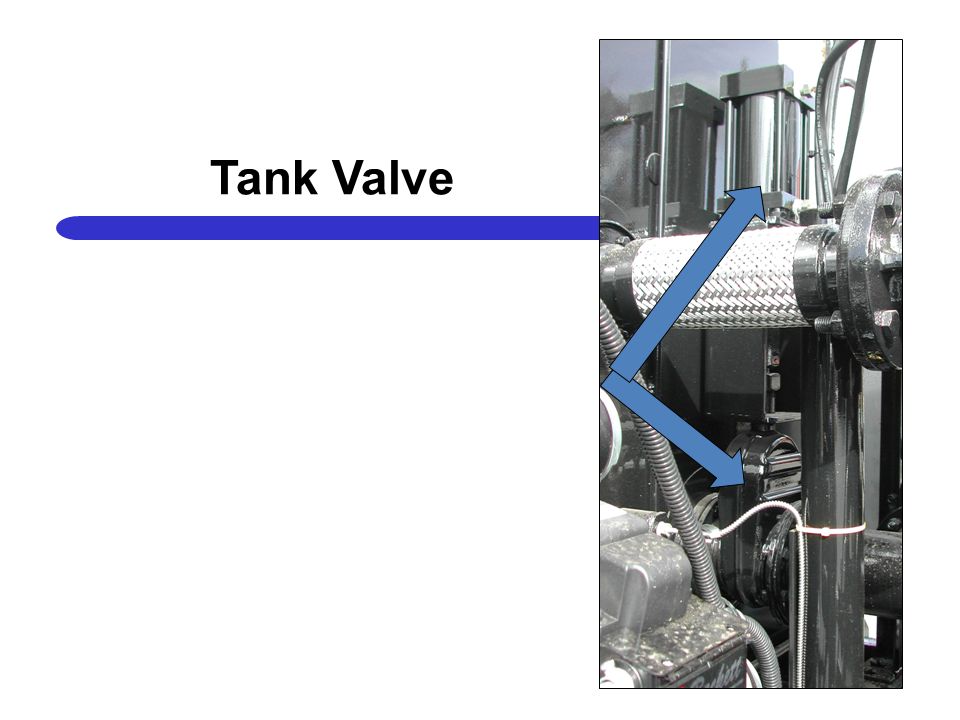

27 Tank Valve

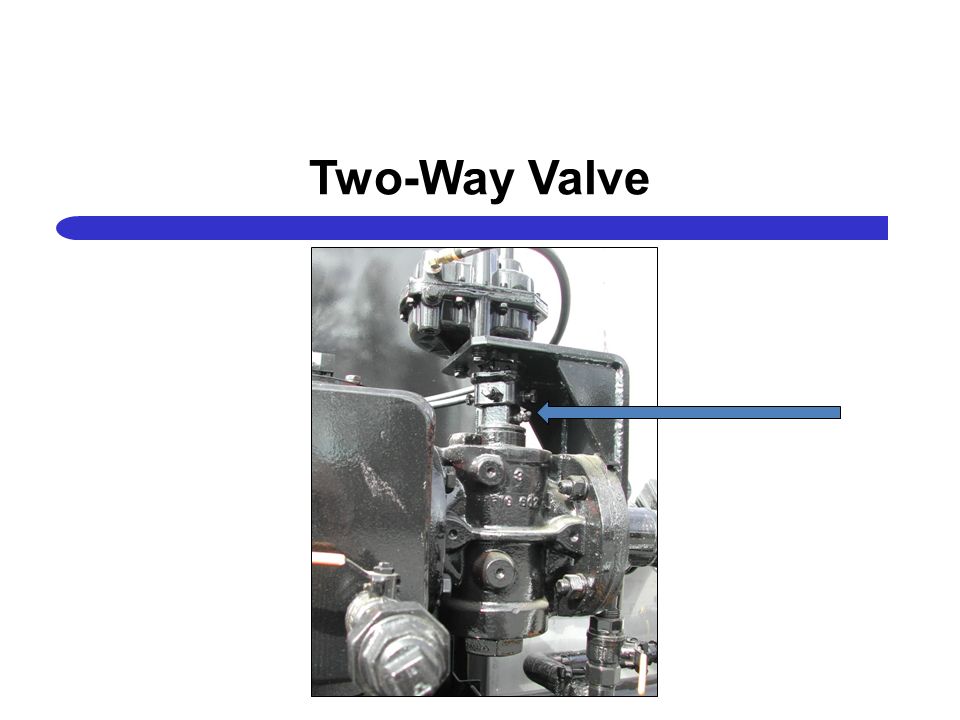

28 Two-Way Valve

29 Three-Way Valve

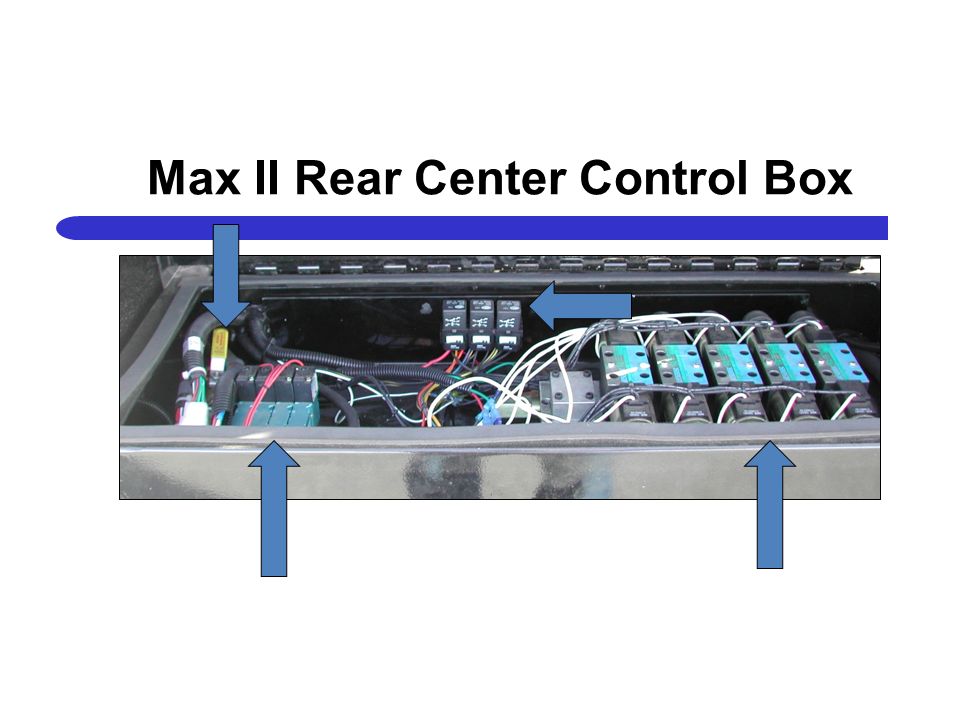

30 Max II Rear Center Control Box

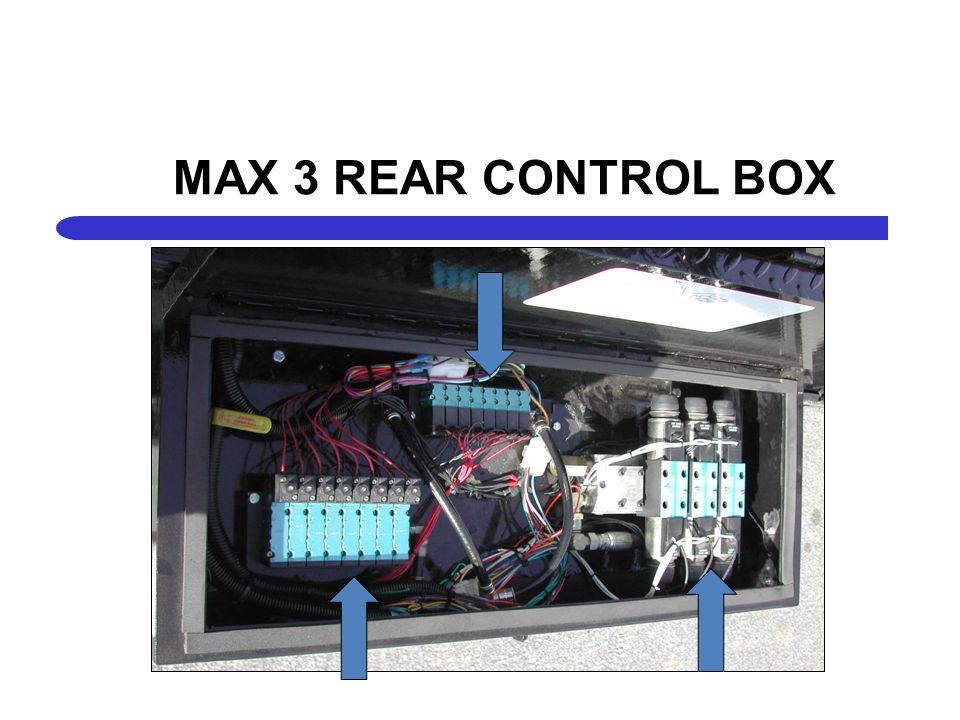

31 MAX 3 REAR CONTROL BOX

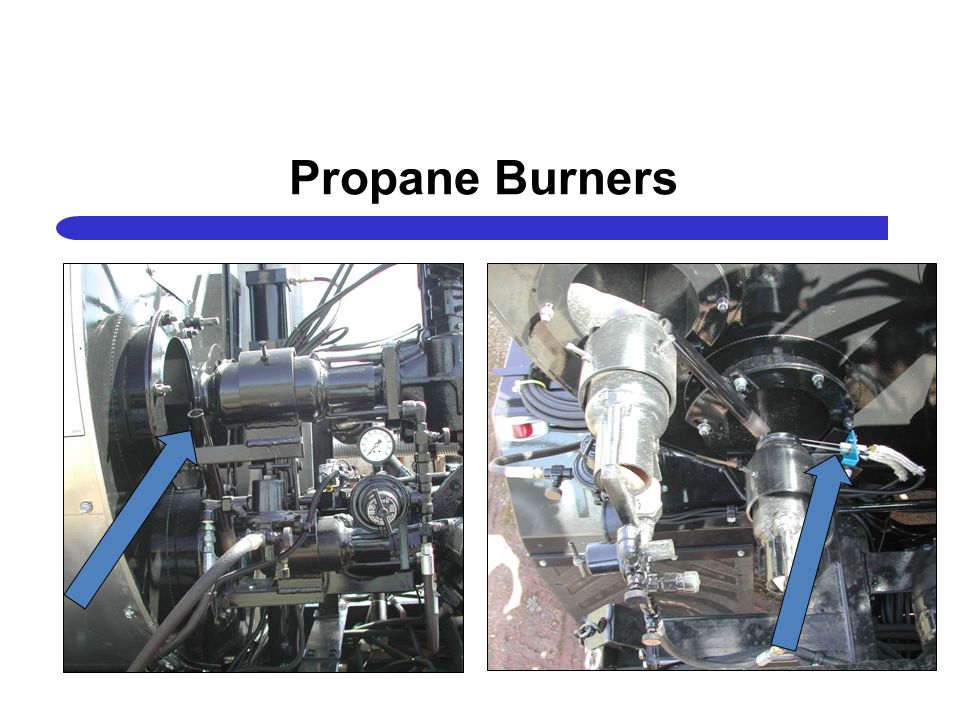

32 Propane Burners

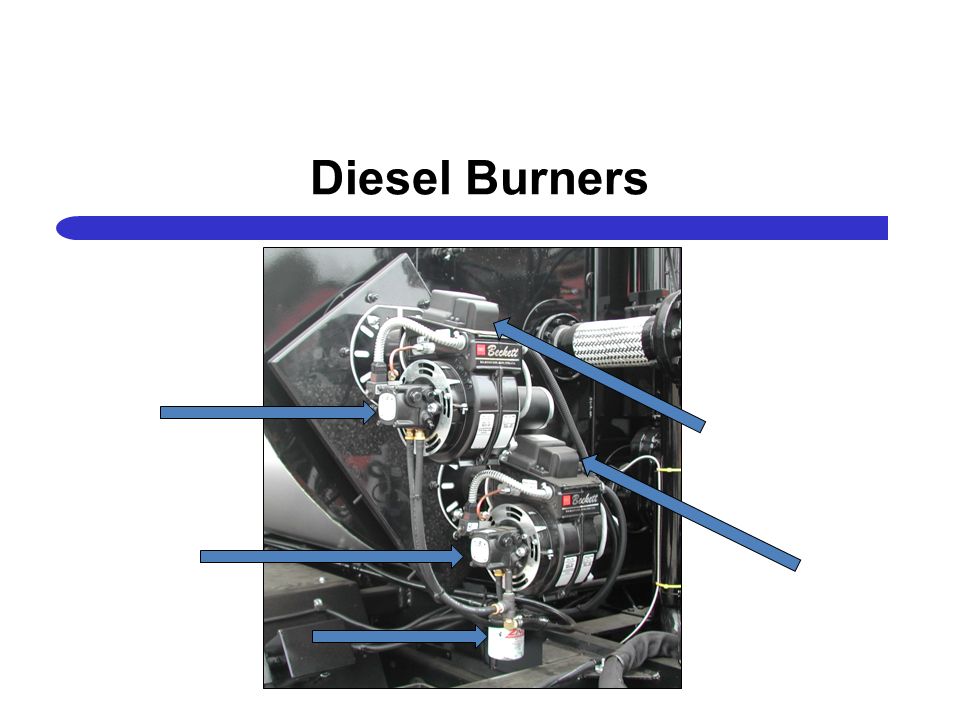

33 Diesel Burners

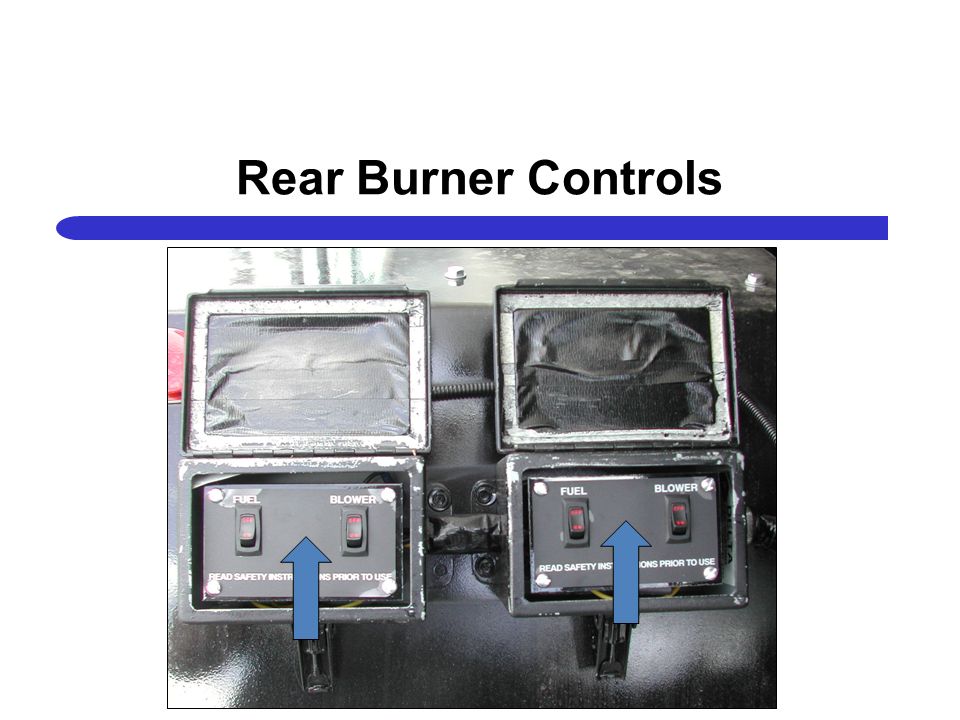

34 Rear Burner Controls

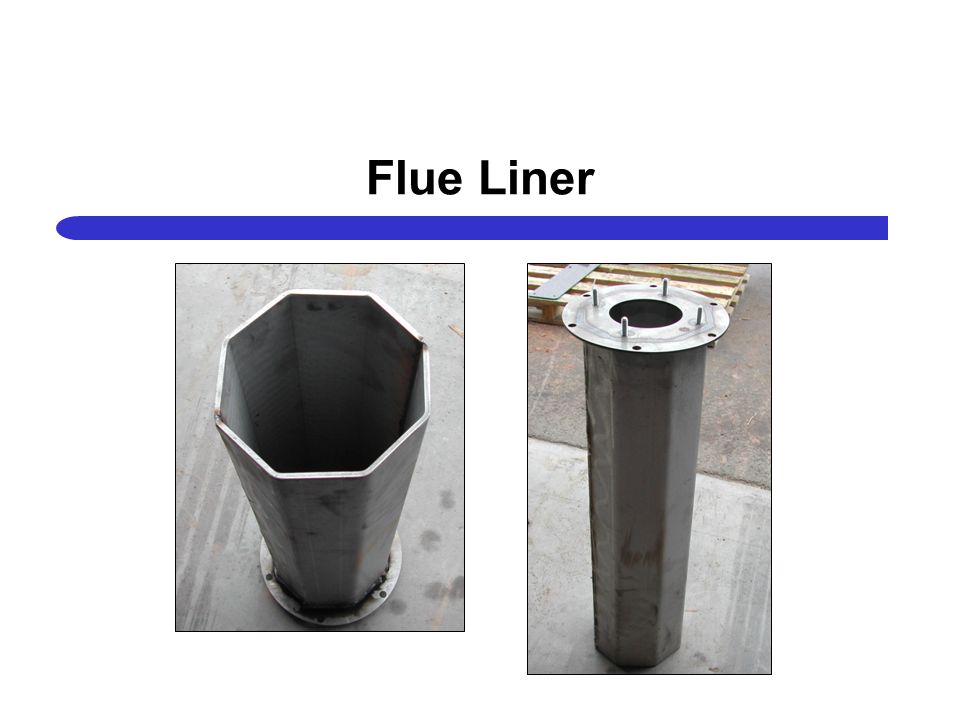

35 Flue Liner

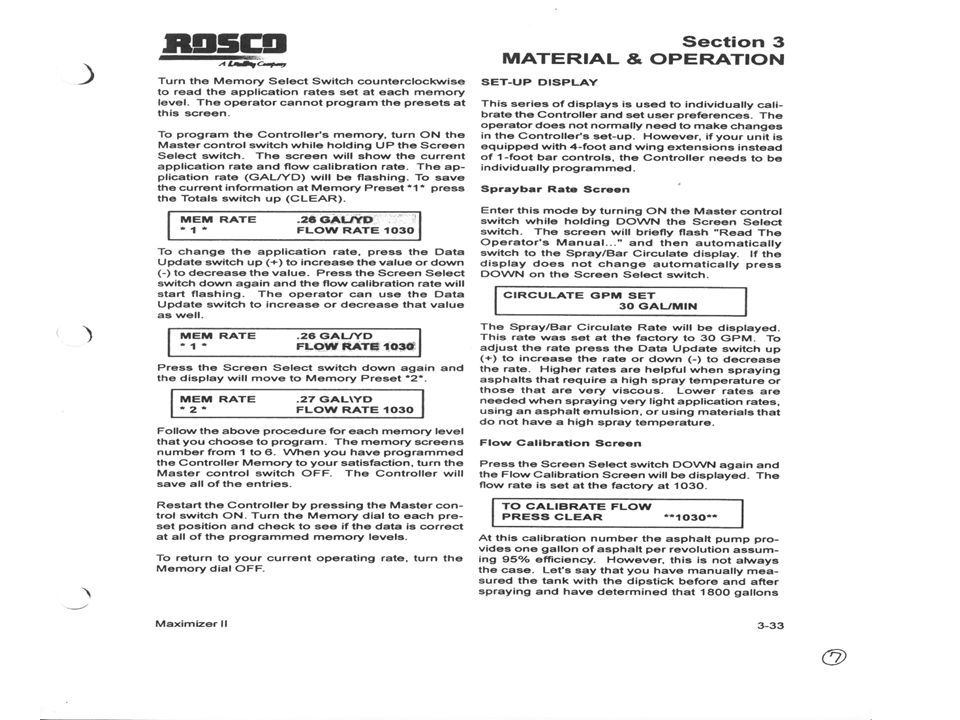

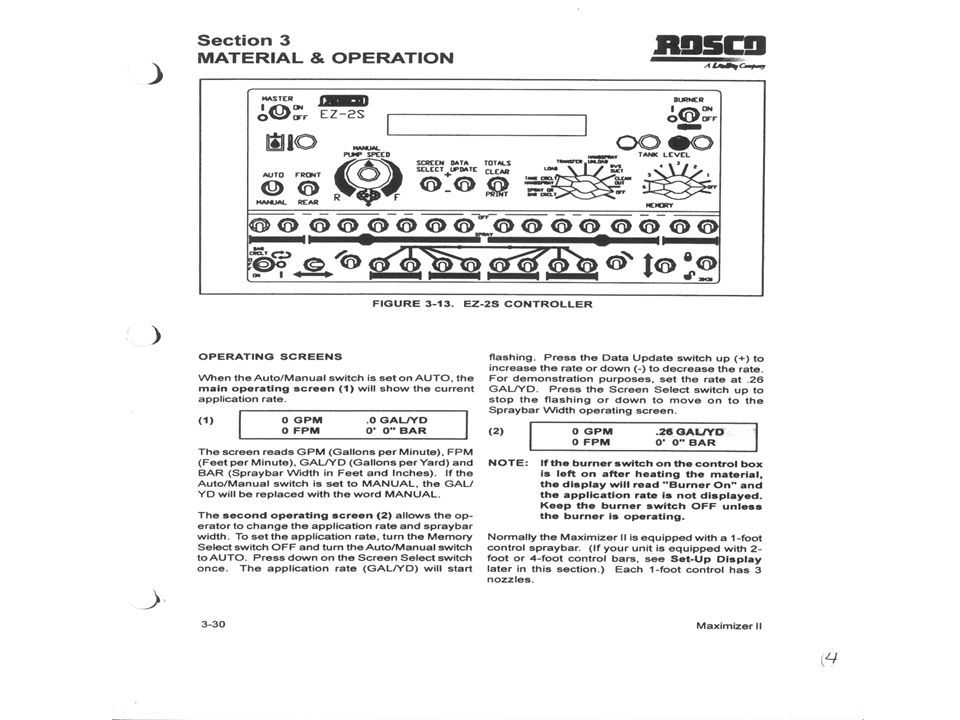

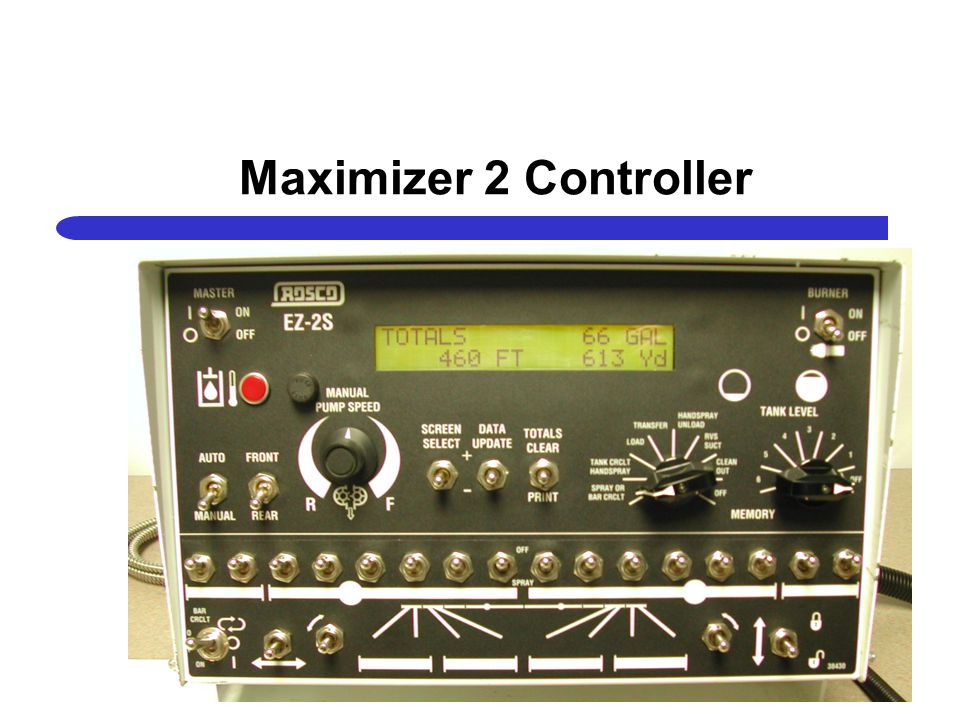

36 Maximizer 2 Controller

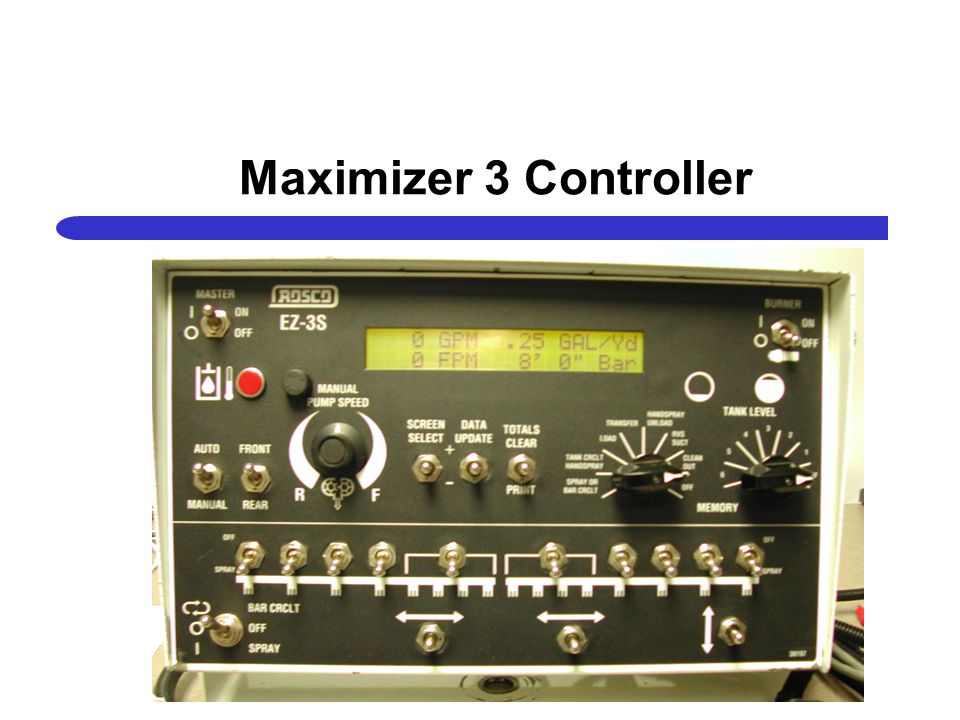

37 Maximizer 3 Controller

38

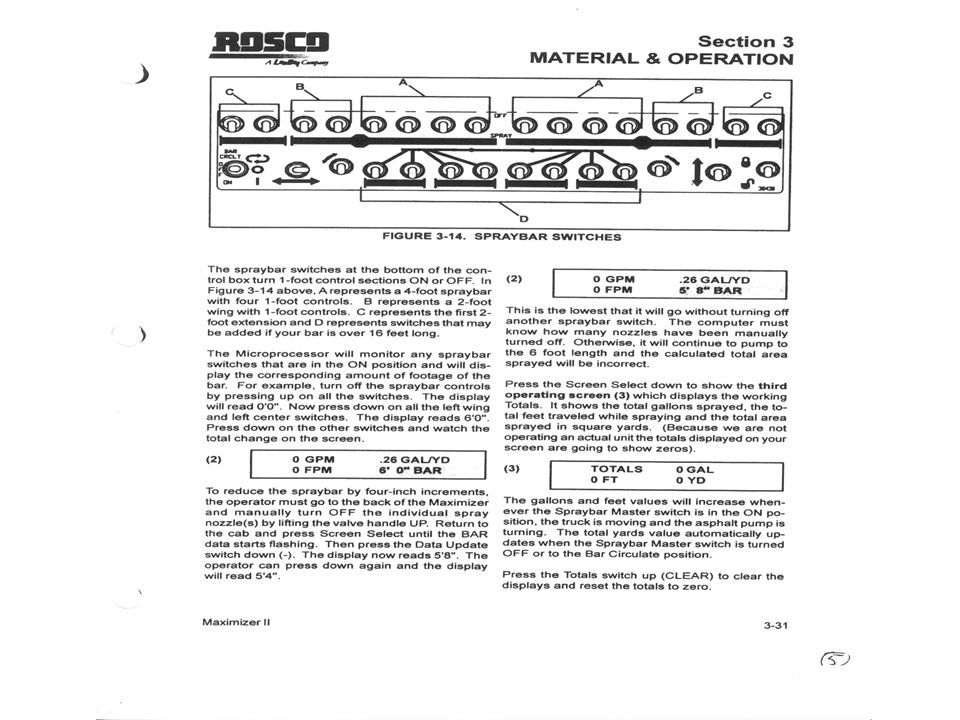

39

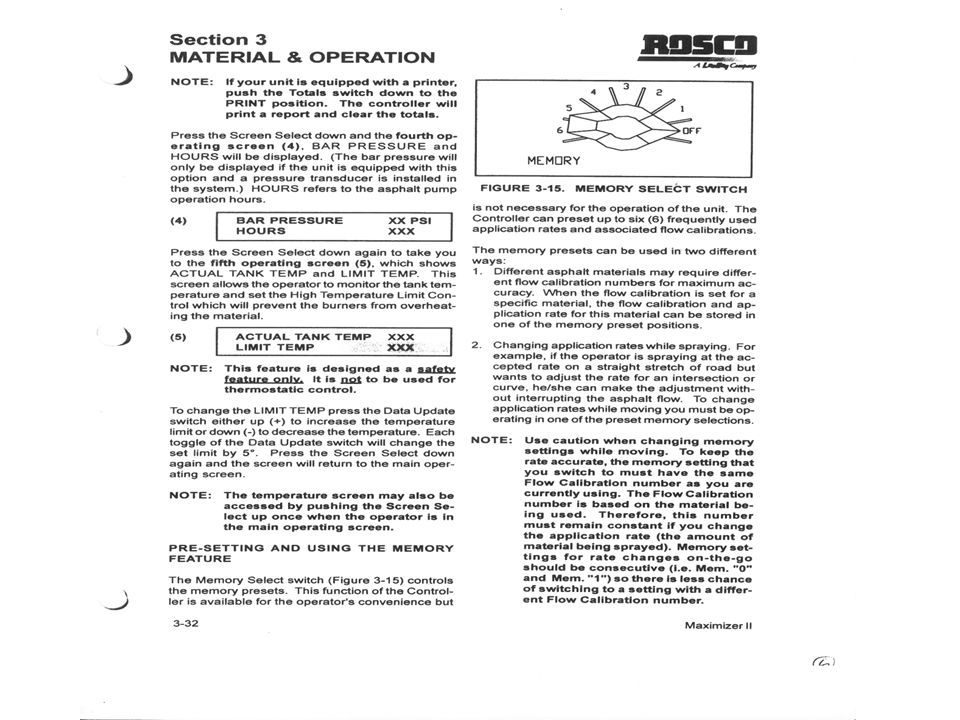

40

41

42

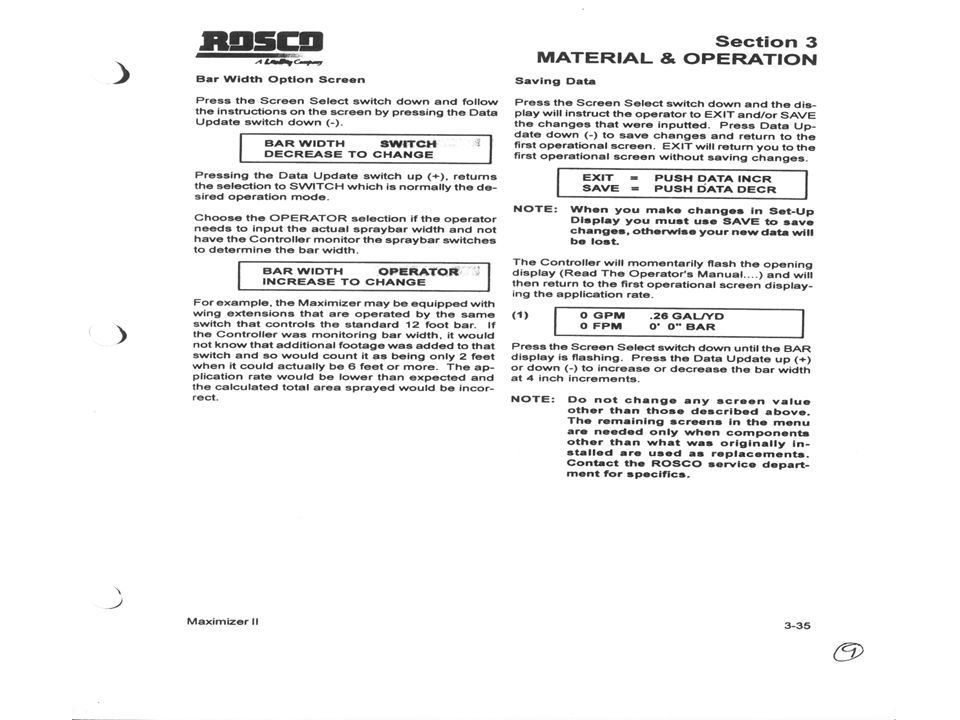

43

44

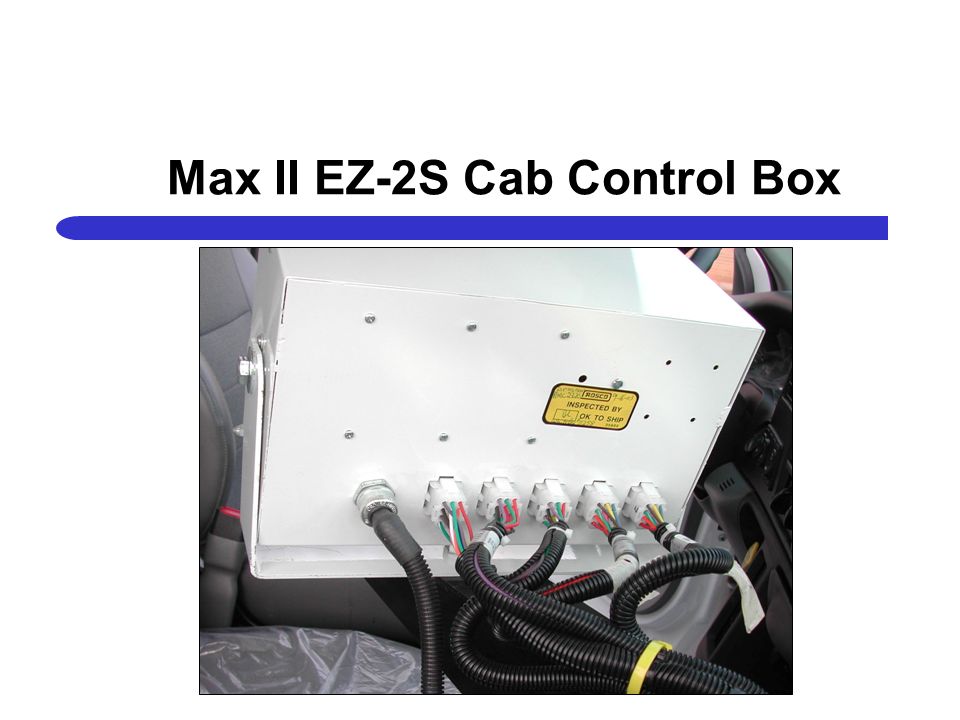

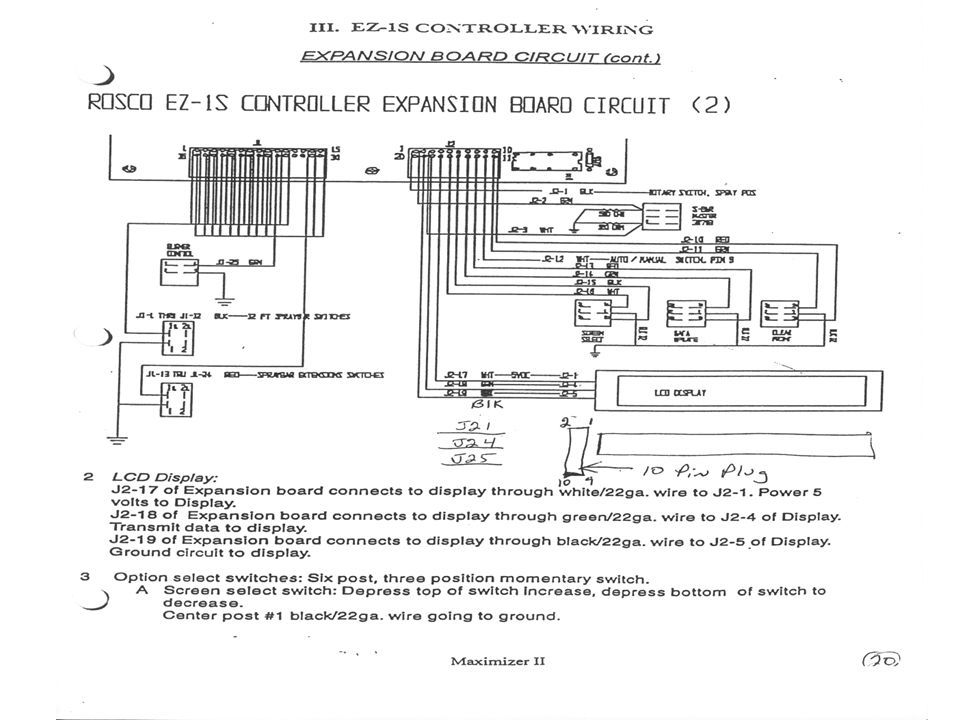

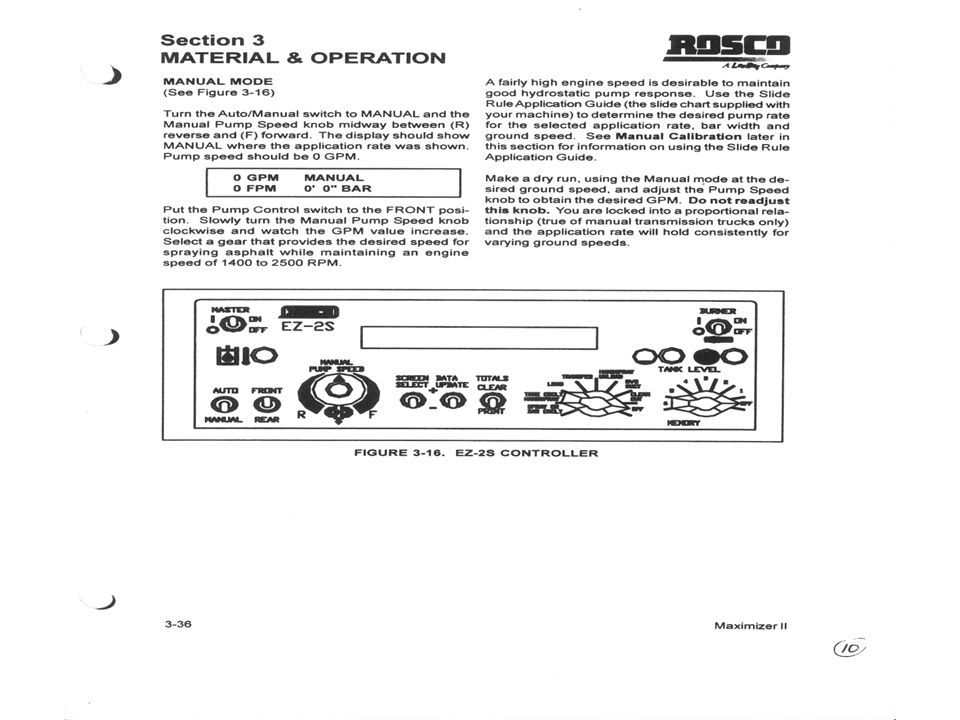

45 Max II EZ-2S Cab Control Box

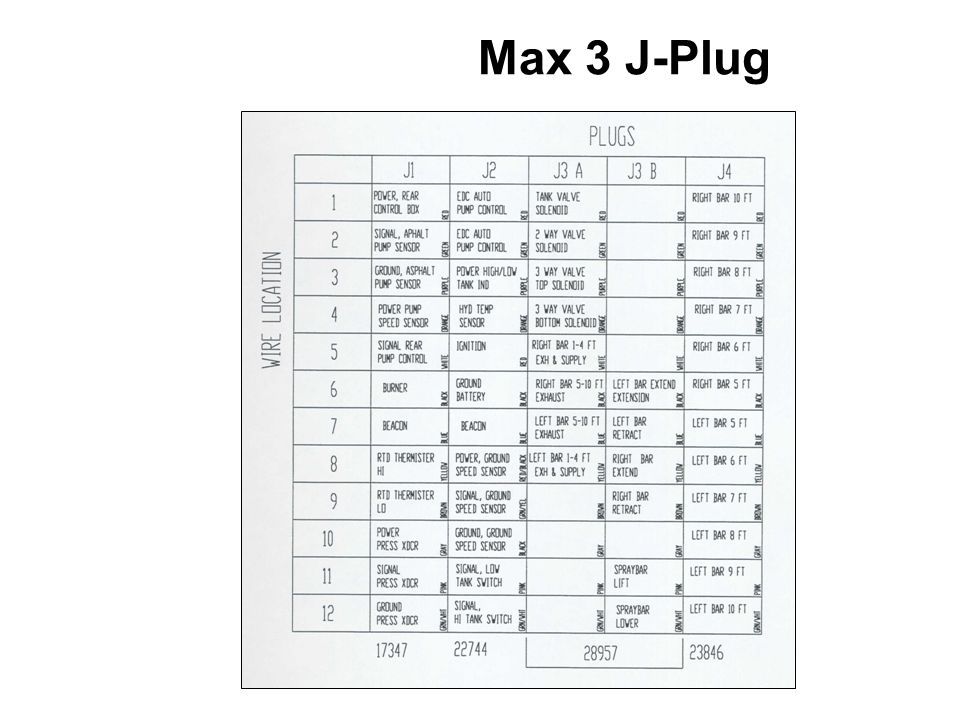

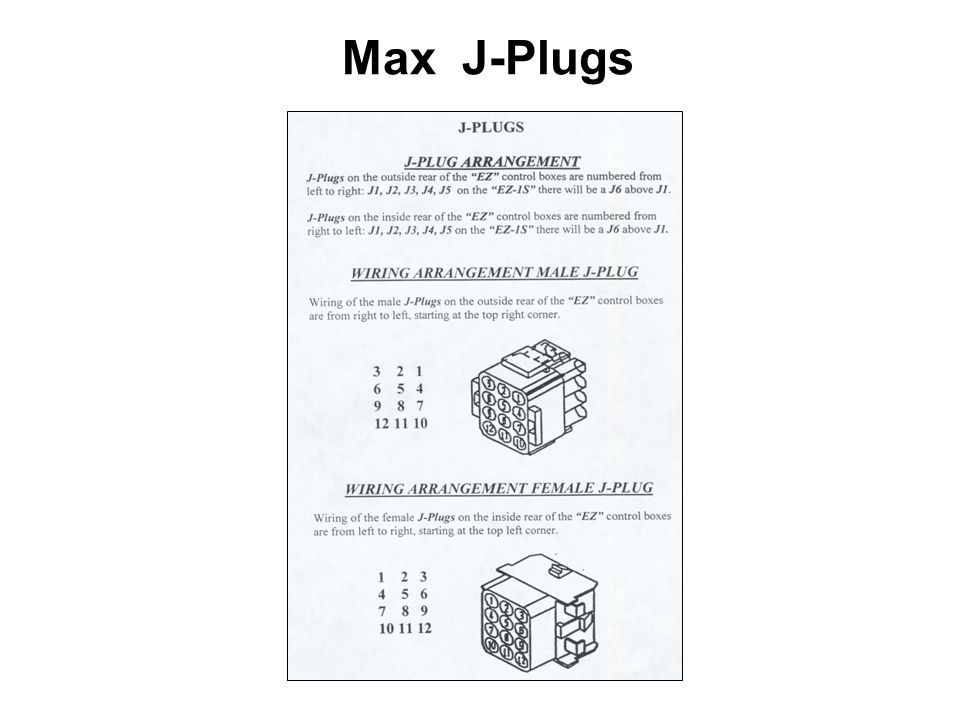

46 Max J-Plugs

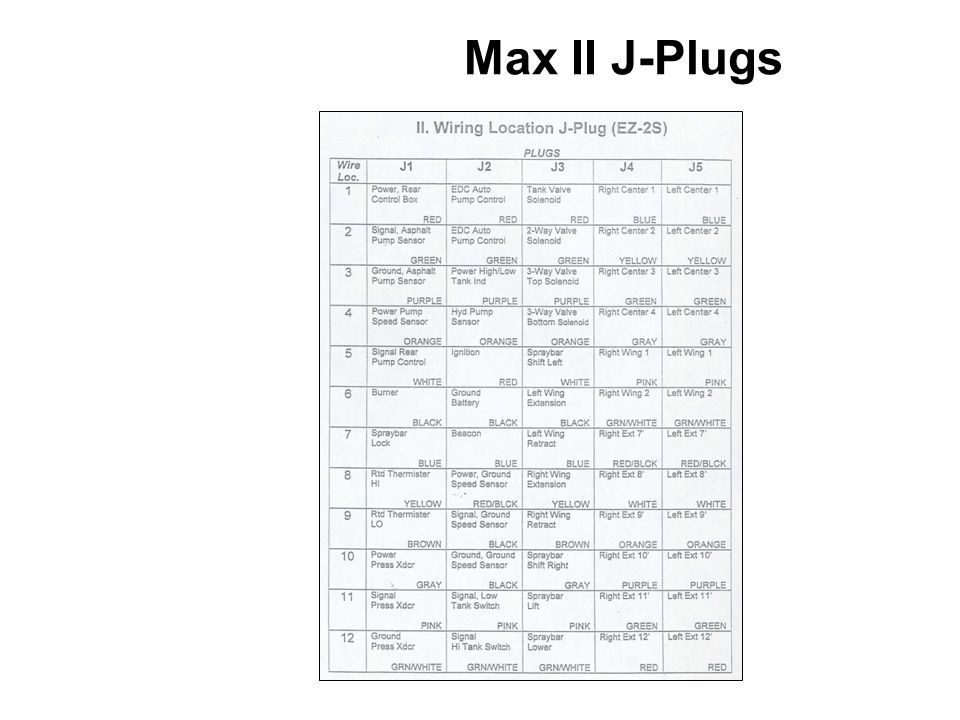

47 Max II J-Plugs

48 Max 3 J-Plug

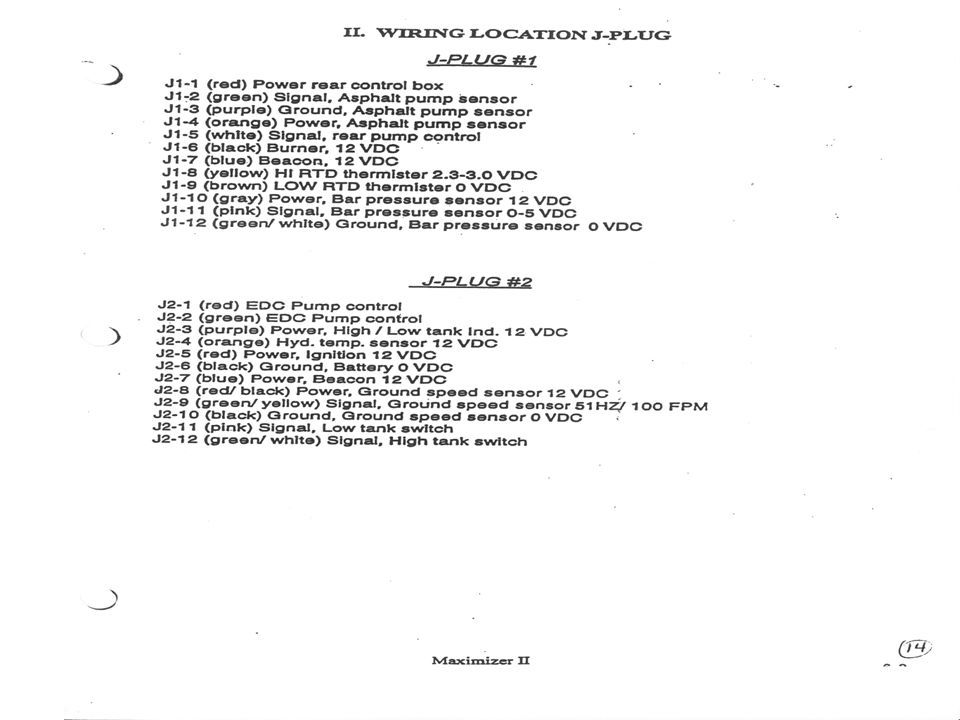

49

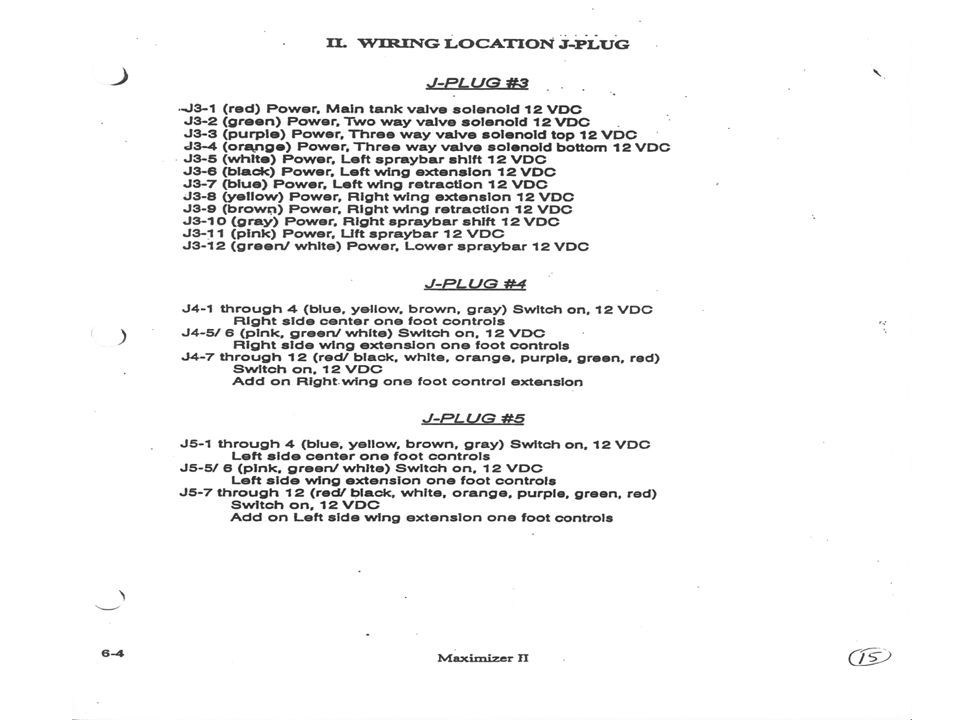

50

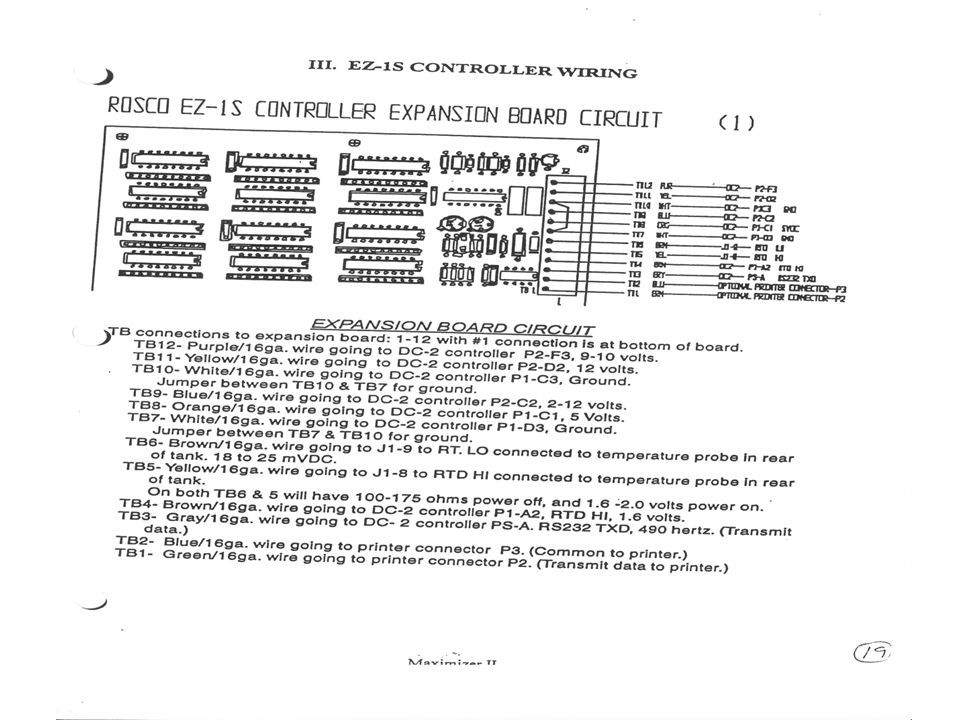

51

52

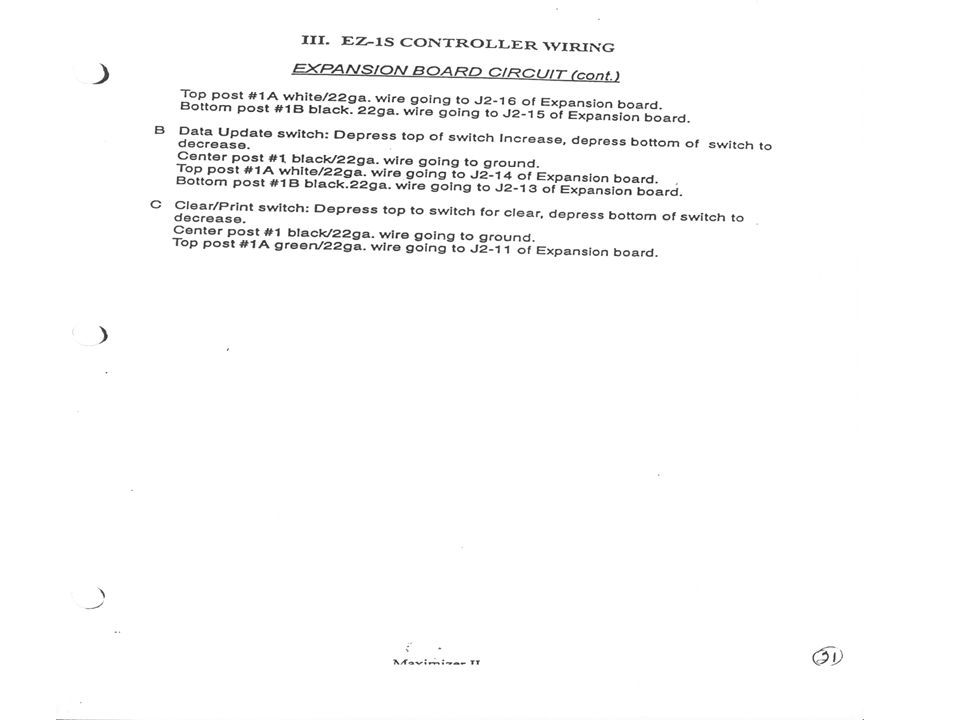

53

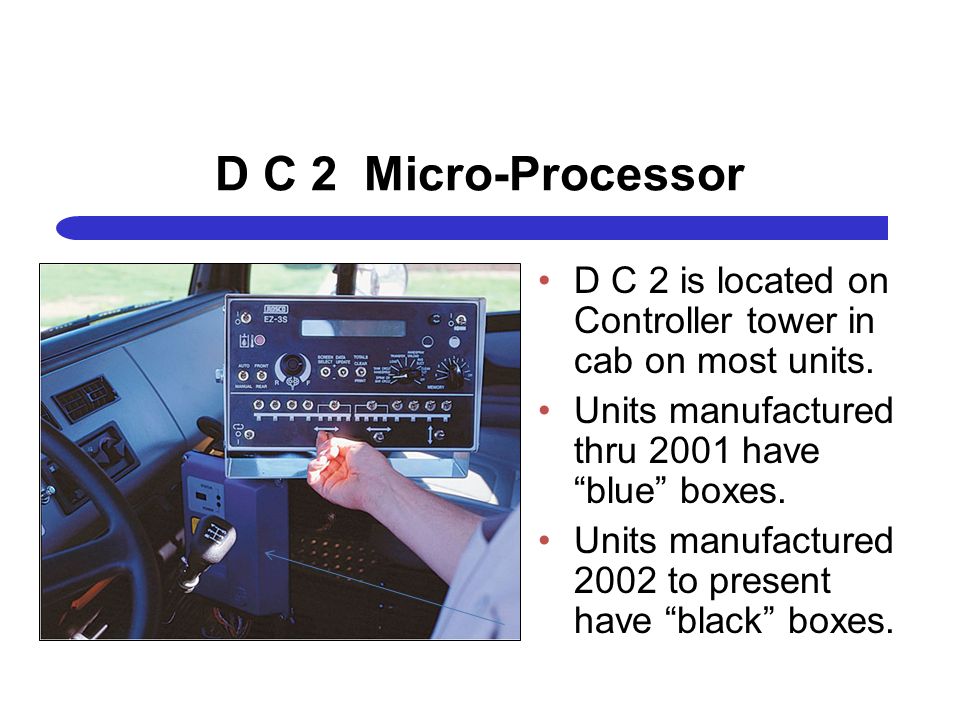

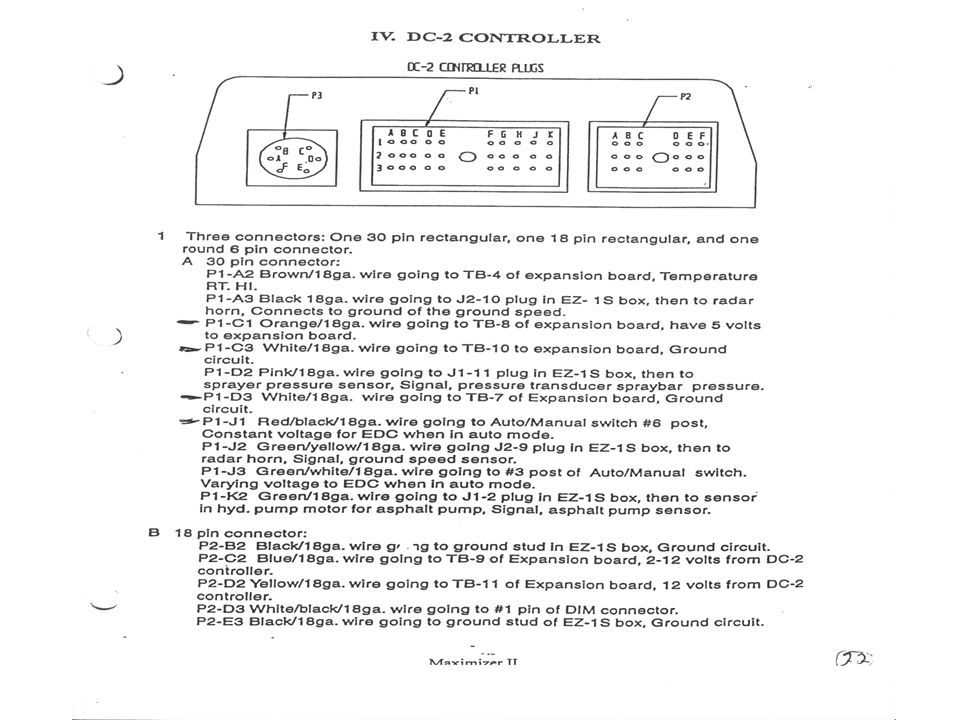

54 D C 2 Micro-Processor D C 2 is located on Controller tower in cab on most units. Units manufactured thru 2001 have “blue” boxes. Units manufactured 2002 to present have “black” boxes.

55

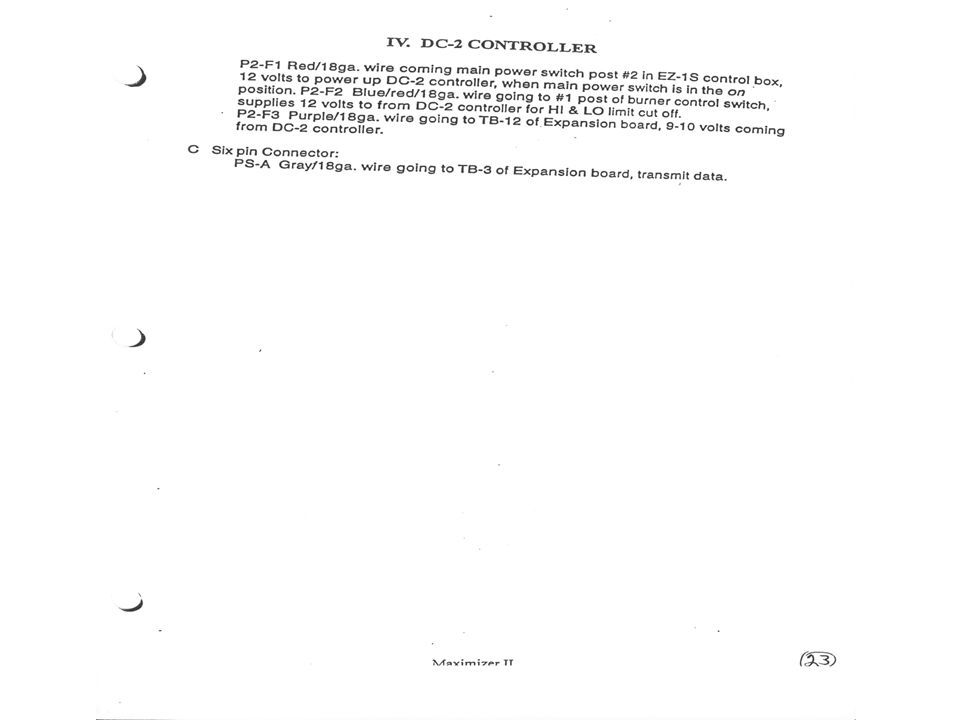

56

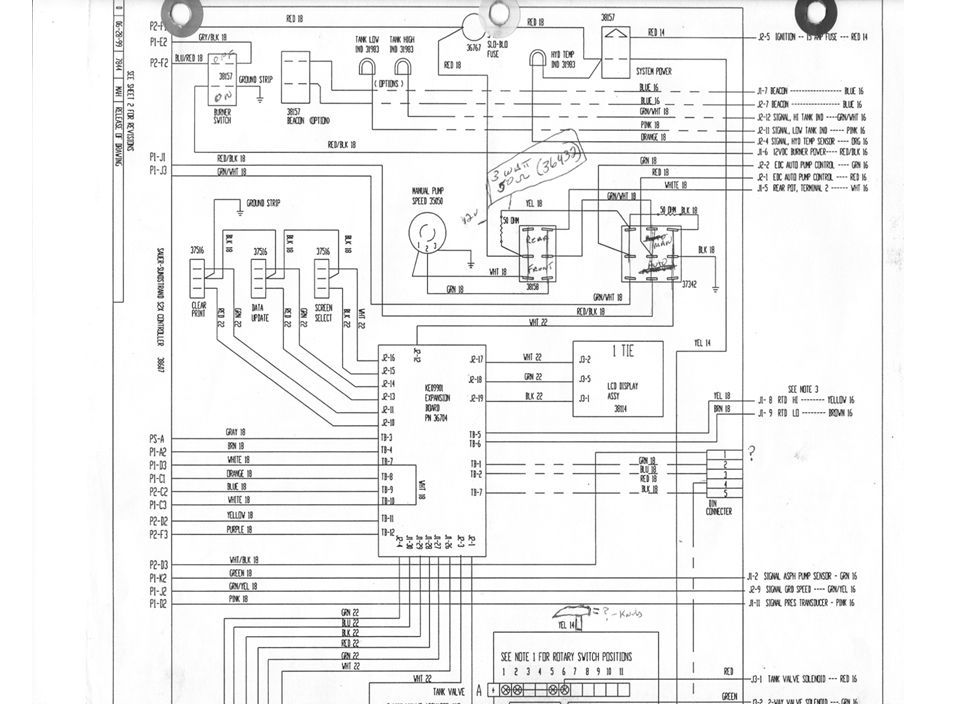

57

58

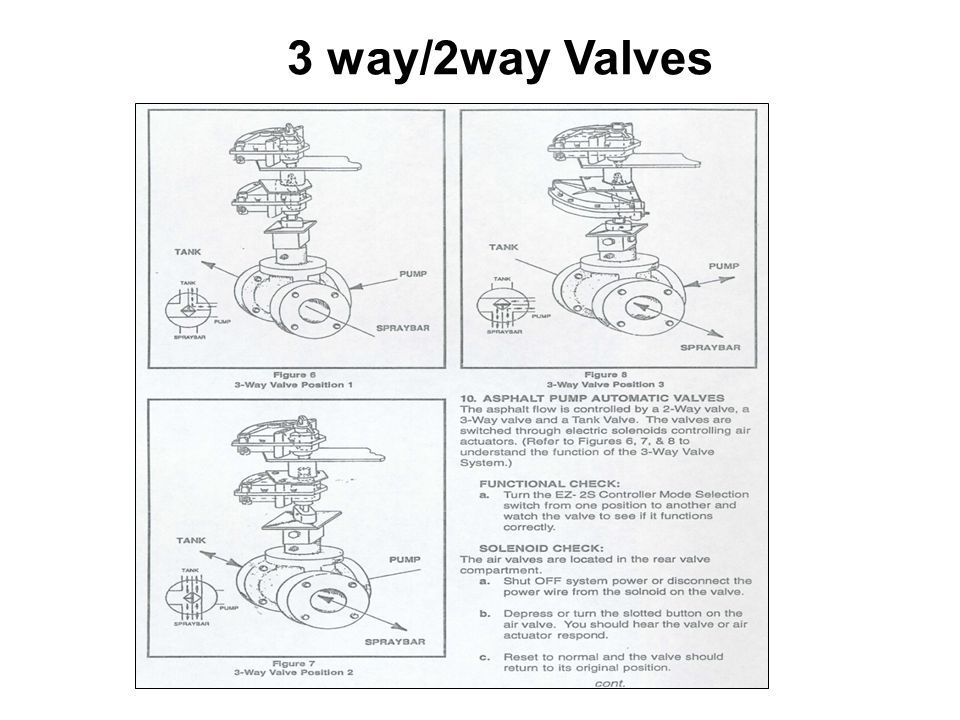

59 3 way/2way Valves

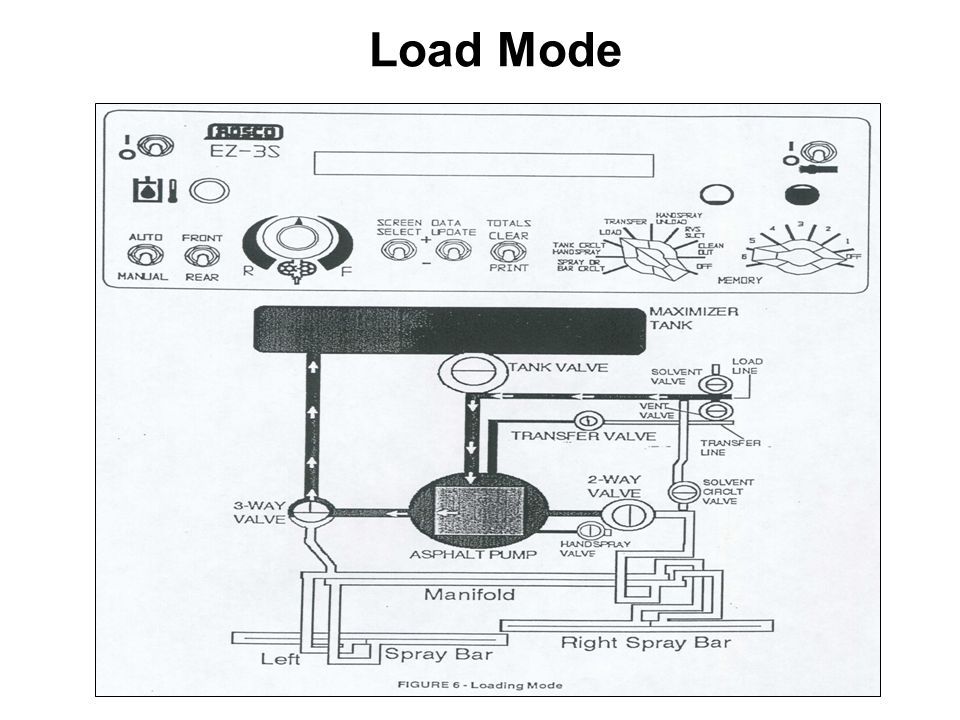

60 Load Mode

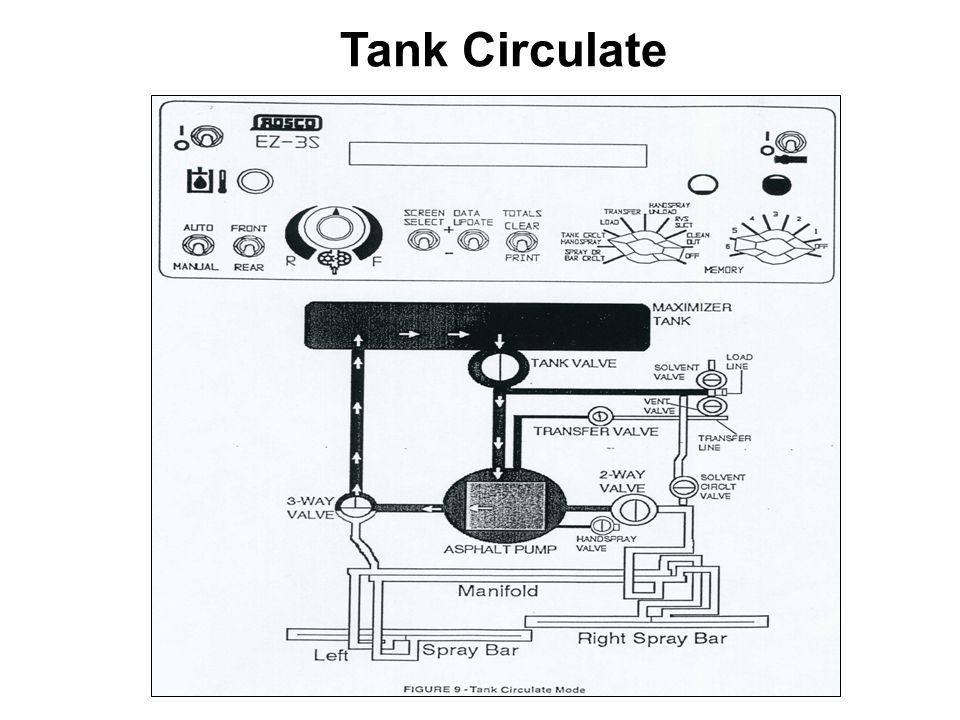

61 Tank Circulate

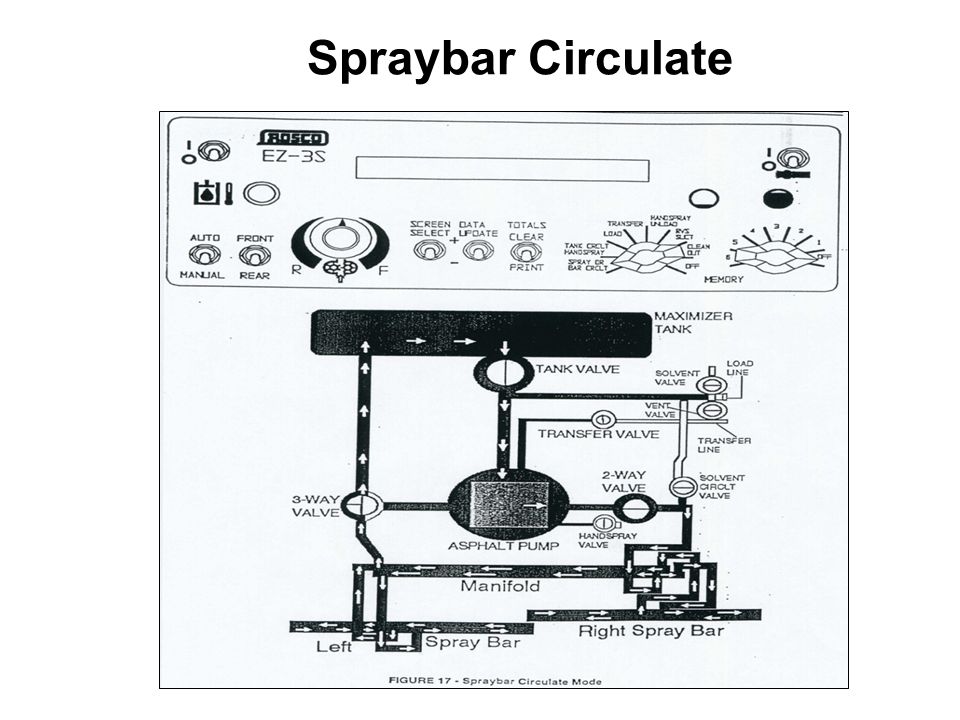

62 Spraybar Circulate

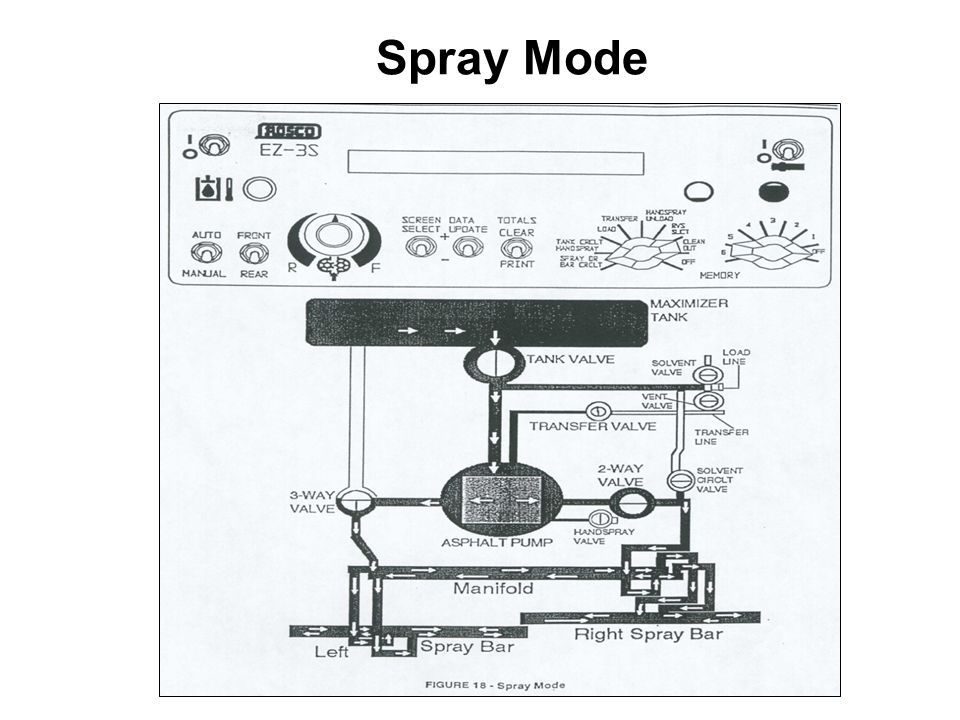

63 Spray Mode

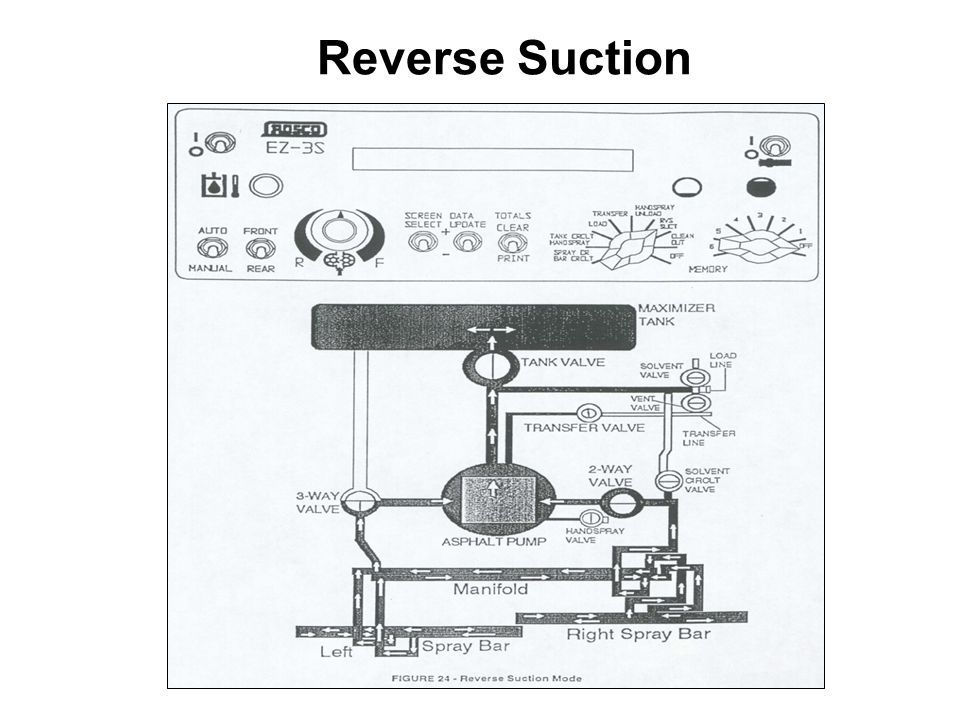

64 Reverse Suction

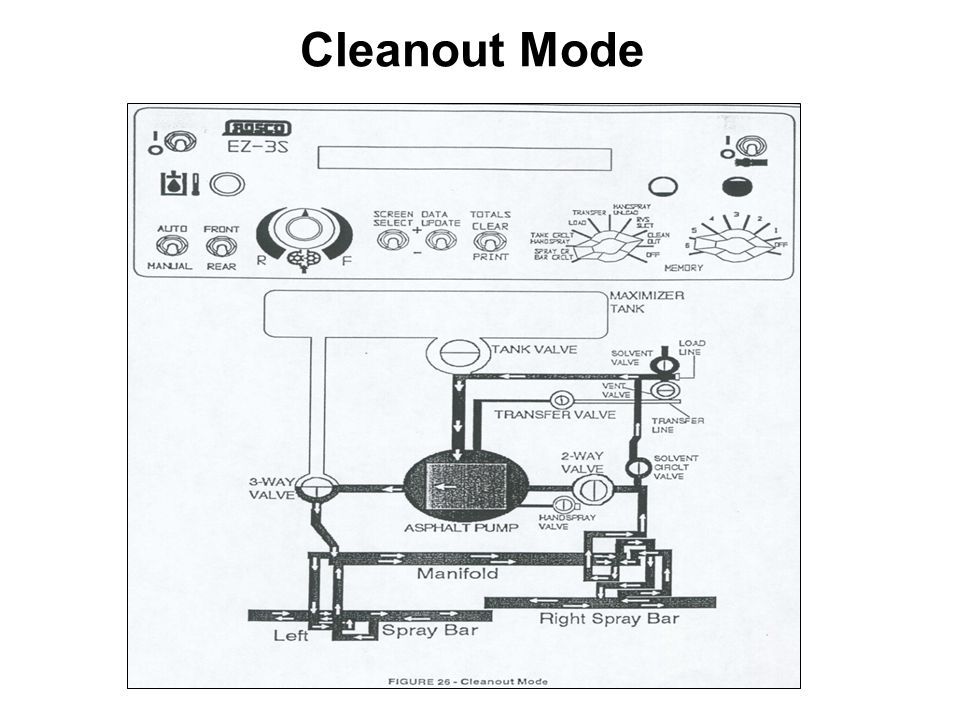

65 Cleanout Mode

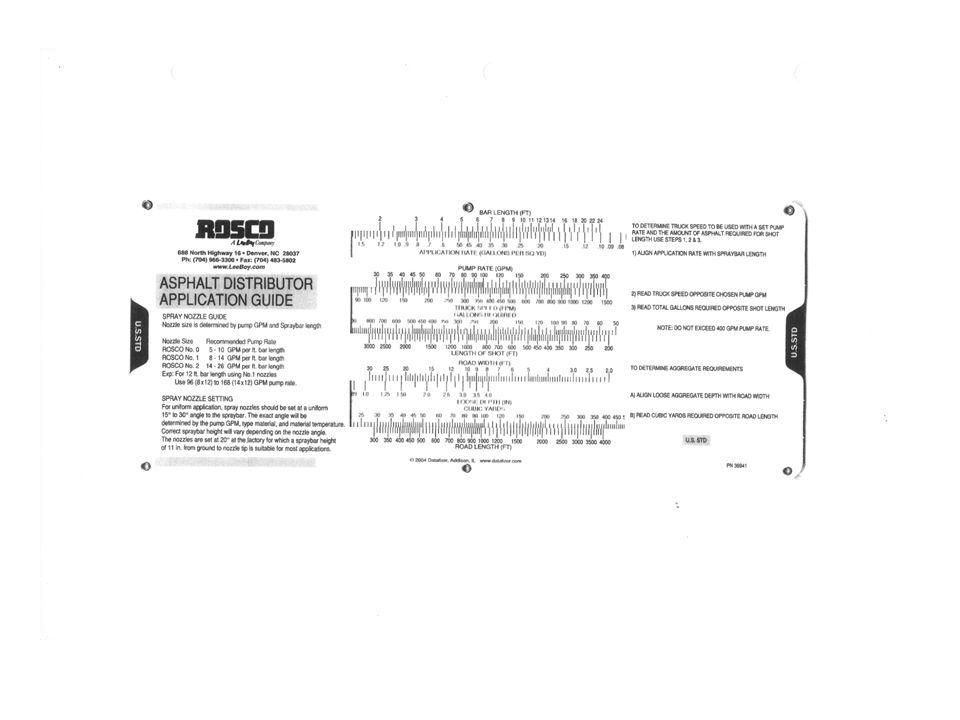

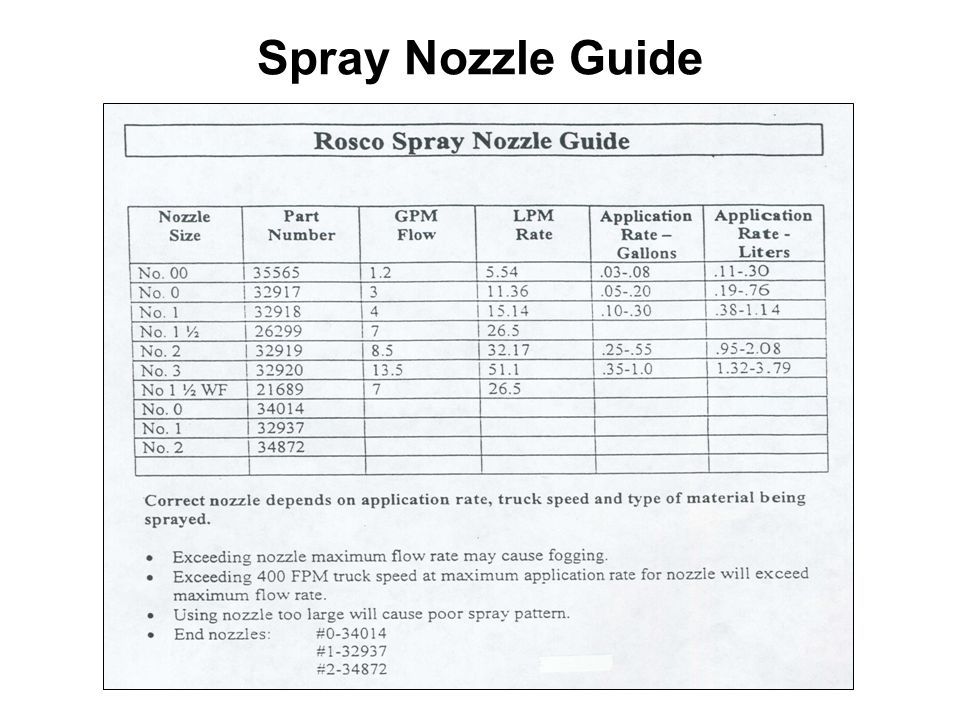

66 Spray Nozzle Guide

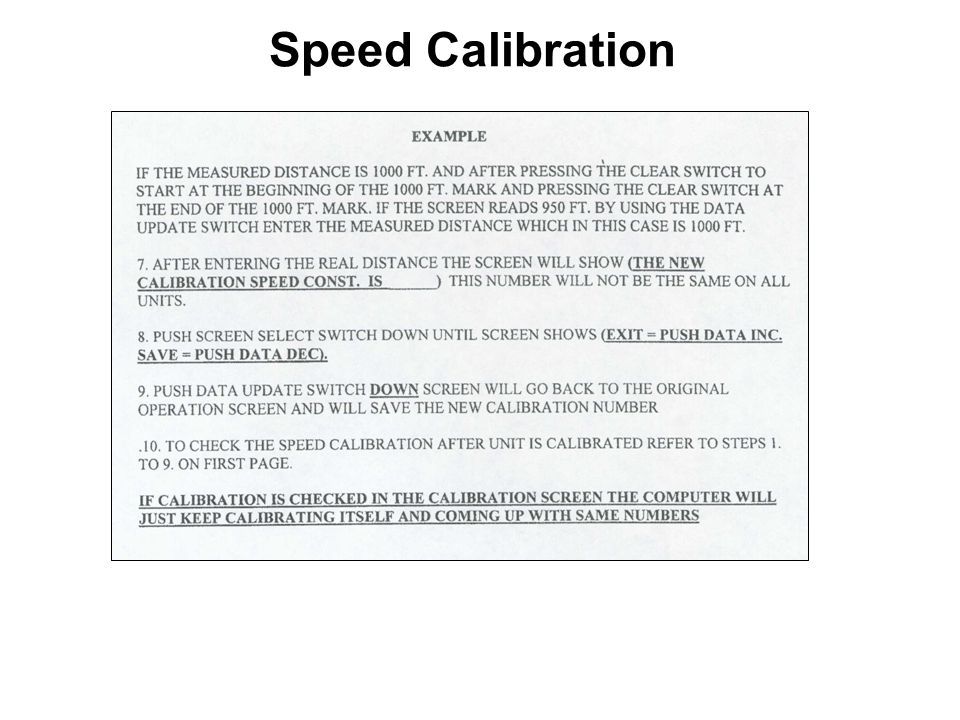

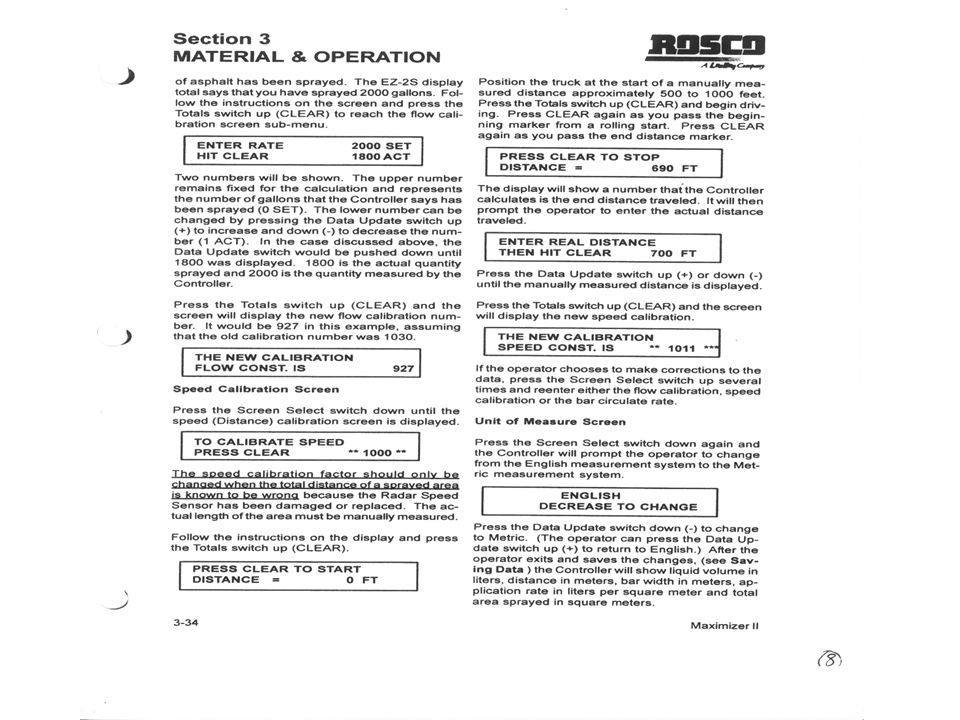

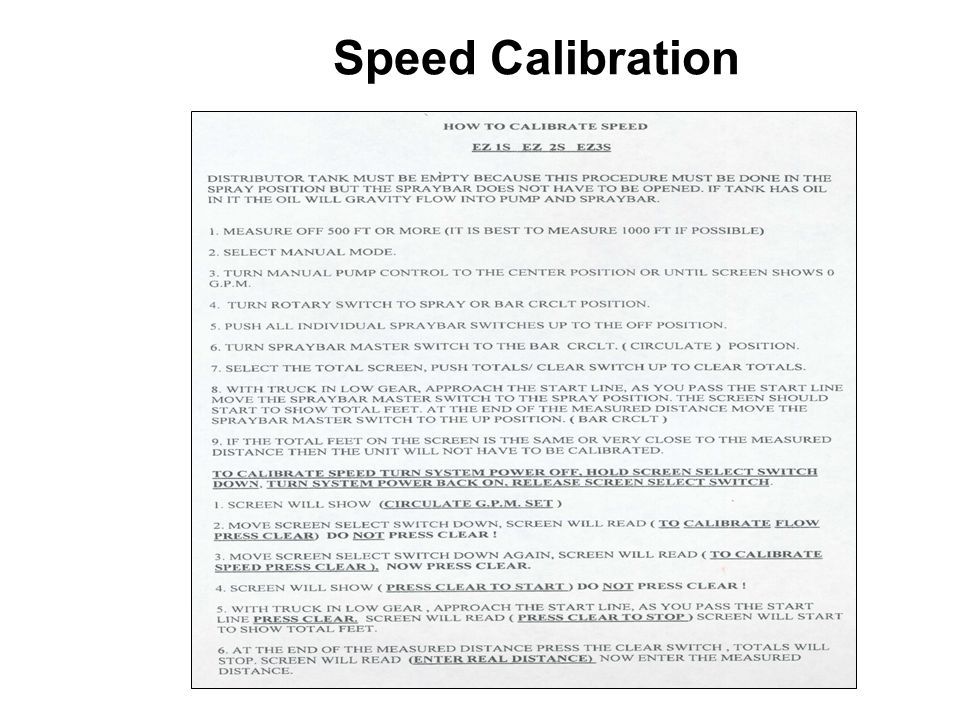

67 Speed Calibration

68

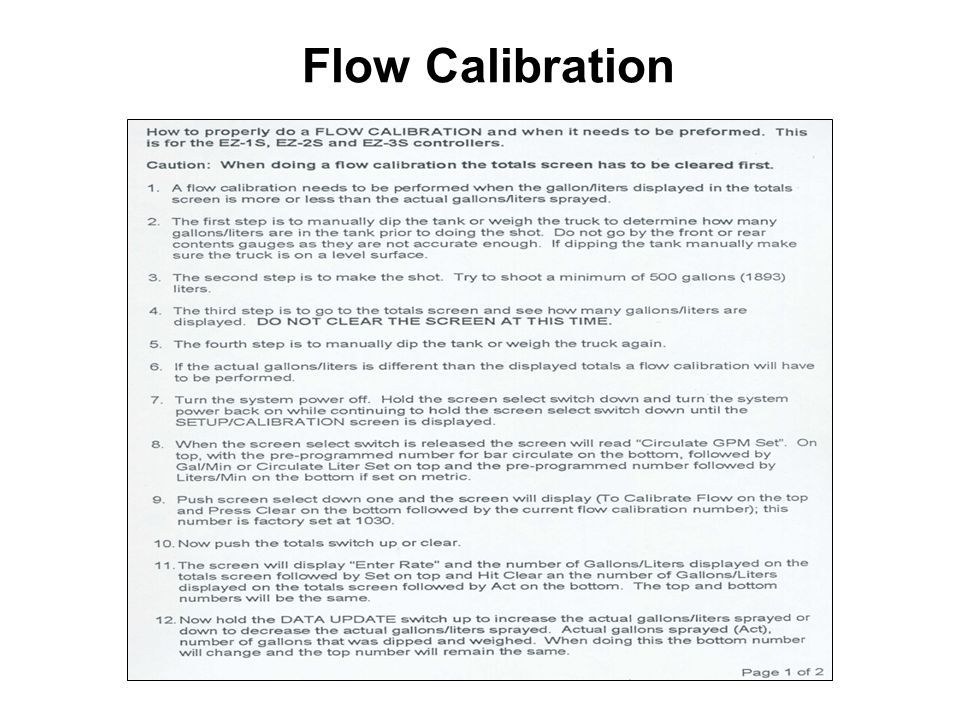

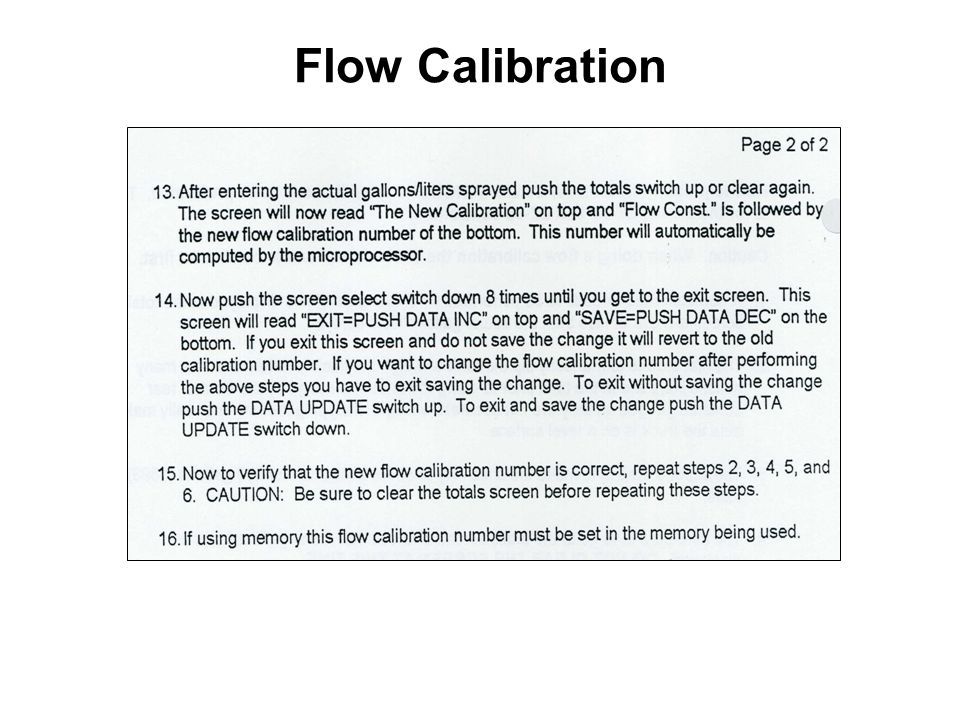

69 Flow Calibration

70

71 Troubleshooting

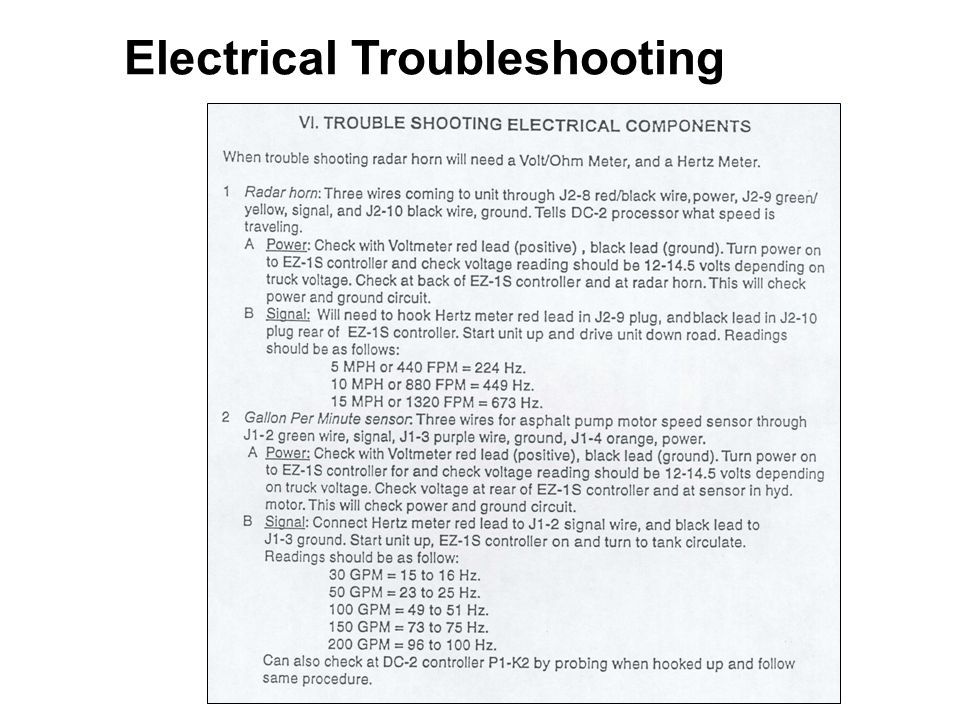

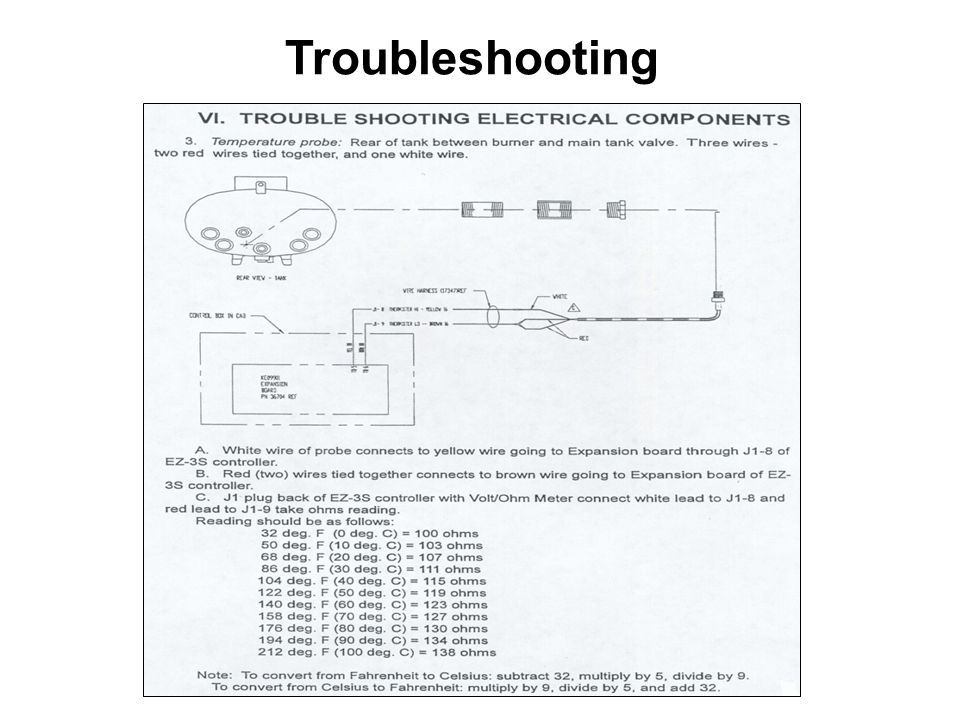

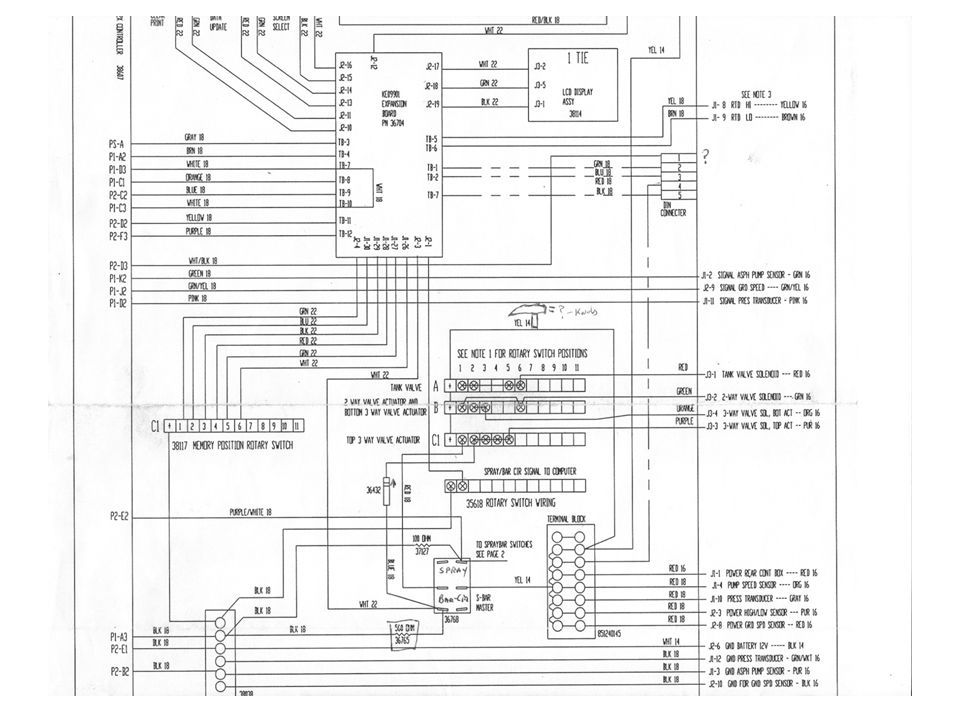

72 Electrical Troubleshooting

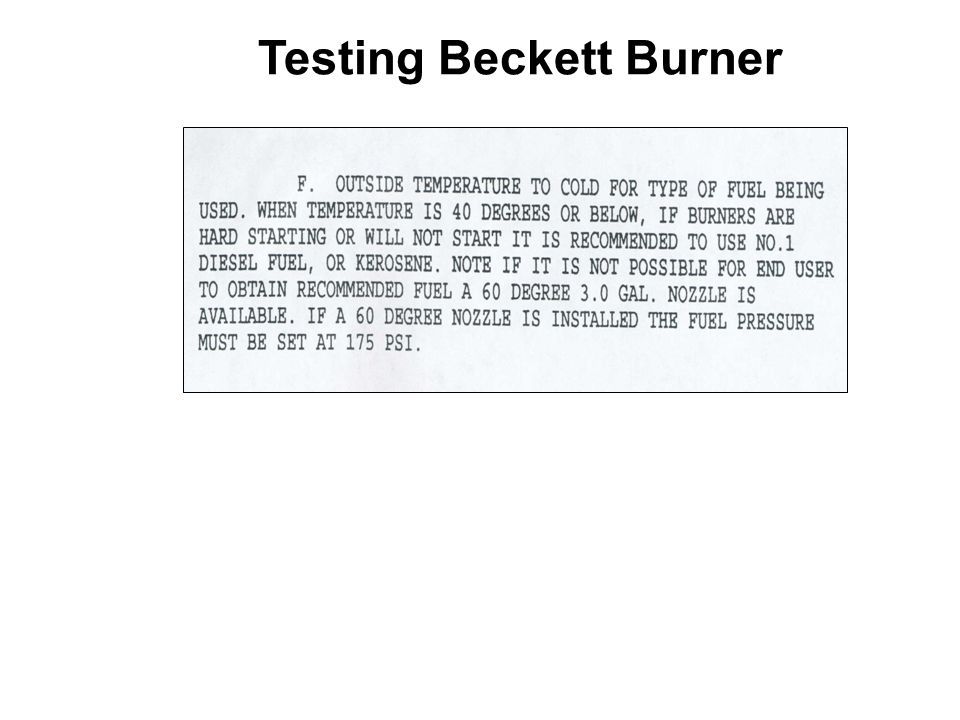

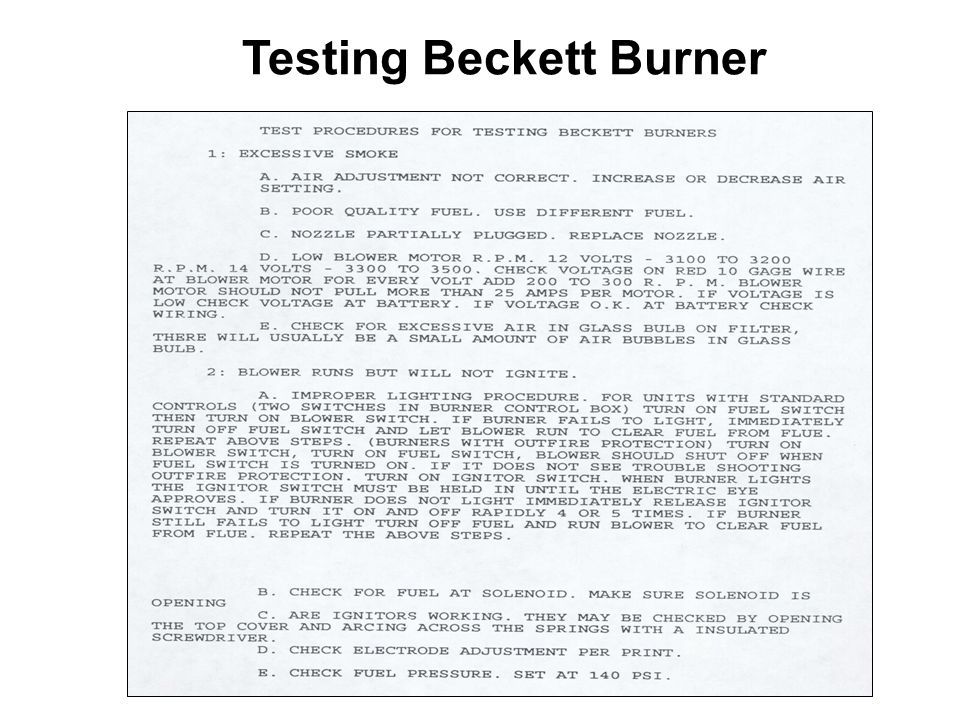

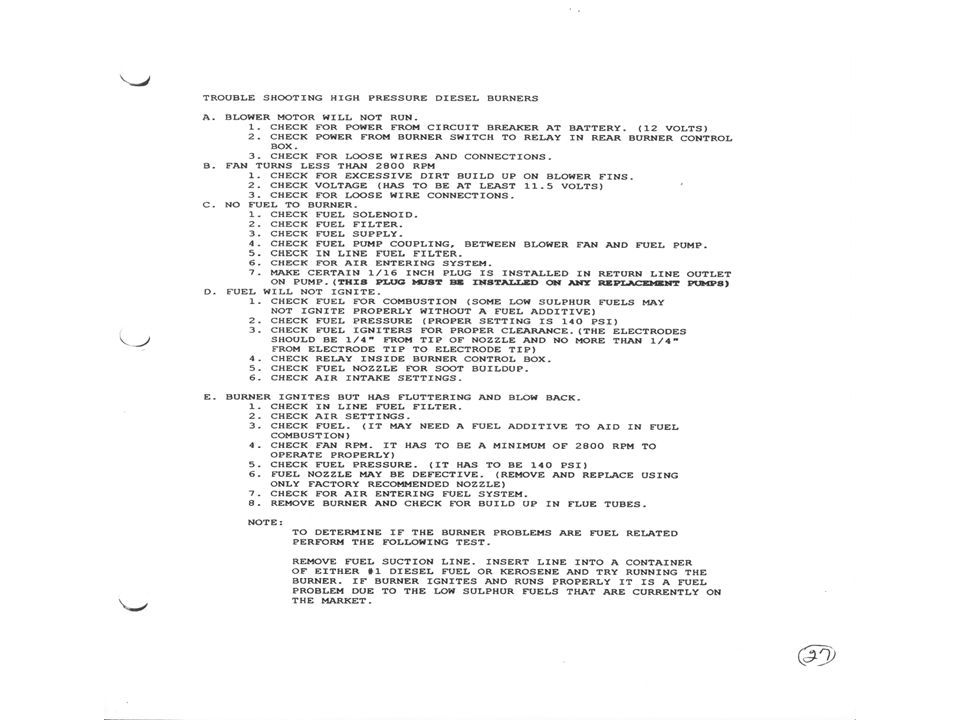

73 Testing Beckett Burner

74

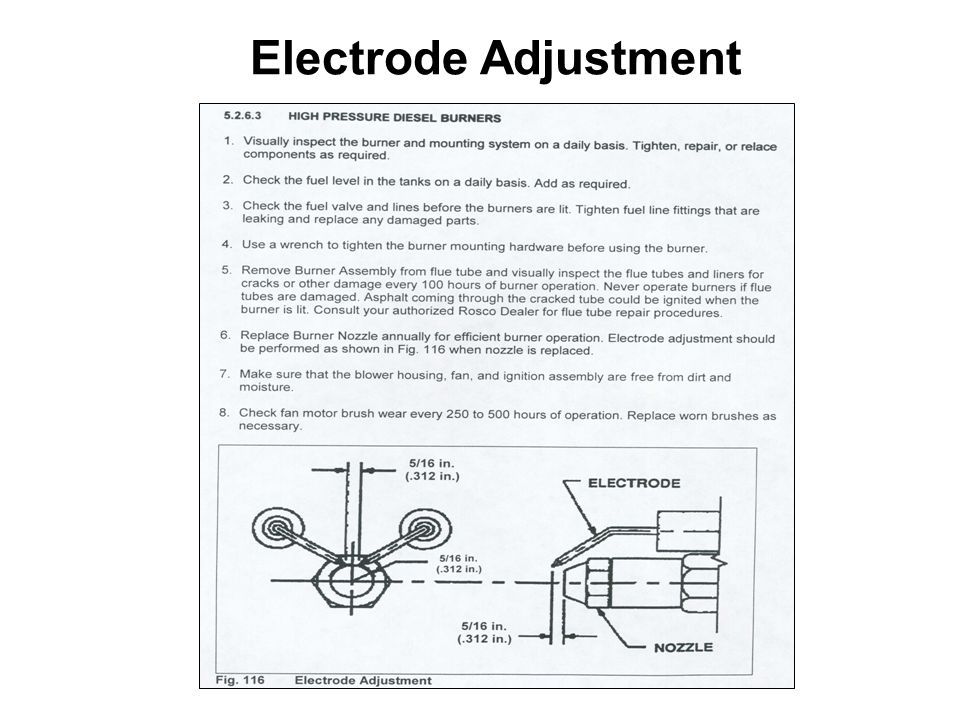

75 Electrode Adjustment

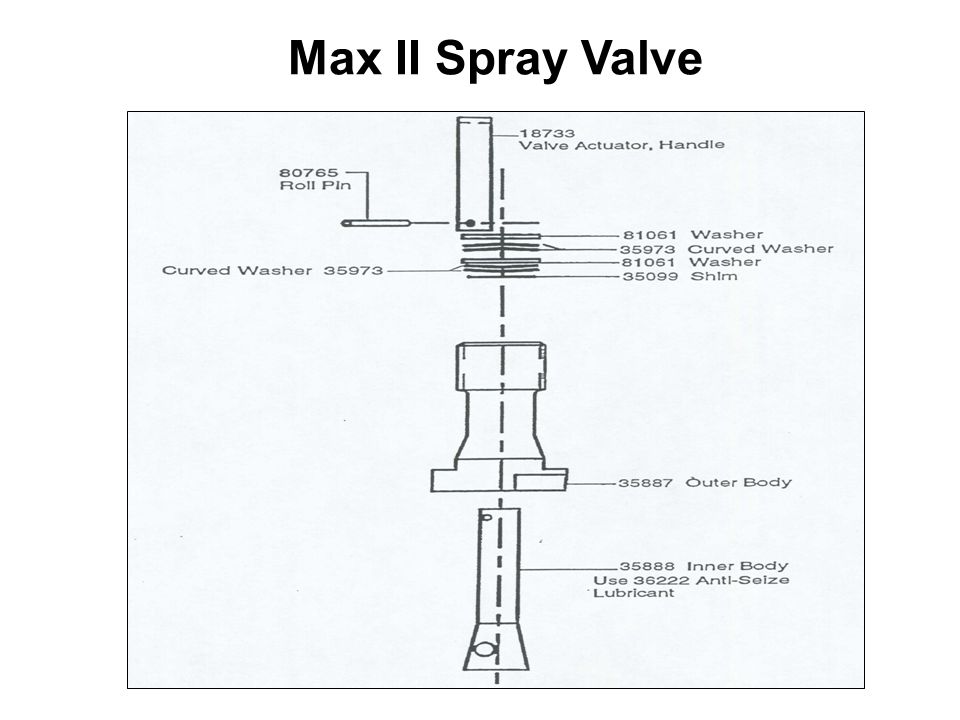

76 Max II Spray Valve

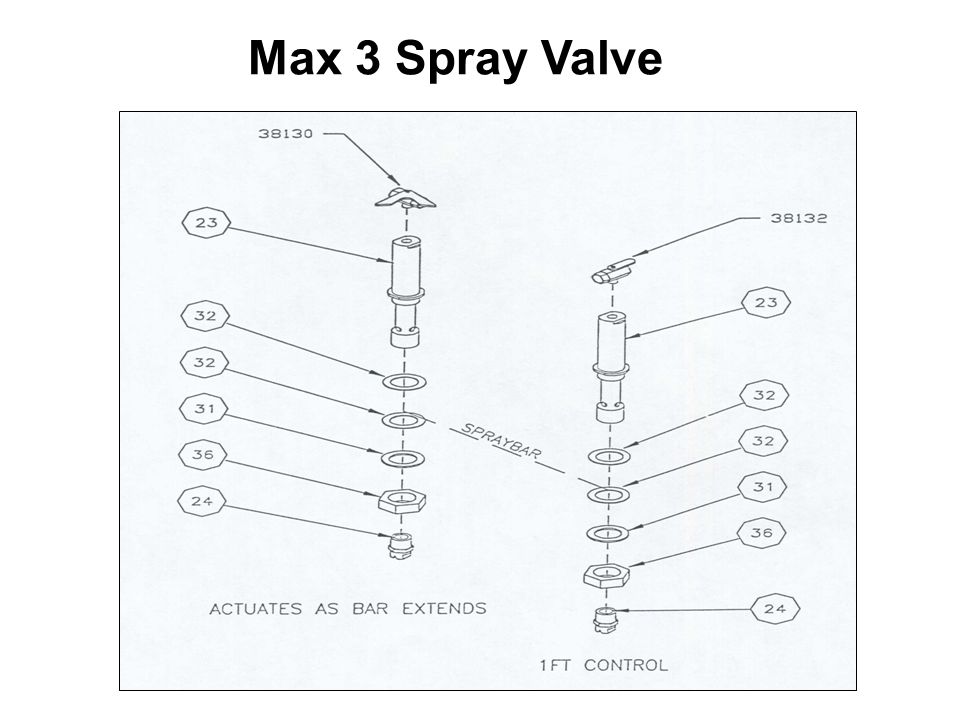

77 Max 3 Spray Valve

78

79

80

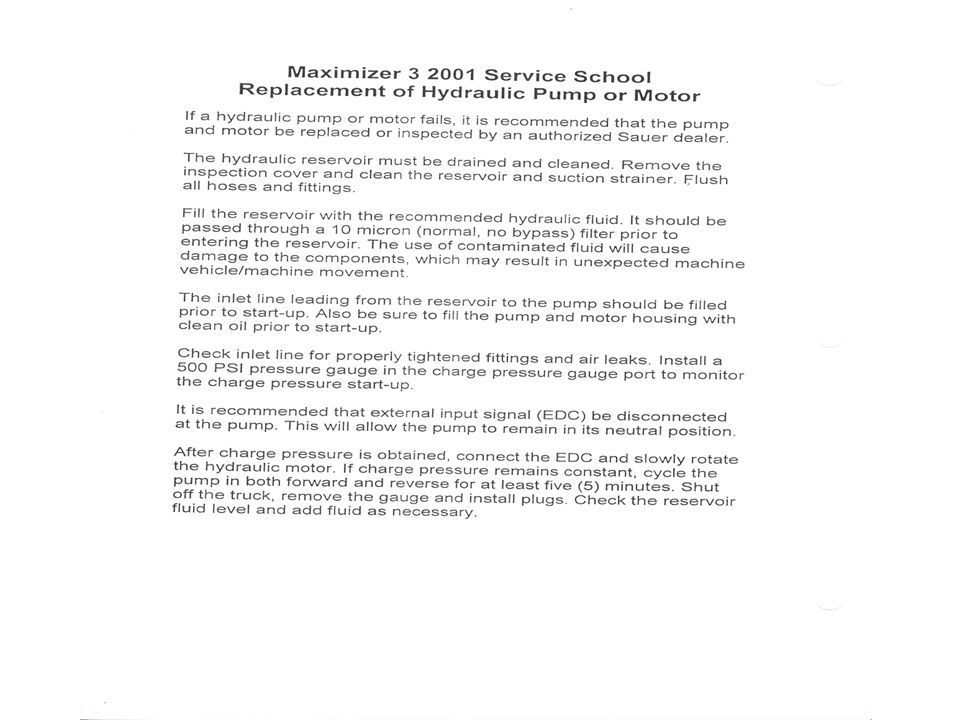

81

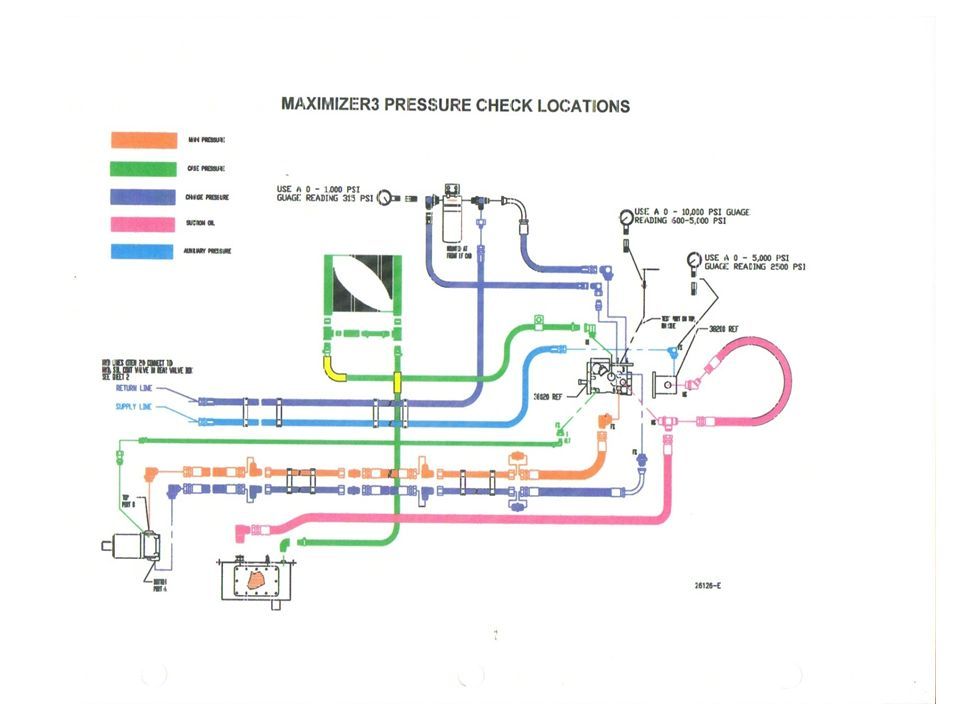

82

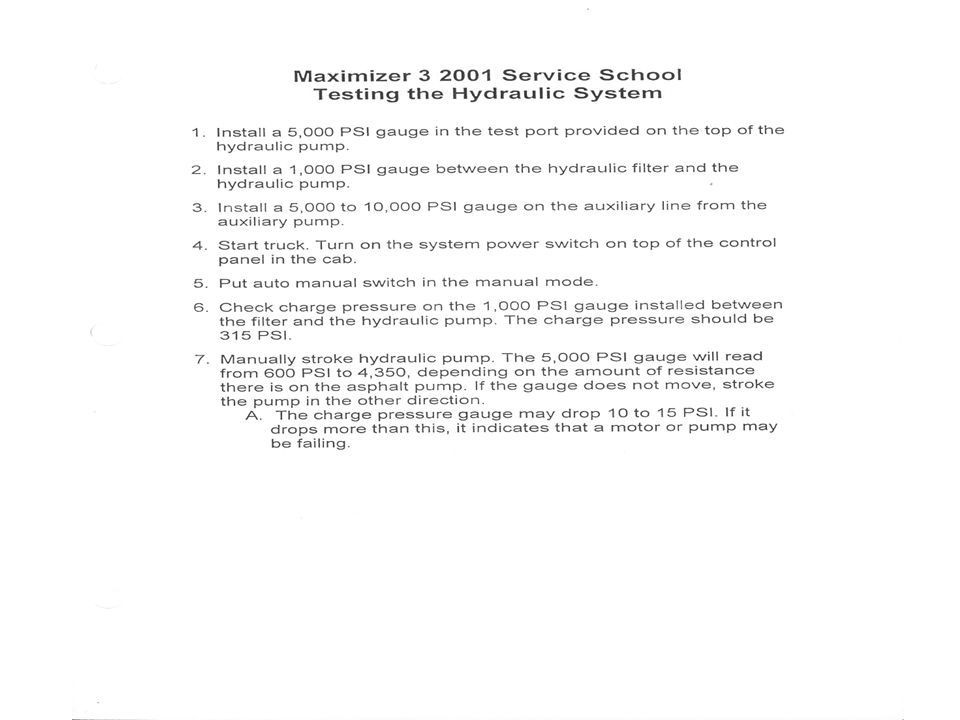

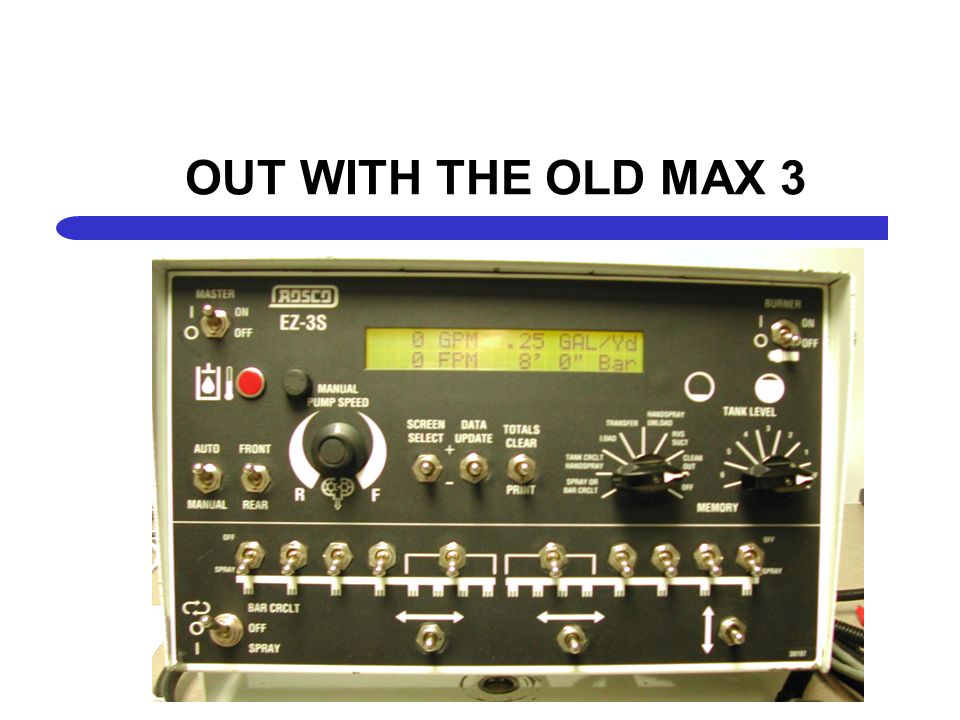

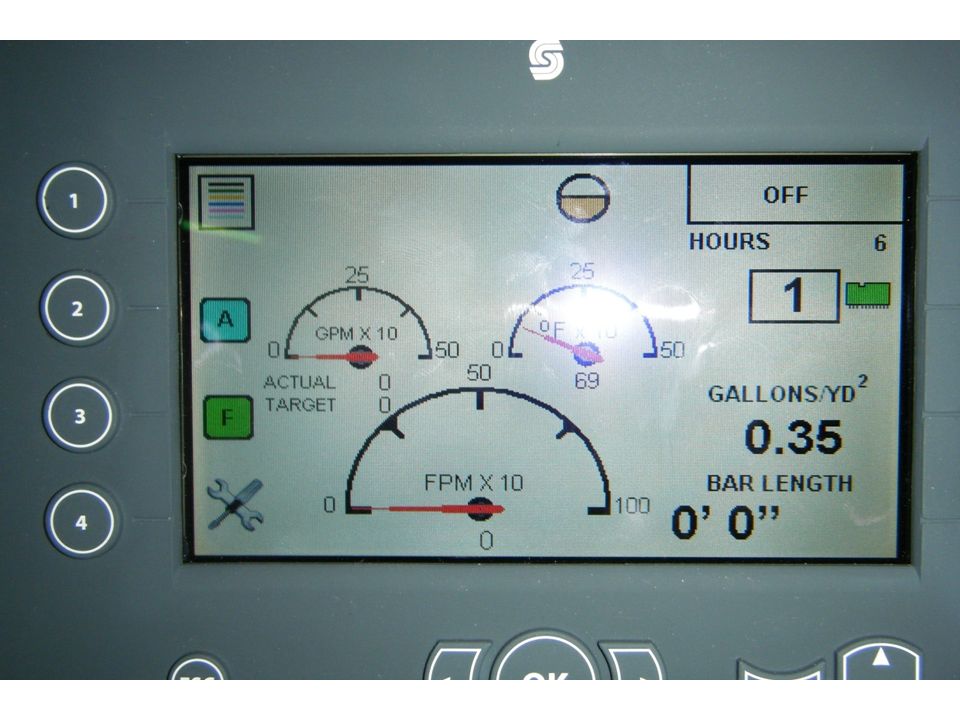

83 OUT WITH THE OLD MAX 3

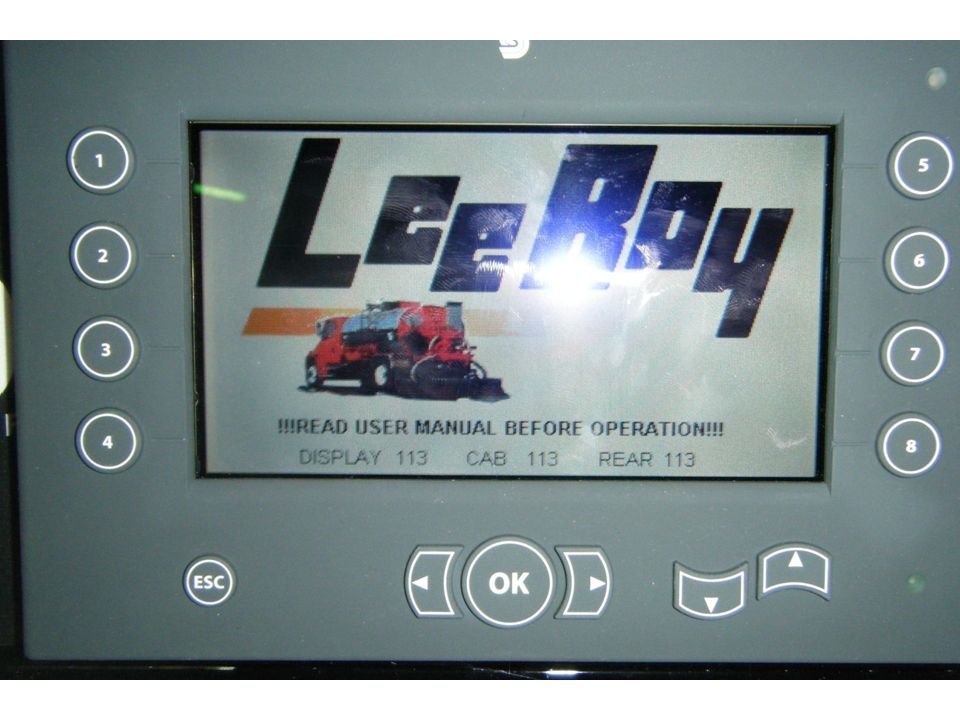

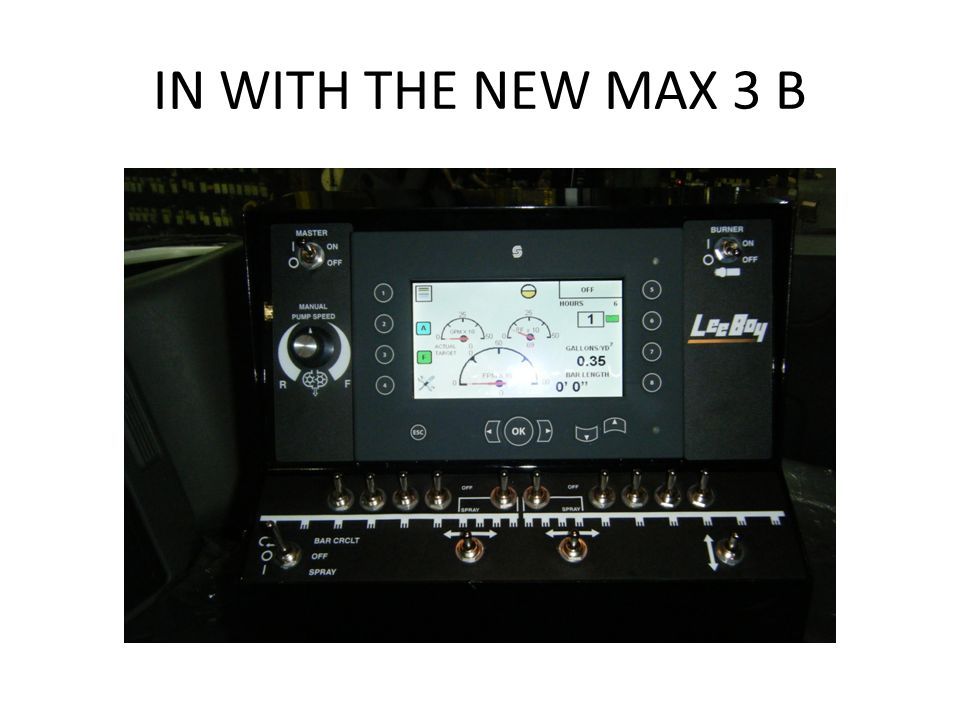

84 IN WITH THE NEW MAX 3 B

85

86

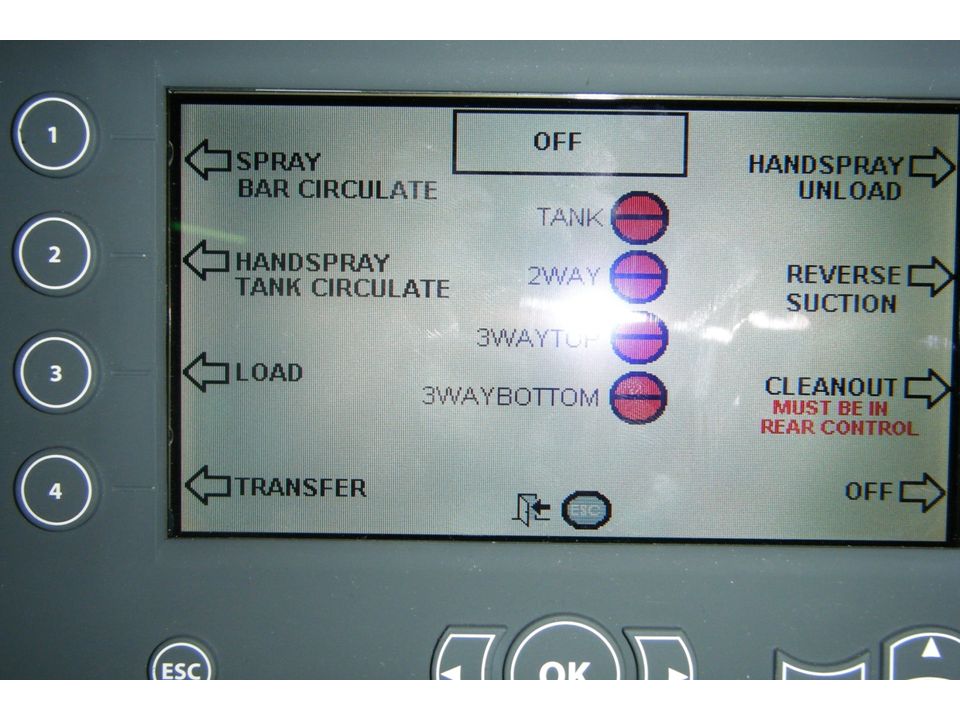

87

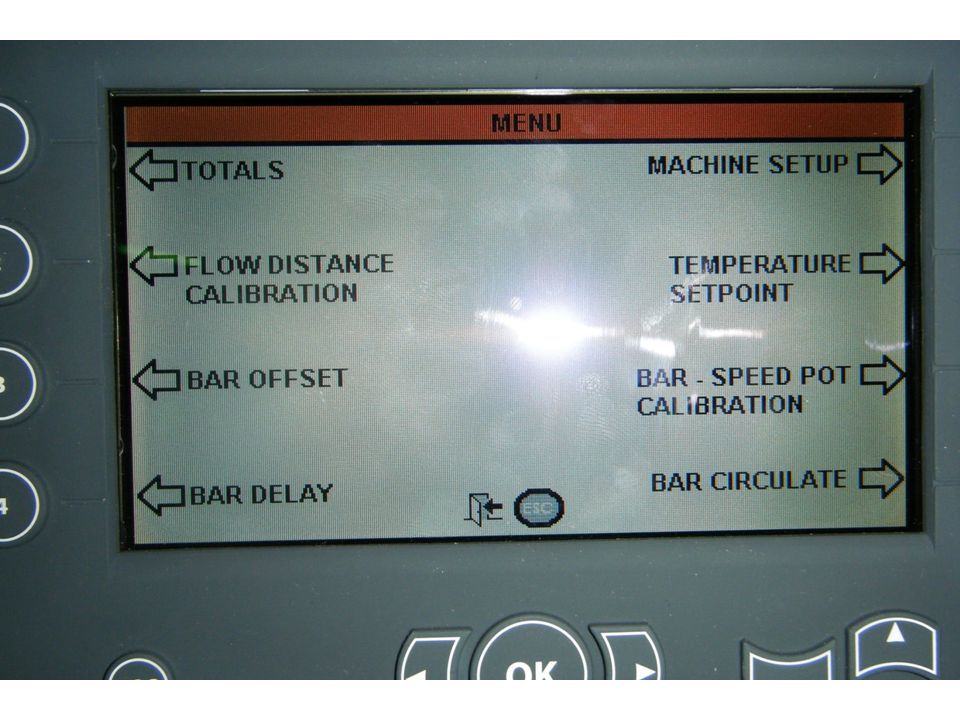

88

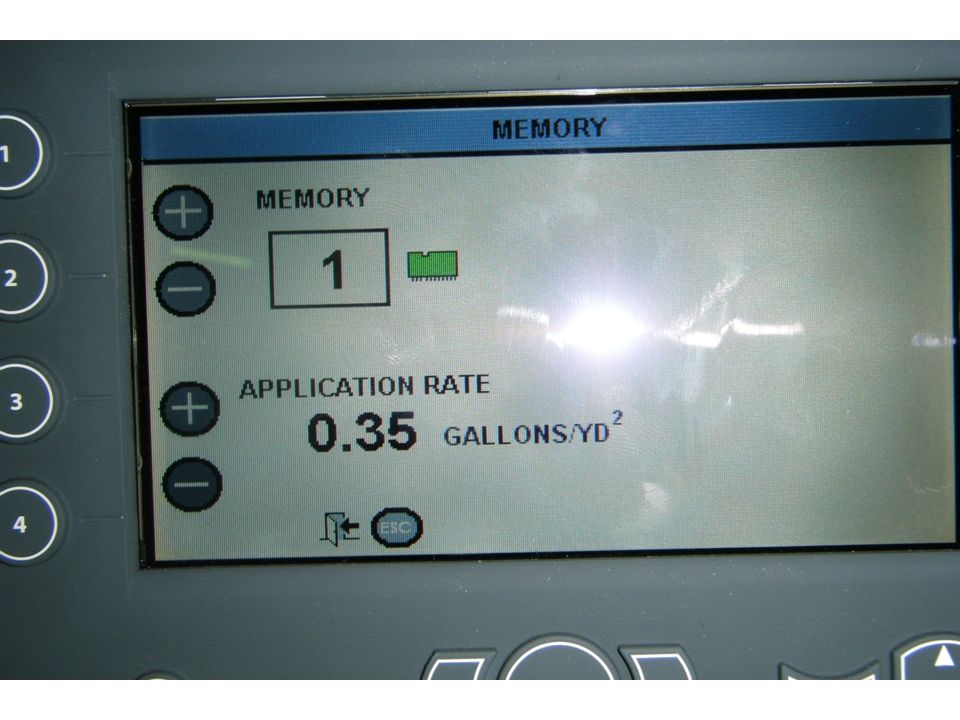

89

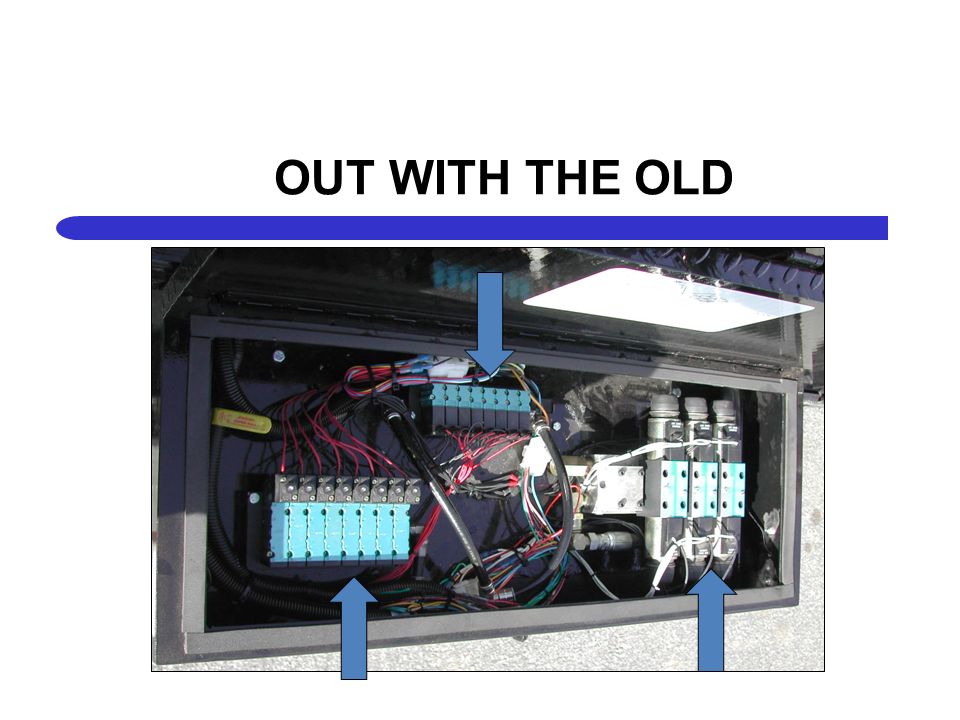

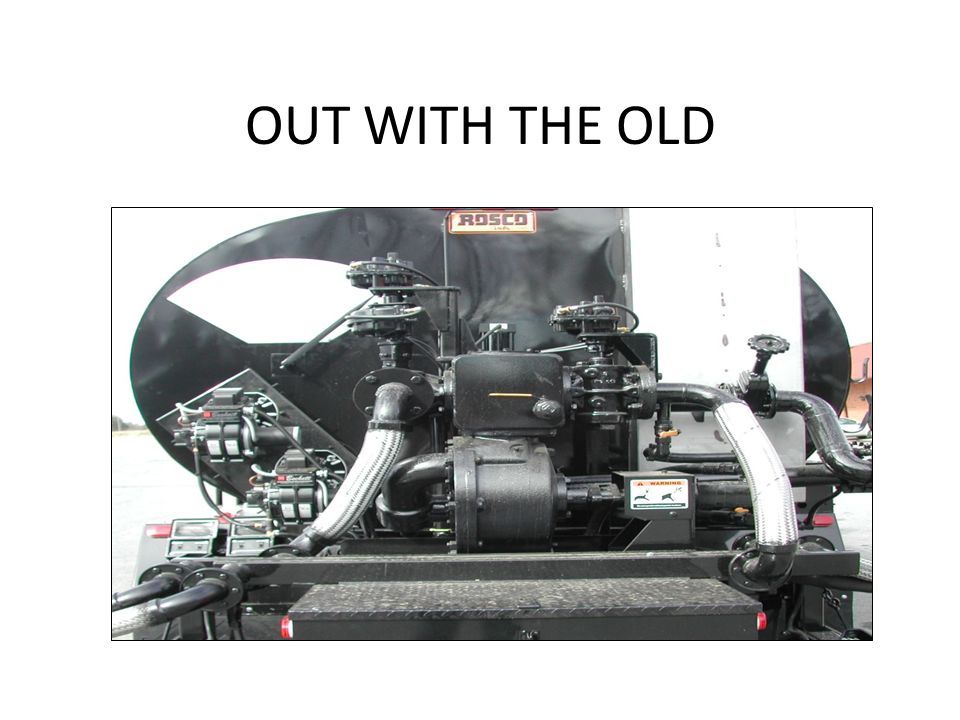

90 OUT WITH THE OLD

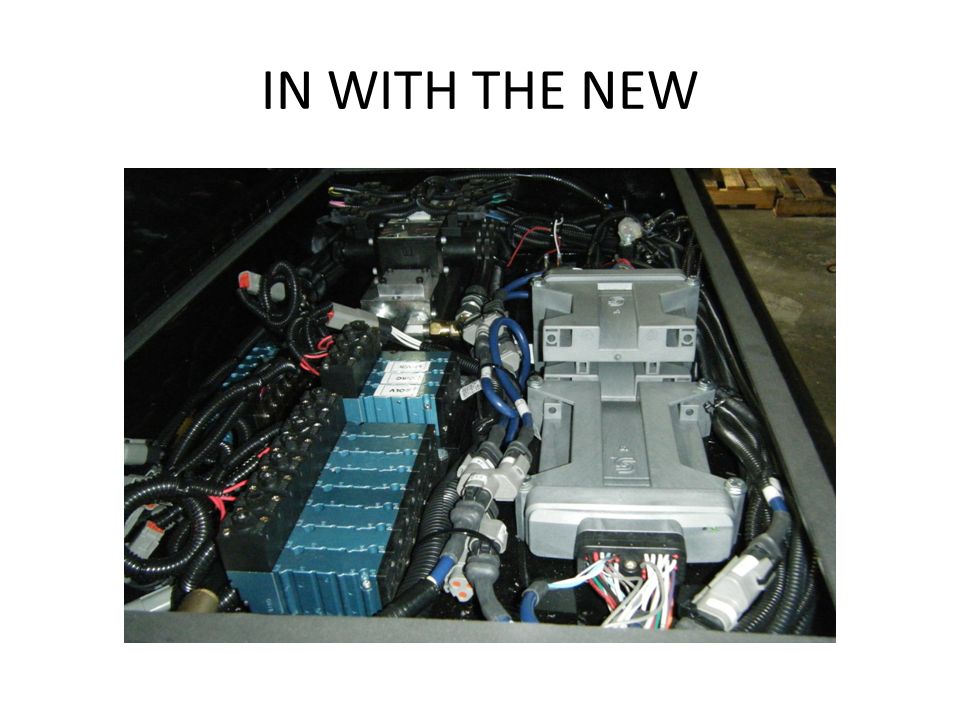

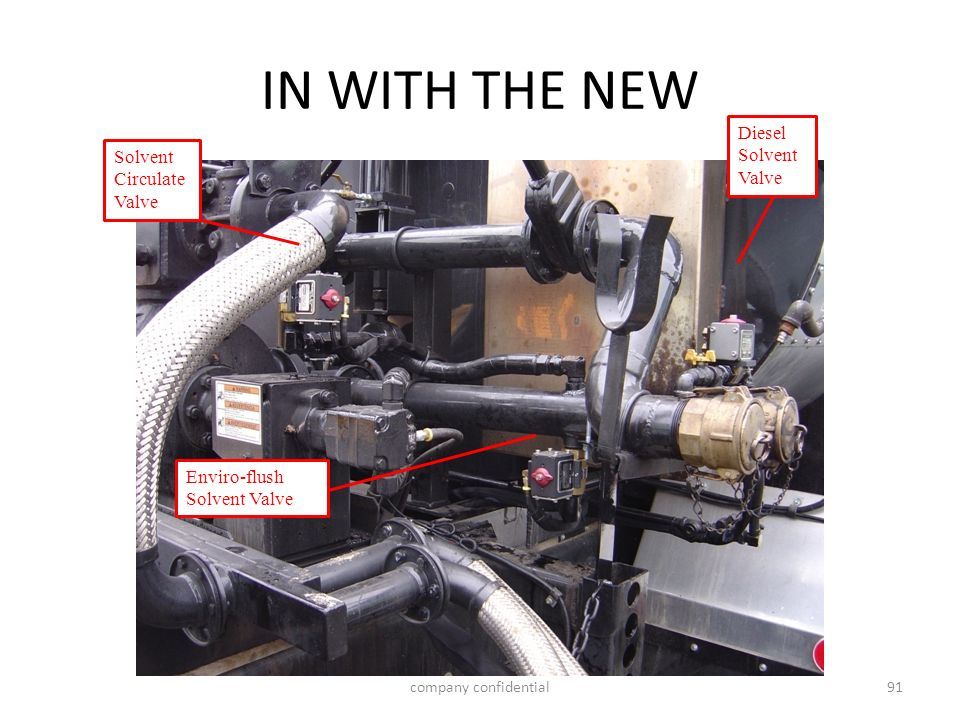

91 IN WITH THE NEW company confidential Solvent Circulate Valve Enviro-flush Solvent Valve Diesel Solvent Valve 91
