VECTOR: Conjuction of 2 parameters: Module: Quantity, actual value, dimension Direction: “Where is it going to or coming from”

Presentación del tema: "VECTOR: Conjuction of 2 parameters: Module: Quantity, actual value, dimension Direction: “Where is it going to or coming from”"— Transcripción de la presentación:

1

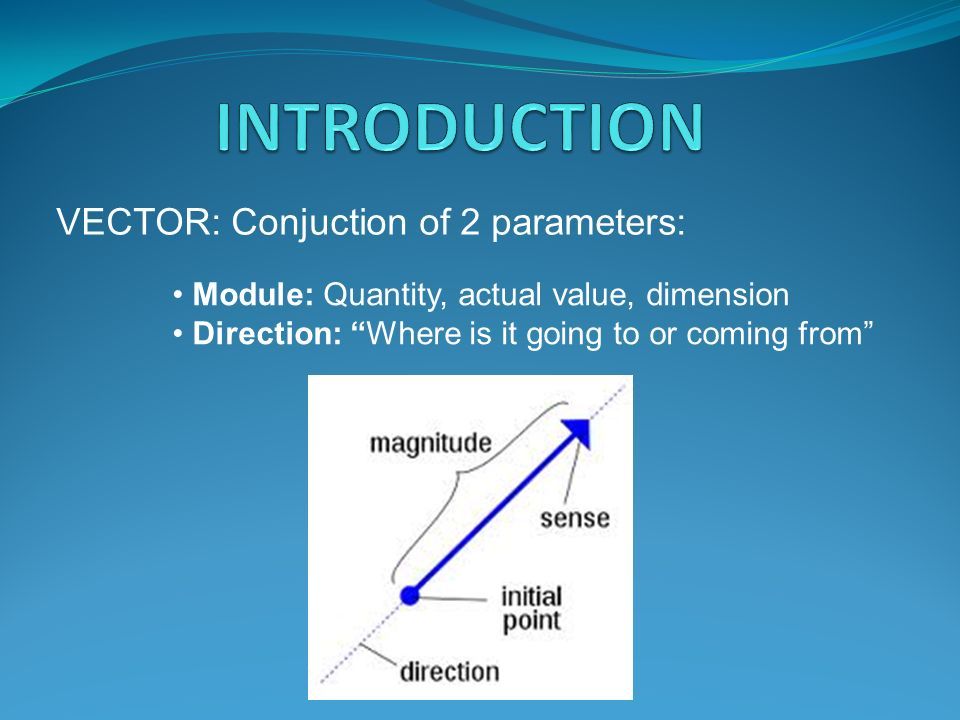

2 VECTOR: Conjuction of 2 parameters: Module: Quantity, actual value, dimension Direction: “Where is it going to or coming from”

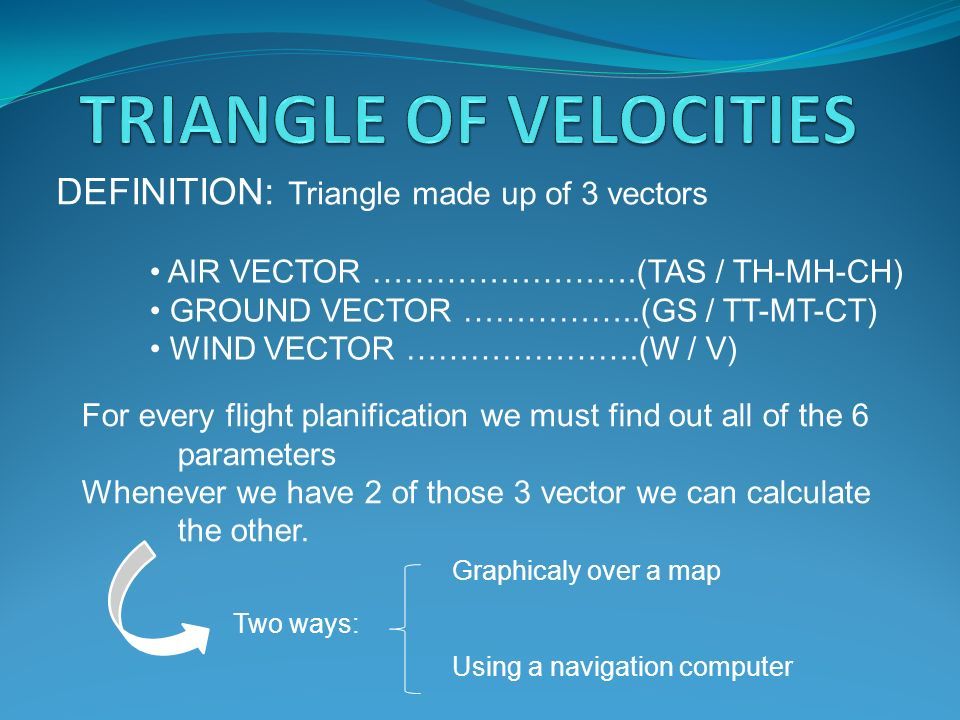

3 DEFINITION: Triangle made up of 3 vectors AIR VECTOR …………………….(TAS / TH-MH-CH) GROUND VECTOR ……………..(GS / TT-MT-CT) WIND VECTOR ………………….(W / V) For every flight planification we must find out all of the 6 parameters Whenever we have 2 of those 3 vector we can calculate the other. Two ways: Graphicaly over a map Using a navigation computer

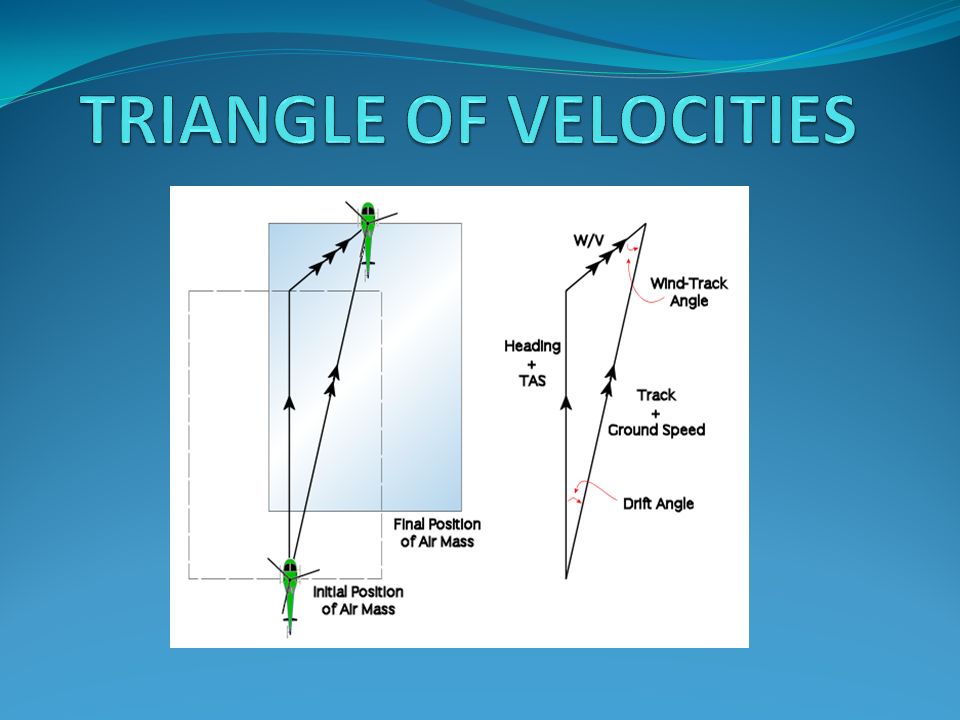

4

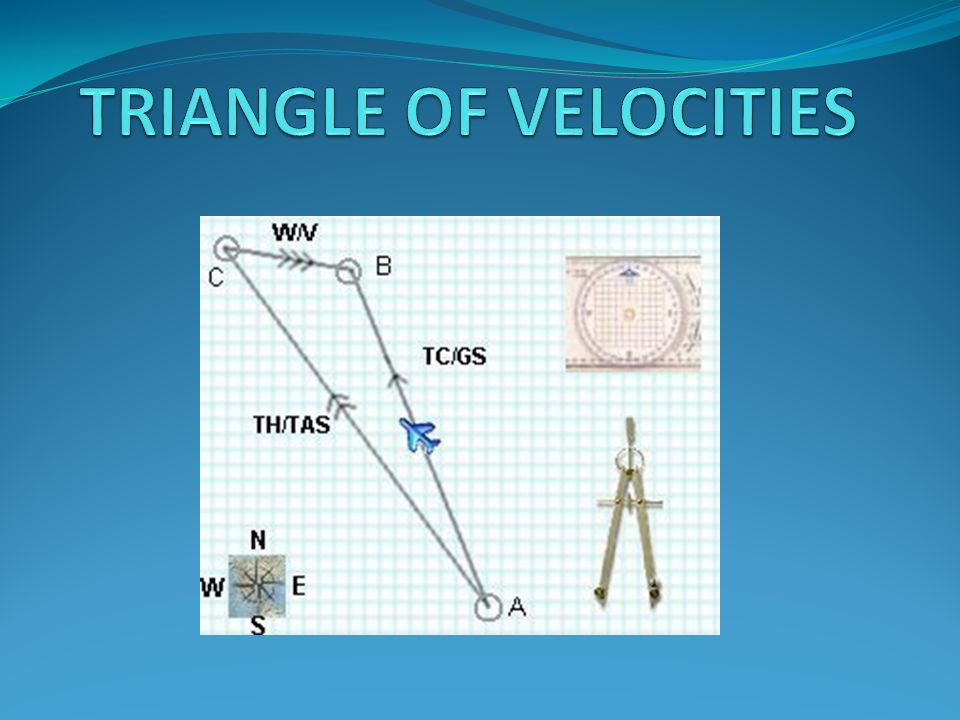

5

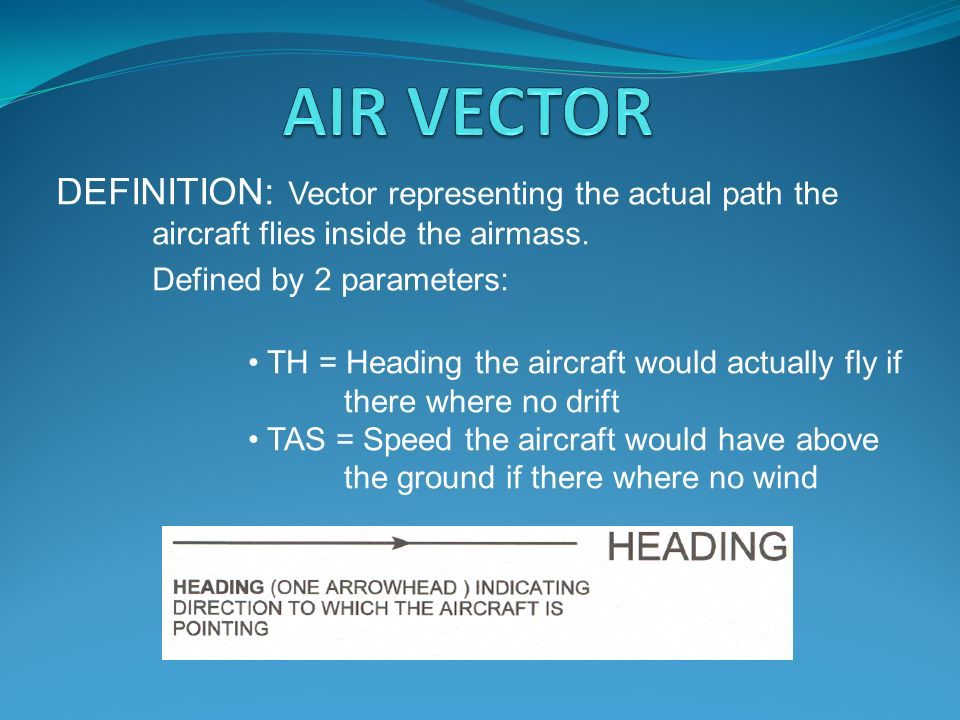

6 DEFINITION: Vector representing the actual path the aircraft flies inside the airmass. Defined by 2 parameters: TH = Heading the aircraft would actually fly if there where no drift TAS = Speed the aircraft would have above the ground if there where no wind

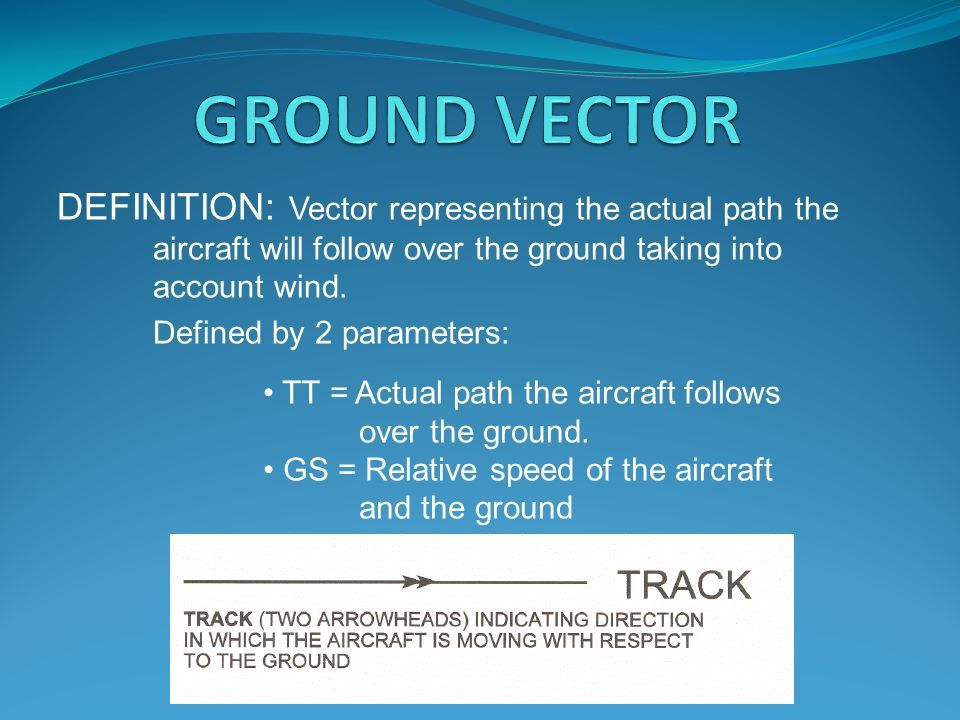

7 DEFINITION: Vector representing the actual path the aircraft will follow over the ground taking into account wind. Defined by 2 parameters: TT = Actual path the aircraft follows over the ground. GS = Relative speed of the aircraft and the ground

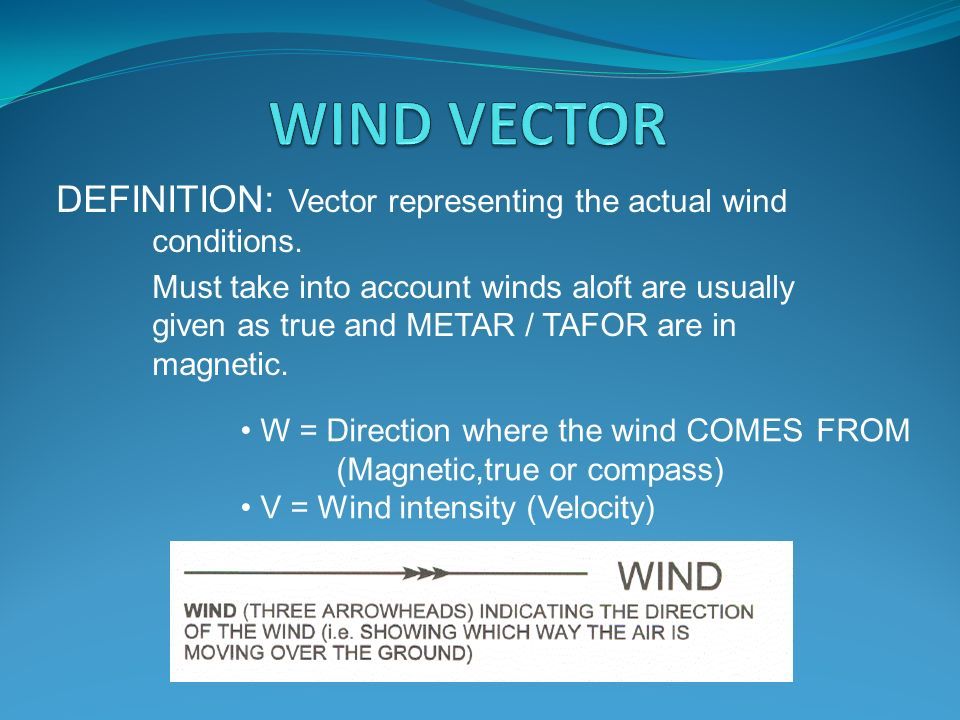

8 DEFINITION: Vector representing the actual wind conditions. Must take into account winds aloft are usually given as true and METAR / TAFOR are in magnetic. W = Direction where the wind COMES FROM (Magnetic,true or compass) V = Wind intensity (Velocity)

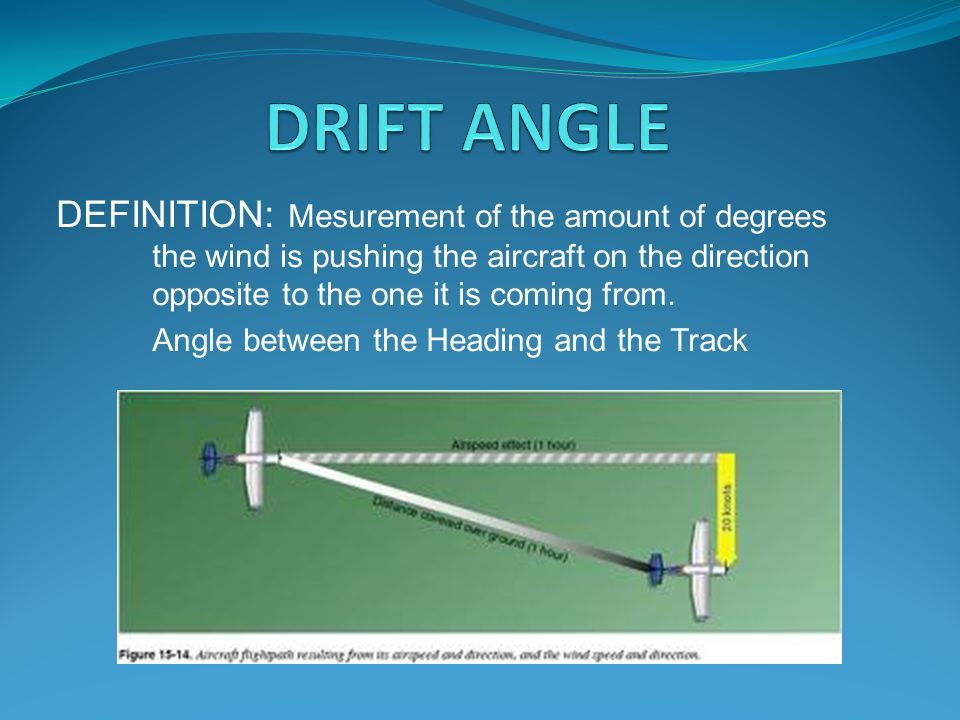

9 DEFINITION: Mesurement of the amount of degrees the wind is pushing the aircraft on the direction opposite to the one it is coming from. Angle between the Heading and the Track

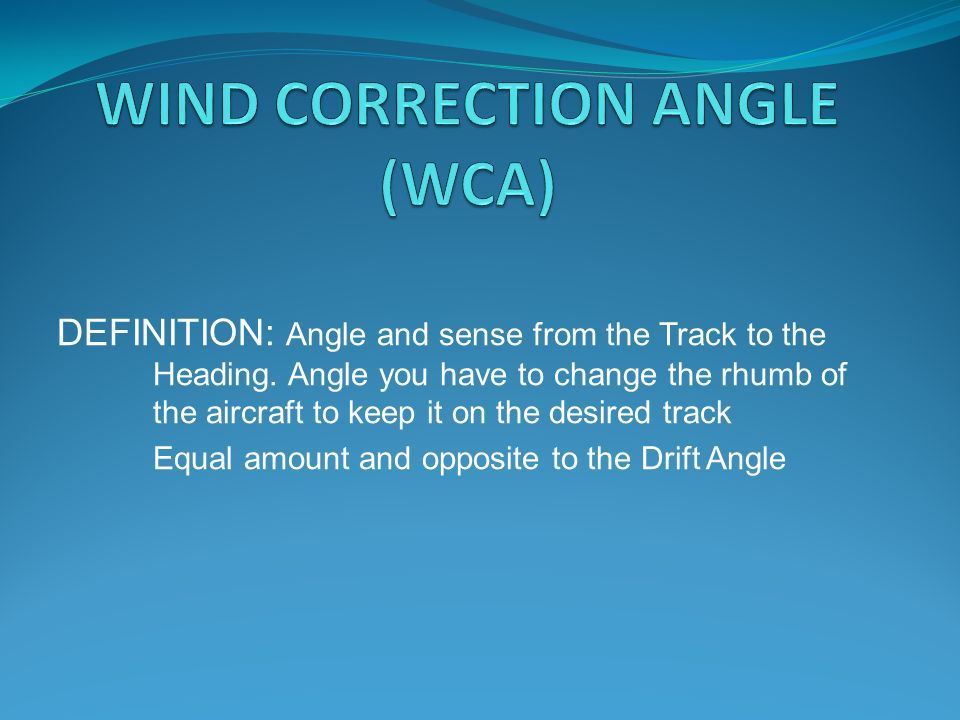

10 DEFINITION: Angle and sense from the Track to the Heading. Angle you have to change the rhumb of the aircraft to keep it on the desired track Equal amount and opposite to the Drift Angle

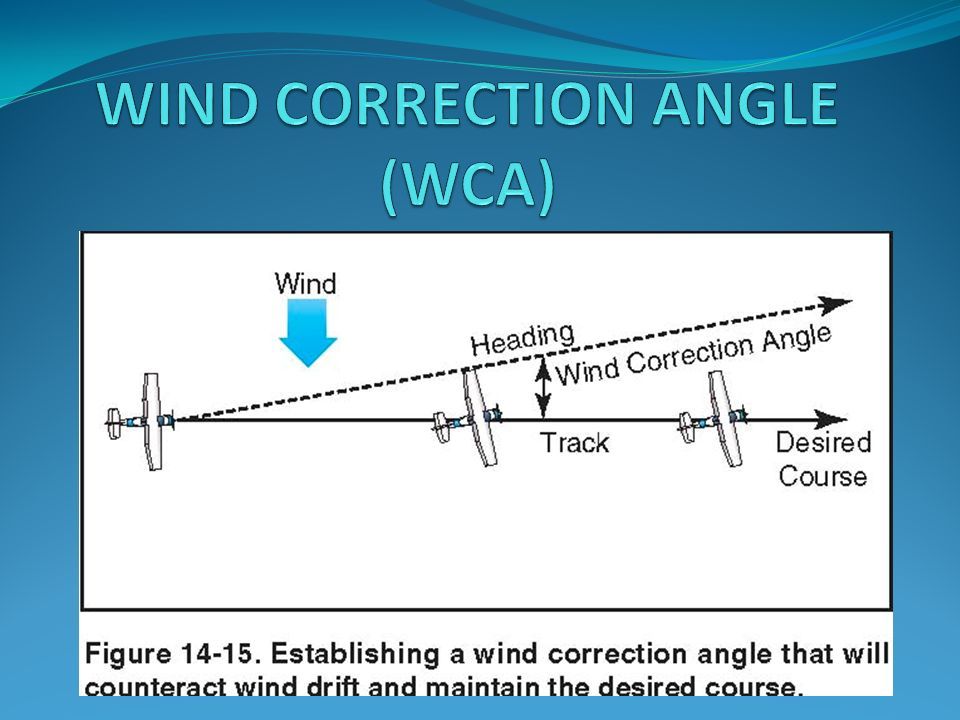

11

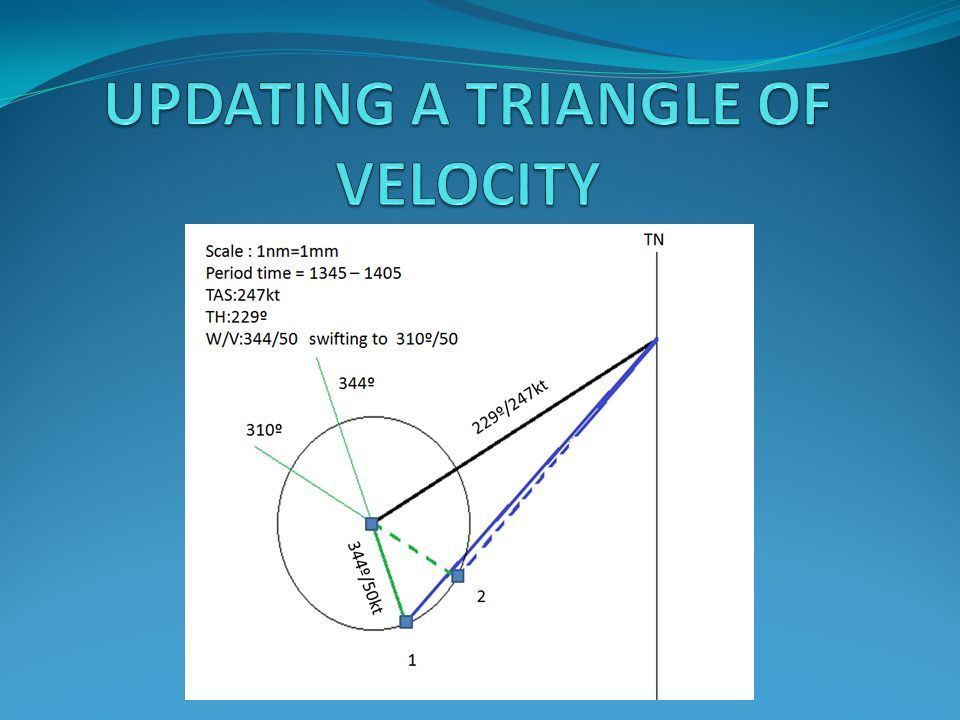

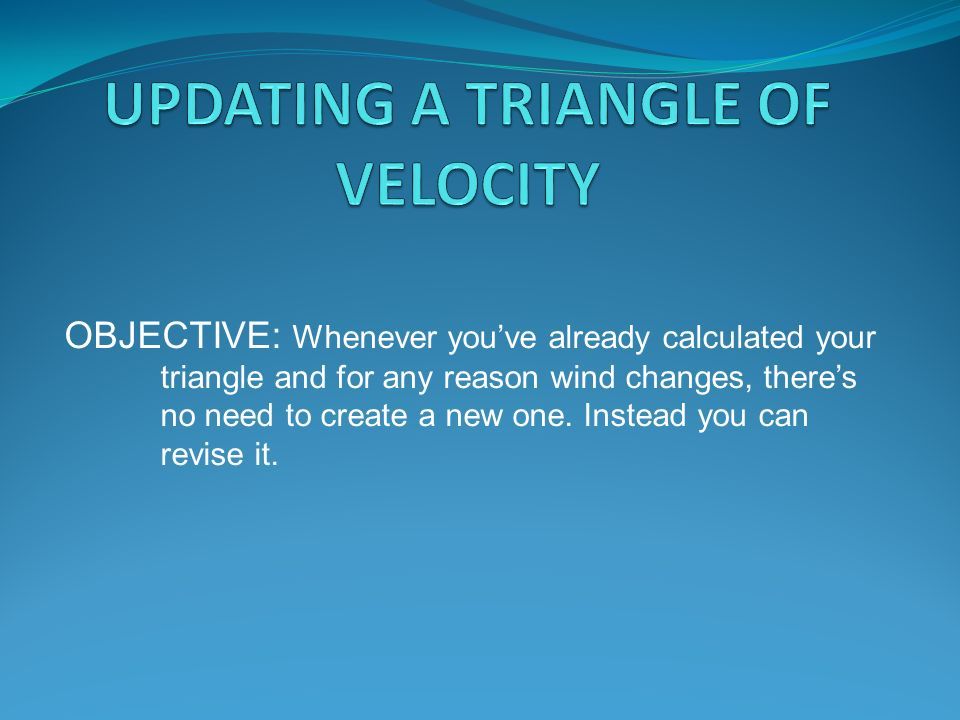

12 OBJECTIVE: Whenever you’ve already calculated your triangle and for any reason wind changes, there’s no need to create a new one. Instead you can revise it.

13

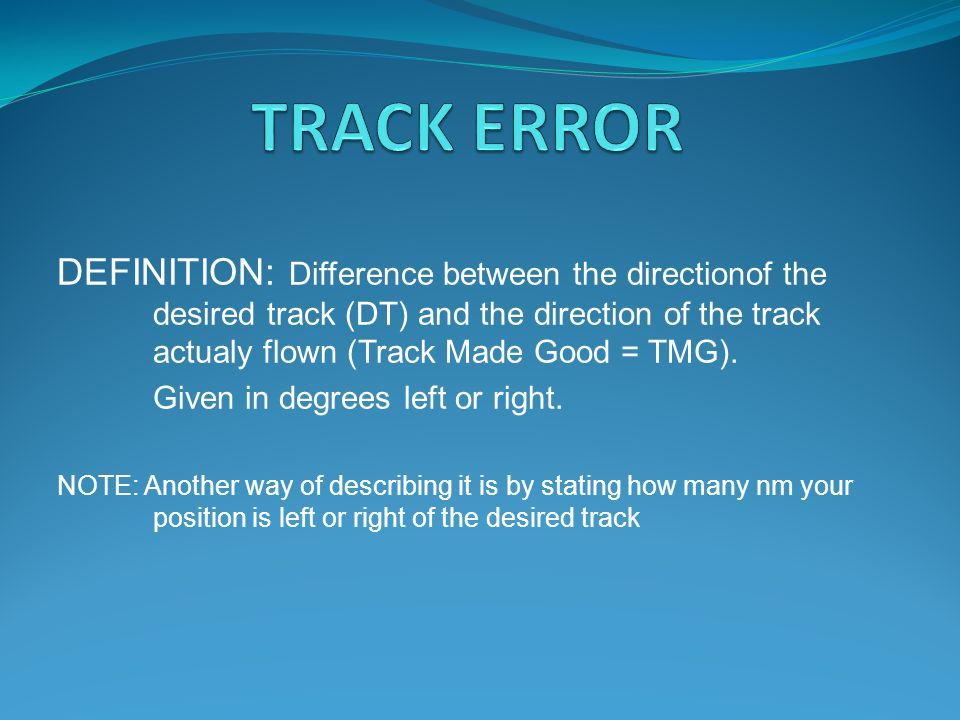

14 DEFINITION: Difference between the directionof the desired track (DT) and the direction of the track actualy flown (Track Made Good = TMG). Given in degrees left or right. NOTE: Another way of describing it is by stating how many nm your position is left or right of the desired track

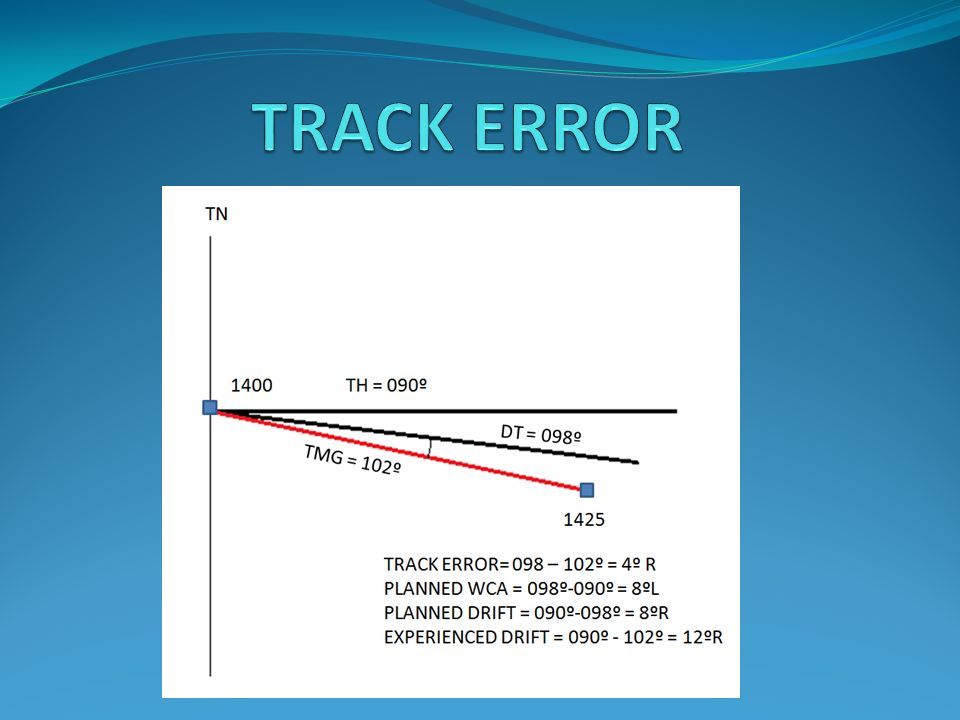

15

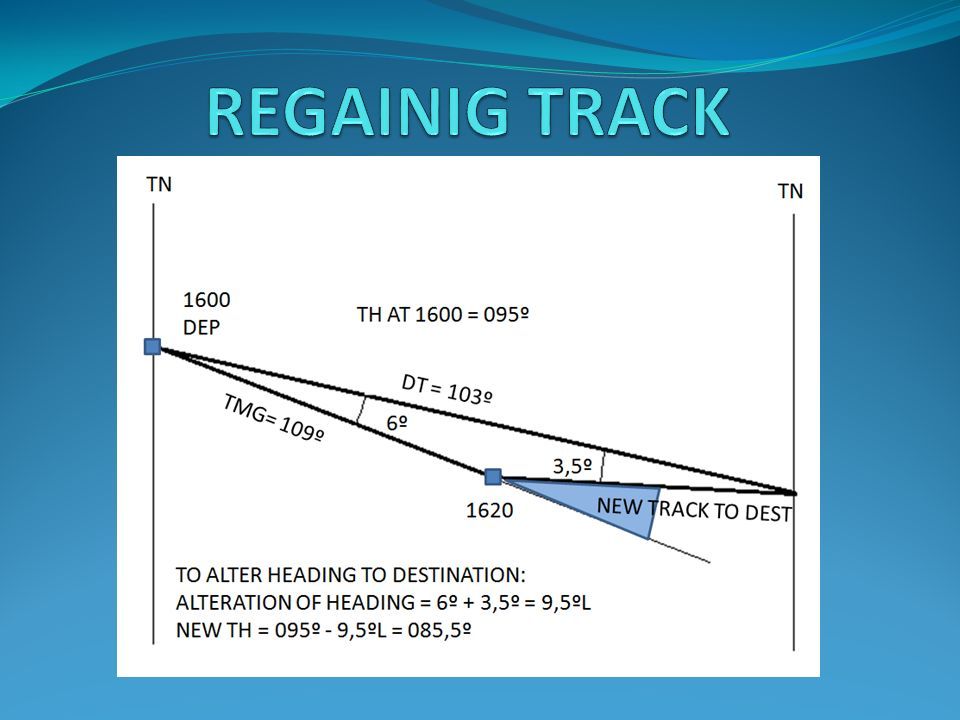

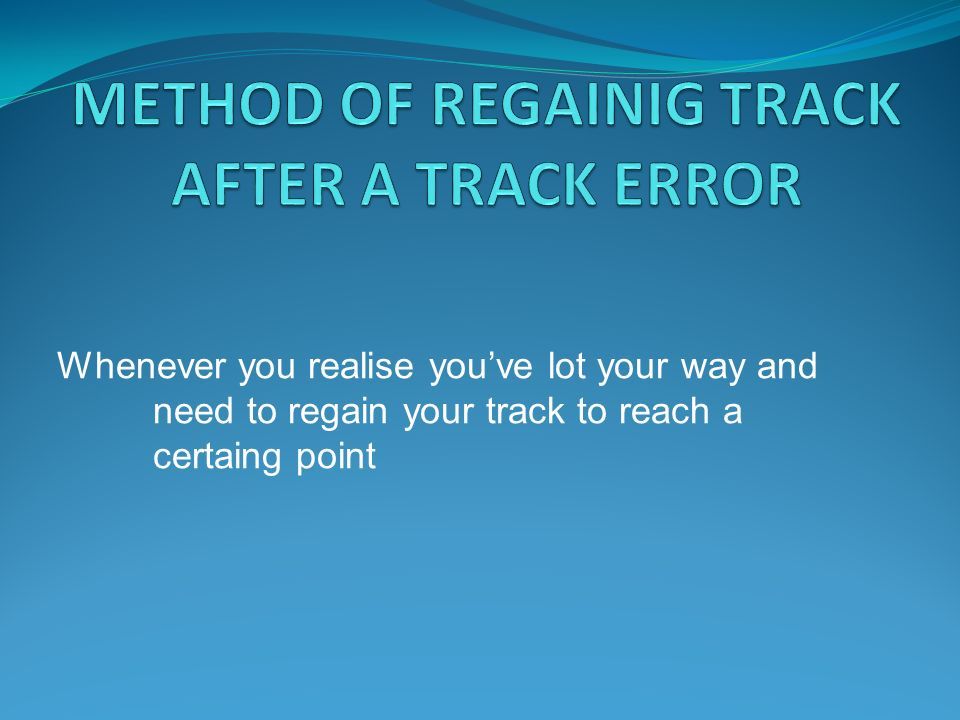

16 Whenever you realise you’ve lot your way and need to regain your track to reach a certaing point

17
