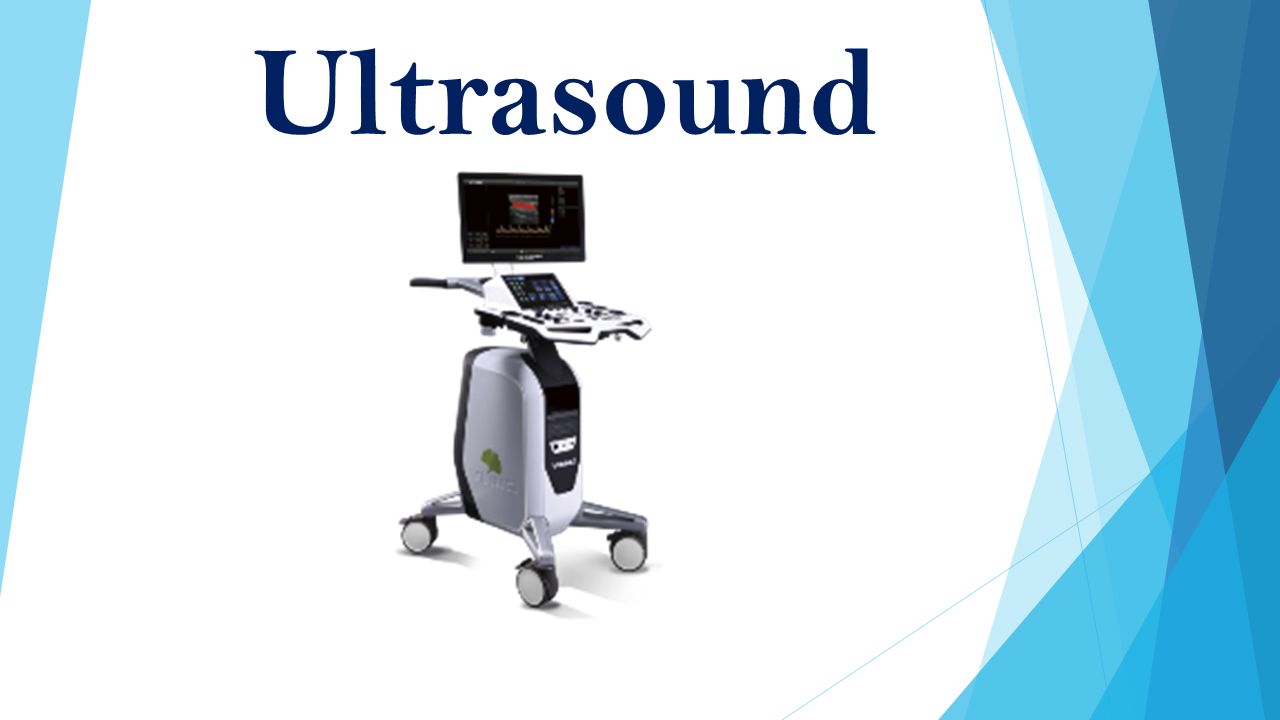

1 Ultrasound

2 Invented by: The ultrasound was invented by Dr. Ian Donald in 1958, Donald was born in Scotland in 1910, was the pioneer in the use of diagnostic ultrasound in medicine. Ultrasound

3 What problem does it fix? Ultrasound allows you to see the inside of the body without using invasive methods, such as surgery, chemicals or X-rays. This device is not harmful to the body. Ultrasound X-rays

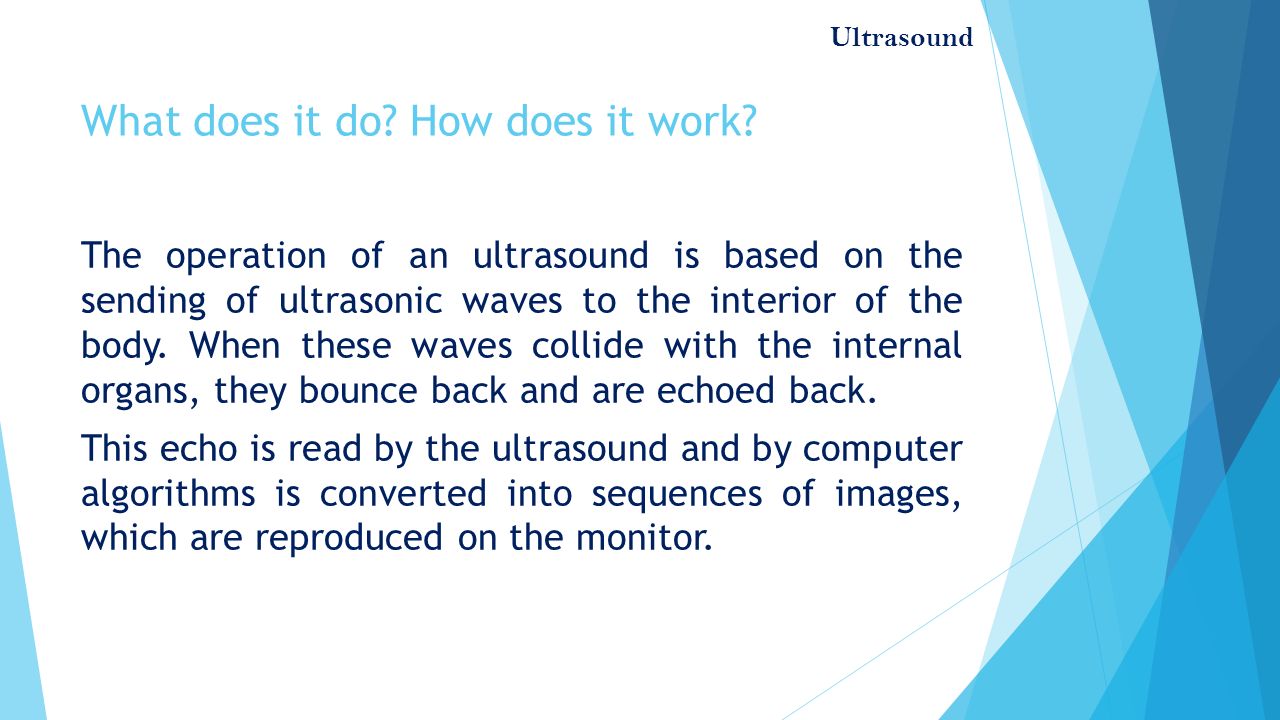

4 What does it do? How does it work? The operation of an ultrasound is based on the sending of ultrasonic waves to the interior of the body. When these waves collide with the internal organs, they bounce back and are echoed back. This echo is read by the ultrasound and by computer algorithms is converted into sequences of images, which are reproduced on the monitor. Ultrasound

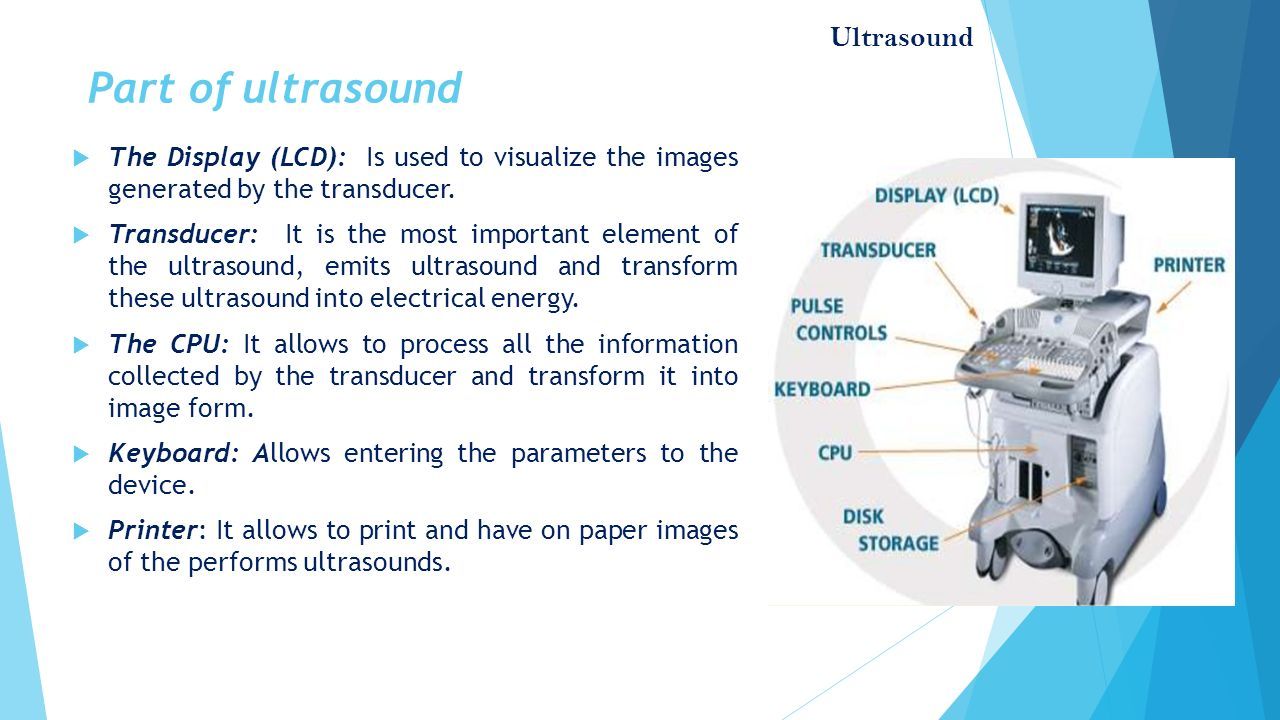

5 Part of ultrasound  The Display (LCD): Is used to visualize the images generated by the transducer.  Transducer: It is the most important element of the ultrasound, emits ultrasound and transform these ultrasound into electrical energy.  The CPU: It allows to process all the information collected by the transducer and transform it into image form.  Keyboard: Allows entering the parameters to the device.  Printer: It allows to print and have on paper images of the performs ultrasounds. Ultrasound

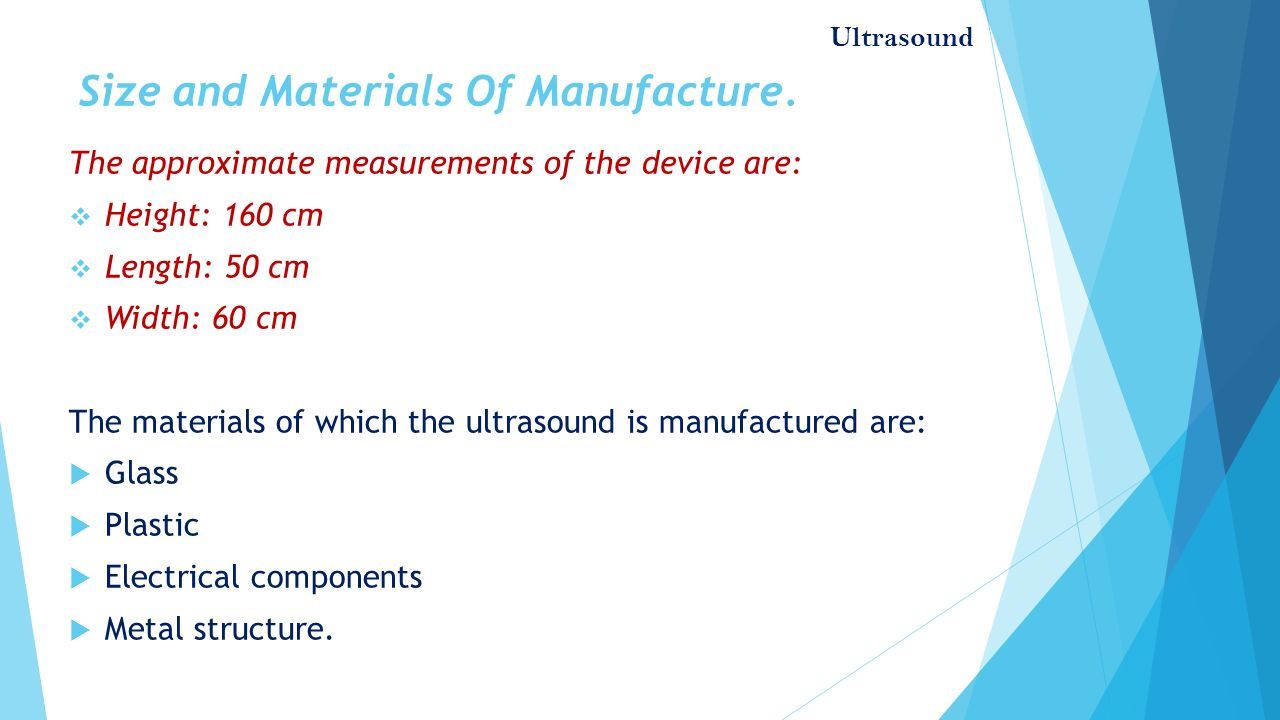

6 Size and Materials Of Manufacture. The approximate measurements of the device are:  Height: 160 cm  Length: 50 cm  Width: 60 cm The materials of which the ultrasound is manufactured are:  Glass  Plastic  Electrical components  Metal structure. Ultrasound

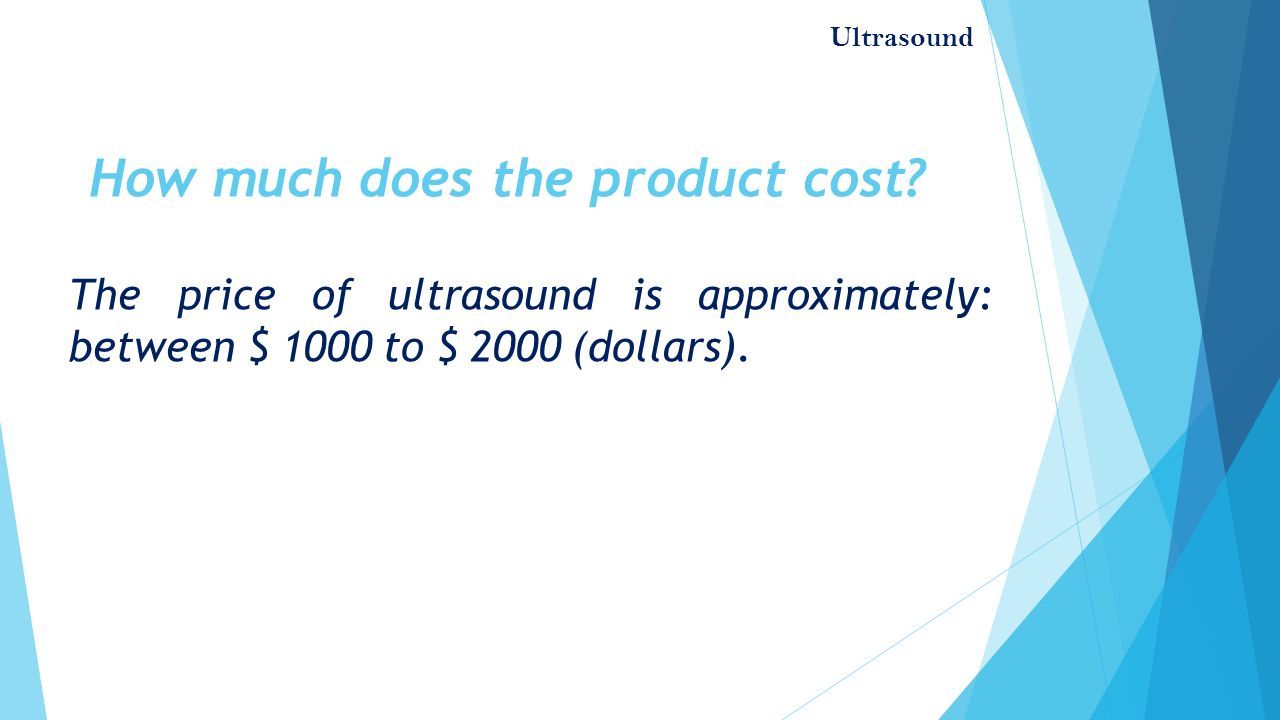

7 How much does the product cost? The price of ultrasound is approximately: between $ 1000 to $ 2000 (dollars). Ultrasound

8 Thank you… Ultrasound
