1 Constructive comments for improvement After my arrival in Namibia and especially to the farm where the project is being carried out. I have some suggestions on irrigation for asparagus. I hope that the things observed in the installation of a localized pressurized irrigation system will be liked, I share some field experiences. And I would also like to learn from your contributions and experiences from you and I will take it with pleasure.

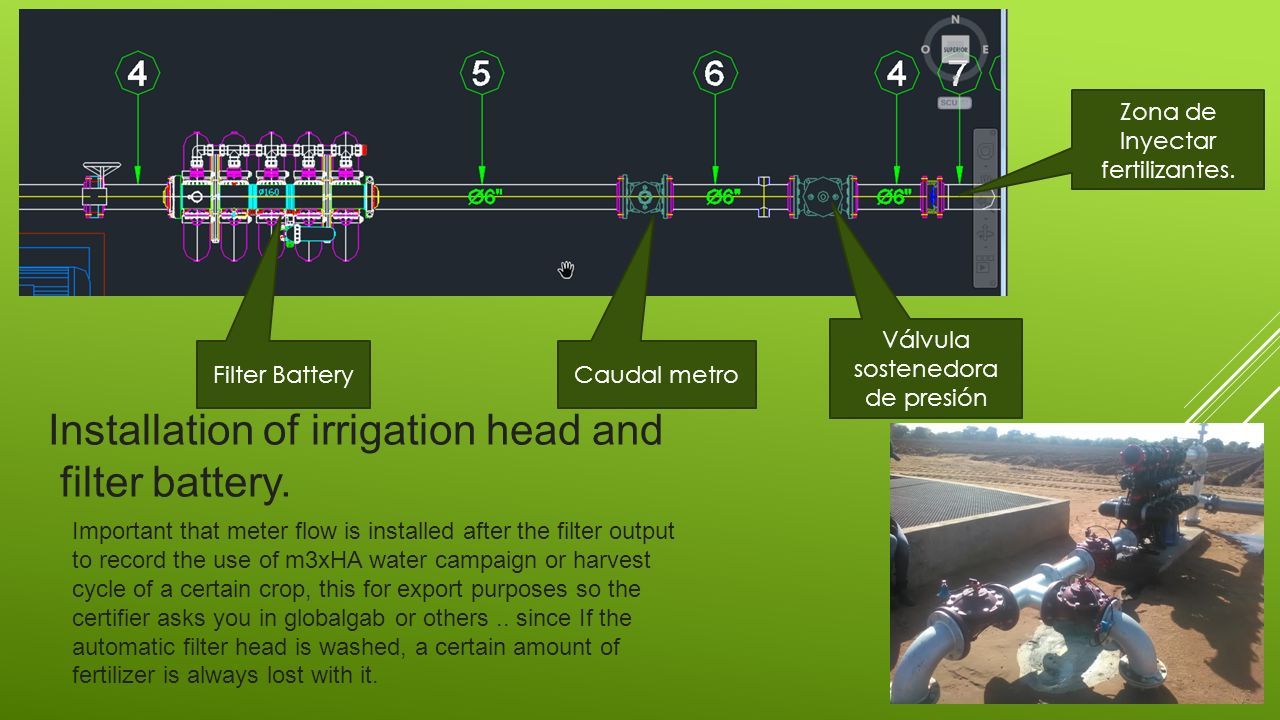

2 Installation of irrigation head and filter battery. Filter BatteryCaudal metro Válvula sostenedora de presión Zona de Inyectar fertilizantes. Important that meter flow is installed after the filter output to record the use of m3xHA water campaign or harvest cycle of a certain crop, this for export purposes so the certifier asks you in globalgab or others.. since If the automatic filter head is washed, a certain amount of fertilizer is always lost with it.

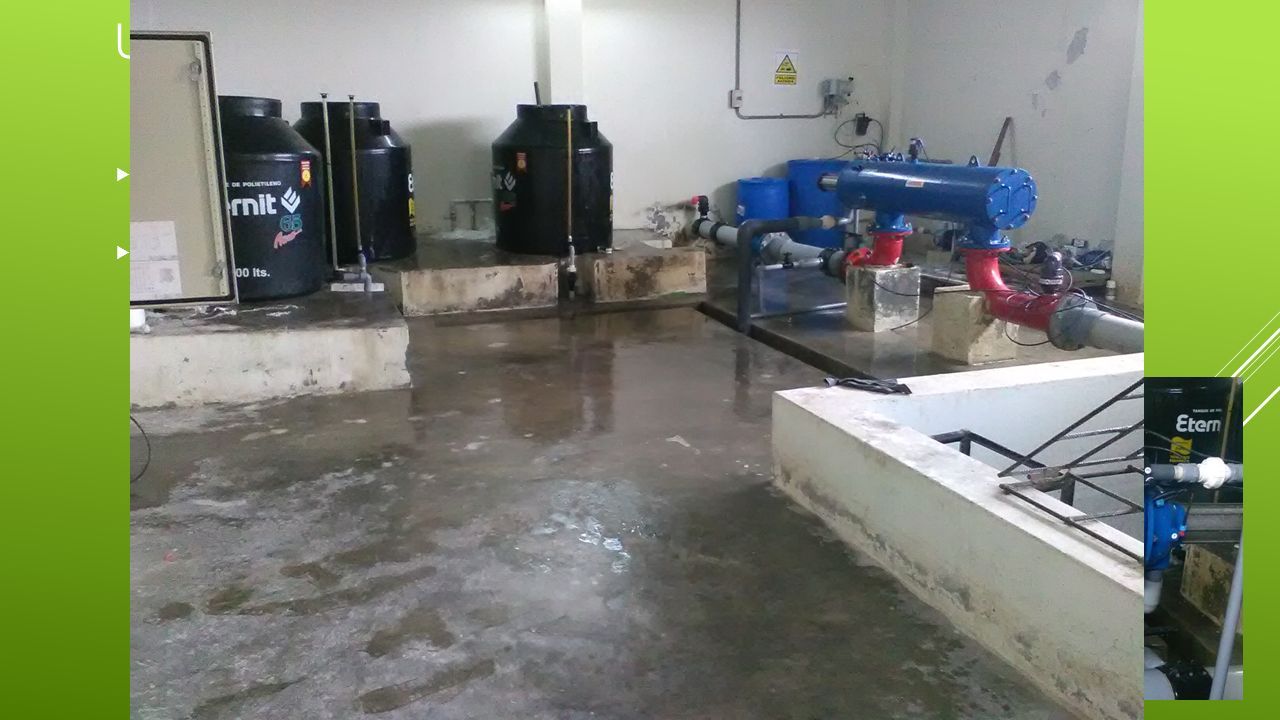

3 USO DE FILTROS PARA RIEGO..  Esta excelente el cabezal desde el punto de vista diseño hidráulico.  Es importante tener a la vista de operador LA PRESION DE ENTRADA DE FILTRO Y SALIDA DE Filtro. Porque ello es una alarma para poder tomar acción en un determinado causa. Ya sea una limpieza automática calibrada a presión determinada o si falla algún relay solenoide si es eléctrico.

4 FILTROS TECNOLOGÍA AMIAD

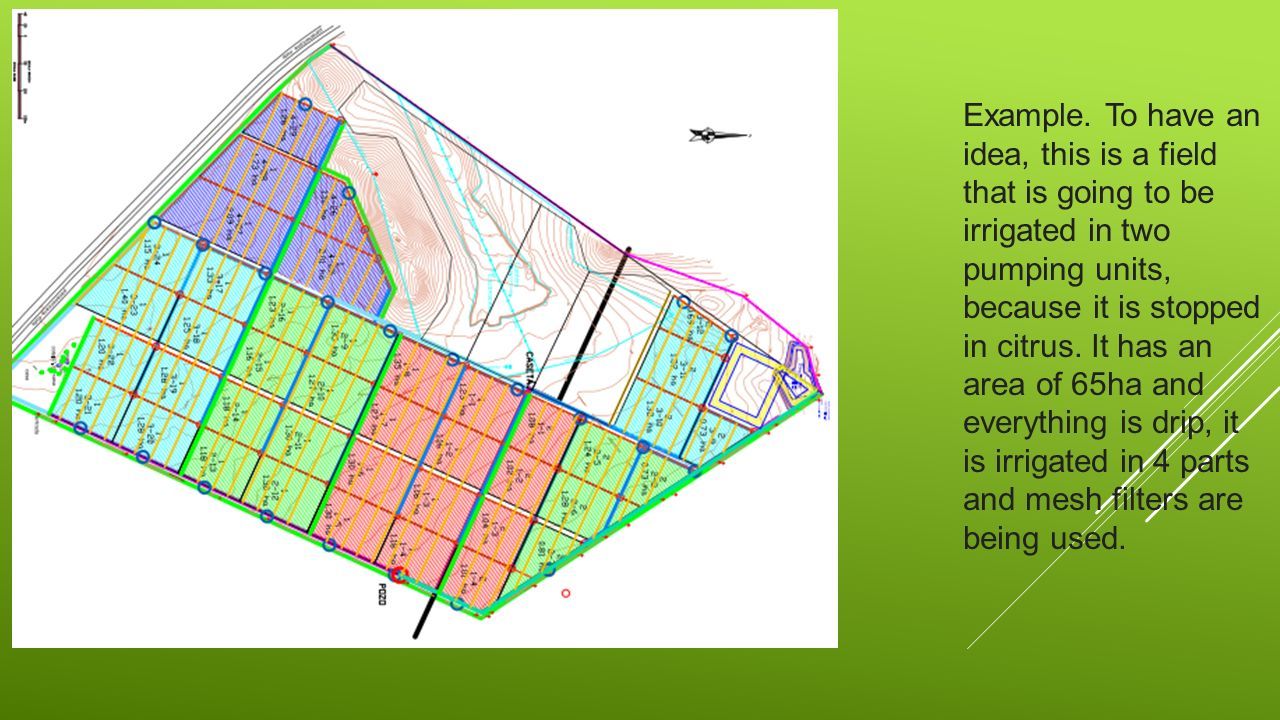

5 Example. To have an idea, this is a field that is going to be irrigated in two pumping units, because it is stopped in citrus. It has an area of ​​ 65ha and everything is drip, it is irrigated in 4 parts and mesh filters are being used.

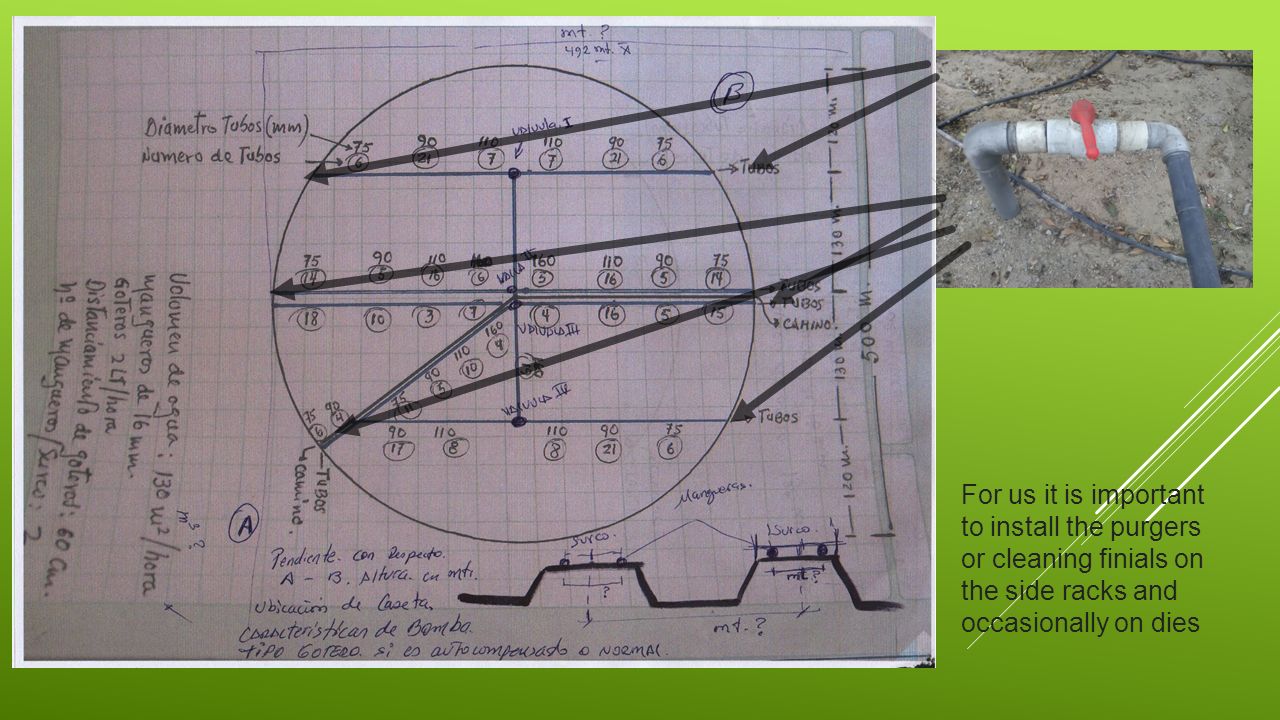

6 For us it is important to install the purgers or cleaning finials on the side racks and occasionally on dies

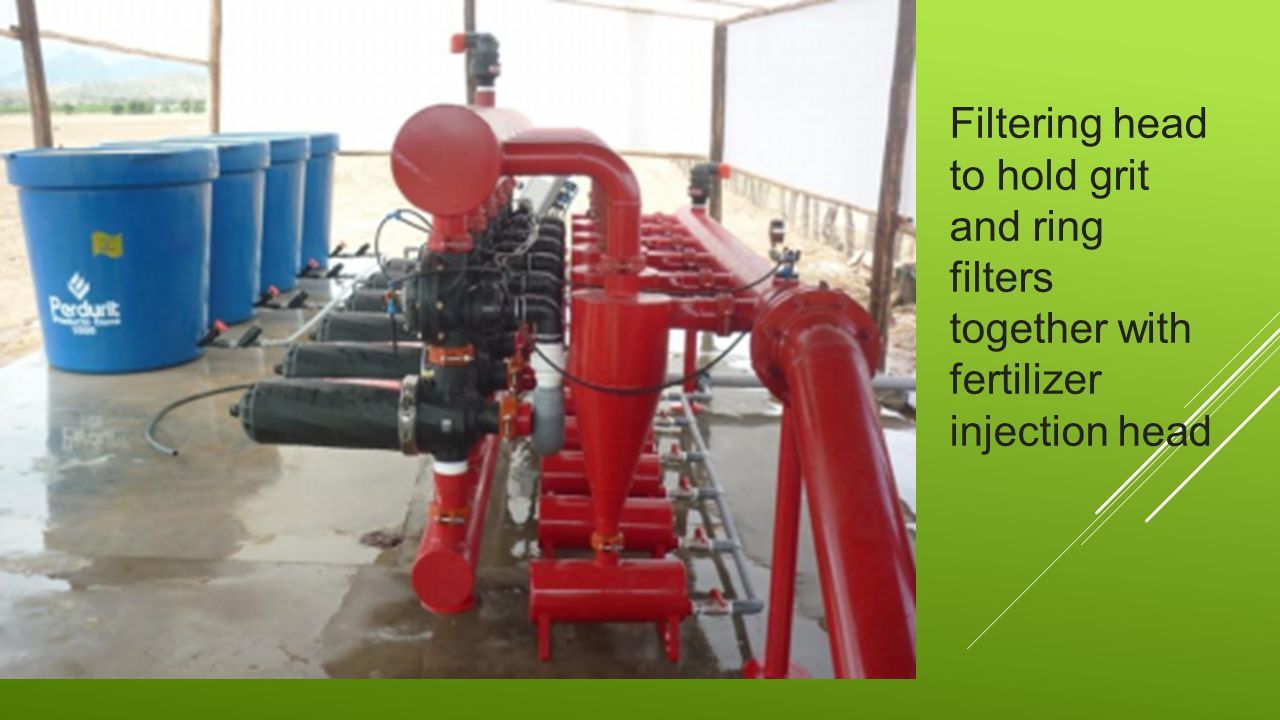

7 Filtering head to hold grit and ring filters together with fertilizer injection head

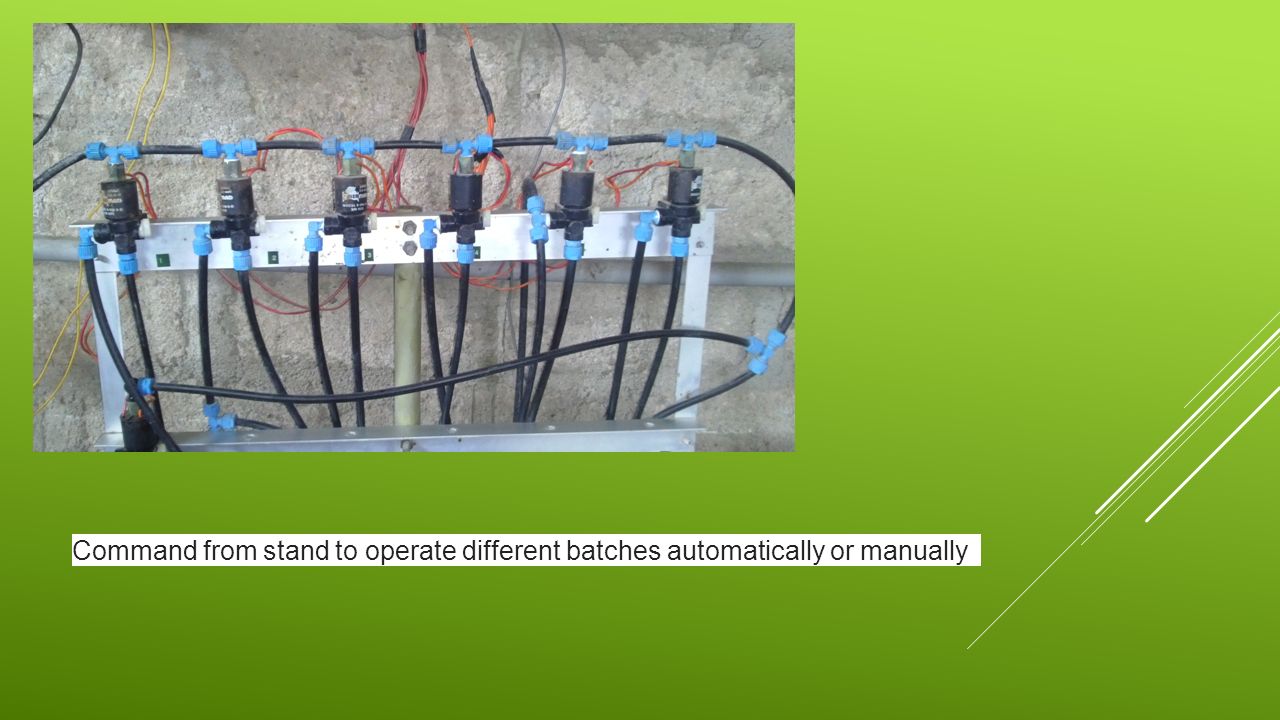

8 Command from stand to operate different batches automatically or manually

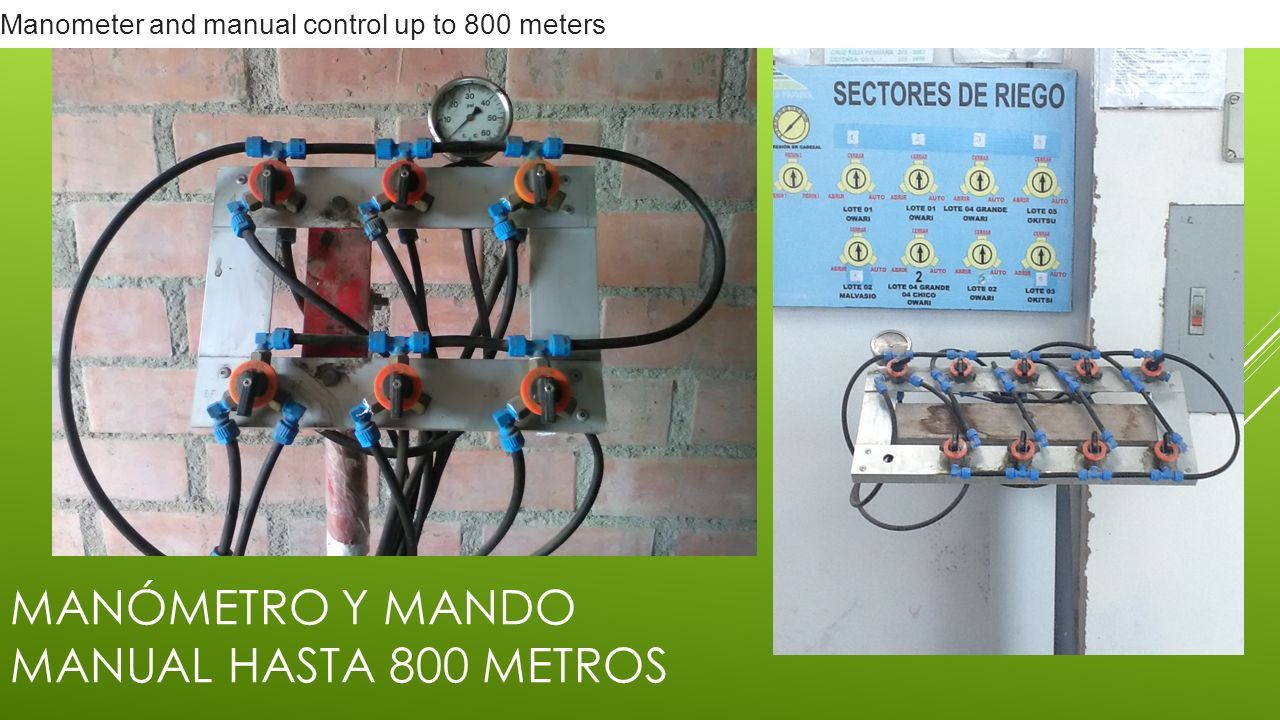

9 MANÓMETRO Y MANDO MANUAL HASTA 800 METROS Manometer and manual control up to 800 meters

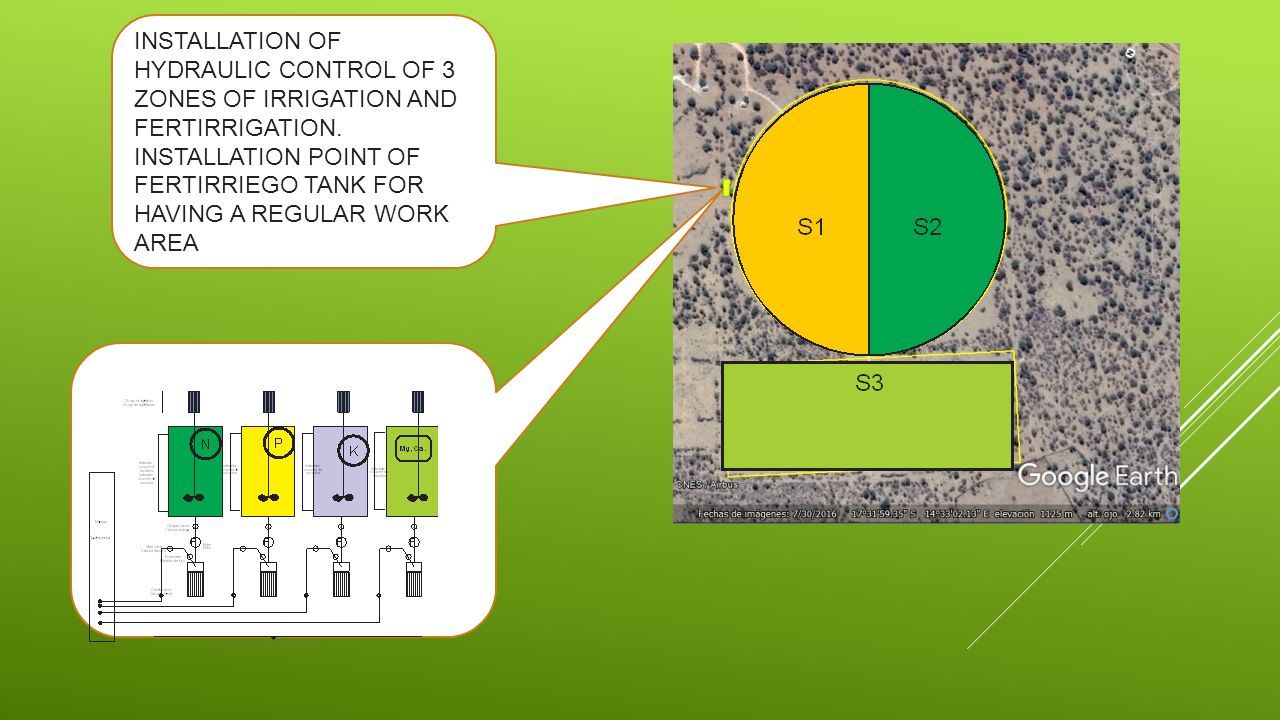

10 INSTALLATION OF HYDRAULIC CONTROL OF 3 ZONES OF IRRIGATION AND FERTIRRIGATION. INSTALLATION POINT OF FERTIRRIEGO TANK FOR HAVING A REGULAR WORK AREA
