1 Microscopy Lecture I

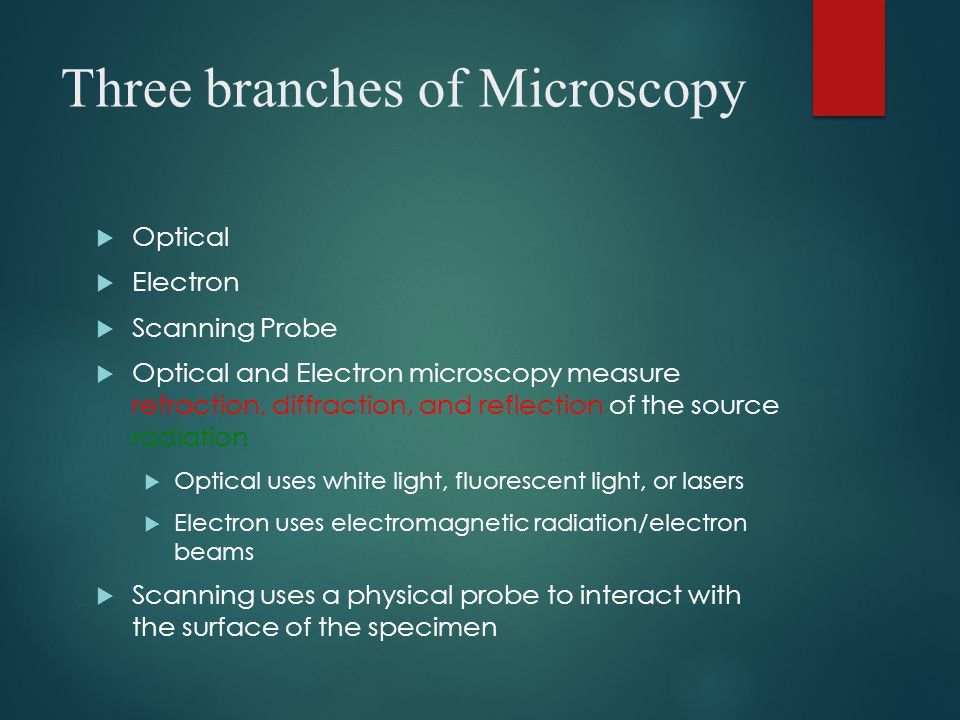

2 Three branches of Microscopy  Optical  Electron  Scanning Probe  Optical and Electron microscopy measure refraction, diffraction, and reflection of the source radiation  Optical uses white light, fluorescent light, or lasers  Electron uses electromagnetic radiation/electron beams  Scanning uses a physical probe to interact with the surface of the specimen

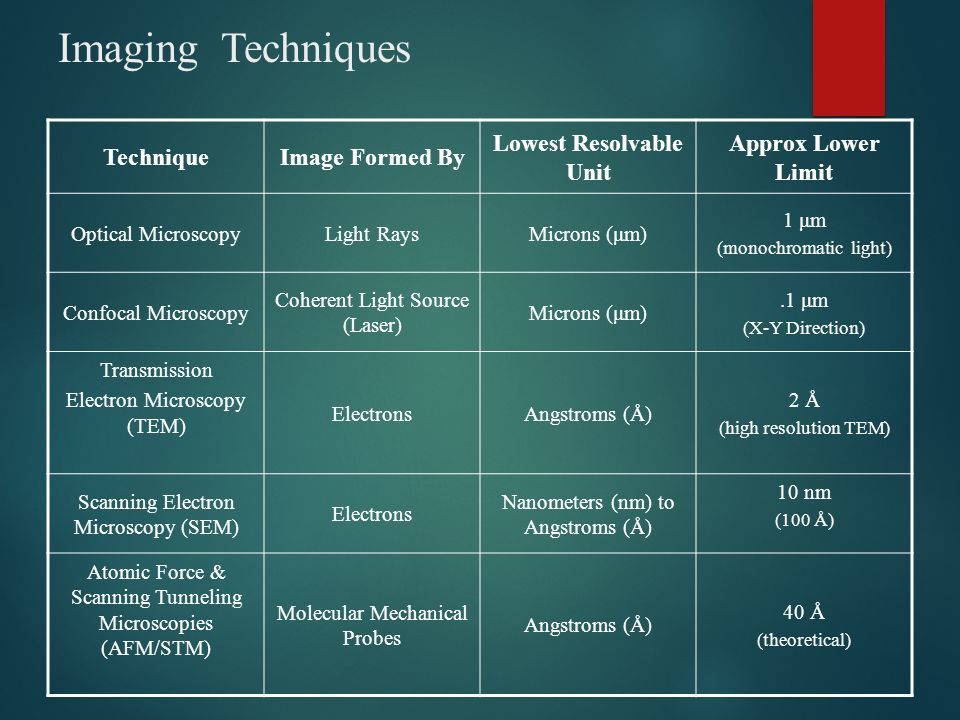

3 Imaging Techniques TechniqueImage Formed By Lowest Resolvable Unit Approx Lower Limit Optical MicroscopyLight RaysMicrons (μm) 1 μm (monochromatic light) Confocal Microscopy Coherent Light Source (Laser) Microns (μm).1 μm (X-Y Direction) Transmission Electron Microscopy (TEM) ElectronsAngstroms (Ǻ) 2 Ǻ (high resolution TEM) Scanning Electron Microscopy (SEM) Electrons Nanometers (nm) to Angstroms (Ǻ) 10 nm (100 Ǻ) Atomic Force & Scanning Tunneling Microscopies (AFM/STM) Molecular Mechanical Probes Angstroms (Ǻ) 40 Ǻ (theoretical)

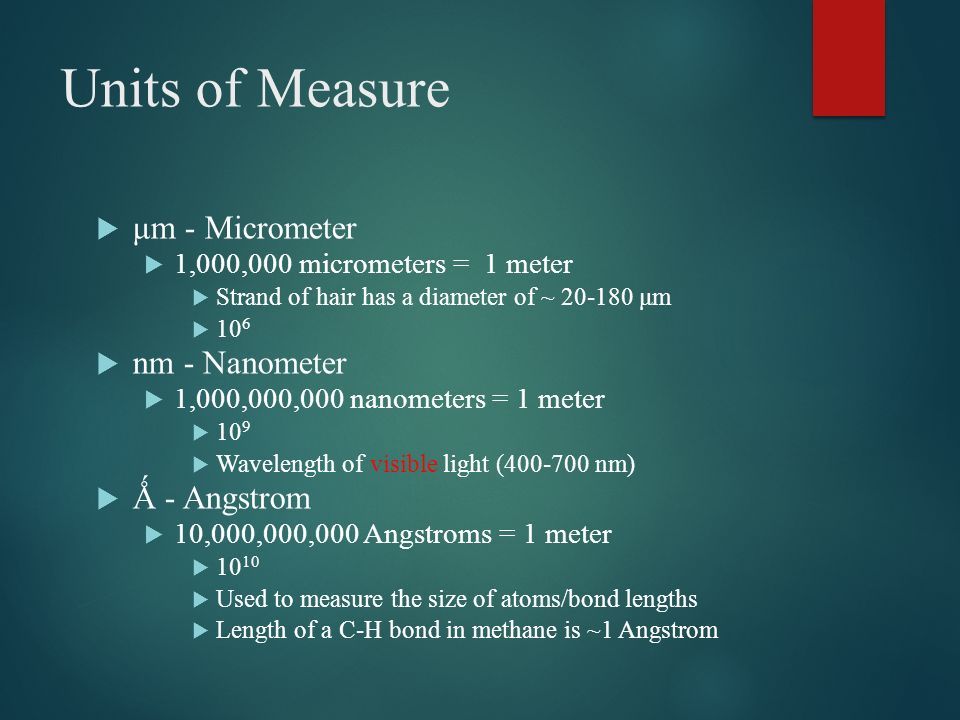

4 Units of Measure  μm - Micrometer  1,000,000 micrometers = 1 meter  Strand of hair has a diameter of ~ 20-180 μm  10 6  nm - Nanometer  1,000,000,000 nanometers = 1 meter  10 9  Wavelength of visible light (400-700 nm)  Ǻ - Angstrom  10,000,000,000 Angstroms = 1 meter  10 10  Used to measure the size of atoms/bond lengths  Length of a C-H bond in methane is ~1 Angstrom

5 0.75% Collagen Crosslinked

6 2% Collagen

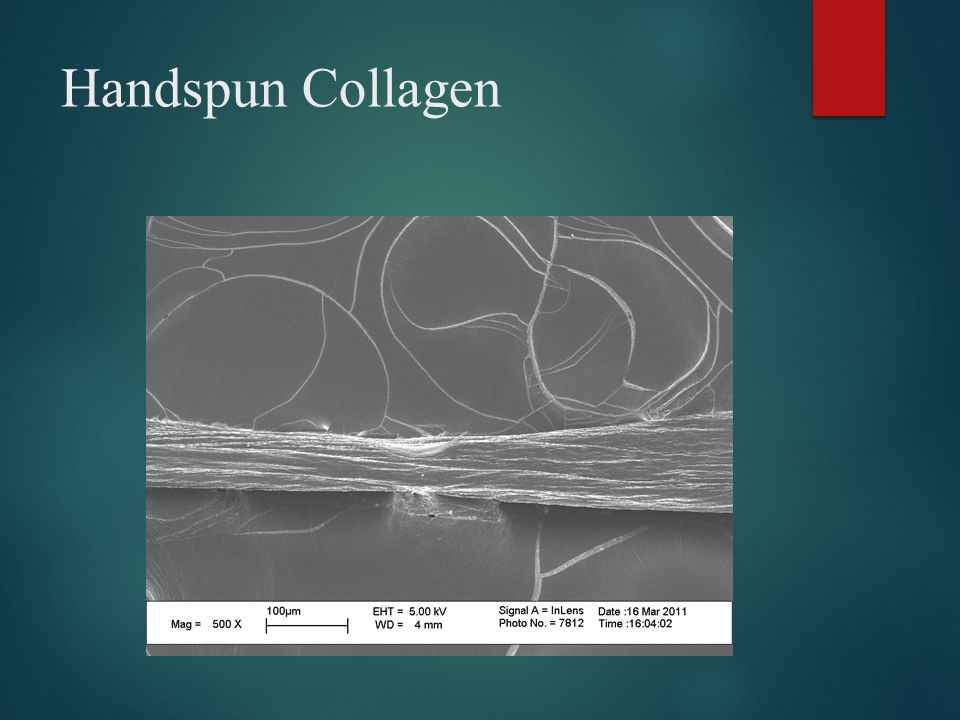

7 Handspun Collagen

8 Optical Microscopy

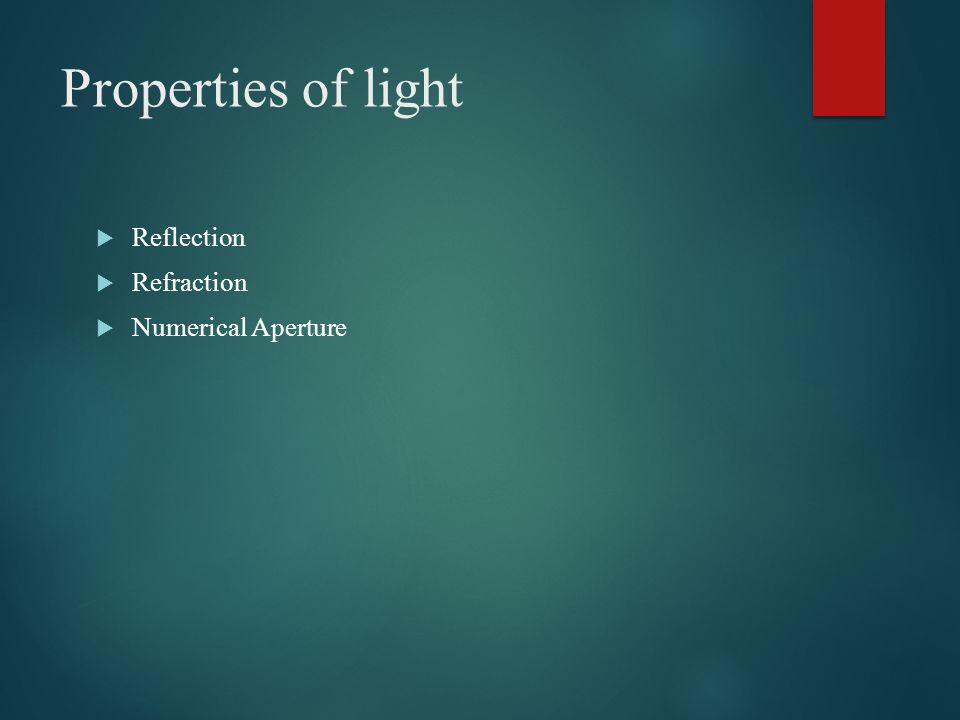

9 Properties of light  Reflection  Refraction  Numerical Aperture

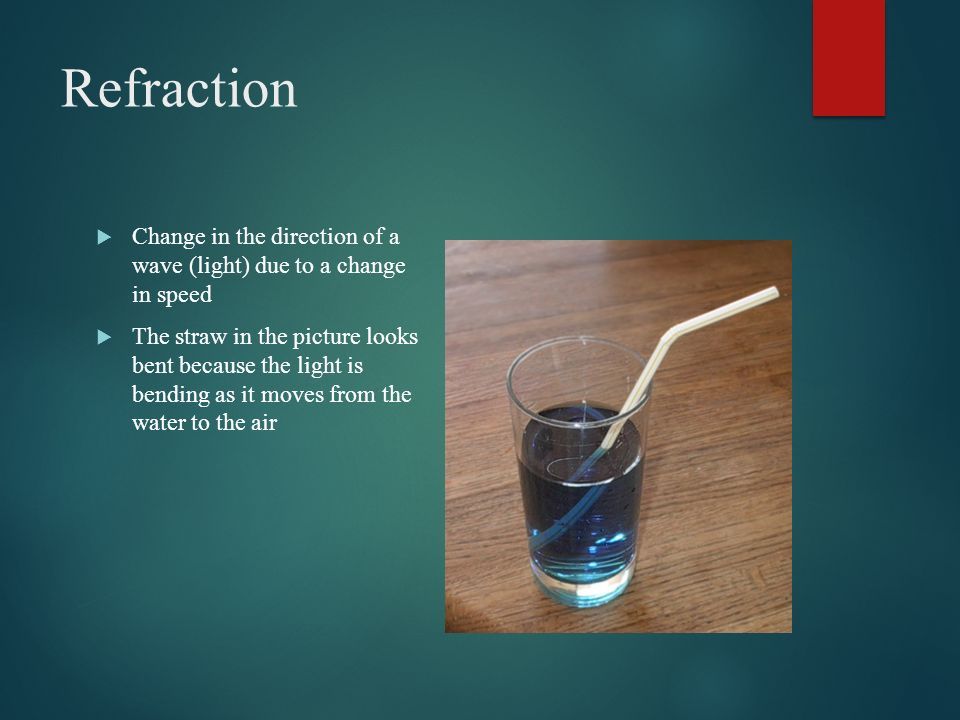

10 Refraction  Change in the direction of a wave (light) due to a change in speed  The straw in the picture looks bent because the light is bending as it moves from the water to the air

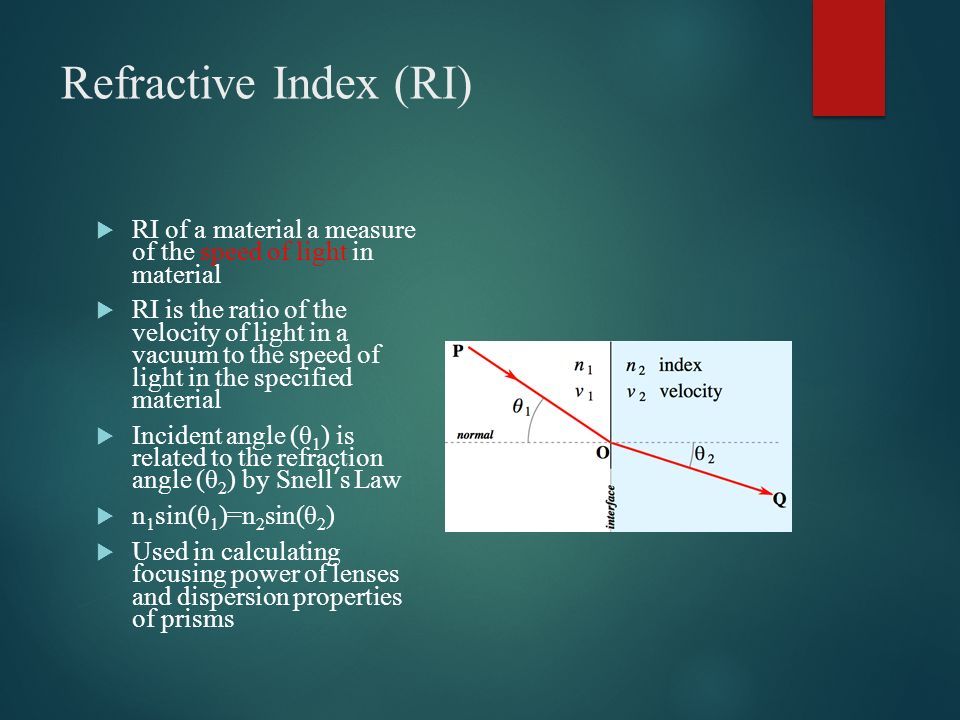

11 Refractive Index (RI)  RI of a material a measure of the speed of light in material  RI is the ratio of the velocity of light in a vacuum to the speed of light in the specified material  Incident angle (θ 1 ) is related to the refraction angle (θ 2 ) by Snell’s Law  n 1 sin(θ 1 )=n 2 sin(θ 2 )  Used in calculating focusing power of lenses and dispersion properties of prisms

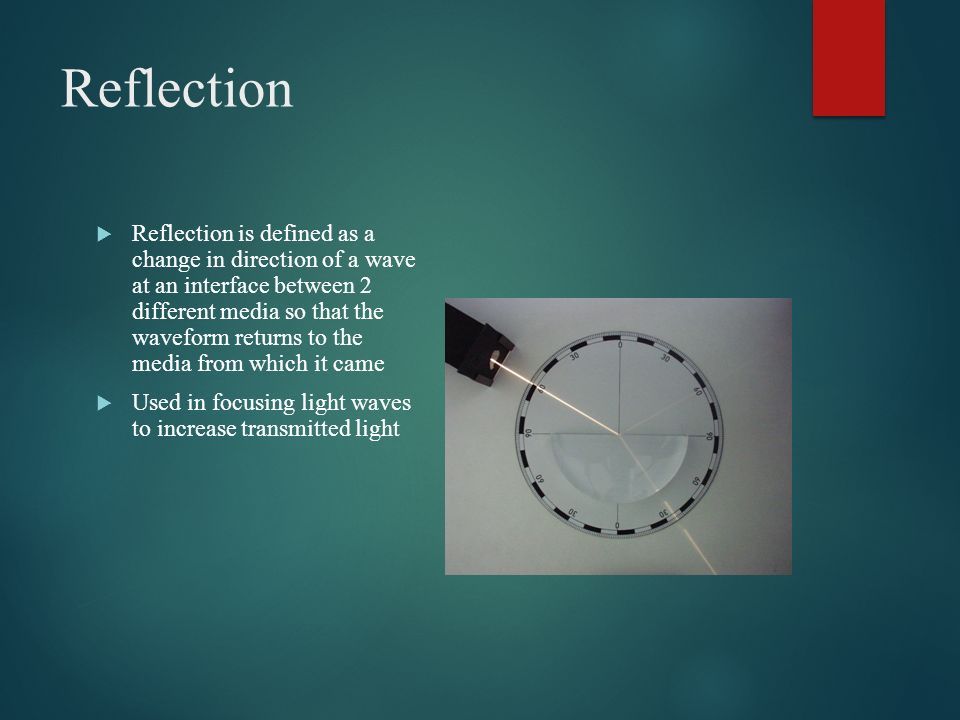

12 Reflection  Reflection is defined as a change in direction of a wave at an interface between 2 different media so that the waveform returns to the media from which it came  Used in focusing light waves to increase transmitted light

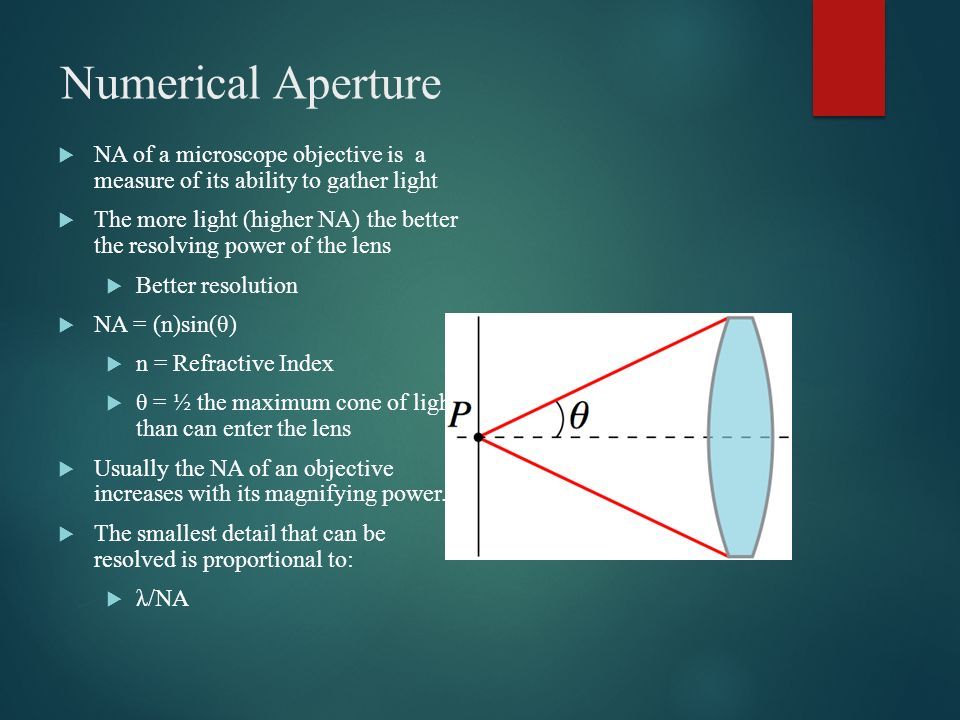

13 Numerical Aperture  NA of a microscope objective is a measure of its ability to gather light  The more light (higher NA) the better the resolving power of the lens  Better resolution  NA = (n)sin(θ)  n = Refractive Index  θ = ½ the maximum cone of light than can enter the lens  Usually the NA of an objective increases with its magnifying power.  The smallest detail that can be resolved is proportional to:  λ/NA

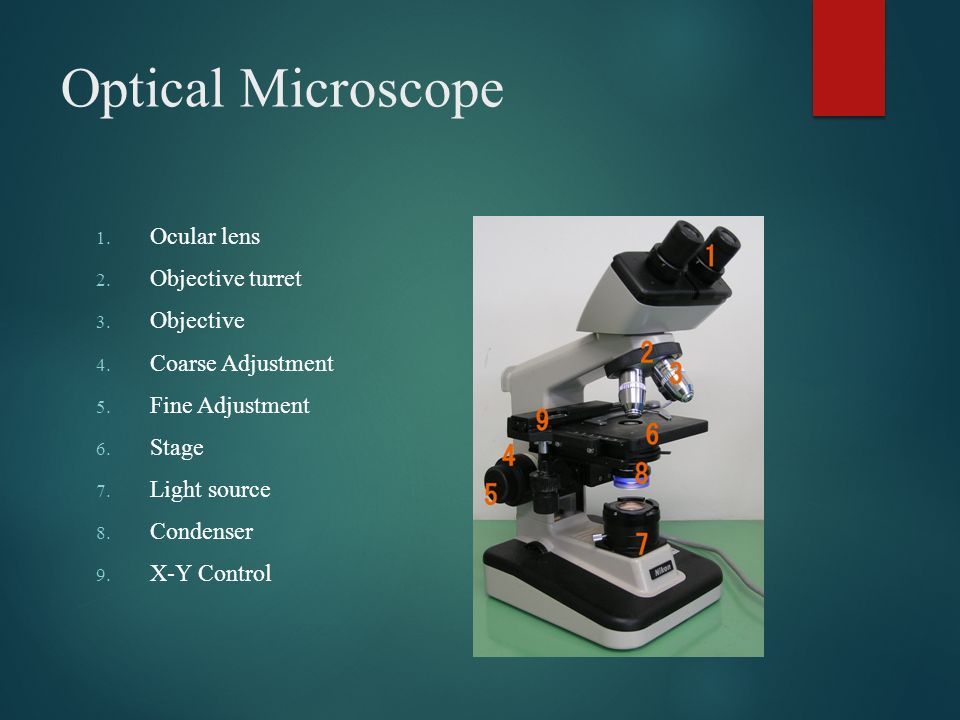

14 Optical Microscope 1. Ocular lens 2. Objective turret 3. Objective 4. Coarse Adjustment 5. Fine Adjustment 6. Stage 7. Light source 8. Condenser 9. X-Y Control

15 Phase Contrast  Uses phase shifted waves of through transparent specimens cause changes in amplitude (contrast) in structures of the specimen  One of the most widely used in biology  No staining required

16 Compound Light

17 Phase Contrast

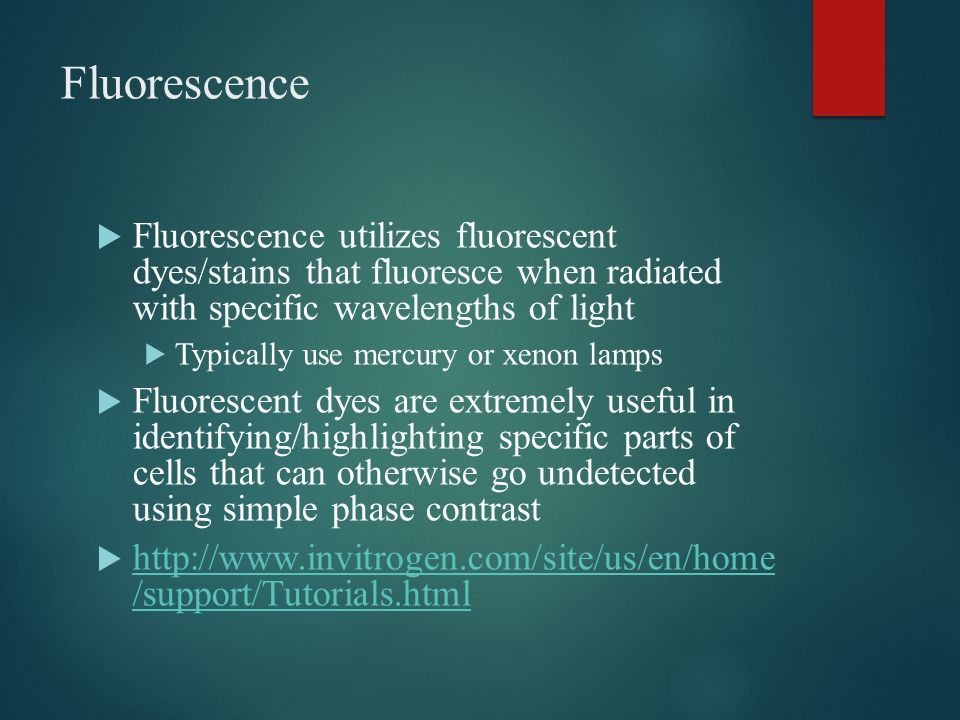

18 Fluorescence  Fluorescence utilizes fluorescent dyes/stains that fluoresce when radiated with specific wavelengths of light  Typically use mercury or xenon lamps  Fluorescent dyes are extremely useful in identifying/highlighting specific parts of cells that can otherwise go undetected using simple phase contrast  http://www.invitrogen.com/site/us/en/home /support/Tutorials.html http://www.invitrogen.com/site/us/en/home /support/Tutorials.html

19 Filter Cube

20 Live Dead Assay

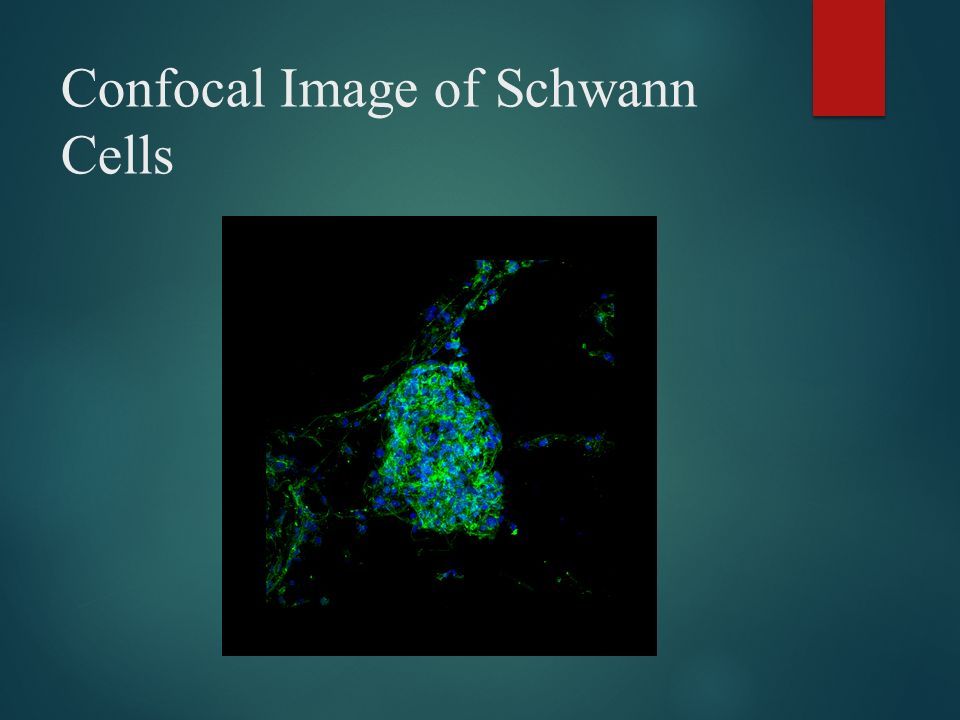

21 Confocal Image of Schwann Cells

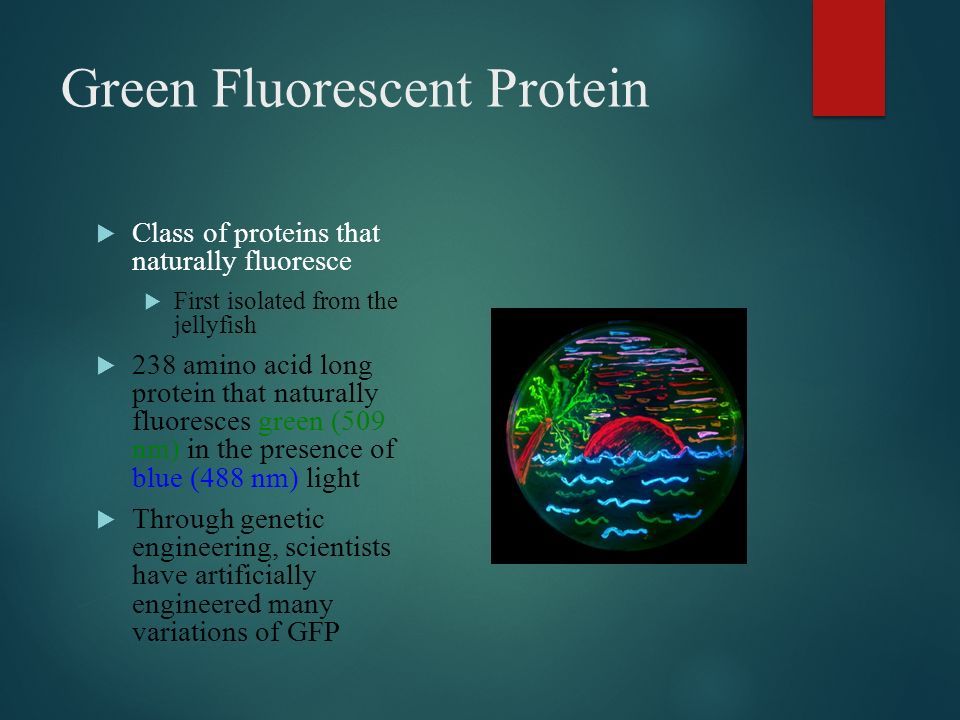

22 Green Fluorescent Protein  Class of proteins that naturally fluoresce  First isolated from the jellyfish  238 amino acid long protein that naturally fluoresces green (509 nm) in the presence of blue (488 nm) light  Through genetic engineering, scientists have artificially engineered many variations of GFP

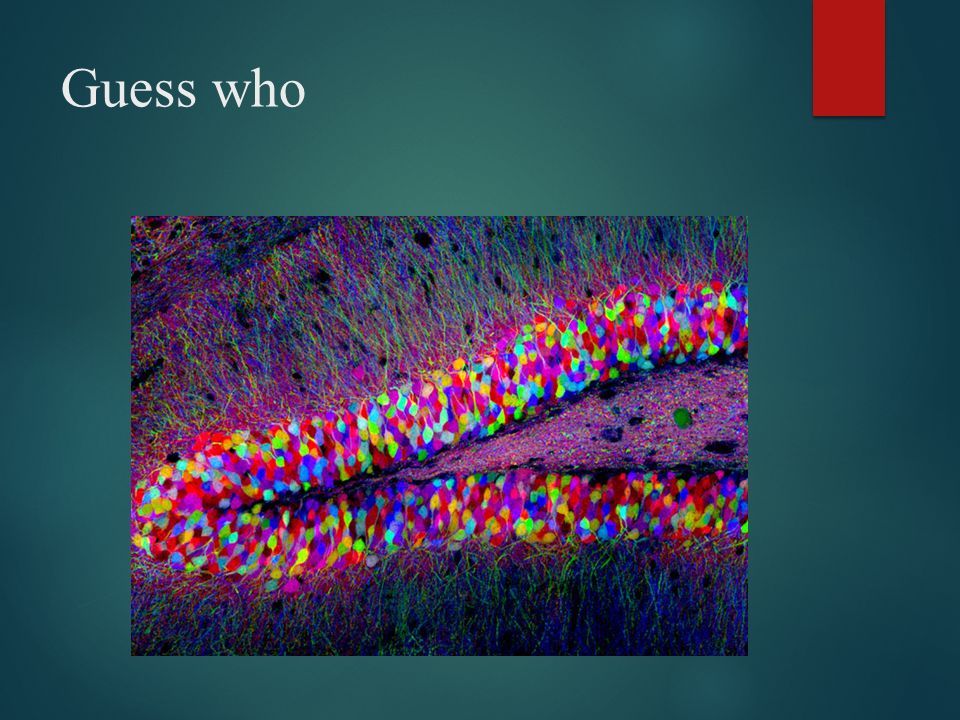

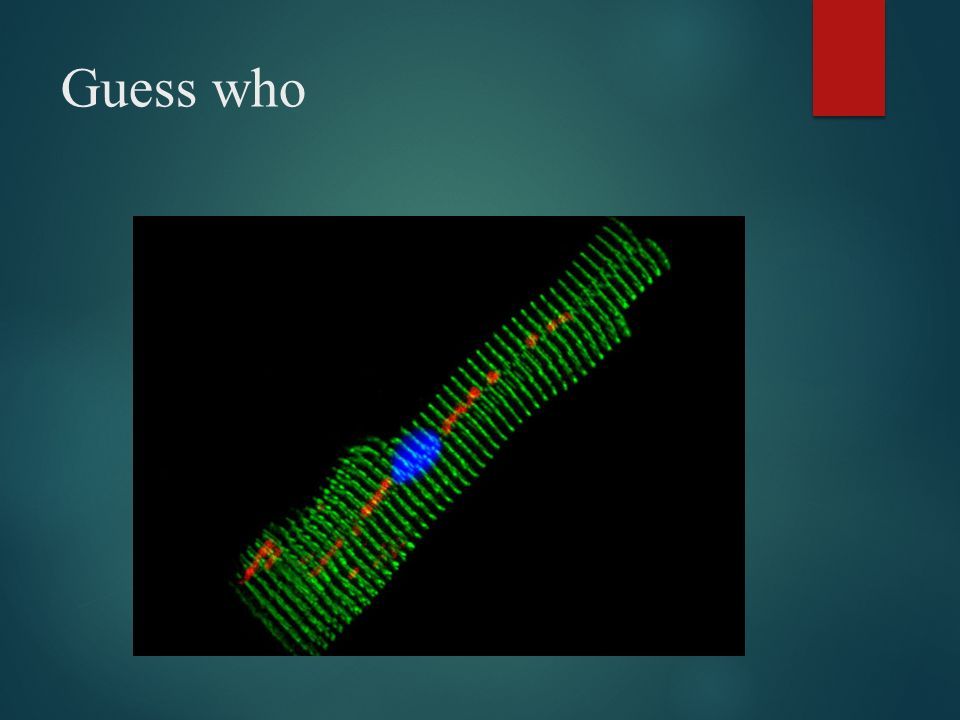

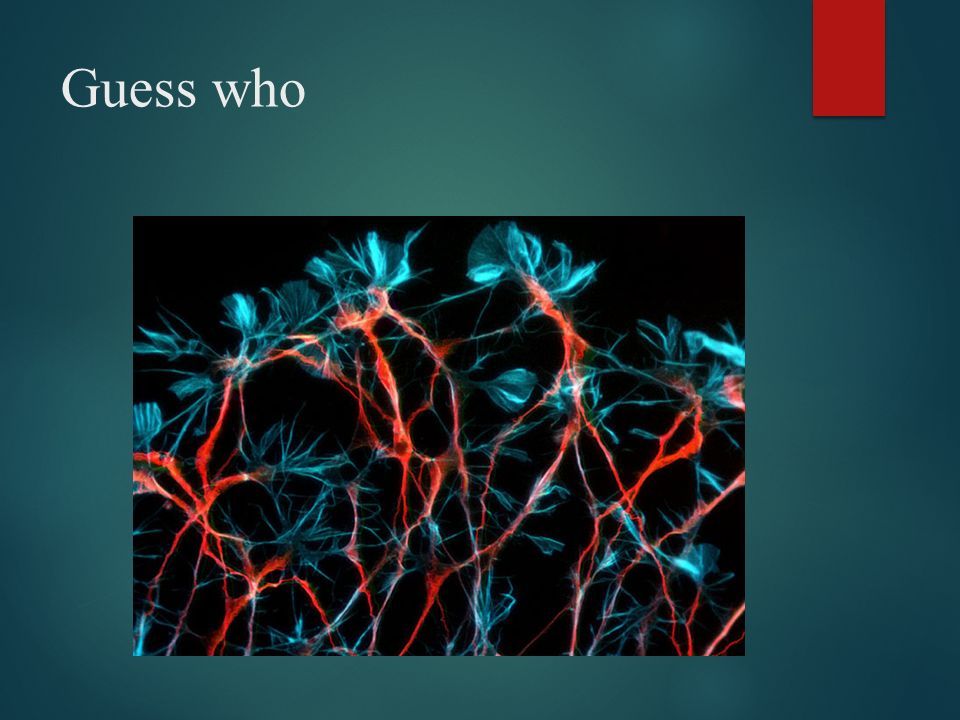

23 Guess who

24

25

26

27
