1 CIEMAT Spanish WA105 meeting 12 - 09 - 2016
PMTs tests status CIEMAT Spanish WA105 meeting

2 Setup for linearity measurements
Monitor 2 Room temp Diffuser Fiber splitter Filters box Fiber splitter Laser(405 nm) Optical fiber Fixed Filter LED & Laser controller Black box QDC LabView Diffuser Signal from PMTs PMT under test R Monitor 1 room temp Details: - A diffuser at the end of each fiber provide an homogeneous illumination of the photo-cathode. - The function of the PMT monitor #1 is to keep track of possible variations in the lighting system. The light input is reduced by a filter to keep the PMT on its linear response region Dewar for LN2

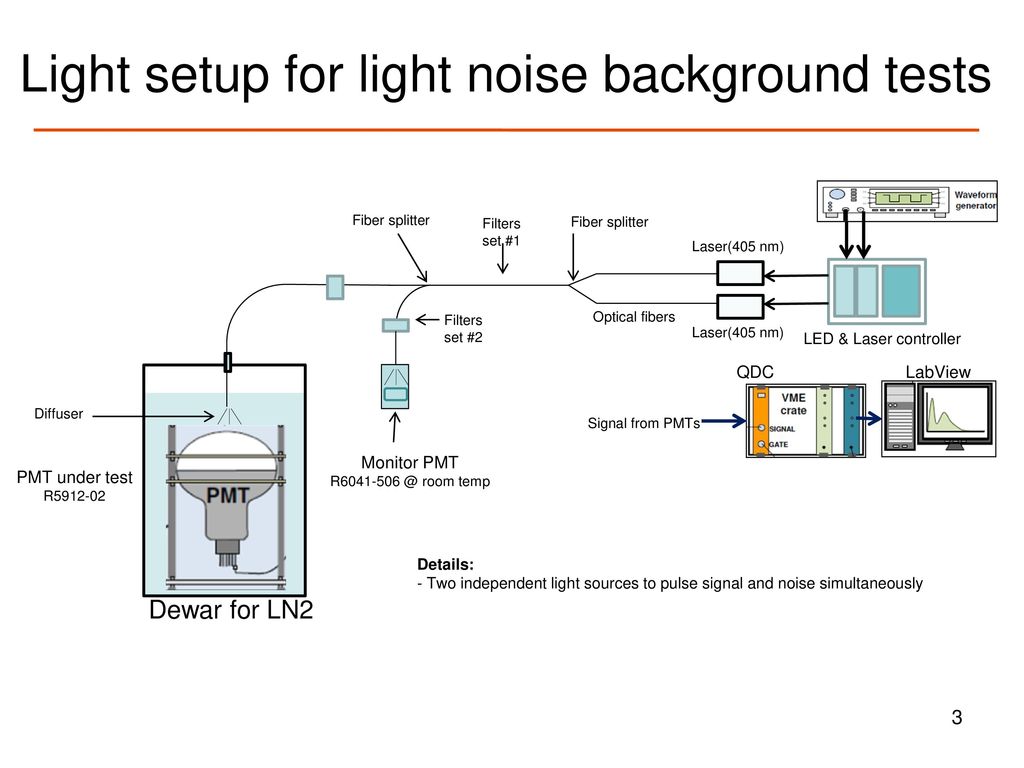

3 Light setup for light noise background tests
Fiber splitter Filters set #1 Fiber splitter Laser(405 nm) Filters set #2 Optical fibers Laser(405 nm) LED & Laser controller QDC LabView Diffuser Signal from PMTs Monitor PMT room temp PMT under test R Details: - Two independent light sources to pulse signal and noise simultaneously Dewar for LN2

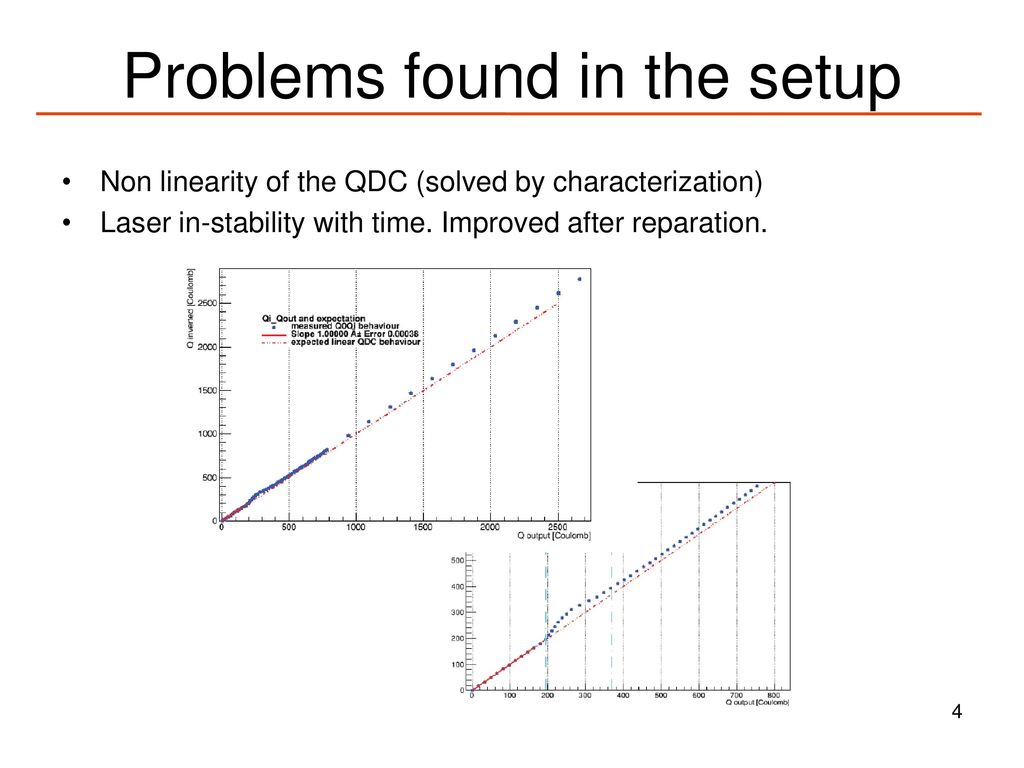

4 Problems found in the setup
Non linearity of the QDC (solved by characterization) Laser in-stability with time. Improved after reparation.

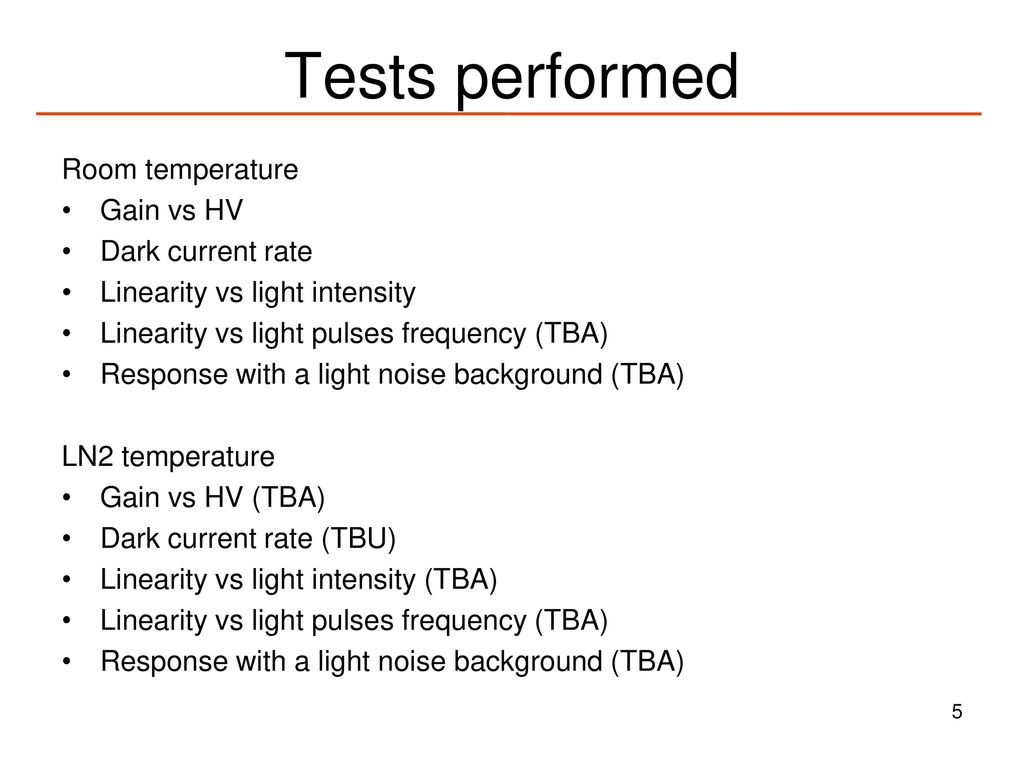

5 Tests performed Room temperature Gain vs HV Dark current rate
Linearity vs light intensity Linearity vs light pulses frequency (TBA) Response with a light noise background (TBA) LN2 temperature Gain vs HV (TBA) Dark current rate (TBU) Linearity vs light intensity (TBA)

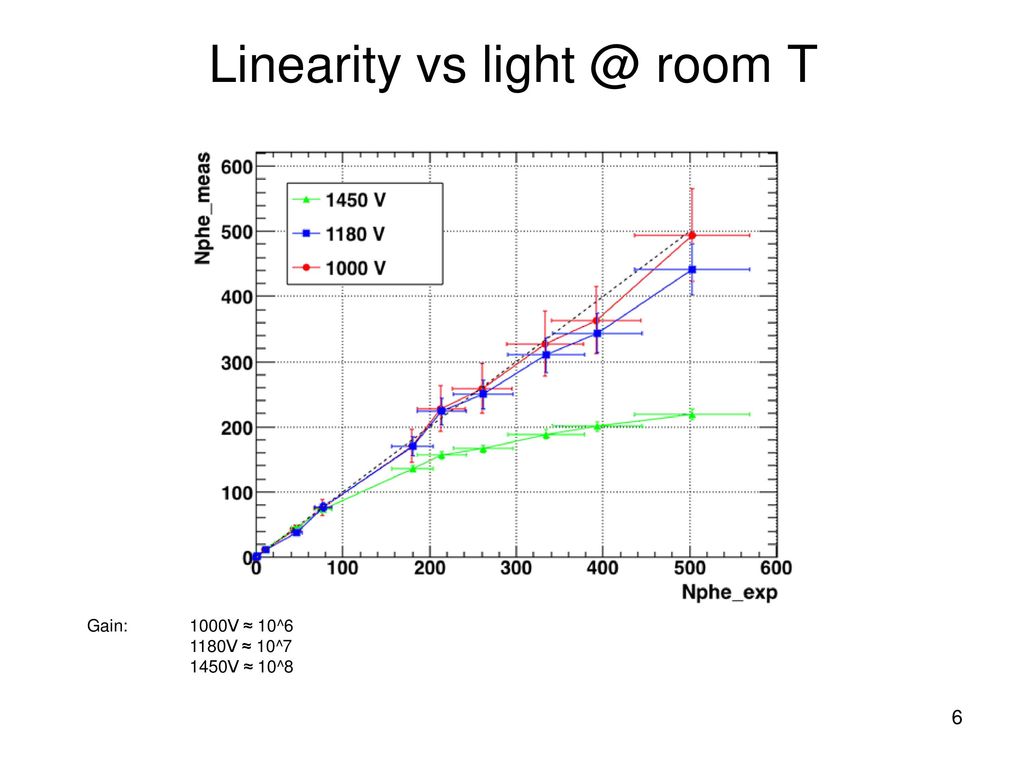

6 Linearity vs light @ room T
Gain: 1000V ≈ 10^6 1180V ≈ 10^7 1450V ≈ 10^8

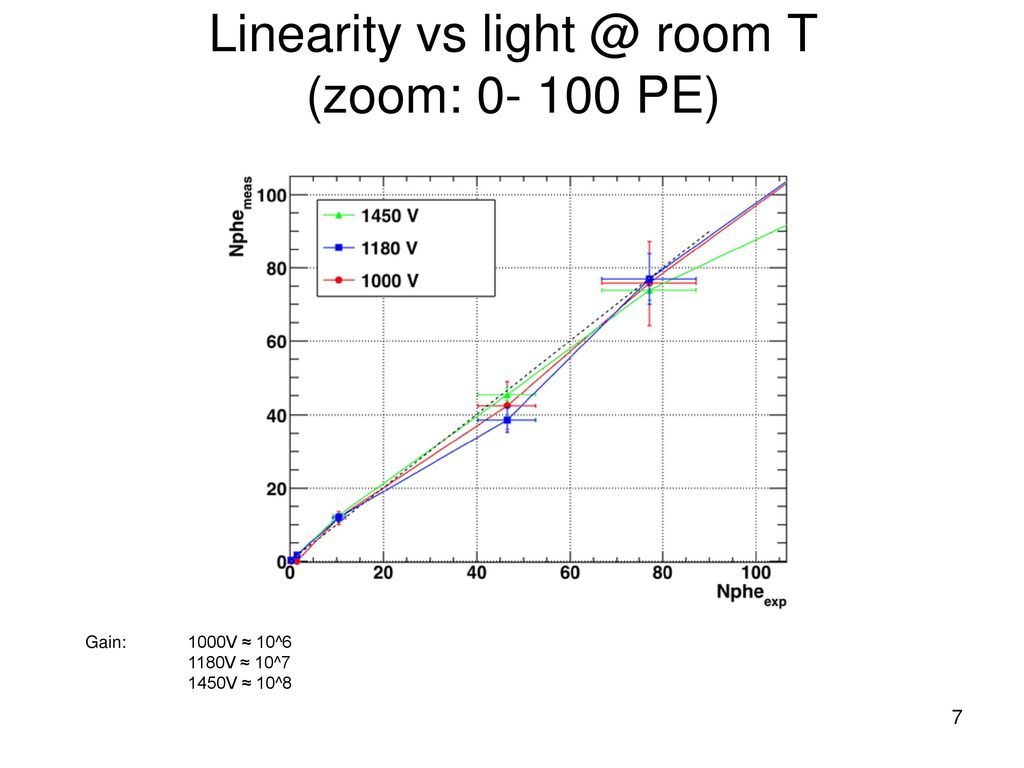

7 Linearity vs light @ room T (zoom: 0- 100 PE)
Gain: 1000V ≈ 10^6 1180V ≈ 10^7 1450V ≈ 10^8

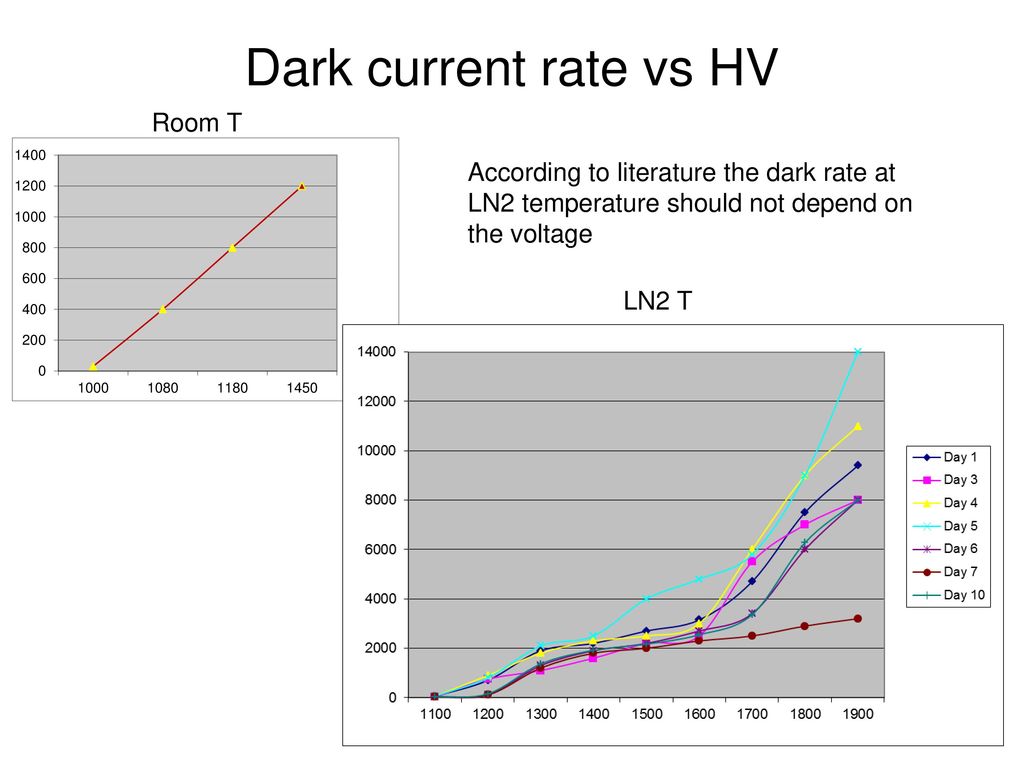

8 Dark current rate vs HV Room T
According to literature the dark rate at LN2 temperature should not depend on the voltage LN2 T

9 Dark current rate vs time (evolution for a single voltage)

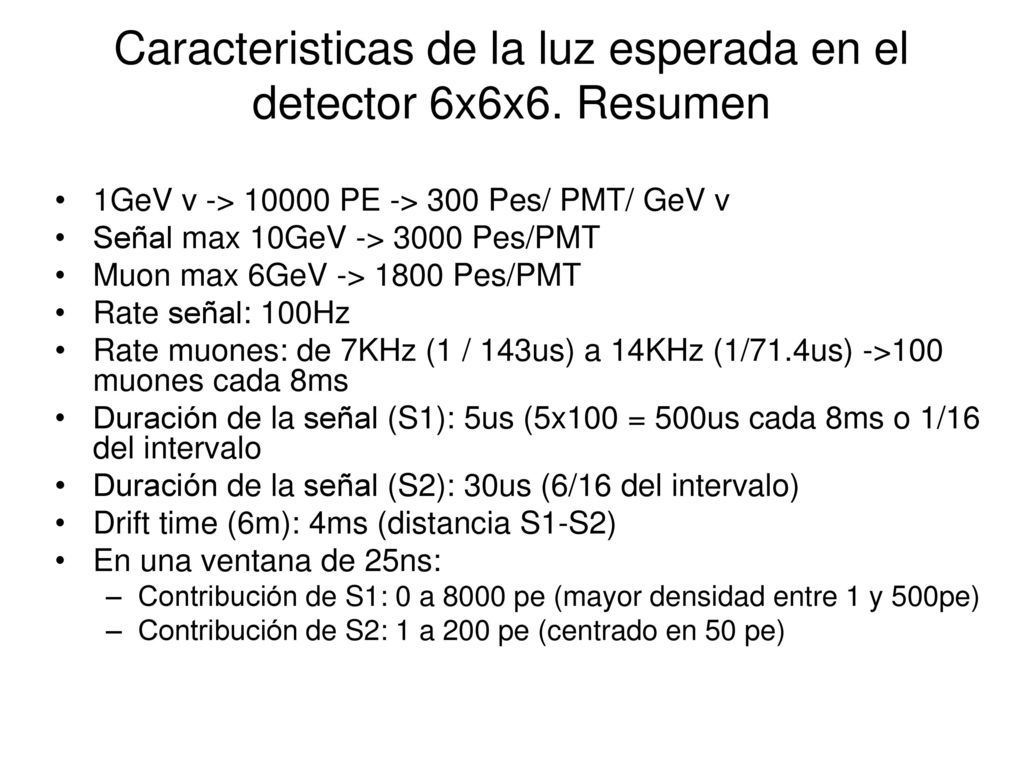

10 Caracteristicas de la luz esperada en el detector 6x6x6. Resumen

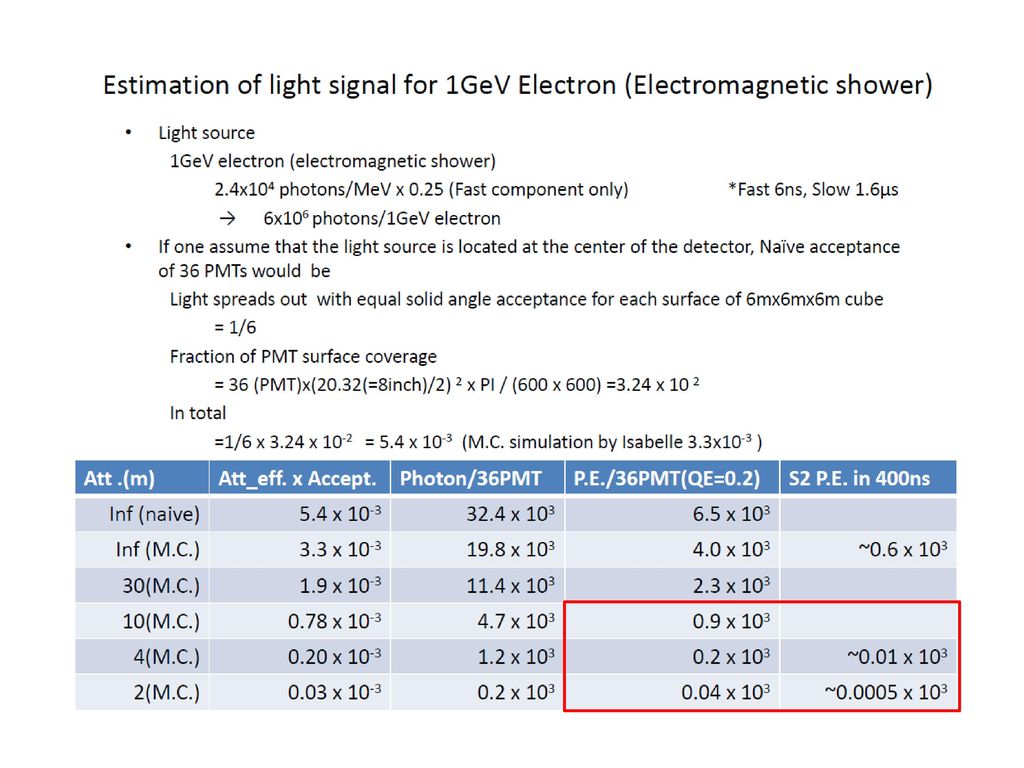

1GeV v -> PE -> 300 Pes/ PMT/ GeV v Señal max 10GeV -> 3000 Pes/PMT Muon max 6GeV -> 1800 Pes/PMT Rate señal: 100Hz Rate muones: de 7KHz (1 / 143us) a 14KHz (1/71.4us) ->100 muones cada 8ms Duración de la señal (S1): 5us (5x100 = 500us cada 8ms o 1/16 del intervalo Duración de la señal (S2): 30us (6/16 del intervalo) Drift time (6m): 4ms (distancia S1-S2) En una ventana de 25ns: Contribución de S1: 0 a 8000 pe (mayor densidad entre 1 y 500pe) Contribución de S2: 1 a 200 pe (centrado en 50 pe)

11

12 Light-noise background tests

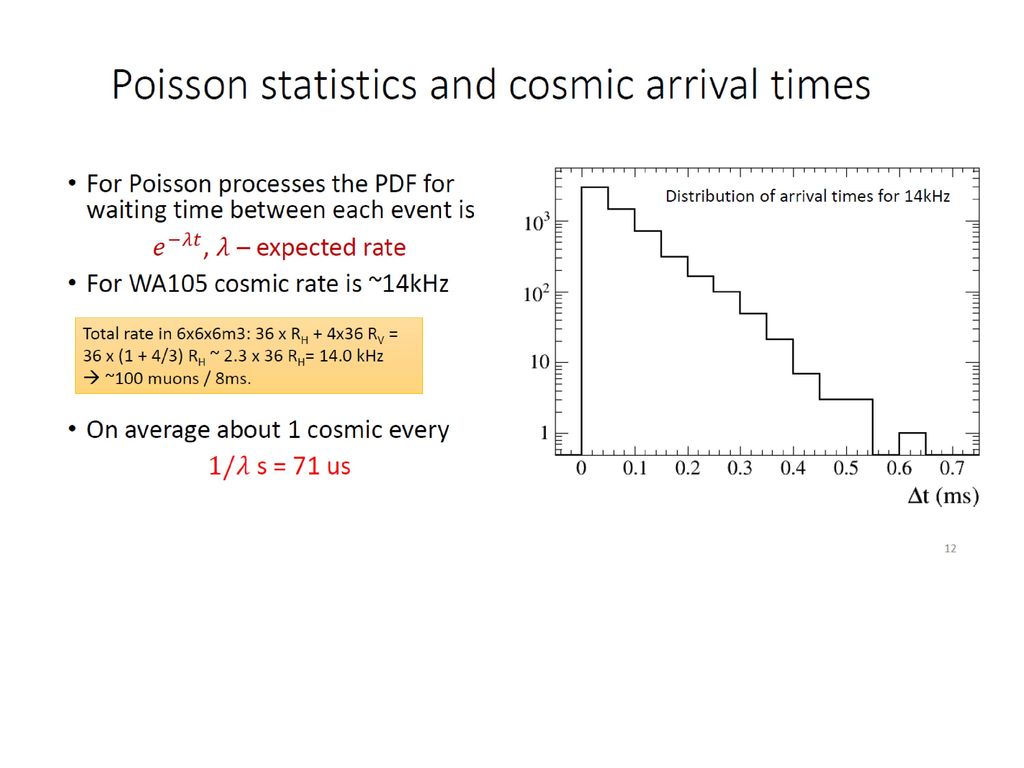

En el detector tendremos un fondo de ruido producido por los cósmicos con un rate de 14KHz (1/71.4us) ->100 muones cada 8ms (0.001 cada 200ns). Cada cósmico produce una señal S1 con entre 40 y 4000 pe (solo la componente rápida: 20-30ns) y un S2 con entre 0,5 PE y 600 PE (en 400ns). Al ser la duración de S2 mucho mayor que la componente rápida de S1 voy a considerar solo S2 como background de ruido. - Senal de interes (S1 sincrona con el 100Hz: de 40 a 4000pe (en 400ns) Tests: Señal de interés: S1 = 10 PE, 40 PE, 200 PE, 400 PE (ventana de 200ns) con una frecuencia de 100Hz Para cada una de las medidas anteriores superponer un ruido de entre 1 y 40 PE distribuido como SPEs en 200ns

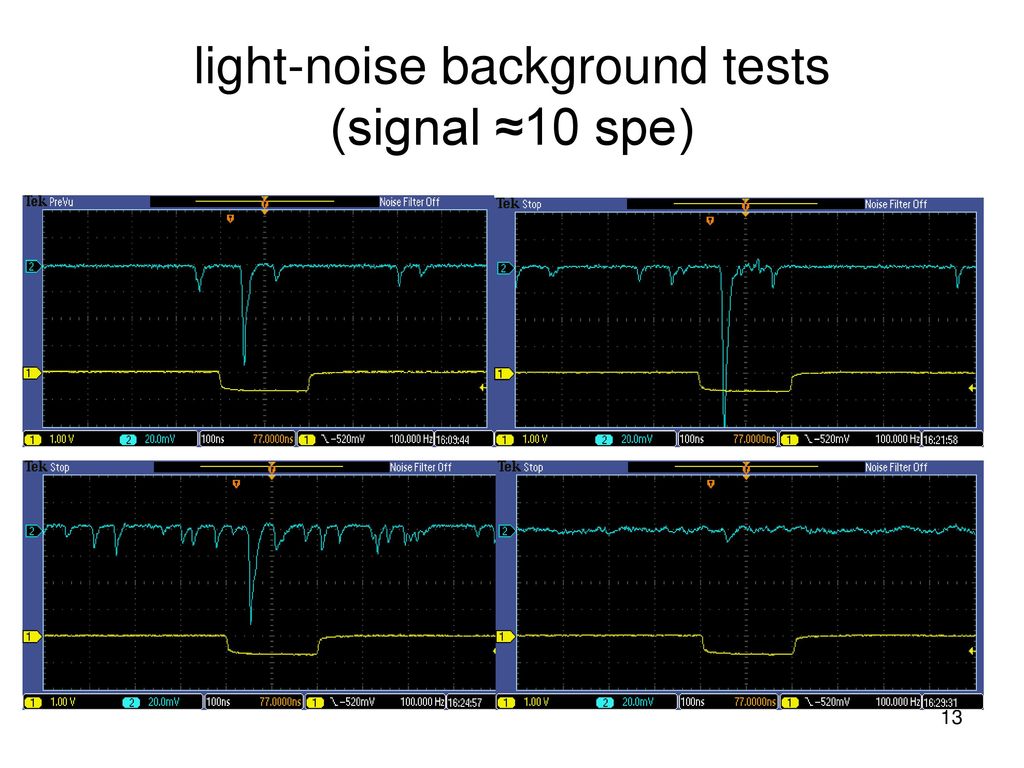

13 light-noise background tests (signal ≈10 spe)

14

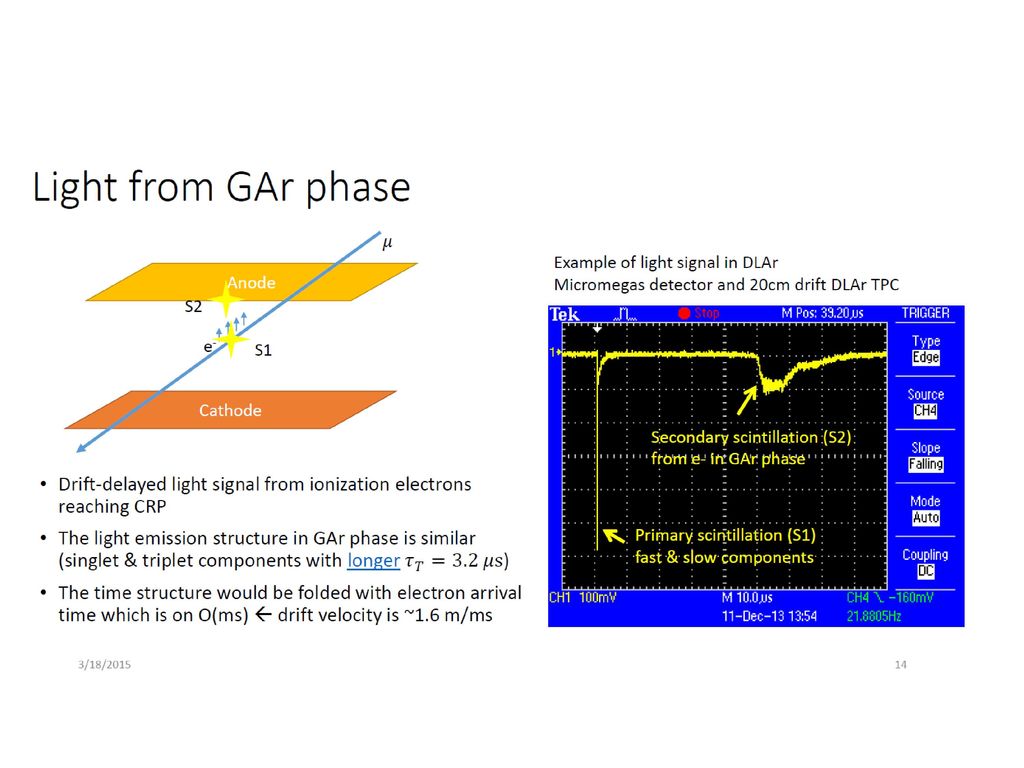

15

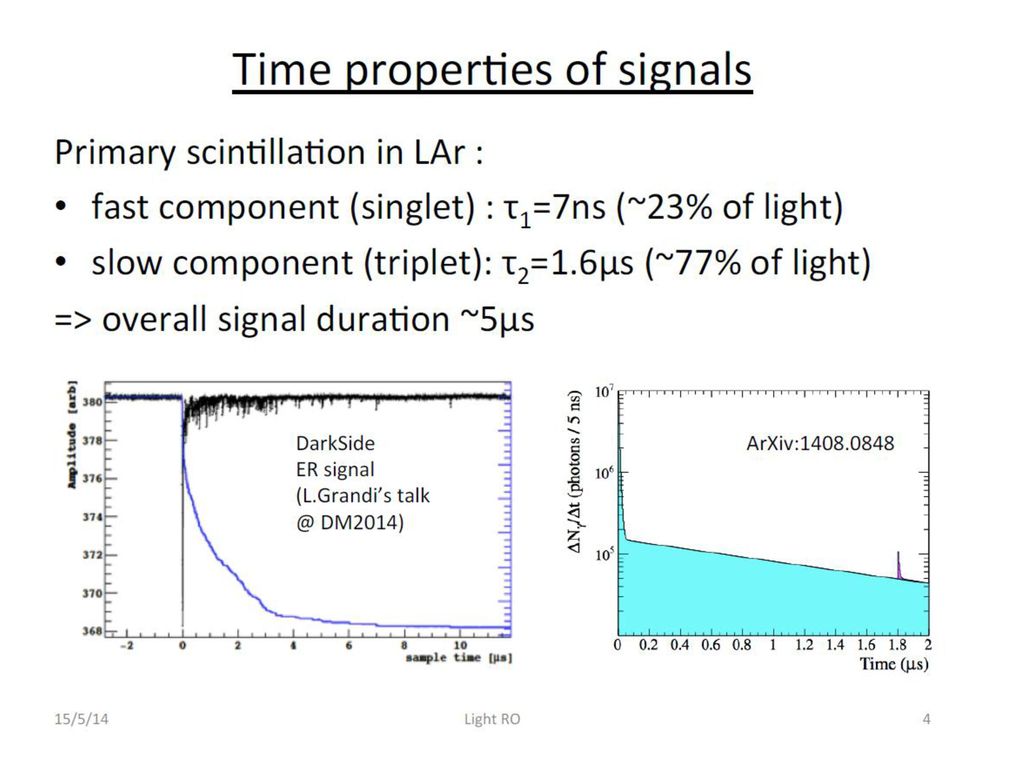

16

17

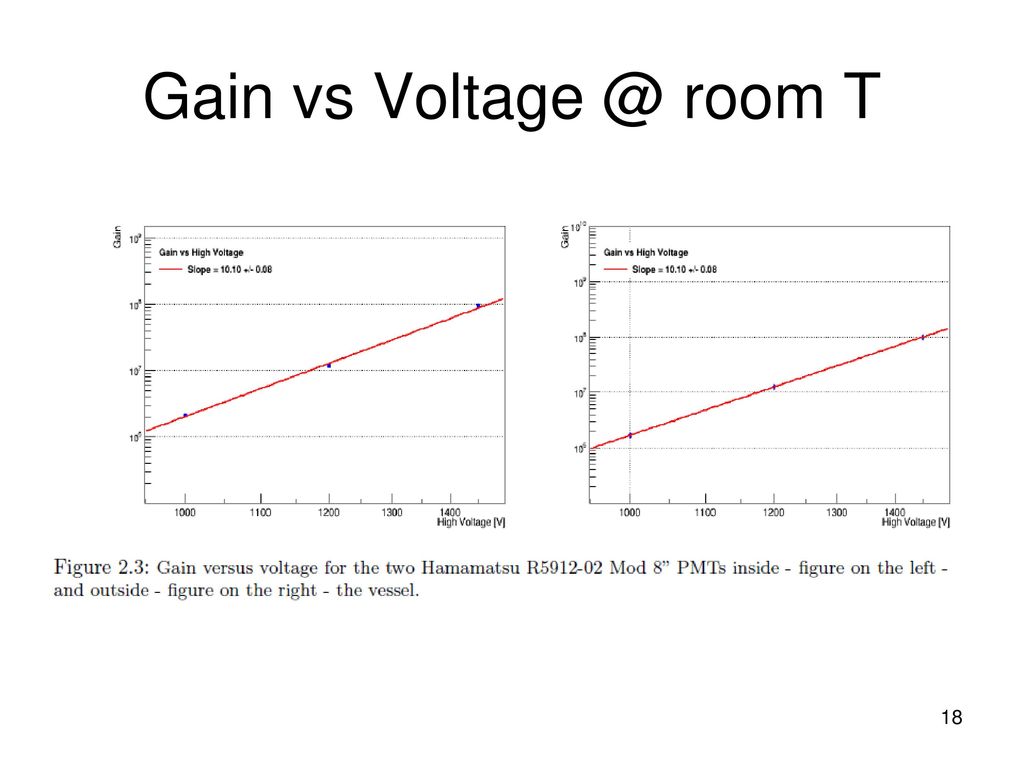

18 Gain vs room T

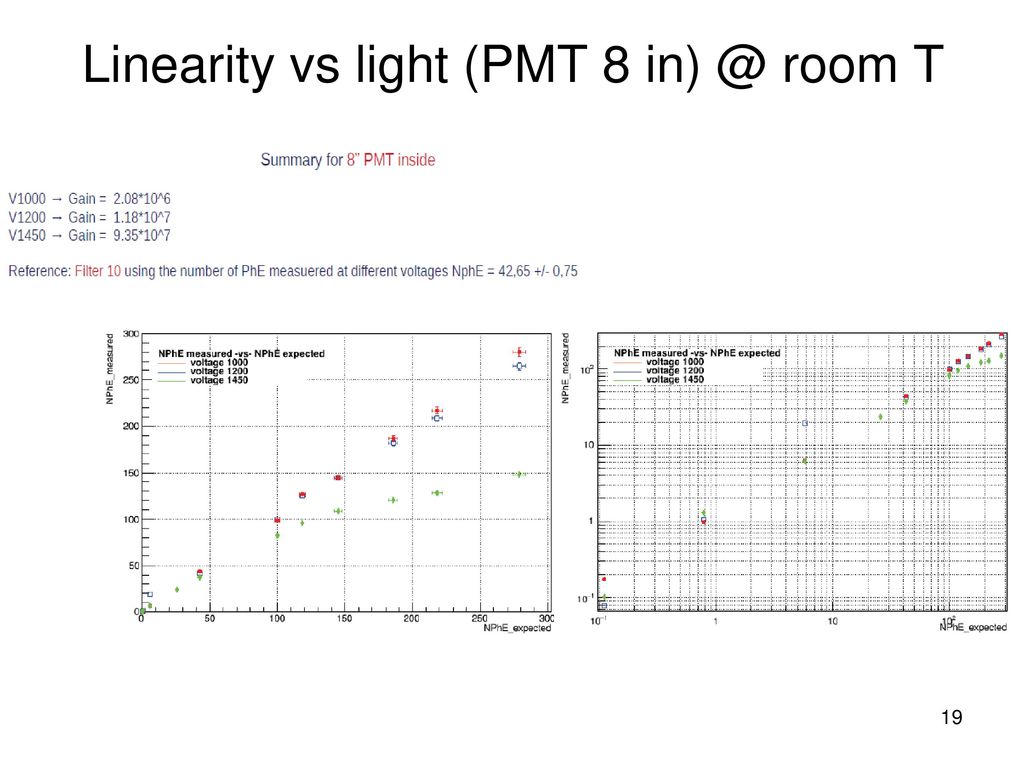

19 Linearity vs light (PMT 8 in) @ room T

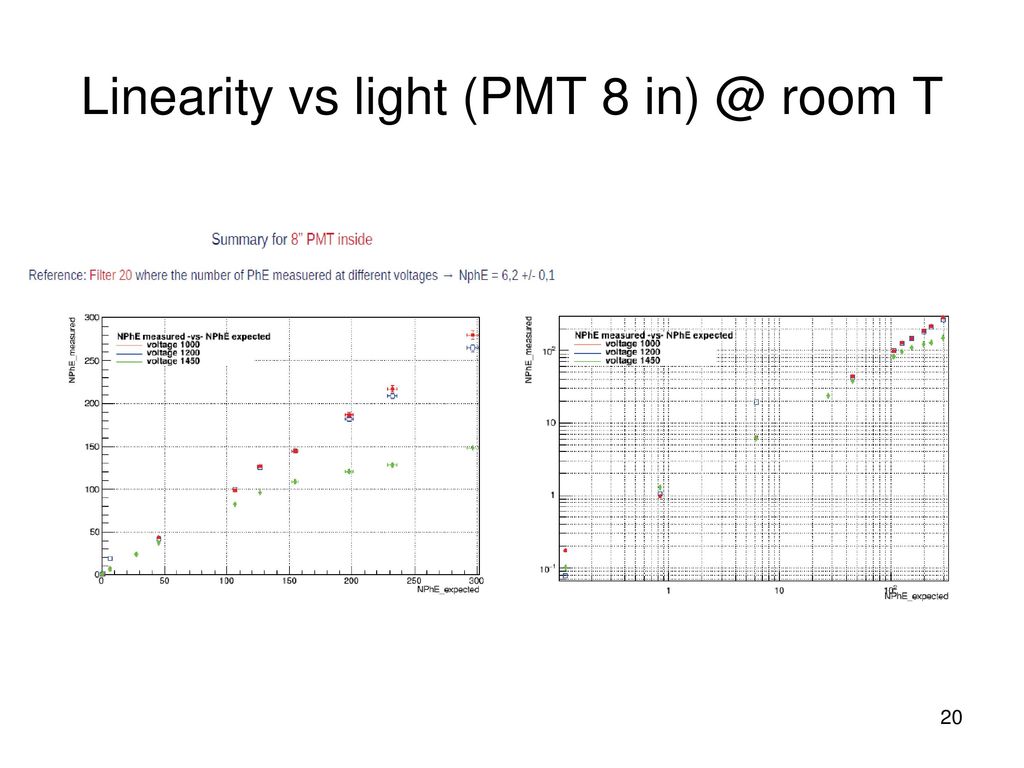

20 Linearity vs light (PMT 8 in) @ room T
