Resumen de los elementos de Programación (Software) EX2000

Presentación del tema: "Resumen de los elementos de Programación (Software) EX2000"— Transcripción de la presentación:

1 Resumen de los elementos de Programación (Software) EX2000

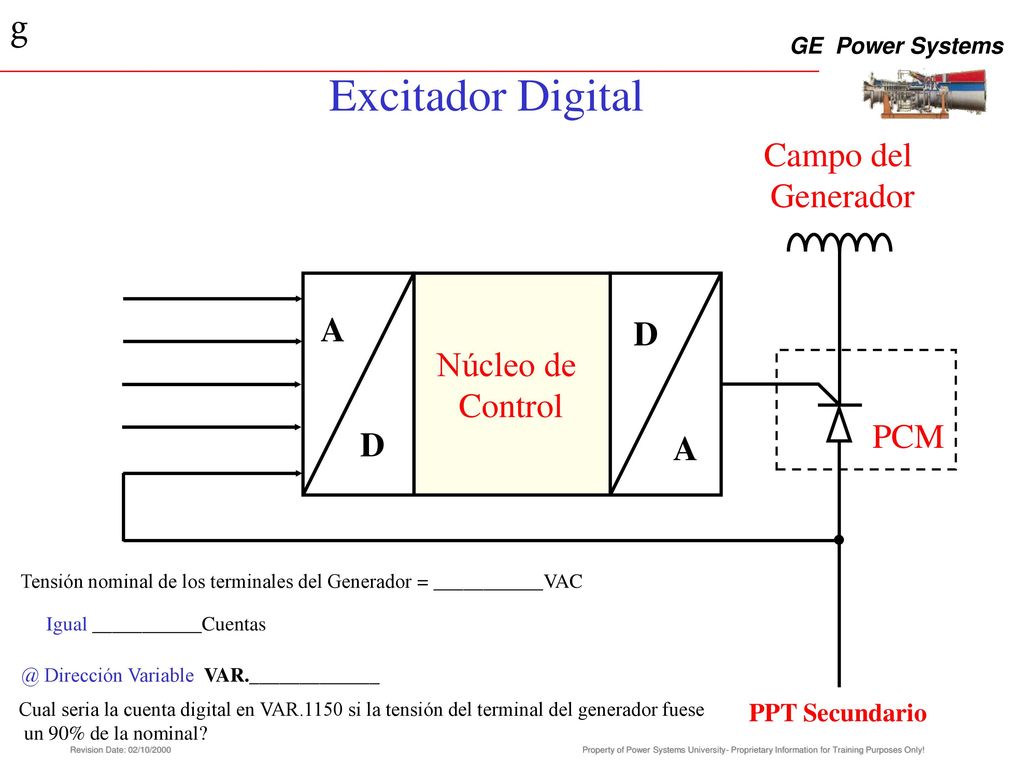

2 Excitador Digital Campo del Generador A Núcleo de Control PCM D

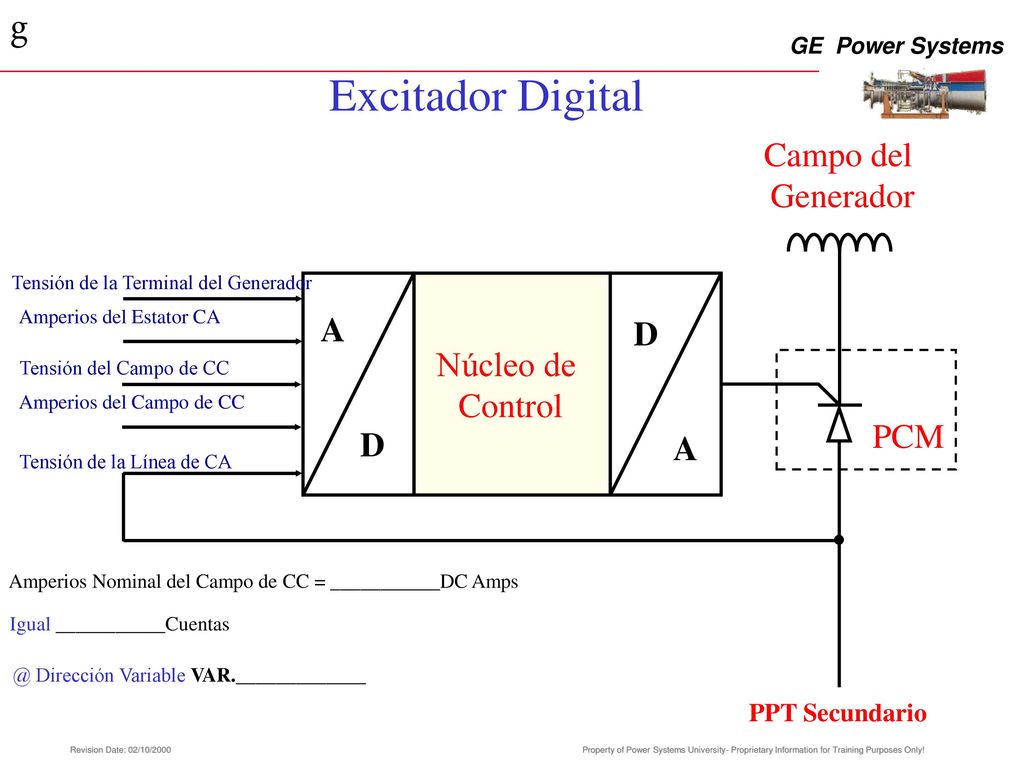

EX2000 Feedback Variables and Addressing   1)     Explain the overview drawing, The AC input is the secondary of the PPT, the SCR represents a PCM, the output of the SCR represents the output of the PCM to the generator field, the inputs on the left of the are all the feedback signals going into the EX2000. The box represents the control core of the exciter. Basically the feedback signals go into the control core, the core calculates the correct SCR firing angle and then outputs the firing signal to the PCM. 2)     With the use of mouse clicks the following will appear: a) What is the feedback to the Automatic Voltage regulator? (Generator Terminal Volts) b) What are the other 4 feedback signals? 1) AC Stator Amps 2) DC Field Volts 3) DC Field Amps 4) AC Line volts c) What needs to happen to the signals so that the control core can process the signals? (A to D and D to A) d) Rated Generator terminal volts = _______________ (Fill in the correct amount on the board) e) Equals ________________ counts (At this time explain that counts are units and 20,000 was chosen to represent rated voltage values, then click and 20,000 will appear in the space) f) At variable address VAR. ________________ (Now explain how the counts are stored at an address and what a variable address is, then click and VAR.1150 will appear) g) What would be the digital counts in VAR.1150 if the generator terminal voltage was 90% of rated (18000 counts) Tensión nominal de los terminales del Generador = ___________VAC Igual ___________Cuentas @ Dirección Variable VAR._____________ Cual seria la cuenta digital en VAR.1150 si la tensión del terminal del generador fuese un 90% de la nominal? PPT Secundario

3 Excitador Digital Campo del Generador A Núcleo de Control PCM D
Tensión de la Terminal del Generador Amperios del Estator CA A D Núcleo de Control Tensión del Campo de CC Amperios del Campo de CC PCM Tensión de la Línea de CA EX2000 Feedback Variables and Addressing   This slide is similar to the last slide. Mouse clicks will bring up questions and answers. Remember the following: a) Rated AC Stator Amps is the value on the nameplate called ARMATURE AMPS b) DC Field volts is the maximum output of the PCM. That is referred to as having all the Scr’s getting turned on as soon as possible so that they are responding as if they were diodes. That would be called the v. Another name , used in the book as well as Edo is the ceiling voltage of the bridge. In either case the maximum voltage of the PCM is 1.35 X PPT secondary output in RMS. An example would be if the PPT is rated 4160/380 the max output of the bridge is 380 X 1.35 = 513 VDC c) DC field Amps is AFFL which is the nameplate value called FIELD AMPS d) AC line volts is refering to the PPT secondary voltage. This is scaled to the peak voltage. Therefore for a 380VAC secondary counts = X 380VAC = 537VAC peak Amperios nominal del Estator de CA = ___________ Amps CA Igual ___________Cuentas @ Dirección Variable VAR._____________ PPT Secundario

4 Excitador Digital Campo del Generador A Núcleo de Control PCM D
Tensión de la Terminal del Generador Amperios del Estator CA A D Núcleo de Control Tensión del Campo de CC Amperios del Campo de CC PCM Tensión de la Línea de CA EX2000 Feedback Variables and Addressing   This slide is similar to the last slide. Mouse clicks will bring up questions and answers. Remember the following: a) Rated AC Stator Amps is the value on the nameplate called ARMATURE AMPS b) DC Field volts is the maximum output of the PCM. That is referred to as having all the Scr’s getting turned on as soon as possible so that they are responding as if they were diodes. That would be called the v. Another name , used in the book as well as Edo is the ceiling voltage of the bridge. In either case the maximum voltage of the PCM is 1.35 X PPT secondary output in RMS. An example would be if the PPT is rated 4160/380 the max output of the bridge is 380 X 1.35 = 513 VDC c) DC field Amps is AFFL which is the nameplate value called FIELD AMPS d) AC line volts is refering to the PPT secondary voltage. This is scaled to the peak voltage. Therefore for a 380VAC secondary counts = X 380VAC = 537VAC peak Tension Maxima del Campo de CC (Edo) = ___________VDC Igual ___________Cuentas @ Dirección Variable VAR._____________ PPT Secundario

5 Excitador Digital Campo del Generador A Núcleo de Control PCM D
Tensión de la Terminal del Generador Amperios del Estator CA A D Núcleo de Control Tensión del Campo de CC Amperios del Campo de CC PCM Tensión de la Línea de CA EX2000 Feedback Variables and Addressing   This slide is similar to the last slide. Mouse clicks will bring up questions and answers. Remember the following: a) Rated AC Stator Amps is the value on the nameplate called ARMATURE AMPS b) DC Field volts is the maximum output of the PCM. That is referred to as having all the Scr’s getting turned on as soon as possible so that they are responding as if they were diodes. That would be called the v. Another name , used in the book as well as Edo is the ceiling voltage of the bridge. In either case the maximum voltage of the PCM is 1.35 X PPT secondary output in RMS. An example would be if the PPT is rated 4160/380 the max output of the bridge is 380 X 1.35 = 513 VDC c) DC field Amps is AFFL which is the nameplate value called FIELD AMPS d) AC line volts is refering to the PPT secondary voltage. This is scaled to the peak voltage. Therefore for a 380VAC secondary counts = X 380VAC = 537VAC peak Amperios Nominal del Campo de CC = ___________DC Amps Igual ___________Cuentas @ Dirección Variable VAR._____________ PPT Secundario

6 Excitador Digital Campo del Generador A Núcleo de Control PCM D

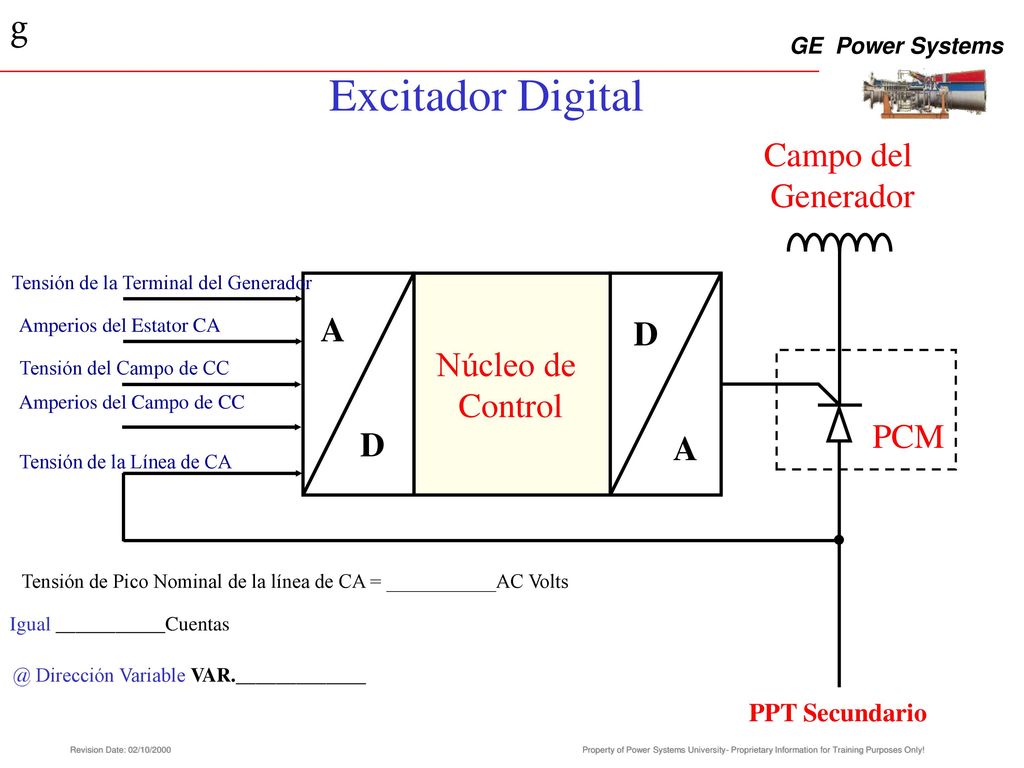

Tensión de la Terminal del Generador Amperios del Estator CA A D Núcleo de Control Tensión del Campo de CC Amperios del Campo de CC PCM Tensión de la Línea de CA EX2000 Feedback Variables and Addressing   This slide is similar to the last slide. Mouse clicks will bring up questions and answers. Remember the following: a) Rated AC Stator Amps is the value on the nameplate called ARMATURE AMPS b) DC Field volts is the maximum output of the PCM. That is referred to as having all the Scr’s getting turned on as soon as possible so that they are responding as if they were diodes. That would be called the v. Another name , used in the book as well as Edo is the ceiling voltage of the bridge. In either case the maximum voltage of the PCM is 1.35 X PPT secondary output in RMS. An example would be if the PPT is rated 4160/380 the max output of the bridge is 380 X 1.35 = 513 VDC c) DC field Amps is AFFL which is the nameplate value called FIELD AMPS d) AC line volts is refering to the PPT secondary voltage. This is scaled to the peak voltage. Therefore for a 380VAC secondary counts = X 380VAC = 537VAC peak Tensión de Pico Nominal de la línea de CA = ___________AC Volts Igual ___________Cuentas @ Dirección Variable VAR._____________ PPT Secundario

7 Excitador Digital Campo del Generador A Núcleo de Control PCM D

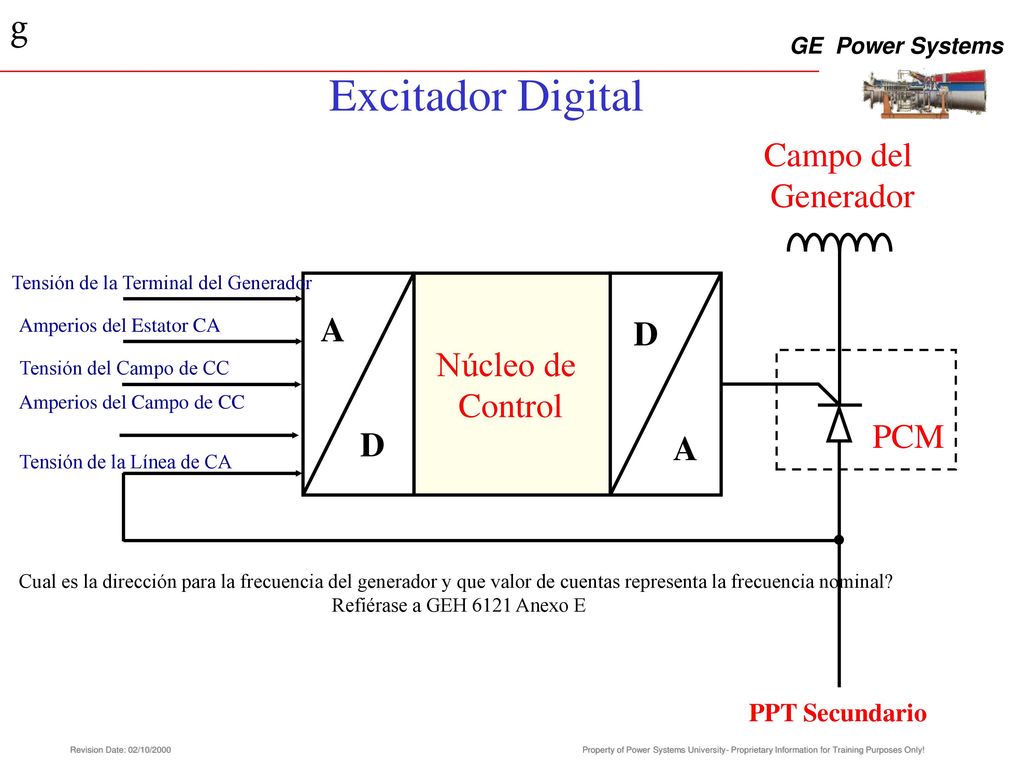

Tensión de la Terminal del Generador Amperios del Estator CA A D Núcleo de Control Tensión del Campo de CC Amperios del Campo de CC PCM Tensión de la Línea de CA EX2000 Feedback Variables and Addressing   This slide is similar to the last slide. Mouse clicks will bring up questions and answers. Remember the following: a) Rated AC Stator Amps is the value on the nameplate called ARMATURE AMPS b) DC Field volts is the maximum output of the PCM. That is referred to as having all the Scr’s getting turned on as soon as possible so that they are responding as if they were diodes. That would be called the v. Another name , used in the book as well as Edo is the ceiling voltage of the bridge. In either case the maximum voltage of the PCM is 1.35 X PPT secondary output in RMS. An example would be if the PPT is rated 4160/380 the max output of the bridge is 380 X 1.35 = 513 VDC c) DC field Amps is AFFL which is the nameplate value called FIELD AMPS d) AC line volts is refering to the PPT secondary voltage. This is scaled to the peak voltage. Therefore for a 380VAC secondary counts = X 380VAC = 537VAC peak Cual es la dirección para la frecuencia del generador y que valor de cuentas representa la frecuencia nominal? Refiérase a GEH 6121 Anexo E PPT Secundario

8 Regulador Automático de Tensión

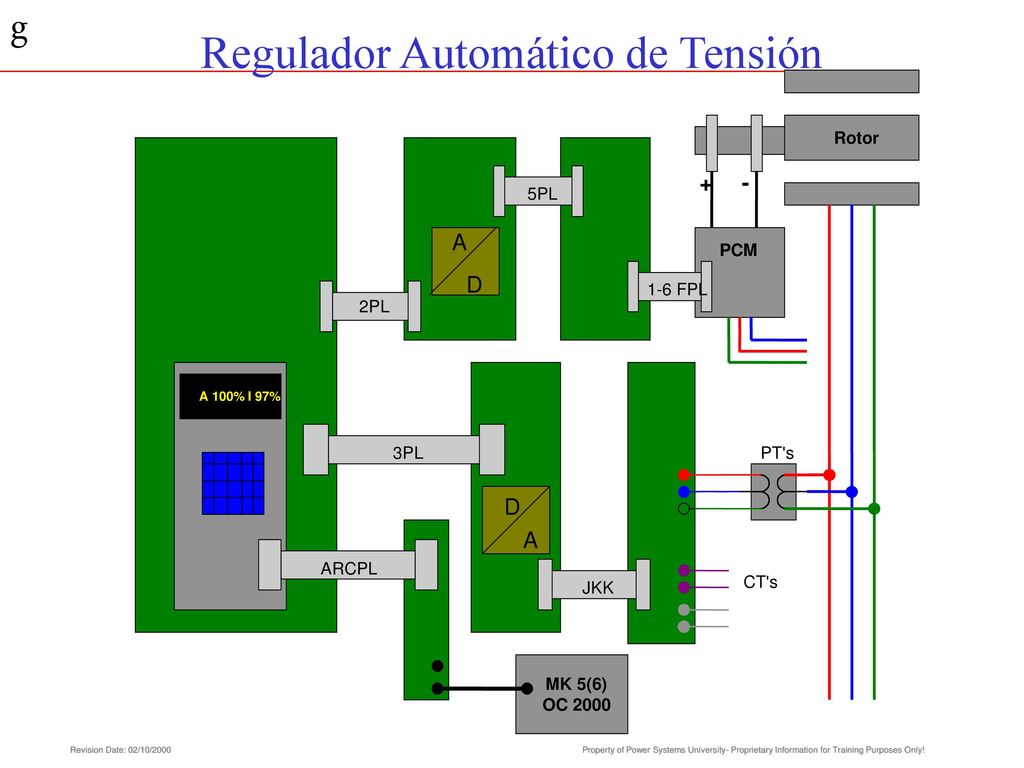

Rotor + - 5PL A PCM D 1-6 FPL 2PL A 100% I 97% 3PL PT's D A ARCPL JKK CT's MK 5(6) OC 2000

9 Regulador Manual de Tensión

10 Programador EX2000

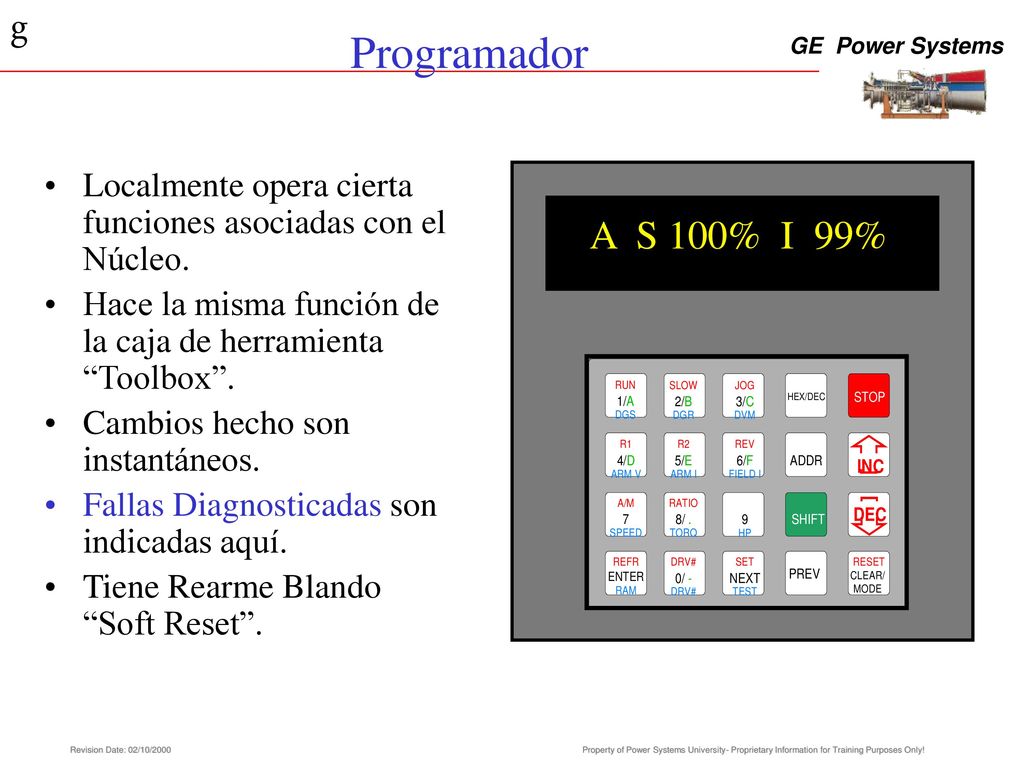

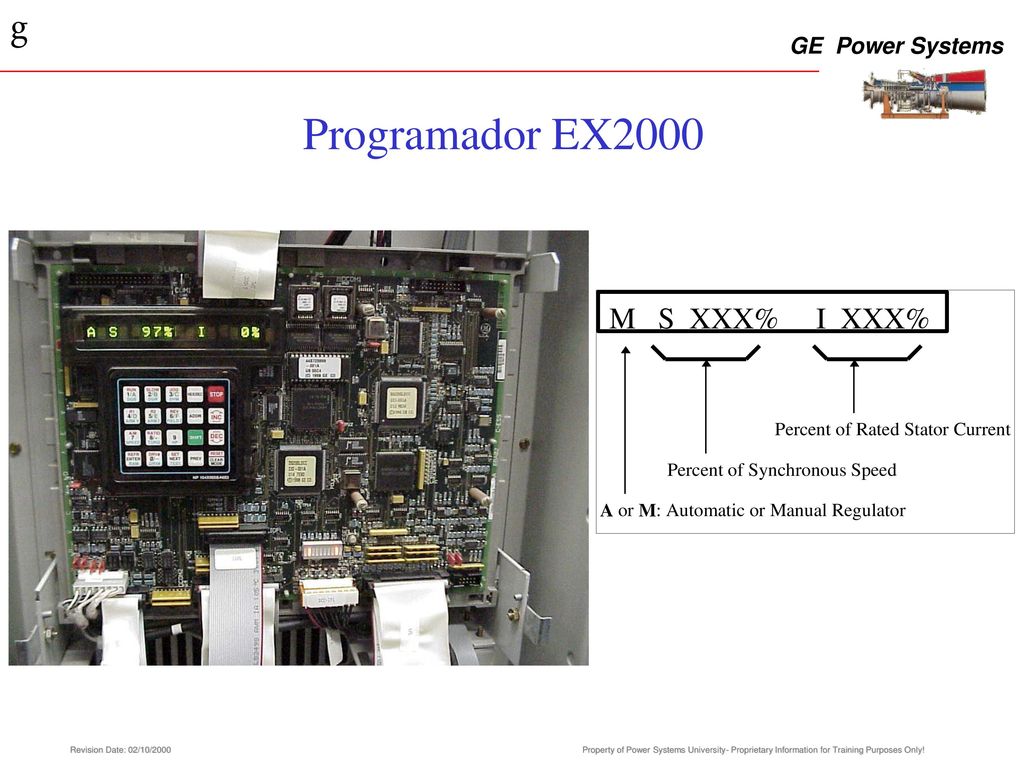

11 Programador Localmente opera cierta funciones asociadas con el Núcleo. Hace la misma función de la caja de herramienta “Toolbox”. Cambios hecho son instantáneos. Fallas Diagnosticadas son indicadas aquí. Tiene Rearme Blando “Soft Reset”. A S 100% I 99%

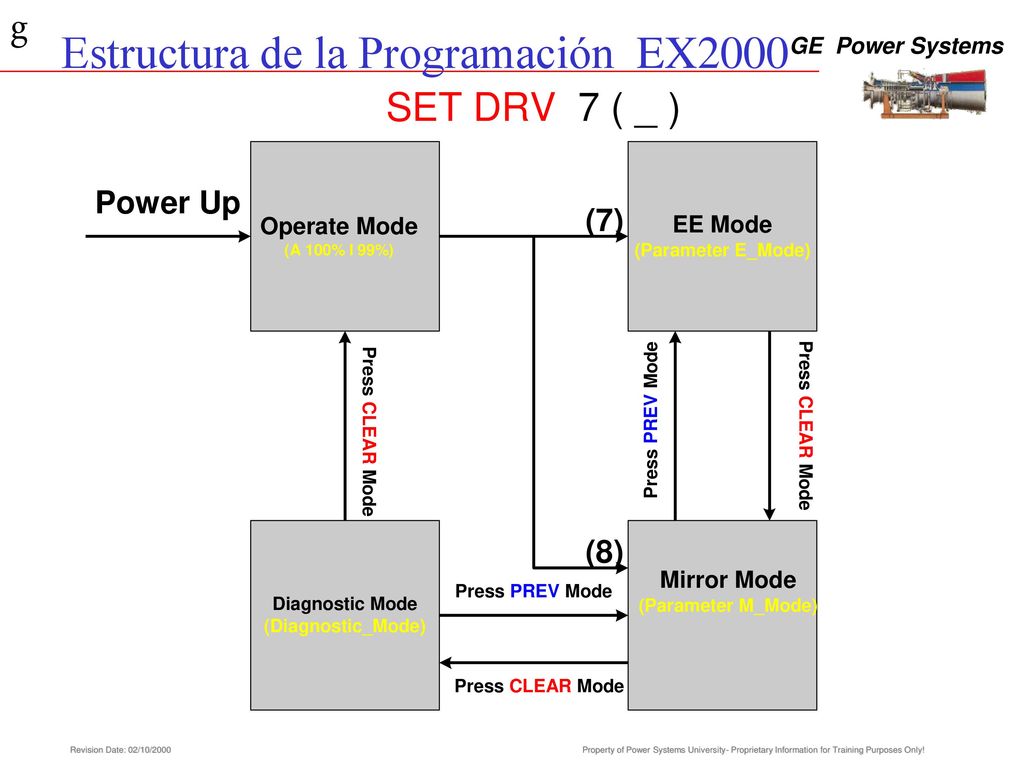

12 Estructura de la Programación EX2000

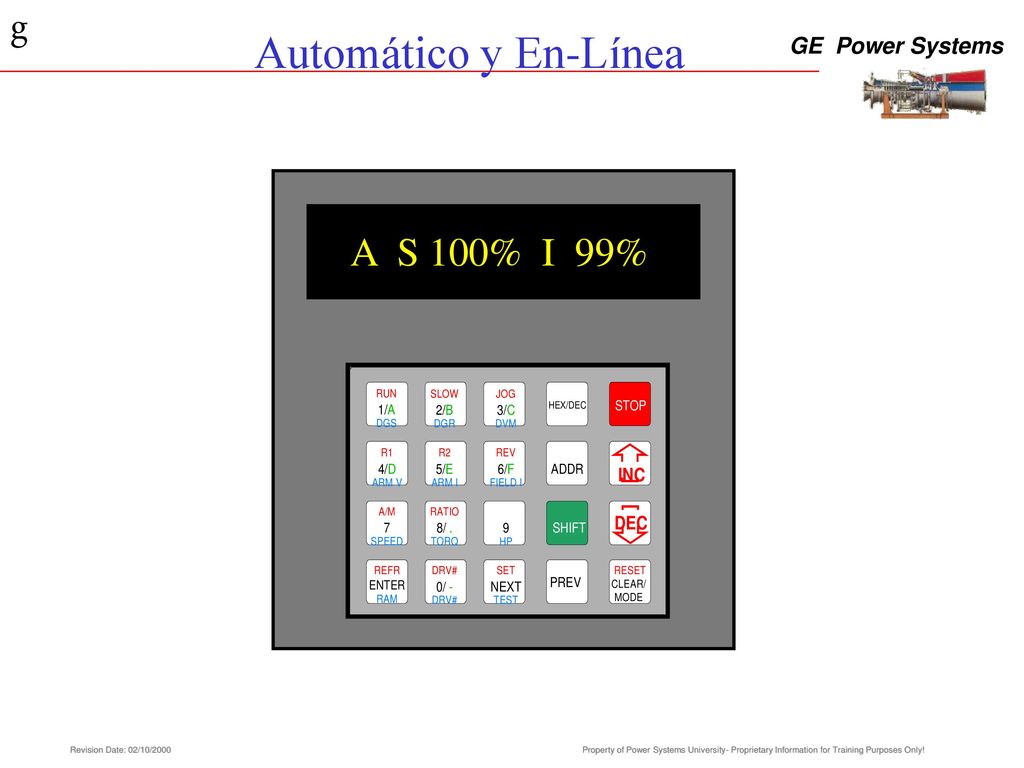

13 Automático y En-Línea A S 100% I 99%

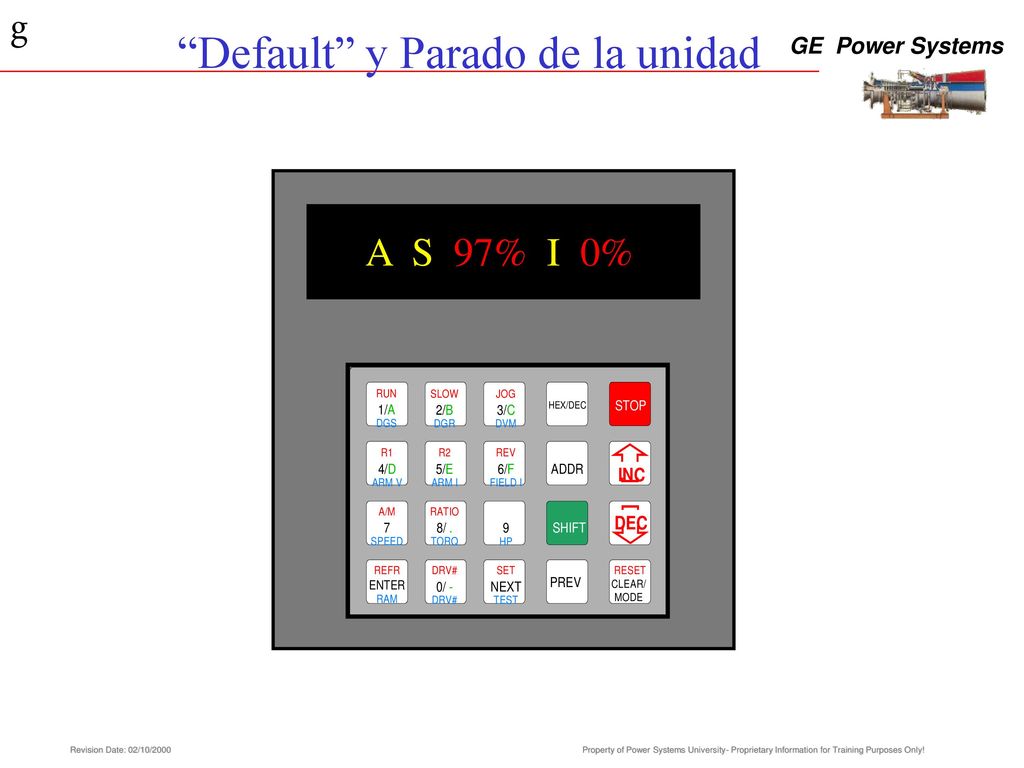

14 “Default” y Parado de la unidad
A S 97% I 0%

15 Mostrando Información

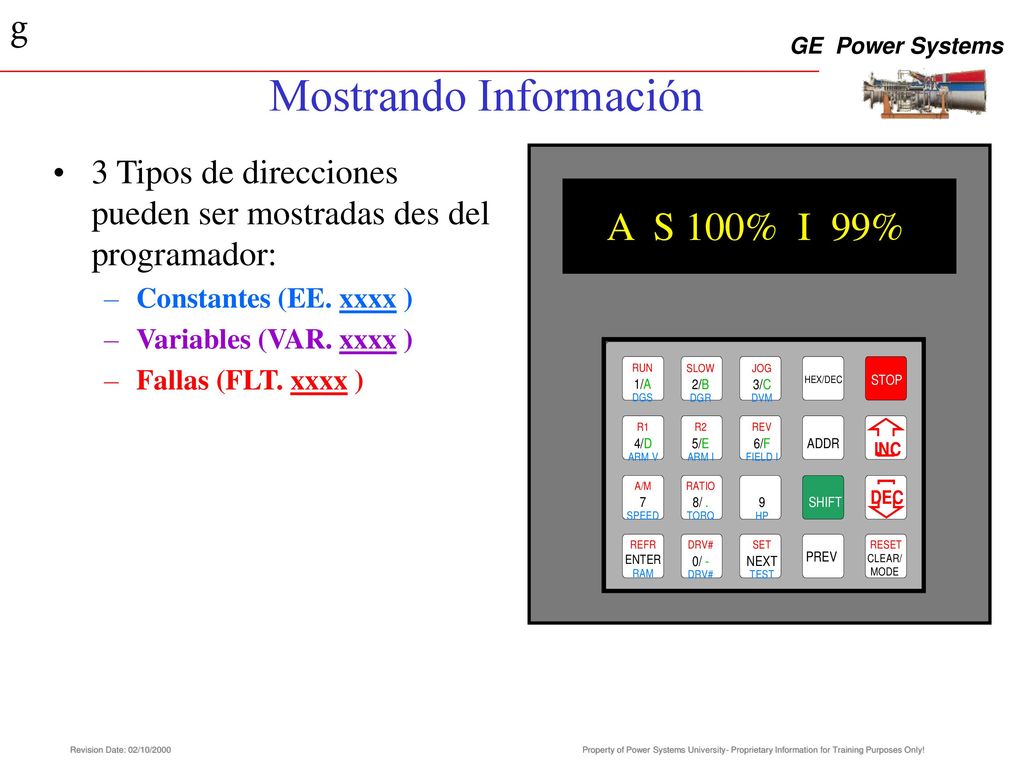

3 Tipos de direcciones pueden ser mostradas des del programador: Constantes (EE. xxxx ) Variables (VAR. xxxx ) Fallas (FLT. xxxx ) A S 100% I 99%

16 Mostrando Constantes (EE. xxxx )

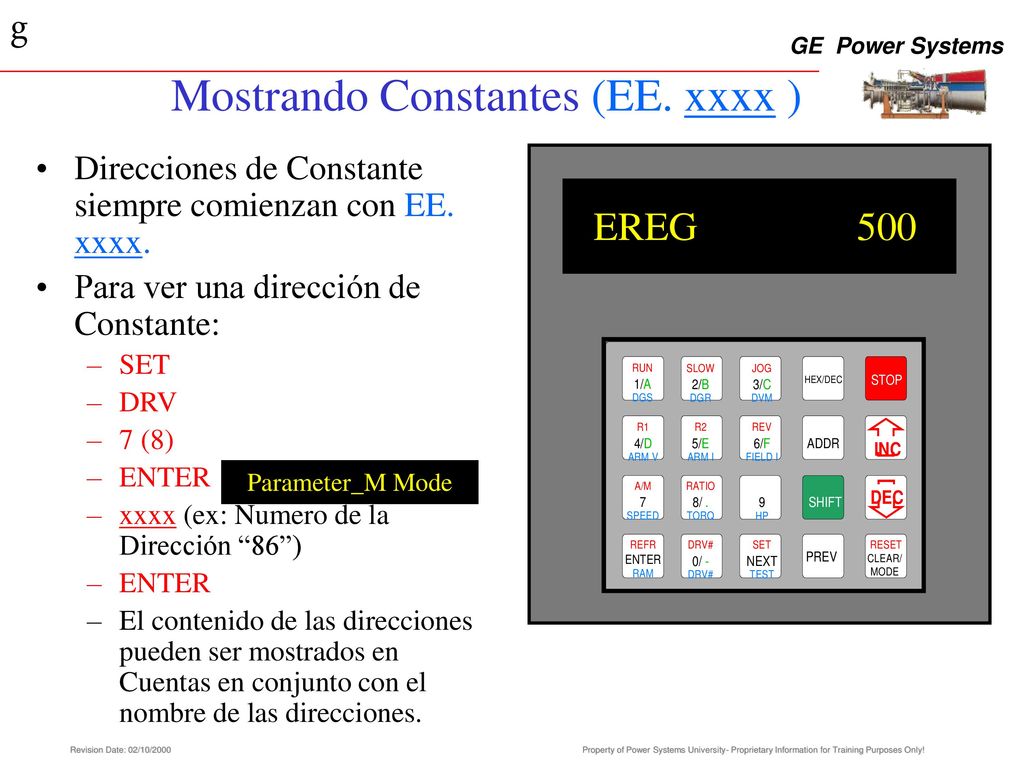

Direcciones de Constante siempre comienzan con EE. xxxx. Para ver una dirección de Constante: SET DRV 7 (8) ENTER xxxx (ex: Numero de la Dirección “86”) El contenido de las direcciones pueden ser mostrados en Cuentas en conjunto con el nombre de las direcciones. EREG Parameter_M Mode

17 Cambiando una Constante (EE. xxxx )

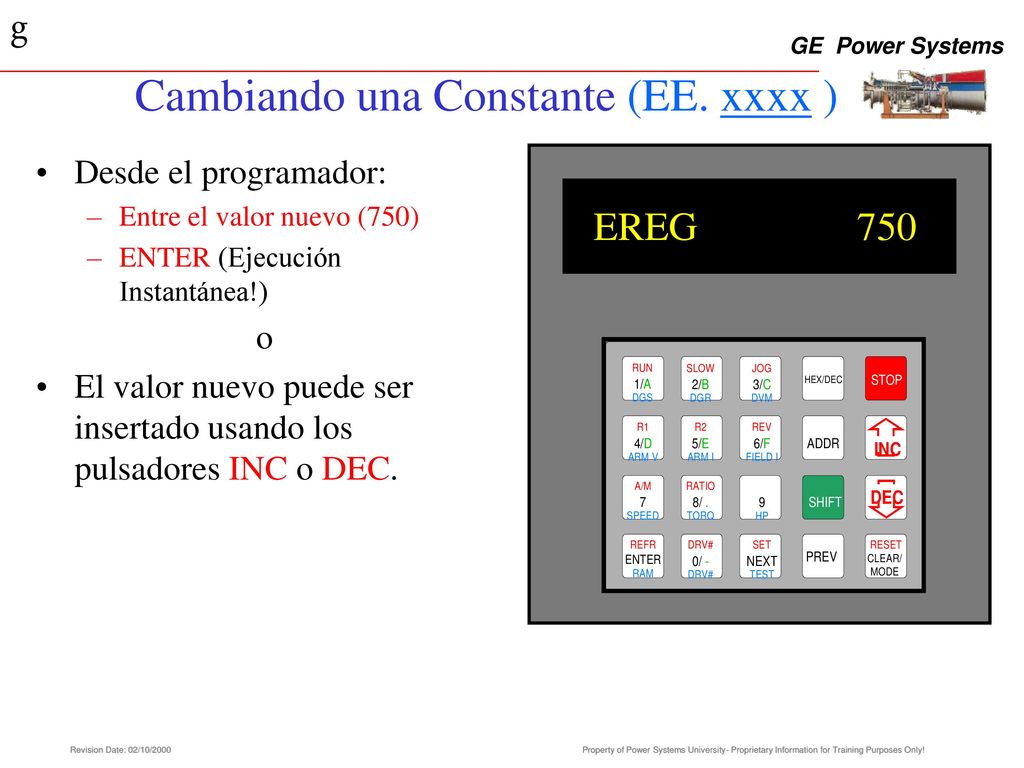

Desde el programador: Entre el valor nuevo (750) ENTER (Ejecución Instantánea!) o El valor nuevo puede ser insertado usando los pulsadores INC o DEC. EREG

18 Mostrando Variables (VAR. xxxx )
Los siguientes tres pasos tienen que ser hechos en orden para ver la variable.

19 Mostrando Variables (VAR. xxxx )

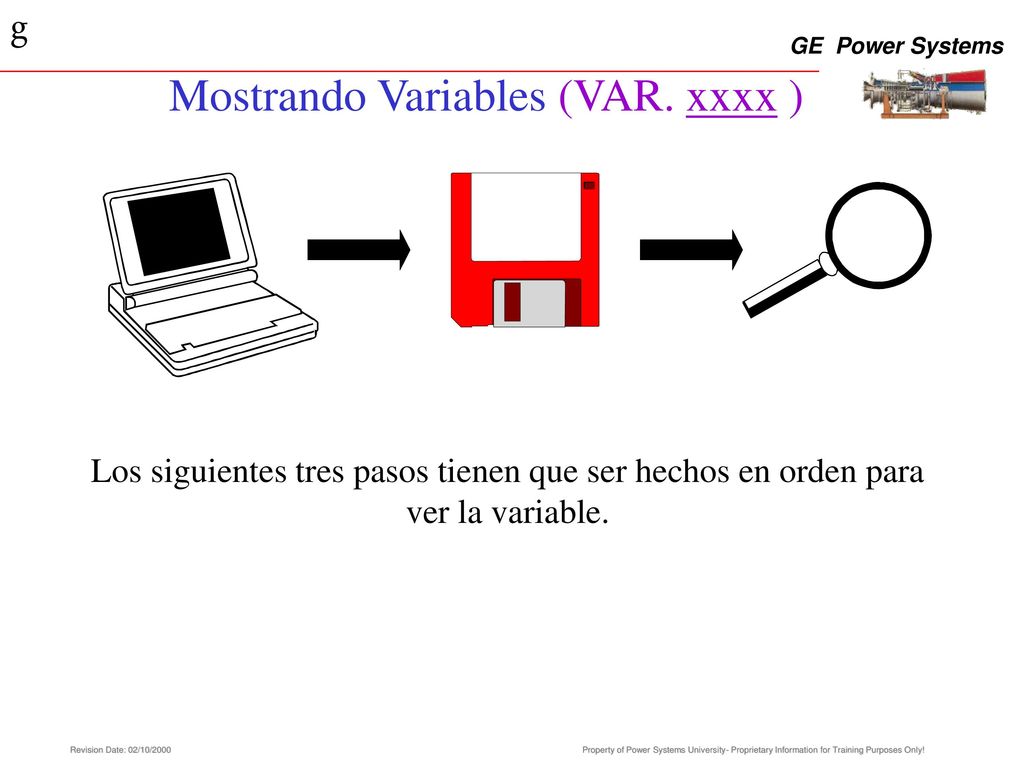

Imagínate que usted tiene información en un disco de computadora que le gustaría ver. Para ver la información usted necesitaría: Tener una Computadora Conseguir el Disco que desea ver Usar una lente de aumento para ver la información

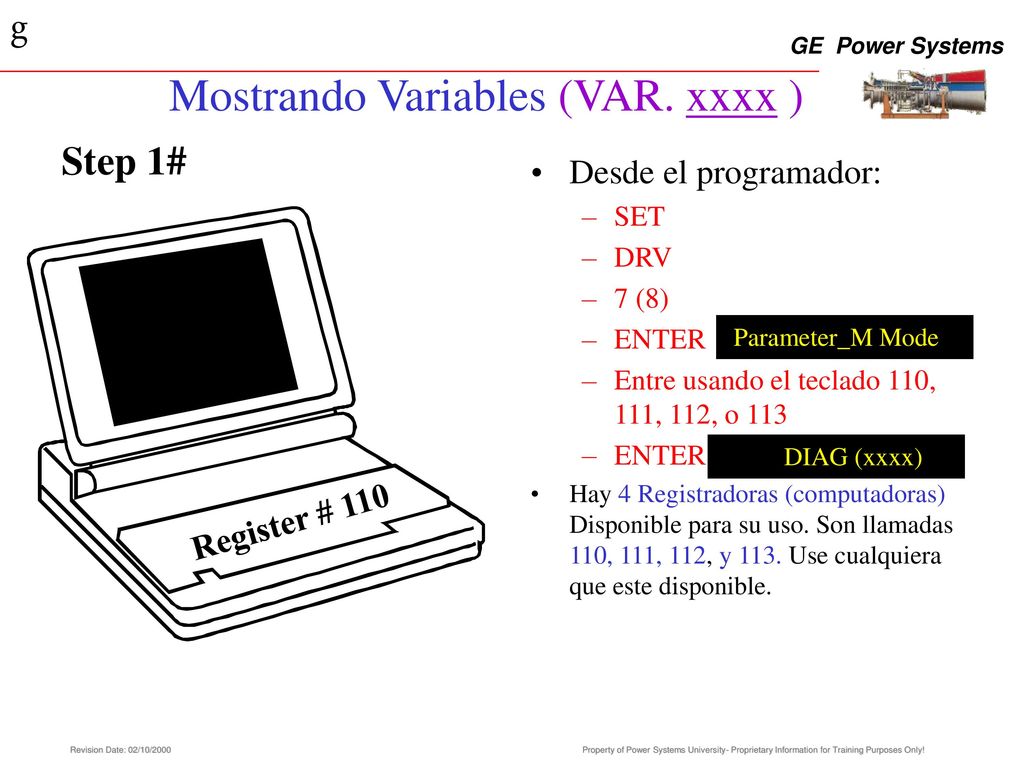

20 Mostrando Variables (VAR. xxxx )
Step 1# Desde el programador: SET DRV 7 (8) ENTER Entre usando el teclado 110, 111, 112, o 113 ENTER (DIAG xxxx ) Hay 4 Registradoras (computadoras) Disponible para su uso. Son llamadas 110, 111, 112, y 113. Use cualquiera que este disponible. Parameter_M Mode DIAG (xxxx) Register # 110

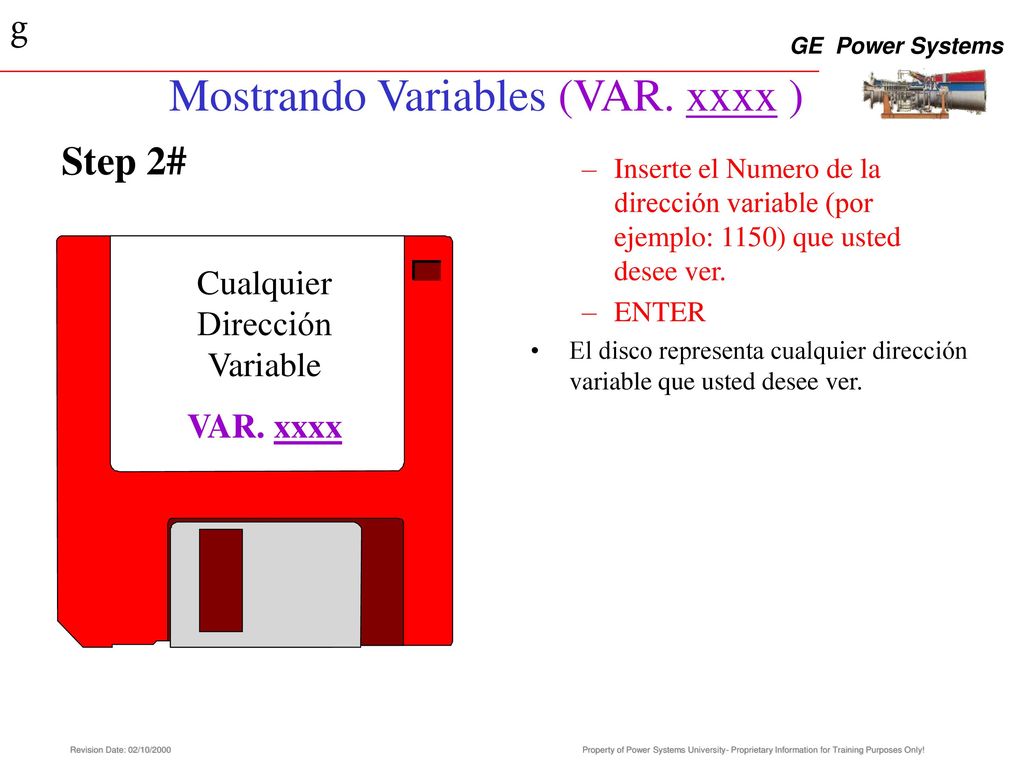

21 Mostrando Variables (VAR. xxxx )
Step 2# Inserte el Numero de la dirección variable (por ejemplo: 1150) que usted desee ver. ENTER El disco representa cualquier dirección variable que usted desee ver. Cualquier Dirección Variable VAR. xxxx

22 Mostrando Variables (VAR. xxxx )

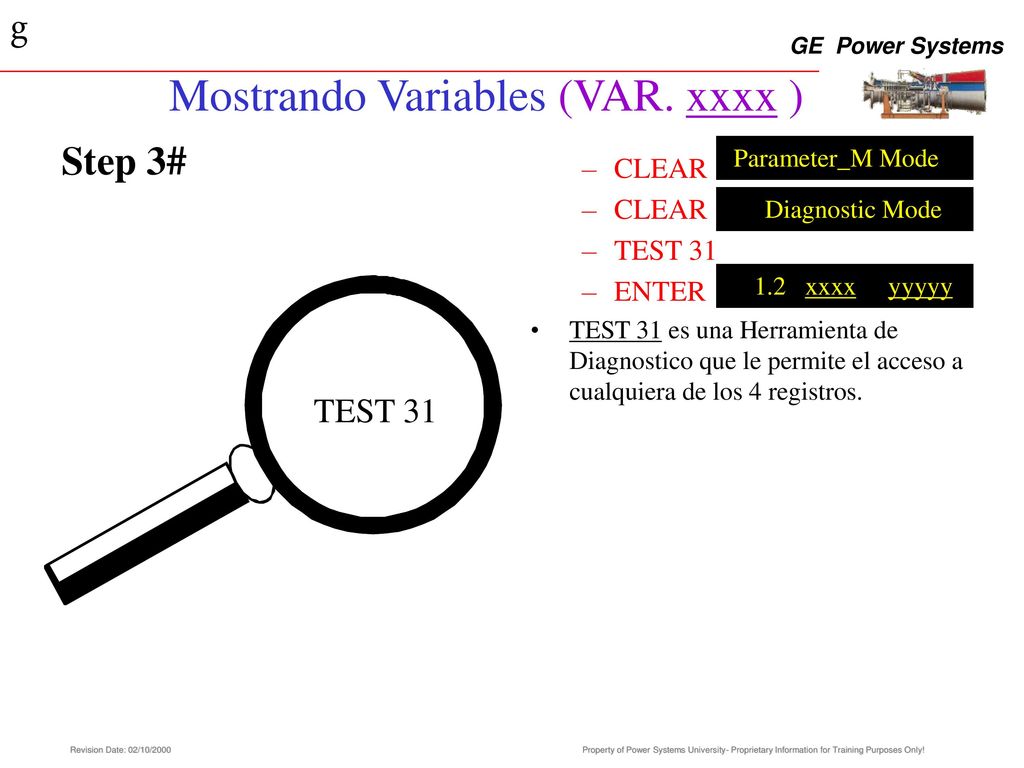

Step 3# Parameter_M Mode CLEAR TEST 31 ENTER TEST 31 es una Herramienta de Diagnostico que le permite el acceso a cualquiera de los 4 registros. Diagnostic Mode 1.2 xxxx yyyyy TEST 31

23 Mostrando Variables (VAR. xxxx )

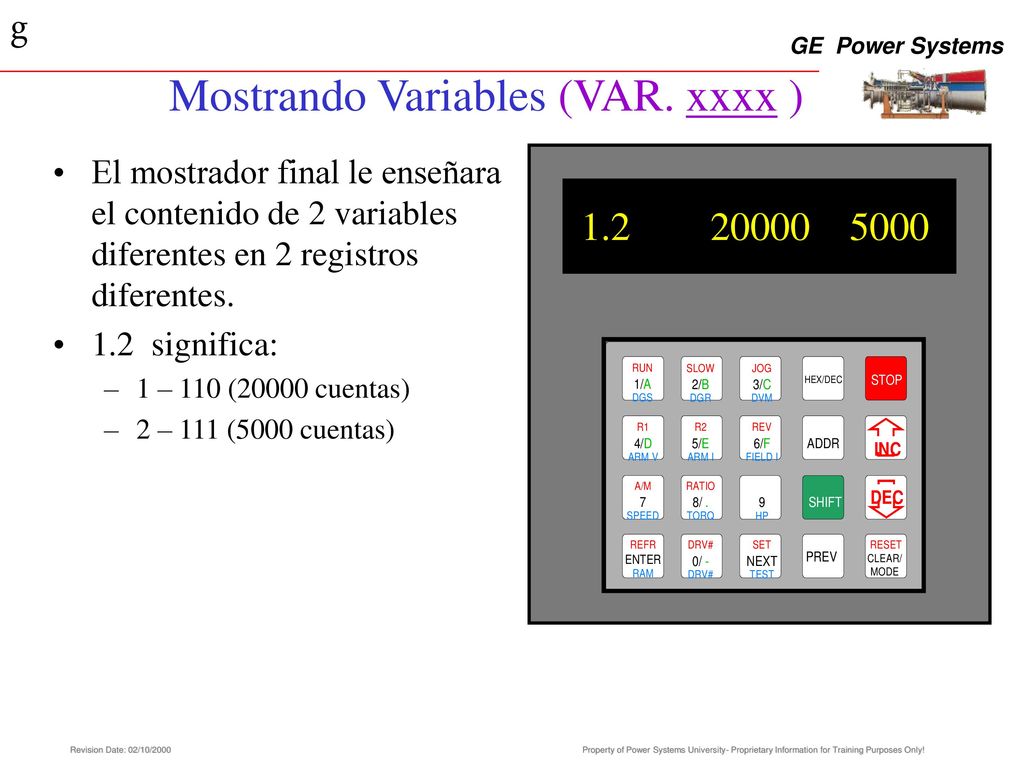

El mostrador final le enseñara el contenido de 2 variables diferentes en 2 registros diferentes. 1.2 significa: 1 – 110 (20000 cuentas) 2 – 111 (5000 cuentas)

24 Mostrando Variables (VAR. xxxx )

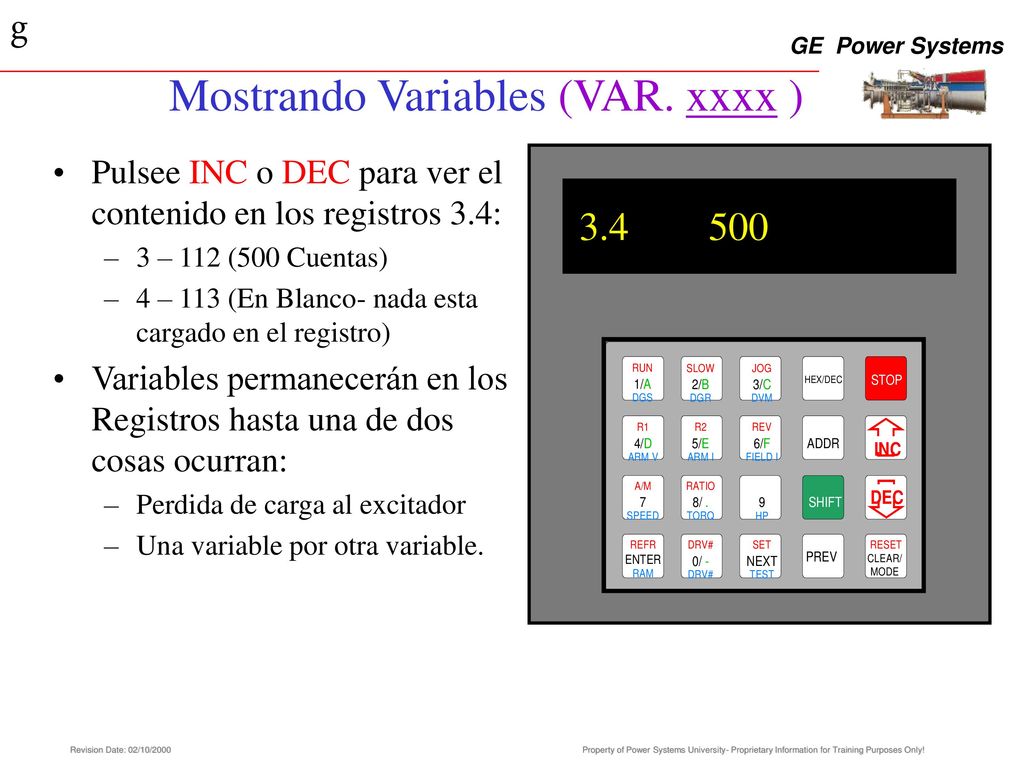

Pulsee INC o DEC para ver el contenido en los registros 3.4: 3 – 112 (500 Cuentas) 4 – 113 (En Blanco- nada esta cargado en el registro) Variables permanecerán en los Registros hasta una de dos cosas ocurran: Perdida de carga al excitador Una variable por otra variable.

25 Que Direcciones están en el registrador?

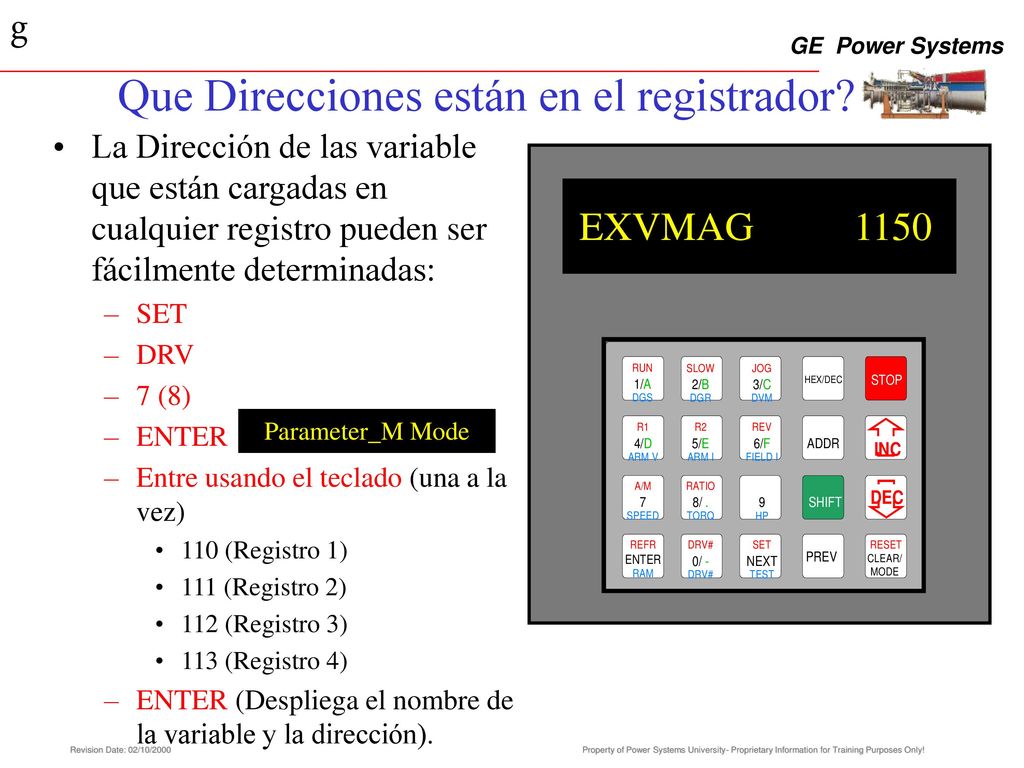

La Dirección de las variable que están cargadas en cualquier registro pueden ser fácilmente determinadas: SET DRV 7 (8) ENTER Entre usando el teclado (una a la vez) 110 (Registro 1) 111 (Registro 2) 112 (Registro 3) 113 (Registro 4) ENTER (Despliega el nombre de la variable y la dirección). EXVMAG Parameter_M Mode

26 Condiciones de Falla FLT.377 MCP_WDOG

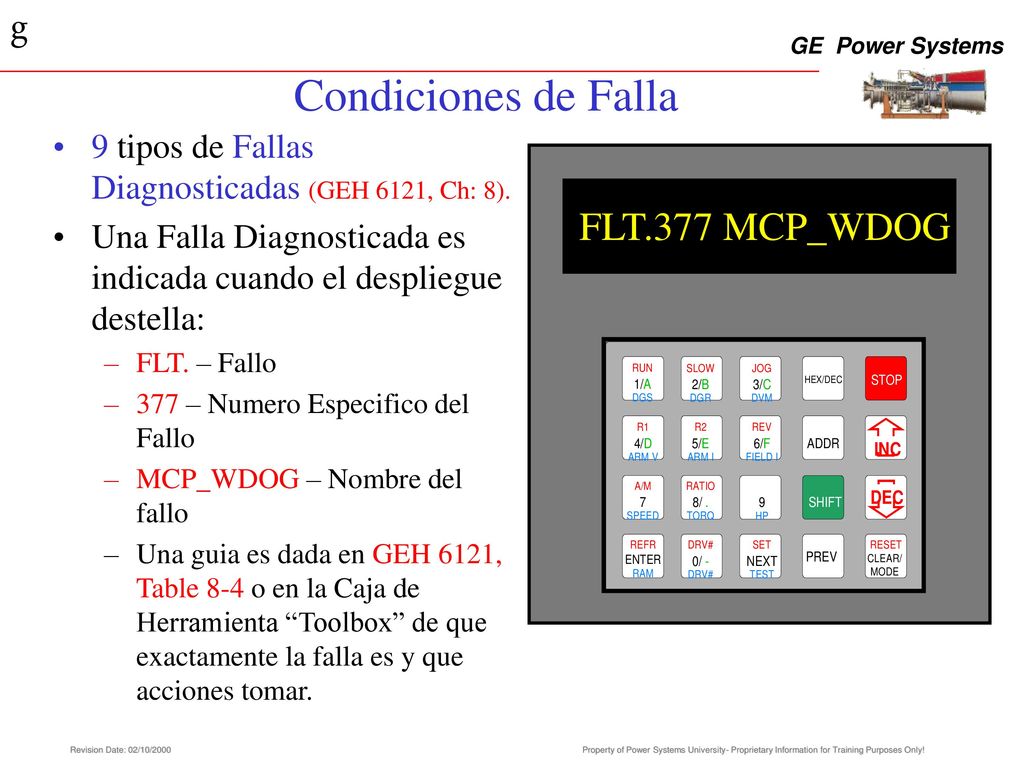

9 tipos de Fallas Diagnosticadas (GEH 6121, Ch: 8). Una Falla Diagnosticada es indicada cuando el despliegue destella: FLT. – Fallo 377 – Numero Especifico del Fallo MCP_WDOG – Nombre del fallo Una guia es dada en GEH 6121, Table 8-4 o en la Caja de Herramienta “Toolbox” de que exactamente la falla es y que acciones tomar. FLT.377 MCP_WDOG

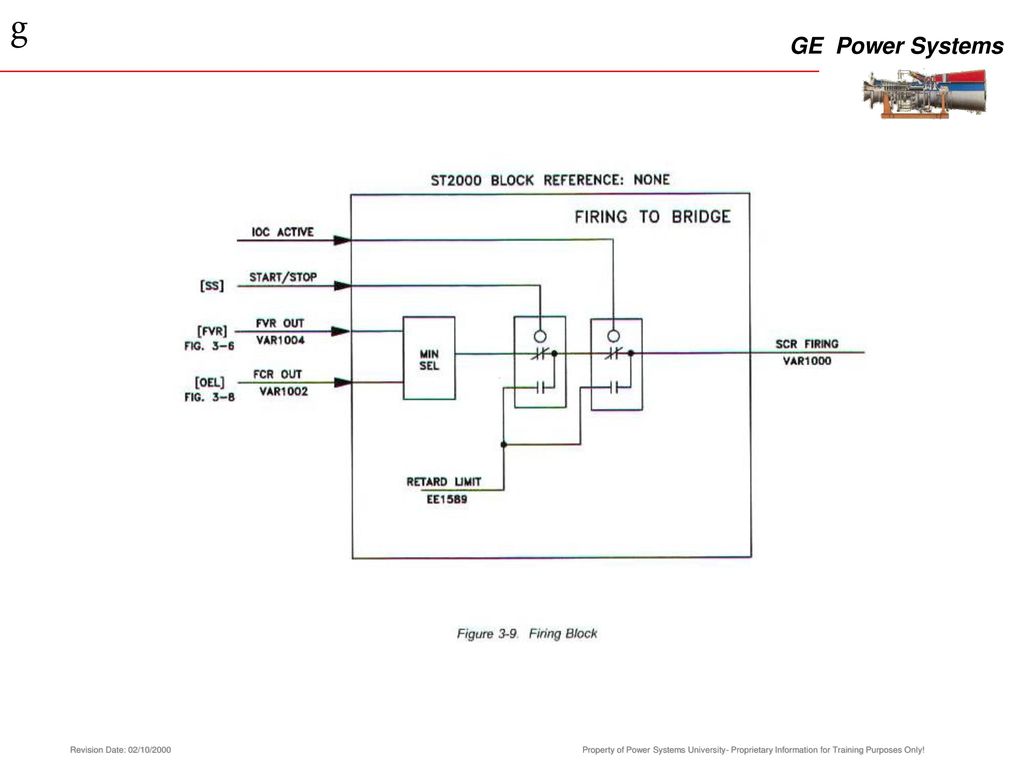

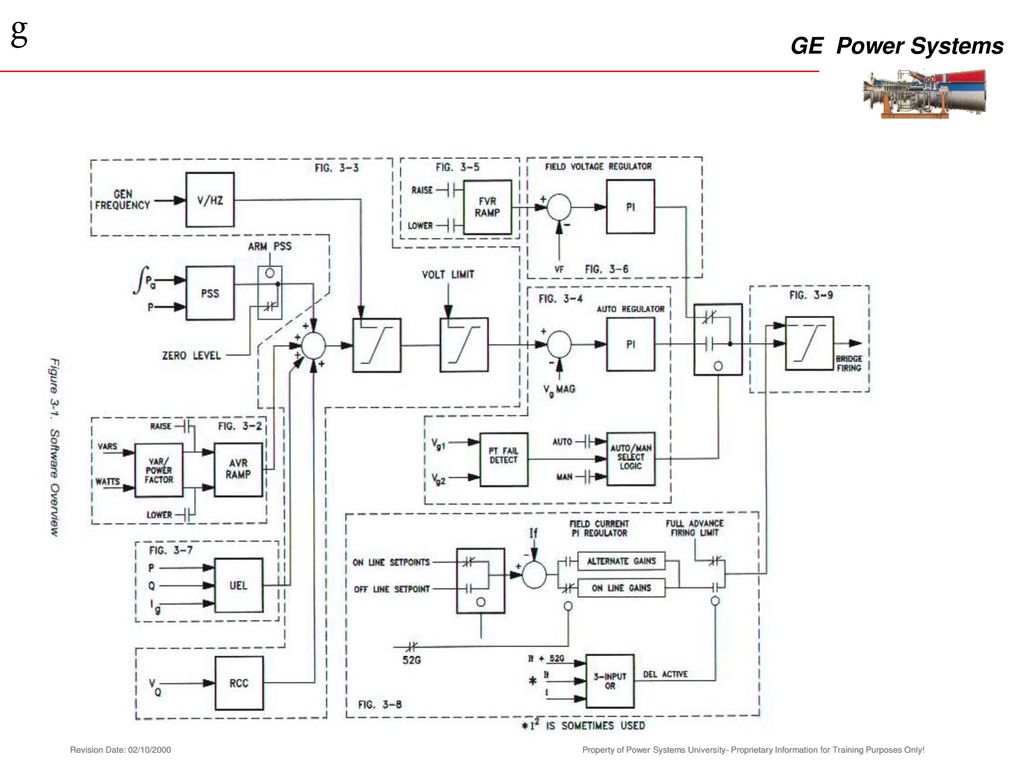

27 Bloques del Software del EX2000 (GEH 6121 Ch:3)

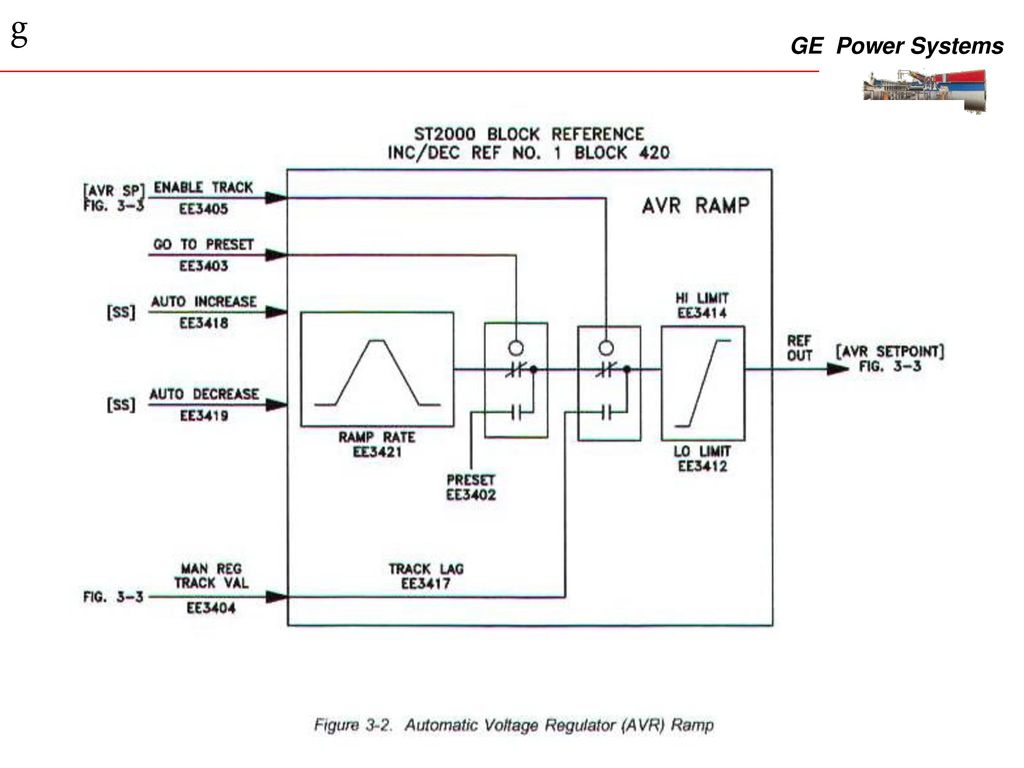

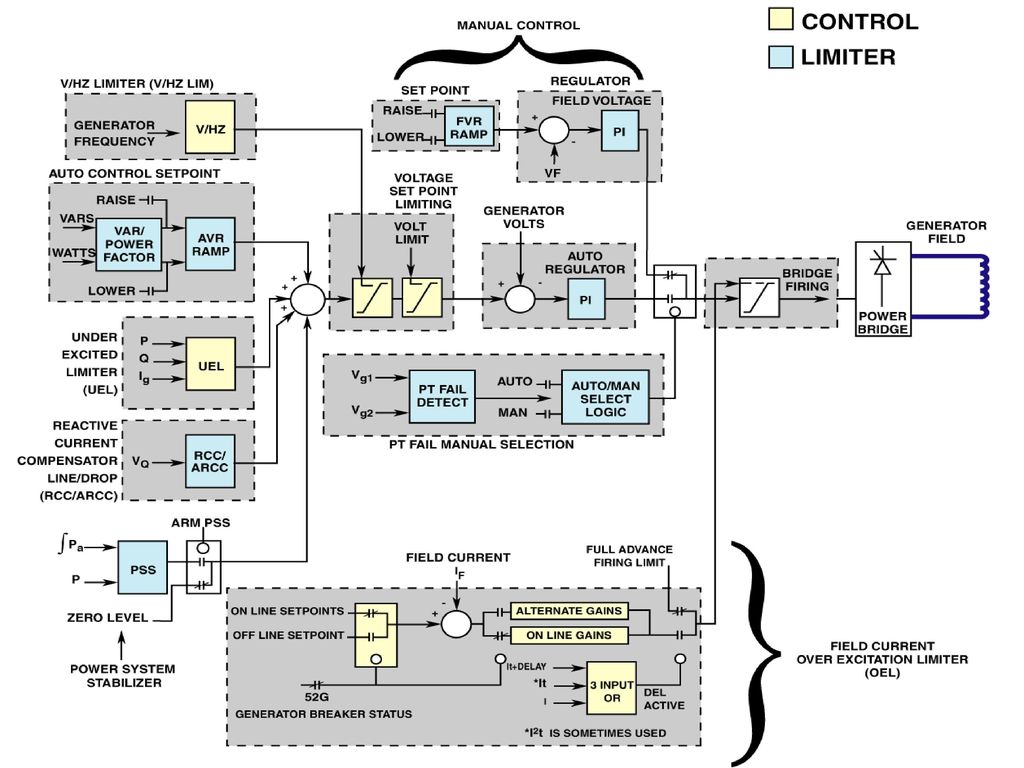

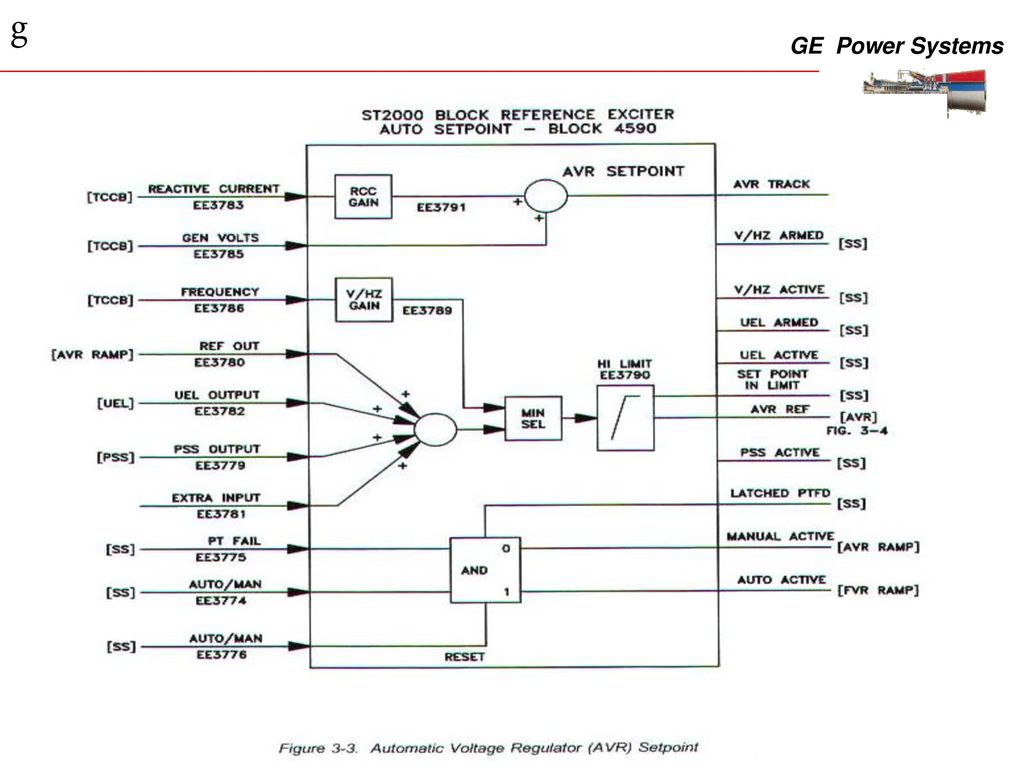

28

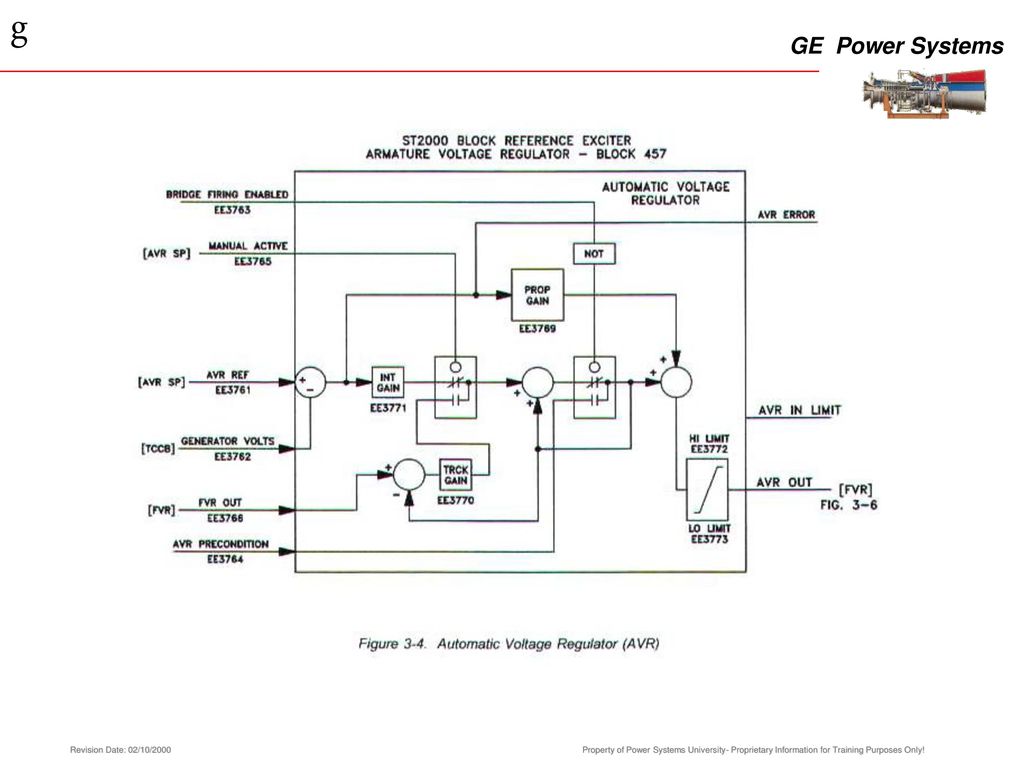

29

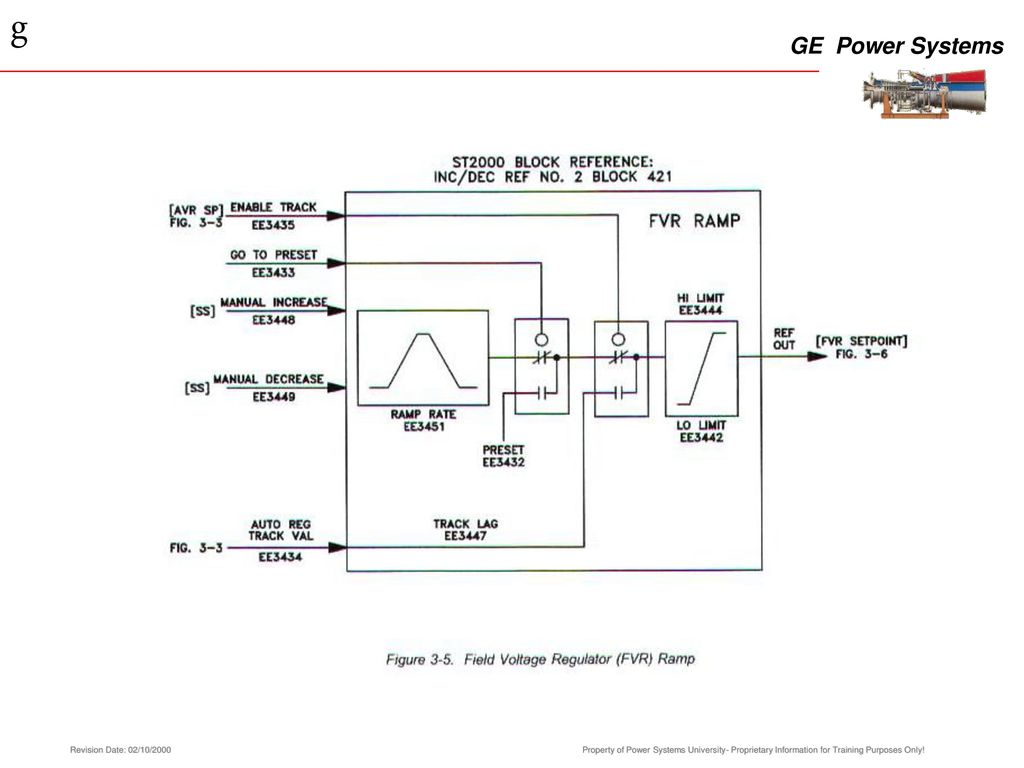

30

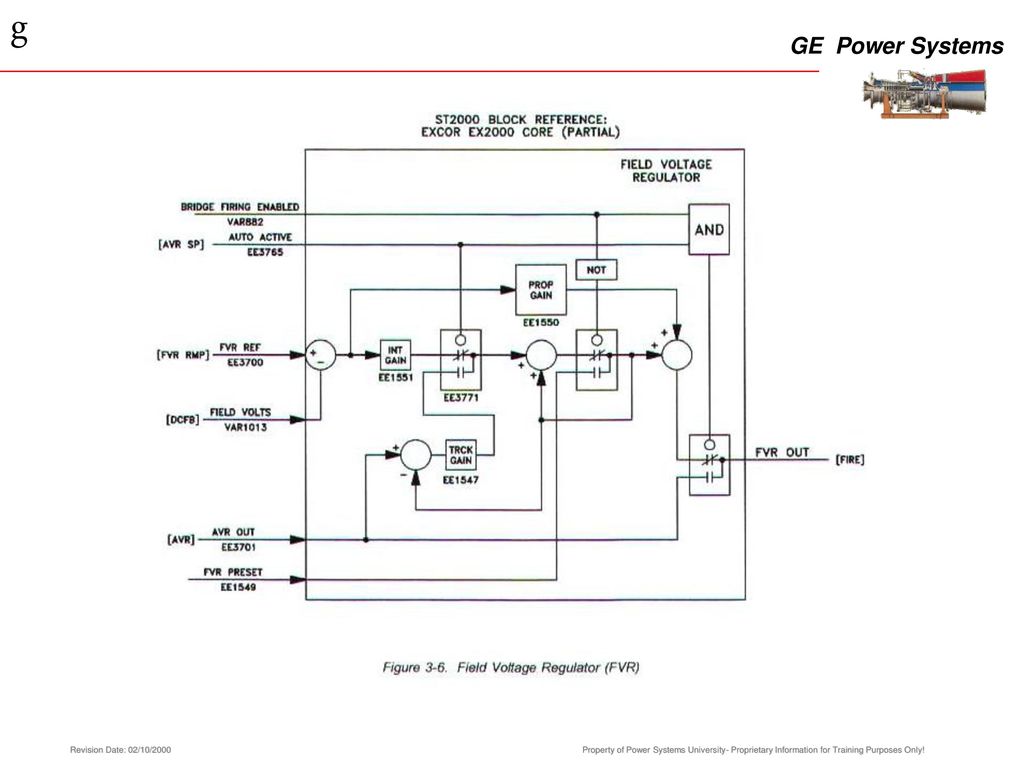

31

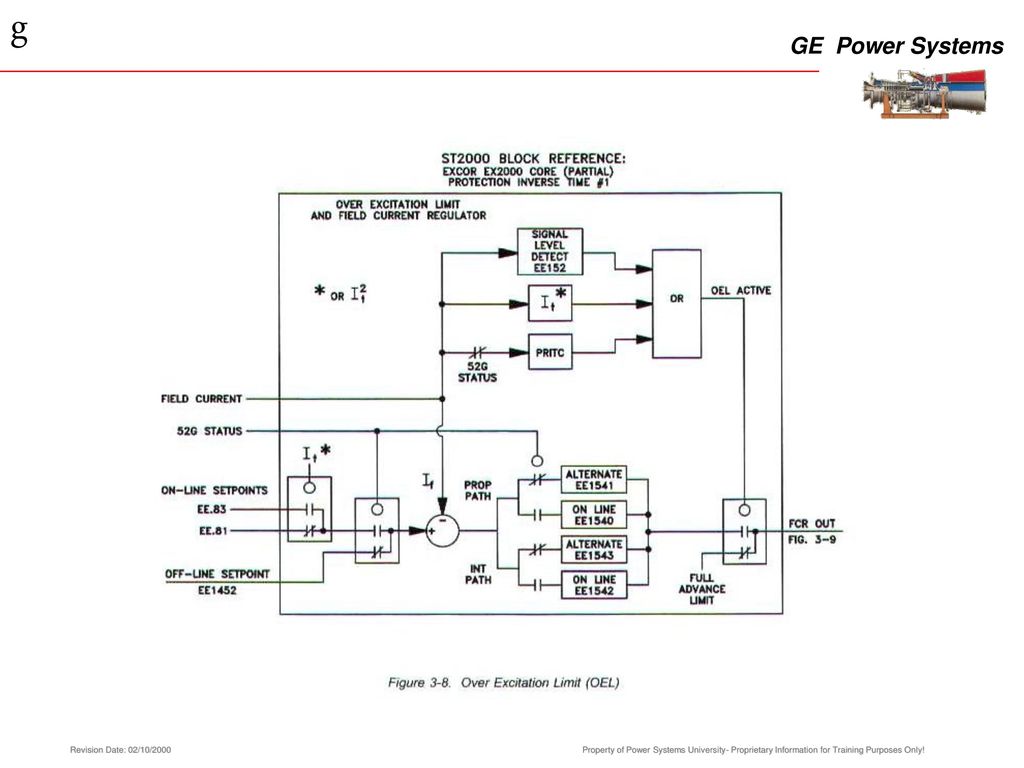

32

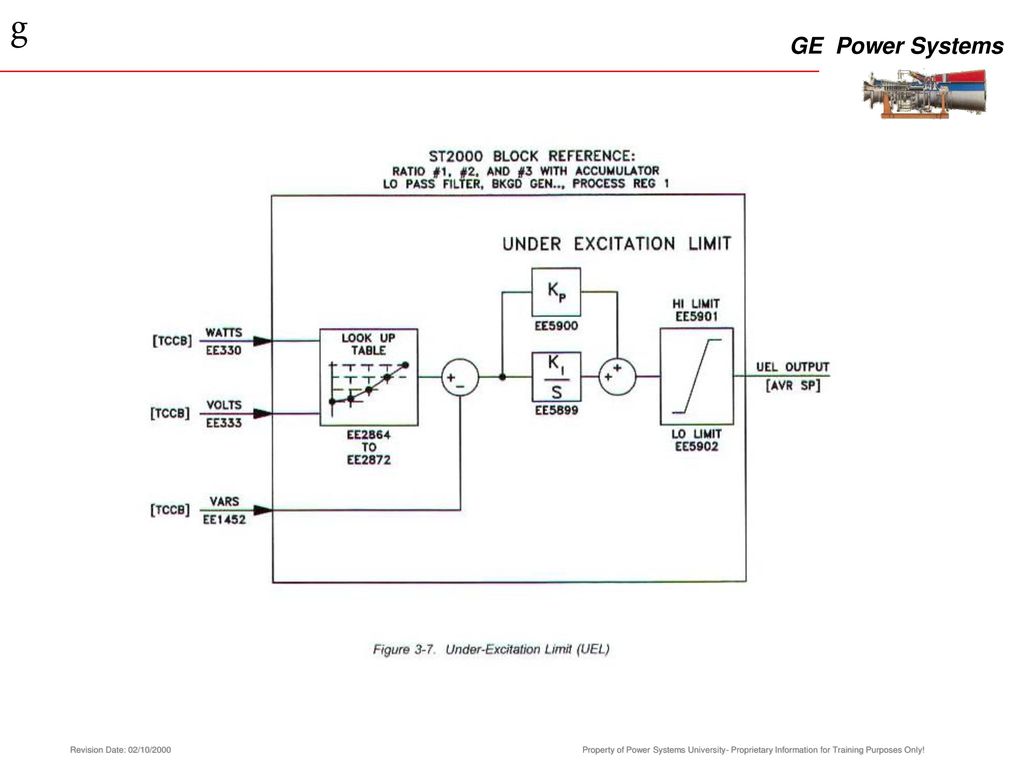

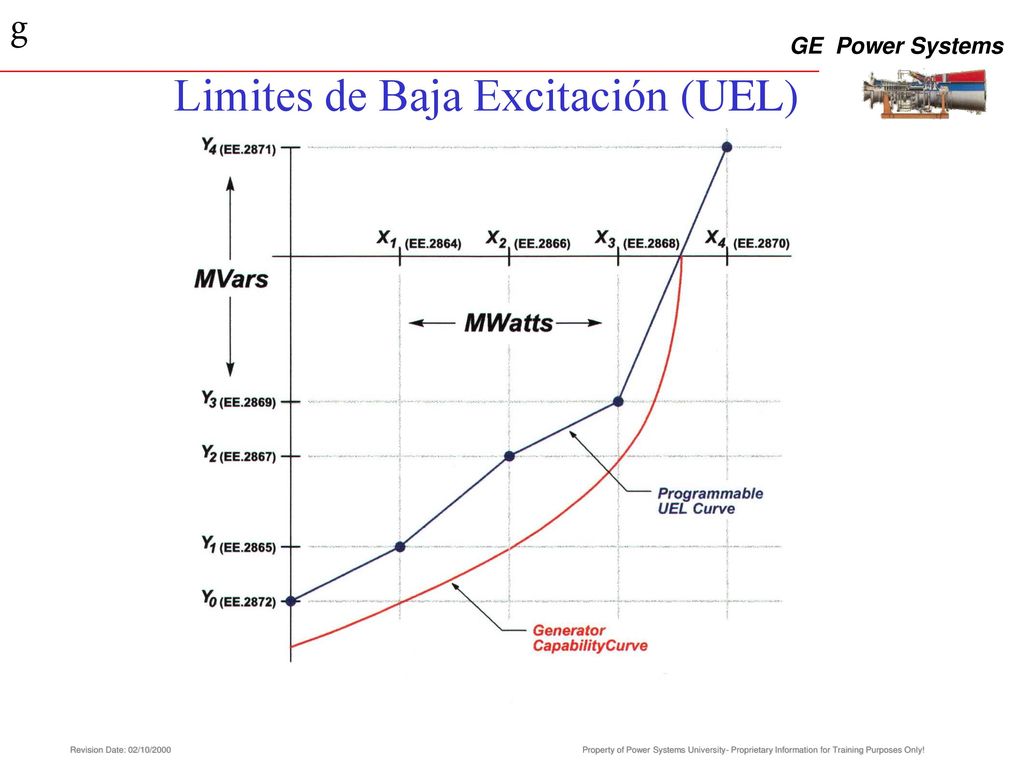

33 Limites de Baja Excitación (UEL)
