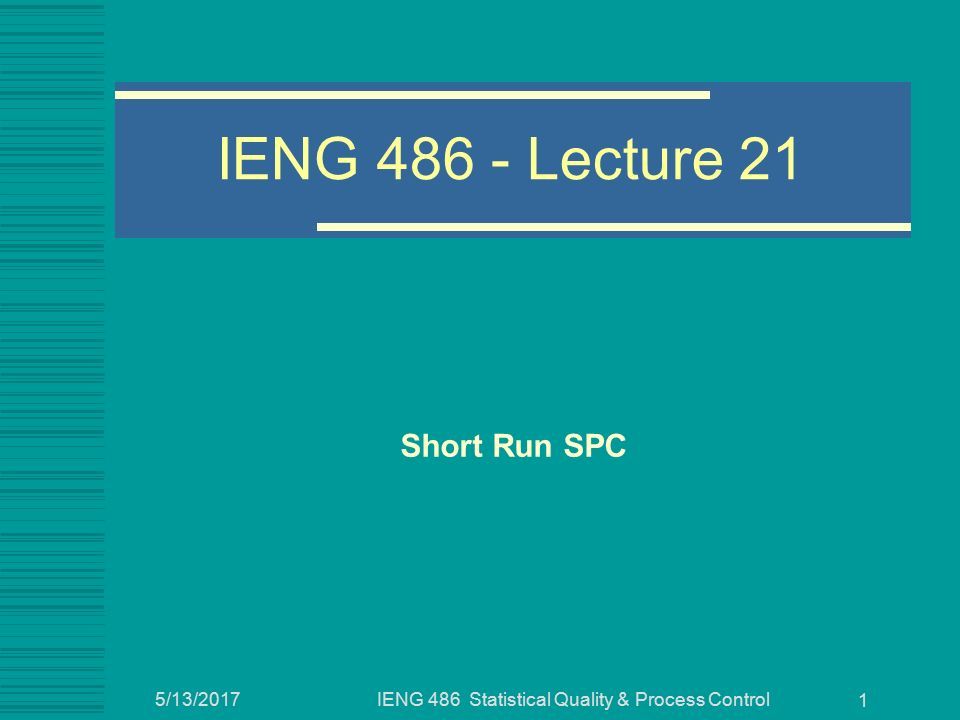

1 5/13/2017IENG 486 Statistical Quality & Process Control 1 IENG 486 - Lecture 21 Short Run SPC

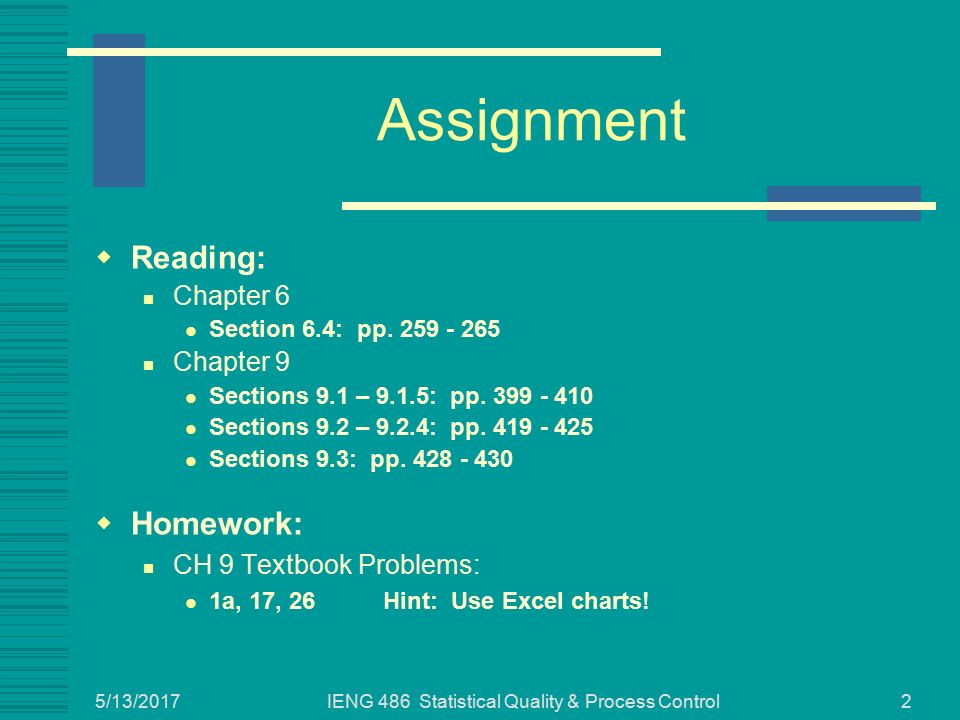

2 5/13/2017 IENG 486 Statistical Quality & Process Control2 Assignment  Reading: Chapter 6 Section 6.4: pp. 259 - 265 Chapter 9 Sections 9.1 – 9.1.5: pp. 399 - 410 Sections 9.2 – 9.2.4: pp. 419 - 425 Sections 9.3: pp. 428 - 430  Homework: CH 9 Textbook Problems: 1a, 17, 26Hint: Use Excel charts!

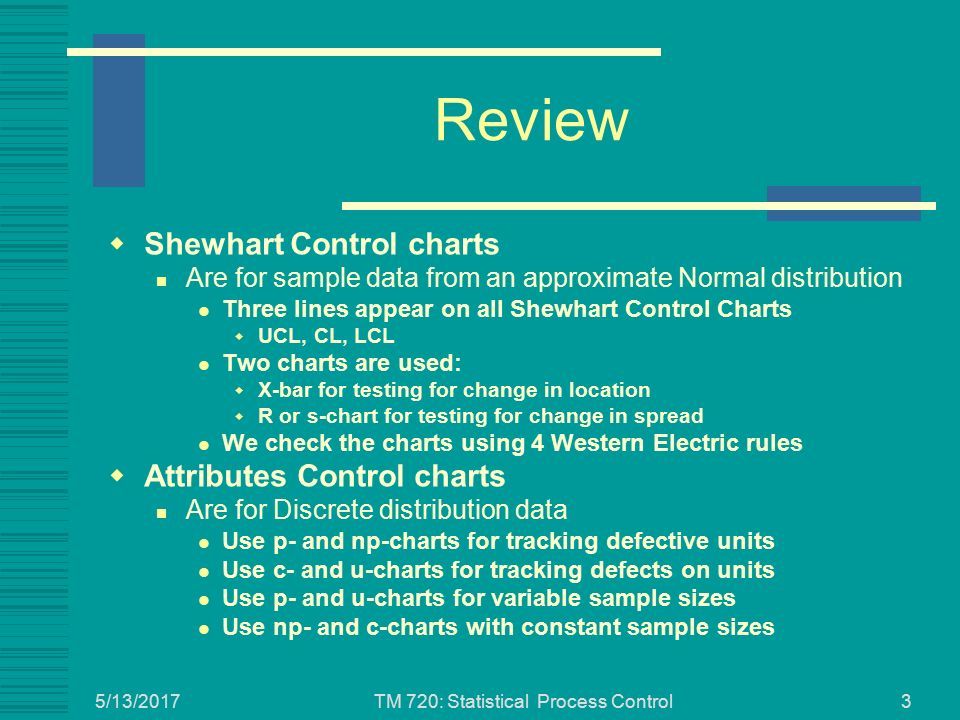

3 5/13/2017 TM 720: Statistical Process Control3 Review  Shewhart Control charts Are for sample data from an approximate Normal distribution Three lines appear on all Shewhart Control Charts  UCL, CL, LCL Two charts are used:  X-bar for testing for change in location  R or s-chart for testing for change in spread We check the charts using 4 Western Electric rules  Attributes Control charts Are for Discrete distribution data Use p- and np-charts for tracking defective units Use c- and u-charts for tracking defects on units Use p- and u-charts for variable sample sizes Use np- and c-charts with constant sample sizes

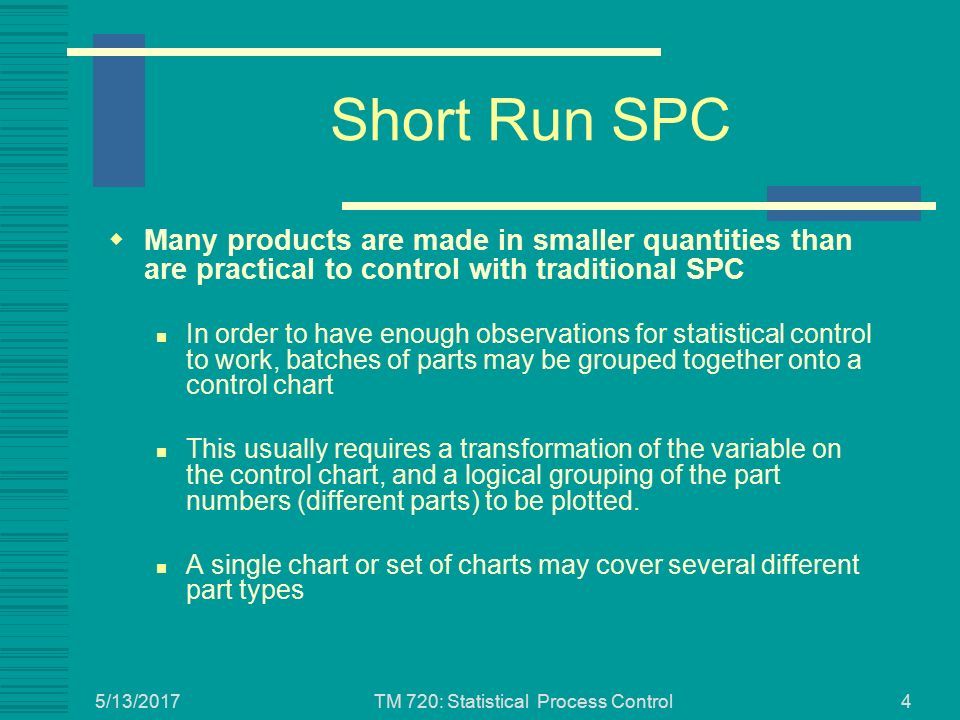

4 5/13/2017 TM 720: Statistical Process Control4 Short Run SPC  Many products are made in smaller quantities than are practical to control with traditional SPC In order to have enough observations for statistical control to work, batches of parts may be grouped together onto a control chart This usually requires a transformation of the variable on the control chart, and a logical grouping of the part numbers (different parts) to be plotted. A single chart or set of charts may cover several different part types

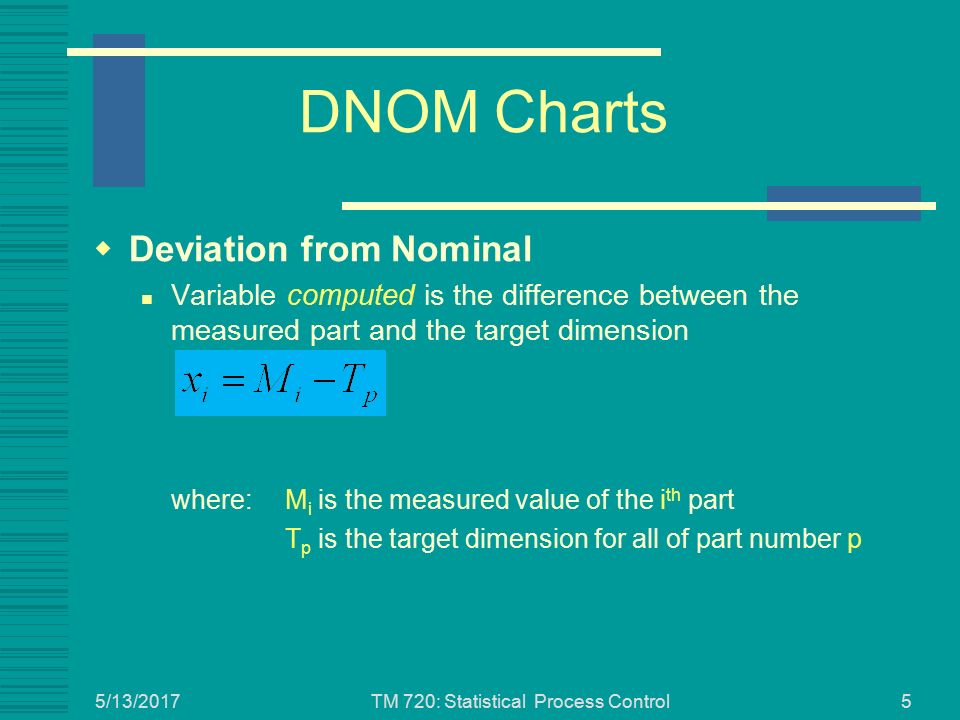

5 5/13/2017 TM 720: Statistical Process Control5 DNOM Charts  Deviation from Nominal Variable computed is the difference between the measured part and the target dimension where:M i is the measured value of the i th part T p is the target dimension for all of part number p

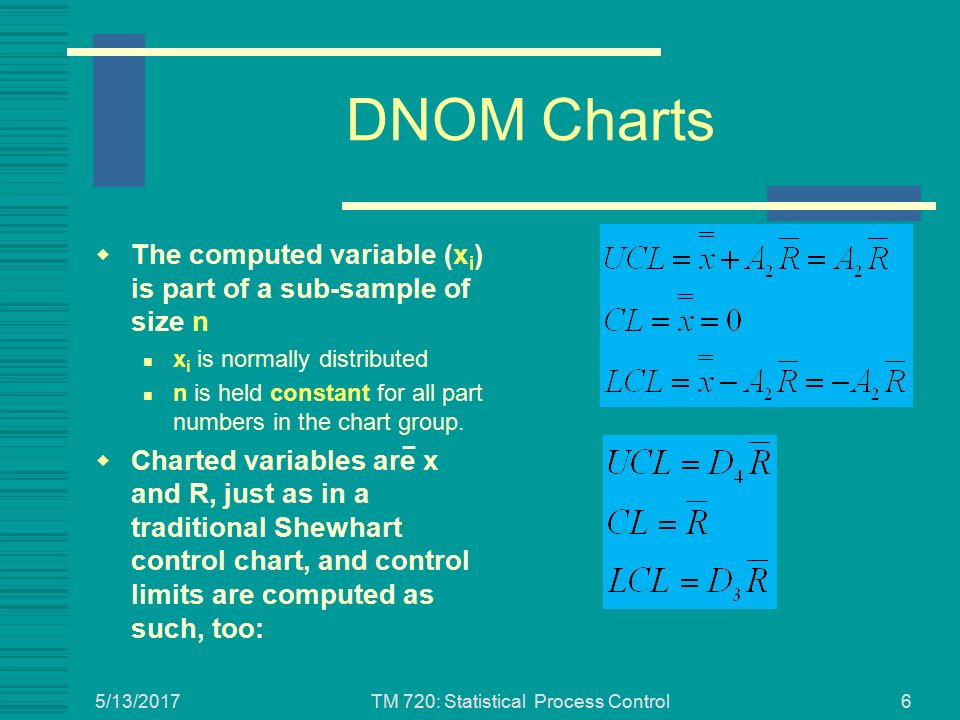

6 5/13/2017 TM 720: Statistical Process Control6 DNOM Charts  The computed variable (x i ) is part of a sub-sample of size n x i is normally distributed n is held constant for all part numbers in the chart group.  Charted variables are x and R, just as in a traditional Shewhart control chart, and control limits are computed as such, too:

7 5/13/2017 TM 720: Statistical Process Control7 DNOM Charts  Usage: A vertical dashed line is used to mark the charts at the point at which the part numbers change from one part type to the next in the group The variation among each of the part types in the group should be similar (hypothesis test!) Often times, the T p is the nominal target value for the process for that part type Allows the use of the chart when only a single-sided specification is given If no target value is specified, the historical average (x) may be used in its’ place

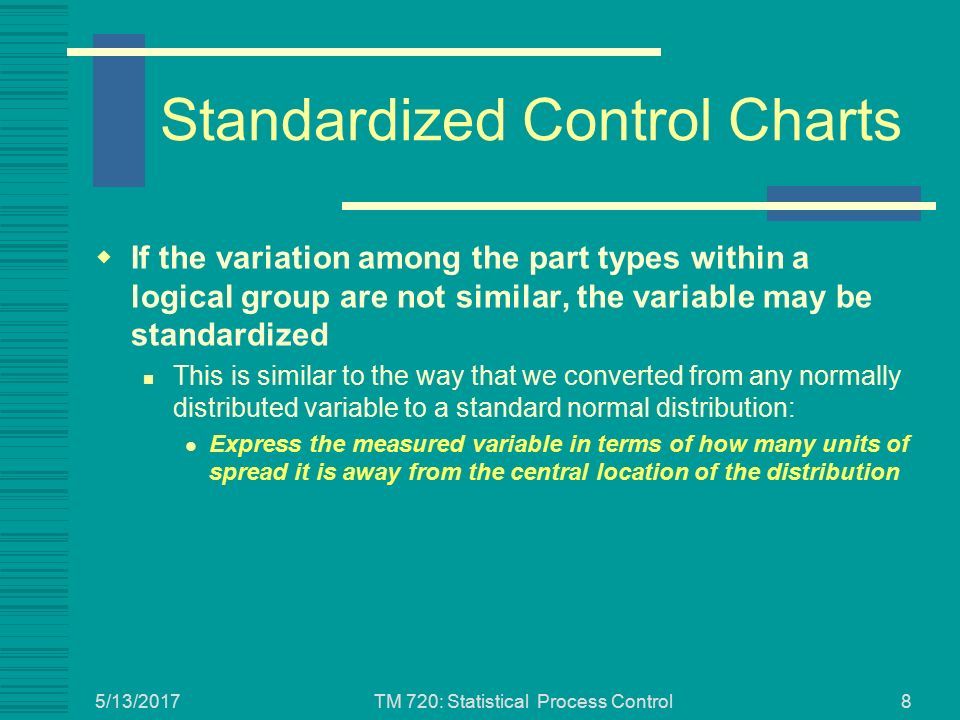

8 5/13/2017 TM 720: Statistical Process Control8 Standardized Control Charts  If the variation among the part types within a logical group are not similar, the variable may be standardized This is similar to the way that we converted from any normally distributed variable to a standard normal distribution: Express the measured variable in terms of how many units of spread it is away from the central location of the distribution

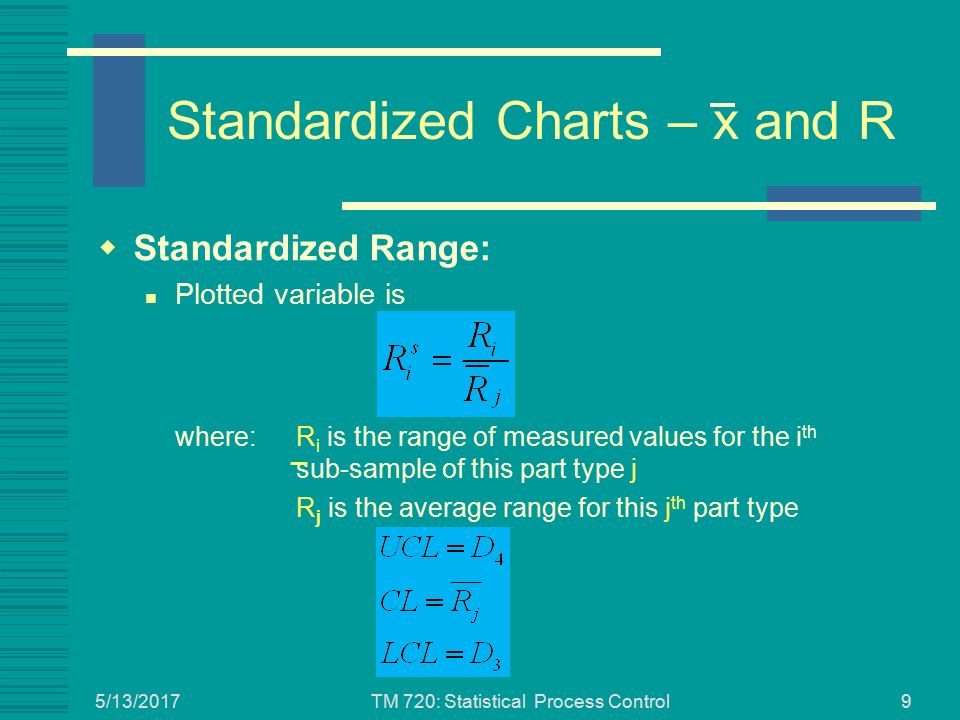

9 5/13/2017 TM 720: Statistical Process Control9 Standardized Charts – x and R  Standardized Range: Plotted variable is where: R i is the range of measured values for the i th sub-sample of this part type j R j is the average range for this j th part type

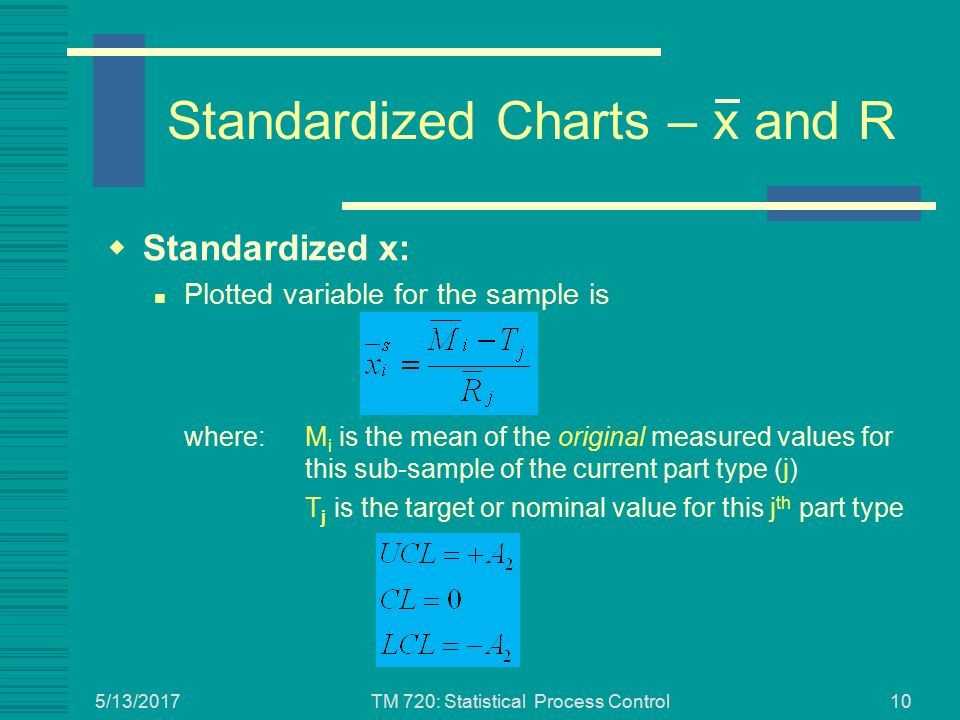

10 5/13/2017 TM 720: Statistical Process Control10 Standardized Charts – x and R  Standardized x: Plotted variable for the sample is where: M i is the mean of the original measured values for this sub-sample of the current part type (j) T j is the target or nominal value for this j th part type

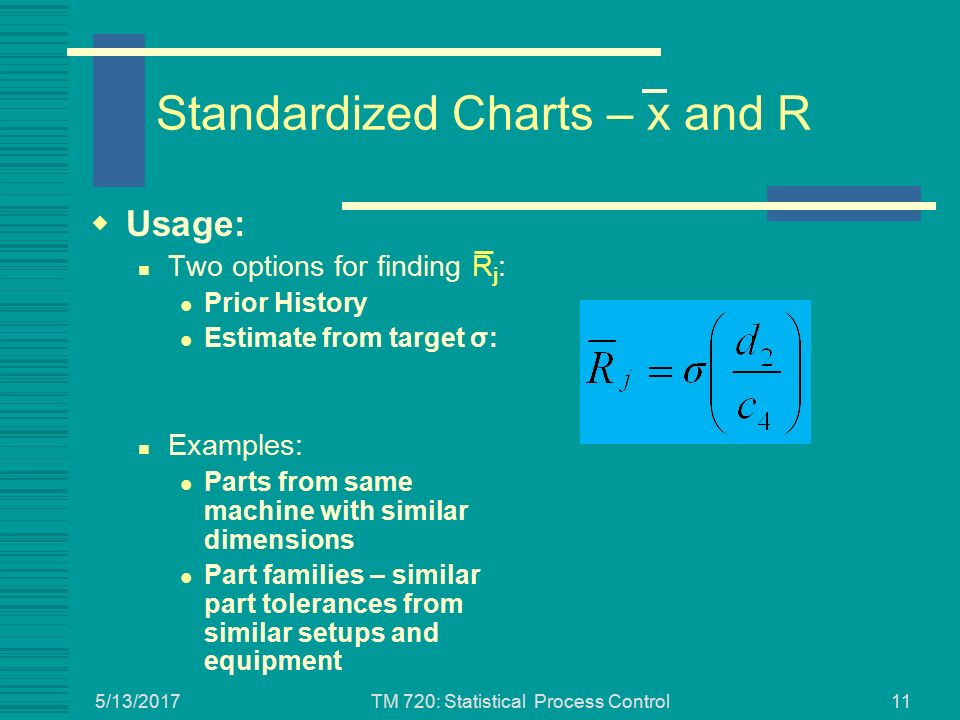

11 5/13/2017 TM 720: Statistical Process Control11 Standardized Charts – x and R  Usage: Two options for finding R j : Prior History Estimate from target σ: Examples: Parts from same machine with similar dimensions Part families – similar part tolerances from similar setups and equipment

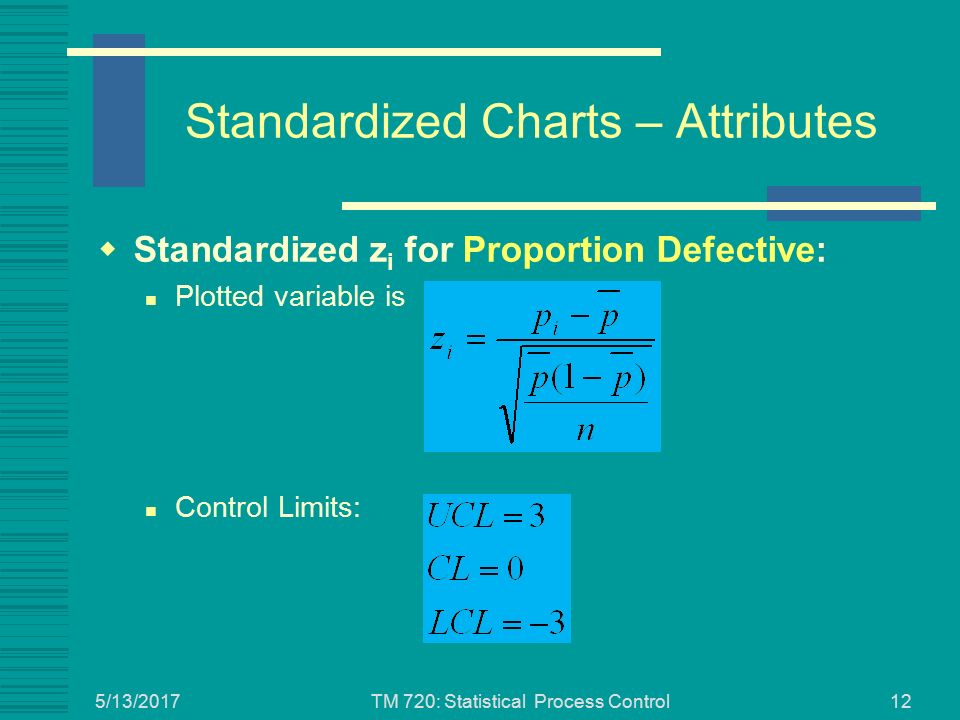

12 5/13/2017 TM 720: Statistical Process Control12 Standardized Charts – Attributes  Standardized z i for Proportion Defective: Plotted variable is Control Limits:

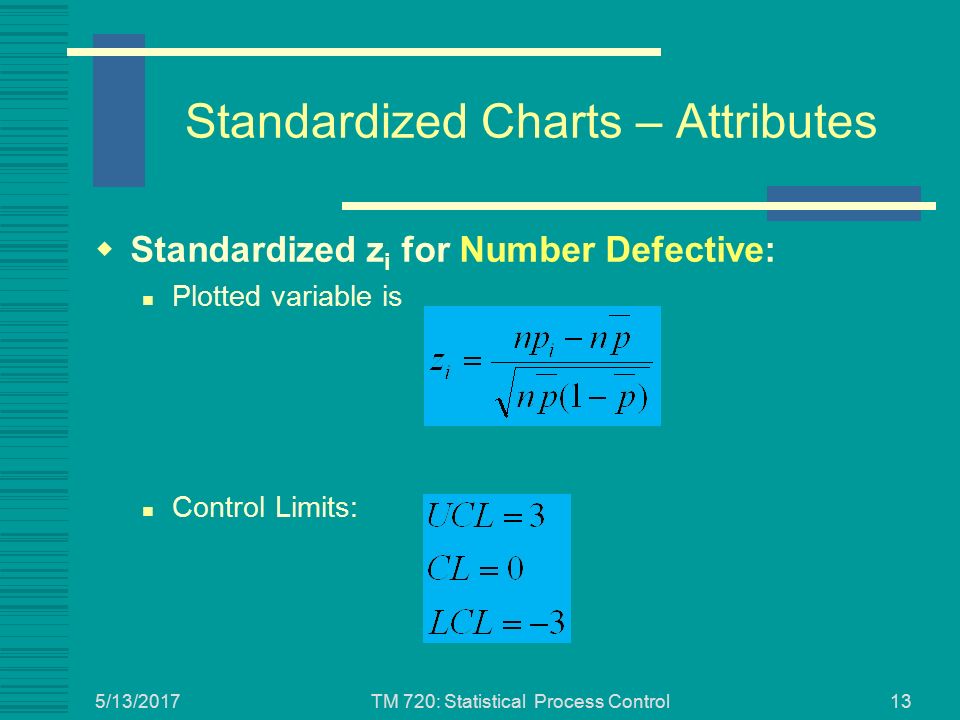

13 5/13/2017 TM 720: Statistical Process Control13 Standardized Charts – Attributes  Standardized z i for Number Defective: Plotted variable is Control Limits:

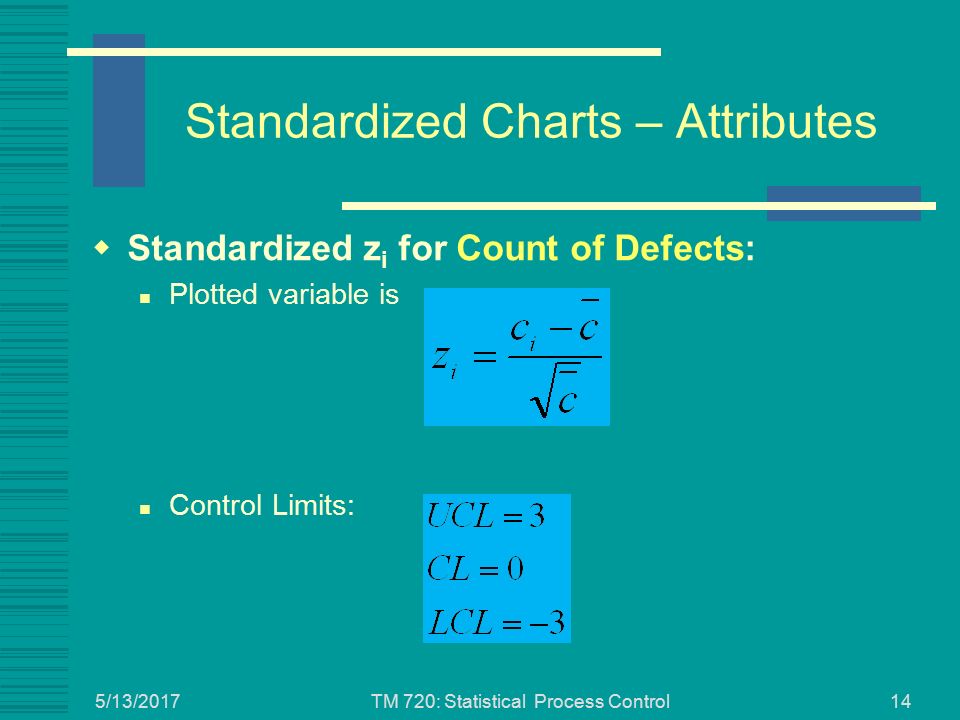

14 5/13/2017 TM 720: Statistical Process Control14 Standardized Charts – Attributes  Standardized z i for Count of Defects: Plotted variable is Control Limits:

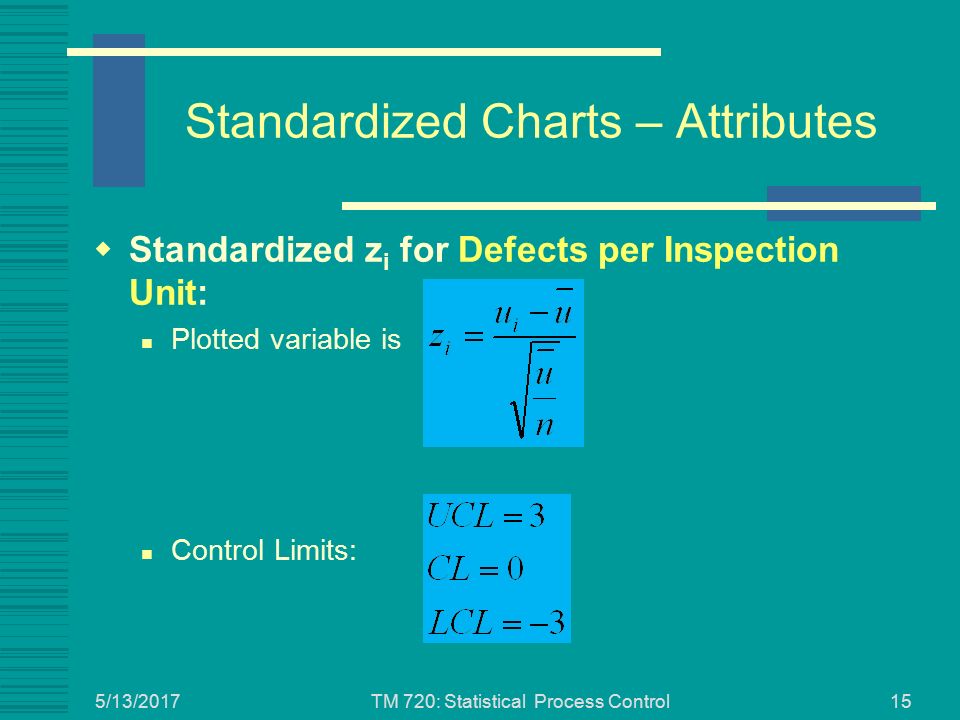

15 5/13/2017 TM 720: Statistical Process Control15 Standardized Charts – Attributes  Standardized z i for Defects per Inspection Unit: Plotted variable is Control Limits:

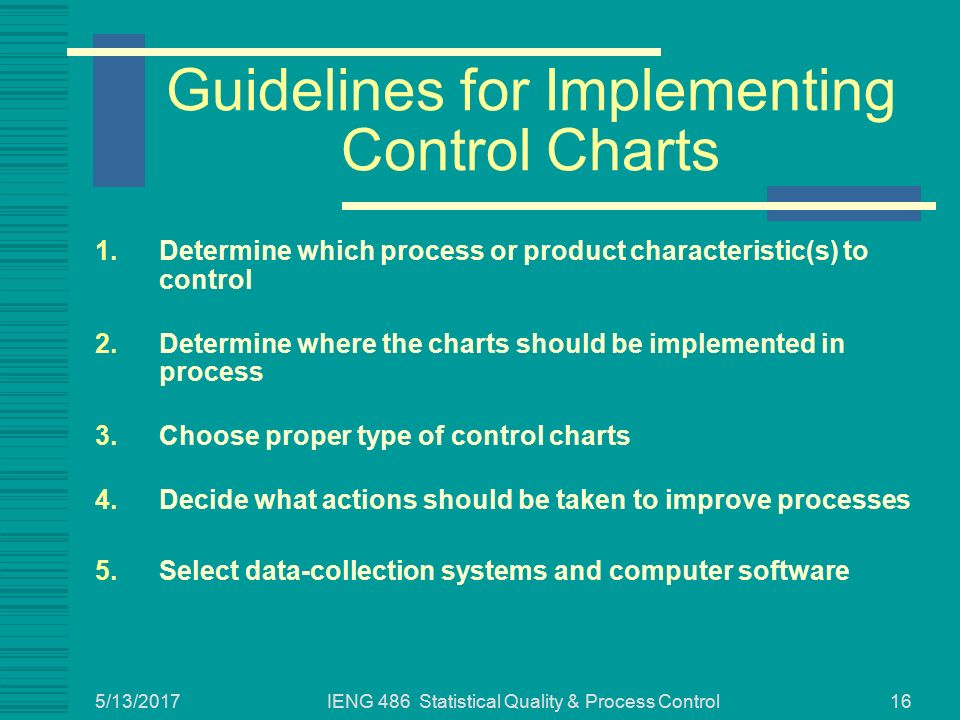

16 5/13/2017 IENG 486 Statistical Quality & Process Control16 Guidelines for Implementing Control Charts 1.Determine which process or product characteristic(s) to control 2.Determine where the charts should be implemented in process 3.Choose proper type of control charts 4.Decide what actions should be taken to improve processes 5.Select data-collection systems and computer software

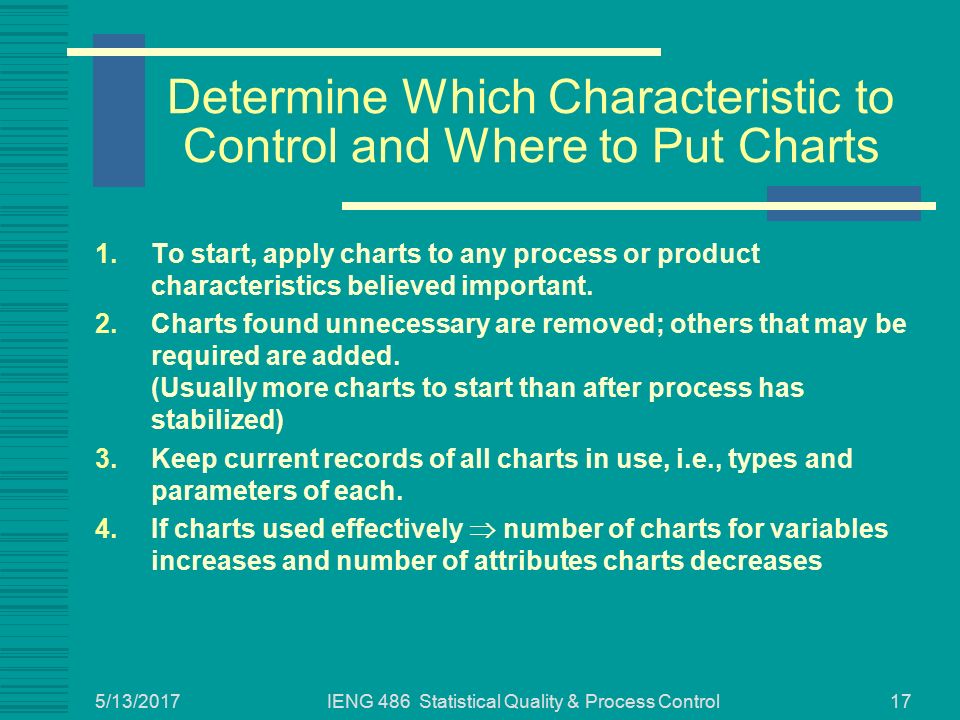

17 5/13/2017 IENG 486 Statistical Quality & Process Control17 Determine Which Characteristic to Control and Where to Put Charts 1.To start, apply charts to any process or product characteristics believed important. 2.Charts found unnecessary are removed; others that may be required are added. (Usually more charts to start than after process has stabilized) 3.Keep current records of all charts in use, i.e., types and parameters of each. 4.If charts used effectively  number of charts for variables increases and number of attributes charts decreases

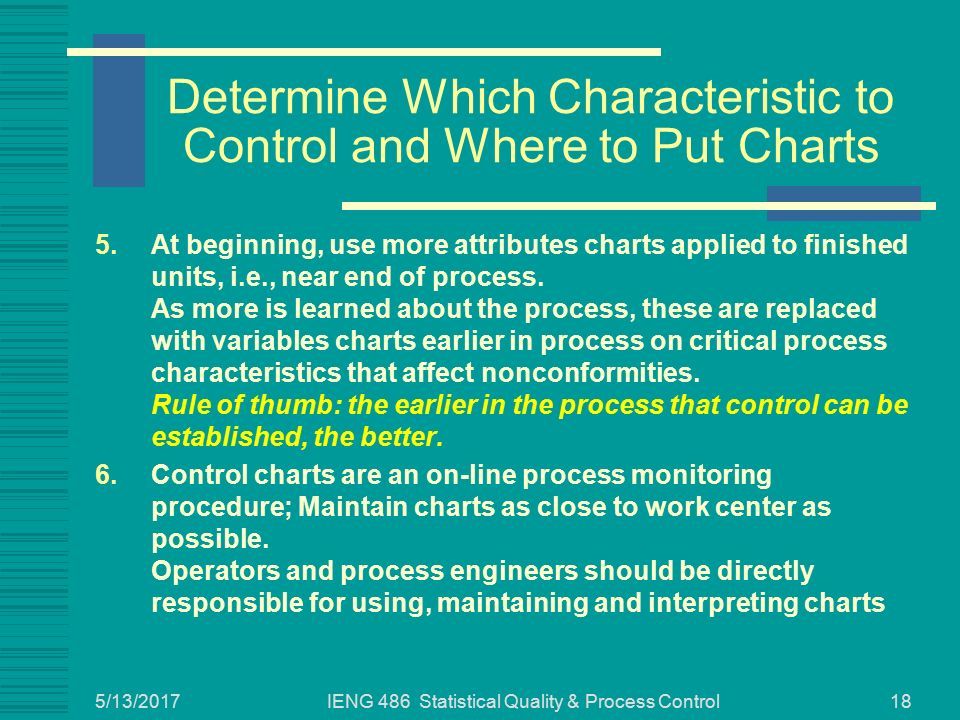

18 5/13/2017 IENG 486 Statistical Quality & Process Control18 5.At beginning, use more attributes charts applied to finished units, i.e., near end of process. As more is learned about the process, these are replaced with variables charts earlier in process on critical process characteristics that affect nonconformities. Rule of thumb: the earlier in the process that control can be established, the better. 6.Control charts are an on-line process monitoring procedure; Maintain charts as close to work center as possible. Operators and process engineers should be directly responsible for using, maintaining and interpreting charts Determine Which Characteristic to Control and Where to Put Charts

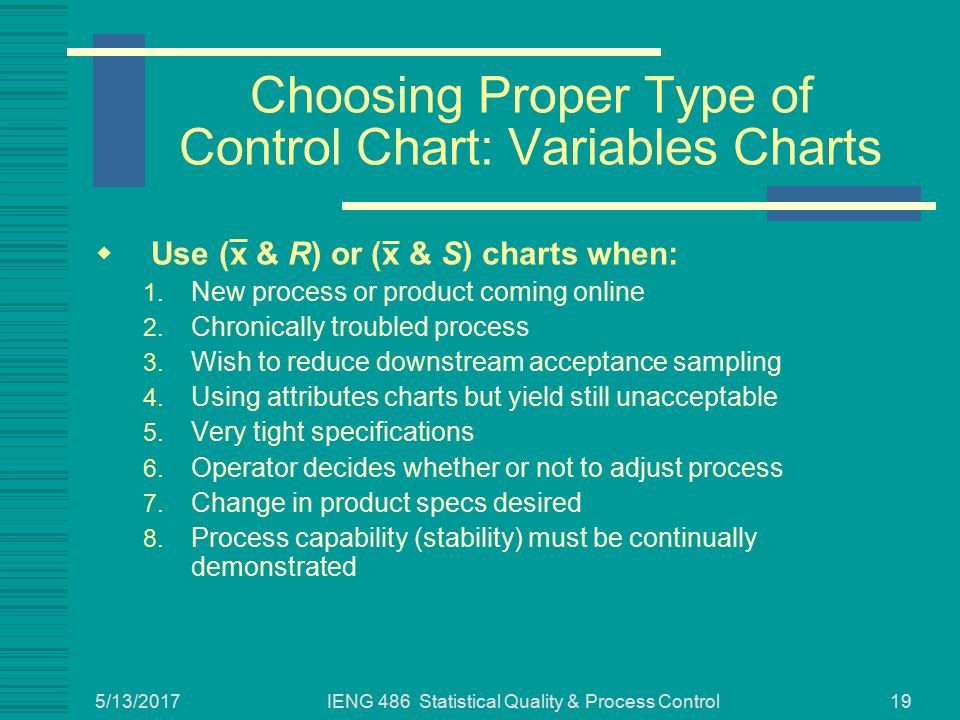

19 5/13/2017 IENG 486 Statistical Quality & Process Control19 Choosing Proper Type of Control Chart: Variables Charts  Use (x & R) or (x & S) charts when: 1. New process or product coming online 2. Chronically troubled process 3. Wish to reduce downstream acceptance sampling 4. Using attributes charts but yield still unacceptable 5. Very tight specifications 6. Operator decides whether or not to adjust process 7. Change in product specs desired 8. Process capability (stability) must be continually demonstrated

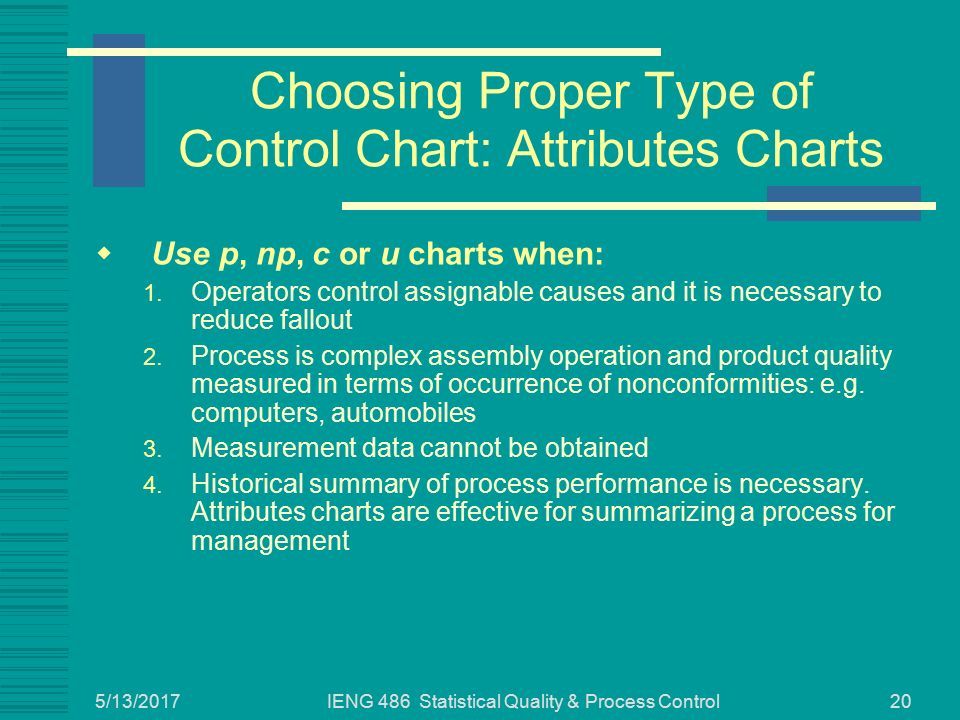

20 5/13/2017 IENG 486 Statistical Quality & Process Control20 Choosing Proper Type of Control Chart: Attributes Charts  Use p, np, c or u charts when: 1. Operators control assignable causes and it is necessary to reduce fallout 2. Process is complex assembly operation and product quality measured in terms of occurrence of nonconformities: e.g. computers, automobiles 3. Measurement data cannot be obtained 4. Historical summary of process performance is necessary. Attributes charts are effective for summarizing a process for management

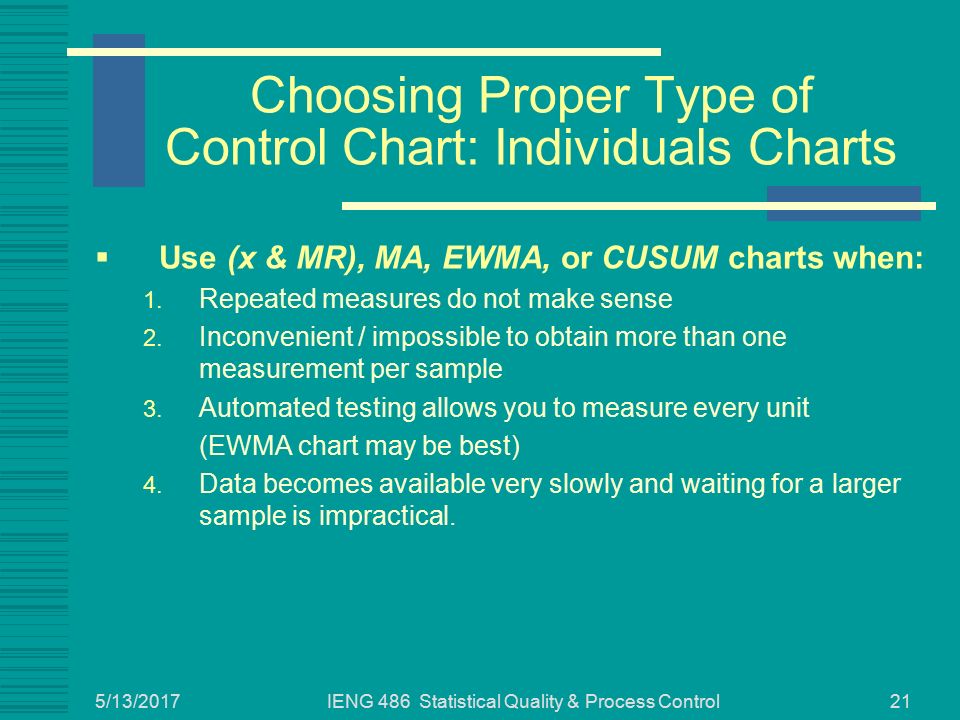

21 5/13/2017 IENG 486 Statistical Quality & Process Control21 Choosing Proper Type of Control Chart: Individuals Charts  Use (x & MR), MA, EWMA, or CUSUM charts when: 1. Repeated measures do not make sense 2. Inconvenient / impossible to obtain more than one measurement per sample 3. Automated testing allows you to measure every unit (EWMA chart may be best) 4. Data becomes available very slowly and waiting for a larger sample is impractical.
