Slide title In CAPITALS 50 pt Slide subtitle 32 pt 3G Comissioning using Element Manager By Vanesa Melendez.

Publicada porManuel Moreno Modificado hace 8 años

Presentaciones similares

Presentación del tema: "Slide title In CAPITALS 50 pt Slide subtitle 32 pt 3G Comissioning using Element Manager By Vanesa Melendez."— Transcripción de la presentación:

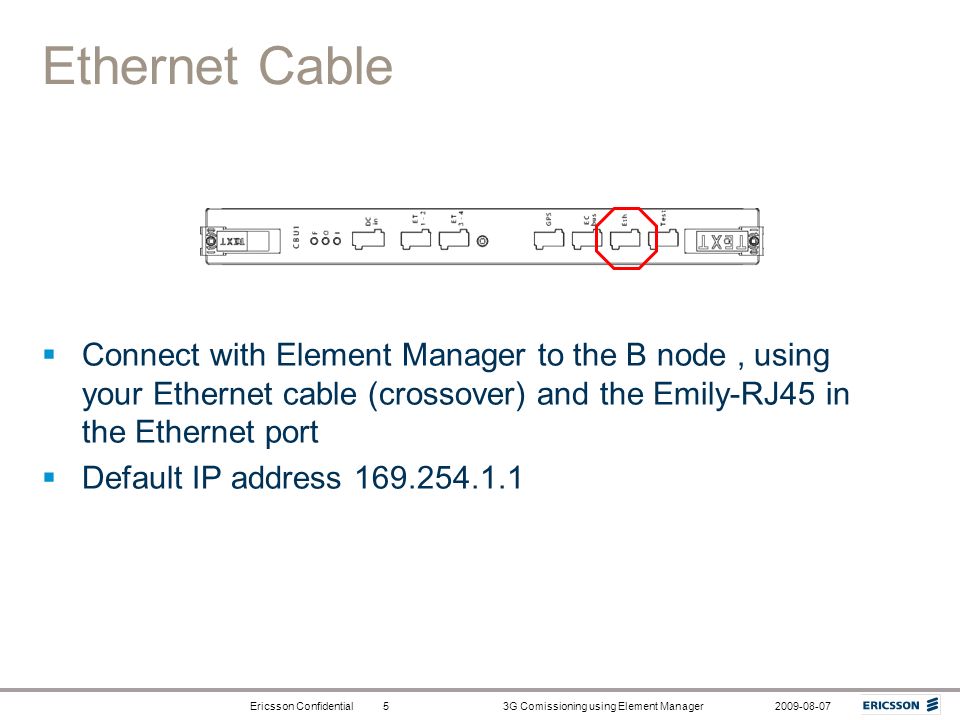

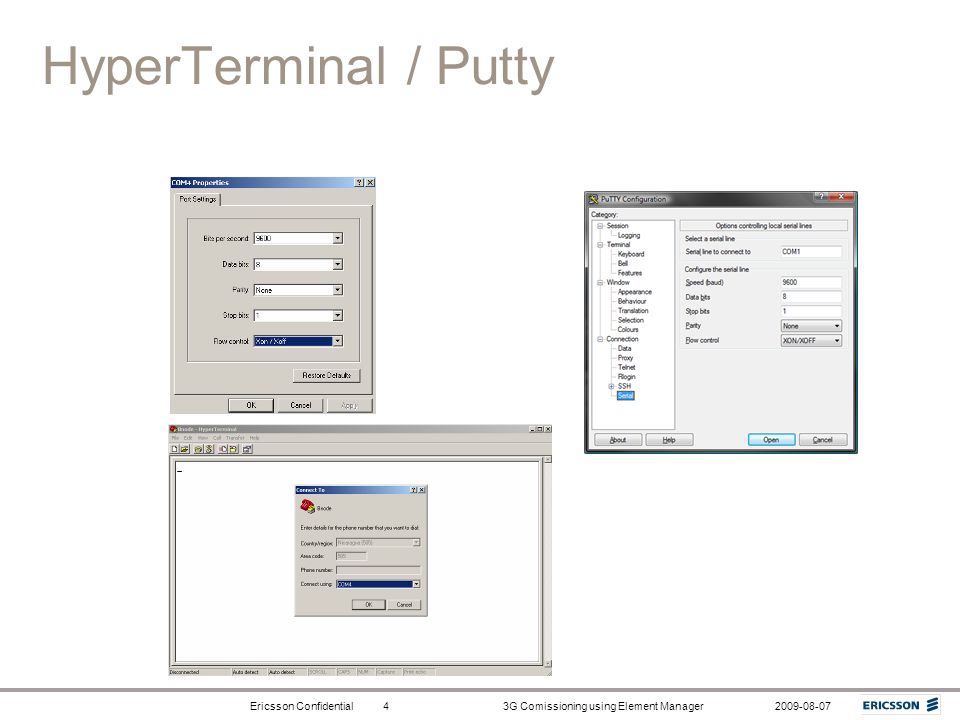

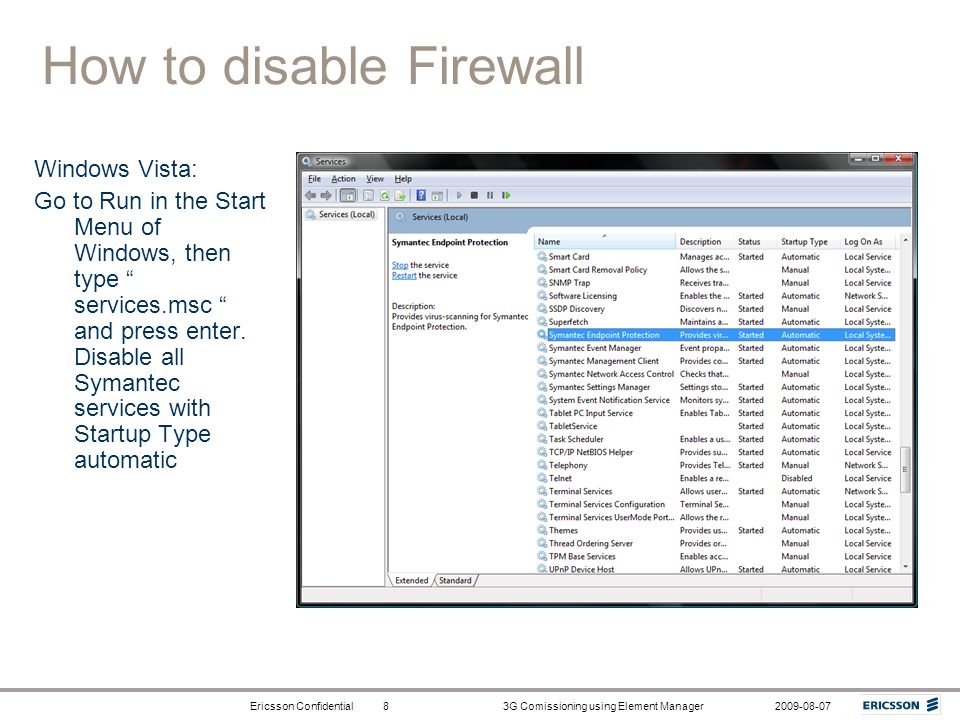

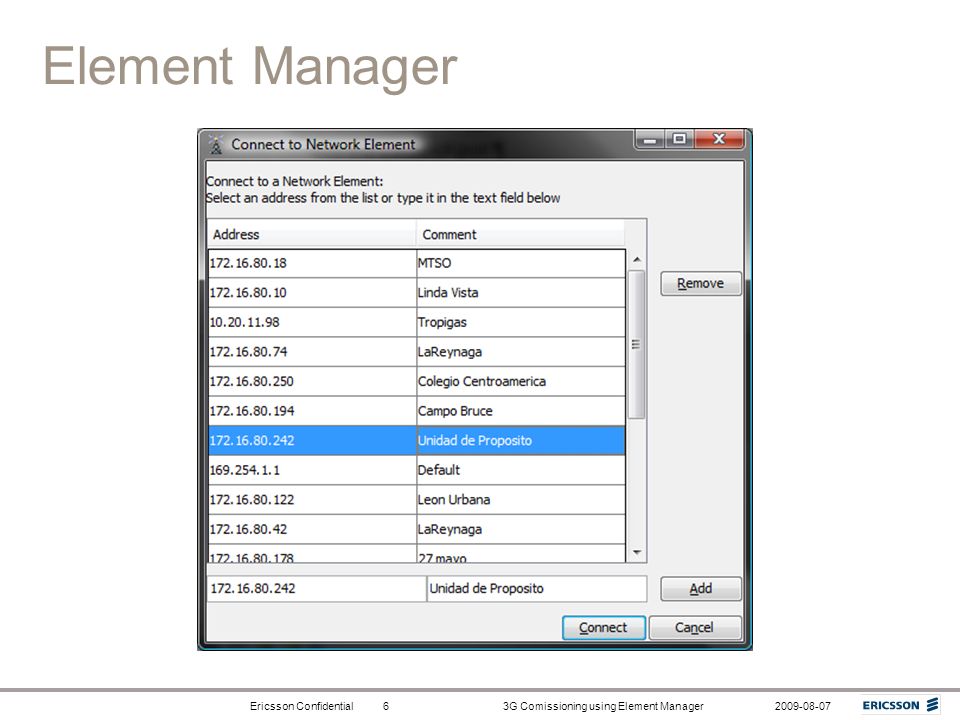

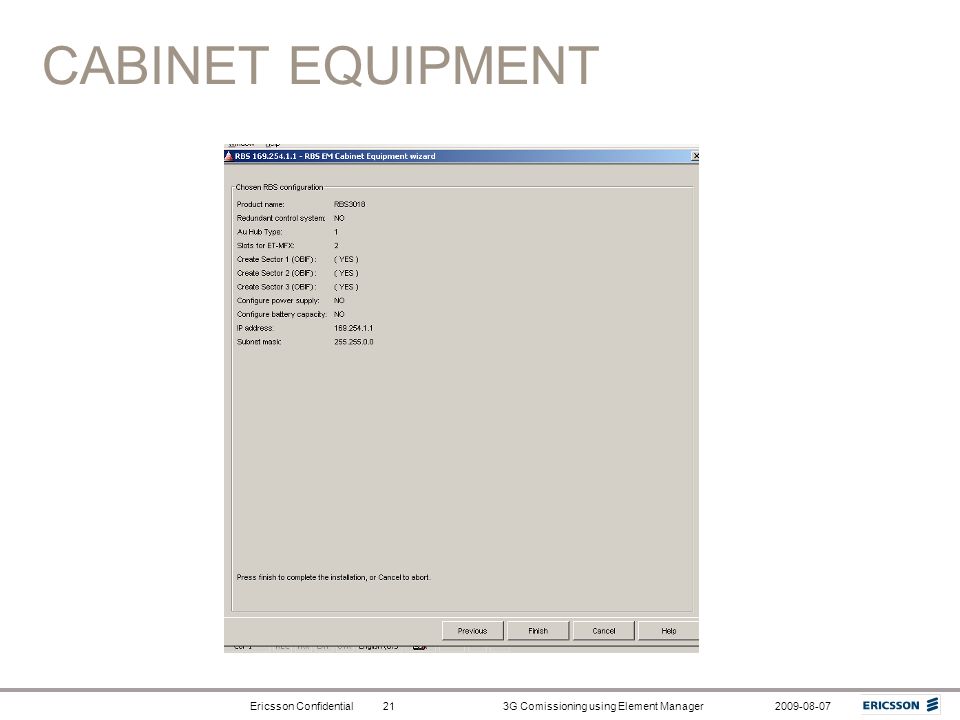

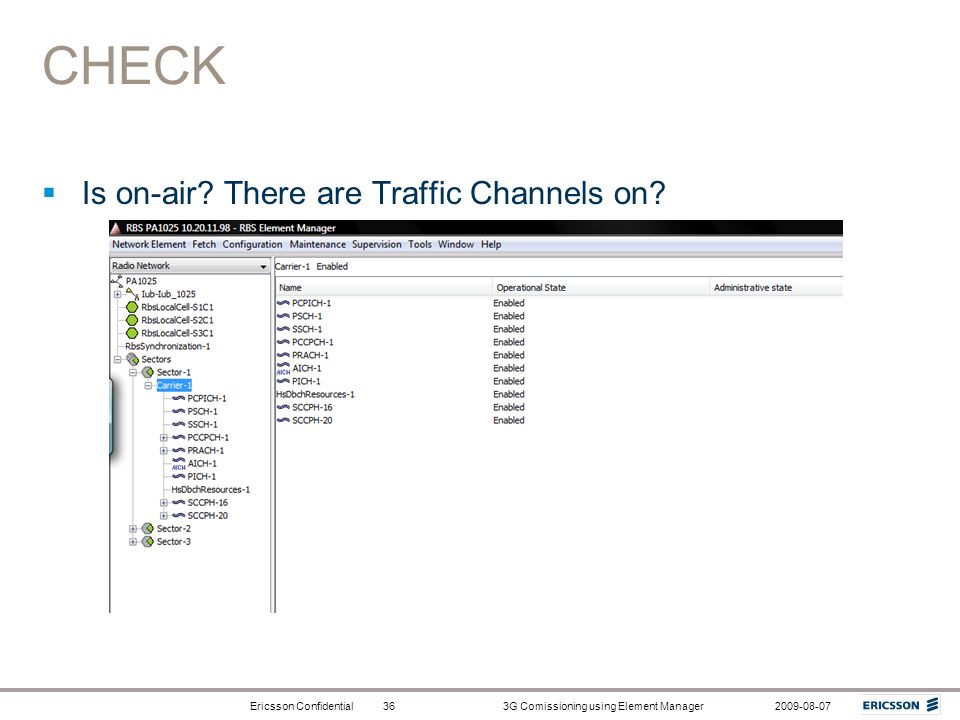

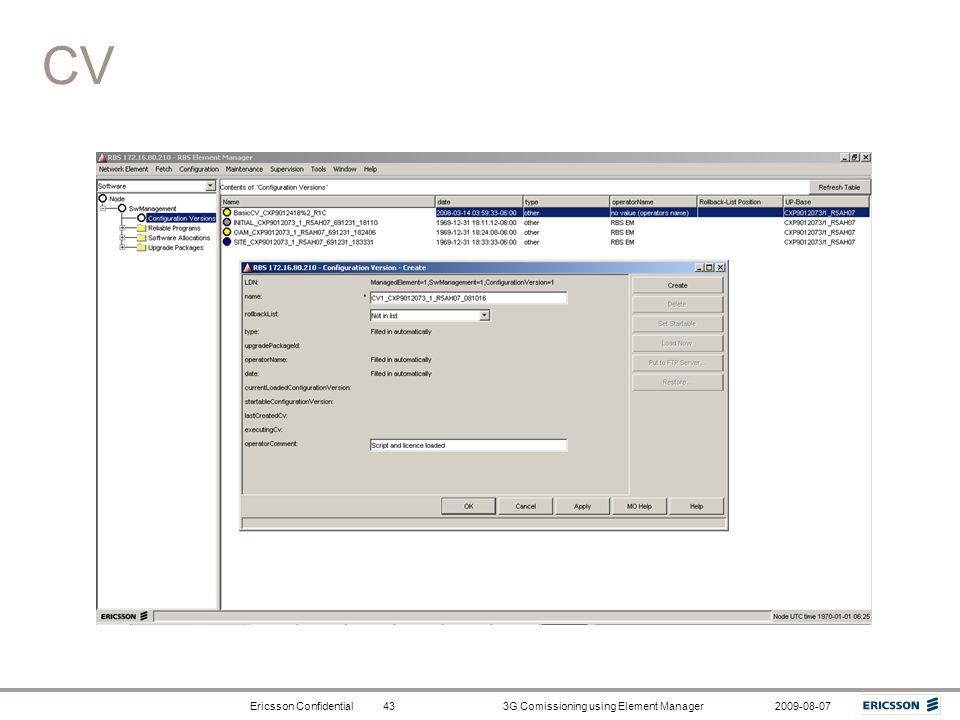

1 Slide title In CAPITALS 50 pt Slide subtitle 32 pt 3G Comissioning using Element Manager By Vanesa Melendez

2 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-072 Where to be conected Serial Cable: Test Port Emily-RJ45: F Port

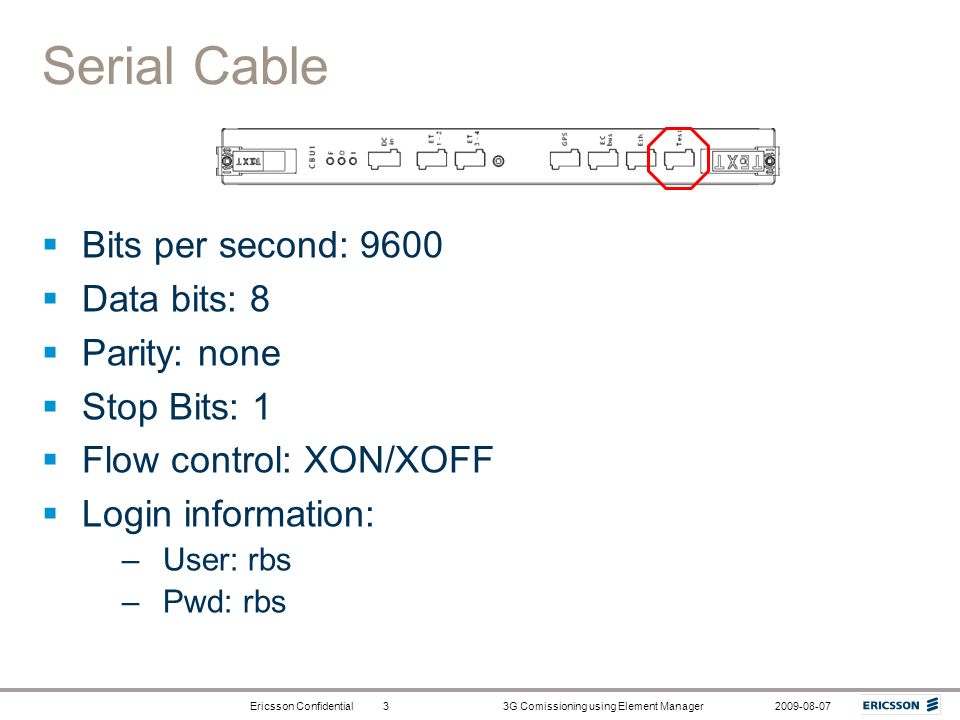

3 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-073 Serial Cable  Bits per second: 9600  Data bits: 8  Parity: none  Stop Bits: 1  Flow control: XON/XOFF  Login information: –User: rbs –Pwd: rbs

4 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-074 HyperTerminal / Putty

5 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-075 Ethernet Cable  Connect with Element Manager to the B node, using your Ethernet cable (crossover) and the Emily-RJ45 in the Ethernet port  Default IP address 169.254.1.1

6 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-076 Element Manager

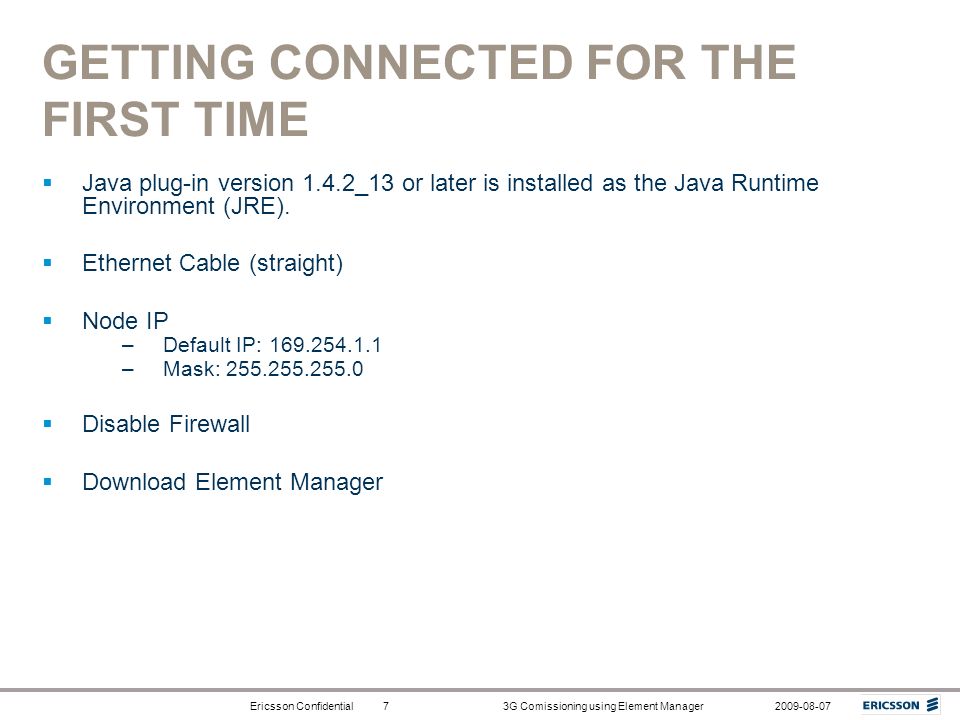

7 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-077 GETTING CONNECTED FOR THE FIRST TIME  Java plug-in version 1.4.2_13 or later is installed as the Java Runtime Environment (JRE).  Ethernet Cable (straight)  Node IP –Default IP: 169.254.1.1 –Mask: 255.255.255.0  Disable Firewall  Download Element Manager

8 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-078 How to disable Firewall Windows Vista: Go to Run in the Start Menu of Windows, then type “ services.msc “ and press enter. Disable all Symantec services with Startup Type automatic

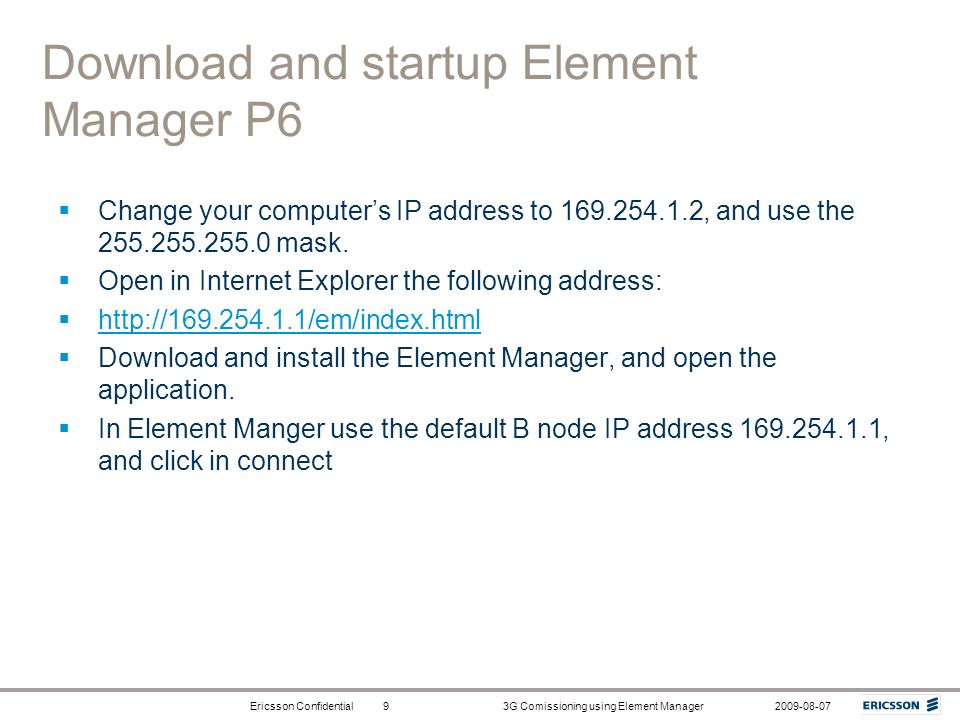

9 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-079 Download and startup Element Manager P6  Change your computer’s IP address to 169.254.1.2, and use the 255.255.255.0 mask.  Open in Internet Explorer the following address:  http://169.254.1.1/em/index.html http://169.254.1.1/em/index.html  Download and install the Element Manager, and open the application.  In Element Manger use the default B node IP address 169.254.1.1, and click in connect

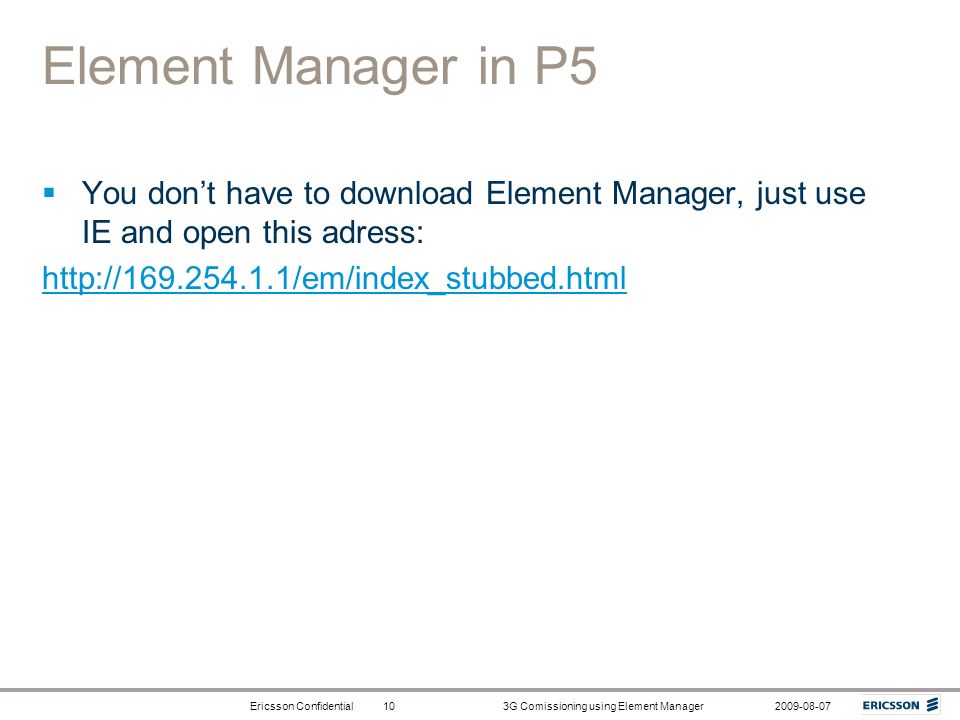

10 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0710 Element Manager in P5  You don’t have to download Element Manager, just use IE and open this adress: http://169.254.1.1/em/index_stubbed.html

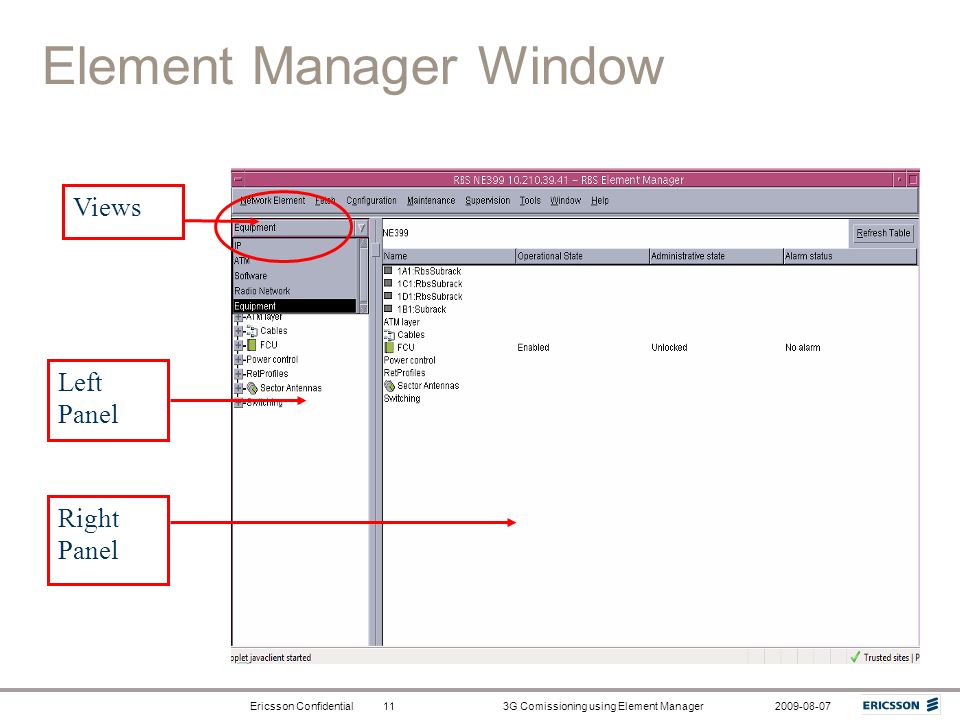

11 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0711 Element Manager Window Views Left Panel Right Panel

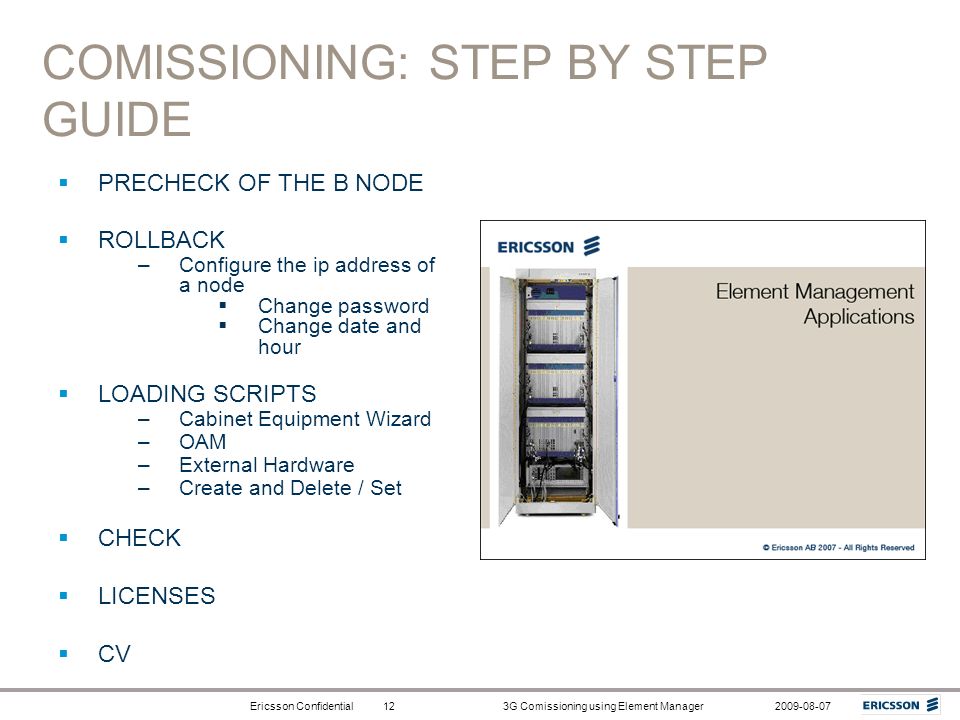

12 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0712 COMISSIONING: STEP BY STEP GUIDE  PRECHECK OF THE B NODE  ROLLBACK –Configure the ip address of a node  Change password  Change date and hour  LOADING SCRIPTS –Cabinet Equipment Wizard –OAM –External Hardware –Create and Delete / Set  CHECK  LICENSES  CV

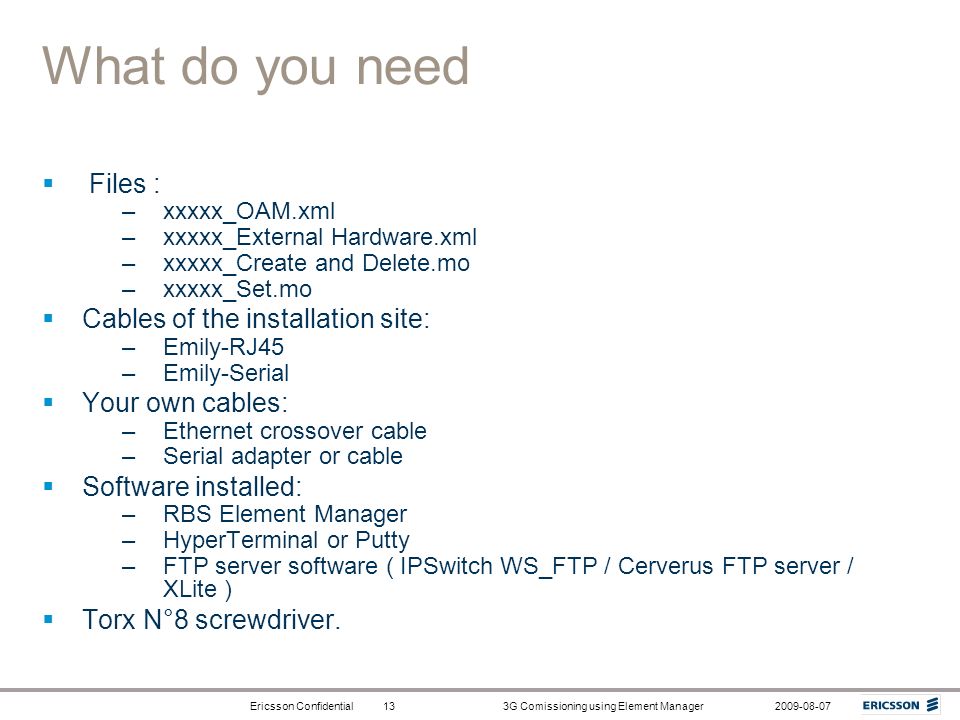

13 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0713 What do you need  Files : –xxxxx_OAM.xml –xxxxx_External Hardware.xml –xxxxx_Create and Delete.mo –xxxxx_Set.mo  Cables of the installation site: –Emily-RJ45 –Emily-Serial  Your own cables: –Ethernet crossover cable –Serial adapter or cable  Software installed: –RBS Element Manager –HyperTerminal or Putty –FTP server software ( IPSwitch WS_FTP / Cerverus FTP server / XLite )  Torx N°8 screwdriver.

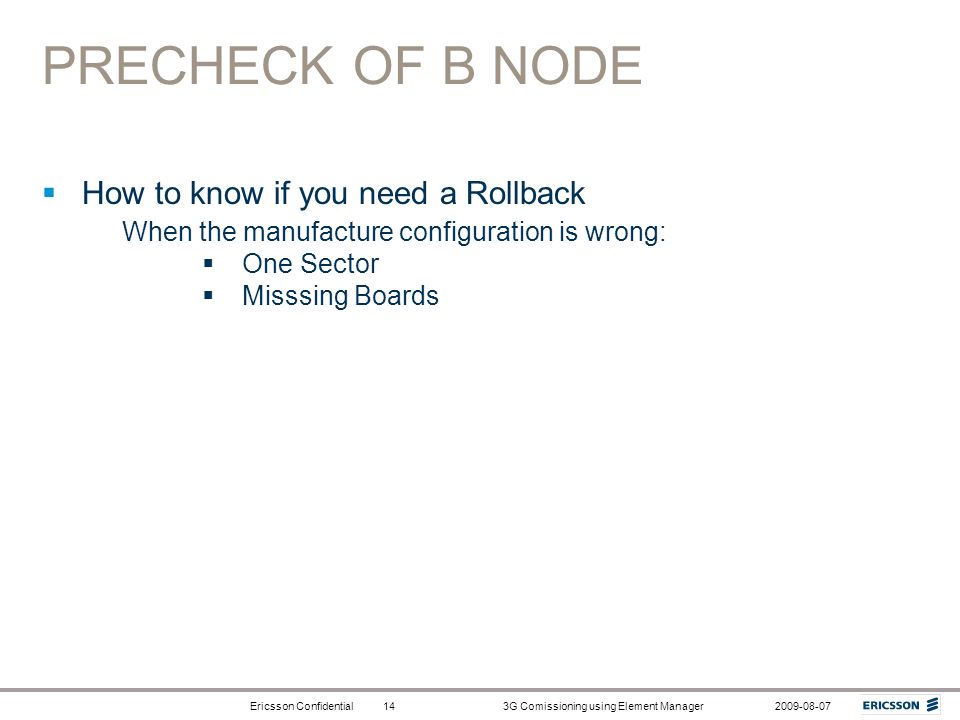

14 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0714 PRECHECK OF B NODE  How to know if you need a Rollback When the manufacture configuration is wrong:  One Sector  Misssing Boards

15 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0715 WHAT TO CHECK There is no ET-MFX board in the slot 2 One sector, and the configuration will have 3

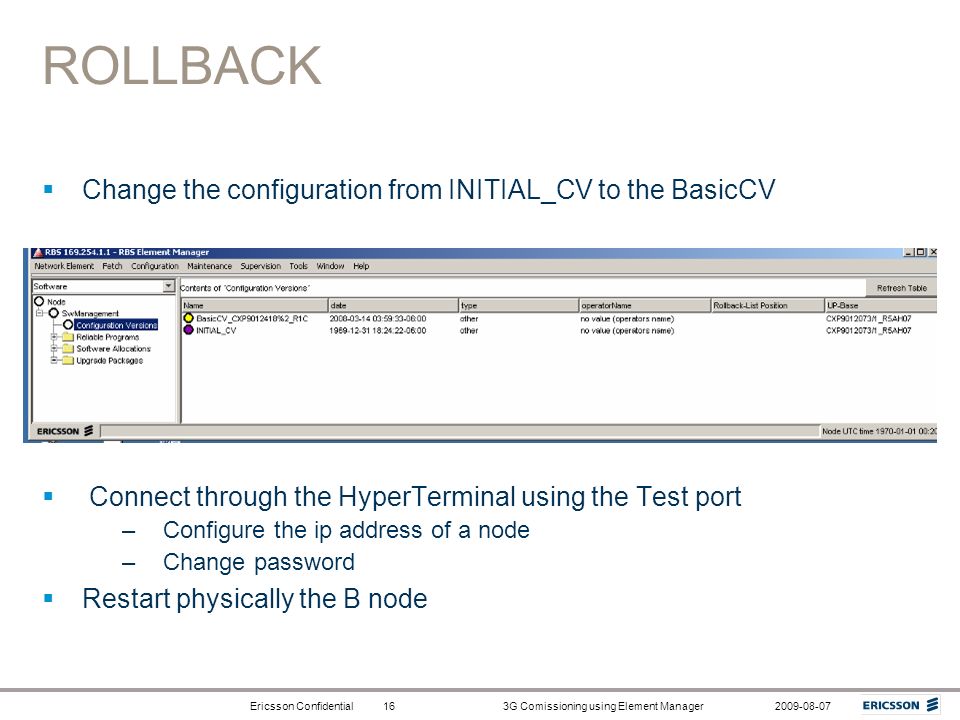

16 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0716 ROLLBACK  Change the configuration from INITIAL_CV to the BasicCV  Connect through the HyperTerminal using the Test port –Configure the ip address of a node –Change password  Restart physically the B node

17 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0717 LOADING SCRIPTS AND USING THE EM WIZARDS  Cabinet Equipment  OAM access  Site Equipment  Run command file

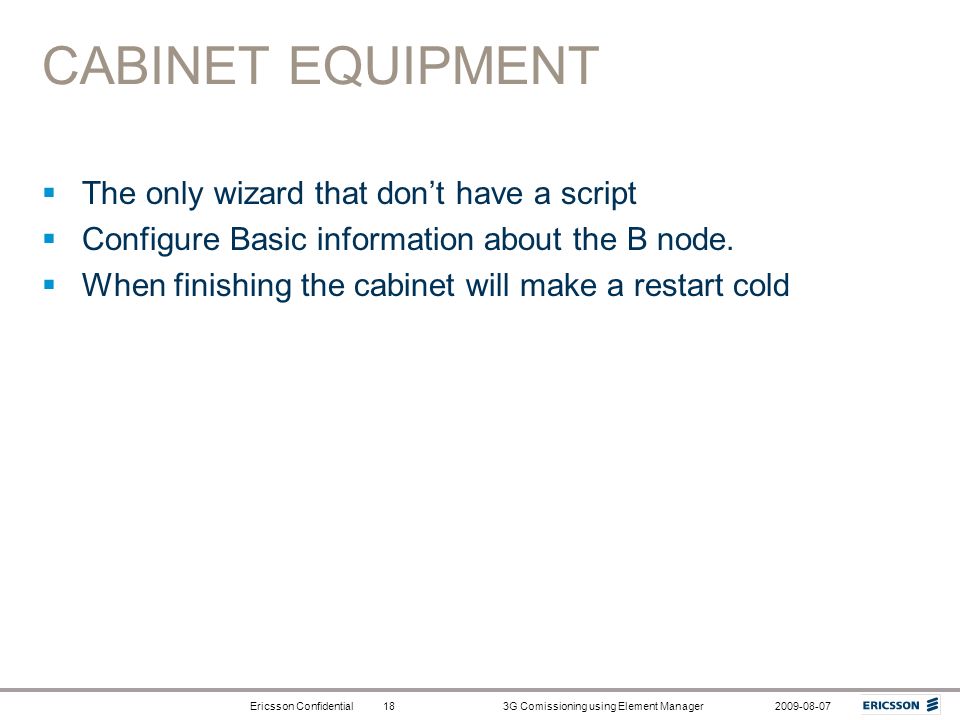

18 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0718 CABINET EQUIPMENT  The only wizard that don’t have a script  Configure Basic information about the B node.  When finishing the cabinet will make a restart cold

19 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0719 CABINET EQUIPMENT

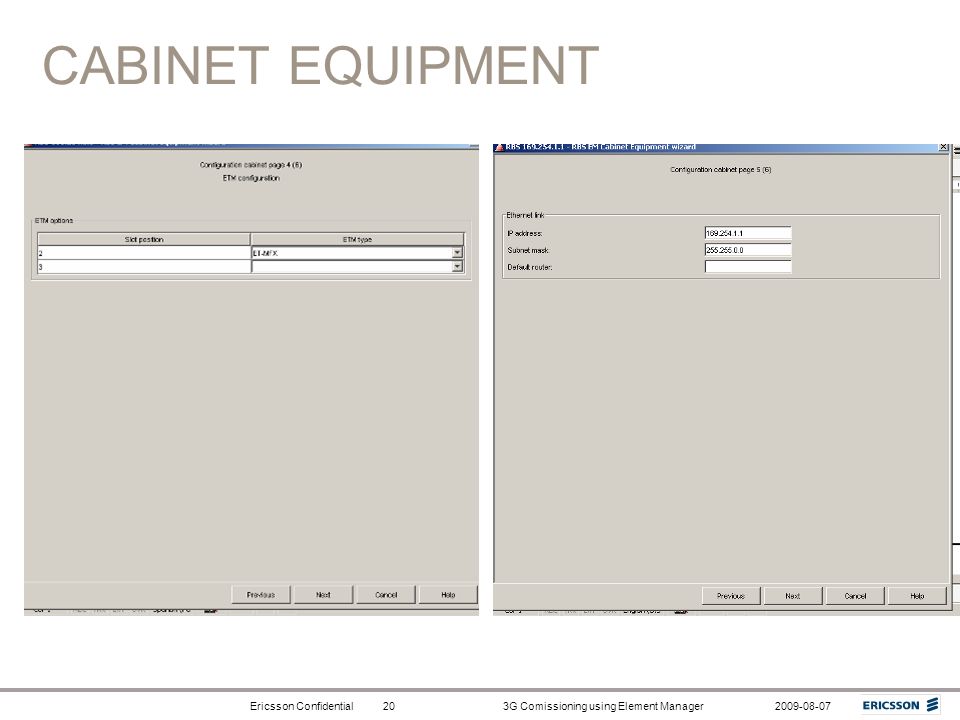

20 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0720 CABINET EQUIPMENT

21 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0721 CABINET EQUIPMENT

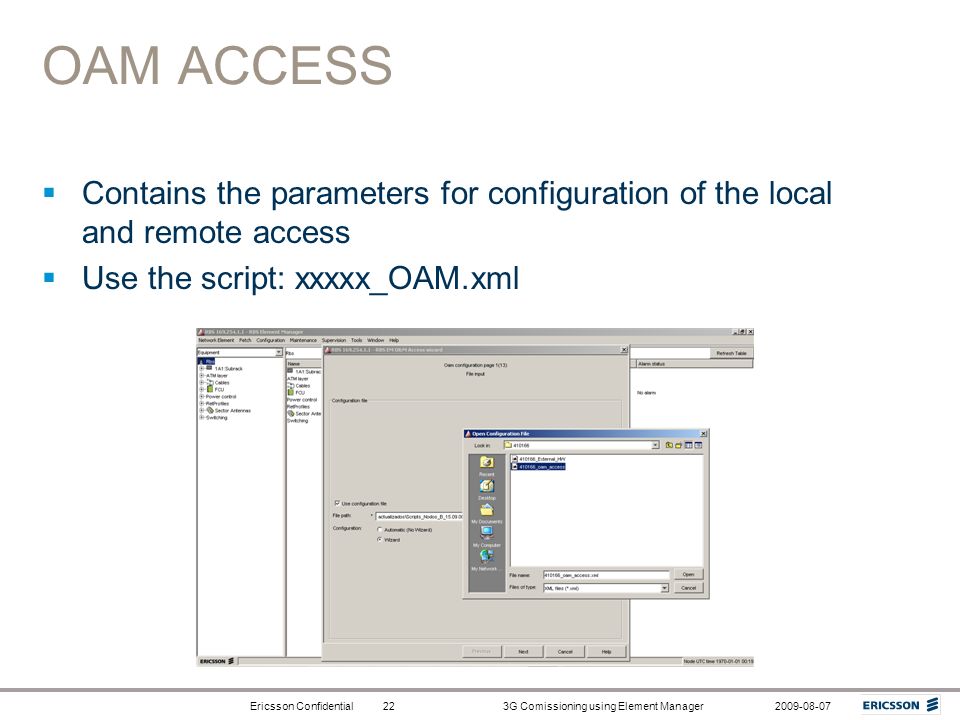

22 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0722 OAM ACCESS  Contains the parameters for configuration of the local and remote access  Use the script: xxxxx_OAM.xml

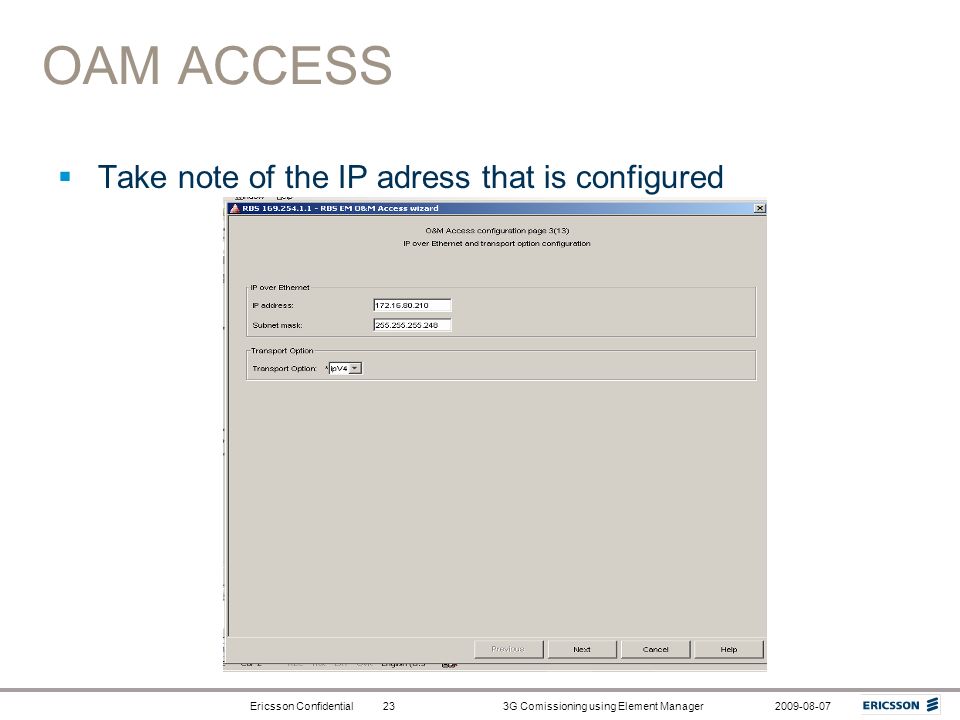

23 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0723 OAM ACCESS  Take note of the IP adress that is configured

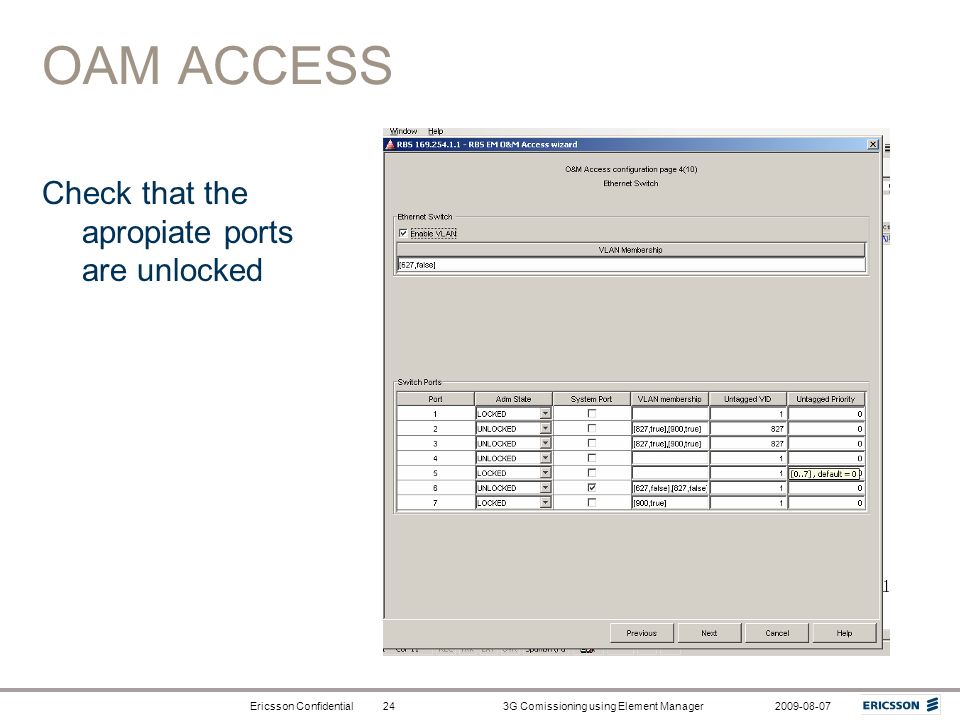

24 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0724 OAM ACCESS Check that the apropiate ports are unlocked

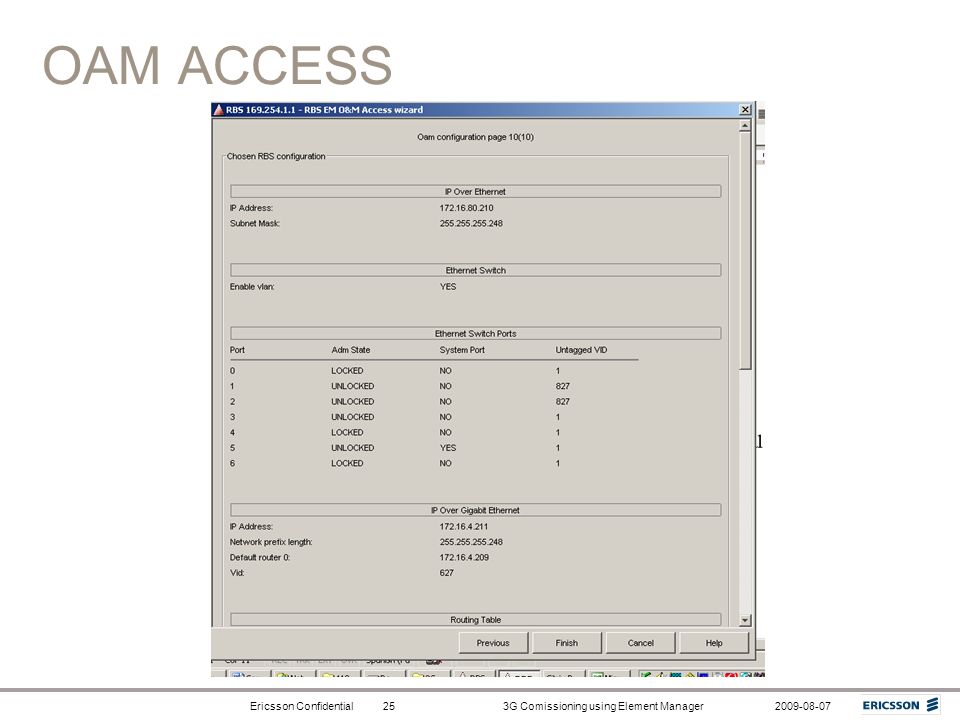

25 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0725 OAM ACCESS

26 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0726 SITE EQUIPMENT  Parameters for configuration of the equipment on site  Use the script: xxxxx_External Hardware.xml  Change your computer IP adress one value plus the one of the OAM wizard

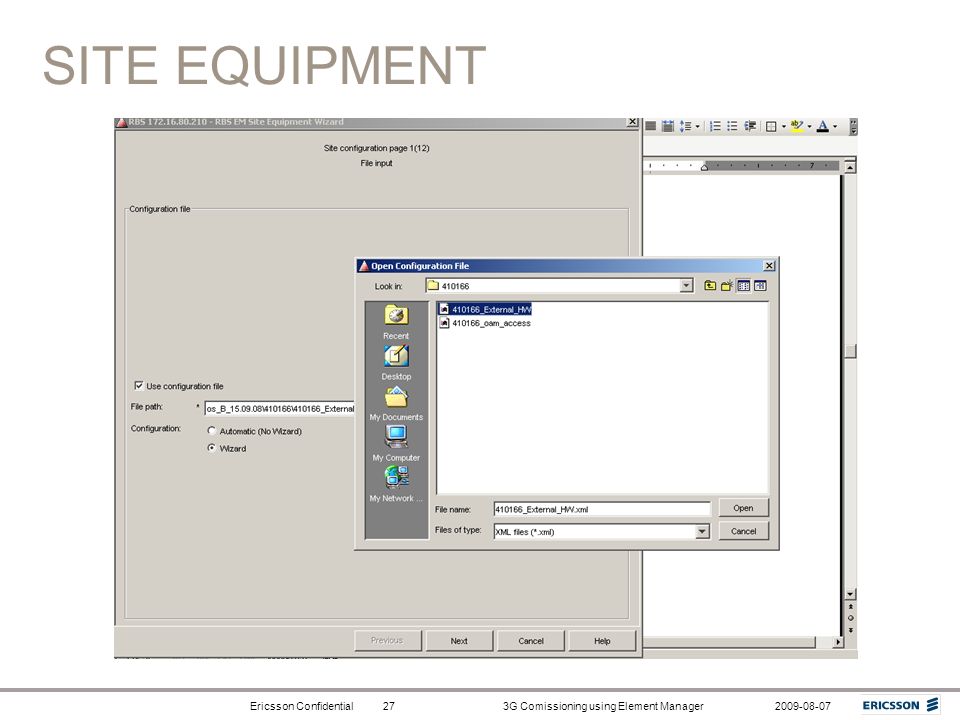

27 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0727 SITE EQUIPMENT

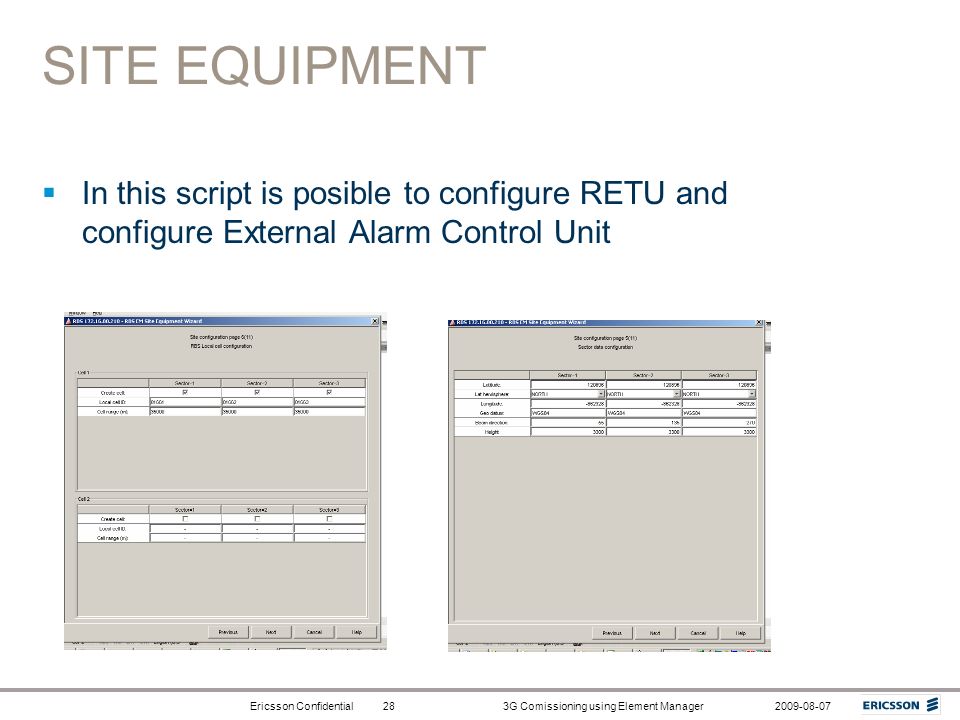

28 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0728 SITE EQUIPMENT  In this script is posible to configure RETU and configure External Alarm Control Unit

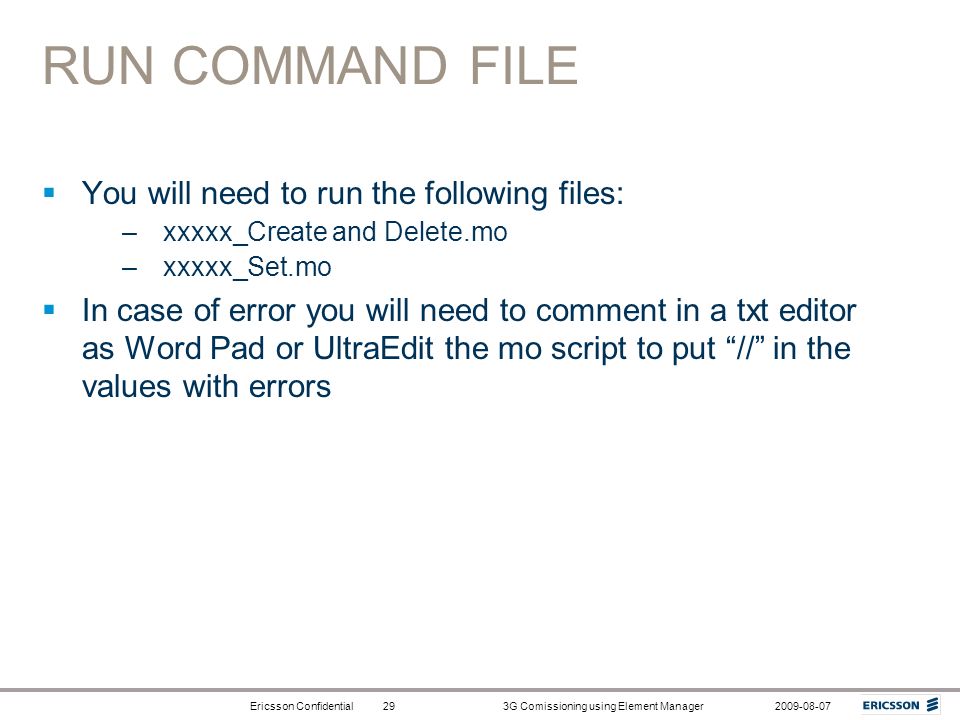

29 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0729 RUN COMMAND FILE  You will need to run the following files: –xxxxx_Create and Delete.mo –xxxxx_Set.mo  In case of error you will need to comment in a txt editor as Word Pad or UltraEdit the mo script to put “//” in the values with errors

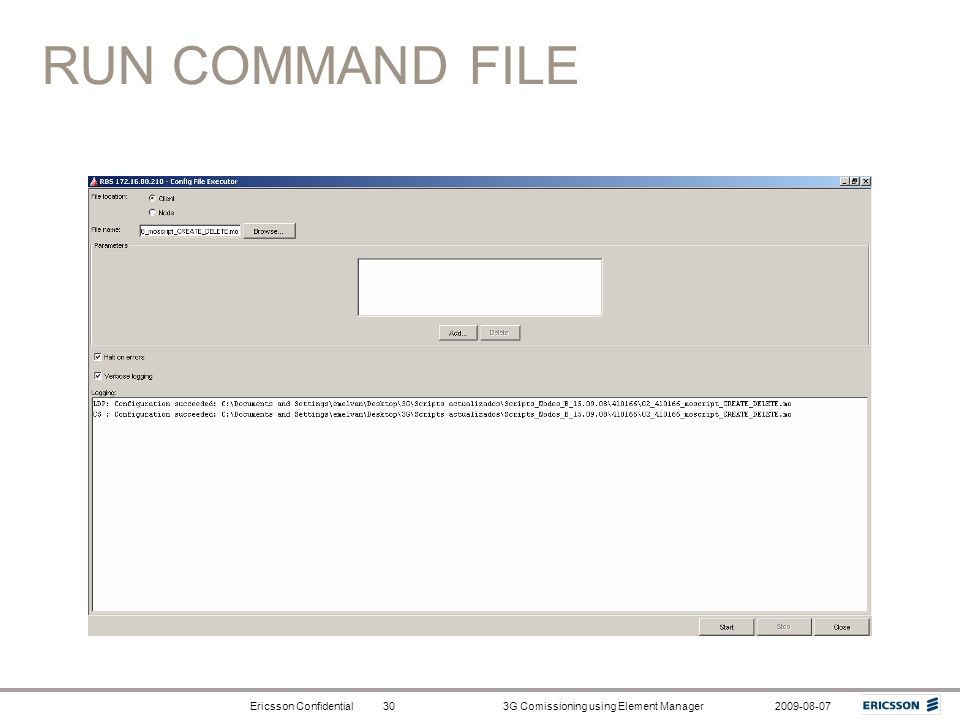

30 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0730 RUN COMMAND FILE

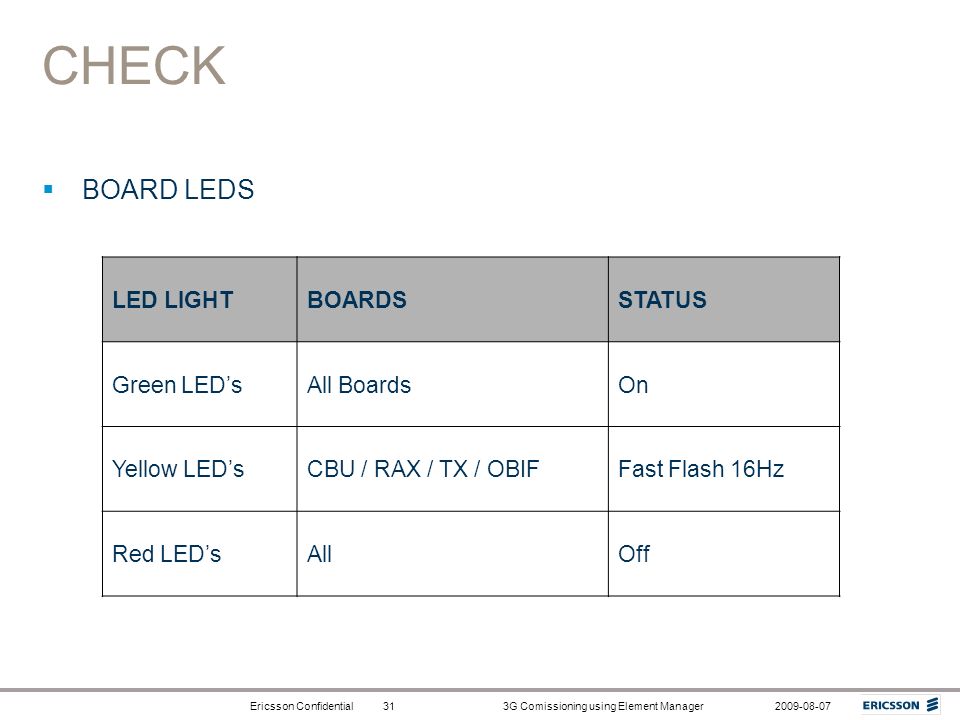

31 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0731 CHECK  BOARD LEDS LED LIGHTBOARDSSTATUS Green LED’sAll BoardsOn Yellow LED’sCBU / RAX / TX / OBIFFast Flash 16Hz Red LED’sAllOff

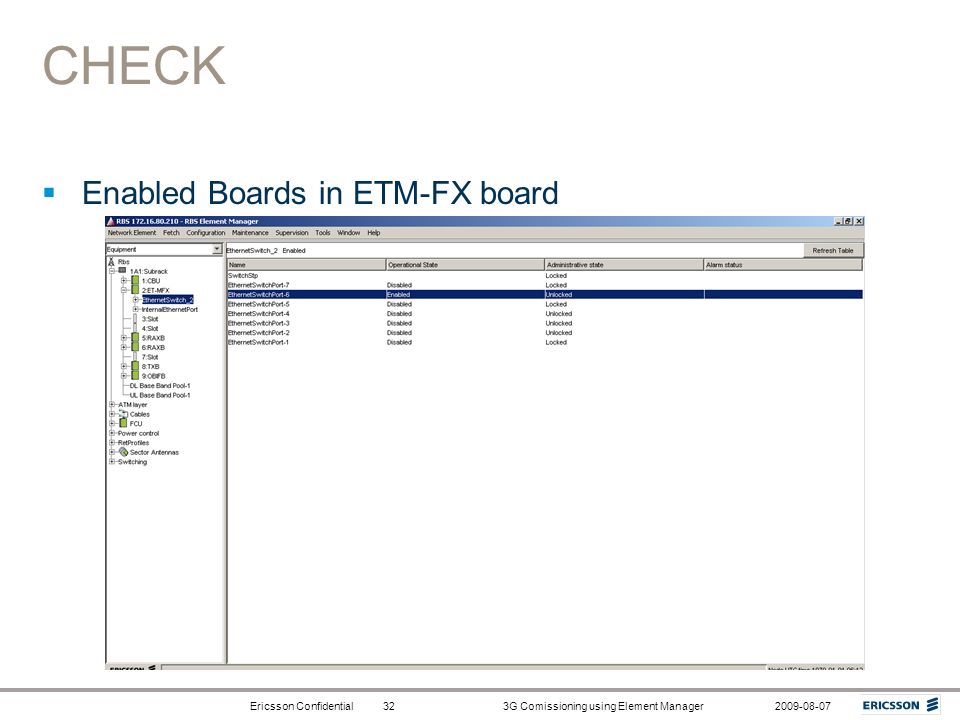

32 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0732 CHECK  Enabled Boards in ETM-FX board

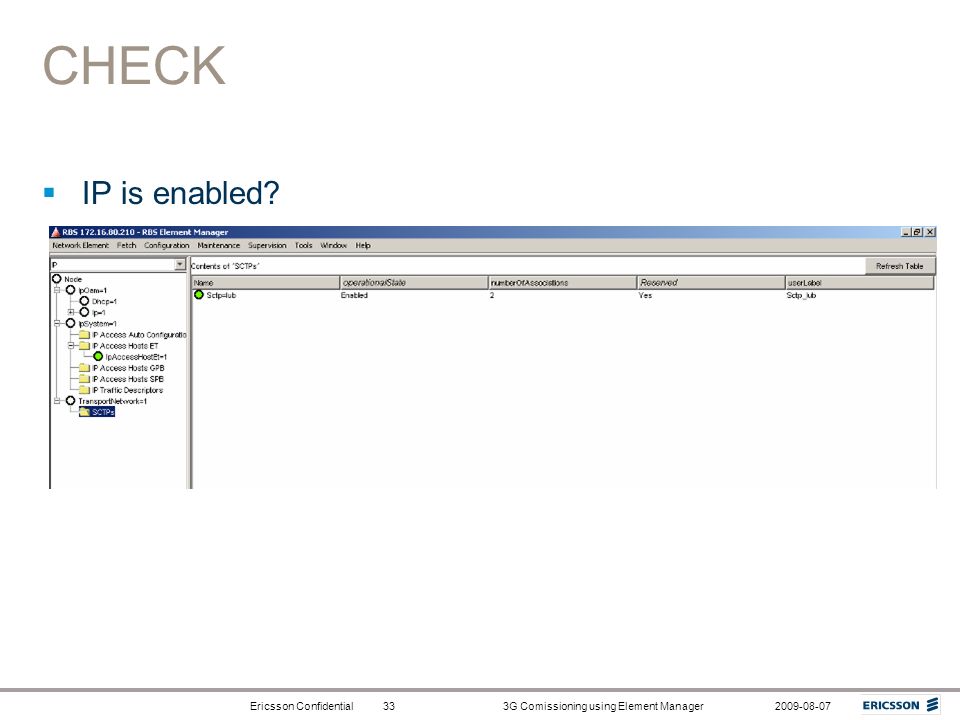

33 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0733 CHECK  IP is enabled?

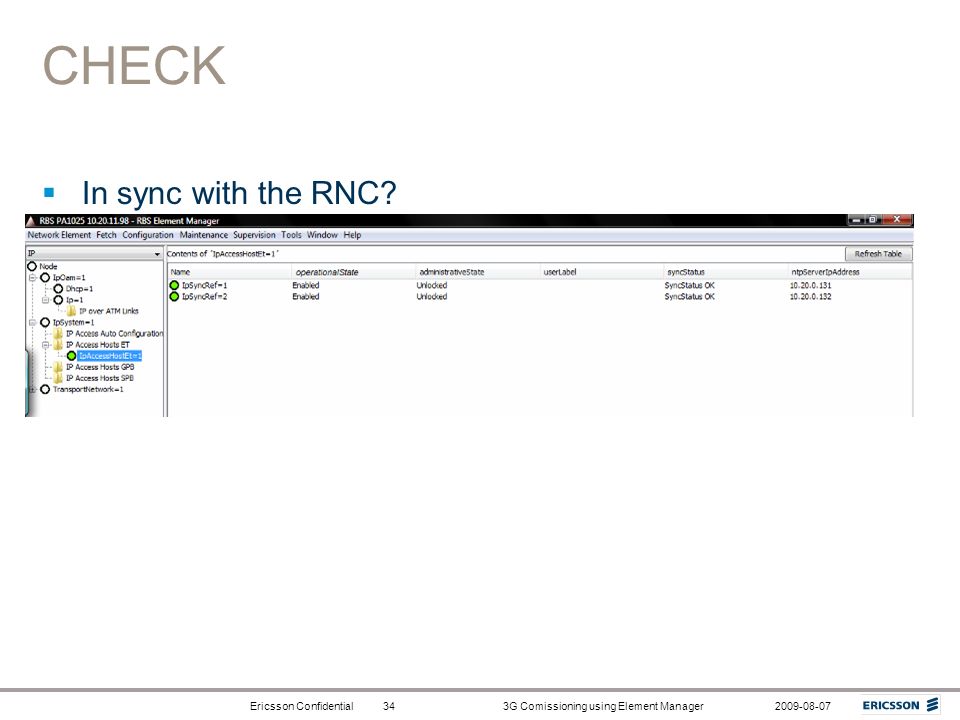

34 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0734 CHECK  In sync with the RNC?

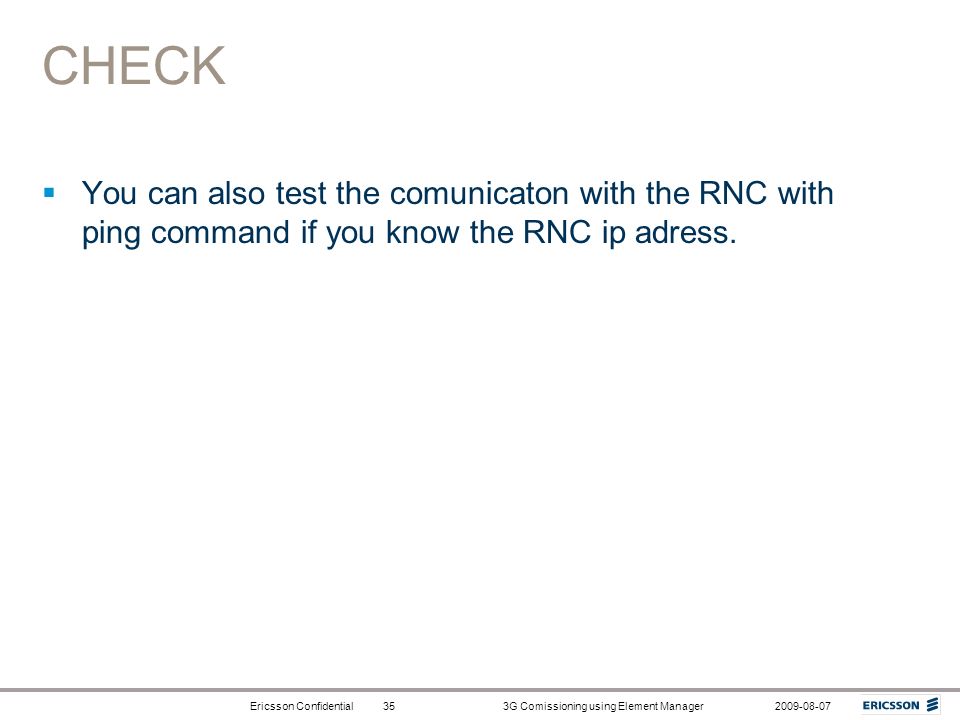

35 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0735 CHECK  You can also test the comunicaton with the RNC with ping command if you know the RNC ip adress.

36 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0736 CHECK  Is on-air? There are Traffic Channels on?

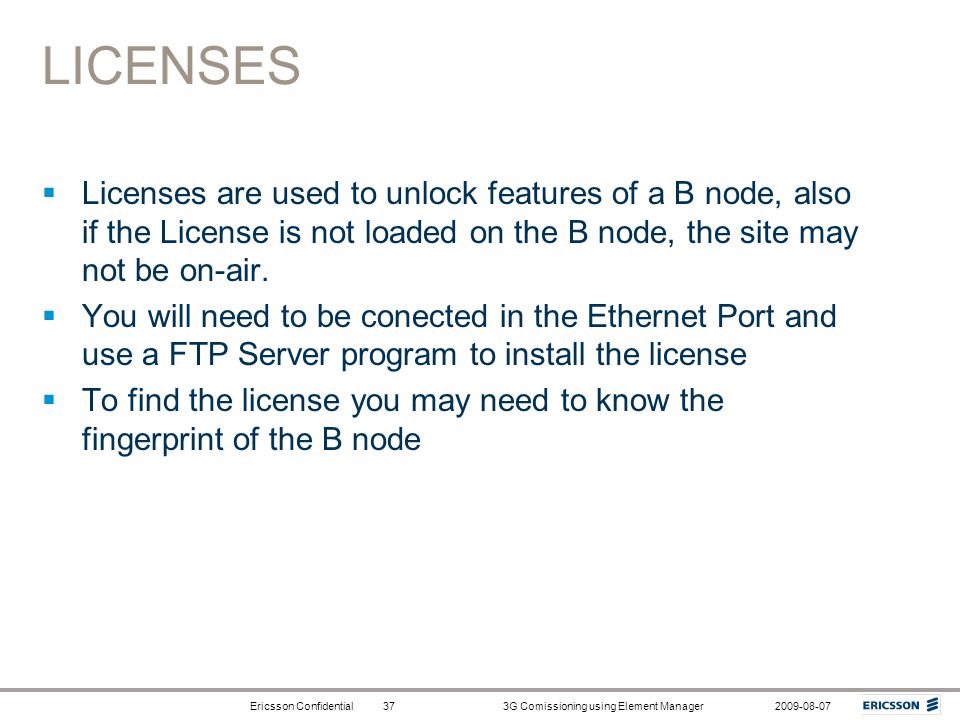

37 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0737 LICENSES  Licenses are used to unlock features of a B node, also if the License is not loaded on the B node, the site may not be on-air.  You will need to be conected in the Ethernet Port and use a FTP Server program to install the license  To find the license you may need to know the fingerprint of the B node

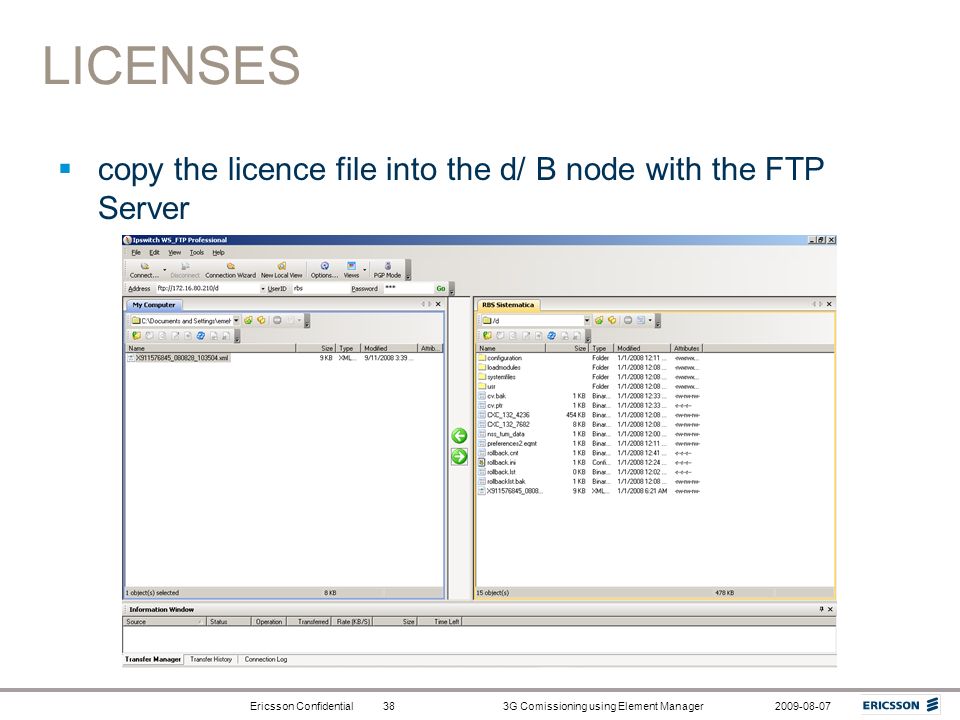

38 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0738 LICENSES  copy the licence file into the d/ B node with the FTP Server

39 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0739 LICENSES  Once the license xml file is copied, open Configuration / Licensing / Update Key File

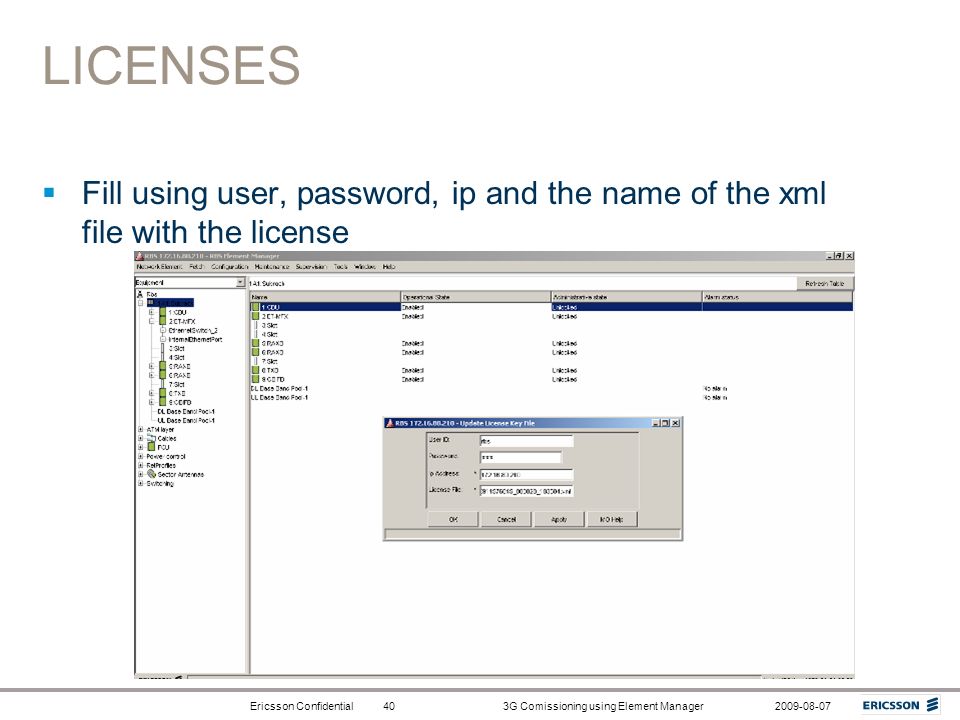

40 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0740 LICENSES  Fill using user, password, ip and the name of the xml file with the license

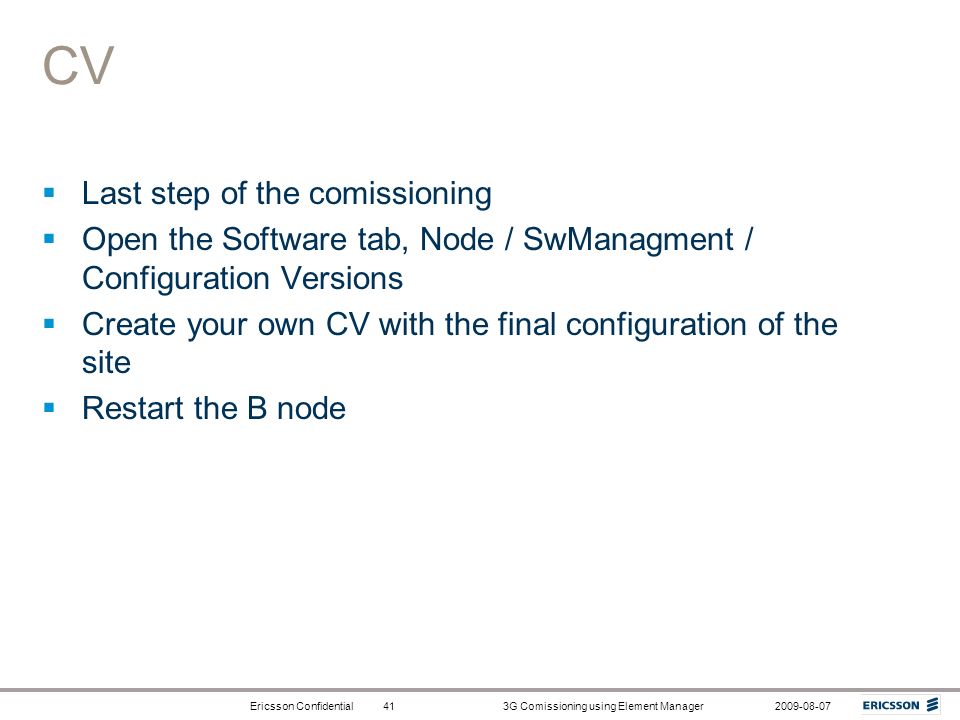

41 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0741 CV  Last step of the comissioning  Open the Software tab, Node / SwManagment / Configuration Versions  Create your own CV with the final configuration of the site  Restart the B node

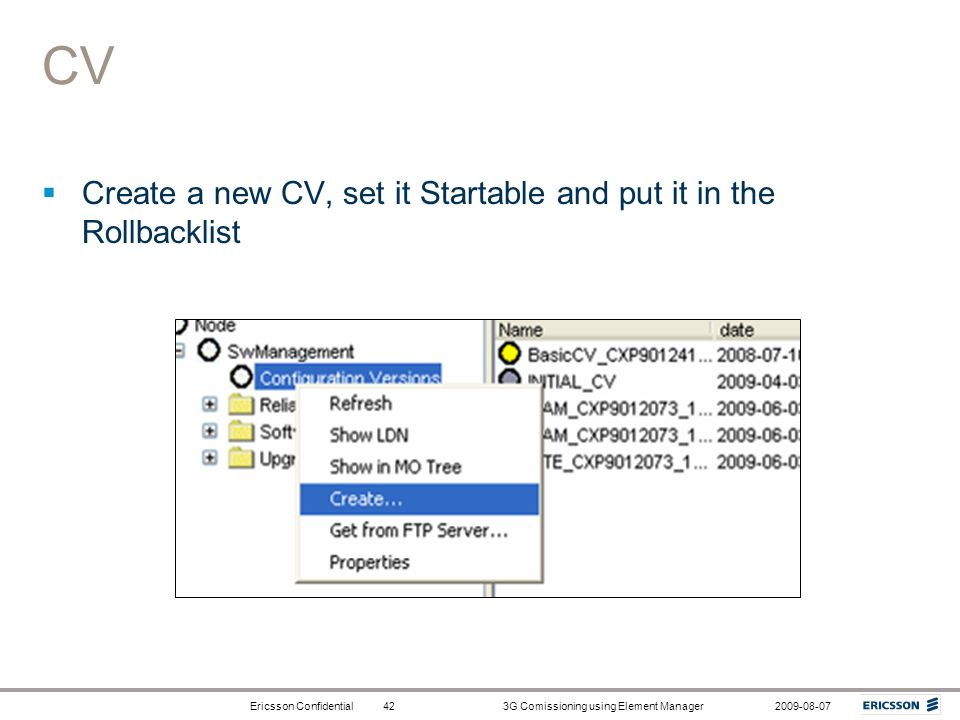

42 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0742 CV  Create a new CV, set it Startable and put it in the Rollbacklist

43 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0743 CV

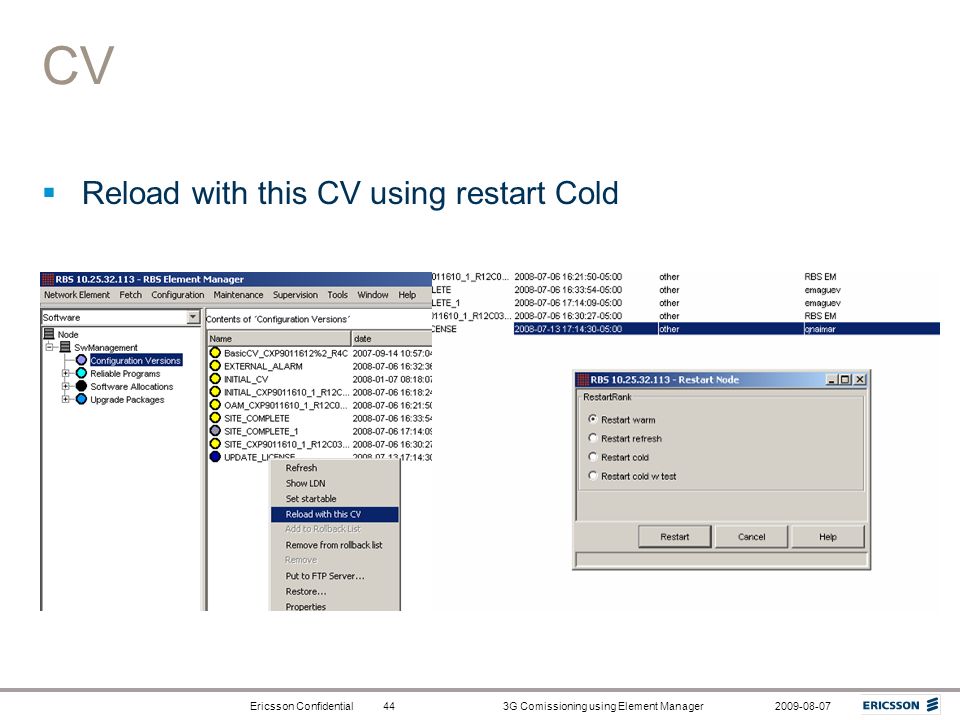

44 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0744 CV  Reload with this CV using restart Cold

45 Top right corner for field-mark, customer or partner logotypes. See Best practice for example. Slide title 40 pt Slide subtitle 24 pt Text 24 pt Bullets level 2-5 20 pt Ericsson Confidential3G Comissioning using Element Manager2009-08-0745 BASIC TROUBLESHOOTING  Board Test  VSWR measurements  Conecting to other B nodes remotely
