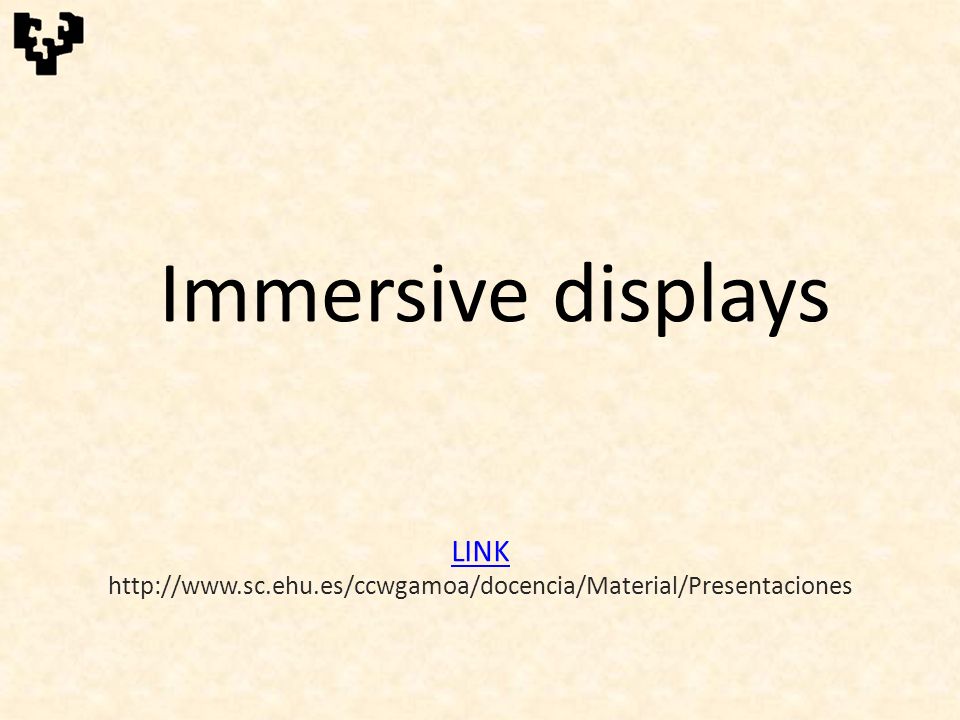

1 Immersive displays LINK LINK http://www.sc.ehu.es/ccwgamoa/docencia/Material/Presentaciones

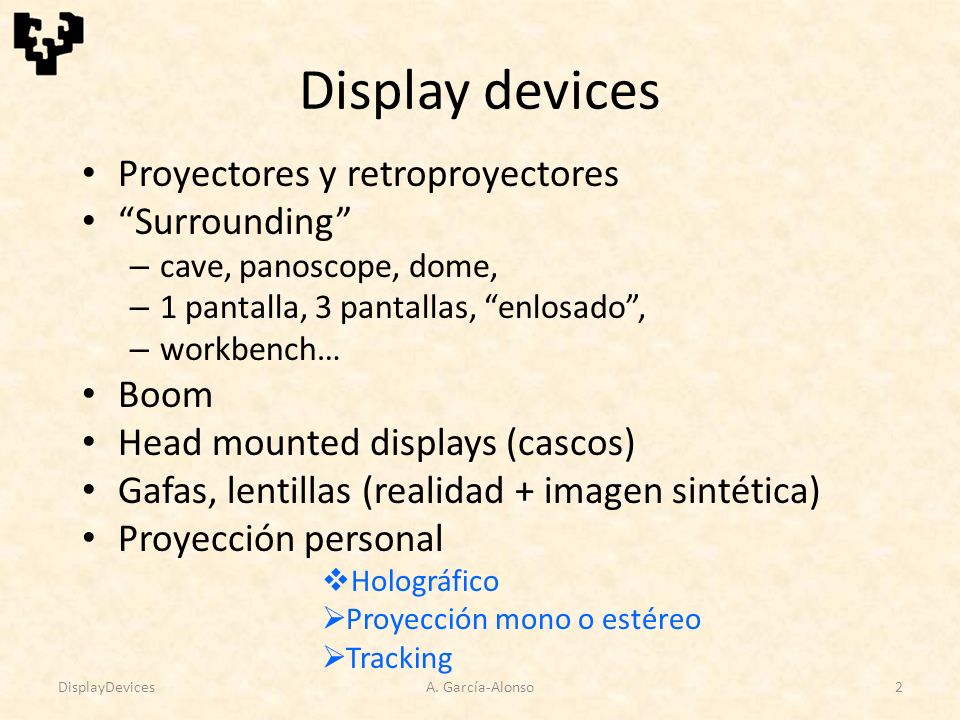

2 A. García-Alonso2 Display devices Proyectores y retroproyectores “Surrounding” – cave, panoscope, dome, – 1 pantalla, 3 pantallas, “enlosado”, – workbench… Boom Head mounted displays (cascos) Gafas, lentillas (realidad + imagen sintética) Proyección personal  Holográfico  Proyección mono o estéreo  Tracking DisplayDevices

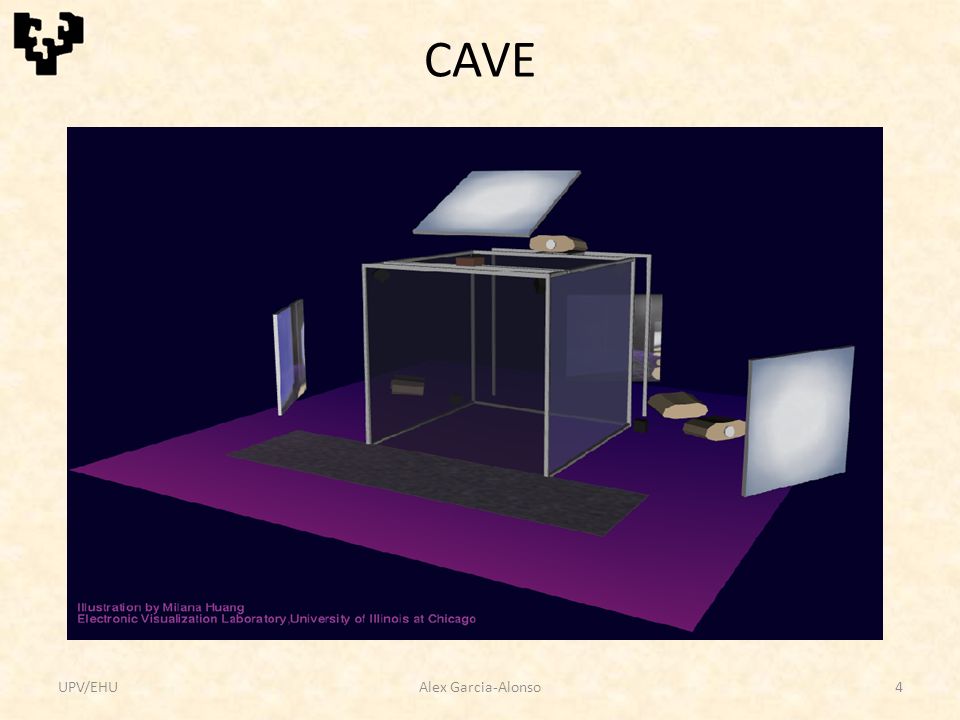

3 CAVE UPV/EHU3Alex Garcia-Alonso

4 CAVE UPV/EHU4Alex Garcia-Alonso

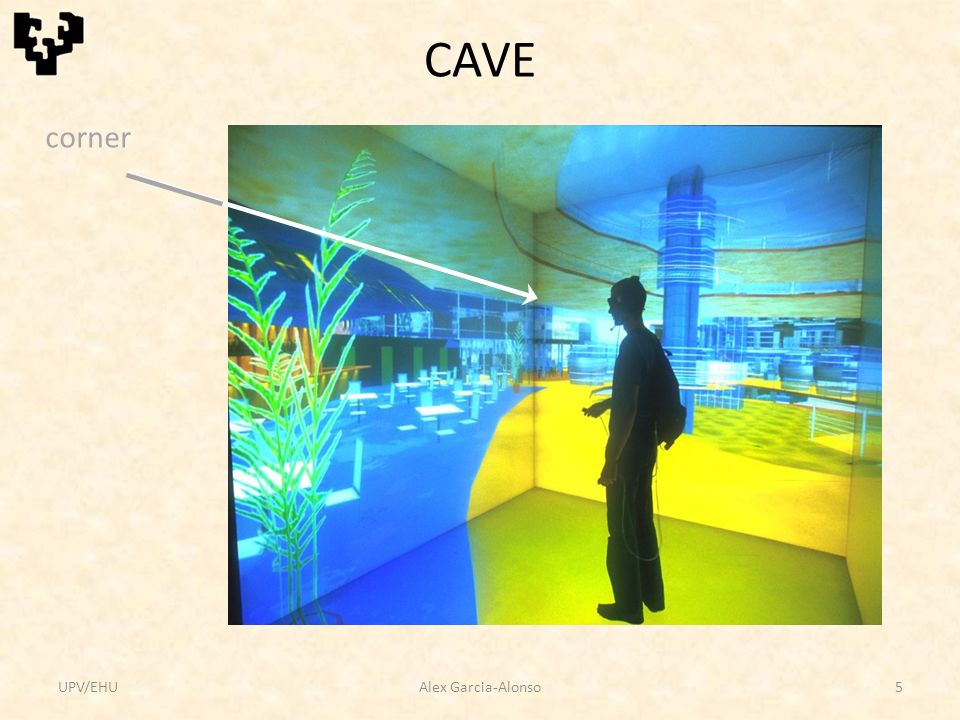

5 CAVE corner UPV/EHU5Alex Garcia-Alonso

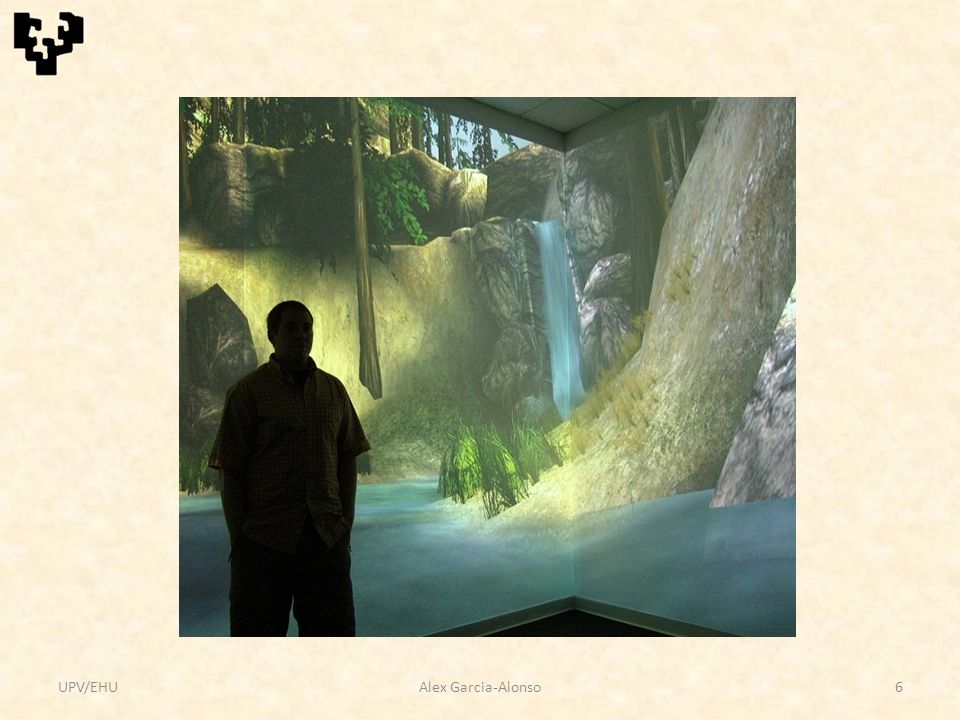

6 UPV/EHU6Alex Garcia-Alonso

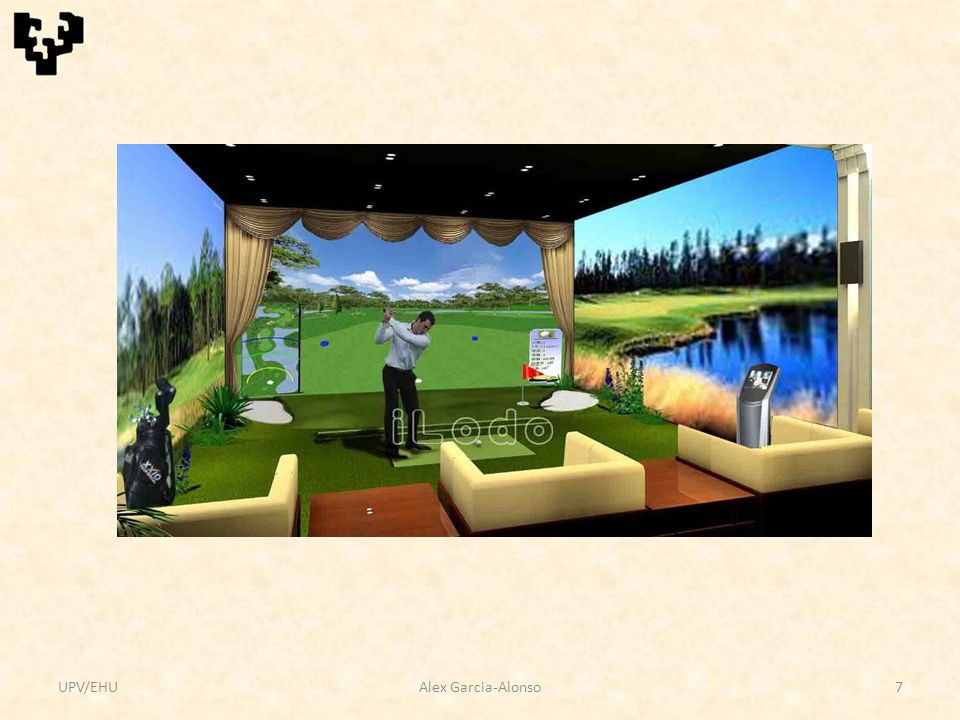

7 UPV/EHU7Alex Garcia-Alonso

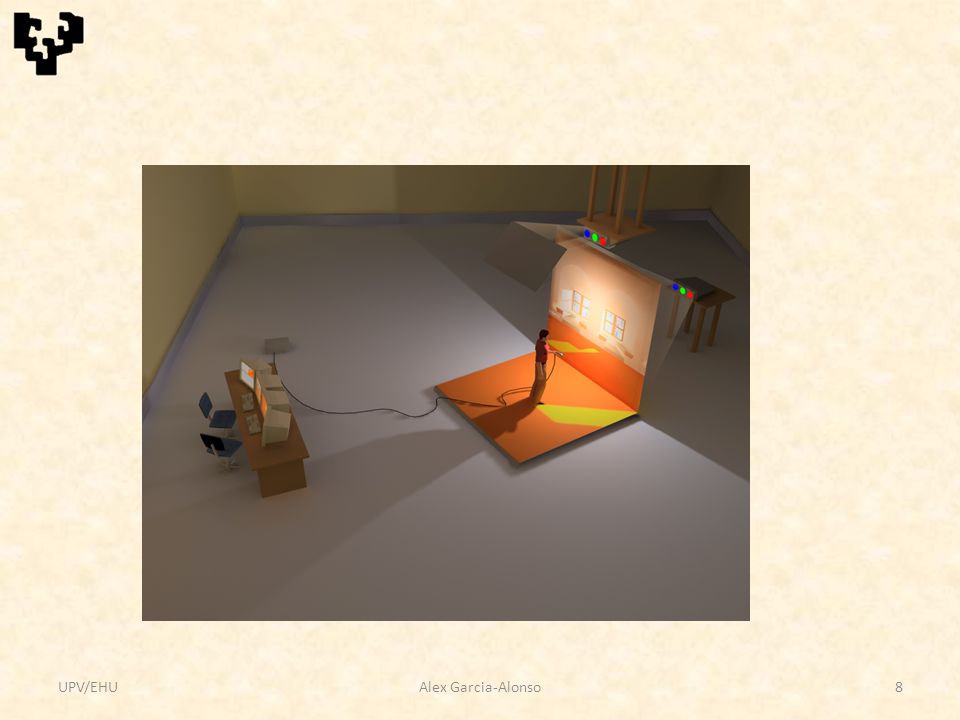

8 UPV/EHU8Alex Garcia-Alonso

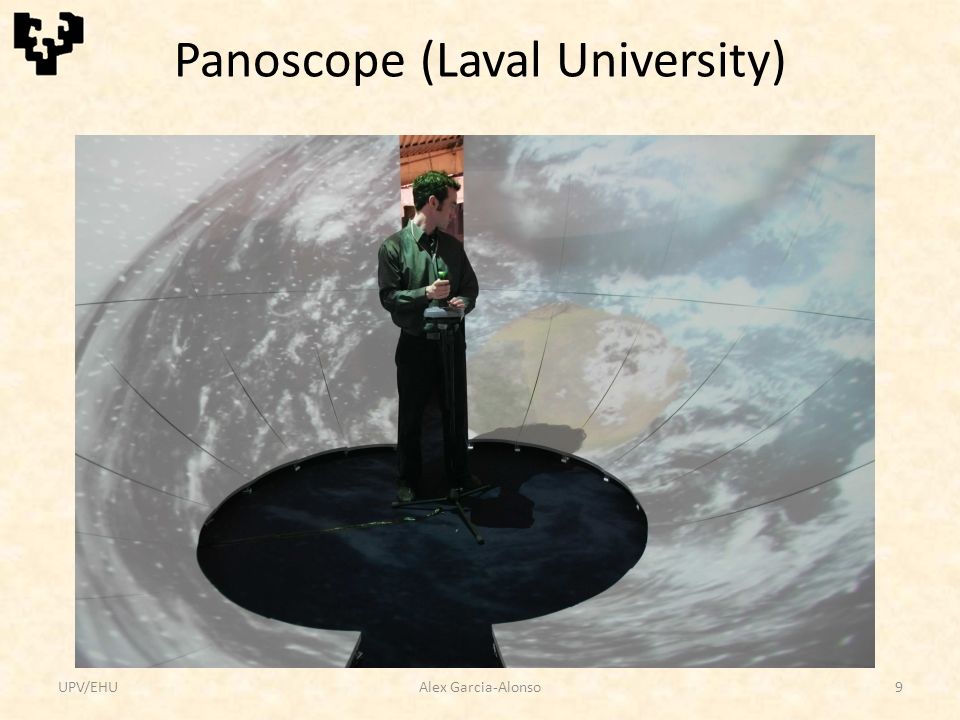

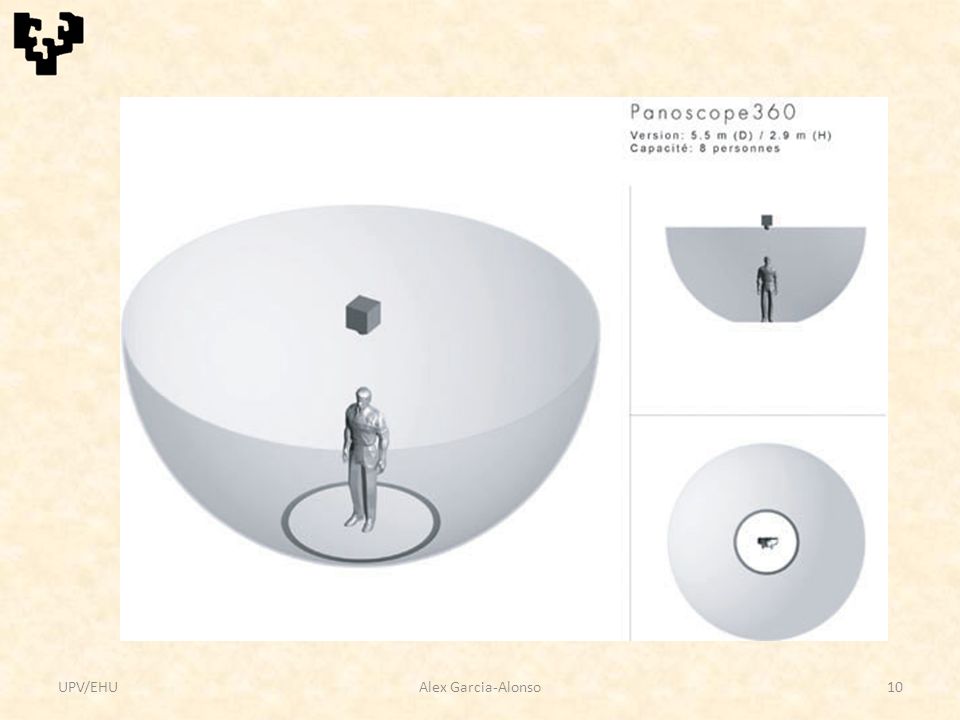

9 Panoscope (Laval University) UPV/EHU9Alex Garcia-Alonso

10 UPV/EHU10Alex Garcia-Alonso

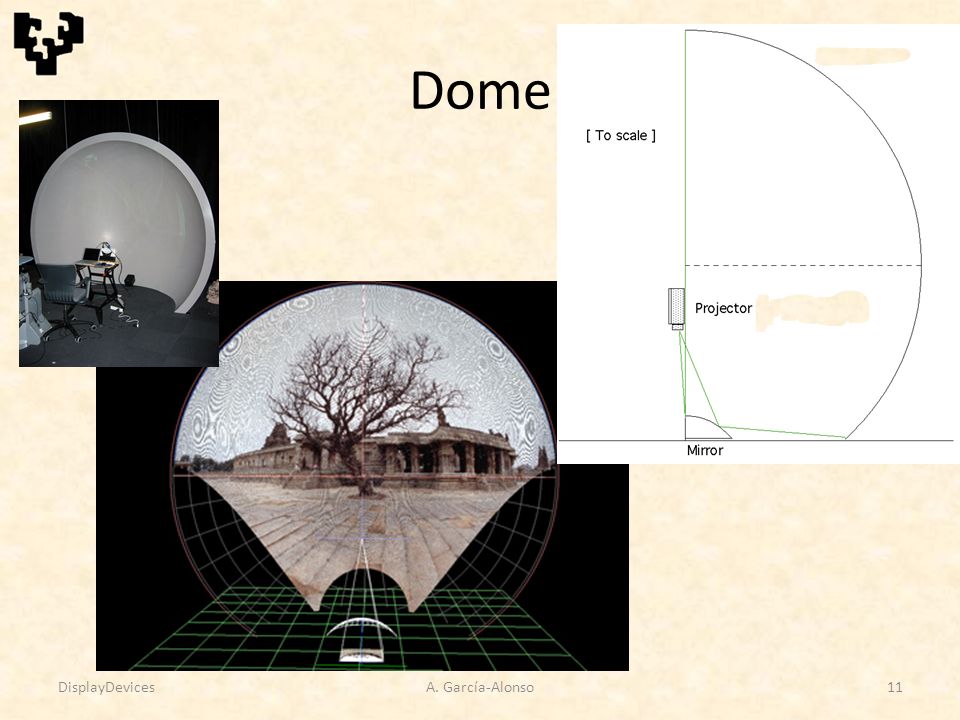

11 A. García-Alonso11 Dome DisplayDevices

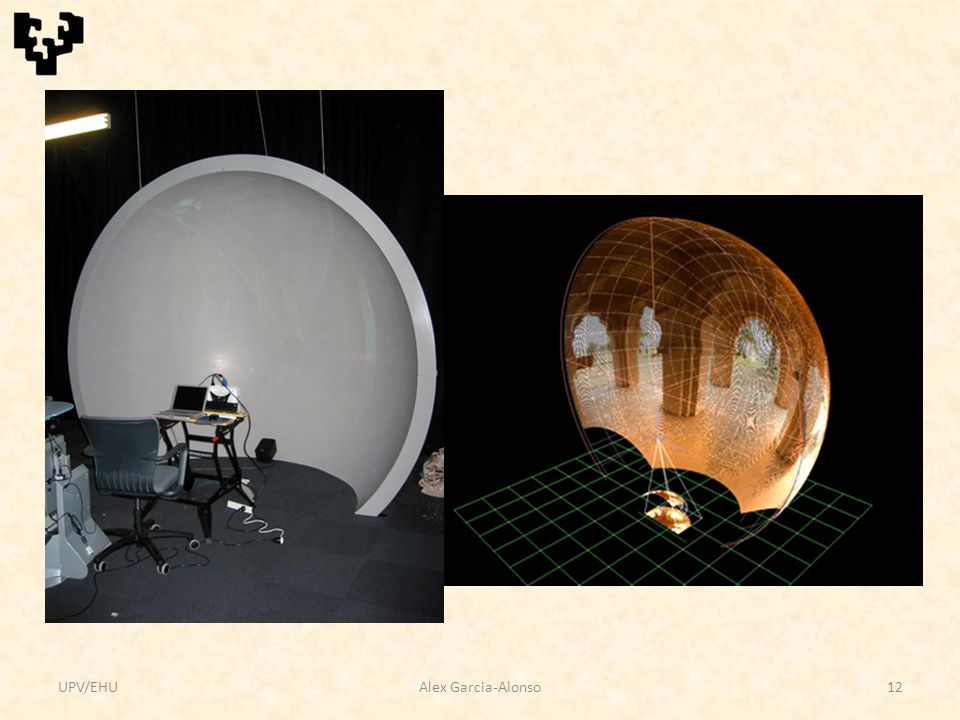

12 UPV/EHU12Alex Garcia-Alonso

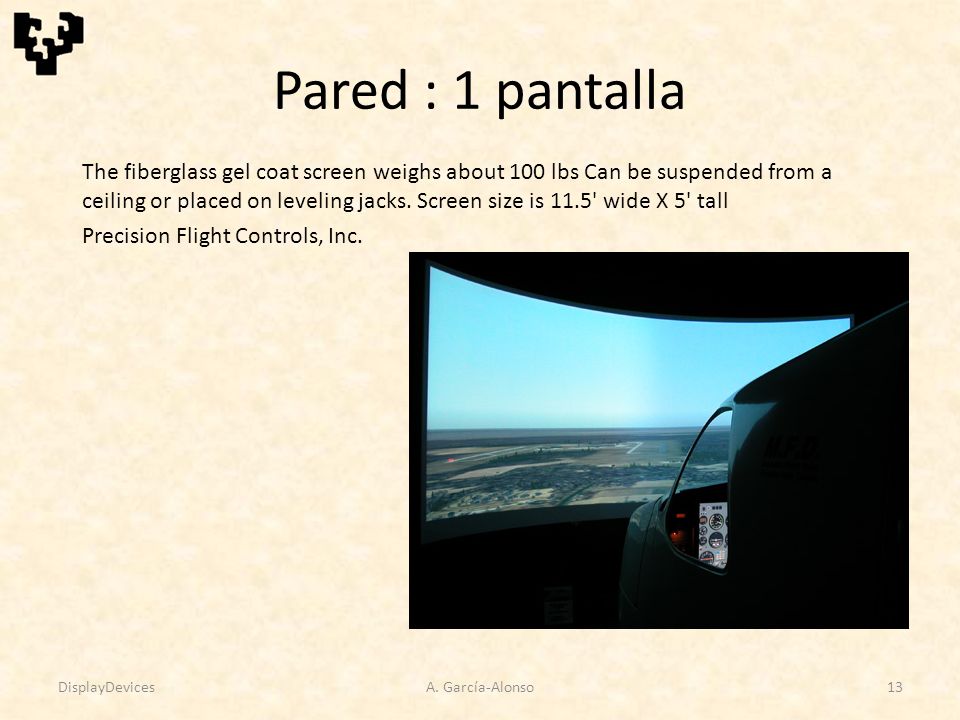

13 A. García-Alonso13 Pared : 1 pantalla The fiberglass gel coat screen weighs about 100 lbs Can be suspended from a ceiling or placed on leveling jacks. Screen size is 11.5' wide X 5' tall Precision Flight Controls, Inc. DisplayDevices

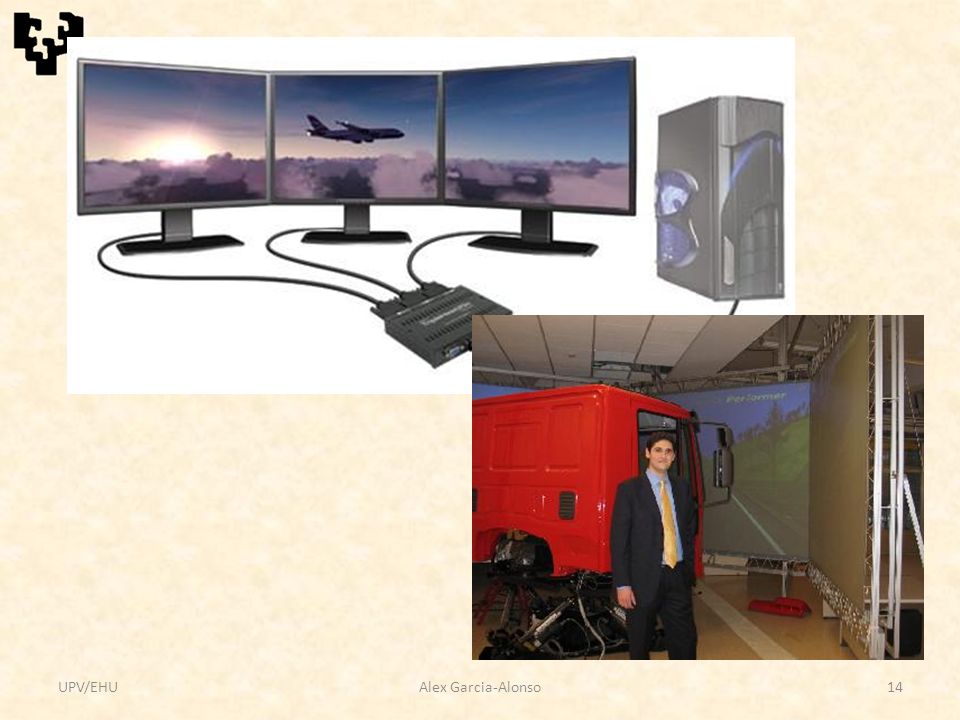

14 UPV/EHU14Alex Garcia-Alonso

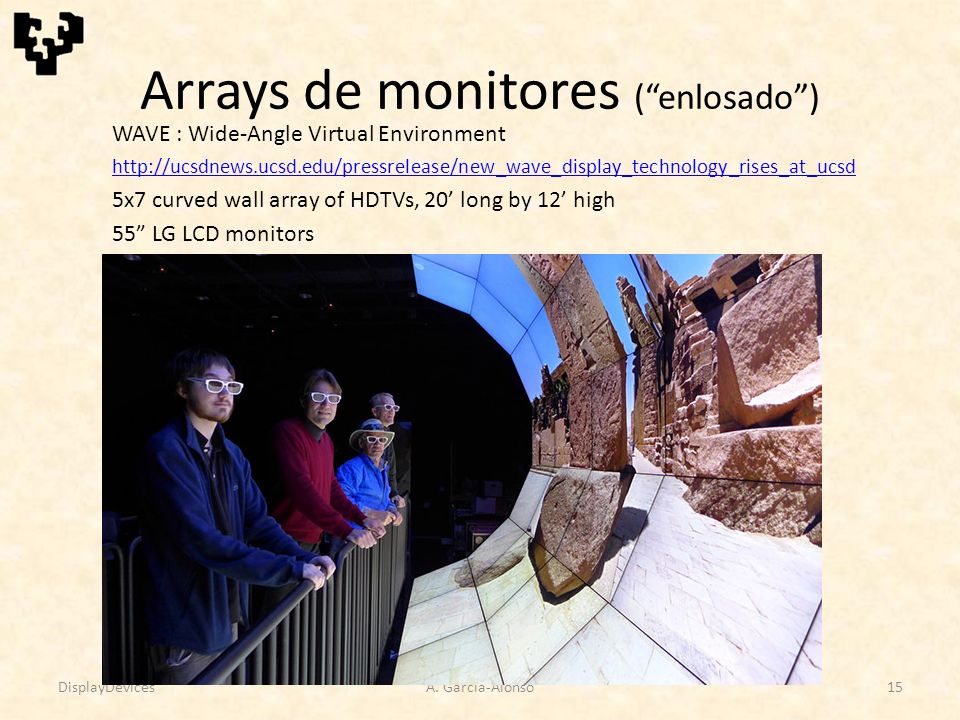

15 A. García-Alonso15 Arrays de monitores (“enlosado”) WAVE : Wide-Angle Virtual Environment http://ucsdnews.ucsd.edu/pressrelease/new_wave_display_technology_rises_at_ucsd 5x7 curved wall array of HDTVs, 20’ long by 12’ high 55” LG LCD monitors DisplayDevices

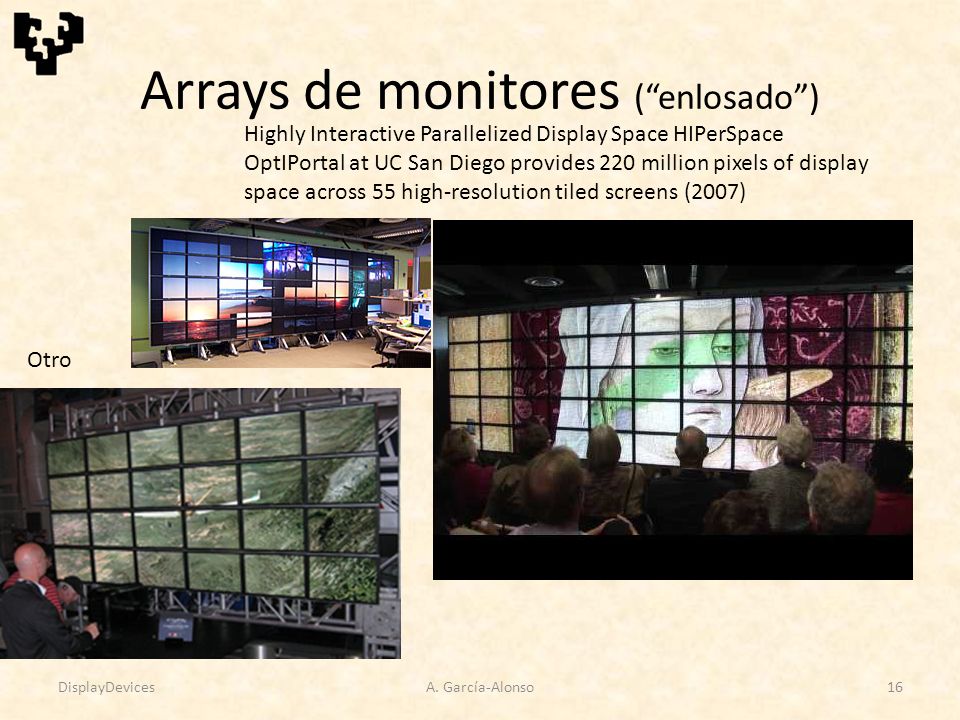

16 A. García-Alonso16 Arrays de monitores (“enlosado”) Highly Interactive Parallelized Display Space HIPerSpace OptIPortal at UC San Diego provides 220 million pixels of display space across 55 high-resolution tiled screens (2007) DisplayDevices Otro

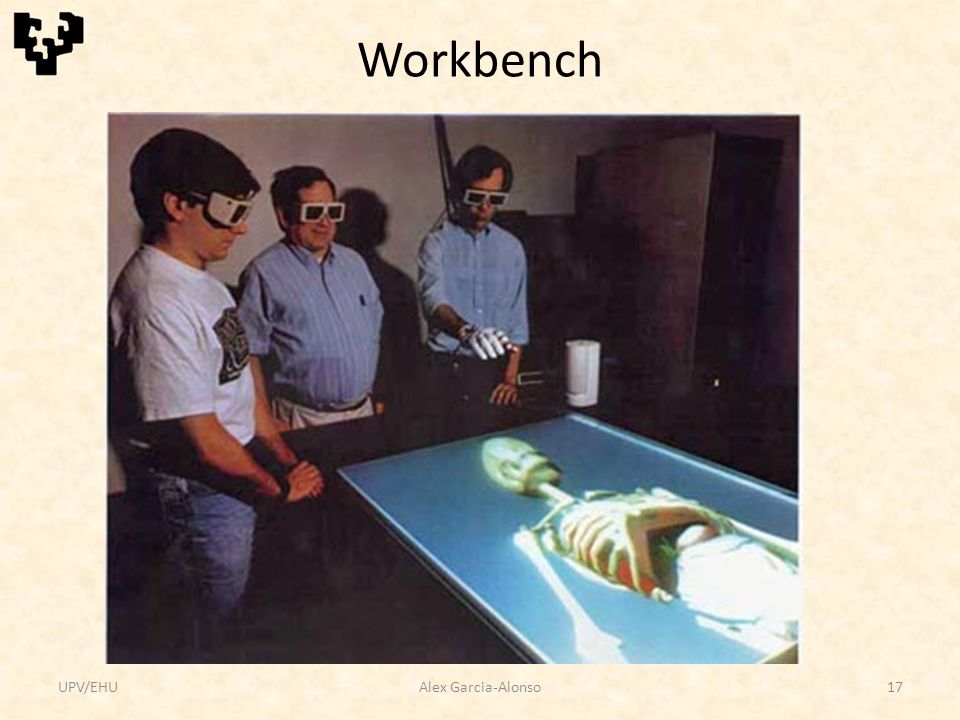

17 Workbench UPV/EHU17Alex Garcia-Alonso

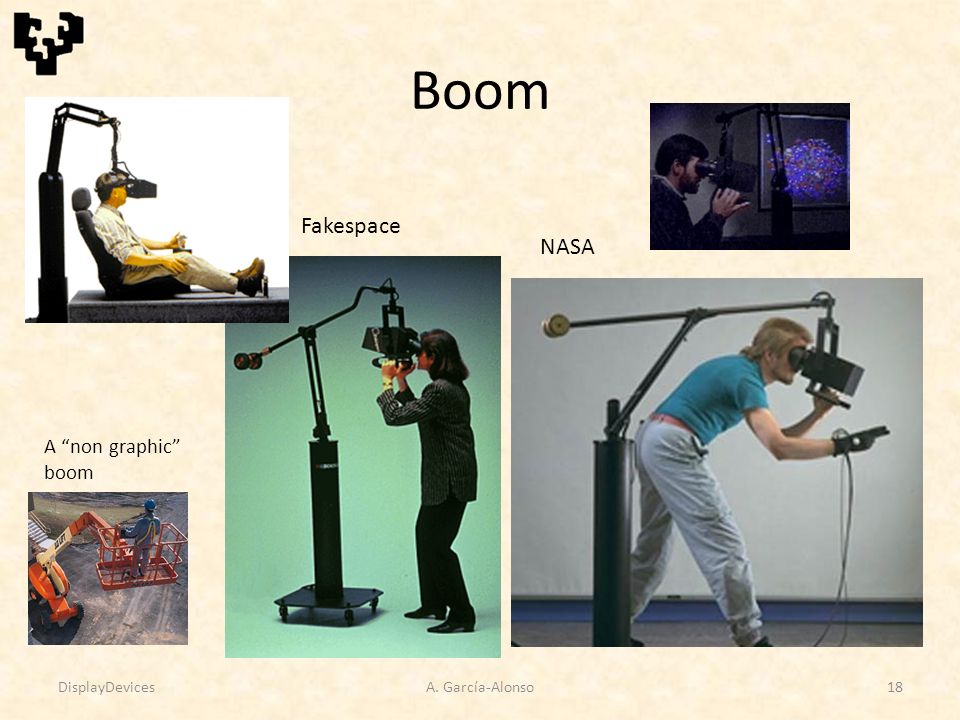

18 A. García-Alonso18 Boom DisplayDevices Fakespace NASA A “non graphic” boom

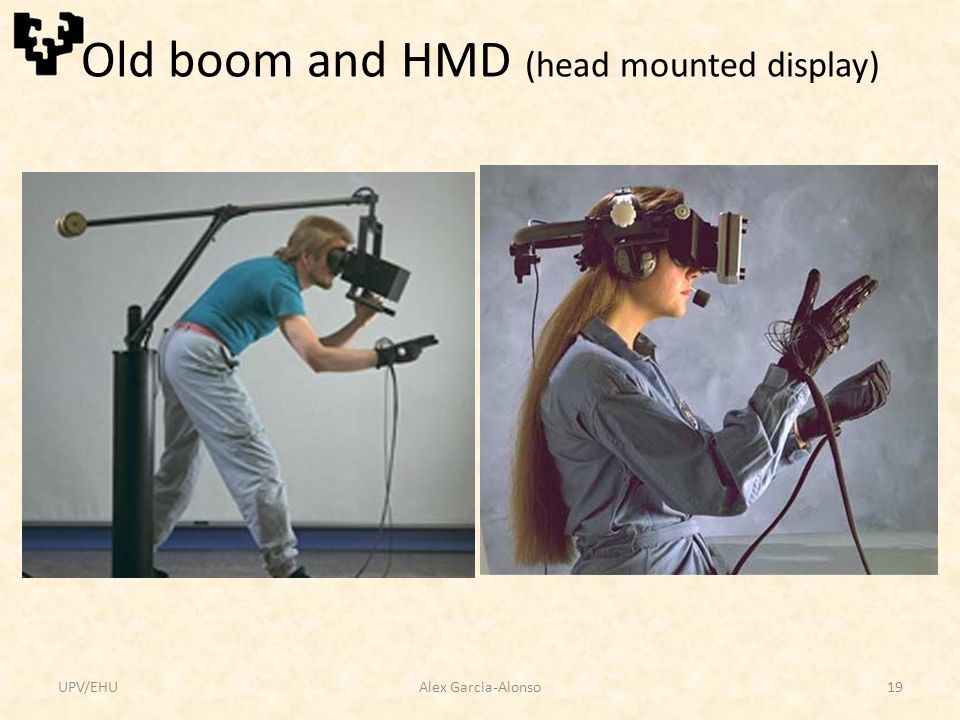

19 Old boom and HMD (head mounted display) UPV/EHU19Alex Garcia-Alonso

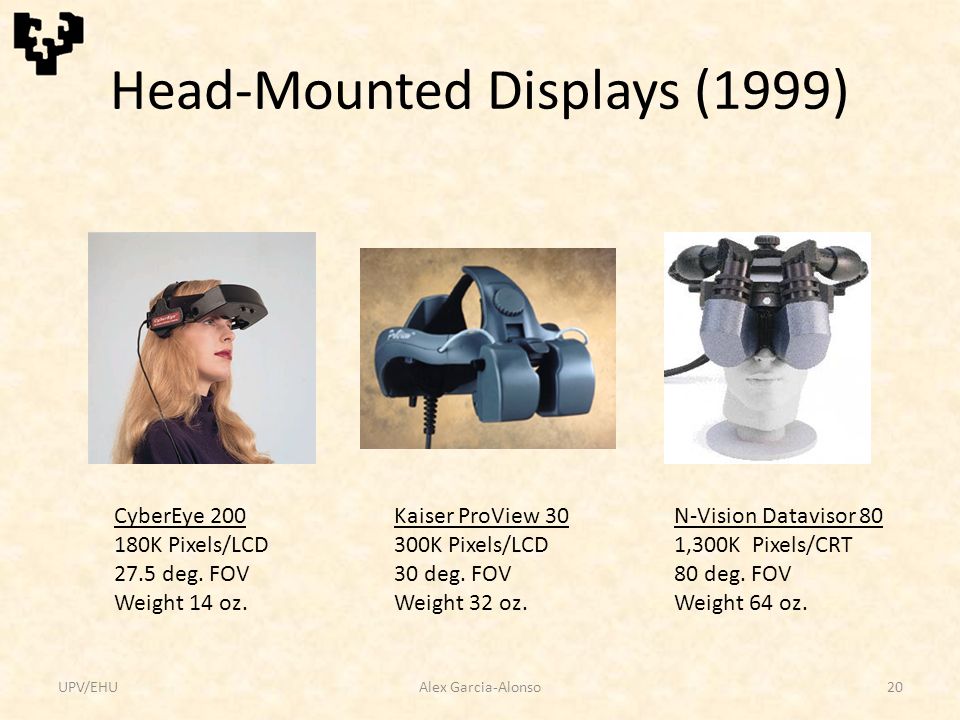

20 UPV/EHUAlex Garcia-Alonso20 Head-Mounted Displays (1999) Kaiser ProView 30 300K Pixels/LCD 30 deg. FOV Weight 32 oz. CyberEye 200 180K Pixels/LCD 27.5 deg. FOV Weight 14 oz. N-Vision Datavisor 80 1,300K Pixels/CRT 80 deg. FOV Weight 64 oz.

21 UPV/EHU21Alex Garcia-Alonso SmartGoggles

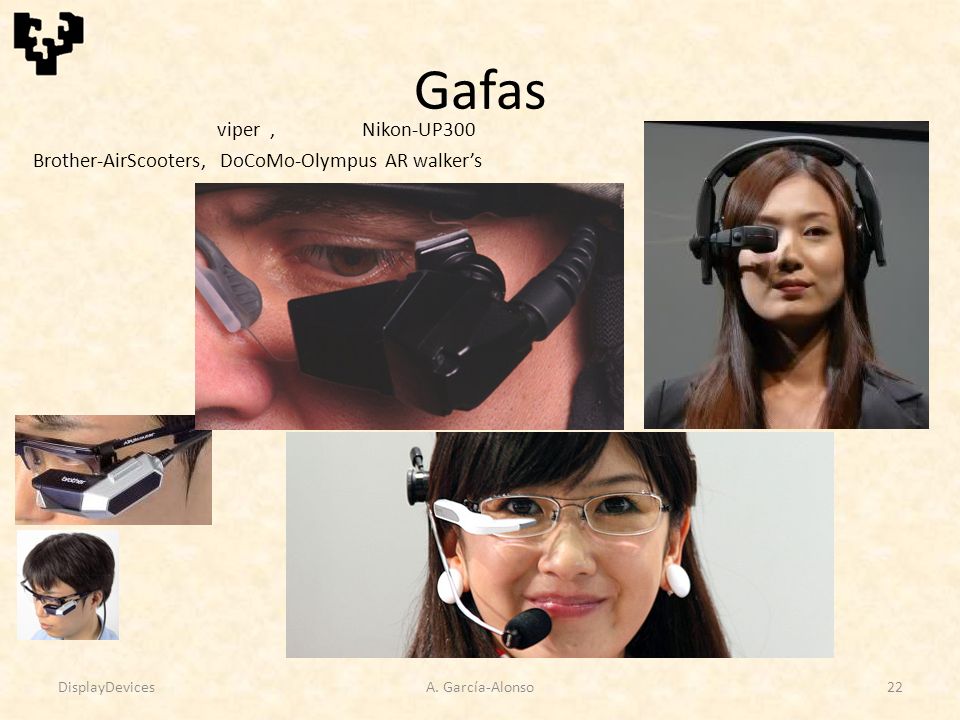

22 A. García-Alonso22 Gafas viper, Nikon-UP300 Brother-AirScooters, DoCoMo-Olympus AR walker’s DisplayDevices

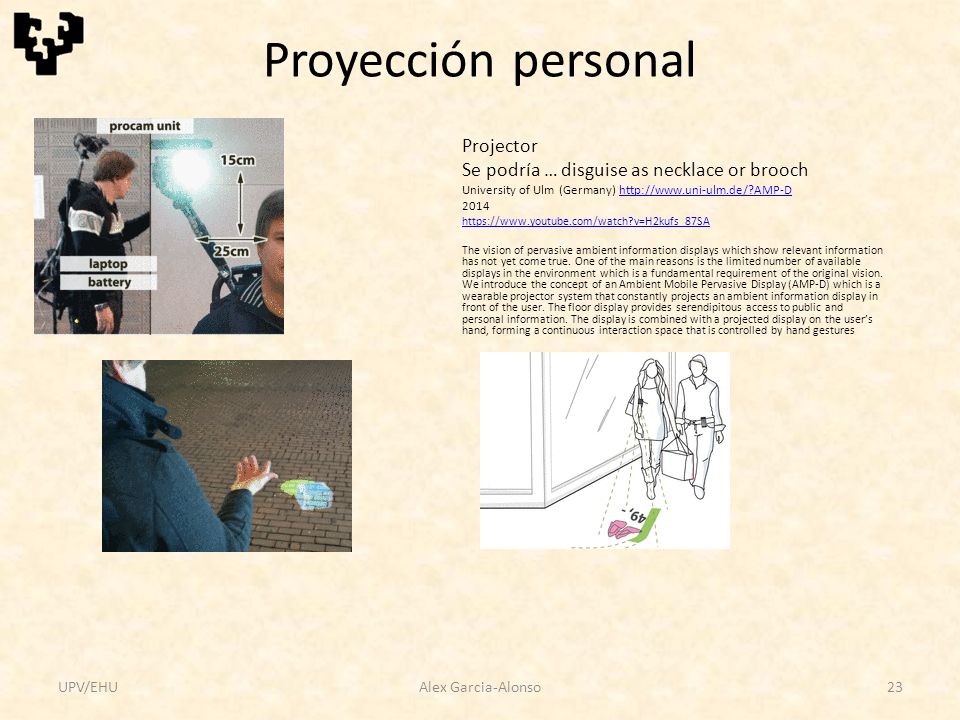

23 Proyección personal UPV/EHU23Alex Garcia-Alonso Projector Se podría … disguise as necklace or brooch University of Ulm (Germany) http://www.uni-ulm.de/?AMP-Dhttp://www.uni-ulm.de/?AMP-D 2014 https://www.youtube.com/watch?v=H2kufs_87SA The vision of pervasive ambient information displays which show relevant information has not yet come true. One of the main reasons is the limited number of available displays in the environment which is a fundamental requirement of the original vision. We introduce the concept of an Ambient Mobile Pervasive Display (AMP-D) which is a wearable projector system that constantly projects an ambient information display in front of the user. The floor display provides serendipitous access to public and personal information. The display is combined with a projected display on the user’s hand, forming a continuous interaction space that is controlled by hand gestures

24 ¿ Lentillas, proyección sobre el ojo, … ? UPV/EHU24Alex Garcia-Alonso

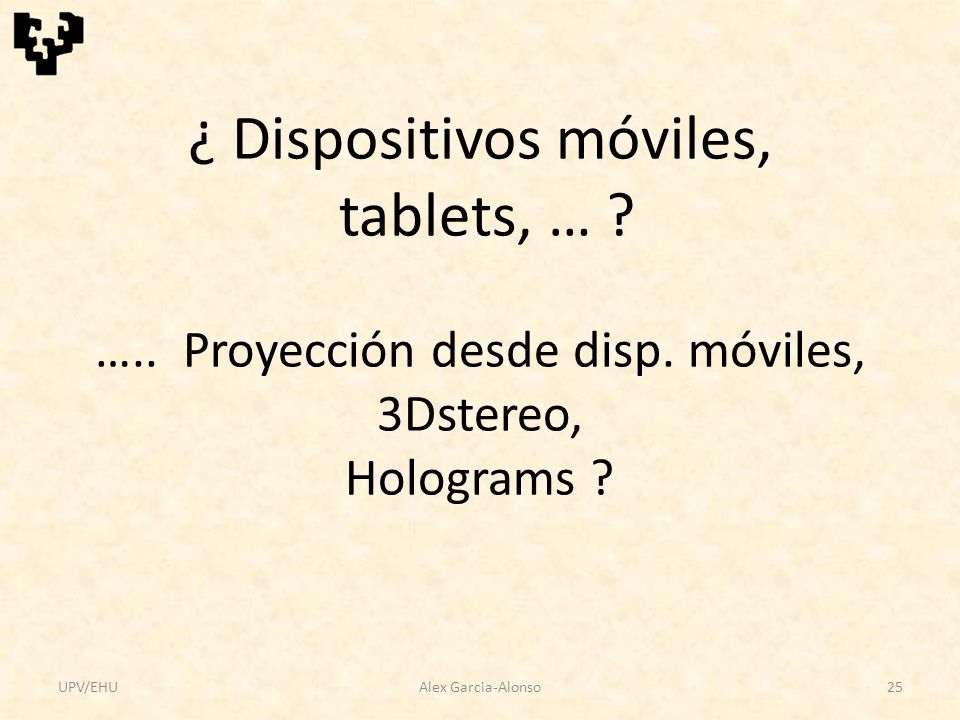

25 ¿ Dispositivos móviles, tablets, … ? ….. Proyección desde disp. móviles, 3Dstereo, Holograms ? UPV/EHU25Alex Garcia-Alonso

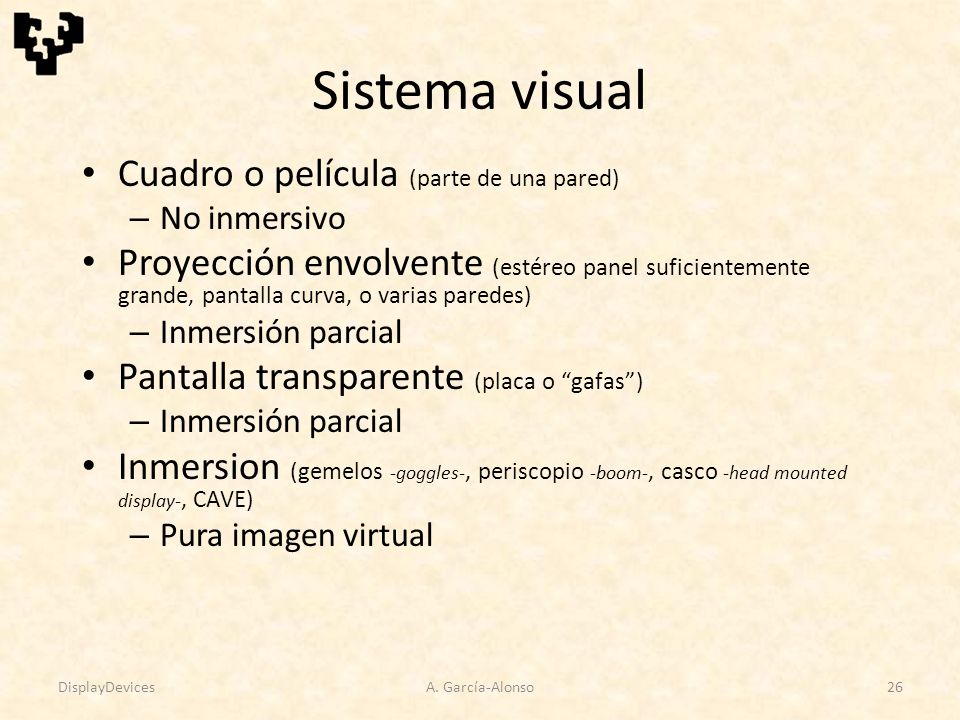

26 A. García-Alonso26 Sistema visual Cuadro o película (parte de una pared) – No inmersivo Proyección envolvente (estéreo panel suficientemente grande, pantalla curva, o varias paredes) – Inmersión parcial Pantalla transparente (placa o “gafas”) – Inmersión parcial Inmersion (gemelos -goggles-, periscopio -boom-, casco -head mounted display-, CAVE) – Pura imagen virtual DisplayDevices

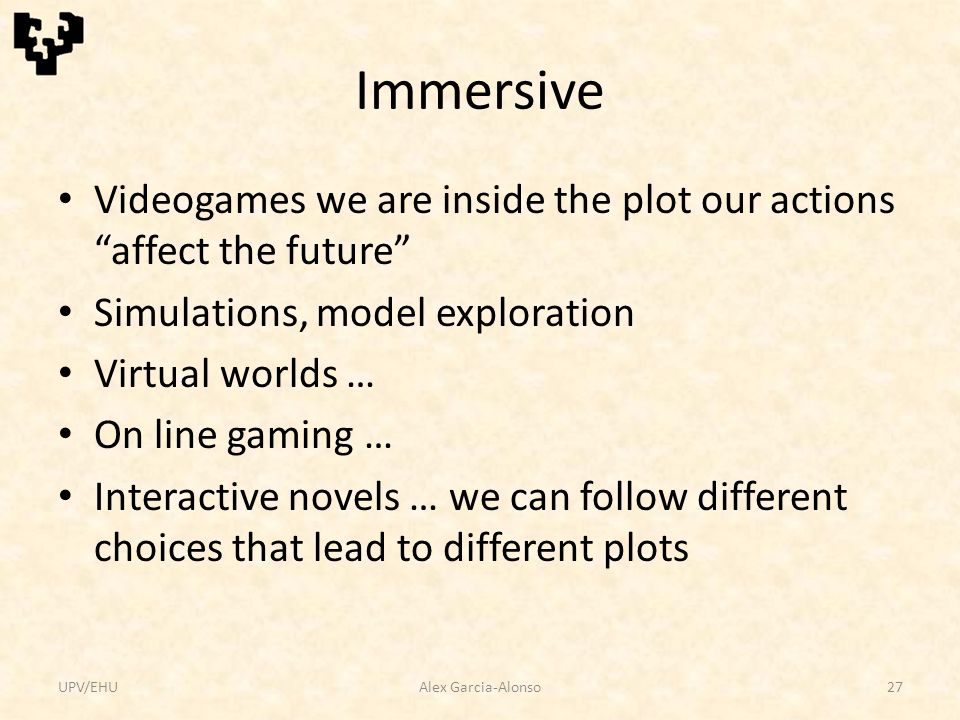

27 Immersive Videogames we are inside the plot our actions “affect the future” Simulations, model exploration Virtual worlds … On line gaming … Interactive novels … we can follow different choices that lead to different plots UPV/EHU27Alex Garcia-Alonso
