1 Cisco UCS: Unified Computing Systems
Mónica Leal Enero, 2015

2 UCS: ¿Cisco Servidores?

3 En el liderazgo del mercado Blades X86
Servidores CISCO UCS En el liderazgo del mercado Blades X86 2009 2011 2012 2013 Overview GARTNER 2013 Gartner has published the 2013 Blade Server Magic Quadrant. Cisco UCS is in the Leader quadrant for the second consecutive year and has dramatically risen in that category. In 2012 UCS was just over the Leader line and in 2013 the Cisco dot has been placed nearly half way up the Leader Quadrant significantly closing the gap between established leaders HP and IBM. HP dropped down in the Quadrant and IBM did slightly move up on HP…more likely because HP dropped rather than any market disruptive moves by IBM.

4 Innovación Principales Diferenciadores
1. Cableado 2. Administración Unificada 3. Independencia del Hardware. Personalidad del servidor SERVICE PROFILES 4. Tarjeteria Unificada

5 1. Cableado

6 Diferencia en cableado y administración
Reduzca su cableado y administración hasta en 1/3 de lo que hoy tiene Otras marcas vs. Cisco UCS

7 Arquitectura Servidores de Blade Tradicionales vs. UCS
Unified Ports FC, IP, iSCSI, FCoIP Arquitectura Servidores de Blade Tradicionales vs. UCS Medio Unico MGMT MGMT FABRIC INTERCONNECTS SAN SAN LAN LAN Additional LAN and SAN Connections Conexiones adicionales SAN y LAN En los últimos 10 años Una evolución de tamaño, no pensamiento Más servidores y switches que nunca Más switches por servidores Administración aplicada, no integrada Una arquitectura accidentada Resultado: Complejidad Más puntos de administración Máyor dificultad para mantener homologadas las configuraciones Mayor dificulad en seguridad y escalabilidad Conexiones adicionales Administracion. Additional Management Connections Múltiples conexiones Ethernet (LAN) Multiples Conexiones Fibro Canal (SAN) Licenciamiento de Admon. Para cada Chassis por separado Múlitples módulos De Administracion © 2012, Cisco Systems, Inc. All rights reserved.

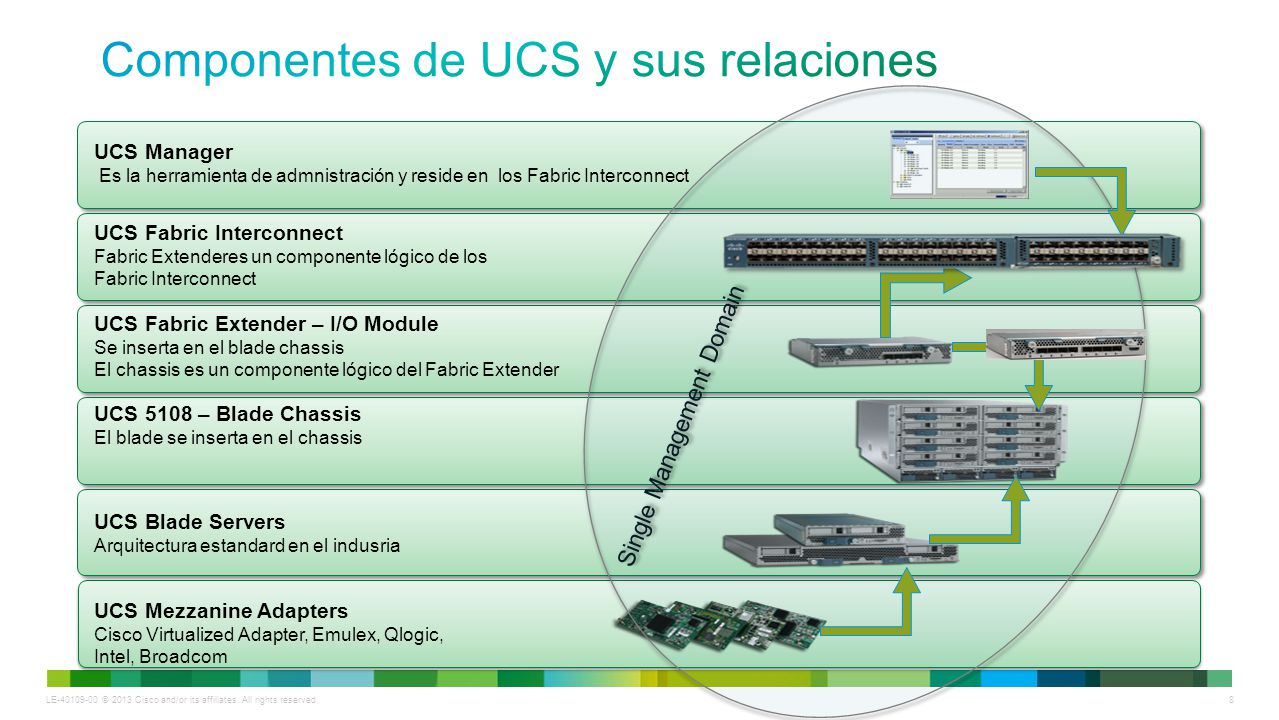

8 Componentes de UCS y sus relaciones
UCS Manager Es la herramienta de admnistración y reside en los Fabric Interconnect UCS Fabric Interconnect Fabric Extenderes un componente lógico de los Fabric Interconnect UCS Fabric Extender – I/O Module Se inserta en el blade chassis El chassis es un componente lógico del Fabric Extender UCS 5108 – Blade Chassis El blade se inserta en el chassis Single Management Domain UCS Blade Servers Arquitectura estandard en el indusria UCS Mezzanine Adapters Cisco Virtualized Adapter, Emulex, Qlogic, Intel, Broadcom 8 8

9 La innovación redefine la administración
Un par de Fabric Interconnects soporta hasta 20 chassis.

10 Asi es como se ve un chassis completamente conectado..

11 Arquitectura pensada para proteger la inversión
Components from all generations can be mixed and matched in a single system Flexibility to upgrade components as required with no rip and replace Ability to scale I/O or compute independently without stranded investments Forward and Backward Compatibility Add I/O For Performance or Scale and Use Existing Compute Modular Add Compute and Use Existing I/O OR 2012 2009 2004 2005 2006 2007 2008 2010 2011 2003 2002 2001 12 Years and Counting Tradition Blade Chassis: Risk of Stranding Expensive I/O Modules as Chassis Must Evolve to Take Advantage of Coming Server Innovations C7000 M1000 BladeCenter H ? Radically Simplified Blade Chassis for Extended Investment Protection UCS 5100 Series Chassis Designed for 2020 Catalyst 6500 Series Chassis An Architecture that Promotes Investment Protection and Investment Optimization The simplicity of the architecture allows a Unified Computing System blade chassis to support first, second, and third generation fabric computing components in the same chassis Forward and Backward Compatibility Components from all three generations of fabric computing can be mixed and matched in a single system allowing the flexibility to upgrade components as required with no rip and replace Outpacing the Competition Competitor architectures force chassis upgrades to take advantage of the full capabilities of upcoming servers UCS chassis offer investment protection through this decade

12 2. Administración Unificada

13 Conectividad más sencilla con UCS Basada en estándares
¡Licenciamiento incluido! Sin costos adicionales LAN Basado en estándares SAN A Basado en estándares Mgmt SAN B Basado en estándares UCS Manager 1 Console Rack and Blade Together Un chassis lógico que administrar, hasta 160 servidores de blade o rack desde un solo punto Conectividad LAN Manejo de identidad del servidor Conectividad SAN Chasis de blades Monitoreo, Troubleshooting Servidores blade Etc. Servidores rack La escalabilidad basada en modelos de nube incrementa la mobilidad, utilización y disponibilidad

14 UCS Central: Administración Remota Centralizada
Cisco Live 2013 UCS Central: Administración Remota Centralizada 4/10/2017 Licenciamiento Incluido sin costo Hasta 5 dominios! UCS Central Monterrey VM is delivered as an .OVA Use “Deploy OVF Template” Guadalajara Cd. De México

15 3. Independencia del Hardware.
Personalidad del servidor: SERVICE PROFILES

16 UCS Service Profiles Portabilidad en la Configuración
Identidad para un servidor SIM Card Identidad para un Telefono UCS Service Profile Unified Device Management Network Policy Storage Policy Server Policy

17 Service Profiles y abstracción completa del hardware Ventajas para varias aplicaciones…
Profile Name = vmhost-cluster1-1 UUID = ABCD ABCDEF123456 Description = ESX4-1 – Host in Cluster 1 Network Side LAN Config Adapter PCI Order = vNIC0 first, then vNIC1, then vHBA….. Number of NIC’s = VMware-Static-NIC-Policy vNIC0 Switch = Switch A vNIC0 Pin Group = SwitchA-pingroupA vNIC0 VLAN Trunking = Disabled vNIC0 Native VLAN = VLAN 100 vNIC0 MAC Address = 00:25:B5:00:01:01 vNIC0 Hardware Failover Enabled = No vNIC0 QoS policy = VMware-QoS-policy vNIC1 Switch = Switch B vNIC1 Pin Group = SwitchB-pingroupA vNIC1 VLAN Trunking = Disabled vNIC1 Native VLAN = VLAN 100 vNIC1 MAC Address = 00:25:B5:00:01:02 vNIC1 Hardware Failover Enabled = No vNIC1 QoS policy = VMware-QoS-policy Policy for VM vNIC’s = 101_Policy, 102_Policy, 103_Policy... Server Side LAN Config ESX Networking= VM vNIC tied to Port-Group: 101_Policy, 102_Policy, 103_Policy, etc. Local Storage Profile = RAID1 Scrub Policy = Scrub local disks only Prd EP Prd CRM Prd BW Prd ECC Prd XI Prd SRM QA EP QA CRM QA BW QA ECC QA XI QA SRM Mueva sus instancias de cualquier aplicativos sin invalidar license keys Las license keys mayormente se generan con base en parámetros del hardware Los service profiles de UCS abstraen toda la identidad del hardware Totalmente transparente para las aplicaciones Beneficios para SAP, Oracle, Microsoft y cualquier aplicación Provisione de acuerdo a la demanda de su negocio

18 Portafolio de Computo CISCO UCS
Cisco UCS: Many Server Form Factors, One System Industry-Leading Compute Without Compromise Scale Out Enterprise Performance Intensive/Mission Critical UCS C460 M4 Mission-Critical, 4-Socket Up to 15 Cores Server for Large, CPU-Intensive Applications UCS C24 M3 Entry, Expandable Rack Server for Storage Intensive Workloads UCS C240 M4 Ideal Platform for Big Data, ERP, and Database Applications Rack UCS C22 M3 Entry Rack Server for Distributed and Web Infrastructure Applications UCS C220 M4 Versatile, General Purpose Enterprise Infrastructure, and Application Server UCS B460 M4 Mission-Critical, 4-Socket Blade for Large, CPU-Intensive Bare Metal and Virtualized Applications UCS B260 M4 Mission-Critical, 2-Socket Blade for Large, CPU-Intensive Bare Metal and Virtualized Applications Blade UCS B22 M3 Entry Blade Server for IT Infrastructure and Web Applications UCS B200 M4 Optimal Choice for VDI, Private Cloud, or Dense Virtualization/ Consolidation Workloads UCS B420 M3 Enterprise Class, 4-Socket Blade for Large, Memory-Intensive Bare Metal and Virtualized Applications UCS 5108 Series Chassis

19 Cableado del Fabric Interconnect
Northbound = Conexiones a la SAN externa y LAN Southbound = Conexiones a los FEX y Chassis de UCS Northbound LAN Twinax SFP+ Cobre (ej: a Nexus 7K, 5K) Northbound LAN 10Base SR SFP+ (ej: a Cat 6K) Northbound SAN SFP de Fibre Channel MDS, Brocade, other Southbound FEX/Chassis <10 Metros requiere SFP+ Twinax de Cobre Eficientet: bajo consumo de energía y costo >10 Metros require Fibra Mayor consumo de energía e impacto sifignificativo de costo 19

20 Topología del Sistema UCS
Asignación de ancho de banda flexible por chassis 1 Enlace 20 Gb por chassis 2 Enlaces 40 Gb por chassis 4 Enlaces 80 Gb por chassis 8 Enlaces 160 Gb pr chassis 20 20

21 UCS: Arquitectura Flexible de I/O
LAN Dispositivo NAS Red SAN Red LAN Conexión Directa Conexión Directa Almacenamiento FC Todos los Enlaces 10 Gbps FCoE Almacenamiento FC 2 x 1 Enlaces 20 Gbps por Chassis 2.5 Gbps por servidor 160 Servidores 2 x 2 Enlaces 40 Gbps por Chassis 5 Gbps por servidores 160 Servidores 2 x 4 Enlaces 80 Gbps por Chassis 10 Gbps por servidor 160 Servidores (6296) 2 x 8 Enlaces 160 Gbps por Chassis 20 Gbps por servidor 96 Servidor (6296) Cablear una vez para conectividad y ancho de banda Se integra como un solo sistema en el centro de datos Para más ancho de banda = Solo agregue más cables – sin mapping, sin requerimientos de zoning; Ambientes de blades y racks mezclados, 160 servidores como limite port dominio; Asignación de ancho de banda basado en polítocas

22 Cisco UCS – Consolidación de la Administración de servidores de rack de Cisco
UCS 6100 or 6200 Nexus 2232 UCS Manager Data Connection Mgmt Connection 1 or 10 Gb LOM GLC-T connector 10 Gb CNA Sobre subscripción de las licencias de puertos para mejorar el costo Hasta 16 servidores por “Chassis virtual” de UCS Escala hasta 160 servidores en 10 grupos de 2232

23 + = + = o UCS Mini La combinación de componentes UCS UCS UCS Mini
UCS 5108 Chassis con nuevo backplane. Suporta blades existentes y futuros Mini FI 6324 UCS-FI-M-6324 Fuentes poder de voltage dual pueden usar 110v o 208v o UCS Mini La combinación de componentes UCS UCS 5108 Chassis con nuevo backplane. Suporta blades existentes y futuros. + = UCS 2204XP 2208XP 6248 Fabric Interconnect 6296 Fabric Interconnect Nuevas fuentes de poder a V

24 UCS Mini Solución ideal para Empresas medianas. FC, iSCSI, FCoE
Connect up to 14 servers 8 blade servers 6 rack mount servers Licensed 40G scalability port Connectivity to external storage FC, iSCSI, FCoE Service Profiles, UCS Central, XML APIs, etc… New low-power option Can use 110v or 208v PSUs Uses existing UCS servers Use the same compute and storage blades

25 4. Tarjeteria Unificada

26 Redes Unificadas (SAN/LAN)
How you buy today How you buy with Cisco VIC (Virtual Interface Card)

27 5. Almacenamiento de Estado Sólido
UCS INVICTA

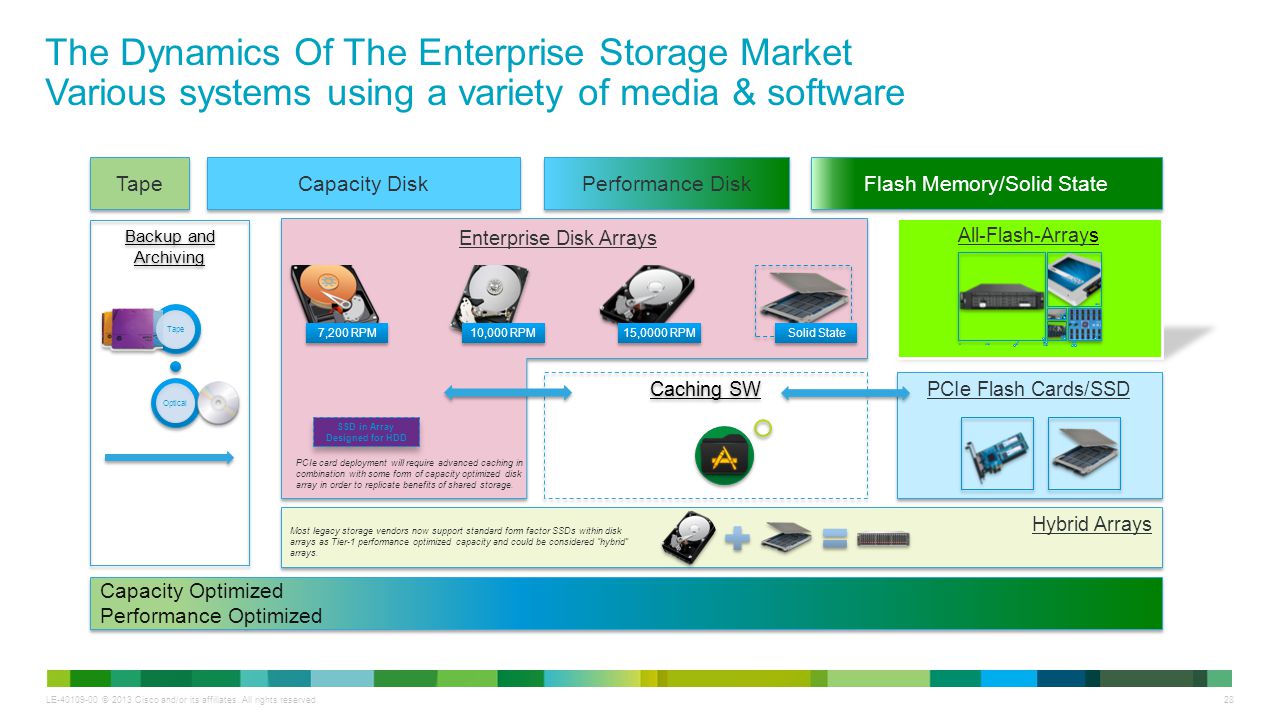

28 SSD in Array Designed for HDD
The Dynamics Of The Enterprise Storage Market Various systems using a variety of media & software Storage Decisions Tape Capacity Disk Performance Disk Flash Memory/Solid State Backup and Archiving Data optimization technologies (e.g. dedupe) are driving tape to disk transition. All-Flash-Arrays Capacity Optimized Performance Optimized Hybrid Arrays Caching SW PCIe Flash Cards/SSD Enterprise Disk Arrays PCIe card deployment will require advanced caching in combination with some form of capacity optimized disk array in order to replicate benefits of shared storage. Most legacy storage vendors now support standard form factor SSDs within disk arrays as Tier-1 performance optimized capacity and could be considered “hybrid” arrays. Tape Optical 7,200 RPM 10,000 RPM 15,0000 RPM Solid State SSD in Array Designed for HDD Source: Lazard Capital Market Research

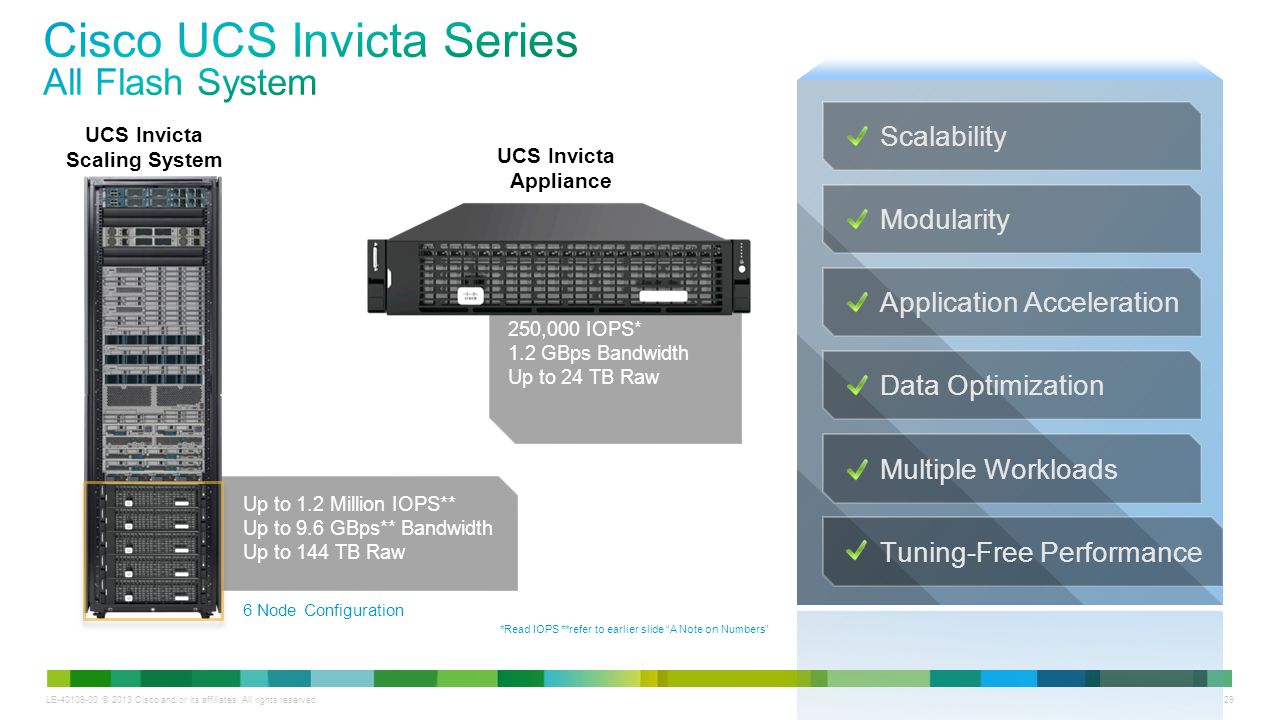

29 Cisco UCS Invicta Series All Flash System
Scalability UCS Invicta Scaling System UCS Invicta Appliance Modularity Application Acceleration 250,000 IOPS* 1.2 GBps Bandwidth Up to 24 TB Raw Data Optimization Multiple Workloads Our portfolio consists primarily of two products. The appliance has very high performance, has very good bandwidth, and it has very good storage characteristics. That foundation appliance can be deployed as part of a UCS Invicta Scalable System, allowing the customer to scale on both performance and capacity axes. It's scalability, modularity, the ability to accelerate an application, the ability to optimize the data, also to handle multiple workloads at the same time, which can all be done without sacrificing performance. Up to 1.2 Million IOPS** Up to 9.6 GBps** Bandwidth Up to 144 TB Raw Tuning-Free Performance 6 Node Configuration *Read IOPS **refer to earlier slide “A Note on Numbers”

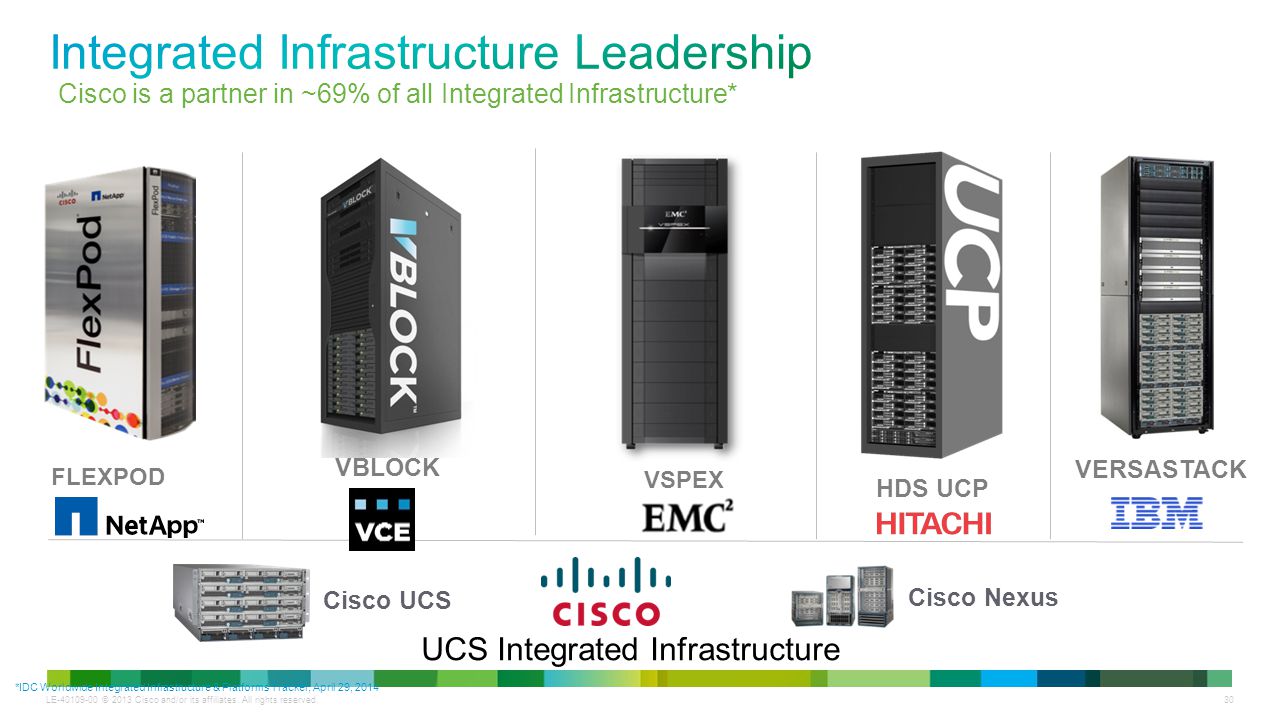

30 Integrated Infrastructure Leadership
Cisco is a partner in ~69% of all Integrated Infrastructure* VBLOCK VERSASTACK FLEXPOD VSPEX HDS UCP Cisco UCS Cisco Nexus UCS Integrated Infrastructure *IDC Worldwide Integrated Infrastructure & Platforms Tracker, April 29, 2014

31 6. Administración complementaria

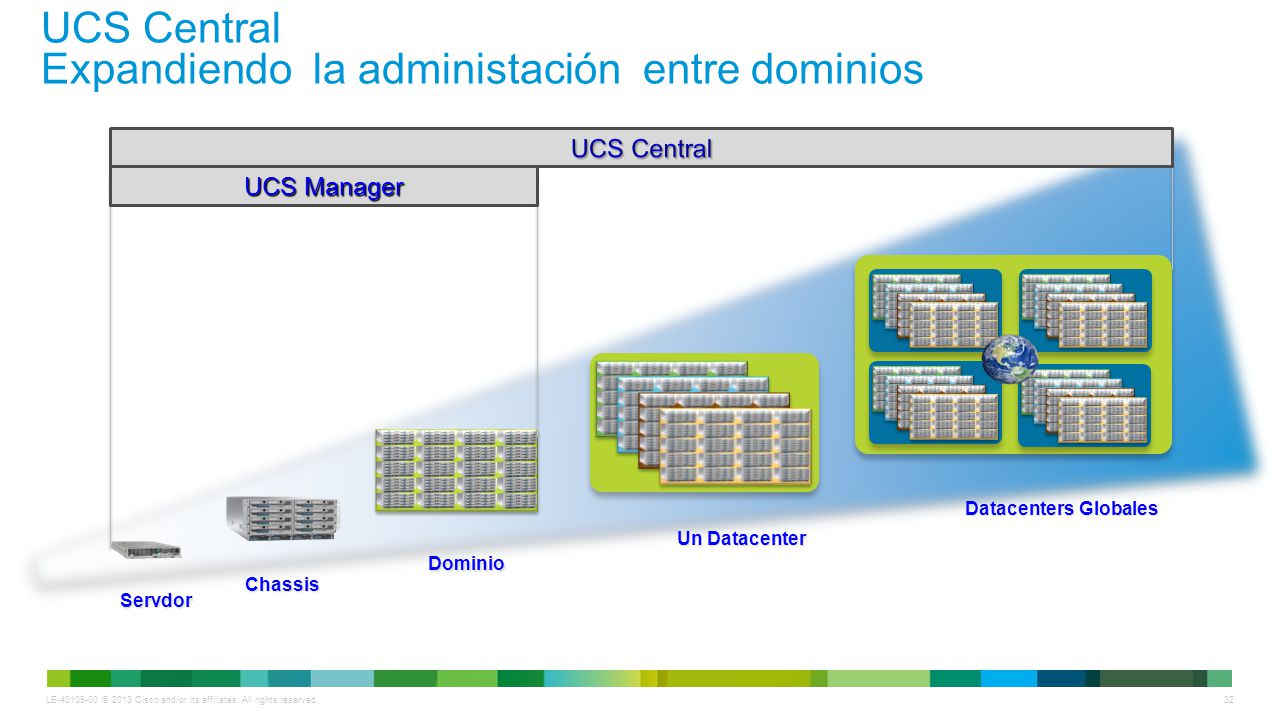

32 UCS Central Expandiendo la administación entre dominios
UCS Manager Datacenters Globales Un Datacenter Dominio Chassis Servdor

33 ¿Por qué necesitamos UCS Central?
Feature Functions Benefit Information Dashboard Centralized hardware inventory, centralized faults/logs, and up to one year of statistics across UCS Mini and Classic UCS domains Improved visibility across local and remote domains reduces the administrative time to monitor, troubleshoot, inventory, and do capacity planning Centralized Backup Scheduled backup of UCS Manager and UCS Central instances. Automated backups to a central location improves resiliency with minimal administrative impact Administrative Configuration Cross-domain administrative settings and cross-domain ID pools that new UCS Manager instances have access to upon registration Set up new domains in minutes with limited administrative effort while maintaining cross-domain consistency saving hours of set up time per domain. Operational Control Global policies and settings that can deployed and enforced across domains Policy and settings standardization and enforcement across domains helps ensure compliance, reduces configuration issues, and reduces troubleshooting time. Workload Mobility Global Service Profiles with optional site specific settings for localization Consistent deployments across UCS domains with the flexibility to quickly provision, de-provision, or move workloads between servers or domains.

34 UCS Director Unified Data Center Management
Dynamic Infrastructure for Applications Legacy Applications Dev/Test Sandbox Web Applications Business Critical Collaboration Apps OS and Virtual Machines Storage Network Compute Tenant B Tenant C A Virtualized and Bare-Metal Compute and Hypervisor B Network and Services VM Bare Metal Centralized management across virtual and physical Role-based access End to End Automation and Lifecycle Management

35 Cisco UCS Director Positioning
INTELLIGENT AUTOMATION FOR CLOUD Cloud management – private, public, hybrid cloud UCS DIRECTOR Unified infrastructure Automation for compute, storage, network – physical & virtual Heterogeneous & Integrated Infrastructure APIC Manages Application Centric Infrastructure (ACI) and Nexus fabric Multiple UCS domains UCS CENTRAL Single UCS domain UCS MANAGER

36 Why Should Customer Use UCS Director
UCS Director allows IT to deliver “faster” Superior IaaS management across physical & virtual resources ensures consistent service delivery to your business Automated application containers speed infrastructure automation and deployment of applications Enhancements across multiple vendors and public SDK broadens UCS Director’s ability to reduce your data center complexity

37 6. Soporte

38 Q1 2015

39 Smart Call Home for UCS TAC Customer Internet Call Home
Interactive Technical Services Customer Notification Device and Message Reports Exceptions/Fault Analysis TAC Customer Internet 3 Service Request Tracking System Entitlement Check Automated Diagnosis Capability Smart Call Home represents a new value proposition for Cisco customers in having their devices connected to Cisco thereby opening the opportunity for interactive technical support. The interaction between Cisco and Customer is shown on this slide. Smart Call Home starts at the device with some features in the Catalyst 6500 due to be available in the 12.2(33)SXH release in mid CY07. These features are: Call Home GOLD Diagnostics Internal Note: The initial focus for support of Call Home and GOLD diagnostics are Cisco’s data center products. We are currently working on providing support for key products in this space including MDS9000. Other products will follow. Call home provides the capability for a customer to configure call home profiles that define: Destination Transport Events of interest For example, a customer might configure a profile to allow an individual to be paged at home via short text when a major diagnostic failure occurs. Or, all syslog events might be sent via HTTPS to a network management station. And, indeed, the case in which we are interested is certain events raising call home messages via HTTPS (or ) to Cisco TAC. This case is covered in the Call home feature by including a default call home profile for Cisco TAC. The events of interest are these. <Next build – includes box with messages received> Diagnostics. Environmental. High severity syslog. Inventory and configuration. Note: Any of these message types can be removed by customers. In addition, if customers choose to send configuration then we will remove sensitive details such as passwords. The Diagnostics in the Catalyst 6500, and now being built into a wide range of Cisco products, provide an online health test that essentially allows the device to ping its own components. On failure, a call home message will be sent. These diagnostics are referred to as Generic On-Line Diagnostics (GOLD). <Next build>. On receipt of a Call home message at Cisco the first step is entitlement processing. Customers need to have a standard Cisco SMARTnet support contract to be entitled to the Smart Call Home service. Next step is passing the message into the rules processor that will inspect the message and determine what next steps to take. <Next build>. If the situation is serious enough (module failure or fan failure for example) a service request will be raised direct with the Cisco TAC and routed to the correct team to handle the problem. Internal Note: We take special care not to raise service requests when they are not necessary. For example, GOLD diagnostics knows the difference between modules failing and being removed. <Next build>. If a service request is not raised then the message is stored along with the associated analysis of the problem for a customer or TAC engineer to use as part of their troubleshooting. <Next build>. Smart Call Home then has the option of proactively notifying the customer of problems which are likely to be emerging issues rather than issues the TAC can deal with (for example high temperature alarms independent of any fan failures or accumulating single bit memory errors). If Smart Call Home does not notify the customer then the customer or TAC engineer will be able to access all messages along with Cisco’s analysis of it on the Smart Call Home web application. Also available on the Smart Call Home web application are reports on the device hardware, software and configuration cross-referenced against any field notices, security alerts, end of life notifications of which we are aware specific to the hardware and software on the device. Internal note: These cross-references will be provided shortly after FCS. We are also working on the ability to provide proactive best practices based on the configuration of the device. Secure Transport 1 Call Home Messages Received: Diagnostics Environmental Syslog Inventory and Configuration 2 Call Home DB

40 ¿Porqué servidores Cisco UCS?
Cableado Único (Tipo Cobre Twinax) Mas económico Varios Cables (Fibra SAN, Red, Administracion) mayor costo de fibra e infraestructura $$ Licenciamiento y Administración Única / Sencilla / Economica Varias Licencias ($$$) / Compleja Caracteristicas de la personalidad del Servidor Todo a través de un archivo XML: SERVICE PROFILE: Movilidad / Flexibilidad / Portabilidad Total independencia del hardware Dependencia del Hardware Tarjeteria Convergente (uso de Virtual Interface Cards VIC o CNA Converged Network Adapter) Uso de tarjeteria tradicional Fibra y Red. Limites de anchos de banda. Años en el mercado 5 años y posicionándose rápidamente en el PRIMER LUGAR para Q en America. Nueva Arquitectura Innovadora Años en la industria y en zona de confort No hay innovación en su arquitectura

41
