1

2 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones

3 ¿Qué es un Árbol de Ejecución? Depuración algorítmica [Shapiro (1982)] Paradigma Lógico DOS FASES: Generar el árbol de ejecución Recorrer el árbol de ejecución haciendo preguntas hasta encontrar el error Si se detecta el efecto de un error entonces la DA encontrará el error main = 4 listSum [] = 1 1+3 = 4 2+1 = 3 listSum [1,2] = 4 listSum [2] = 3 Ejemplo: main = listSum [1,2] listSum [] = 1 listSum (x:xs) = x + (listSum xs)

4 Recorriendo el árbol de ejecución REGLA DE ORO: Cuando un nodo incorrecto no tiene hijos incorrectos, entonces este nodo es erróneo. Ejemplo: main = listSum [1,2] listSum [] = 1 listSum (x:xs) = x + (listSum xs) main = 4 listSum [] = 1 1+3 = 4 2+1 = 3 listSum [1,2] = 4 listSum [2] = 3

5 Recorriendo el árbol de ejecución REGLA DE ORO: Cuando un nodo incorrecto no tiene hijos incorrectos, entonces este nodo es erróneo. Ejemplo: main = listSum [1,2] listSum [] = 0 listSum (x:xs) = x + (listSum xs) + 1 main = 5 listSum [] = 0 1+3+1 = 5 2+0+1 = 3 listSum [1,2] = 5 listSum [2] = 3

6 (1) do (2) node = selectNode(T) (3) answer = askNode(node) (4) if (answer = NO) (5) then M(node) = Wrong (6) buggyNode = node (7) N = {n ∈ N | (node  n) ∈ E*} (8) else N = N \ {n ∈ N | (node  n) ∈ E*} (9) while ( ∃ n ∈ N, M(n) = Undefined) (10) return buggyNode

7 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones Estrategias de la DA Sesión de depuración

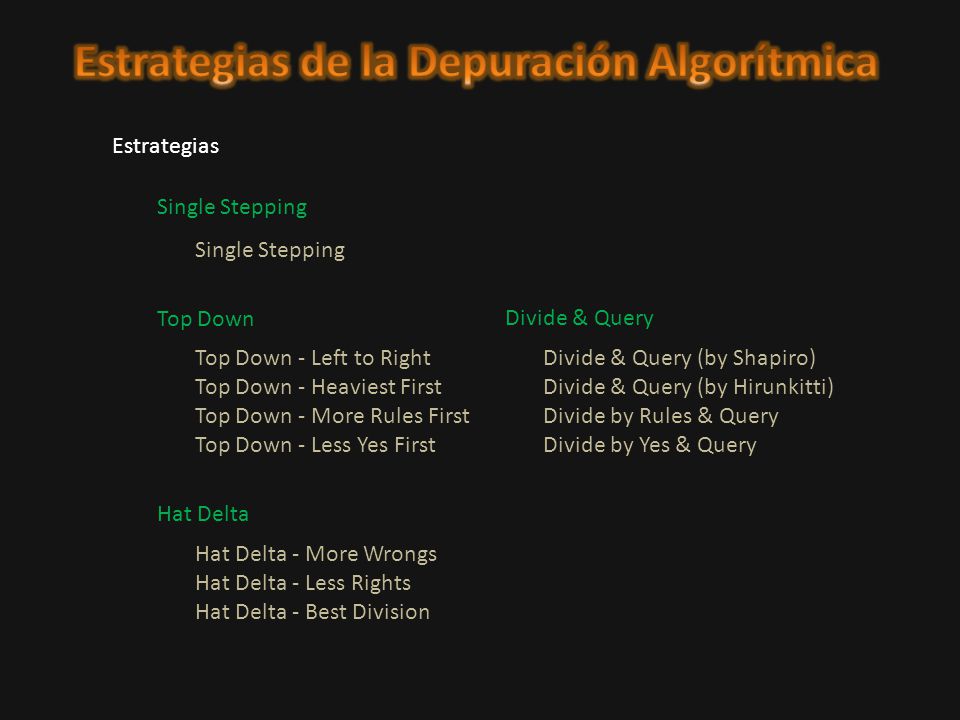

8 Estrategias Top Down - Left to Right Top Down - Heaviest First Top Down - More Rules First Top Down - Less Yes First Divide & Query (by Shapiro) Divide & Query (by Hirunkitti) Divide by Rules & Query Divide by Yes & Query Single Stepping Hat Delta - More Wrongs Hat Delta - Less Rights Hat Delta - Best Division Top Down Hat Delta Divide & Query Single Stepping

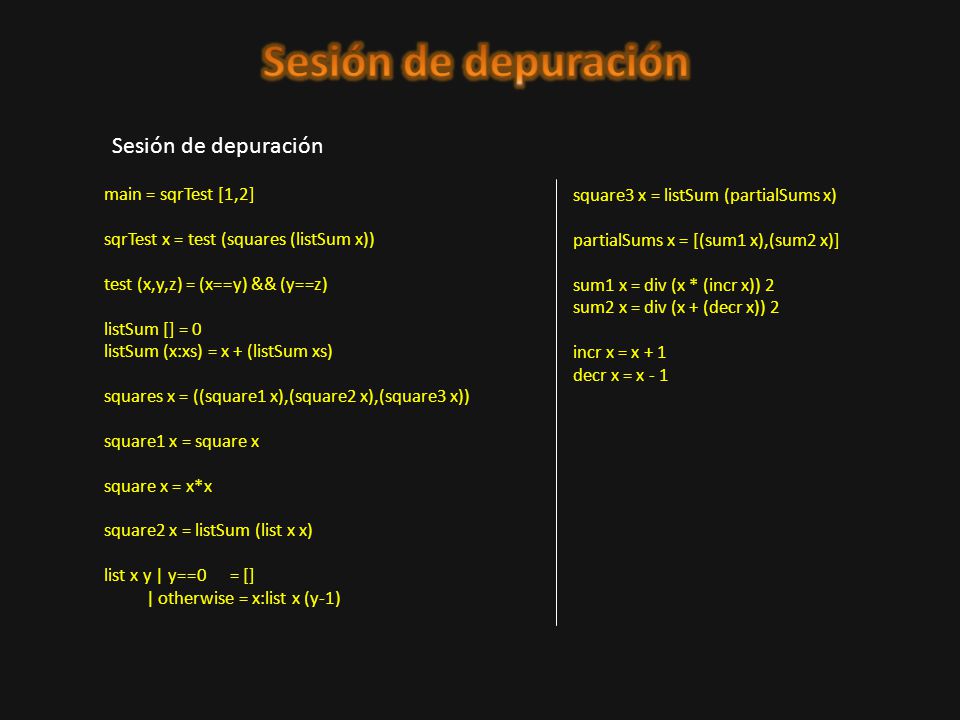

9 Sesión de depuración main = sqrTest [1,2] sqrTest x = test (squares (listSum x)) test (x,y,z) = (x==y) && (y==z) listSum [] = 0 listSum (x:xs) = x + (listSum xs) squares x = ((square1 x),(square2 x),(square3 x)) square1 x = square x square x = x*x square2 x = listSum (list x x) list x y | y==0 = [] | otherwise = x:list x (y-1) square3 x = listSum (partialSums x) partialSums x = [(sum1 x),(sum2 x)] sum1 x = div (x * (incr x)) 2 sum2 x = div (x + (decr x)) 2 incr x = x + 1 decr x = x - 1

10 Empezando la sesión de depuración… 1)main = False? NO 2)sqrTest [1,2] = False? NO 3)test [9,9,8] = False? SI 4)squares 3 = [9,9,8]? NO 5)square1 3 = 9? SI 6)square2 3 = 9? SI 7)square3 3 = 8? NO 8)listSum [6,2] = 8? SI 9)partialSums 3 = [6,2]? NO 10) sum1 3 = 6? SI 11) sum2 3 = 2? NO 12) decr 3 = 2? SI Error encontrado en la regla: sum2 x = div (x + (decr x)) 2 Sesión de depuración con la búsqueda Top-Down – Left to Right. main = False sqrTest [1,2] = False test (9,9,8) = Falsesquares 3 = (9,9,8)listSum [1,2] = 3 squares1 3 = 9squares2 3 = 9squares3 3 = 8 listSum [2] = 2 listSum [] = 0 square 3 = 9listSum [3,3,3] = 9 listSum [3,3] = 6 listSum [3] = 3 listSum [] = 0 list 3 3 = [3,3,3] list 3 2 = [3,3] list 3 1 = [3] list 3 0 = [] listSum [6,2] = 8 listSum [2] = 2 listSum [] = 0 partialSums 3 = [6,2] sum1 3 = 6sum2 3 = 2 incr 3 = 4 decr 3 = 2

11 Empezando la sesión de depuración… 1)main = False? NO 2)sqrTest [1,2] = False? NO 3)squares 3 = [9,9,8]? NO 4)square2 3 = 9? SI 5)square3 3 = 8? NO 6)partialSums 3 = [6,2]? NO 7) sum1 3 = 6? SI 8) sum2 3 = 2? NO 9) decr 3 = 2? SI Error encontrado en la regla: sum2 x = div (x + (decr x)) 2 Sesión de depuración con la búsqueda Top-Down – Heaviest First. main = False sqrTest [1,2] = False test (9,9,8) = Falsesquares 3 = (9,9,8)listSum [1,2] = 3 squares1 3 = 9squares2 3 = 9squares3 3 = 8 listSum [2] = 2 listSum [] = 0 square 3 = 9listSum [3,3,3] = 9 listSum [3,3] = 6 listSum [3] = 3 listSum [] = 0 list 3 3 = [3,3,3] list 3 2 = [3,3] list 3 1 = [3] list 3 0 = [] listSum [6,2] = 8 listSum [2] = 2 listSum [] = 0 partialSums 3 = [6,2] sum1 3 = 6sum2 3 = 2 incr 3 = 4 decr 3 = 2

12 Empezando la sesión de depuración… 1)square2 3 = 9? SI 2)square3 3 = 8? NO 3)partialSums 3 = [6,2]? NO 4)sum1 3 = 6? SI 5) sum2 3 = 2? NO 6) decr 3 = 2? SI Error encontrado en la regla: sum2 x = div (x + (decr x)) 2 Sesión de depuración con la búsqueda Divide & Query (by Hirunkitti). main = False sqrTest [1,2] = False test (9,9,8) = Falsesquares 3 = (9,9,8)listSum [1,2] = 3 squares1 3 = 9squares2 3 = 9squares3 3 = 8 listSum [2] = 2 listSum [] = 0 square 3 = 9listSum [3,3,3] = 9 listSum [3,3] = 6 listSum [3] = 3 listSum [] = 0 list 3 3 = [3,3,3] list 3 2 = [3,3] list 3 1 = [3] list 3 0 = [] listSum [6,2] = 8 listSum [2] = 2 listSum [] = 0 partialSums 3 = [6,2] sum1 3 = 6sum2 3 = 2 incr 3 = 4 decr 3 = 2

13 Sesión de depuración main = sqrTest [1,2] sqrTest x = test (squares (listSum x)) test (x,y,z) = (x==y) && (y==z) listSum [] = 0 listSum (x:xs) = x + (listSum xs) squares x = ((square1 x),(square2 x),(square3 x)) square1 x = square x square x = x*x square2 x = listSum (list x x) list x y | y==0 = [] | otherwise = x:list x (y-1) square3 x = listSum (partialSums x) partialSums x = [(sum1 x),(sum2 x)] sum1 x = div (x * (incr x)) 2 sum2 x = div (x + (decr x)) 2 incr x = x + 1 decr x = x - 1

14 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones

15 public void sqrt(double x) { if (x < 0) return Double.NaN; double b = x; while (Math.abs(b * b - x) > 1e-12) b = ((x / b) + b) / 2; return b; }

16 public void sqrt(double x) { if (x < 0) return Double.NaN; double b = x; while (Math.abs(b * b - x) > 1e-12) b = approx(x, b); return b; } public void sqrt(double x) { if (x < 0) return Double.NaN; double b = x; { if (Math.abs(b * b - x) > 1e-12) { Object[] result = this.sqrt_loop(x, b); x = (Double) result[0]; b = (Double) result[1]; } return b; } private Object[] sqrt_loop(double x, double b) { b = approx(x, b); if (Math.abs(b * b - x) > 1e-12) return this.sqrt_loop(x, b); return new Object[] { x, b }; } public void approx(double x, double b) { return ((x / b) + b) / 2; }

17 1 L L3 L 3 1 3232 2 2 … …… L 32 32 public void sqrt(double x) { if (x < 0) return Double.NaN; double b = x; while (Math.abs(b * b - x) > 1e-12) b = approx(x, b); return b; }

18 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones

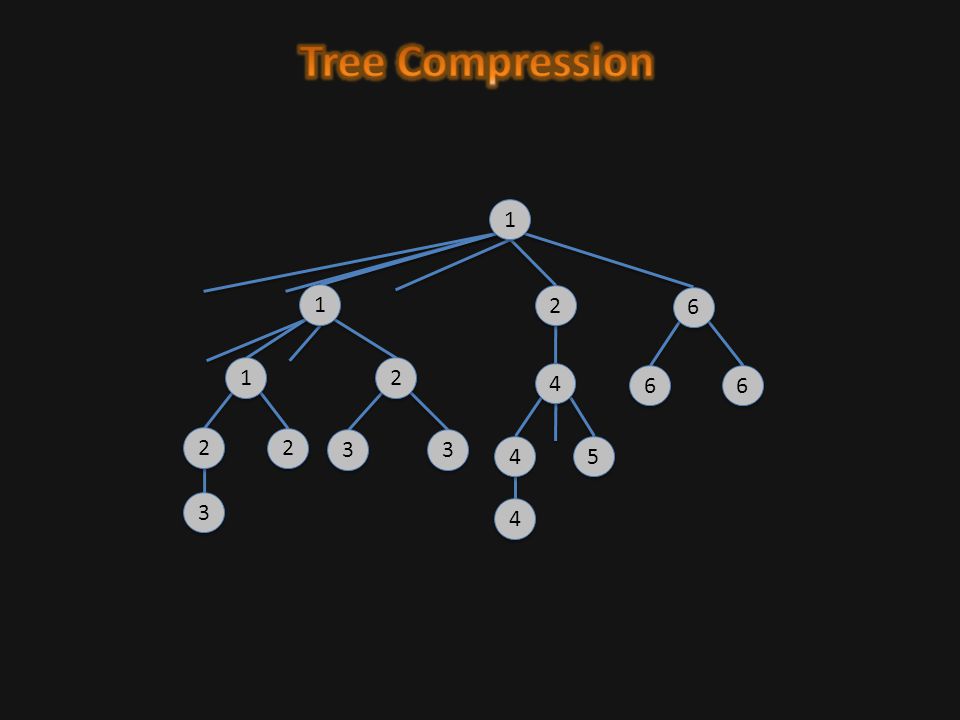

19 1 1 1 1 1 1 2 2 3 3 2 2 3 3 3 3 2 2 4 4 4 4 5 5 4 4 2 2 6 6 6 6 6 6

20 2 2 2 2 2 3 2 2 4 1 1 4 2 2 3 2 2 4 2 2 5 1 1 5 1 1 2 2 2 1 2 2 2 2 2 3 2 2 4 2 2 5 2 2 6 1 1 6 2 2 2 2 2 3 2 2 4 1 1 4 2 2 2 2 2 3 2 2 4 1 1 4 32 / 9 = 3,55 27 / 7 = 3,86 26 / 8 = 3,25

21 2 2 3 3 4 4 1 1 AVG 1 = (AVG 2 + ) * W 2 + (AVG 3 + ) * W 3 + (AVG 4 + ) * W 4 AVG 1 = (2) + (3) + (4) + 4 1 2 3 + 4 13/4 +1 +2+3 = 13 (AVG 2 * W 2 + W 2 ) + (AVG 3 * W 3 + 2W 3 ) + (AVG 4 * W 4 + 3W 4 ) + 4WI 1 W1W1 AVG 1 = Q 1 = (Q 2 + W 2 ) + (Q 3 + 2W 3 ) + (Q 4 + 3W 4 ) + 4WI 1 AVG 1 * W 1 = (AVG 2 * W 2 + W 2 ) + (AVG 3 * W 3 + 2W 3 ) + (AVG 4 * W 4 + 3W 4 ) + 4WI 1 / 4

22 Q 1 = (Q 2 + W 2 ) + (Q 3 + 2W 3 ) + (Q 4 + 3W 4 ) + 4WI 1 Q 0 = (Q 1 + W 1 ) + (Q 5 + 2W 5 ) + (Q 6 + 3W 6 ) + (Q 7 + 4W 7 ) + 5WI 0 Q 0 = (Q 2 + Q 3 + Q 4 ) + Q 5 + Q 6 + Q 7 + W 1 + (W 2 + 2W 3 + 3W 4 + 4WI 1 ) + 2W 5 + 3W 6 + 4W 7 + 5WI 0 2 2 3 3 4 4 0 0 1 1 5 5 6 6 7 7 13/4

23 Q 0 = (Q 2 + Q 3 + Q 4 ) + Q 5 + Q 6 + Q 7 + W 1 + (W 2 + 2W 3 + 3W 4 + 4WI 1 ) + 2W 5 + 3W 6 + 4W 7 + 5WI 0 2 2 3 3 4 4 0 0 5 5 6 6 7 7 Q’ 0 = (Q 2 + W 2 ) + (Q 3 + 2W 3 ) + (Q 4 + 3W 4 ) + (Q 5 + 4W 5 ) + (Q 6 + 5W 6 ) + (Q 7 + 6W 7 ) + 5WI 0 Q’ 0 = Q 2 + Q 3 + Q 4 + Q 5 + Q 6 + Q 7 + W 2 + 2W 3 + 3W 4 + 4W 5 + 5W 6 + 6W 7 + 7WI 0

24 Q 0 = 2 2 3 3 4 4 0 0 5 5 6 6 7 7 Q’ 0 = 2 2 3 3 4 4 0 0 1 1 5 5 6 6 7 7 Coste(nodos) = Σ{Pos(nodo, nodos) * W nodo | nodo ∈ nodos} + |nodos| + 1 W 1 + (W 2 + 2W 3 + 3W 4 + 4WI 1 ) + 2W 5 + 3W 6 + 4W 7 + 5WI 0 W 2 + 2W 3 + 3W 4 + 4W 5 + 5W 6 + 6W 7 + 7WI 0 (Q 2 + Q 3 + Q 4 ) + Q 5 + Q 6 + Q 7 + Q 2 + Q 3 + Q 4 + Q 5 + Q 6 + Q 7 + Q 0 = Coste(hijos 0 ) + Coste(hijos 1 ) Q’ 0 = Coste(hijos’ 0 ) AVG 0 = AVG’ 0 = Coste(hijos 0 ) + Coste(hijos 1 ) W0W0 Coste(hijos’ 0 ) W’ 0 > -

25 Q 0 = Q’ 0 = Coste(nodos) = Σ{Pos(nodo, nodos) * W nodo | nodo ∈ nodos} + |nodos| + 1 W 1 + (W 2 + 2W 3 + 3W 4 + 4WI 1 ) + 2W 5 + 3W 6 + 4W 7 + 5WI 0 W 2 + 2W 3 + 3W 4 + 4W 5 + 5W 6 + 6W 7 + 7WI 0 (Q 2 + Q 3 + Q 4 ) + Q 5 + Q 6 + Q 7 + Q 2 + Q 3 + Q 4 + Q 5 + Q 6 + Q 7 + Q 0 = Coste(hijos 0 ) + Coste(hijos 1 ) + K Q’ 0 = Coste(hijos’ 0 ) + K AVG 0 = AVG’ 0 = Coste(hijos 0 ) + Coste(hijos 1 ) W0W0 Coste(hijos’ 0 ) W’ 0 K = Q 2 + Q 3 + Q 4 + Q 5 + Q 6 + Q 7 K W0W0 K W’ 0 + + Coste(hijos 0 ) + Coste(hijos 1 ) W0W0 Coste(hijos’ 0 ) W’ 0 K W 0 * W’ 0 + >

26 2 2 3 3 4 4 0 0 5 5 6 6 2 2 3 3 4 4 0 0 1 1 5 5 6 6 AVG 0 = (AVG 1 + 1)W 1 + (AVG 5 + 2)W 5 + (AVG 6 + 3)W 6 + 4 W0W0 AVG 1 = (AVG 2 + 1)W 2 + (AVG 3 + 2)W 3 + (AVG 4 + 3)W 4 + 4 W1W1 AVG 0’ = (AVG 2 + 1)W 2 + (AVG 3 + 2)W 3 + (AVG 4 + 3)W 4 + (AVG 5 + 4)W 5 + (AVG 6 + 5)W 6 + 6 W 0 - 1 ¿AVG 0 > AVG 0’ ? = 2W 2 + 3W 3 + 4W 4 + 4 W1W1 = 13 4

27 recs = {n | n,n’ ∈ N ∧ (n → n’) ∈ E } ∧ l(n) = l(n’)} (1) while (recs ≠ ∅ ) (2) take n ∈ recs such that ∃ / n’ ∈ recs with (n → n’) ∈ E + (3) recs = recs \ {n} (4) parent = n (5) do (6) maxImpr = 0 (7) children = {c | (n → c) ∈ E ∧ l(n) = l(c)} (8) for each child ∈ children (9) pchildren = Sort(Children(parent)) (10) cchildren = Sort(Children(child)) (11) comb = Sort((pchildren ∪ cchildren) \ {child}) (12) impr = (13) if (impr > maxImpr) (14) maxImpr = impr (15) bestNode = child (16) end for each (17) if (maxImpr ≠ 0) (18) T’ = Compress(T’, parent, bestNode) (19) while (maxImpr ≠ 0) (20) end while Coste(pchildren) + Coste(cchildren) W parent Coste(comb) W parent - 1 - Coste(nodos) = Σ{Pos(nodo, nodos) * W nodo | nodo ∈ nodos} + |nodos| + 1 1 1 1 1 1 1 2 2 3 3 2 2 3 3 3 3 2 2 4 4 4 4 5 5 4 4 2 2 6 6 6 6 6 6

28 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones

29 Introducción Depuración Algorítmica Dos técnicas Loop Expansion (nueva) Tree Compression (mejora) Demostración DDJ Conclusiones

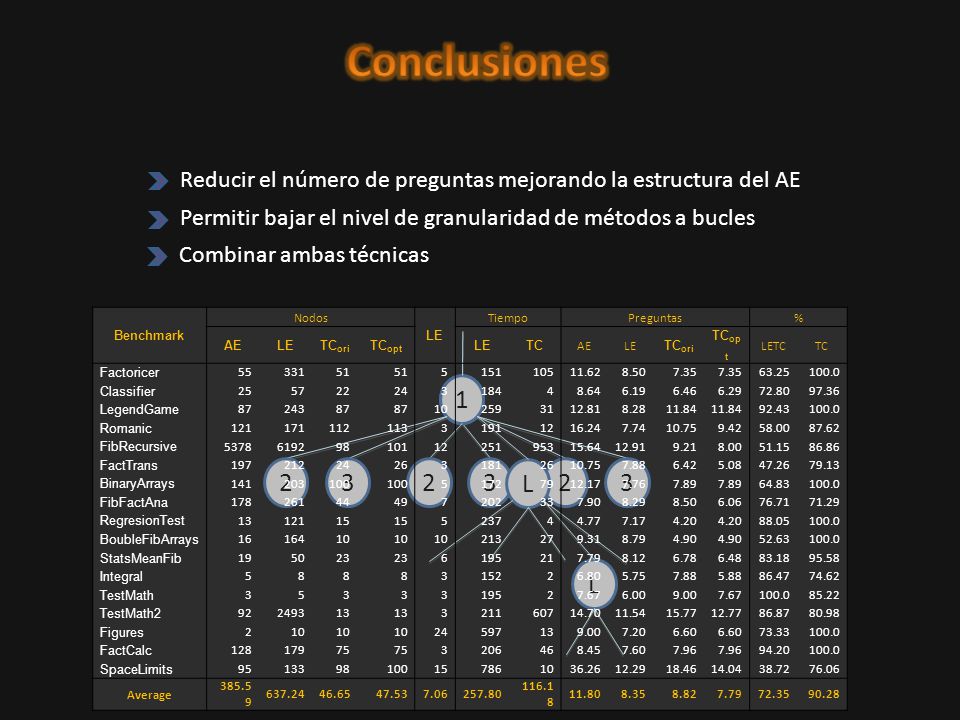

30 L Reducir el número de preguntas mejorando la estructura del AE Permitir bajar el nivel de granularidad de métodos a bucles Combinar ambas técnicas 1 3232 32 L L Benchmark Nodos LE TiempoPreguntas% AELE TC ori TC opt LE TC AELE TC ori TC op t LETCTC Factoricer 5533151 515110511.628.507.35 63.25100.0 Classifier 25572224318448.646.196.466.2972.8097.36 LegendGame 8724387 102593112.818.2811.84 92.43100.0 Romanic 12117111211331911216.247.7410.759.4258.0087.62 FibRecursive 53786192981011225195315.6412.919.218.0051.1586.86 FactTrans 197212242631812610.757.886.425.0847.2679.13 BinaryArrays 141203100 51727912.177.767.89 64.83100.0 FibFactAna 17826144497202337.908.298.506.0676.7171.29 RegresionTest 1312115 523744.777.174.20 88.05100.0 BoubleFibArrays 1616410 213279.318.794.90 52.63100.0 StatsMeanFib 195023 6195217.798.126.786.4883.1895.58 Integral 5888315226.805.757.885.8886.4774.62 TestMath 3533319527.676.009.007.67100.085.22 TestMath2 92249313 321160714.7011.5415.7712.7786.8780.98 Figures 210 24597139.007.206.60 73.33100.0 FactCalc 12817975 3206468.457.607.96 94.20100.0 SpaceLimits 9513398100157861036.2612.2918.4614.0438.7276.06 Average 385.5 9 637.2446.6547.537.06257.80 116.1 8 11.808.358.827.7972.3590.28

31
