Memory Form Factor Quiz ©Richard L. Goldman June 18, 2002.

Presentación del tema: "Memory Form Factor Quiz ©Richard L. Goldman June 18, 2002."— Transcripción de la presentación:

1

2 Memory Form Factor Quiz ©Richard L. Goldman June 18, 2002

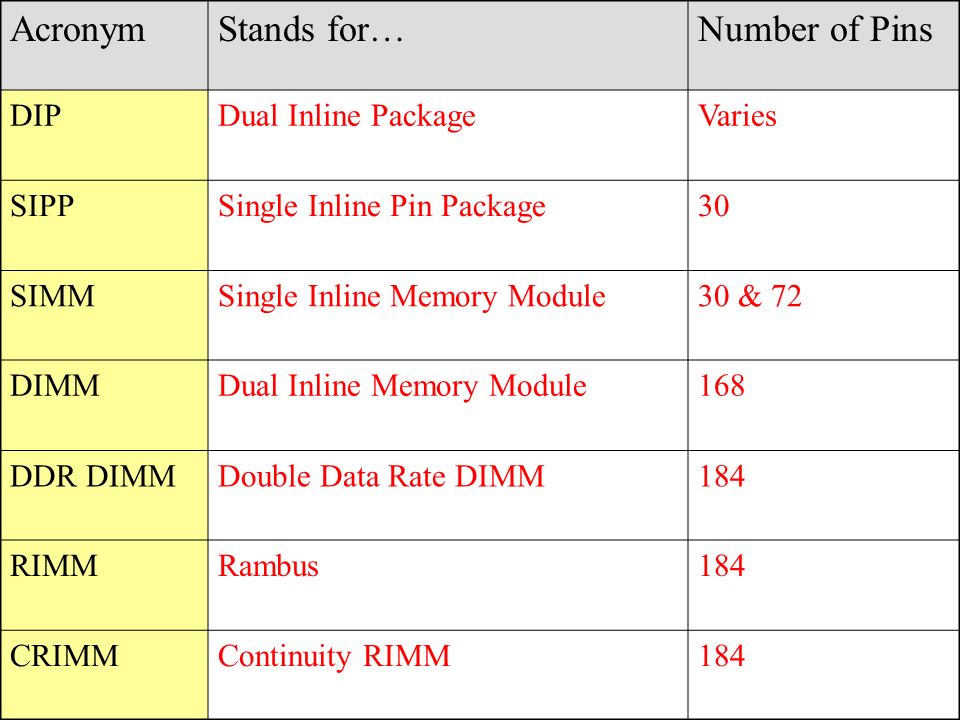

3 AcronymStands for…Number of Pins DIPDual Inline PackageVaries SIPPSingle Inline Pin Package30 SIMMSingle Inline Memory Module30 & 72 DIMMDual Inline Memory Module168 DDR DIMMDouble Data Rate DIMM184 RIMMRambus184 CRIMMContinuity RIMM184

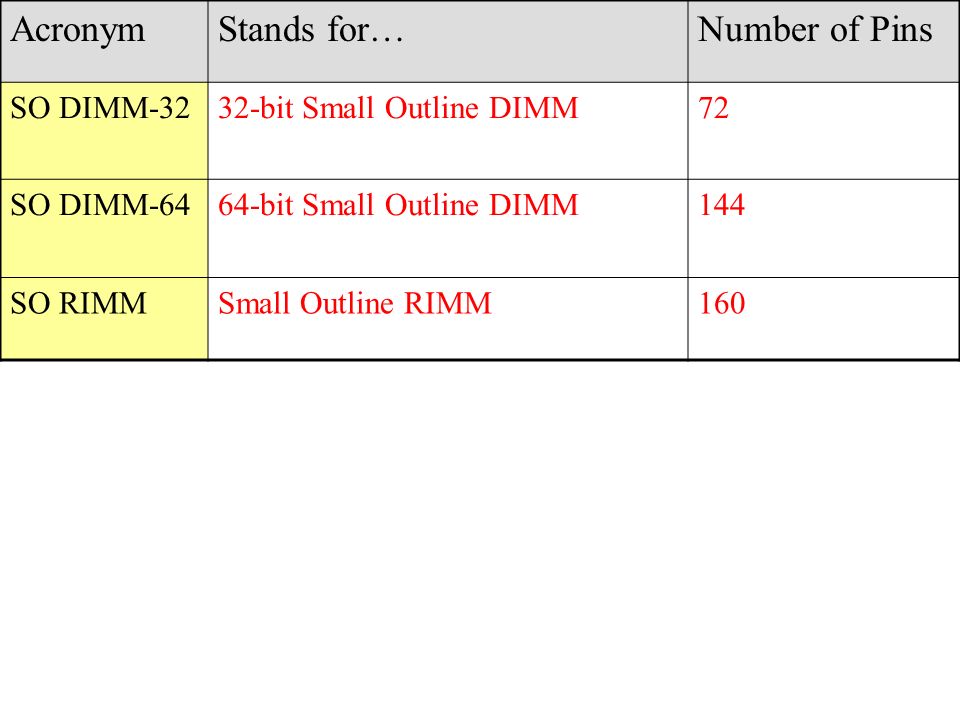

4 AcronymStands for…Number of Pins SO DIMM-3232-bit Small Outline DIMM72 SO DIMM-6464-bit Small Outline DIMM144 SO RIMMSmall Outline RIMM160

5 Typical Intel CPU, Chip Set, & Memory Configurations

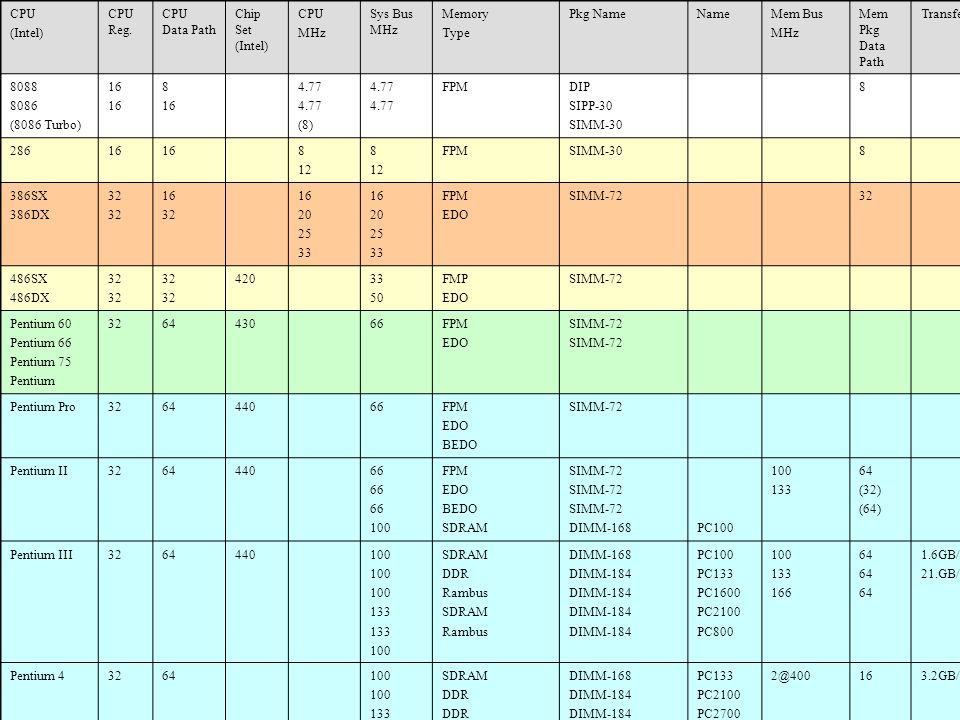

6 CPU (Intel) CPU Reg. CPU Data Path Chip Set (Intel) CPU MHz Sys Bus MHz Memory Type Pkg NameNameMem Bus MHz Mem Pkg Data Path Transfer Rate 8088 8086 (8086 Turbo) 16 8 16 4.77 (8) 4.77 FPMDIP SIPP-30 SIMM-30 8 28616 8 12 8 12 FPMSIMM-308 386SX 386DX 32 16 32 16 20 25 33 16 20 25 33 FPM EDO SIMM-7232 486SX 486DX 32 42033 50 FMP EDO SIMM-72 Pentium 60 Pentium 66 Pentium 75 Pentium 326443066FPM EDO SIMM-72 Pentium Pro326444066FPM EDO BEDO SIMM-72 Pentium II326444066 100 FPM EDO BEDO SDRAM SIMM-72 DIMM-168PC100 100 133 64 (32) (64) Pentium III3264440100 133 100 SDRAM DDR Rambus SDRAM Rambus DIMM-168 DIMM-184 PC100 PC133 PC1600 PC2100 PC800 100 133 166 64 1.6GB/sec 21.GB/sec Pentium 43264100 133 SDRAM DDR Rambus DIMM-168 DIMM-184 DIMM- PC133 PC2100 PC2700 PC800 PC1066 2@400163.2GB/sec Itanium64133RambusRIMMPC10662@53316/32?
