1 Electrical Power & Machines “Electrical Engineering Dept” Prepared By: Dr. Sahar Abd El Moneim Moussa 1

2 2

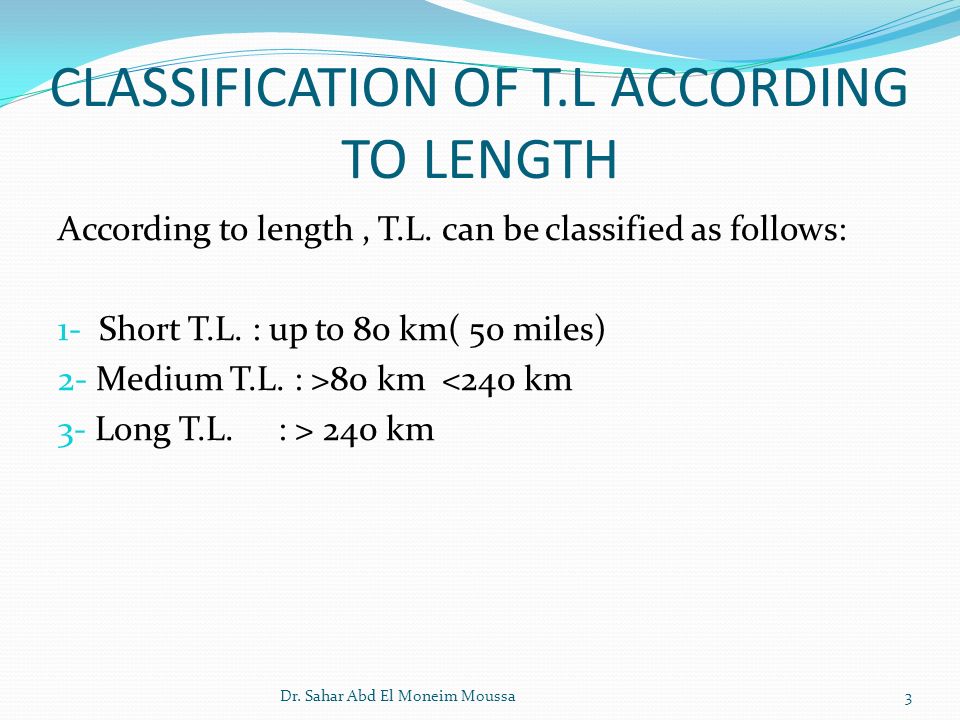

3 CLASSIFICATION OF T.L ACCORDING TO LENGTH According to length, T.L. can be classified as follows: 1- Short T.L. : up to 80 km( 50 miles) 2- Medium T.L. : >80 km <240 km 3- Long T.L. : > 240 km Dr. Sahar Abd El Moneim Moussa3

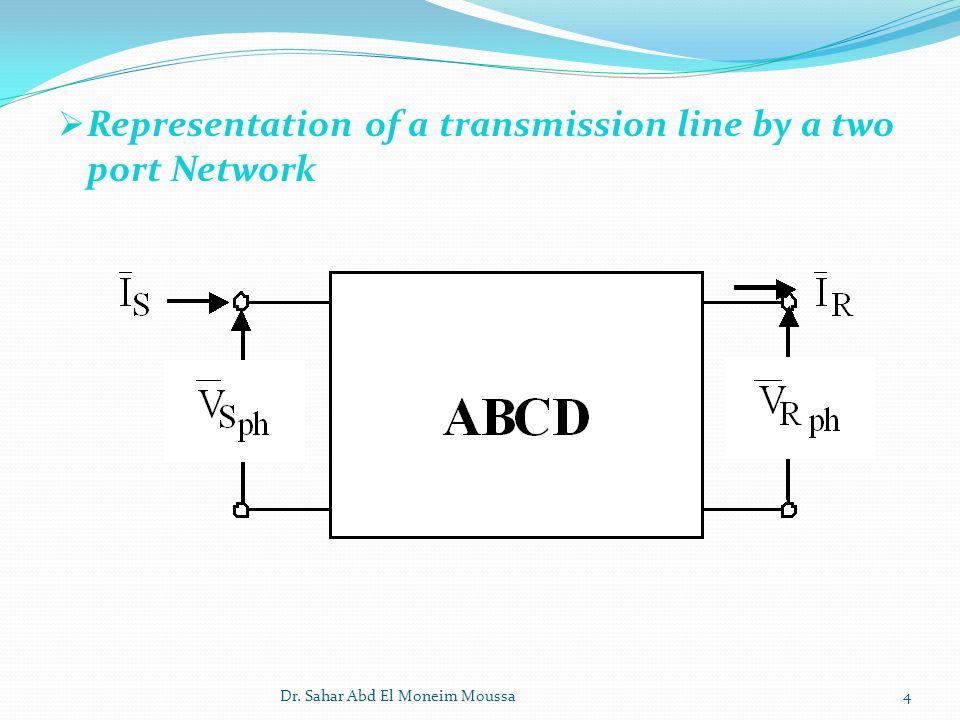

4  Representation of a transmission line by a two port Network Dr. Sahar Abd El Moneim Moussa4

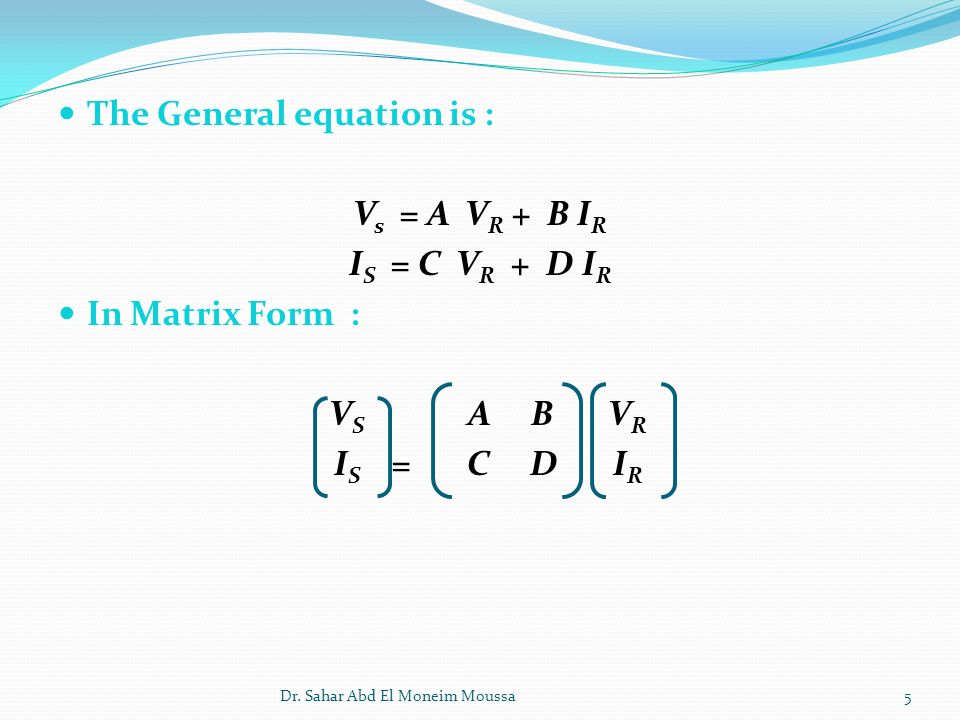

5 The General equation is : V s = A V R + B I R I S = C V R + D I R In Matrix Form : V S A B V R I S = C D I R Dr. Sahar Abd El Moneim Moussa5

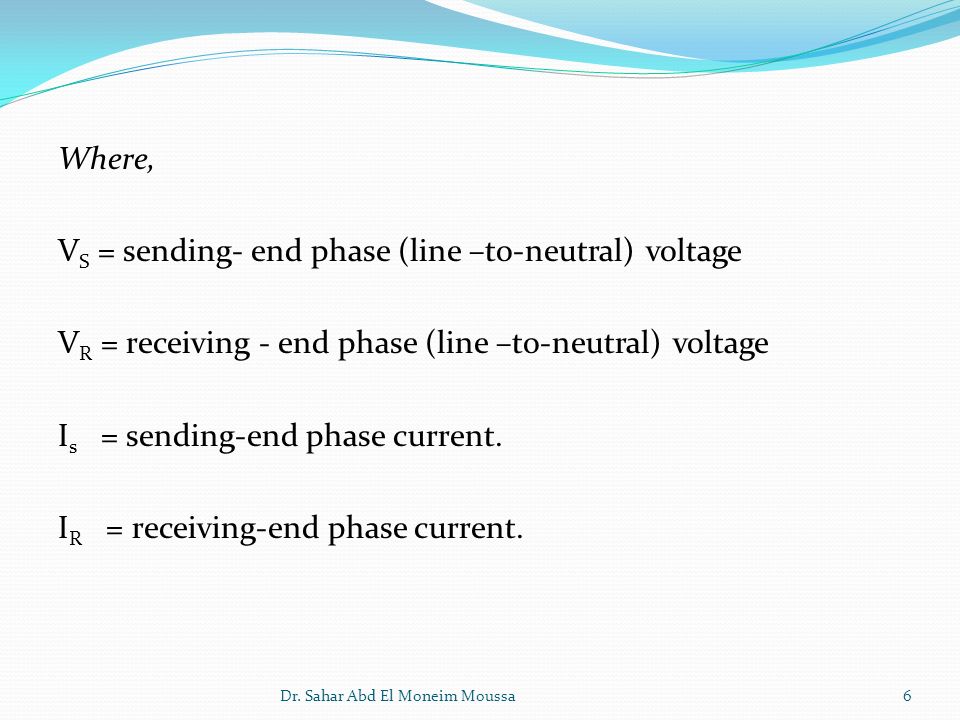

6 Where, V S = sending- end phase (line –to-neutral) voltage V R = receiving - end phase (line –to-neutral) voltage I s = sending-end phase current. I R = receiving-end phase current. Dr. Sahar Abd El Moneim Moussa6

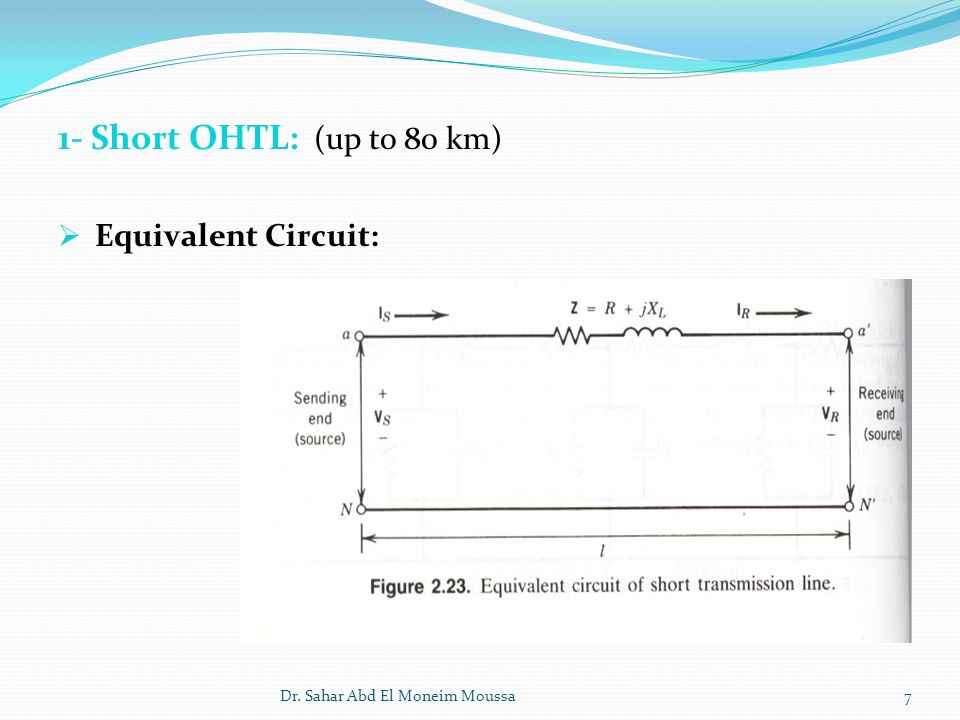

7 1- Short OHTL: (up to 80 km)  Equivalent Circuit: Dr. Sahar Abd El Moneim Moussa7

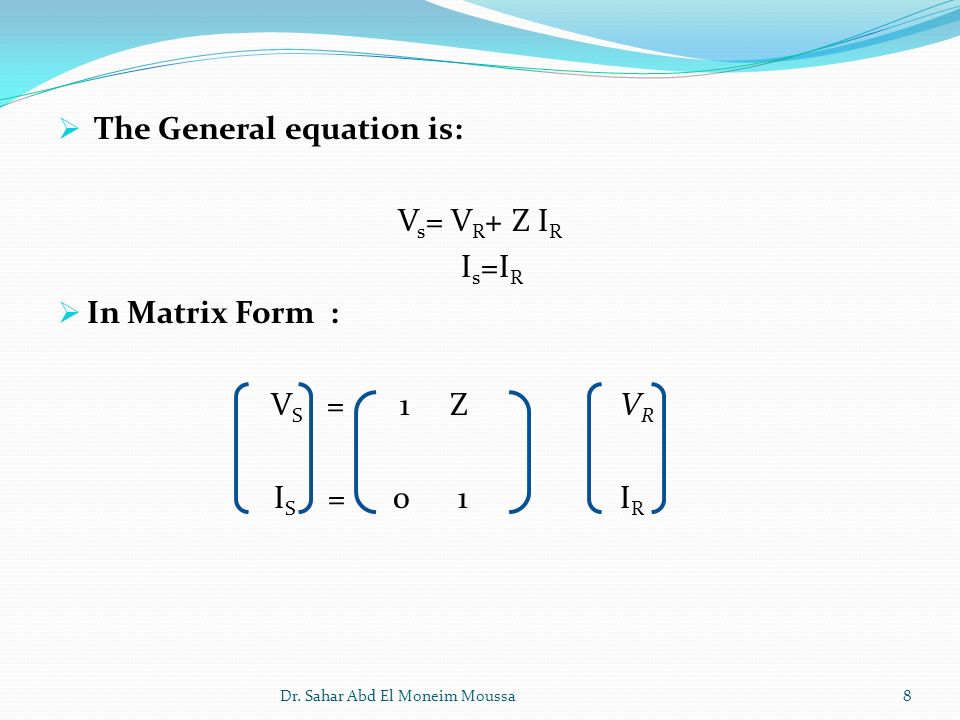

8  The General equation is: V s = V R + Z I R I s =I R  In Matrix Form : V S = 1 Z V R I S = 0 1 I R Dr. Sahar Abd El Moneim Moussa8

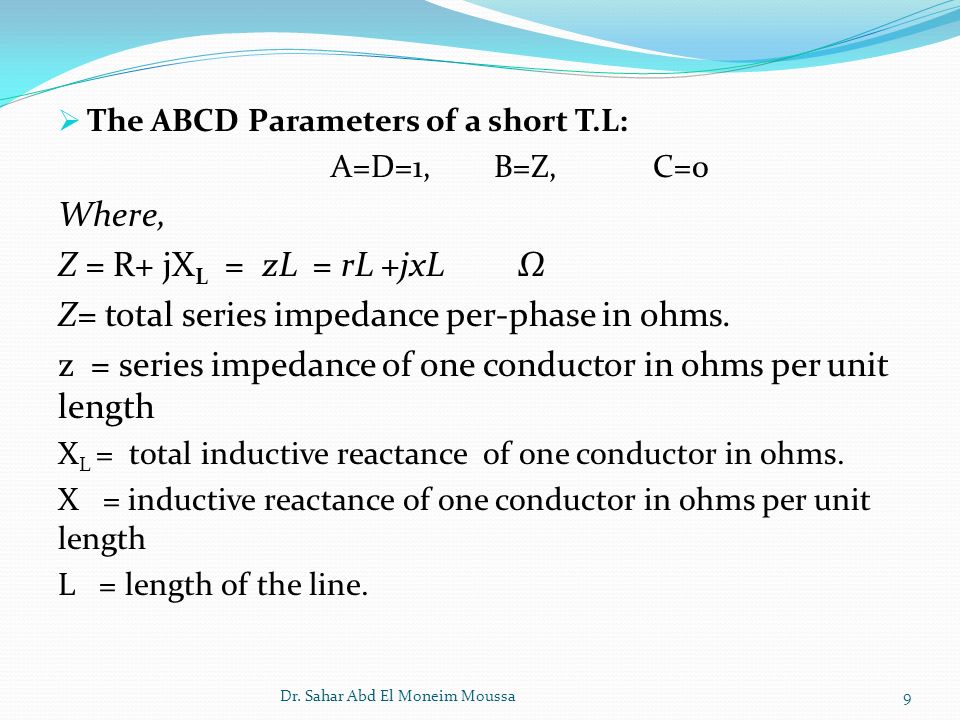

9  The ABCD Parameters of a short T.L: A=D=1, B=Z, C=0 Where, Z = R+ jX L = zL = rL +jxL Ω Z= total series impedance per-phase in ohms. z = series impedance of one conductor in ohms per unit length X L = total inductive reactance of one conductor in ohms. X = inductive reactance of one conductor in ohms per unit length L = length of the line. Dr. Sahar Abd El Moneim Moussa9

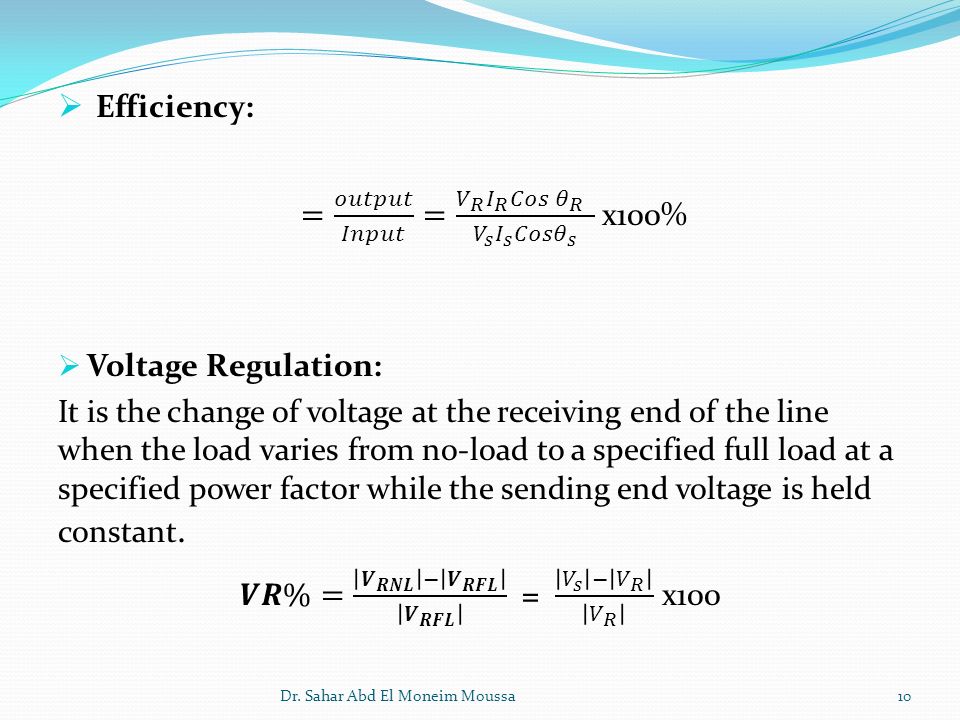

10 10

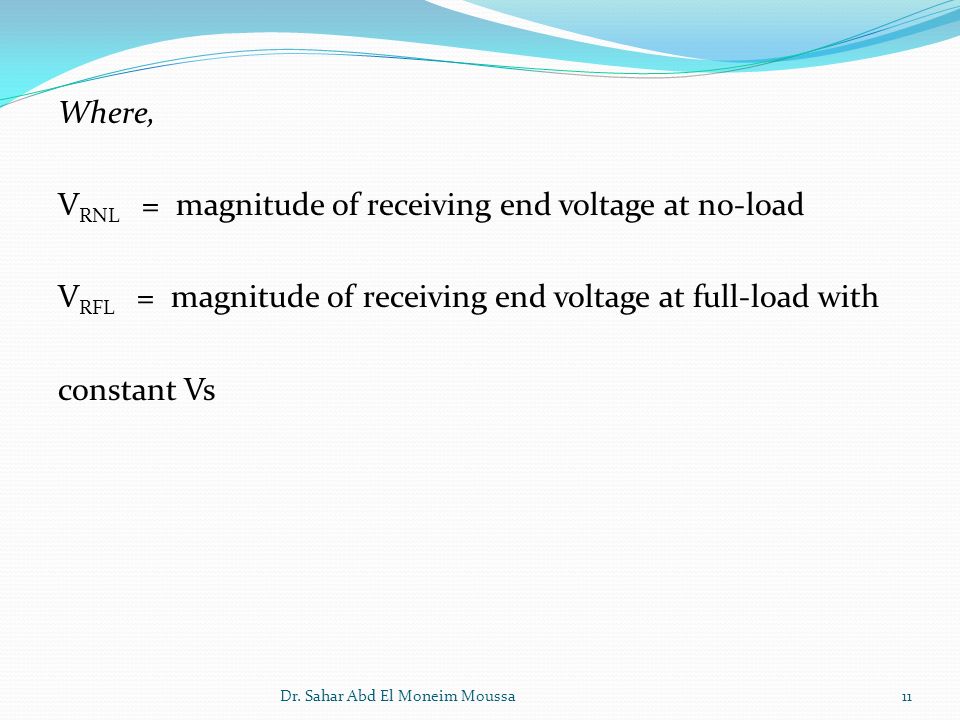

11 Where, V RNL = magnitude of receiving end voltage at no-load V RFL = magnitude of receiving end voltage at full-load with constant Vs Dr. Sahar Abd El Moneim Moussa11

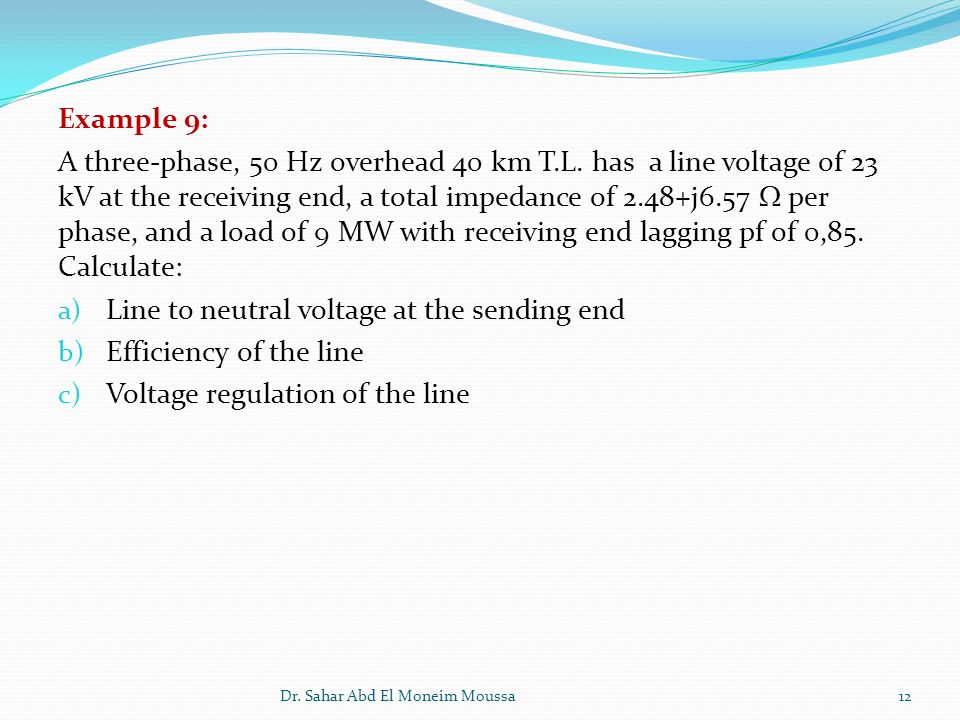

12 Example 9: A three-phase, 50 Hz overhead 40 km T.L. has a line voltage of 23 kV at the receiving end, a total impedance of 2.48+j6.57  per phase, and a load of 9 MW with receiving end lagging pf of 0,85. Calculate: a) Line to neutral voltage at the sending end b) Efficiency of the line c) Voltage regulation of the line Dr. Sahar Abd El Moneim Moussa12

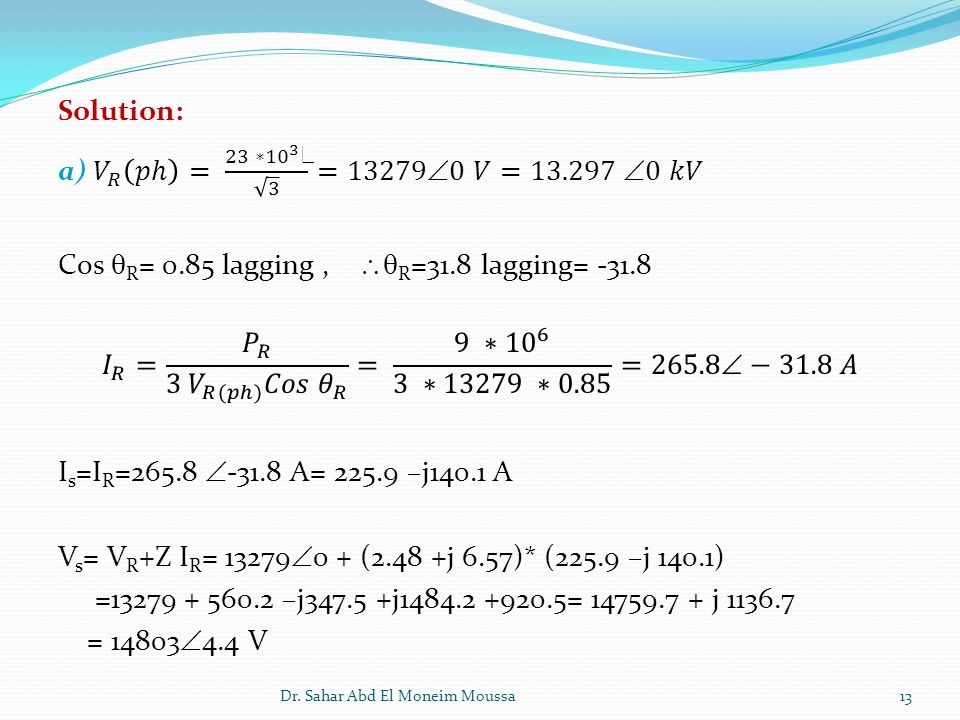

13 Dr. Sahar Abd El Moneim Moussa13

14 Dr. Sahar Abd El Moneim Moussa14

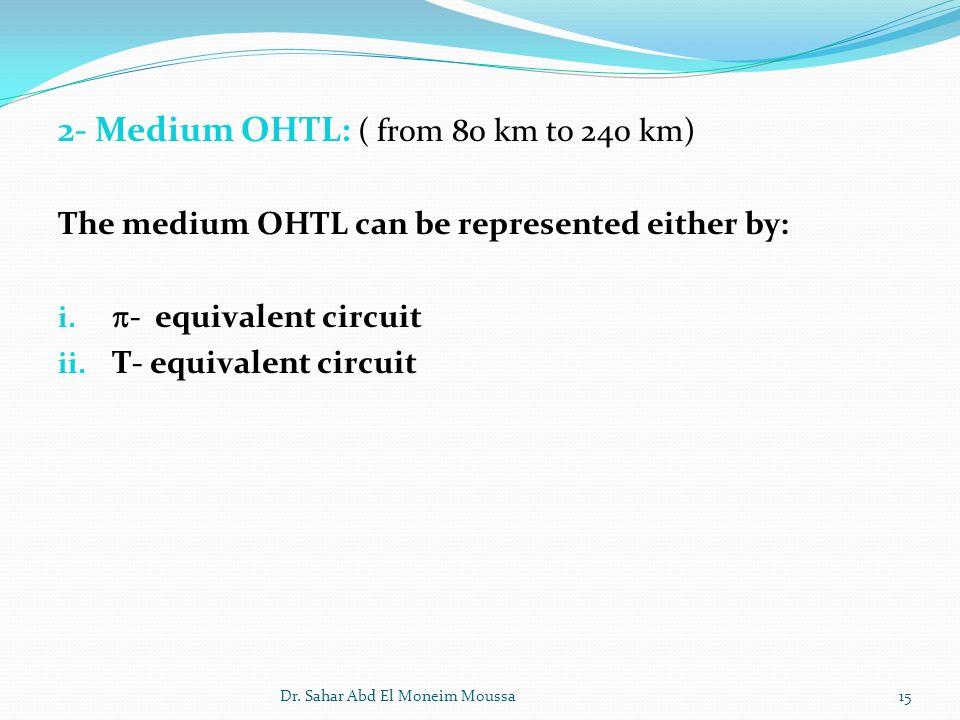

15 2- Medium OHTL: ( from 80 km to 240 km) The medium OHTL can be represented either by: i.  - equivalent circuit ii. T- equivalent circuit Dr. Sahar Abd El Moneim Moussa15

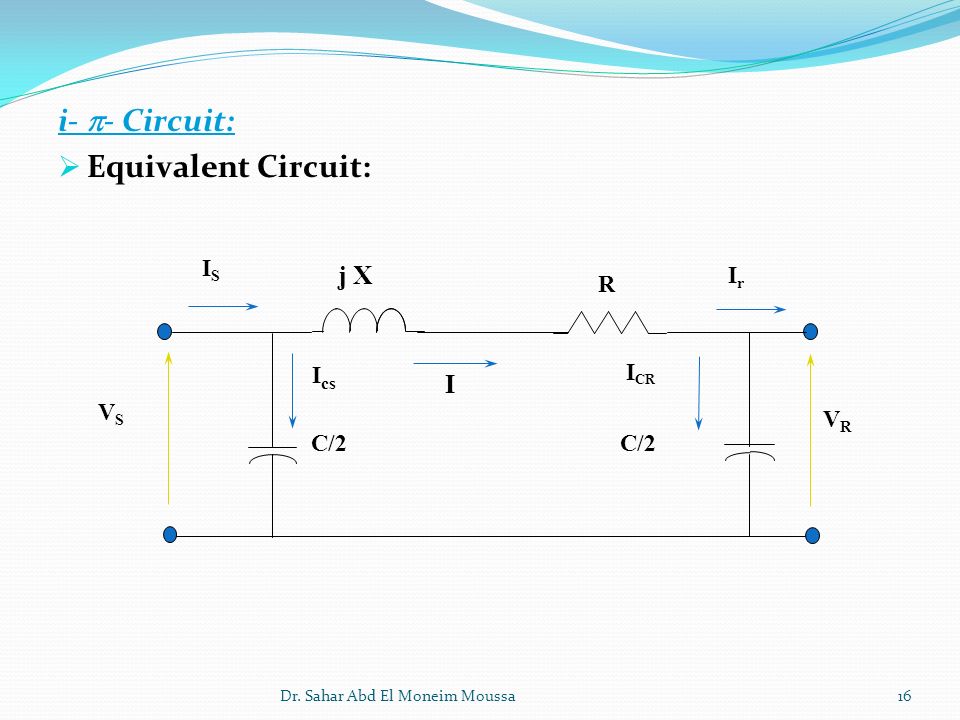

16 i-  - Circuit:  Equivalent Circuit: Dr. Sahar Abd El Moneim Moussa16 j X VSVS VRVR ISIS R C/2 I cs I I CR IrIr

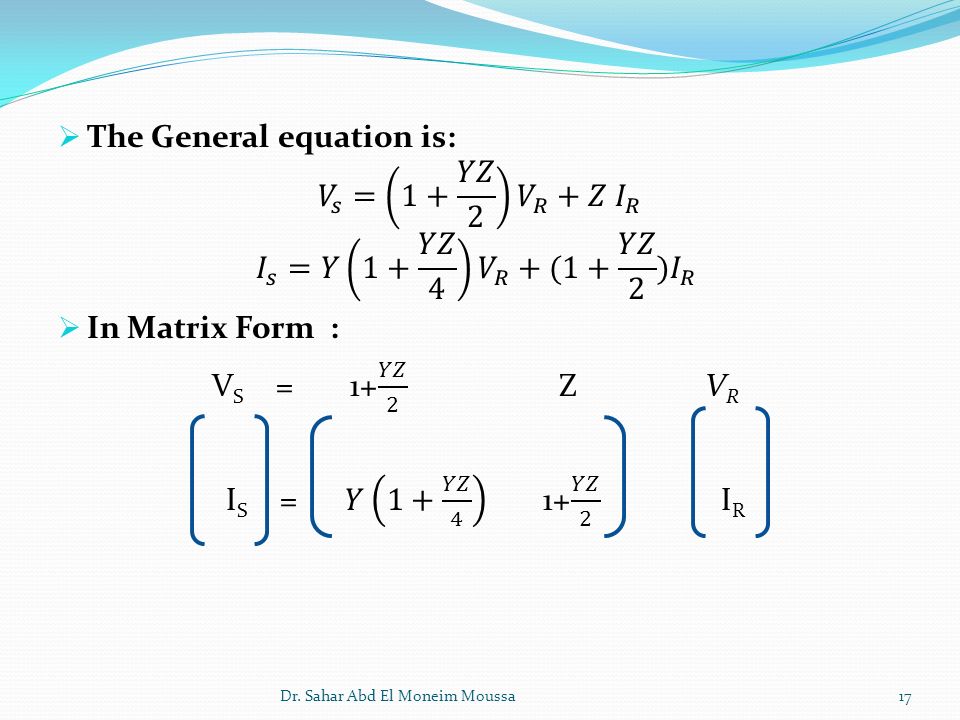

17 Dr. Sahar Abd El Moneim Moussa17

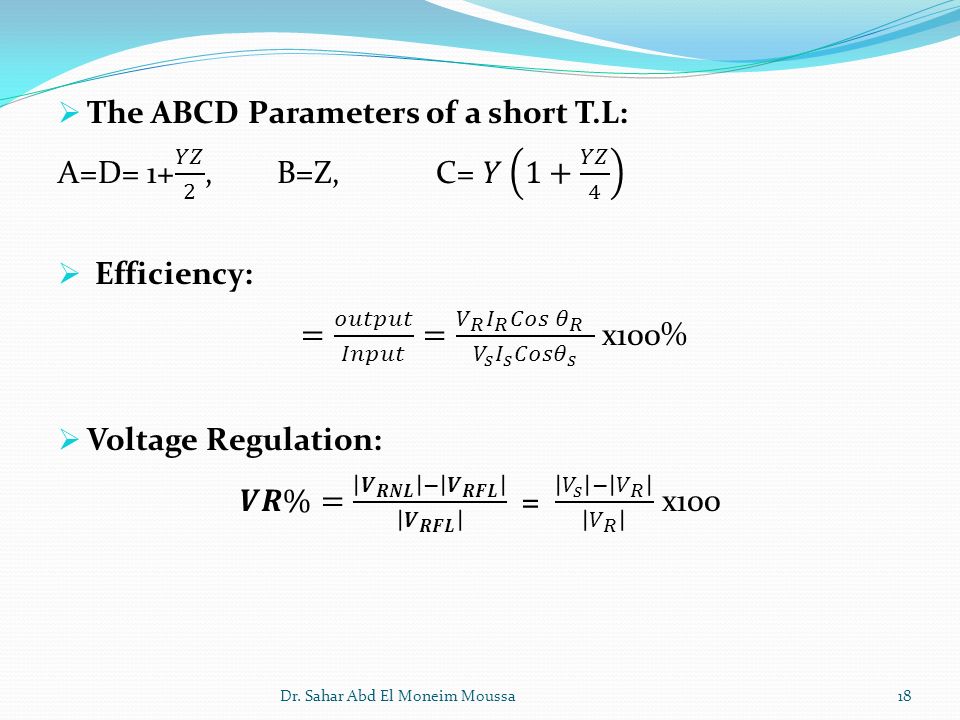

18 Dr. Sahar Abd El Moneim Moussa18

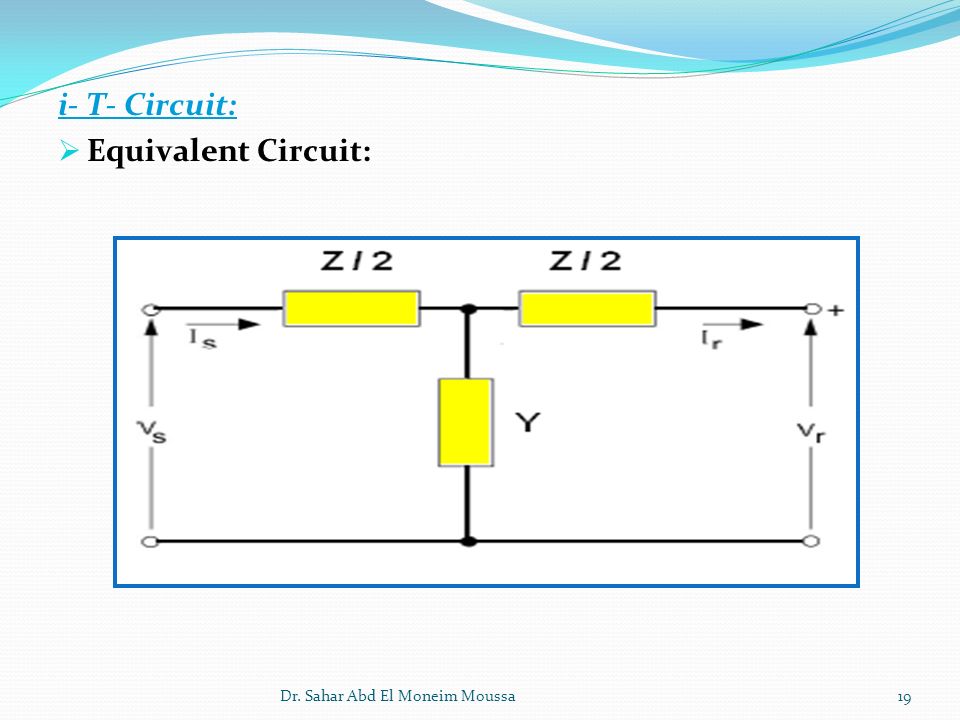

19 i- T- Circuit:  Equivalent Circuit: Dr. Sahar Abd El Moneim Moussa19

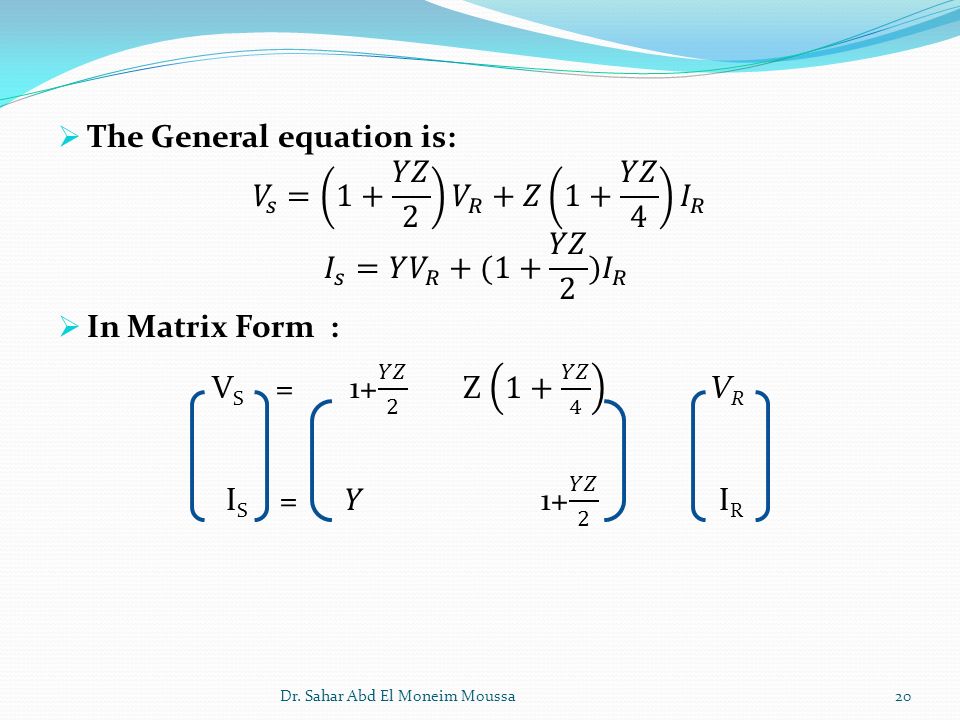

20 Dr. Sahar Abd El Moneim Moussa20

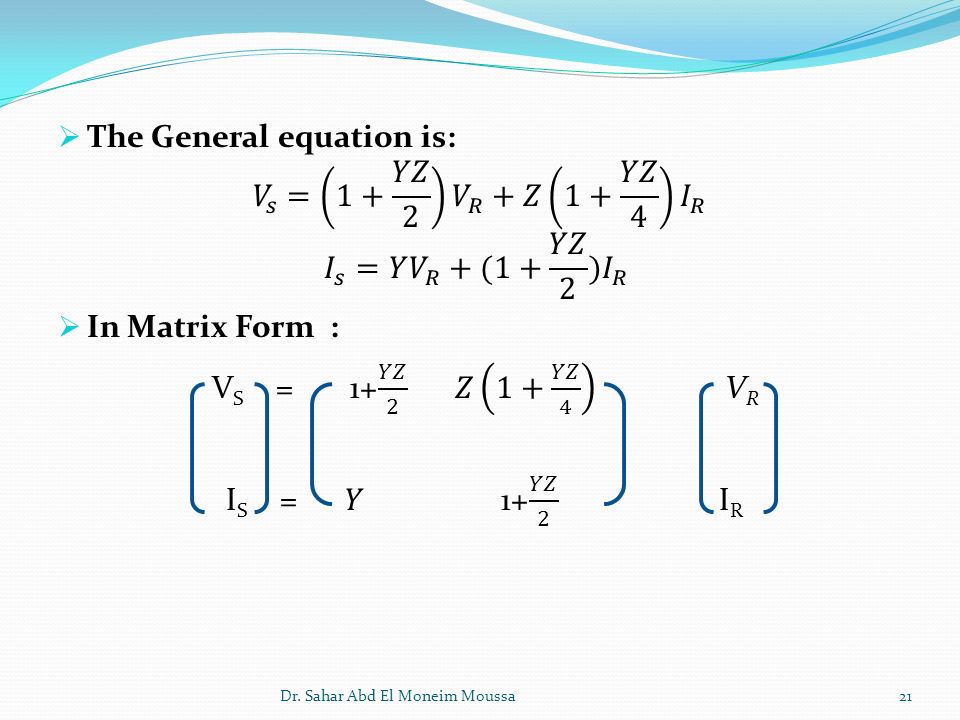

21 Dr. Sahar Abd El Moneim Moussa21

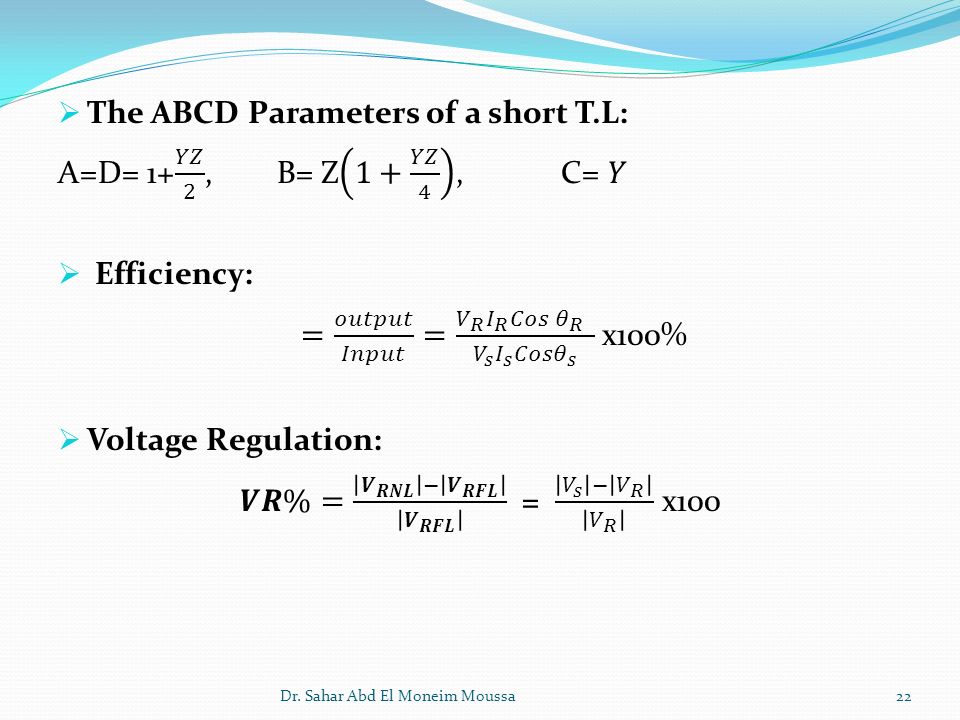

22 Dr. Sahar Abd El Moneim Moussa22

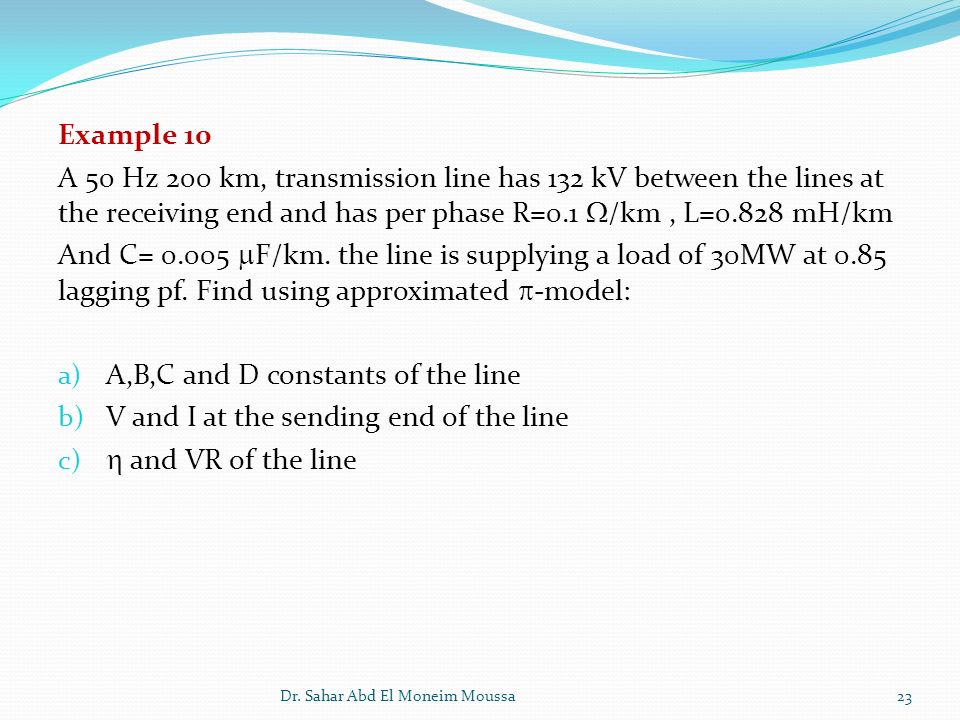

23 Example 10 A 50 Hz 200 km, transmission line has 132 kV between the lines at the receiving end and has per phase R=0.1  /km, L=0.828 mH/km And C= 0.005  F/km. the line is supplying a load of 30MW at 0.85 lagging pf. Find using approximated  -model: a) A,B,C and D constants of the line b) V and I at the sending end of the line c)  and VR of the line Dr. Sahar Abd El Moneim Moussa23

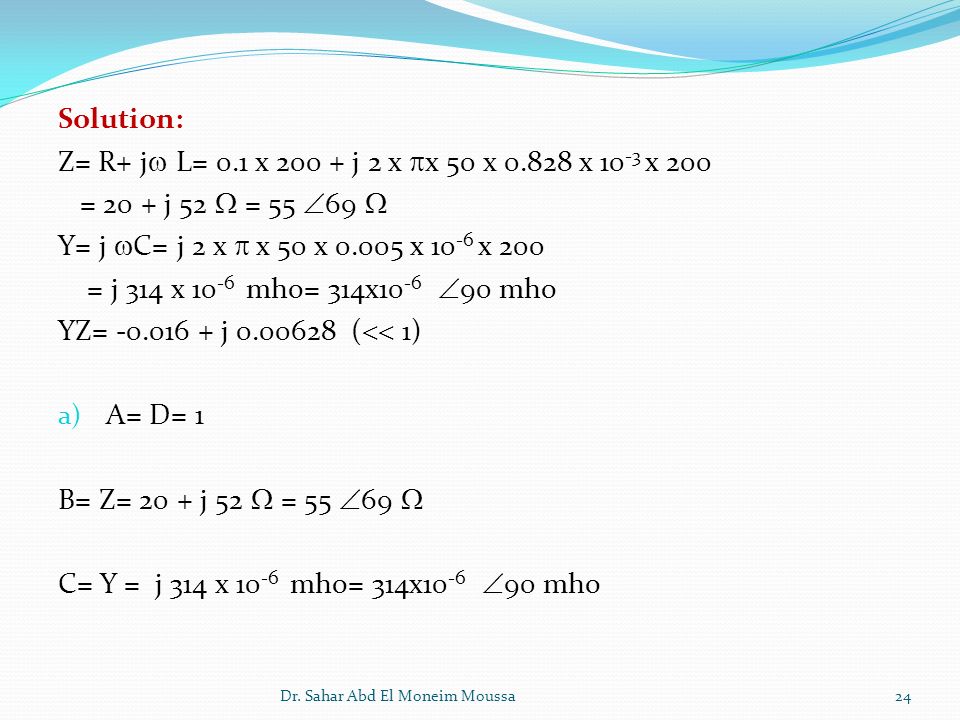

24 Solution: Z= R+ j  L= 0.1 x 200 + j 2 x  x 50 x 0.828 x 10 -3 x 200 = 20 + j 52  = 55  69  Y= j  C= j 2 x  x 50 x 0.005 x 10 -6 x 200 = j 314 x 10 -6 mho= 314x10 -6  90 mho YZ= -0.016 + j 0.00628 (  1) a) A= D= 1 B= Z= 20 + j 52  = 55  69  C= Y = j 314 x 10 -6 mho= 314x10 -6  90 mho Dr. Sahar Abd El Moneim Moussa24

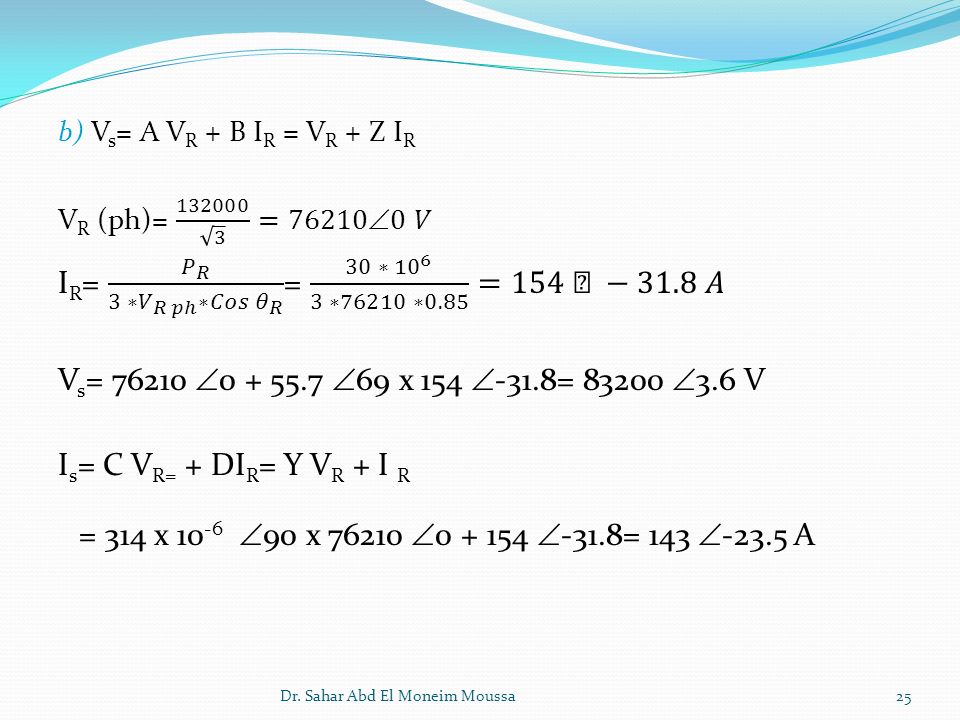

25 Dr. Sahar Abd El Moneim Moussa25

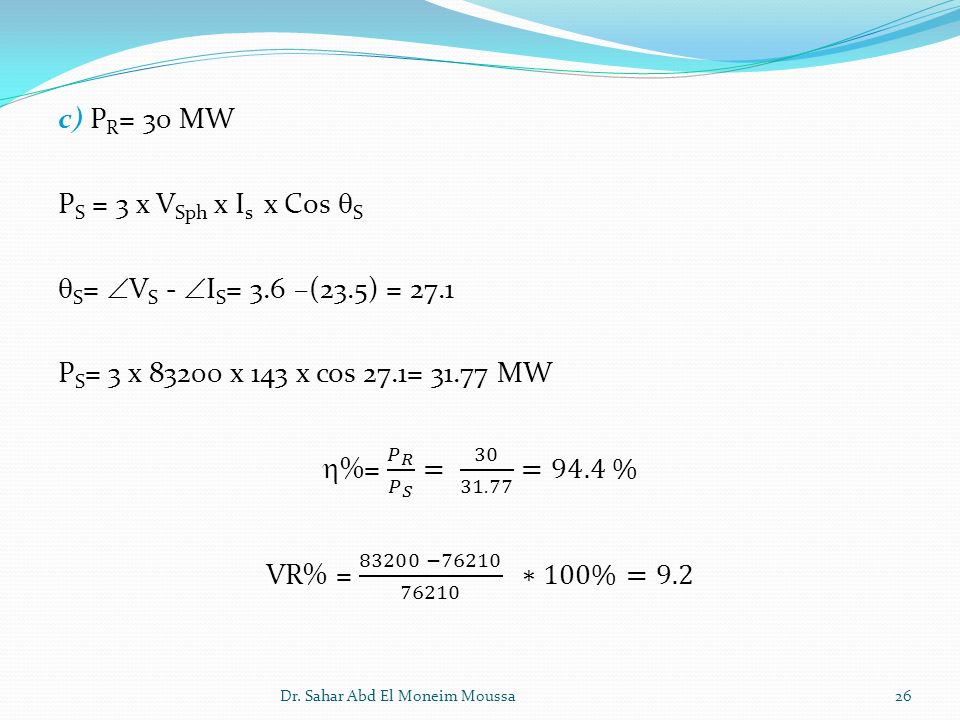

26 Dr. Sahar Abd El Moneim Moussa26
