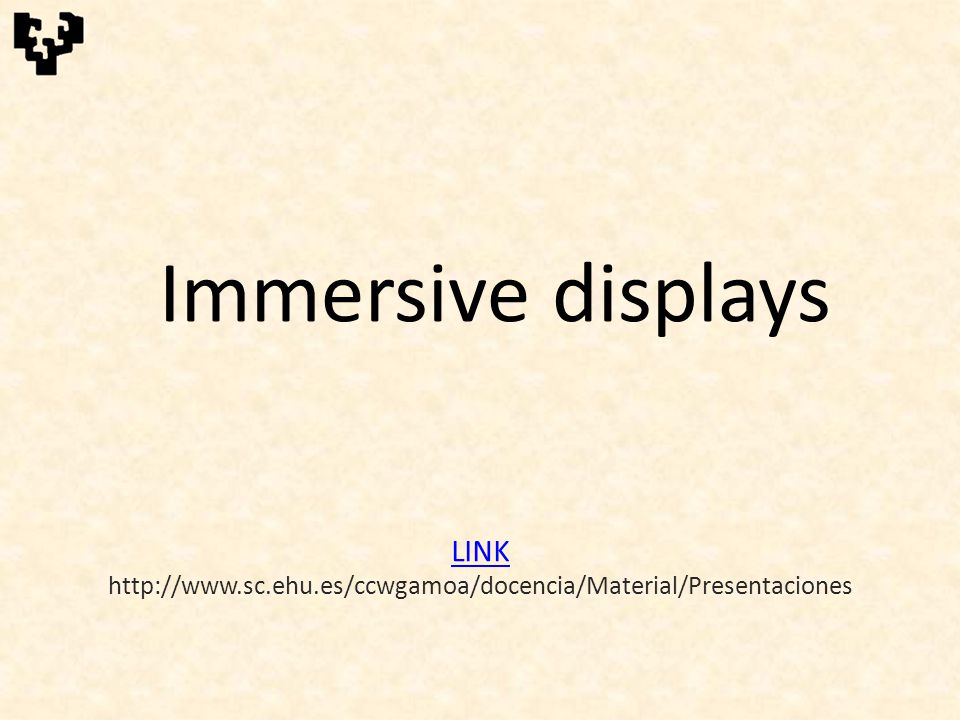

1 Immersive displays LINK LINK http://www.sc.ehu.es/ccwgamoa/docencia/Material/Presentaciones

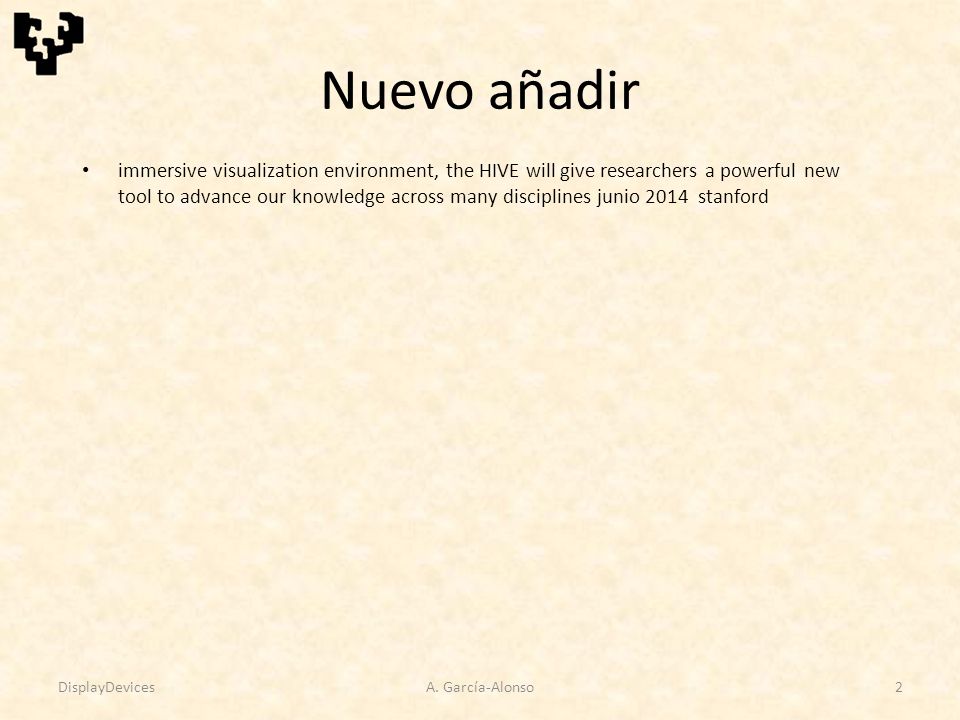

2 A. García-Alonso2 Nuevo añadir immersive visualization environment, the HIVE will give researchers a powerful new tool to advance our knowledge across many disciplines junio 2014 stanford DisplayDevices

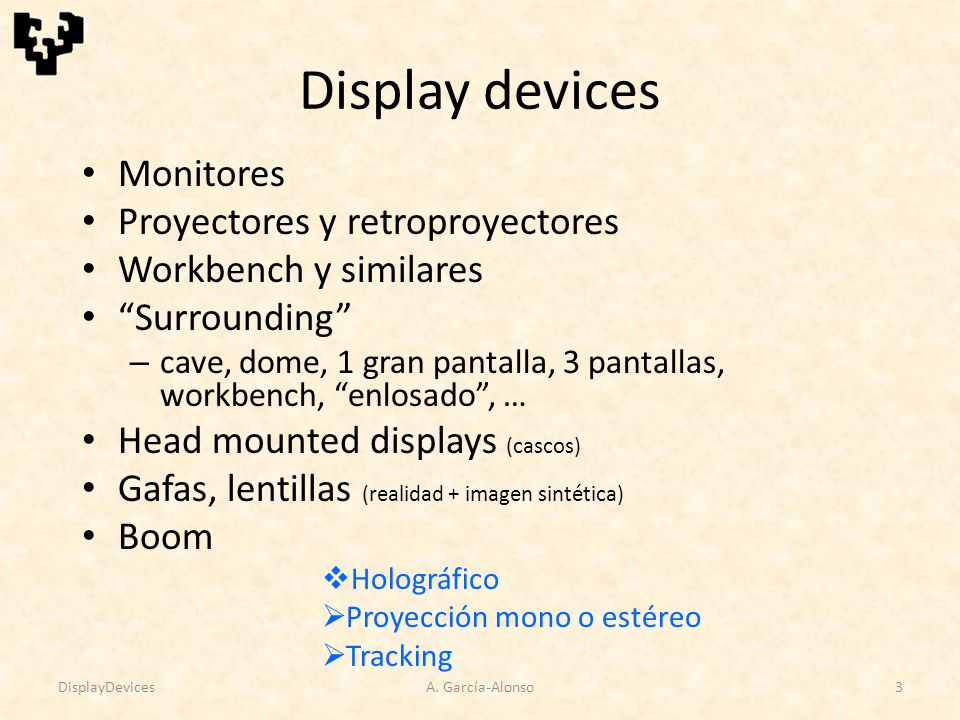

3 A. García-Alonso3 Display devices Monitores Proyectores y retroproyectores Workbench y similares “Surrounding” – cave, dome, 1 gran pantalla, 3 pantallas, workbench, “enlosado”, … Head mounted displays (cascos) Gafas, lentillas (realidad + imagen sintética) Boom  Holográfico  Proyección mono o estéreo  Tracking DisplayDevices

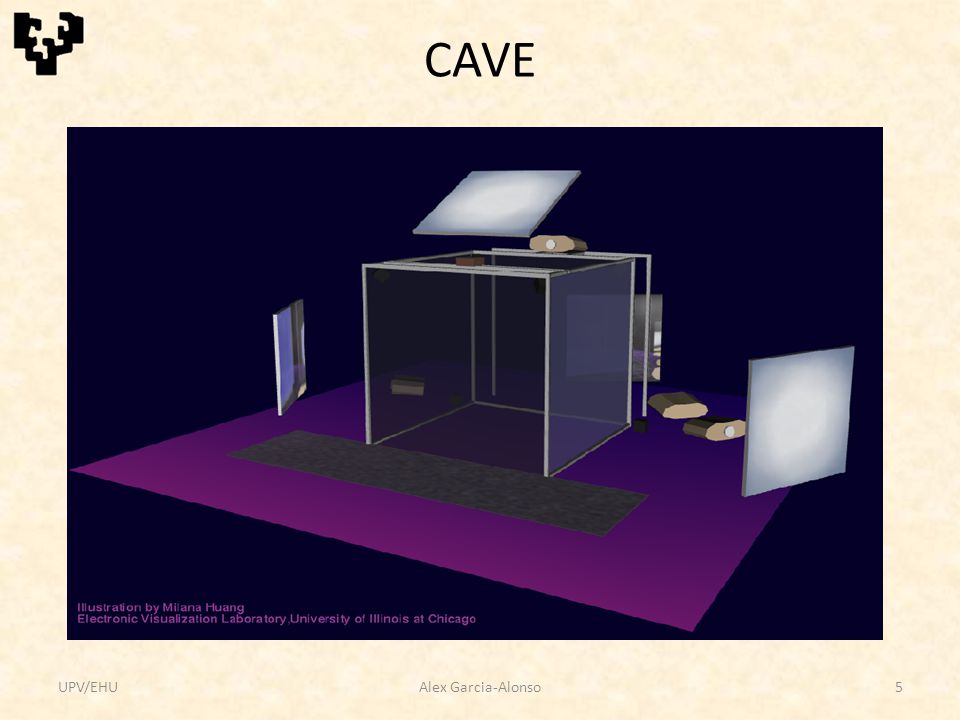

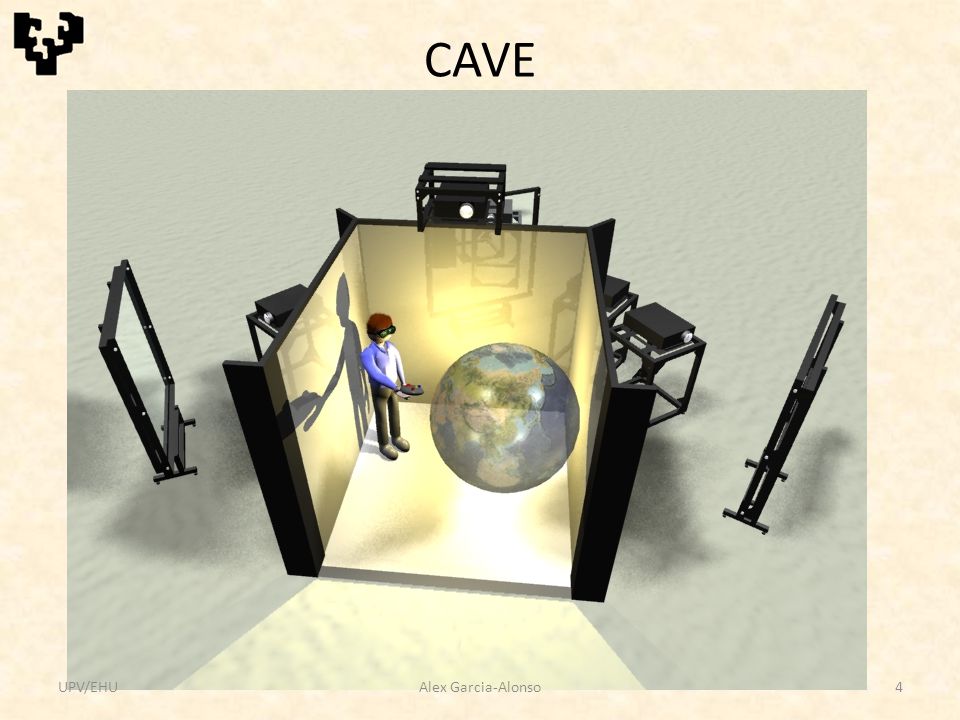

4 CAVE UPV/EHU4Alex Garcia-Alonso

5 CAVE UPV/EHU5Alex Garcia-Alonso

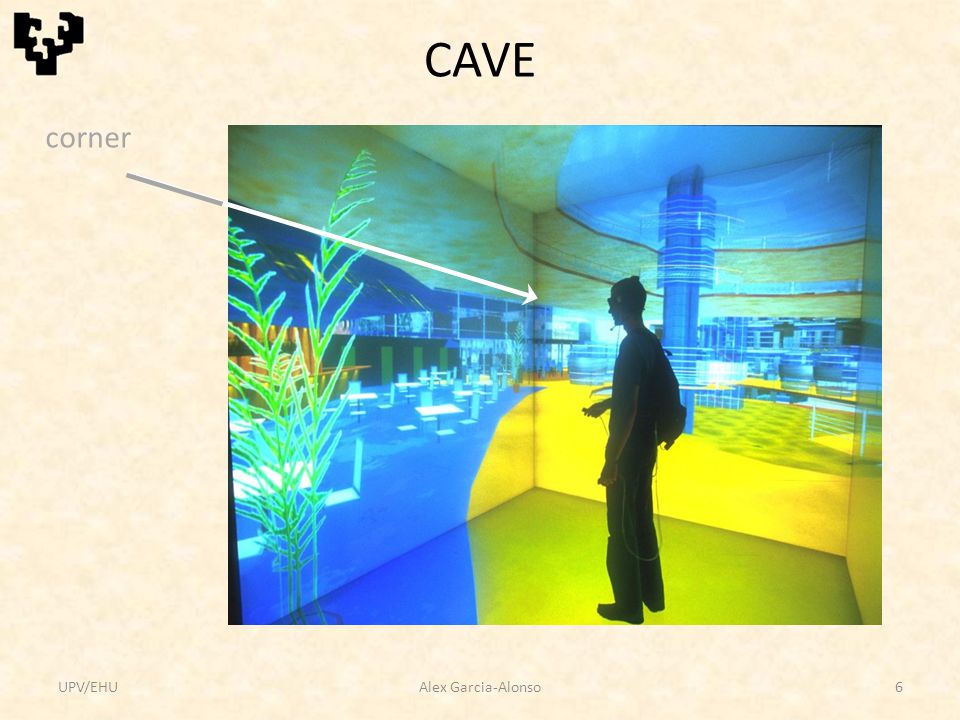

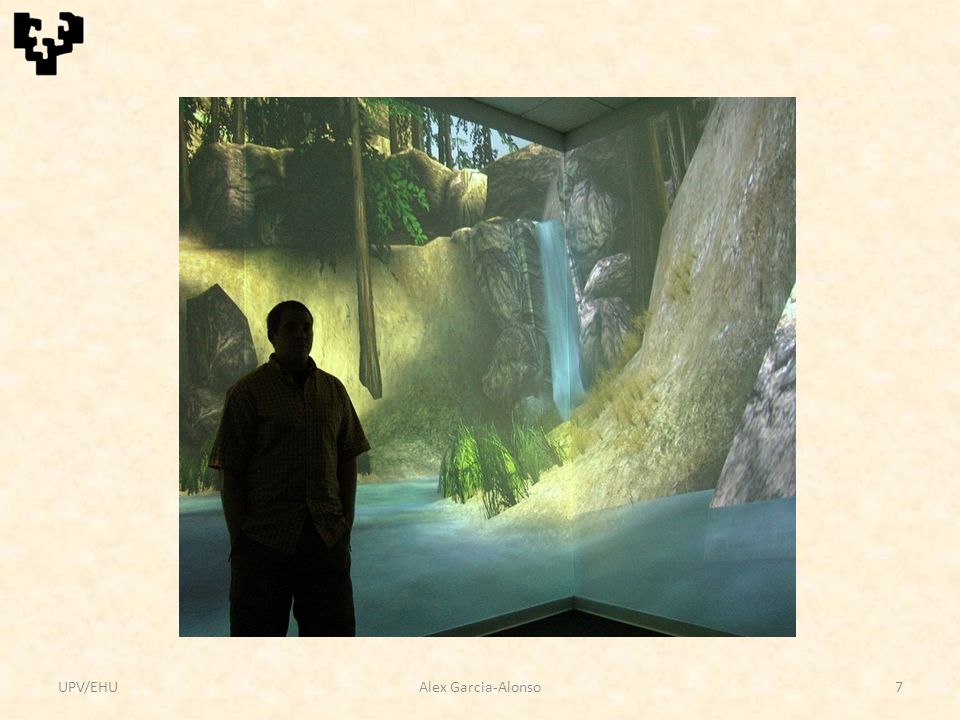

6 CAVE corner UPV/EHU6Alex Garcia-Alonso

7 UPV/EHU7Alex Garcia-Alonso

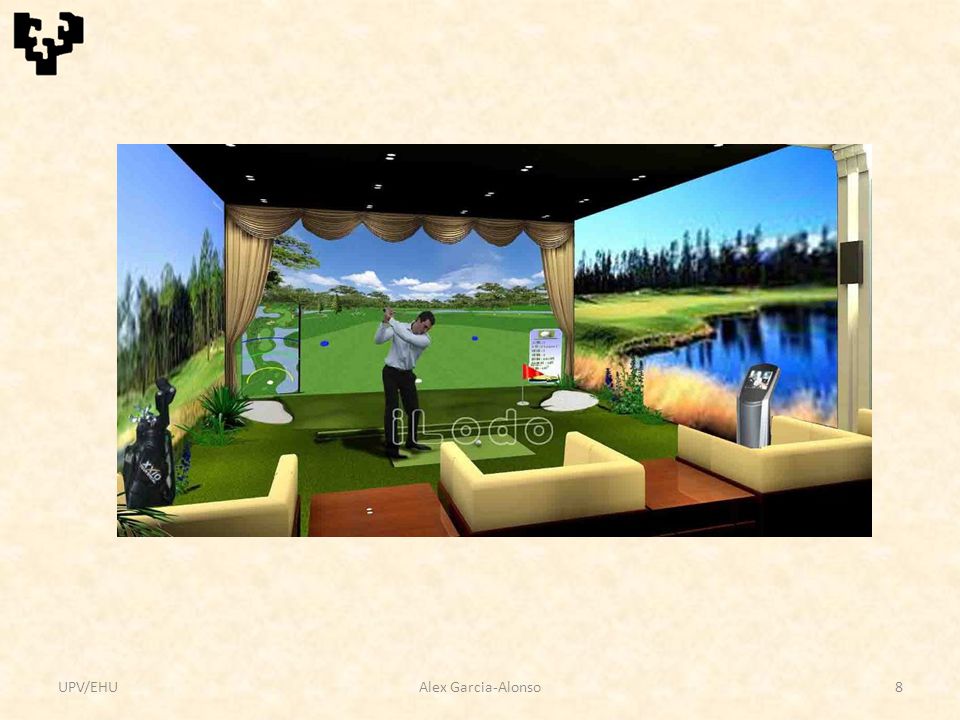

8 UPV/EHU8Alex Garcia-Alonso

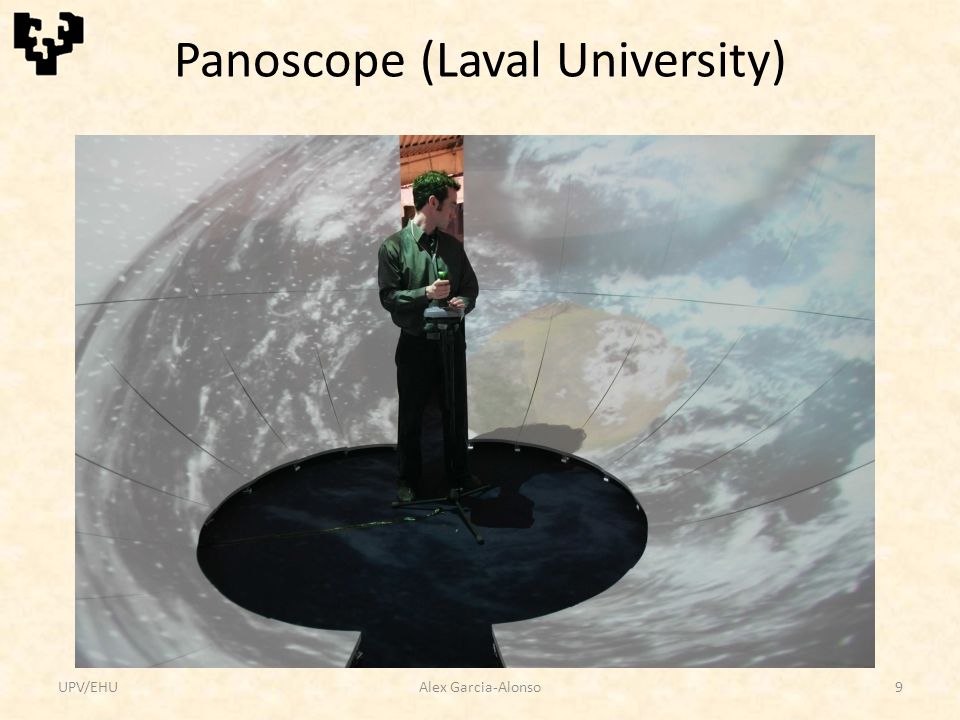

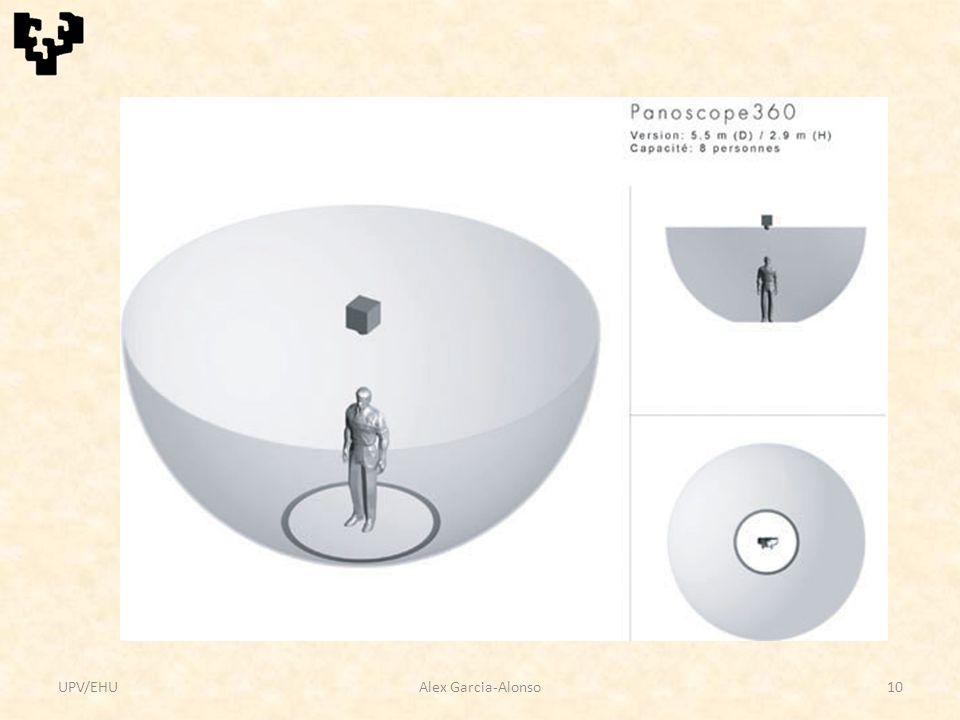

9 Panoscope (Laval University) UPV/EHU9Alex Garcia-Alonso

10 UPV/EHU10Alex Garcia-Alonso

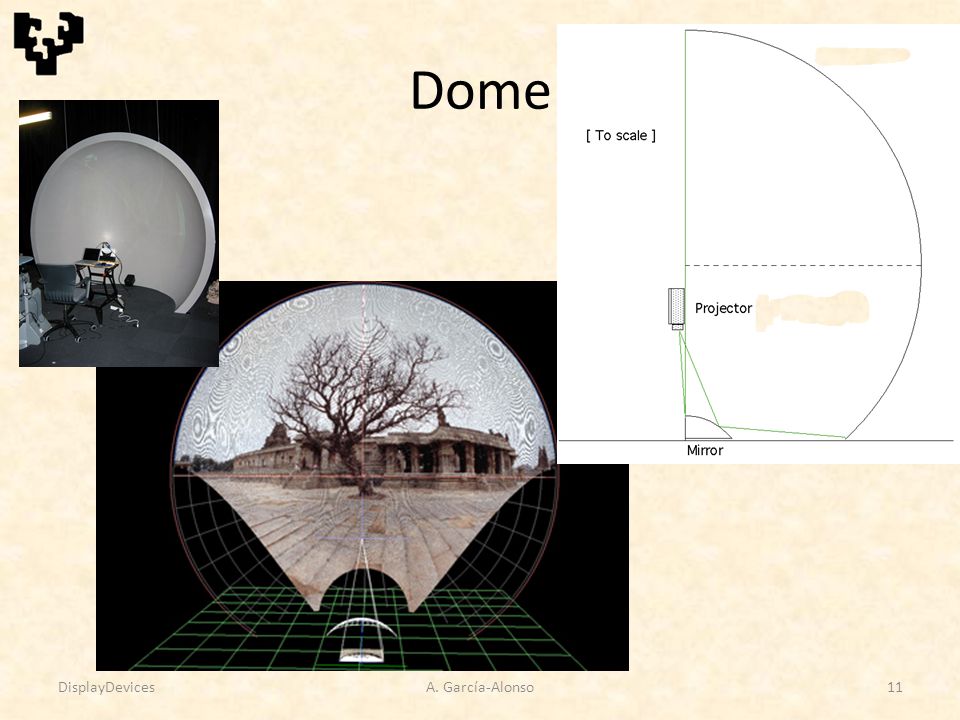

11 A. García-Alonso11 Dome DisplayDevices

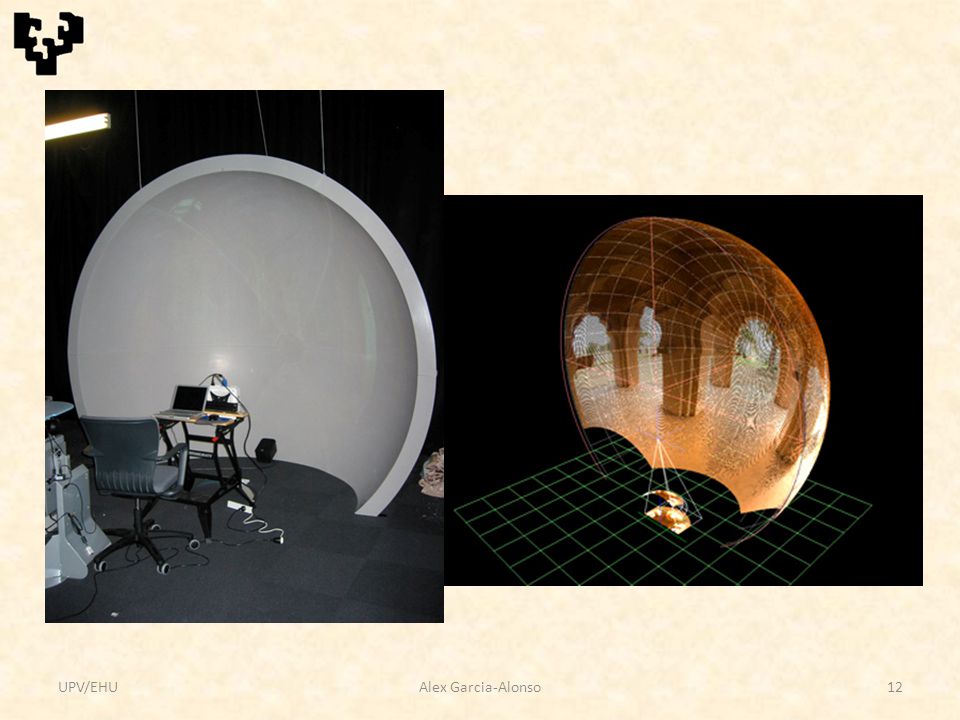

12 UPV/EHU12Alex Garcia-Alonso

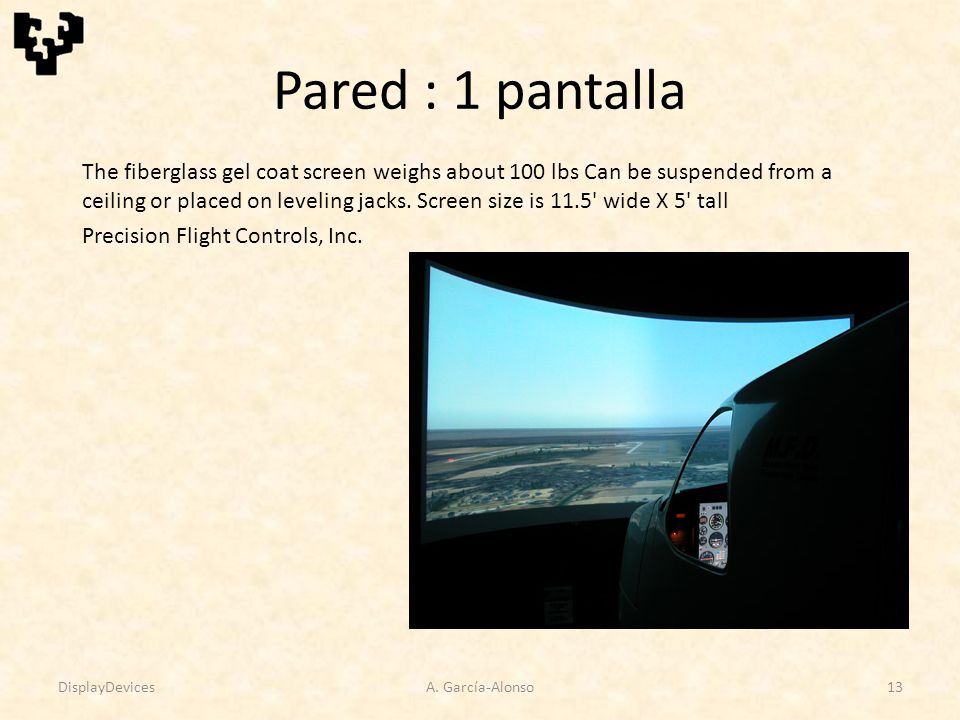

13 A. García-Alonso13 Pared : 1 pantalla The fiberglass gel coat screen weighs about 100 lbs Can be suspended from a ceiling or placed on leveling jacks. Screen size is 11.5' wide X 5' tall Precision Flight Controls, Inc. DisplayDevices

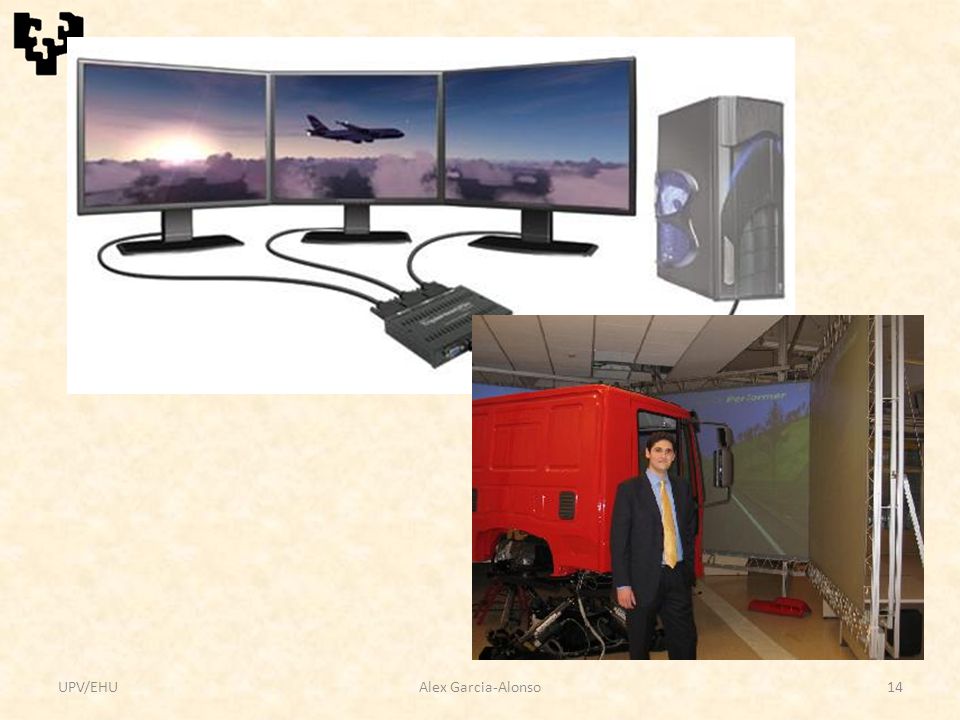

14 UPV/EHU14Alex Garcia-Alonso

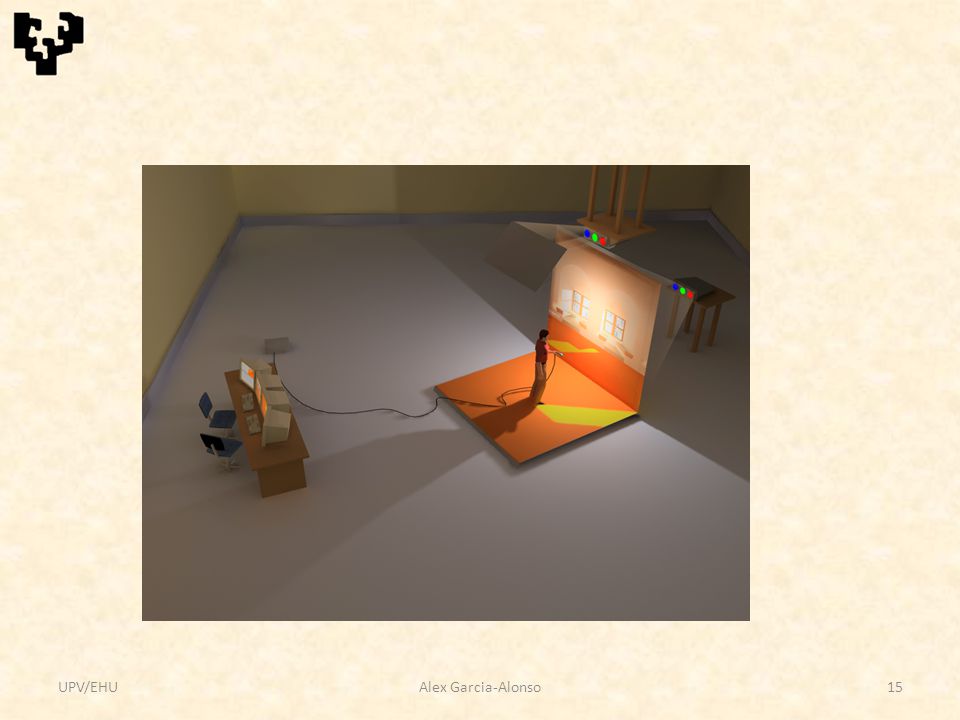

15 UPV/EHU15Alex Garcia-Alonso

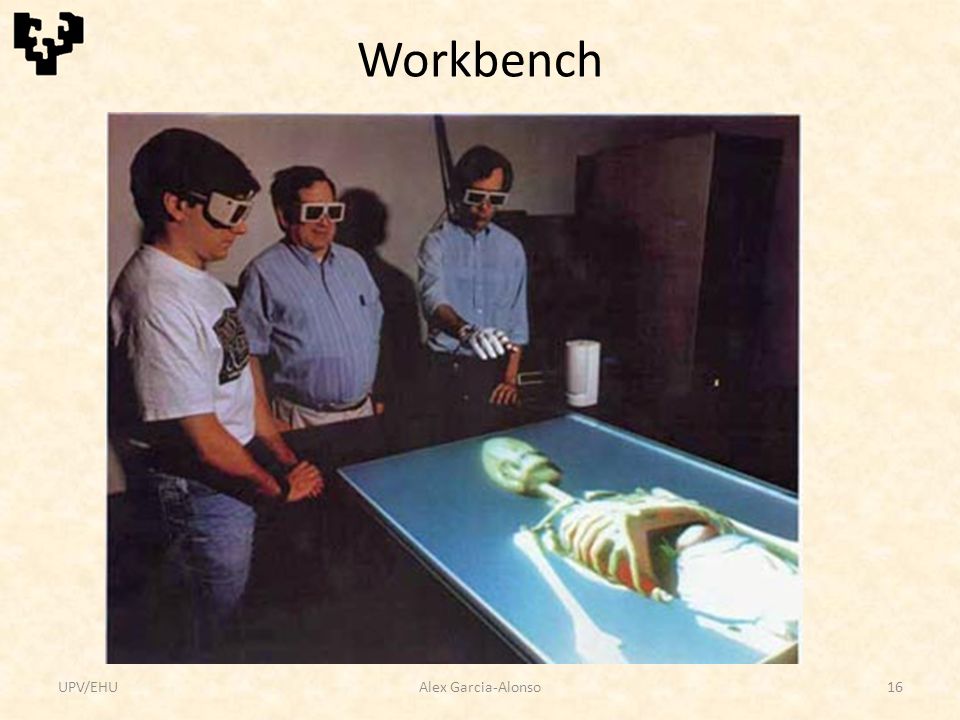

16 Workbench UPV/EHU16Alex Garcia-Alonso

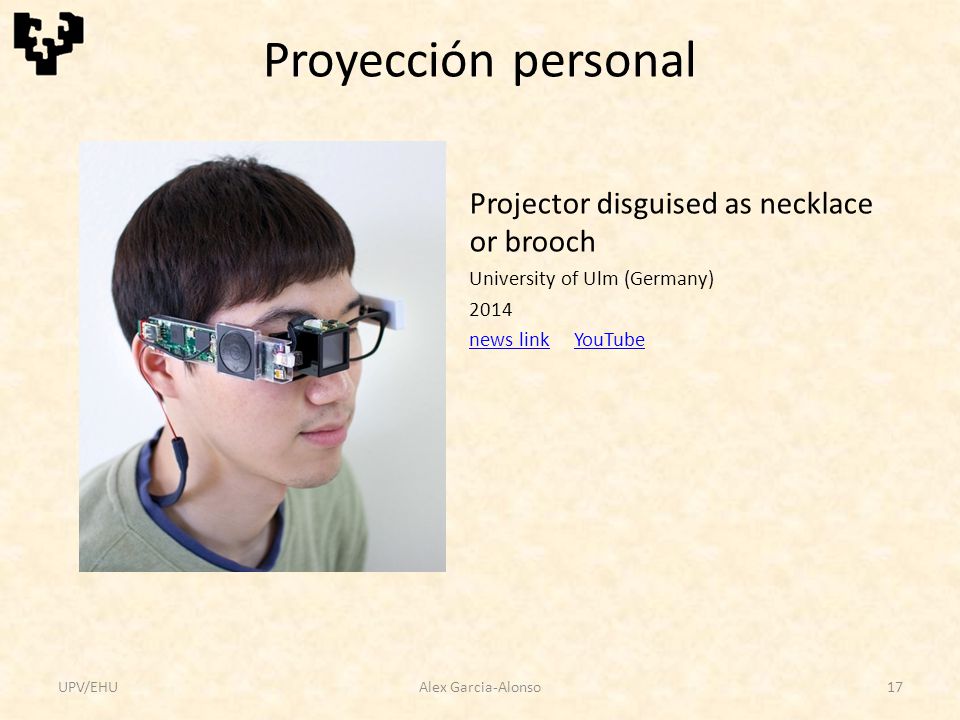

17 Proyección personal UPV/EHU17Alex Garcia-Alonso Projector disguised as necklace or brooch University of Ulm (Germany) 2014 news linknews link YouTubeYouTube

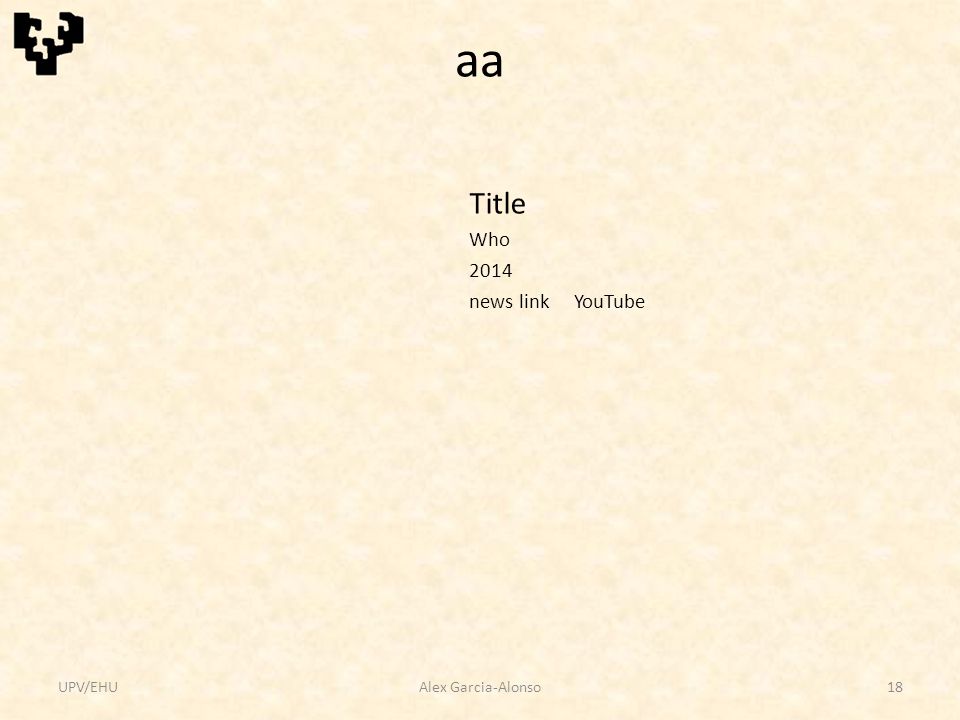

18 aa UPV/EHU18Alex Garcia-Alonso Title Who 2014 news link YouTube

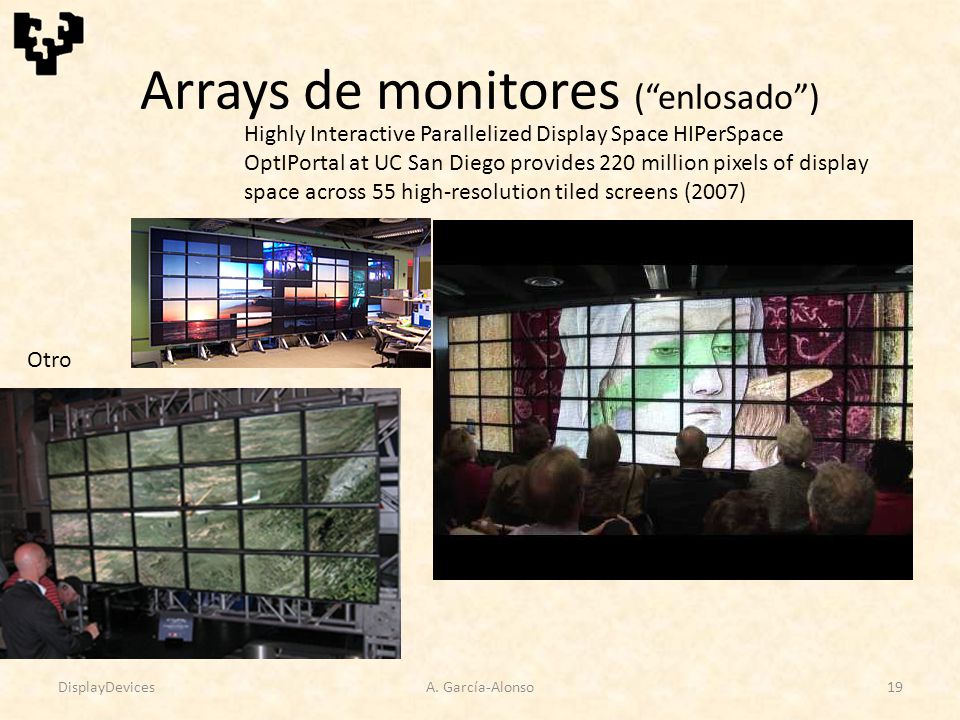

19 A. García-Alonso19 Arrays de monitores (“enlosado”) Highly Interactive Parallelized Display Space HIPerSpace OptIPortal at UC San Diego provides 220 million pixels of display space across 55 high-resolution tiled screens (2007) DisplayDevices Otro

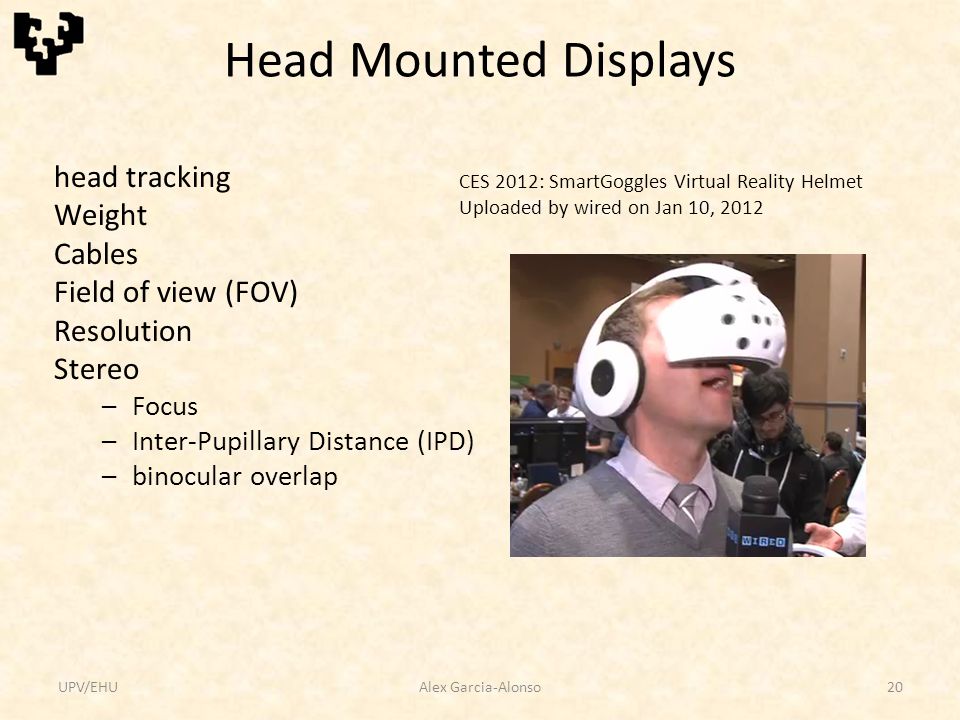

20 Head Mounted Displays CES 2012: SmartGoggles Virtual Reality Helmet Uploaded by wired on Jan 10, 2012 UPV/EHU20Alex Garcia-Alonso head tracking Weight Cables Field of view (FOV) Resolution Stereo –Focus –Inter-Pupillary Distance (IPD) –binocular overlap

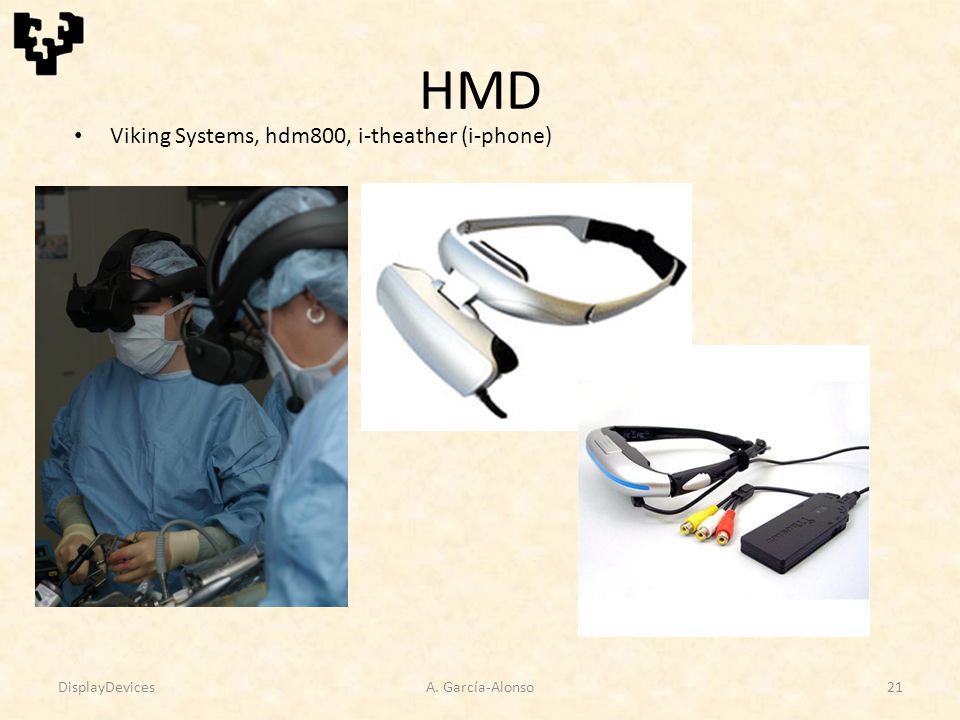

21 A. García-Alonso21 HMD Viking Systems, hdm800, i-theather (i-phone) DisplayDevices

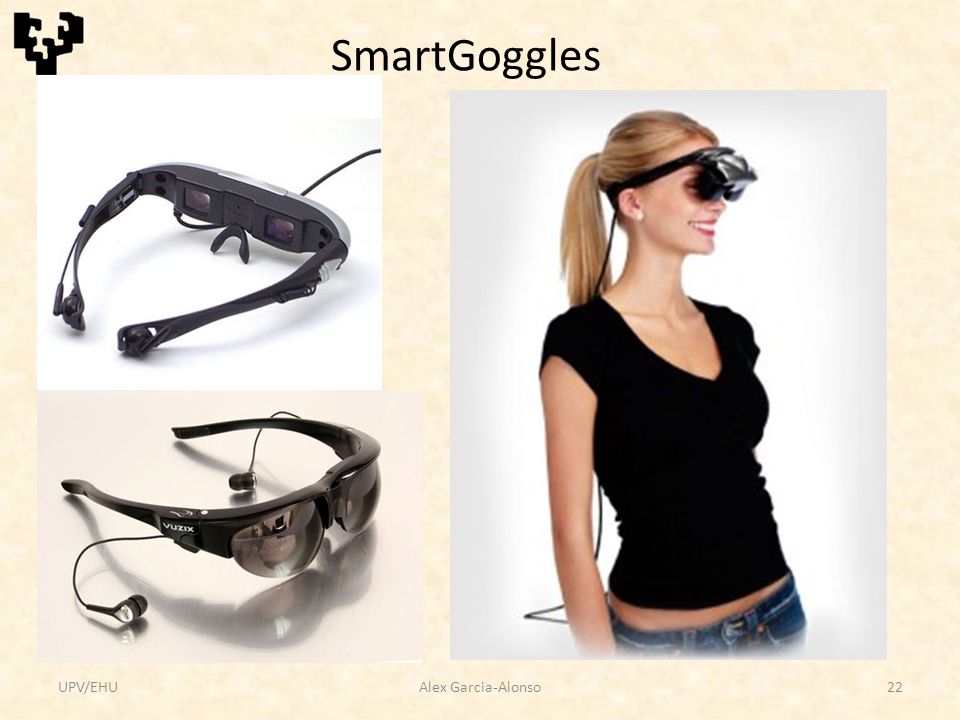

22 UPV/EHU22Alex Garcia-Alonso SmartGoggles

23 A. García-Alonso23 Gafas viper, Nikon-UP300 Brother-AirScooters, DoCoMo-Olympus AR walker’s DisplayDevices

24 UPV/EHU24Alex Garcia-Alonso Gafas Google googles

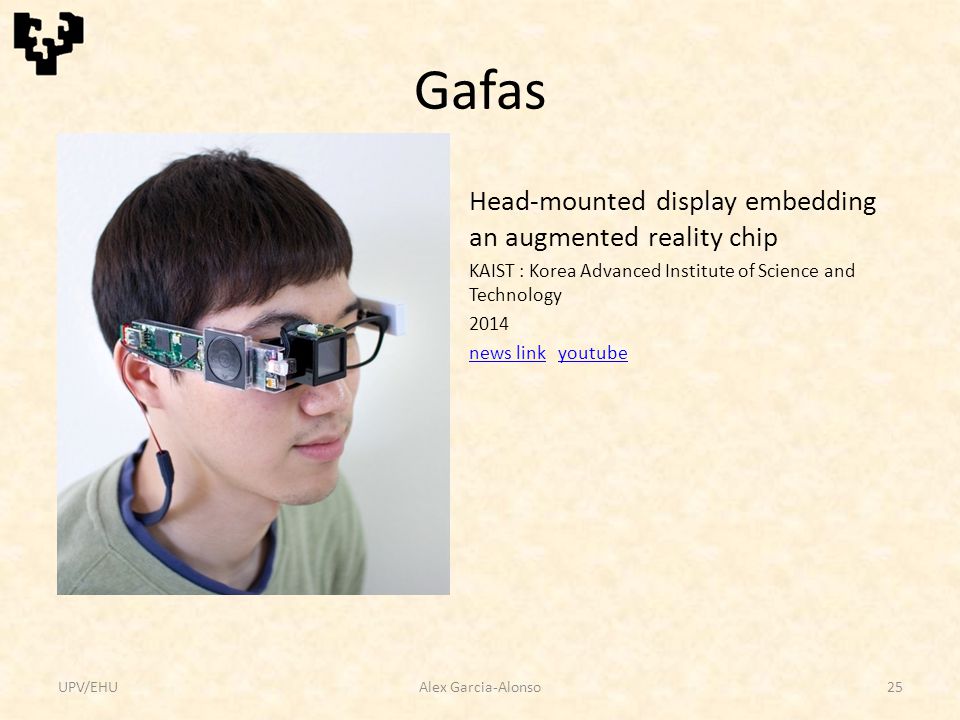

25 UPV/EHU25Alex Garcia-Alonso Gafas Head-mounted display embedding an augmented reality chip KAIST : Korea Advanced Institute of Science and Technology 2014 news linknews link youtubeyoutube

26 UPV/EHU26Alex Garcia-Alonso Gafas Google googles

27 ¿ Lentillas, proyección sobre el ojo, … ? UPV/EHU27Alex Garcia-Alonso

28 Otros UPV/EHU28Alex Garcia-Alonso

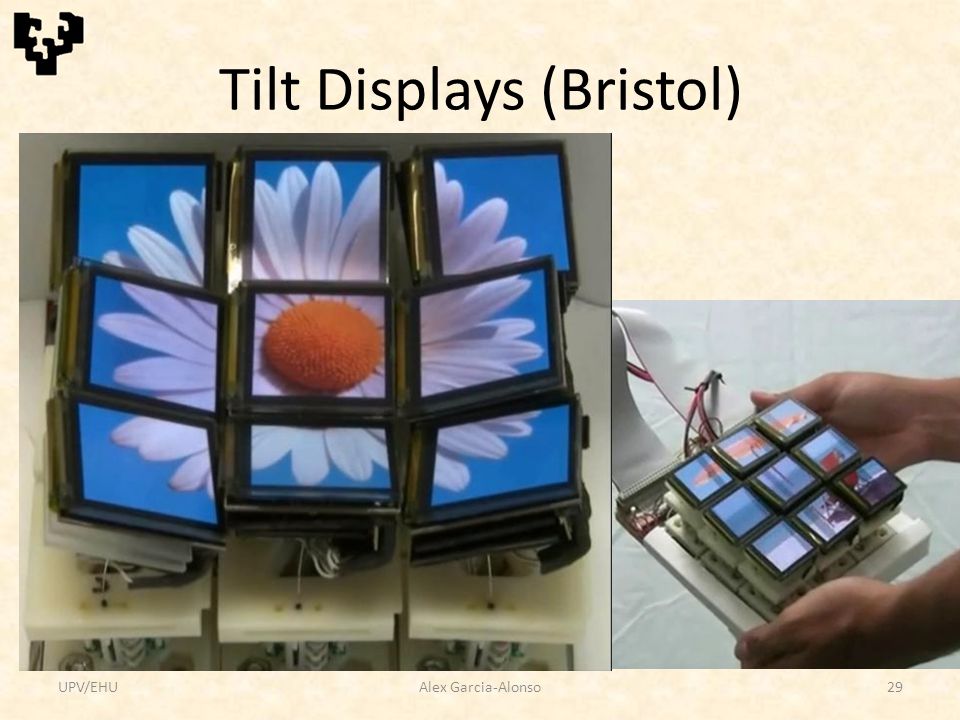

29 Tilt Displays (Bristol) UPV/EHU29Alex Garcia-Alonso

30 ¿ Dispositivos móviles, tablets, … ? ….. Proyección desde disp. móviles, 3Dstereo, Holograms ? UPV/EHU30Alex Garcia-Alonso

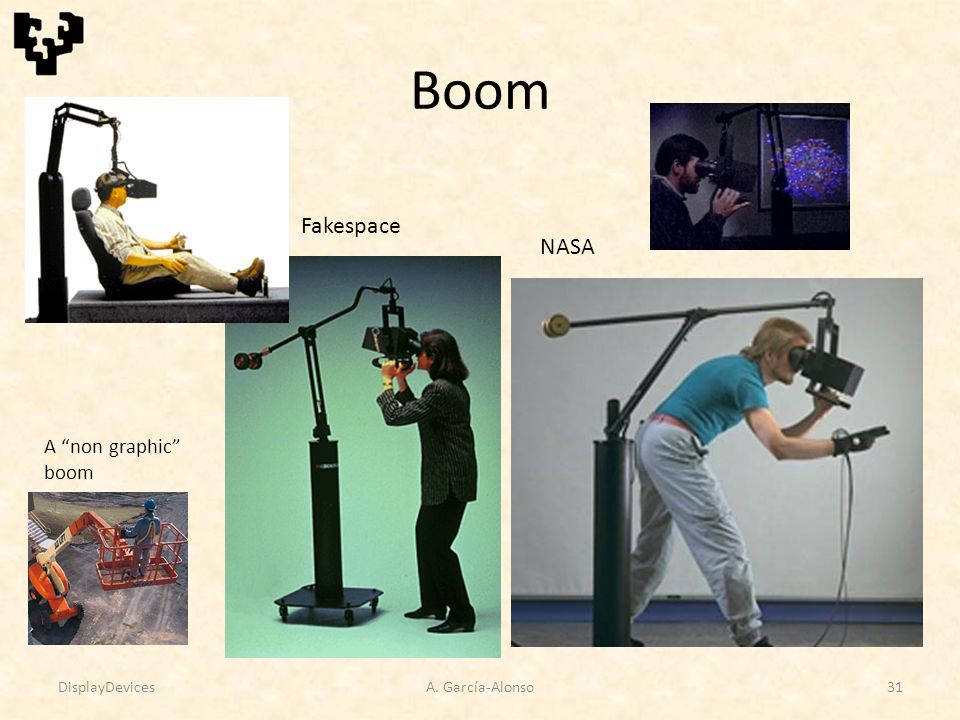

31 A. García-Alonso31 Boom DisplayDevices Fakespace NASA A “non graphic” boom

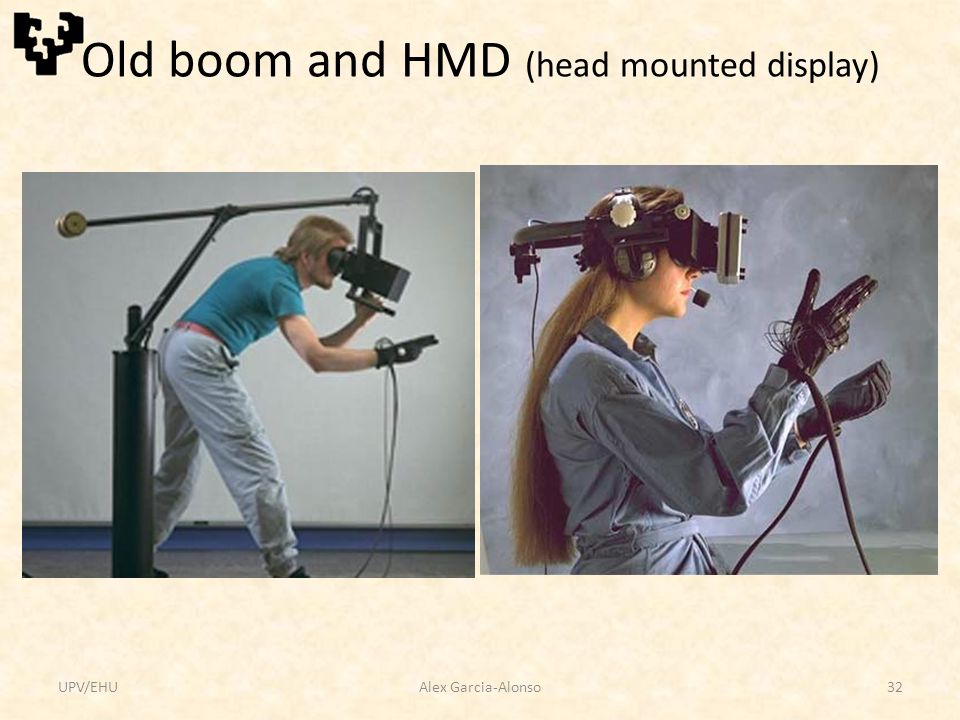

32 Old boom and HMD (head mounted display) UPV/EHU32Alex Garcia-Alonso

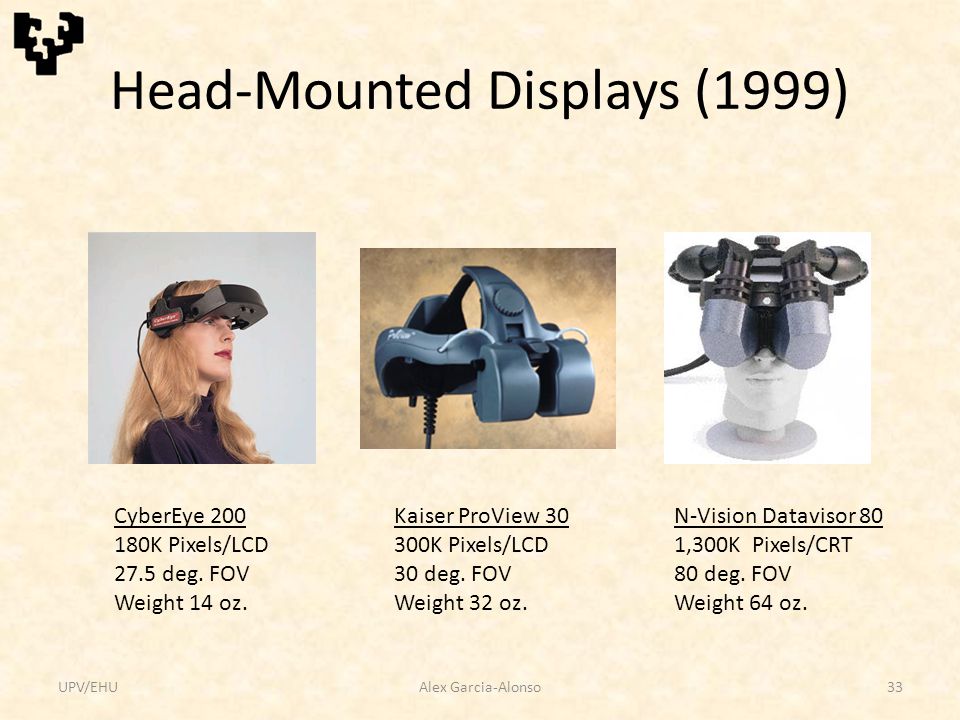

33 UPV/EHUAlex Garcia-Alonso33 Head-Mounted Displays (1999) Kaiser ProView 30 300K Pixels/LCD 30 deg. FOV Weight 32 oz. CyberEye 200 180K Pixels/LCD 27.5 deg. FOV Weight 14 oz. N-Vision Datavisor 80 1,300K Pixels/CRT 80 deg. FOV Weight 64 oz.

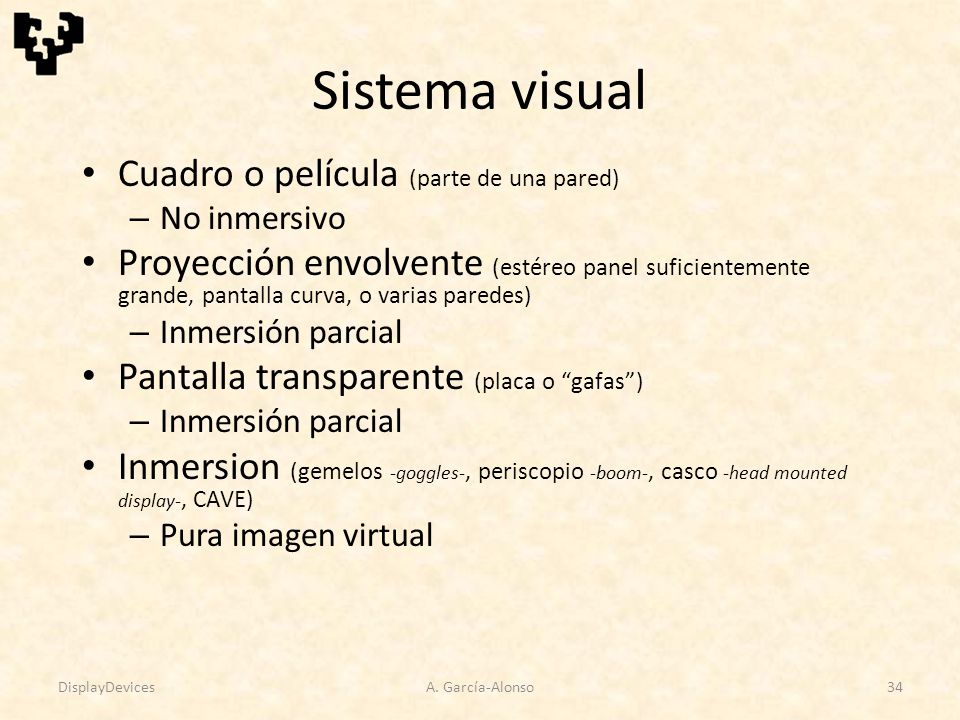

34 A. García-Alonso34 Sistema visual Cuadro o película (parte de una pared) – No inmersivo Proyección envolvente (estéreo panel suficientemente grande, pantalla curva, o varias paredes) – Inmersión parcial Pantalla transparente (placa o “gafas”) – Inmersión parcial Inmersion (gemelos -goggles-, periscopio -boom-, casco -head mounted display-, CAVE) – Pura imagen virtual DisplayDevices
