Taller de entrenamiento de la OMPI sobre información y búsqueda de Patentes Red Nacional de Centros de Apoyo a la Tecnología y la Innovación (CATI) en Ecuador Guayaquil, Ecuador; enero de 2015.
2

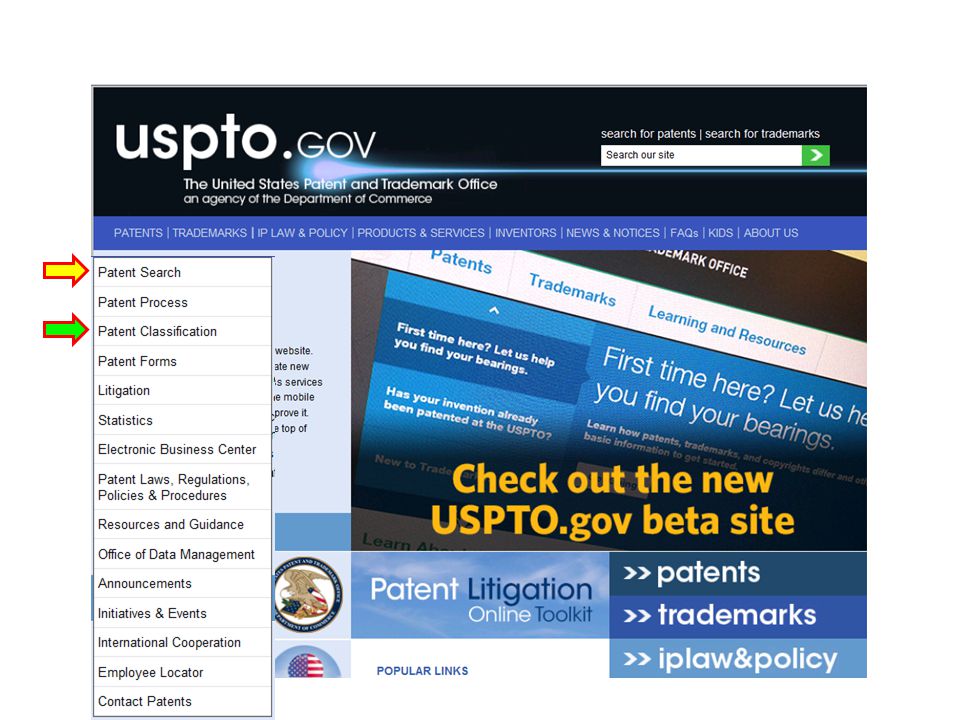

http://www.uspto.gov USPTO: TECNICAS Y ESTRATEGIAS DE BUSQUEDA
4

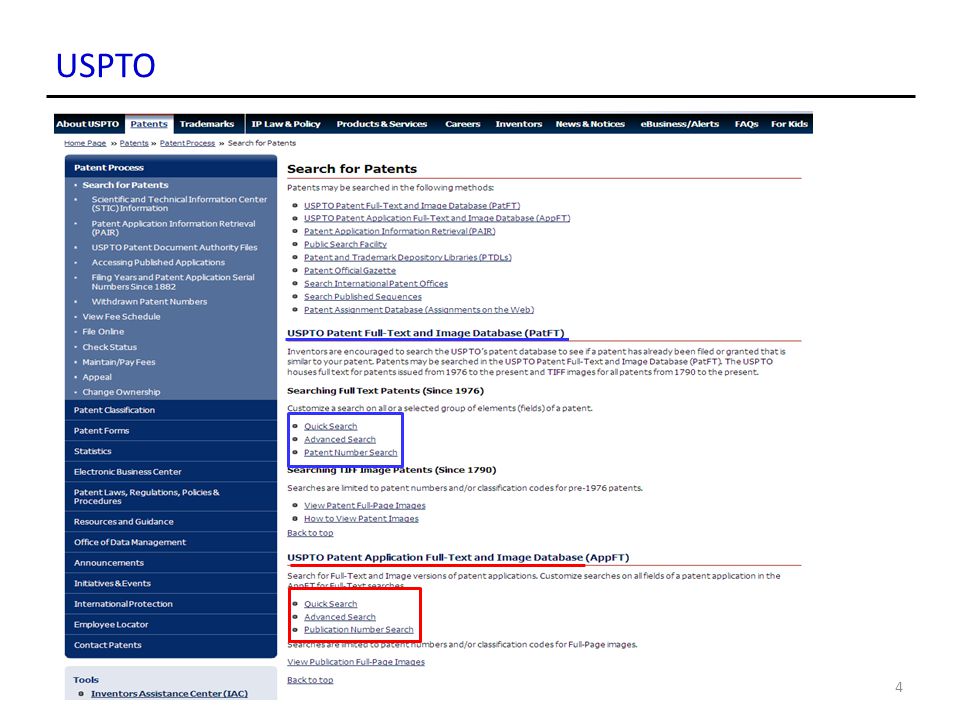

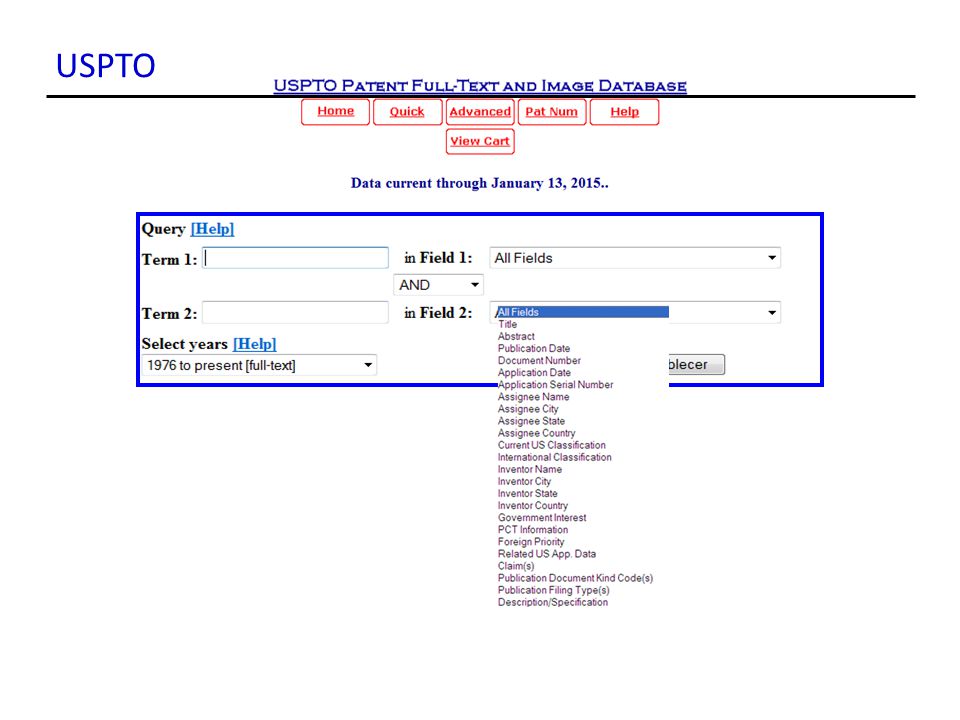

4 USPTO
6

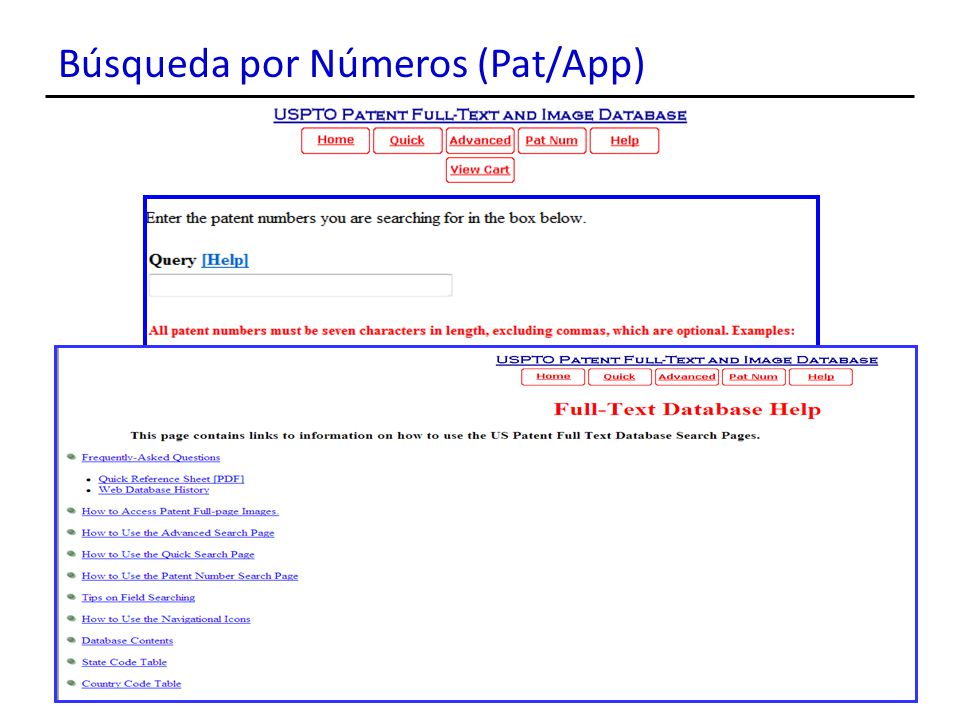

Búsqueda por Números (Pat/App)
7

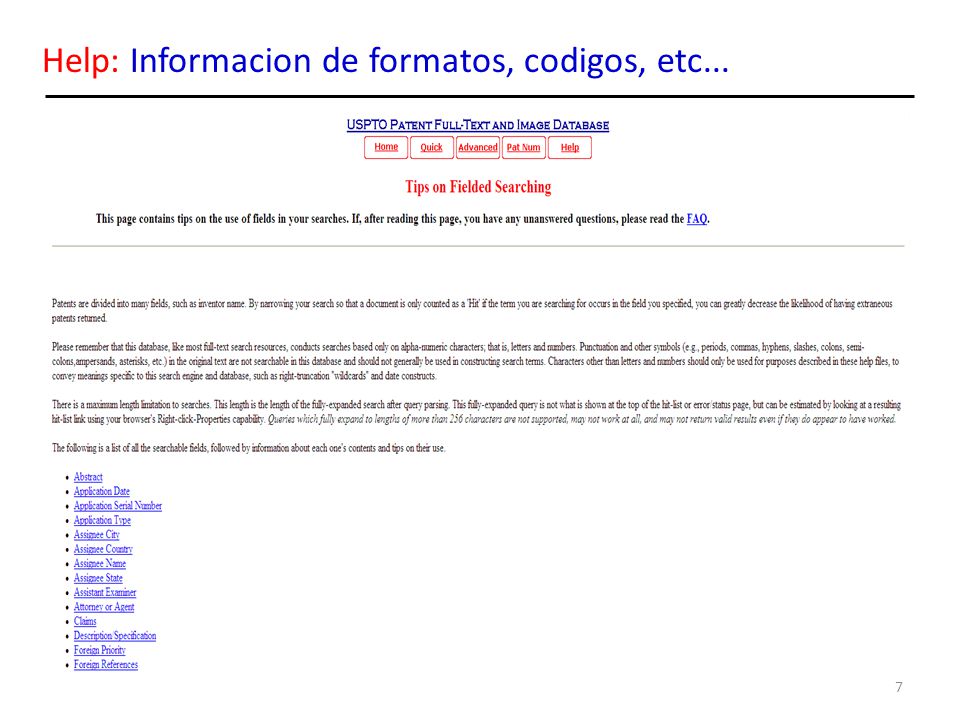

7 Help: Informacion de formatos, codigos, etc...
8

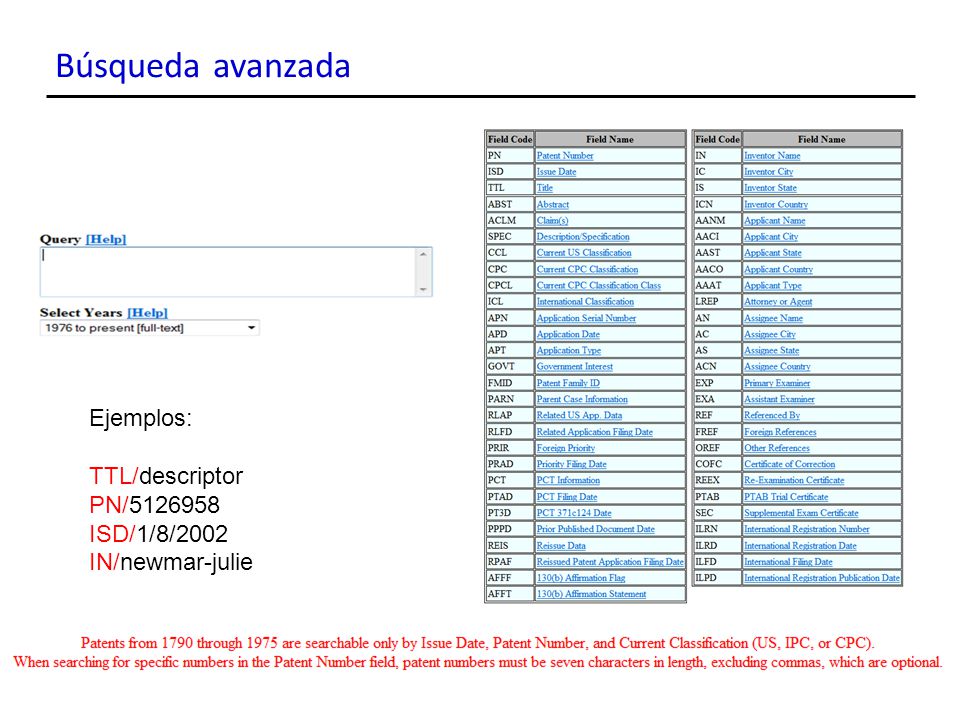

Búsqueda avanzada Ejemplos: TTL/descriptor PN/5126958 ISD/1/8/2002 IN/newmar-julie
9

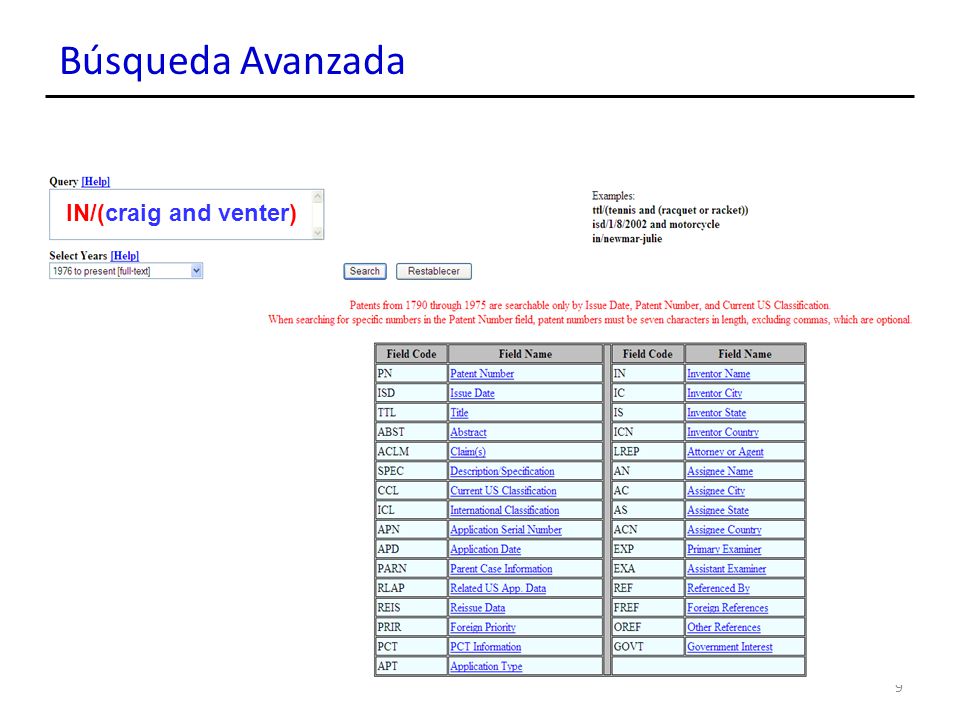

9 IN/(craig and venter) Búsqueda Avanzada
10

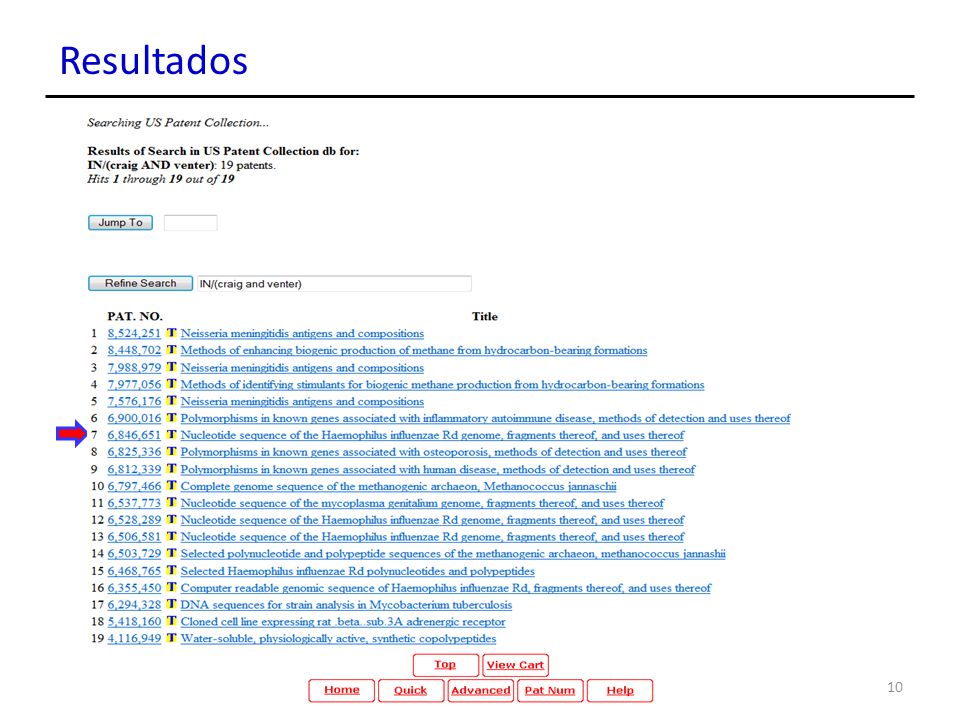

10 Resultados
11

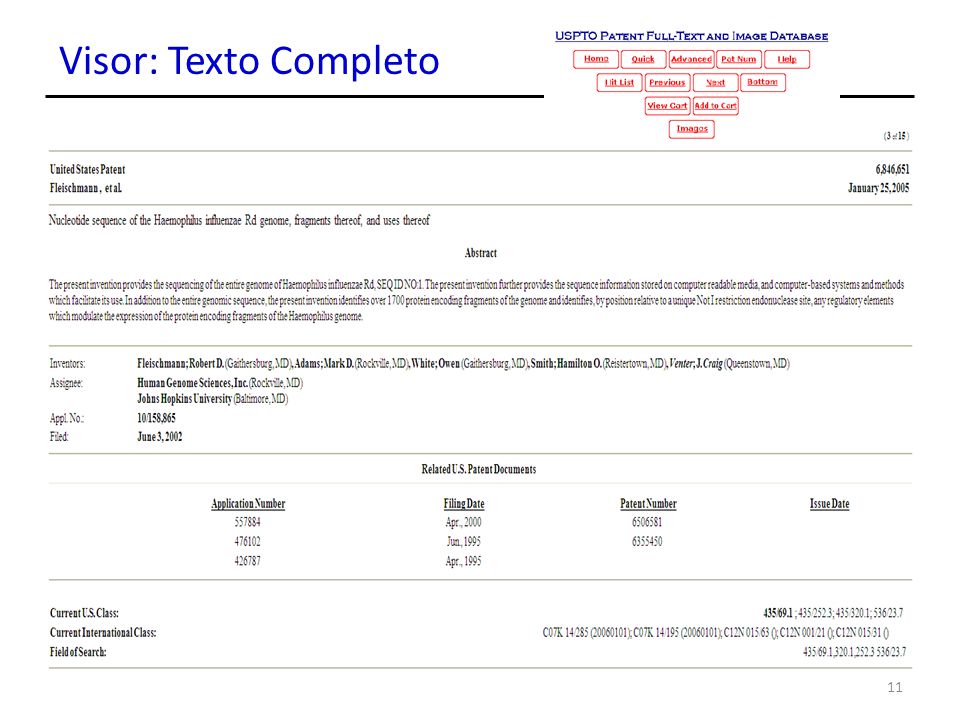

11 Visor: Texto Completo
12

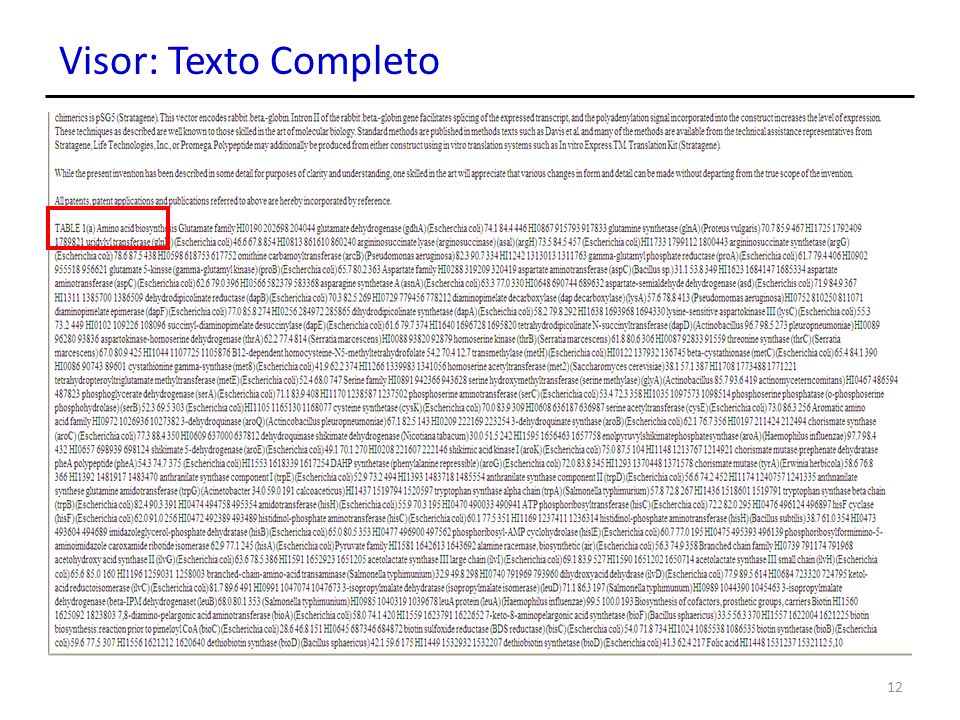

12 Visor: Texto Completo
13
13 Visor: Texto Completo
14

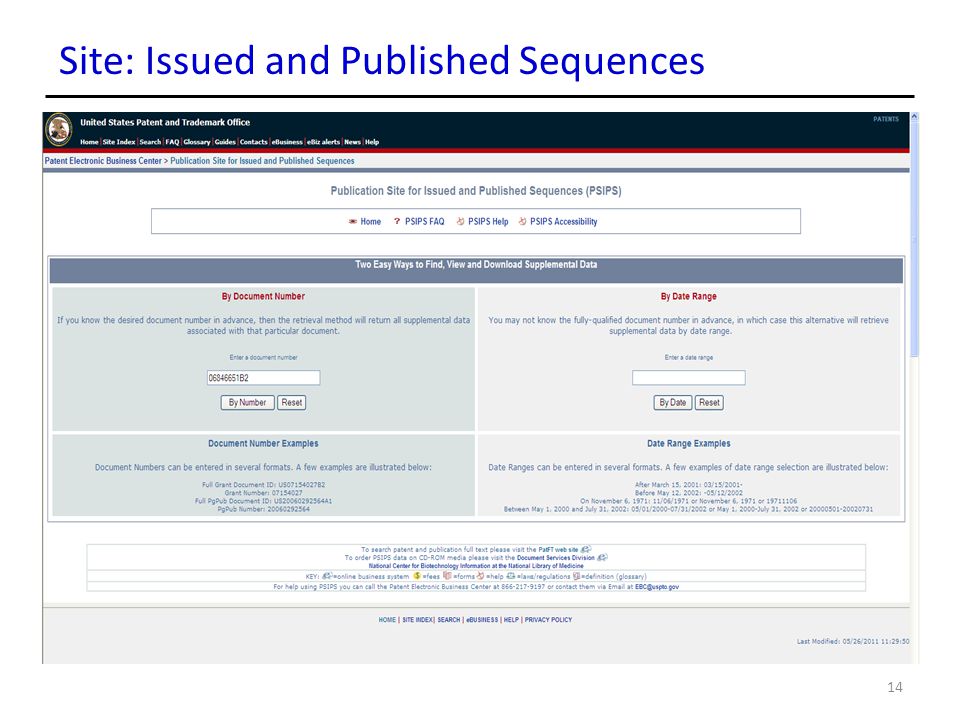

14 Site: Issued and Published Sequences
15

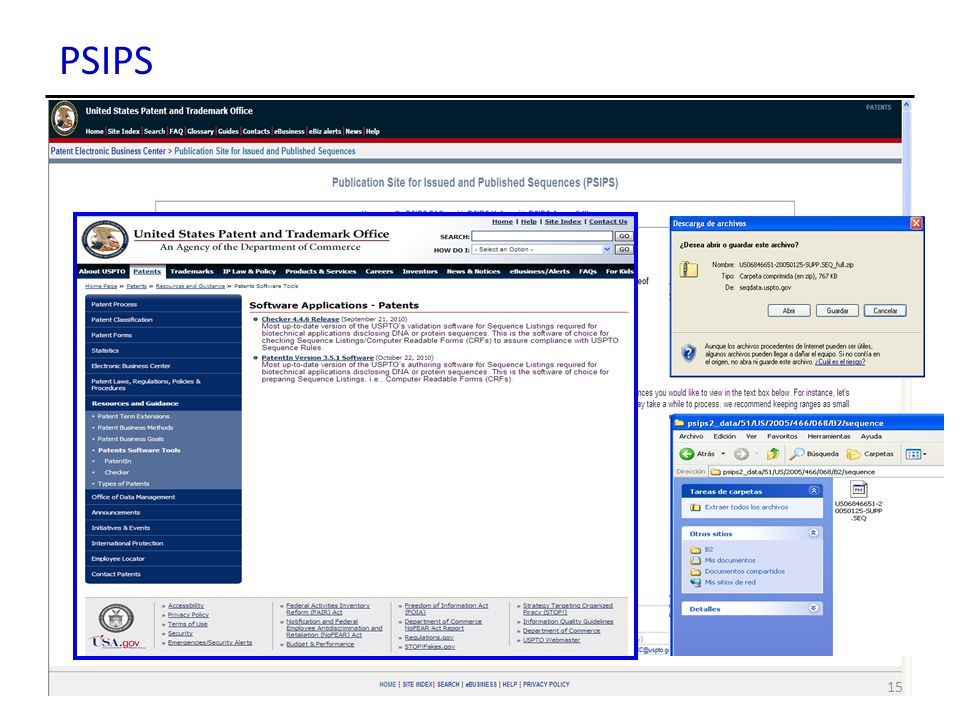

15 PSIPS
16

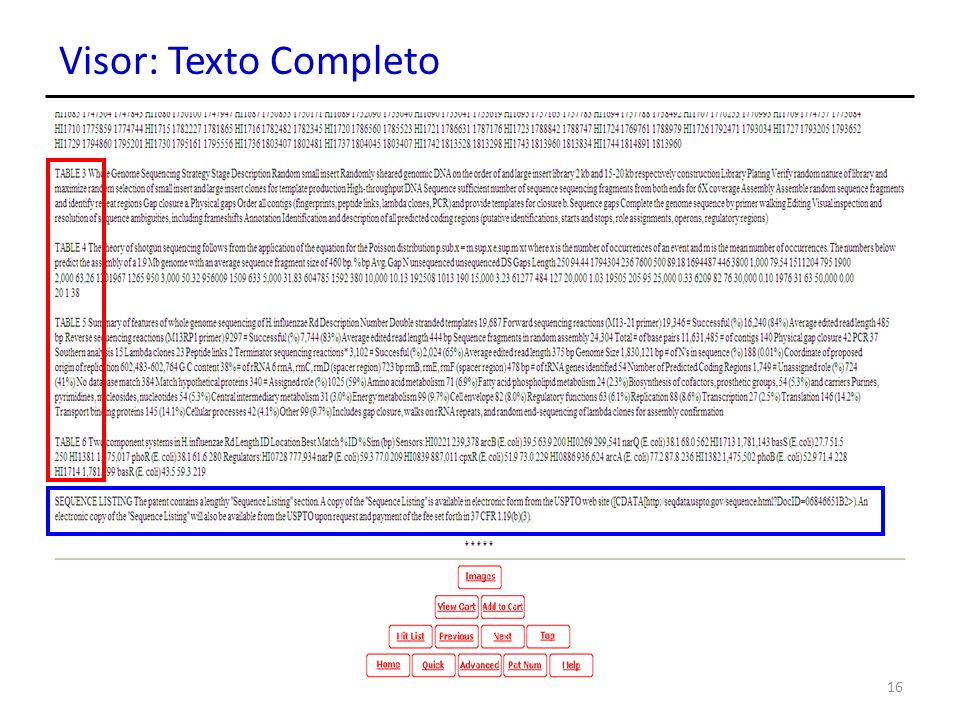

16 Visor: Texto Completo
17
Visor: Imagen de Texto 17
18

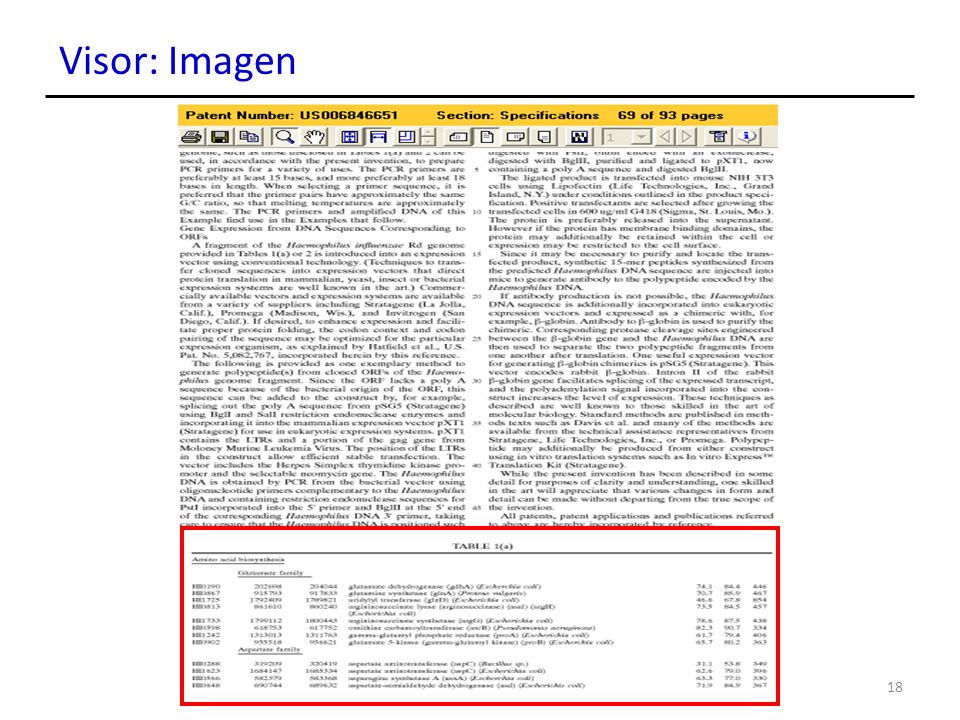

18 Visor: Imagen
19

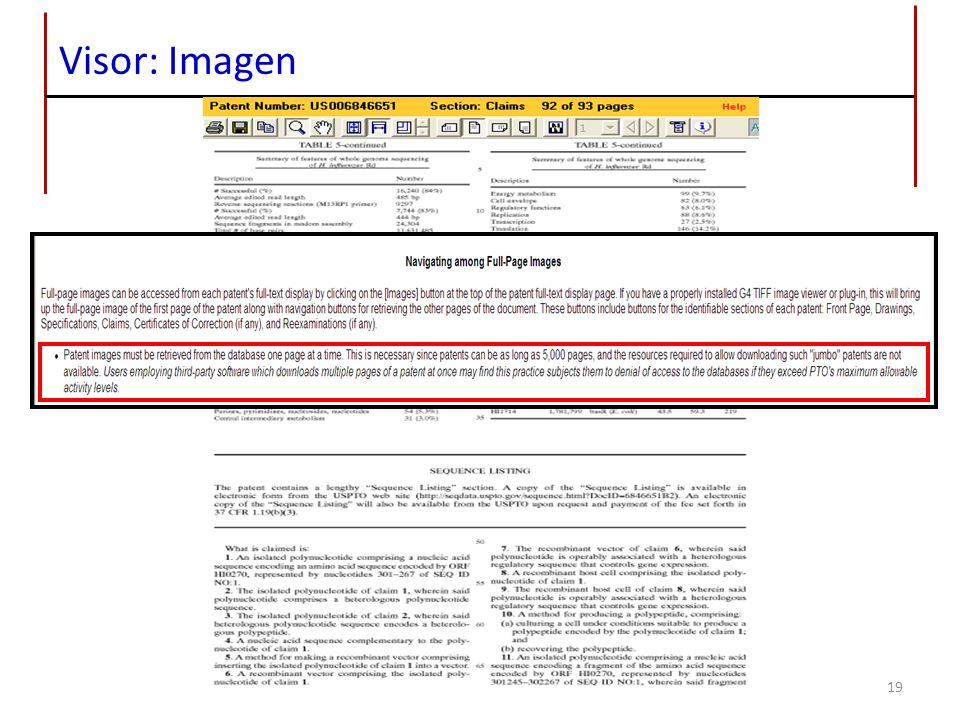

19 Visor: Imagen
20

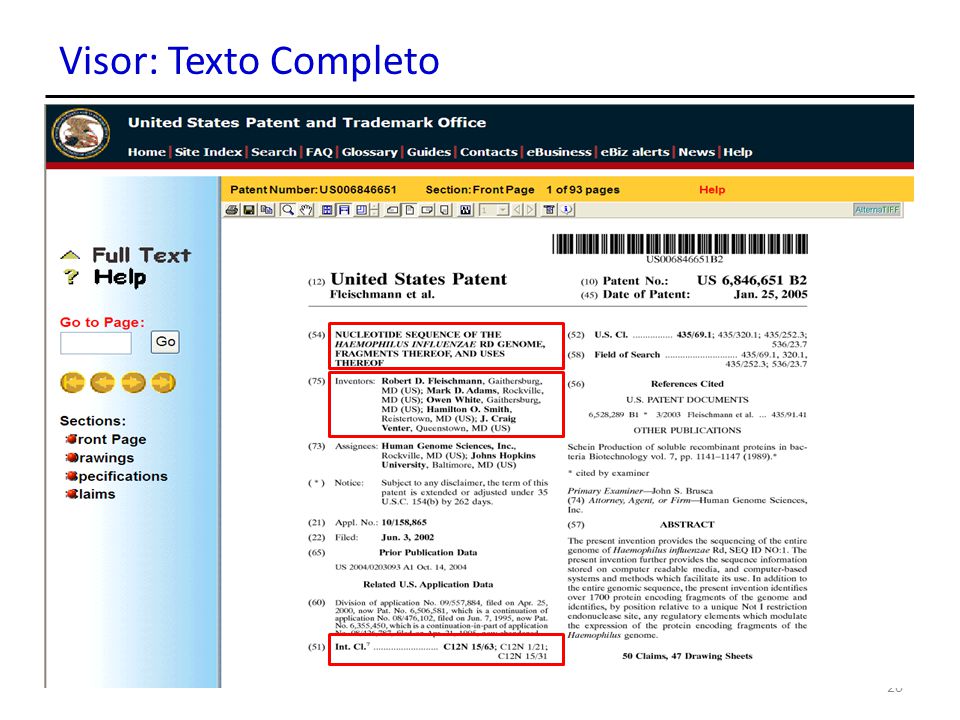

20 Visor: Texto Completo
21
21
22
22
23
23
24

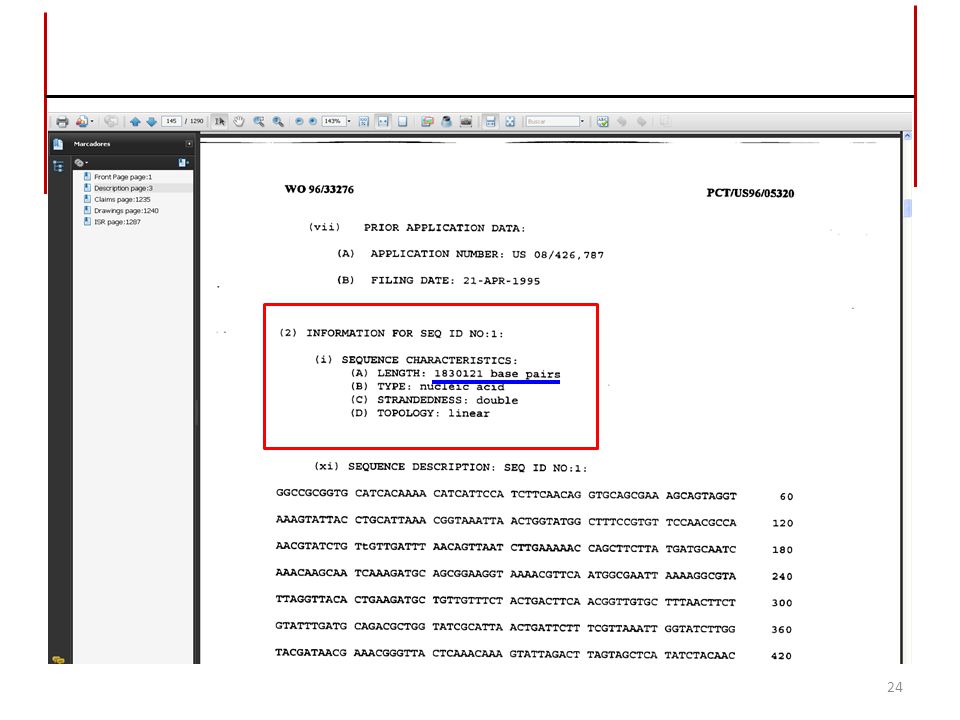

24
25
25
26
CLASIFICACION Y BUSQUEDA DE DOCUMENTOS USPTO 26 EJERCICIO
27

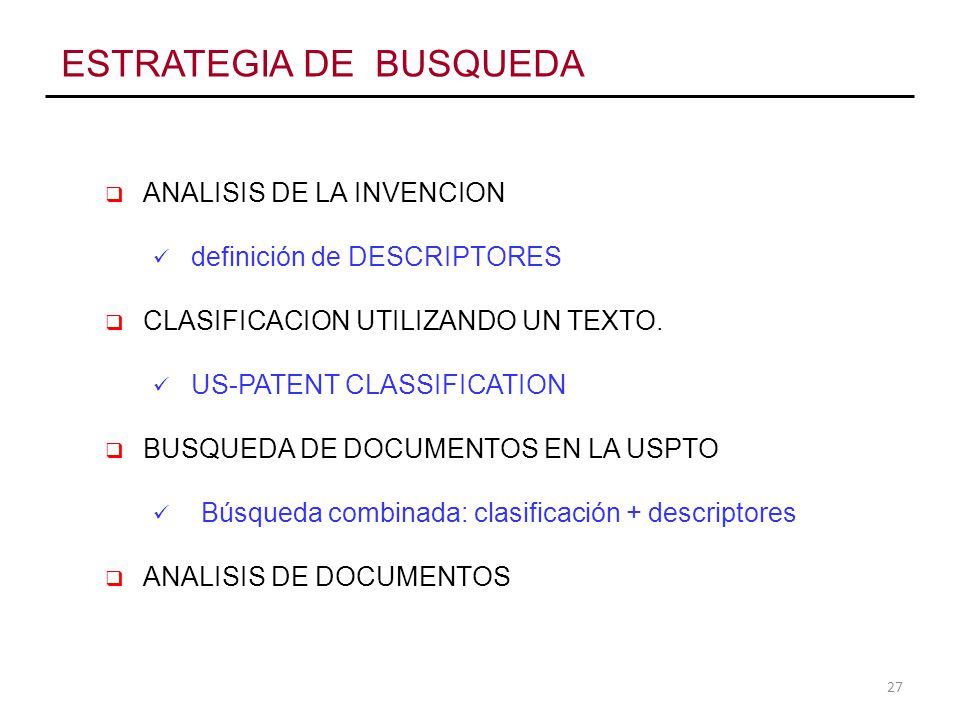

ANALISIS DE LA INVENCION definición de DESCRIPTORES CLASIFICACION UTILIZANDO UN TEXTO. US-PATENT CLASSIFICATION BUSQUEDA DE DOCUMENTOS EN LA USPTO Búsqueda combinada: clasificación + descriptores ANALISIS DE DOCUMENTOS ESTRATEGIA DE BUSQUEDA 27
28

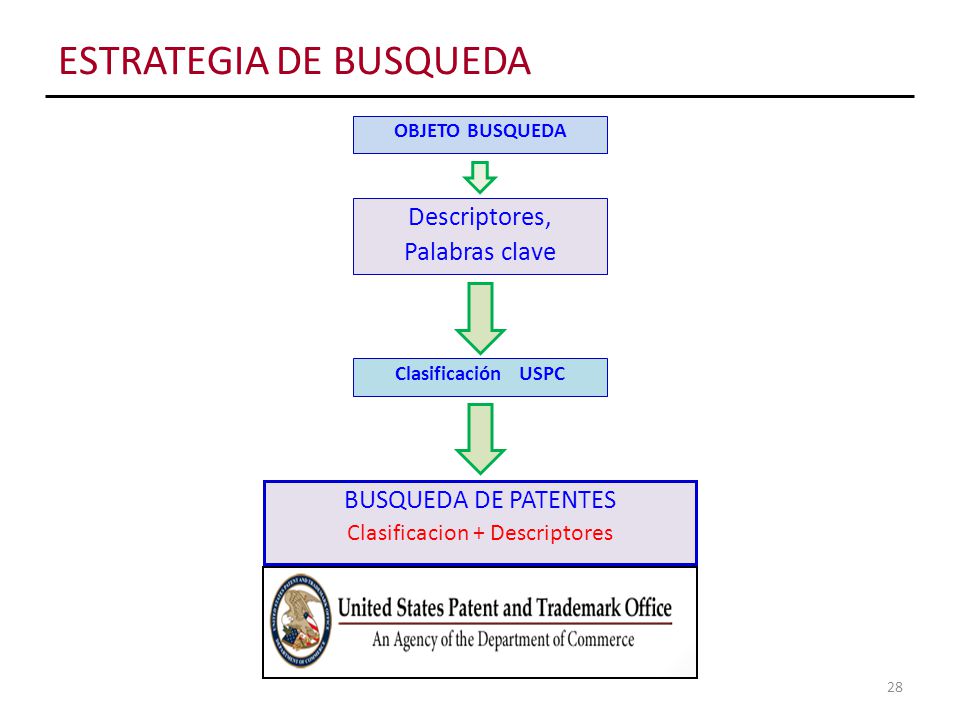

OBJETO BUSQUEDA Descriptores, Palabras clave ESTRATEGIA DE BUSQUEDA 28 BUSQUEDA DE PATENTES Clasificacion + Descriptores Clasificación USPC
29

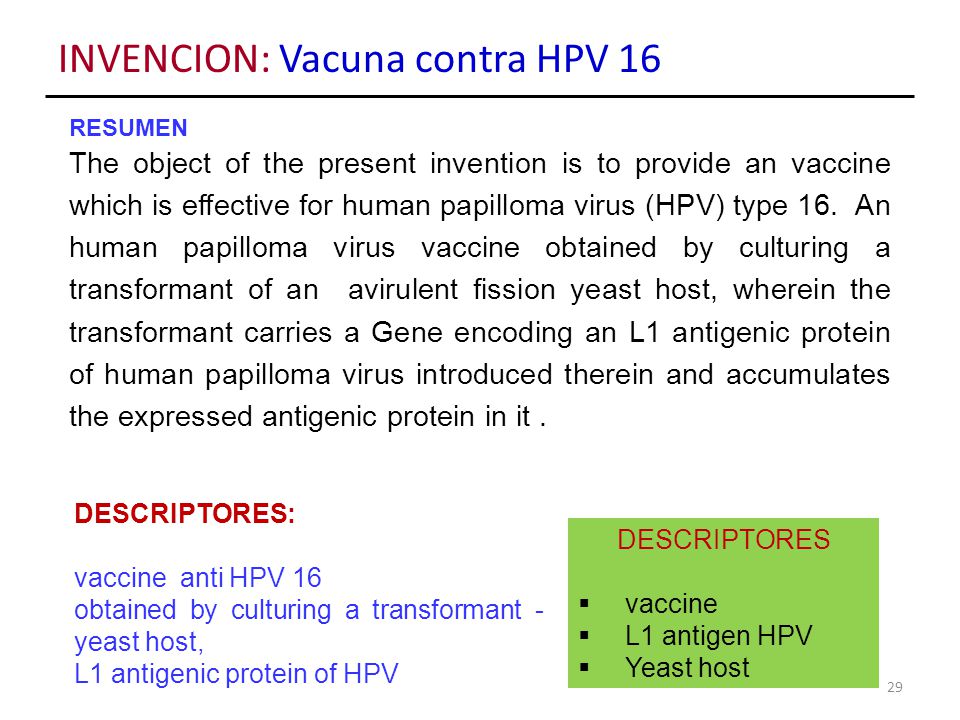

RESUMEN The object of the present invention is to provide an vaccine which is effective for human papilloma virus (HPV) type 16. An human papilloma virus vaccine obtained by culturing a transformant of an avirulent fission yeast host, wherein the transformant carries a Gene encoding an L1 antigenic protein of human papilloma virus introduced therein and accumulates the expressed antigenic protein in it. INVENCION: Vacuna contra HPV 16 DESCRIPTORES: vaccine anti HPV 16 obtained by culturing a transformant - yeast host, L1 antigenic protein of HPV 29 DESCRIPTORES vaccine L1 antigen HPV Yeast host
34

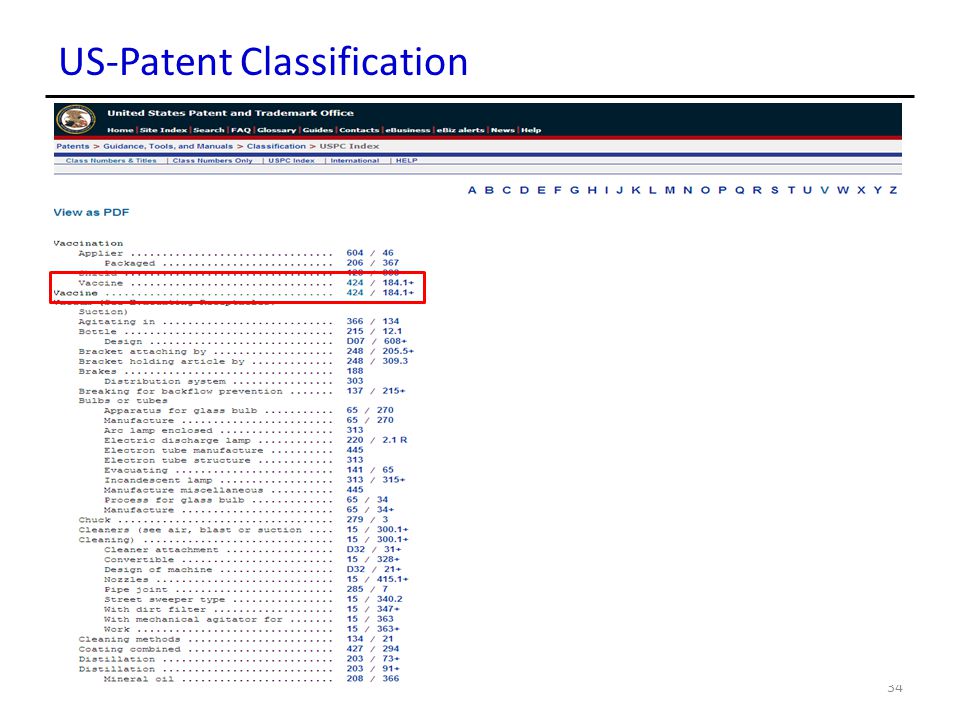

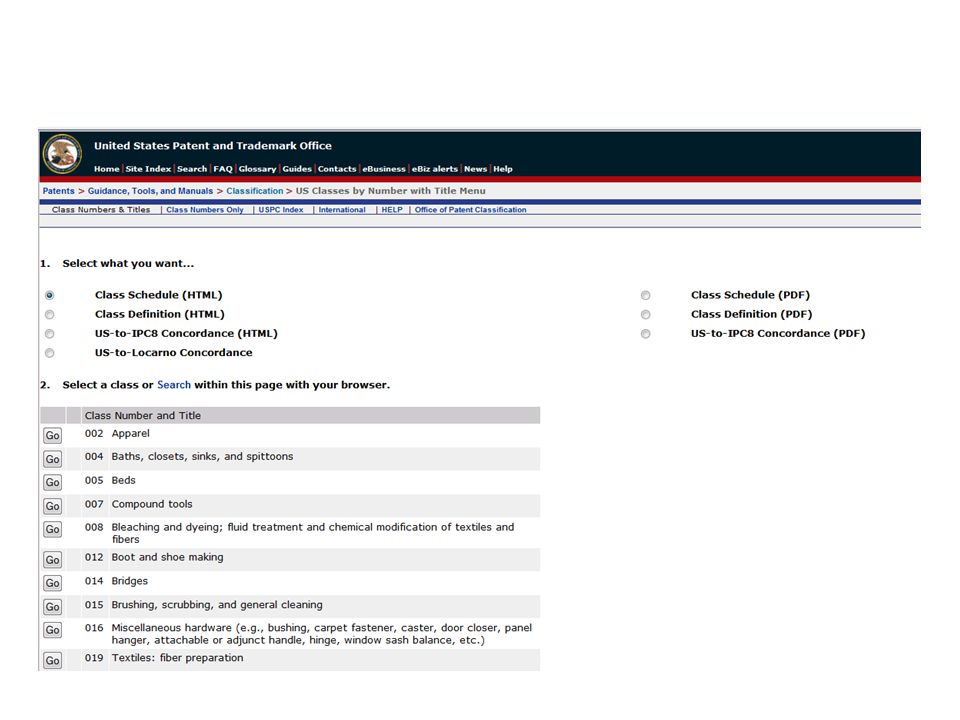

US-Patent Classification 34
35

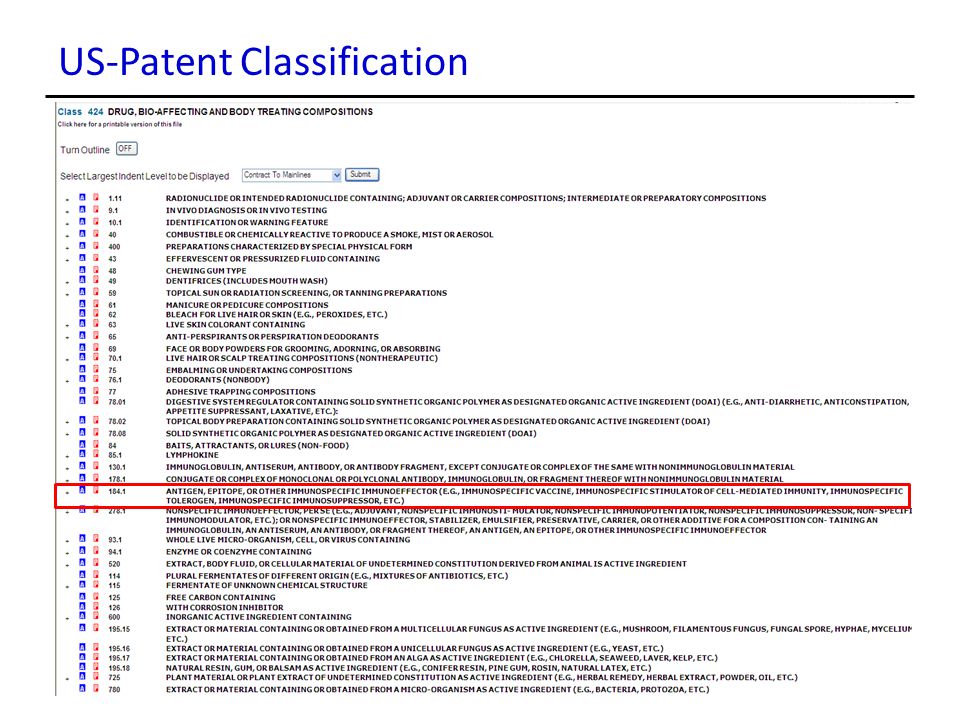

US-Patent Classification RESUMEN 35
36

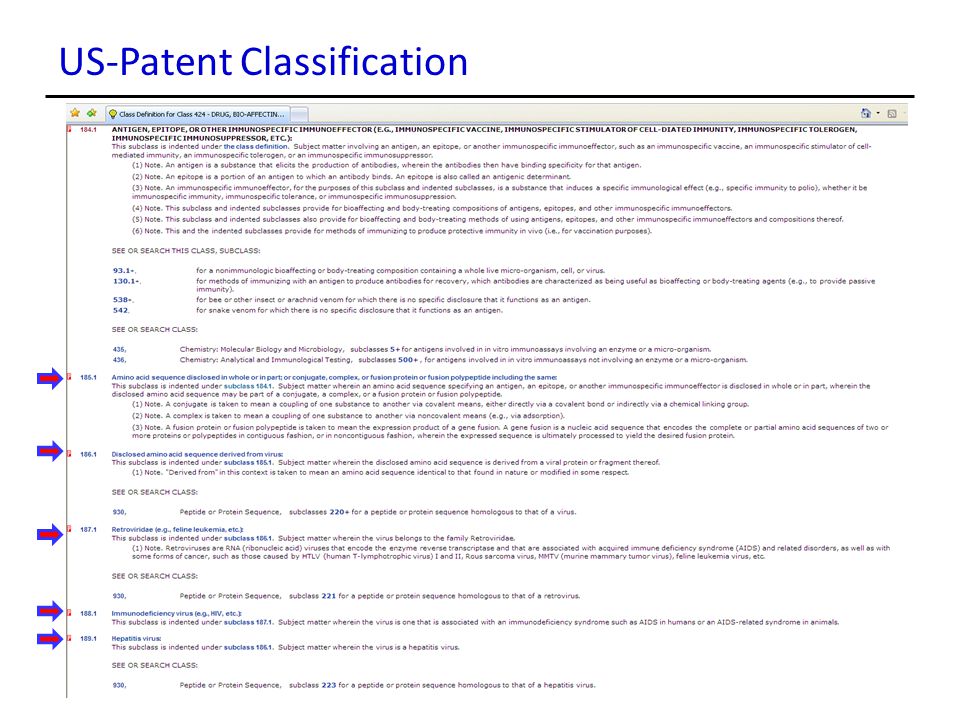

US-Patent Classification 36
37

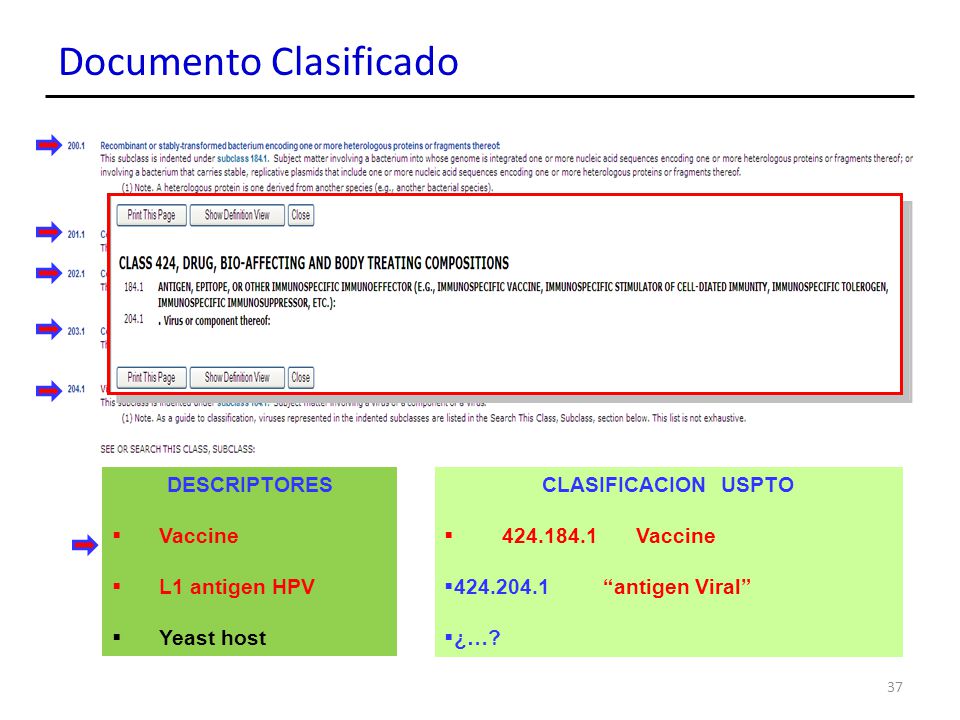

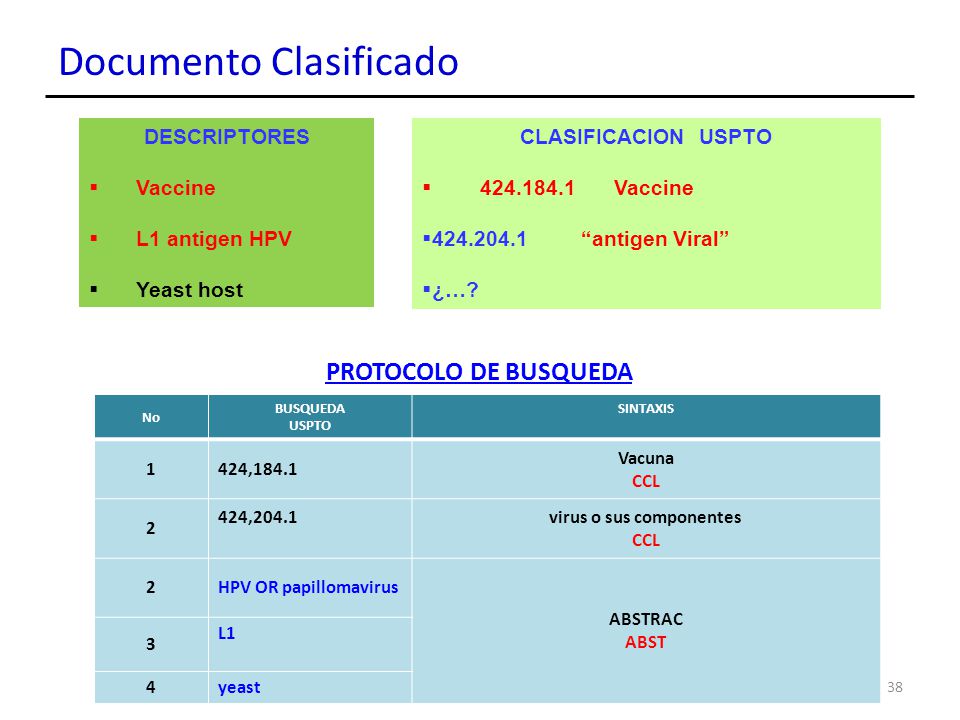

Documento Clasificado 37 DESCRIPTORES Vaccine L1 antigen HPV Yeast host CLASIFICACION USPTO 424.184.1 Vaccine 424.204.1 “antigen Viral” ¿…?
38
38 PROTOCOLO DE BUSQUEDA No BUSQUEDA USPTO SINTAXIS 1424,184.1 Vacuna CCL 2 424,204.1virus o sus componentes CCL 2HPV OR papillomavirus ABSTRAC ABST 3 L1 4yeast Documento Clasificado DESCRIPTORES Vaccine L1 antigen HPV Yeast host CLASIFICACION USPTO 424.184.1 Vaccine 424.204.1 “antigen Viral” ¿…?
39

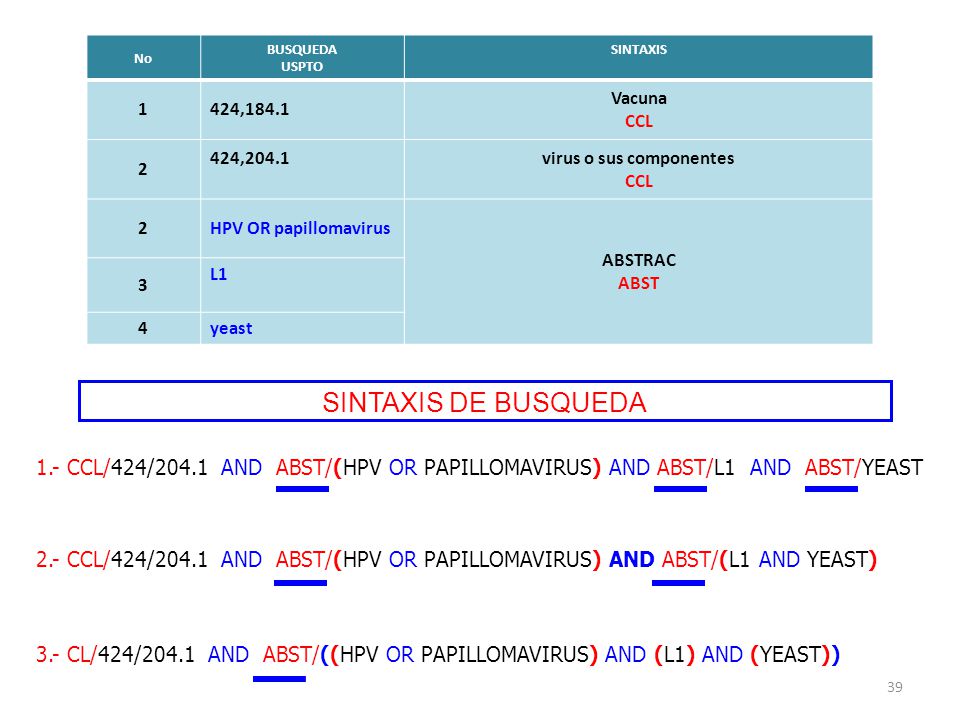

39 No BUSQUEDA USPTO SINTAXIS 1424,184.1 Vacuna CCL 2 424,204.1virus o sus componentes CCL 2HPV OR papillomavirus ABSTRAC ABST 3 L1 4yeast 1.- CCL/424/204.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/L1 AND ABST/YEAST SINTAXIS DE BUSQUEDA 2.- CCL/424/204.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/(L1 AND YEAST) 3.- CL/424/204.1 AND ABST/((HPV OR PAPILLOMAVIRUS) AND (L1) AND (YEAST))
40

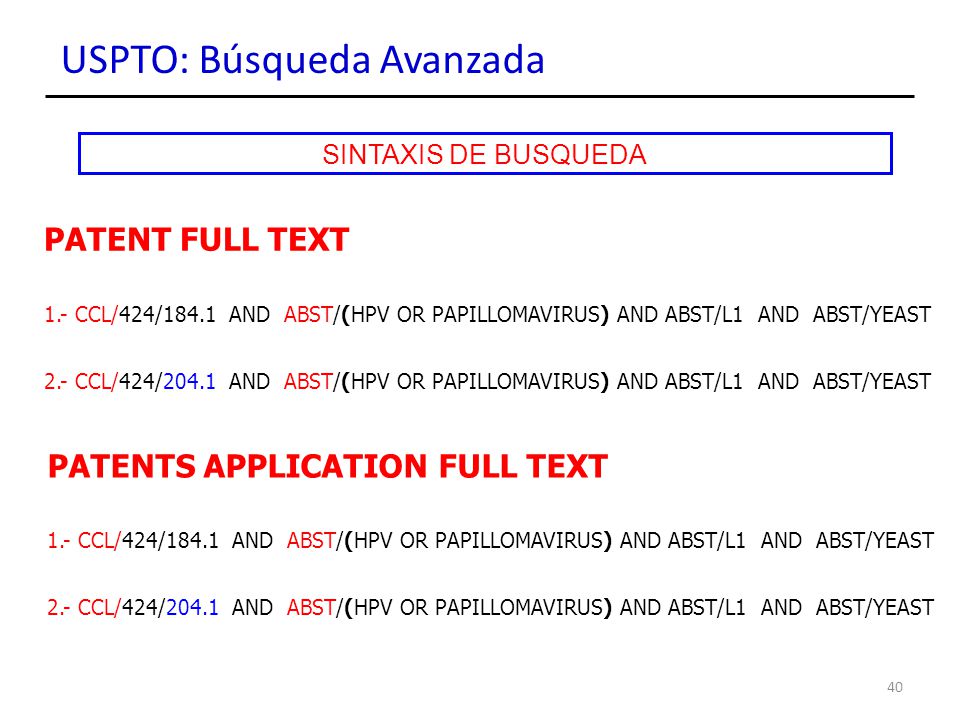

40 USPTO: Búsqueda Avanzada SINTAXIS DE BUSQUEDA PATENT FULL TEXT 1.- CCL/424/184.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/L1 AND ABST/YEAST 2.- CCL/424/204.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/L1 AND ABST/YEAST PATENTS APPLICATION FULL TEXT 1.- CCL/424/184.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/L1 AND ABST/YEAST 2.- CCL/424/204.1 AND ABST/(HPV OR PAPILLOMAVIRUS) AND ABST/L1 AND ABST/YEAST
41
41 Resultados: Patent Application
42

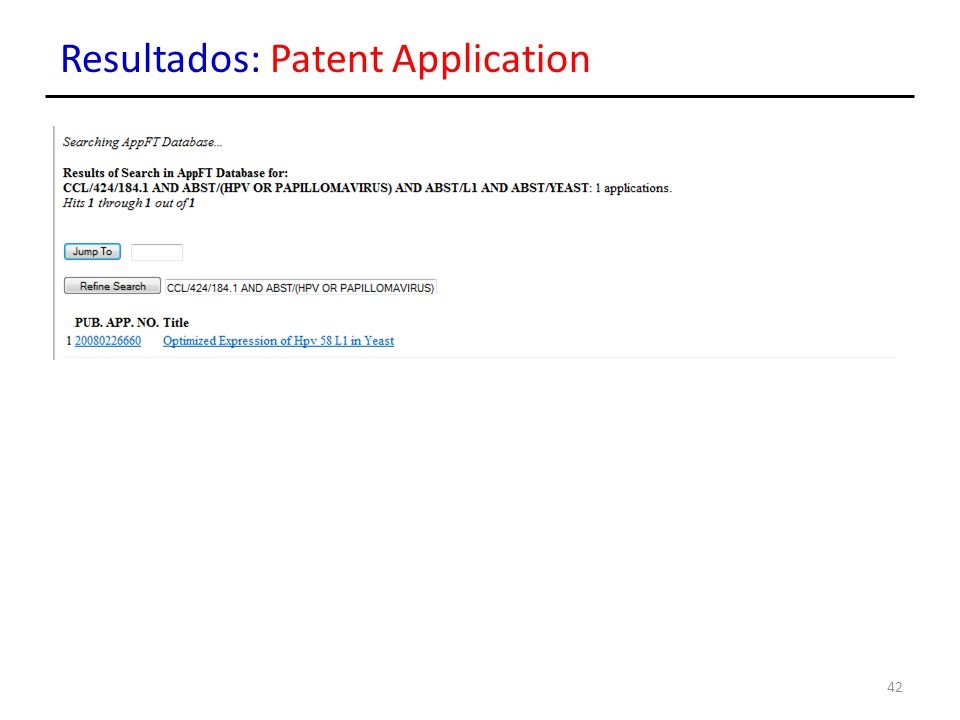

42 Resultados: Patent Application
43

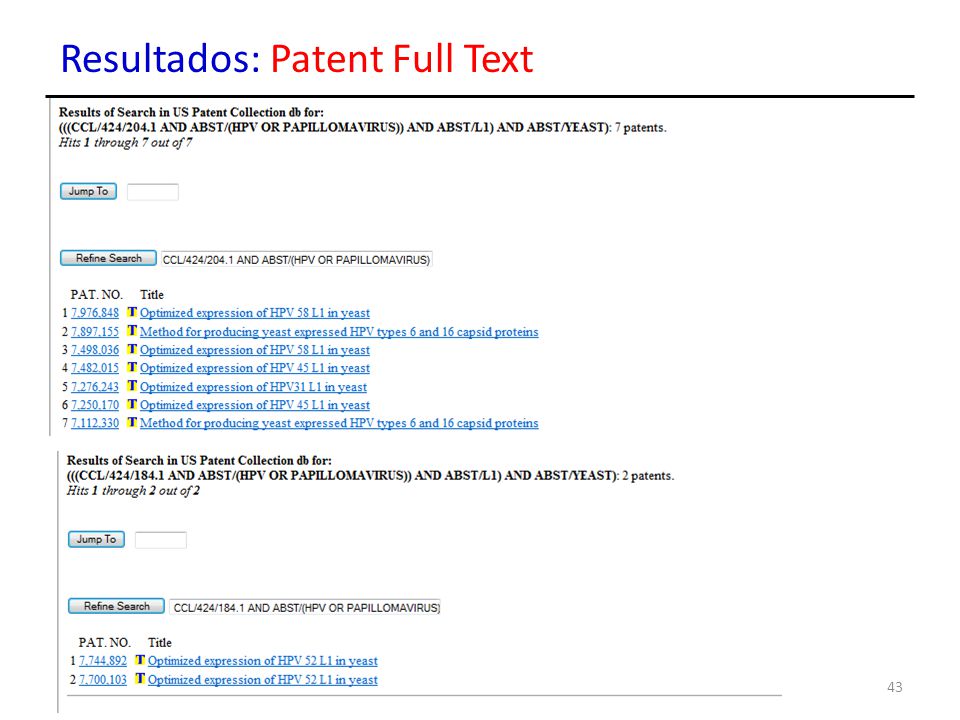

43 Resultados: Patent Full Text
44

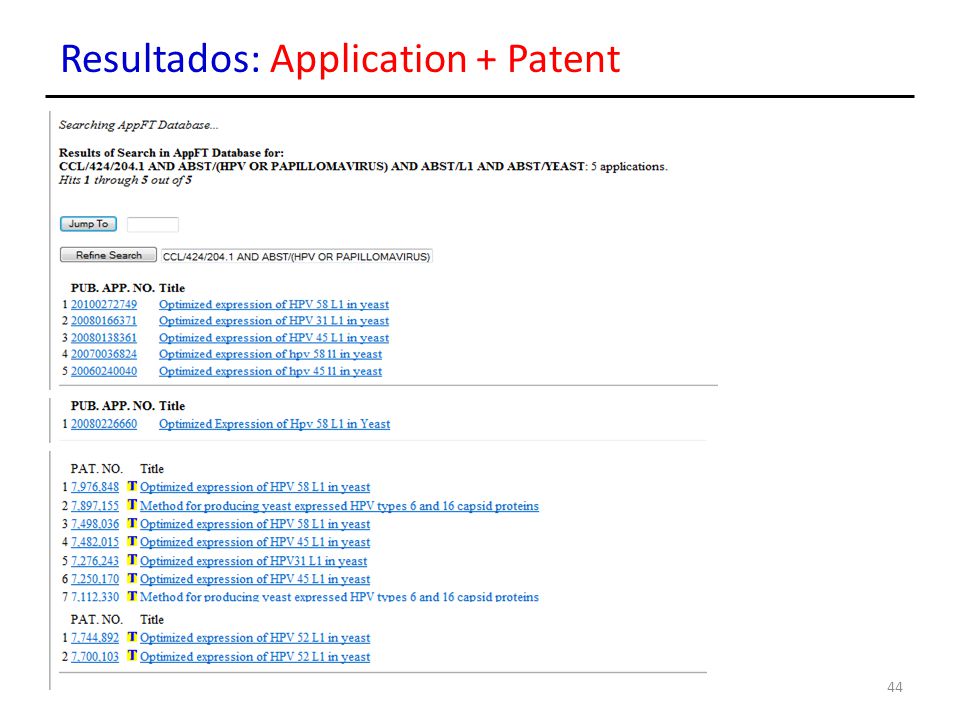

44 Resultados: Application + Patent
45
45
46

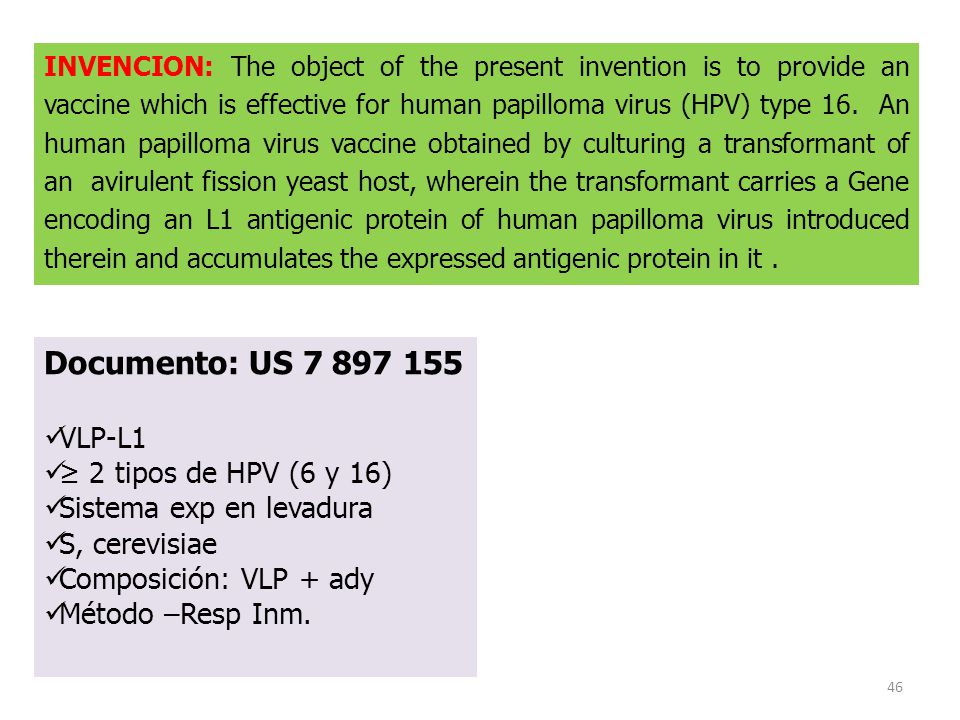

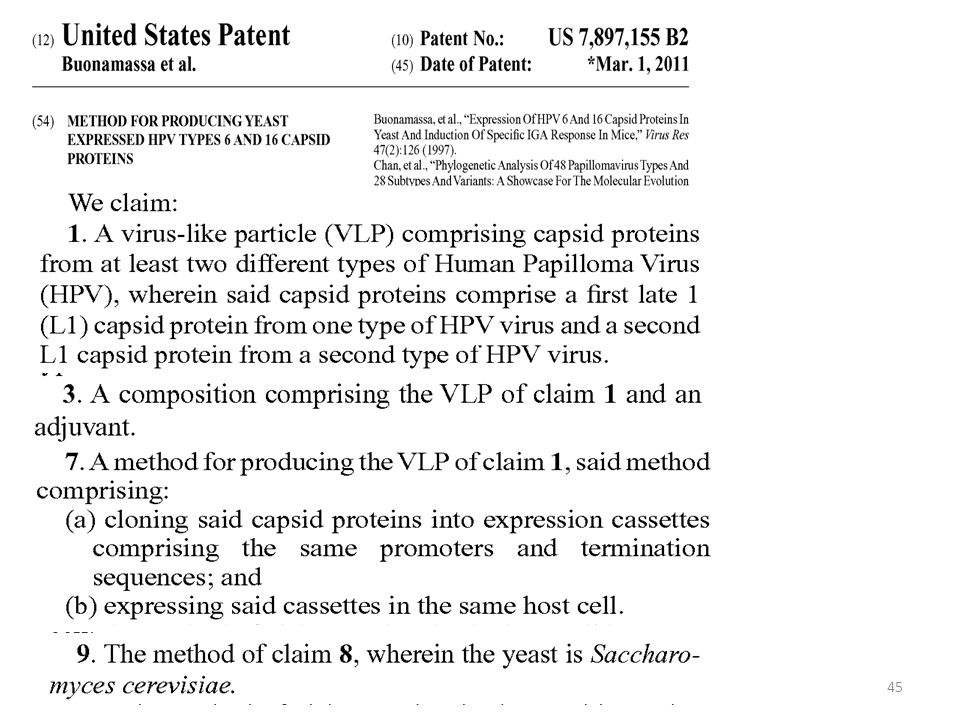

46 INVENCION: The object of the present invention is to provide an vaccine which is effective for human papilloma virus (HPV) type 16. An human papilloma virus vaccine obtained by culturing a transformant of an avirulent fission yeast host, wherein the transformant carries a Gene encoding an L1 antigenic protein of human papilloma virus introduced therein and accumulates the expressed antigenic protein in it. Documento: US 7 897 155 VLP-L1 ≥ 2 tipos de HPV (6 y 16) Sistema exp en levadura S, cerevisiae Composición: VLP + ady Método –Resp Inm.
47
! GRACIAS POR SU ATENCION ! Armando Valencia Hernandez Coordinador de Examen de Fondo DE PATENTES, Área Farmacéutica Arenal No. 550 Col. Pueblo Santa María Tepepan Del. Xochimilco., Mexico D.F., C.P. 16020 Tel: 01(55) 5334-0700 Ext. 10012 impi.gob.mximpi.gob.mx @IMPI_Mexico@IMPI_Mexico
