First Intake: the intake valve allows the entry of a certain amount of steam or gas at low pressure. Second Compression: this steam is compressed by means.

Publicada porfernando jimenez Modificado hace 5 años

Presentaciones similares

Presentación del tema: "First Intake: the intake valve allows the entry of a certain amount of steam or gas at low pressure. Second Compression: this steam is compressed by means."— Transcripción de la presentación:

1

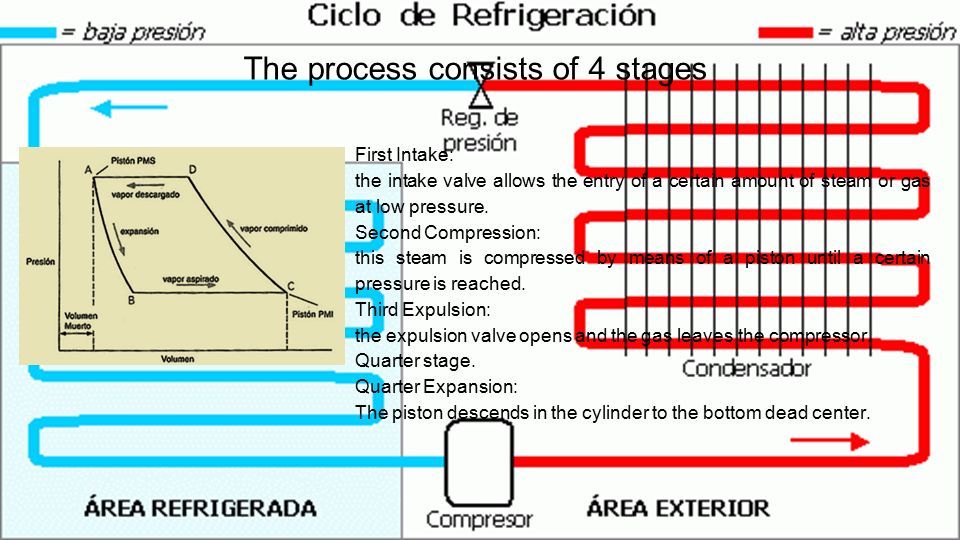

2 First Intake: the intake valve allows the entry of a certain amount of steam or gas at low pressure. Second Compression: this steam is compressed by means of a piston until a certain pressure is reached. Third Expulsion: the expulsion valve opens and the gas leaves the compressor. Quarter stage. Quarter Expansion: The piston descends in the cylinder to the bottom dead center. The process consists of 4 stages

3

4

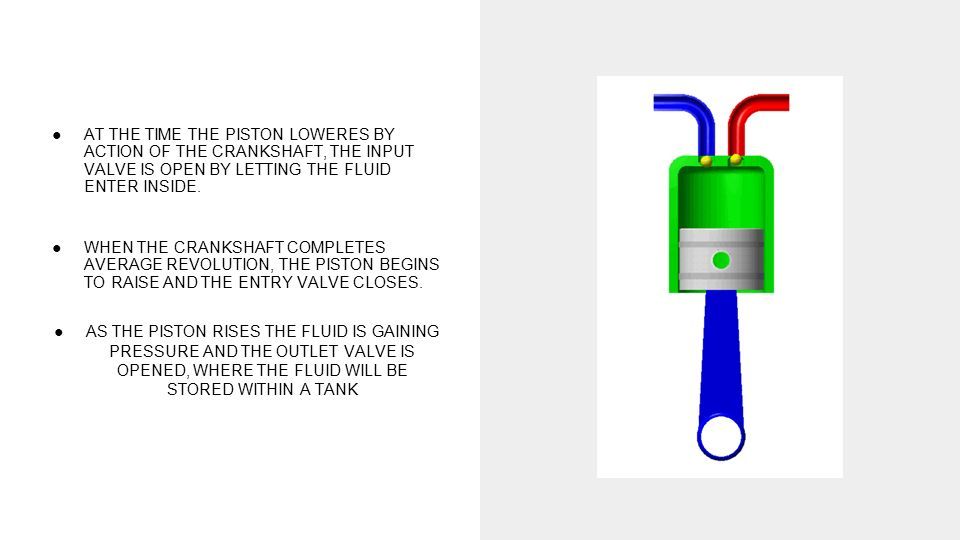

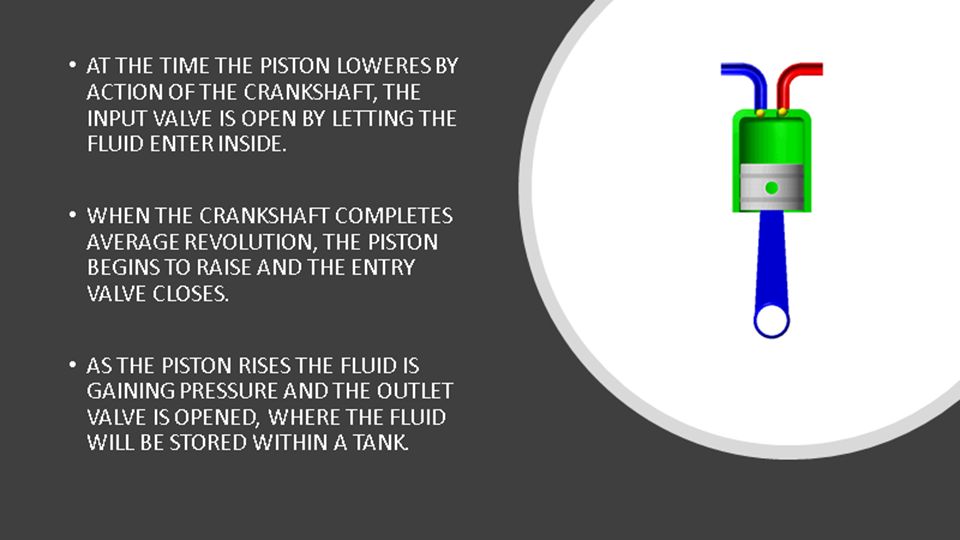

5 ●AT THE TIME THE PISTON LOWERES BY ACTION OF THE CRANKSHAFT, THE INPUT VALVE IS OPEN BY LETTING THE FLUID ENTER INSIDE. ●WHEN THE CRANKSHAFT COMPLETES AVERAGE REVOLUTION, THE PISTON BEGINS TO RAISE AND THE ENTRY VALVE CLOSES. ●AS THE PISTON RISES THE FLUID IS GAINING PRESSURE AND THE OUTLET VALVE IS OPENED, WHERE THE FLUID WILL BE STORED WITHIN A TANK
