Presentación del tema: "CARACTERÍSTICAS TÉCNICAS TECHNICAL CHARACTERISTICS"— Transcripción de la presentación:

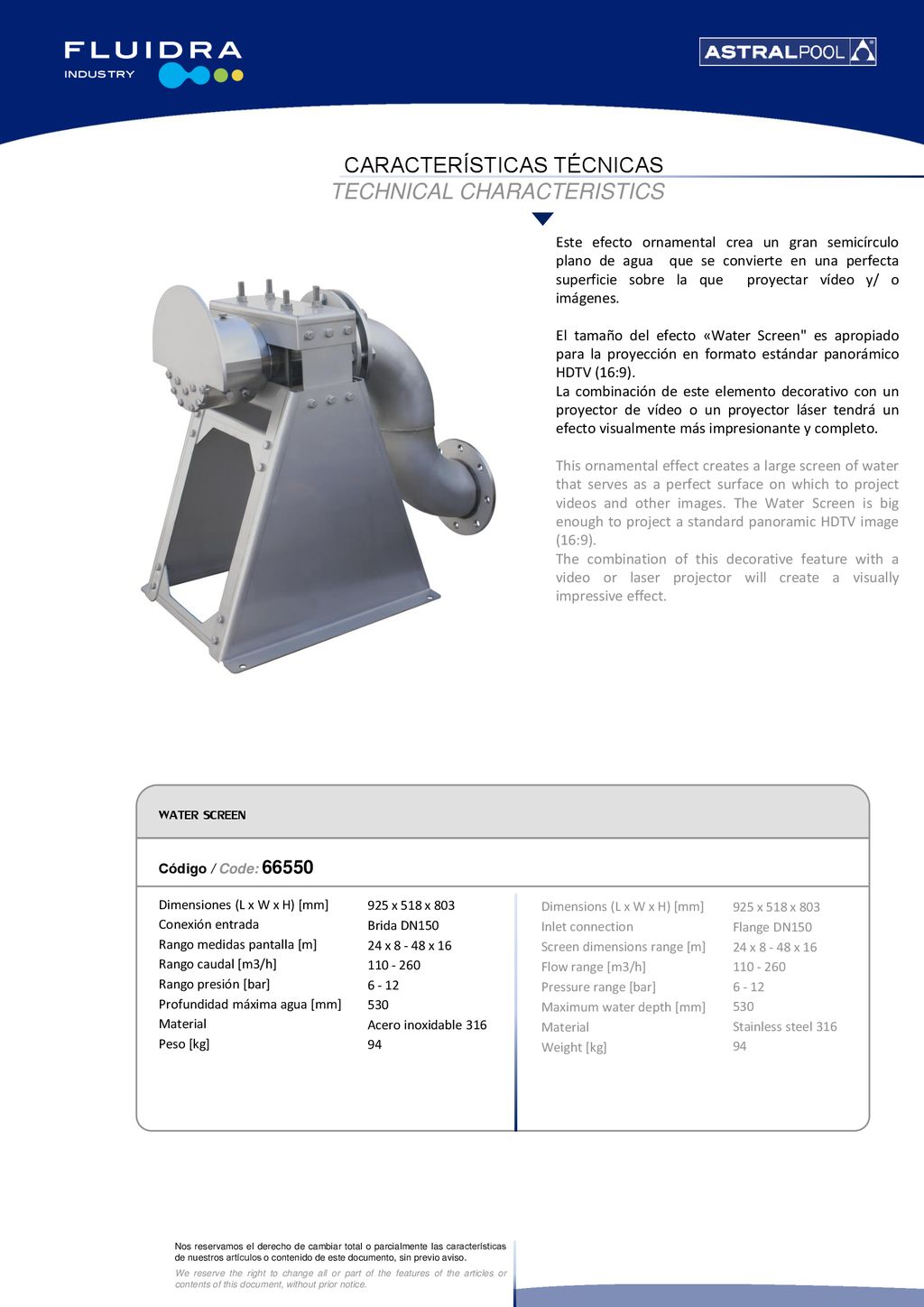

1 CARACTERÍSTICAS TÉCNICAS TECHNICAL CHARACTERISTICS
Este efecto ornamental crea un gran semicírculo plano de agua que se convierte en una perfecta superficie sobre la que proyectar vídeo y/ o imágenes. El tamaño del efecto «Water Screen" es apropiado para la proyección en formato estándar panorámico HDTV (16:9). La combinación de este elemento decorativo con un proyector de vídeo o un proyector láser tendrá un efecto visualmente más impresionante y completo. This ornamental effect creates a large screen of water that serves as a perfect surface on which to project videos and other images. The Water Screen is big enough to project a standard panoramic HDTV image (16:9). The combination of this decorative feature with a video or laser projector will create a visually impressive effect. WATER SCREEN Código / Code: 66550 Dimensiones (L x W x H) [mm] Conexión entrada Rango medidas pantalla [m] Rango caudal [m3/h] Rango presión [bar] Profundidad máxima agua [mm] Material Peso [kg] 925 x 518 x 803 Brida DN150 24 x x 16 6 - 12 530 Acero inoxidable 316 94 Dimensions (L x W x H) [mm] Inlet connection Screen dimensions range [m] Flow range [m3/h] Pressure range [bar] Maximum water depth [mm] Material Weight [kg] 925 x 518 x 803 Flange DN150 24 x x 16 6 - 12 530 Stainless steel 316 94

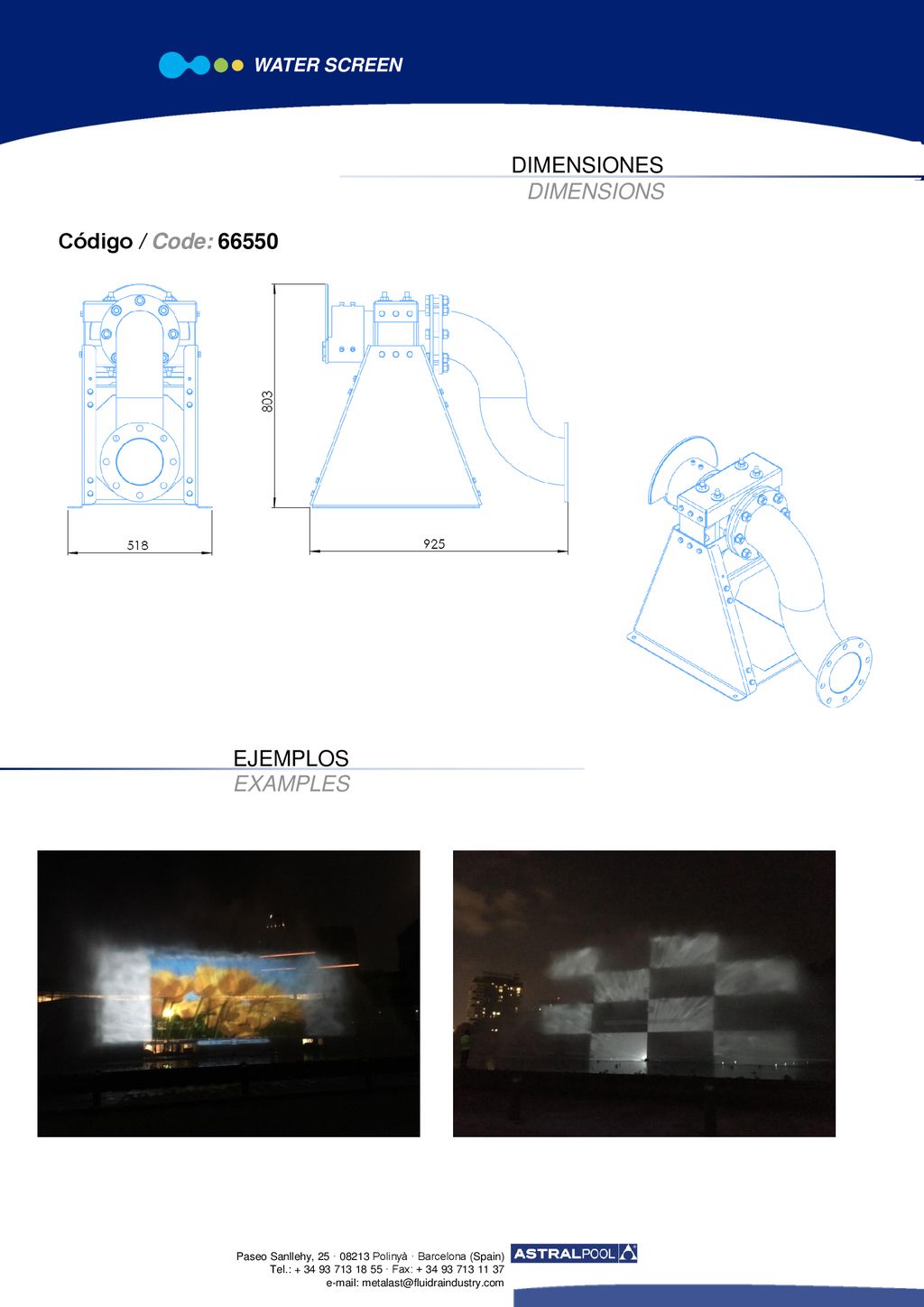

2 DIMENSIONES DIMENSIONS Código / Code: 66550 EJEMPLOS EXAMPLES
WATER SCREEN DIMENSIONES DIMENSIONS Código / Code: 66550 EJEMPLOS EXAMPLES
