1 Requerimientos de telecomunicaciones

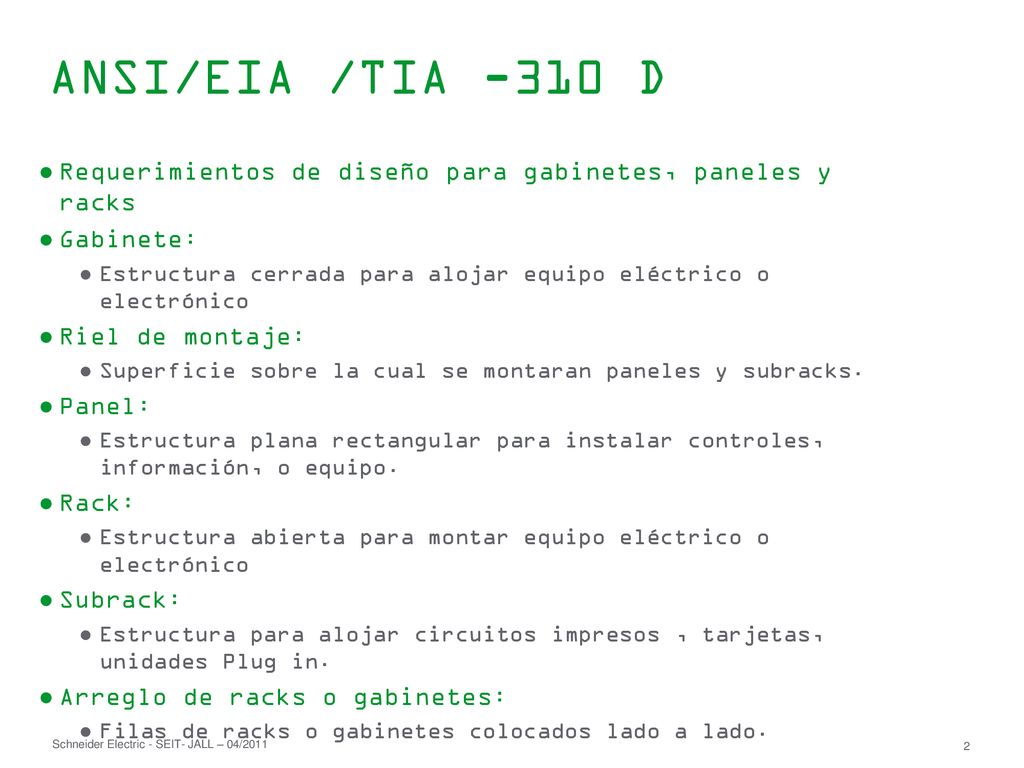

2 ANSI/EIA /TIA -310 D Requerimientos de diseño para gabinetes, paneles y racks Gabinete: Estructura cerrada para alojar equipo eléctrico o electrónico Riel de montaje: Superficie sobre la cual se montaran paneles y subracks. Panel: Estructura plana rectangular para instalar controles, información, o equipo. Rack: Estructura abierta para montar equipo eléctrico o electrónico Subrack: Estructura para alojar circuitos impresos , tarjetas, unidades Plug in. Arreglo de racks o gabinetes: Filas de racks o gabinetes colocados lado a lado.

3 ¿Que significa “RMU” / “UR”?
1/2” 5/8” 1 3/4” Panel A 1 RMU 4.4cm Panel B RMU = Rack Mounting Unit U = Unidad de Rack Dimensión vertical que corresponde a las posiciones de montaje del equipo Cantidad de RMU depende del fabricante En 7 pies , 41, 42, 43, 44, 45 RMU Se miden de abajo hacia arriba

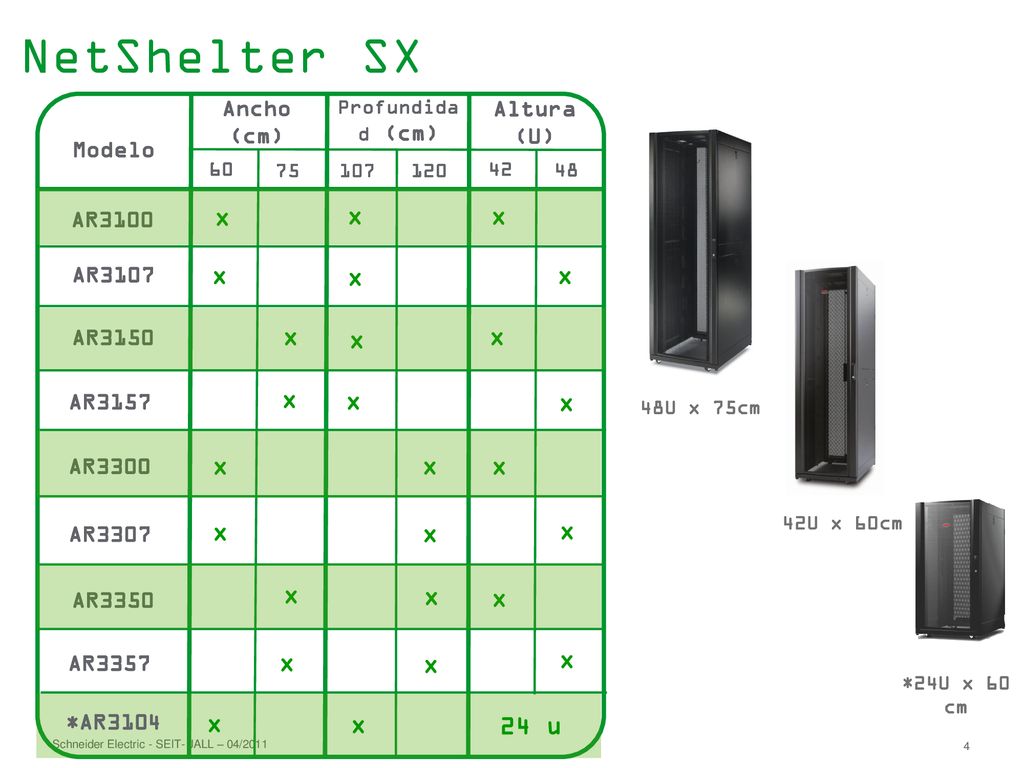

4 NetShelter SX x 24 u Ancho (cm) Altura (U) Modelo AR3100 AR3107 AR3150
Profundidad (cm) Altura (U) Modelo 60 75 107 120 42 48 AR3100 AR3107 AR3150 AR3157 AR3300 AR3307 AR3350 x AR3357 *AR3104 24 u 48U x 75cm 42U x 60cm *24U x 60 cm

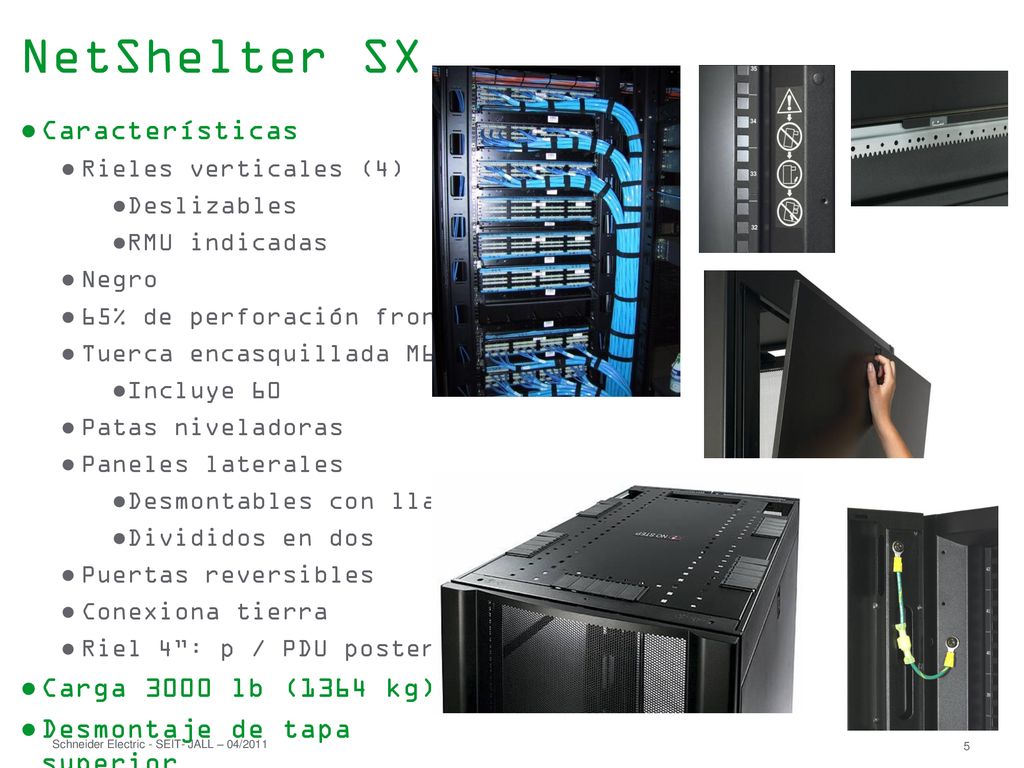

5 NetShelter SX Características Carga 3000 lb (1364 kg)
Rieles verticales (4) Deslizables RMU indicadas Negro 65% de perforación frontal Tuerca encasquillada M6 Incluye 60 Patas niveladoras Paneles laterales Desmontables con llave Divididos en dos Puertas reversibles Conexiona tierra Riel 4”: p / PDU posterior Carga 3000 lb (1364 kg) Desmontaje de tapa superior

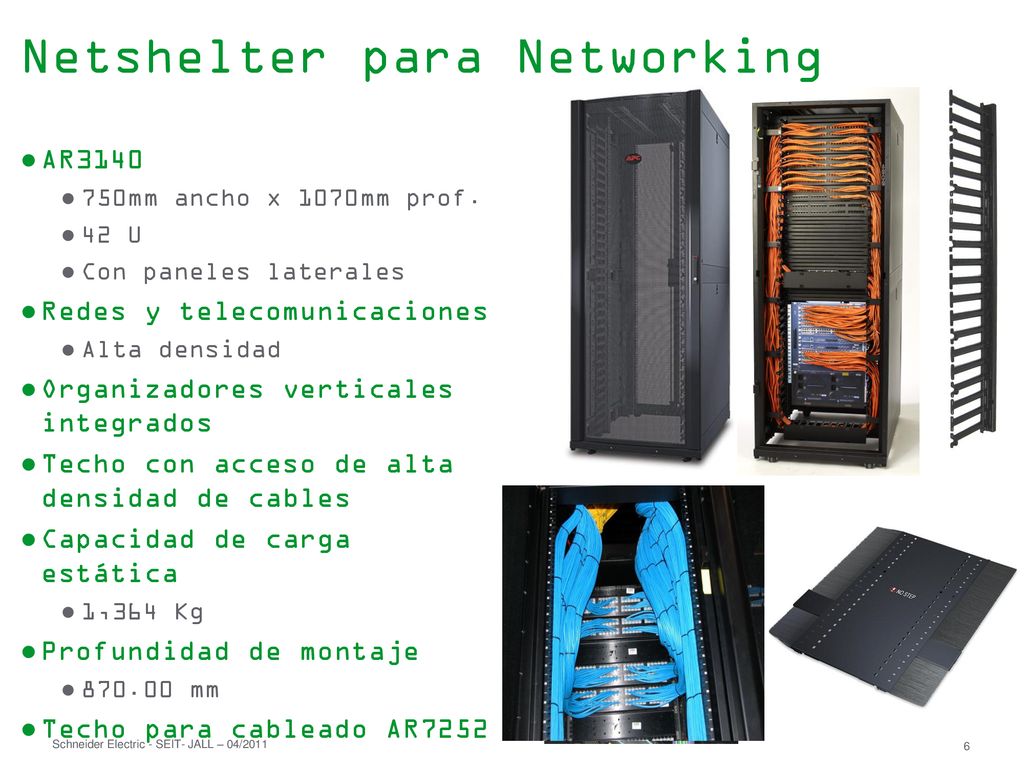

6 Netshelter para Networking
750mm ancho x 1070mm prof. 42 U Con paneles laterales Redes y telecomunicaciones Alta densidad Organizadores verticales integrados Techo con acceso de alta densidad de cables Capacidad de carga estática 1,364 Kg Profundidad de montaje mm Techo para cableado AR7252

7 Netshelter WX AR100 AR100HD Montaje a pared Puerta de cristal
Puerta ventilada Montaje a pared Ancho 23” (584 mm) 19” Riel reversible Tuercas encasquilladas Ajustable en profundidad 7 posiciones Alto 25.74” (654 mm) 13 RMU indicadas Profundidad 24.48” (622 mm) Acceso frontal y posterior Negro Capacidad de carga 90 Kgs

8 Netshelter Open Frame AR201 2 Postes AR203 4 Postes Negro Aluminio

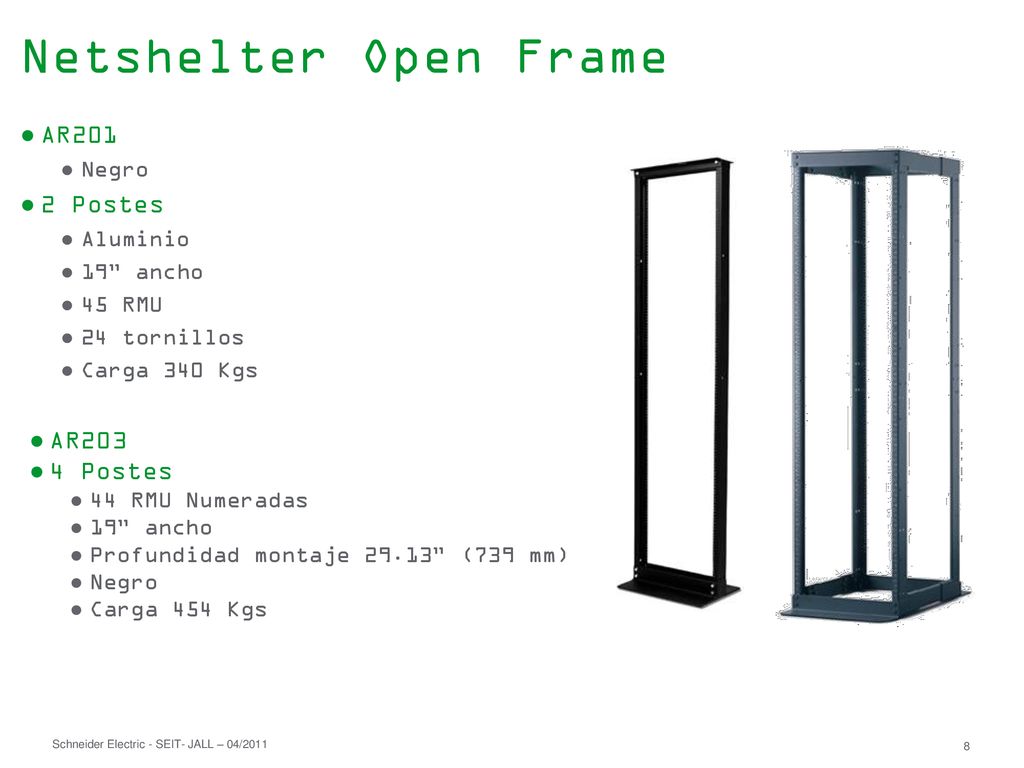

19” ancho 45 RMU 24 tornillos Carga 340 Kgs AR203 4 Postes 44 RMU Numeradas 19” ancho Profundidad montaje 29.13” (739 mm) Negro Carga 454 Kgs

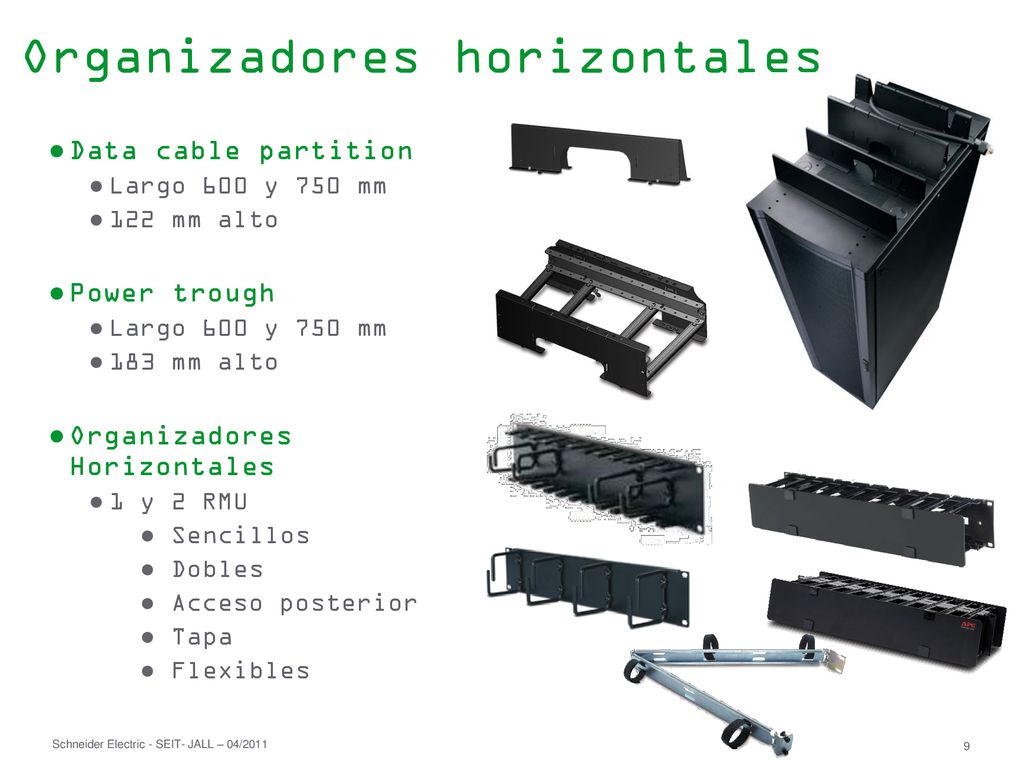

9 Organizadores horizontales
Data cable partition Largo 600 y 750 mm 122 mm alto Power trough 183 mm alto Organizadores Horizontales 1 y 2 RMU Sencillos Dobles Acceso posterior Tapa Flexibles

10 Organizadores Verticales

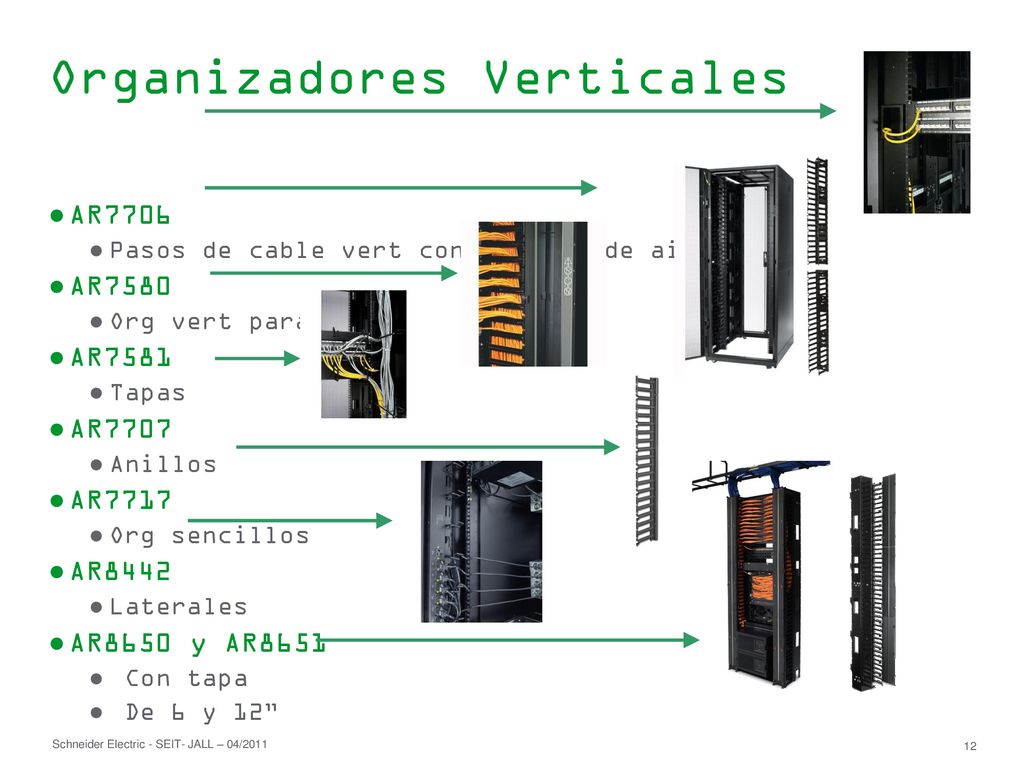

AR7706 Pasos de cable vert con bloqueo de aire AR7580 Org vert para 750 AR7581 Tapas AR7707 Anillos AR7717 Org sencillos AR8442 Laterales AR8650 y AR8651 Con tapa De 6 y 12”

11 Organizadores verticales

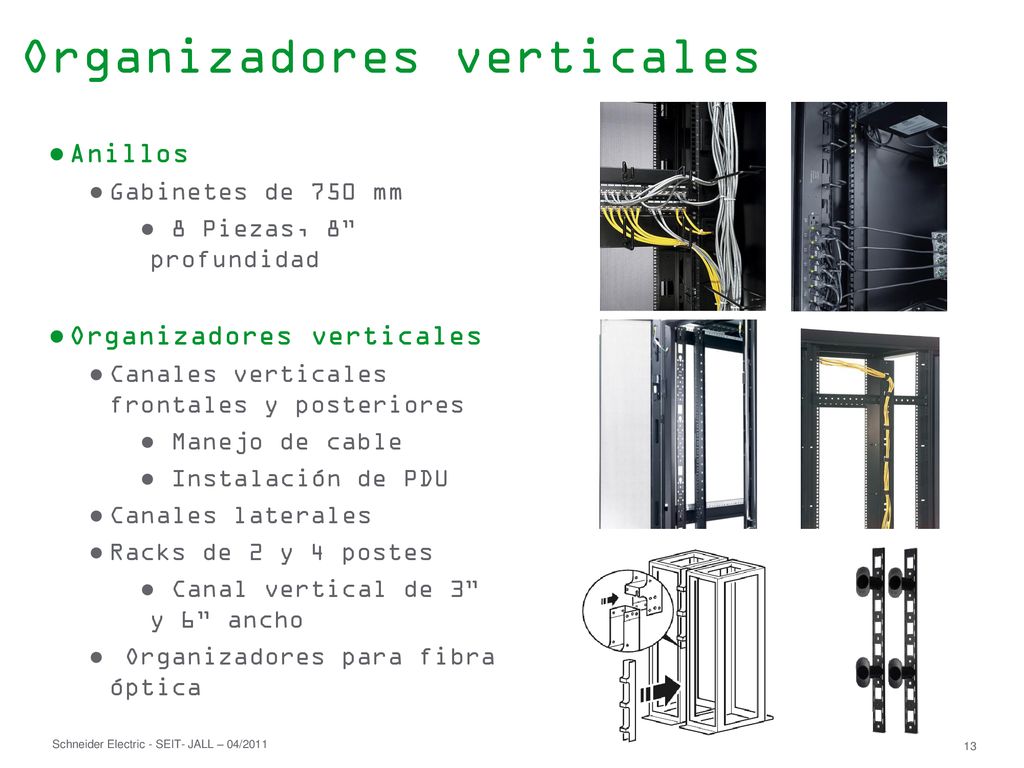

Anillos Gabinetes de 750 mm 8 Piezas, 8” profundidad Organizadores verticales Canales verticales frontales y posteriores Manejo de cable Instalación de PDU Canales laterales Racks de 2 y 4 postes Canal vertical de 3” y 6” ancho Organizadores para fibra óptica

12 Charolas Cajones deslizables Charola fijas Charolas deslizables

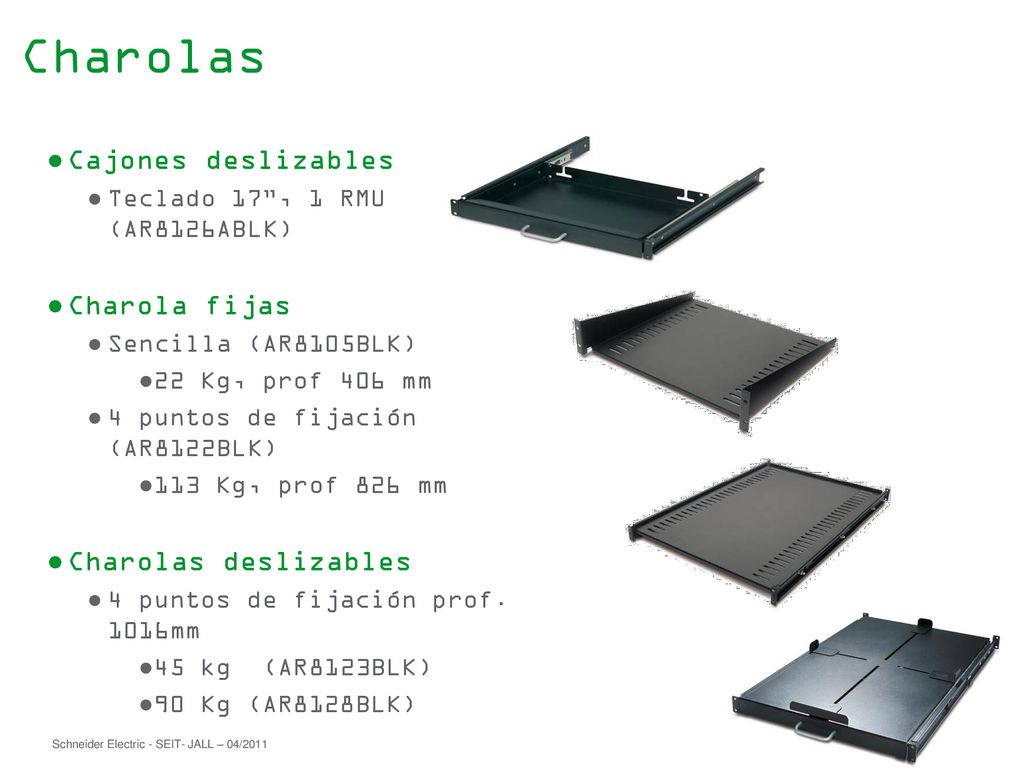

Teclado 17”, 1 RMU (AR8126ABLK) Charola fijas Sencilla (AR8105BLK) 22 Kg, prof 406 mm 4 puntos de fijación (AR8122BLK) 113 Kg, prof 826 mm Charolas deslizables 4 puntos de fijación prof. 1016mm 45 kg (AR8123BLK) 90 Kg (AR8128BLK)

13 Manejeo de aire en gabinetes

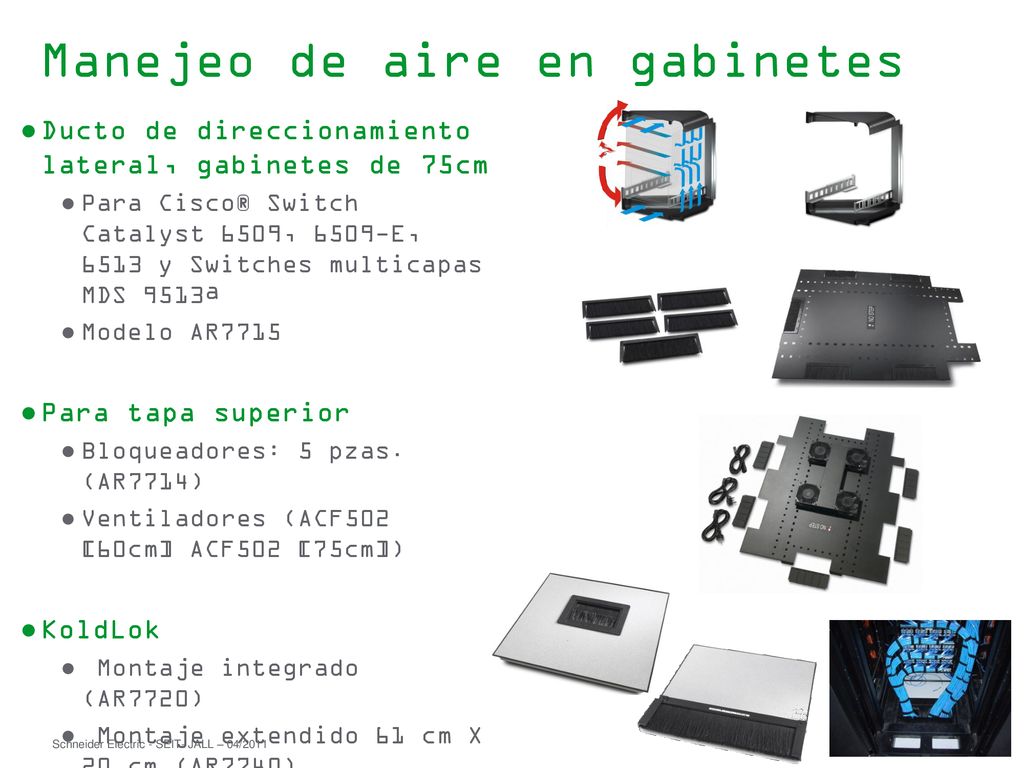

Ducto de direccionamiento lateral, gabinetes de 75cm Para Cisco® Switch Catalyst 6509, 6509-E, 6513 y Switches multicapas MDS 9513ª Modelo AR7715 Para tapa superior Bloqueadores: 5 pzas. (AR7714) Ventiladores (ACF502 [60cm] ACF502 [75cm]) KoldLok Montaje integrado (AR7720) Montaje extendido 61 cm X 20 cm (AR7740)

14 Monitor LCD 17” con teclado y mouse

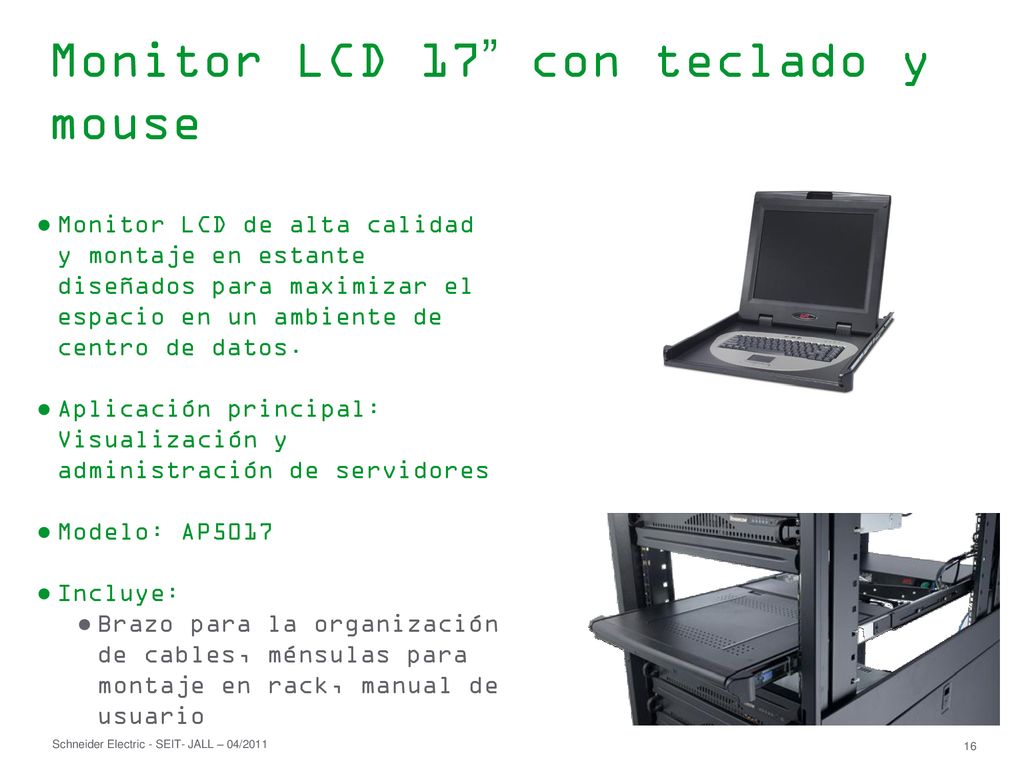

Monitor LCD de alta calidad y montaje en estante diseñados para maximizar el espacio en un ambiente de centro de datos. Aplicación principal: Visualización y administración de servidores Modelo: AP5017 Incluye: Brazo para la organización de cables, ménsulas para montaje en rack, manual de usuario

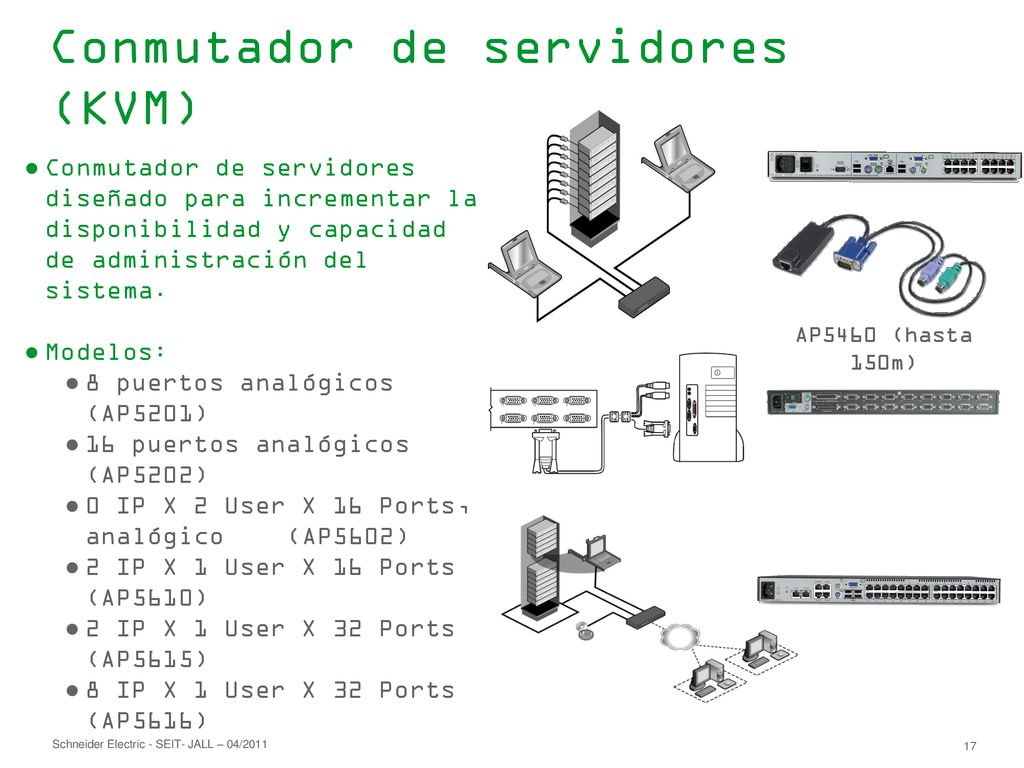

15 Conmutador de servidores (KVM)
Conmutador de servidores diseñado para incrementar la disponibilidad y capacidad de administración del sistema. Modelos: 8 puertos analógicos (AP5201) 16 puertos analógicos (AP5202) 0 IP X 2 User X 16 Ports, analógico (AP5602) 2 IP X 1 User X 16 Ports (AP5610) 2 IP X 1 User X 32 Ports (AP5615) 8 IP X 1 User X 32 Ports (AP5616) No incluye cables AP5460 (hasta 150m) 8 y 16 puertos analógicos. Puede conectar en daisy chain 32 equipos, 256 y 512 servidores respectivamente 0 IP X 2 User X 16 Ports, analógicos. Puede conectar en daisy chain 16 equipos, 256 servidores 2 IP X 1 User X 16 Ports digital. 2 IP X 1 User X 32 Ports digital 8 IP X 1 User X 32 Ports digital

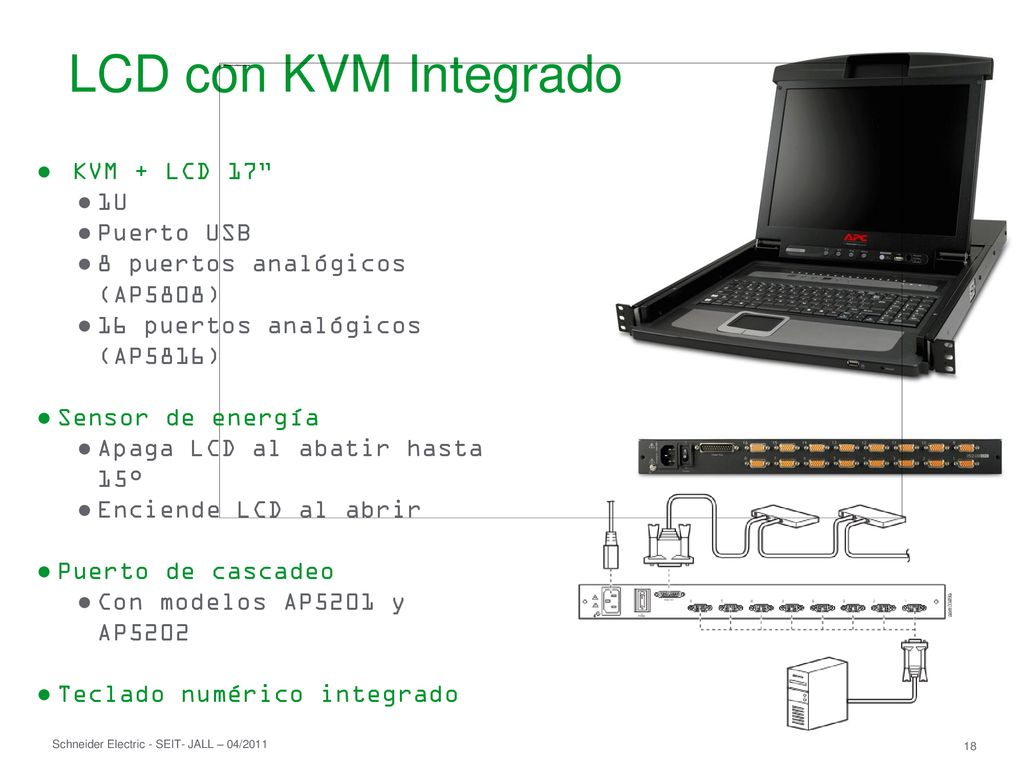

16 LCD con KVM Integrado KVM + LCD 17” 1U Puerto USB
8 puertos analógicos (AP5808) 16 puertos analógicos (AP5816) Sensor de energía Apaga LCD al abatir hasta 15° Enciende LCD al abrir Puerto de cascadeo Con modelos AP5201 y AP5202 Teclado numérico integrado Clock Wise – Read and comment on each Feature in turn: Integrated KVM Switch: Combines Rack LCD and KVM Switch into one package in a 1U form factor. Switch controls – Switching between servers is made easy via the port and station ID displays and control buttons. The port ID displays the port number (1-8 for AP5808 and 1-16 for AP5816) in use on the KVM and the station ID displays the port number in use of on any attached device. Use the up/down control buttons to navigate through them. Embedded Menu system: The user can choose servers via an internal menu. Numeric Keypad: A numeric keypad is now available for quick entry of IP addresses. Not currently on the Rack LCD consoles, very useful for IT managers that are typing in IP addresses or performing other administrative tasks that are data intensive. Single user rack mount kit – Quickly and easily install in square, round, and threaded hole racks. The Rack LCD Console installation process has been streamlined through the design of this rack mount kit which allows the unit to be installed by one person. Cascade port: A cascade port is available for attaching AP5201 or AP5202 to allow more ports. This product has only one cascade out, and AP5201 and AP5205 has an in/out so you can cascade multiple switches. Integrated Touchpad: Easier to use and more familiar to most users than a trackball. USB port – Unique feature to this product in which you can attach a mouse or a thumbdrive/flashdrive. This is a valuable feature for an IT manager, they can perform simple upload/download procedures to their servers via this USB port. 17" TFT active matrix screen: A display screen made with TFT (thin-film transistor) technology is an LCD that has a transistor for each pixel, enabling the display to be more responsive to change. For example, when you move your mouse across the screen, a TFT display is fast enough to reflect the movement of the mouse cursor. Power Tilt Sensor: When opening, the monitor’s power will turn on at approximately 15 degrees and turnoff at the same angle when closing. Backlit will turn off which provides energy efficiency. 1 U-space – Essentially the main value proposition, separate Rack LCD Console and KVM products take up 2U rack space and require more installation time. The main benefit to this new design is having them integrated into one package to cut installation time and optimize rack space.

17 NetBotz® Access Control (AP9361)

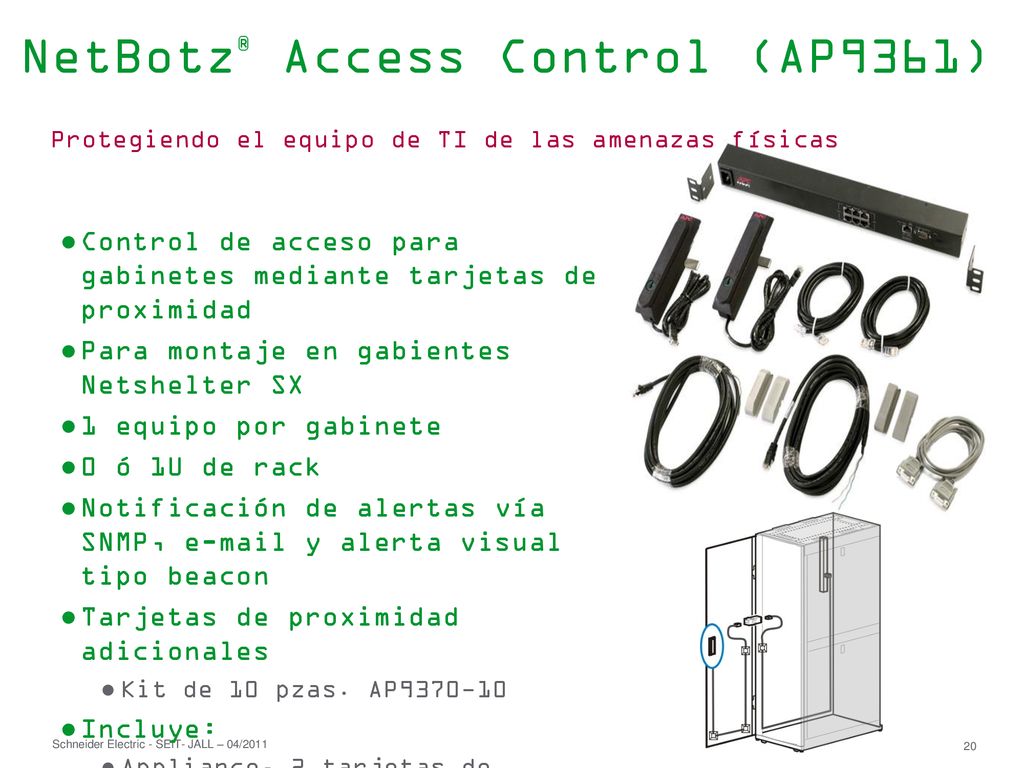

Protegiendo el equipo de TI de las amenazas físicas Control de acceso para gabinetes mediante tarjetas de proximidad Para montaje en gabientes Netshelter SX 1 equipo por gabinete 0 ó 1U de rack Notificación de alertas vía SNMP, y alerta visual tipo beacon Tarjetas de proximidad adicionales Kit de 10 pzas. AP Incluye: Appliance, 2 tarjetas de proximidad, chapa frontal y posterior, 2 kits de apertura de puertas, cables. NetBotz Access Control consists of the Rack Access PX, a browser-accessible appliance that allows control and management of access privileges. The Rack Access PX can be mounted in a 0U or 1U configuration and is designed for APC's NetShelter SX enclosures. Access is granted through the use of proximity cards or a Web interface. Administrators can easily configure access control profiles for individual employees, configure scheduled access to equipment for maintenance purposes, and view audit trails. Various alarm notifications are available to indicate a compromised security state such as forced entry and door position. This slide provides a high-level overview of APC’s NetBotz Access Control product family. AVAILABILITY: Audit Trail capability for real-time monitoring of who is accessing the enclosure around the clock through issued proximity cards. AGILITY: Flexibility to allow non-proximity card holders access to the enclosure for maintenance. TOTAL COST OF OWNERSHIP: Investment protection from theft and authorized access of the enclosure. Proximity card access: Restrict equipment access to authorized people through proximity card interaction. Compatible with 125kHz HID card formats H10301, H10302, H10304, Corp1000 User access scheduling: Restrict equipment access to specific times for each person/proximity card configured Dual authentication and audit trail: integrate with Netbotz surveillance for visual and proximity card identification Alarm beacon: Visual indication of access violation or environmental issue Data logging: Identify problematic trends before they escalate or export the data log for analysis. Event logging: Pinpoint the timing and sequence of events leading up to an incident. Audit trail: Record of access times for each person or proximity card configured Master key override: Override electronic access with a hard key for power outages and maintenance Forced entry alarm: Alarm administrators based on a forced entry into a rack One-time access schedule: Configure the rack to be unlocked for a scheduled time period for maintenance Telnet management: Provides a simple telnet session or SSH for remote management access. Browser accessible: View the user interface with a browser. Gives quick access from anywhere on the network without the need to install software. Rack Access: Includes horizontal, vertical, and toolless-mount varieties, taking up 1U or 0U in the enclosure Read-only access: Share access without risking unauthorized configuration changes. Password Security: User-selectable password protection.

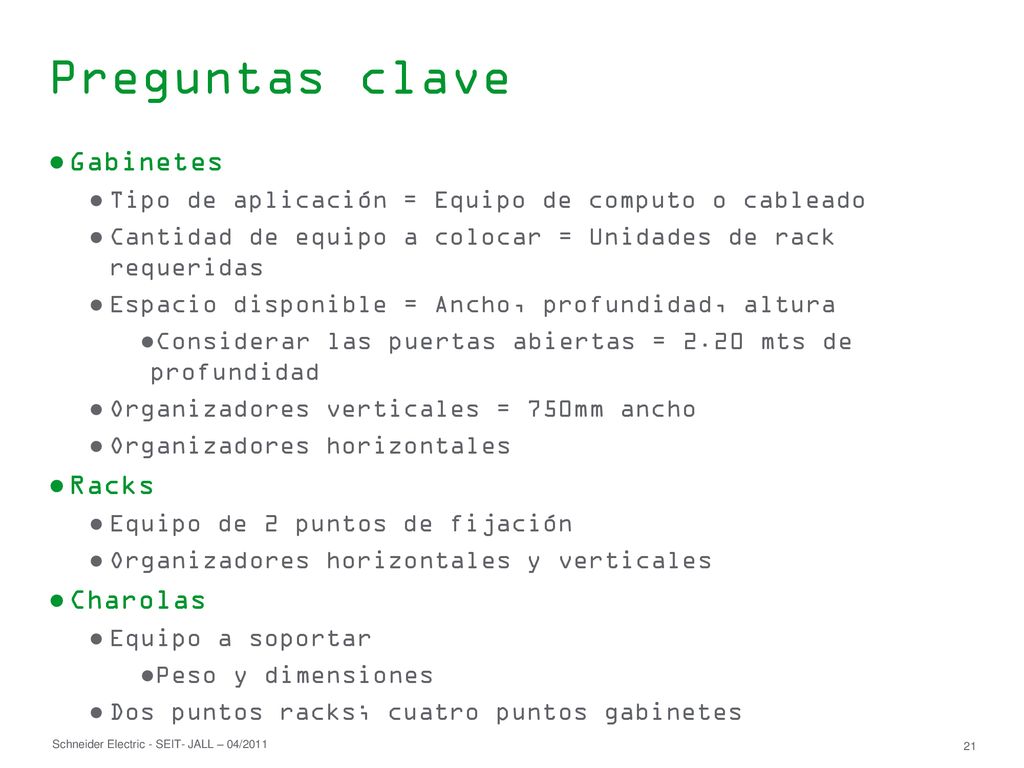

18 Preguntas clave Gabinetes Racks Charolas
