1 Laser Scanning: General Presentation
Frank Collazo, Leica HDS Sales Manager, Mexico, Central America, Caribbean Sept., 2013

2 History Ist Generation 1998 - 2000

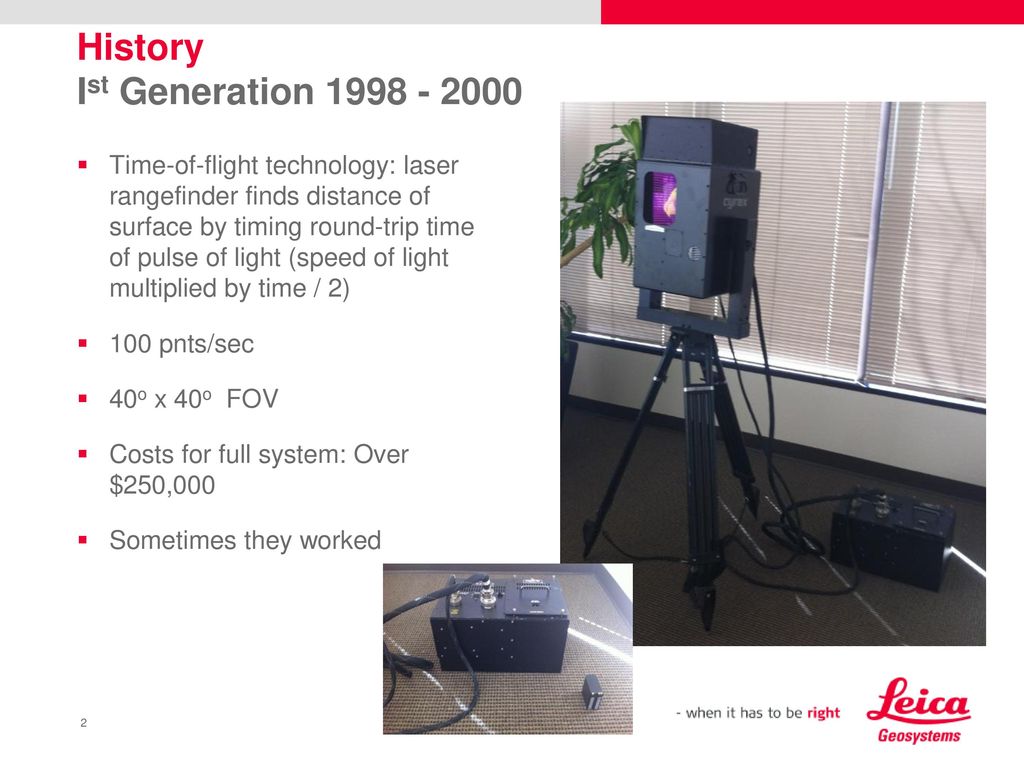

Time-of-flight technology: laser rangefinder finds distance of surface by timing round-trip time of pulse of light (speed of light multiplied by time / 2) 100 pnts/sec 40o x 40o FOV Costs for full system: Over $250,000 Sometimes they worked hello

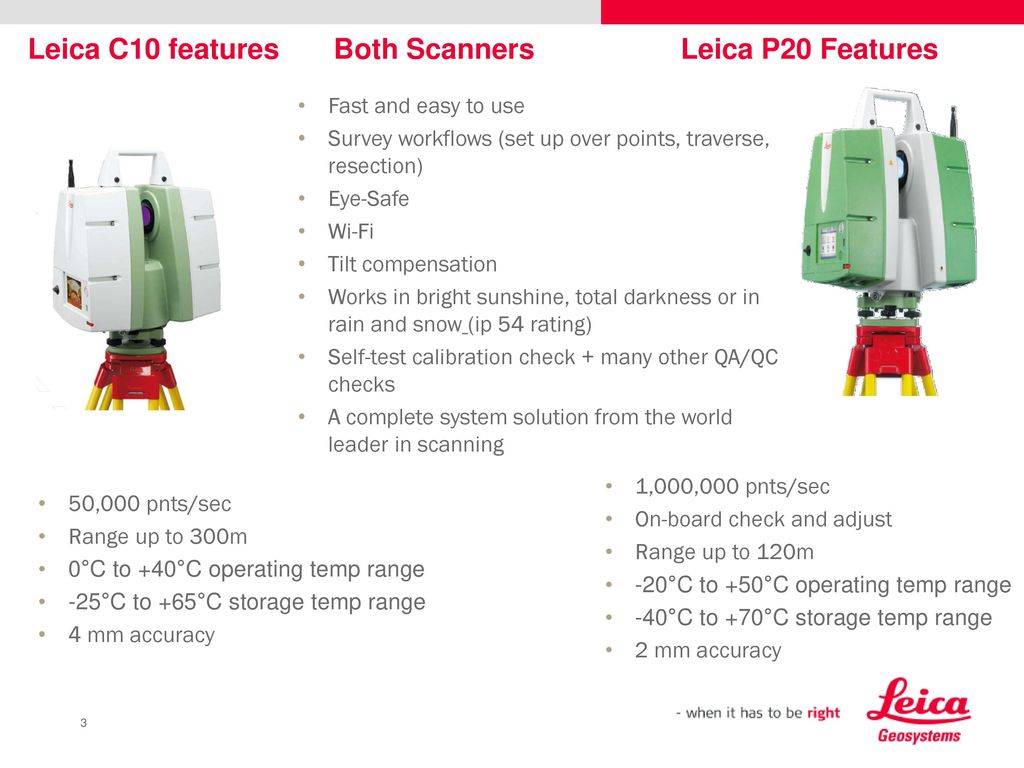

3 Leica C10 features Both Scanners Leica P20 Features
Fast and easy to use Survey workflows (set up over points, traverse, resection) Eye-Safe Wi-Fi Tilt compensation Works in bright sunshine, total darkness or in rain and snow (ip 54 rating) Self-test calibration check + many other QA/QC checks A complete system solution from the world leader in scanning 1,000,000 pnts/sec On-board check and adjust Range up to 120m -20°C to +50°C operating temp range -40°C to +70°C storage temp range 2 mm accuracy 50,000 pnts/sec Range up to 300m 0°C to +40°C operating temp range -25°C to +65°C storage temp range 4 mm accuracy

4 HDS Markets and Applications Fast, Accurate, Detailed Geometry Capture of Sites, Scene and Structures  Building As-built 3D BIM As-built 2D drawings Full colour visualisation Clash detection Industrial Plant  Intelligent 3D CAD as-builts Revamp design clash detection Construction planning  Civil & Survey Topographic road, rail surveys Volumes Tunnel surveys Forensics  Crash investigation Collapse analysis Security planning HDS Executive Overview

5 Overall

6

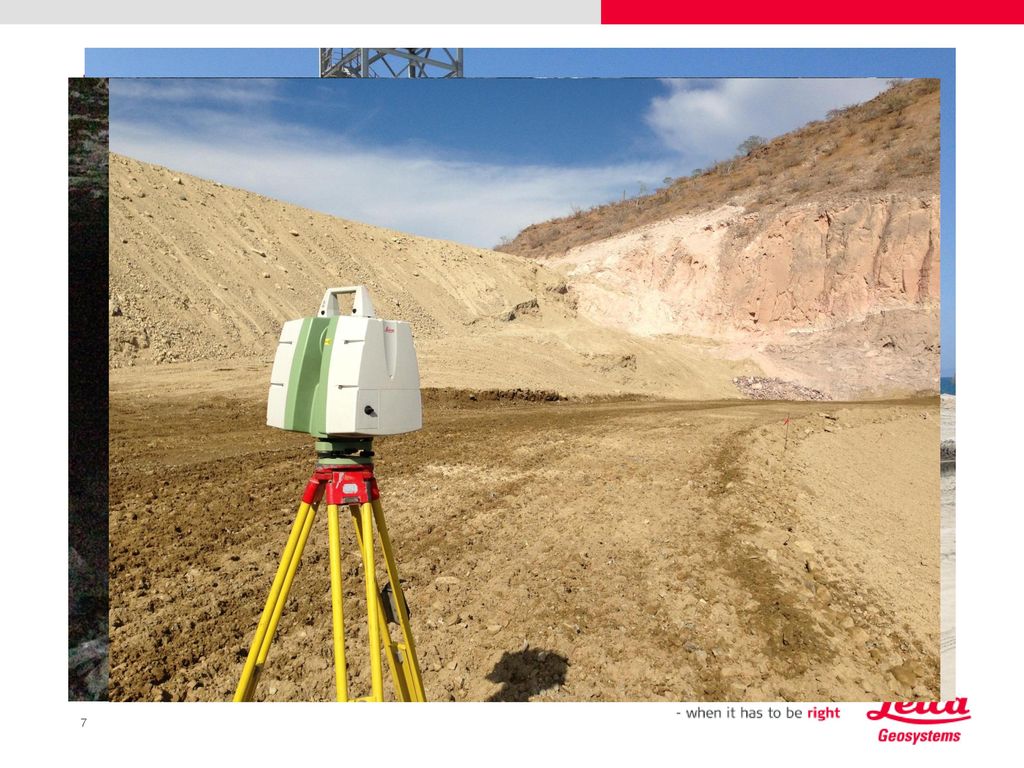

7 Rocaforma

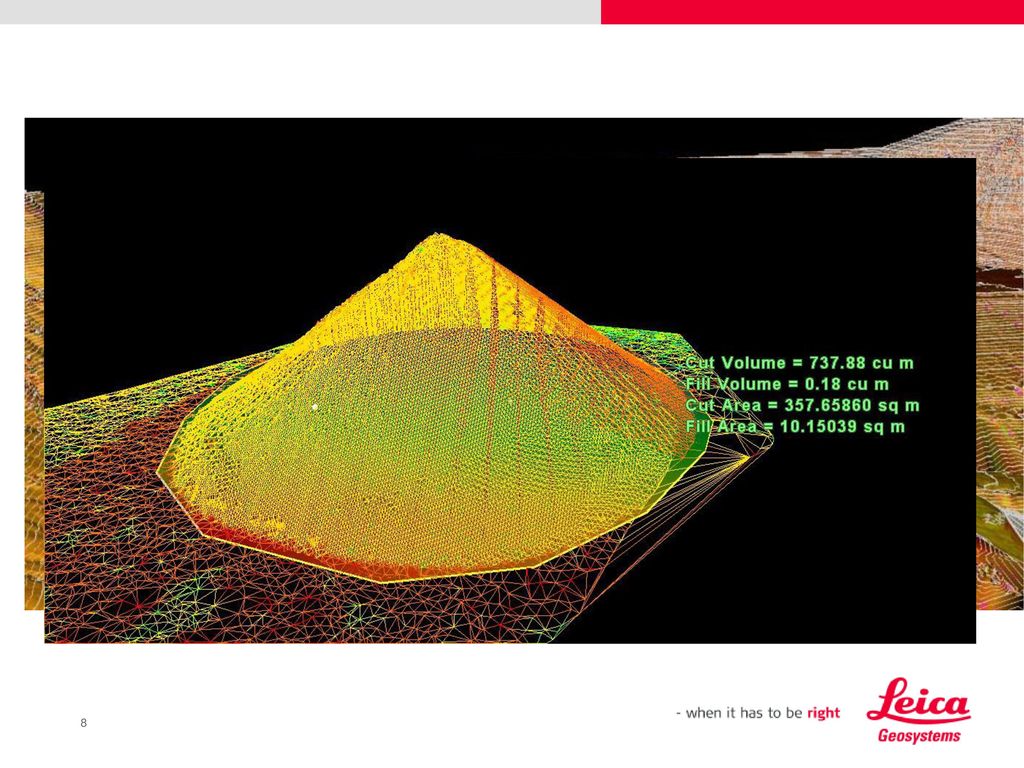

8

9 Civil and Infrastructure - Mining

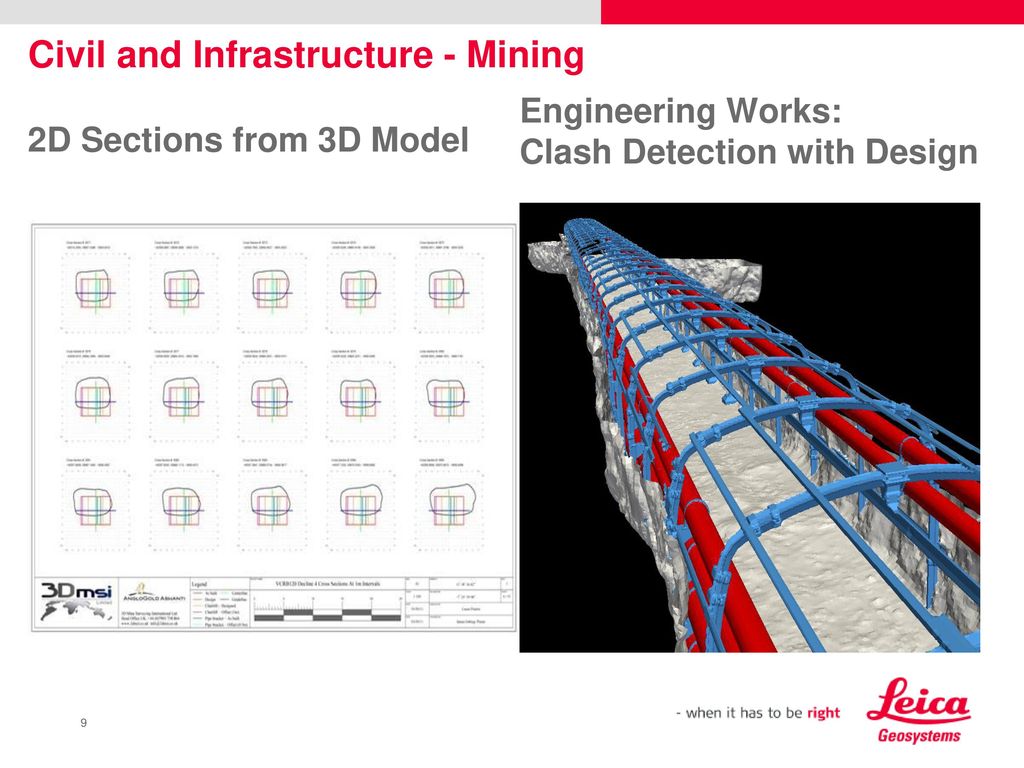

Engineering Works: Clash Detection with Design 2D Sections from 3D Model

10 Crime Scene Investigation (actual scan, not an image, make any measurement to any object)
HEXAGON POWERPOINT TEMPLATE

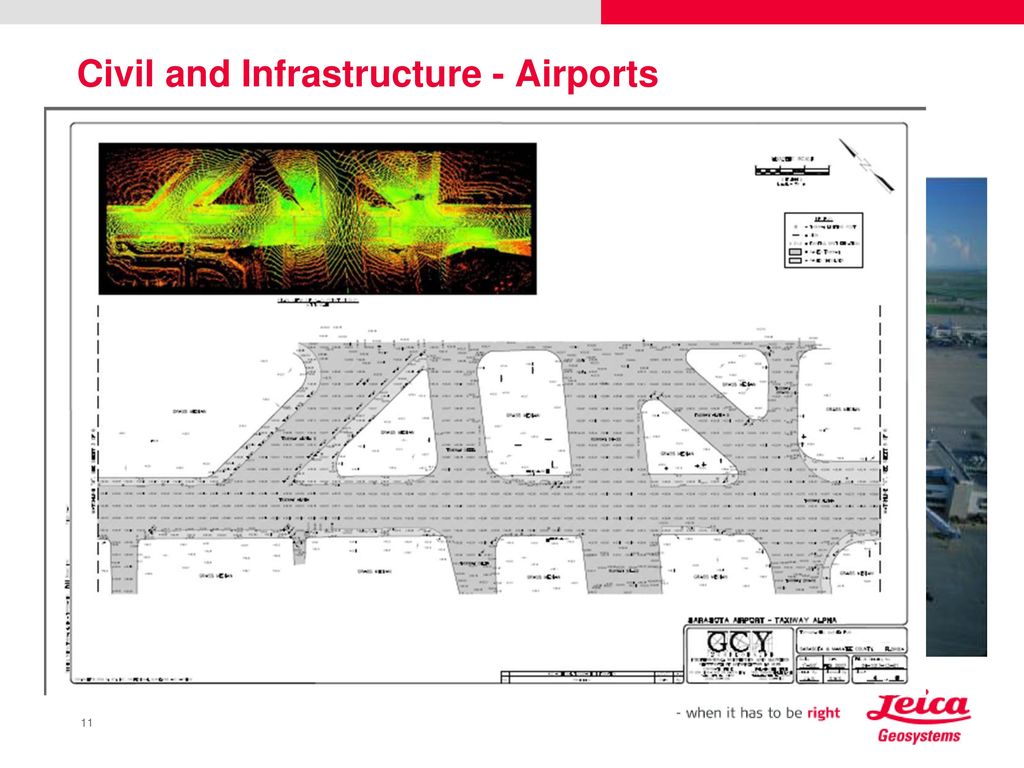

11 Civil and Infrastructure - Airports
Municipal & Transportation Roads & Bridges DOT Applications Public Safety Airports

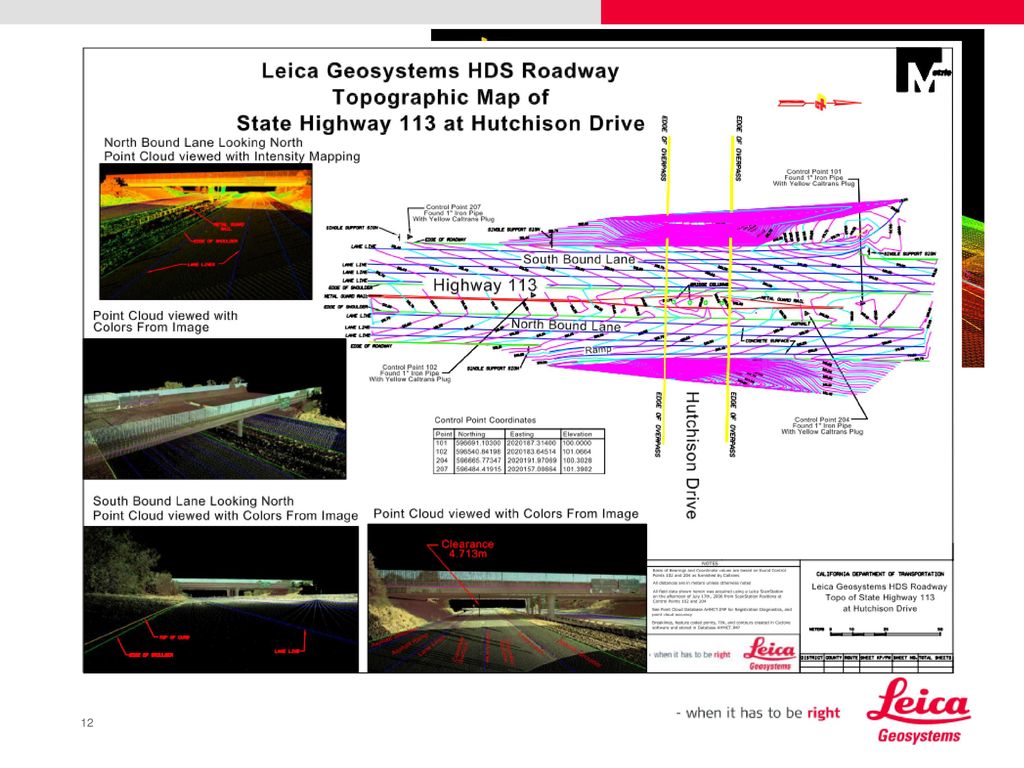

12 Leica HDS Civil & Infrastructure Topographic surveys
Road and rail surveys Volume calculations Tunneling Monitoring

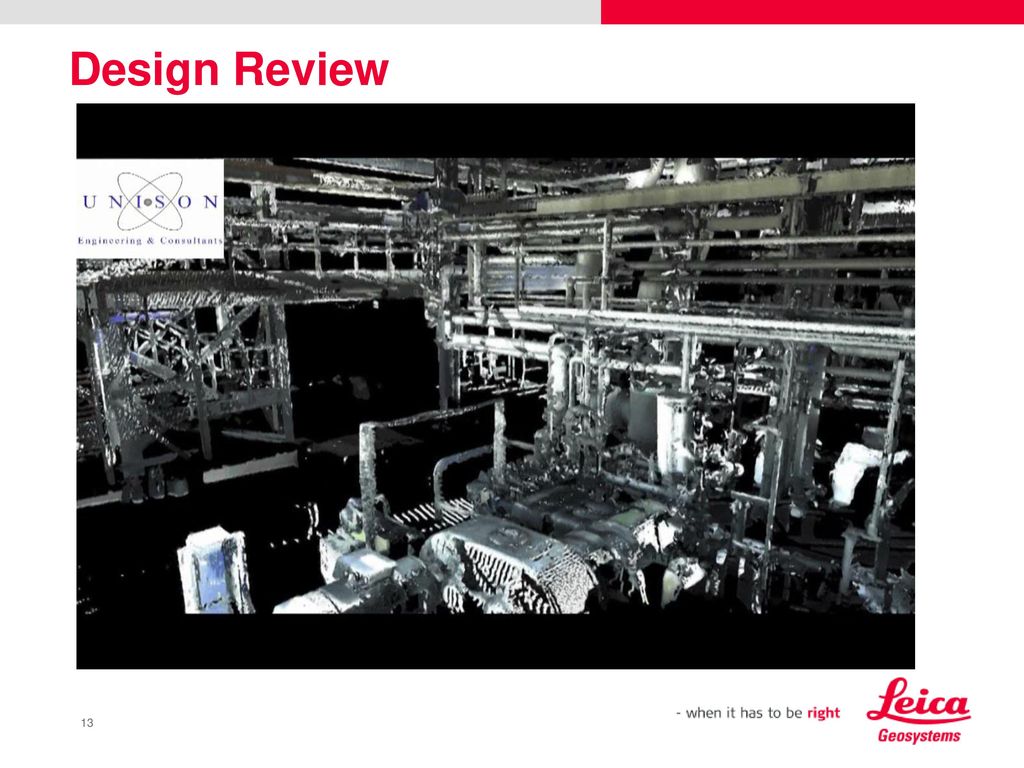

13 Design Review

14 Equipment Removal/Replacment
Plant Maintenance

15 Plant Operation / Maintenance
As-Is Model 3D “As-Is“ Model – from point clouds inside of SP3D 3D Modell – Navisworks – Microstation - Autocad (I-View Cad Export)

16 Plant Operation / Maintenance

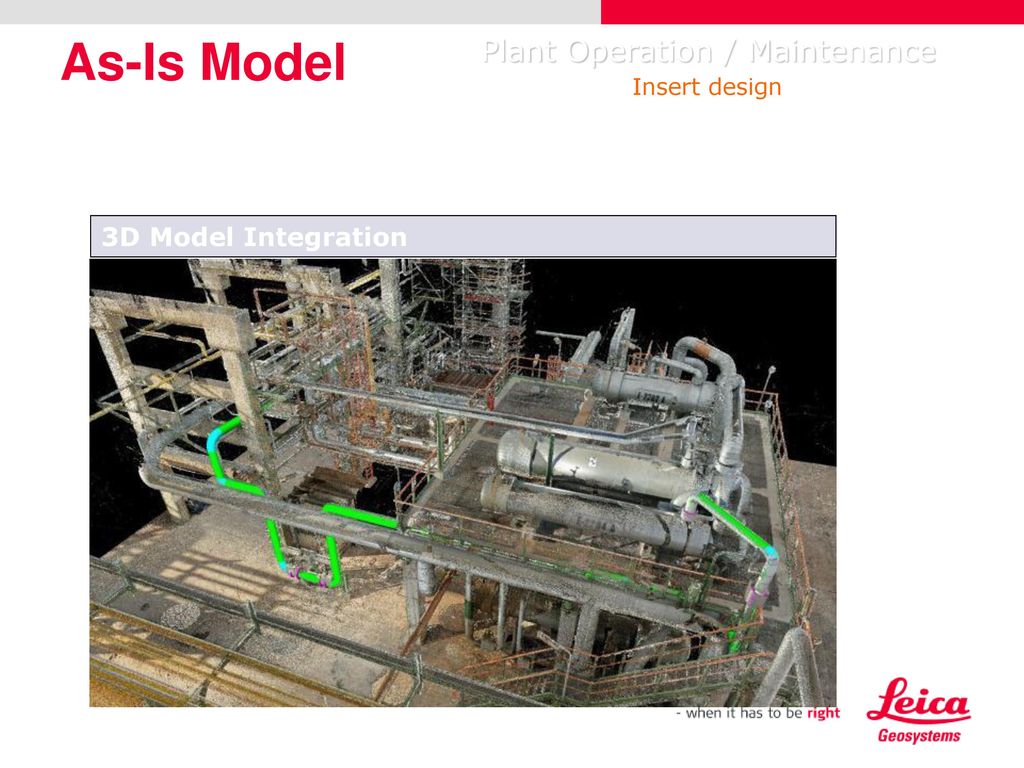

As-Is Model Insert design 3D Model Integration 3D Modell Integration

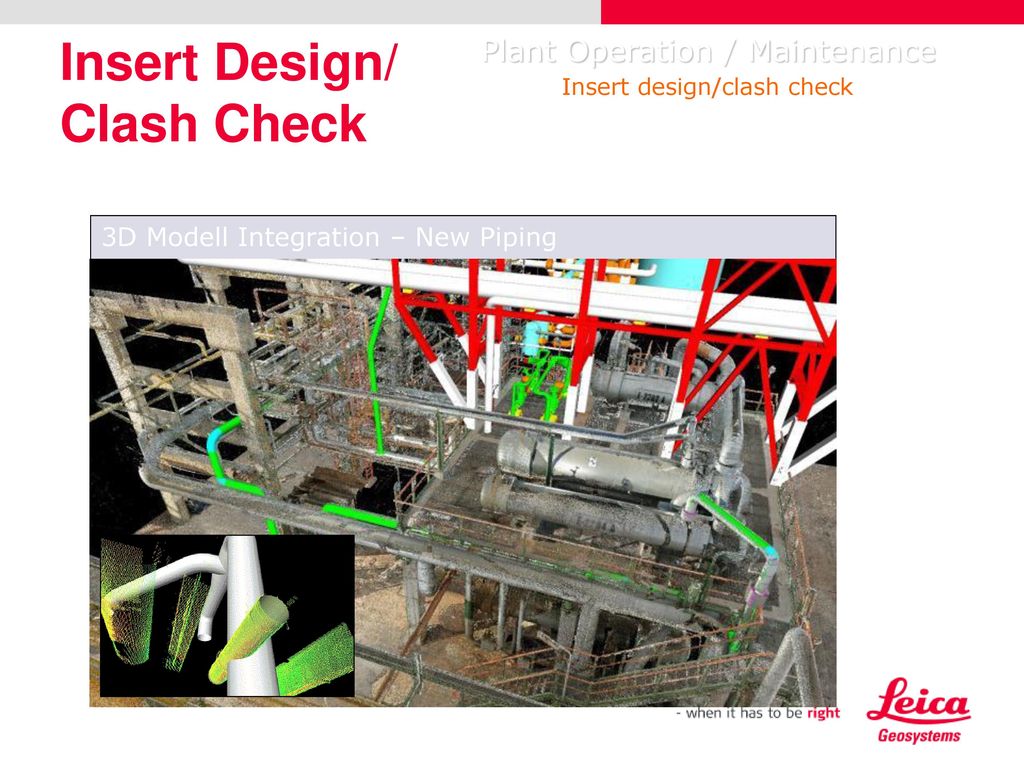

17 Insert Design/ Clash Check Plant Operation / Maintenance
3D Modell Integration – New Piping

18 Building/Heritage Building & Heritage 3D models 2D drawings
Facade and ground plans Asset management Full color visualization

19 Building Architecture/BIM in Revit

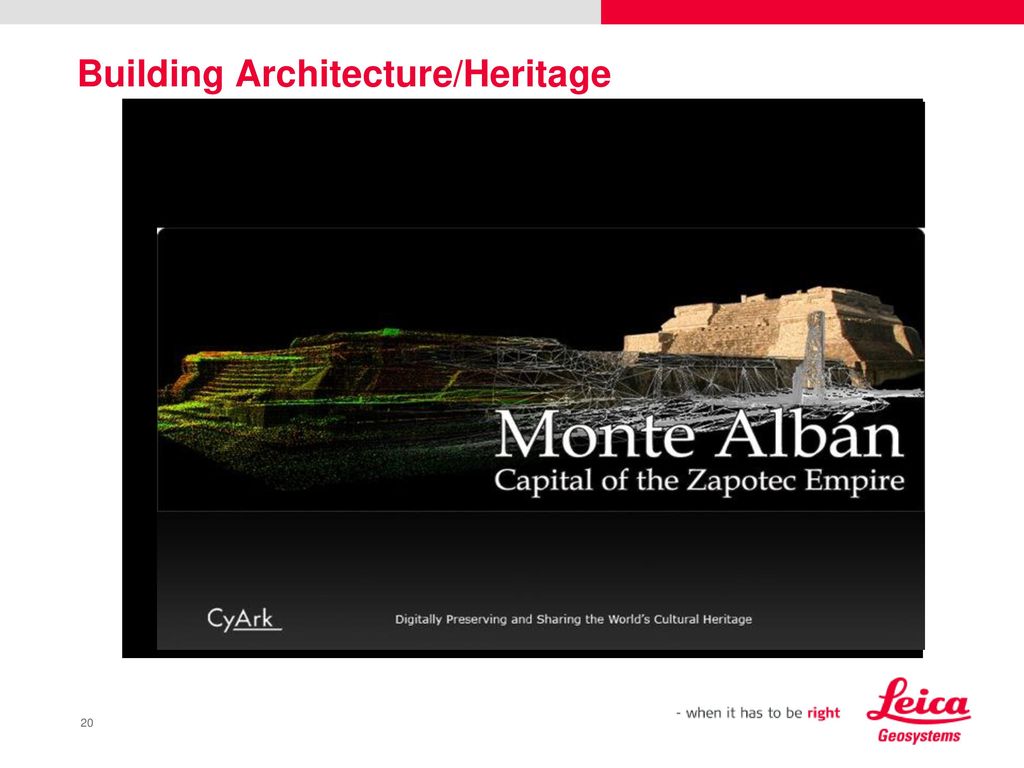

20 Building Architecture/Heritage

21 Beneficios Principales

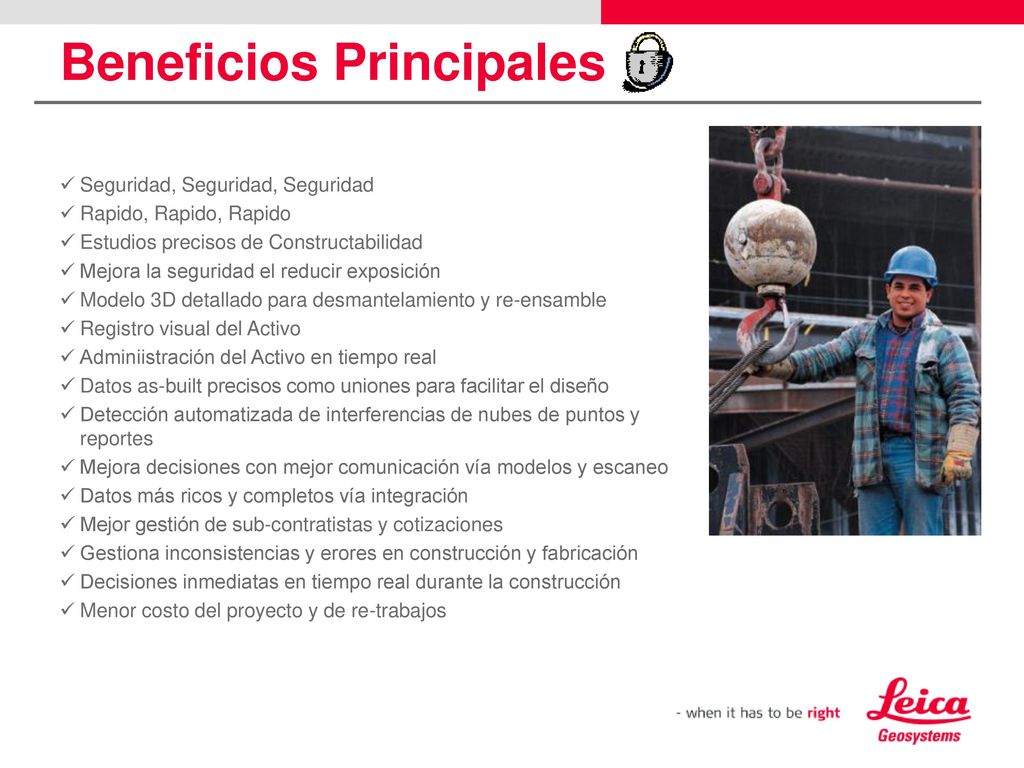

Seguridad, Seguridad, Seguridad Rapido, Rapido, Rapido Estudios precisos de Constructabilidad Mejora la seguridad el reducir exposición Modelo 3D detallado para desmantelamiento y re-ensamble Registro visual del Activo Adminiistración del Activo en tiempo real Datos as-built precisos como uniones para facilitar el diseño Detección automatizada de interferencias de nubes de puntos y reportes Mejora decisiones con mejor comunicación vía modelos y escaneo Datos más ricos y completos vía integración Mejor gestión de sub-contratistas y cotizaciones Gestiona inconsistencias y erores en construcción y fabricación Decisiones inmediatas en tiempo real durante la construcción Menor costo del proyecto y de re-trabajos Similar as 3D changed the plant design world. We expect 3D reality scanning to change the world.
