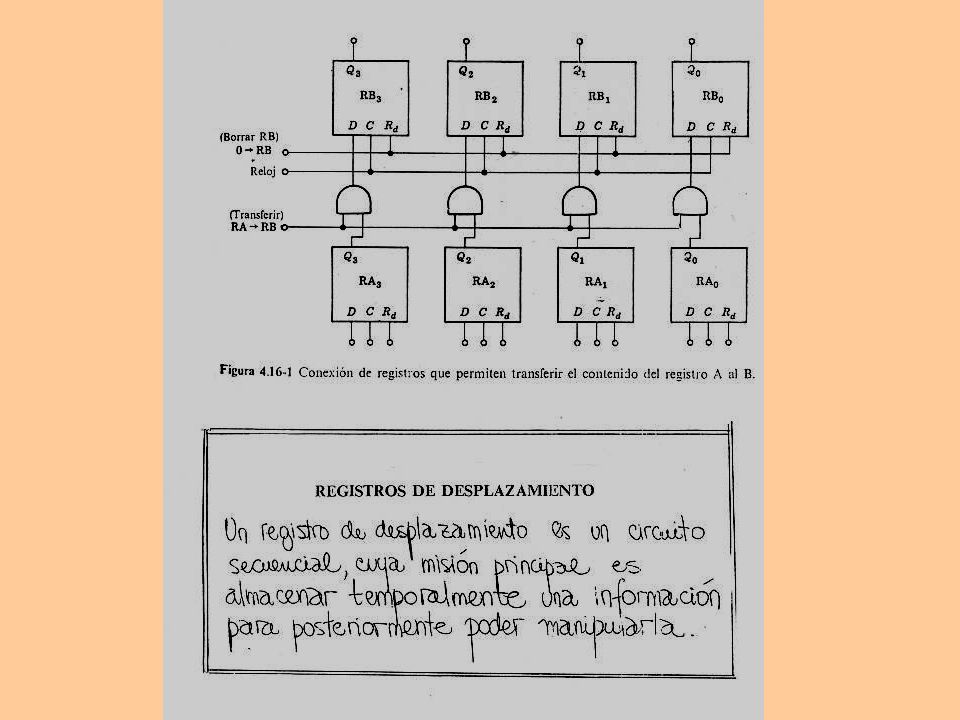

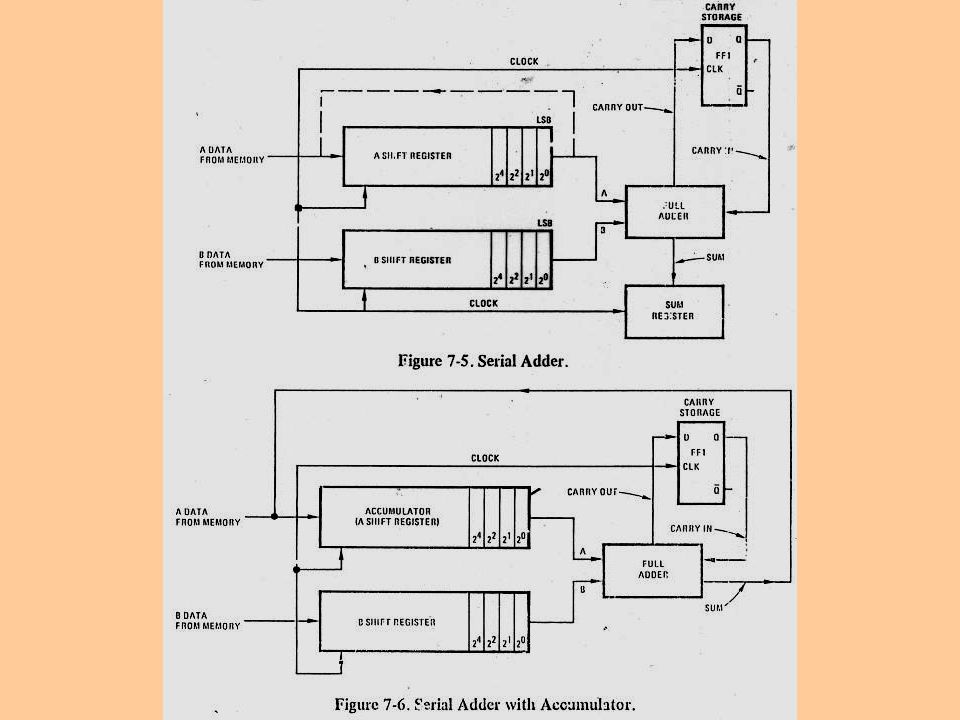

REGISTROS DE DESPLAZAMIENTO ©2010 Julio C. Doumecq – Sergio Luvoni - Alejandro Uriz

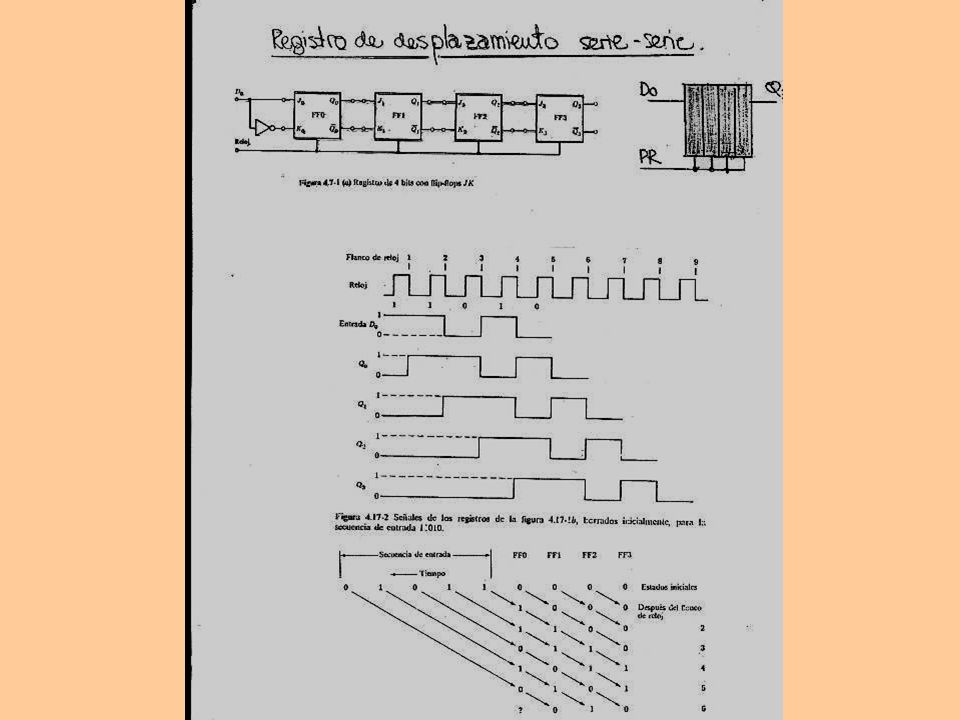

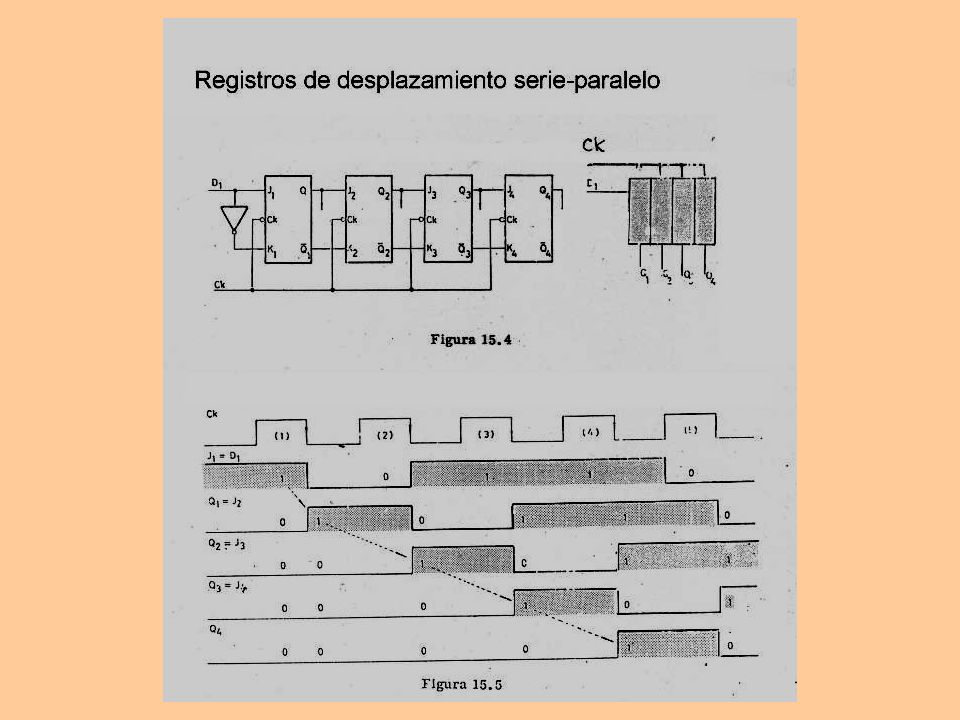

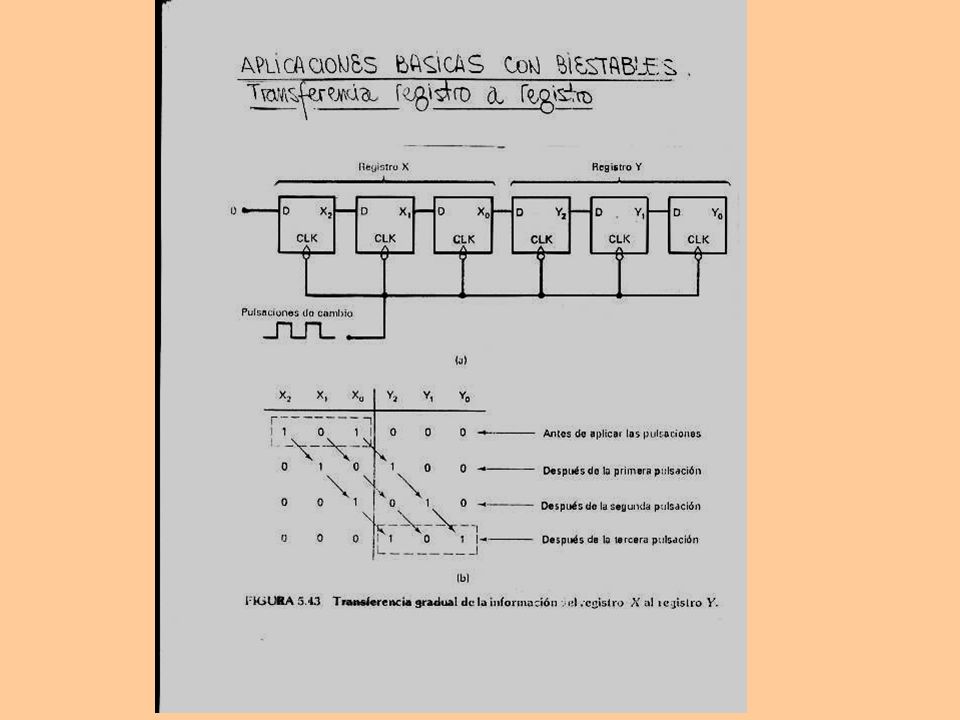

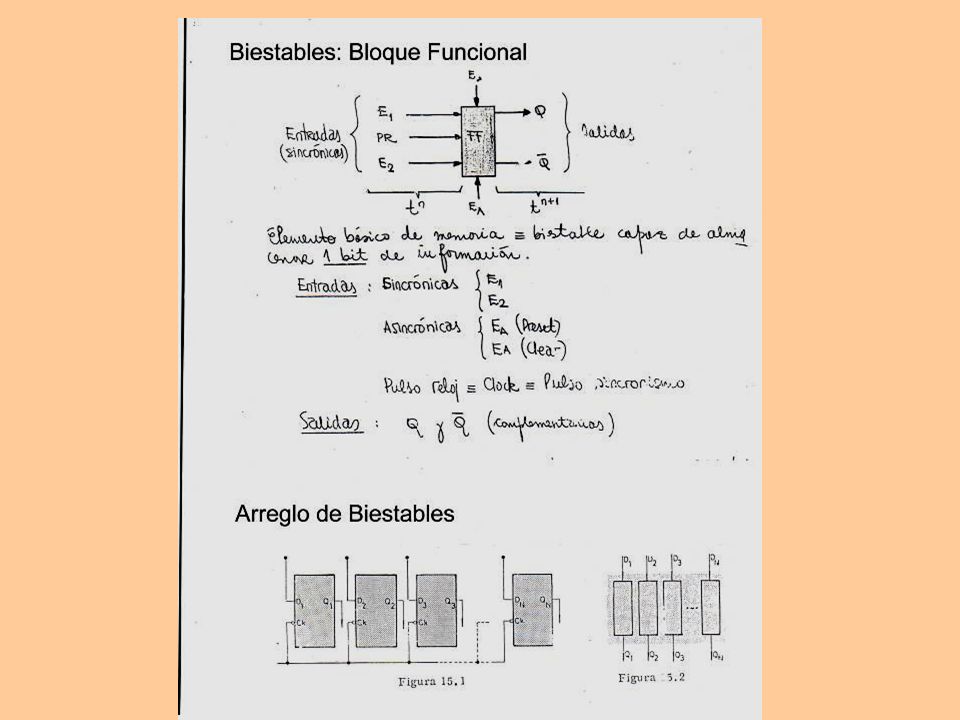

8

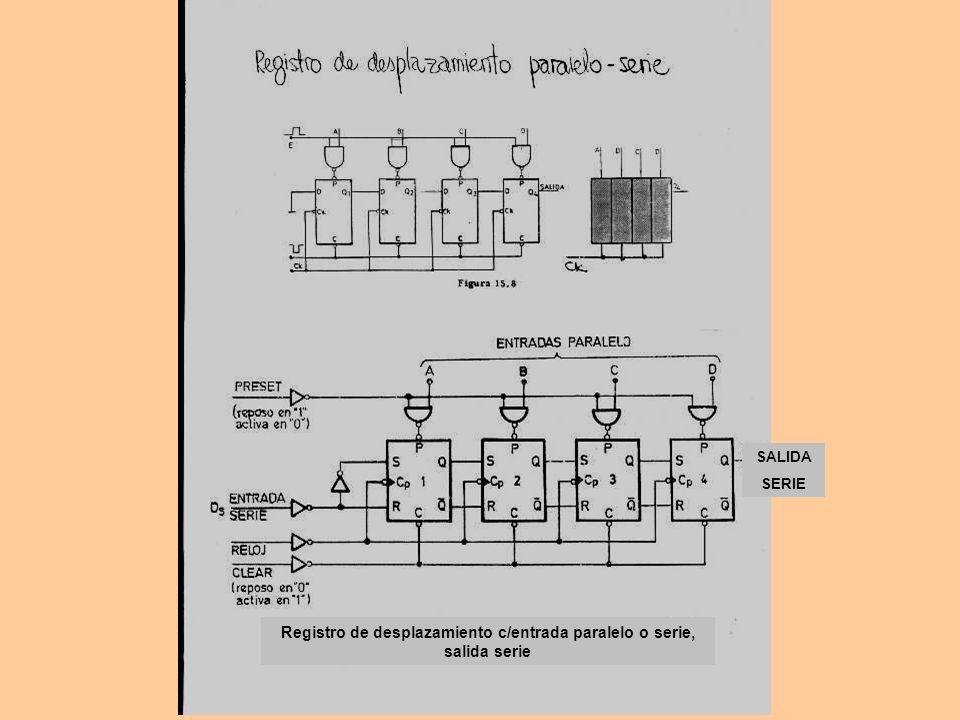

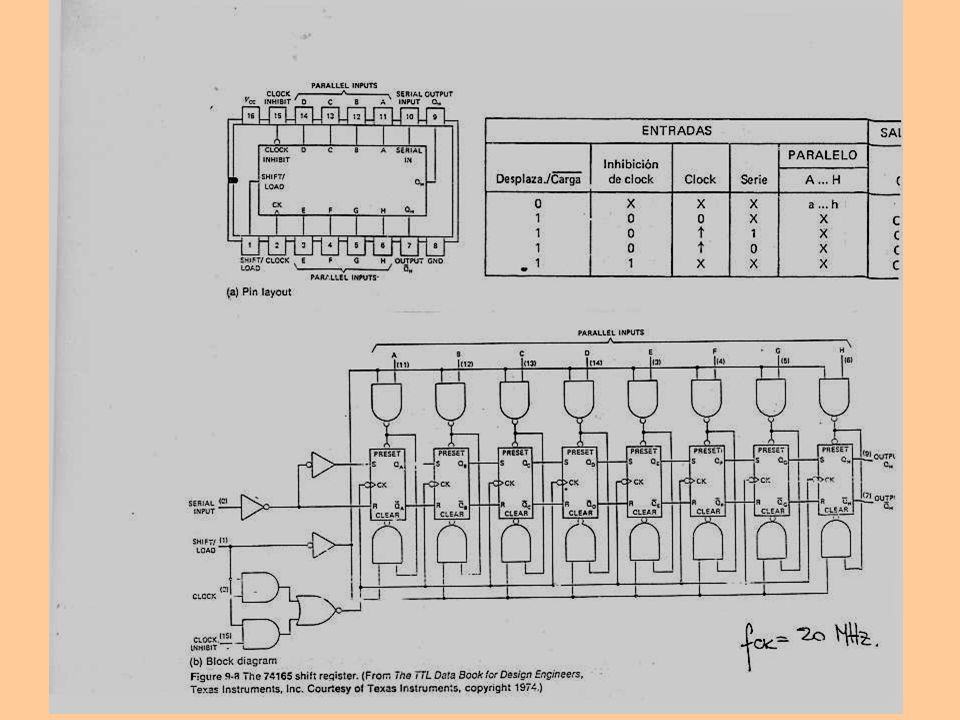

SALIDA SERIE Registro de desplazamiento c/entrada paralelo o serie, salida serie

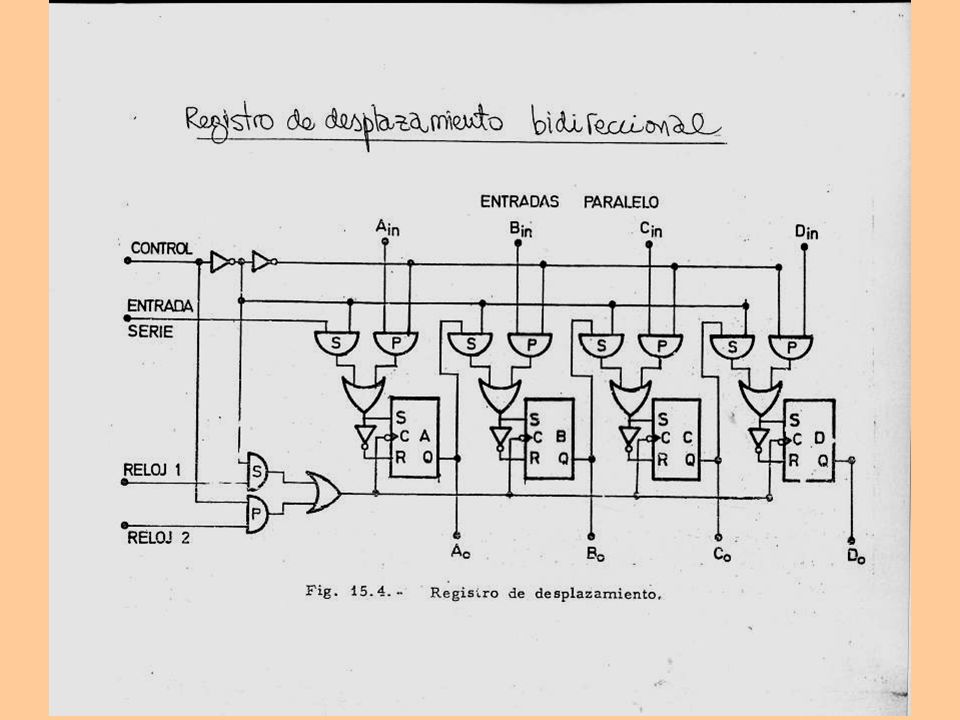

10

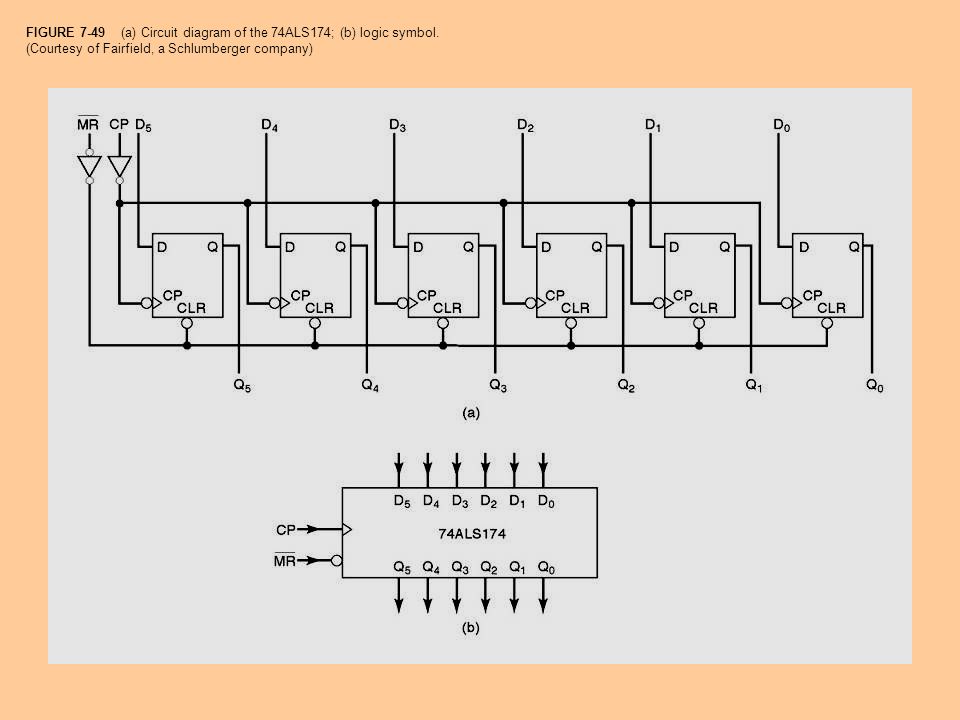

FIGURE 7-49 (a) Circuit diagram of the 74ALS174; (b) logic symbol. (Courtesy of Fairfield, a Schlumberger company)
11
FIGURE 7-50 Example 7-20. The 74ALS174 wired as a shift register.
12

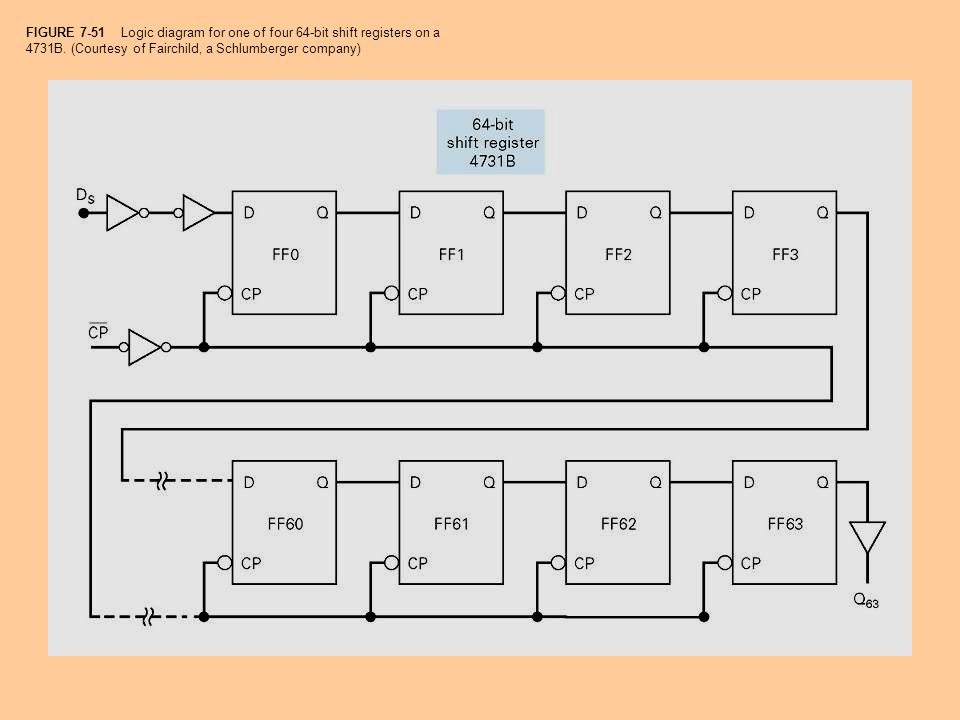

FIGURE 7-51 Logic diagram for one of four 64-bit shift registers on a 4731B. (Courtesy of Fairchild, a Schlumberger company)
13

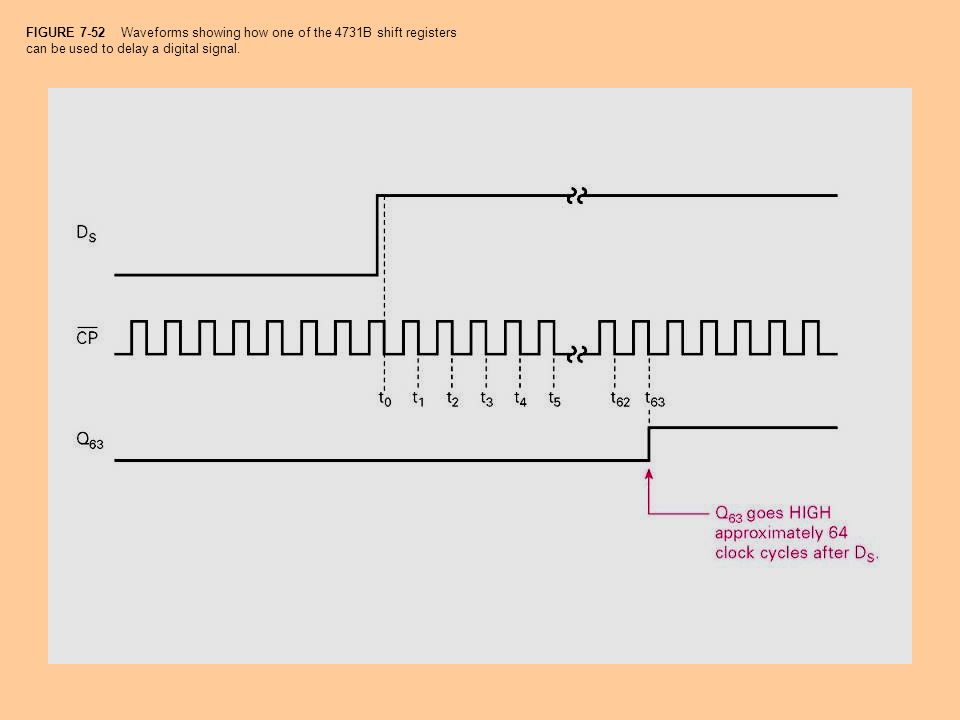

FIGURE 7-52 Waveforms showing how one of the 4731B shift registers can be used to delay a digital signal.
14

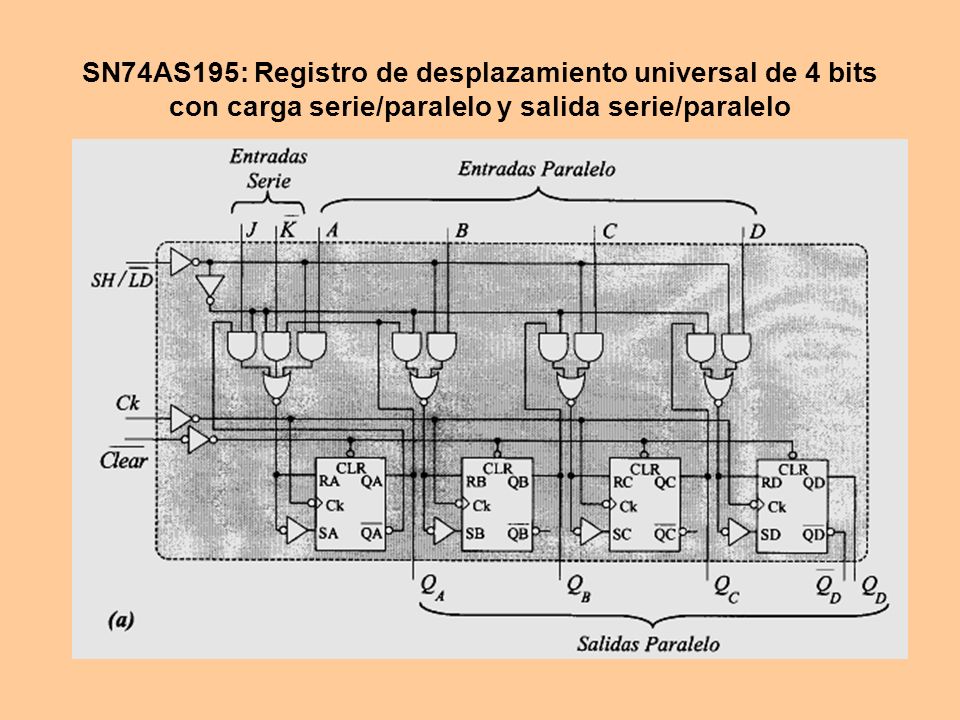

SN74AS195: Registro de desplazamiento universal de 4 bits con carga serie/paralelo y salida serie/paralelo
15

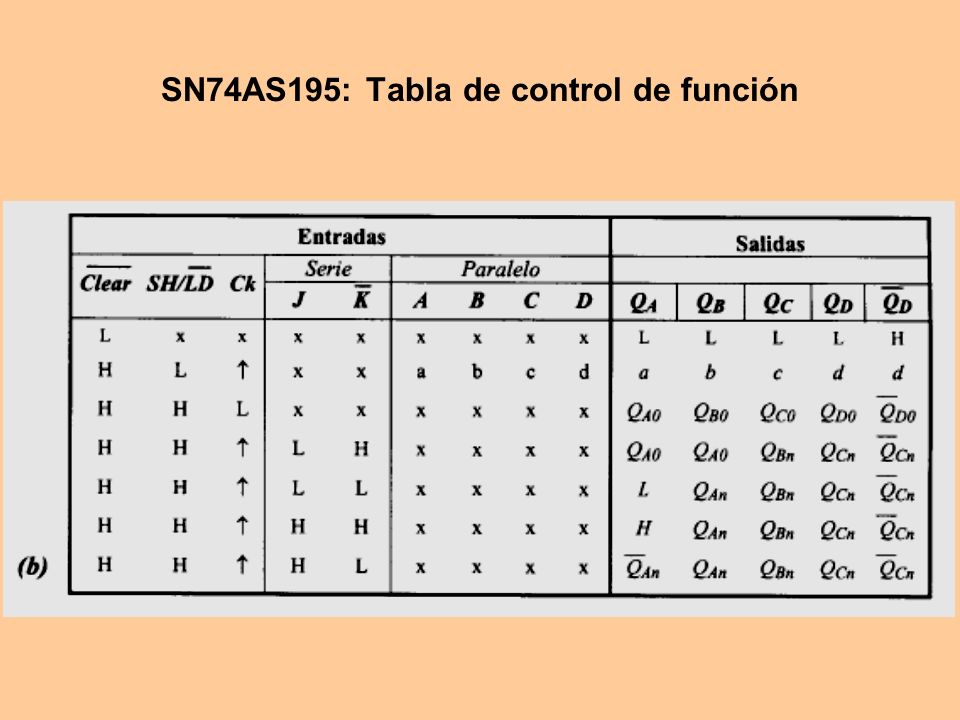

SN74AS195: Tabla de control de función
16

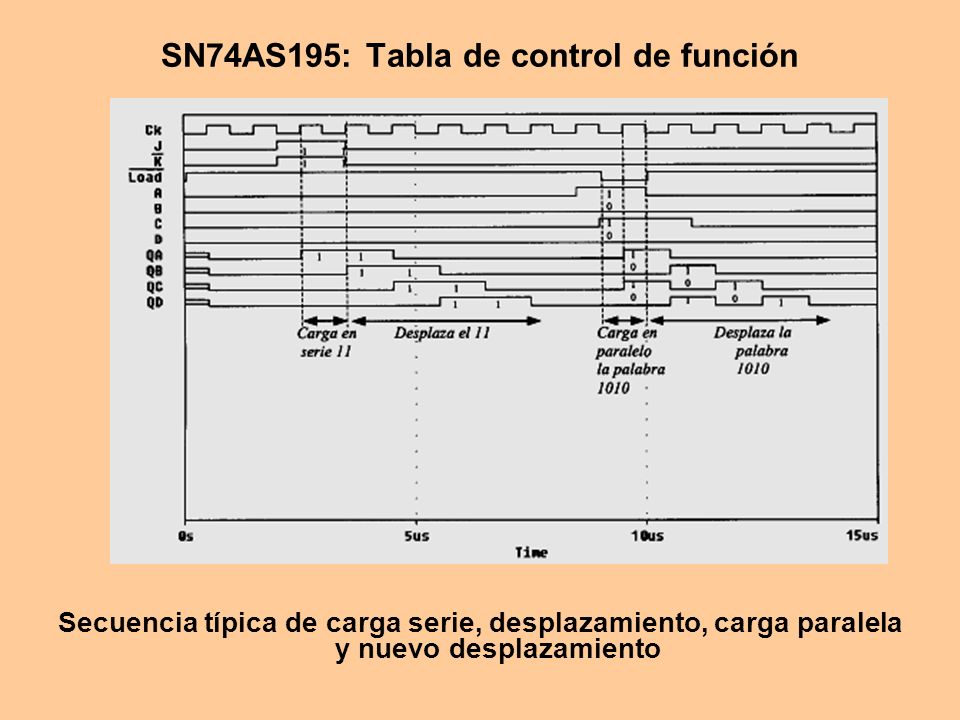

Secuencia típica de carga serie, desplazamiento, carga paralela y nuevo desplazamiento SN74AS195: Tabla de control de función
17

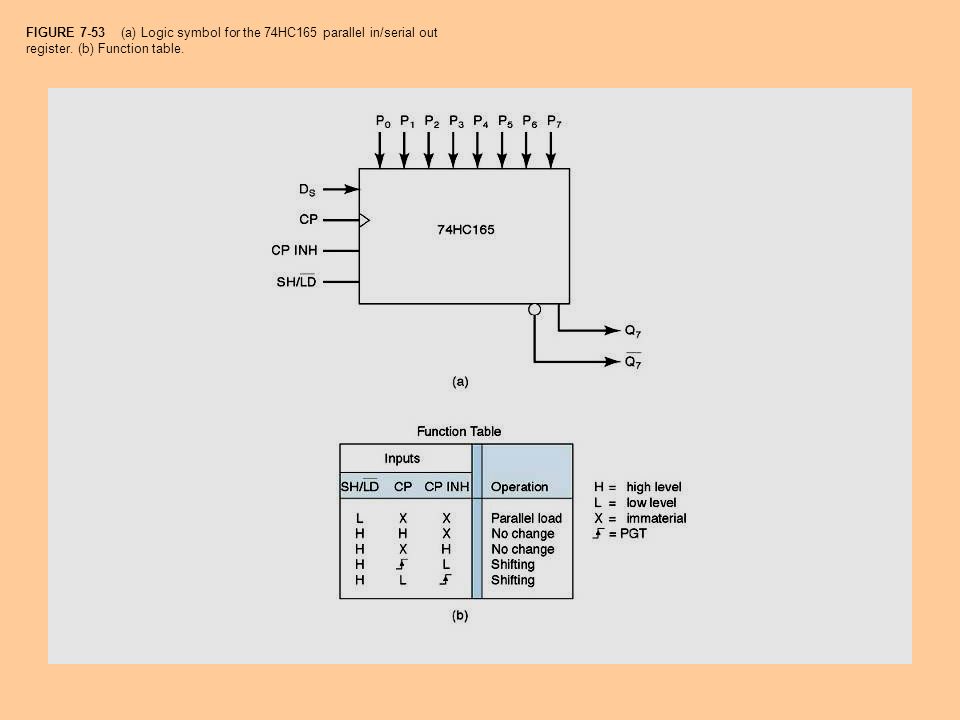

FIGURE 7-53 (a) Logic symbol for the 74HC165 parallel in/serial out register. (b) Function table.
18

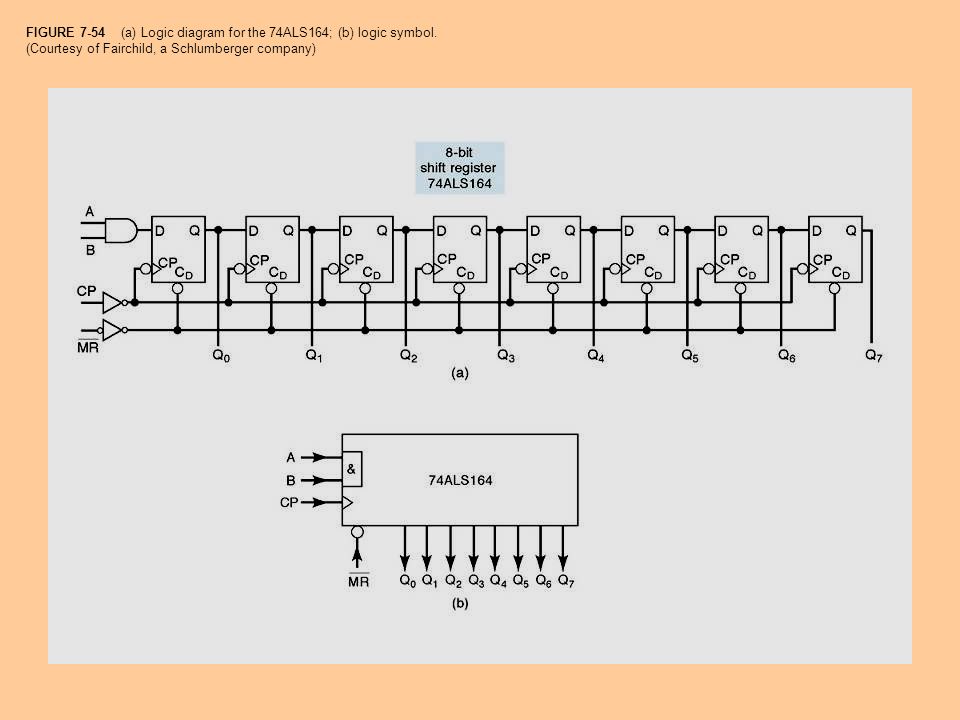

FIGURE 7-54 (a) Logic diagram for the 74ALS164; (b) logic symbol. (Courtesy of Fairchild, a Schlumberger company)

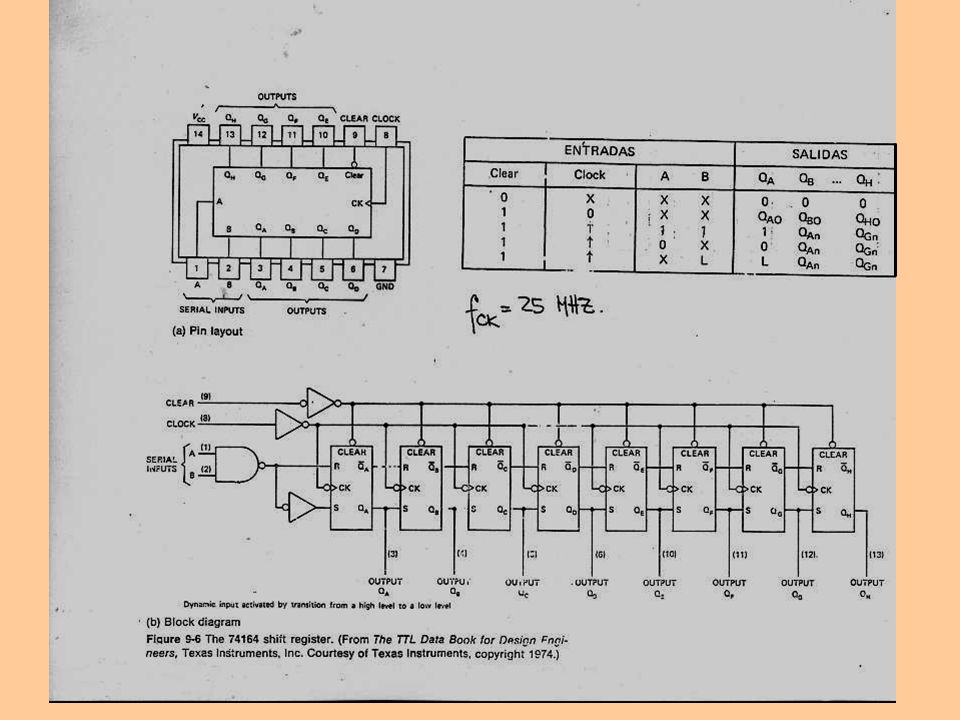

20

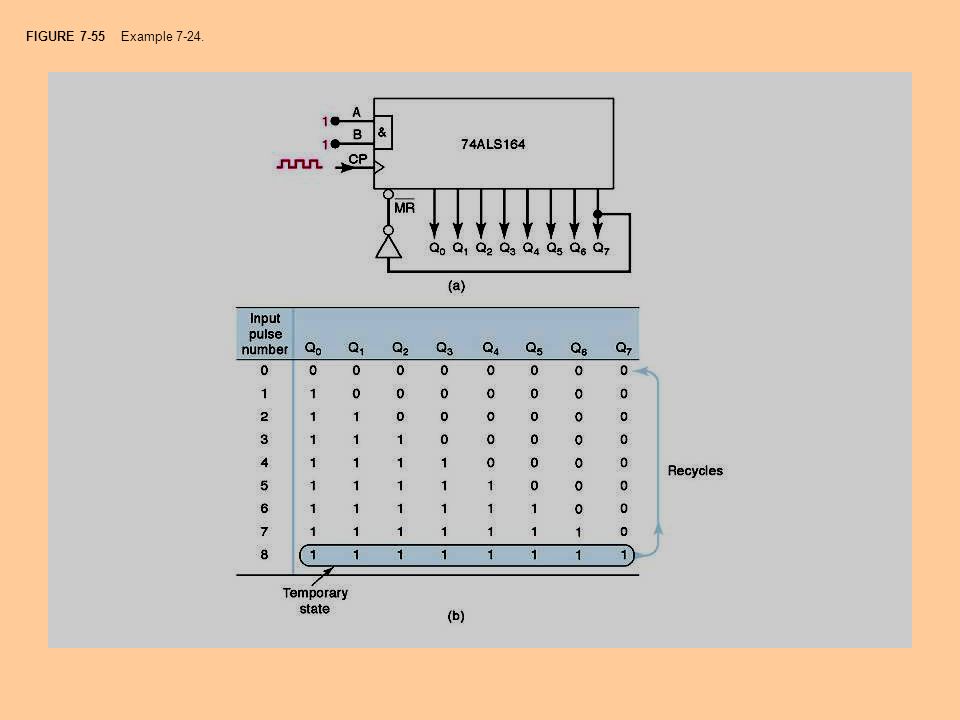

FIGURE 7-55 Example 7-24.
21

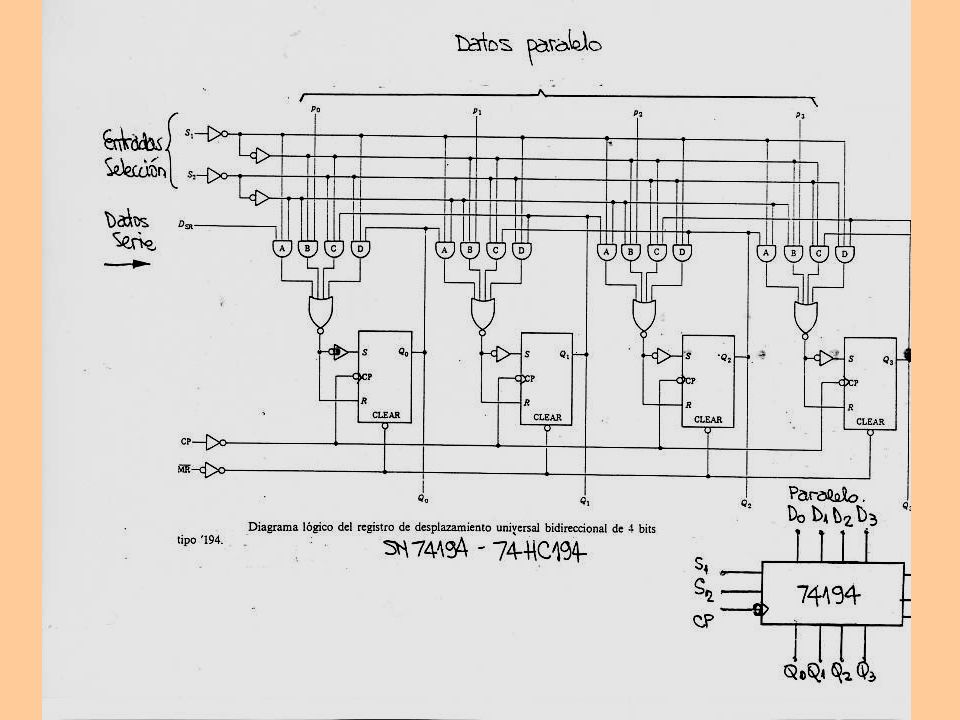

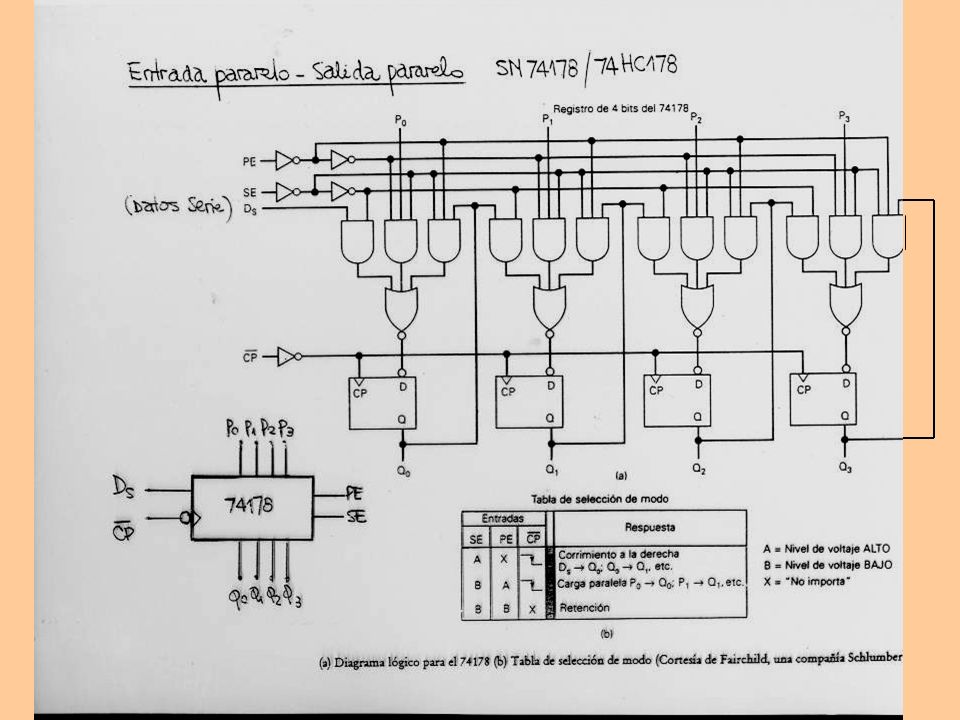

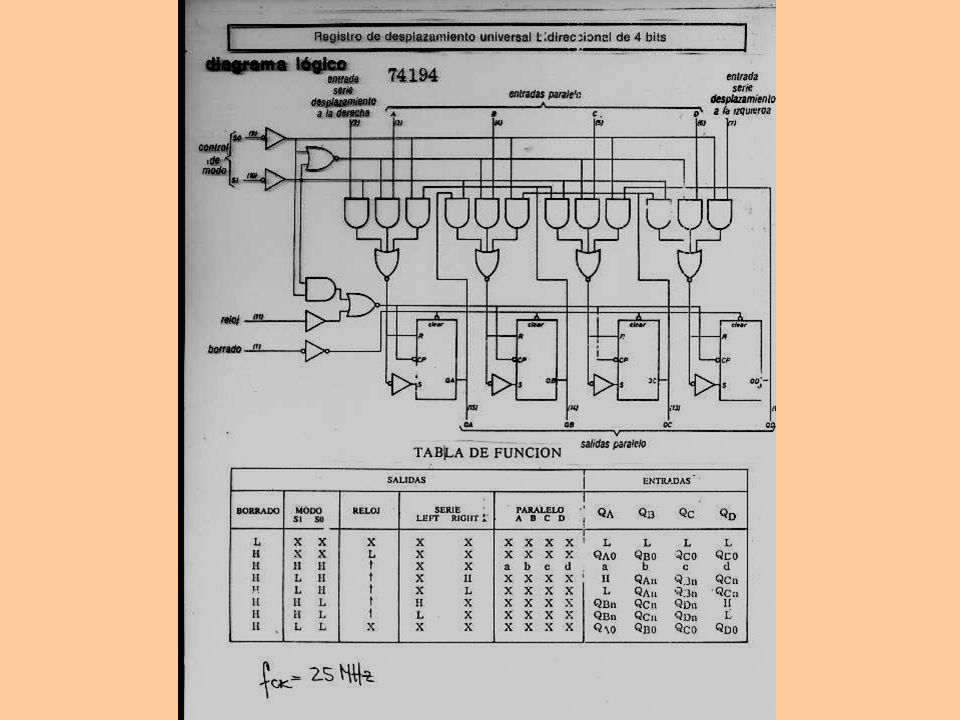

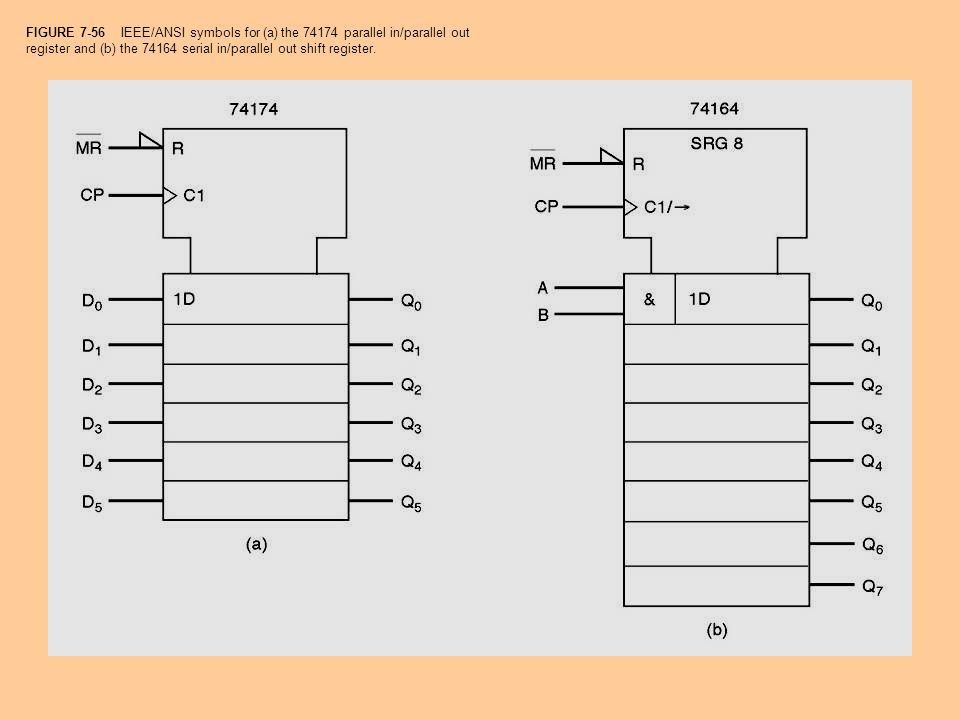

FIGURE 7-56 IEEE/ANSI symbols for (a) the 74174 parallel in/parallel out register and (b) the 74164 serial in/parallel out shift register.
