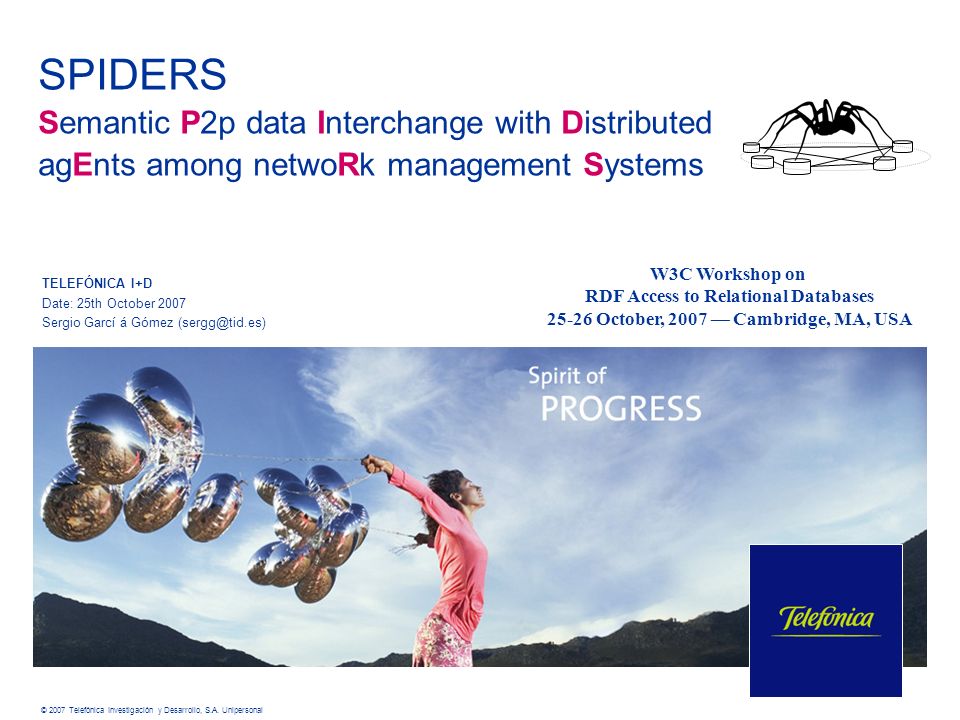

1 © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal SPIDERS Semantic P2p data Interchange with Distributed agEnts among netwoRk management Systems TELEFÓNICA I+D Date: 25th October 2007 Sergio Garcí á Gómez W3C Workshop on RDF Access to Relational Databases October, 2007 Cambridge, MA, USA

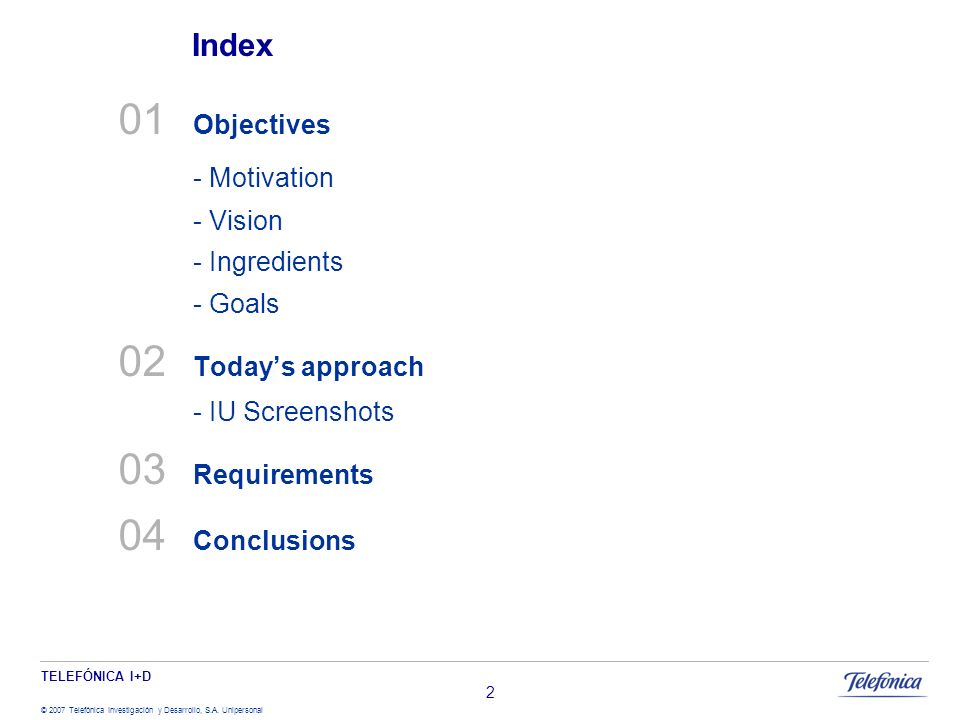

2 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 2 01 Objectives - Motivation - Vision - Ingredients - Goals 02 Todays approach - IU Screenshots 03 Requirements 04 Conclusions Index

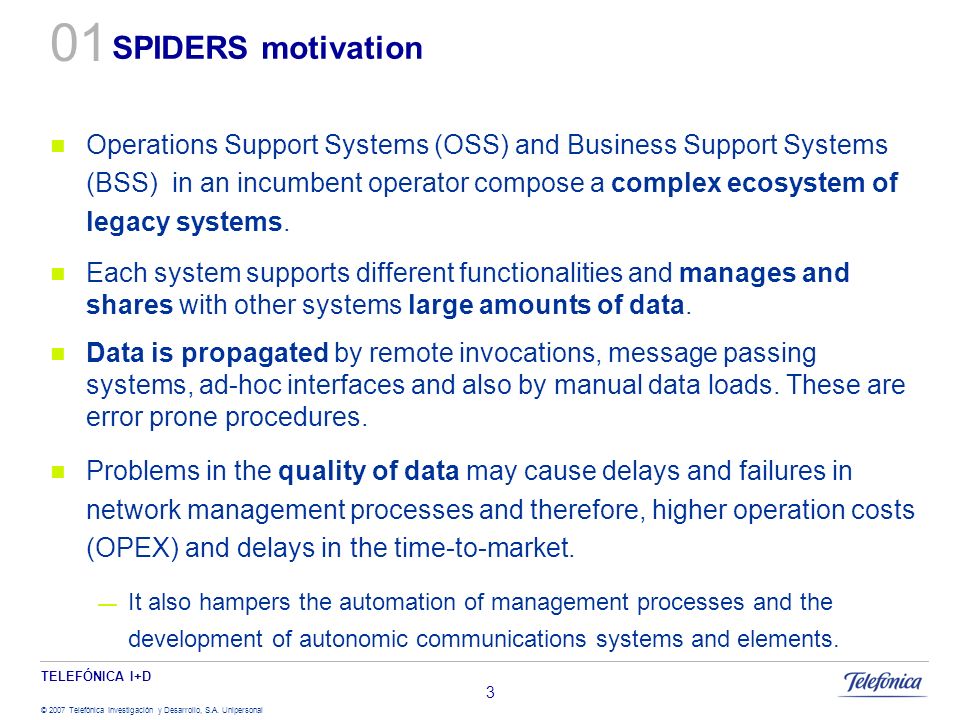

3 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 3 SPIDERS motivation 01 Operations Support Systems (OSS) and Business Support Systems (BSS) in an incumbent operator compose a complex ecosystem of legacy systems. Each system supports different functionalities and manages and shares with other systems large amounts of data. Data is propagated by remote invocations, message passing systems, ad-hoc interfaces and also by manual data loads. These are error prone procedures. Problems in the quality of data may cause delays and failures in network management processes and therefore, higher operation costs (OPEX) and delays in the time-to-market. It also hampers the automation of management processes and the development of autonomic communications systems and elements.

4 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 4 TELESAP SERES SGT RTC Red Señ. Nº 7 Red FITL Red Transporte (JDS, WDM, JDP) Red Ibermic Red GigADSL Red ATM Red RIMA Red Imagenio Red NIMBA Planta Exterior SAMGRED EBR ENRUTA SCAR Red Energía SPRA SIGA SPCI PORTICO GEDEÓN MCP SONIX SEMTA OVSA SERA Sistemas de Soporte al Negocio (BSS) Sist. Operación Planta GRI Sistemas Supervisión Sist. Medidas, Prestaciones y Contabilidad Sistemas Supervisión Sistemas Supervisión Sist. Medidas, Prestaciones y Contabilidad Sistemas Supervisión Sistemas Supervisión MAPA Gestión Actividad Plan 1000 GRILLO Otras... ARI SERA RTC Red Señ. Nº 7 Red FITL Red Transporte (JDS, WDM, JDP) Red Ibermic Red GigADSL Red ATM Red RIMA Red Imagenio Red NIMBA Planta Exterior Red Energía CAT GESCAL INTEGRA e-agora EECC PLC SCRABA GAM SINPLEX SSP E-DICRE SSP DITRA HADA APO GAOM ATLAS EECC e-agora EECC e-agora Otras... Customer Trouble tickets Orders Needs SIAAM RPE Red Telefónica Conmutada Red Señalización Nº 7 Red Acceso FITL Red GigADSL Red ATM Red RIMA Red Imagenio Red NIMBA Red Transporte (JDS, WDM, JDP) Red Ibermic Red GigADSL Red ATM Red RIMA Red Imagenio Red NIMBA SIGA CARMELA SIGA-HD Aplicaciones Prueba SERA Aplicaciones Prueba MCE Sist. Medidas, Prestaciones y Contabilidad GEOPLANTA DIPE_VP VIPE CIOCO VPN-IP SIRP FO.interUrb CARPE EECC e-agora (4 provincias) Sistemas de Gestión de Averías Gestión Actividad SPIDERS motivation 01

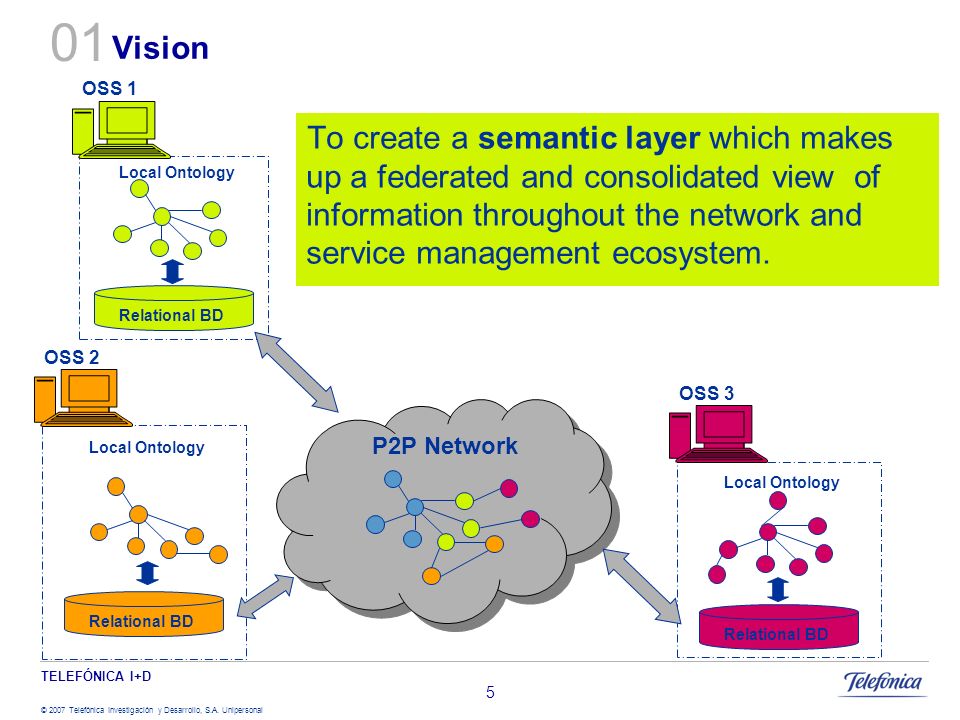

5 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 5 Vision Local Ontology Relational BD P2P Network Local Ontology Relational BD Local Ontology OSS 1 OSS 2 OSS 3 01 To create a semantic layer which makes up a federated and consolidated view of information throughout the network and service management ecosystem.

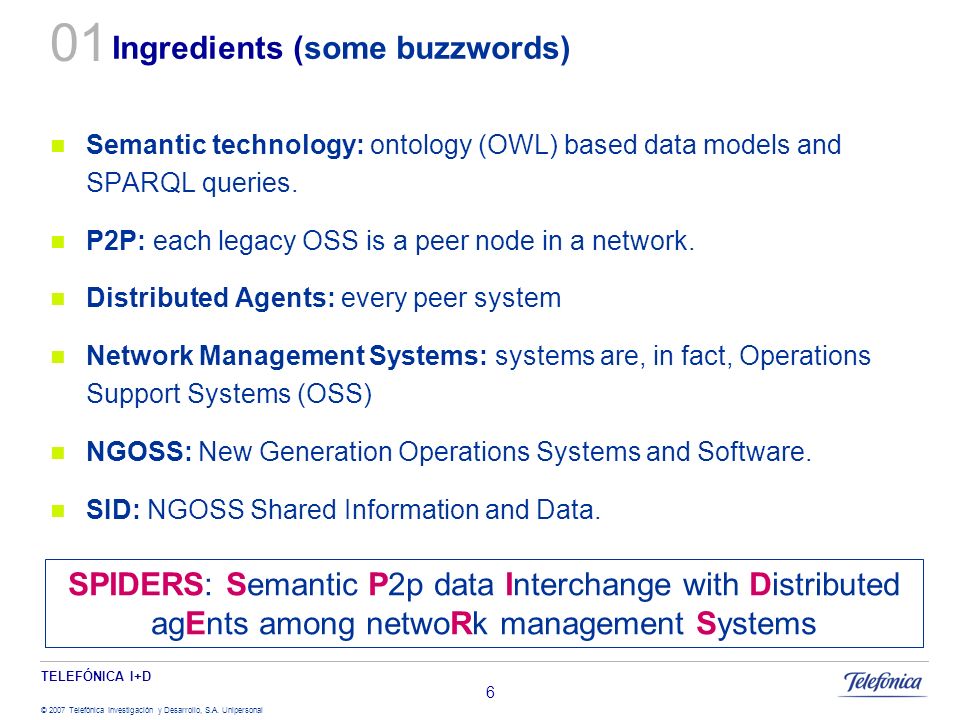

6 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 6 Ingredients (some buzzwords) Semantic technology: ontology (OWL) based data models and SPARQL queries. P2P: each legacy OSS is a peer node in a network. Distributed Agents: every peer system Network Management Systems: systems are, in fact, Operations Support Systems (OSS) NGOSS: New Generation Operations Systems and Software. SID: NGOSS Shared Information and Data. 01 SPIDERS: Semantic P2p data Interchange with Distributed agEnts among netwoRk management Systems

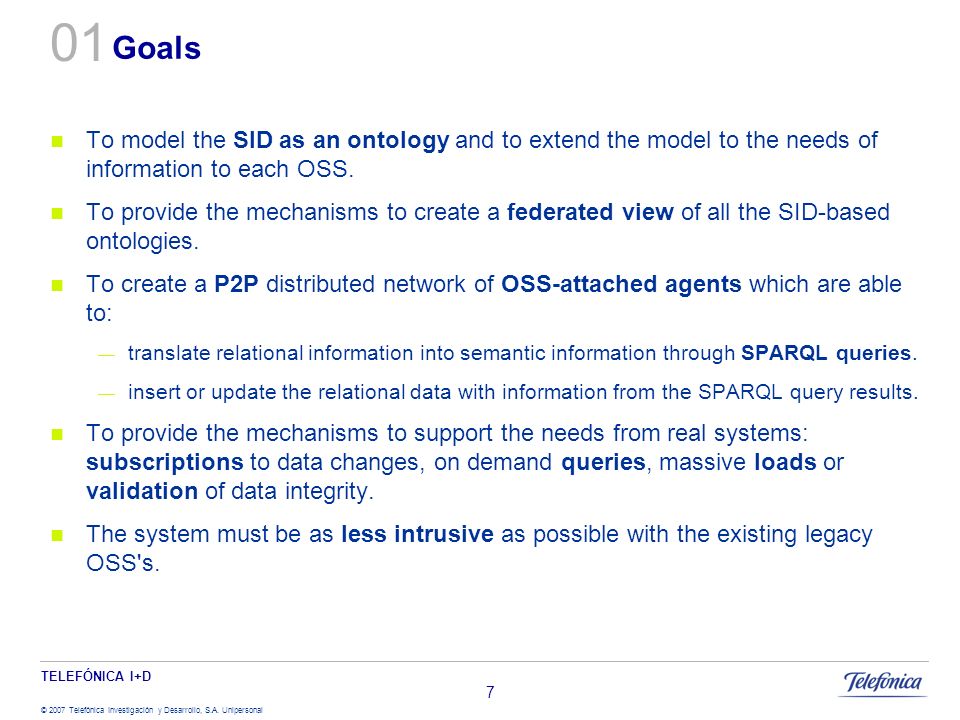

7 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 7 Goals To model the SID as an ontology and to extend the model to the needs of information to each OSS. To provide the mechanisms to create a federated view of all the SID-based ontologies. To create a P2P distributed network of OSS-attached agents which are able to: translate relational information into semantic information through SPARQL queries. insert or update the relational data with information from the SPARQL query results. To provide the mechanisms to support the needs from real systems: subscriptions to data changes, on demand queries, massive loads or validation of data integrity. The system must be as less intrusive as possible with the existing legacy OSS's. 01

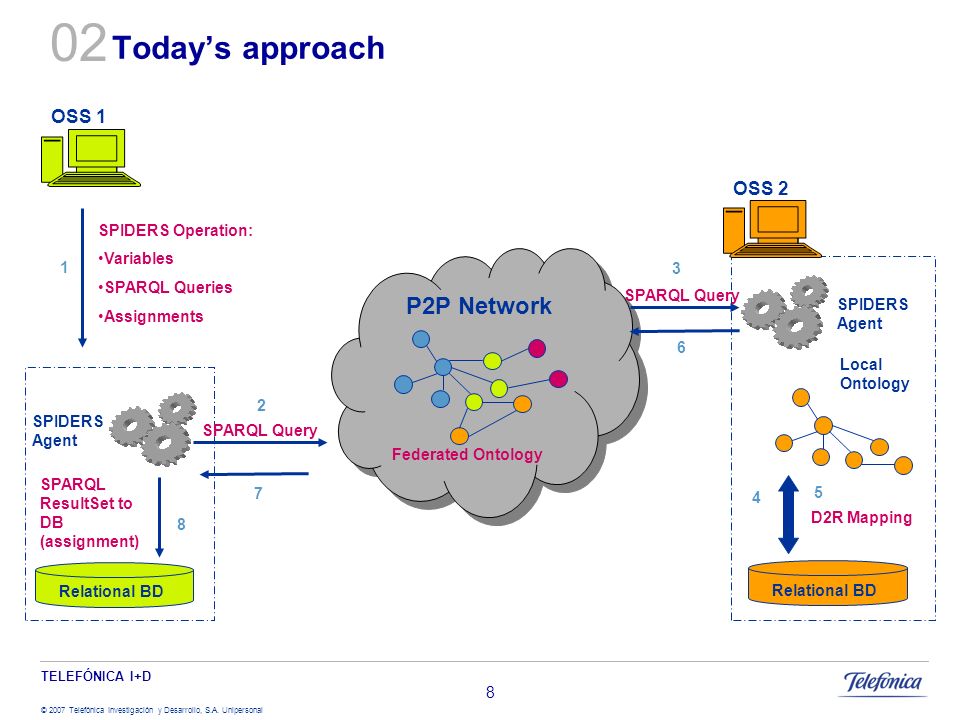

8 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 8 Todays approach 02 Relational BD OSS 1 P2P Network Local Ontology Relational BD OSS 2 D2R Mapping SPIDERS Operation: Variables SPARQL Queries Assignments SPIDERS Agent SPARQL Query SPARQL ResultSet to DB (assignment) SPARQL Query Federated Ontology

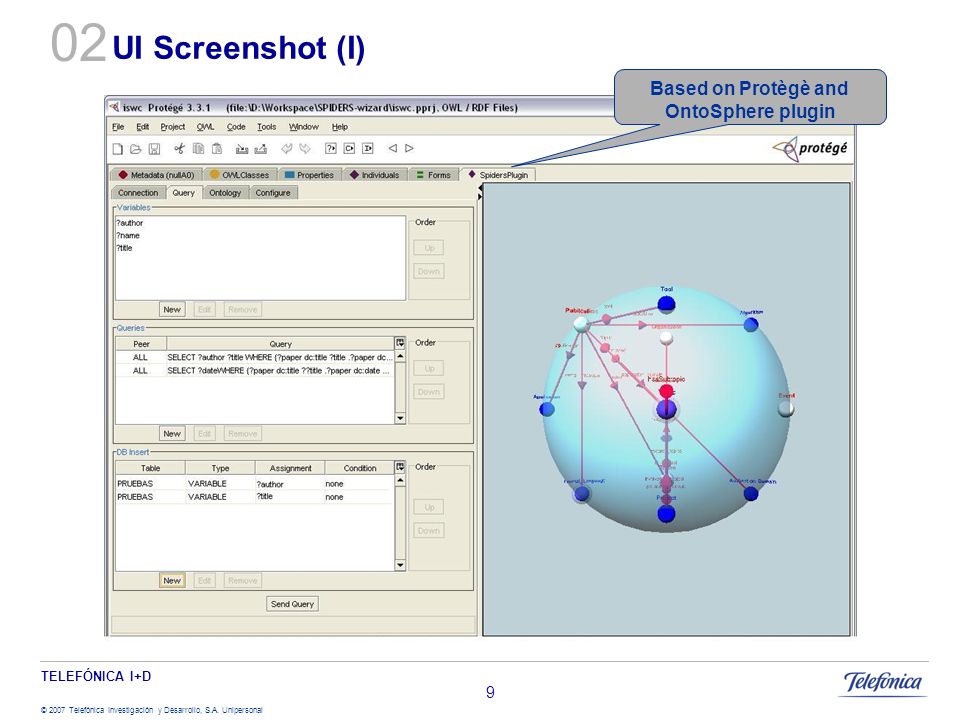

9 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 9 UI Screenshot (I) 02 Based on Protègè and OntoSphere plugin

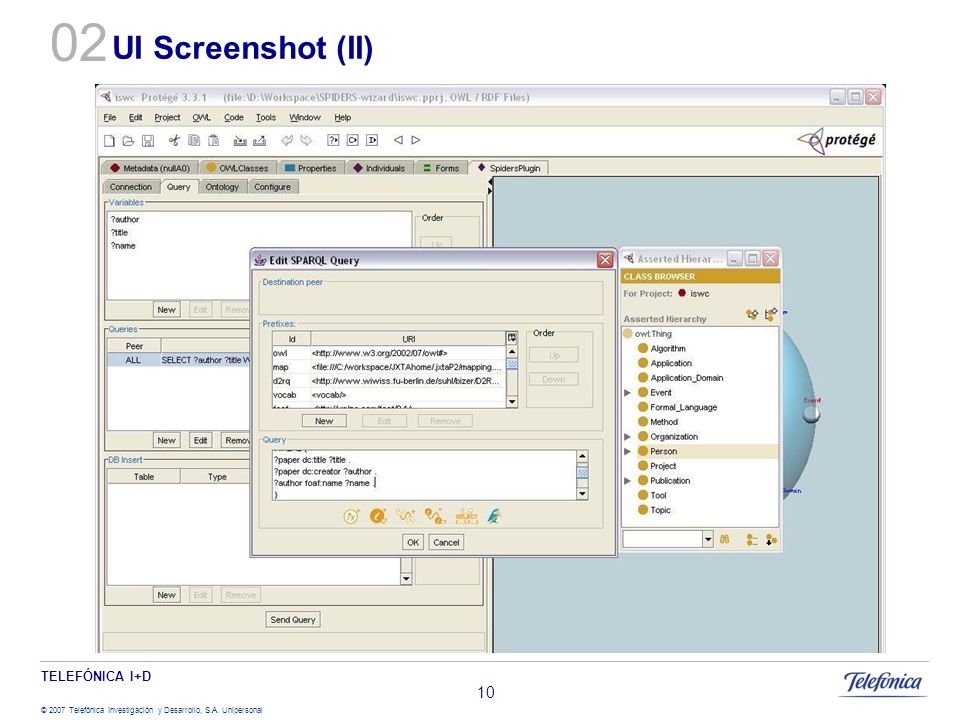

10 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 10 UI Screenshot (II) 02

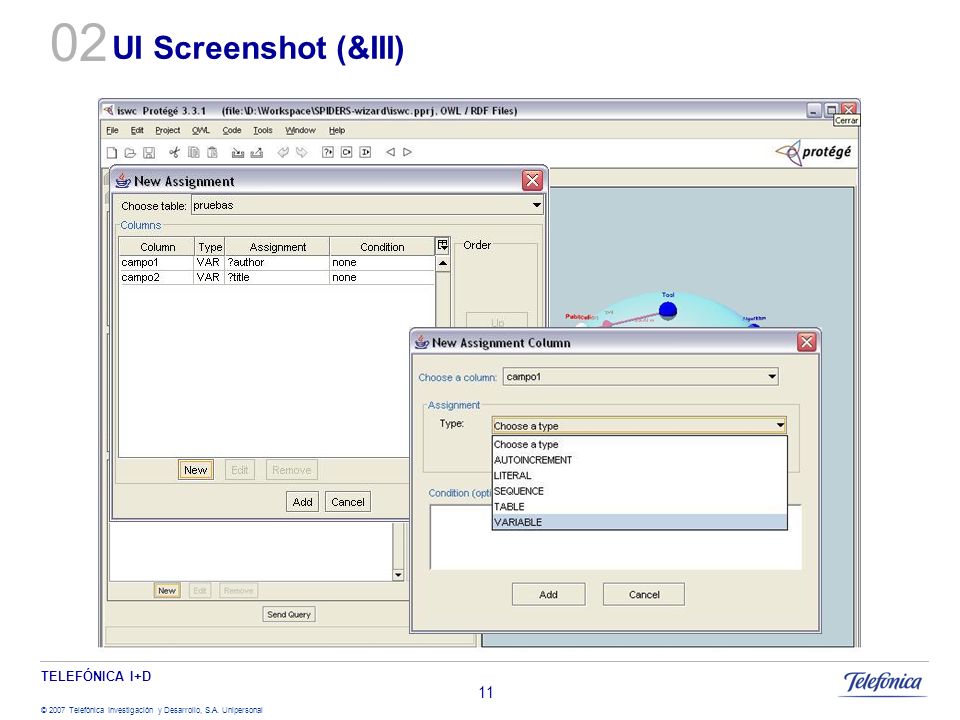

11 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 11 UI Screenshot (&III) 02

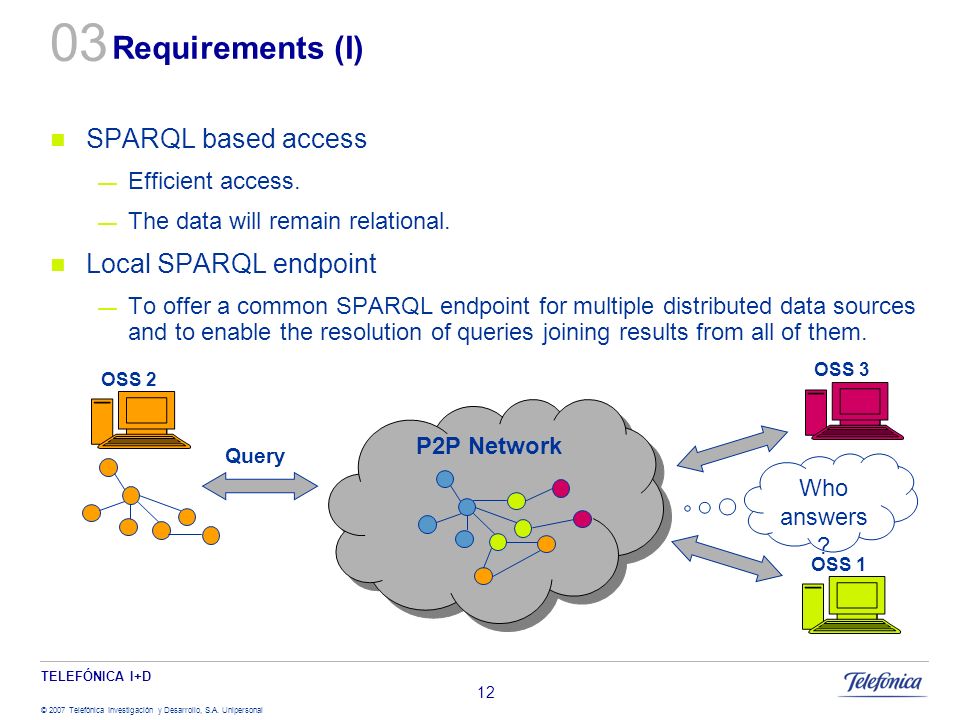

12 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 12 Requirements (I) SPARQL based access Efficient access. The data will remain relational. Local SPARQL endpoint To offer a common SPARQL endpoint for multiple distributed data sources and to enable the resolution of queries joining results from all of them. 03 P2P Network OSS 2 OSS 3 Query OSS 1 Who answers ?

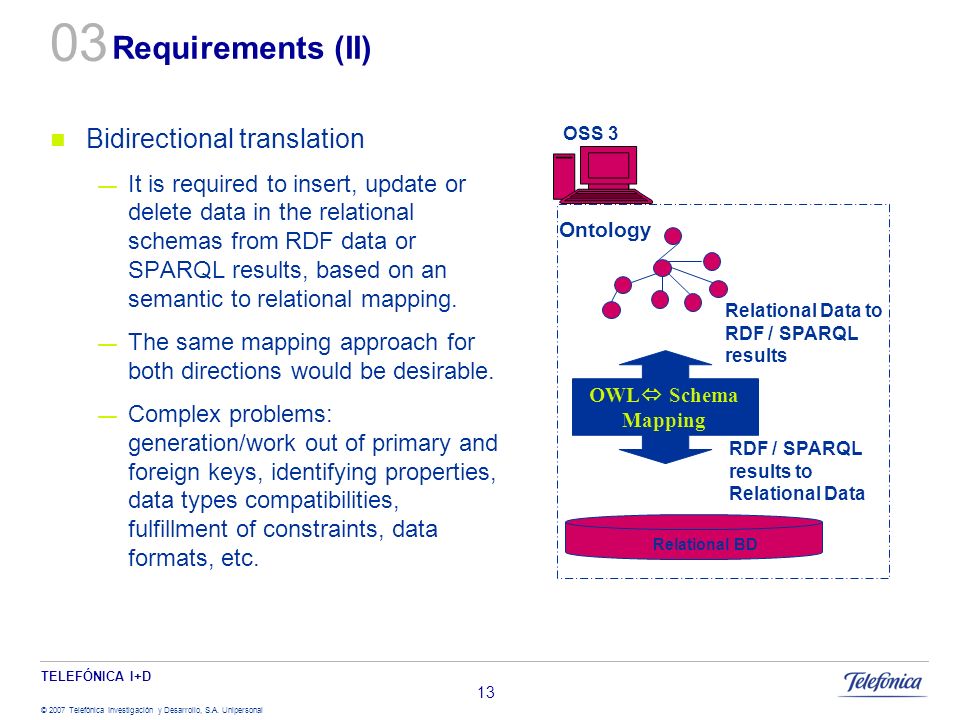

13 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 13 Requirements (II) Bidirectional translation It is required to insert, update or delete data in the relational schemas from RDF data or SPARQL results, based on an semantic to relational mapping. The same mapping approach for both directions would be desirable. Complex problems: generation/work out of primary and foreign keys, identifying properties, data types compatibilities, fulfillment of constraints, data formats, etc. 03 Ontology Relational BD OSS 3 OWL Schema Mapping Relational Data to RDF / SPARQL results RDF / SPARQL results to Relational Data

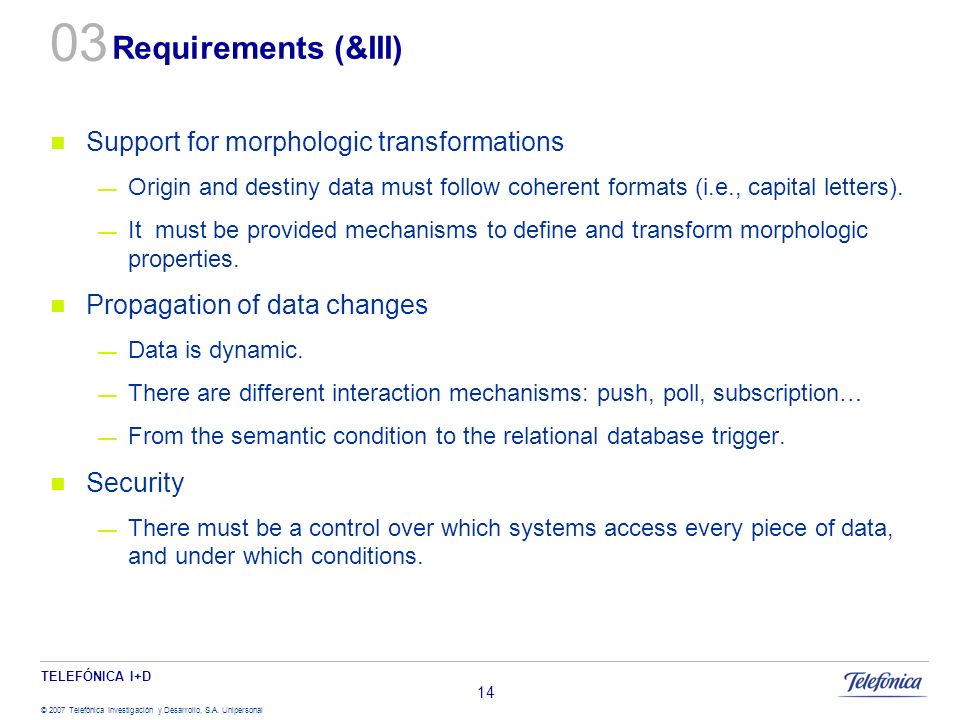

14 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 14 Requirements (&III) Support for morphologic transformations Origin and destiny data must follow coherent formats (i.e., capital letters). It must be provided mechanisms to define and transform morphologic properties. Propagation of data changes Data is dynamic. There are different interaction mechanisms: push, poll, subscription… From the semantic condition to the relational database trigger. Security There must be a control over which systems access every piece of data, and under which conditions. 03

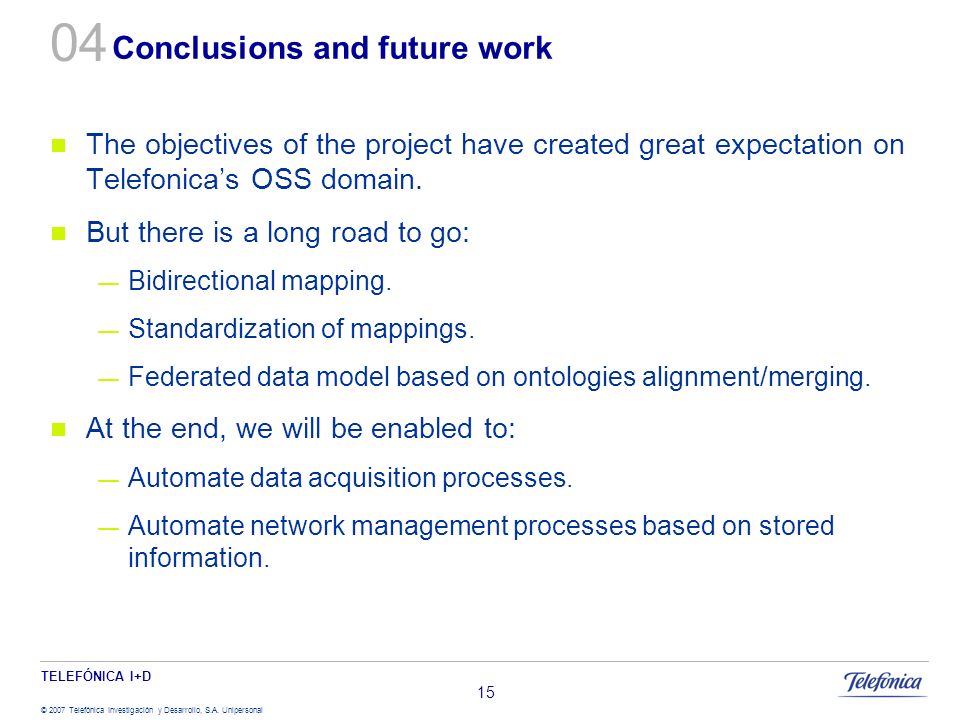

15 TELEFÓNICA I+D © 2007 Telefónica Investigación y Desarrollo, S.A. Unipersonal 15 Conclusions and future work The objectives of the project have created great expectation on Telefonicas OSS domain. But there is a long road to go: Bidirectional mapping. Standardization of mappings. Federated data model based on ontologies alignment/merging. At the end, we will be enabled to: Automate data acquisition processes. Automate network management processes based on stored information. 04
