1 Miniature TLD Federico Zúñiga Quesada A25714

2 Miniature TLD2 TLD de LiF:Mg,Ti y LiF:Mg,Cu,P Specifications for TLD-600 and TLD 700 Thermoluminescent Dosimeter Material: Lithium Fluoride (Li isotope) LiF:Mg, Ti Emission Spectra: 3500–6000Angstroms (4000 maximum) Sensitivity at 60 Co relative to LiF: 1.0 Energy Response 1.25keV/ 60 Co 1.25 Useful Range:10pGy–10Gy Specifications for TLD-100H, -600H and -700H Thermoluminescent Dosimetry Materials Materials: TLD-100: Lithium Fluoride (Li natural) LiF:Mg, Cu, P TLD-600, -700: Lithium Fluoride (Li isotope) LiF:Mg, Cu, P Emission Spectra:4000Angstroms Sensitivity at 60Co relative to LiF: 15 Energy Response (1.25keV/ 60 Co) 0.98 Useful Range:1pGy–10Gy

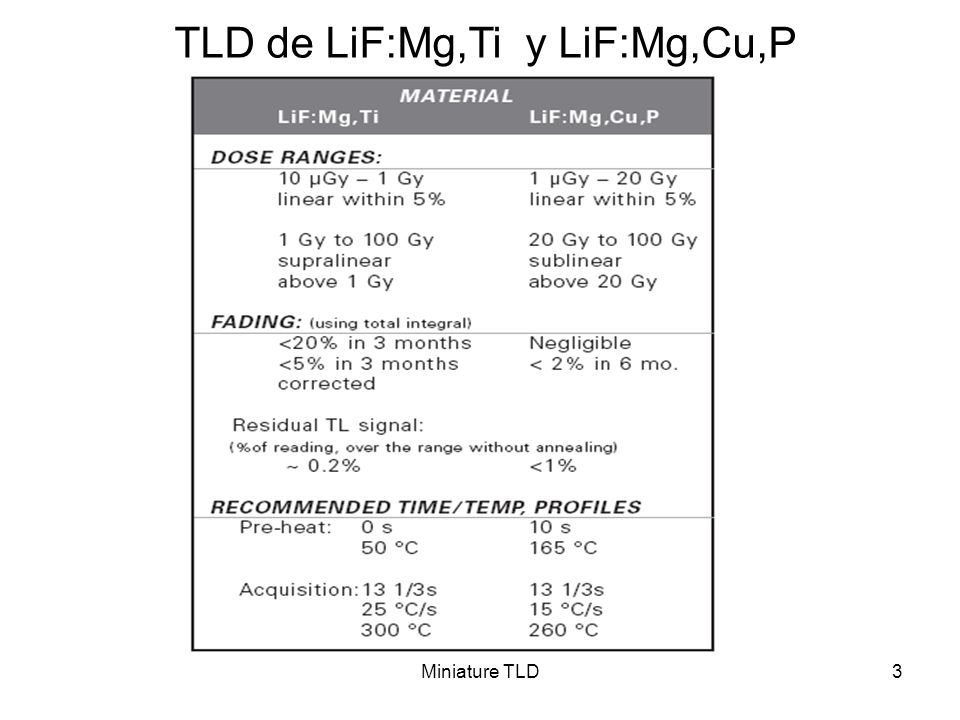

3 Miniature TLD3 TLD de LiF:Mg,Ti y LiF:Mg,Cu,P

4 Miniature TLD - tomado de: 4 Harshaw TLD Model 6600 Plus Radiaciones medibles (energías): - Fotones >5 keV - De neutrones a Betas, >70 keV. Linealidad: - LiF:Mg,Ti entre 10 μGy y 1 Gy - LiF:Mg,Cu,P; entre 1 μGy y 20 Gy. Repetitividad: <2% de variacion basada en una desviacion estandar para 10 medidas de dosis de 1 mGy de 137 Cs.

5 Miniature TLD - tomado de: 5 Harshaw TLD Model 6600 Plus Tiempo de calentamiento: <20 minutos Corriente oscura: <1 μGy de corriente oscura equivalente en 137 Cs Método de calentamiento: Lineal controlado, sin contacto usando N 2 o aire seco. Rango de temperatura: Operación: 0°C to 40°C, Almacenamiento: -10°C to 60°C Reusabilidad: >500 lecturas

6 TLD de LiF:Mg,Ti y LiF:Mg,Cu,P TLD-600 Rods, Disks Lithium Fluoride (6Li isotope) LiF:Mg,Ti; Standard response is +/- 15% (+/- 2 sigma) for these sizes per batch unless otherwise noted. SNO60102TLD-600, Rod1 mm dia. x 2 mm SNO60103TLD-600, Rod1 mm dia. x 3 mm SNP63015TLD-600, Disk 3.0 mm dia. x 0.38 mm (0.015") SNP63610TLD-600, Disk 3.6 mm dia. x 0.25 mm (0.010") SNP63615TLD-600, Disk 3.6 mm dia. x 0.38 mm (0.015") TLD-600H Rods, Disks Lithium Fluoride (6Li isotope) LiF:Mg,Cu,P; Standard response is +/- 15% (+/- 2 sigma) for these sizes per batch unless otherwise noted. SCP63015 TLD-600H, Disk 3.0 mm dia. x 0.38 mm (0.015") SCP63610 TLD-600H, Disk 3.6 mm dia. x 0.25 mm (0.010") SCP63615 TLD-600H, Disk 3.6 mm dia. x 0.38 mm (0.015") SCP64535 TLD-600H, Disk 4.5 mm dia. x 0.89 mm (0.035")

7 Miniature TLD7 TLD de LiF:Mg,Ti y LiF:Mg,Cu,P TLD-700, Rods, Disks Lithium Fluoride (7Li isotope) - LiF:Mg,Ti; Standard response is +/- 15% (+/- 2 sigma) for these sizes per batch unless otherwise noted. SNO70102TLD-700, Rod1 mm dia. x 2 mm SNO70103TLD-700, Rod1 mm dia. x 3 mm SNO70104TLD-700, Rod1 mm dia. x 4 mm SNO70106TLD-700, Rod1 mm dia. x 6 mm SNP73015TLD-700, Disk3.0 mm dia. x 0.38 mm (0.015") SNP73610TLD-700, Disk3.6 mm dia. x 0.25 mm (0.010") TLD-700H Disks Lithium Fluoride (7Li isotope) LiF:Mg,Cu,P; Standard response is +/- 15% (+/- 2 sigma) for these sizes per batch unless otherwise noted. SCP73015TLD-700H, Disk3.0 mm dia. x 0.38 mm (0.015") SCP73610TLD-700H, Disk3.6 mm dia. x 0.25 mm (0.010") SCP73615TLD-700H, Disk3.6 mm dia. x 0.38 mm (0.015")
