1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Fernando Carrasco Castrillón Principal Advanced Service Engineer Advanced Customer Support Introducción a VirtualBox
2

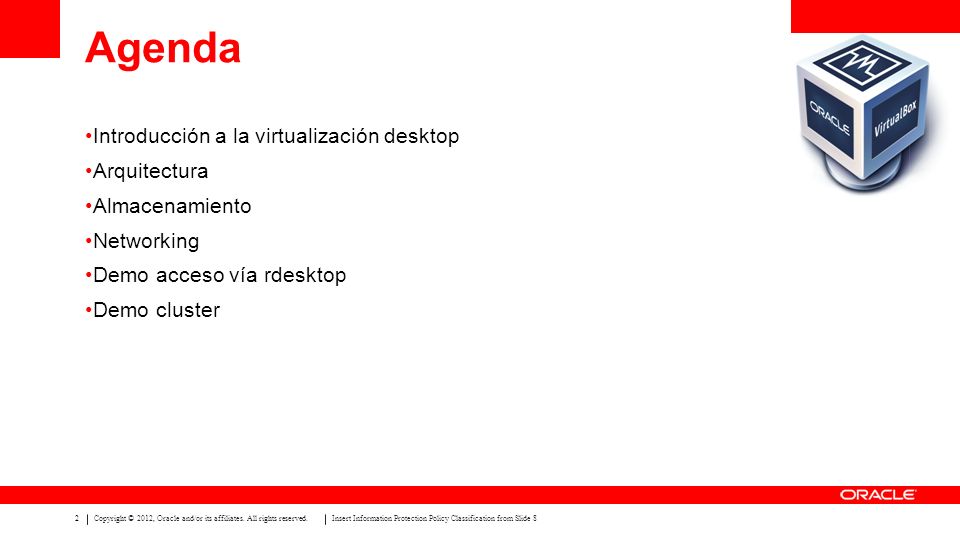

2 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Arquitectura Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
3

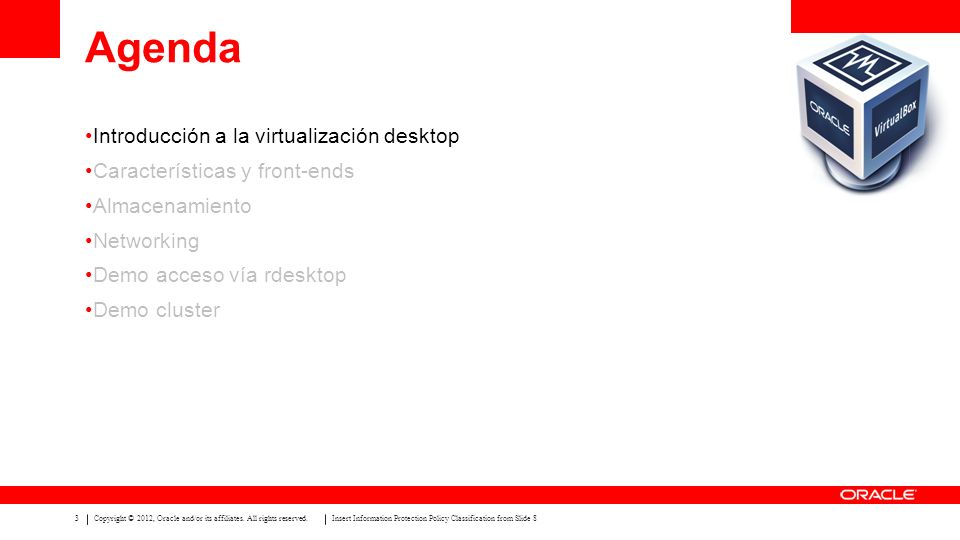

3 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
4
4 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Posibilidad de ejecutar diferentes OS en un mismo host Creación de nubes privadas Mayor aprovechamiento de los recursos de un host – Máquinas virtuales con mismo OS pero instalaciones de software homogéneo – Máquinas virtuales distintas aprovechan cores distintos de la CPU Creación de entornos de test Posibilidad de virtualización de escritorios Introducción a la virtualización desktop
5

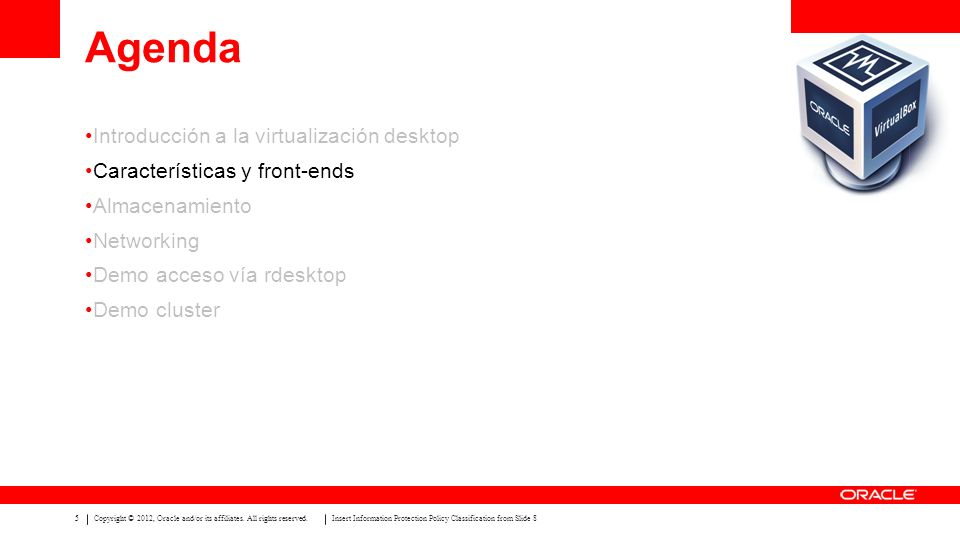

5 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
6

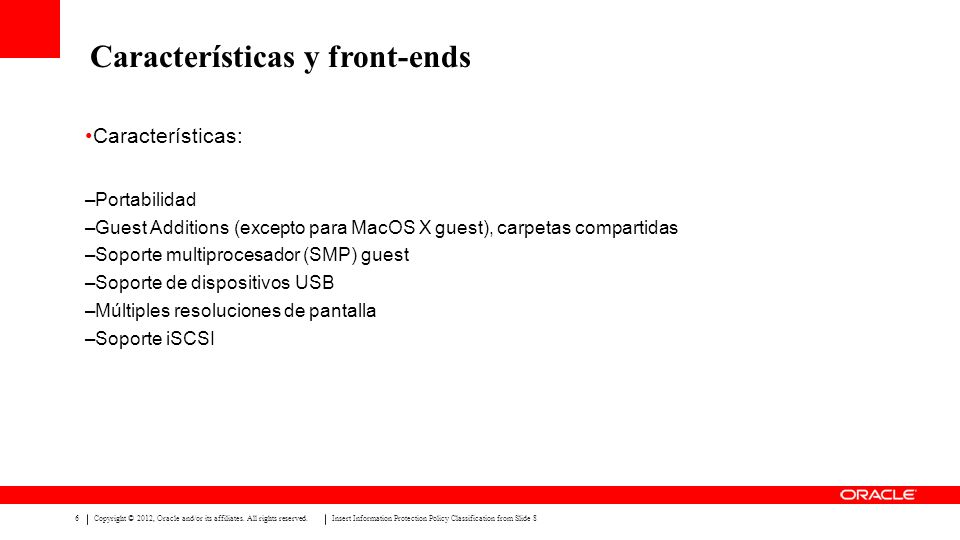

6 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Características: – Portabilidad – Guest Additions (excepto para MacOS X guest), carpetas compartidas – Soporte multiprocesador (SMP) guest – Soporte de dispositivos USB – Múltiples resoluciones de pantalla – Soporte iSCSI Características y front-ends
7

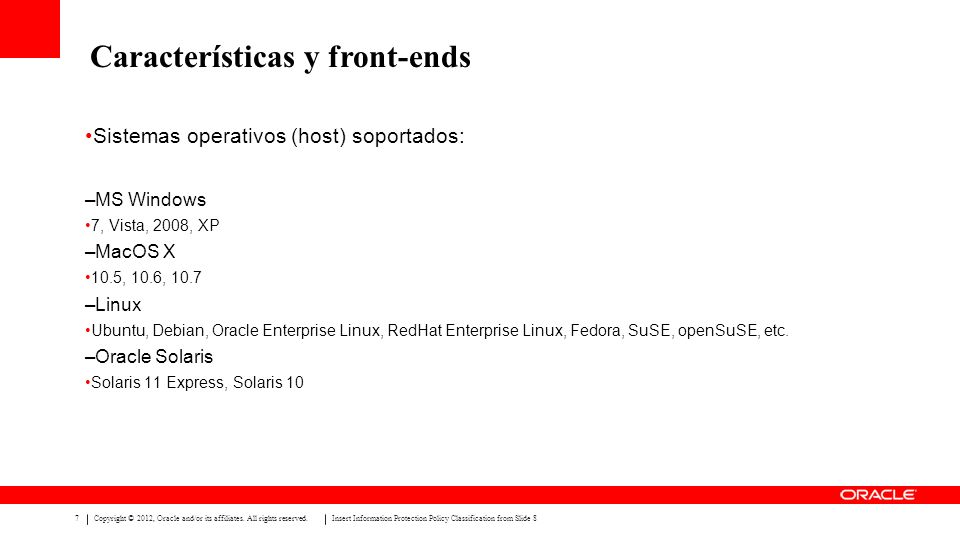

7 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Sistemas operativos (host) soportados: – MS Windows 7, Vista, 2008, XP – MacOS X 10.5, 10.6, 10.7 – Linux Ubuntu, Debian, Oracle Enterprise Linux, RedHat Enterprise Linux, Fedora, SuSE, openSuSE, etc. – Oracle Solaris Solaris 11 Express, Solaris 10 Características y front-ends
8

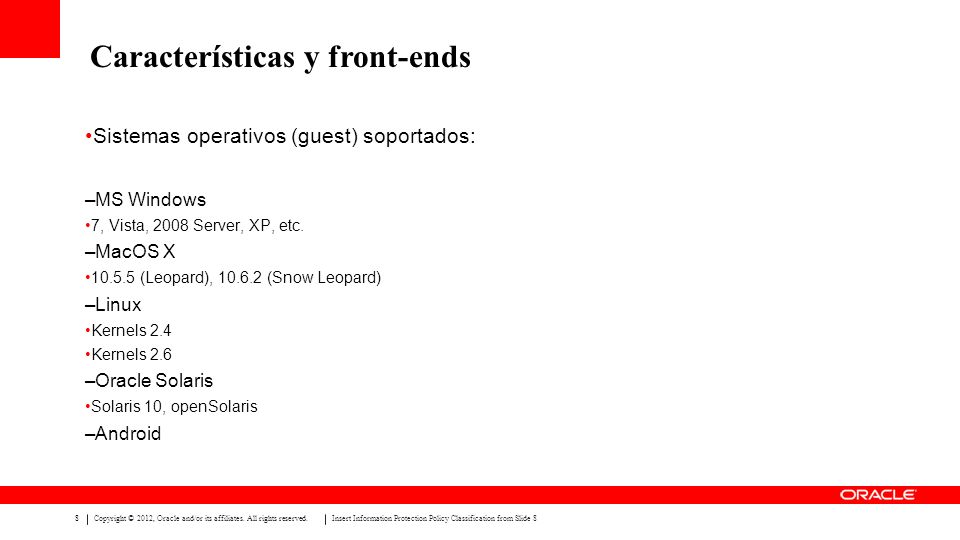

8 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Sistemas operativos (guest) soportados: – MS Windows 7, Vista, 2008 Server, XP, etc. – MacOS X 10.5.5 (Leopard), 10.6.2 (Snow Leopard) – Linux Kernels 2.4 Kernels 2.6 – Oracle Solaris Solaris 10, openSolaris – Android Características y front-ends
9
9 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 GUI: Características y front-ends
10

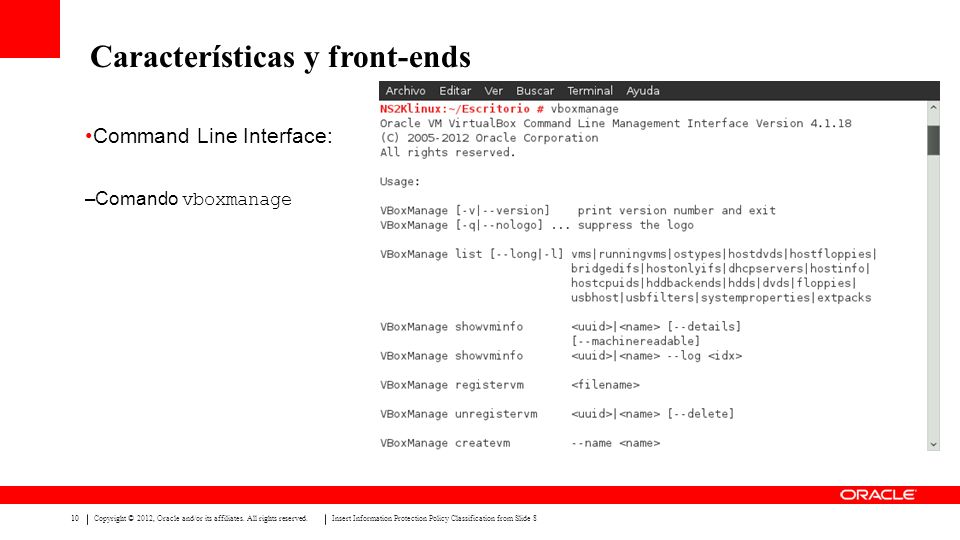

1010 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Command Line Interface: – Comando vboxmanage Características y front-ends
11

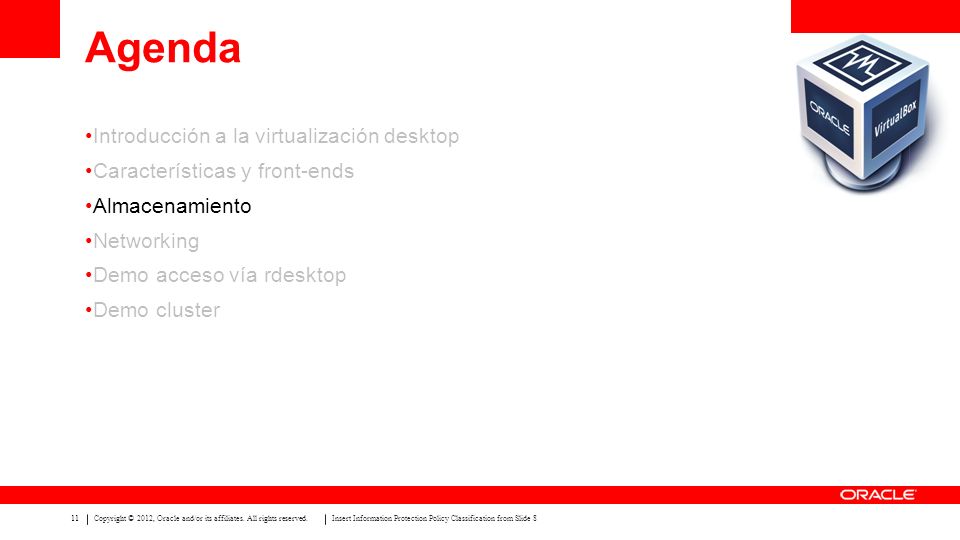

1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
12
1212 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Controladoras – IDE (ATA), discos y CD-DVD – SATA – SCSI Ficheros de imagen – vmWare (.VMDK) – VirtualBox (.VDI) – Microsoft (.VHD) – NDIF Floppy Disk images (.IMG) Almacenamiento
13
1313 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Modos de escritura: – Normal (por defecto) Discos virtuales conectados a una única máquina virtual. – Multiattach Distintas máquinas virtuales comparten un mismo disco virtual pero no para acceso concurrente. – Shareable Distintas máquinas virtuales comparten un mismo disco virtual para acceso concurrente. – Otros (Inmutable, escritura directa) Almacenamiento
14

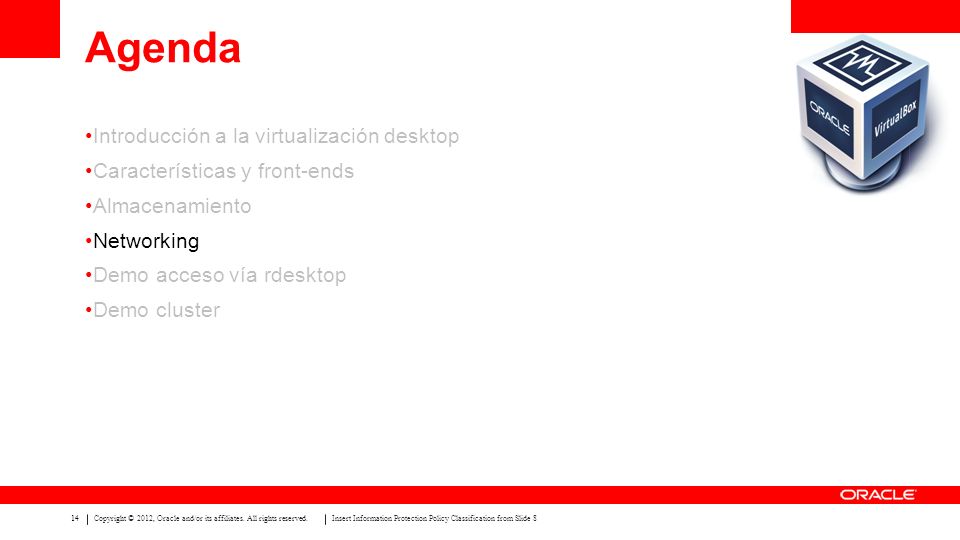

1414 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
15
1515 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Tarjetas de red virtuales – AMD PCnet – Intel Pro 1000 Soporte jumbo frames (más de 1500 bytes de payload) (no sobre AMD PCNet) Modos de networking – Bridged – NAT – Host only – Internal Networking
16

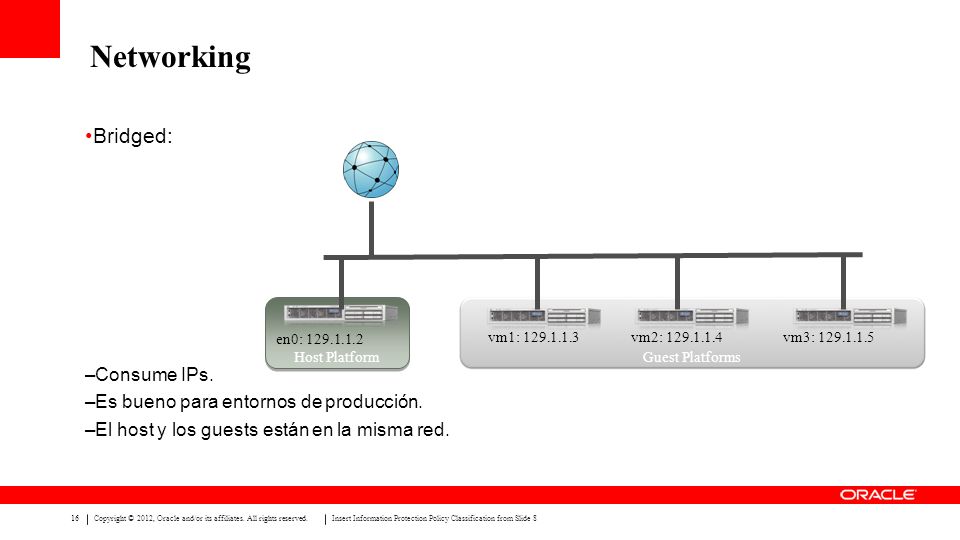

1616 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Bridged: – Consume IPs. – Es bueno para entornos de producción. – El host y los guests están en la misma red. Networking Guest Platforms vm2: 129.1.1.4vm3: 129.1.1.5vm1: 129.1.1.3 Host Platform en0: 129.1.1.2
17

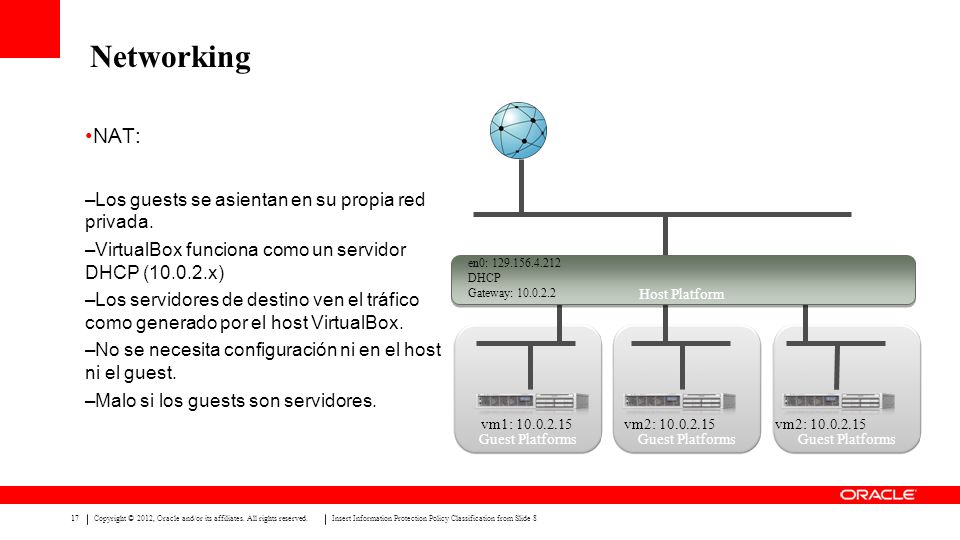

1717 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 NAT: – Los guests se asientan en su propia red privada. – VirtualBox funciona como un servidor DHCP (10.0.2.x) – Los servidores de destino ven el tráfico como generado por el host VirtualBox. – No se necesita configuración ni en el host ni el guest. – Malo si los guests son servidores. Networking Guest Platforms vm1: 10.0.2.15vm2: 10.0.2.15 Host Platform en0: 129.156.4.212 DHCP Gateway: 10.0.2.2
18
1818 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Host only: – Es un híbrido entre Bridged e Internal. – Se crea una red privada para host y guests. – VirtualBox proporciona un servidor DHCP (192.168.56.x). – Los guests funcionan incluso con el host desconectado. Networking Guest Platforms vm1: 192.168.56.101 Host Platform en0: 129.156.4.212 vboxnet0 vm2: 192.168.56.102vm3: 192.168.56.103 vboxnet0: 192.168.56.1
19

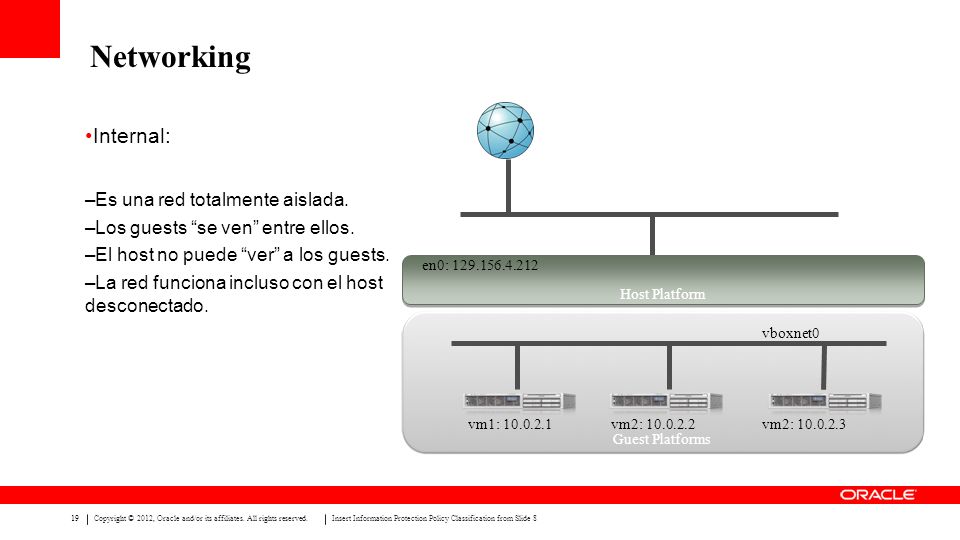

1919 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Internal: – Es una red totalmente aislada. – Los guests “se ven” entre ellos. – El host no puede “ver” a los guests. – La red funciona incluso con el host desconectado. Networking Guest Platforms vm1: 10.0.2.1vm2: 10.0.2.2vm2: 10.0.2.3 Host Platform en0: 129.156.4.212 vboxnet0
20

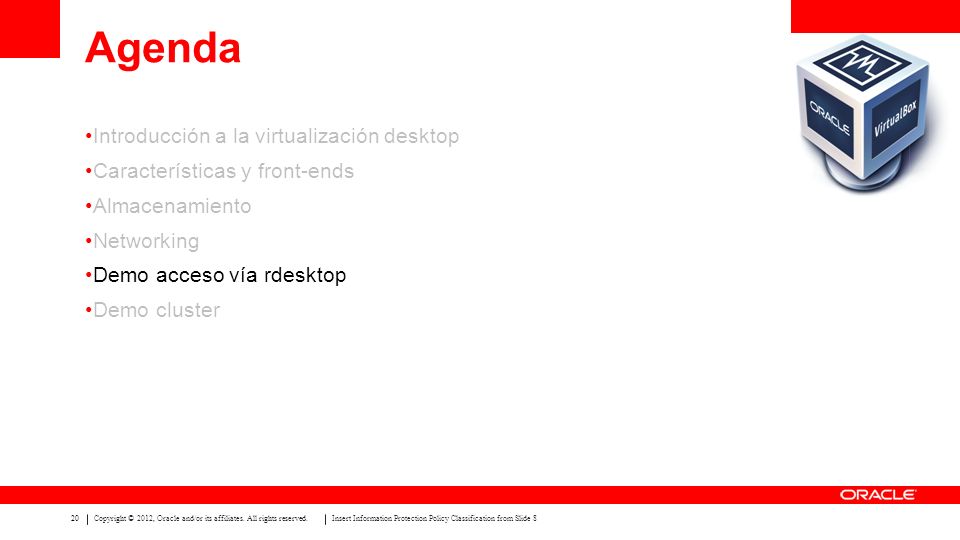

2020 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
21
2121 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Demo acceso vía rdesktop
22

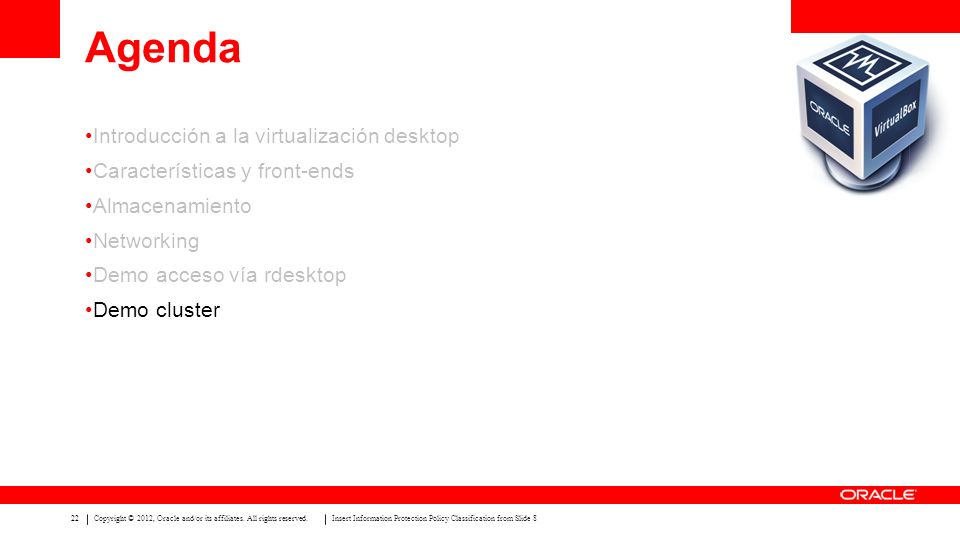

2 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Agenda Introducción a la virtualización desktop Características y front-ends Almacenamiento Networking Demo acceso vía rdesktop Demo cluster
23

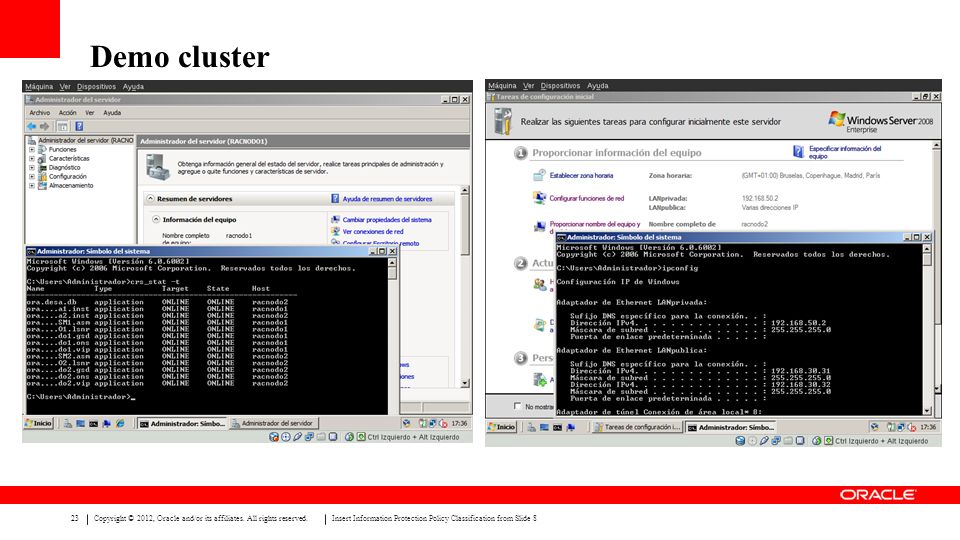

2323 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8 Demo cluster
24
2424 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8
25
2525 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8
26
2626 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.Insert Information Protection Policy Classification from Slide 8
