1

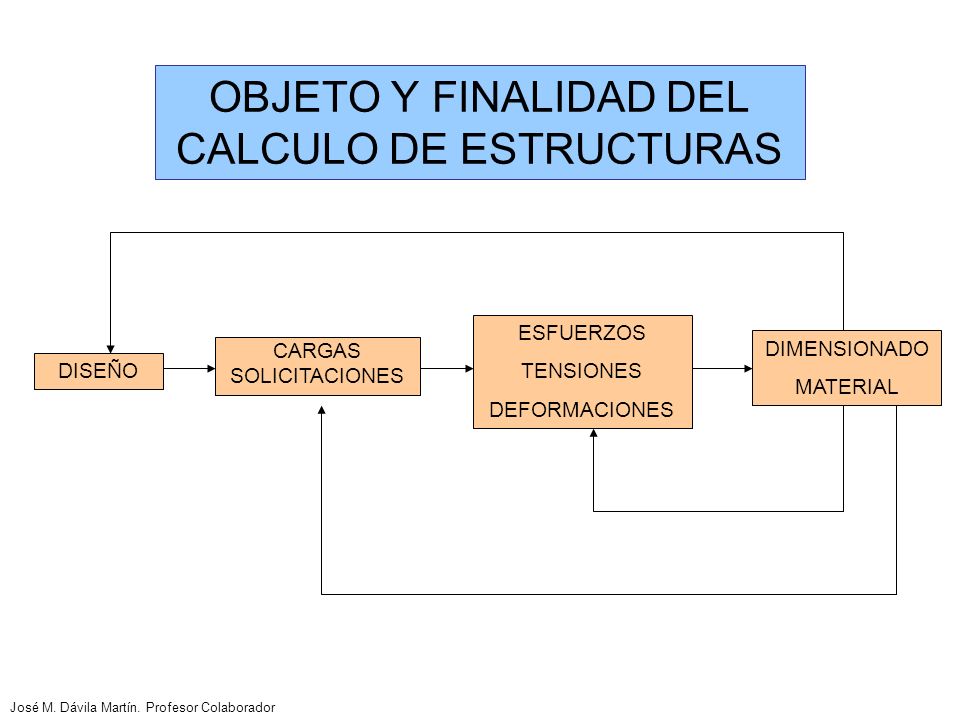

OBJETO Y FINALIDAD DEL CALCULO DE ESTRUCTURAS
ESFUERZOS TENSIONES DEFORMACIONES DIMENSIONADO MATERIAL CARGAS SOLICITACIONES DISEÑO José M. Dávila Martín. Profesor Colaborador
2

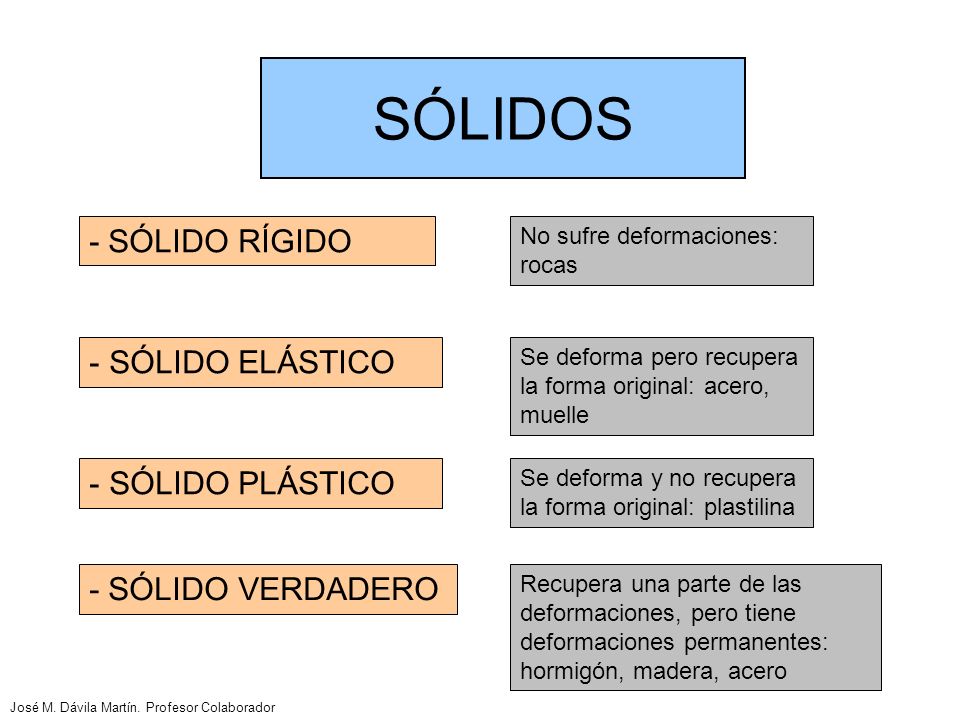

SÓLIDOS - SÓLIDO RÍGIDO SÓLIDO ELÁSTICO SÓLIDO PLÁSTICO
No sufre deformaciones: rocas SÓLIDO ELÁSTICO Se deforma pero recupera la forma original: acero, muelle SÓLIDO PLÁSTICO Se deforma y no recupera la forma original: plastilina - SÓLIDO VERDADERO Recupera una parte de las deformaciones, pero tiene deformaciones permanentes: hormigón, madera, acero José M. Dávila Martín. Profesor Colaborador
3

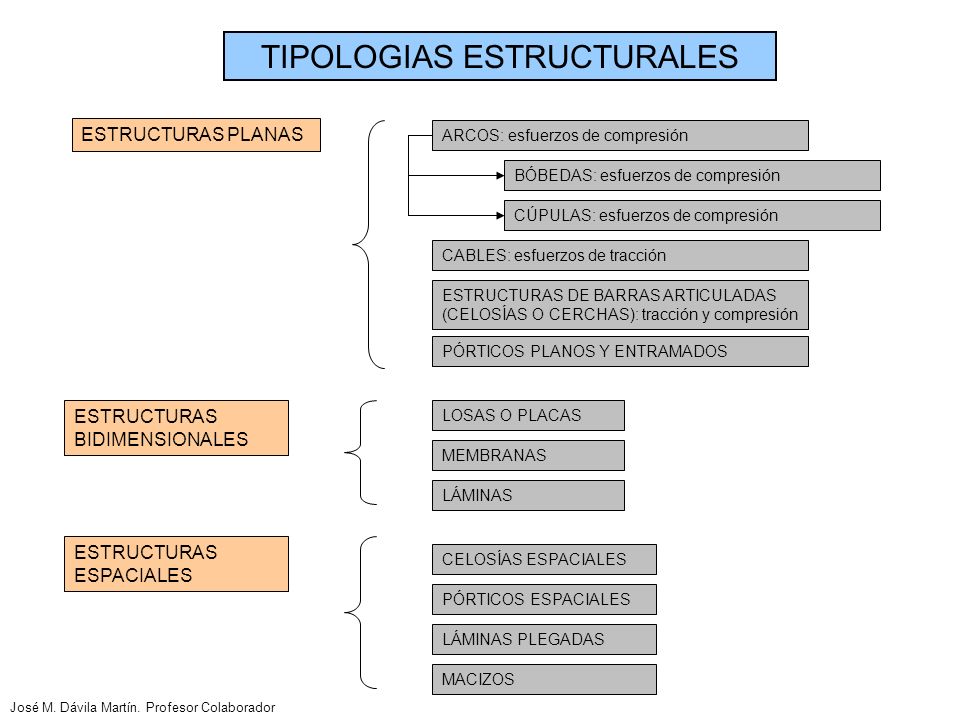

TIPOLOGIAS ESTRUCTURALES
ESTRUCTURAS PLANAS ARCOS: esfuerzos de compresión BÓBEDAS: esfuerzos de compresión CÚPULAS: esfuerzos de compresión CABLES: esfuerzos de tracción ESTRUCTURAS DE BARRAS ARTICULADAS (CELOSÍAS O CERCHAS): tracción y compresión PÓRTICOS PLANOS Y ENTRAMADOS ESTRUCTURAS BIDIMENSIONALES LOSAS O PLACAS MEMBRANAS LÁMINAS ESTRUCTURAS ESPACIALES CELOSÍAS ESPACIALES PÓRTICOS ESPACIALES LÁMINAS PLEGADAS MACIZOS José M. Dávila Martín. Profesor Colaborador
